Correlation

Introduction Two meanings of correlation –Research design –Statistical Relationship –Scatterplots

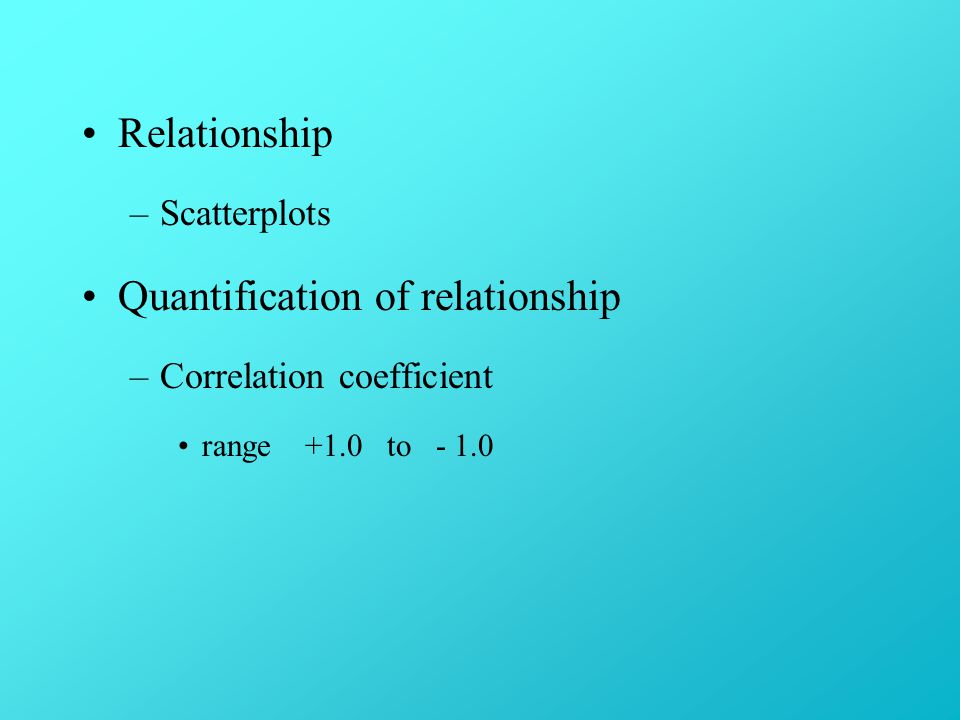

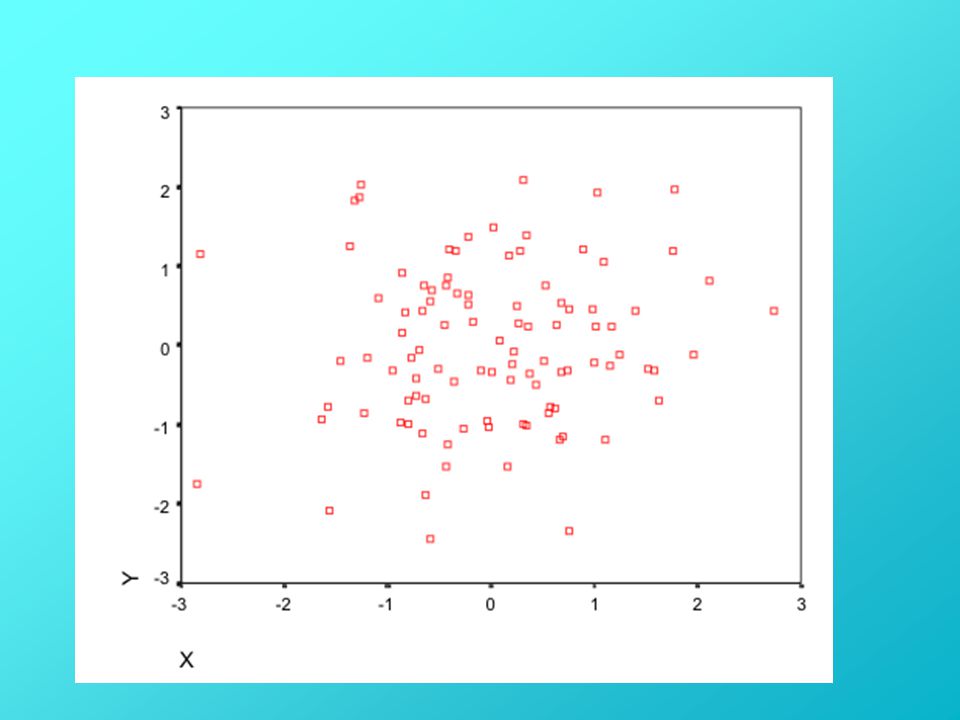

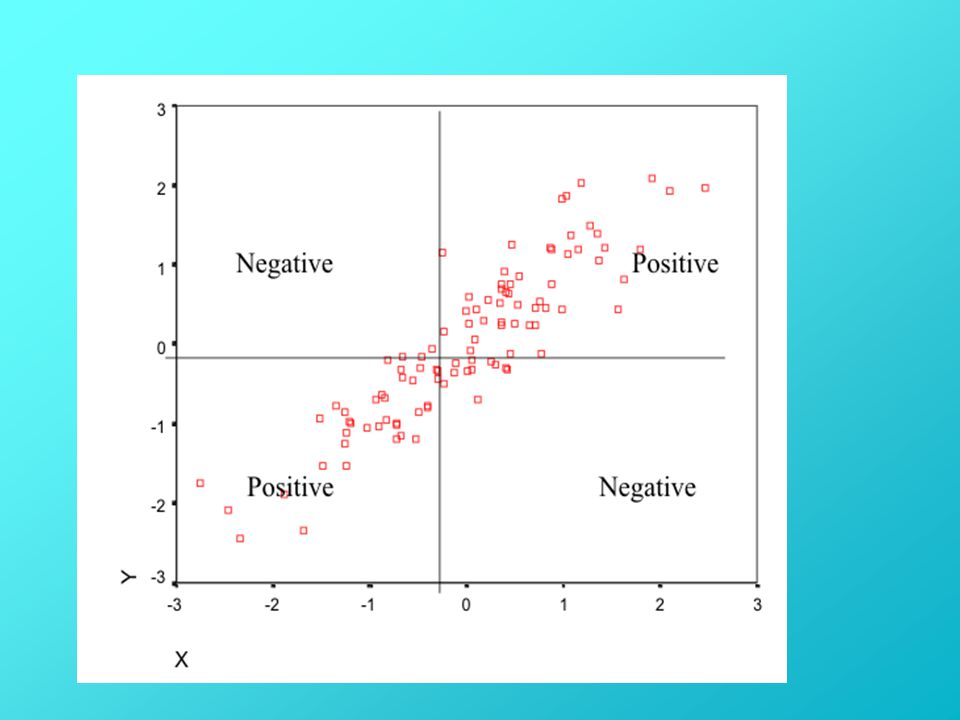

Relationship –Scatterplots Quantification of relationship –Correlation coefficient range +1.0 to - 1.0

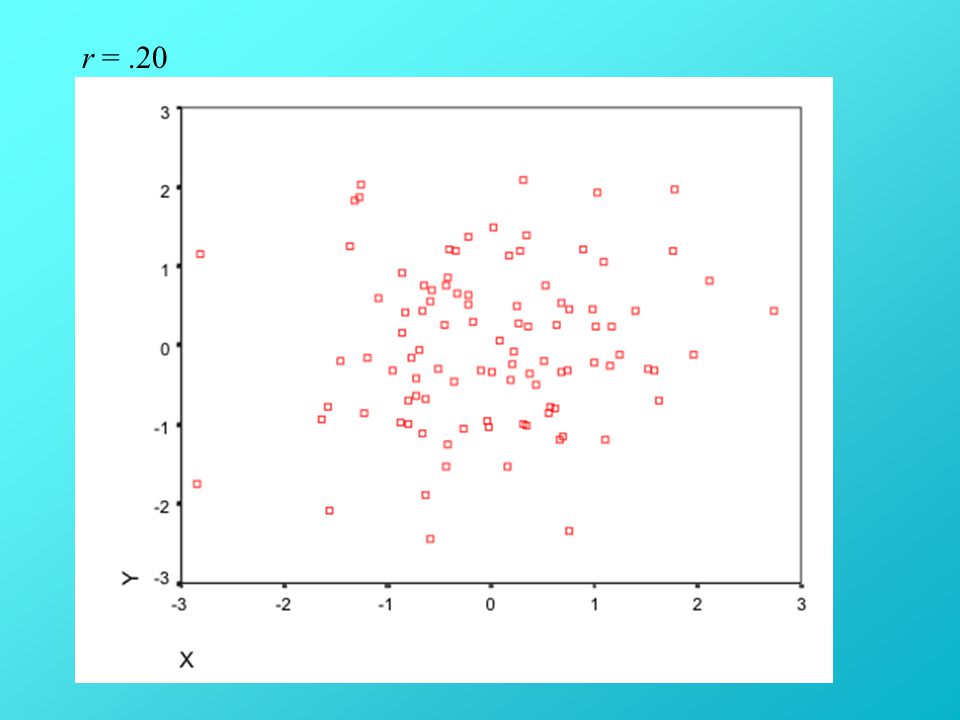

r =.20

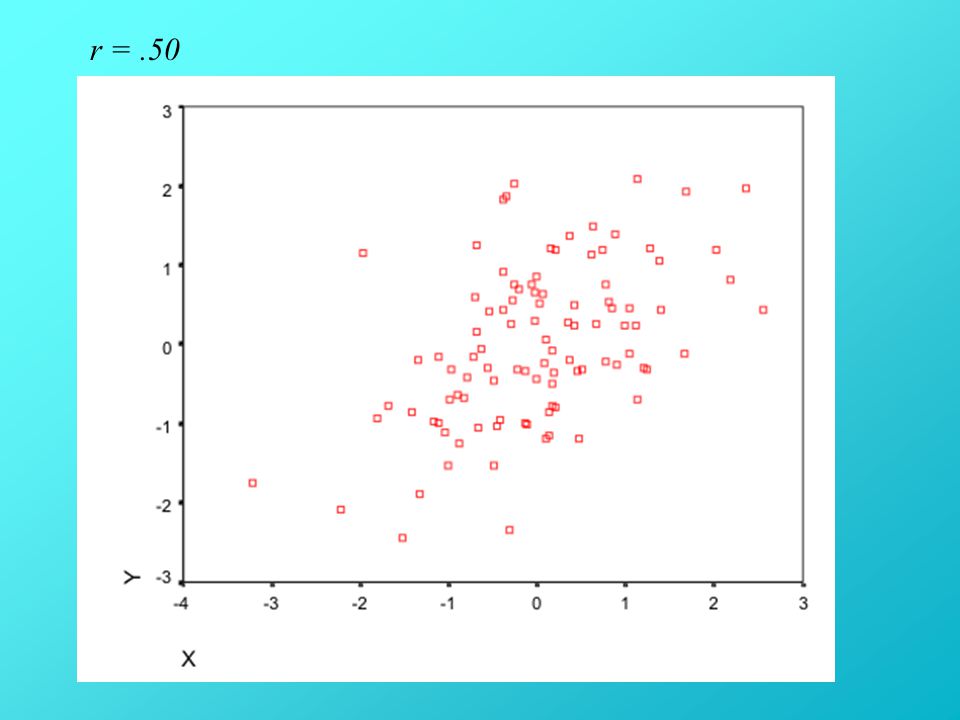

r =.50

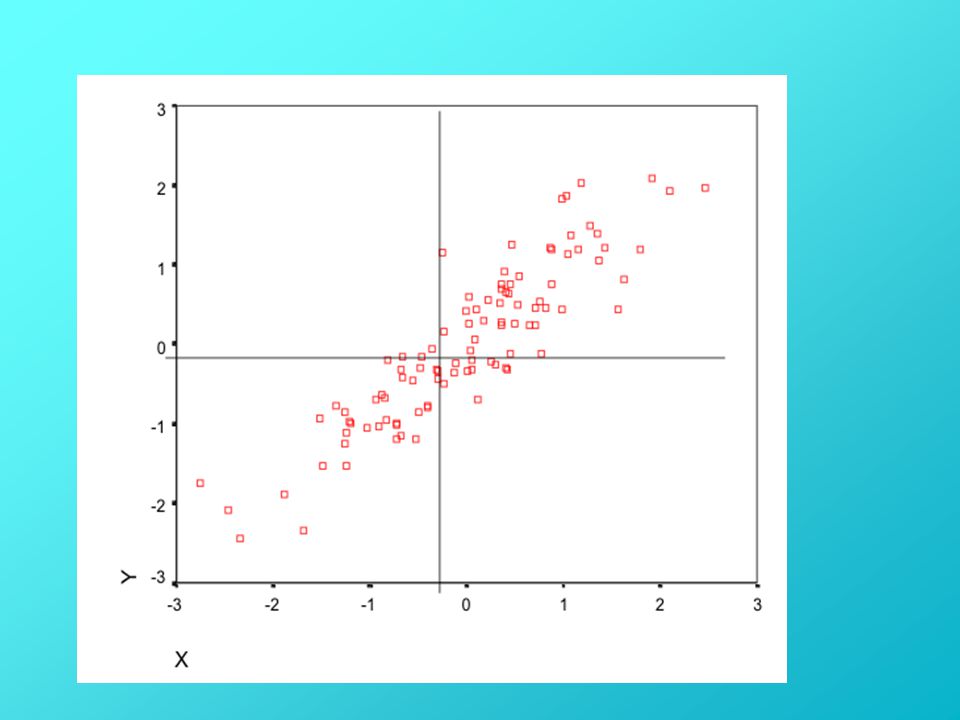

r =.80

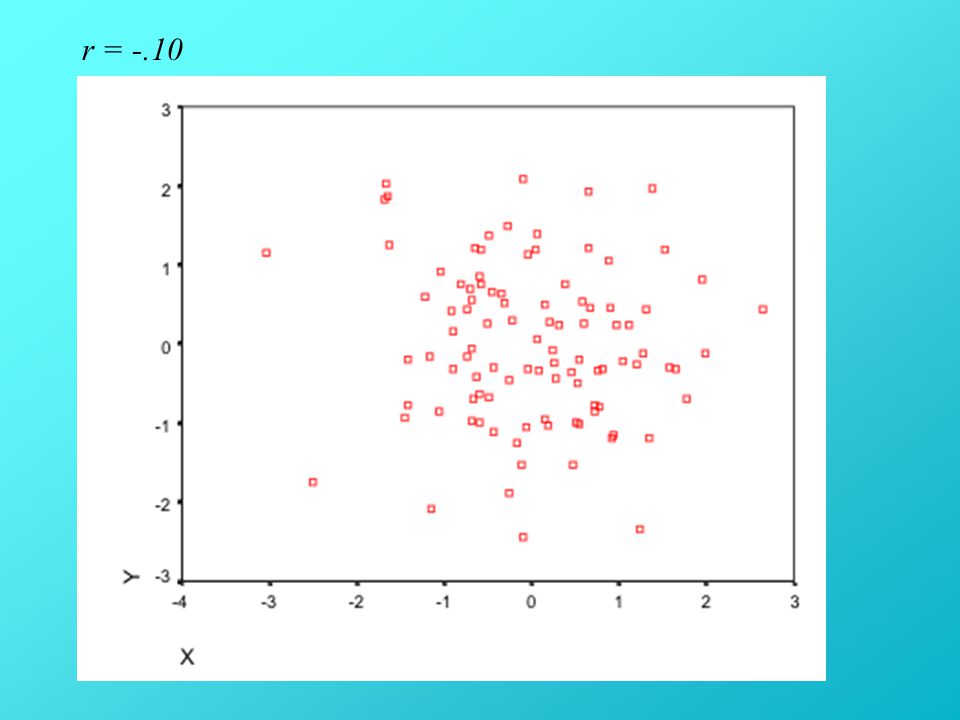

r = -.10

r = -.60

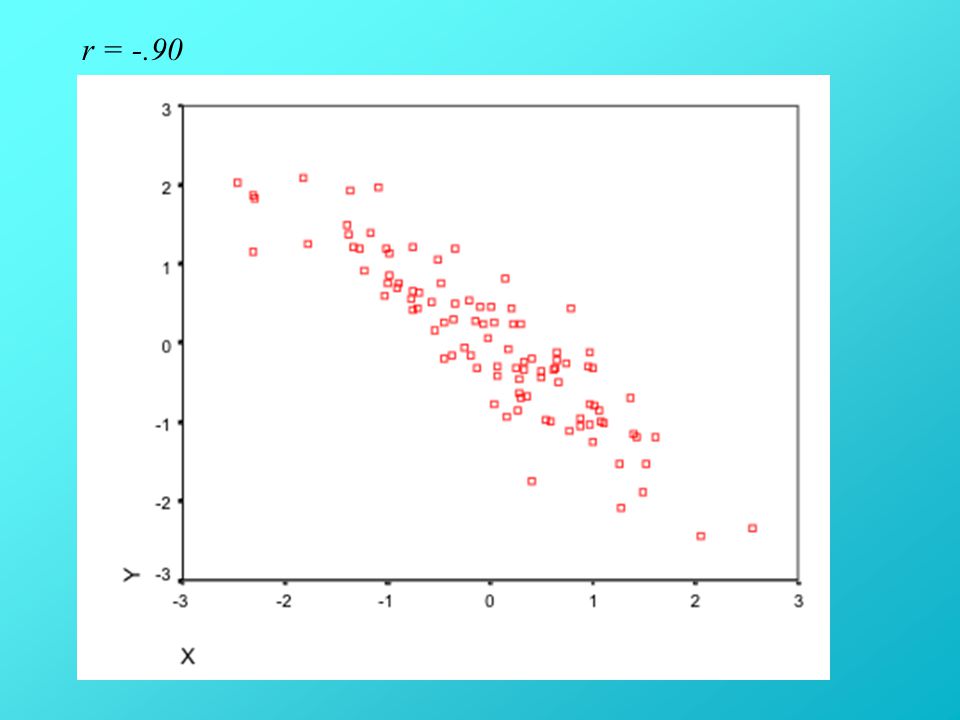

r = -.90

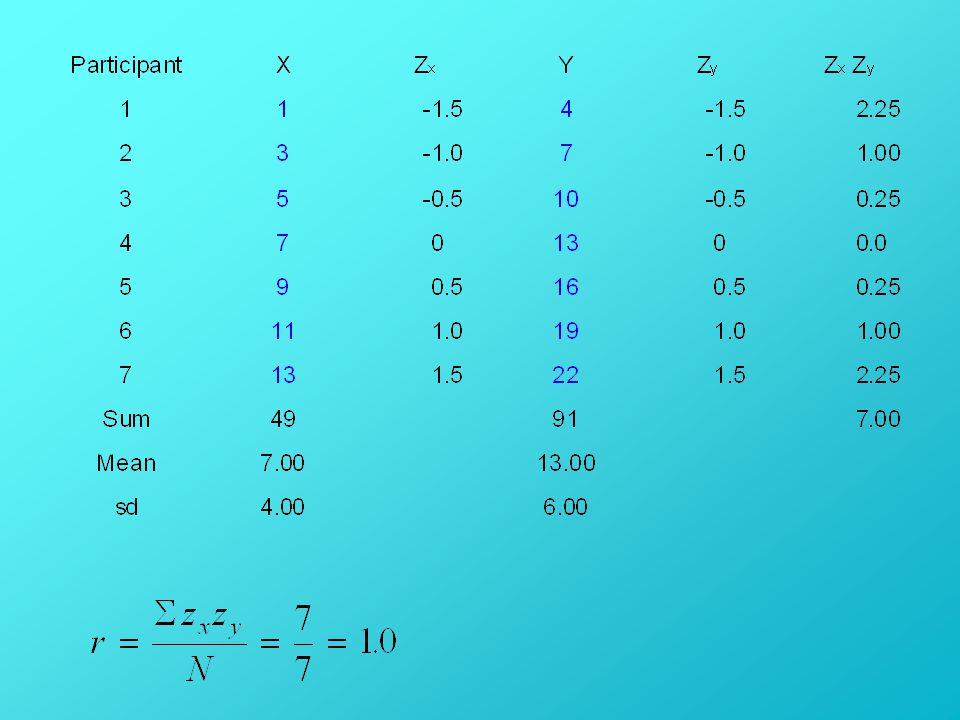

Pearson Product Moment Correlation

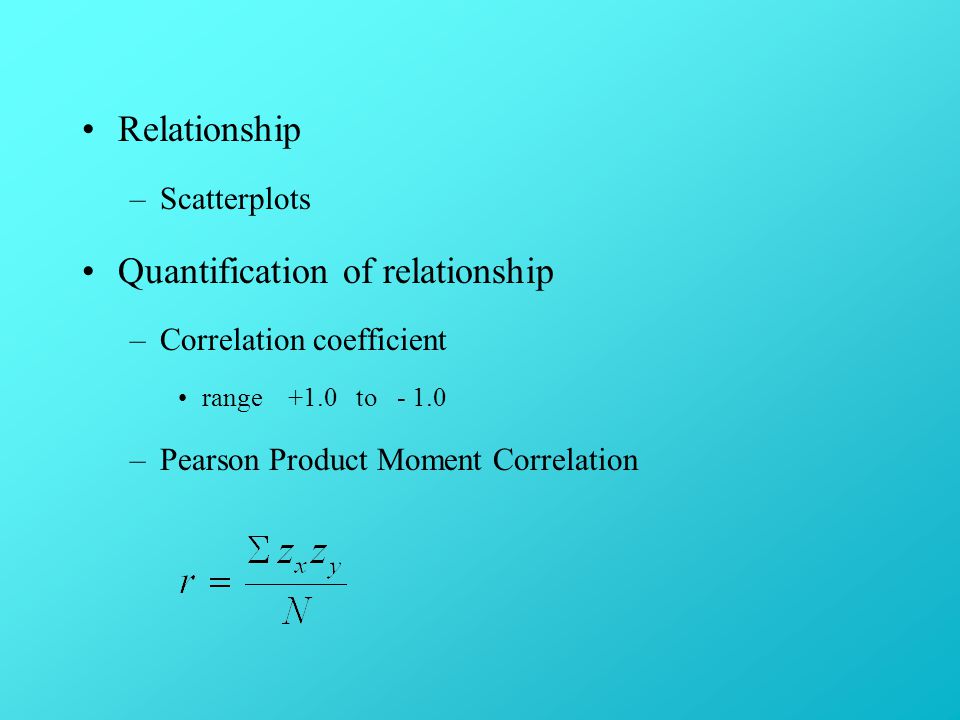

Relationship –Scatterplots Quantification of relationship –Correlation coefficient range +1.0 to - 1.0 –Pearson Product Moment Correlation

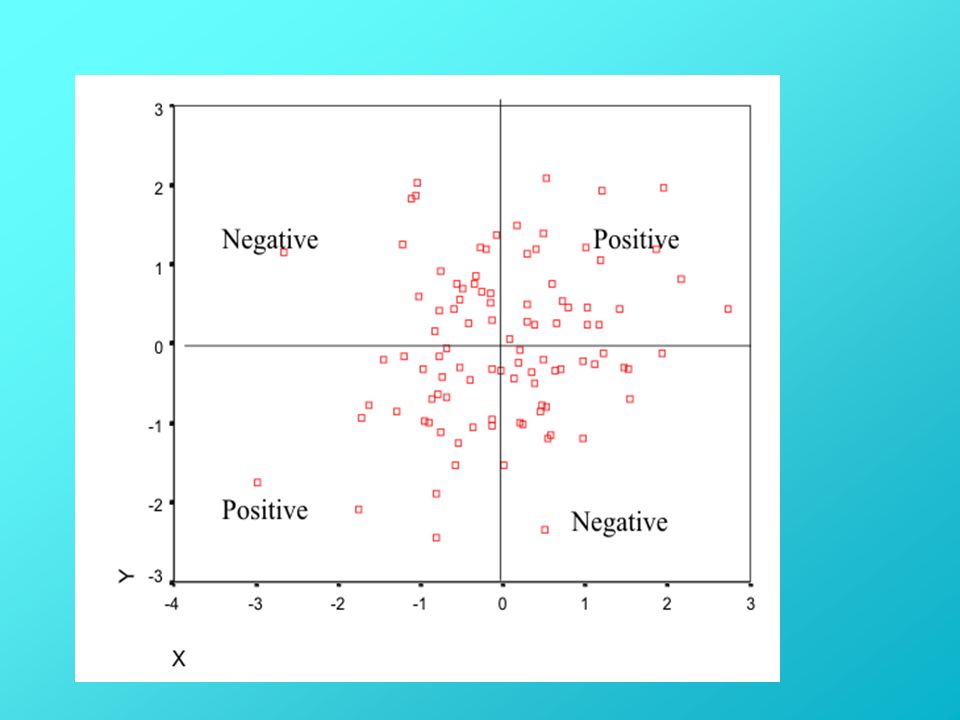

Covariance

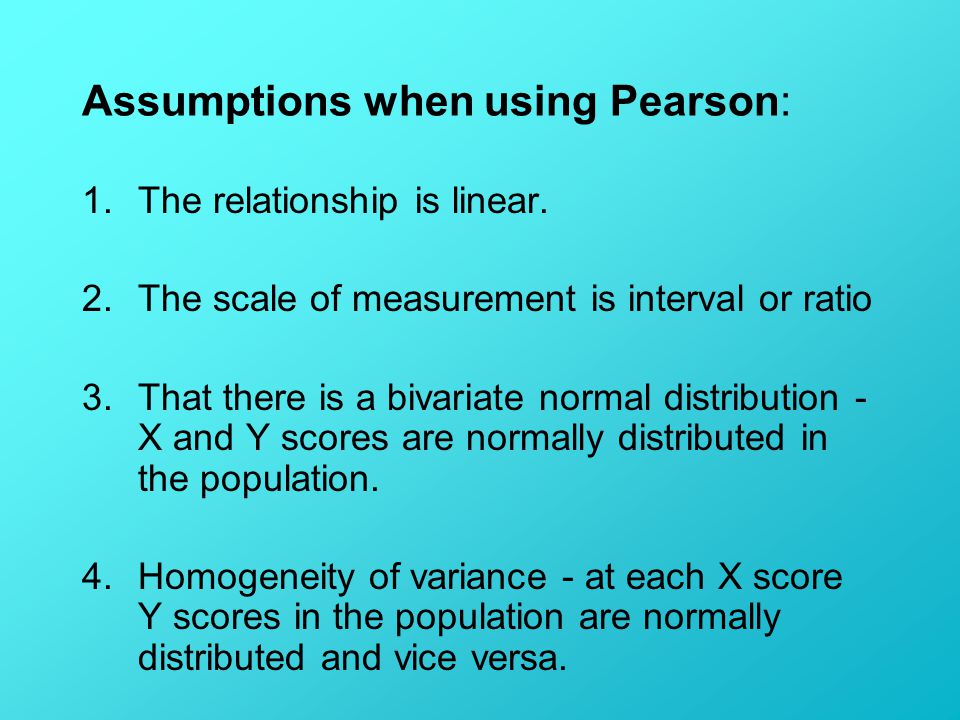

Assumptions when using Pearson: 1.The relationship is linear. 2.The scale of measurement is interval or ratio 3.That there is a bivariate normal distribution - X and Y scores are normally distributed in the population. 4.Homogeneity of variance - at each X score Y scores in the population are normally distributed and vice versa.

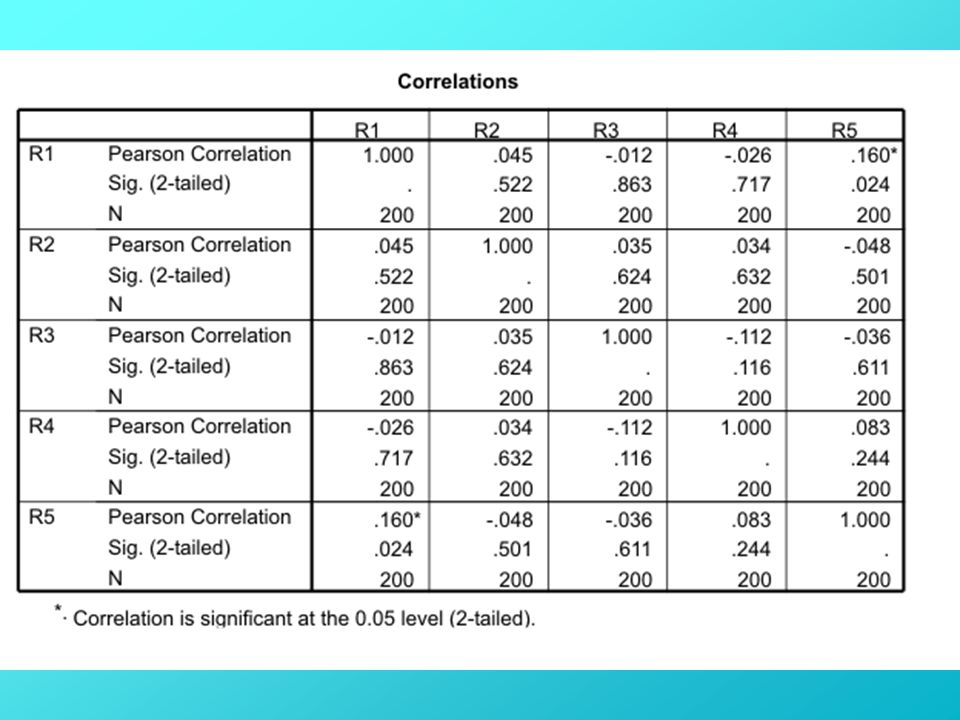

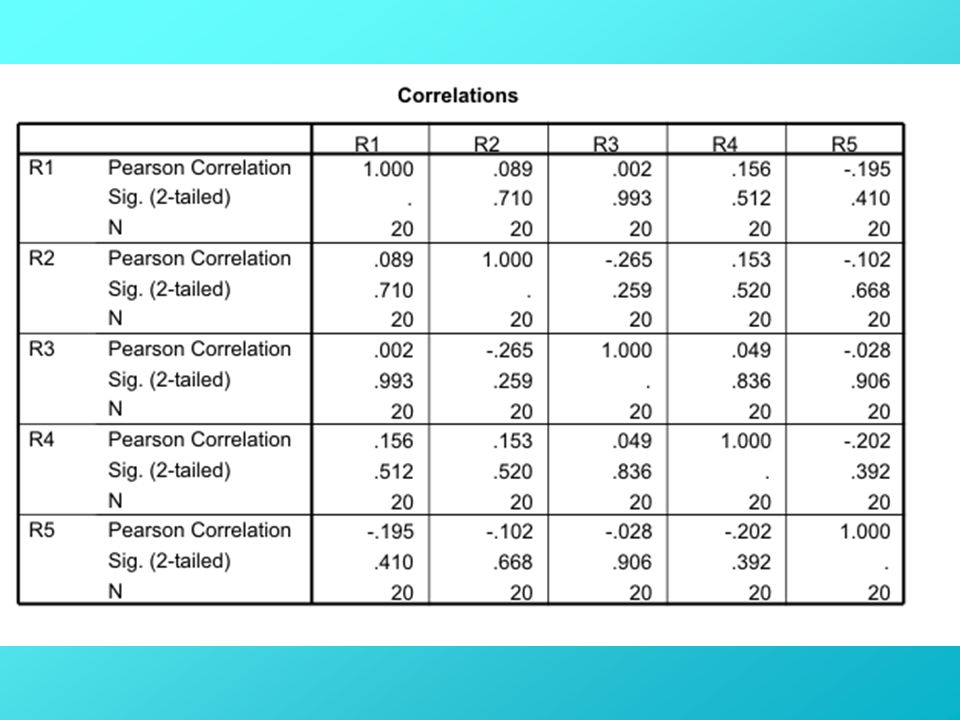

Significance of correlations

Interpreting correlations r2r2 –proportional reduction in error

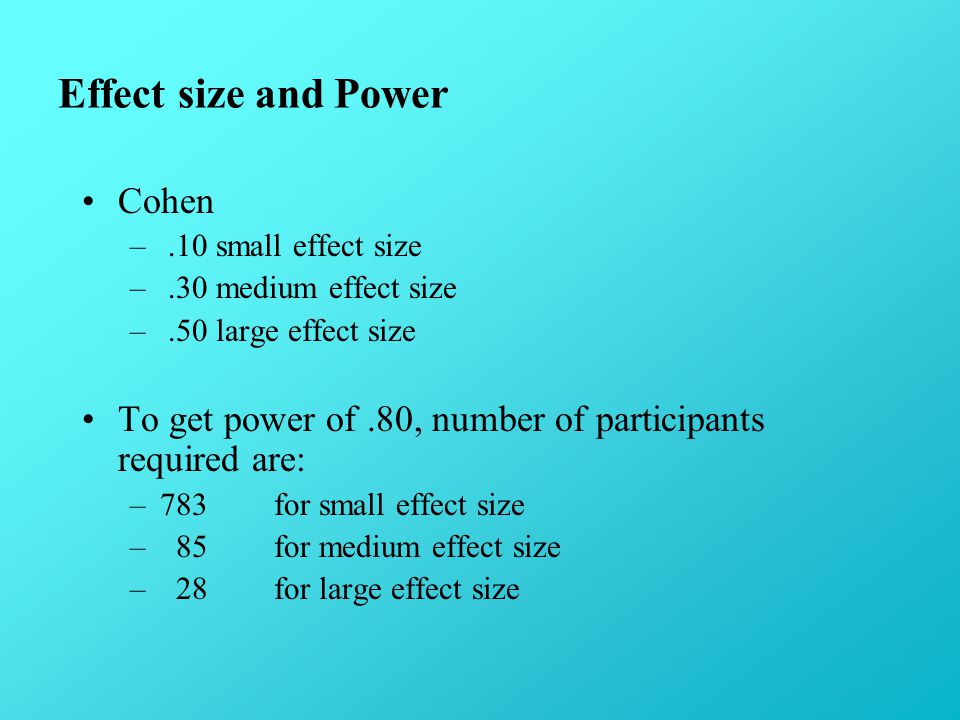

Effect size and Power Cohen –.10 small effect size –.30 medium effect size –.50 large effect size To get power of.80, number of participants required are: –783 for small effect size – 85 for medium effect size – 28for large effect size

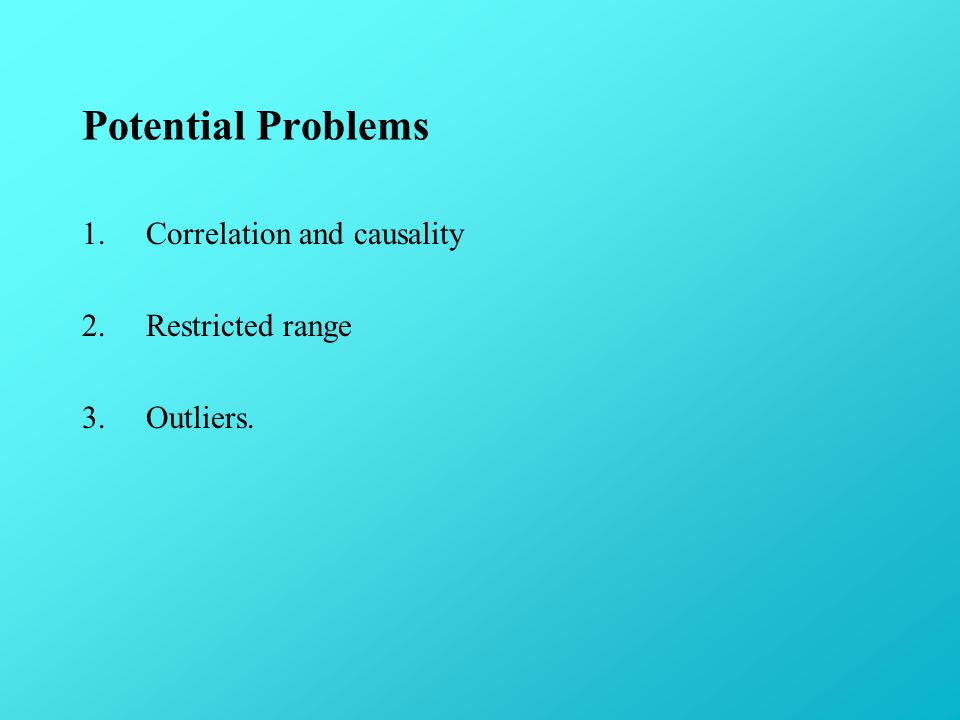

Potential Problems 1.Correlation and causality 2.Restricted range 3.Outliers.

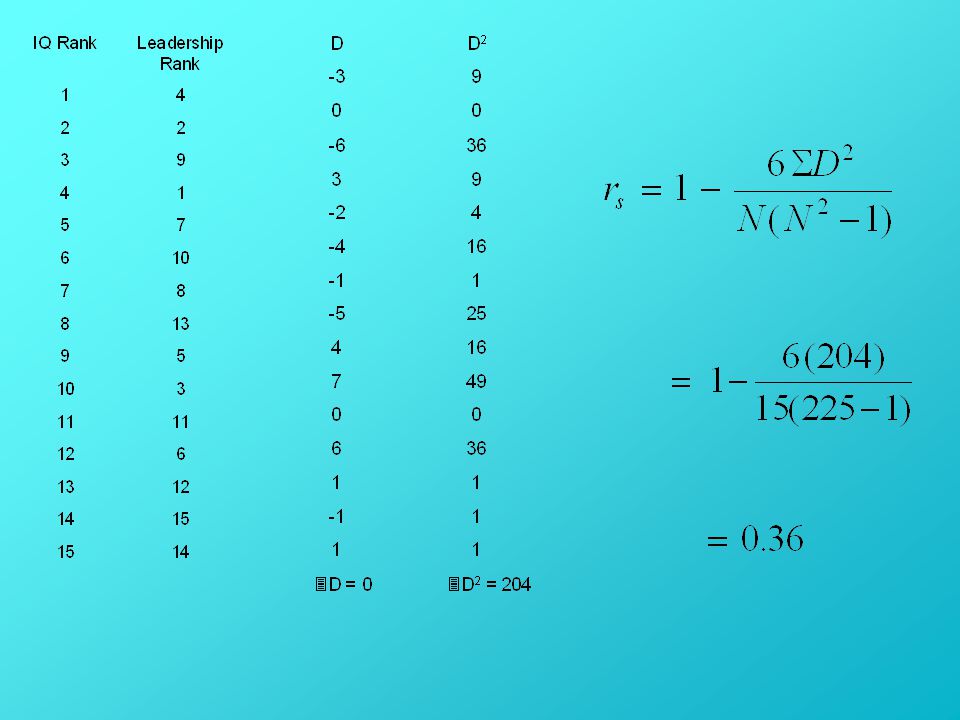

Alternative Correlational Techniques Point - biserial coefficient r pb The Phi coefficient - φ Spearman Rank Order Correlation
