1 Metamorphic Rocks

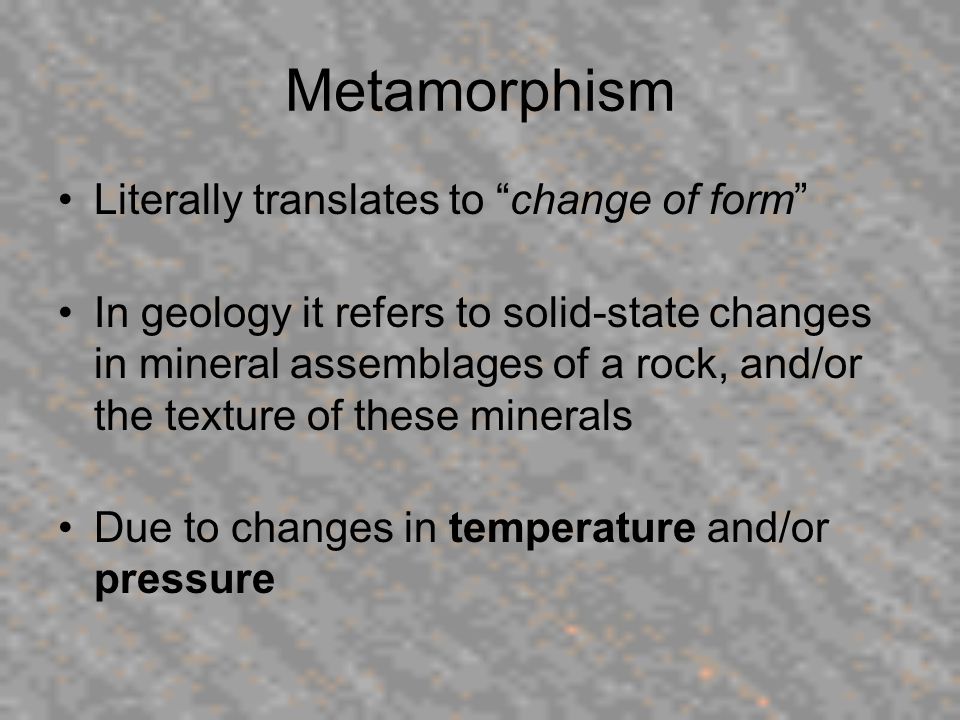

2 Metamorphism Literally translates to “change of form” In geology it refers to solid-state changes in mineral assemblages of a rock, and/or the texture of these minerals Due to changes in temperature and/or pressure

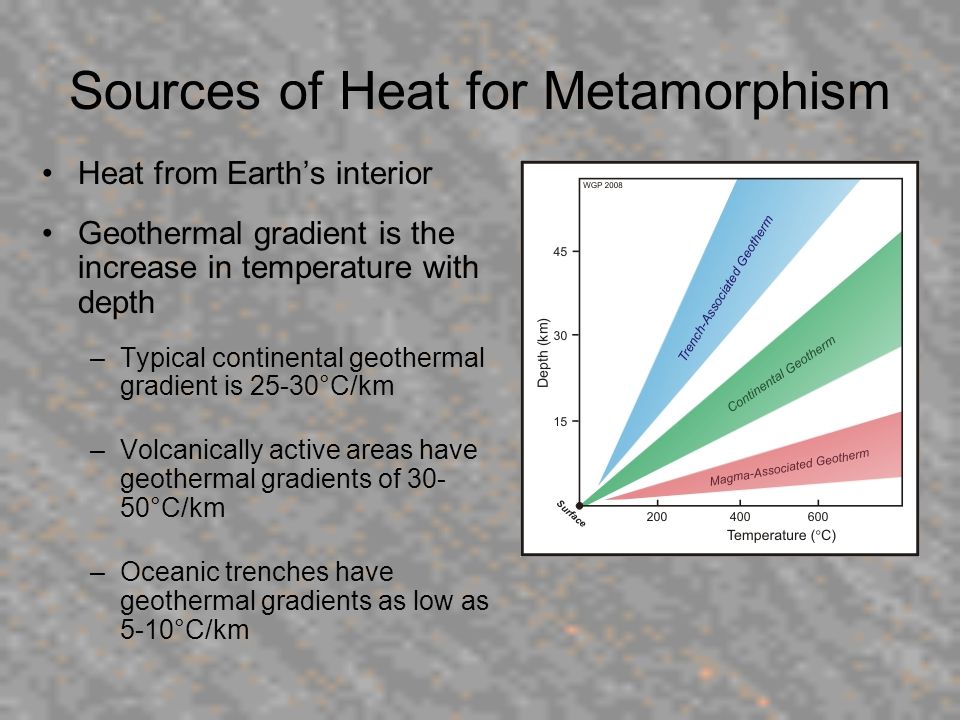

3 Sources of Heat for Metamorphism Heat from Earth’s interior Geothermal gradient is the increase in temperature with depth –Typical continental geothermal gradient is 25-30°C/km –Volcanically active areas have geothermal gradients of 30- 50°C/km –Oceanic trenches have geothermal gradients as low as 5-10°C/km

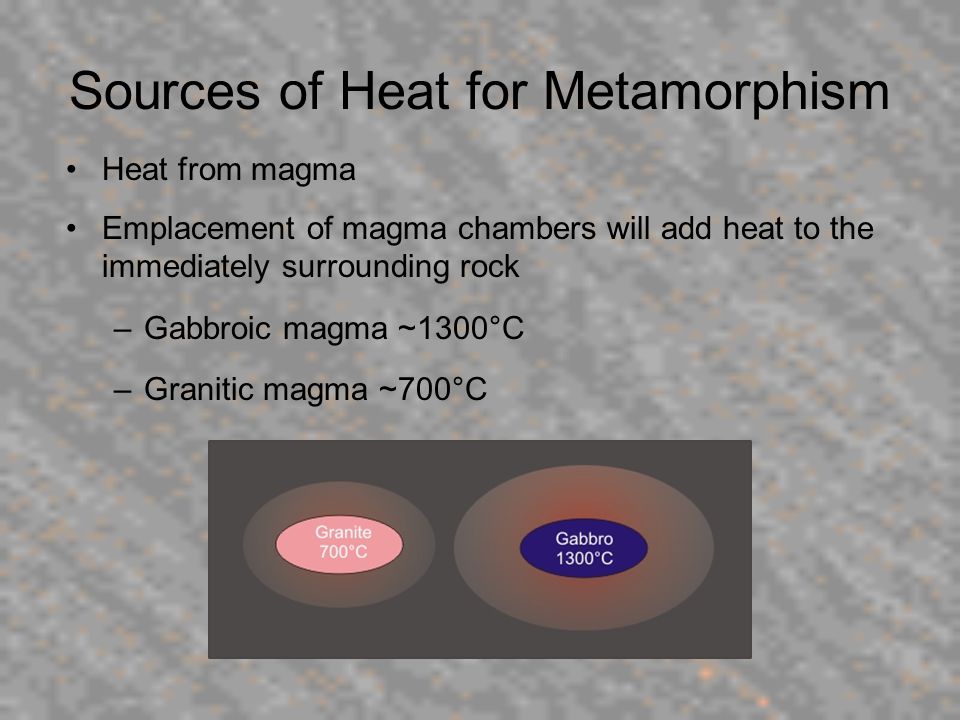

4 Sources of Heat for Metamorphism Heat from magma Emplacement of magma chambers will add heat to the immediately surrounding rock –Gabbroic magma ~1300°C –Granitic magma ~700°C

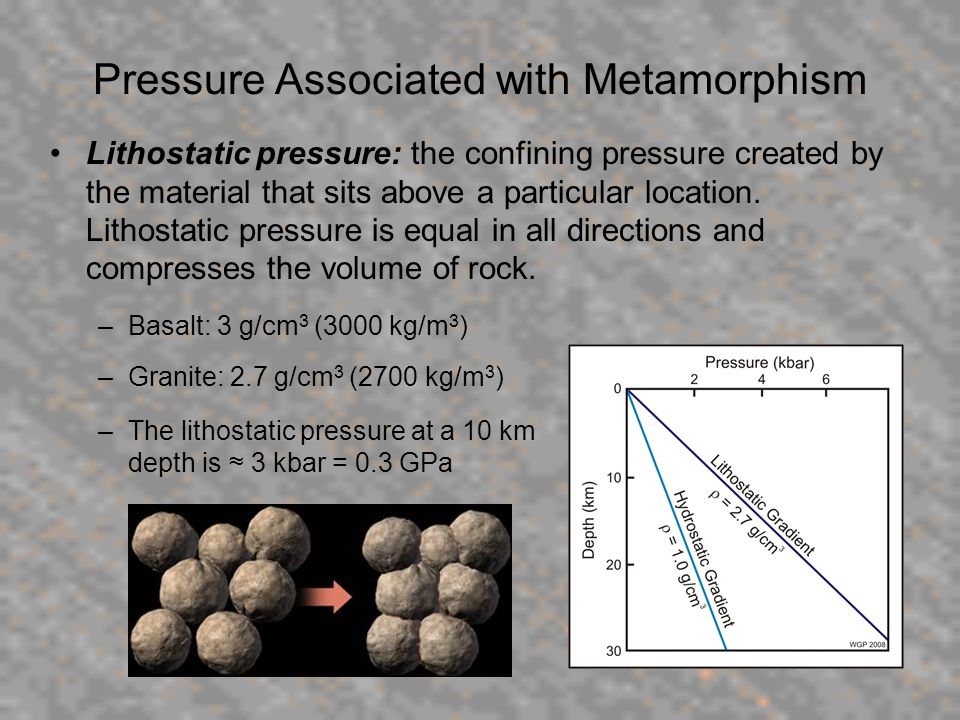

5 Pressure Associated with Metamorphism Lithostatic pressure: the confining pressure created by the material that sits above a particular location. Lithostatic pressure is equal in all directions and compresses the volume of rock. –Basalt: 3 g/cm 3 (3000 kg/m 3 ) –Granite: 2.7 g/cm 3 (2700 kg/m 3 ) –The lithostatic pressure at a 10 km depth is ≈ 3 kbar = 0.3 GPa

6 Pressure Associated with Metamorphism Directed pressure: pressure is imposed in a particular direction due to a regional stress field. Directed pressure affects the shape and arrangement of the minerals Directed pressure varies with tectonic environment –Compressional environments: Horz > Vert Pressure –Extensional environments: Vert > Horz Pressure

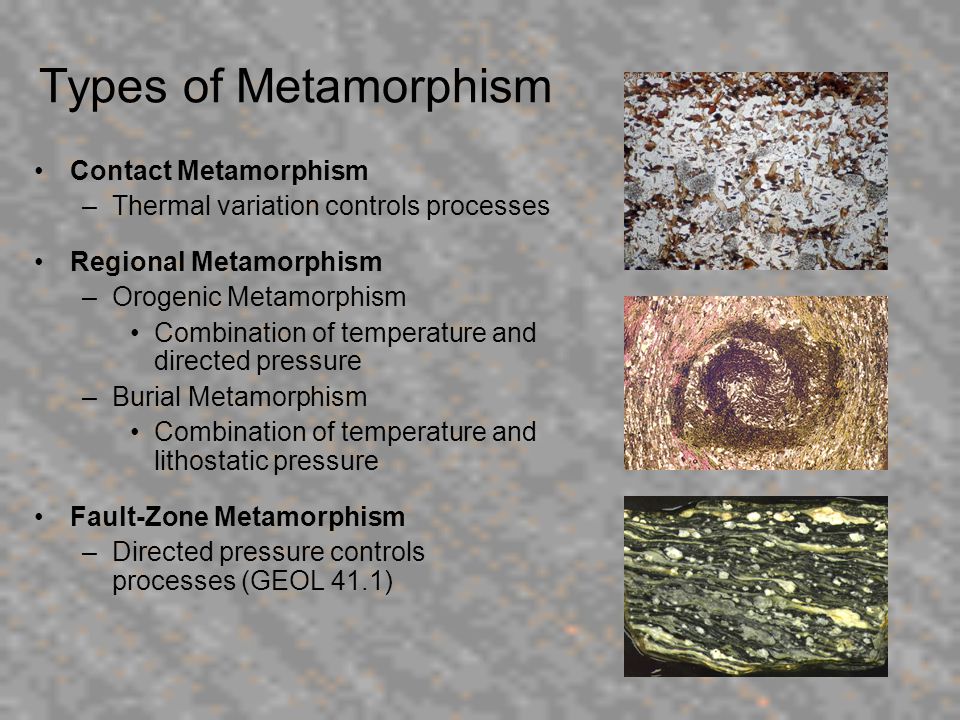

7 Types of Metamorphism Contact Metamorphism –Thermal variation controls processes Regional Metamorphism –Orogenic Metamorphism Combination of temperature and directed pressure –Burial Metamorphism Combination of temperature and lithostatic pressure Fault-Zone Metamorphism –Directed pressure controls processes (GEOL 41.1)

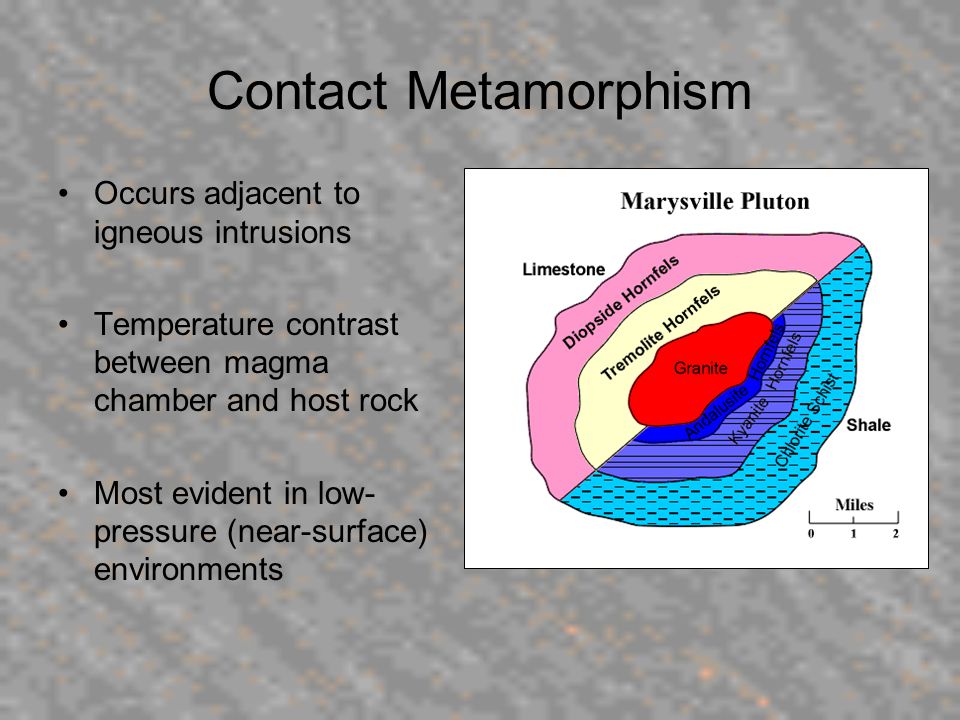

8 Contact Metamorphism Occurs adjacent to igneous intrusions Temperature contrast between magma chamber and host rock Most evident in low- pressure (near-surface) environments

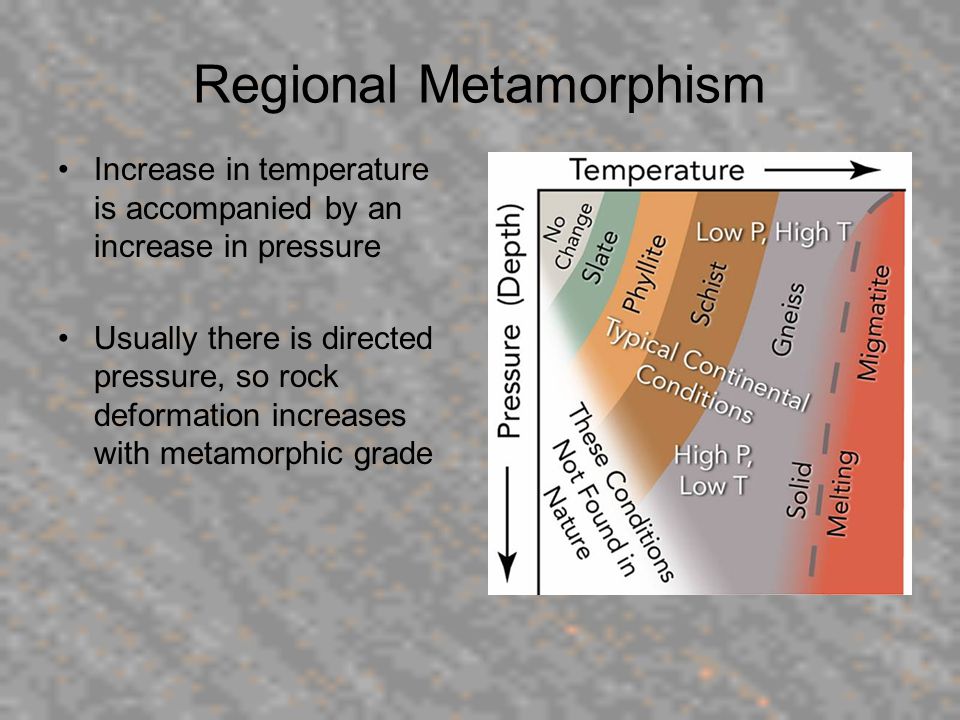

9 Regional Metamorphism Increase in temperature is accompanied by an increase in pressure Usually there is directed pressure, so rock deformation increases with metamorphic grade

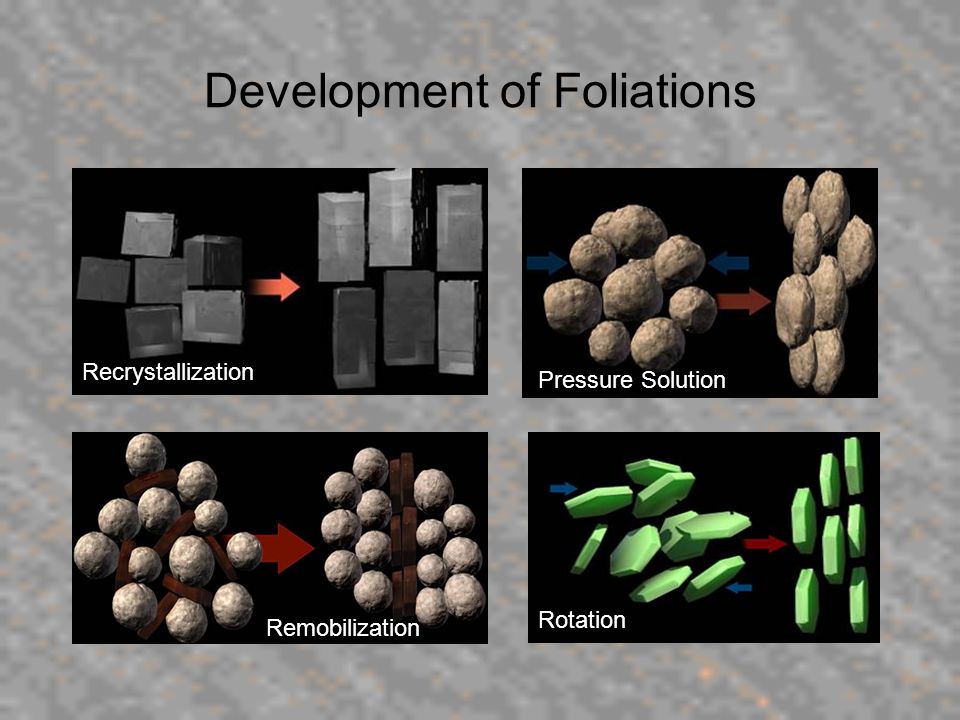

10 Development of Foliations Recrystallization Pressure Solution Remobilization Rotation

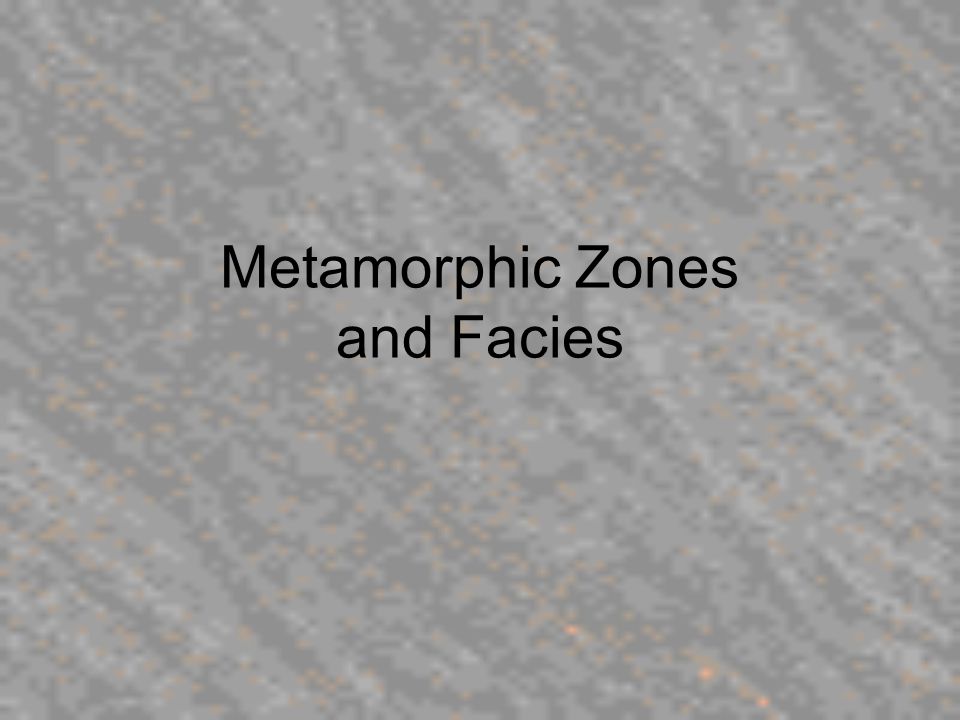

11 Metamorphic Zones and Facies

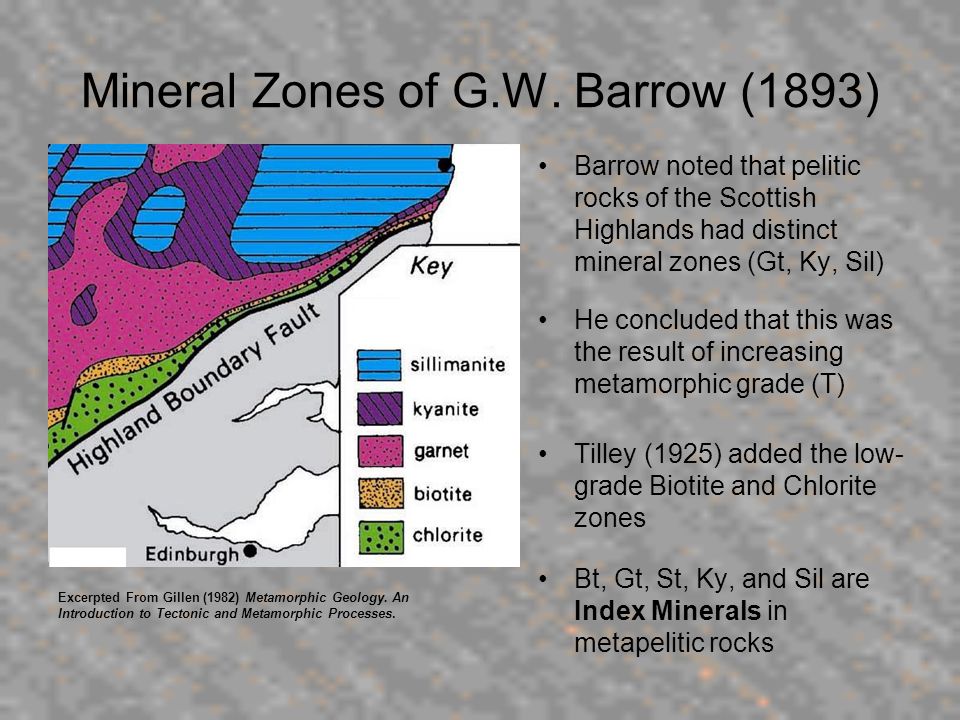

12 Excerpted From Gillen (1982) Metamorphic Geology. An Introduction to Tectonic and Metamorphic Processes. Mineral Zones of G.W. Barrow (1893) Barrow noted that pelitic rocks of the Scottish Highlands had distinct mineral zones (Gt, Ky, Sil) He concluded that this was the result of increasing metamorphic grade (T) Tilley (1925) added the low- grade Biotite and Chlorite zones Bt, Gt, St, Ky, and Sil are Index Minerals in metapelitic rocks

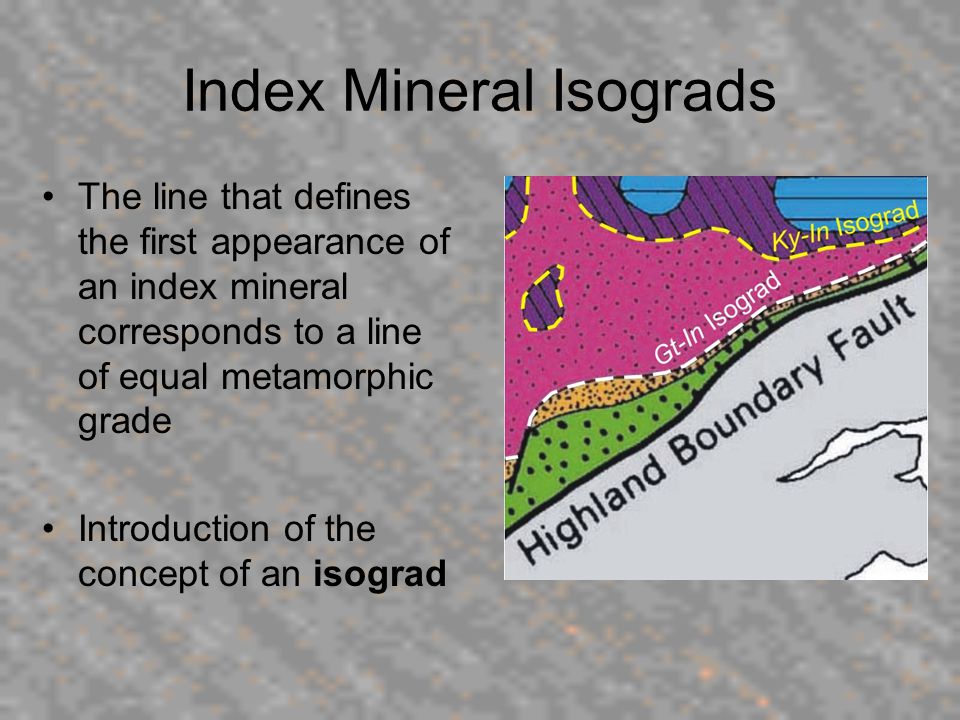

13 Index Mineral Isograds The line that defines the first appearance of an index mineral corresponds to a line of equal metamorphic grade Introduction of the concept of an isograd

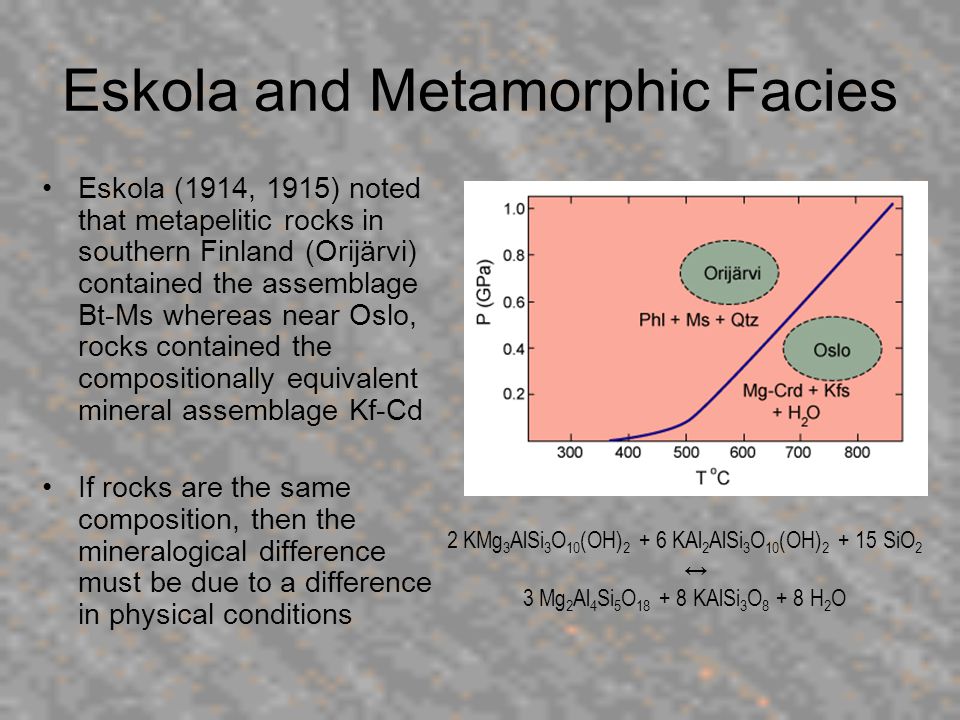

14 Eskola and Metamorphic Facies Eskola (1914, 1915) noted that metapelitic rocks in southern Finland (Orijärvi) contained the assemblage Bt-Ms whereas near Oslo, rocks contained the compositionally equivalent mineral assemblage Kf-Cd If rocks are the same composition, then the mineralogical difference must be due to a difference in physical conditions 2 KMg 3 AlSi 3 O 10 (OH) 2 + 6 KAl 2 AlSi 3 O 10 (OH) 2 + 15 SiO 2 ↔ 3 Mg 2 Al 4 Si 5 O 18 + 8 KAlSi 3 O 8 + 8 H 2 O

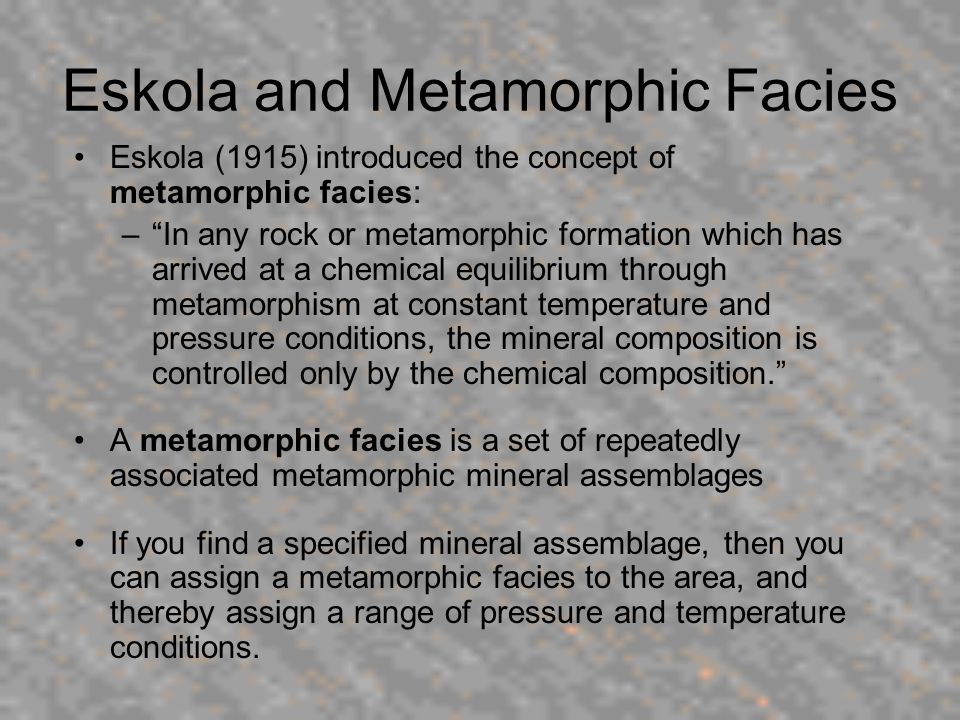

15 Eskola and Metamorphic Facies Eskola (1915) introduced the concept of metamorphic facies: –“In any rock or metamorphic formation which has arrived at a chemical equilibrium through metamorphism at constant temperature and pressure conditions, the mineral composition is controlled only by the chemical composition.” A metamorphic facies is a set of repeatedly associated metamorphic mineral assemblages If you find a specified mineral assemblage, then you can assign a metamorphic facies to the area, and thereby assign a range of pressure and temperature conditions.

16 Eskola and Metamorphic Facies In 1920, Eskola introduced five metamorphic facies that were defined by mineral assemblages in metabasites: –Greenschist –Amphibolite –Hornfels –Sanidinite –Eclogite In 1939, Eskola added an additional 3 metamorphic facies: –Granulite –Epidote-amphibolite –Glaucophane-schist (now called Blueschist) In 1959 and 1960, Coombs added two additional metamorphic facies: –Zeolite –Prehnite-Pumpellyite (now called Subgreenschist)

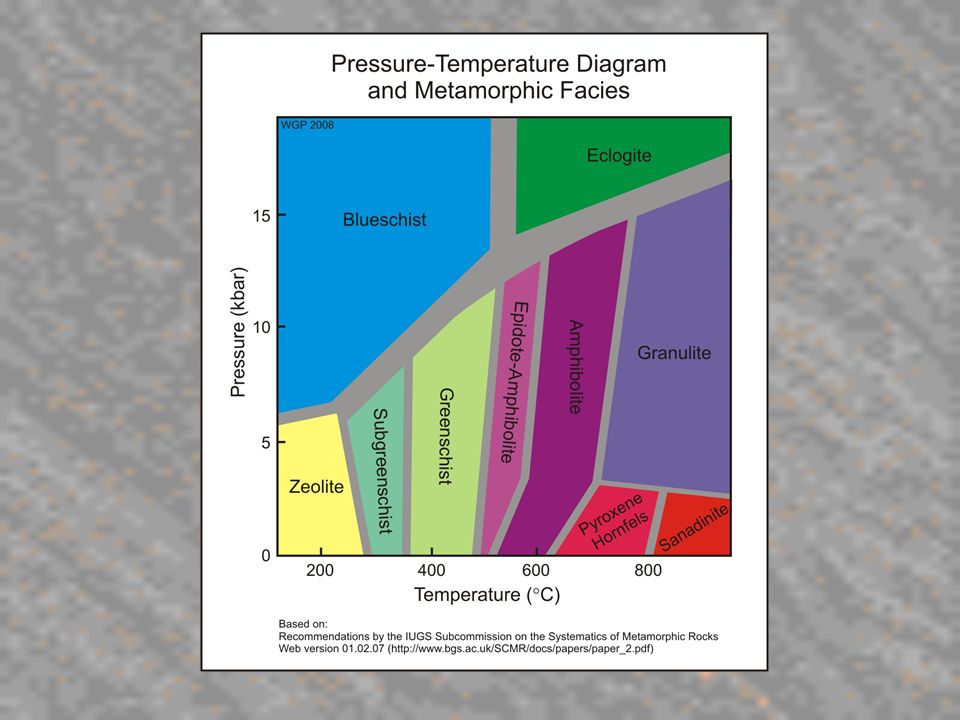

17

18 Progressive Metamorphism of Shales SlatePhyllite Schist Gneiss Increasing Temperature

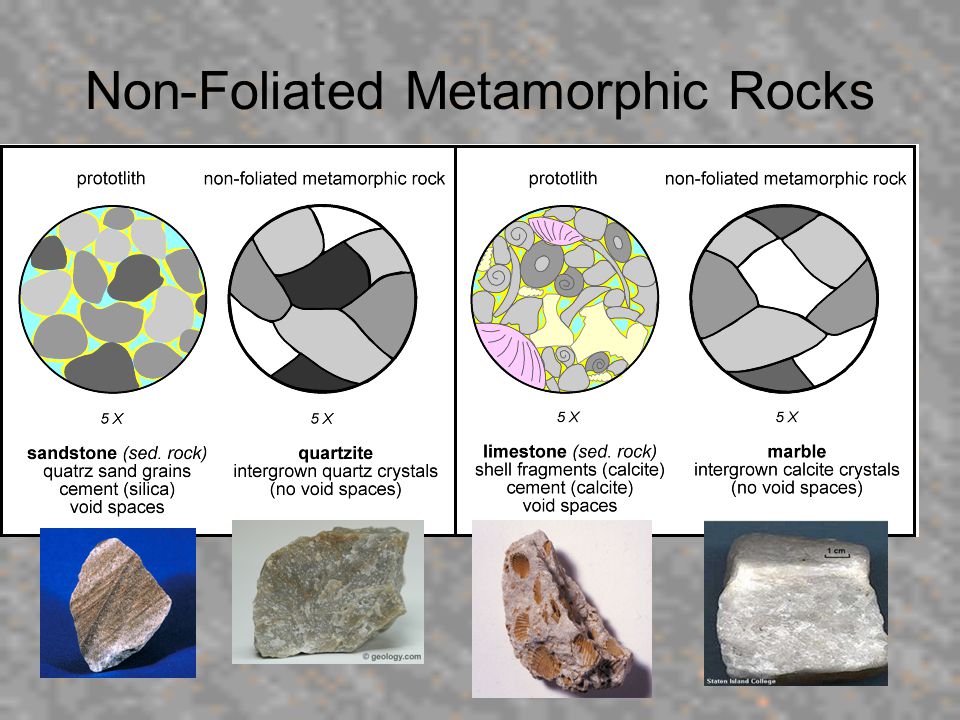

19 Non-Foliated Metamorphic Rocks
