1. Enterprise Business Processes and Reporting (IS 6214) MBS MIMAS `17 th Feb 2010 Fergal Carton Business Information Systems

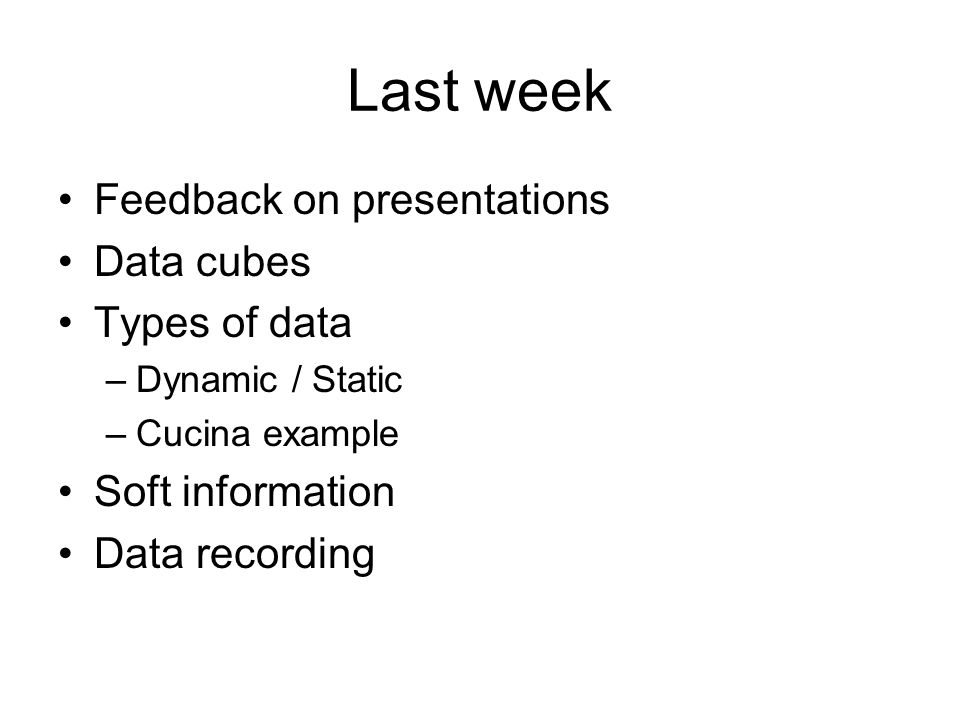

2. Last week Feedback on presentations Data cubes Types of data –Dynamic / Static –Cucina example Soft information Data recording

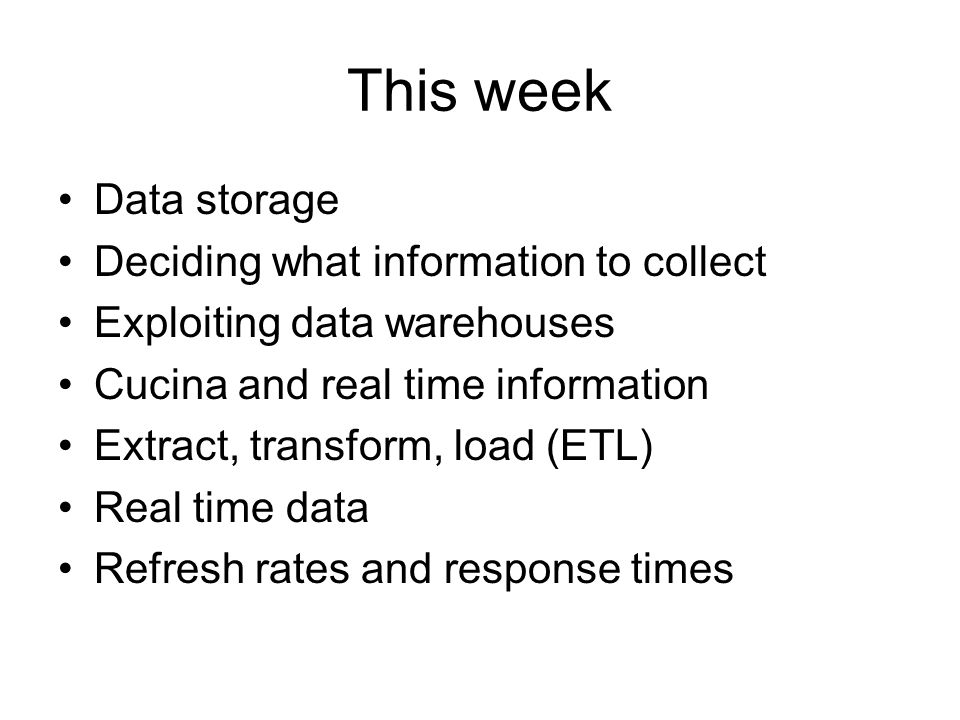

3. This week Data storage Deciding what information to collect Exploiting data warehouses Cucina and real time information Extract, transform, load (ETL) Real time data Refresh rates and response times

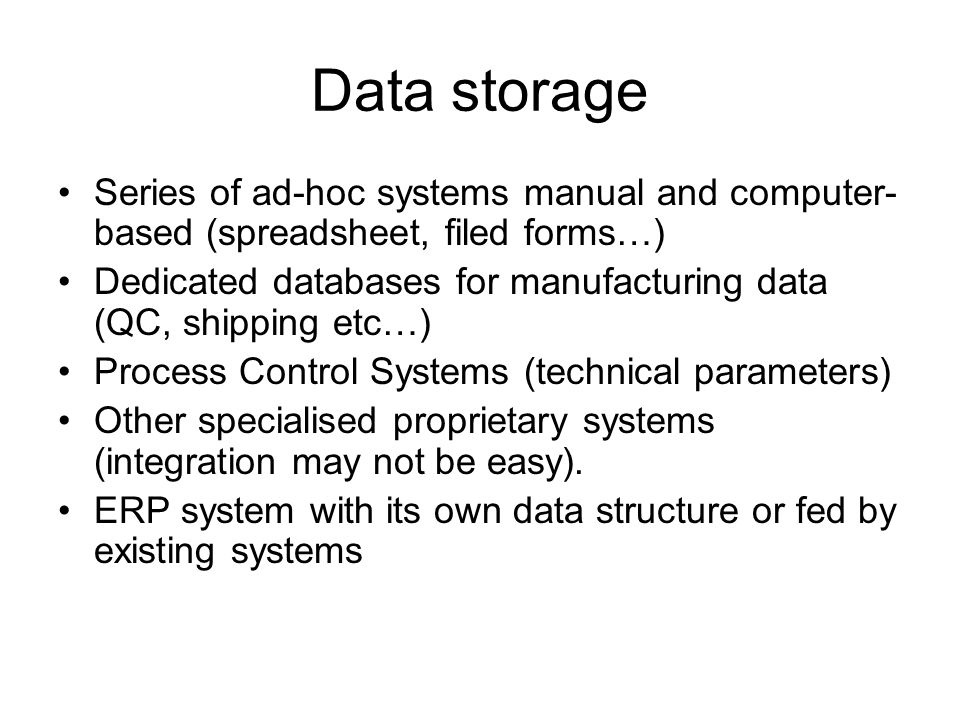

4. Data storage Series of ad-hoc systems manual and computer- based (spreadsheet, filed forms…) Dedicated databases for manufacturing data (QC, shipping etc…) Process Control Systems (technical parameters) Other specialised proprietary systems (integration may not be easy). ERP system with its own data structure or fed by existing systems

5. Deciding what information to collect Information cost + overload mean not all data are useful Some framework can be used – e.g. Critical Success Factors (CSF) Questions that must be answered: –How is it measured and broken down? –How often should it be measured? –Who should know about it? –Where can the data be found? –How should it be presented?

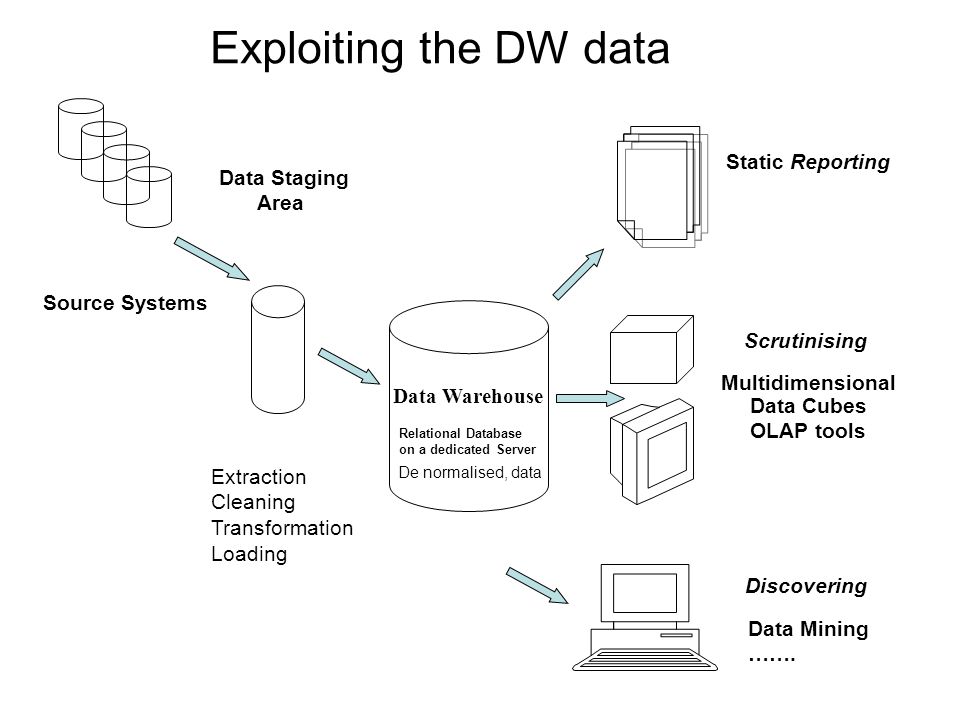

6. Extraction Cleaning Transformation Loading Relational Database on a dedicated Server De normalised, data Static Reporting Scrutinising Multidimensional Data Cubes OLAP tools Data Warehouse Source Systems Discovering Data Mining ……. Data Staging Area Exploiting the DW data

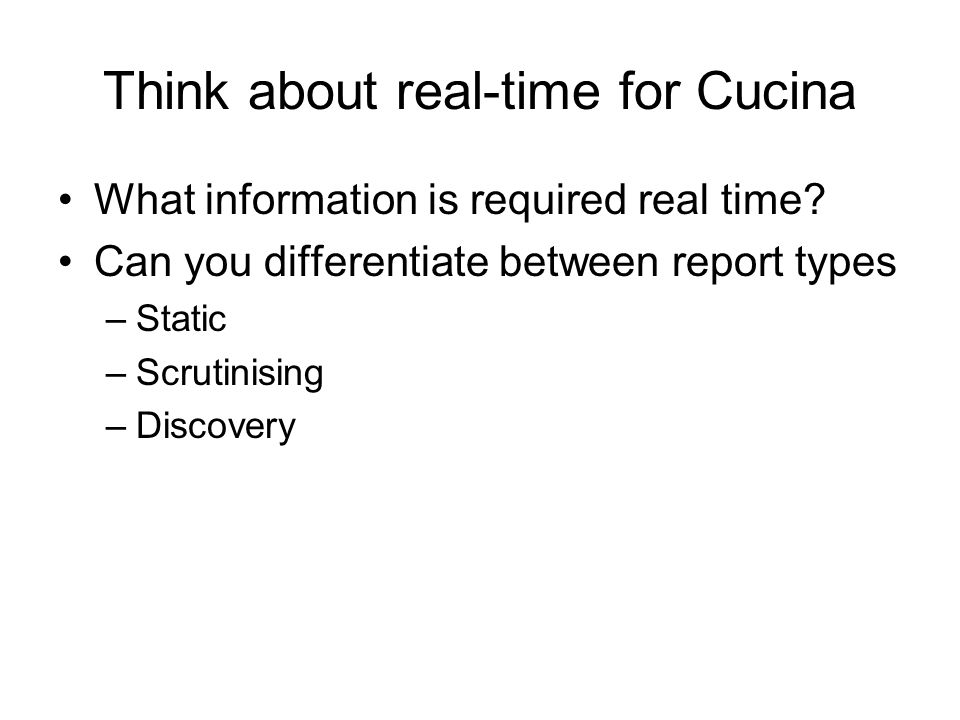

7. Think about real-time for Cucina What information is required real time? Can you differentiate between report types –Static –Scrutinising –Discovery

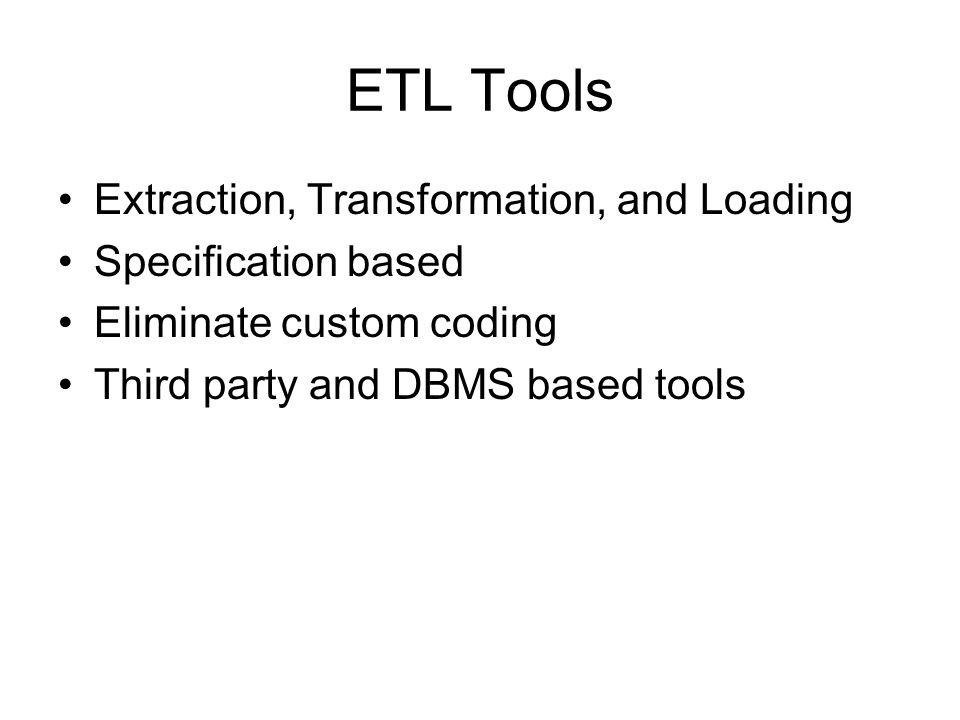

8. ETL Tools Extraction, Transformation, and Loading Specification based Eliminate custom coding Third party and DBMS based tools

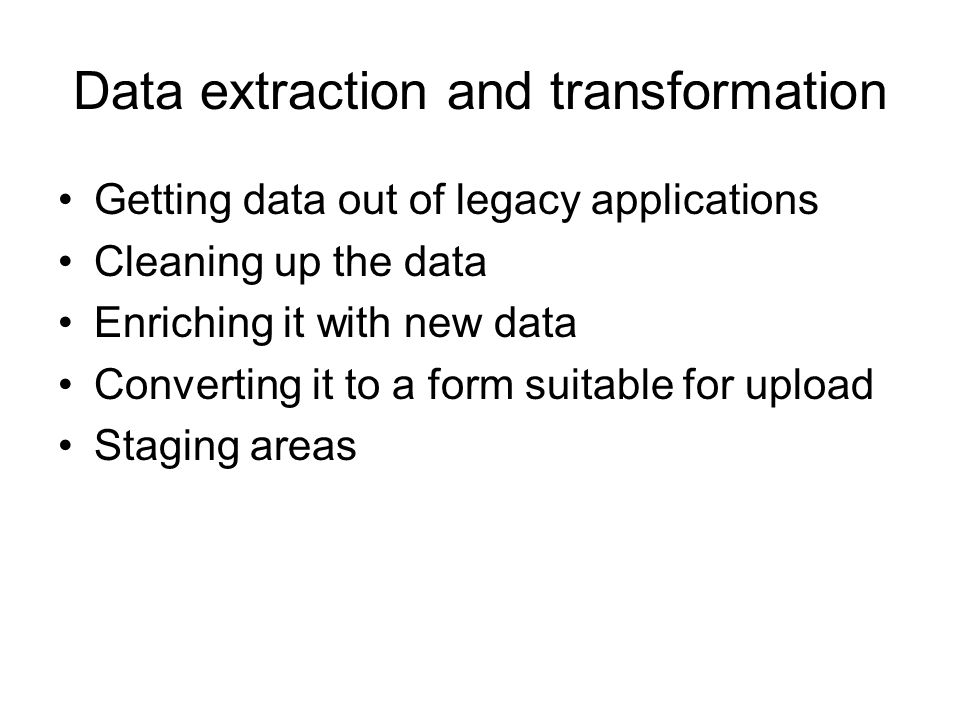

9. Data extraction and transformation Getting data out of legacy applications Cleaning up the data Enriching it with new data Converting it to a form suitable for upload Staging areas

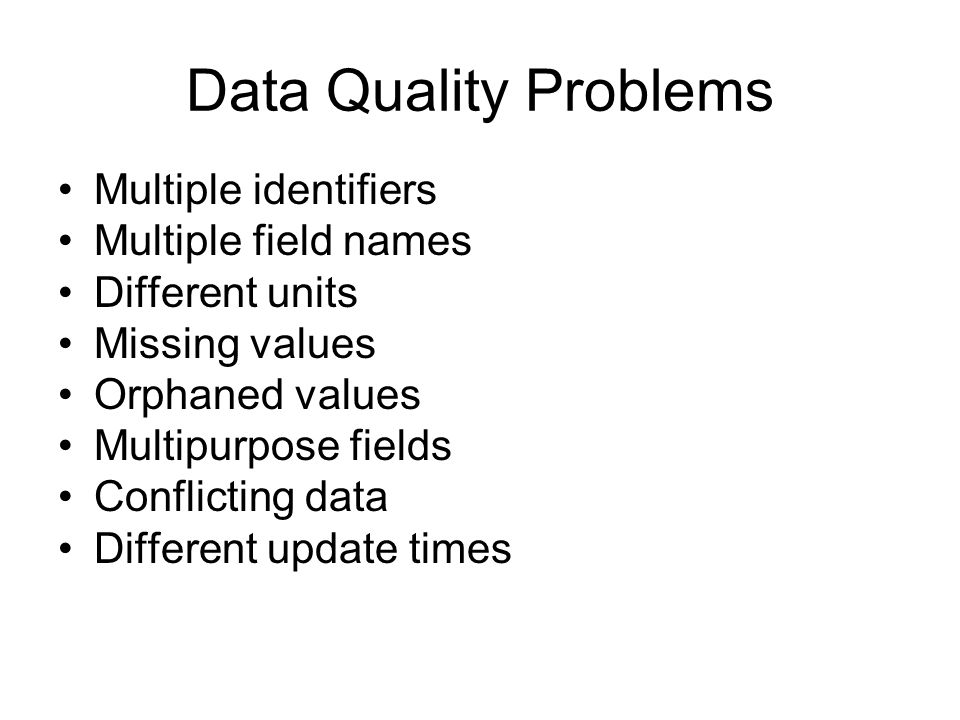

10. Data Quality Problems Multiple identifiers Multiple field names Different units Missing values Orphaned values Multipurpose fields Conflicting data Different update times

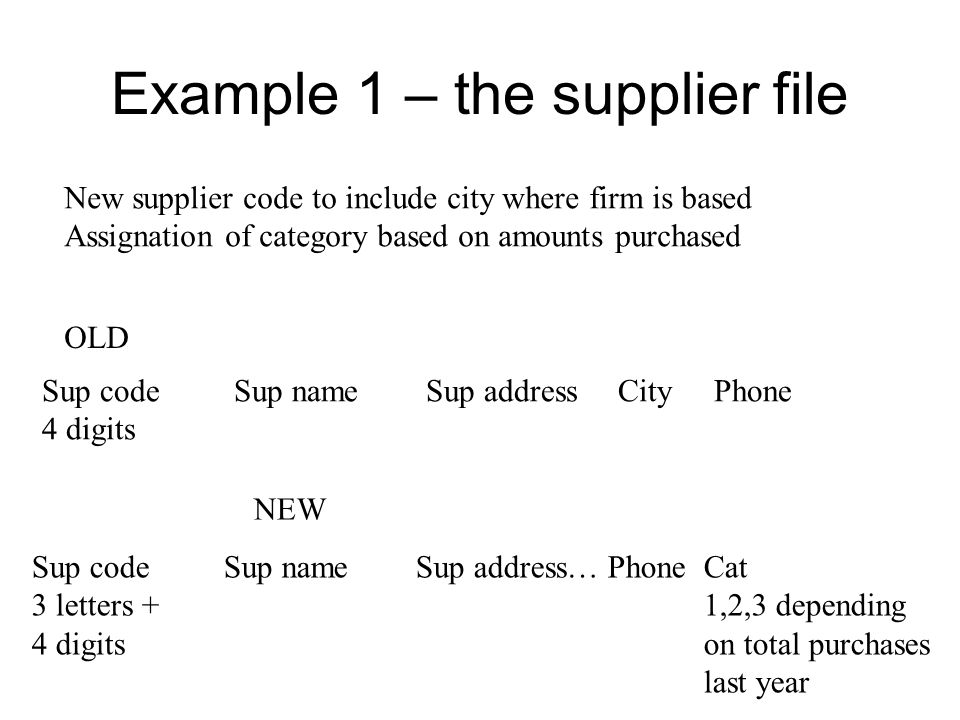

11. Example 1 – the supplier file Sup codeSup nameSup addressCityPhone 4 digits Sup codeSup nameSup address…PhoneCat 3 letters +1,2,3 depending 4 digitson total purchases last year OLD NEW New supplier code to include city where firm is based Assignation of category based on amounts purchased

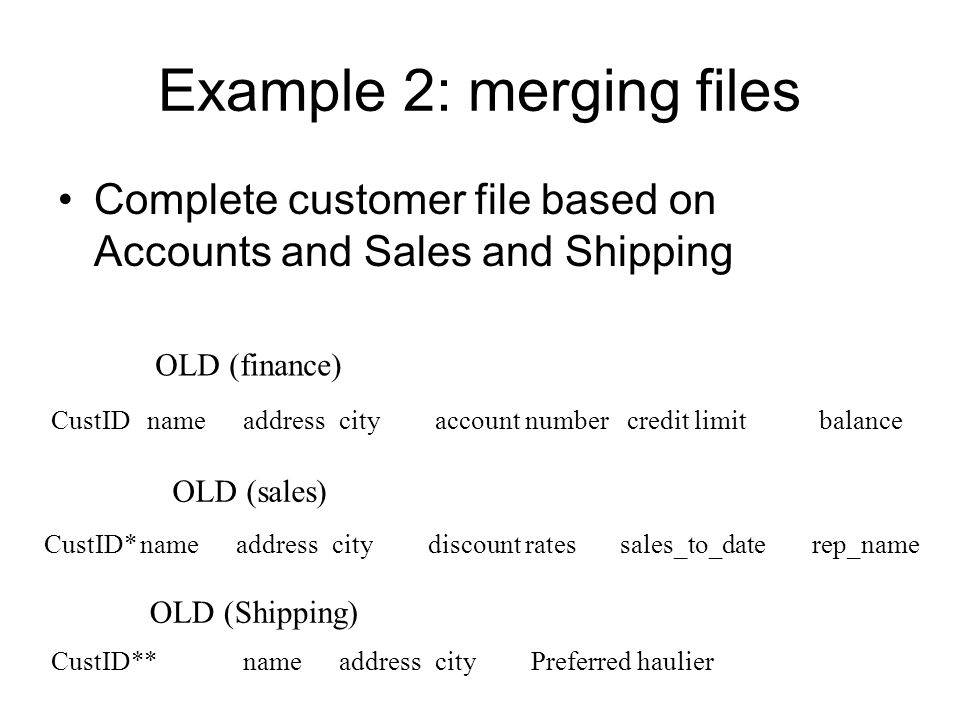

12. Example 2: merging files Complete customer file based on Accounts and Sales and Shipping OLD (finance) CustIDnameaddresscityaccount numbercredit limitbalance OLD (sales) OLD (Shipping) CustID*nameaddresscitydiscount ratessales_to_daterep_name CustID**nameaddresscityPreferred haulier

13. Refreshing databases Timing Criticality of information Volume of data Response time Real-time requirement Level of aggregation / granularity

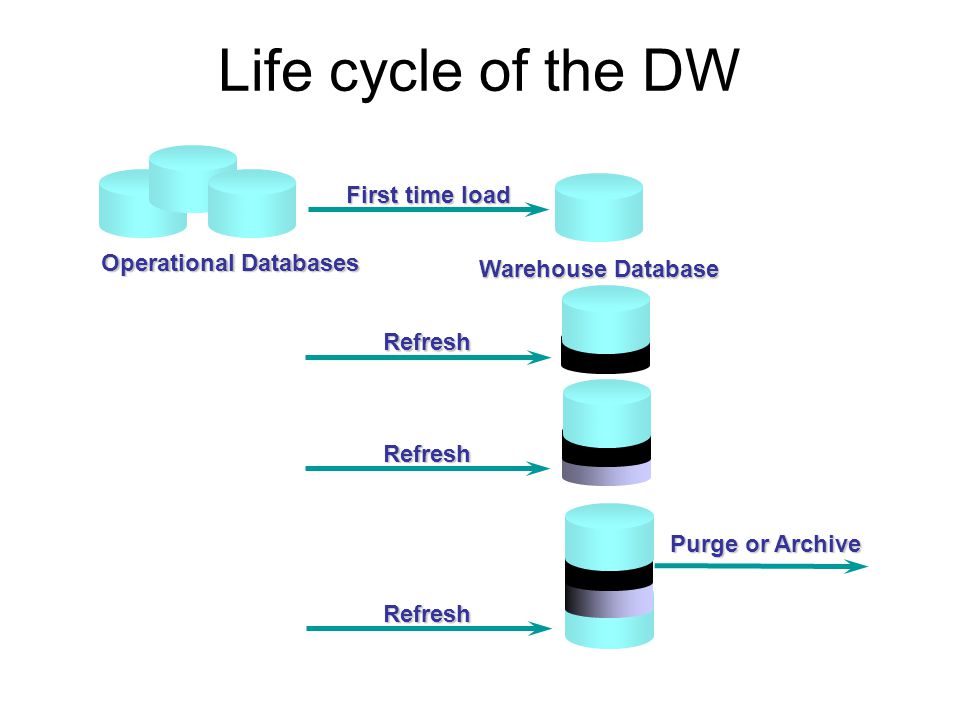

14. Life cycle of the DW Operational Databases Warehouse Database First time load Refresh Refresh Refresh Purge or Archive

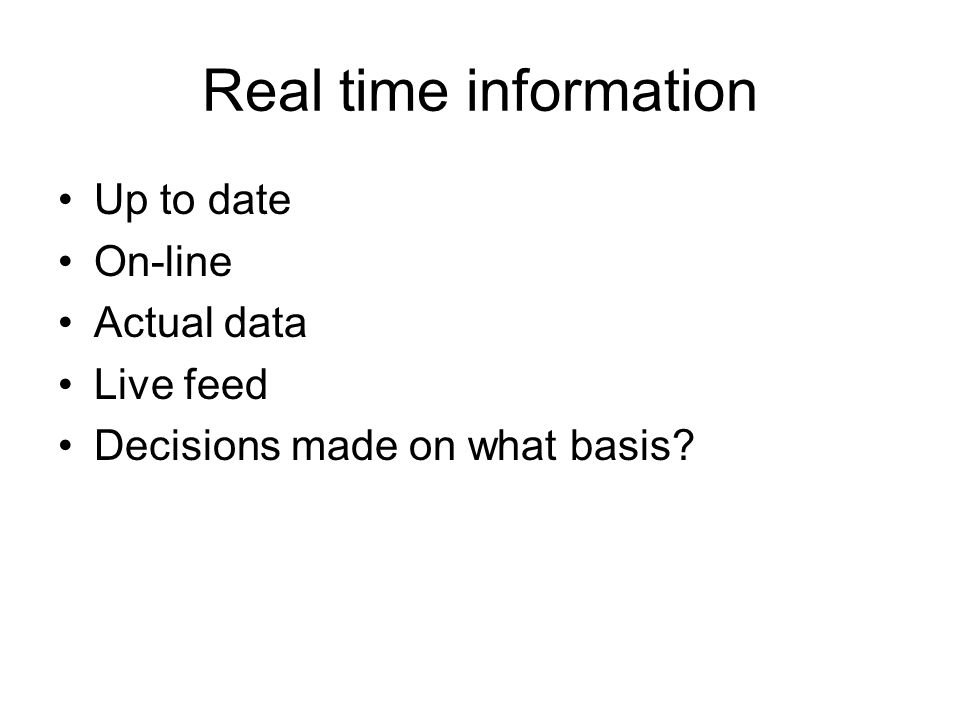

15. Real time information Up to date On-line Actual data Live feed Decisions made on what basis?

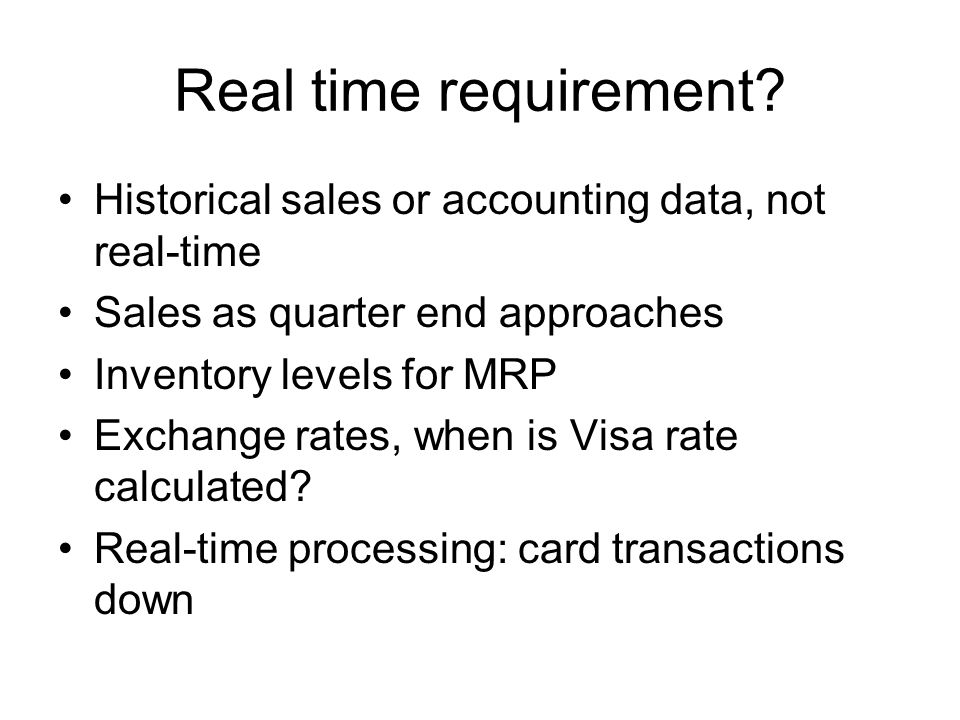

16. Real time requirement? Historical sales or accounting data, not real-time Sales as quarter end approaches Inventory levels for MRP Exchange rates, when is Visa rate calculated? Real-time processing: card transactions down

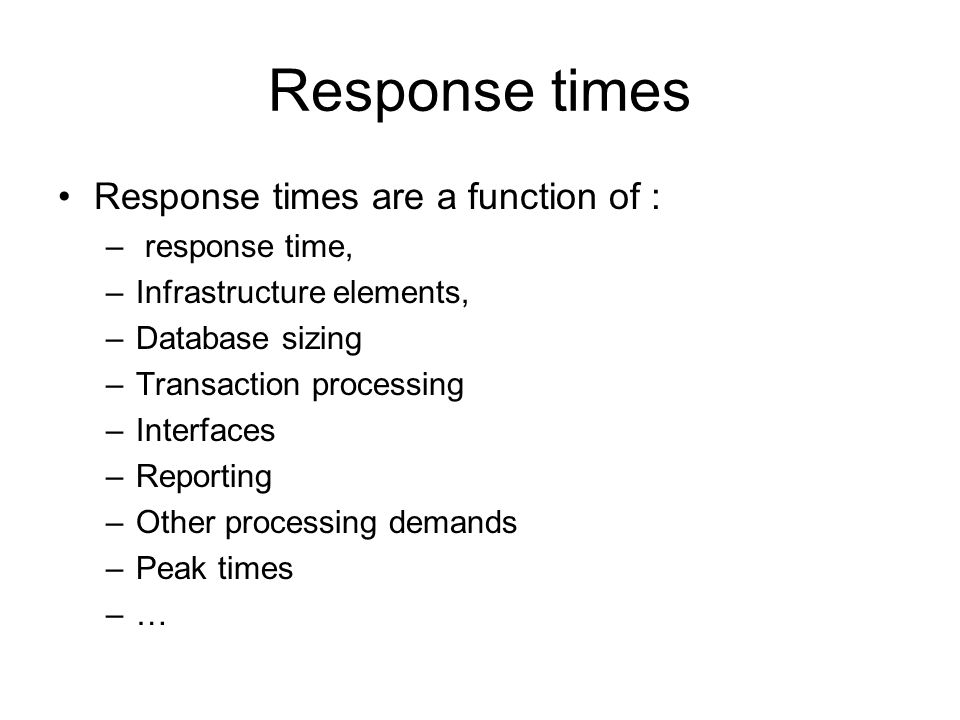

17. Response times Response times are a function of : – response time, –Infrastructure elements, –Database sizing –Transaction processing –Interfaces –Reporting –Other processing demands –Peak times –…

18. Example Revenue reports from EMC Data warehouse Report can grow to >1million lines at quarter end Should not be run on ERP server Poorly designed?

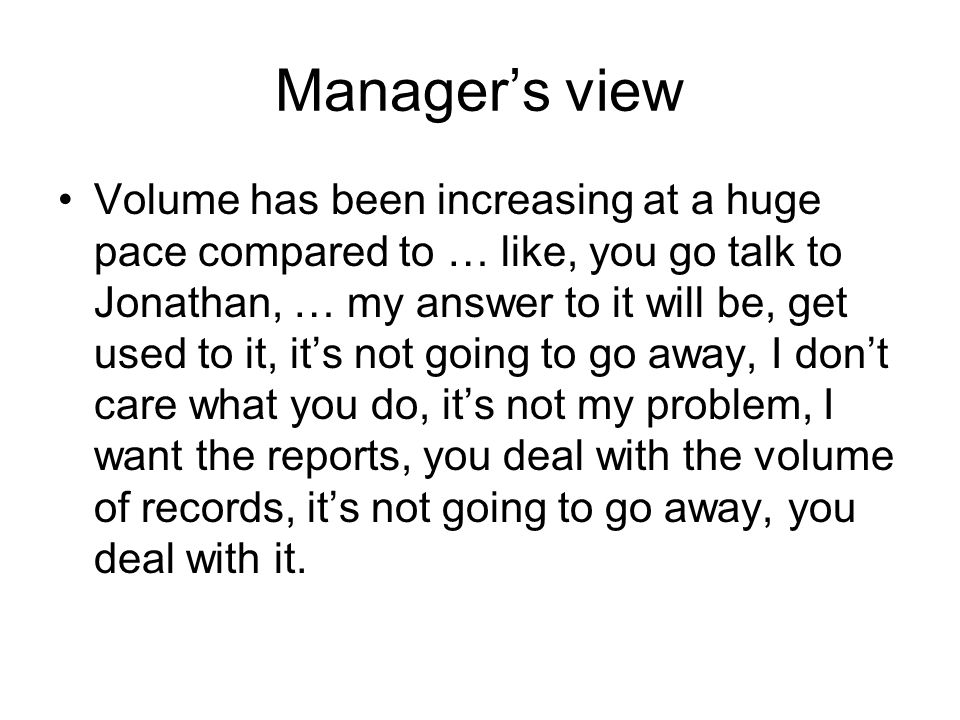

19. Manager’s view Volume has been increasing at a huge pace compared to … like, you go talk to Jonathan, … my answer to it will be, get used to it, it’s not going to go away, I don’t care what you do, it’s not my problem, I want the reports, you deal with the volume of records, it’s not going to go away, you deal with it.

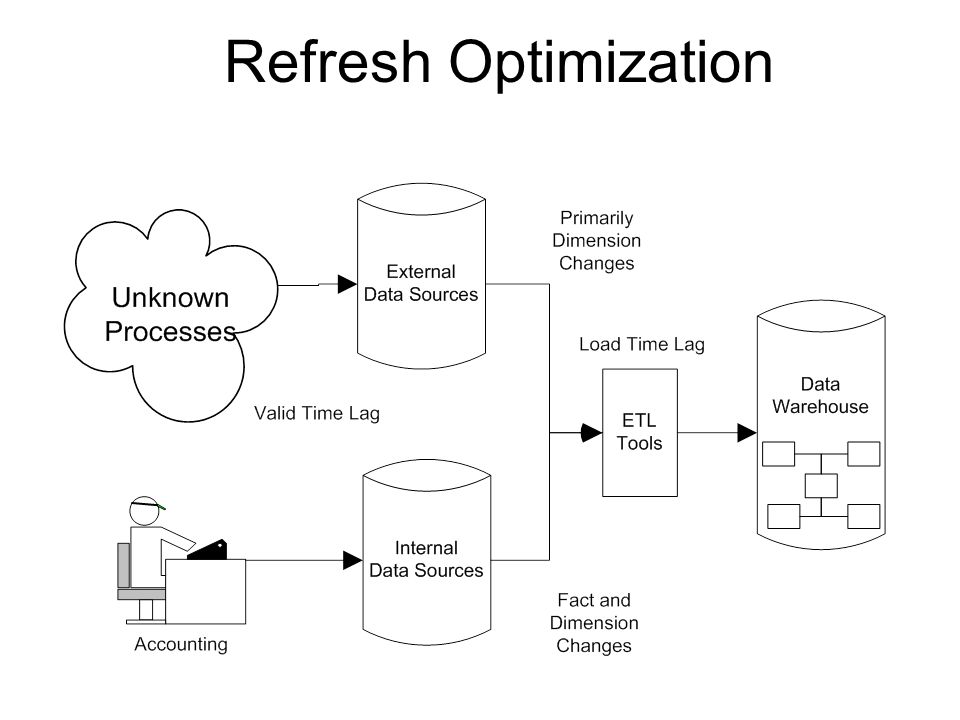

20. Refresh Optimization

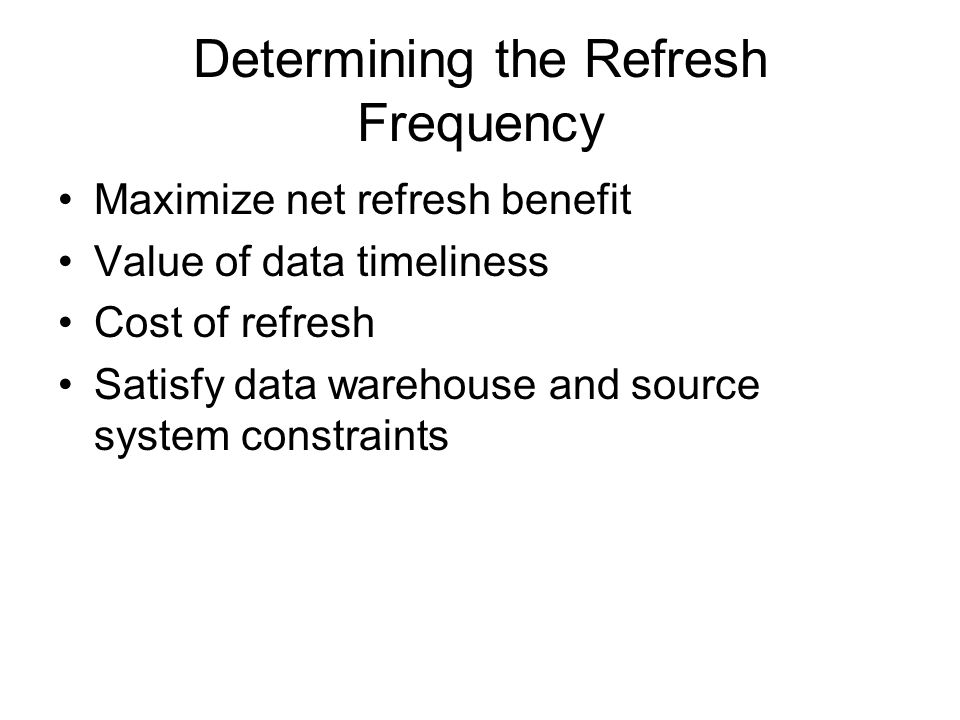

21. Determining the Refresh Frequency Maximize net refresh benefit Value of data timeliness Cost of refresh Satisfy data warehouse and source system constraints
