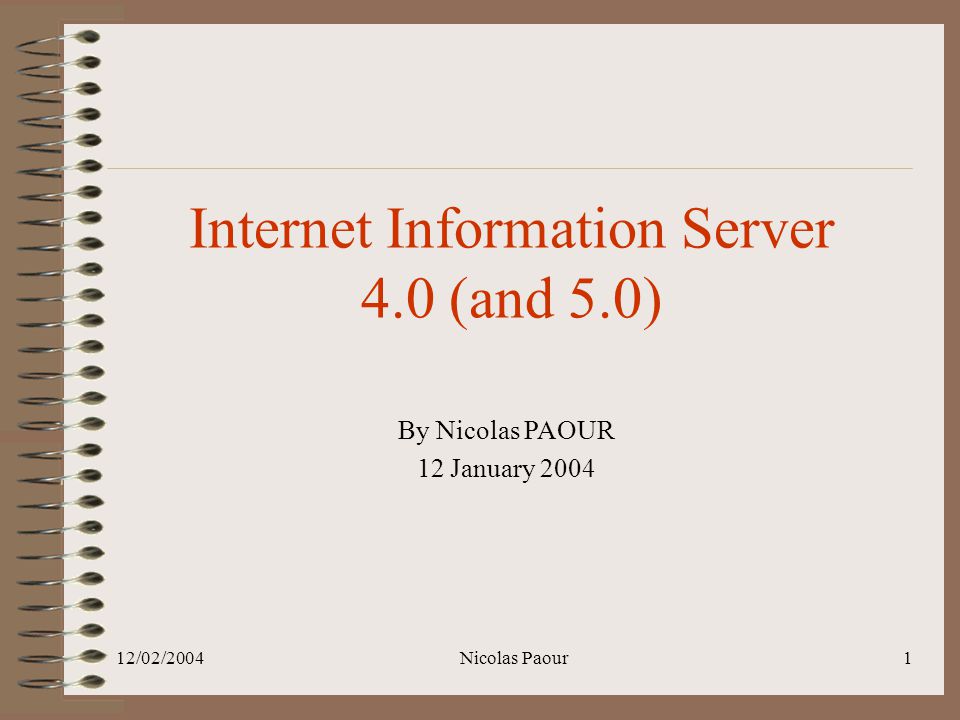

1. 12/02/2004Nicolas Paour1 Internet Information Server 4.0 (and 5.0) By Nicolas PAOUR 12 January 2004

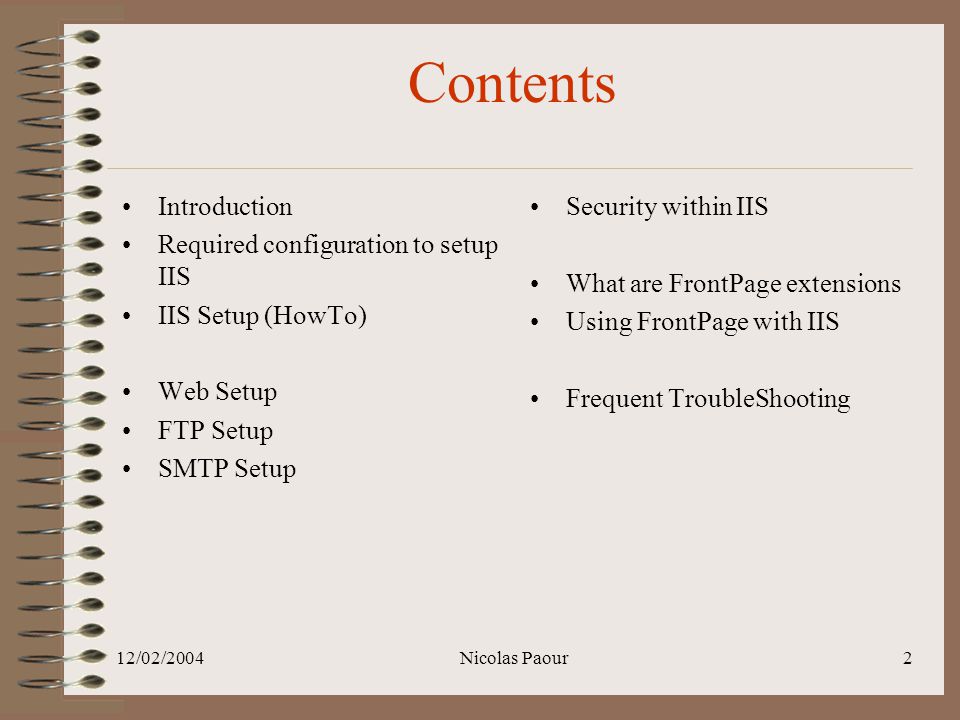

2. 12/02/2004Nicolas Paour2 Contents Introduction Required configuration to setup IIS IIS Setup (HowTo) Web Setup FTP Setup SMTP Setup Security within IIS What are FrontPage extensions Using FrontPage with IIS Frequent TroubleShooting

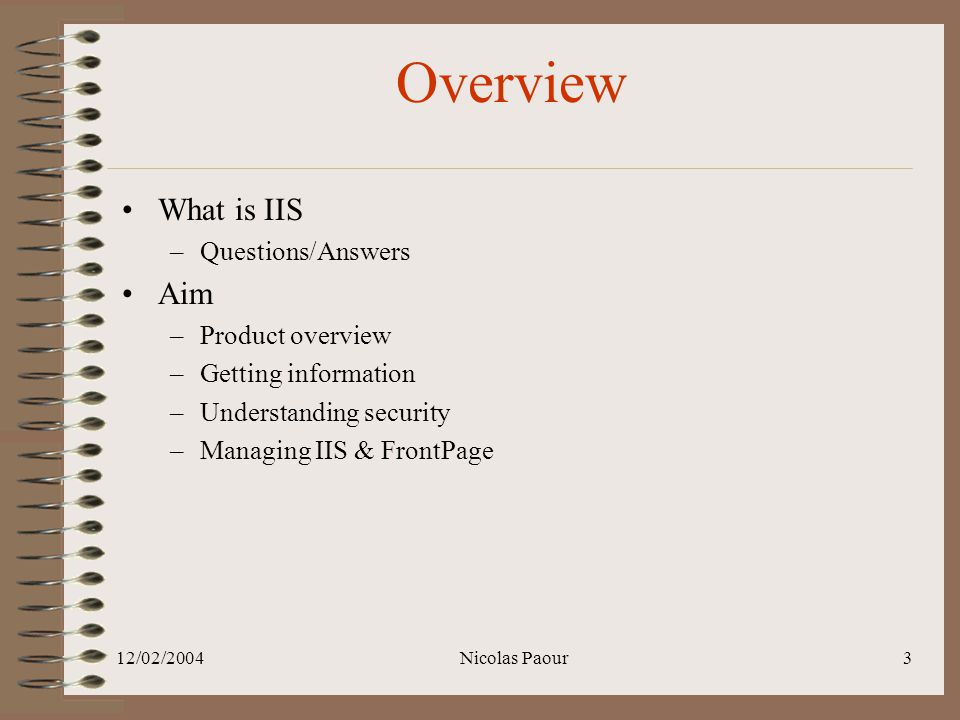

3. 12/02/2004Nicolas Paour3 Overview What is IIS –Questions/Answers Aim –Product overview –Getting information –Understanding security –Managing IIS & FrontPage

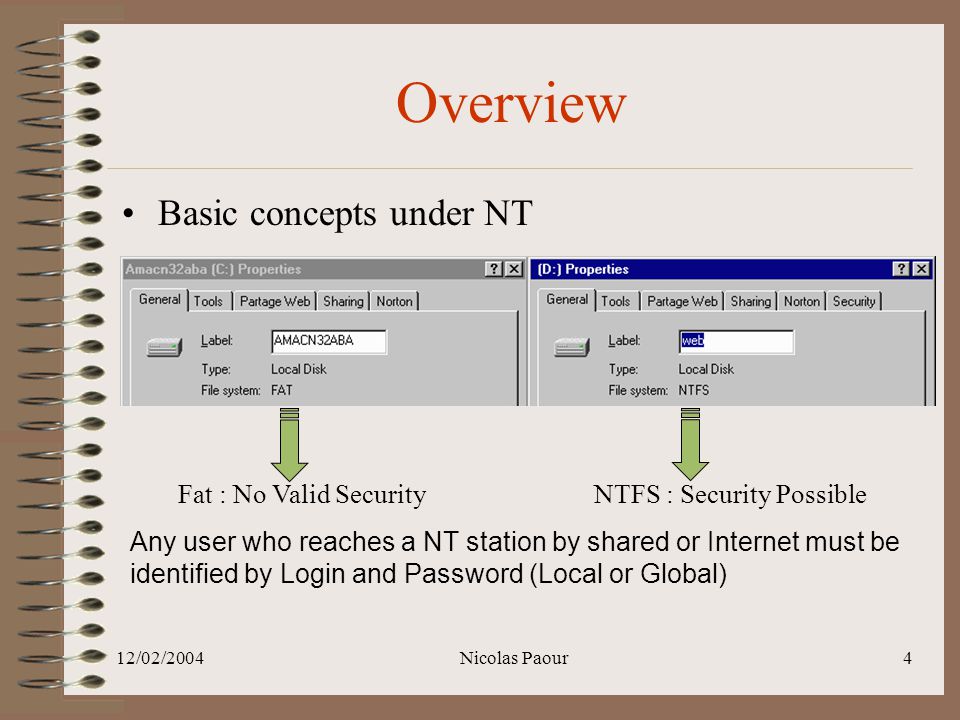

4. 12/02/2004Nicolas Paour4 Basic concepts under NT Fat : No Valid SecurityNTFS : Security Possible Any user who reaches a NT station by shared or Internet must be identified by Login and Password (Local or Global) Overview

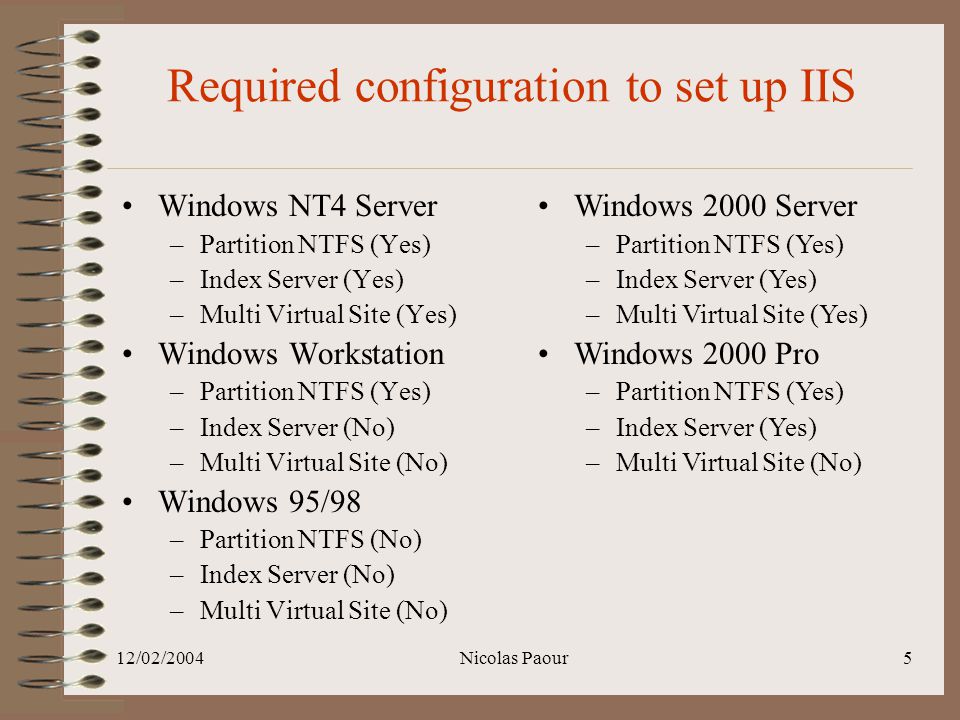

5. 12/02/2004Nicolas Paour5 Required configuration to set up IIS Windows NT4 Server –Partition NTFS (Yes) –Index Server (Yes) –Multi Virtual Site (Yes) Windows Workstation –Partition NTFS (Yes) –Index Server (No) –Multi Virtual Site (No) Windows 95/98 –Partition NTFS (No) –Index Server (No) –Multi Virtual Site (No) Windows 2000 Server –Partition NTFS (Yes) –Index Server (Yes) –Multi Virtual Site (Yes) Windows 2000 Pro –Partition NTFS (Yes) –Index Server (Yes) –Multi Virtual Site (No)

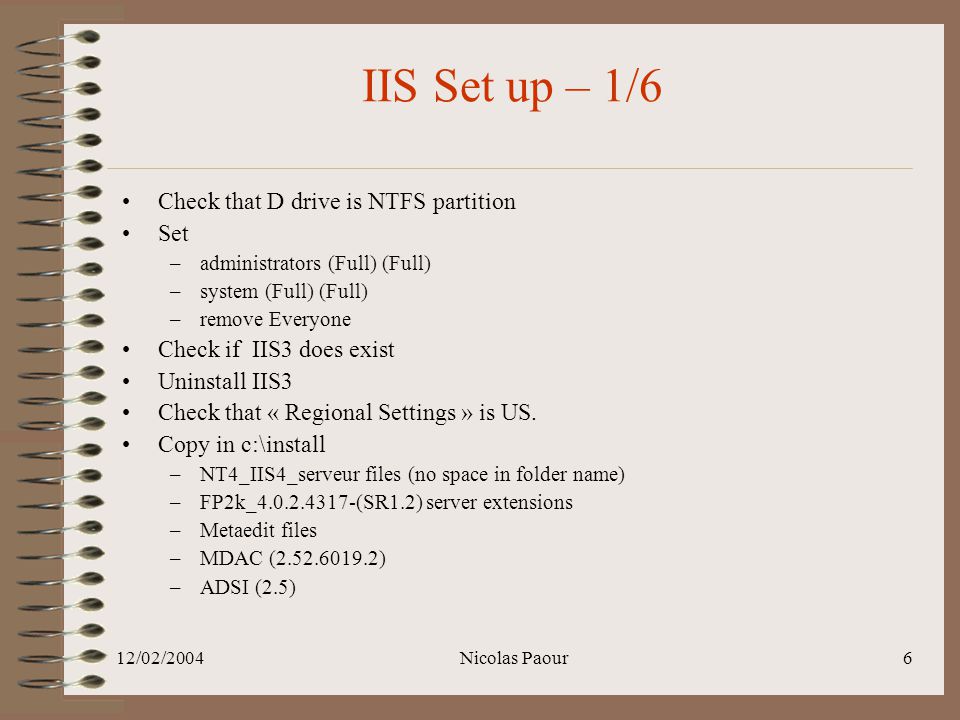

6. 12/02/2004Nicolas Paour6 IIS Set up – 1/6 Check that D drive is NTFS partition Set –administrators (Full) (Full) –system (Full) (Full) –remove Everyone Check if IIS3 does exist Uninstall IIS3 Check that « Regional Settings » is US. Copy in c:\install –NT4_IIS4_serveur files (no space in folder name) –FP2k_4.0.2.4317-(SR1.2) server extensions –Metaedit files –MDAC (2.52.6019.2) –ADSI (2.5)

7. 12/02/2004Nicolas Paour7 IIS Set up – 2/6 Run NT4_IIS4_serveur\install.exe –Disabled “Certificate Server” –Disabled “FrontPage 98 Server Extensions” –Disabled “Internet Connection Services for RAS –Internet Information Server (IIS) Disabled “documentation” Enabled “FTP” Disabled “Internet NNTP Service” Enabled “Internet Service Manager” Disabled “Internet Service Manager (HTML)” Enabled “SMTP Service” Disabled “World Wide Web Sample Site” Enabled “World Wide Web Server” –Enabled “Microsoft Data Access Components 1.5” (All)

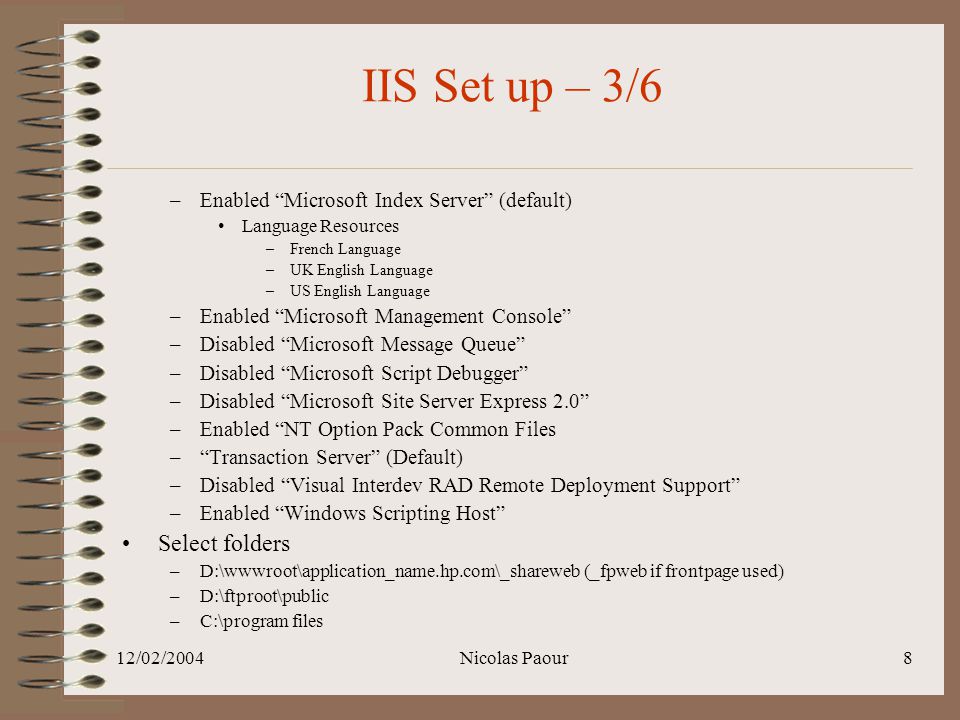

8. 12/02/2004Nicolas Paour8 IIS Set up – 3/6 –Enabled “Microsoft Index Server” (default) Language Resources –French Language –UK English Language –US English Language –Enabled “Microsoft Management Console” –Disabled “Microsoft Message Queue” –Disabled “Microsoft Script Debugger” –Disabled “Microsoft Site Server Express 2.0” –Enabled “NT Option Pack Common Files –“Transaction Server” (Default) –Disabled “Visual Interdev RAD Remote Deployment Support” –Enabled “Windows Scripting Host” Select folders –D:\wwwroot\application_name.hp.com\_shareweb (_fpweb if frontpage used) –D:\ftproot\public –C:\program files

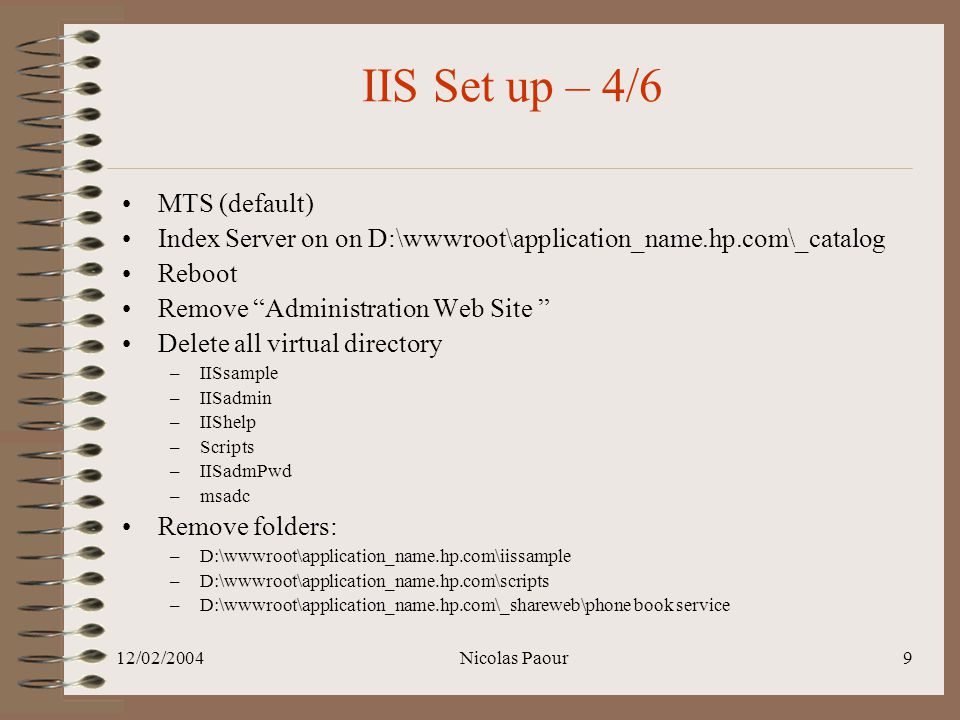

9. 12/02/2004Nicolas Paour9 IIS Set up – 4/6 MTS (default) Index Server on on D:\wwwroot\application_name.hp.com\_catalog Reboot Remove “Administration Web Site ” Delete all virtual directory –IISsample –IISadmin –IIShelp –Scripts –IISadmPwd –msadc Remove folders: –D:\wwwroot\application_name.hp.com\iissample –D:\wwwroot\application_name.hp.com\scripts –D:\wwwroot\application_name.hp.com\_shareweb\phone book service

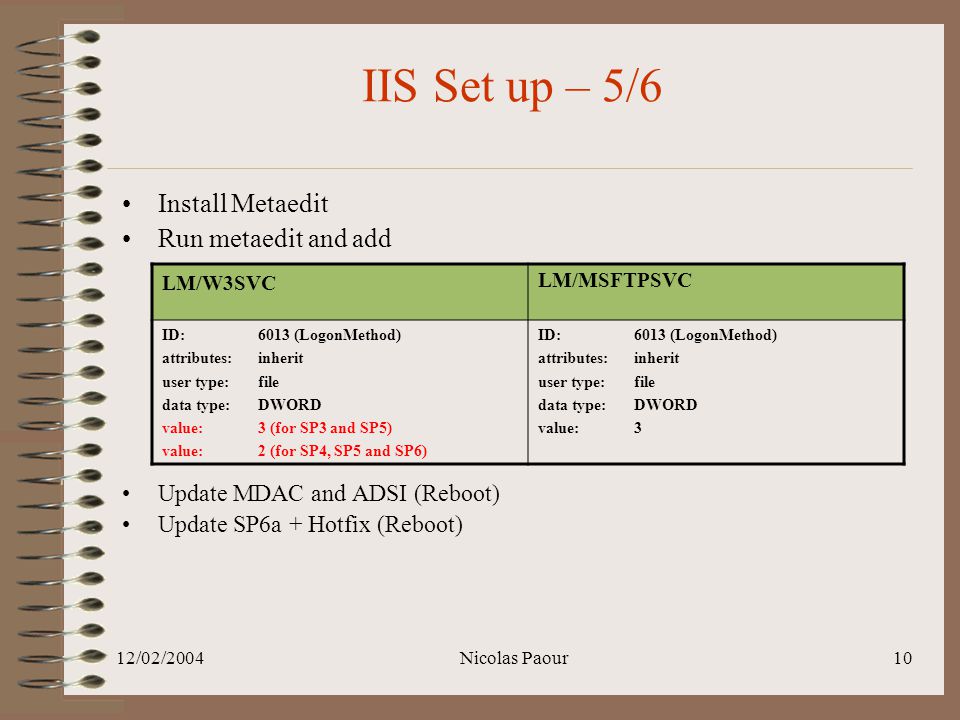

10. 12/02/2004Nicolas Paour10 IIS Set up – 5/6 Install Metaedit Run metaedit and add Update MDAC and ADSI (Reboot) Update SP6a + Hotfix (Reboot) LM/W3SVC LM/MSFTPSVC ID:6013 (LogonMethod) attributes:inherit user type:file data type:DWORD value:3 (for SP3 and SP5) value:2 (for SP4, SP5 and SP6) ID:6013 (LogonMethod) attributes:inherit user type:file data type:DWORD value:3

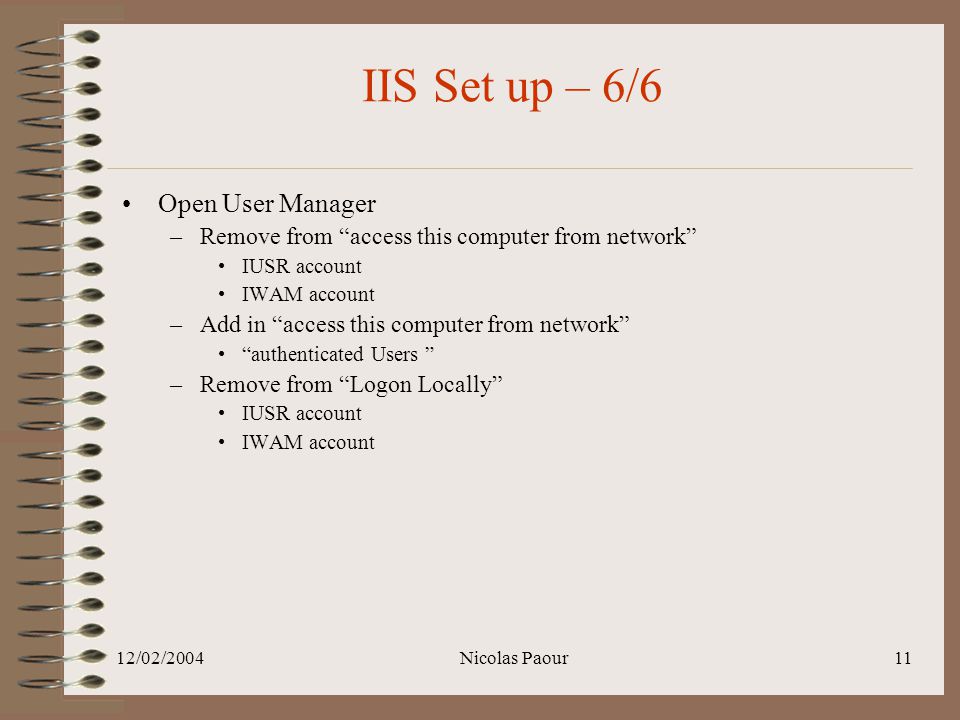

11. 12/02/2004Nicolas Paour11 IIS Set up – 6/6 Open User Manager –Remove from “access this computer from network” IUSR account IWAM account –Add in “access this computer from network” “authenticated Users ” –Remove from “Logon Locally” IUSR account IWAM account

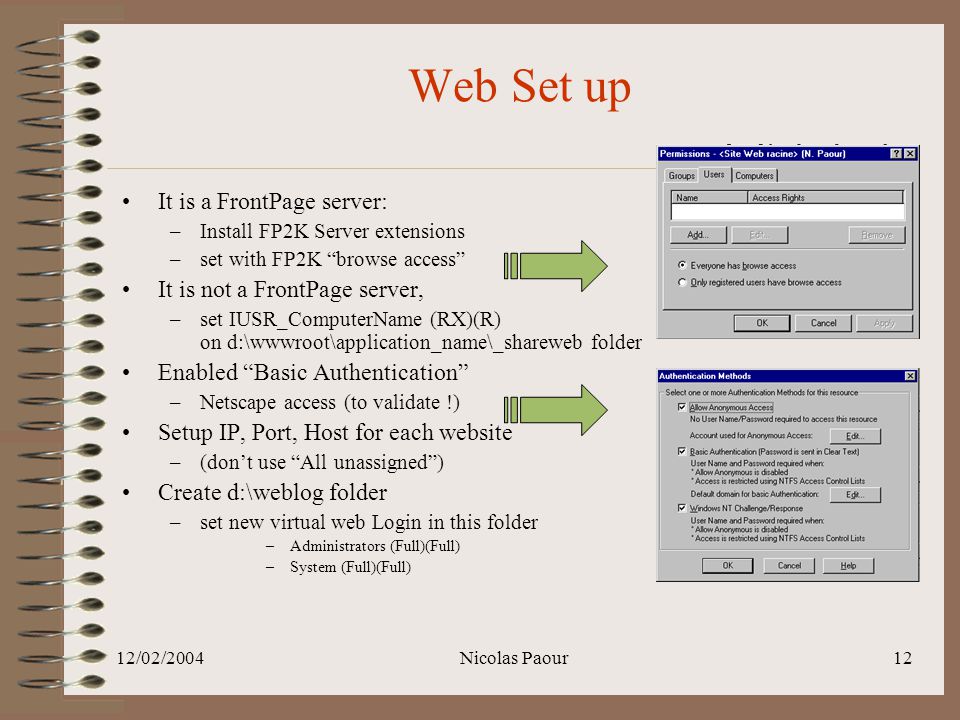

12. 12/02/2004Nicolas Paour12 Web Set up It is a FrontPage server: –Install FP2K Server extensions –set with FP2K “browse access” It is not a FrontPage server, –set IUSR_ComputerName (RX)(R) on d:\wwwroot\application_name\_shareweb folder Enabled “Basic Authentication” –Netscape access (to validate !) Setup IP, Port, Host for each website –(don’t use “All unassigned”) Create d:\weblog folder –set new virtual web Login in this folder –Administrators (Full)(Full) –System (Full)(Full)

13. 12/02/2004Nicolas Paour13 FTP Set up NTFS right for d:\ftproot\public: –administrators (full)(full) –system (full)(full) –Everyone (RWX)(R) Open mmc and select all options

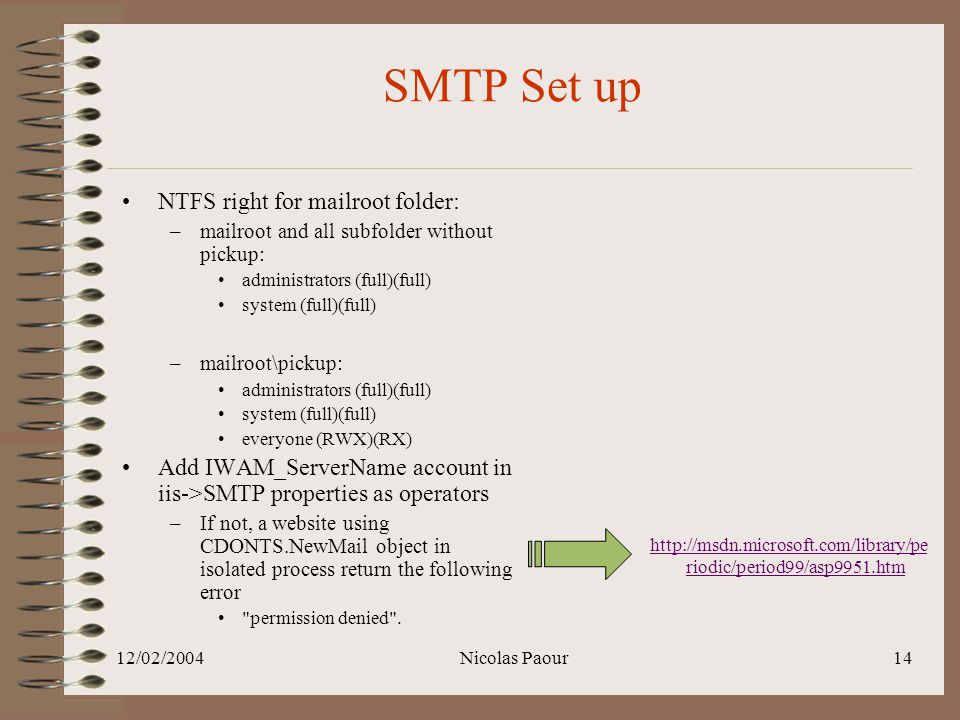

14. 12/02/2004Nicolas Paour14 SMTP Set up NTFS right for mailroot folder: –mailroot and all subfolder without pickup: administrators (full)(full) system (full)(full) –mailroot\pickup: administrators (full)(full) system (full)(full) everyone (RWX)(RX) Add IWAM_ServerName account in iis->SMTP properties as operators –If not, a website using CDONTS.NewMail object in isolated process return the following error "permission denied". http://msdn.microsoft.com/library/pe riodic/period99/asp9951.htm

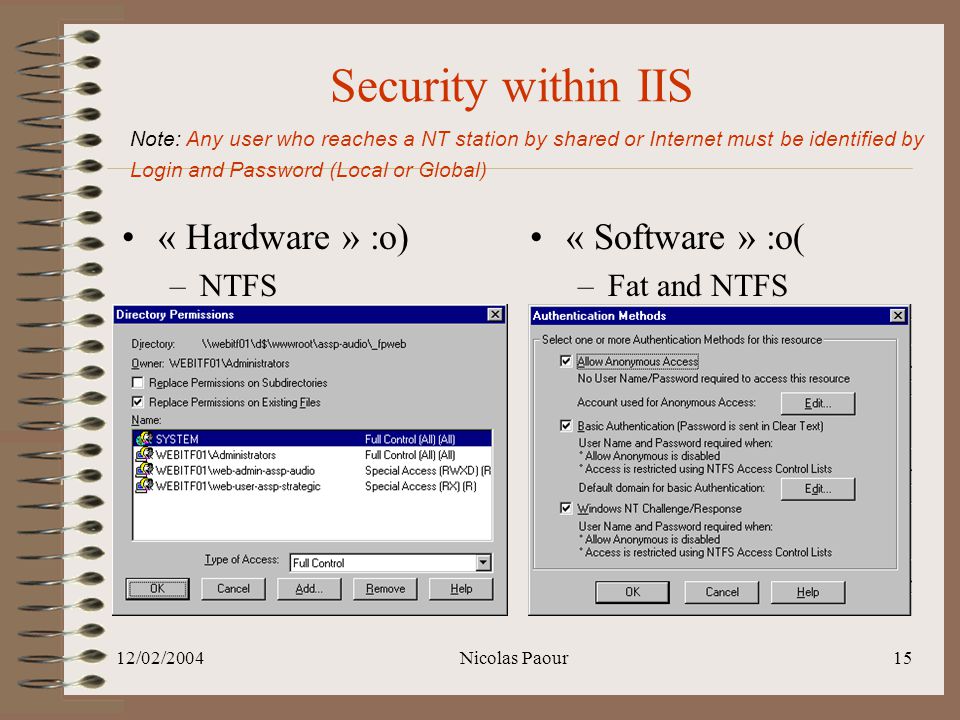

15. 12/02/2004Nicolas Paour15 Security within IIS « Hardware » :o) –NTFS « Software » :o( –Fat and NTFS Note: Any user who reaches a NT station by shared or Internet must be identified by Login and Password (Local or Global)

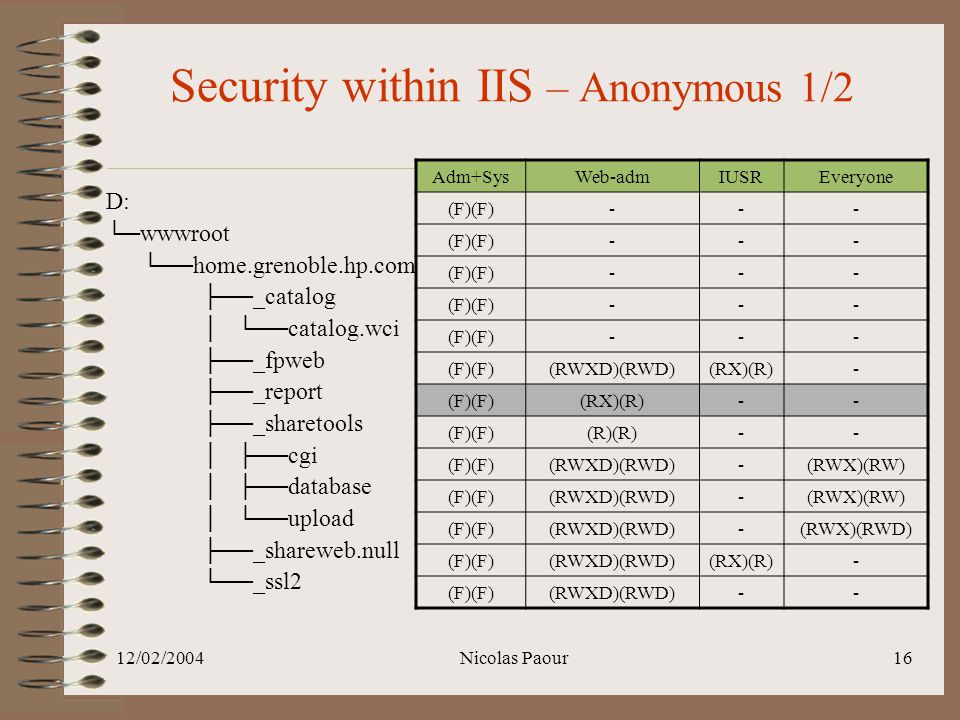

16. 12/02/2004Nicolas Paour16 Security within IIS – Anonymous 1/2 D: └─wwwroot └──home.grenoble.hp.com ├──_catalog │ └──catalog.wci ├──_fpweb ├──_report ├──_sharetools │ ├──cgi │ ├──database │ └──upload ├──_shareweb.null └──_ssl2 Adm+SysWeb-admIUSREveryone (F)(F)--- --- --- --- --- (RWXD)(RWD)(RX)(R)- (F)(F)(RX)(R)-- (F)(F)(R)(R)-- (F)(F)(RWXD)(RWD)-(RWX)(RW) (F)(F)(RWXD)(RWD)-(RWX)(RW) (F)(F)(RWXD)(RWD)-(RWX)(RWD) (F)(F)(RWXD)(RWD)(RX)(R)- (F)(F)(RWXD)(RWD)--

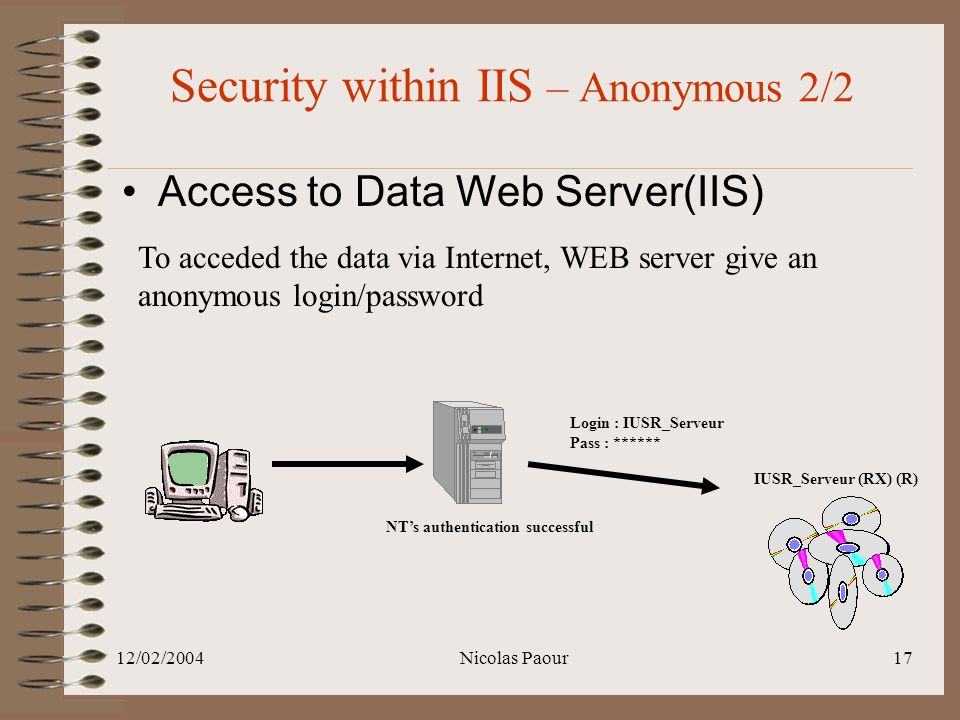

17. 12/02/2004Nicolas Paour17 Security within IIS – Anonymous 2/2 Access to Data Web Server(IIS) To acceded the data via Internet, WEB server give an anonymous login/password Login : IUSR_Serveur Pass : ****** NT’s authentication successful IUSR_Serveur (RX) (R)

18. 12/02/2004Nicolas Paour18 Security within IIS – Secure access 1/2 D: └─wwwroot └──home.grenoble.hp.com ├──_catalog │ └──catalog.wci ├──_fpweb ├──_report ├──_sharetools │ ├──cgi │ ├──database │ └──upload ├──_shareweb.null └──_ssl2 Adm+SysWeb-admWeb-UsrEveryone (F)(F)--- --- --- --- --- (RWXD)(RWD)(RX)(R)- (F)(F)(RX)(R)-- (F)(F)(R)(R)-- (F)(F)(RWXD)(RWD)-(RWX)(RW) (F)(F)(RWXD)(RWD)-(RWX)(RW) (F)(F)(RWXD)(RWD)-(RWX)(RWD) (F)(F)(RWXD)(RWD)(RX)(R)- (F)(F)(RWXD)(RWD)--

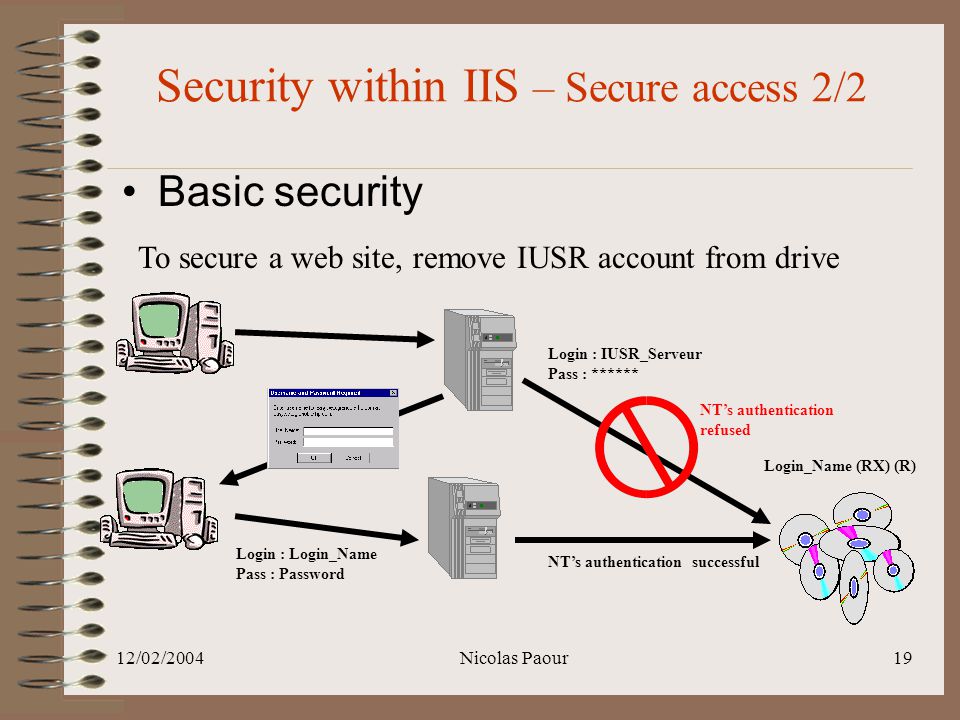

19. 12/02/2004Nicolas Paour19 Security within IIS – Secure access 2/2 Basic security To secure a web site, remove IUSR account from drive Login : Login_Name Pass : Password Login : IUSR_Serveur Pass : ****** NT’s authentication refused Login_Name (RX) (R) NT’s authentication successful

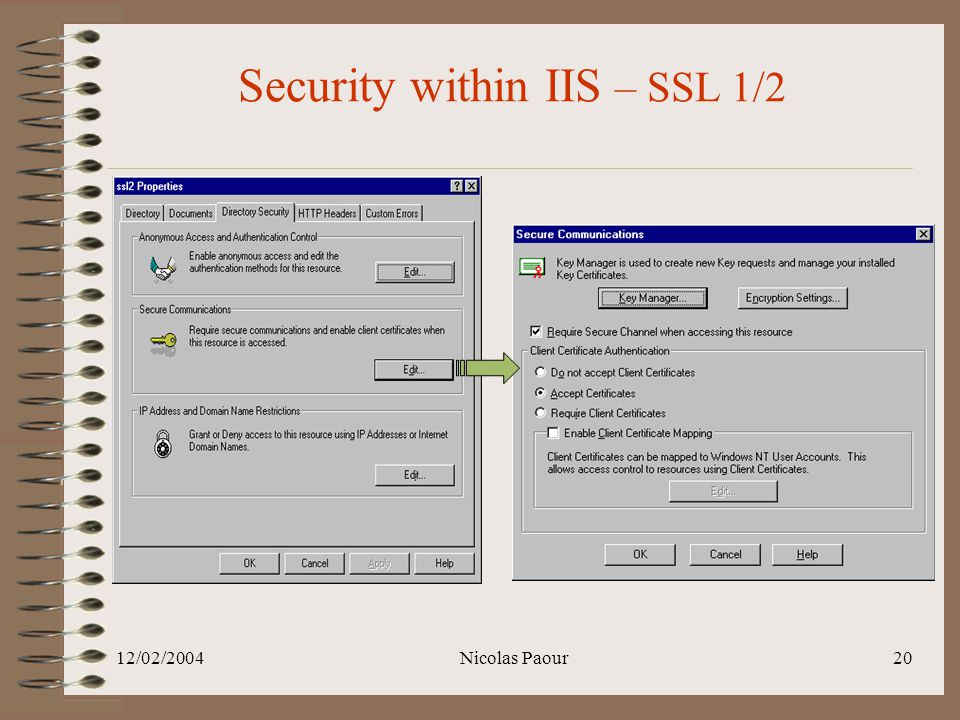

20. 12/02/2004Nicolas Paour20 Security within IIS – SSL 1/2

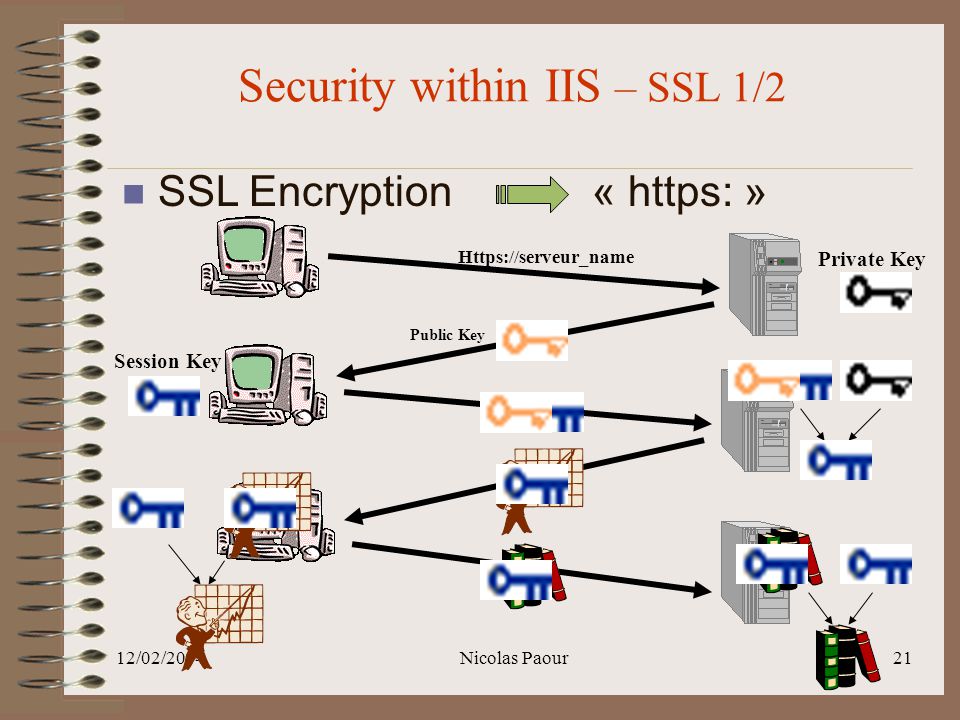

21. 12/02/2004Nicolas Paour21 Security within IIS – SSL 1/2 n SSL Encryption « https: » Https://serveur_name Private Key Public Key Session Key

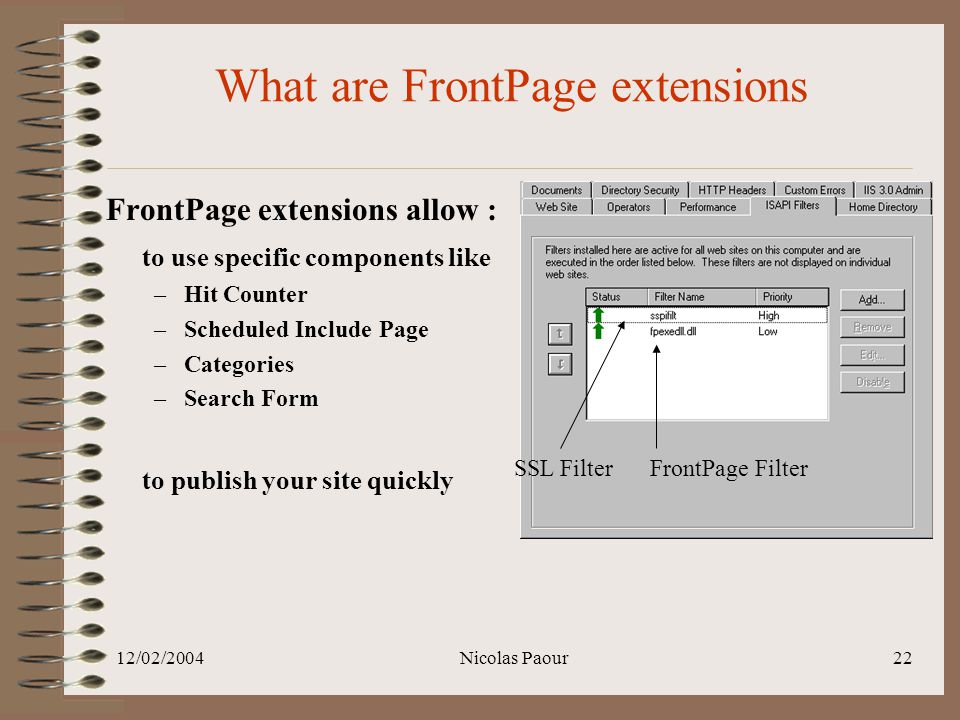

22. 12/02/2004Nicolas Paour22 What are FrontPage extensions FrontPage extensions allow : to use specific components like –Hit Counter –Scheduled Include Page –Categories –Search Form to publish your site quickly SSL FilterFrontPage Filter

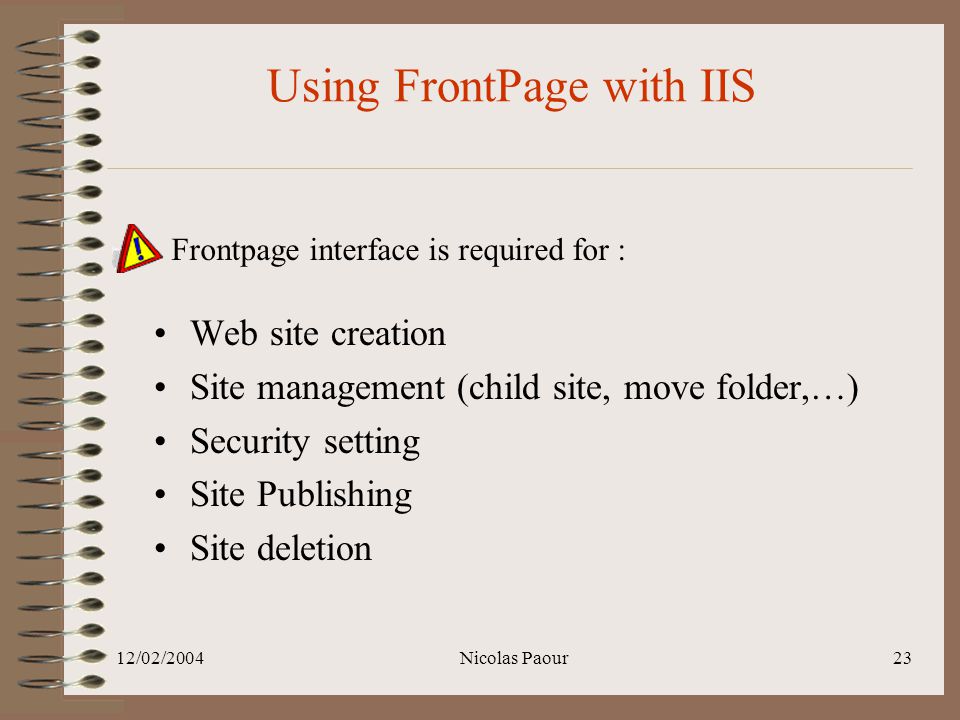

23. 12/02/2004Nicolas Paour23 Using FrontPage with IIS Frontpage interface is required for : Web site creation Site management (child site, move folder,…) Security setting Site Publishing Site deletion

24. 12/02/2004Nicolas Paour24 Using FrontPage with IIS - Site creation - Web site creation YesNo

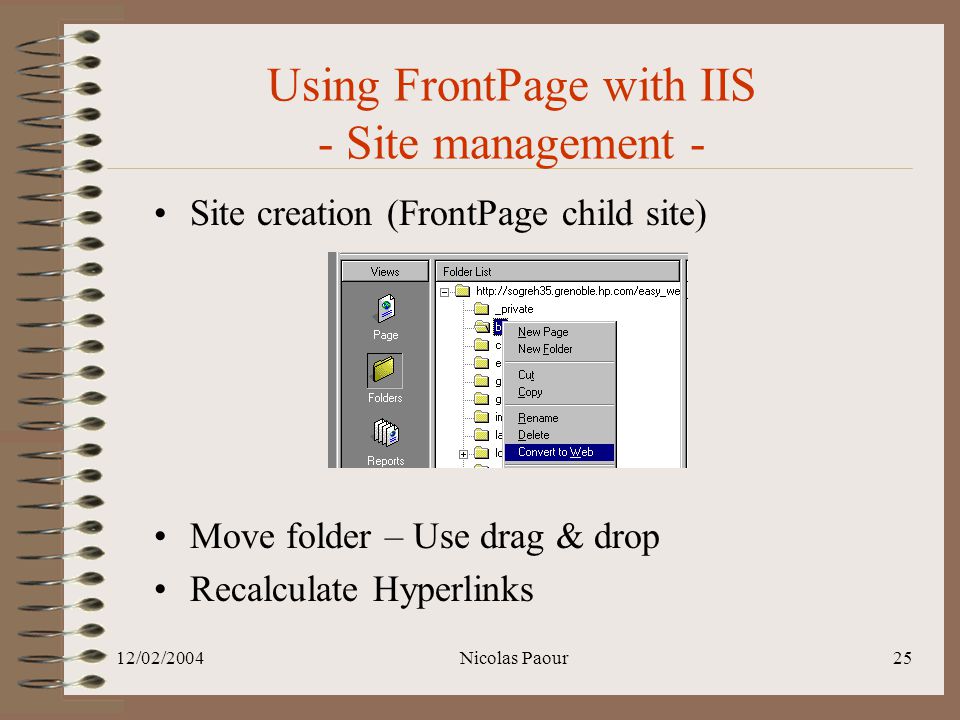

25. 12/02/2004Nicolas Paour25 Using FrontPage with IIS - Site management - Site creation (FrontPage child site) Move folder – Use drag & drop Recalculate Hyperlinks

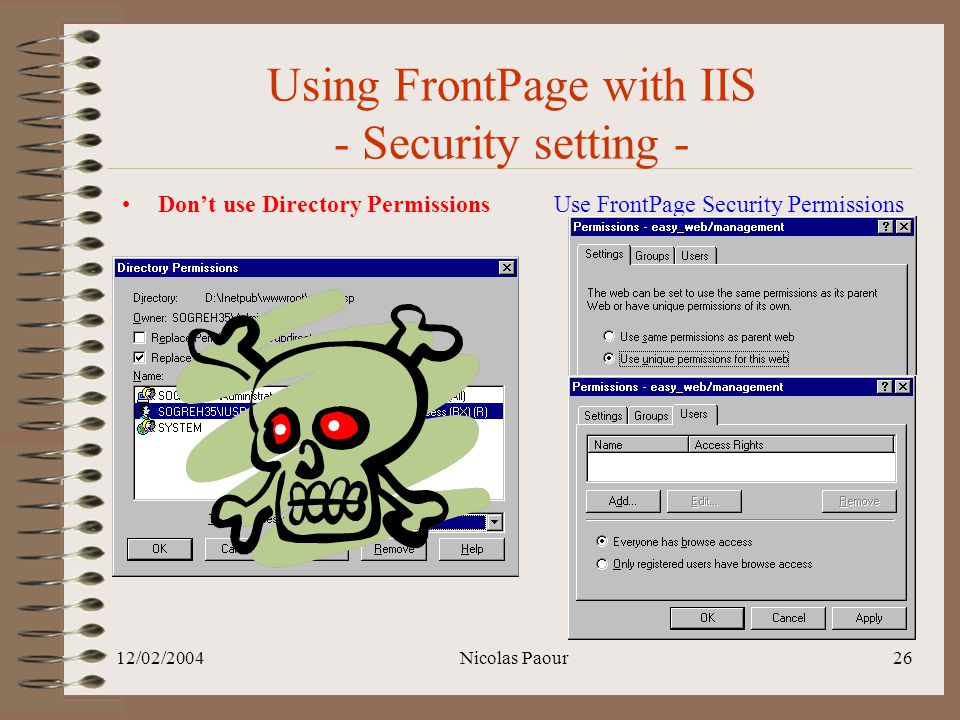

26. 12/02/2004Nicolas Paour26 Using FrontPage with IIS - Security setting - Use FrontPage Security PermissionsDon’t use Directory Permissions

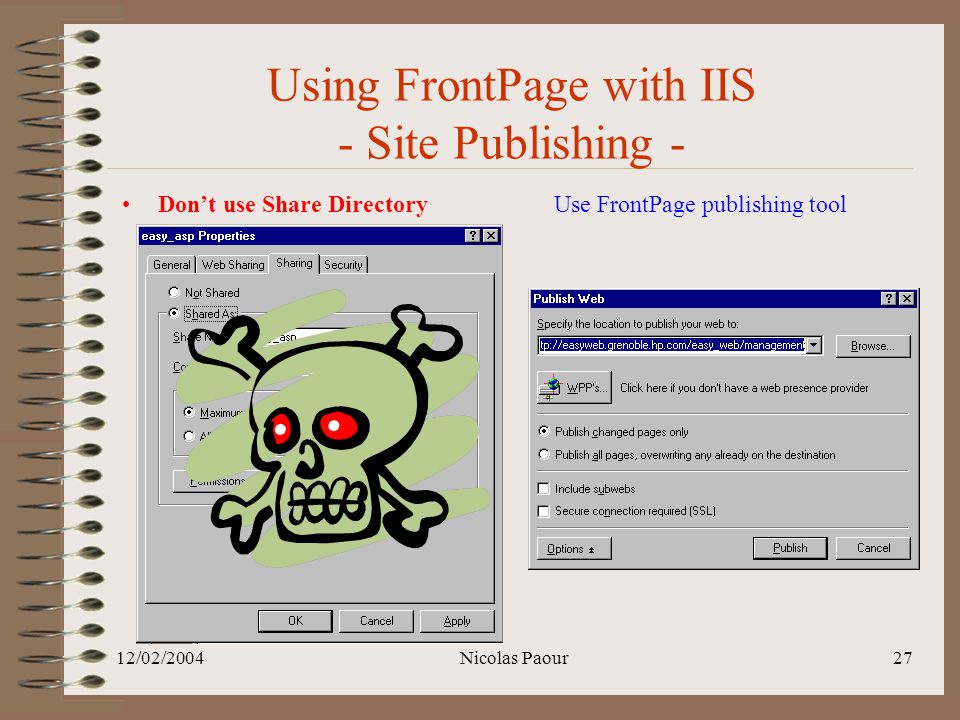

27. 12/02/2004Nicolas Paour27 Using FrontPage with IIS - Site Publishing - Use FrontPage publishing toolDon’t use Share Directory

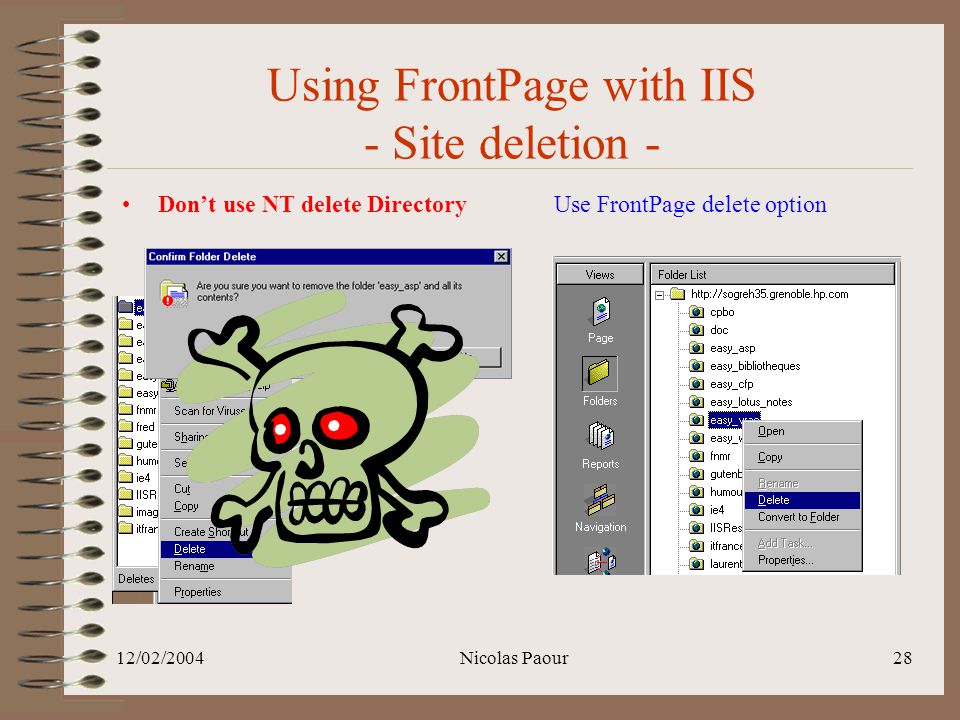

28. 12/02/2004Nicolas Paour28 Using FrontPage with IIS - Site deletion - Use FrontPage delete optionDon’t use NT delete Directory

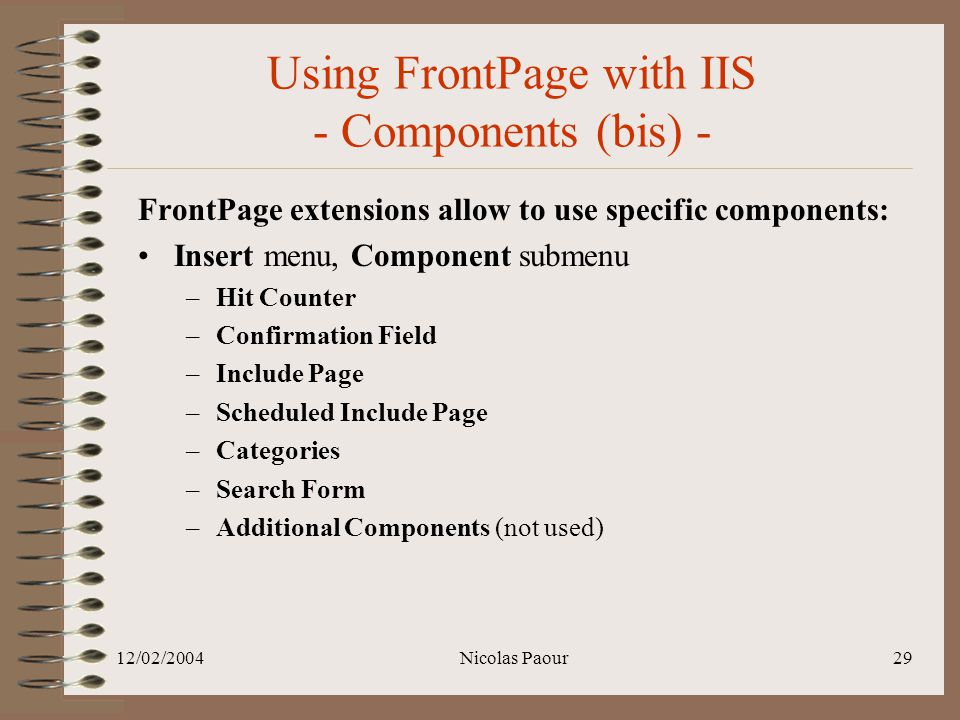

29. 12/02/2004Nicolas Paour29 FrontPage extensions allow to use specific components: Insert menu, Component submenu –Hit Counter –Confirmation Field –Include Page –Scheduled Include Page –Categories –Search Form –Additional Components (not used) Using FrontPage with IIS - Components (bis) -

30. 12/02/2004Nicolas Paour30 Frequent TroubleShooting http://membres.lycos.fr/paour/easy_doc/index.html

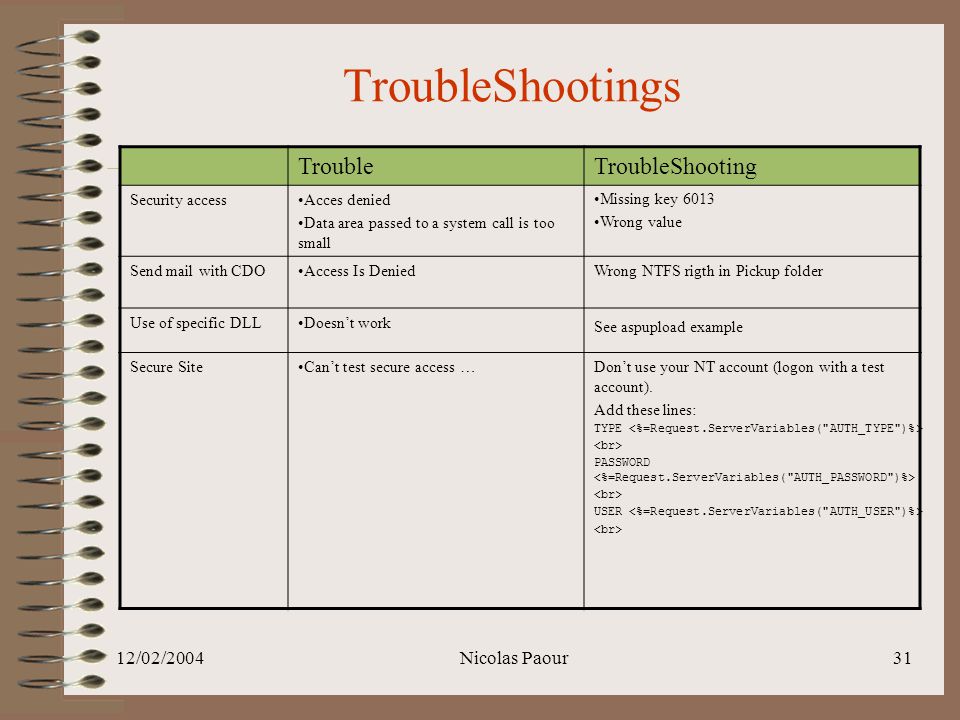

31. 12/02/2004Nicolas Paour31 TroubleShootings TroubleTroubleShooting Security accessAcces denied Data area passed to a system call is too small Send mail with CDOAccess Is Denied Use of specific DLLDoesn’t work Secure SiteCan’t test secure access … Missing key 6013 Wrong value Wrong NTFS rigth in Pickup folder See aspupload example Don’t use your NT account (logon with a test account). Add these lines: TYPE PASSWORD USER

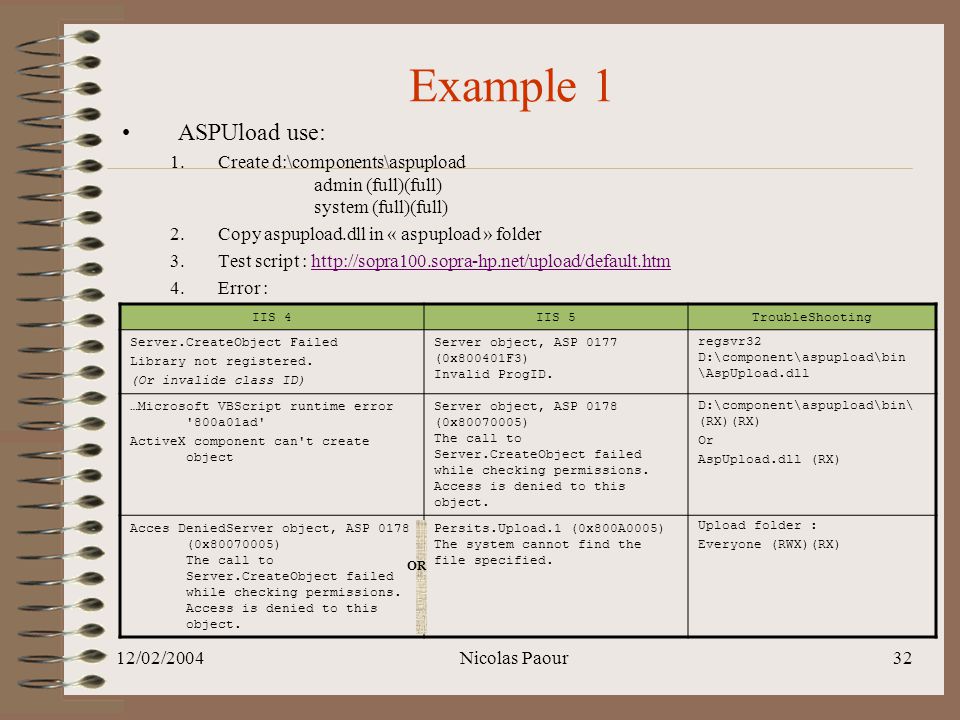

32. 12/02/2004Nicolas Paour32 Example 1 ASPUload use: 1.Create d:\components\aspupload admin (full)(full) system (full)(full) 2.Copy aspupload.dll in « aspupload » folder 3.Test script : http://sopra100.sopra-hp.net/upload/default.htmhttp://sopra100.sopra-hp.net/upload/default.htm 4.Error : IIS 4IIS 5TroubleShooting Server.CreateObject Failed Library not registered. (Or invalide class ID) Server object, ASP 0177 (0x800401F3) Invalid ProgID. …Microsoft VBScript runtime error '800a01ad' ActiveX component can't create object Server object, ASP 0178 (0x80070005) The call to Server.CreateObject failed while checking permissions. Access is denied to this object. Acces DeniedServer object, ASP 0178 (0x80070005) The call to Server.CreateObject failed while checking permissions. Access is denied to this object. Persits.Upload.1 (0x800A0005) The system cannot find the file specified. regsvr32 D:\component\aspupload\bin \AspUpload.dll D:\component\aspupload\bin\ (RX)(RX) Or AspUpload.dll (RX) Upload folder : Everyone (RWX)(RX) OR

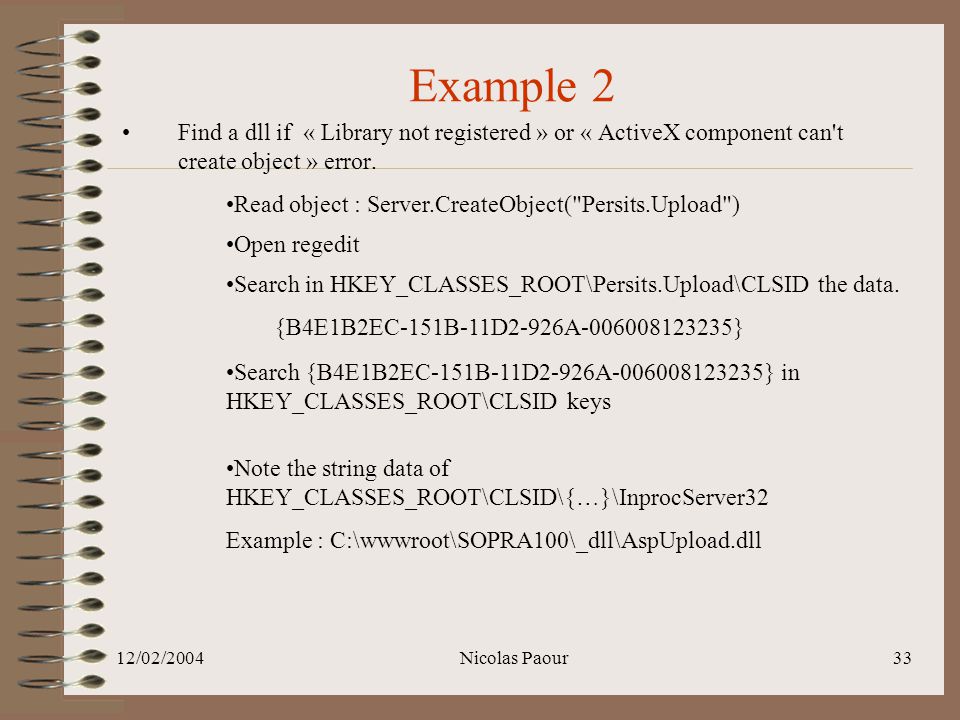

33. 12/02/2004Nicolas Paour33 Example 2 Find a dll if « Library not registered » or « ActiveX component can't create object » error. Read object : Server.CreateObject("Persits.Upload") Open regedit Search in HKEY_CLASSES_ROOT\Persits.Upload\CLSID the data. {B4E1B2EC-151B-11D2-926A-006008123235} Search {B4E1B2EC-151B-11D2-926A-006008123235} in HKEY_CLASSES_ROOT\CLSID keys Note the string data of HKEY_CLASSES_ROOT\CLSID\{…}\InprocServer32 Example : C:\wwwroot\SOPRA100\_dll\AspUpload.dll

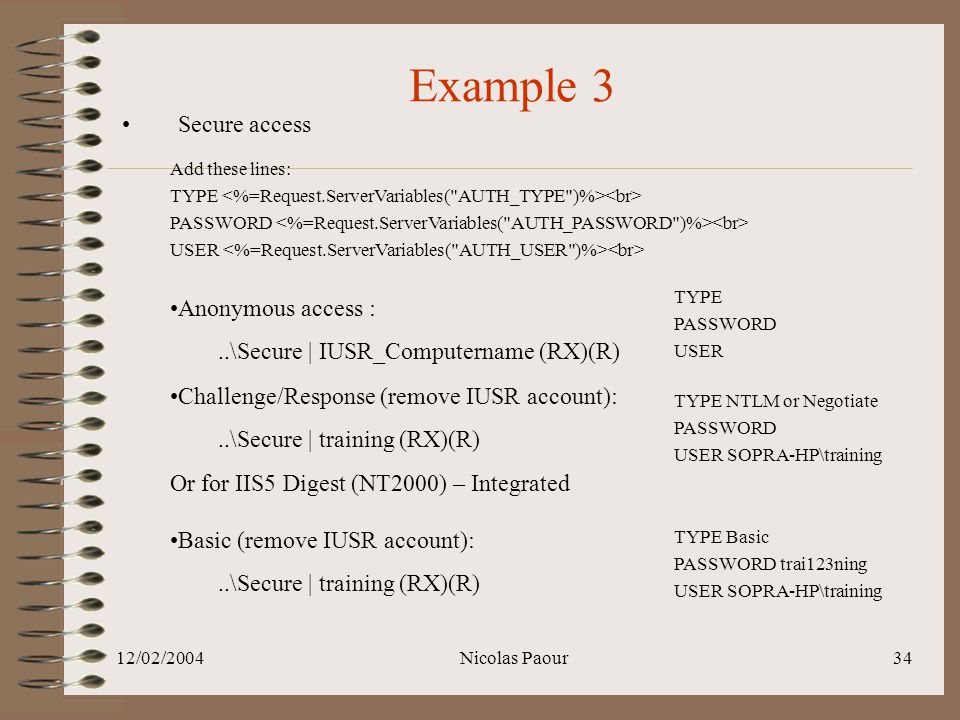

34. 12/02/2004Nicolas Paour34 Example 3 Secure access Add these lines: TYPE PASSWORD USER Anonymous access :..\Secure | IUSR_Computername (RX)(R) TYPE PASSWORD USER Challenge/Response (remove IUSR account):..\Secure | training (RX)(R) Or for IIS5 Digest (NT2000) – Integrated TYPE NTLM or Negotiate PASSWORD USER SOPRA-HP\training Basic (remove IUSR account):..\Secure | training (RX)(R) TYPE Basic PASSWORD trai123ning USER SOPRA-HP\training

35. 12/02/2004Nicolas Paour35 Example 4 Secure access Challenge/Response (remove IUSR account):..\Secure | training (RX)(R) Change secure folder as IIS Application Access Denied !!! Remove global.asa Allow Everyone (RX)(R) on global.asa folder OR
