1. GSE CICS and IMS/DB2-working group Nexxar Group Business Case October 11, 2007 Prepared by, Eddy Tiels DBA Nexxar Group Email:etiels@senditresources.cometiels@senditresources.com Phone:(32-2) 467.35.04

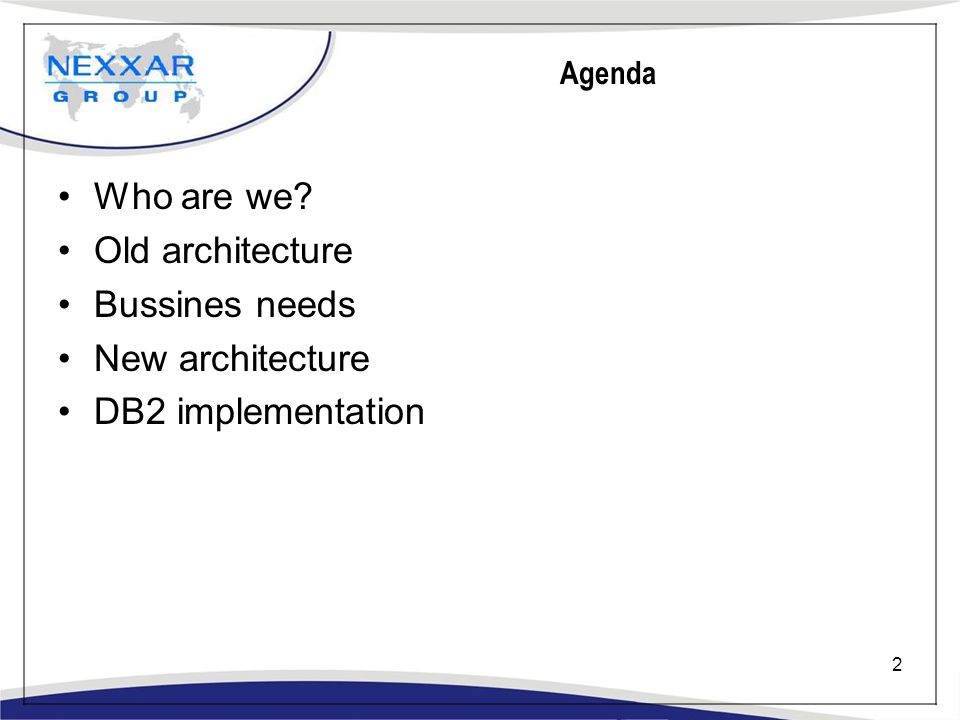

2. 2 Who are we? Old architecture Bussines needs New architecture DB2 implementation Agenda

3. 3 Who are we? Old architecture Bussines needs New architecture DB2 implementation Agenda

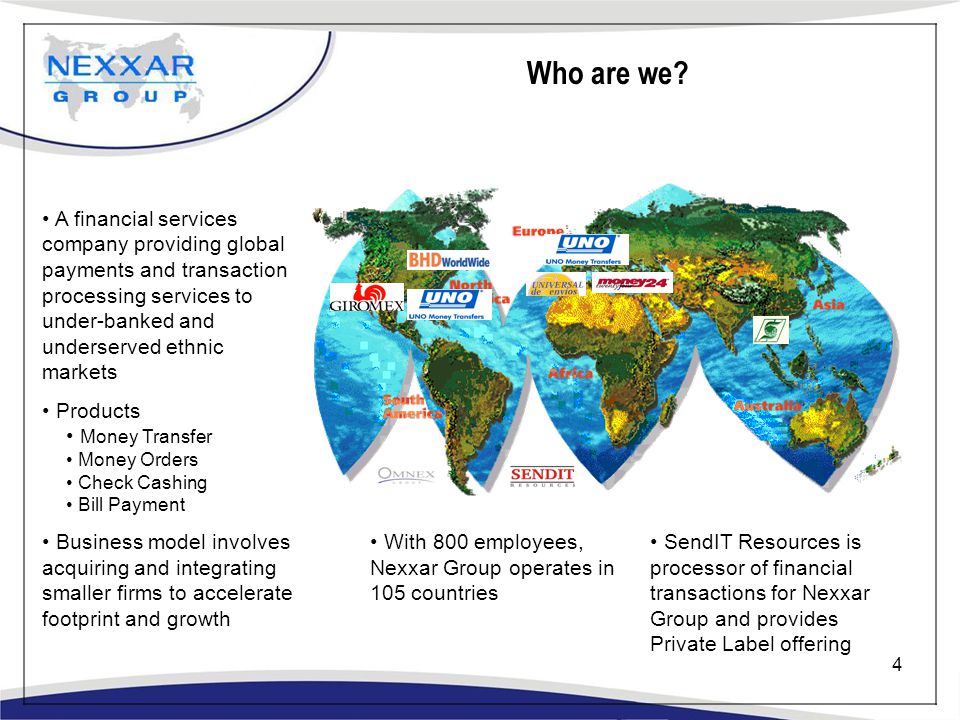

4. 4 A financial services company providing global payments and transaction processing services to under-banked and underserved ethnic markets Products Money Transfer Money Orders Check Cashing Bill Payment SendIT Resources is processor of financial transactions for Nexxar Group and provides Private Label offering A financial services company providing global payments and transaction processing services to under-banked and underserved ethnic markets Products Money Transfer Money Orders Check Cashing Bill Payment With 800 employees, Nexxar Group operates in 105 countries Who are we? A financial services company providing global payments and transaction processing services to under-banked and underserved ethnic markets Products Money Transfer Money Orders Check Cashing Bill Payment Business model involves acquiring and integrating smaller firms to accelerate footprint and growth

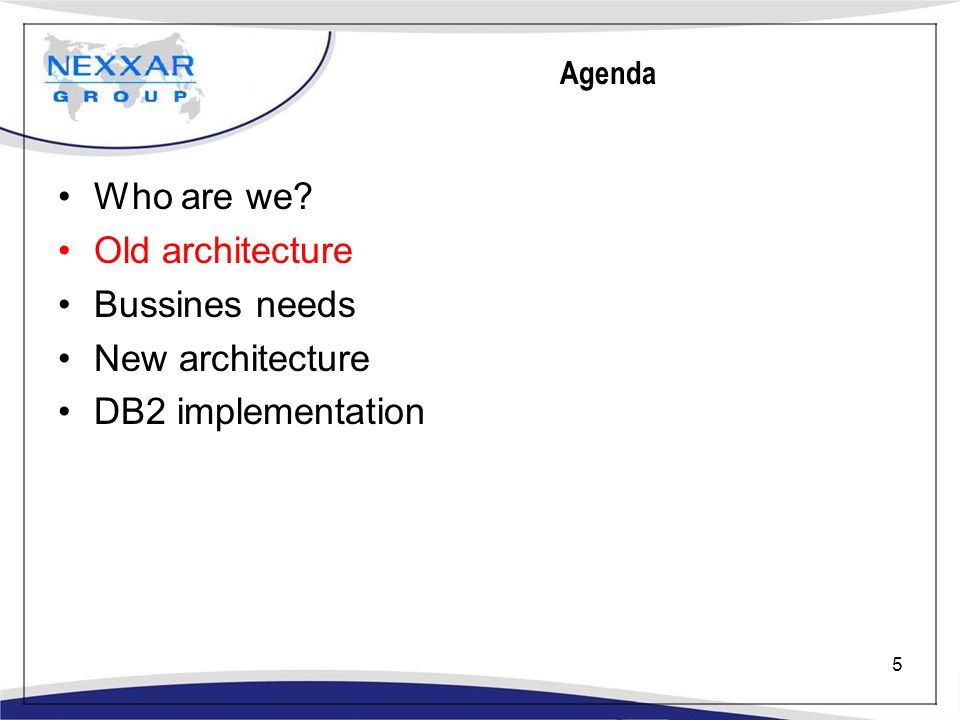

5. 5 Who are we? Old architecture Bussines needs New architecture DB2 implementation Agenda

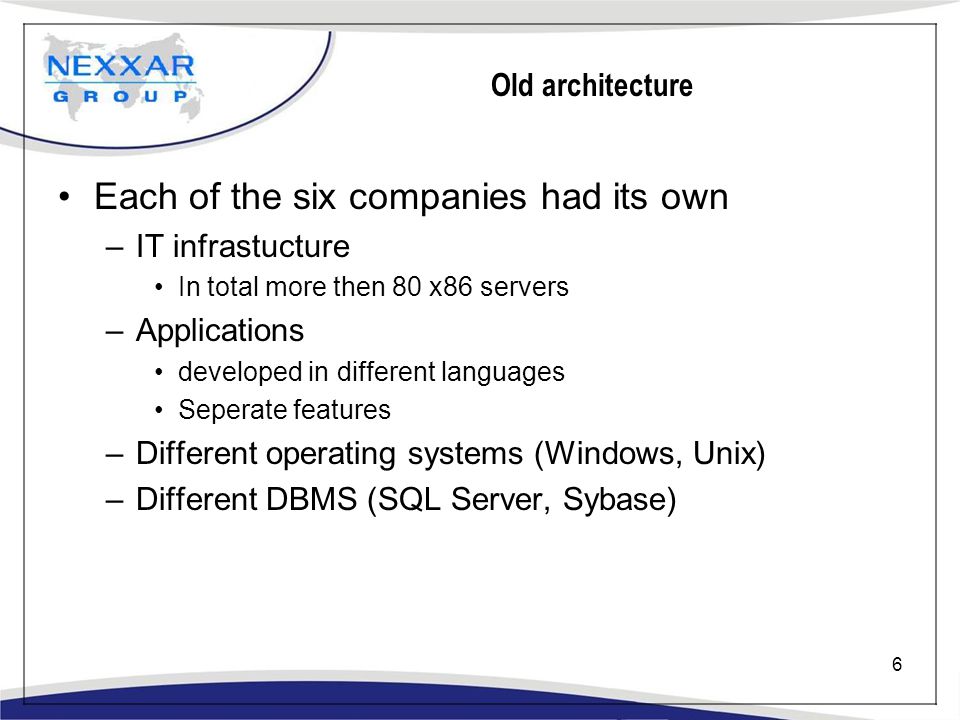

6. 6 Old architecture Each of the six companies had its own –IT infrastucture In total more then 80 x86 servers –Applications developed in different languages Seperate features –Different operating systems (Windows, Unix) –Different DBMS (SQL Server, Sybase)

7. 7 Who are we? Old architecture Bussines needs New architecture DB2 implementation Agenda

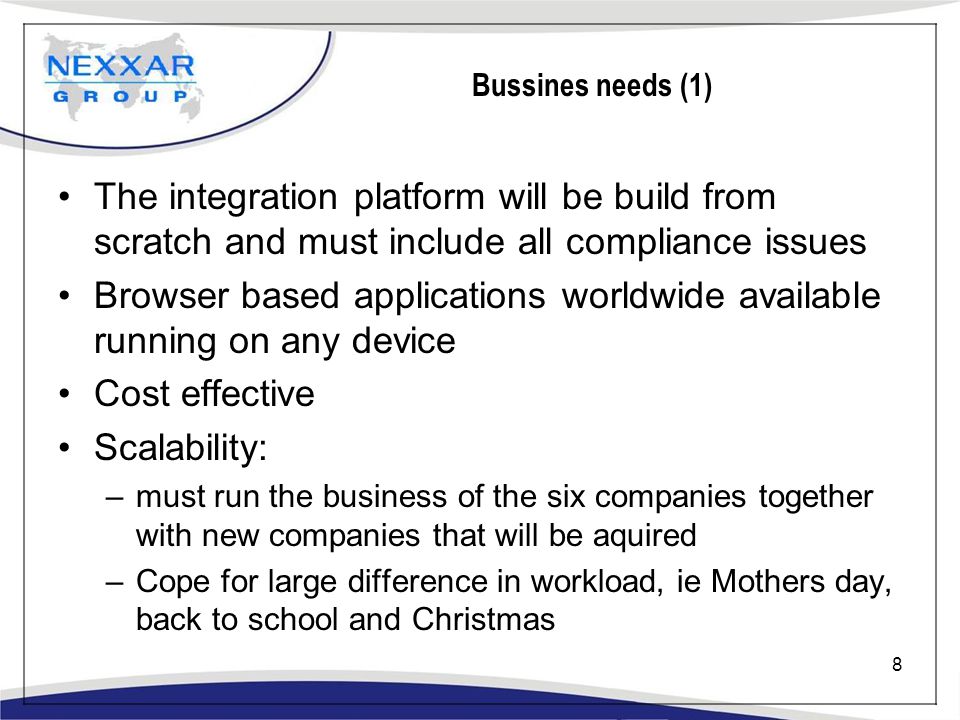

8. 8 Bussines needs (1) The integration platform will be build from scratch and must include all compliance issues Browser based applications worldwide available running on any device Cost effective Scalability: –must run the business of the six companies together with new companies that will be aquired –Cope for large difference in workload, ie Mothers day, back to school and Christmas

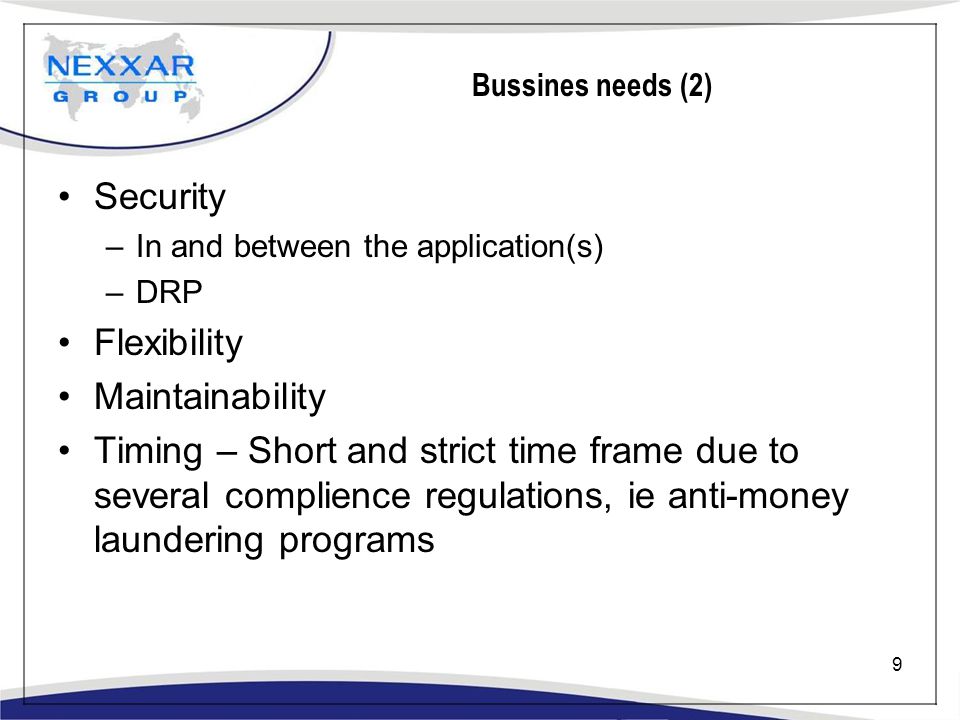

9. 9 Bussines needs (2) Security –In and between the application(s) –DRP Flexibility Maintainability Timing – Short and strict time frame due to several complience regulations, ie anti-money laundering programs

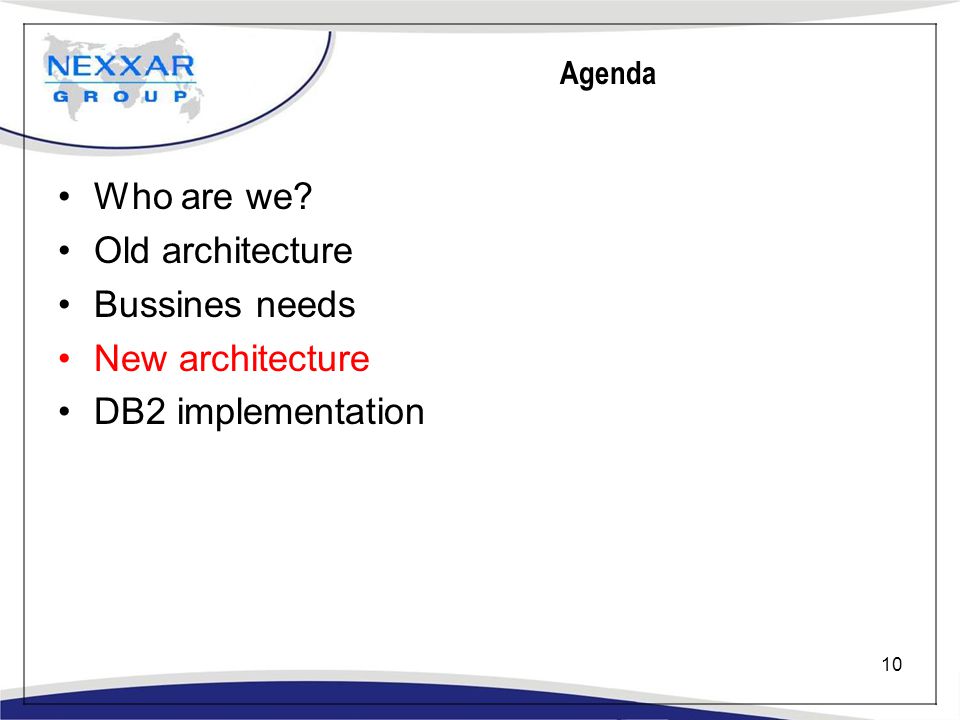

10. 10 Who are we? Old architecture Bussines needs New architecture DB2 implementation Agenda

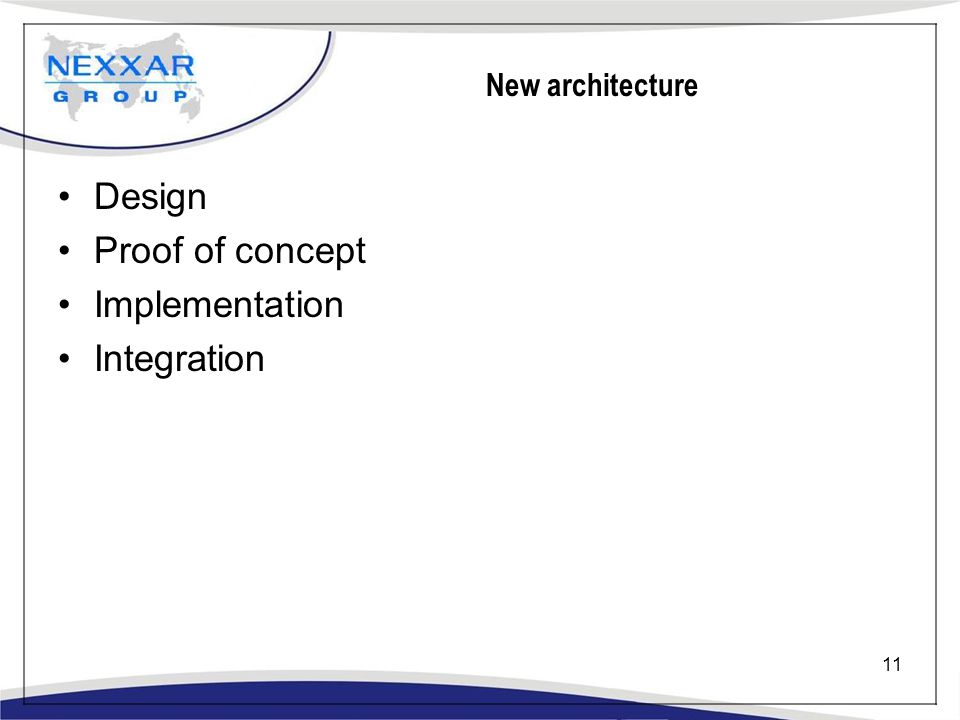

11. 11 New architecture Design Proof of concept Implementation Integration

12. 12 New architecture Design Java J2EE application WebSphere Application Server on Linux z/VM to run Linux partitions PKI DB2 Connect, JAVA Universal driver z/OS.e DB2 for z/OS

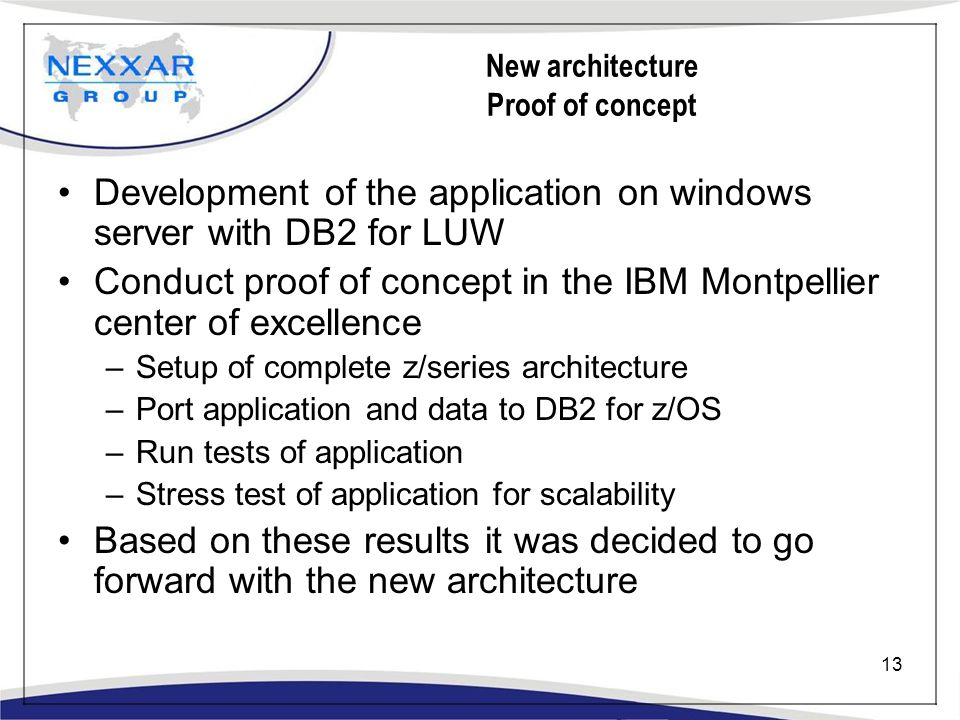

13. 13 New architecture Proof of concept Development of the application on windows server with DB2 for LUW Conduct proof of concept in the IBM Montpellier center of excellence –Setup of complete z/series architecture –Port application and data to DB2 for z/OS –Run tests of application –Stress test of application for scalability Based on these results it was decided to go forward with the new architecture

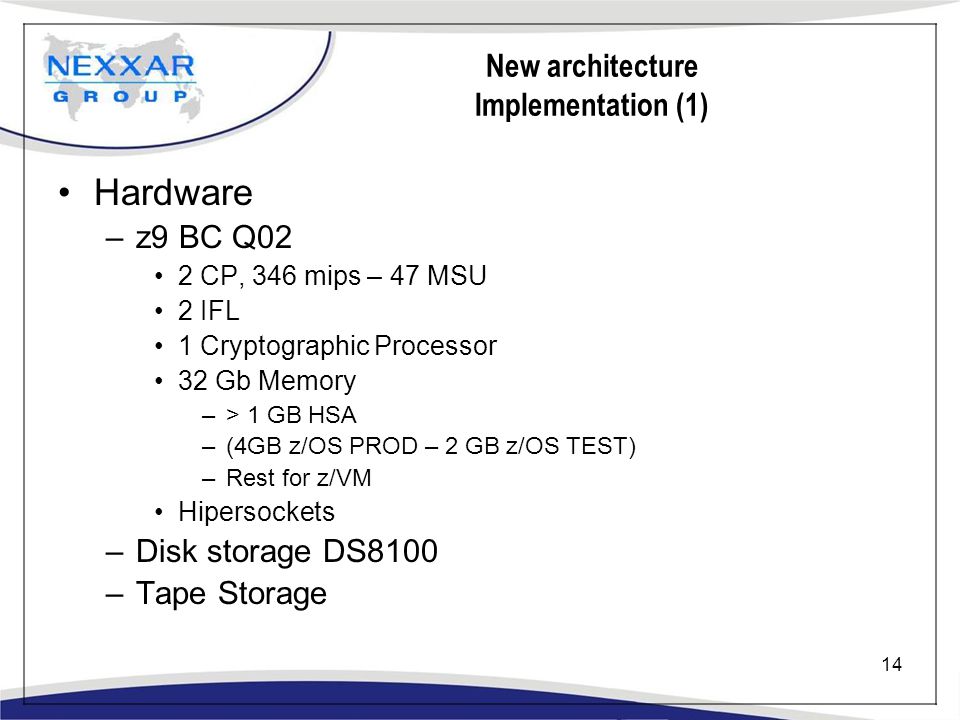

14. 14 New architecture Implementation (1) Hardware –z9 BC Q02 2 CP, 346 mips – 47 MSU 2 IFL 1 Cryptographic Processor 32 Gb Memory –> 1 GB HSA –(4GB z/OS PROD – 2 GB z/OS TEST) –Rest for z/VM Hipersockets –Disk storage DS8100 –Tape Storage

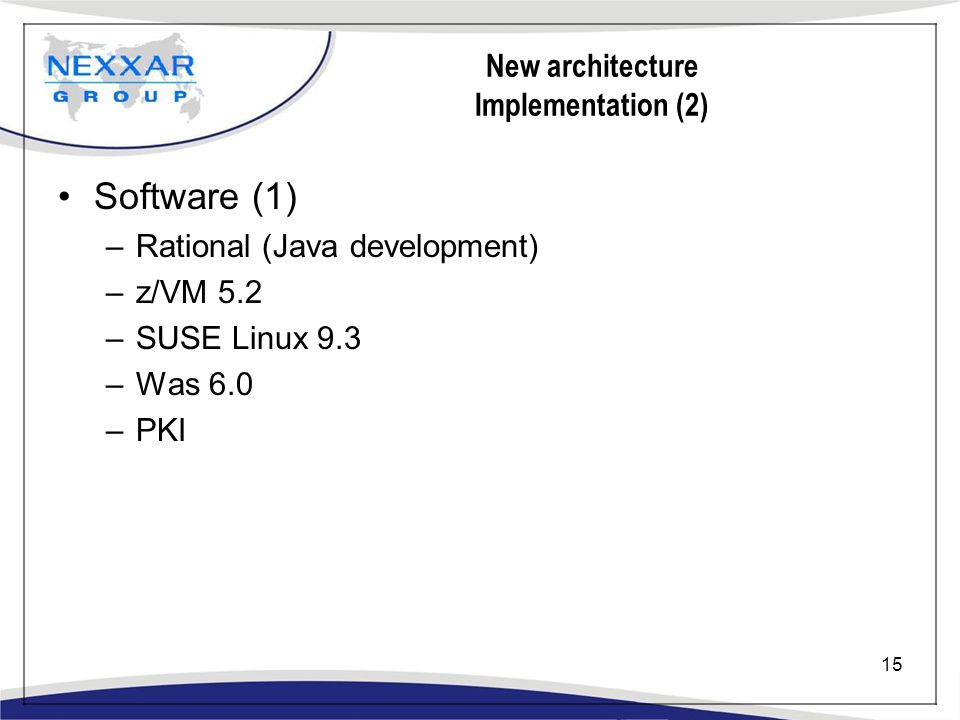

15. 15 New architecture Implementation (2) Software (1) –Rational (Java development) –z/VM 5.2 –SUSE Linux 9.3 –Was 6.0 –PKI

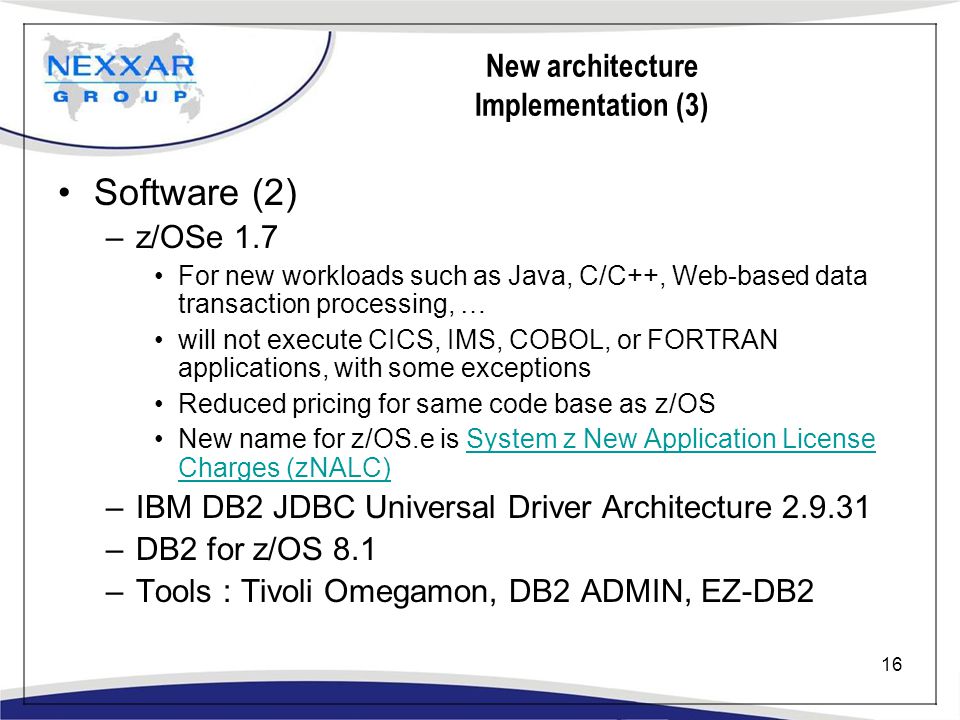

16. 16 New architecture Implementation (3) Software (2) –z/OSe 1.7 For new workloads such as Java, C/C++, Web-based data transaction processing, … will not execute CICS, IMS, COBOL, or FORTRAN applications, with some exceptions Reduced pricing for same code base as z/OS New name for z/OS.e is System z New Application License Charges (zNALC)System z New Application License Charges (zNALC) –IBM DB2 JDBC Universal Driver Architecture 2.9.31 –DB2 for z/OS 8.1 –Tools : Tivoli Omegamon, DB2 ADMIN, EZ-DB2

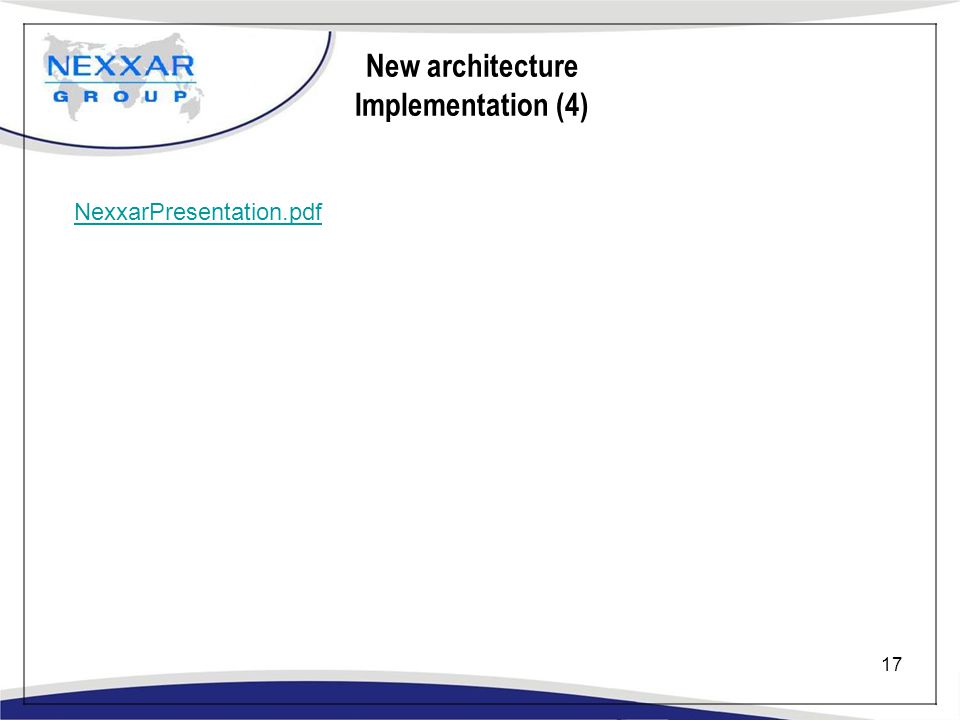

17. 17 New architecture Implementation (4) NexxarPresentation.pdf

18. 18 New architecture Integration Import of 5 years of data from the old IT infrastructure Interface between old and new applications Start of Pilot agents to test –new application –new compliance infrastructure –reporting Conversion of all companies, should be finished by the end of October 2007

19. 19 Who are we? Old architecture Bussines needs New architecture DB2 implementation Agenda

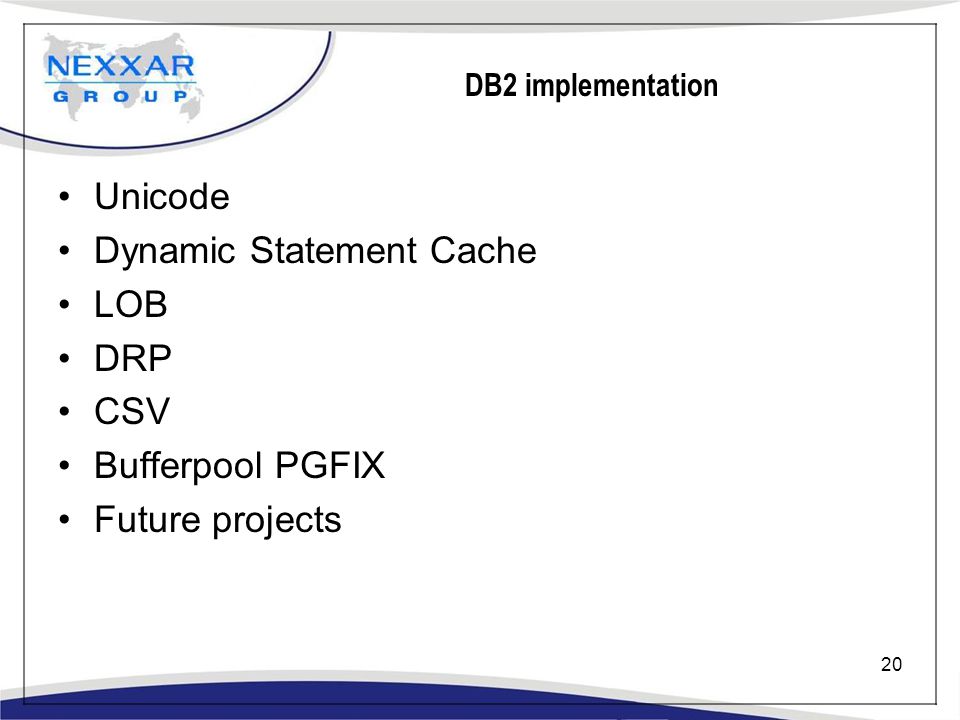

20. 20 DB2 implementation Unicode Dynamic Statement Cache LOB DRP CSV Bufferpool PGFIX Future projects

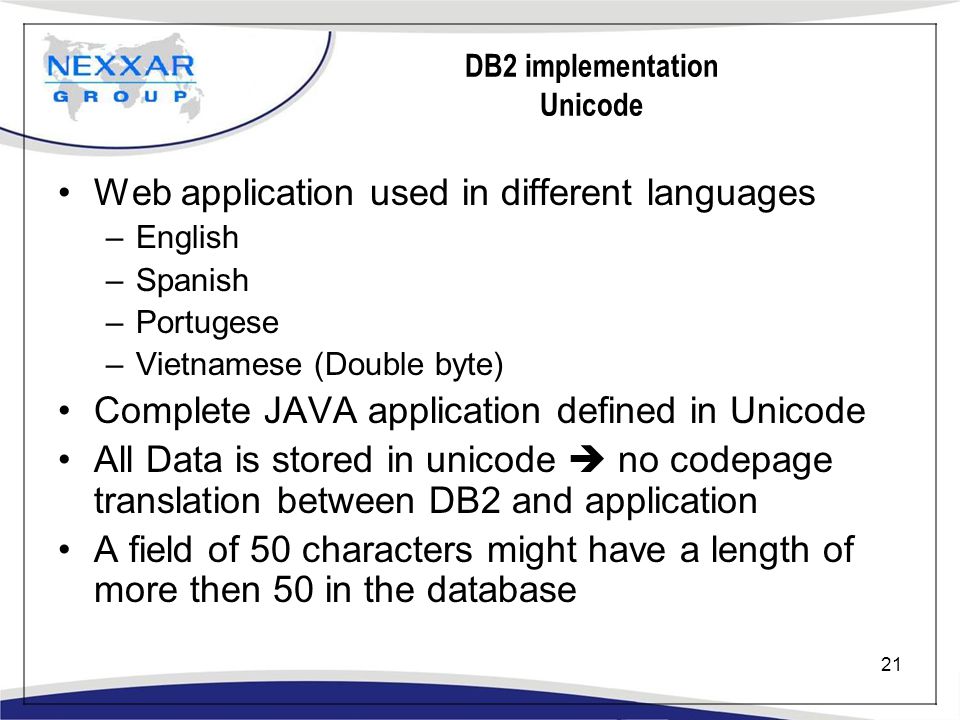

21. 21 DB2 implementation Unicode Web application used in different languages –English –Spanish –Portugese –Vietnamese (Double byte) Complete JAVA application defined in Unicode All Data is stored in unicode  no codepage translation between DB2 and application A field of 50 characters might have a length of more then 50 in the database

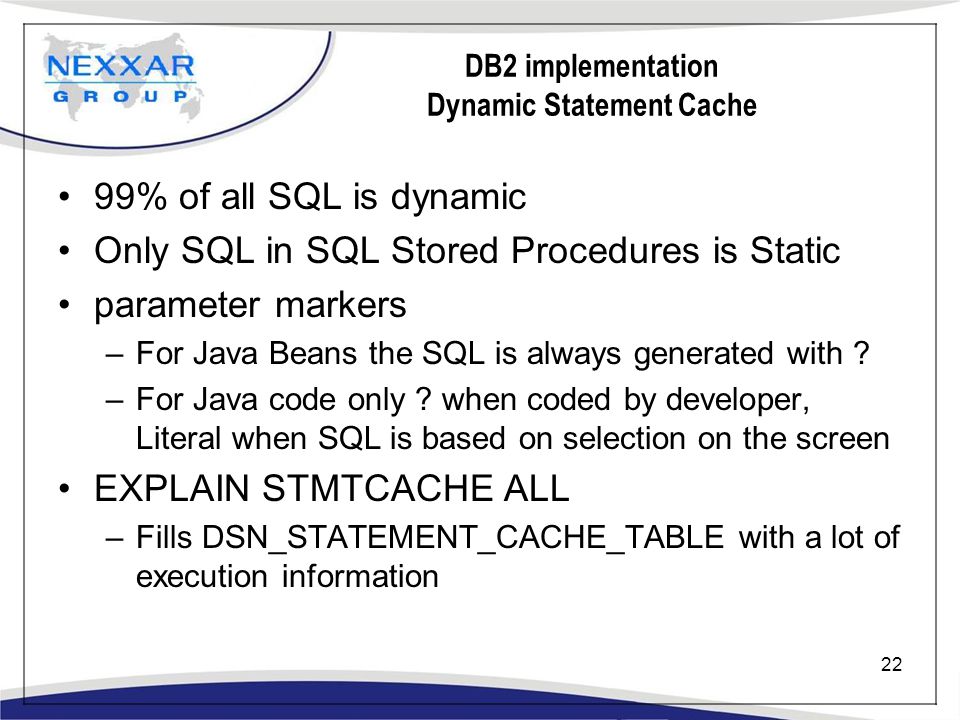

22. 22 DB2 implementation Dynamic Statement Cache 99% of all SQL is dynamic Only SQL in SQL Stored Procedures is Static parameter markers –For Java Beans the SQL is always generated with ? –For Java code only ? when coded by developer, Literal when SQL is based on selection on the screen EXPLAIN STMTCACHE ALL –Fills DSN_STATEMENT_CACHE_TABLE with a lot of execution information

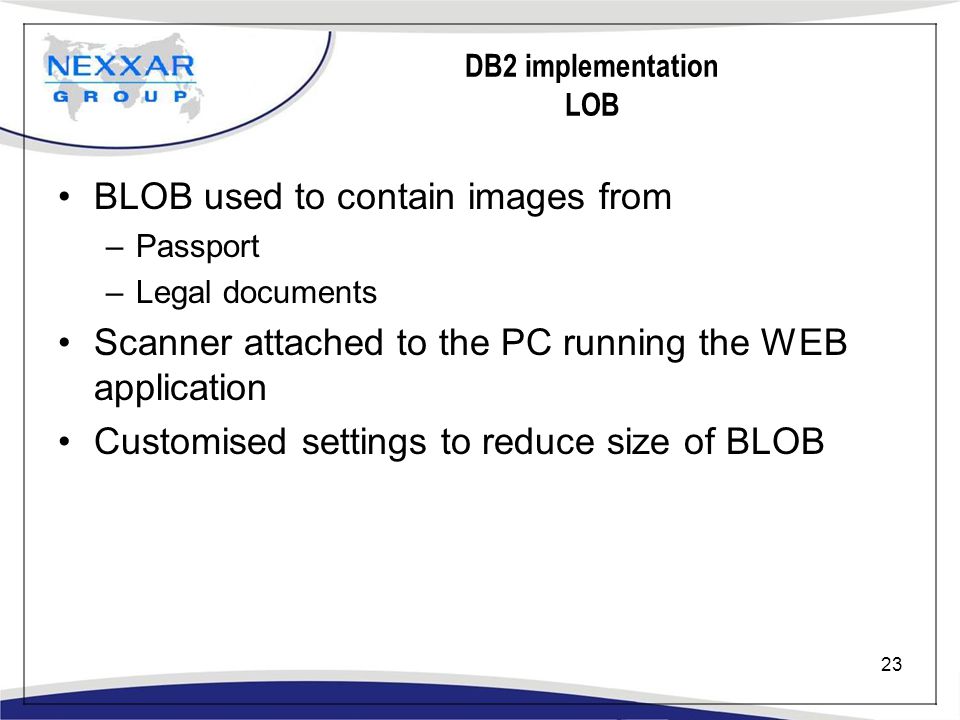

23. 23 DB2 implementation LOB BLOB used to contain images from –Passport –Legal documents Scanner attached to the PC running the WEB application Customised settings to reduce size of BLOB

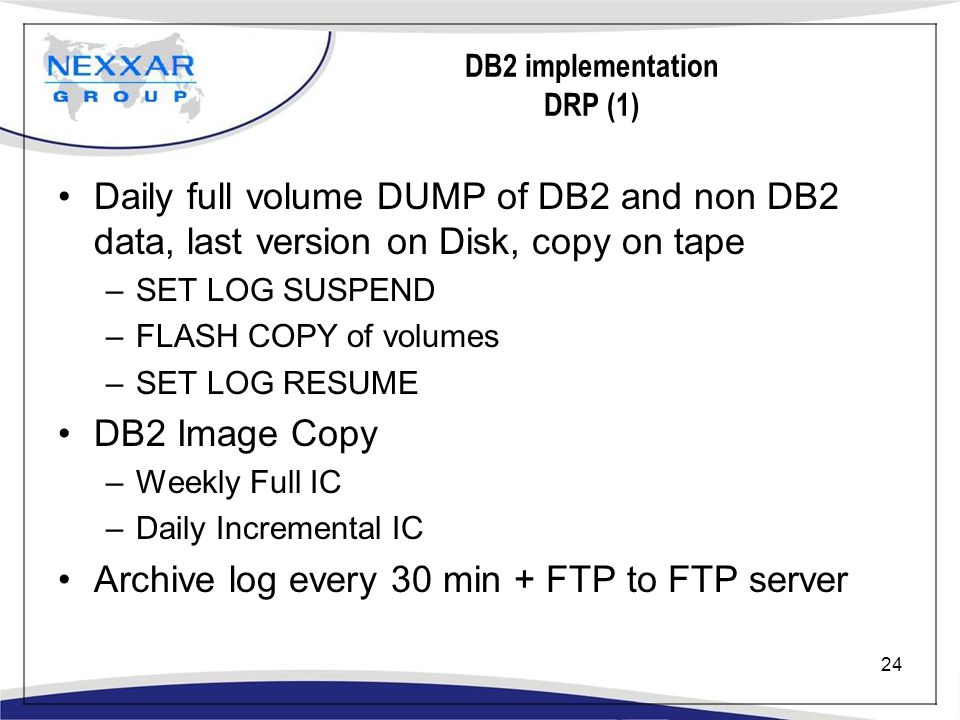

24. 24 DB2 implementation DRP (1) Daily full volume DUMP of DB2 and non DB2 data, last version on Disk, copy on tape –SET LOG SUSPEND –FLASH COPY of volumes –SET LOG RESUME DB2 Image Copy –Weekly Full IC –Daily Incremental IC Archive log every 30 min + FTP to FTP server

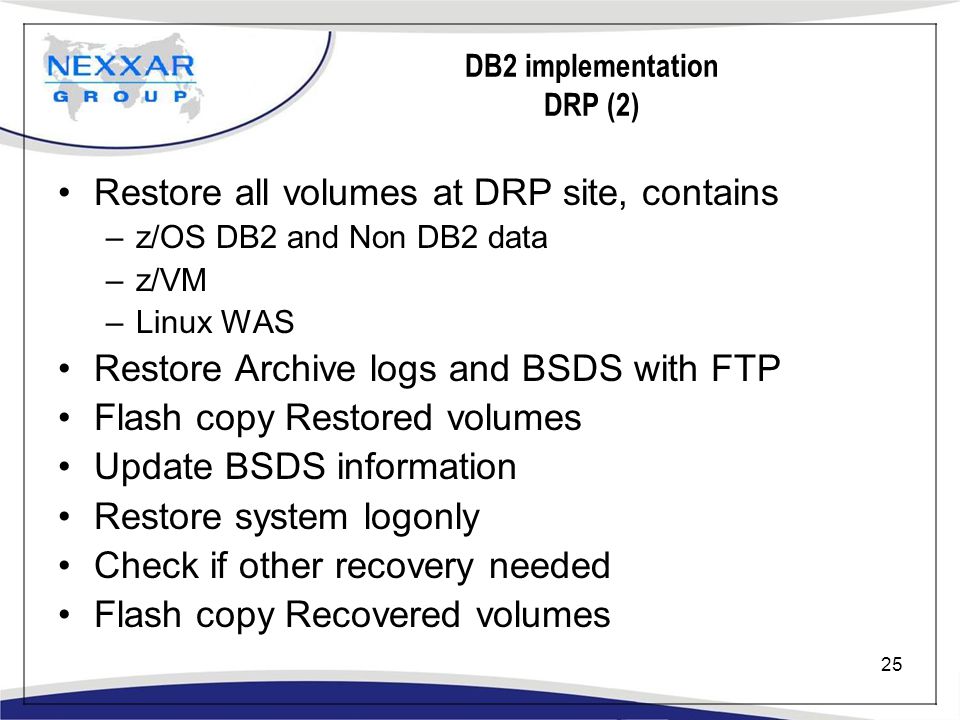

25. 25 DB2 implementation DRP (2) Restore all volumes at DRP site, contains –z/OS DB2 and Non DB2 data –z/VM –Linux WAS Restore Archive logs and BSDS with FTP Flash copy Restored volumes Update BSDS information Restore system logonly Check if other recovery needed Flash copy Recovered volumes

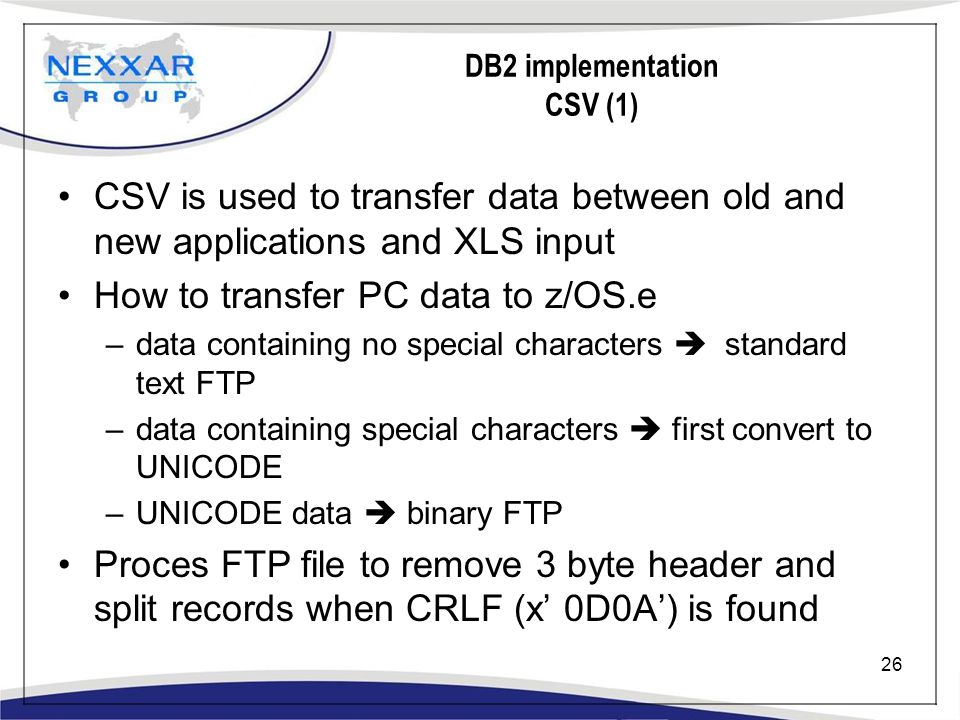

26. 26 DB2 implementation CSV (1) CSV is used to transfer data between old and new applications and XLS input How to transfer PC data to z/OS.e –data containing no special characters  standard text FTP –data containing special characters  first convert to UNICODE –UNICODE data  binary FTP Proces FTP file to remove 3 byte header and split records when CRLF (x’ 0D0A’) is found

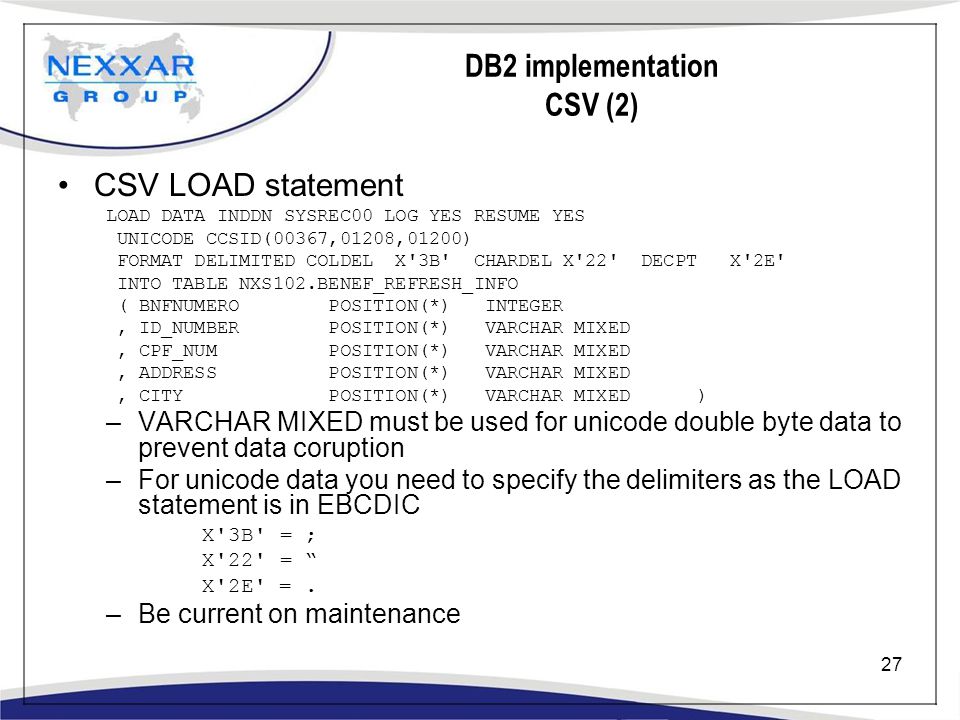

27. 27 DB2 implementation CSV (2) CSV LOAD statement LOAD DATA INDDN SYSREC00 LOG YES RESUME YES UNICODE CCSID(00367,01208,01200) FORMAT DELIMITED COLDEL X'3B' CHARDEL X'22' DECPT X'2E' INTO TABLE NXS102.BENEF_REFRESH_INFO ( BNFNUMERO POSITION(*) INTEGER, ID_NUMBER POSITION(*) VARCHAR MIXED, CPF_NUM POSITION(*) VARCHAR MIXED, ADDRESS POSITION(*) VARCHAR MIXED, CITY POSITION(*) VARCHAR MIXED ) –VARCHAR MIXED must be used for unicode double byte data to prevent data coruption –For unicode data you need to specify the delimiters as the LOAD statement is in EBCDIC X'3B' = ; X'22' = “ X'2E' =. –Be current on maintenance

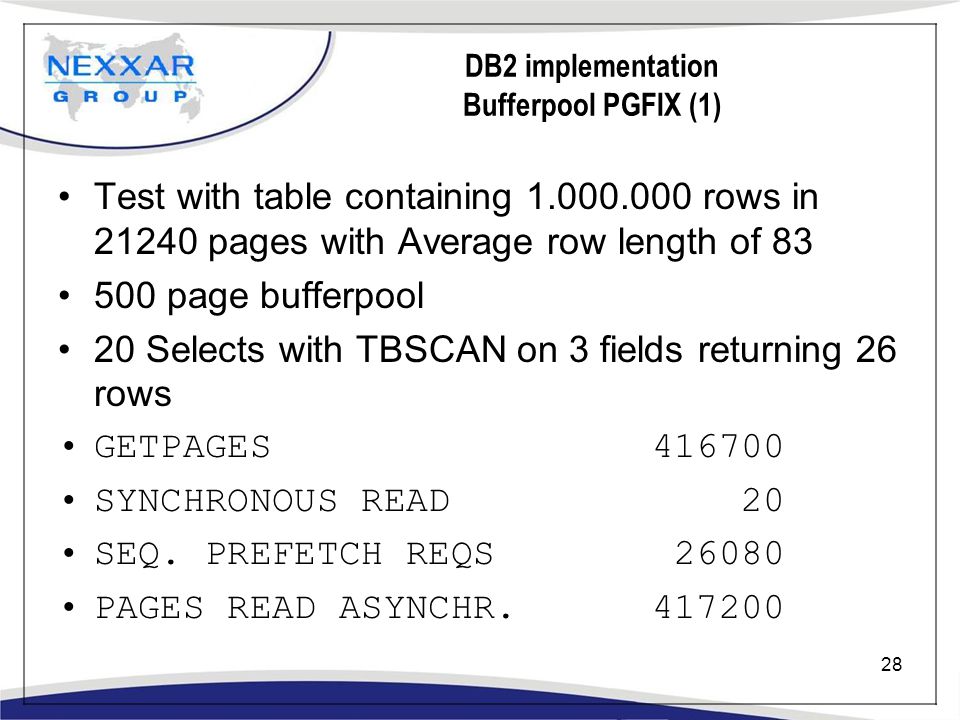

28. 28 DB2 implementation Bufferpool PGFIX (1) Test with table containing 1.000.000 rows in 21240 pages with Average row length of 83 500 page bufferpool 20 Selects with TBSCAN on 3 fields returning 26 rows GETPAGES 416700 SYNCHRONOUS READ 20 SEQ. PREFETCH REQS 26080 PAGES READ ASYNCHR. 417200

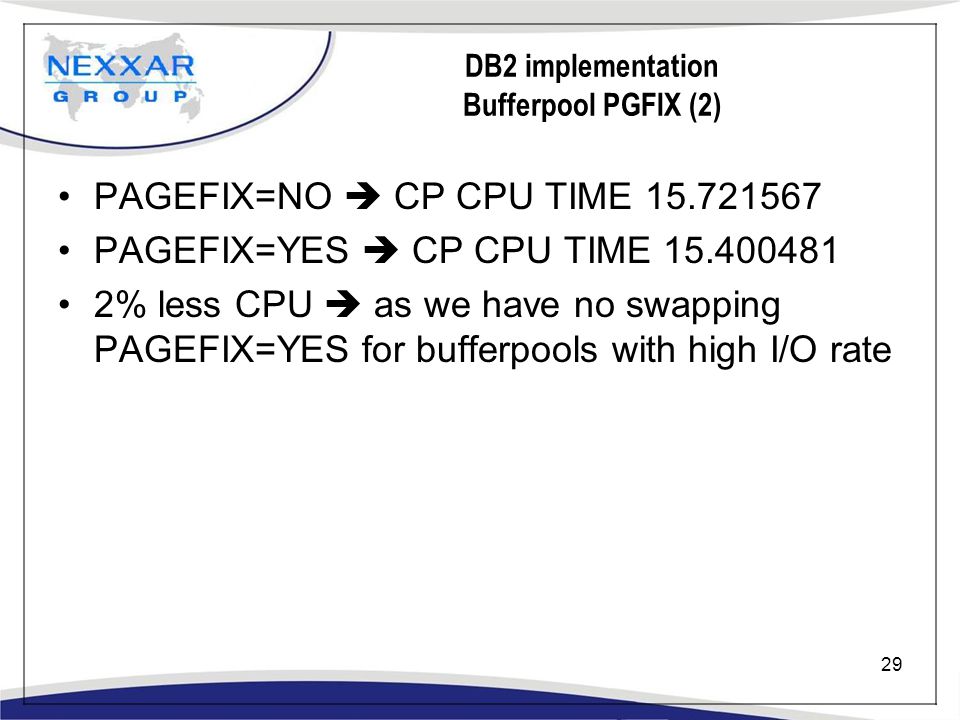

29. 29 DB2 implementation Bufferpool PGFIX (2) PAGEFIX=NO  CP CPU TIME 15.721567 PAGEFIX=YES  CP CPU TIME 15.400481 2% less CPU  as we have no swapping PAGEFIX=YES for bufferpools with high I/O rate

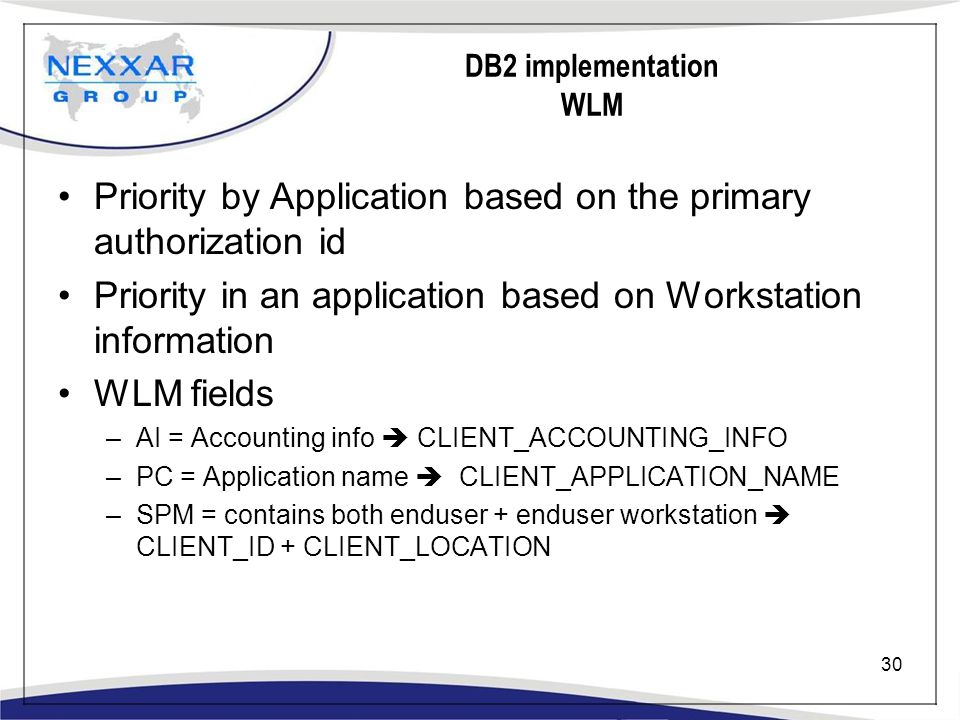

30. 30 DB2 implementation WLM Priority by Application based on the primary authorization id Priority in an application based on Workstation information WLM fields –AI = Accounting info  CLIENT_ACCOUNTING_INFO –PC = Application name  CLIENT_APPLICATION_NAME –SPM = contains both enduser + enduser workstation  CLIENT_ID + CLIENT_LOCATION

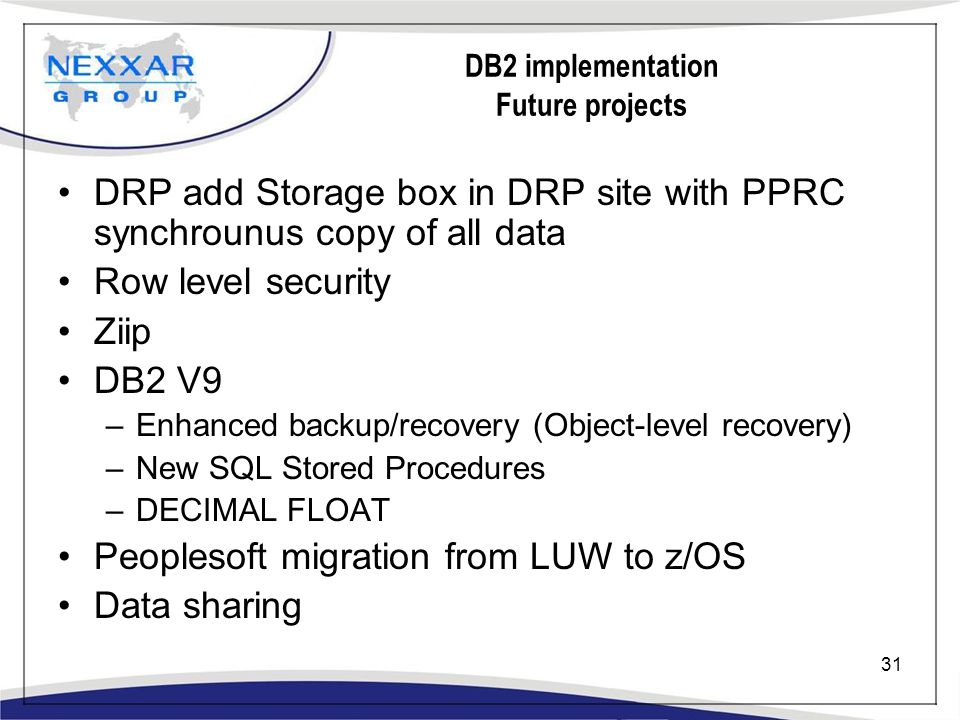

31. 31 DB2 implementation Future projects DRP add Storage box in DRP site with PPRC synchrounus copy of all data Row level security Ziip DB2 V9 –Enhanced backup/recovery (Object-level recovery) –New SQL Stored Procedures –DECIMAL FLOAT Peoplesoft migration from LUW to z/OS Data sharing
