1. SIM5102 Software Evaluation Measuring Internal Product Attribute

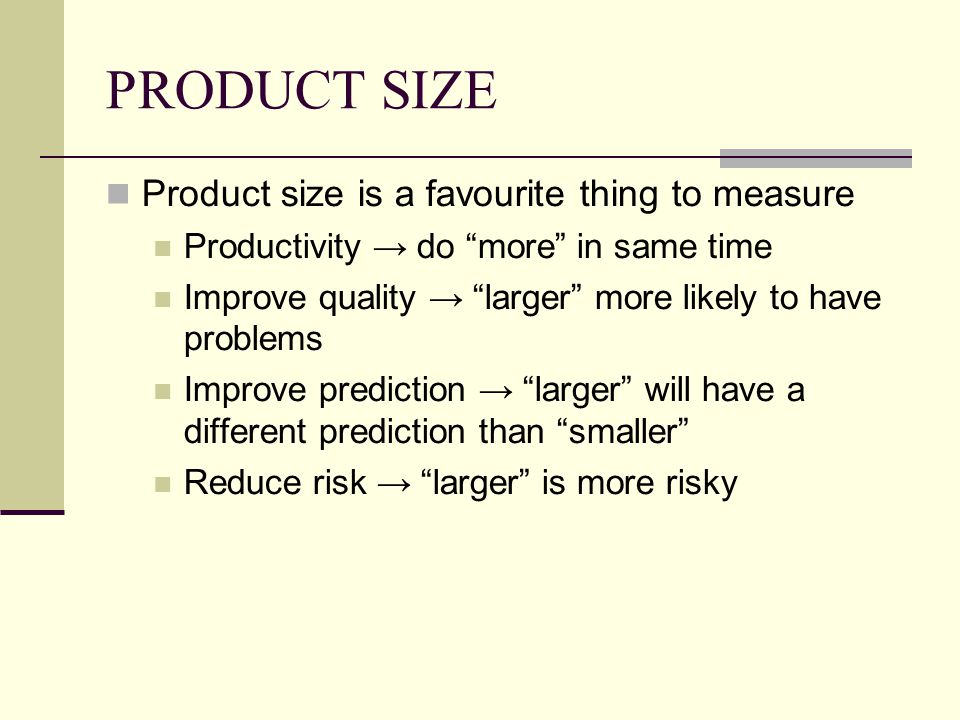

2. PRODUCT SIZE Product size is a favourite thing to measure Productivity → do “more” in same time Improve quality → “larger” more likely to have problems Improve prediction → “larger” will have a different prediction than “smaller” Reduce risk → “larger” is more risky

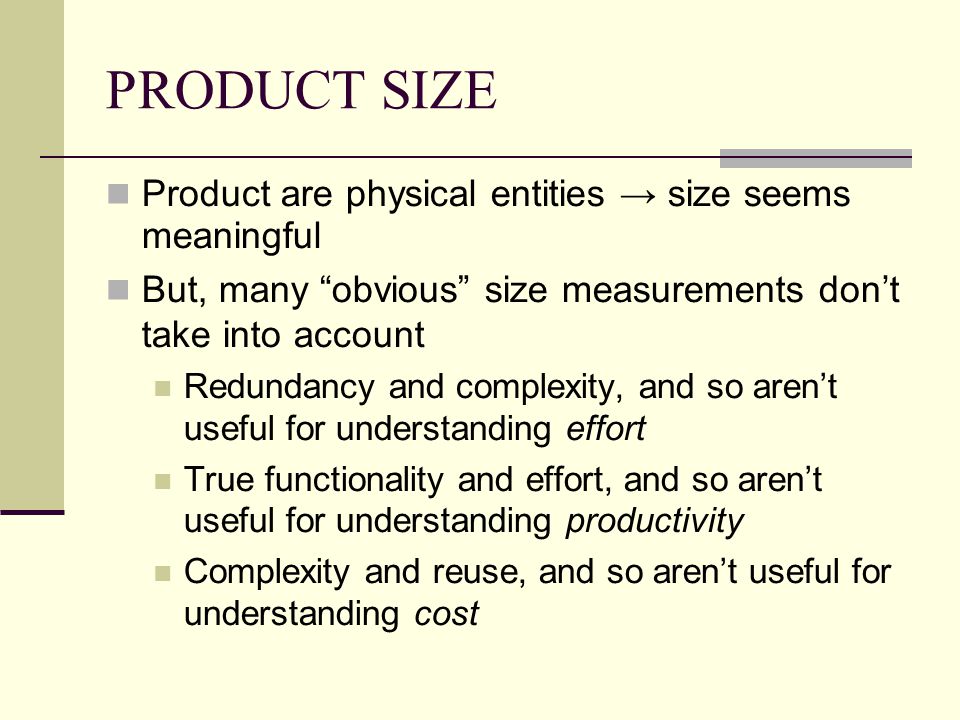

3. PRODUCT SIZE Product are physical entities → size seems meaningful But, many “obvious” size measurements don’t take into account Redundancy and complexity, and so aren’t useful for understanding effort True functionality and effort, and so aren’t useful for understanding productivity Complexity and reuse, and so aren’t useful for understanding cost

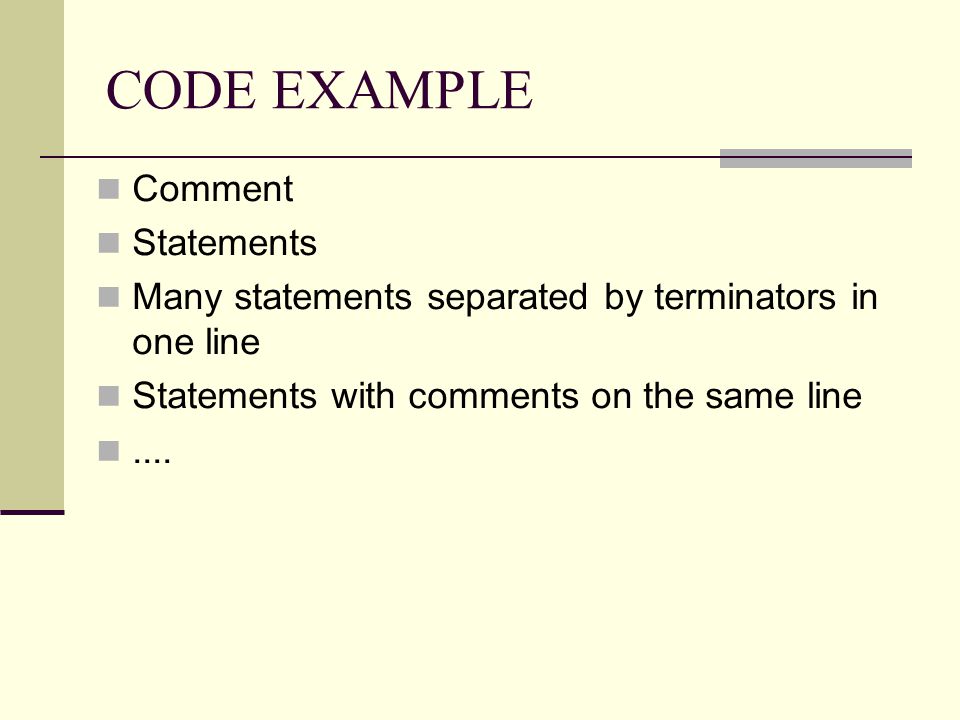

4. CODE EXAMPLE Comment Statements Many statements separated by terminators in one line Statements with comments on the same line....

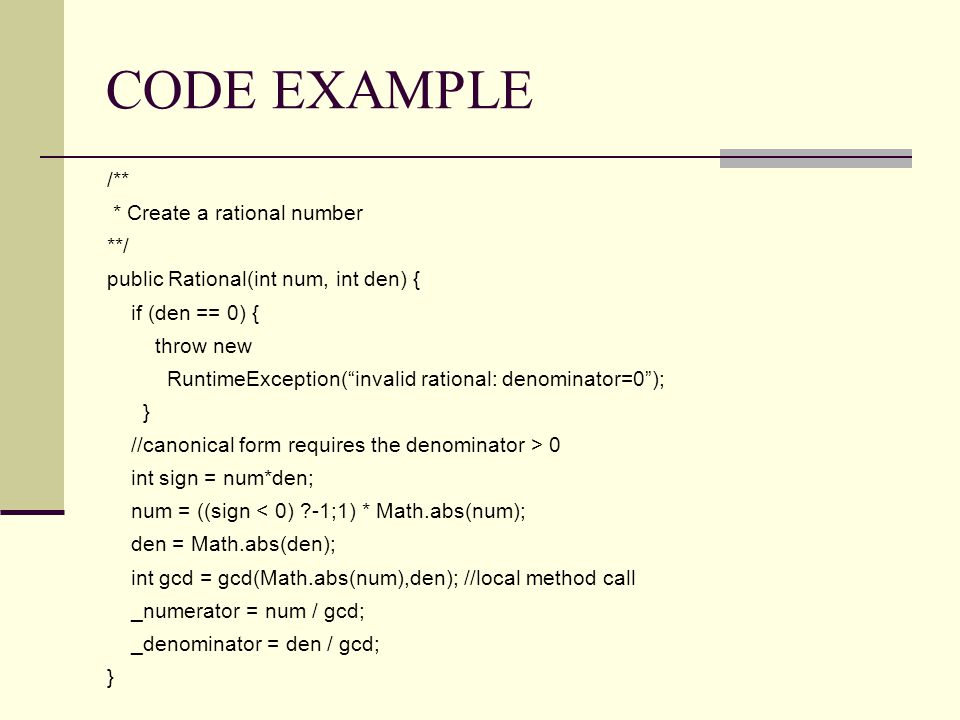

5. CODE EXAMPLE /** * Create a rational number **/ public Rational(int num, int den) { if (den == 0) { throw new RuntimeException(“invalid rational: denominator=0”); } //canonical form requires the denominator > 0 int sign = num*den; num = ((sign < 0) ?-1;1) * Math.abs(num); den = Math.abs(den); int gcd = gcd(Math.abs(num),den); //local method call _numerator = num / gcd; _denominator = den / gcd; }

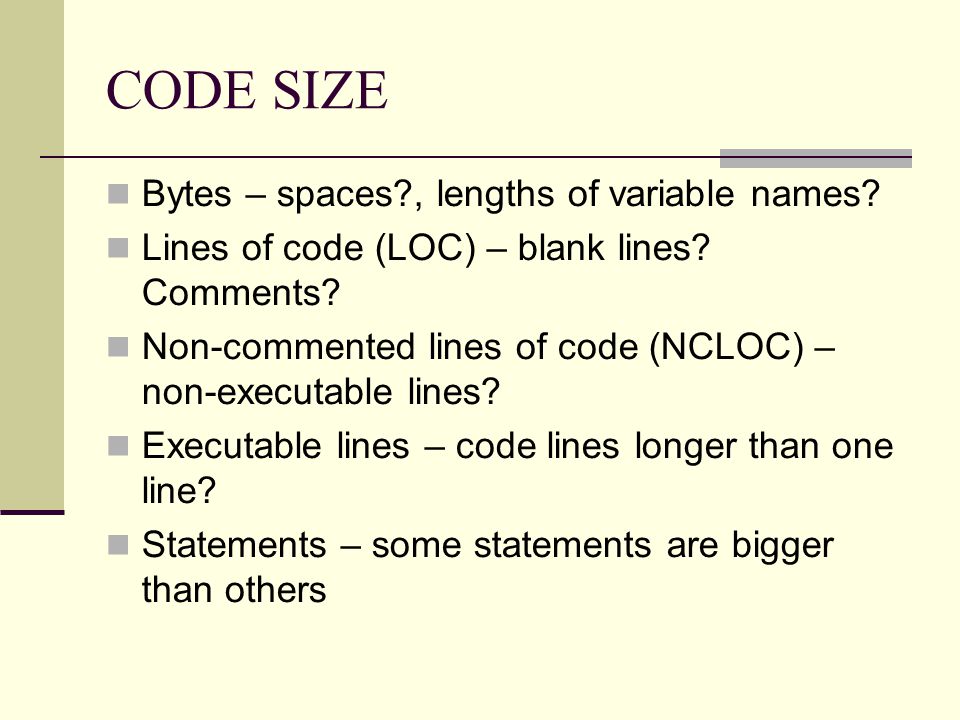

6. CODE SIZE Bytes – spaces?, lengths of variable names? Lines of code (LOC) – blank lines? Comments? Non-commented lines of code (NCLOC) – non-executable lines? Executable lines – code lines longer than one line? Statements – some statements are bigger than others

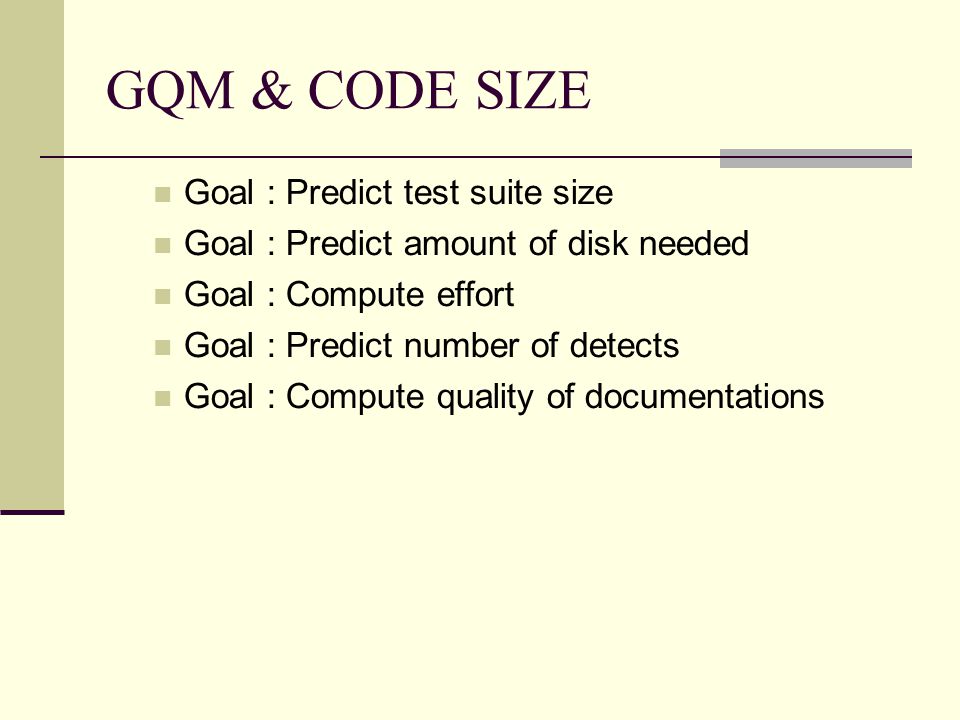

7. GQM & CODE SIZE Goal : Predict test suite size Goal : Predict amount of disk needed Goal : Compute effort Goal : Predict number of detects Goal : Compute quality of documentations

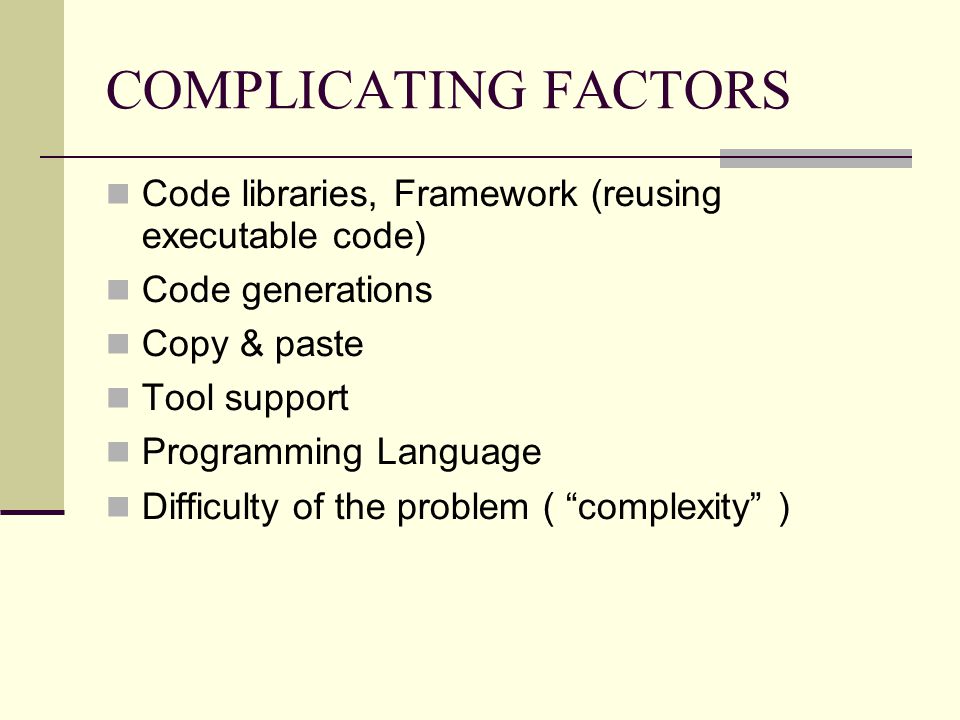

8. COMPLICATING FACTORS Code libraries, Framework (reusing executable code) Code generations Copy & paste Tool support Programming Language Difficulty of the problem ( “complexity” )

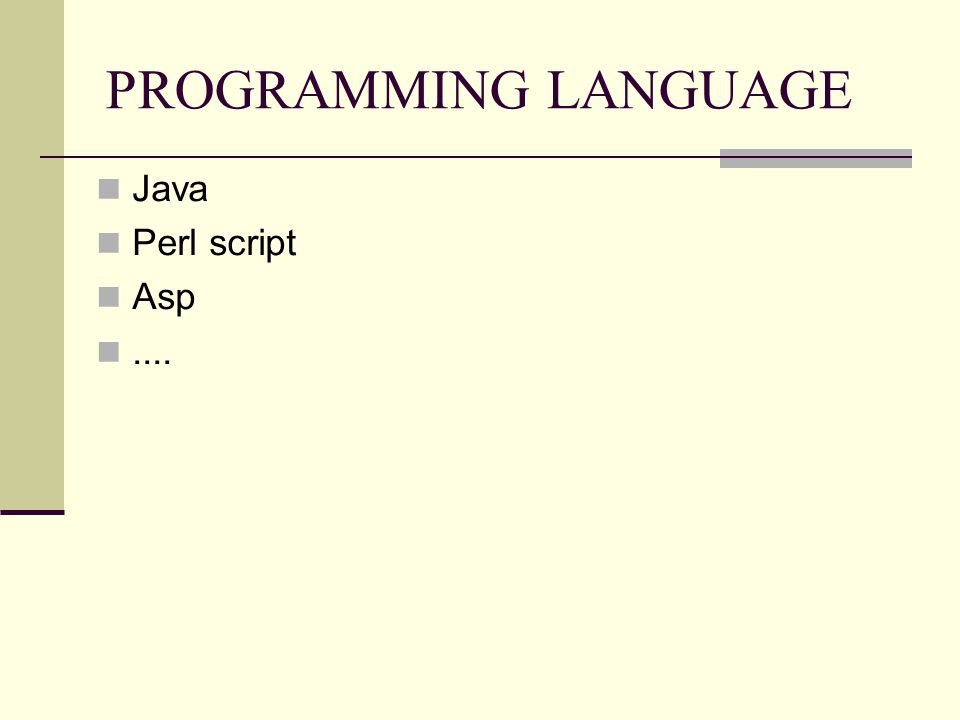

9. PROGRAMMING LANGUAGE Java Perl script Asp....

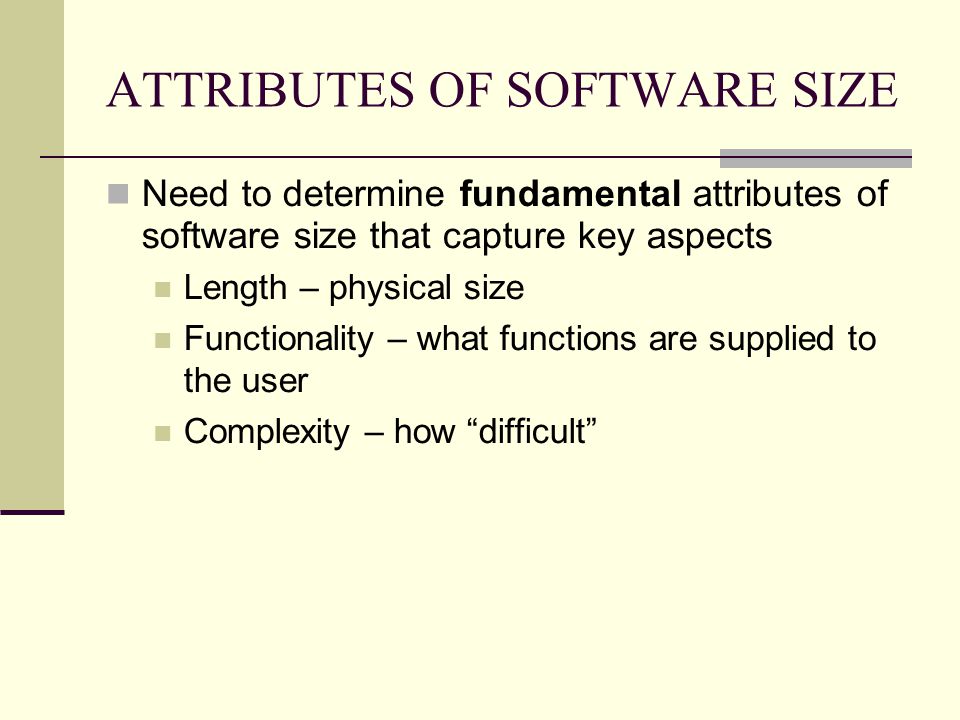

10. ATTRIBUTES OF SOFTWARE SIZE Need to determine fundamental attributes of software size that capture key aspects Length – physical size Functionality – what functions are supplied to the user Complexity – how “difficult”

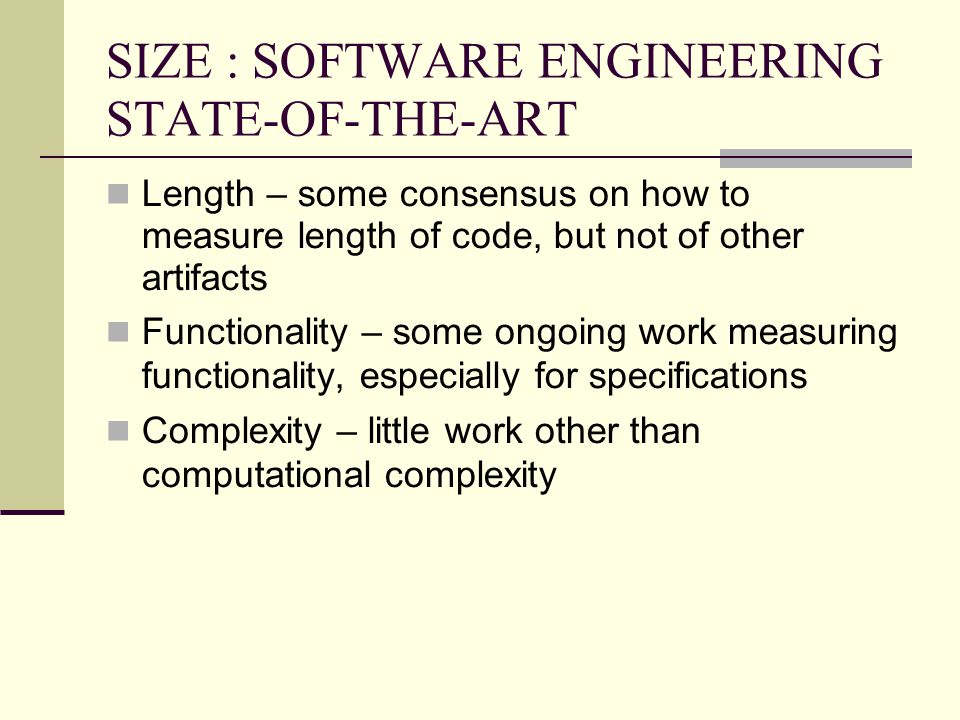

11. SIZE : SOFTWARE ENGINEERING STATE-OF-THE-ART Length – some consensus on how to measure length of code, but not of other artifacts Functionality – some ongoing work measuring functionality, especially for specifications Complexity – little work other than computational complexity

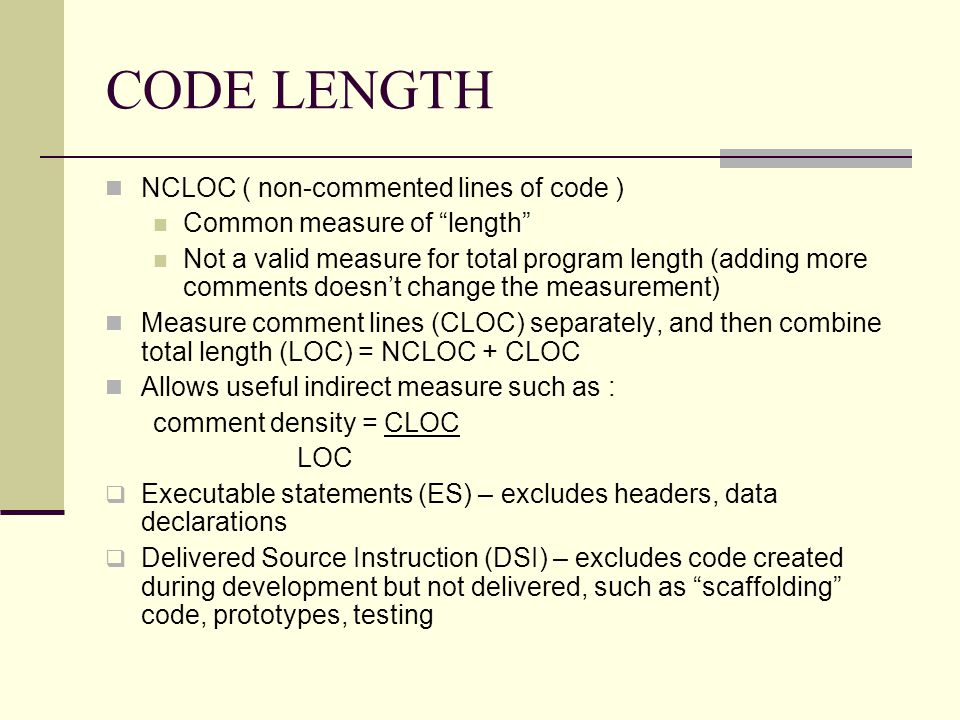

12. CODE LENGTH NCLOC ( non-commented lines of code ) Common measure of “length” Not a valid measure for total program length (adding more comments doesn’t change the measurement) Measure comment lines (CLOC) separately, and then combine total length (LOC) = NCLOC + CLOC Allows useful indirect measure such as : comment density = CLOC LOC  Executable statements (ES) – excludes headers, data declarations  Delivered Source Instruction (DSI) – excludes code created during development but not delivered, such as “scaffolding” code, prototypes, testing

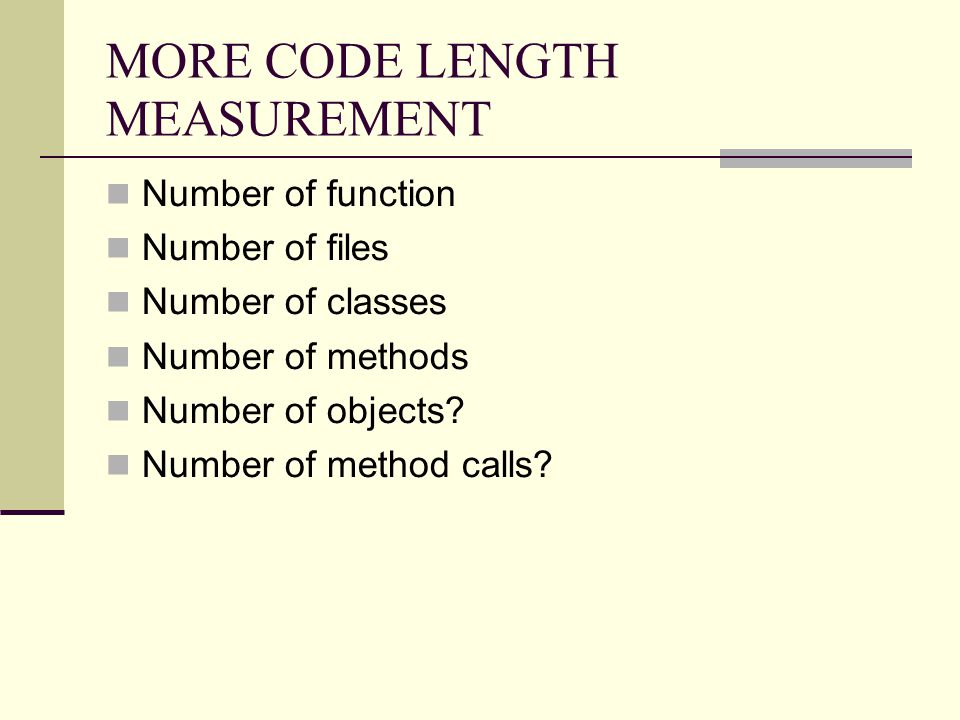

13. MORE CODE LENGTH MEASUREMENT Number of function Number of files Number of classes Number of methods Number of objects? Number of method calls?

14. HALSTEAD’S SOFTWARE SCIENCE µ 1 = # unique operations, µ 2 = # unique operands, N 1 = total # of operators, N 2 = total # of operands Length N = N 1 + N 2, vocabulary µ 1 + µ 2 Volume V = N × log 2 µ Program level L = V * / V, where V * is the volume of the minimal size of implementation Difficulty D = 1/L Estimate Level Ĺ = 1/D = 2/µ 1 × µ 2 / N 2 Estimate length Ń = µ 1 × log 2 µ 1 + µ 2 × log 2 µ 2 Estimate effort ( “mental discrimination” ) E = V / Ĺ = µ 1 N 2 N log 2 µ / 2 µ2 Programming time T = E / 18

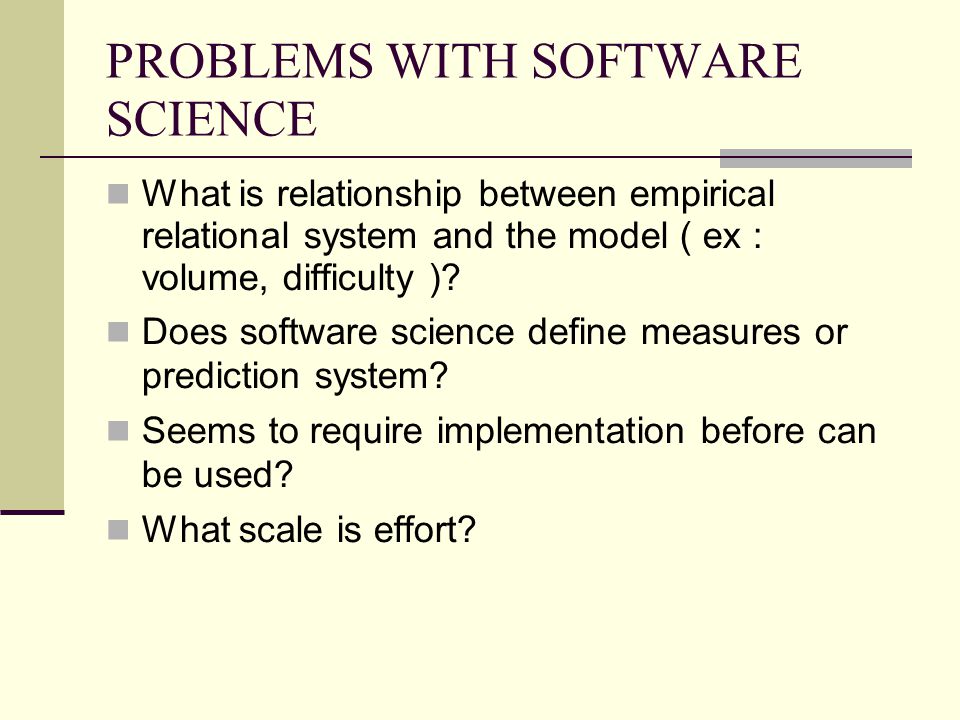

15. PROBLEMS WITH SOFTWARE SCIENCE What is relationship between empirical relational system and the model ( ex : volume, difficulty )? Does software science define measures or prediction system? Seems to require implementation before can be used? What scale is effort?

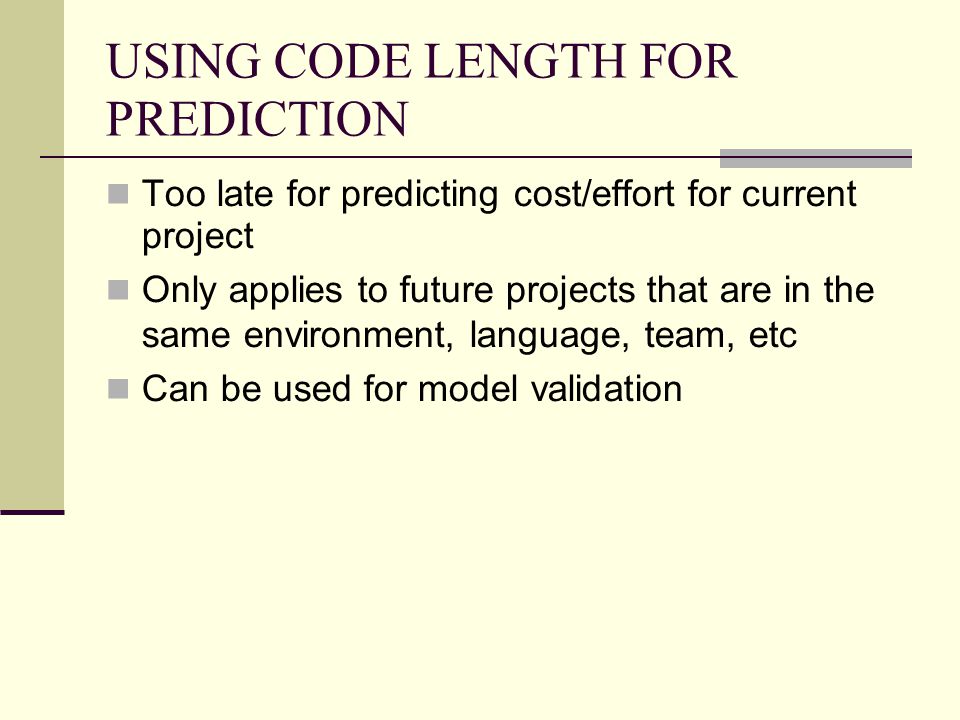

16. USING CODE LENGTH FOR PREDICTION Too late for predicting cost/effort for current project Only applies to future projects that are in the same environment, language, team, etc Can be used for model validation

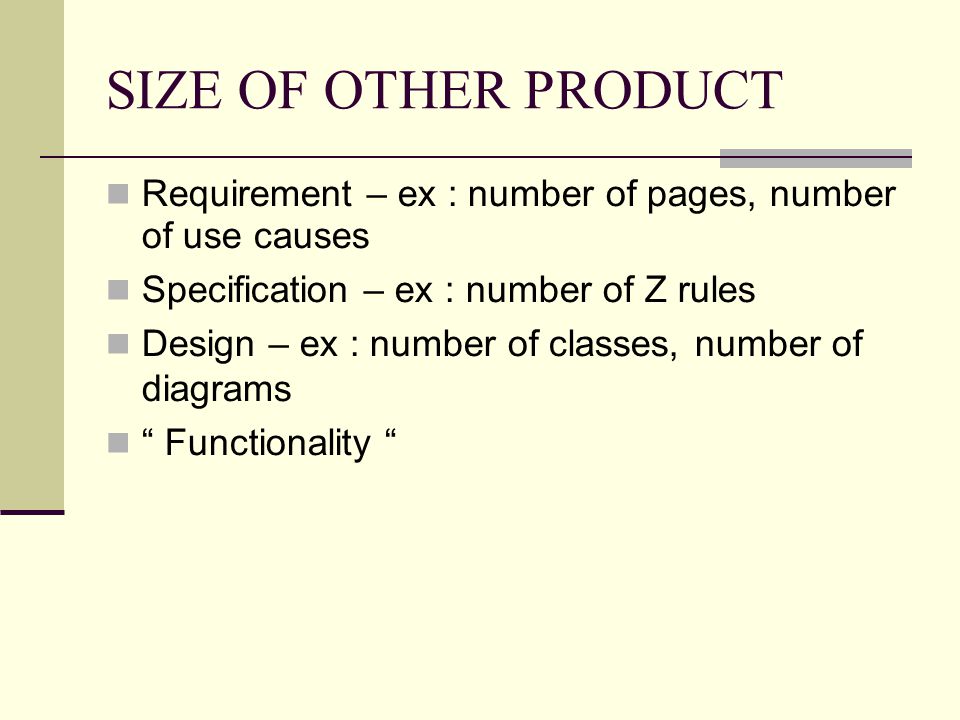

17. SIZE OF OTHER PRODUCT Requirement – ex : number of pages, number of use causes Specification – ex : number of Z rules Design – ex : number of classes, number of diagrams “ Functionality “

18. FUNCTION POINT & RELATED MEASURES A measure of “functionality” Generally can be computed “early” in the development process Albrecht’s function points Symons Mark 2 function points COCOMO 2.0 object points DeMarco’s specification weights Web objects

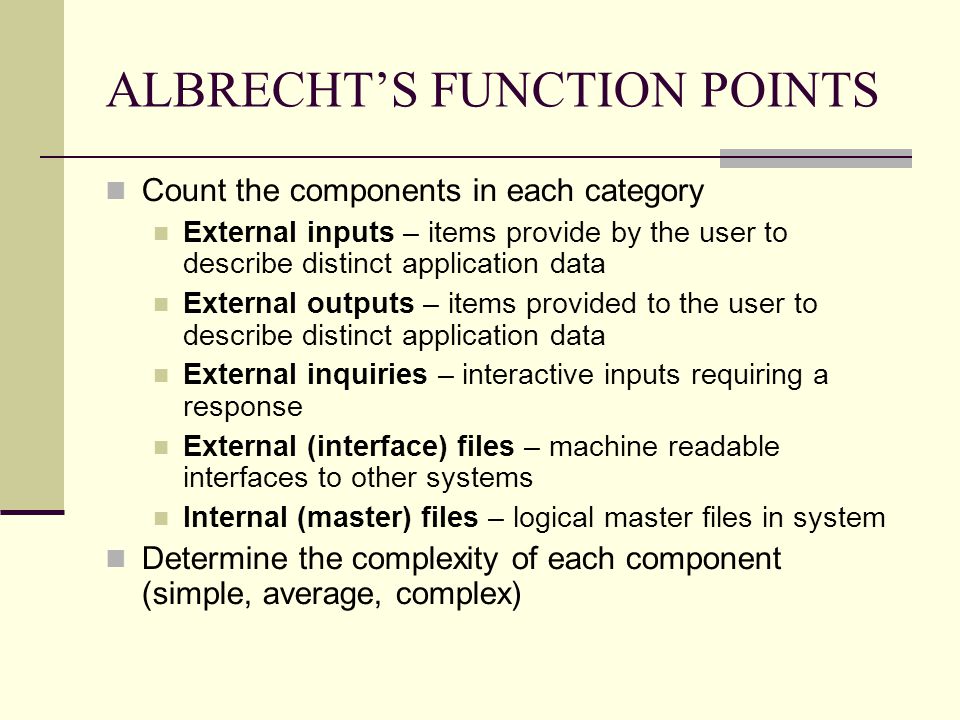

19. ALBRECHT’S FUNCTION POINTS Count the components in each category External inputs – items provide by the user to describe distinct application data External outputs – items provided to the user to describe distinct application data External inquiries – interactive inputs requiring a response External (interface) files – machine readable interfaces to other systems Internal (master) files – logical master files in system Determine the complexity of each component (simple, average, complex)

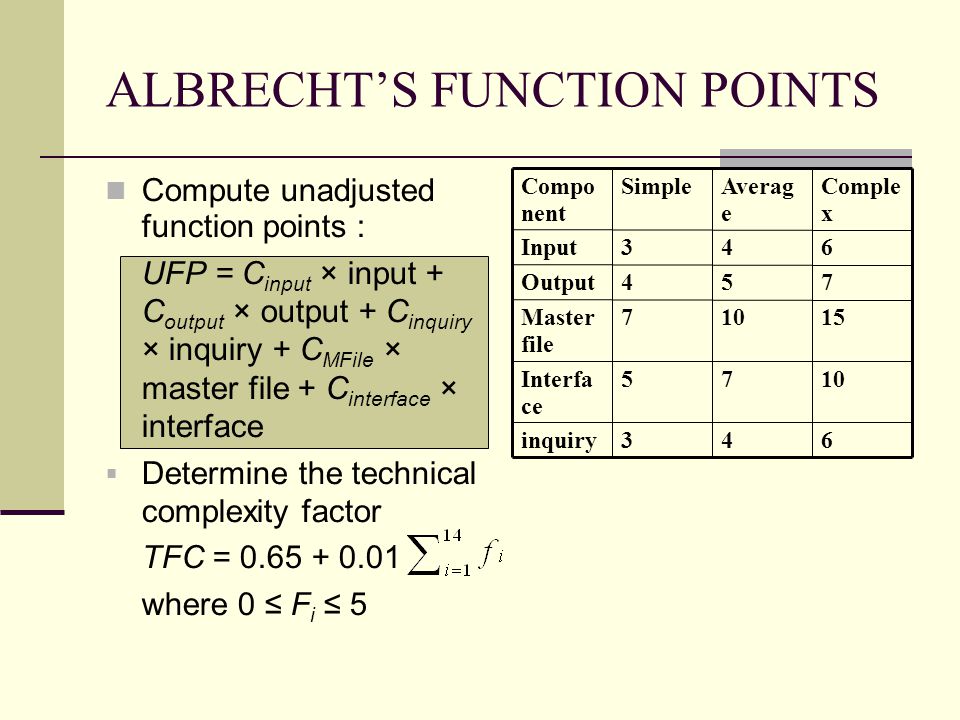

20. ALBRECHT’S FUNCTION POINTS Compute unadjusted function points : UFP = C input × input + C output × output + C inquiry × inquiry + C MFile × master file + C interface × interface  Determine the technical complexity factor TFC = 0.65 + 0.01 where 0 ≤ F i ≤ 5 643inquiry 1075Interfa ce 15107Master file 754Output 643Input Comple x Averag e SimpleCompo nent

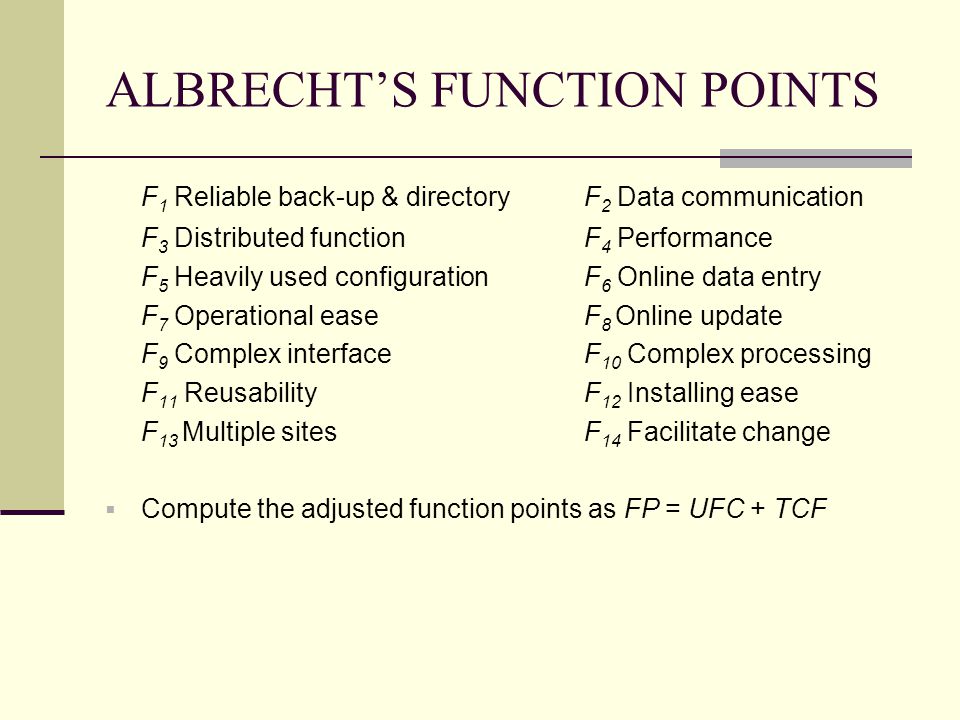

21. ALBRECHT’S FUNCTION POINTS F 1 Reliable back-up & directoryF 2 Data communication F 3 Distributed functionF 4 Performance F 5 Heavily used configurationF 6 Online data entry F 7 Operational easeF 8 Online update F 9 Complex interfaceF 10 Complex processing F 11 ReusabilityF 12 Installing ease F 13 Multiple sitesF 14 Facilitate change  Compute the adjusted function points as FP = UFC + TCF

22. EXAMPLE Spell-checker description : the checker accepts as input a document file and an optional personal dictionary file. The checker lists all words in the document file not contained in either the built-in dictionary or the personal dictionary. The user can query the number of words processed and the number of spelling errors found at any stage during processing. External inputs : document file name, personal dictionary filename External outputs : misspelled word report, number-of-words- processed message, number-of-errors-so-far message Internal (master) files : dictionary External (interface) files : document file, personal dictionary External inquiries : words processed, errors so far

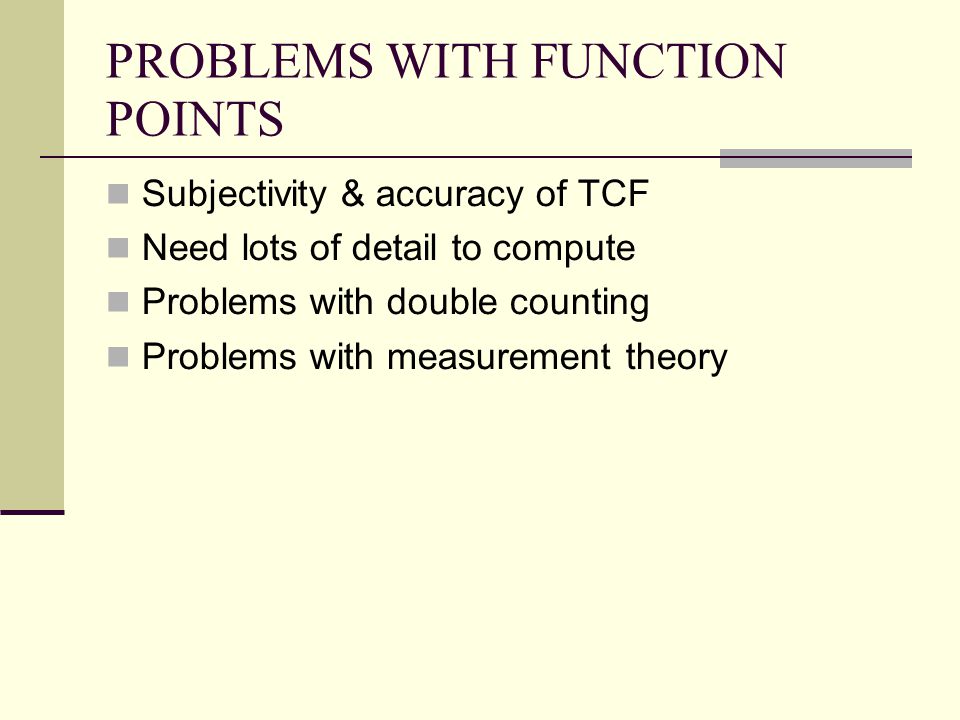

23. PROBLEMS WITH FUNCTION POINTS Subjectivity & accuracy of TCF Need lots of detail to compute Problems with double counting Problems with measurement theory

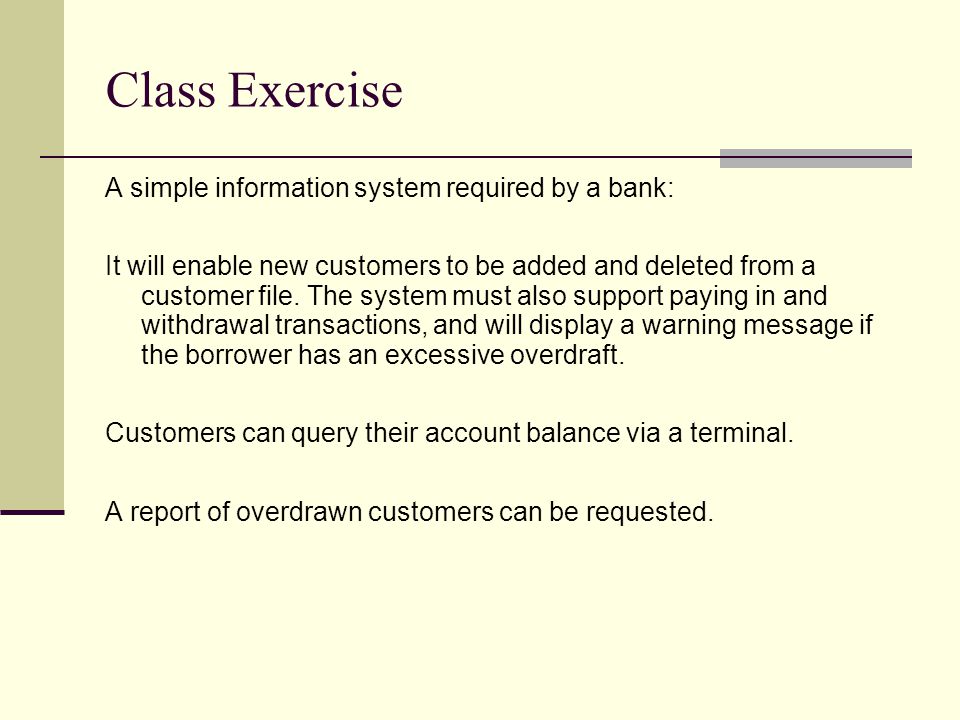

24. Class Exercise A simple information system required by a bank: It will enable new customers to be added and deleted from a customer file. The system must also support paying in and withdrawal transactions, and will display a warning message if the borrower has an excessive overdraft. Customers can query their account balance via a terminal. A report of overdrawn customers can be requested.

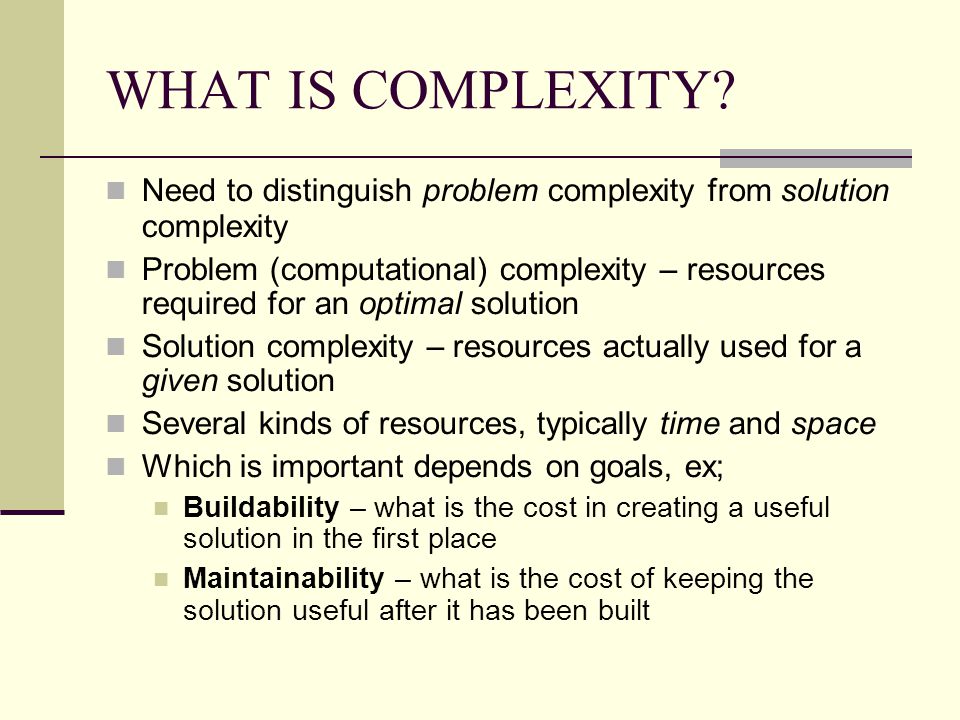

25. WHAT IS COMPLEXITY? Need to distinguish problem complexity from solution complexity Problem (computational) complexity – resources required for an optimal solution Solution complexity – resources actually used for a given solution Several kinds of resources, typically time and space Which is important depends on goals, ex; Buildability – what is the cost in creating a useful solution in the first place Maintainability – what is the cost of keeping the solution useful after it has been built

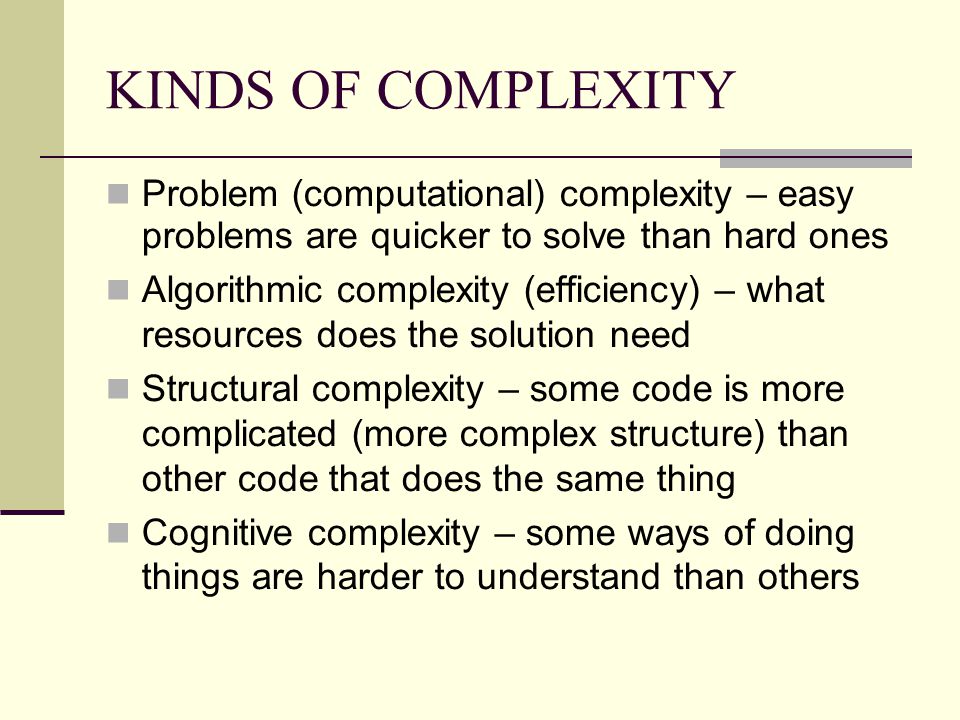

26. KINDS OF COMPLEXITY Problem (computational) complexity – easy problems are quicker to solve than hard ones Algorithmic complexity (efficiency) – what resources does the solution need Structural complexity – some code is more complicated (more complex structure) than other code that does the same thing Cognitive complexity – some ways of doing things are harder to understand than others

27. STRUCTURE COMPLEXITY : INTUITION The more “complex” the structure code ; …the harder it is to understand …the more likely it will have a detect …the harder it will be to change …the longer it will take to produces …the more difficult it will be to reuse

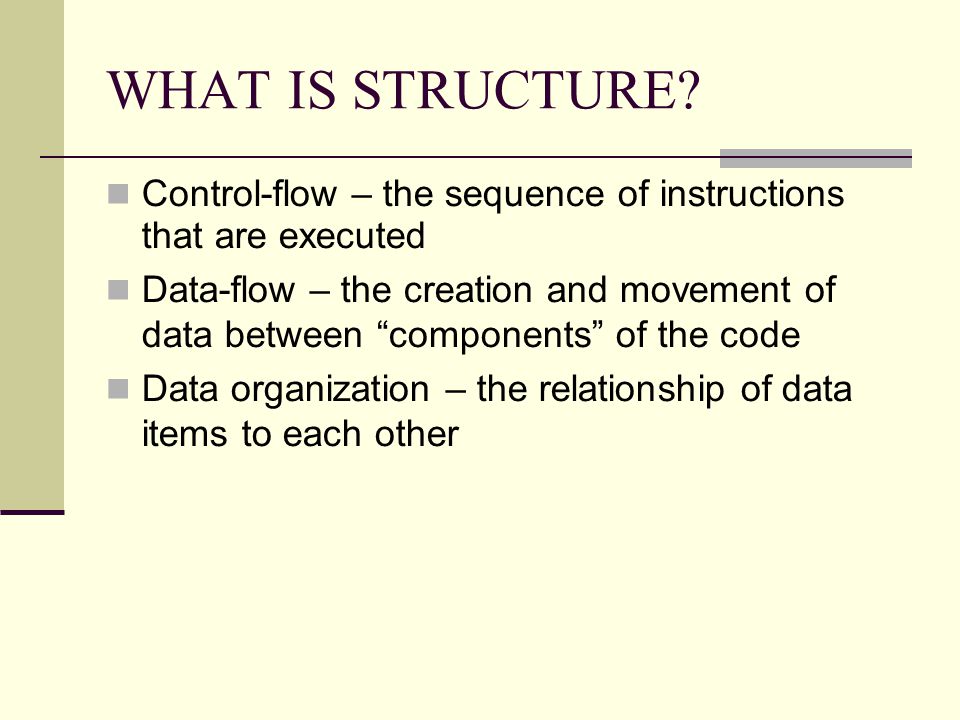

28. WHAT IS STRUCTURE? Control-flow – the sequence of instructions that are executed Data-flow – the creation and movement of data between “components” of the code Data organization – the relationship of data items to each other

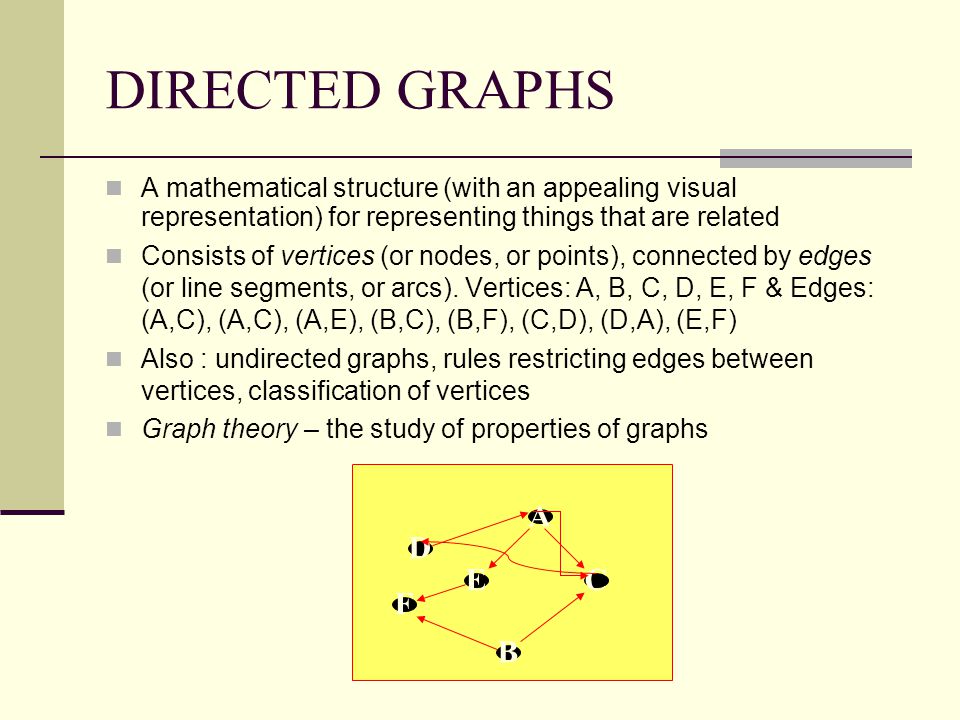

29. DIRECTED GRAPHS A mathematical structure (with an appealing visual representation) for representing things that are related Consists of vertices (or nodes, or points), connected by edges (or line segments, or arcs). Vertices: A, B, C, D, E, F & Edges: (A,C), (A,C), (A,E), (B,C), (B,F), (C,D), (D,A), (E,F) Also : undirected graphs, rules restricting edges between vertices, classification of vertices Graph theory – the study of properties of graphs B C F E A D

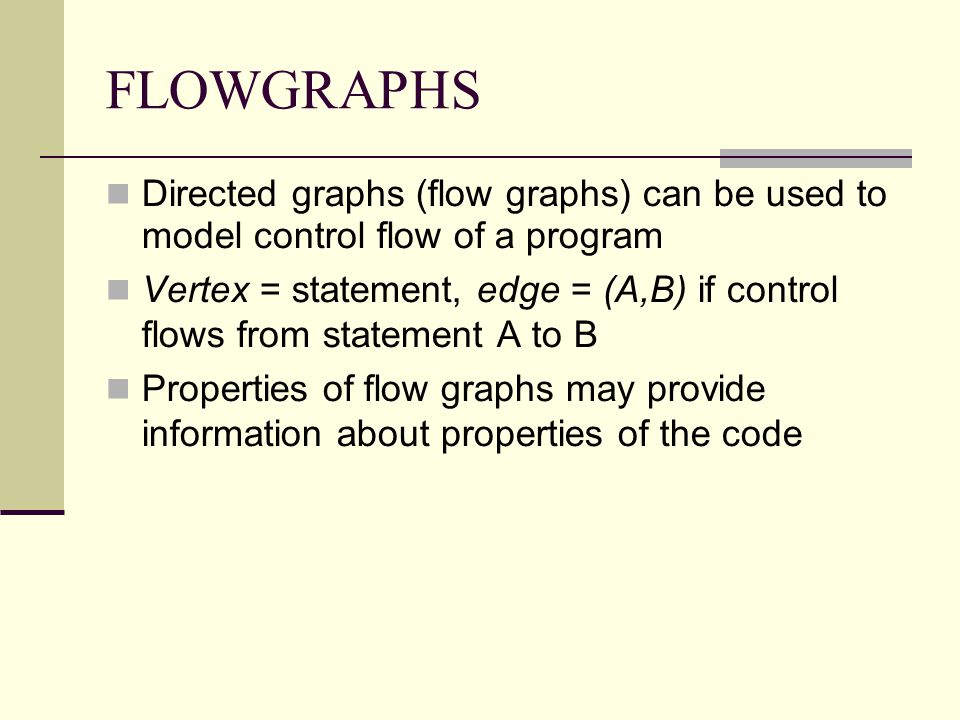

30. FLOWGRAPHS Directed graphs (flow graphs) can be used to model control flow of a program Vertex = statement, edge = (A,B) if control flows from statement A to B Properties of flow graphs may provide information about properties of the code

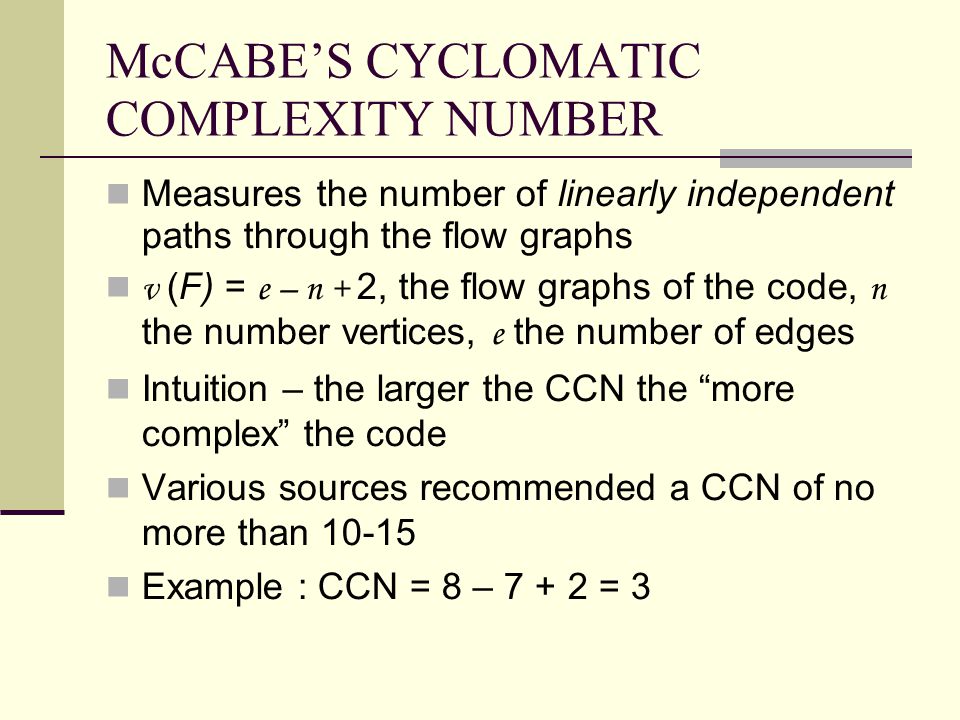

31. McCABE’S CYCLOMATIC COMPLEXITY NUMBER Measures the number of linearly independent paths through the flow graphs v (F) = e – n + 2, the flow graphs of the code, n the number vertices, e the number of edges Intuition – the larger the CCN the “more complex” the code Various sources recommended a CCN of no more than 10-15 Example : CCN = 8 – 7 + 2 = 3

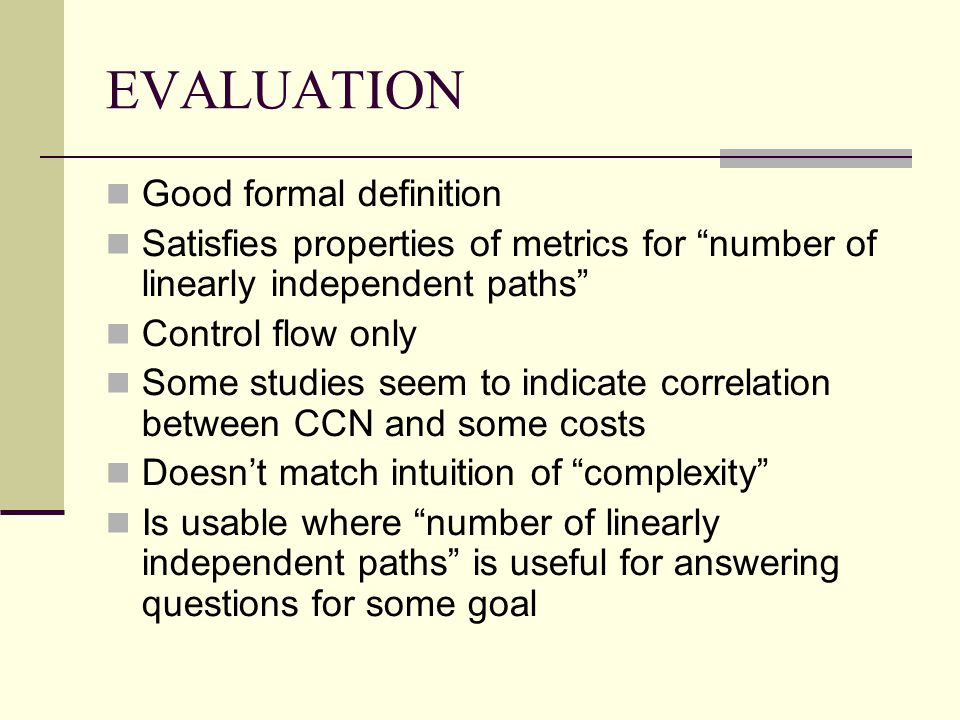

32. EVALUATION Good formal definition Satisfies properties of metrics for “number of linearly independent paths” Control flow only Some studies seem to indicate correlation between CCN and some costs Doesn’t match intuition of “complexity” Is usable where “number of linearly independent paths” is useful for answering questions for some goal
