1. Object Recognition

2. So what does object recognition involve?

3. Verification: is that a bus?

4. Detection: are there cars?

5. Identification: is that a picture of Mao?

6. Object categorization sky building flag wall banner bus cars bus face street lamp

7. Challenges 1: view point variation Michelangelo 1475-1564

8. Challenges 2: illumination slide credit: S. Ullman

9. Challenges 3: occlusion Magritte, 1957

10. Challenges 4: scale

11. Challenges 5: deformation Xu, Beihong 1943

12. Challenges 7: intra-class variation

13. Two main approaches Part-based Global sub-window

14. Global Approaches x1x1 x2x2 x3x3 Vectors in high- dimensional space Aligned images

15. x1x1 x2x2 x3x3 Vectors in high-dimensional space Global Approaches Training Involves some dimensionality reduction Detector

16. –Scale / position range to search over Detection

17. –Scale / position range to search over

18. Detection –Scale / position range to search over

19. Detection –Combine detection over space and scale.

20. PROJECTPROJECT 1

21. Turk and Pentland, 1991 Belhumeur et al. 1997 Schneiderman et al. 2004 Viola and Jones, 2000 Keren et al. 2001 Osadchy et al. 2004 Amit and Geman, 1999 LeCun et al. 1998 Belongie and Malik, 2002 Schneiderman et al. 2004 Argawal and Roth, 2002 Poggio et al. 1993

22. Object Detection Problem: Locate instances of object category in a given image. Asymmetric classification problem! BackgroundObject (Category) Very largeRelatively small Complex (thousands of categories) Simple (single category) Large prior to appear in an image Small prior Easy to collect (not easy to learn from examples) Hard to collect

23. All images Intuition  Denote H to be the acceptance region of a classifier. We propose to minimize the Pr(All images) ( Pr(bkg)) in H except for the object samples. Background Object class All images Background We have a prior on the distribution of all natural images

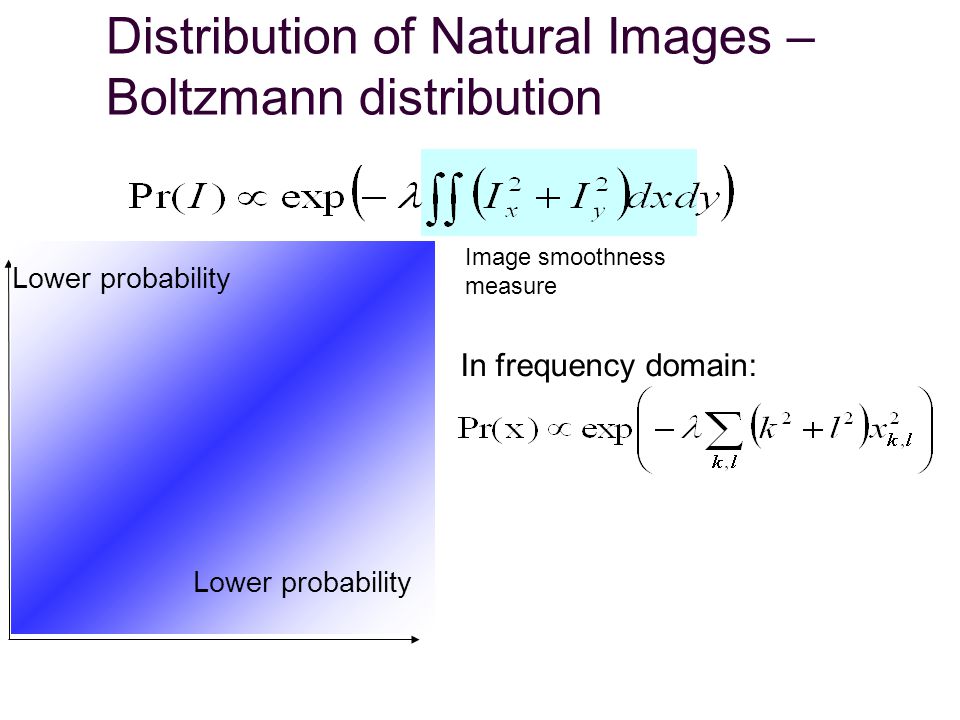

24. Image smoothness measure Lower probability Distribution of Natural Images – Boltzmann distribution In frequency domain:

25. Antiface Lower probability Ω d object images Acceptance region

26. Main Idea Claim: for random natural images viewed as unit vectors, is large on average. – for all positive class – d is smooth is large on average for random natural image. Anti-Face detector is defined as a vector d satisfying:

27. Discrimination SMALL LARGE If x is an image and  is a target class:

28. Cascade of Independent Detectors 7 inner products 4 inner products

29. Example Samples from the training set 4 Anti-Face Detectors

30. 4 Anti-face Detectors

31. Eigenface method with the subspace of dimension 100

32. Ensemble Learning Bagging –reshuffle your training data to create k different training sets and learn f 1 (x),f 2 (x),…,f k (x) –Combine the k different classifiers by majority voting f FINAL (x) =sign[  1/k f i (x) ] Boosting –Assign different weights to training samples in a “smart” way so that different classifiers pay more attention to different samples –Weighted majority voting, the weight of individual classifier is proportional to its accuracy –Ada-boost (1996) was influenced by bagging, and it is superior to bagging

33. Boosting - Motivation It is usually hard to design an accurate classifier which generalizes well However it is usually easy to find many “rule of thumb” weak classifiers –A classifier is weak if it is only slightly better than random guessing Can we combine several weak classifiers to produce an accurate classifier? –Question people have been working on since 1980’s

34. Ada Boost Let’s assume we have 2-class classification problem, with yi  {-1,1} Ada boost will produce a discriminant function:  where f t (x) is the “weak” classifier  The final classifier is the sign of the discriminant function, that is f final (x) = sign[g(x)]

35. Idea Behind Ada Boost Algorithm is iterative Maintains distribution of weights over the training examples Initially distribution of weights is uniform At successive iterations, the weight of misclassified examples is increased, forcing the weak learner to focus on the hard examples in the training set

36. PROJECT 2

37. Training with small number of Examples Majority of object detection method require a large number of training examples. Goal: to design a classifier that can learn from a small number of examples Use small number in a existing classifiers Overfiting: learns by hart the training examples, performs poor on unseen examples.

38. Linear SVM Maximal margin Enough training data Class 1 Class 2 Not Enough training data

39. Linear SVM –Detection Task Class 1 Class 2

40. MM with prior Object class

41. PROJECT 4

42. Part-Based Approaches Object Bag of ‘words’ Constellation of parts

43. Of all the sensory impressions proceeding to the brain, the visual experiences are the dominant ones. Our perception of the world around us is based essentially on the messages that reach the brain from our eyes. For a long time it was thought that the retinal image was transmitted point by point to visual centers in the brain; the cerebral cortex was a movie screen, so to speak, upon which the image in the eye was projected. Through the discoveries of Hubel and Wiesel we now know that behind the origin of the visual perception in the brain there is a considerably more complicated course of events. By following the visual impulses along their path to the various cell layers of the optical cortex, Hubel and Wiesel have been able to demonstrate that the message about the image falling on the retina undergoes a step- wise analysis in a system of nerve cells stored in columns. In this system each cell has its specific function and is responsible for a specific detail in the pattern of the retinal image. sensory, brain, visual, perception, retinal, cerebral cortex, eye, cell, optical nerve, image Hubel, Wiesel China is forecasting a trade surplus of $90bn (£51bn) to $100bn this year, a threefold increase on 2004's $32bn. The Commerce Ministry said the surplus would be created by a predicted 30% jump in exports to $750bn, compared with a 18% rise in imports to $660bn. The figures are likely to further annoy the US, which has long argued that China's exports are unfairly helped by a deliberately undervalued yuan. Beijing agrees the surplus is too high, but says the yuan is only one factor. Bank of China governor Zhou Xiaochuan said the country also needed to do more to boost domestic demand so more goods stayed within the country. China increased the value of the yuan against the dollar by 2.1% in July and permitted it to trade within a narrow band, but the US wants the yuan to be allowed to trade freely. However, Beijing has made it clear that it will take its time and tread carefully before allowing the yuan to rise further in value. China, trade, surplus, commerce, exports, imports, US, yuan, bank, domestic, foreign, increase, trade, value Bag of ‘words’ analogy to documents

45. Interest Point Detectors Basic requirements: –Sparse –Informative –Repeatable Invariance –Rotation –Scale (Similarity) –Affine

46. Popular Detectors Scale Invariant Affine Invariant Harris-Laplace Affine Difference of GaussiansLaplace of GaussiansScale Saliency (Kadir- Braidy) Harris-Laplace Difference of Gaussians Affine Laplace of Gaussians Affine Affine Saliency (Kadir- Braidy) The are many others… See: 1)“Scale and affine invariant interest point detectors” K. Mikolajczyk, C. Schmid, IJCV, Volume 60, Number 1 - 2004 2)“A comparison of affine region detectors”, K. Mikolajczyk, T. Tuytelaars, C. Schmid, A. Zisserman, J. Matas, F. Schaffalitzky, T. Kadir and L. Van Gool, http://www.robots.ox.ac.uk/~vgg/research/affine/det_eval_files/vibes_ijcv2004.pdf http://www.robots.ox.ac.uk/~vgg/research/affine/det_eval_files/vibes_ijcv2004.pdf

47. Representation of appearance: Local Descriptors Invariance –Rotation –Scale –Affine Insensitive to small deformations Illumination invariance –Normalize out

48. SIFT – Scale Invariant Feature Transform Descriptor overview: –Determine scale (by maximizing DoG in scale and in space), local orientation as the dominant gradient direction. Use this scale and orientation to make all further computations invariant to scale and rotation. –Compute gradient orientation histograms of several small windows (128 values for each point) –Normalize the descriptor to make it invariant to intensity change David G. Lowe, "Distinctive image features from scale-invariant keypoints,“ International Journal of Computer Vision, 60, 2 (2004), pp. 91-110.

49. Feature Detection and Representation Normalize patch Detect patches [Mikojaczyk and Schmid ’02] [Matas et al. ’02] [Sivic et al. ’03] Compute SIFT descriptor [Lowe’99] Slide credit: Josef Sivic

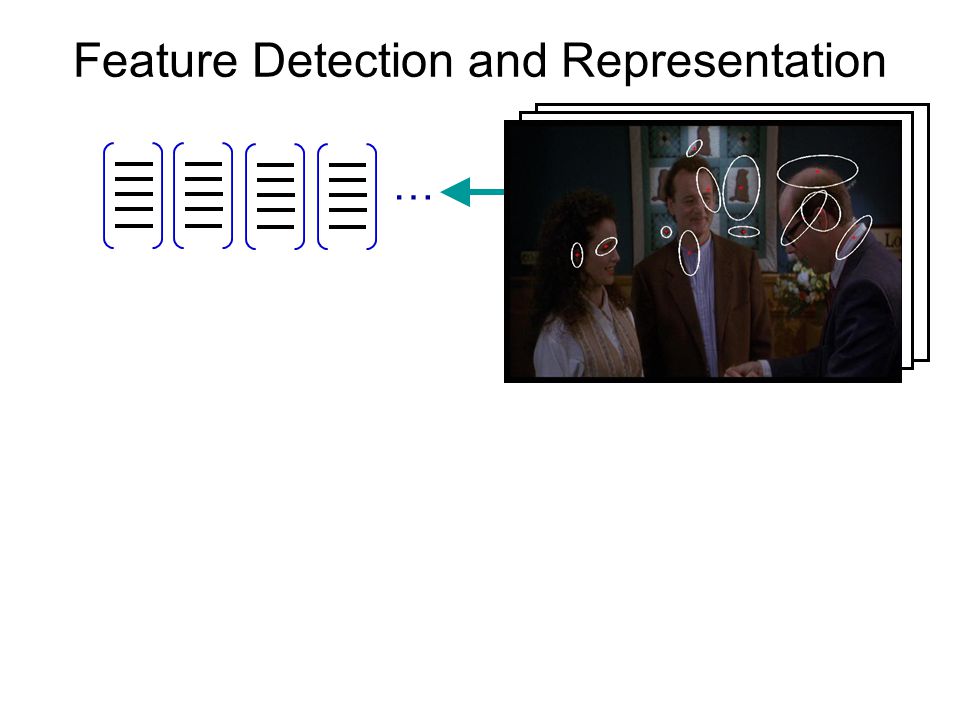

50. … Feature Detection and Representation

51. Codewords dictionary formation …

52. Vector quantization … Slide credit: Josef Sivic

53. Codewords dictionary formation Fei-Fei et al. 2005

54. Image patch examples of codewords Sivic et al. 2005

55. Vector X Representation Learning positive negative SVM classifier positive negative SVM classification

56. Recognition SVM(X) Contains object Vector X Representation Doesn’t contain object

57. PROJECT 3

58. Pros/Cons Pros. –Fast and simple. –Insensitive to pose variation. –No segmentation required during learning. Cons. –No localization. –Requires discriminative or no background.

59. An object in an image is represented by a collection of parts, characterized by both their visual appearances and locations. Object categories are modeled by the appearance and spatial distributions of these characteristic parts. Constellation of Parts

60. The correspondence problem Model with P parts Image with N possible locations for each part N P combinations!!! Slide credit: Rob Fergus

61. How to model location? Explicit: Probability density functions Implicit: Voting scheme

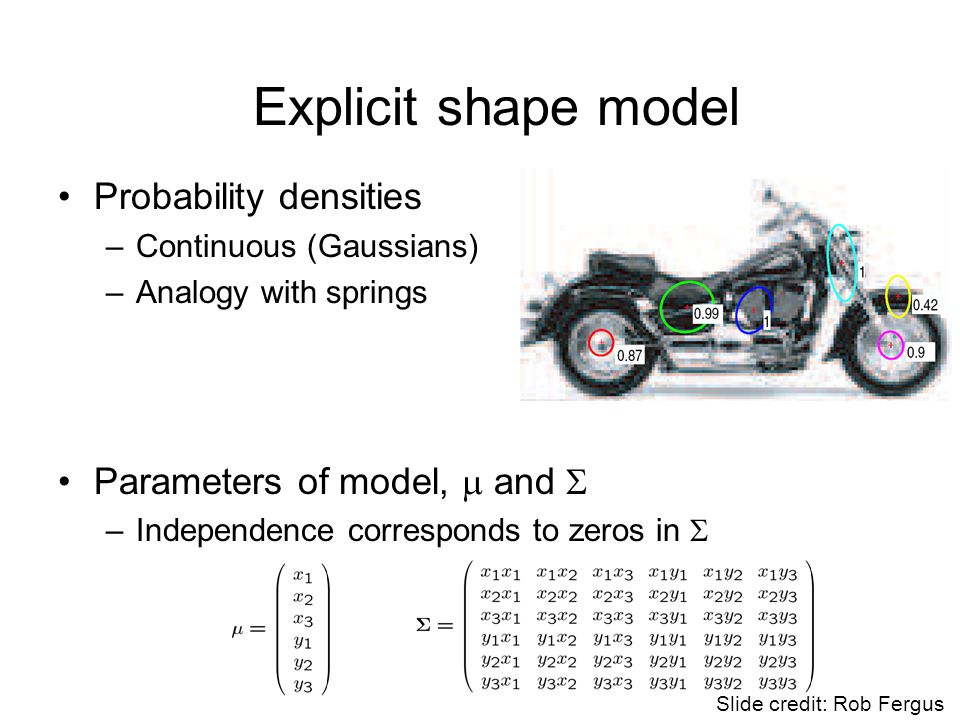

62. Probability densities –Continuous (Gaussians) –Analogy with springs Parameters of model,  and  –Independence corresponds to zeros in  Explicit shape model Slide credit: Rob Fergus

63. Different graph structures 1 3 45 6 2 1 3 45 6 2 Fully connected Star structure 1 3 4 5 6 2 Tree structure O(N 6 )O(N 2 ) Sparser graphs cannot capture all interactions between parts Slide credit: Rob Fergus

64. Implicit shape model Spatial occurrence distributions x y s x y s x y s x y s Probabilistic Voting Interest Points Matched Codebook Entries Recognition Learning Learn appearance codebook –Cluster over interest points on training images Learn spatial distributions –Match codebook to training images –Record matching positions on object –Centroid is given Use Hough space voting to find object Leibe and Schiele ’03,’05 Slide credit: Rob Fergus

65. Pros/Cons Pros –Principle modeling –Models appearance and shape –Provides localization Cons –Computationally expensive –Small number of parts (learning on unsegmented images) or requires bounding box during learning.

66. Week Shape Model Model parts arrangements Allows many parts but the model is computationally effective context distributions – see each part in the context of other parts.

67. PROJECT 4
