1. IPv6: An Introduction Dheeraj Sanghi Department of Computer Science and Engineering Indian Institute of Technology Kanpur dheeraj@iitk.ac.in http://www.cse.iitk.ac.in/users/dheeraj

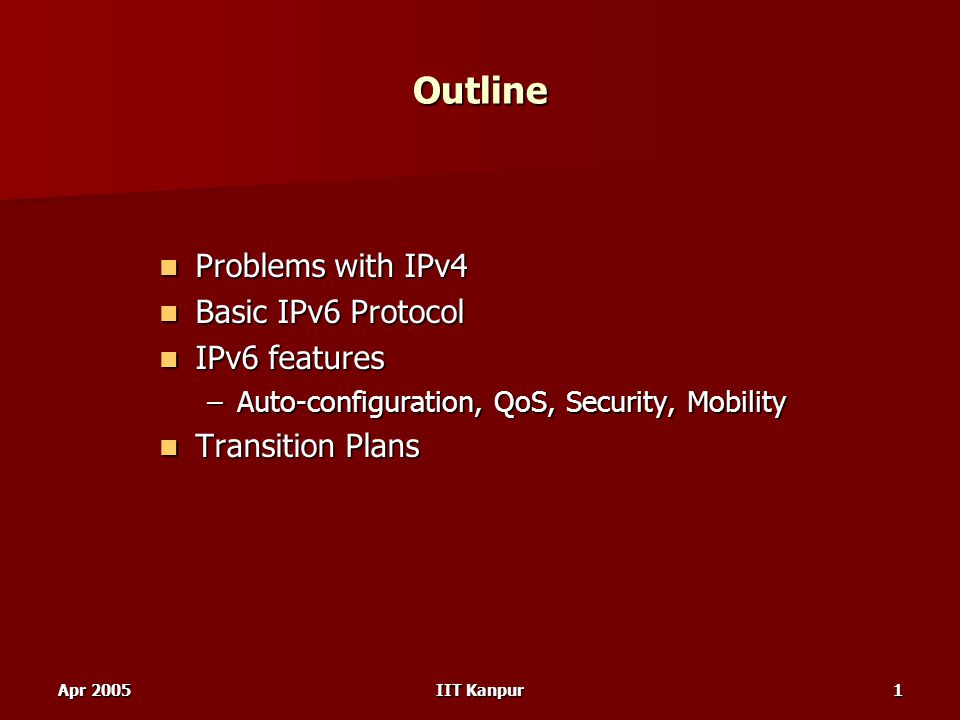

2. Apr 2005IIT Kanpur1 Outline Problems with IPv4 Problems with IPv4 Basic IPv6 Protocol Basic IPv6 Protocol IPv6 features IPv6 features –Auto-configuration, QoS, Security, Mobility Transition Plans Transition Plans

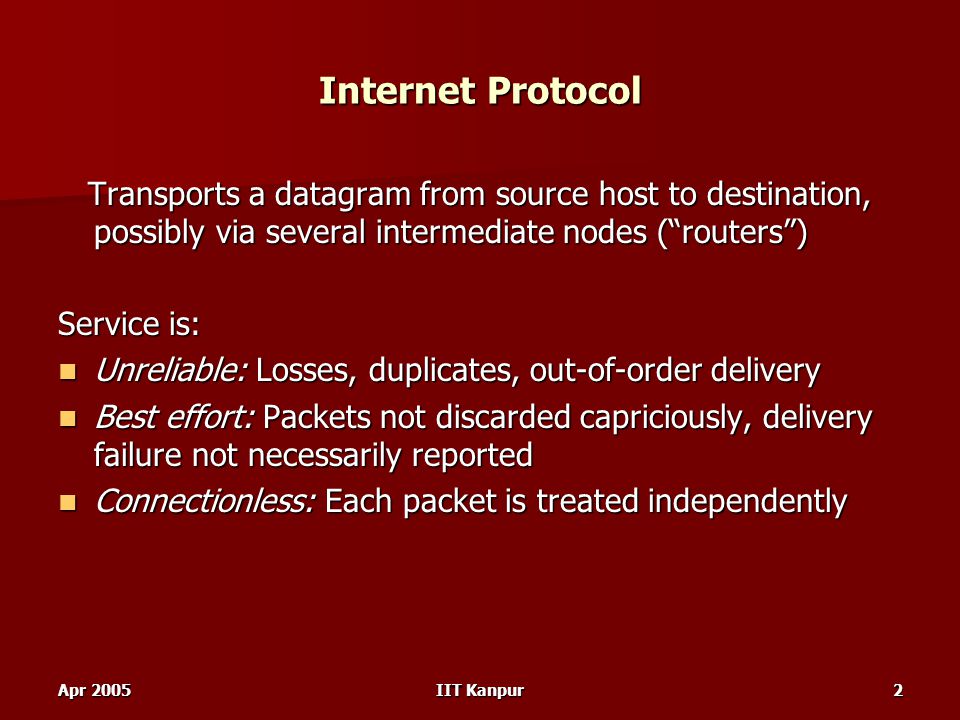

3. Apr 2005IIT Kanpur2 Internet Protocol Transports a datagram from source host to destination, possibly via several intermediate nodes (“routers”) Transports a datagram from source host to destination, possibly via several intermediate nodes (“routers”) Service is: Unreliable: Losses, duplicates, out-of-order delivery Unreliable: Losses, duplicates, out-of-order delivery Best effort: Packets not discarded capriciously, delivery failure not necessarily reported Best effort: Packets not discarded capriciously, delivery failure not necessarily reported Connectionless: Each packet is treated independently Connectionless: Each packet is treated independently

4. Apr 2005IIT Kanpur3 IP Datagram Header VERS HLENTOS TOTAL LENGTH IDENTIFICATION FLAG FRAGMENT OFFSET TTLPROTOCOLCHECKSUM SOURCE ADDRESS DESTINATION ADDRESS OPTIONS (if any) + PADDING 0481619 31

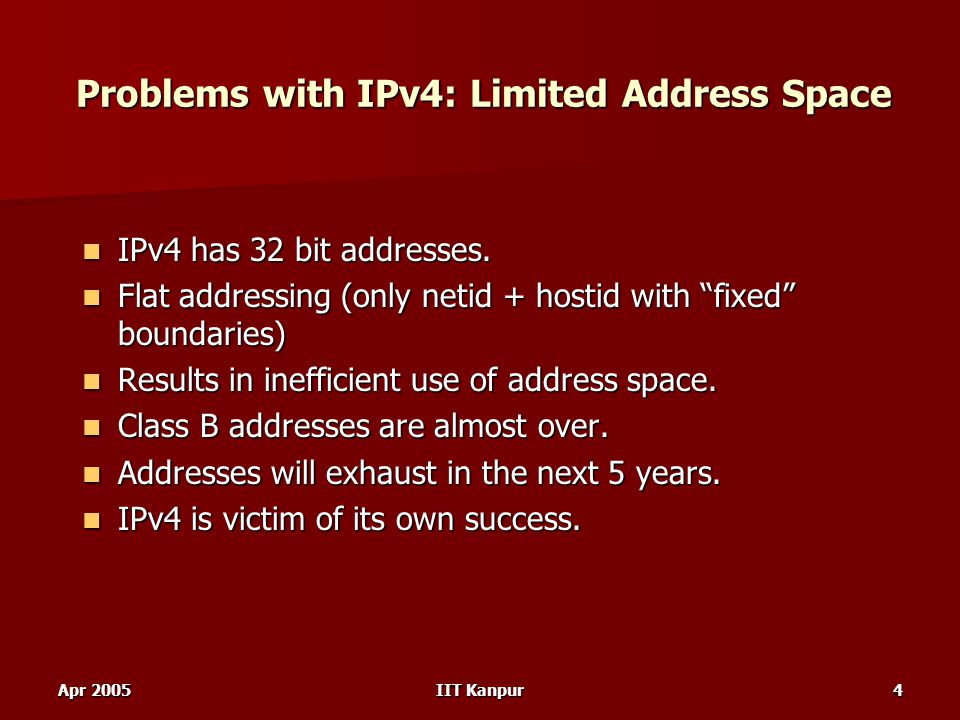

5. Apr 2005IIT Kanpur4 Problems with IPv4: Limited Address Space IPv4 has 32 bit addresses. IPv4 has 32 bit addresses. Flat addressing (only netid + hostid with “fixed” boundaries) Flat addressing (only netid + hostid with “fixed” boundaries) Results in inefficient use of address space. Results in inefficient use of address space. Class B addresses are almost over. Class B addresses are almost over. Addresses will exhaust in the next 5 years. Addresses will exhaust in the next 5 years. IPv4 is victim of its own success. IPv4 is victim of its own success.

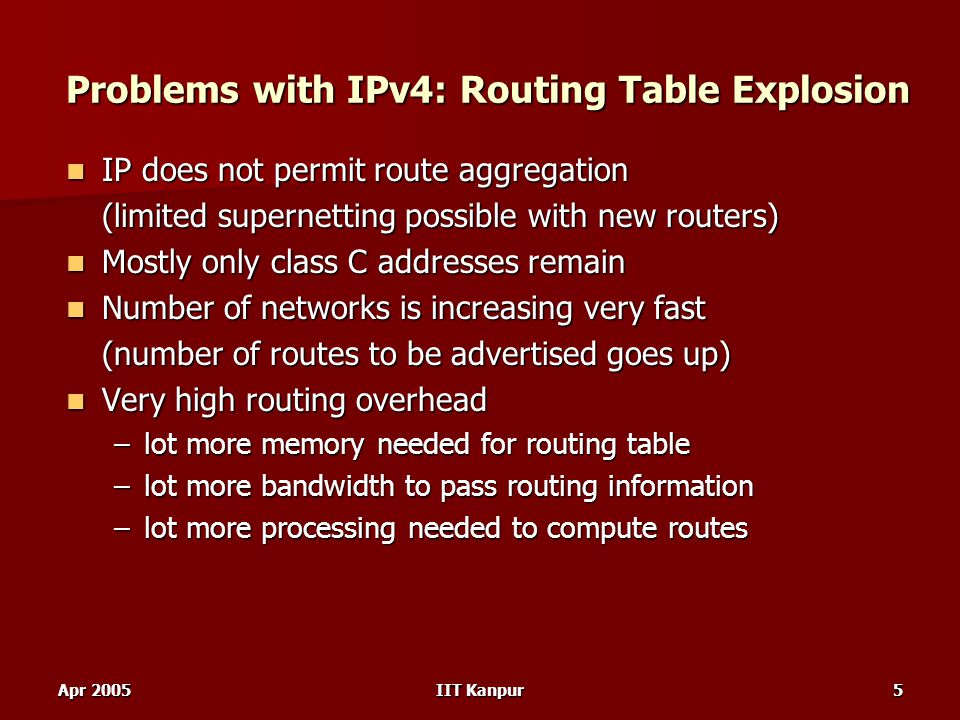

6. Apr 2005IIT Kanpur5 Problems with IPv4: Routing Table Explosion IP does not permit route aggregation IP does not permit route aggregation (limited supernetting possible with new routers) Mostly only class C addresses remain Mostly only class C addresses remain Number of networks is increasing very fast Number of networks is increasing very fast (number of routes to be advertised goes up) Very high routing overhead Very high routing overhead –lot more memory needed for routing table –lot more bandwidth to pass routing information –lot more processing needed to compute routes

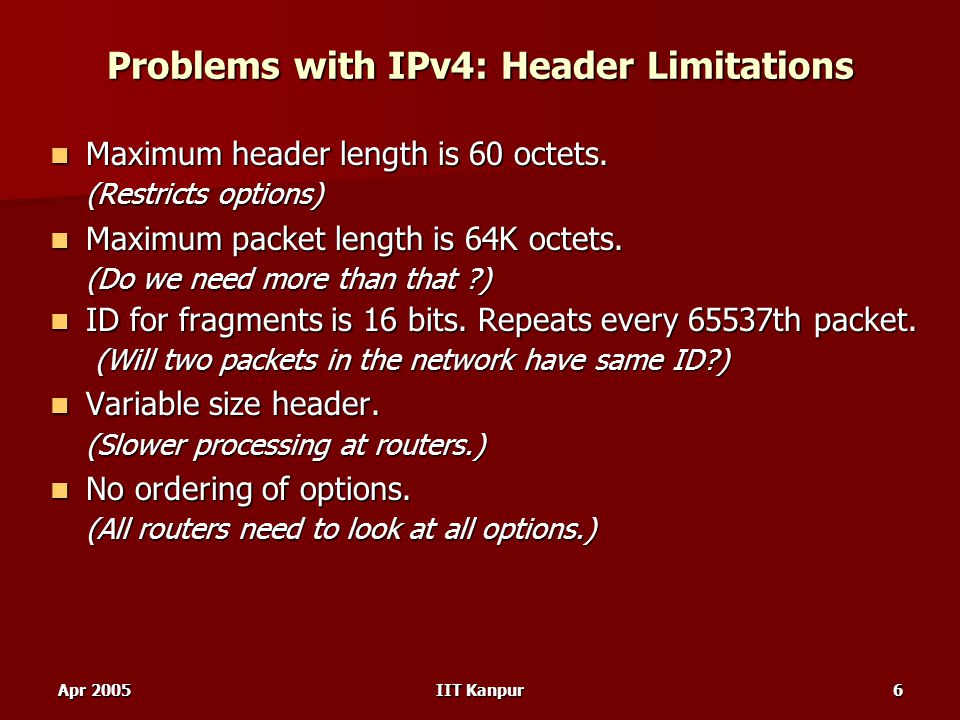

7. Apr 2005IIT Kanpur6 Problems with IPv4: Header Limitations Maximum header length is 60 octets. Maximum header length is 60 octets. (Restricts options) Maximum packet length is 64K octets. Maximum packet length is 64K octets. (Do we need more than that ?) ID for fragments is 16 bits. Repeats every 65537th packet. ID for fragments is 16 bits. Repeats every 65537th packet. (Will two packets in the network have same ID?) (Will two packets in the network have same ID?) Variable size header. Variable size header. (Slower processing at routers.) No ordering of options. No ordering of options. (All routers need to look at all options.)

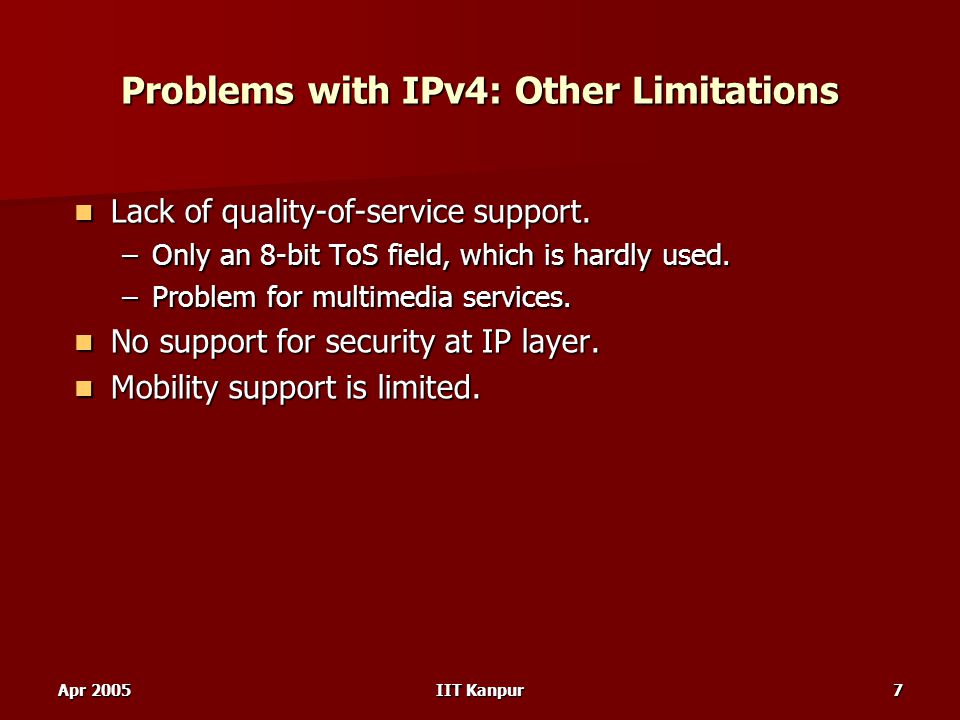

8. Apr 2005IIT Kanpur7 Problems with IPv4: Other Limitations Lack of quality-of-service support. Lack of quality-of-service support. –Only an 8-bit ToS field, which is hardly used. –Problem for multimedia services. No support for security at IP layer. No support for security at IP layer. Mobility support is limited. Mobility support is limited.

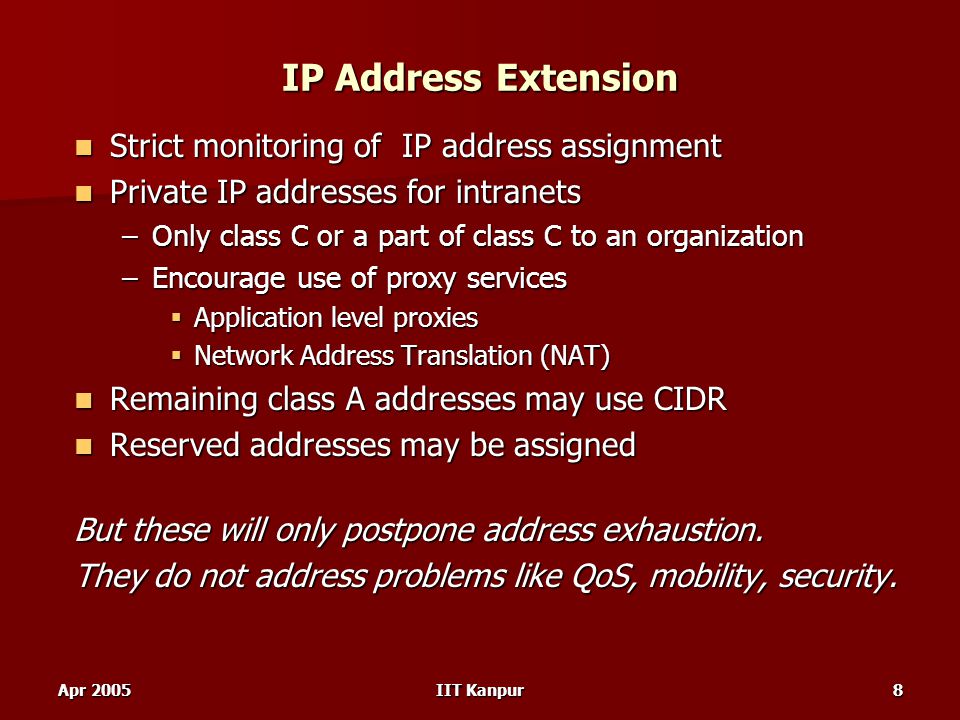

9. Apr 2005IIT Kanpur8 IP Address Extension Strict monitoring of IP address assignment Strict monitoring of IP address assignment Private IP addresses for intranets Private IP addresses for intranets –Only class C or a part of class C to an organization –Encourage use of proxy services  Application level proxies  Network Address Translation (NAT) Remaining class A addresses may use CIDR Remaining class A addresses may use CIDR Reserved addresses may be assigned Reserved addresses may be assigned But these will only postpone address exhaustion. They do not address problems like QoS, mobility, security.

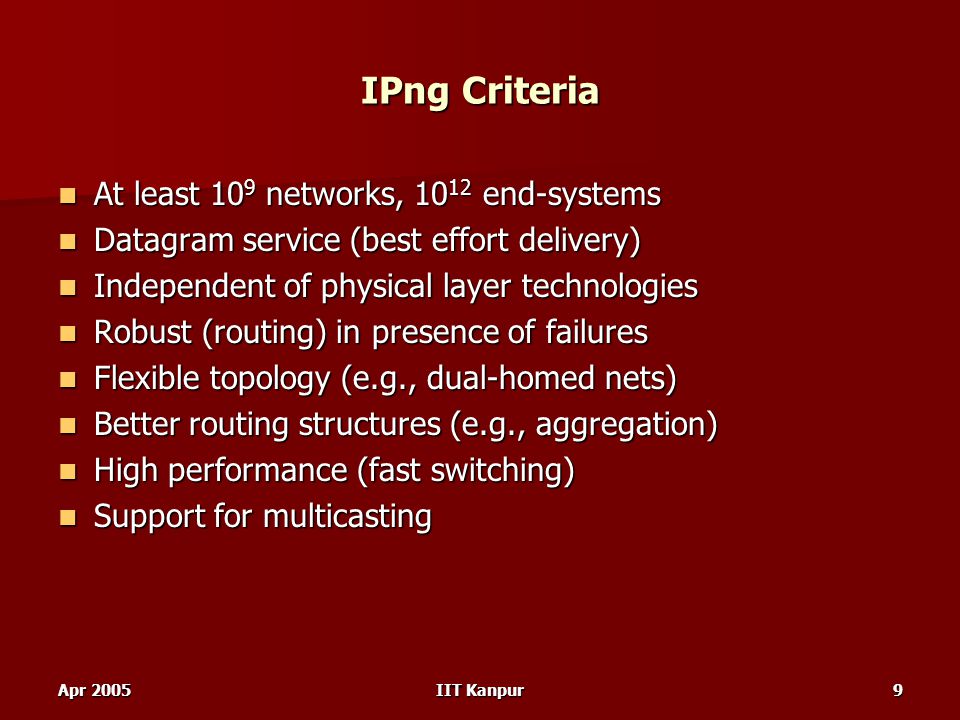

10. Apr 2005IIT Kanpur9 IPng Criteria At least 10 9 networks, 10 12 end-systems At least 10 9 networks, 10 12 end-systems Datagram service (best effort delivery) Datagram service (best effort delivery) Independent of physical layer technologies Independent of physical layer technologies Robust (routing) in presence of failures Robust (routing) in presence of failures Flexible topology (e.g., dual-homed nets) Flexible topology (e.g., dual-homed nets) Better routing structures (e.g., aggregation) Better routing structures (e.g., aggregation) High performance (fast switching) High performance (fast switching) Support for multicasting Support for multicasting

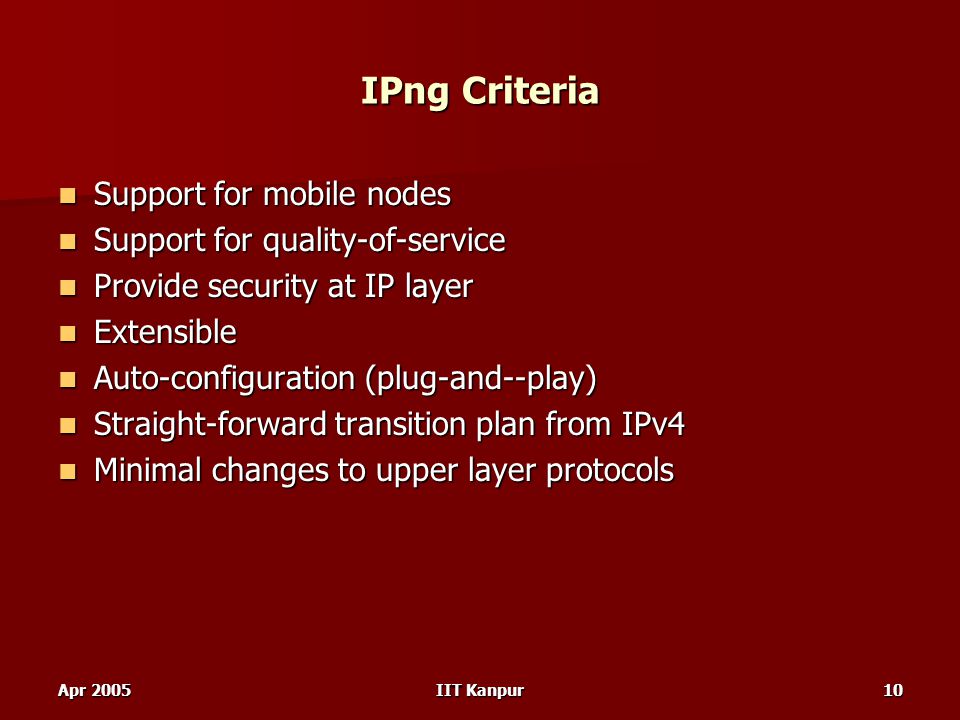

11. Apr 2005IIT Kanpur10 IPng Criteria Support for mobile nodes Support for mobile nodes Support for quality-of-service Support for quality-of-service Provide security at IP layer Provide security at IP layer Extensible Extensible Auto-configuration (plug-and--play) Auto-configuration (plug-and--play) Straight-forward transition plan from IPv4 Straight-forward transition plan from IPv4 Minimal changes to upper layer protocols Minimal changes to upper layer protocols

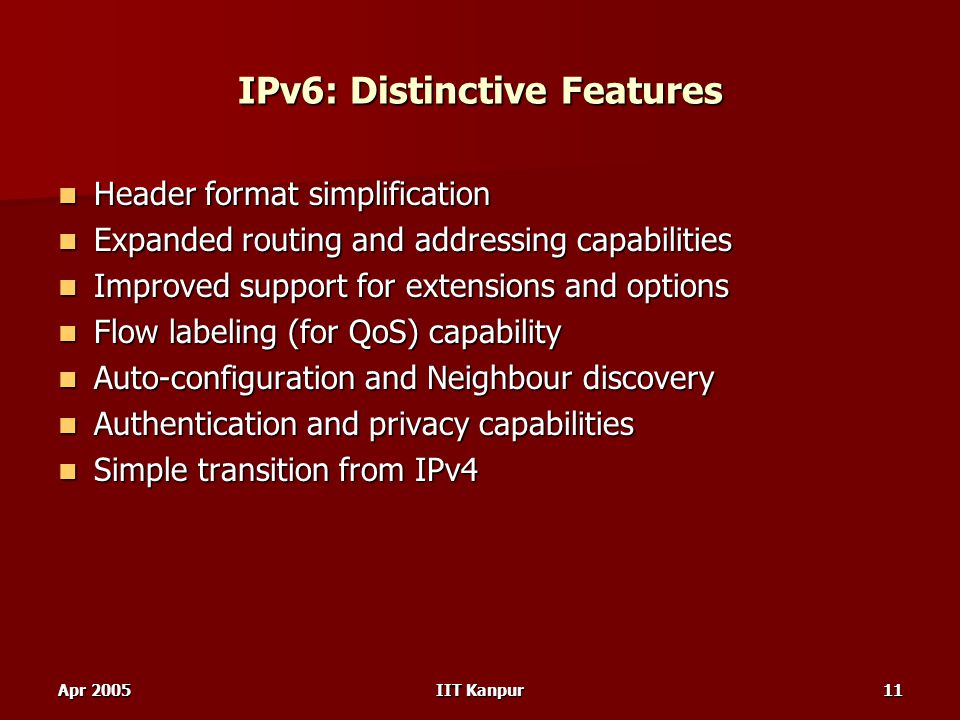

12. Apr 2005IIT Kanpur11 IPv6: Distinctive Features Header format simplification Header format simplification Expanded routing and addressing capabilities Expanded routing and addressing capabilities Improved support for extensions and options Improved support for extensions and options Flow labeling (for QoS) capability Flow labeling (for QoS) capability Auto-configuration and Neighbour discovery Auto-configuration and Neighbour discovery Authentication and privacy capabilities Authentication and privacy capabilities Simple transition from IPv4 Simple transition from IPv4

13. Apr 2005IIT Kanpur12 IPv6 Header Format Traffic ClassFlow Label Vers Payload Length Next Header Hop Limit Source Address Destination Address 0412162431

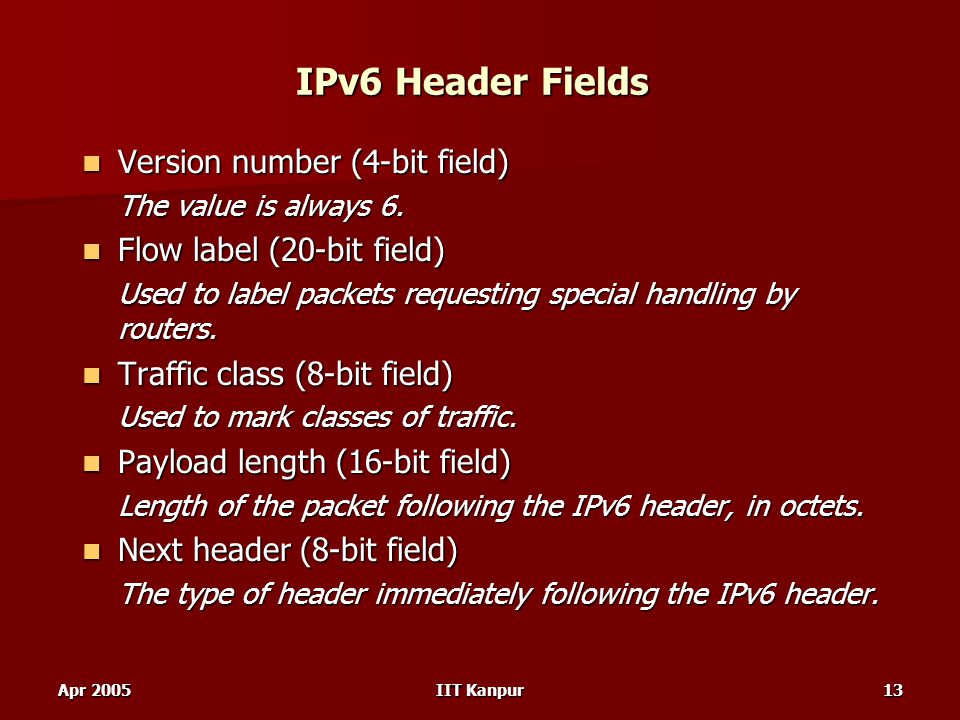

14. Apr 2005IIT Kanpur13 IPv6 Header Fields Version number (4-bit field) Version number (4-bit field) The value is always 6. Flow label (20-bit field) Flow label (20-bit field) Used to label packets requesting special handling by routers. Traffic class (8-bit field) Traffic class (8-bit field) Used to mark classes of traffic. Payload length (16-bit field) Payload length (16-bit field) Length of the packet following the IPv6 header, in octets. Next header (8-bit field) Next header (8-bit field) The type of header immediately following the IPv6 header.

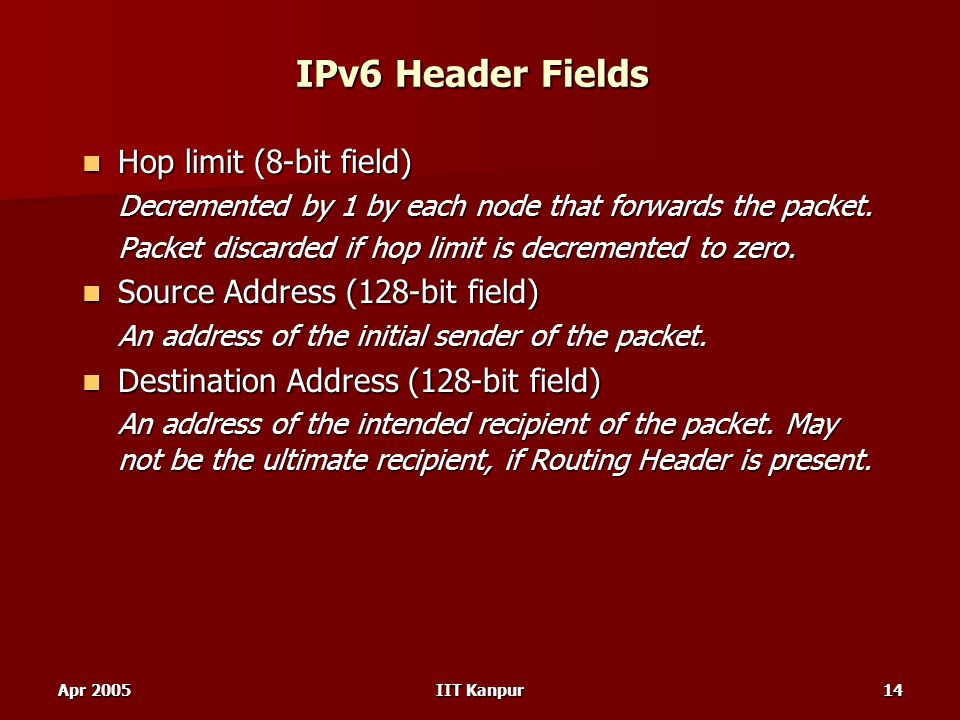

15. Apr 2005IIT Kanpur14 IPv6 Header Fields Hop limit (8-bit field) Hop limit (8-bit field) Decremented by 1 by each node that forwards the packet. Packet discarded if hop limit is decremented to zero. Source Address (128-bit field) Source Address (128-bit field) An address of the initial sender of the packet. Destination Address (128-bit field) Destination Address (128-bit field) An address of the intended recipient of the packet. May not be the ultimate recipient, if Routing Header is present.

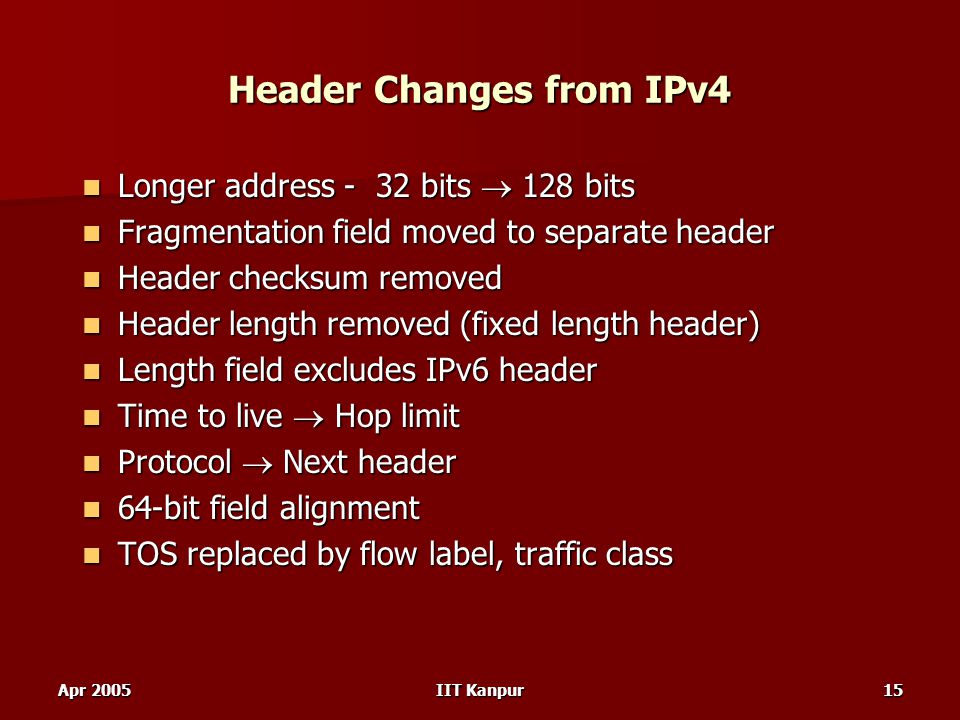

16. Apr 2005IIT Kanpur15 Header Changes from IPv4 Longer address - 32 bits  128 bits Longer address - 32 bits  128 bits Fragmentation field moved to separate header Fragmentation field moved to separate header Header checksum removed Header checksum removed Header length removed (fixed length header) Header length removed (fixed length header) Length field excludes IPv6 header Length field excludes IPv6 header Time to live  Hop limit Time to live  Hop limit Protocol  Next header Protocol  Next header 64-bit field alignment 64-bit field alignment TOS replaced by flow label, traffic class TOS replaced by flow label, traffic class

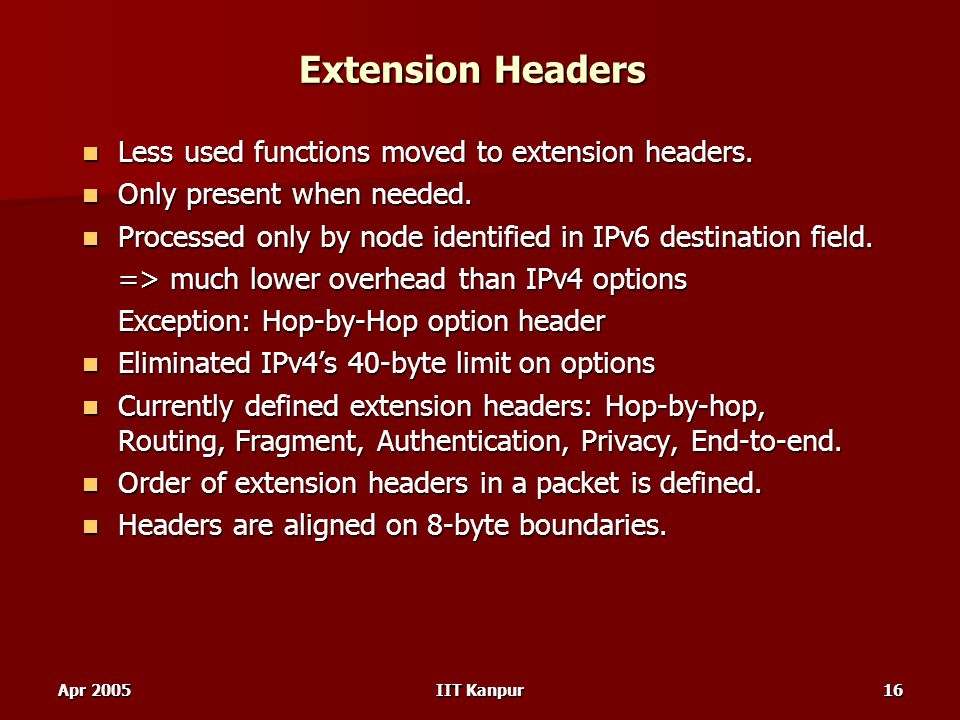

17. Apr 2005IIT Kanpur16 Extension Headers Less used functions moved to extension headers. Less used functions moved to extension headers. Only present when needed. Only present when needed. Processed only by node identified in IPv6 destination field. Processed only by node identified in IPv6 destination field. => much lower overhead than IPv4 options Exception: Hop-by-Hop option header Eliminated IPv4’s 40-byte limit on options Eliminated IPv4’s 40-byte limit on options Currently defined extension headers: Hop-by-hop, Routing, Fragment, Authentication, Privacy, End-to-end. Currently defined extension headers: Hop-by-hop, Routing, Fragment, Authentication, Privacy, End-to-end. Order of extension headers in a packet is defined. Order of extension headers in a packet is defined. Headers are aligned on 8-byte boundaries. Headers are aligned on 8-byte boundaries.

18. Apr 2005IIT Kanpur17 Address Types UnicastAddress for a single interface. MulticastIdentifier for a set of interfaces. Packet is sent to all these interfaces. Anycast Identifier for a set of interfaces. Packet is sent to the nearest one.

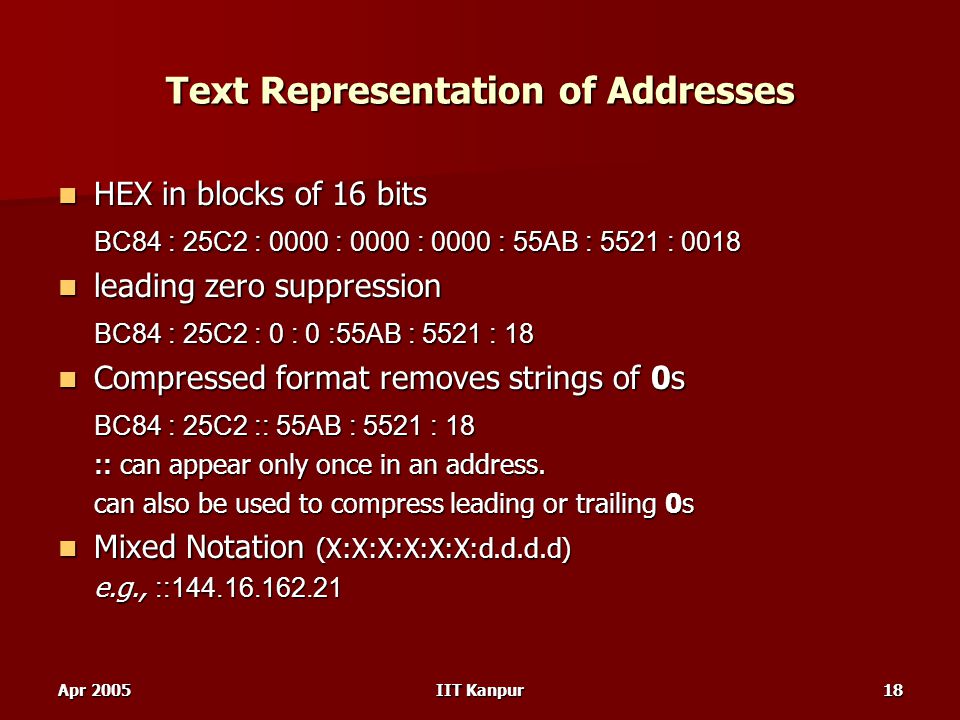

19. Apr 2005IIT Kanpur18 Text Representation of Addresses HEX in blocks of 16 bits HEX in blocks of 16 bits BC84 : 25C2 : 0000 : 0000 : 0000 : 55AB : 5521 : 0018 leading zero suppression leading zero suppression BC84 : 25C2 : 0 : 0 :55AB : 5521 : 18 Compressed format removes strings of 0s Compressed format removes strings of 0s BC84 : 25C2 :: 55AB : 5521 : 18 :: can appear only once in an address. can also be used to compress leading or trailing 0s Mixed Notation (X:X:X:X:X:X:d.d.d.d) Mixed Notation (X:X:X:X:X:X:d.d.d.d) e.g., ::144.16.162.21

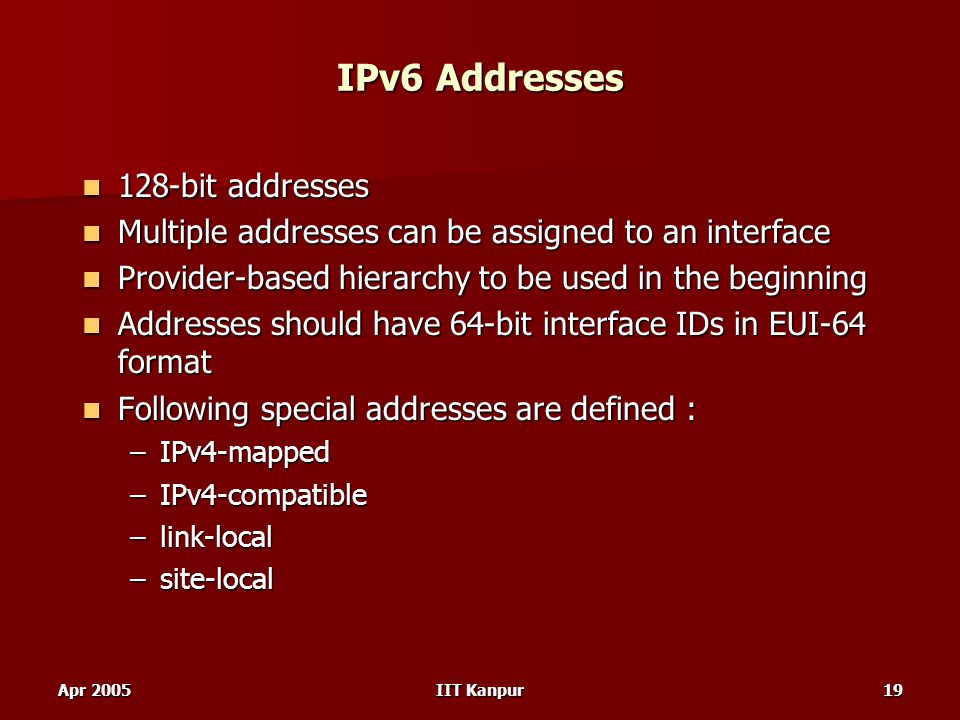

20. Apr 2005IIT Kanpur19 IPv6 Addresses 128-bit addresses 128-bit addresses Multiple addresses can be assigned to an interface Multiple addresses can be assigned to an interface Provider-based hierarchy to be used in the beginning Provider-based hierarchy to be used in the beginning Addresses should have 64-bit interface IDs in EUI-64 format Addresses should have 64-bit interface IDs in EUI-64 format Following special addresses are defined : Following special addresses are defined : –IPv4-mapped –IPv4-compatible –link-local –site-local

21. Apr 2005IIT Kanpur20 Unicast Addresses Examples Global Aggregate Address Global Aggregate Address Link local address Link local address Site-local address Site-local address FPTLANLA 31332 SLA 64 bits Interface ID 1111111010 10 bits 0 54 bits Interface ID 64 bits Public TopologySite Topology Interface Identifier 11111110110Interface IDsubnet ID 10 bits38 bits16 bits 64 bits 16

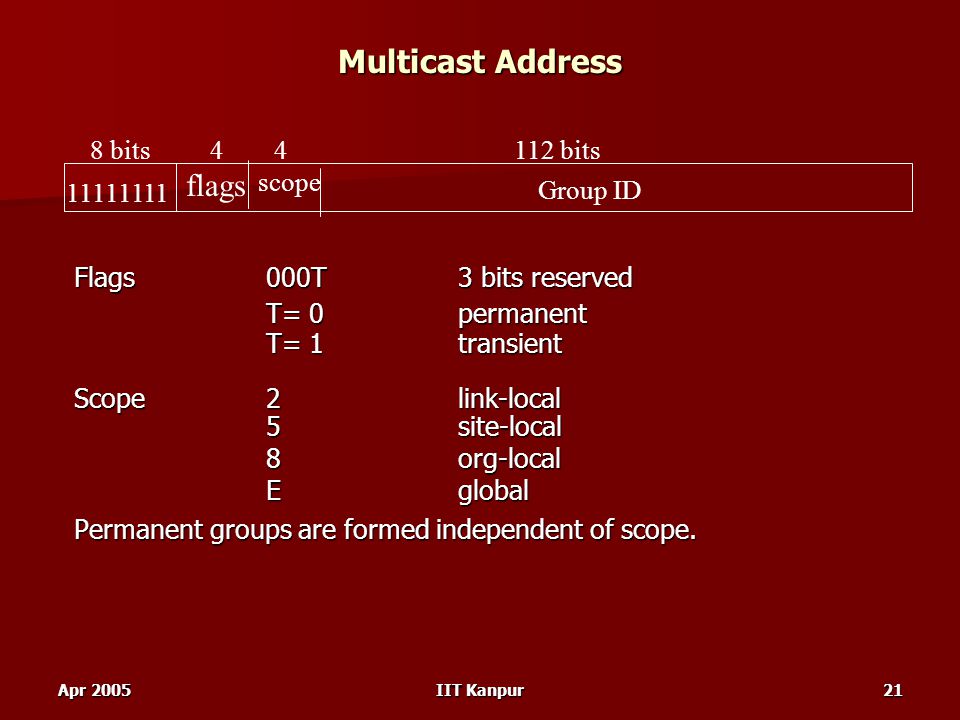

22. Apr 2005IIT Kanpur21 Multicast Address Flags000T3 bits reserved T= 0permanent T= 1transient Scope2link-local 5site-local 8org-local Eglobal Permanent groups are formed independent of scope. 11111111 flags scope Group ID 8 bits44112 bits

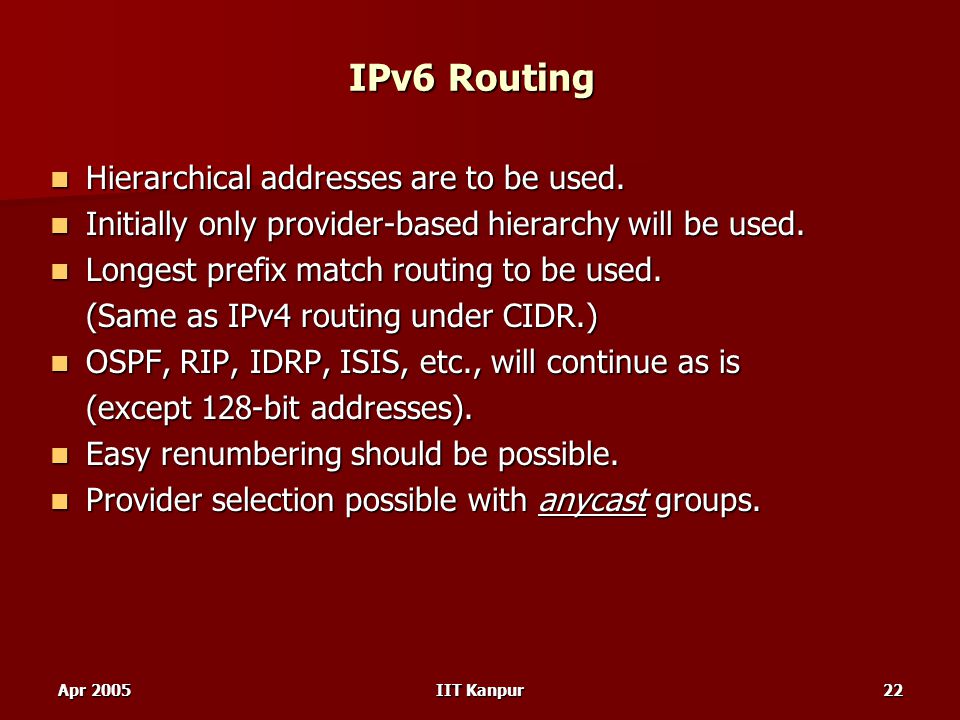

23. Apr 2005IIT Kanpur22 IPv6 Routing Hierarchical addresses are to be used. Hierarchical addresses are to be used. Initially only provider-based hierarchy will be used. Initially only provider-based hierarchy will be used. Longest prefix match routing to be used. Longest prefix match routing to be used. (Same as IPv4 routing under CIDR.) OSPF, RIP, IDRP, ISIS, etc., will continue as is OSPF, RIP, IDRP, ISIS, etc., will continue as is (except 128-bit addresses). Easy renumbering should be possible. Easy renumbering should be possible. Provider selection possible with anycast groups. Provider selection possible with anycast groups.

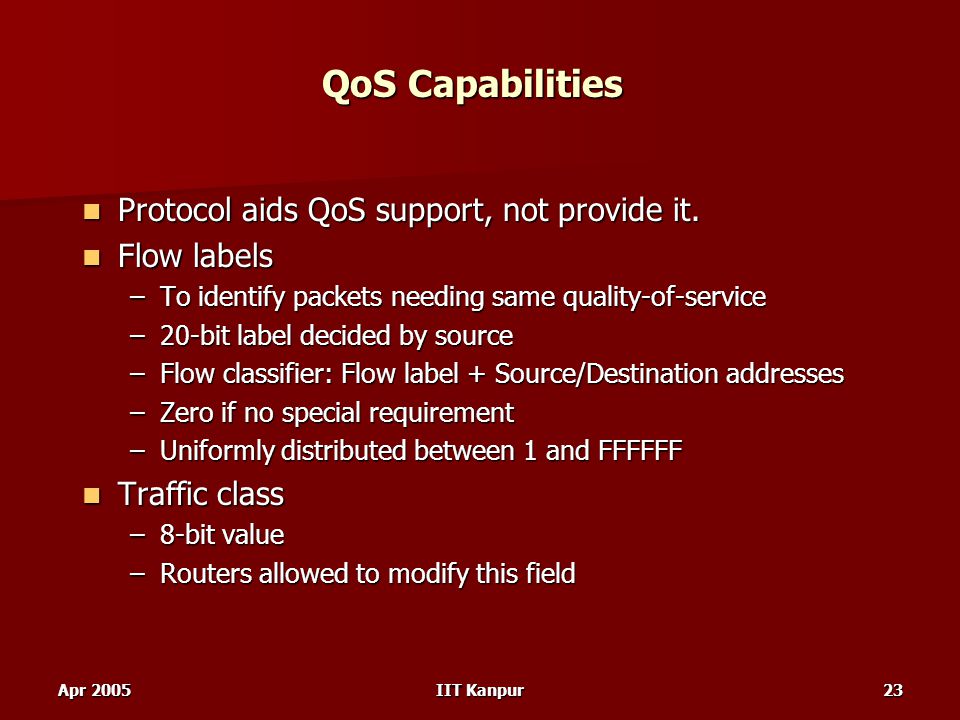

24. Apr 2005IIT Kanpur23 QoS Capabilities Protocol aids QoS support, not provide it. Protocol aids QoS support, not provide it. Flow labels Flow labels –To identify packets needing same quality-of-service –20-bit label decided by source –Flow classifier: Flow label + Source/Destination addresses –Zero if no special requirement –Uniformly distributed between 1 and FFFFFF Traffic class Traffic class –8-bit value –Routers allowed to modify this field

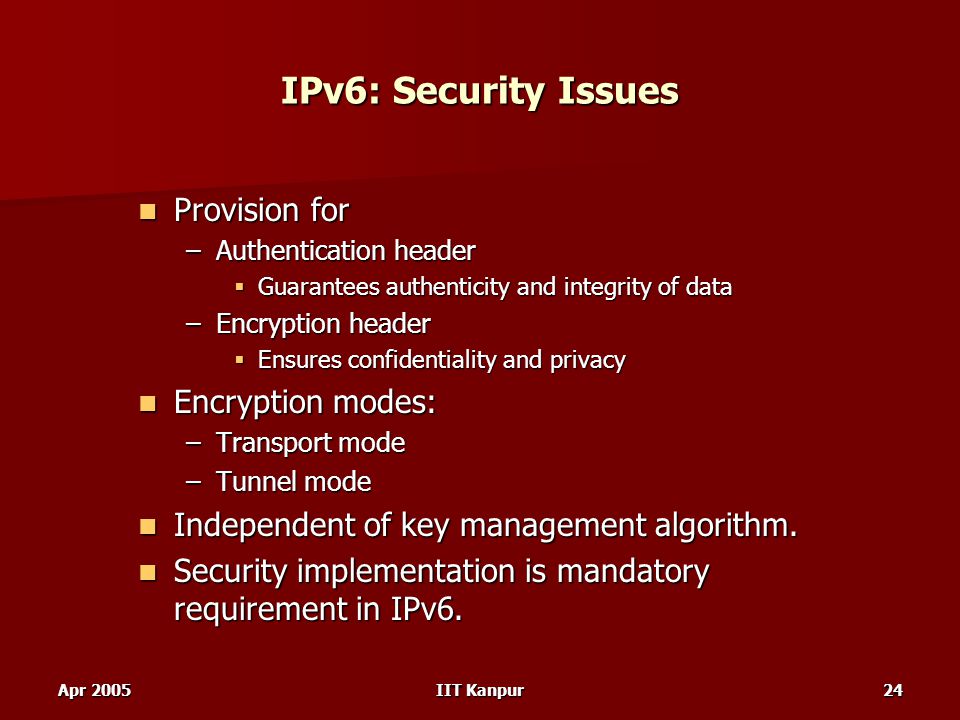

25. Apr 2005IIT Kanpur24 IPv6: Security Issues Provision for Provision for –Authentication header  Guarantees authenticity and integrity of data –Encryption header  Ensures confidentiality and privacy Encryption modes: Encryption modes: –Transport mode –Tunnel mode Independent of key management algorithm. Independent of key management algorithm. Security implementation is mandatory requirement in IPv6. Security implementation is mandatory requirement in IPv6.

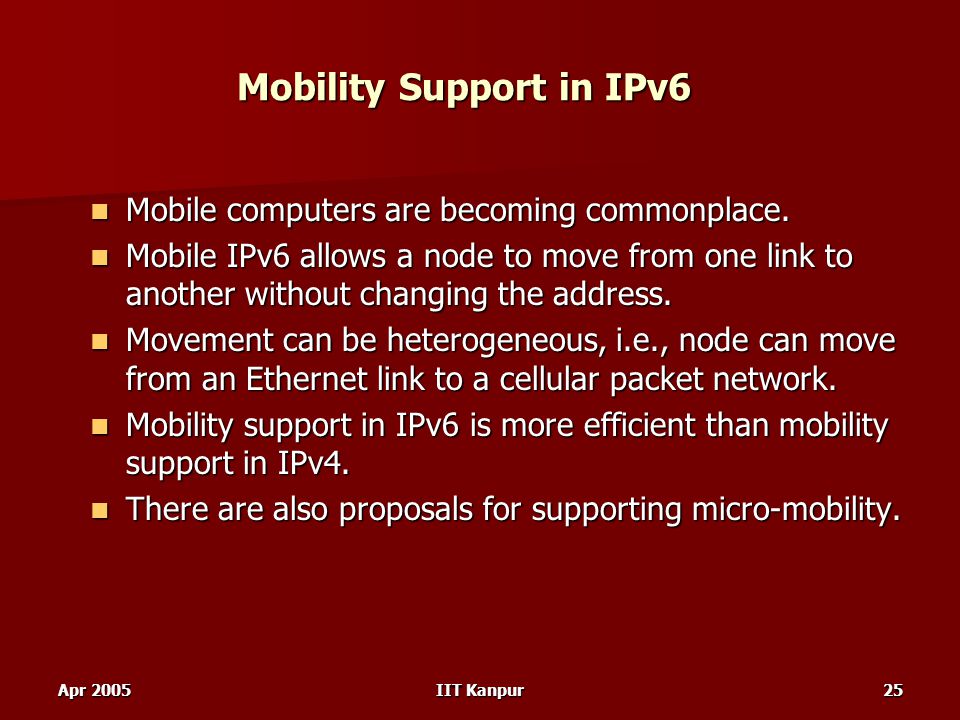

26. Apr 2005IIT Kanpur25 Mobility Support in IPv6 Mobile computers are becoming commonplace. Mobile computers are becoming commonplace. Mobile IPv6 allows a node to move from one link to another without changing the address. Mobile IPv6 allows a node to move from one link to another without changing the address. Movement can be heterogeneous, i.e., node can move from an Ethernet link to a cellular packet network. Movement can be heterogeneous, i.e., node can move from an Ethernet link to a cellular packet network. Mobility support in IPv6 is more efficient than mobility support in IPv4. Mobility support in IPv6 is more efficient than mobility support in IPv4. There are also proposals for supporting micro-mobility. There are also proposals for supporting micro-mobility.

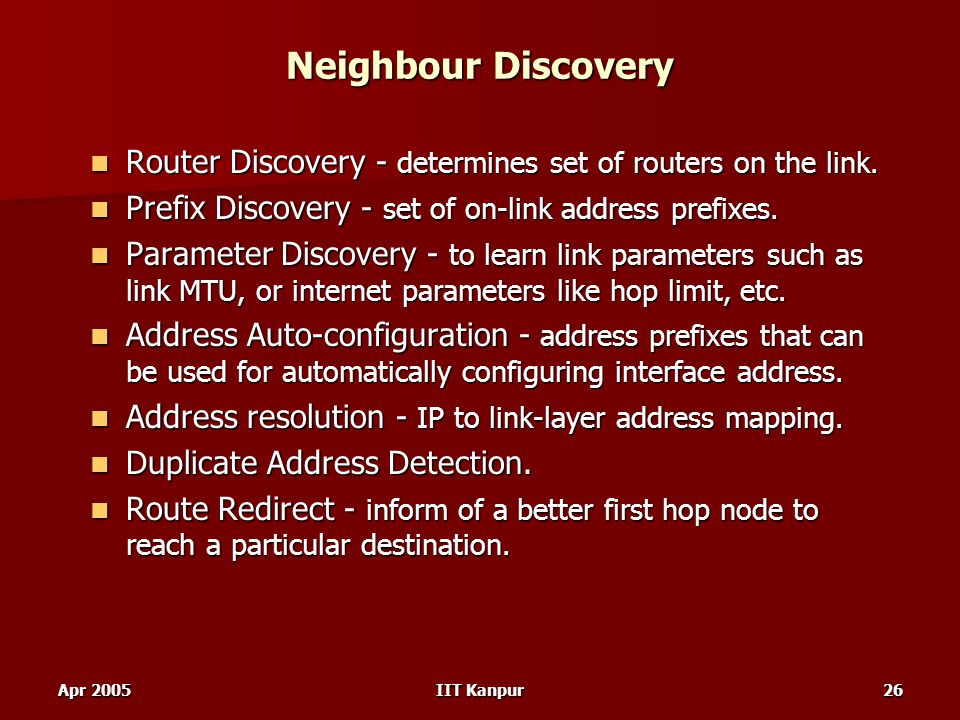

27. Apr 2005IIT Kanpur26 Neighbour Discovery Router Discovery - determines set of routers on the link. Router Discovery - determines set of routers on the link. Prefix Discovery - set of on-link address prefixes. Prefix Discovery - set of on-link address prefixes. Parameter Discovery - to learn link parameters such as link MTU, or internet parameters like hop limit, etc. Parameter Discovery - to learn link parameters such as link MTU, or internet parameters like hop limit, etc. Address Auto-configuration - address prefixes that can be used for automatically configuring interface address. Address Auto-configuration - address prefixes that can be used for automatically configuring interface address. Address resolution - IP to link-layer address mapping. Address resolution - IP to link-layer address mapping. Duplicate Address Detection. Duplicate Address Detection. Route Redirect - inform of a better first hop node to reach a particular destination. Route Redirect - inform of a better first hop node to reach a particular destination.

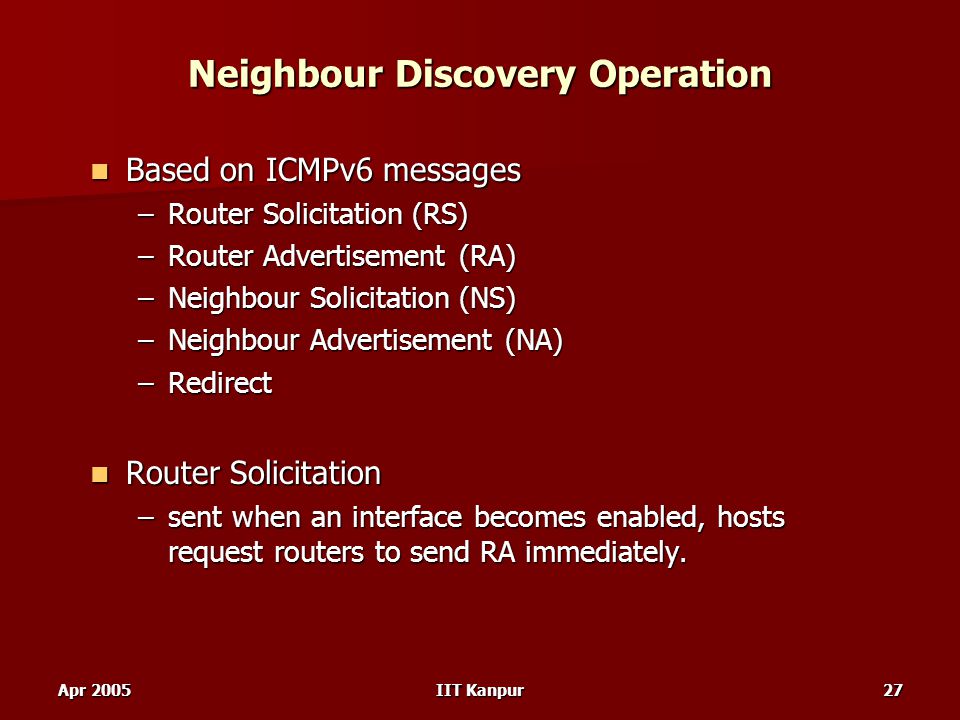

28. Apr 2005IIT Kanpur27 Neighbour Discovery Operation Based on ICMPv6 messages Based on ICMPv6 messages –Router Solicitation (RS) –Router Advertisement (RA) –Neighbour Solicitation (NS) –Neighbour Advertisement (NA) –Redirect Router Solicitation Router Solicitation –sent when an interface becomes enabled, hosts request routers to send RA immediately.

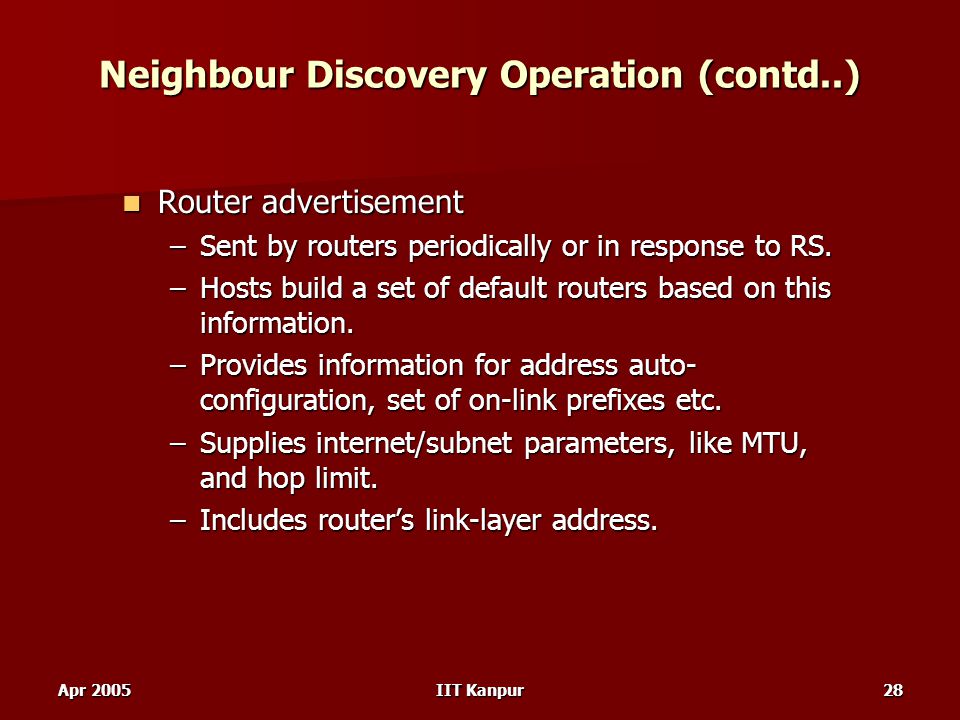

29. Apr 2005IIT Kanpur28 Neighbour Discovery Operation (contd..) Router advertisement Router advertisement –Sent by routers periodically or in response to RS. –Hosts build a set of default routers based on this information. –Provides information for address auto- configuration, set of on-link prefixes etc. –Supplies internet/subnet parameters, like MTU, and hop limit. –Includes router’s link-layer address.

30. Apr 2005IIT Kanpur29 Neighbour Discovery Operation (contd..) Neighbour Solicitation Neighbour Solicitation –To request link-layer address of neighbour –Also used for Duplicate Address Detection Neighbour Advertisement Neighbour Advertisement –Sent in response to NS –May be sent without solicitation to announce change in link-layer address Redirect - used to inform hosts of a better first hop for a destination. Redirect - used to inform hosts of a better first hop for a destination.

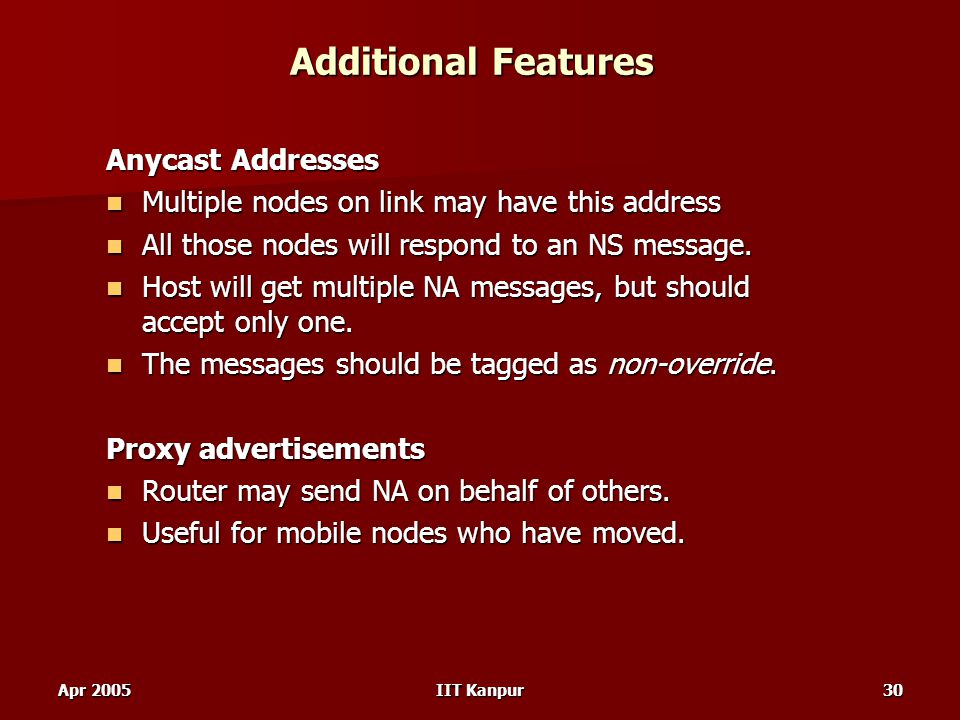

31. Apr 2005IIT Kanpur30 Additional Features Anycast Addresses Multiple nodes on link may have this address Multiple nodes on link may have this address All those nodes will respond to an NS message. All those nodes will respond to an NS message. Host will get multiple NA messages, but should accept only one. Host will get multiple NA messages, but should accept only one. The messages should be tagged as non-override. The messages should be tagged as non-override. Proxy advertisements Router may send NA on behalf of others. Router may send NA on behalf of others. Useful for mobile nodes who have moved. Useful for mobile nodes who have moved.

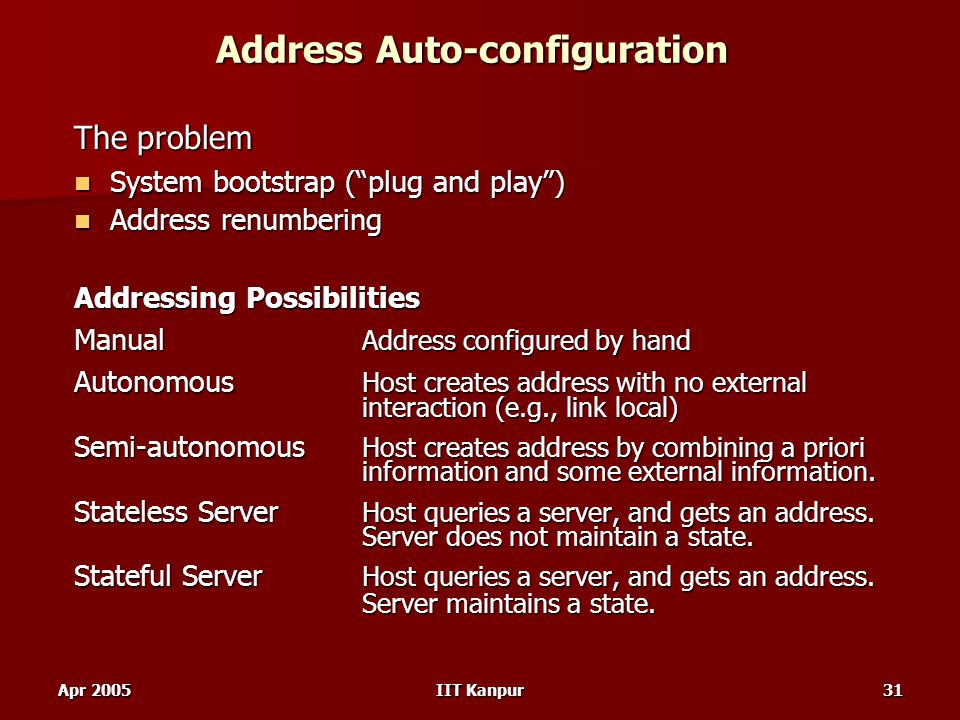

32. Apr 2005IIT Kanpur31 Address Auto-configuration The problem System bootstrap (“plug and play”) System bootstrap (“plug and play”) Address renumbering Address renumbering Addressing Possibilities Manual Address configured by hand Autonomous Host creates address with no external interaction (e.g., link local) Semi-autonomous Host creates address by combining a priori information and some external information. Stateless Server Host queries a server, and gets an address. Server does not maintain a state. Server does not maintain a state. Stateful Server Host queries a server, and gets an address. Server maintains a state.

33. Apr 2005IIT Kanpur32 Auto-configuration in IPv6 Link-local prefix concatenated with 64-bit MAC address. (Autonomous mode) Link-local prefix concatenated with 64-bit MAC address. (Autonomous mode) Prefix advertised by router concatenated with 64-bit MAC address. (Semi-autonomous mode.) Prefix advertised by router concatenated with 64-bit MAC address. (Semi-autonomous mode.) DHCPng (for server modes) DHCPng (for server modes) –Can provide a permanent address (stateless mode) –Provide an address from a group of addresses, and keep track of this allocation (stateful mode) –Can provide additional network specific information. –Can register nodes in DNS.

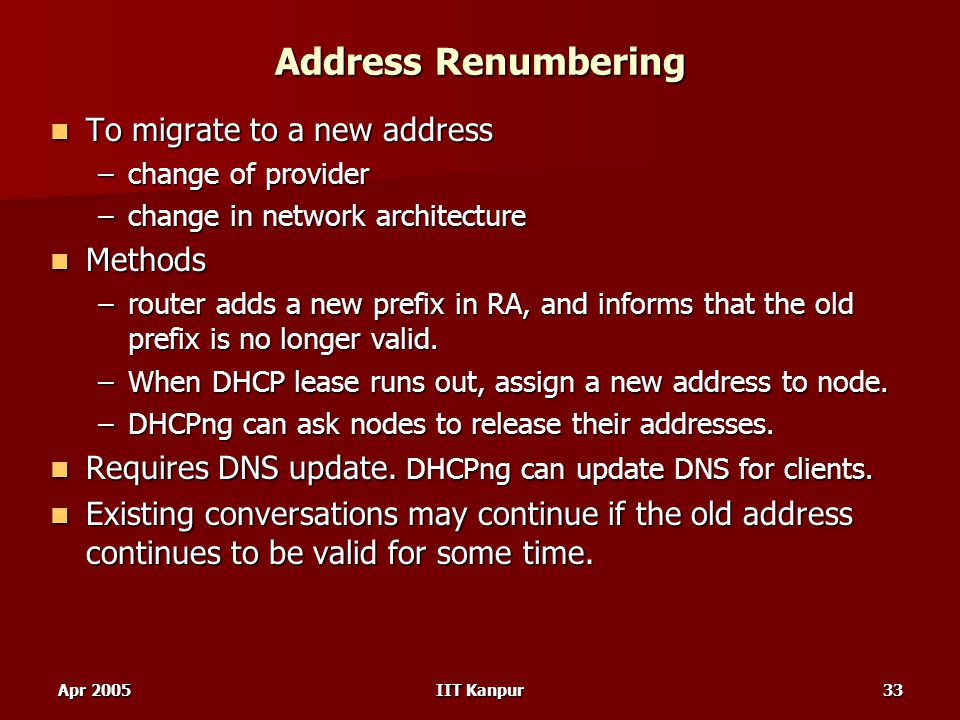

34. Apr 2005IIT Kanpur33 Address Renumbering To migrate to a new address To migrate to a new address –change of provider –change in network architecture Methods Methods –router adds a new prefix in RA, and informs that the old prefix is no longer valid. –When DHCP lease runs out, assign a new address to node. –DHCPng can ask nodes to release their addresses. Requires DNS update. DHCPng can update DNS for clients. Requires DNS update. DHCPng can update DNS for clients. Existing conversations may continue if the old address continues to be valid for some time. Existing conversations may continue if the old address continues to be valid for some time.

35. Apr 2005IIT Kanpur34 Upper Layer Issues Minor changes in TCP Minor changes in TCP –Maximum segment size should be based on Path MTU. –The packet size computation should take into account larger size of IP header(s). –Pseudo-header for checksum is different. UDP checksum computation is now mandatory. UDP checksum computation is now mandatory. Most application protocol specifications are independent of TCP/IP - hence no change. Most application protocol specifications are independent of TCP/IP - hence no change. FTP protocol exchanges IPv4 addresses - hence needs to be changed. FTP protocol exchanges IPv4 addresses - hence needs to be changed.

36. Apr 2005IIT Kanpur35 The pseudo-header is changed in checksum computation: The pseudo-header is changed in checksum computation: –Address are 128 bits. –Payload length is 32 bits. –Payload length is not copied from IPv6 header. (Extension headers should not be counted.) (Extension headers should not be counted.) –Next header field of last extension header is used in place of protocol. UDP packets must also have checksum. UDP packets must also have checksum. (Since no IP checksum now.)

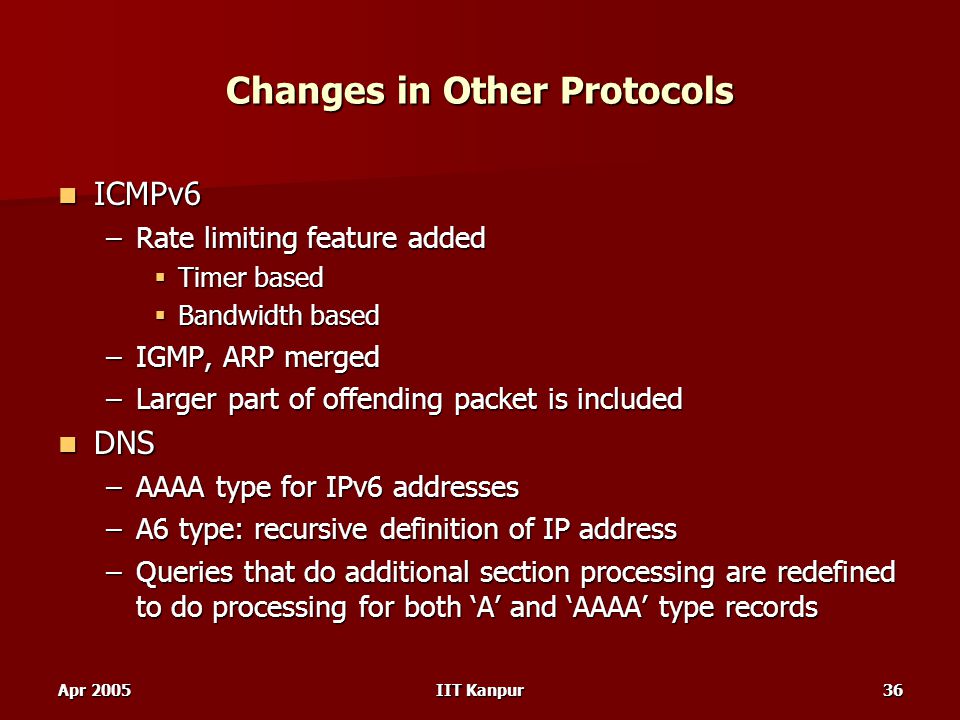

37. Apr 2005IIT Kanpur36 Changes in Other Protocols ICMPv6 ICMPv6 –Rate limiting feature added  Timer based  Bandwidth based –IGMP, ARP merged –Larger part of offending packet is included DNS DNS –AAAA type for IPv6 addresses –A6 type: recursive definition of IP address –Queries that do additional section processing are redefined to do processing for both ‘A’ and ‘AAAA’ type records

38. Apr 2005IIT Kanpur37 Socket API “Sockets” interface – the de facto standard API for TCP/IP Applications. “Sockets” interface – the de facto standard API for TCP/IP Applications. Need to change Socket API in order to reflect the increased address length in IPv6. Need to change Socket API in order to reflect the increased address length in IPv6. Also need to make new features like flow label, visible to applications. Also need to make new features like flow label, visible to applications. A few new library routines A few new library routines Complete source and binary compatibility with original API. Complete source and binary compatibility with original API. One can have some sockets using IPv4 and others using IPv6. One can have some sockets using IPv4 and others using IPv6.

39. Apr 2005IIT Kanpur38 Transition to IPv6: Design Goal No “flag”day. No “flag”day. Incremental upgrade and deployment. Incremental upgrade and deployment. Minimum upgrade dependencies. Minimum upgrade dependencies. Interoperability of IPv4 and IPv6 nodes. Interoperability of IPv4 and IPv6 nodes. Let sites transition at their own pace. Let sites transition at their own pace. Basic migration tools Basic migration tools –Dual stack and tunneling –Translation

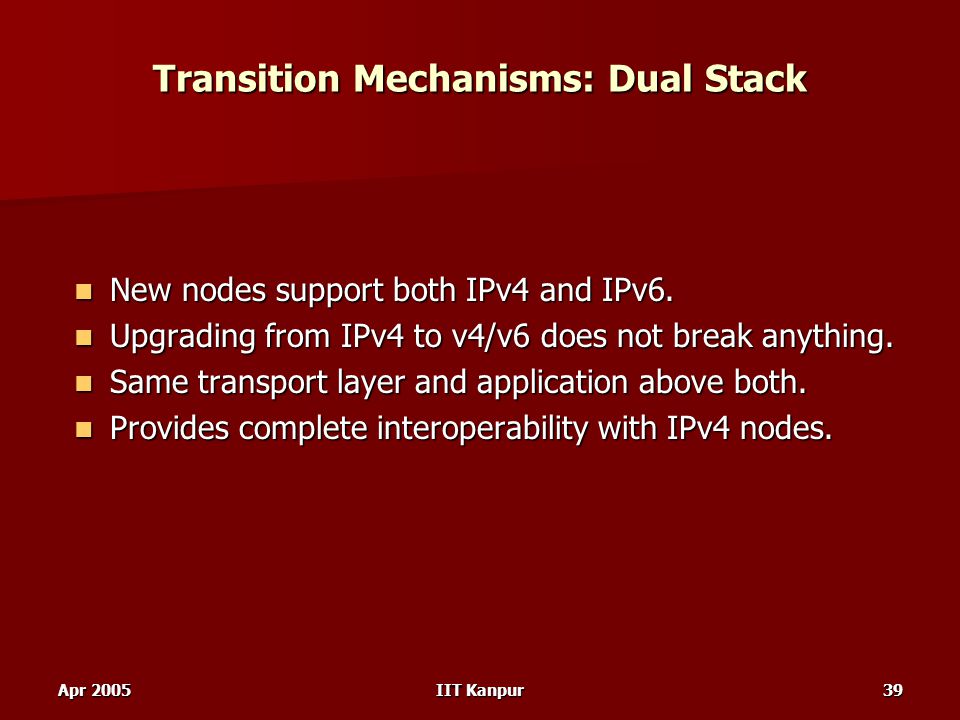

40. Apr 2005IIT Kanpur39 Transition Mechanisms: Dual Stack New nodes support both IPv4 and IPv6. New nodes support both IPv4 and IPv6. Upgrading from IPv4 to v4/v6 does not break anything. Upgrading from IPv4 to v4/v6 does not break anything. Same transport layer and application above both. Same transport layer and application above both. Provides complete interoperability with IPv4 nodes. Provides complete interoperability with IPv4 nodes.

41. Apr 2005IIT Kanpur40 Transition Mechanism: Tunnels Tunnel IPv6 packets across IPv4 topology. Tunnel IPv6 packets across IPv4 topology. Configured tunnels: Configured tunnels: –Explicitly configured tunnel endpoints. –Router to router, host to router. Automatic tunnels: Automatic tunnels: –Automatic address resolution using embedded IPv4 address (like IPv4-compatible address). –Host to host, router to host

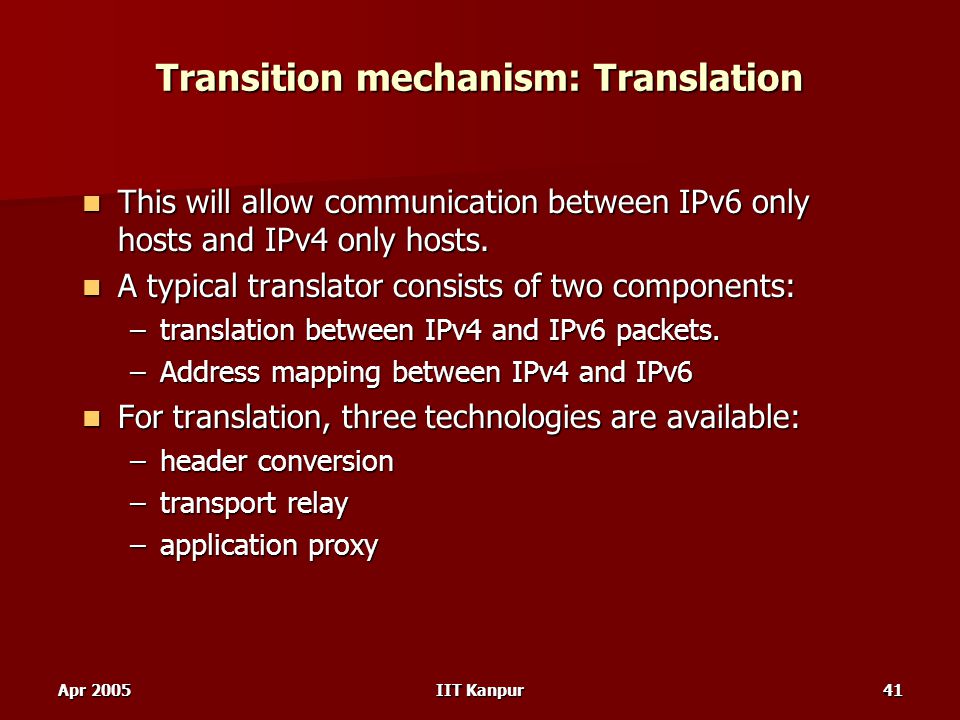

42. Apr 2005IIT Kanpur41 Transition mechanism: Translation This will allow communication between IPv6 only hosts and IPv4 only hosts. This will allow communication between IPv6 only hosts and IPv4 only hosts. A typical translator consists of two components: A typical translator consists of two components: –translation between IPv4 and IPv6 packets. –Address mapping between IPv4 and IPv6 For translation, three technologies are available: For translation, three technologies are available: –header conversion –transport relay –application proxy

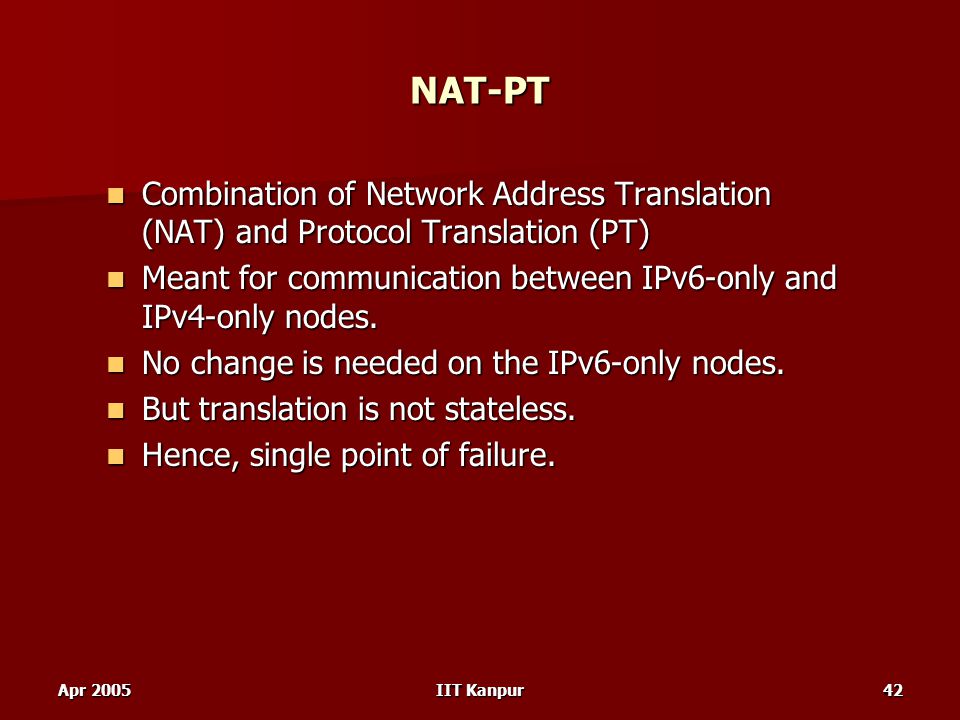

43. Apr 2005IIT Kanpur42 NAT-PT Combination of Network Address Translation (NAT) and Protocol Translation (PT) Combination of Network Address Translation (NAT) and Protocol Translation (PT) Meant for communication between IPv6-only and IPv4-only nodes. Meant for communication between IPv6-only and IPv4-only nodes. No change is needed on the IPv6-only nodes. No change is needed on the IPv6-only nodes. But translation is not stateless. But translation is not stateless. Hence, single point of failure. Hence, single point of failure.

44. Apr 2005IIT Kanpur43 NAPT-PT Network Address Port Translation + Protocol Translation Network Address Port Translation + Protocol Translation In addition to changing IP address, changes the port number also in the transport layer header. In addition to changing IP address, changes the port number also in the transport layer header. It will allow IPv6 nodes to communicate with IPv4 nodes transparently using a single IPv4 address. It will allow IPv6 nodes to communicate with IPv4 nodes transparently using a single IPv4 address.

45. Apr 2005IIT Kanpur44 Stateless IP-ICMP Translation (SIIT) SIIT also translates between IPv4 and IPv6 headers. SIIT also translates between IPv4 and IPv6 headers. Stateless: Translator does not keep address mapping. Stateless: Translator does not keep address mapping. There has to be a translator on every path, not necessarily on all physical links. There has to be a translator on every path, not necessarily on all physical links. Uses IPv4-translatable addresses. Uses IPv4-translatable addresses. Assumes that there is an IPv4 address pool of addresses for the subnet. Assumes that there is an IPv4 address pool of addresses for the subnet.

46. Apr 2005IIT Kanpur45 Issues in Translation PMTU discovery is optional on IPv4 network. PMTU discovery is optional on IPv4 network. Fragmentation is difficult to handle. Fragmentation is difficult to handle. Security Associations may not be transparent. Security Associations may not be transparent. Options may not be translatable. Options may not be translatable. UDP checksum is optional over IPv4. UDP checksum is optional over IPv4. Some ICMP messages are different. Some ICMP messages are different. Connections can only start from IPv6 node. Connections can only start from IPv6 node.

47. Apr 2005IIT Kanpur46 Transition Plan for Internet Maintain complete V4 routing till addresses last. Maintain complete V4 routing till addresses last. Upgrade V4 routers to dual stack. Upgrade V4 routers to dual stack. Incrementally build up V6 backbone routing system. Incrementally build up V6 backbone routing system. –Use v6-over-v4 tunnels to construct 6bone. –Grow like Mbone (multicast backbone). De-activate tunnels as soon as underlying path upgraded to V6. De-activate tunnels as soon as underlying path upgraded to V6.

48. Apr 2005IIT Kanpur47 Transition Options for User Sites Incrementally upgrade V4 hosts to dual V4/V6 Incrementally upgrade V4 hosts to dual V4/V6 –Use IPv4-compatible addresses with existing IPv4 address assignments –Host-to-host automatic tunneling over IPv4 Upgrade routers to IPv6. Upgrade routers to IPv6. –Hosts may require native IPv6 addresses –DNS upgrade is needed before hosts get IPv6 addresses Connect IPv6 router to an IPv6-enabled ISP. Connect IPv6 router to an IPv6-enabled ISP. Install translators like NAT-PT or SIIT. Install translators like NAT-PT or SIIT.

49. Apr 2005IIT Kanpur48 Thank You
