1. COMP3221: Microprocessors and Embedded Systems Final Exam http://www.cse.unsw.edu.au/~cs3221 Lecturer: Hui Wu Session 1, 2005

2. COMP3221/9221: Microprocessors and Embedded Systems 2 Final Exam 3 hours. Open book.  No calculator is allowed. 50% of the total marks.  Lab: 25%  Assignment1: 10%  Assignment 2: 15% Different exam papers for undergraduate and postgraduate students.

3. COMP3221/9221: Microprocessors and Embedded Systems 3 Scope of Final Exam Topics Covered: All topics, excluding Serial Communication and Memory Systems.

4. COMP3221/9221: Microprocessors and Embedded Systems 4 Structure of Final Exam Four Questions: Question 1: Basic Concepts (20 marks)  10 PARTs. Question 2: Miscellaneous Questions (20 marks)  7 PARTs. Question 3: AVR Assembly Programming (30 marks)  3 PARTs. Question 4: Interrupts and I/O (30 marks)  7 PARTs.

5. COMP3221/9221: Microprocessors and Embedded Systems 5 Sample PARTs in Question 1 Discuss the advantages of using macros versus functions. (2 marks)

6. COMP3221/9221: Microprocessors and Embedded Systems 6 Sample PARTs in Question 1 (Cont.) Describe how the prioritisation is achieved in daisy chain interrupts. (2 marks)

7. COMP3221/9221: Microprocessors and Embedded Systems 7 Sample PARTs in Question 2 Consider a two dimensional integer array A, where the array element A[x,y] is at row x ( x  0) and column y ( y  0). A is stored at 0x0200 in memory and has 100 rows and 50 columns. The size of each element is eight bytes. Assume that array A is stored in memory in row- major order i.e. in sequential order; the elements of row 0 first, row 1 second and so on. Give a formula for computing the address of the element A[i,j] (0  i  99 and 0  j  49). (3 marks)

8. COMP3221/9221: Microprocessors and Embedded Systems 8 Sample PARTs in Question 2 (Cont.) Consider two single precision floating point numbers x and y in IEEE 754 format, where x=0xC0EE8000 and y=0xC1AA4000. What is the hexadecimal value of the result of x+y in IEEE 754 format? (3 marks)

9. 9 Sample PARTs in Question 2 (Cont.) Consider the following AVR assembly code..set x=pc ldi r20, low(x) ldi r21, high(x) ldi r30, low(pc) ldi r31, high(pc) Assume that the address of the instruction “ ldi r20, low(x)” is 0x0202. After the above sequence of code is executed, what are the contents in r20, r21, r30, and r31, respectively? (3 marks)

10. 10 Sample PARTs in Question 2 (Cont.) A C program consists of five functions. Their calling relations are shown as follows (the arguments and irrelevant C statements are omitted). int main(void) { … func1(…); func2(…); … }

11. 11 Sample PARTs in Question 2 (Cont.) int func1(…) { … func1(…); … } int func2(…) { … func3(…); func4(…); … }

12. 12 Sample PARTs in Question 2 (Cont.) func1() is a recursive function and calls itself 15 times for the actual parameters given in main(). Both func3() and func4() do not call any function. The sizes of all stack frames are shown as follows. main(): 200 bytes. func1(): 100 bytes. func2(): 400 bytes. func3(): 1,400 bytes func4(): 300 bytes Draw the call tree of this program. (2 marks) How much stack space is needed to execute this program correctly? (3 marks)

13. COMP3221/9221: Microprocessors and Embedded Systems 13 Sample PARTs in Question 3 Write an AVR assembly program to find the minimum value of all array elements in the one-dimensional integer array A. Your program must satisfy the following requirements. Array A has 10 elements and each element is a 2-byte signed integer. Each element A[i] (i=0, 1, …, 9) has an initial value that is stored in the flash memory. You may choose any integer value for each element. Array A is stored contiguously in the SRAM. Your program must define and use at lease one MACRO. The minimum value found by your program is stored in registers r26:r25. (10 marks)

14. COMP3221/9221: Microprocessors and Embedded Systems 14 Sample PARTs in Question 3 (Cont.) Consider an embedded system using an AVR Mega64 microcontroller. Assume that Timer/Counter 0 Overflow Interrupt has been set to occur every 200 ms in the main program. Write an interrupt service routine ISR0 for Timer/Counter 0 Overflow Interrupt to count the number of hours that has passed since the embedded system started to operate. (10 marks)

15. 15 Sample PARTs in Question 3 (Cont.) Write an AVR assembly program to implement the following C program. int sum(int n); int main(void) { int n=100; sum(n); return 0; }

16. 16 Sample PARTs in Question 3 (Cont.) int sum(int n) { if (n<=0) return 0; else return (n+ sum(n-1)); } All local variables and parameters must be stored in the stack space. You need to choose a proper size for n and describe the stack frame structure using a diagram. (10 marks)

17. 17 Sample PARTs in Question 4 Assume for a processor with a 700 MHz clock it takes 150 clock cycles for a polling operation (calling polling routine, accessing the device, and returning). The overhead for an interrupt operation is 200 clock cycles. Hard disk transfers data in 128-byte chunks and can transfer at 6 M bytes/second rate. If the processor uses software polling, what percentage of the processor time is tied up in polling the hard disk to achieve a data transfer rate of 6M bytes/second? (4 marks)

18. 18 Sample PARTs in Question 4 (Cont.) If the processor uses interrupt technique and the interrupt rate is equal to software polling rate, what percentage of the processor time is tied up in servicing interrupt by the hard disk during the data transfer? (4 marks)

19. 19 Sample PARTs in Question 4 (Cont.) Consider an embedded system using an AVR mega64 microcontroller. There are 5 interrupting sources, Int0, Int1, …, Int4. The size of the stack space needed by each interrupt service routine, denoted also by Inti (i=0, 1, …, 4) for simplicity, is shown as follows. Int0: 100 bytes Int1: 50 bytes Int2: 20 bytes Int3: 40 bytes Int4: 50 bytes If no interrupt occurs, the correct execution of the program needs 1K bytes of stack space in the worst case.

20. 20 Sample PARTs in Question 4 (Cont.) If interrupts may occur at any time and each interrupt service routine does not enable the Global Interrupt Flag I in the Program Status Register, how much stack space is needed by the program in the worst case? (4 marks)

21. 21 Sample PARTs in Question 4 (Cont.) Assume that an interrupting device generates a new interrupt request only if its last interrupt request has been processed i.e. its interrupt service routine has been finished. If interrupts may occur at any time and each interrupt service routine enables the Global Interrupt Flag I in the Program Status Register at the beginning of the interrupt service routine, how much stack space is needed by program in the worst case? (4 marks)

22. 22 Sample PARTs in Question 4 (Cont.) Consider designing an electronic toy. It uses a 2*2 keypad to get the input from the user and requires that any decimal integer number and four directions (up, down, left and right) be input via 4 keys. If a straightforward key scanning approach like the one in our Lab 4 is used, only 4 symbols can be input to the electronic toy, which does not satisfy the requirement.

23. 23 Sample PARTs in Question 4 (Cont.) Design an encoding scheme such that all the required symbols can be represented via 4 keys. (4 marks)

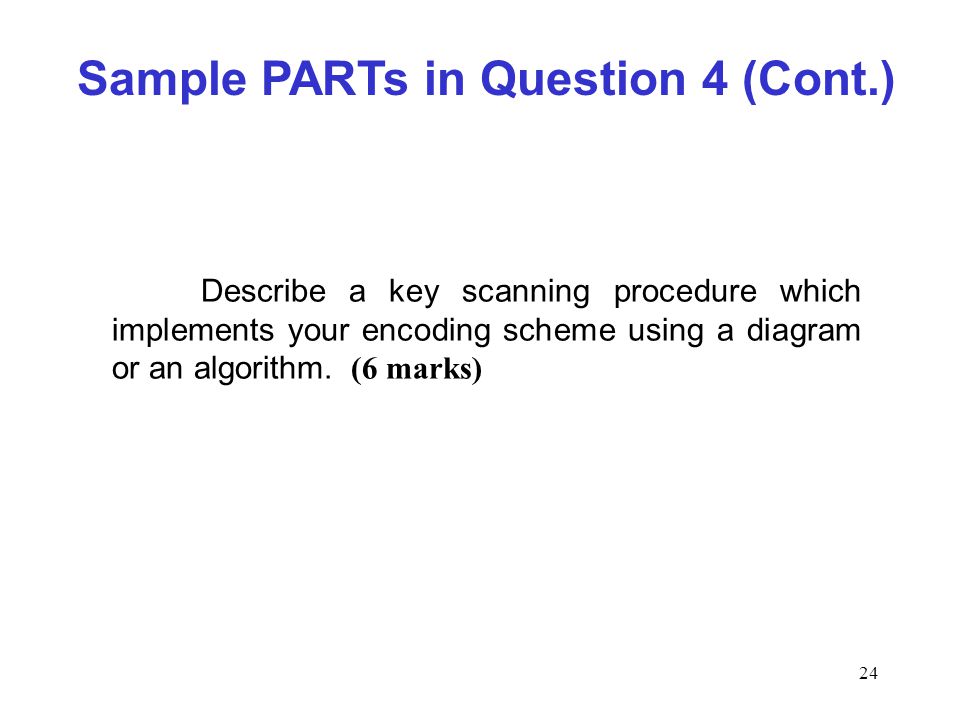

24. 24 Sample PARTs in Question 4 (Cont.) Describe a key scanning procedure which implements your encoding scheme using a diagram or an algorithm. (6 marks)
