1. Evolutionary Computing A Practical Introduction Presented by Ben Paechter Napier University with thanks to the EvoNet Training Committee and its “Flying Circus”

2. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 2 Contents Natural Evolution Evolutionary Algorithms A Simple Example Simple Demonstrations How to Build an Evolutionary Algorithm

3. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 3 Natural Genetics The information required to build a living organism is coded in the DNA and other genetic material found in the cells of that organism Within a species, most of the genetic material is the same Small changes in the genetic material give rise to small changes in the organism E.g height, hair colour

4. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 4 DNA and Genes DNA is a large molecule made up of fragments. There are several fragment types, each one acting like a letter in a long coded message: -A-B-A-D-C-B-B-C-C-A-D-B-C-C-A- Certain groups of letters are meaningful together - a bit like words. These groups are called genes The DNA is made up of genes and rubbish

5. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 5 Example: Human Reproduction Human DNA is organised into chromosomes Most human cells contains 23 pairs of chromosomes which together define the physical attributes of the individual:

6. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 6 Reproductive Cells Sperm and egg cells contain 23 individual chromosomes rather than 23 pairs Reproductive cells are formed by one cell splitting into two During this process the pairs of chromosome undergo an operation called crossover

7. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 7 Crossover During crossover the chromosome pairs link up and swap parts of themselves: Before After After crossover one of each pair goes into each cell

8. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 8 Fertilisation Sperm cell from Father Egg cell from Mother New person cell

9. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 9 Mutation Occasionally some of the genetic material changes very slightly during this process This means that the child might have genetic material information not inherited from either parent This is most likely to be catastrophic

10. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 10 Theory of Evolution Mutation, Crossover =>New genetic material or new combinations. Usually less able to to survive and so reproduce Occasionally more able to survive and so reproduce More reproduction leads to more of the “new improved” genetic “Good” sets of genes get reproduced more “Bad” sets of genes get reproduce less Organisms as a whole get better and better at surviving in their environment Evolutionists claim that this slow changing of genetic material through reproduction, mutation and possibly crossover has produced all the species of plants and animals

11. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 11 Evolution as Search Evolution - search through the enormous genetic parameter space for the best genetic make-up Borrow ideas from nature to help us solve problems that have an equally large search spaces or similarly changing environment

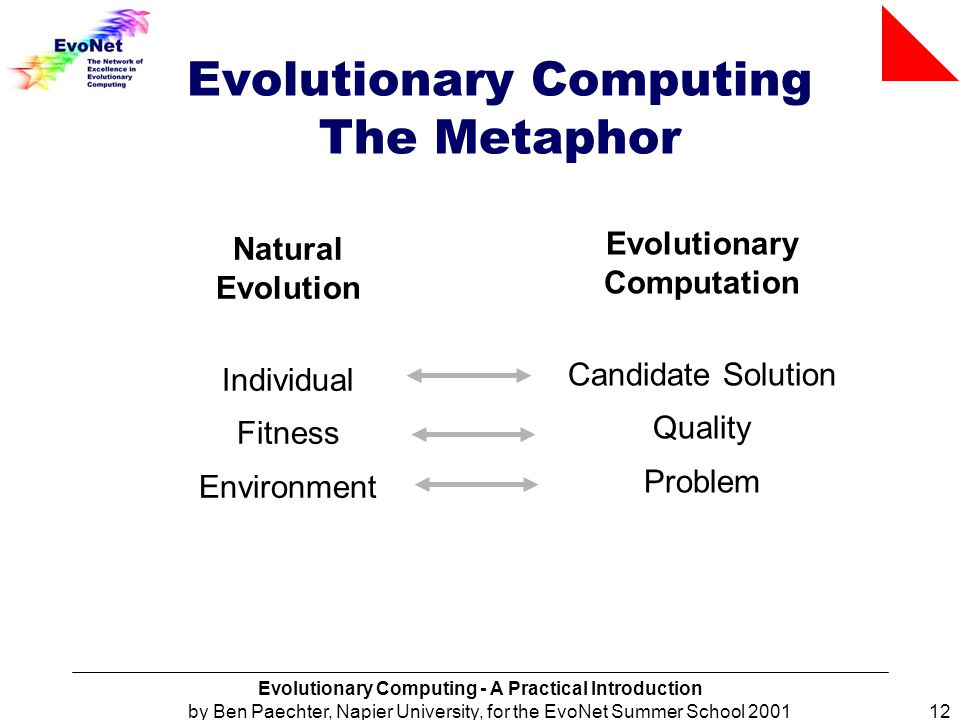

12. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 12 Evolutionary Computing The Metaphor Natural Evolution Individual Fitness Environment Evolutionary Computation Candidate Solution Quality Problem

13. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 13 The Evolutionary Cycle Recombination Mutation Population OffspringParents Selection Replacement

14. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 14 Simple Example The Knapsack Problem The problem is to choose which items to take in a knapsack. Each item has a weight and a value We want to maximise the value of the items in the knapsack, without exceeding some maximum weight. Note: This is not the best way to solve this problem with an evolutionary algorithm and an evolutionary algorithm is not the best way to solve this problem!

15. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 15 Chromosome Representation An array of bits - one for each item in the knapsack A “1” means - take the item A “0” mean don’t take the itemCHROMOSOMEGENE Create 100 random bit strings for the initial population

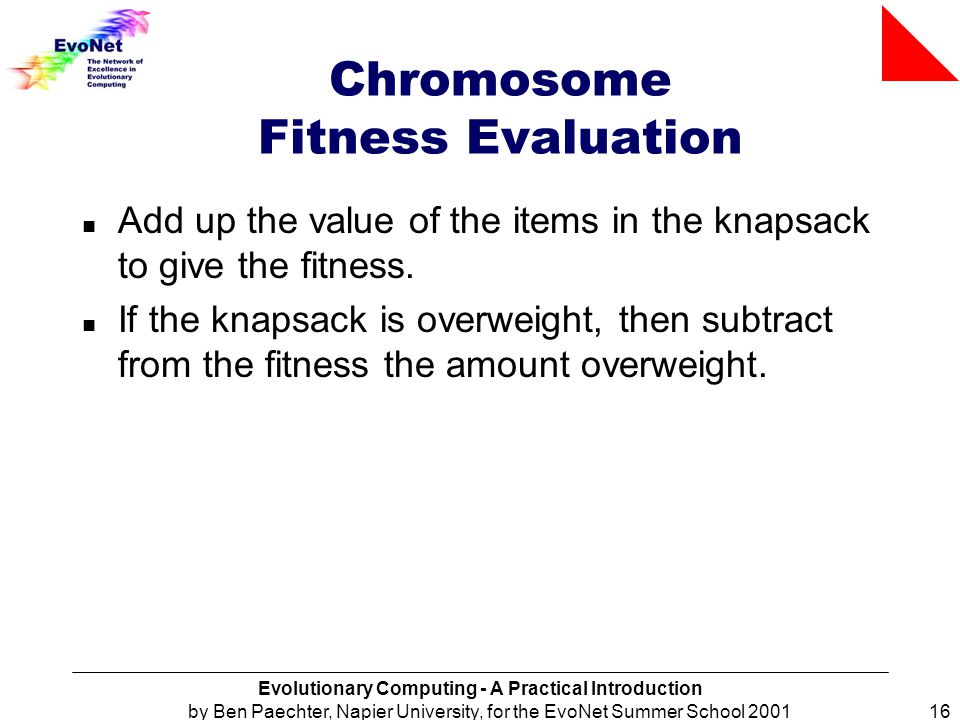

16. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 16 Chromosome Fitness Evaluation Add up the value of the items in the knapsack to give the fitness. If the knapsack is overweight, then subtract from the fitness the amount overweight.

17. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 17 Choosing Parents to Reproduce To choose one parent: Choose two chromosomes randomly from the population. Whichever has the highest fitness is the parent.

18. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 18 To make a child - Recombination For each gene choose randomly whether to take it from one chromosome or the other 00101011 10110011 01010111 Parents Child

19. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 19 Mutation Give each gene a small chance of flipping - say 1/(length of string) 0101011101000111

20. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 20 Replacement When inserting a new child into the population, choose a existing member to kill by: Choosing two chromosomes randomly from the population. Whichever has the lowest fitness is killed.

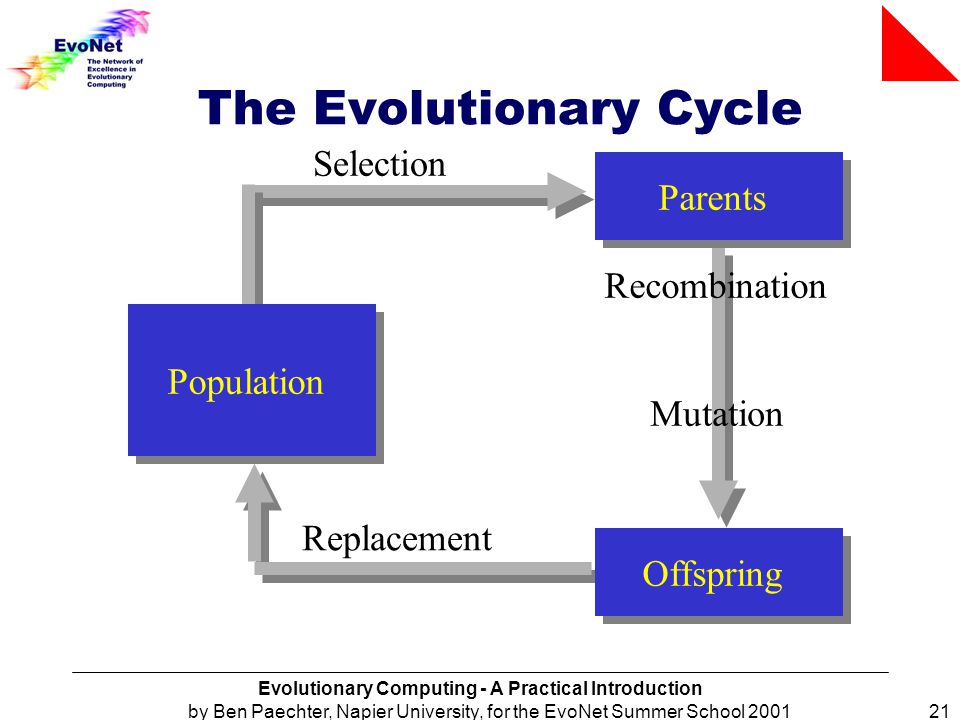

21. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 21 The Evolutionary Cycle Recombination Mutation Population OffspringParents Selection Replacement

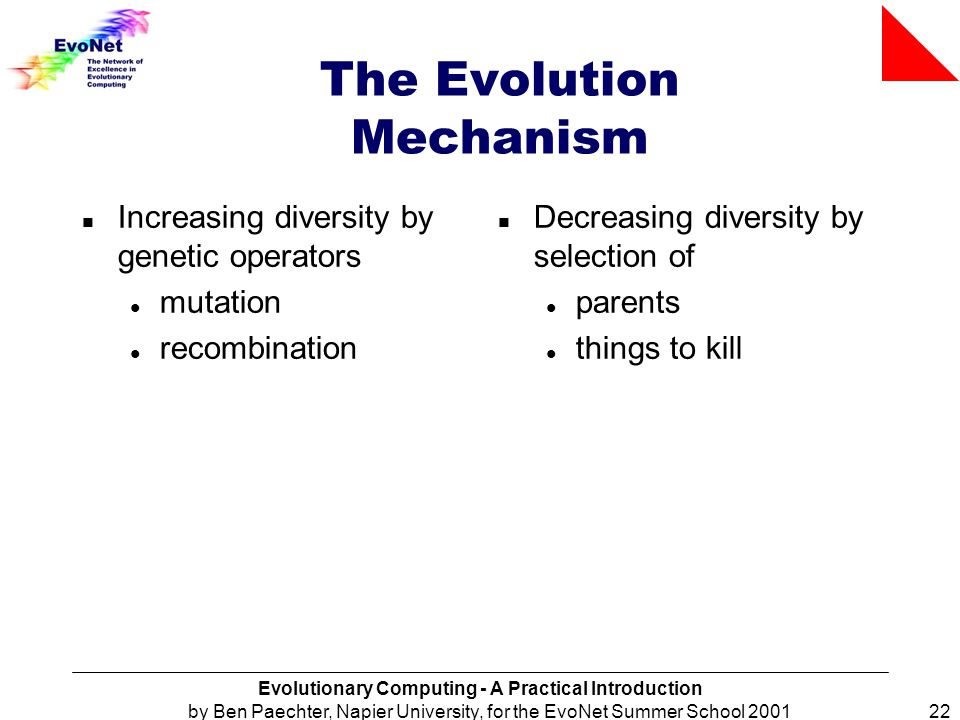

22. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 22 The Evolution Mechanism Increasing diversity by genetic operators mutation recombination Decreasing diversity by selection of parents things to kill

23. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 23 Real World EC Tends to include: More complex representations and operators Use of problem specific knowledge for seeding the initial population and creating heuristic operators Hybridisation with other methods

24. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 24 Advantages Handles huge search spaces Balances exploration and exploitation Easy to try - not knowledge intensive Easy to combine with other methods Provides many alternative solutions Can continually evolve solutions to fit with a continually changing problem

25. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 25 Disadvantages No guarantee for optimal solution within finite time - lacks the killer instinct Weak theoretical basis May need extensive parameter tuning Often computationally expensive, i.e. slow

26. Demos

27. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 27 How to Build an Evolutionary Algorithm

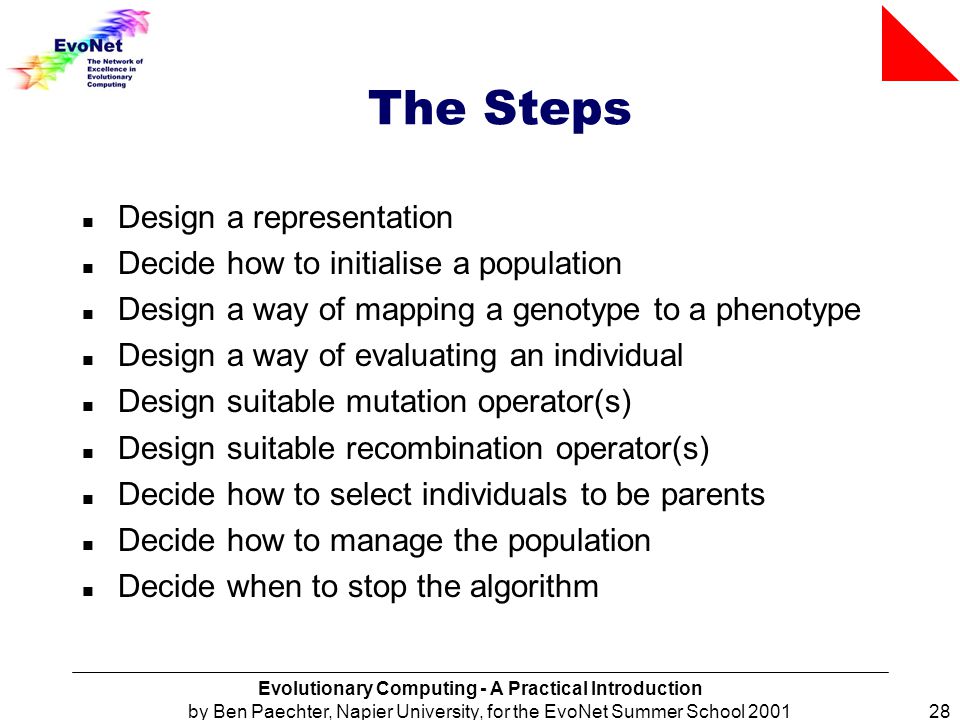

28. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 28 The Steps Design a representation Decide how to initialise a population Design a way of mapping a genotype to a phenotype Design a way of evaluating an individual Design suitable mutation operator(s) Design suitable recombination operator(s) Decide how to select individuals to be parents Decide how to manage the population Decide when to stop the algorithm

29. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 29 Designing a Representation How to represent an individual as a genotype. Should be relevant to the problem that we are solving. Consider at same time How genotype is evaluated Possible genetic operators

30. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 30 Possible Representations Binary string String of integers String of reals Trees Much more complicated things

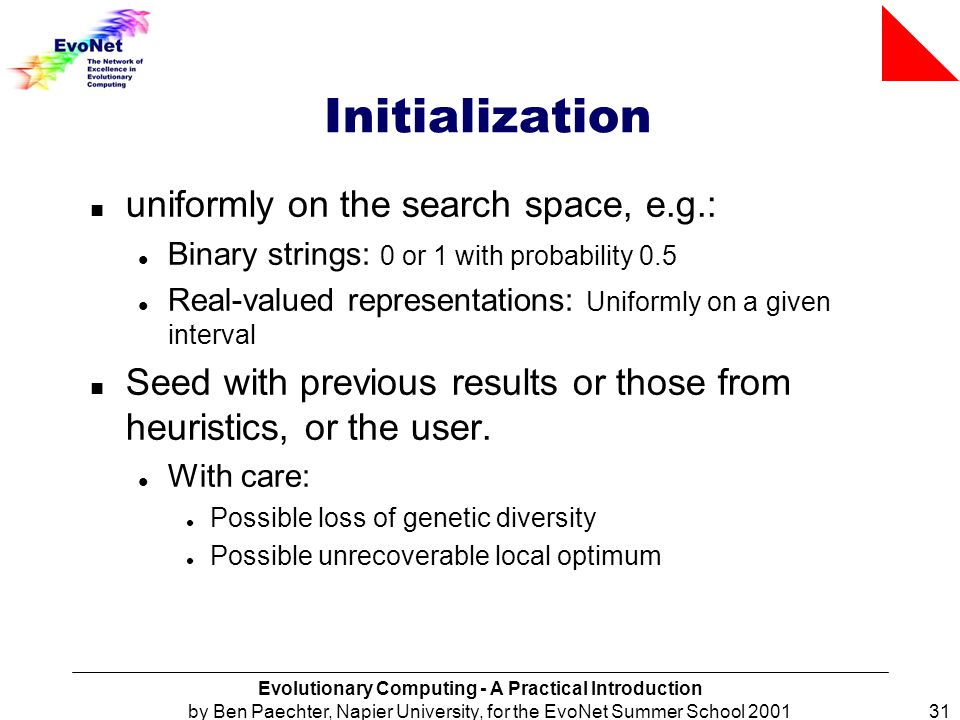

31. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 31 Initialization uniformly on the search space, e.g.: Binary strings: 0 or 1 with probability 0.5 Real-valued representations: Uniformly on a given interval Seed with previous results or those from heuristics, or the user. With care: Possible loss of genetic diversity Possible unrecoverable local optimum

32. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 32 Getting a Phenotype from our Genotype Sometimes producing the phenotype from the genotype is a simple and obvious process. Other times the genotype might be a set of parameters to some algorithm, which works on the problem data to produce the phenotype Genotype Problem Data Phenotype Growth Function

33. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 33 Evaluating an Individual This is by far the most costly step for real applications simple calculation, a black-box simulator, external process ( e.g. robot experiment) Could use approximate fitness - but not for too long

34. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 34 More on Evaluation Constraint handling - what if the phenotype breaks some constraint of the problem: penalize the fitness specific evolutionary methods Multi-objective evolutionary optimization Special methods for dealing with multi-objective optimisation - give a set of compromise solutions.

35. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 35 Mutation Operators One or more mutation operators for our representation: At least one mutation operator should allow every part of the search space to be reached The size of mutation is important and should be controllable The recombination operator(s) should be designed in conjunction with the representation so that mutation is not always catastrophic Mutation should produce valid chromosomes Heuristic mutations might be used

36. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 36 Recombination Operators One or more recombination operators for our representation. The child should inherit something from each parent. If this is not the case then the operator is a mutation operator. The recombination operator(s) should be designed in conjunction with the representation so that recombination is not always catastrophic Recombination should produce valid chromosomes Heuristic recombination might be used

37. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 37 Selection Strategy We want: better individuals to have a better chance of being parents than less good individuals. This will give us selection pressure which will drive the population forward. We must be careful: less good individuals must have some chance of being parents - they may include some useful genetic material.

38. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 38 Population Strategy The selection pressure is also affected by the way in which we manage the population: How do we decide which individuals to kill to make way for new ones? Is the population size fixed? Do we allow duplicates in the population? Should we always keep the best in the population? (Elitism) Should we replace the whole population at once? (generational) Or just one individual at a time? (steady-state), Or something else? Do we select between the children? Do we compare parents and children?

39. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 39 Stopping criterion The optimum is reached! Limit on CPU resources: Maximum number of fitness evaluations Limit on the user’s patience: After some generations without improvement

40. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 40 Algorithm performance Never draw any conclusion from a single run use statistical measures (averages, medians) from a sufficient number of independent runs From the application point of view design perspective: find a very good solution at least once production perspective: find a good solution at almost every run

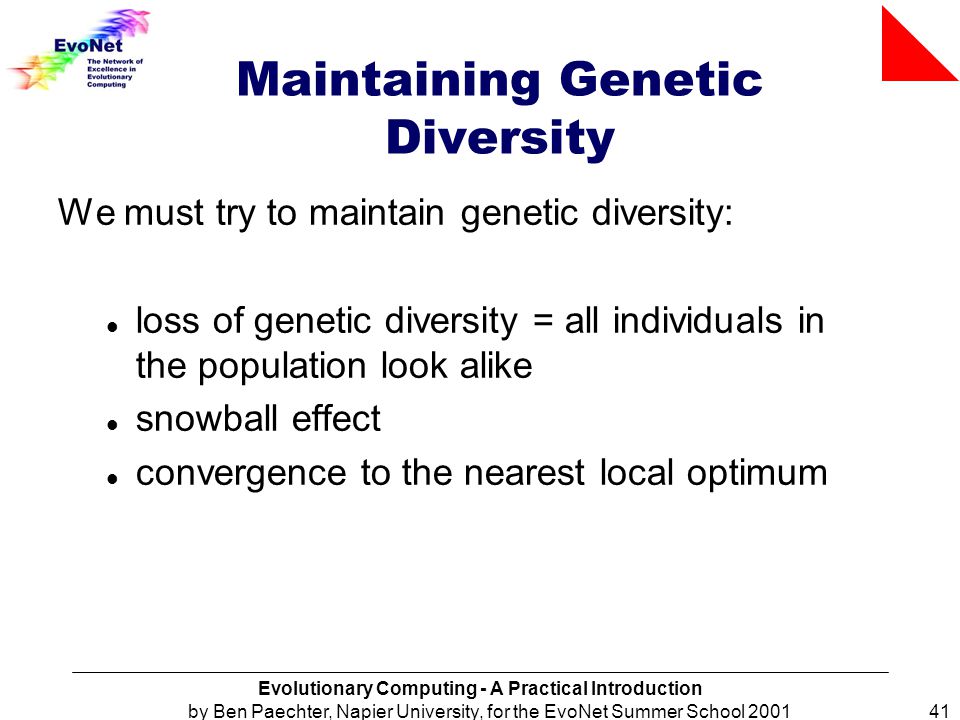

41. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 41 Maintaining Genetic Diversity We must try to maintain genetic diversity: loss of genetic diversity = all individuals in the population look alike snowball effect convergence to the nearest local optimum

42. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 42 Balancing Exploration and Exploitation We should try to balance exploration and exploitation: Exploration =sample unknown regions Too much exporation = random search, no convergence Exploitation = try to improve the best-so-far individuals Too much expoitation = local search only … convergence to a local optimum

43. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 43 Summary Evolutionary Computation: is a method, based on biological metaphors, of breeding solutions to problems has been shown to be useful in a number of areas could be useful for your problem its easy to give it a try

44. Evolutionary Computing - A Practical Introduction by Ben Paechter, Napier University, for the EvoNet Summer School 2001 44 Further Information and Demos The EvoNet Flying Circus : evonet.dcs.napier.ac.uk/evoweb/resources/flying_circus/index.html
