1. Transaction Management with the Spring Framework Jürgen Höller http://www.springframework.com juergen@interface21.com

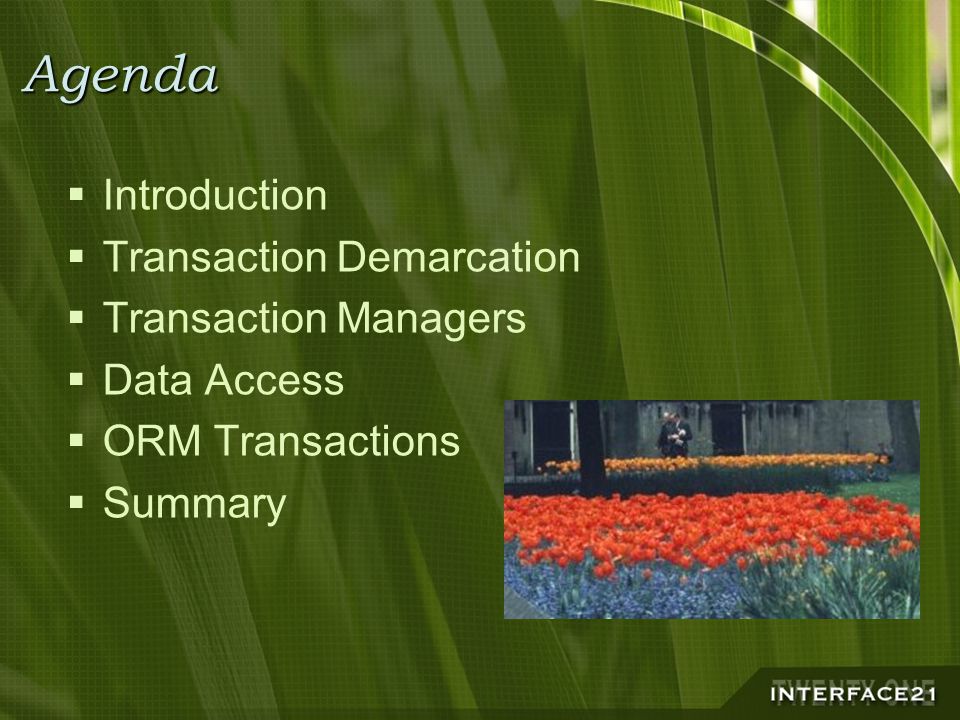

2. Agenda  Introduction  Transaction Demarcation  Transaction Managers  Data Access  ORM Transactions  Summary

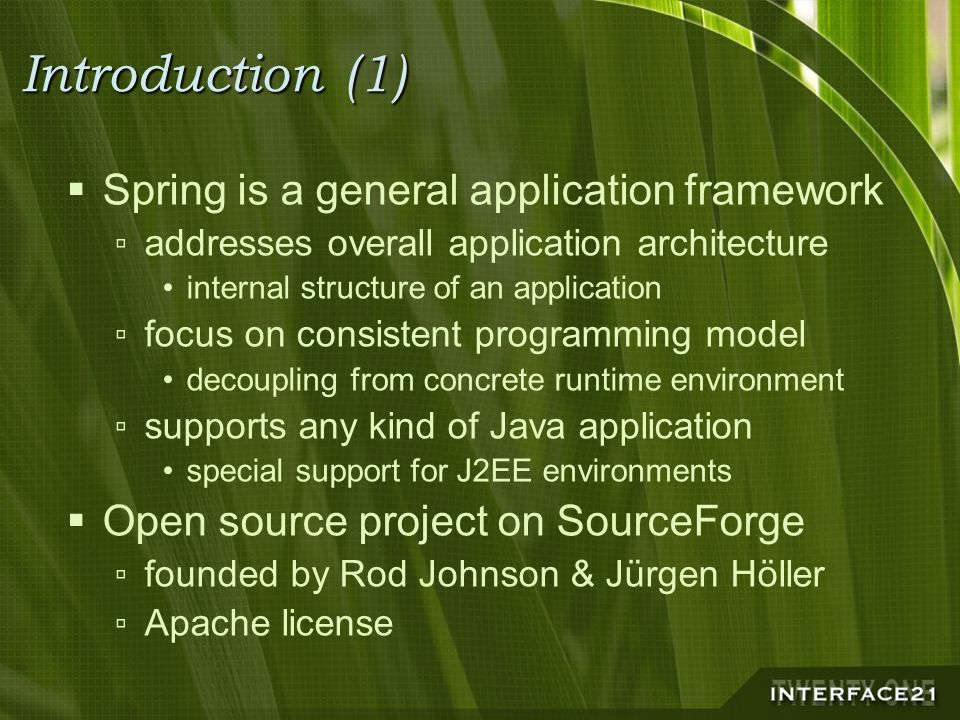

3. Introduction (1)  Spring is a general application framework ▫addresses overall application architecture internal structure of an application ▫focus on consistent programming model decoupling from concrete runtime environment ▫supports any kind of Java application special support for J2EE environments  Open source project on SourceForge ▫founded by Rod Johnson & Jürgen Höller ▫Apache license

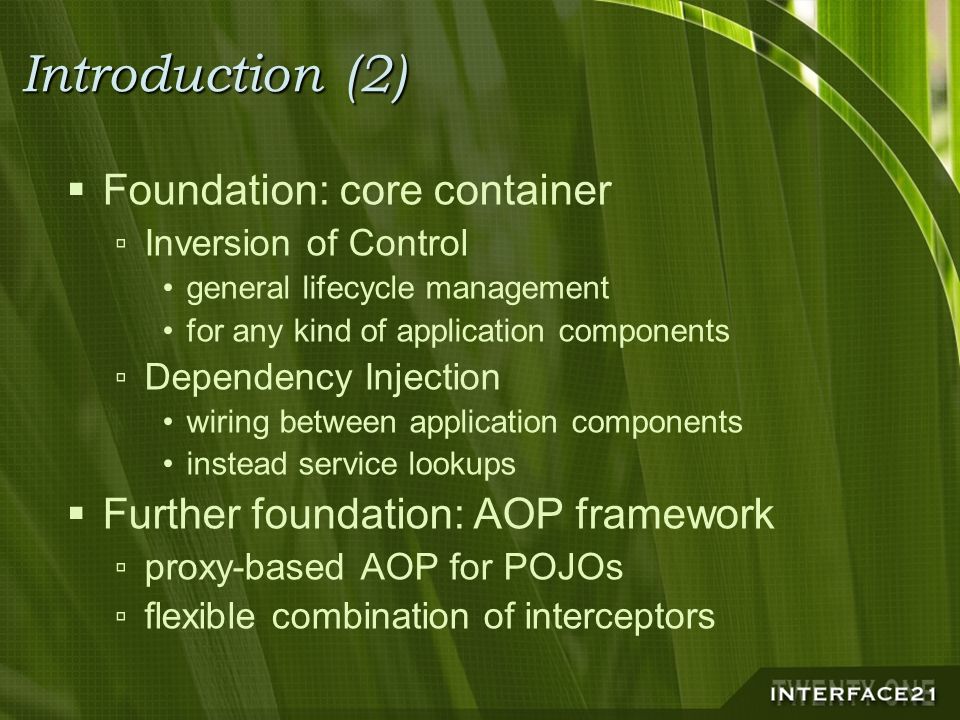

4. Introduction (2)  Foundation: core container ▫Inversion of Control general lifecycle management for any kind of application components ▫Dependency Injection wiring between application components instead service lookups  Further foundation: AOP framework ▫proxy-based AOP for POJOs ▫flexible combination of interceptors

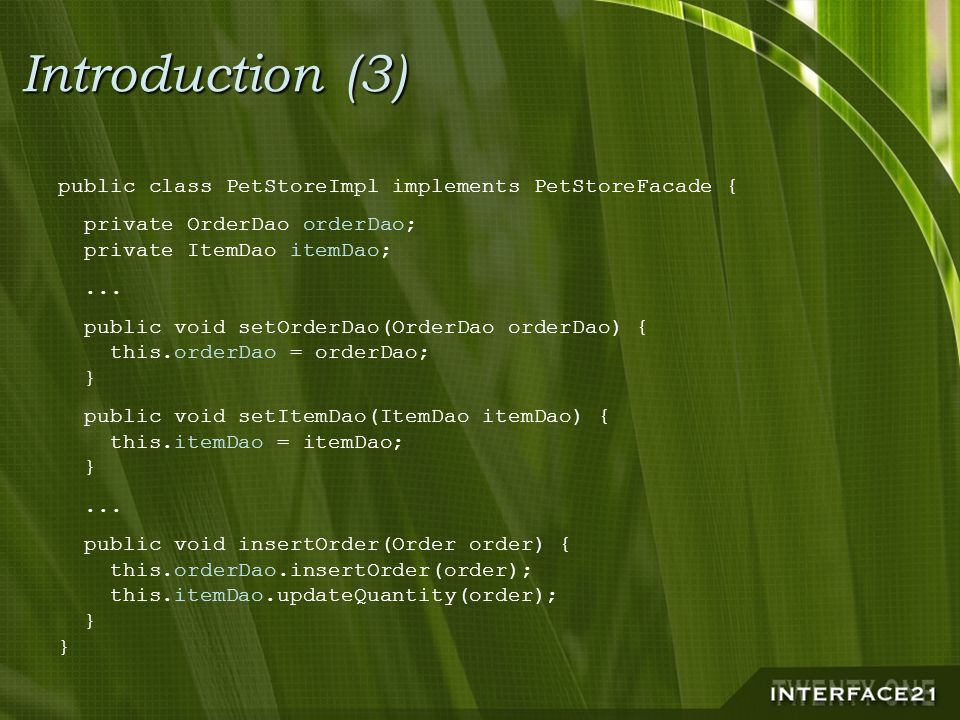

5. Introduction (3) public class PetStoreImpl implements PetStoreFacade { private OrderDao orderDao; private ItemDao itemDao;... public void setOrderDao(OrderDao orderDao) { this.orderDao = orderDao; } public void setItemDao(ItemDao itemDao) { this.itemDao = itemDao; }... public void insertOrder(Order order) { this.orderDao.insertOrder(order); this.itemDao.updateQuantity(order); } }

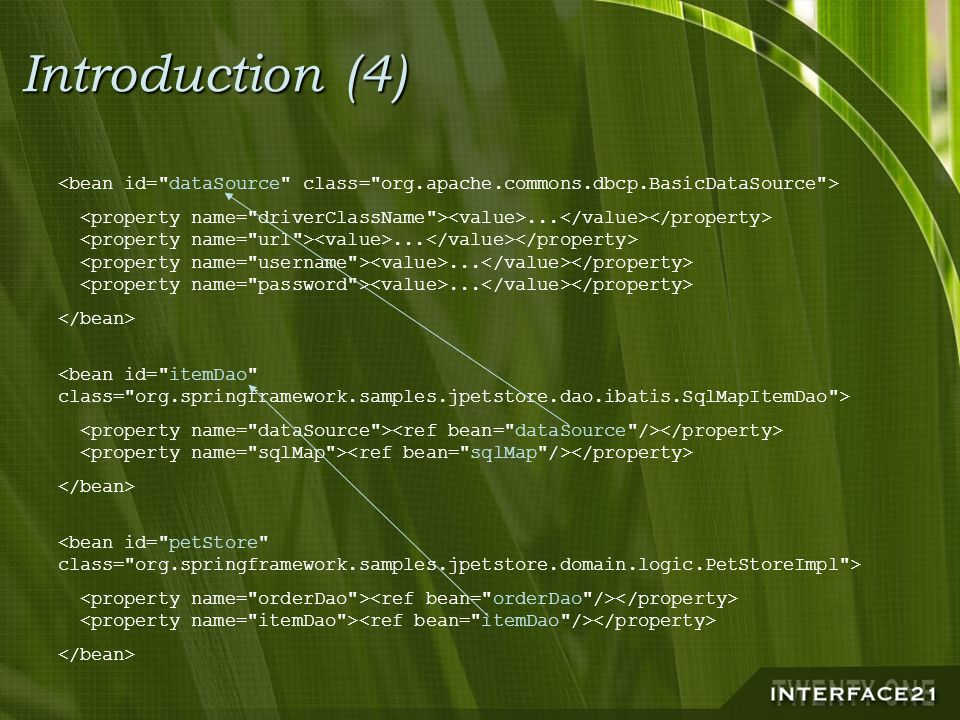

6. Introduction (4)............

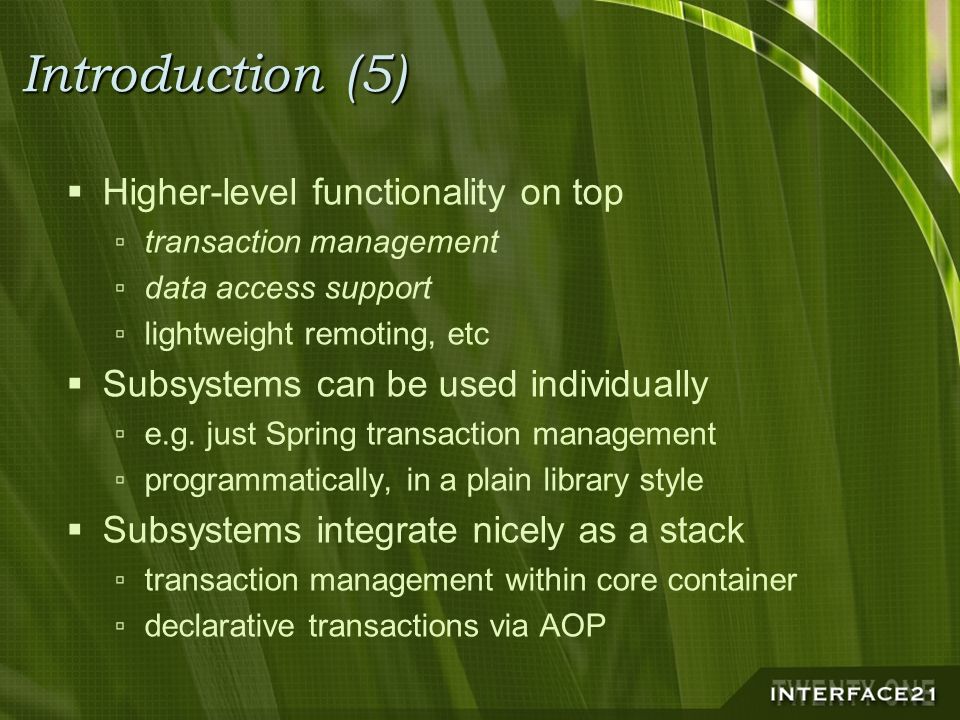

7. Introduction (5)  Higher-level functionality on top ▫transaction management ▫data access support ▫lightweight remoting, etc  Subsystems can be used individually ▫e.g. just Spring transaction management ▫programmatically, in a plain library style  Subsystems integrate nicely as a stack ▫transaction management within core container ▫declarative transactions via AOP

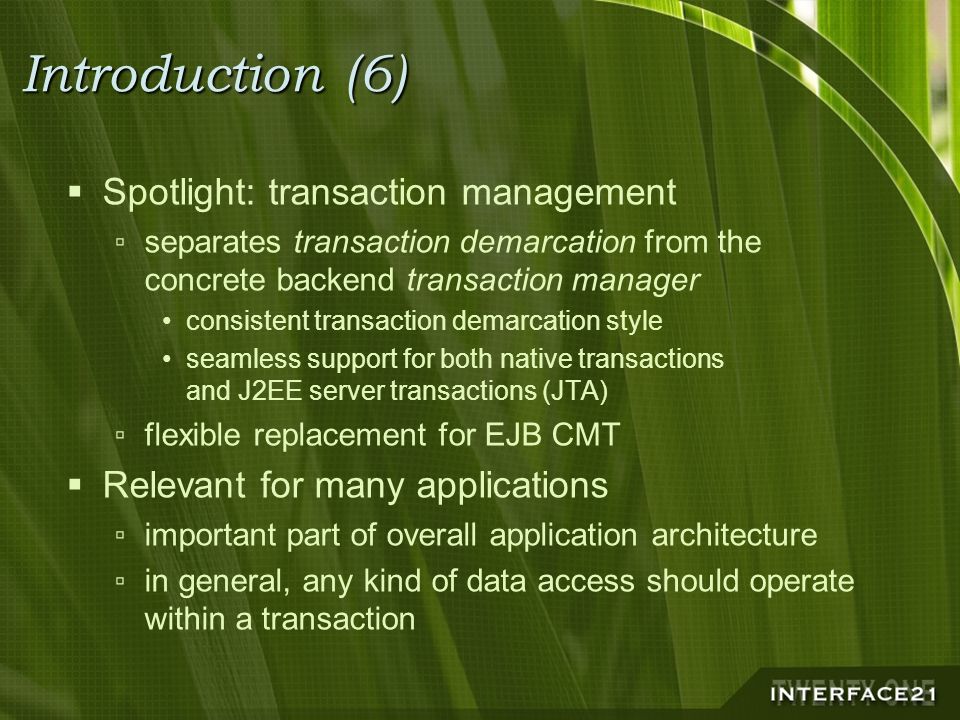

8. Introduction (6)  Spotlight: transaction management ▫separates transaction demarcation from the concrete backend transaction manager consistent transaction demarcation style seamless support for both native transactions and J2EE server transactions (JTA) ▫flexible replacement for EJB CMT  Relevant for many applications ▫important part of overall application architecture ▫in general, any kind of data access should operate within a transaction

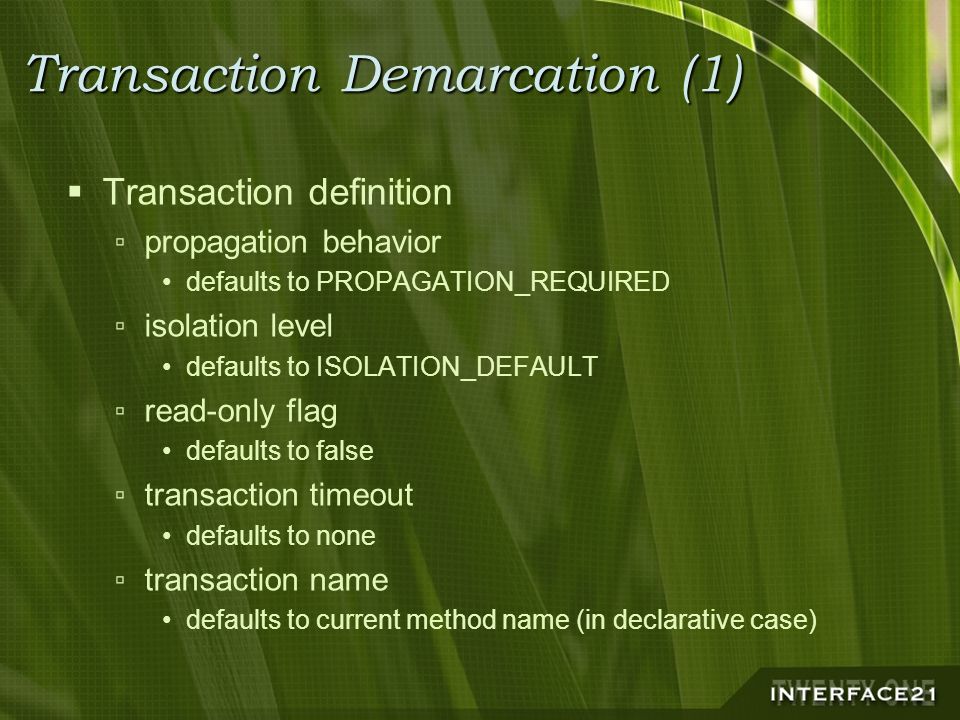

9. Transaction Demarcation (1)  Transaction definition ▫propagation behavior defaults to PROPAGATION_REQUIRED ▫isolation level defaults to ISOLATION_DEFAULT ▫read-only flag defaults to false ▫transaction timeout defaults to none ▫transaction name defaults to current method name (in declarative case)

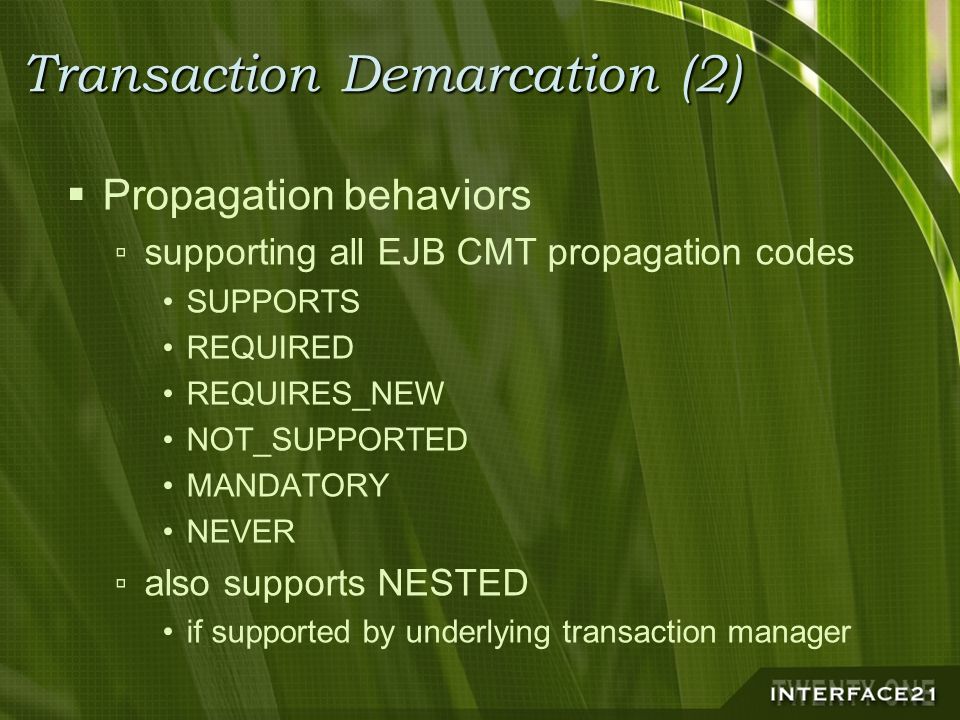

10. Transaction Demarcation (2)  Propagation behaviors ▫supporting all EJB CMT propagation codes SUPPORTS REQUIRED REQUIRES_NEW NOT_SUPPORTED MANDATORY NEVER ▫also supports NESTED if supported by underlying transaction manager

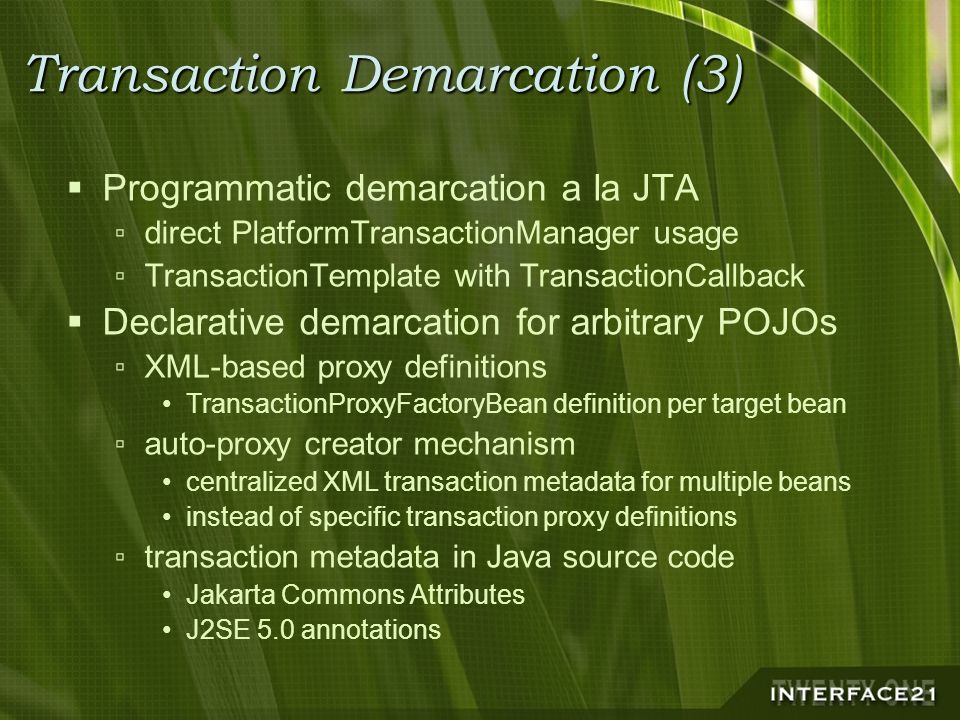

11. Transaction Demarcation (3)  Programmatic demarcation a la JTA ▫direct PlatformTransactionManager usage ▫TransactionTemplate with TransactionCallback  Declarative demarcation for arbitrary POJOs ▫XML-based proxy definitions TransactionProxyFactoryBean definition per target bean ▫auto-proxy creator mechanism centralized XML transaction metadata for multiple beans instead of specific transaction proxy definitions ▫transaction metadata in Java source code Jakarta Commons Attributes J2SE 5.0 annotations

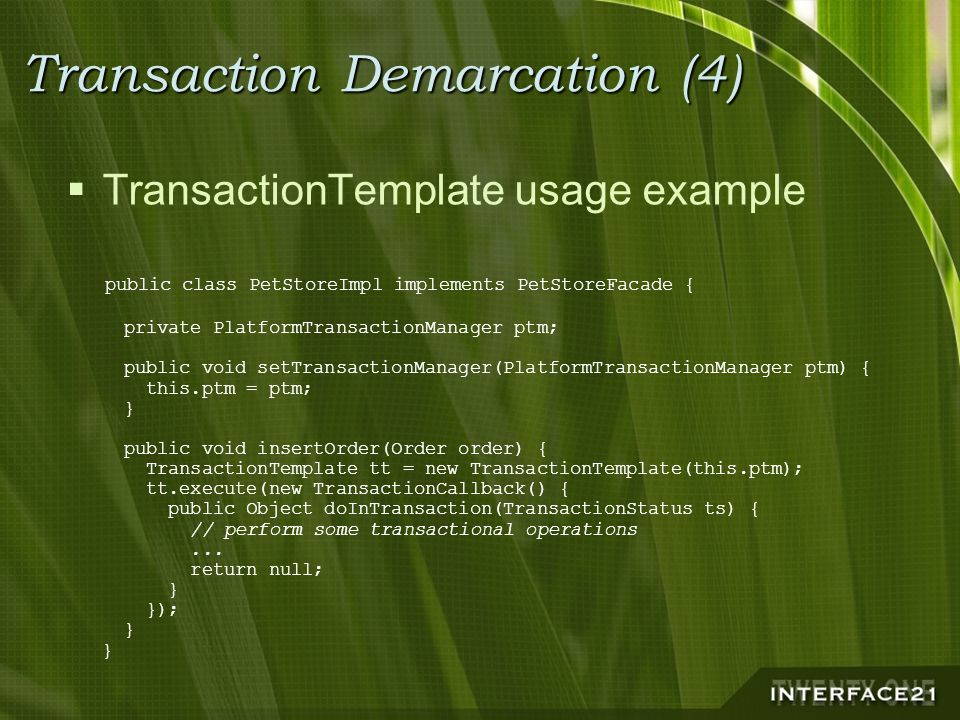

12. Transaction Demarcation (4)  TransactionTemplate usage example public class PetStoreImpl implements PetStoreFacade { private PlatformTransactionManager ptm; public void setTransactionManager(PlatformTransactionManager ptm) { this.ptm = ptm; } public void insertOrder(Order order) { TransactionTemplate tt = new TransactionTemplate(this.ptm); tt.execute(new TransactionCallback() { public Object doInTransaction(TransactionStatus ts) { // perform some transactional operations... return null; } }); } }

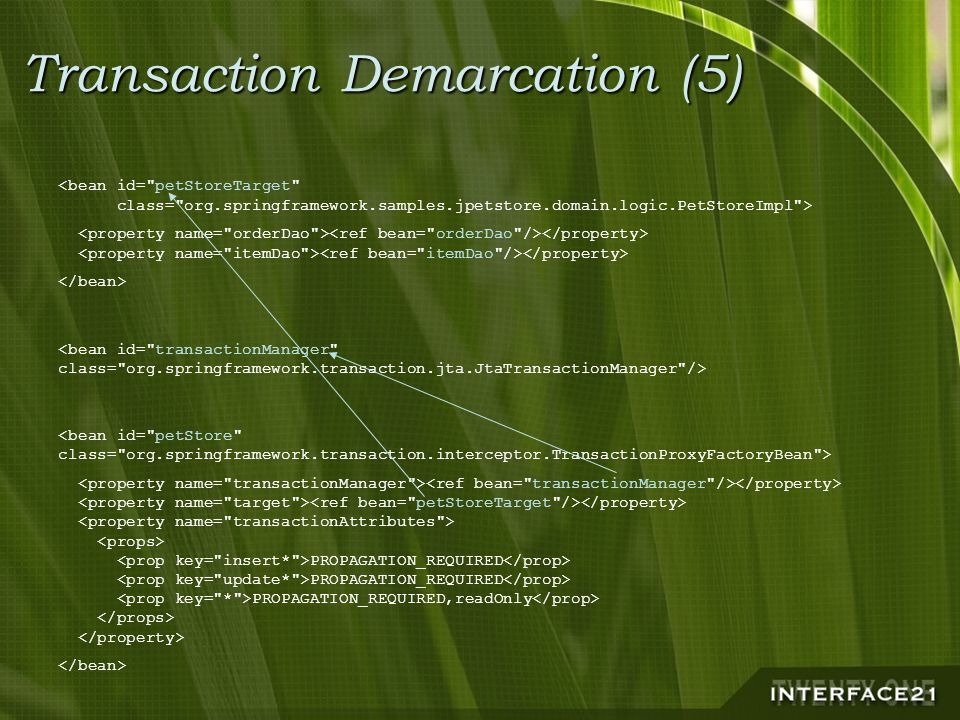

13. Transaction Demarcation (5) PROPAGATION_REQUIRED PROPAGATION_REQUIRED PROPAGATION_REQUIRED,readOnly

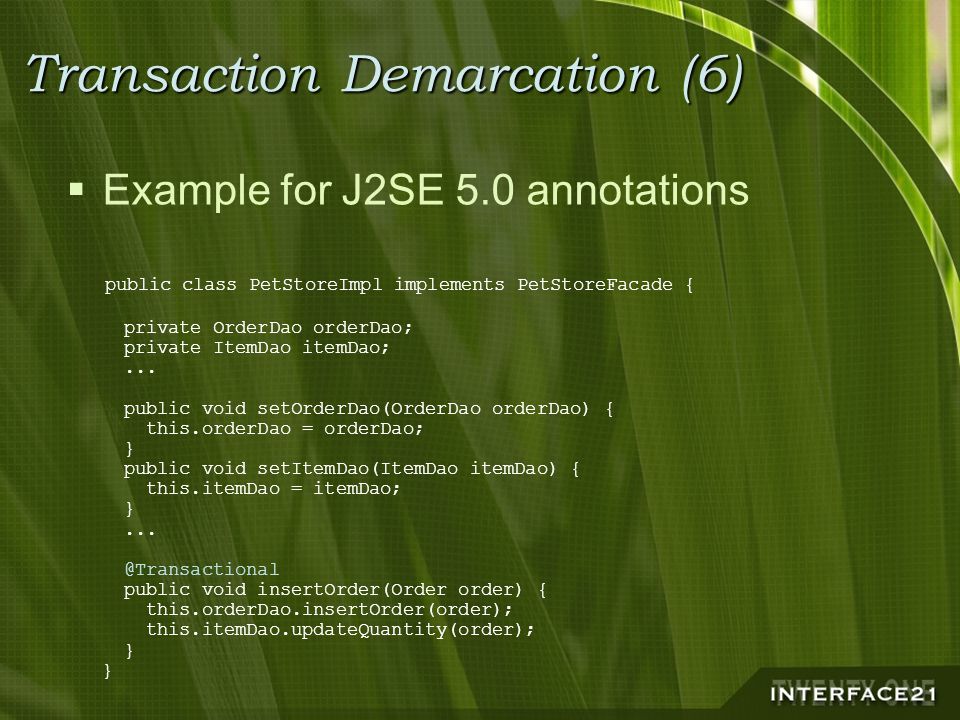

14. Transaction Demarcation (6)  Example for J2SE 5.0 annotations public class PetStoreImpl implements PetStoreFacade { private OrderDao orderDao; private ItemDao itemDao;... public void setOrderDao(OrderDao orderDao) { this.orderDao = orderDao; } public void setItemDao(ItemDao itemDao) { this.itemDao = itemDao; }... @Transactional public void insertOrder(Order order) { this.orderDao.insertOrder(order); this.itemDao.updateQuantity(order); } }

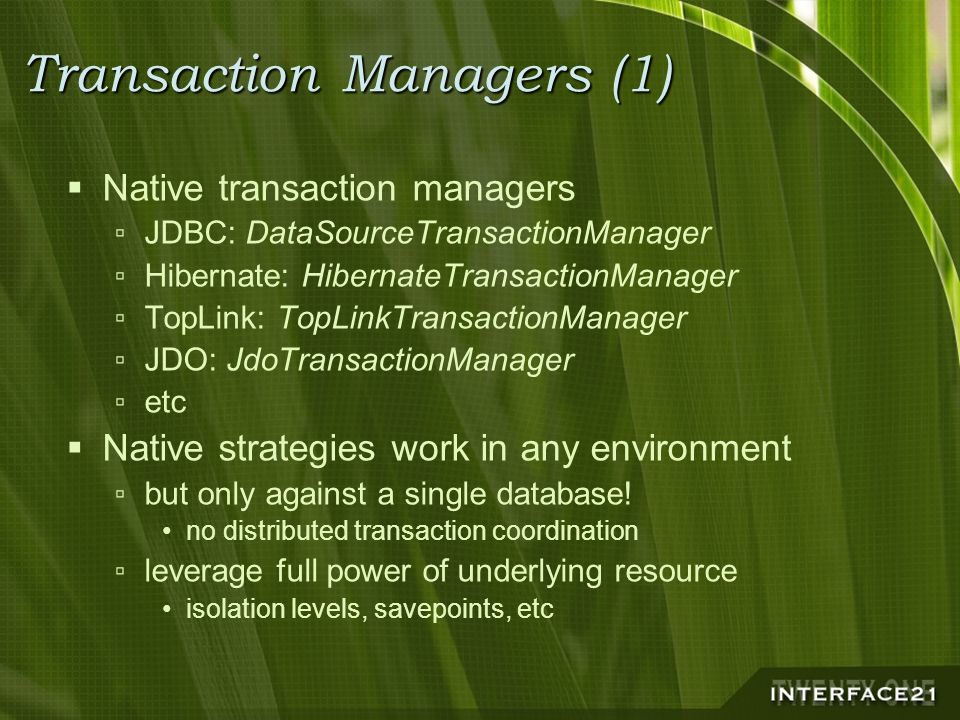

15. Transaction Managers (1)  Native transaction managers ▫JDBC: DataSourceTransactionManager ▫Hibernate: HibernateTransactionManager ▫TopLink: TopLinkTransactionManager ▫JDO: JdoTransactionManager ▫etc  Native strategies work in any environment ▫but only against a single database! no distributed transaction coordination ▫leverage full power of underlying resource isolation levels, savepoints, etc

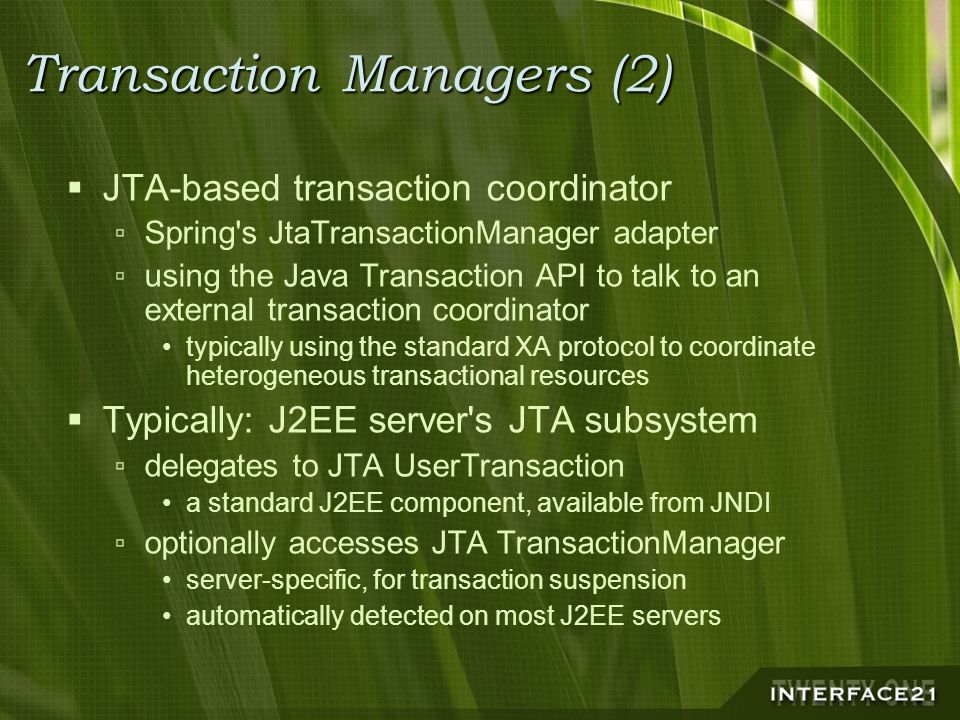

16. Transaction Managers (2)  JTA-based transaction coordinator ▫Spring's JtaTransactionManager adapter ▫using the Java Transaction API to talk to an external transaction coordinator typically using the standard XA protocol to coordinate heterogeneous transactional resources  Typically: J2EE server's JTA subsystem ▫delegates to JTA UserTransaction a standard J2EE component, available from JNDI ▫optionally accesses JTA TransactionManager server-specific, for transaction suspension automatically detected on most J2EE servers

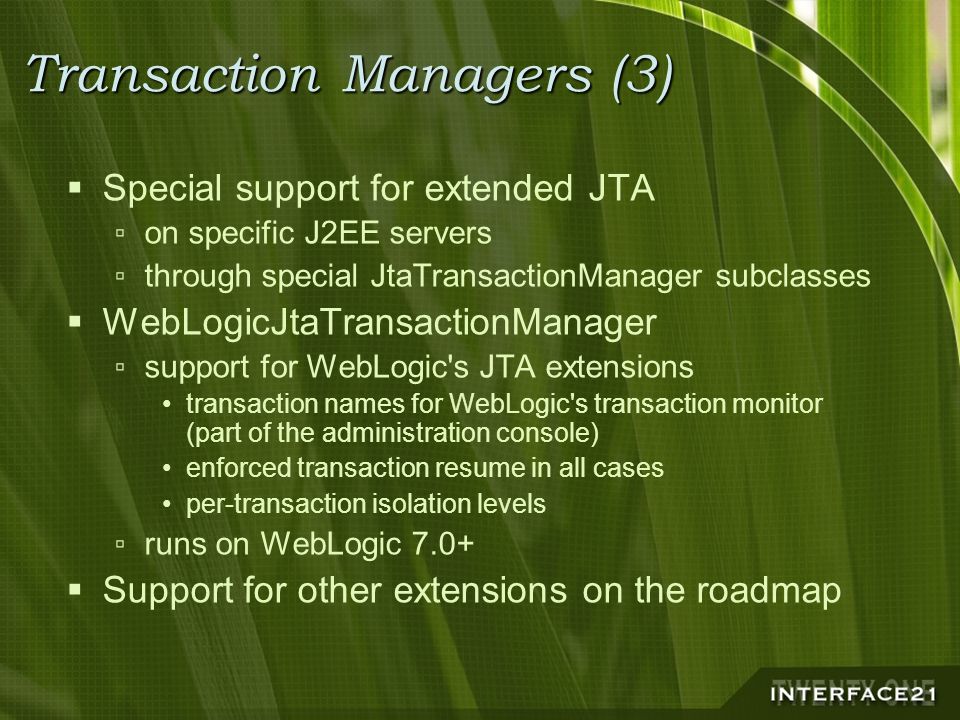

17. Transaction Managers (3)  Special support for extended JTA ▫on specific J2EE servers ▫through special JtaTransactionManager subclasses  WebLogicJtaTransactionManager ▫support for WebLogic's JTA extensions transaction names for WebLogic's transaction monitor (part of the administration console) enforced transaction resume in all cases per-transaction isolation levels ▫runs on WebLogic 7.0+  Support for other extensions on the roadmap

18. Transaction Managers (4)  Transaction manager is a deployment choice ▫application code is completely decoupled from concrete transaction infrastructure ▫application specifies desired transaction semantics; transaction manager provides them at runtime  Seamless switching between native transactions and JTA transactions ▫between non-J2EE and J2EE environments e.g.: run integration tests with native transactions e.g.: run with J2EE transactions in production ▫or even run with native transactions in production if all you need is transactions for a single database

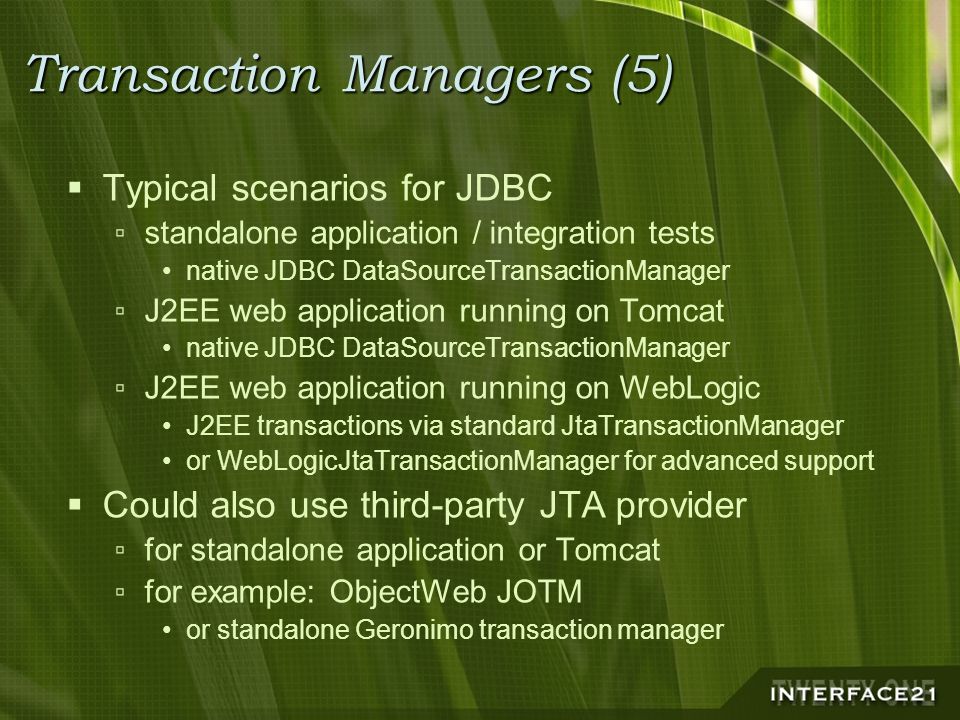

19. Transaction Managers (5)  Typical scenarios for JDBC ▫standalone application / integration tests native JDBC DataSourceTransactionManager ▫J2EE web application running on Tomcat native JDBC DataSourceTransactionManager ▫J2EE web application running on WebLogic J2EE transactions via standard JtaTransactionManager or WebLogicJtaTransactionManager for advanced support  Could also use third-party JTA provider ▫for standalone application or Tomcat ▫for example: ObjectWeb JOTM or standalone Geronimo transaction manager

20. Data Access (1)  Data access objects need to access transactional resources ▫as seamlessly as possible easy access to scoped transactional resource ▫automatically participate in transactions ideally: run non-transactionally else  JDBC: talk to transactional DataSource ▫returns active Connection for current transaction ▫for example: J2EE server DataSource fetched from JNDI via JndiObjectFactoryBean ▫or transactional DataSource proxy for local connection pool

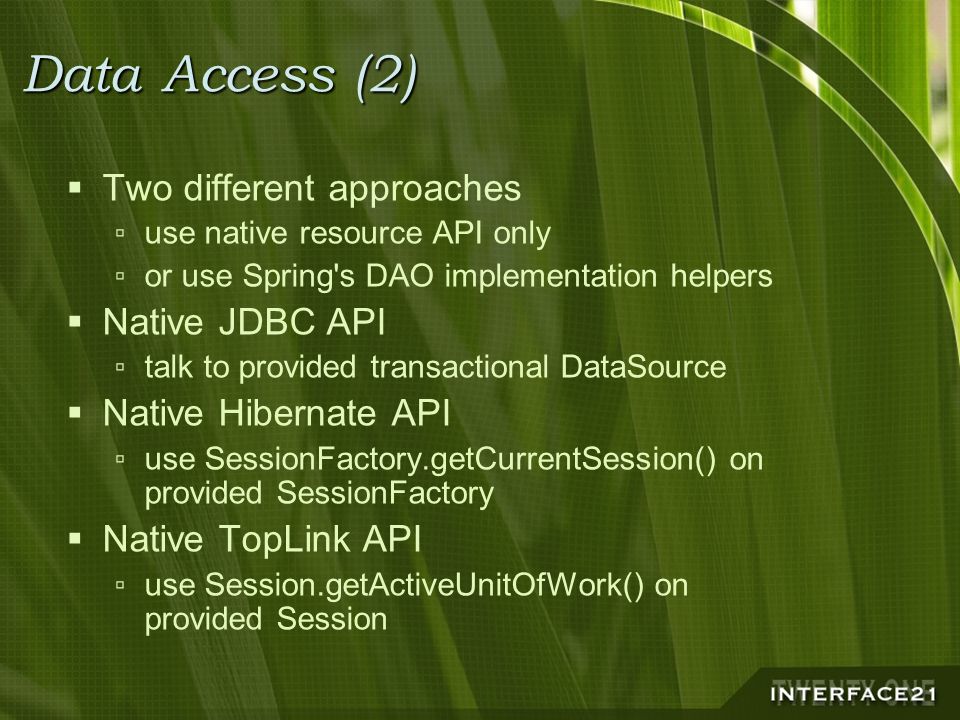

21. Data Access (2)  Two different approaches ▫use native resource API only ▫or use Spring's DAO implementation helpers  Native JDBC API ▫talk to provided transactional DataSource  Native Hibernate API ▫use SessionFactory.getCurrentSession() on provided SessionFactory  Native TopLink API ▫use Session.getActiveUnitOfWork() on provided Session

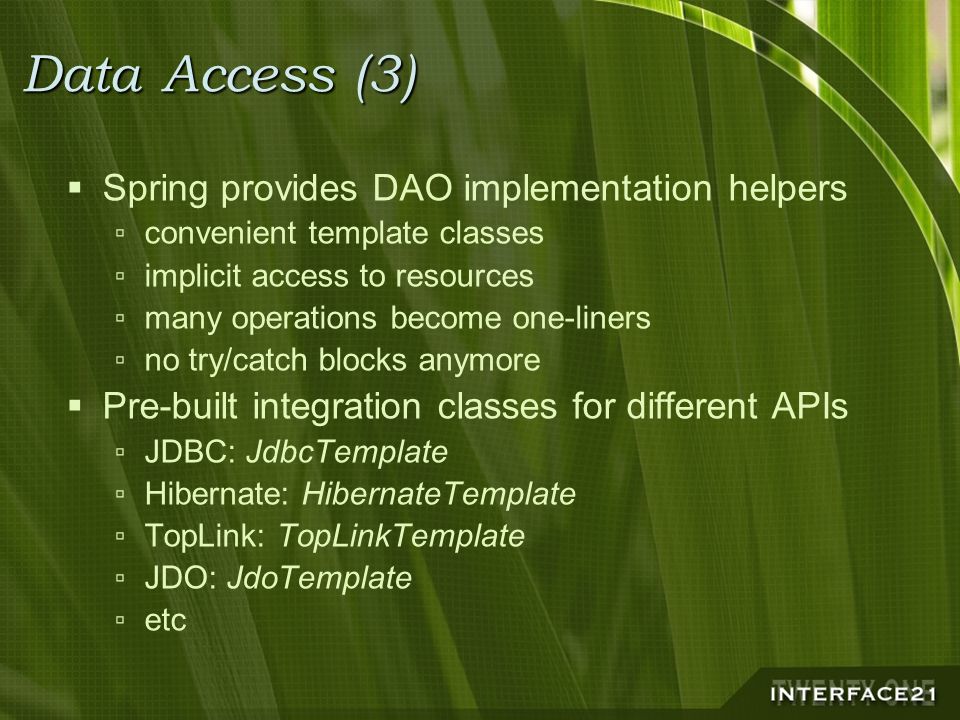

22. Data Access (3)  Spring provides DAO implementation helpers ▫convenient template classes ▫implicit access to resources ▫many operations become one-liners ▫no try/catch blocks anymore  Pre-built integration classes for different APIs ▫JDBC: JdbcTemplate ▫Hibernate: HibernateTemplate ▫TopLink: TopLinkTemplate ▫JDO: JdoTemplate ▫etc

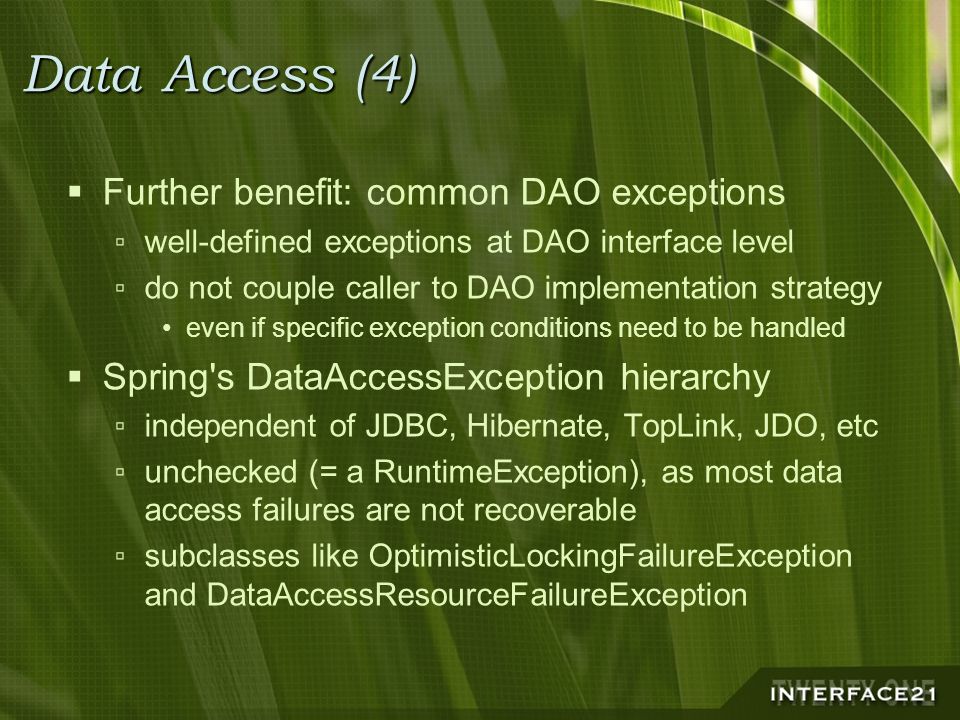

23. Data Access (4)  Further benefit: common DAO exceptions ▫well-defined exceptions at DAO interface level ▫do not couple caller to DAO implementation strategy even if specific exception conditions need to be handled  Spring's DataAccessException hierarchy ▫independent of JDBC, Hibernate, TopLink, JDO, etc ▫unchecked (= a RuntimeException), as most data access failures are not recoverable ▫subclasses like OptimisticLockingFailureException and DataAccessResourceFailureException

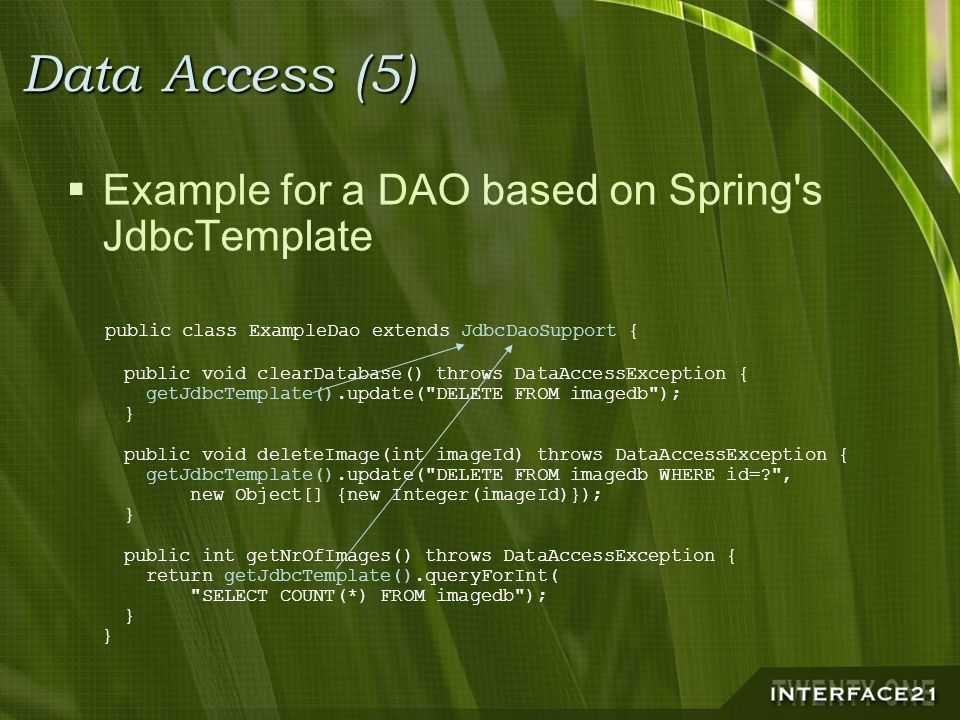

24. Data Access (5)  Example for a DAO based on Spring's JdbcTemplate public class ExampleDao extends JdbcDaoSupport { public void clearDatabase() throws DataAccessException { getJdbcTemplate().update("DELETE FROM imagedb"); } public void deleteImage(int imageId) throws DataAccessException { getJdbcTemplate().update("DELETE FROM imagedb WHERE id=?", new Object[] {new Integer(imageId)}); } public int getNrOfImages() throws DataAccessException { return getJdbcTemplate().queryForInt( "SELECT COUNT(*) FROM imagedb"); } }

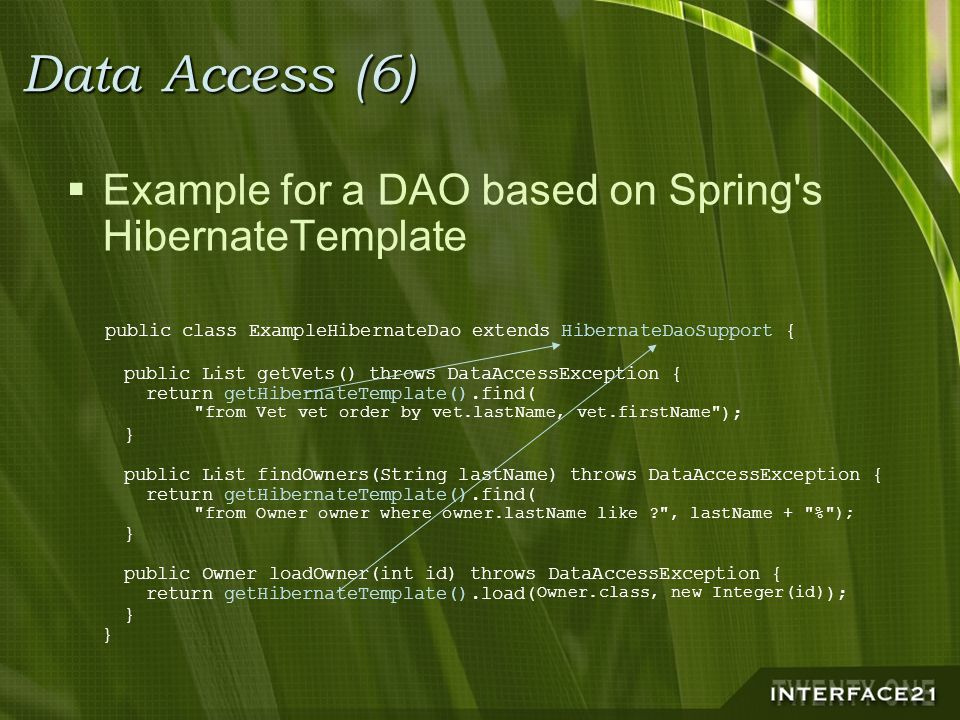

25. Data Access (6)  Example for a DAO based on Spring's HibernateTemplate public class ExampleHibernateDao extends HibernateDaoSupport { public List getVets() throws DataAccessException { return getHibernateTemplate().find( "from Vet vet order by vet.lastName, vet.firstName"); } public List findOwners(String lastName) throws DataAccessException { return getHibernateTemplate().find( "from Owner owner where owner.lastName like ?", lastName + "%"); } public Owner loadOwner(int id) throws DataAccessException { return getHibernateTemplate().load(Owner.class, new Integer(id)); } }

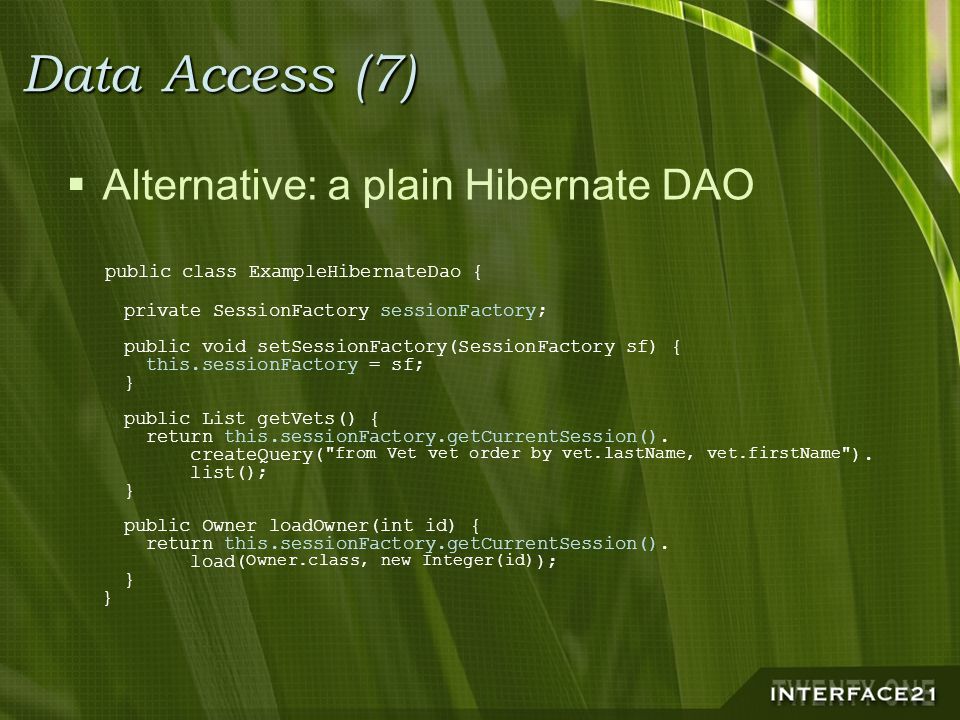

26. Data Access (7)  Alternative: a plain Hibernate DAO public class ExampleHibernateDao { private SessionFactory sessionFactory; public void setSessionFactory(SessionFactory sf) { this.sessionFactory = sf; } public List getVets() { return this.sessionFactory.getCurrentSession(). createQuery("from Vet vet order by vet.lastName, vet.firstName"). list(); } public Owner loadOwner(int id) { return this.sessionFactory.getCurrentSession(). load(Owner.class, new Integer(id)); } }

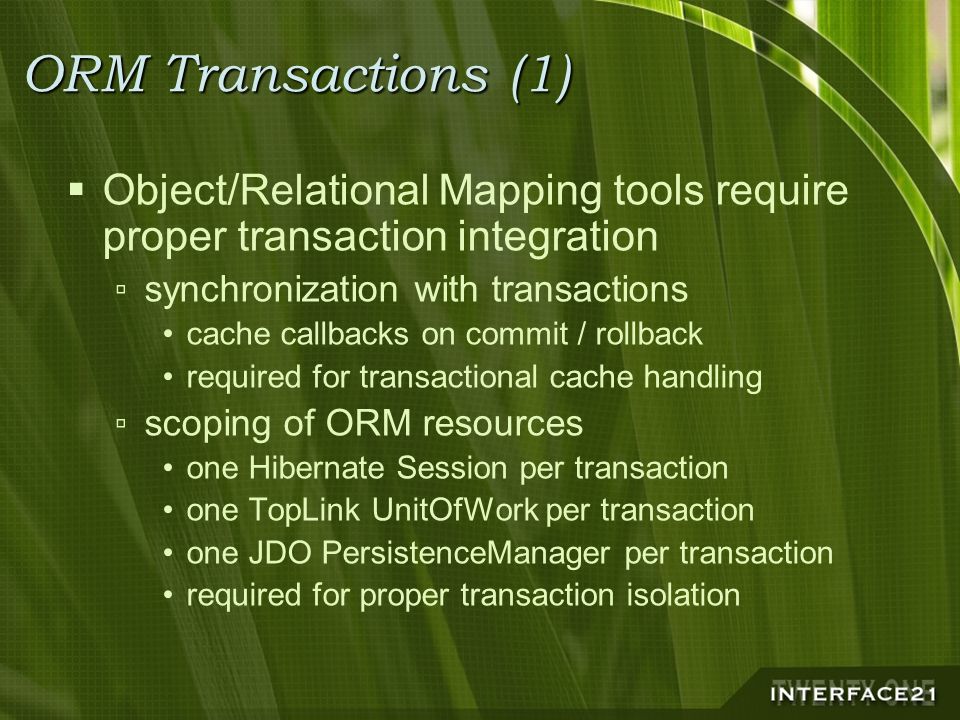

27. ORM Transactions (1)  Object/Relational Mapping tools require proper transaction integration ▫synchronization with transactions cache callbacks on commit / rollback required for transactional cache handling ▫scoping of ORM resources one Hibernate Session per transaction one TopLink UnitOfWork per transaction one JDO PersistenceManager per transaction required for proper transaction isolation

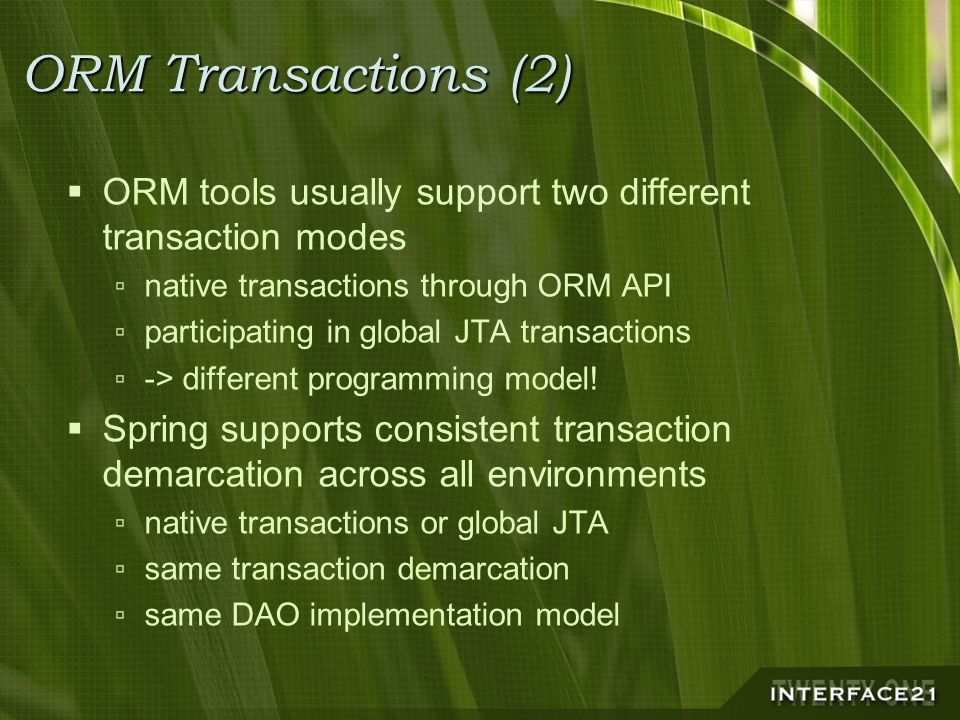

28. ORM Transactions (2)  ORM tools usually support two different transaction modes ▫native transactions through ORM API ▫participating in global JTA transactions ▫-> different programming model!  Spring supports consistent transaction demarcation across all environments ▫native transactions or global JTA ▫same transaction demarcation ▫same DAO implementation model

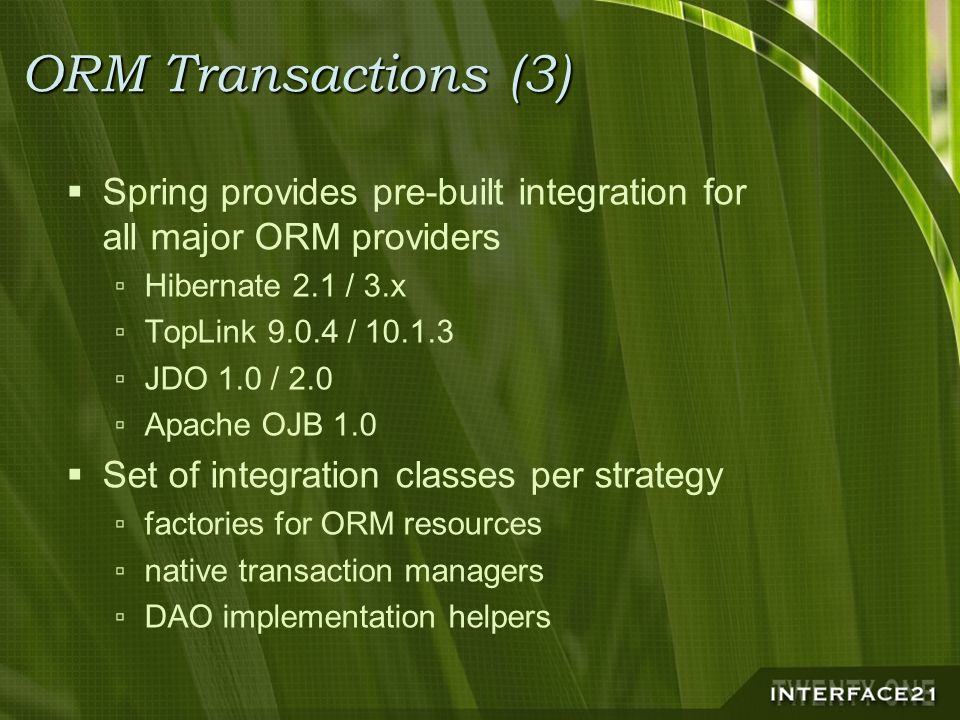

29. ORM Transactions (3)  Spring provides pre-built integration for all major ORM providers ▫Hibernate 2.1 / 3.x ▫TopLink 9.0.4 / 10.1.3 ▫JDO 1.0 / 2.0 ▫Apache OJB 1.0  Set of integration classes per strategy ▫factories for ORM resources ▫native transaction managers ▫DAO implementation helpers

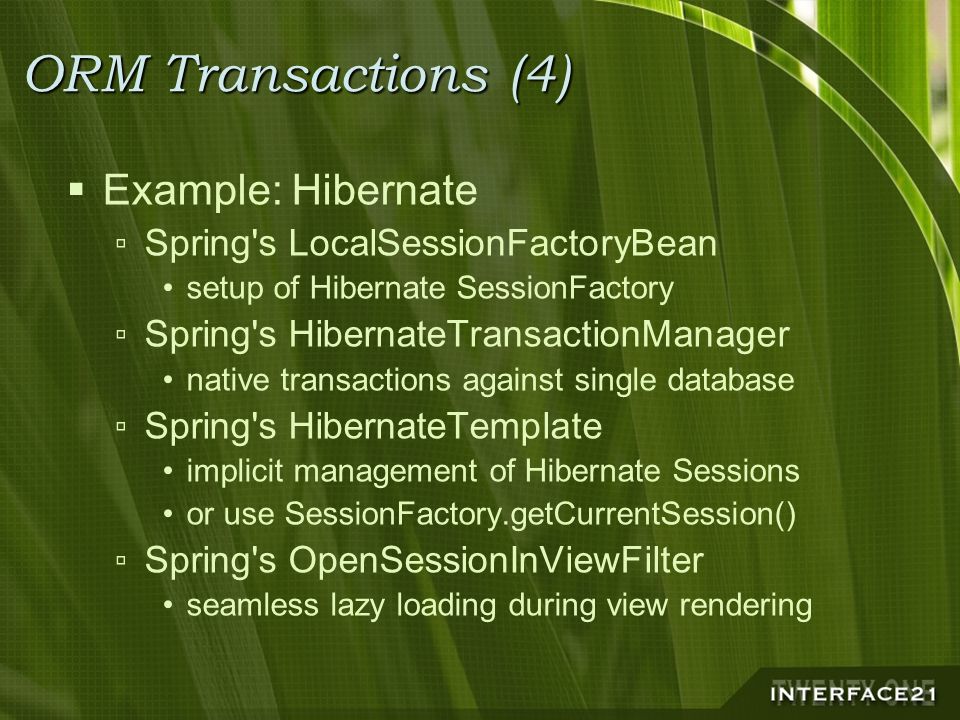

30. ORM Transactions (4)  Example: Hibernate ▫Spring's LocalSessionFactoryBean setup of Hibernate SessionFactory ▫Spring's HibernateTransactionManager native transactions against single database ▫Spring's HibernateTemplate implicit management of Hibernate Sessions or use SessionFactory.getCurrentSession() ▫Spring's OpenSessionInViewFilter seamless lazy loading during view rendering

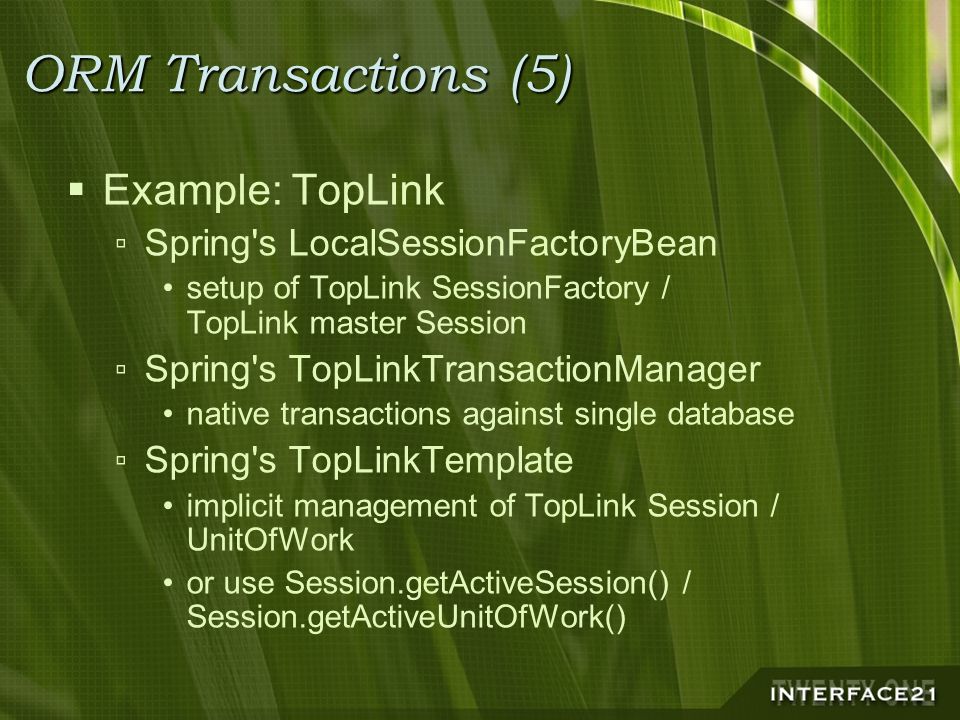

31. ORM Transactions (5)  Example: TopLink ▫Spring's LocalSessionFactoryBean setup of TopLink SessionFactory / TopLink master Session ▫Spring's TopLinkTransactionManager native transactions against single database ▫Spring's TopLinkTemplate implicit management of TopLink Session / UnitOfWork or use Session.getActiveSession() / Session.getActiveUnitOfWork()

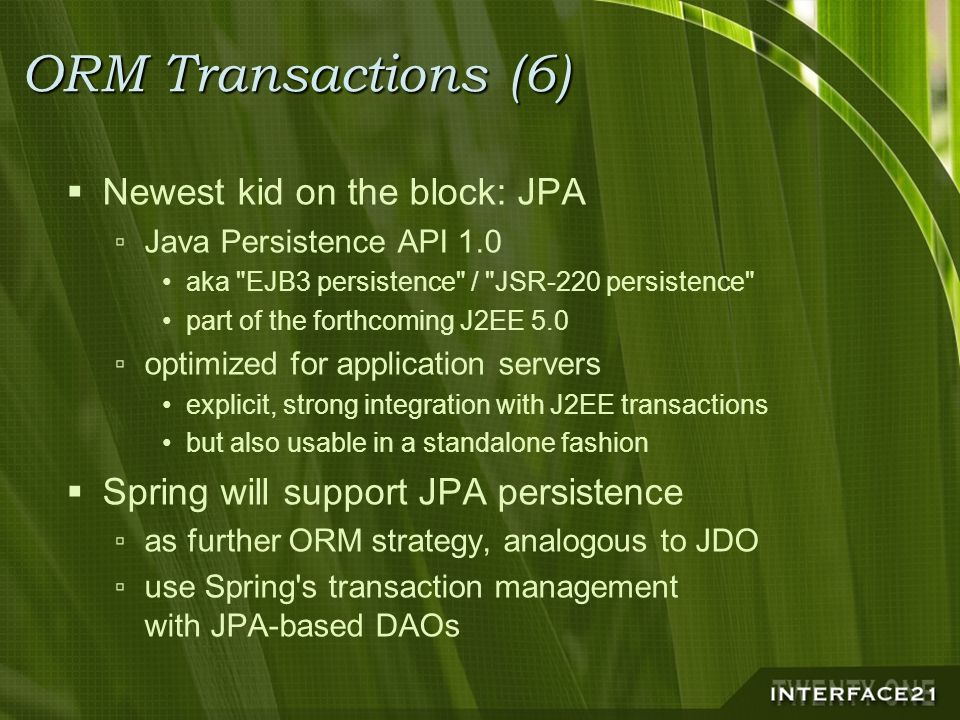

32. ORM Transactions (6)  Newest kid on the block: JPA ▫Java Persistence API 1.0 aka "EJB3 persistence" / "JSR-220 persistence" part of the forthcoming J2EE 5.0 ▫optimized for application servers explicit, strong integration with J2EE transactions but also usable in a standalone fashion  Spring will support JPA persistence ▫as further ORM strategy, analogous to JDO ▫use Spring's transaction management with JPA-based DAOs

33. ORM Transactions (7)  Example for a plain JPA DAO, using the "shared EntityManager proxy" model public class ExampleJpaDao { private EntityManager entityManager; public void setEntityManager(EntityManager entityManager) { this.entityManager = entityManager; } public List getVets() { return this.entityManager.createQuery( "from Vet vet order by vet.lastName, vet.firstName"). getResultList(); } public Owner loadOwner(int id) { return this.entityManager.find(Owner.class, new Integer(id)); } }

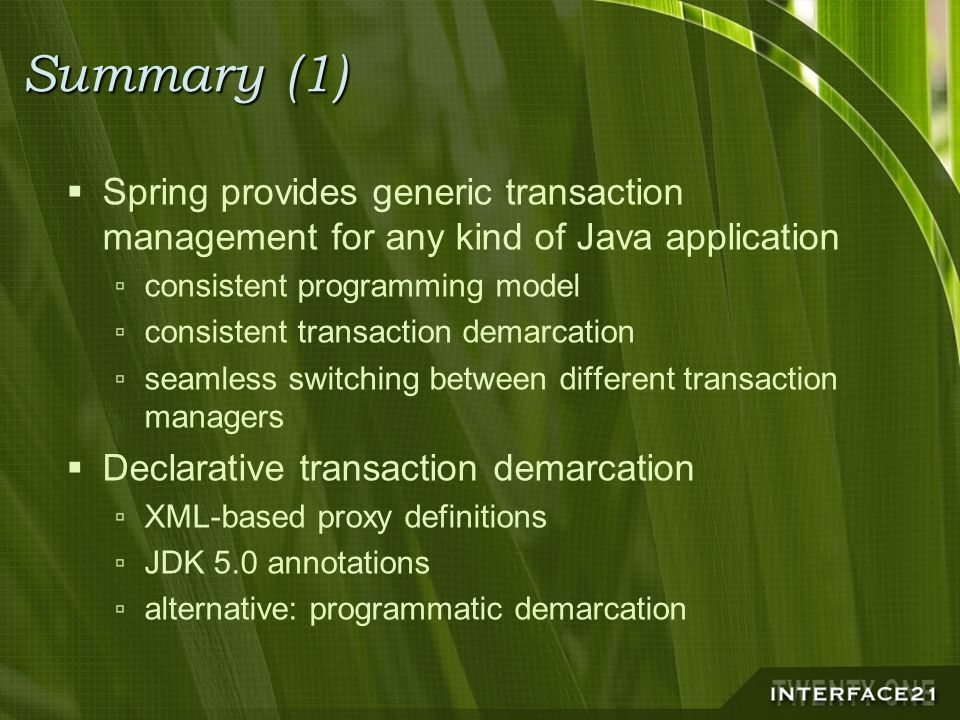

34. Summary (1)  Spring provides generic transaction management for any kind of Java application ▫consistent programming model ▫consistent transaction demarcation ▫seamless switching between different transaction managers  Declarative transaction demarcation ▫XML-based proxy definitions ▫JDK 5.0 annotations ▫alternative: programmatic demarcation

35. Summary (2)  Seamless switching between native transactions and JTA transactions ▫consistent programming model across different deployment scenarios ▫leverage J2EE server when available, while still being able to run outside of J2EE  Full declarative transactions even on Tomcat! ▫on the other end of the spectrum: WebLogic JTA extensions supported as well ▫choose deployment environment according to your service needs (scaling both up and down)

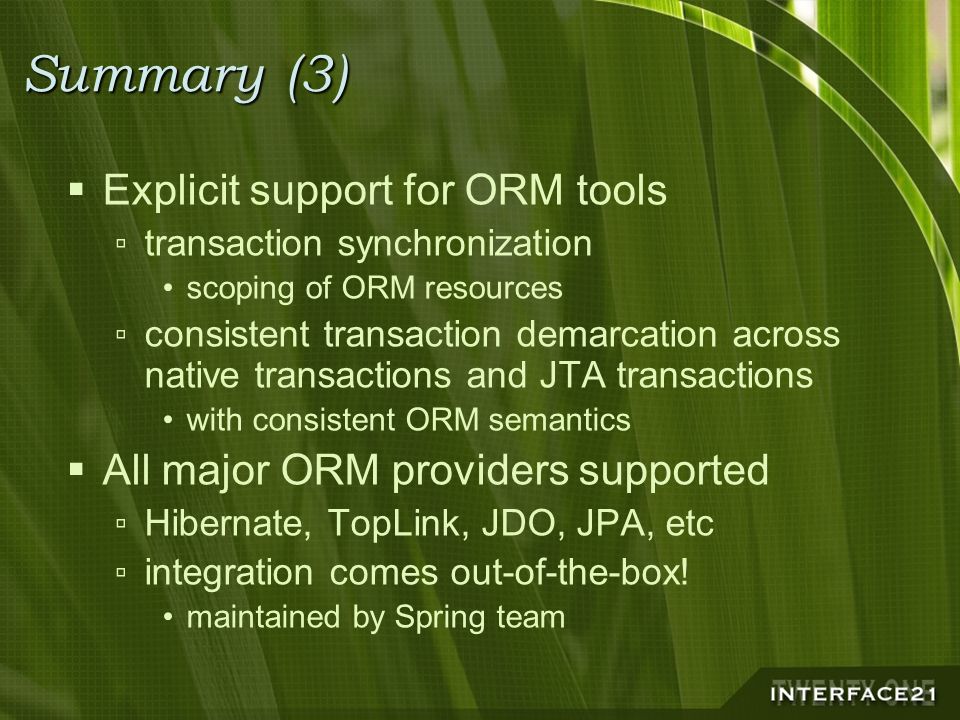

36. Summary (3)  Explicit support for ORM tools ▫transaction synchronization scoping of ORM resources ▫consistent transaction demarcation across native transactions and JTA transactions with consistent ORM semantics  All major ORM providers supported ▫Hibernate, TopLink, JDO, JPA, etc ▫integration comes out-of-the-box! maintained by Spring team

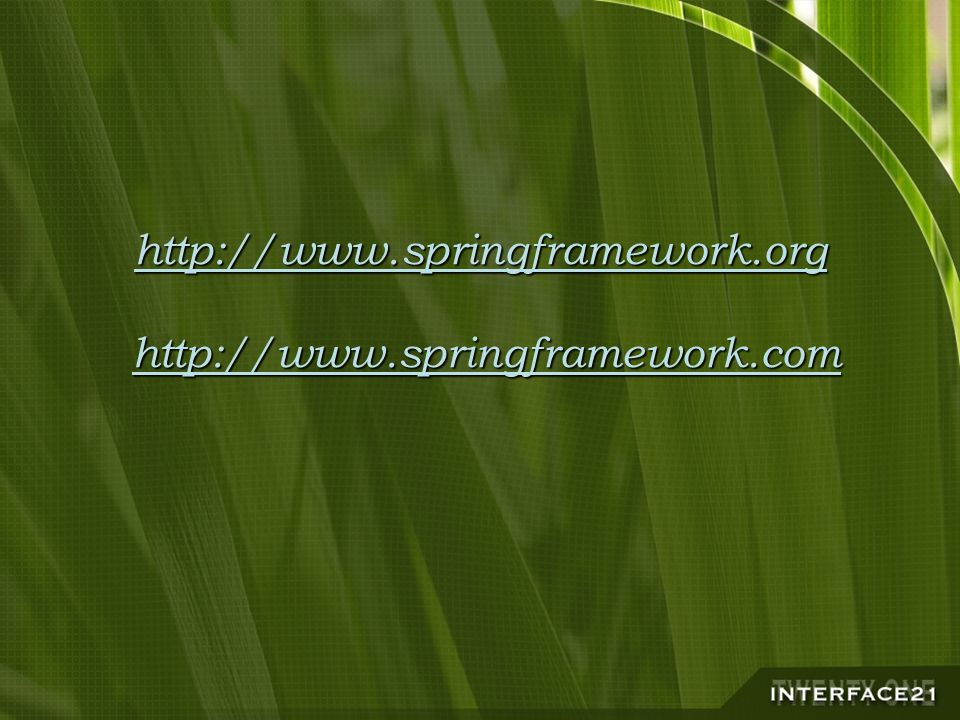

37. http://www.springframework.org http://www.springframework.org http://www.springframework.com http://www.springframework.com http://www.springframework.orghttp://www.springframework.com
