1. Hospital Information System

2. Hospital Information System Definition Hospital Information System is an integrated, computer-assisted system designed to store, manipulate, and retrieve information concerned with the administrative and clinical aspects of providing services within the hospital CEN/TC 251 /PT001 Medical Informatics-Vocabulary First Draft Working Document

3. Hospital Information System Another definition A Hospital Information System (HIS) can be defined as an open system which attempts to integrate and communicate the outside and inside flow of information within a hospitaland provide the functions common for all applications.

4. GOVERNMENT INSURANCE COMPANIES PRIMARY CARE health care PATIENT H.I.S. Institutions H.I.S. I nstitutions rules & regulations rules & regulations consolidated “global” patient data and hospital data Pat-info Pat-request Pat-results info patient official documents & bills patient document patient of private member of Representation of a HIS and its external links

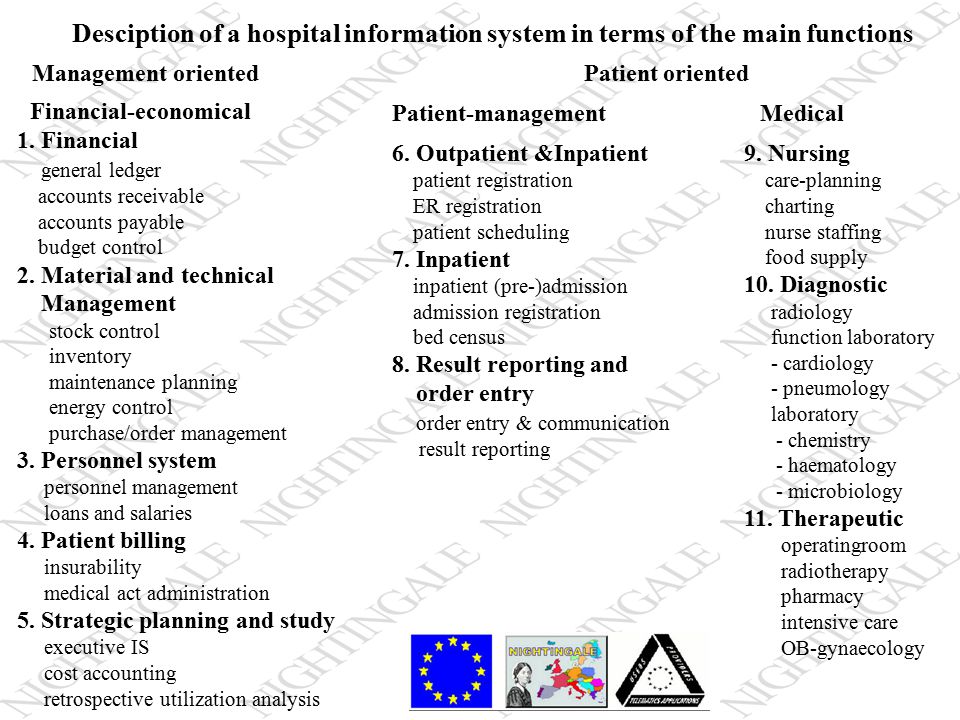

5. Financial-economical 1. Financial general ledger accounts receivable accounts payable budget control 2. Material and technical Management stock control inventory maintenance planning energy control purchase/order management 3. Personnel system personnel management loans and salaries 4. Patient billing insurability medical act administration 5. Strategic planning and study executive IS cost accounting retrospective utilization analysis Management orientedPatient oriented Patient-management 6. Outpatient &Inpatient patient registration ER registration patient scheduling 7. Inpatient inpatient (pre-)admission admission registration bed census 8. Result reporting and order entry order entry & communication result reporting Medical 9. Nursing care-planning charting nurse staffing food supply 10. Diagnostic radiology function laboratory - cardiology - pneumology laboratory - chemistry - haematology - microbiology 11. Therapeutic operatingroom radiotherapy pharmacy intensive care OB-gynaecology Desciption of a hospital information system in terms of the main functions

6. Description of a Hospital Information System in terms of the main Information Entities Clinical subsystem: patient central Patient-Record Medical information Medical-administrative information Diagnostic laboratory radiology nuclear medecine EEG, ECG, EMG, respiratory. Therapeutical operation history radiotherapy intensive care physiotherapy nursing medication Admission data Patient demographic data Orders Planning and appointment data Patient diets Material deliveries Hospital : Communication system - Repository system General accounting Accounts receivable Accounts payable Personnel data Loans and salaries Budget control Inventories Case mix Resource allocation data Simulations/Models Retrospective utilization data Cost/Quality information Financial information Strategic information Management subsystem : hospital central Hospital Record

7. Objectives of A Hospital Information System The most important goals of HIS are: *To have a common registration of total patient information at the point of each transaction *To have the possibility to access information from any location at any time *To recognise the health care provider as major user and thus ease of use *To recognise integration as a “conditio sine qua non” *To recognise that a HIS must be cost efficient. *To provide tools for evaluating health care costs and quality *To recognise the clinical communications hub of a HIS *To recognise that technology must meet the user’s and applications needs *To establish the basis for hospiatl controlled and developed applications *To guarantee backward compatibility of new software releases *To guarantee high availability of the system

8. A modern HIS includes the following modules: Patient record Admissions/discharge/transfer Order entry/results reporting Drug profile Care planning Personnel/staff planning Financial

9. 1. Patient Record The critical elements of a patient record-handling system are: Access control functions Input and presentation functions Document-handling functions Information-handling functions Electronic mail functions Help functions Communications functions Functions for follow-up of the activities

10. 2. Admissions/Discharge/Transfer (ADT) Outpatient Care Modules Scheduling of appointments with physicians and nurses Registration of the visit Financial functions Statistics Data transfer to the hospital financial system Inpatient Care Modules Waiting list Preadmission data Admission and discharge Diagnosis Hospital statistics Data transfer to the hospital financial system

11. 3. Order Entry/Results Reporting There are two subsets to the order system: a. Order Entry System: includes all orders for a patient and links that system to the hospital financial routines b. Referral Reply System:- the order for a procedure or an examination connected with an appointment scheduling module - checks that all referrals are handled and the results signed and included in the patient record

12. 4. Drug Profile Drug Information Systems: is relevant to both inpatient and out patient care may include modules for retrieving information about drugs as well as for indicating what drugs a patient is using at a given moment provide formulations for specific prescriptions allow data manipulation link to the hospital financial system

13. 5. Care Planning Care Information System for: giving every patient an individual care plan and following it up also contain functions that assist in selecting the appropriate care plan evaluating follow-up manipulating data for further analysis and study

14. 6. Personnel/Staff Planning These systems : handle individual unit requirements in assigning staff provide follow-up reports assist in daily planning for staff allocation link to the hospital financial routines

15. 7. Financial Each individual local unit needs routines for planning financial transactions and for evaluating their effectiveness Linkages with the main financial system eliminate the need to duplicate data input and to refer to separate systems

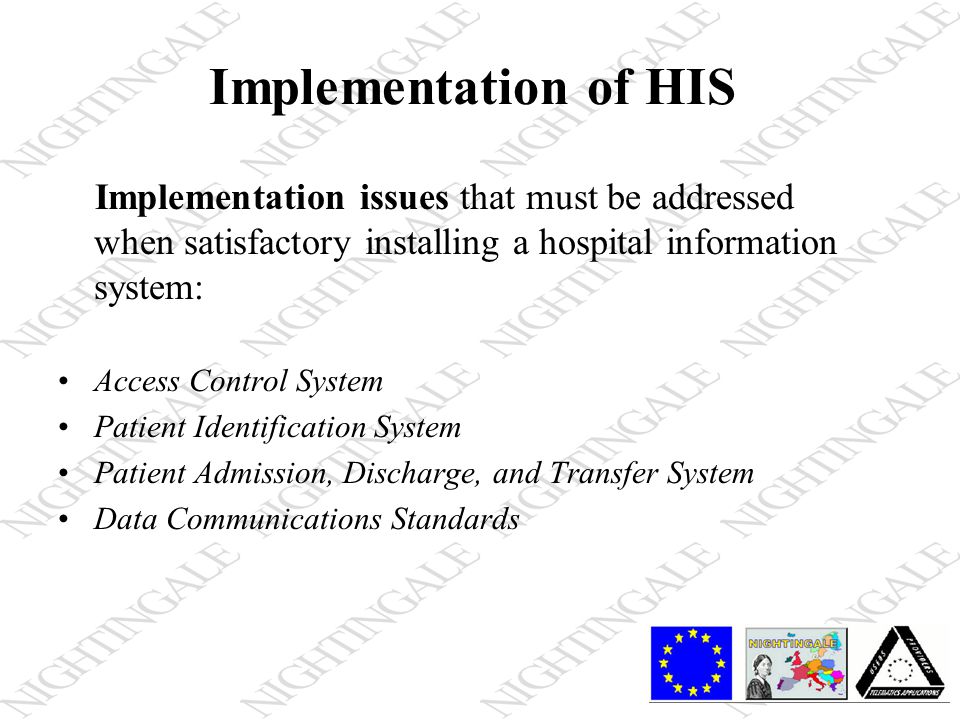

16. Implementation of HIS Implementation issues that must be addressed when satisfactory installing a hospital information system: Access Control System Patient Identification System Patient Admission, Discharge, and Transfer System Data Communications Standards
