1. Introduction to 8086 emulation Using ‘Virtual-8086’ mode to execute real-mode procedures in a protected-mode environment

2. Features of real-mode At power-up the Pentium begins executing in real-address mode (memory addressing does not require use of descriptor tables) CPU privilege-restrictions are not imposed Memory addresses are limited to 20-bits Interrupt-routing is handled using the IVT Multitasking and paging are unsupported Lots of ‘legacy’ software written for 8086

3. Rationale for 8086 emulation It is desirable to run multiple 8086 tasks in an environment that ‘protects’ each task from interference by other tasks, yet offers each task the illusion of being in control of the system (as in ‘real-mode’ environment) Duplicate the environment of an 8086 cpu Synchronize access to shared resources, (such as files and peripheral i/o devices)

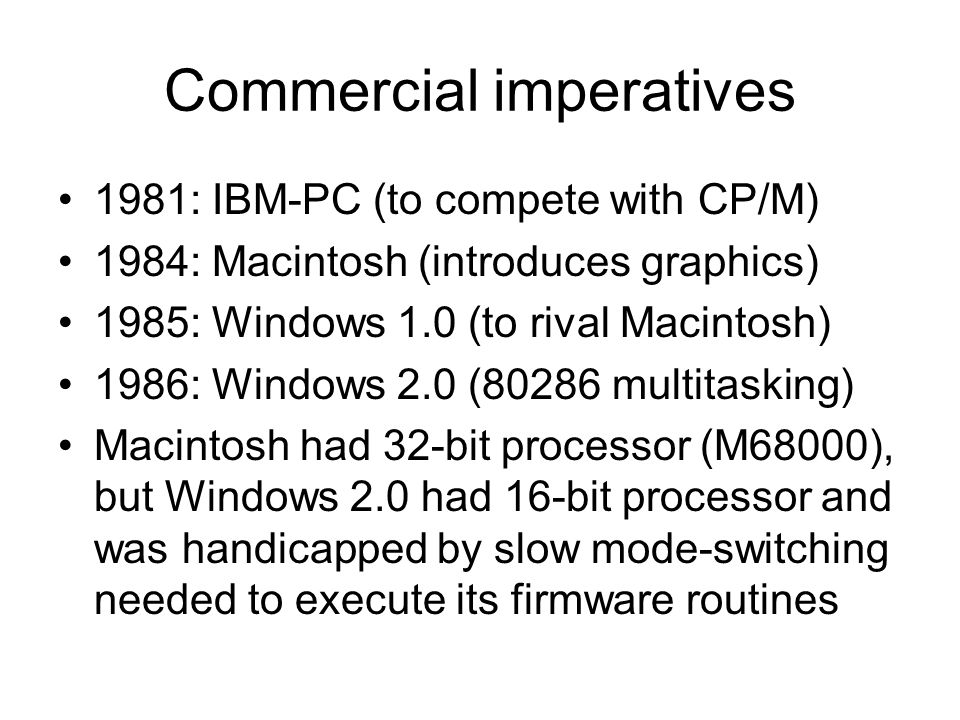

4. Commercial imperatives 1981: IBM-PC (to compete with CP/M) 1984: Macintosh (introduces graphics) 1985: Windows 1.0 (to rival Macintosh) 1986: Windows 2.0 (80286 multitasking) Macintosh had 32-bit processor (M68000), but Windows 2.0 had 16-bit processor and was handicapped by slow mode-switching needed to execute its firmware routines

5. Intel’s 80386 Windows 3.0 ran on new 32-bit processor: –Faster mode-switching (whenever needed) –Virtual memory support (for task isolation) –Hardware ‘breakpoint’ debugging support –Virtual-8086 (for firmware and legacy code)

6. The VM-bit in EFLAGS The CPU executes in ‘Virtual-8086’ mode when the VM-bit (bit #17) in EFLAGS is 1 POPFL instruction cannot modify VM-bit Two methods for entering VM86-mode: 1) use the IRET instruction (.code32) 2) use a task-switch to a new 386 TSS The only way to leave VM86-mode is with an interrupt (either hardware or software) or by resetting the processor (i.e., reboot)

7. Entering a VM86-mode procedure GS-image FS-image DS-image ES-image SS-image SP-image EFLAGS ( VM=1, NT=0 ) CS-image IP-image SS:ESP Ring-0 Stack-Frame Execute IRET instruction from 32-bit code-segment while in protected-mode at privilege-level 0

8. I/O-sensitive Instructions While in VM86-mode, certain instructions are ‘sensitive’ to the current value of the IOPL-field in EFLAGS: –The CLI and STI instructions –The PUSHF and POPF instructions –The PUSHFL and POPFL instructions –The IRET and IRETL instructions –The INT-nn instruction The above instructions will generate a General Protection Exception (INT-13) unless IOPL==3

9. The EFLAGS register 0000000000 IDID VIPVIP VIFVIF ACAC VMVM RFRF 0 NTNT IOPLIOPL OFOF DFDF IFIF TFTF SFSF ZFZF 0 AFAF 0 PFPF 1 CFCF 31 17 13 12 0 Legend:VM = Virtual-8086 Mode (1=yes, 0=no) IOPL = I/O Privilege-Level (0,1,2,3) VIF = Virtual Interrupt-Flag (if CR4.0 = 1) VIP = Virtual Interrupt Pending (if CR4.0 = 1) ID = CPUID-supported (1=yes, 0=no) CF = Carry-FlagTF = Trap-Flag PF = Parity-Flag IF = Interrupt-Flag AF = Auxilliary-FlagDF = Direction-Flag ZF = Zero-FlagRF = Resume-Flag SF = Sign-FlagNT = Nested Task OF = Overflow-FlagAC = Alignment Check

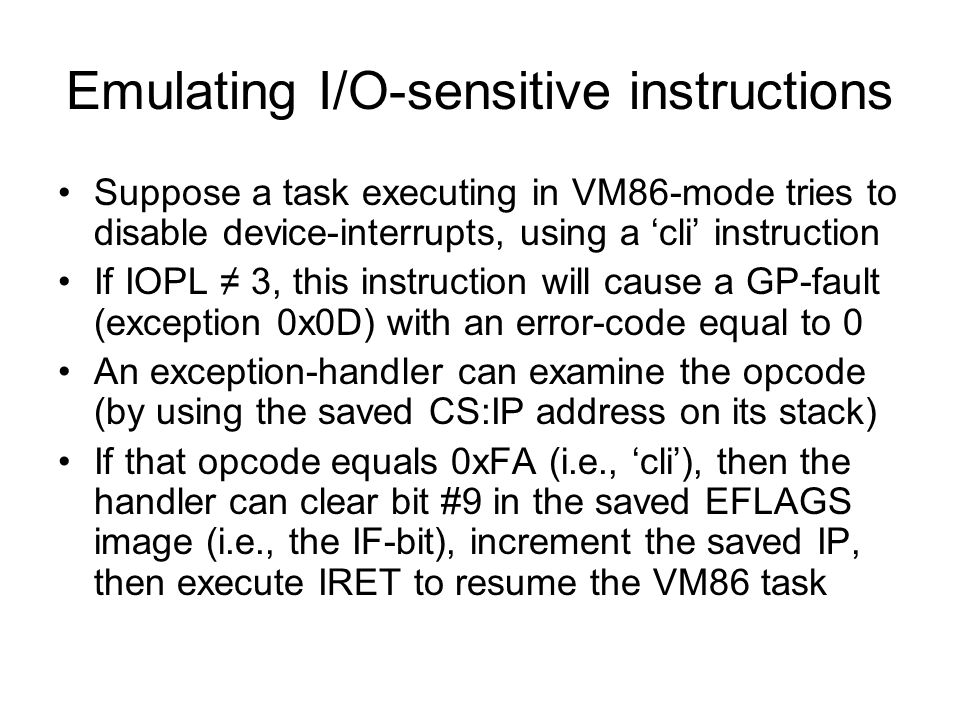

10. Emulating I/O-sensitive instructions Suppose a task executing in VM86-mode tries to disable device-interrupts, using a ‘cli’ instruction If IOPL ≠ 3, this instruction will cause a GP-fault (exception 0x0D) with an error-code equal to 0 An exception-handler can examine the opcode (by using the saved CS:IP address on its stack) If that opcode equals 0xFA (i.e., ‘cli’), then the handler can clear bit #9 in the saved EFLAGS image (i.e., the IF-bit), increment the saved IP, then execute IRET to resume the VM86 task

11. When IOPL == 3 A VM86-task executes at privilege-level 3 If IOPL==3, then the VM86 task is allowed to execute all the IO-sensitive instructions (except INT-nn) without generating a fault

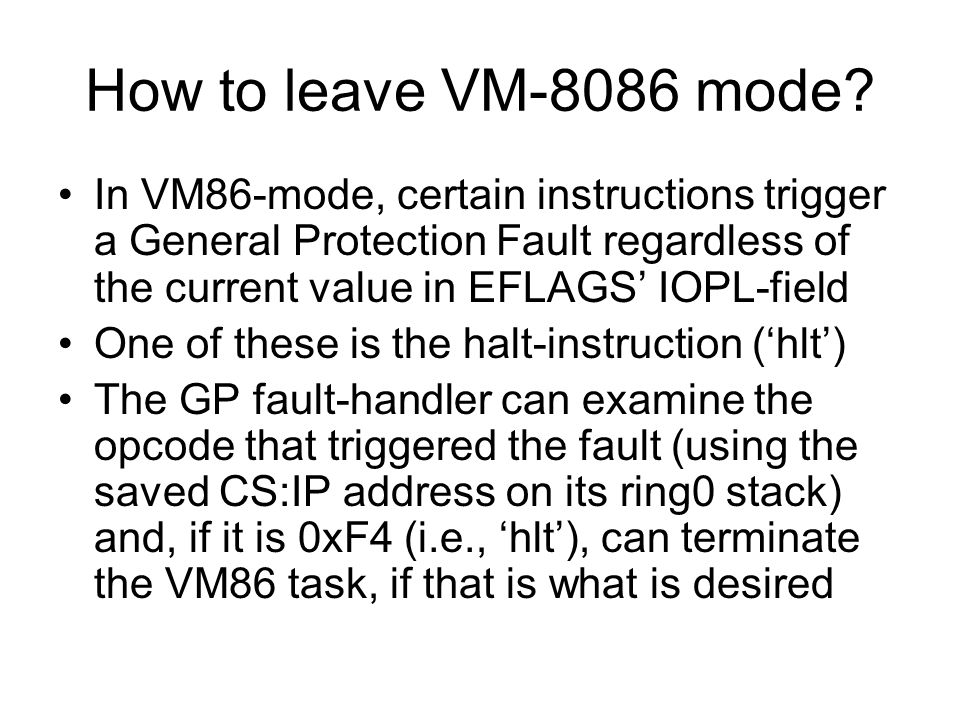

12. How to leave VM-8086 mode? In VM86-mode, certain instructions trigger a General Protection Fault regardless of the current value in EFLAGS’ IOPL-field One of these is the halt-instruction (‘hlt’) The GP fault-handler can examine the opcode that triggered the fault (using the saved CS:IP address on its ring0 stack) and, if it is 0xF4 (i.e., ‘hlt’), can terminate the VM86 task, if that is what is desired

13. Example: ‘vm86demo.s’ This demo illustrates entering and leaving a Virtual-8086 procedure within a 386 task that is executing in protected-mode The procedure draws directly to video ram, changing all the characters’ attribute-bytes to white on a blue-colored background It executes with device-interrupts disabled It includes no ‘io-sensitive’ instructions It uses ‘hlt’ to exit from Virtual-8086 mode

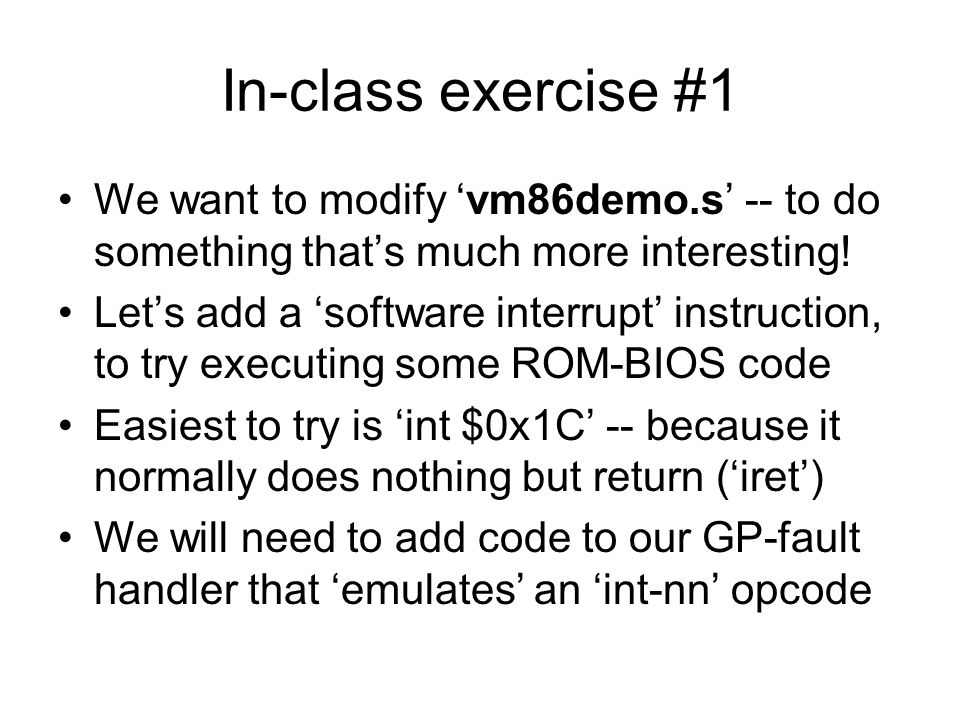

14. In-class exercise #1 We want to modify ‘vm86demo.s’ -- to do something that’s much more interesting! Let’s add a ‘software interrupt’ instruction, to try executing some ROM-BIOS code Easiest to try is ‘int $0x1C’ -- because it normally does nothing but return (‘iret’) We will need to add code to our GP-fault handler that ‘emulates’ an ‘int-nn’ opcode

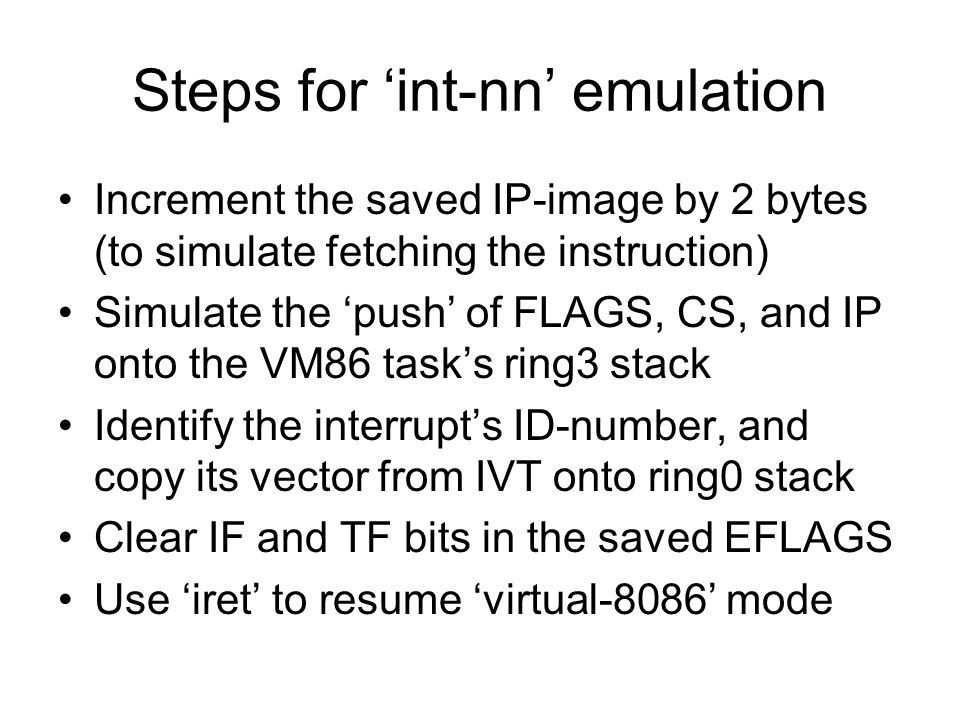

15. Steps for ‘int-nn’ emulation Increment the saved IP-image by 2 bytes (to simulate fetching the instruction) Simulate the ‘push’ of FLAGS, CS, and IP onto the VM86 task’s ring3 stack Identify the interrupt’s ID-number, and copy its vector from IVT onto ring0 stack Clear IF and TF bits in the saved EFLAGS Use ‘iret’ to resume ‘virtual-8086’ mode

16. Emulating ‘int-nn’ GS FS DS ES SS SP EFLAGS CS IP FLAGS CS IP Ring-0 Stack Ring-3 Stack SS:ESP CS IP Real-Mode IVT intnn Ring-3 code-segment

17. Emulating ‘iret’ GS FS DS ES SS SP EFLAGS CS IP FLAGS CS IP Ring-0 Stack Ring-3 Stack SS:ESP

18. Other emulations if IOPL < 3 If you try executing code in Virtual-8086 mode without IOPL==3, then you’re likely to need to emulate the other io-sensitive instructions (iret, cli, sti, pushf, popf) The CLI and STI instructions are easy The PUSHF/POPF are a little harder The IRET is the most complex of these

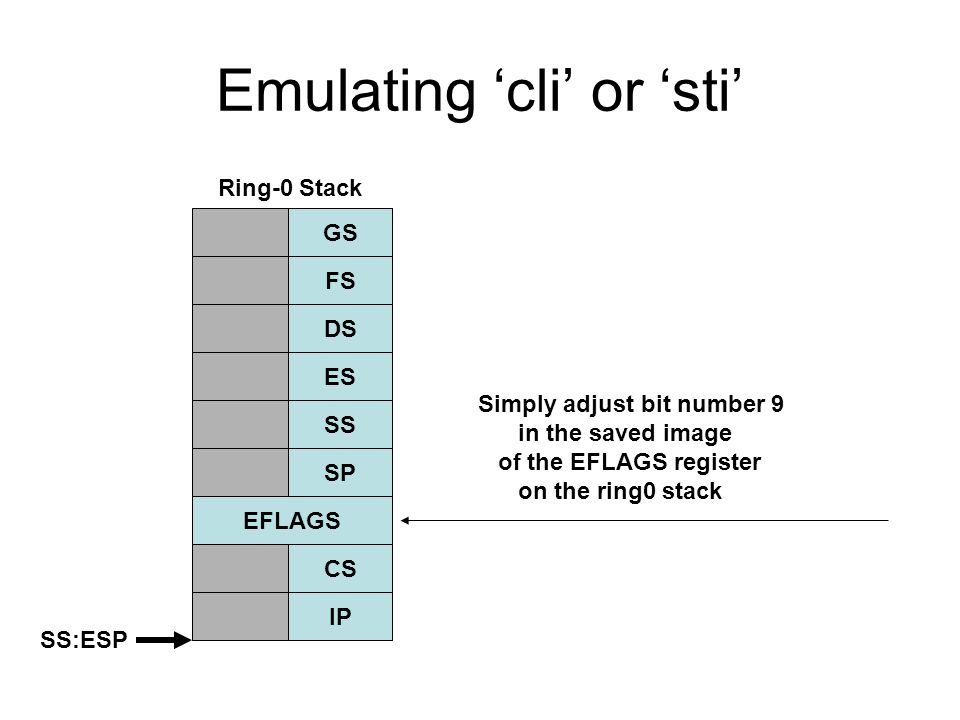

19. Emulating ‘cli’ or ‘sti’ GS FS DS ES SS SP EFLAGS CS IP Ring-0 Stack SS:ESP Simply adjust bit number 9 in the saved image of the EFLAGS register on the ring0 stack

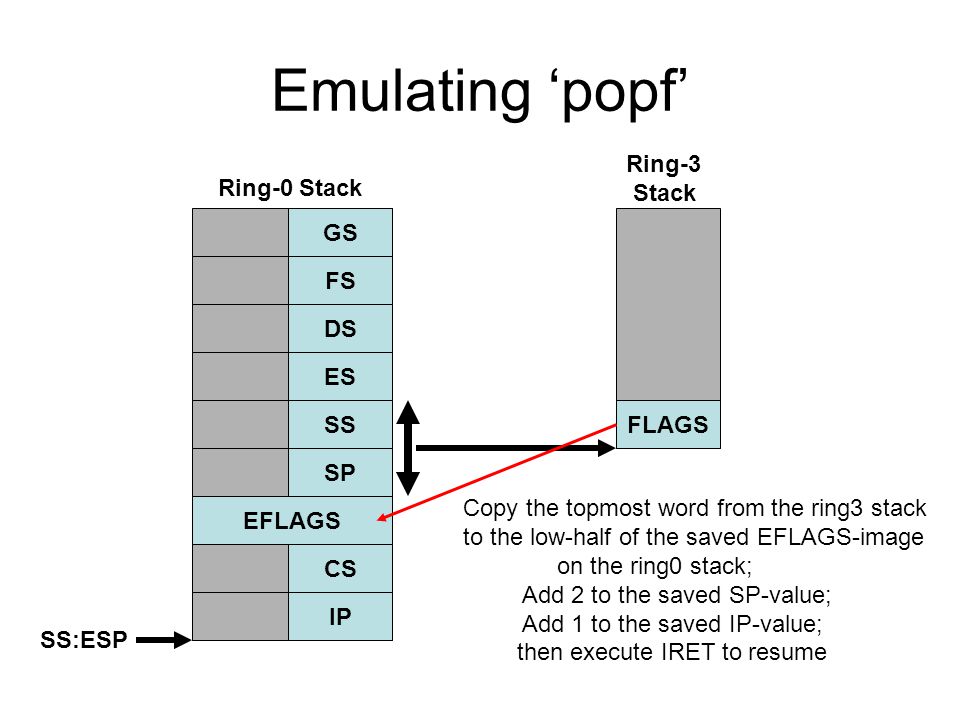

20. Emulating ‘popf’ GS FS DS ES SS SP EFLAGS CS IP FLAGS Ring-0 Stack Ring-3 Stack SS:ESP Copy the topmost word from the ring3 stack to the low-half of the saved EFLAGS-image on the ring0 stack; Add 2 to the saved SP-value; Add 1 to the saved IP-value; then execute IRET to resume

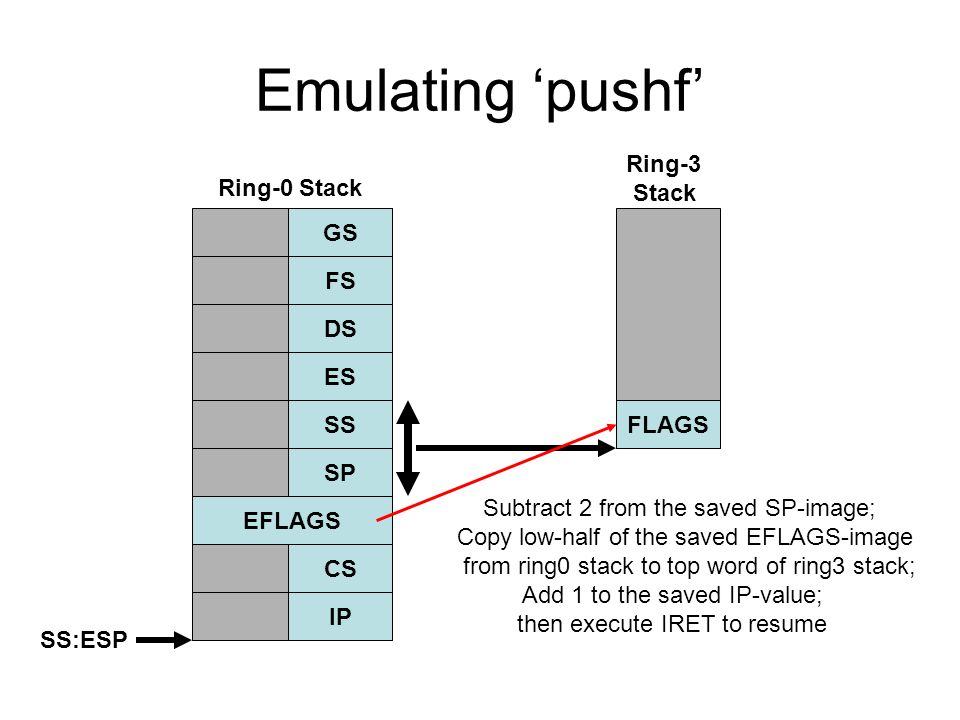

21. Emulating ‘pushf’ GS FS DS ES SS SP EFLAGS CS IP FLAGS Ring-0 Stack Ring-3 Stack SS:ESP Subtract 2 from the saved SP-image; Copy low-half of the saved EFLAGS-image from ring0 stack to top word of ring3 stack; Add 1 to the saved IP-value; then execute IRET to resume

22. IO-permission Bitmap For tasks that execute in VM86-mode, the ability to execute IN/OUT instructions can be controlled on a port-by-port basis, using a bitmap data-structure within the TSS The bitmap can be up to 8192 bytes long (one bit for each of the 65536 i/o ports) The CPU finds this bitmap by using the value at offset 0x66 within the TSS, which holds the bitmap’s starting TSS offset

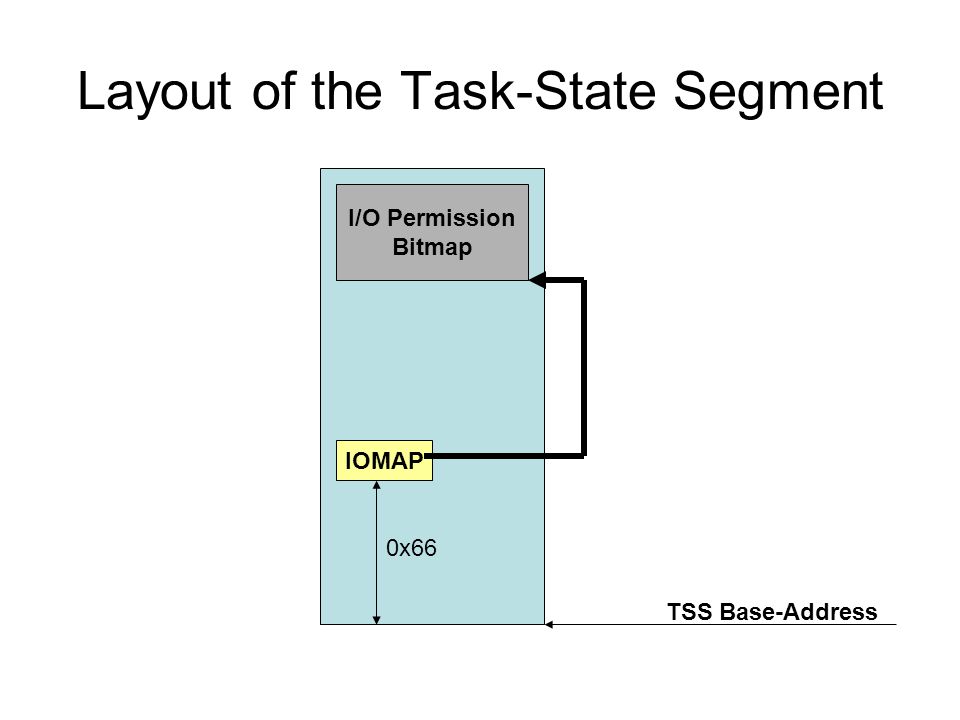

23. Layout of the Task-State Segment I/O Permission Bitmap IOMAP TSS Base-Address 0x66

24. Trapping I/O If you do not want a VM86 task to directly perform I/O operations on a specific port, you can set that port’s bit within the bitmap For example, to prevent a VM86 task from reading mouse-data (io-port 0x60), just set bit $0x60 within that task’s io-permission bitmap: this will causes a GP-fault if the instruction ‘in $0x60, %al’ is encountered

25. Pentium improves VM86-mode The Pentium processor introduced some speed-improvements to Virtual-8086 mode (largely for the benefit of Windows 3.0) So-called ‘Virtual Mode Extensions’ (VME) can be enabled (by setting bit #0 in a new Control Register named CR4) Then even software-interrupt instructions don’t require use of ‘emulation’ code
