1 Protein Structure Prediction With Evolutionary Algorithms Natalio Krasnogor, U of the West of England William Hart, Sandia National Laboratories Jim Smith, U of the West of England David Pelta, Universidad de Granada Presenter: Elena Zheleva

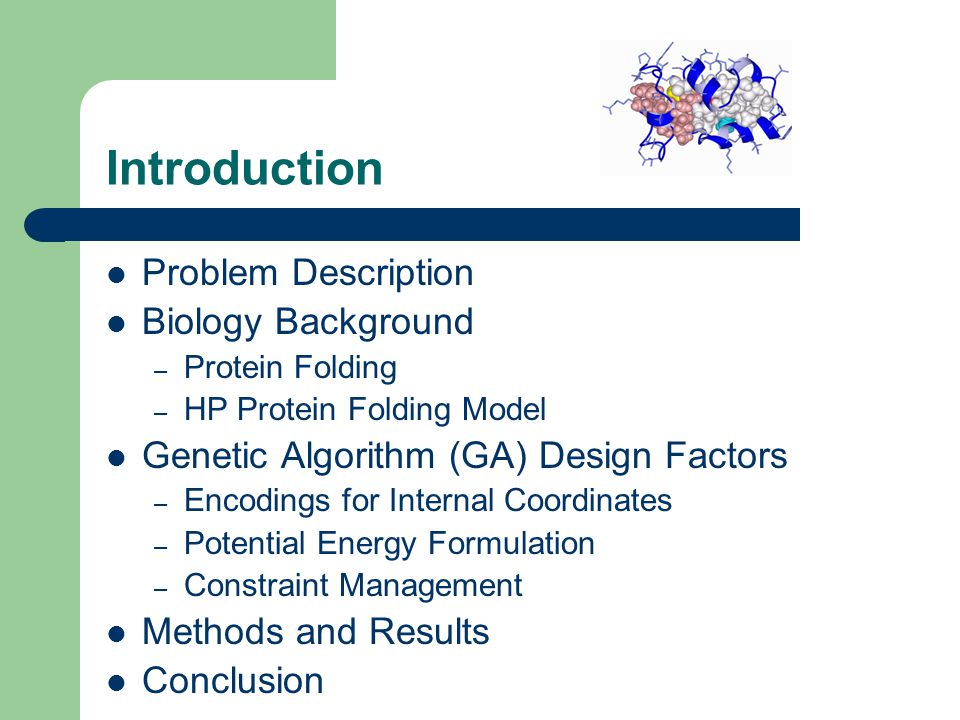

2 Introduction Problem Description Biology Background – Protein Folding – HP Protein Folding Model Genetic Algorithm (GA) Design Factors – Encodings for Internal Coordinates – Potential Energy Formulation – Constraint Management Methods and Results Conclusion

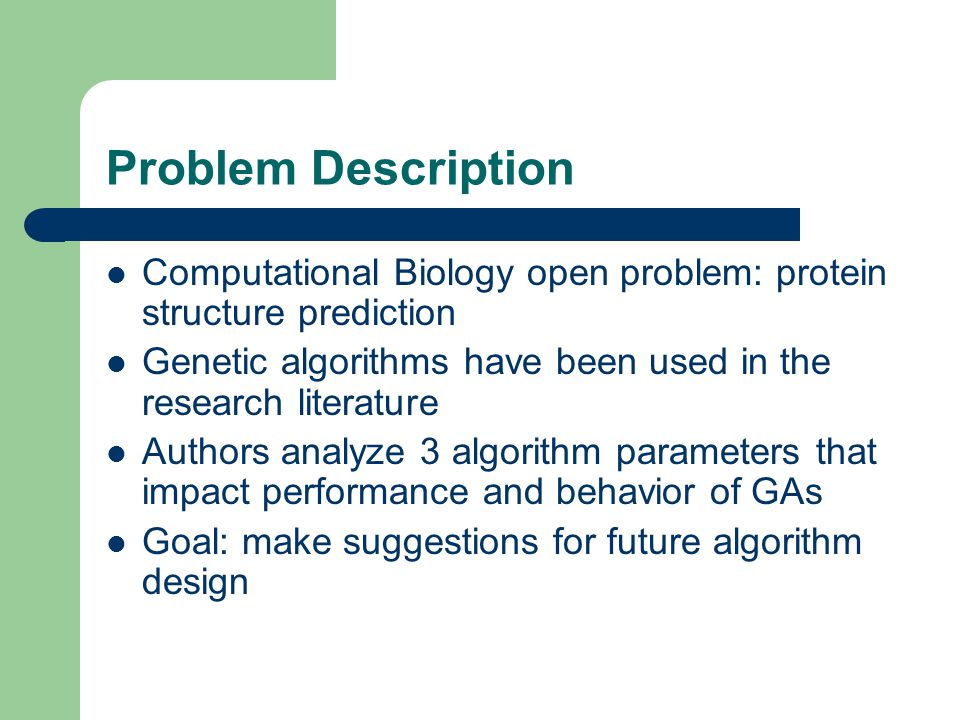

3 Problem Description Computational Biology open problem: protein structure prediction Genetic algorithms have been used in the research literature Authors analyze 3 algorithm parameters that impact performance and behavior of GAs Goal: make suggestions for future algorithm design

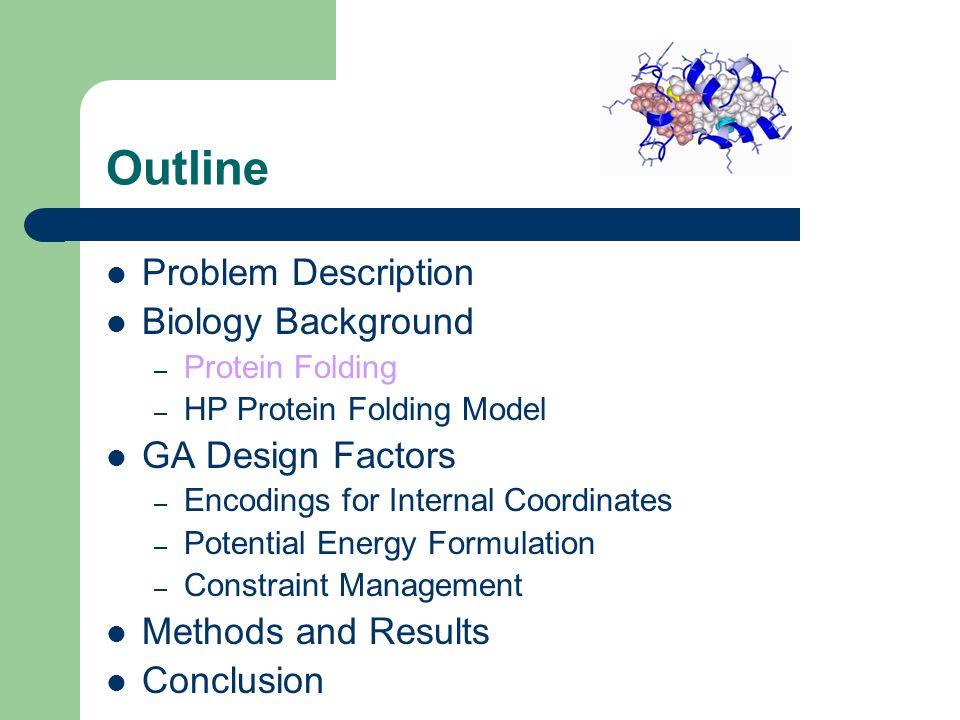

4 Outline Problem Description Biology Background – Protein Folding – HP Protein Folding Model GA Design Factors – Encodings for Internal Coordinates – Potential Energy Formulation – Constraint Management Methods and Results Conclusion

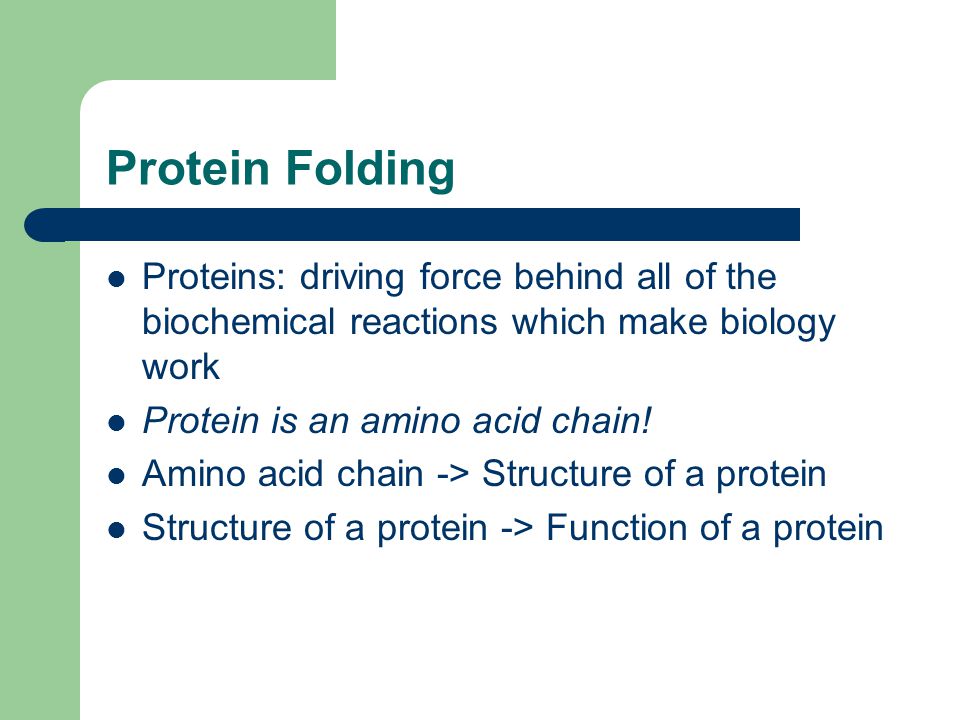

5 Protein Folding Proteins: driving force behind all of the biochemical reactions which make biology work Protein is an amino acid chain! Amino acid chain -> Structure of a protein Structure of a protein -> Function of a protein

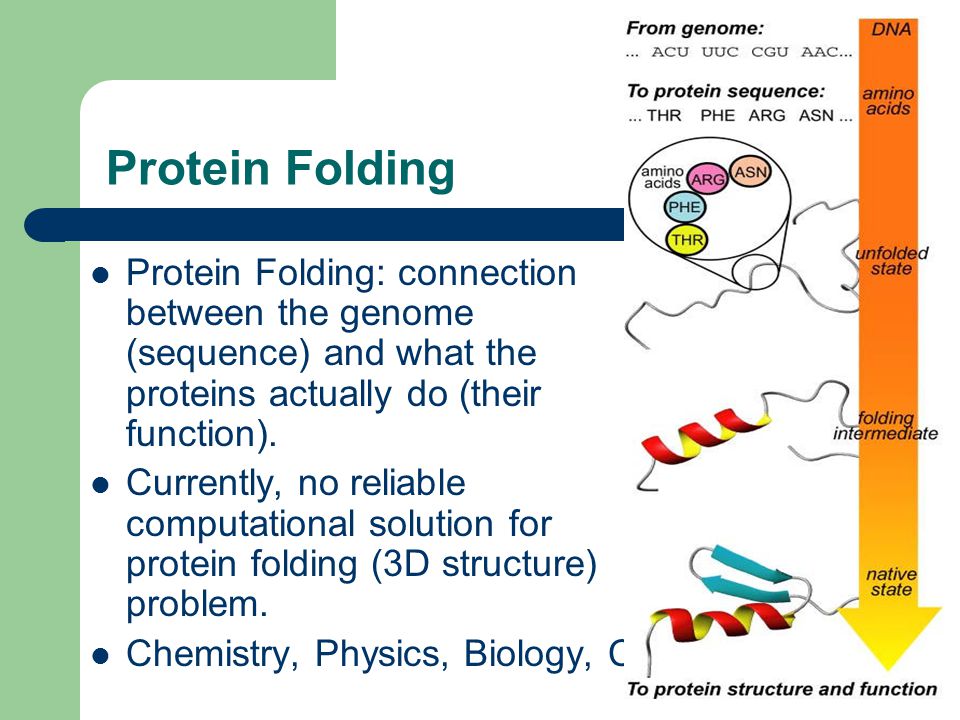

6 Protein Folding Protein Folding: connection between the genome (sequence) and what the proteins actually do (their function). Currently, no reliable computational solution for protein folding (3D structure) problem. Chemistry, Physics, Biology, CS

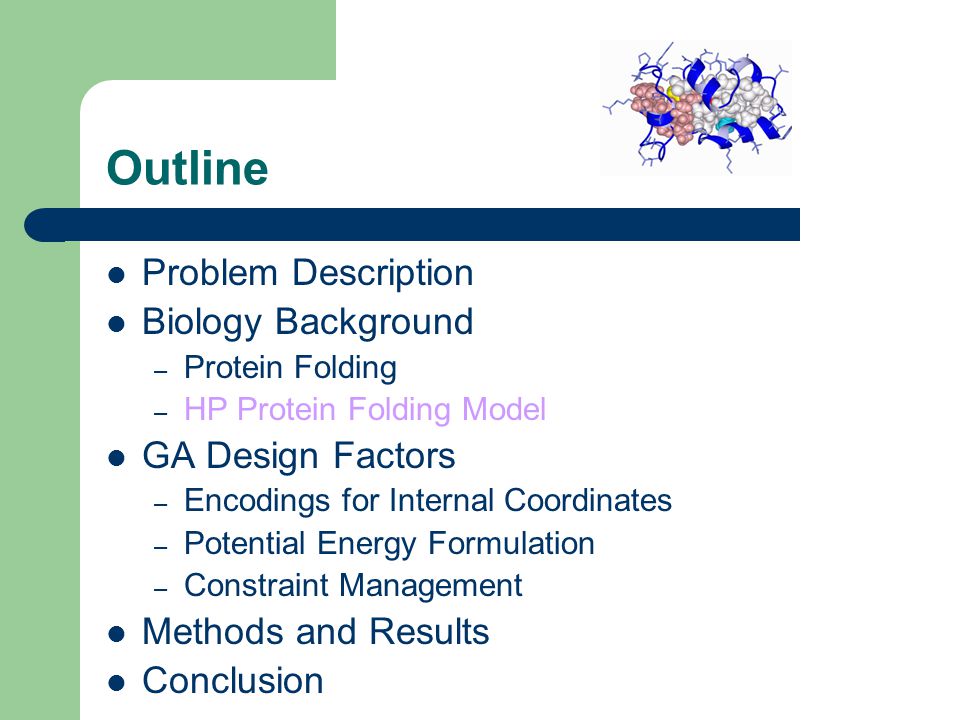

7 Outline Problem Description Biology Background – Protein Folding – HP Protein Folding Model GA Design Factors – Encodings for Internal Coordinates – Potential Energy Formulation – Constraint Management Methods and Results Conclusion

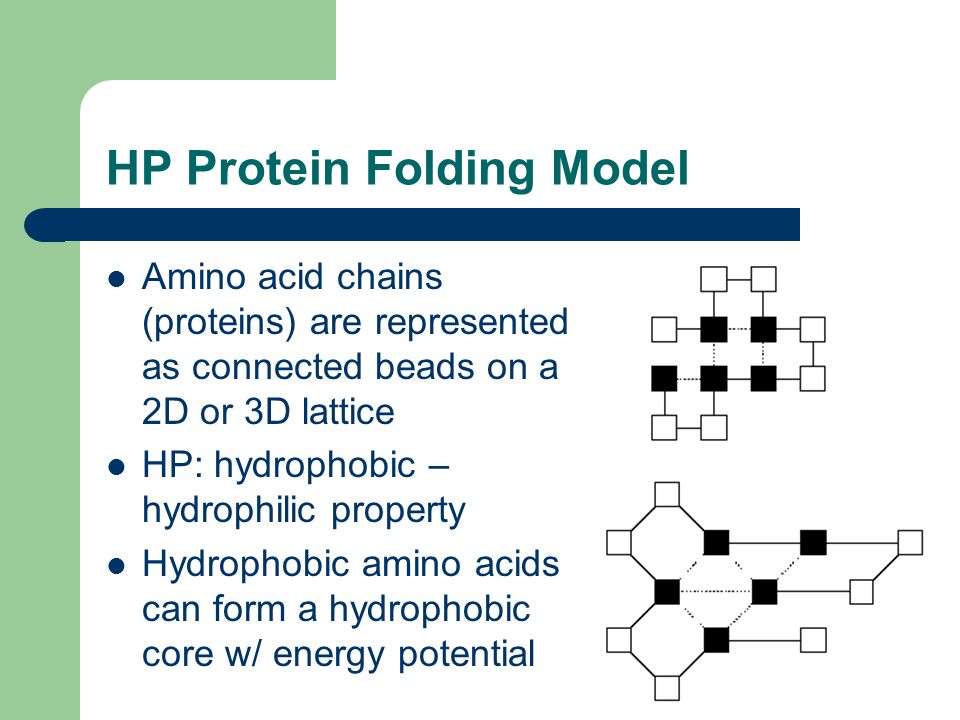

8 HP Protein Folding Model Amino acid chains (proteins) are represented as connected beads on a 2D or 3D lattice HP: hydrophobic – hydrophilic property Hydrophobic amino acids can form a hydrophobic core w/ energy potential

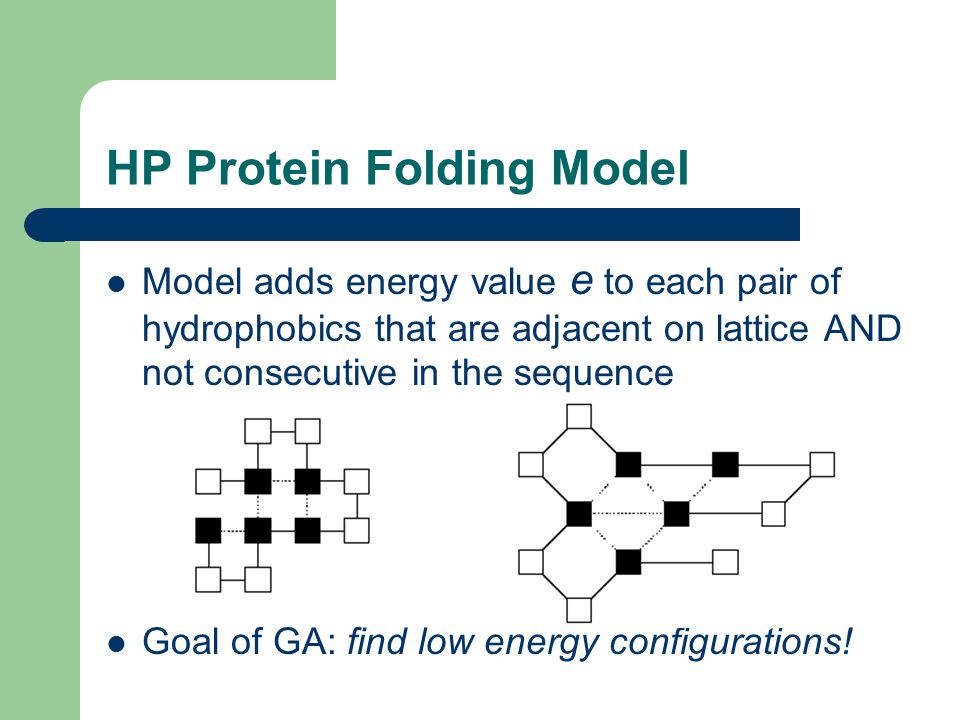

9 HP Protein Folding Model Model adds energy value e to each pair of hydrophobics that are adjacent on lattice AND not consecutive in the sequence Goal of GA: find low energy configurations!

10 Outline Problem Description Biology Background – Protein Folding – HP Protein Folding Model GA Design Factors – Encodings for Internal Coordinates – Potential Energy Formulation – Constraint Management Methods and Results Conclusion

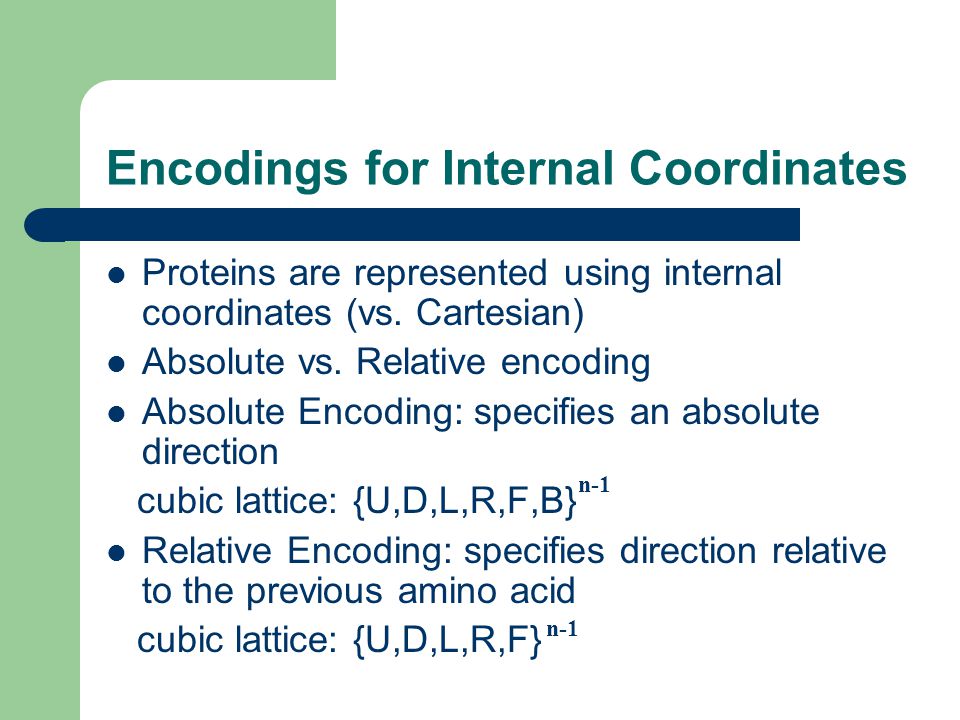

11 Encodings for Internal Coordinates Proteins are represented using internal coordinates (vs. Cartesian) Absolute vs. Relative encoding Absolute Encoding: specifies an absolute direction cubic lattice: {U,D,L,R,F,B} Relative Encoding: specifies direction relative to the previous amino acid cubic lattice: {U,D,L,R,F} n-1

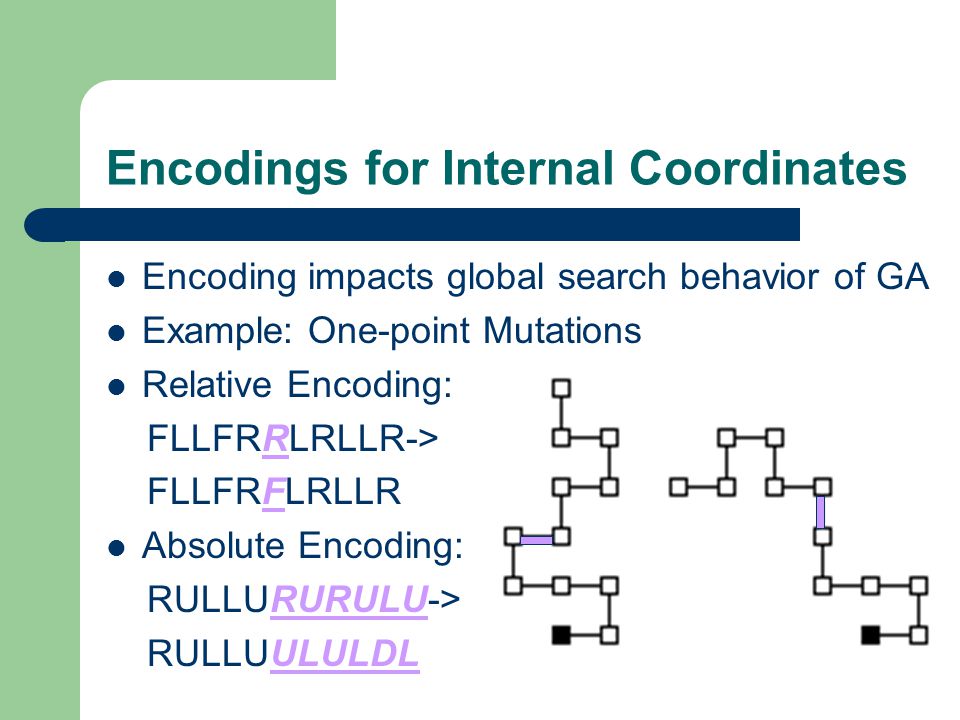

12 Encodings for Internal Coordinates Encoding impacts global search behavior of GA Example: One-point Mutations Relative Encoding: FLLFRRLRLLR-> FLLFRFLRLLR Absolute Encoding: RULLURURULU-> RULLUULULDL

13 Outline Problem Description Biology Background – Protein Folding – HP Protein Folding Model GA Design Factors – Encodings for Internal Coordinates – Potential Energy Formulation – Constraint Management Methods and Results Conclusion

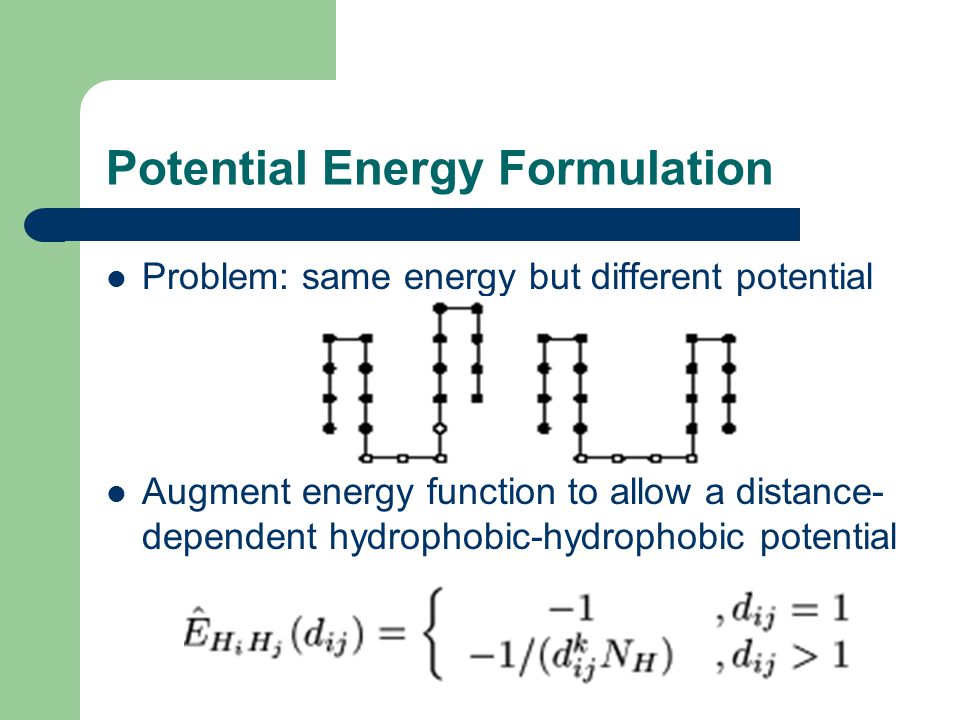

14 Potential Energy Formulation Problem: same energy but different potential (Picture ) Augment energy function to allow a distance- dependent hydrophobic-hydrophobic potential (Formula)

15 Outline Problem Description Biology Background – Protein Folding – HP Protein Folding Model GA Design Factors – Encodings for Internal Coordinates – Potential Energy Formulation – Constraint Management Methods and Results Conclusion

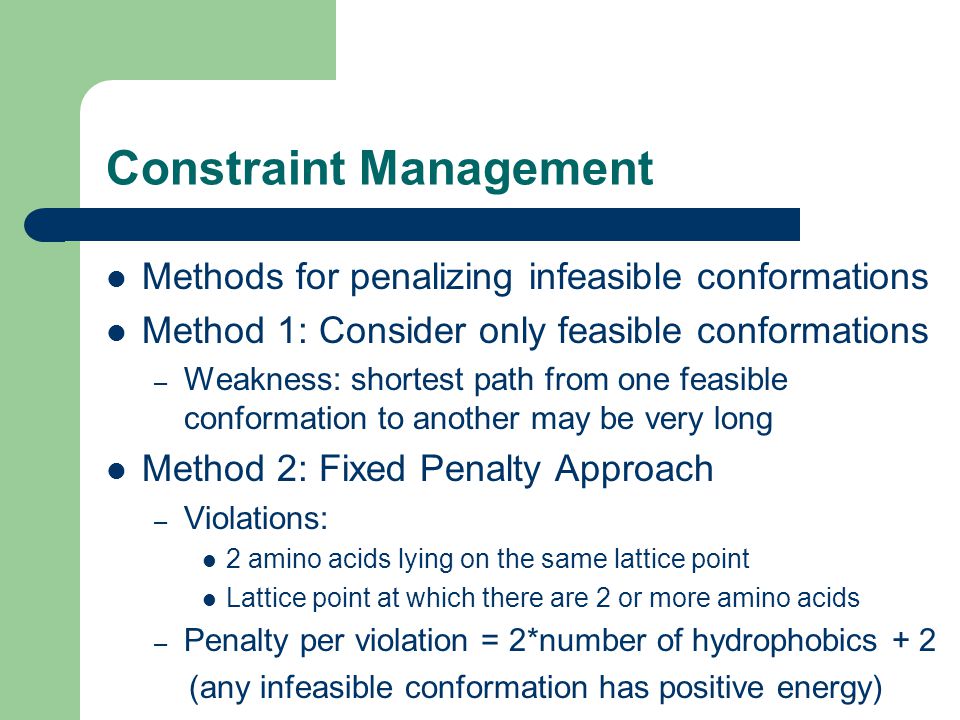

16 Constraint Management Methods for penalizing infeasible conformations Method 1: Consider only feasible conformations – Weakness: shortest path from one feasible conformation to another may be very long Method 2: Fixed Penalty Approach – Violations: 2 amino acids lying on the same lattice point Lattice point at which there are 2 or more amino acids – Penalty per violation = 2*number of hydrophobics + 2 (any infeasible conformation has positive energy)

17 Outline Problem Description Biology Background – Protein Folding – HP Protein Folding Model GA Design Factors – Encodings for Internal Coordinates – Potential Energy Formulation – Constraint Management Methods and Results Conclusion

18 Methods and Results 1-point and 2-point Mutation operators 1-point, 2-point and Uniform Crossover operators 5 polymer sequences (< 50 amino acids) Each run of GA: 200 generations

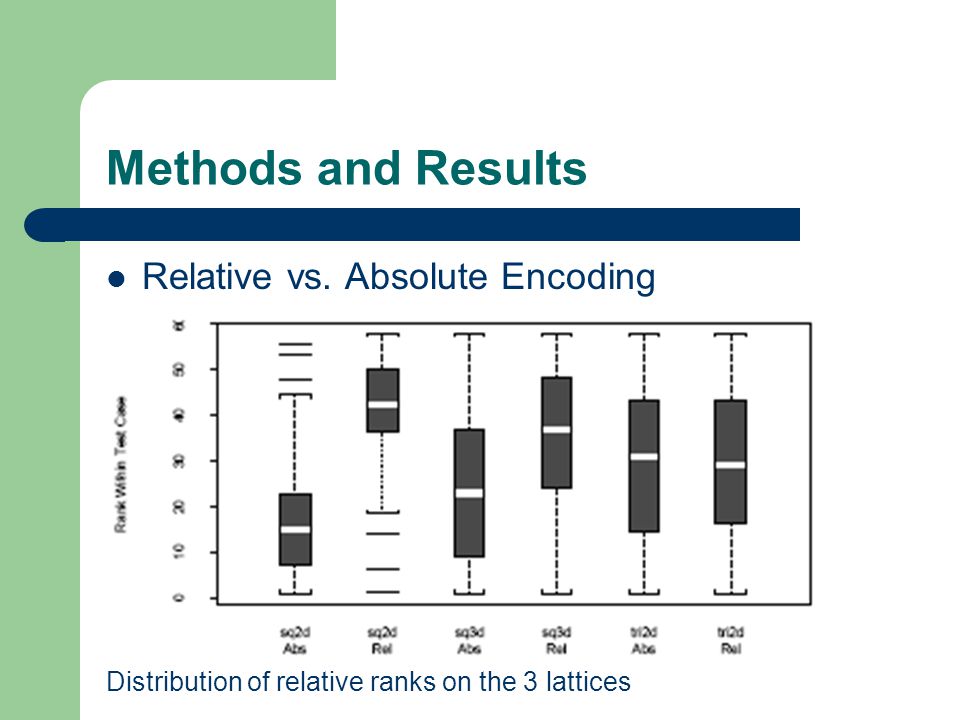

19 Methods and Results Relative vs. Absolute Encoding (Diagram ) Distribution of relative ranks on the 3 lattices

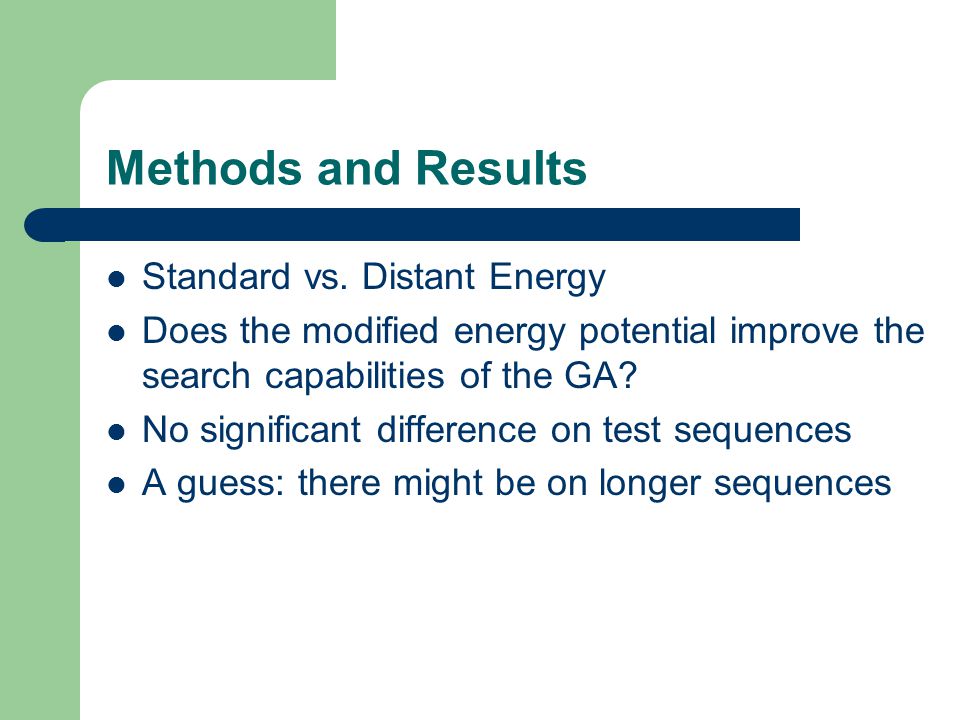

20 Methods and Results Standard vs. Distant Energy Does the modified energy potential improve the search capabilities of the GA? No significant difference on test sequences A guess: there might be on longer sequences

21 Conclusion GAs applied to Protein Structure Prediction problem have 3 important factors to consider Relative encoding is at least as good as absolute encoding, in some cases much better Modified energy potential does not improve search capabilities of GA The proposed constraint/penalty method ensures feasibility of the optimal solution

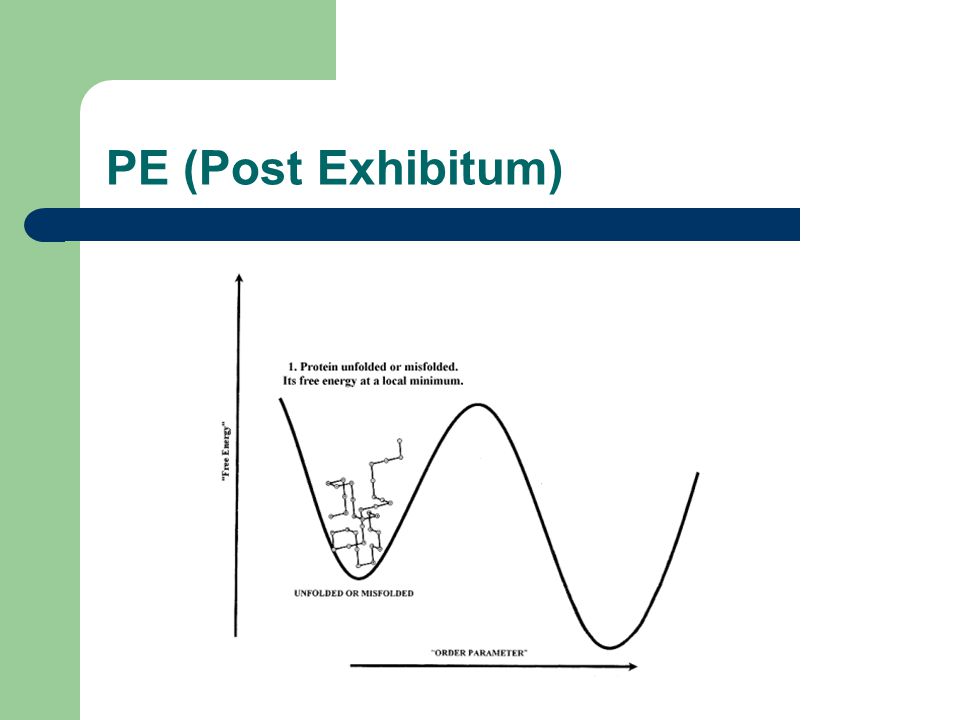

22 PE (Post Exhibitum)

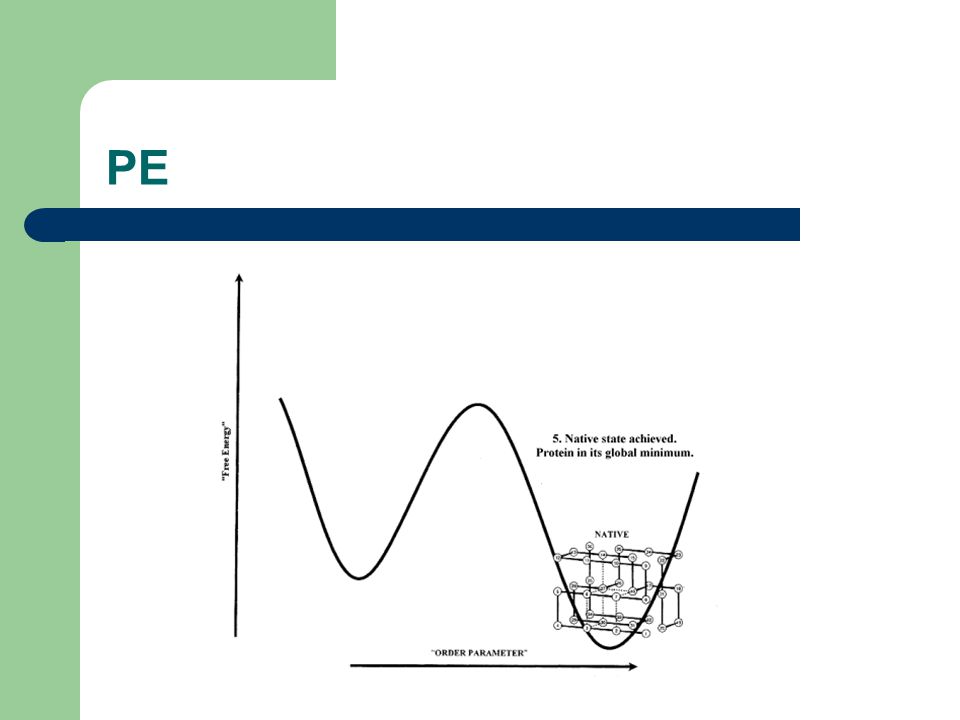

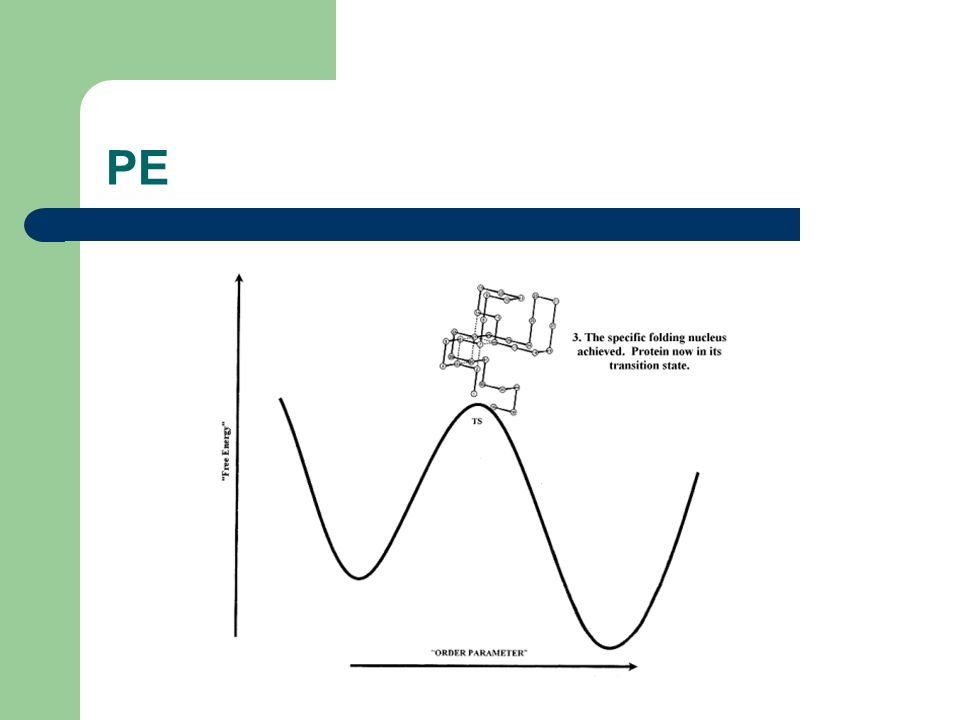

23 PE

24

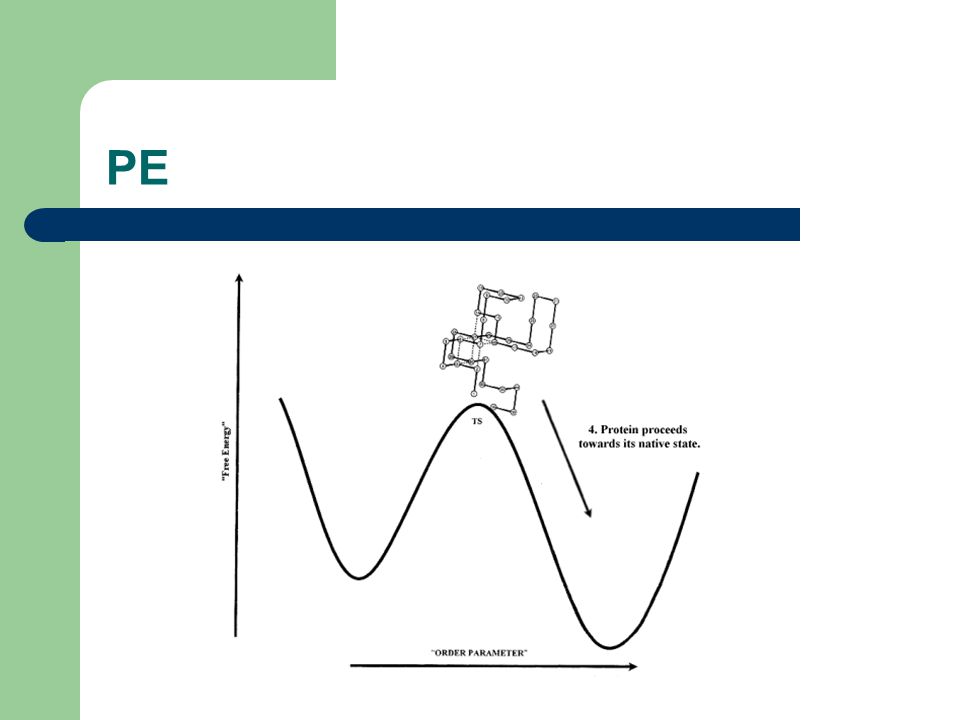

25

26
