A.Diederich– International University Bremen – USC – MMM Spring 2005 1 Sound waves cont'd –Goldstein, pp. 331 – 339 –Cook, Chapter 7.

Similar presentations


Presentation on theme: "A.Diederich– International University Bremen – USC – MMM Spring 2005 1 Sound waves cont'd –Goldstein, pp. 331 – 339 –Cook, Chapter 7."— Presentation transcript:

1

2 A.Diederich– International University Bremen – USC – MMM Spring 2005 1 Sound waves cont'd –Goldstein, pp. 331 – 339 –Cook, Chapter 7

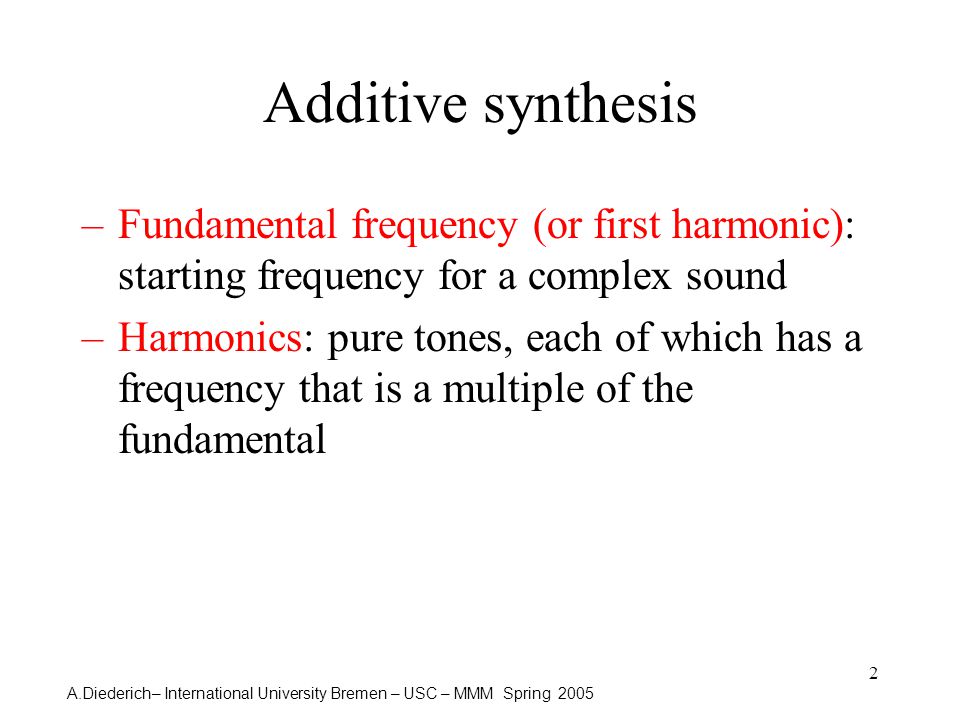

3 A.Diederich– International University Bremen – USC – MMM Spring 2005 2 Additive synthesis –Fundamental frequency (or first harmonic): starting frequency for a complex sound –Harmonics: pure tones, each of which has a frequency that is a multiple of the fundamental

4 A.Diederich– International University Bremen – USC – MMM Spring 2005 3 Frequency spectrum Fundamental or first harmonic Second harmonic Third harmonic frequency: line's position amplitude: line's height

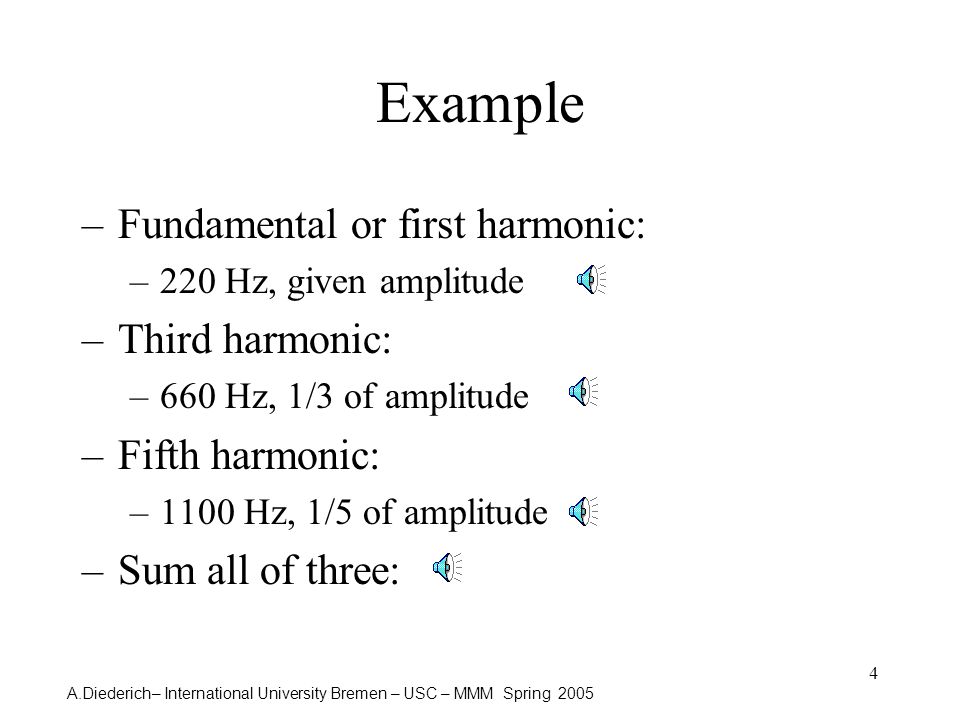

5 A.Diederich– International University Bremen – USC – MMM Spring 2005 4 Example –Fundamental or first harmonic: –220 Hz, given amplitude –Third harmonic: –660 Hz, 1/3 of amplitude –Fifth harmonic: –1100 Hz, 1/5 of amplitude –Sum all of three:

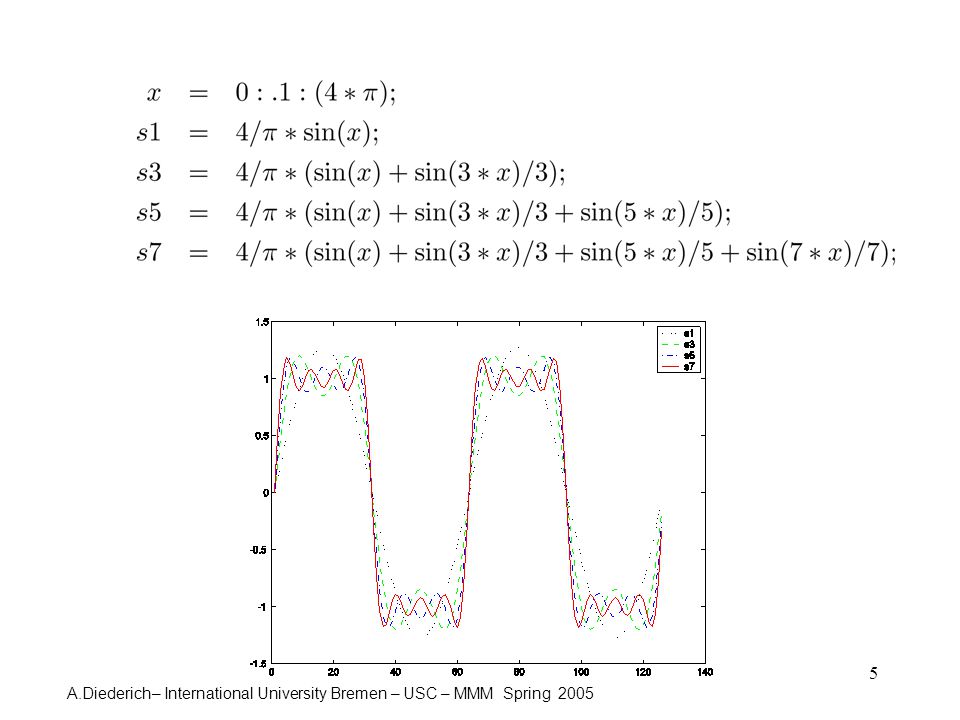

6 A.Diederich– International University Bremen – USC – MMM Spring 2005 5

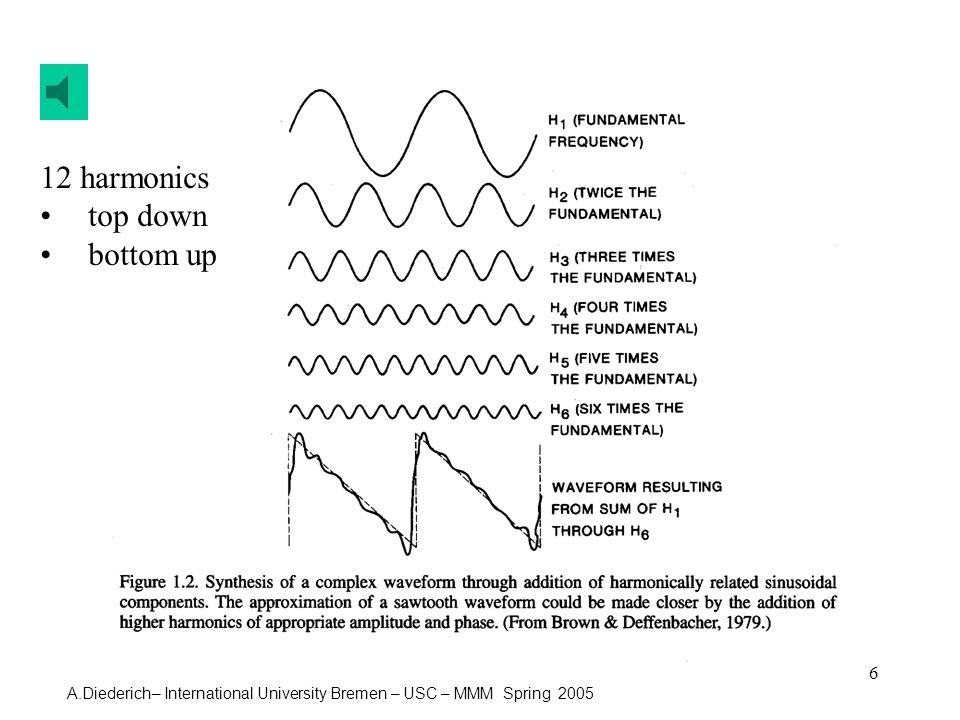

7 6 12 harmonics top down bottom up

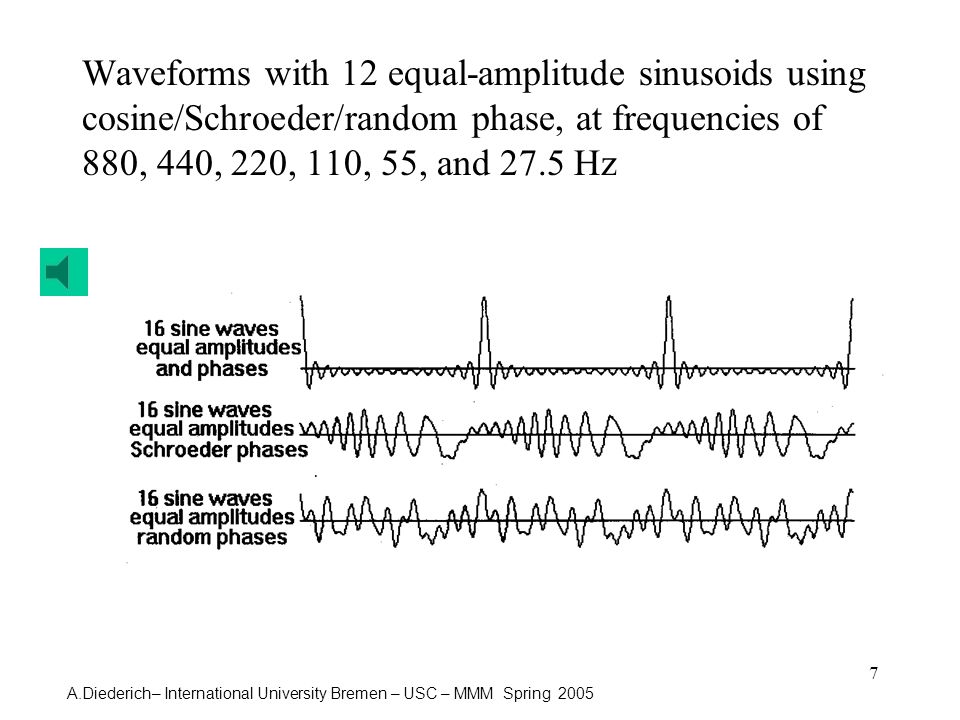

8 A.Diederich– International University Bremen – USC – MMM Spring 2005 7 Waveforms with 12 equal-amplitude sinusoids using cosine/Schroeder/random phase, at frequencies of 880, 440, 220, 110, 55, and 27.5 Hz

9 A.Diederich– International University Bremen – USC – MMM Spring 2005 8 Waveform and amplitude spectra. Periodic waveforms A through D have line spectra, the others either continuous spectra (E and F) or a band spectrum (G).

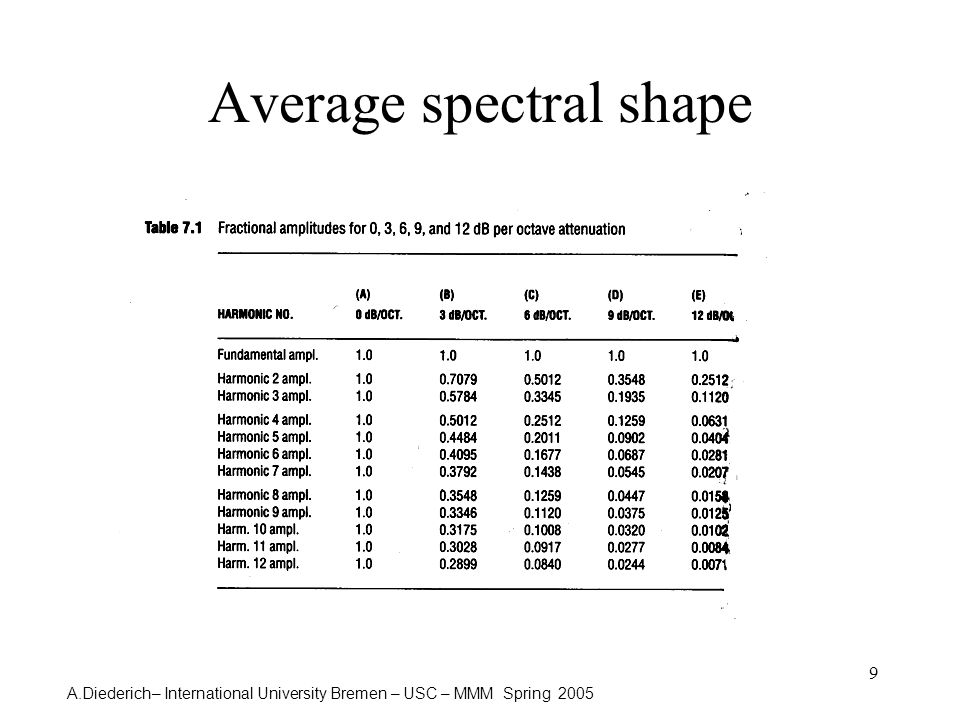

10 A.Diederich– International University Bremen – USC – MMM Spring 2005 9 Average spectral shape

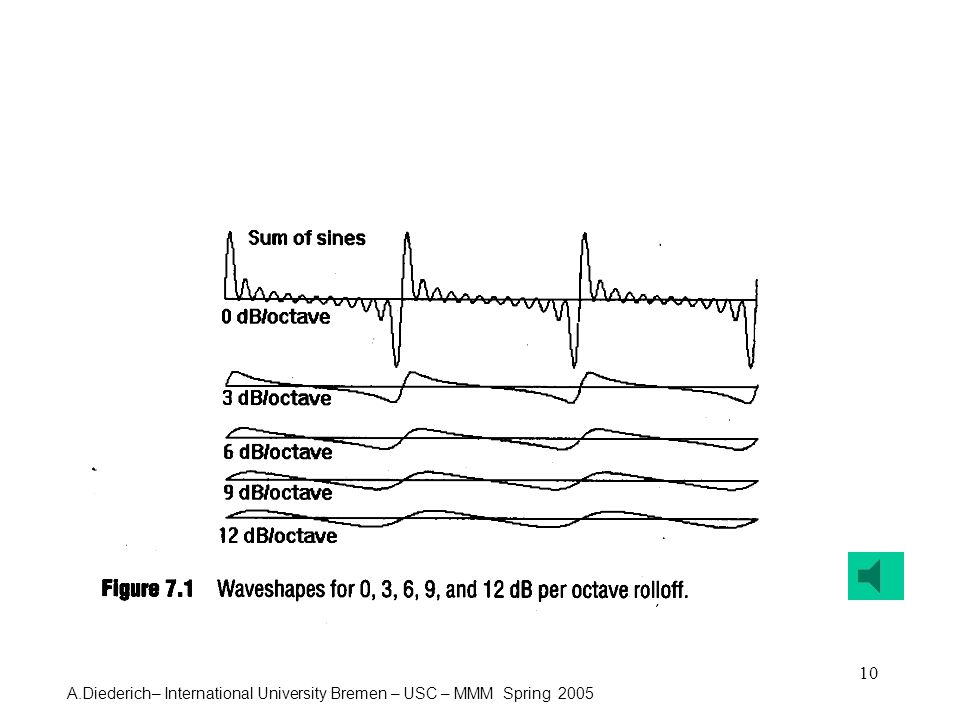

11 A.Diederich– International University Bremen – USC – MMM Spring 2005 10

12 A.Diederich– International University Bremen – USC – MMM Spring 2005 11 "Holy" spectra

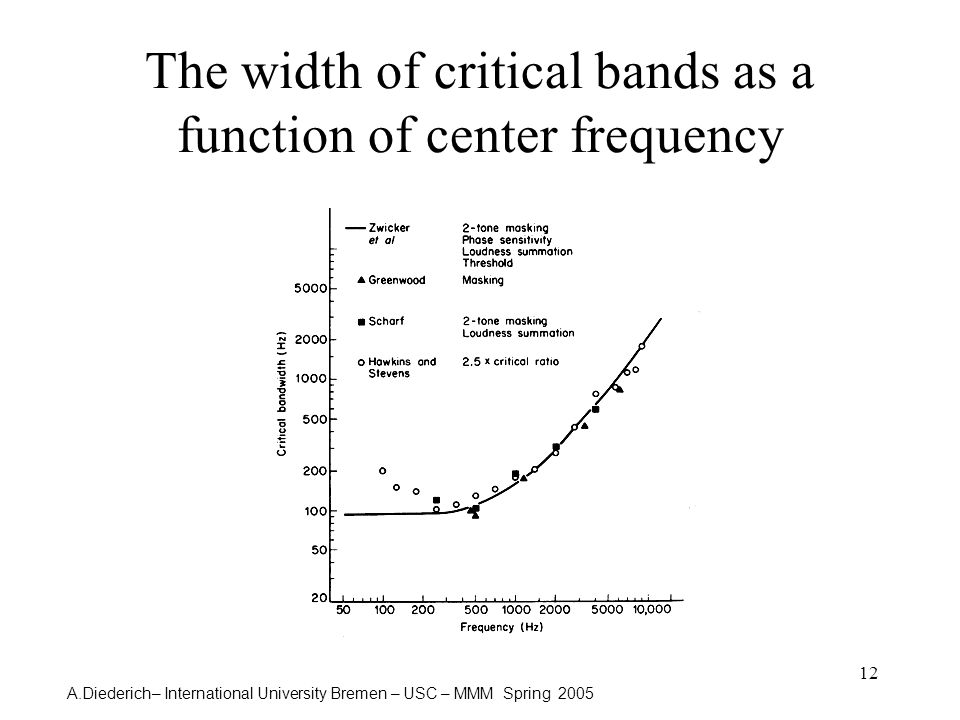

13 A.Diederich– International University Bremen – USC – MMM Spring 2005 12 The width of critical bands as a function of center frequency

14 A.Diederich– International University Bremen – USC – MMM Spring 2005 13 Schematic representation of the frequency (heavy lines) corresponding to the tone sensation evoked by the superposition of two pure tones of nearby frequencies f 1 and f 2 = f 1 +  f

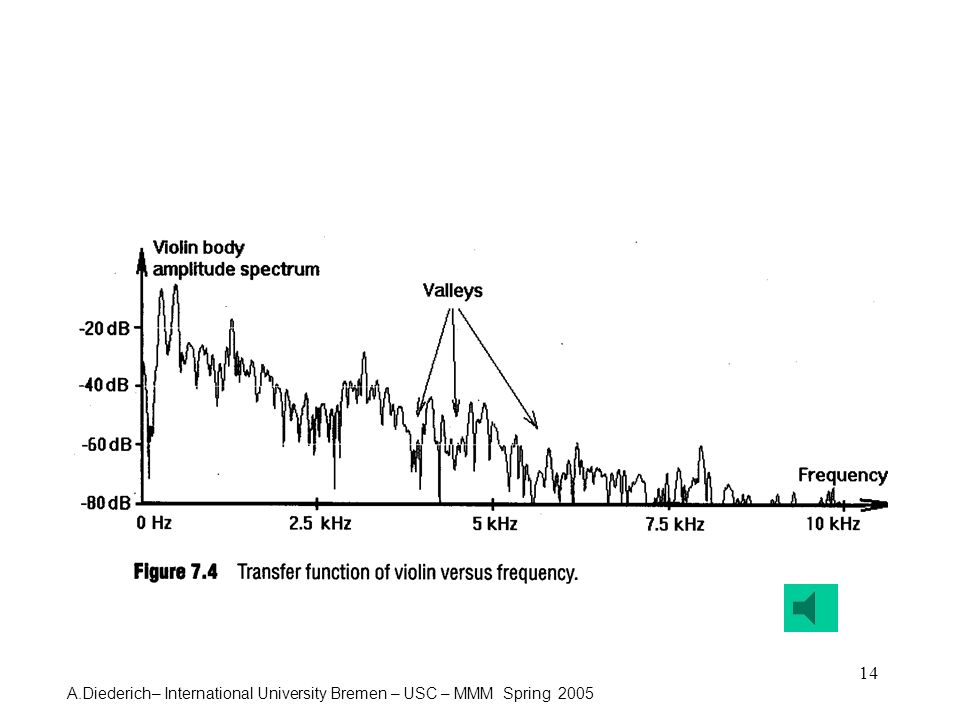

15 A.Diederich– International University Bremen – USC – MMM Spring 2005 14

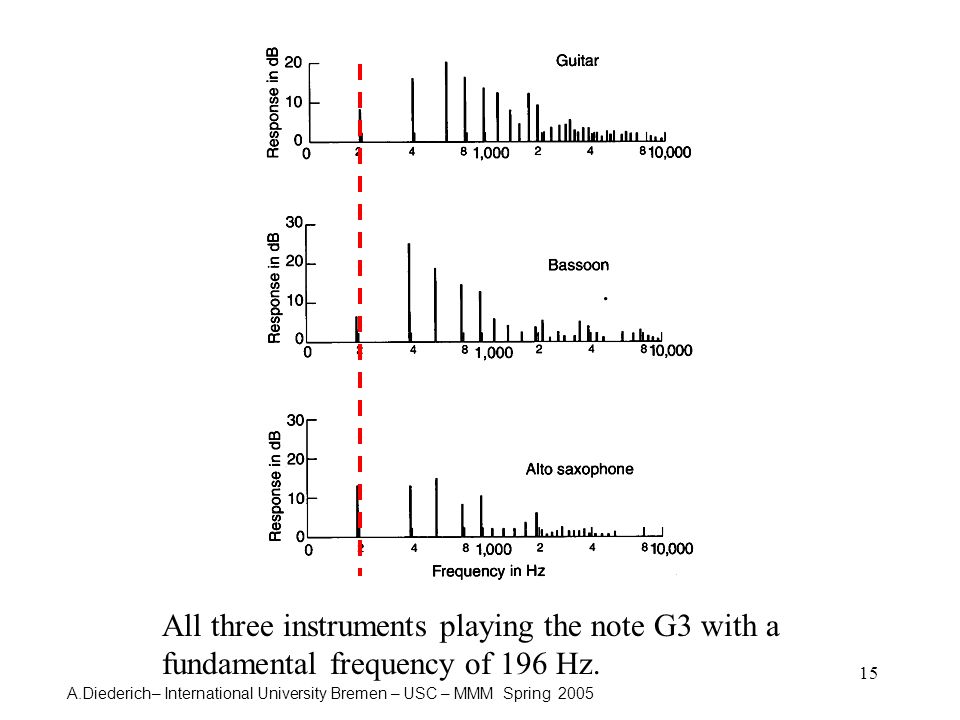

16 A.Diederich– International University Bremen – USC – MMM Spring 2005 15 All three instruments playing the note G3 with a fundamental frequency of 196 Hz..

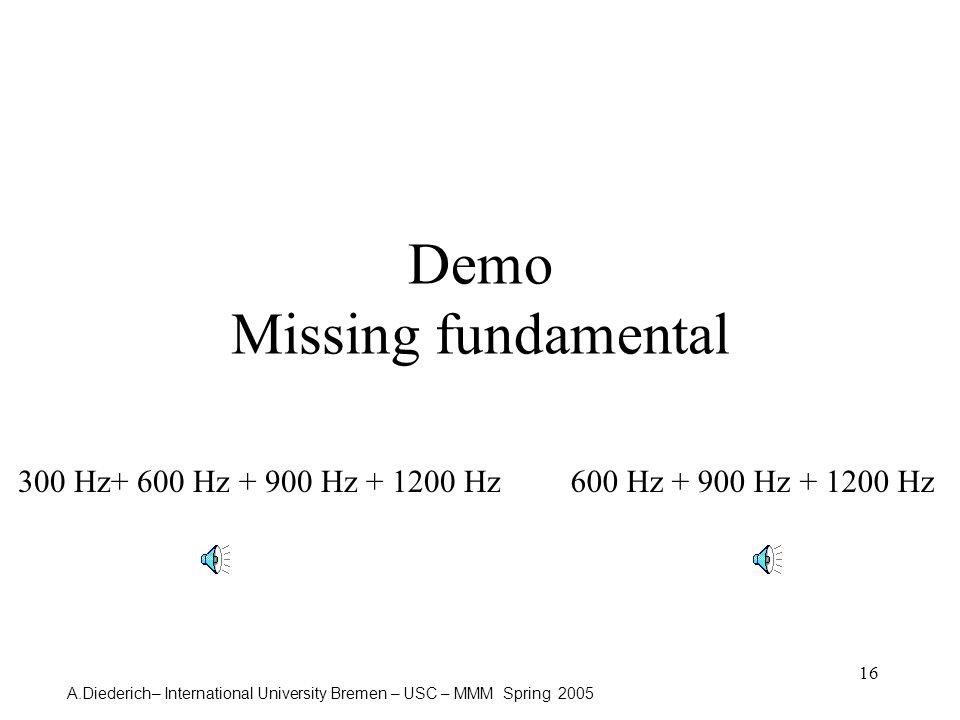

17 A.Diederich– International University Bremen – USC – MMM Spring 2005 16 Demo Missing fundamental 300 Hz+ 600 Hz + 900 Hz + 1200 Hz600 Hz + 900 Hz + 1200 Hz

18 A.Diederich– International University Bremen – USC – MMM Spring 2005 17 Sound composition and timbre: Helmholtz’s (1863) summary of the various subjective feelings pertaining on the composition of a complex sound
