1. Server and domain isolation using IPsec and group Policy
-By Rashmi S. Thakur
CS772

2. Introduction
Early days , companies had to work with mainframes --- network access security was not much an issue since the only way to access the network was to enter a large, data center and sit down in front of a terminal to do anything.
Not more prone to attacks and untrusted access…..

3. Present Scenario… No more mainframes.
Anyone can access the network from anywhere
Large organizations needed security to protect their internal network from external attacks and access
They also needed segments of internal networks i.e restricted access from one part of the network to the other...

4. Solution! Use of firewalls!
Firewalls could protect internal networks from outside attacks.
They could also be used to separate segments of internal networks by setting rules for the firewall.

5. Then why study server and domain isolation?
It has been found out that using firewalls for internal network segmentation doesn't always work smoothly.
Also internal attacks i.e attacks might come from malicious employees who can can subvert other protective measures--including firewalls--to get to the center of the network.
compromised PCs might have spyware or malware.

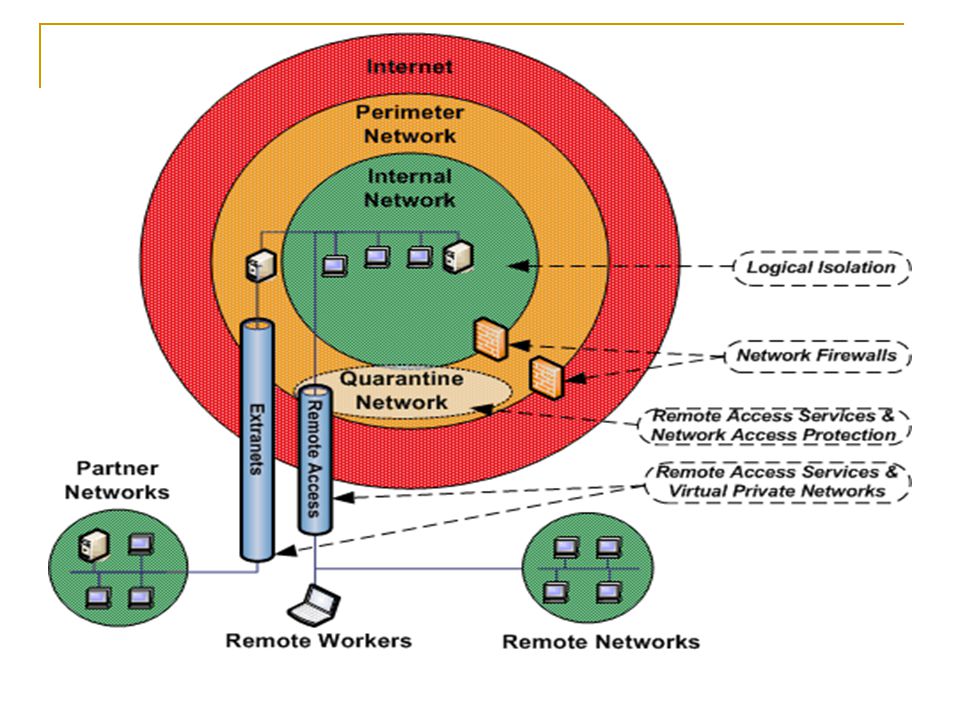

7. Goal of Logical Isolation
The goal of logical isolation is to allow the internal network to be segmented and isolated to support a higher level of security without requiring hard physical boundaries
Should not be too tight such that it is hard to do even daily business tasks.
Should be manageable and scalable.

8. People, Policies, and Process
Physical security
Data
Application
Host
Isolation
Internal network
Perimeter

9. Server and Domain Isolation Components
Trusted Hosts – The hosts with minimum security requirements.
running a secure and managed operating system,
antivirus software
current application and operating system updates
Host Authentication
IPsec
The 802.1X Protocol
Host Authorization – Using Group policies to allow/deny access to servers.

11. Steps in detail
STEP 1:

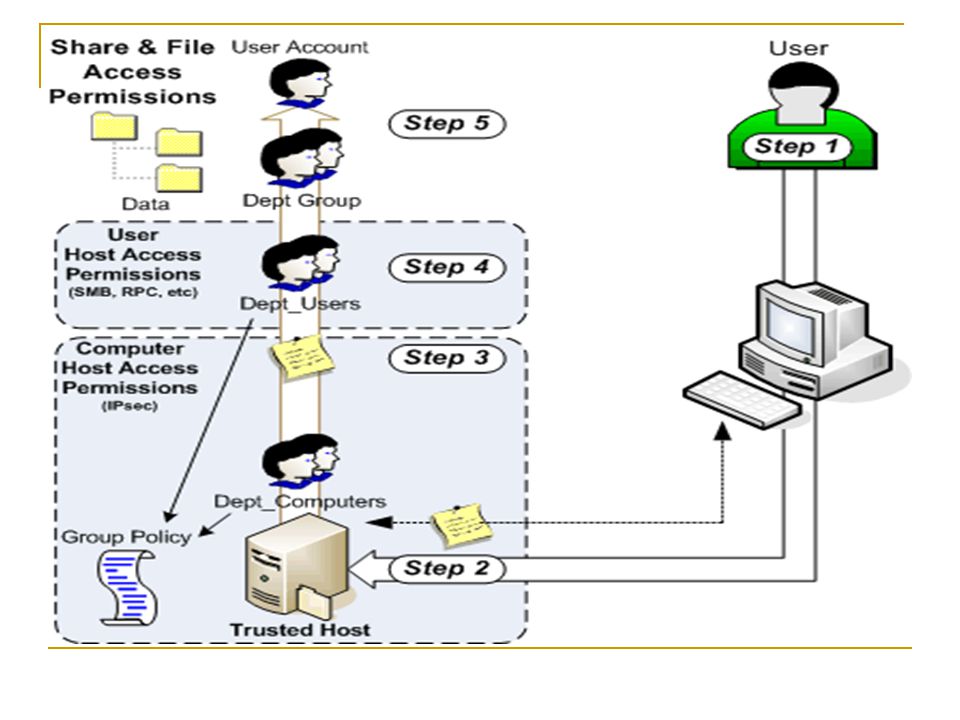

User logins to a client on the internal network( which is within the logical isolation)
Client computer attempts to connect to the trusted host using the file sharing protocol.
The client has IPsec policy assigned as part of the solution. The outbound TCP connection request triggers an IKE negotiation to the server. The client IKE obtains a Kerberos ticket to authenticate to the server.

12. STEPS 2 to 4:

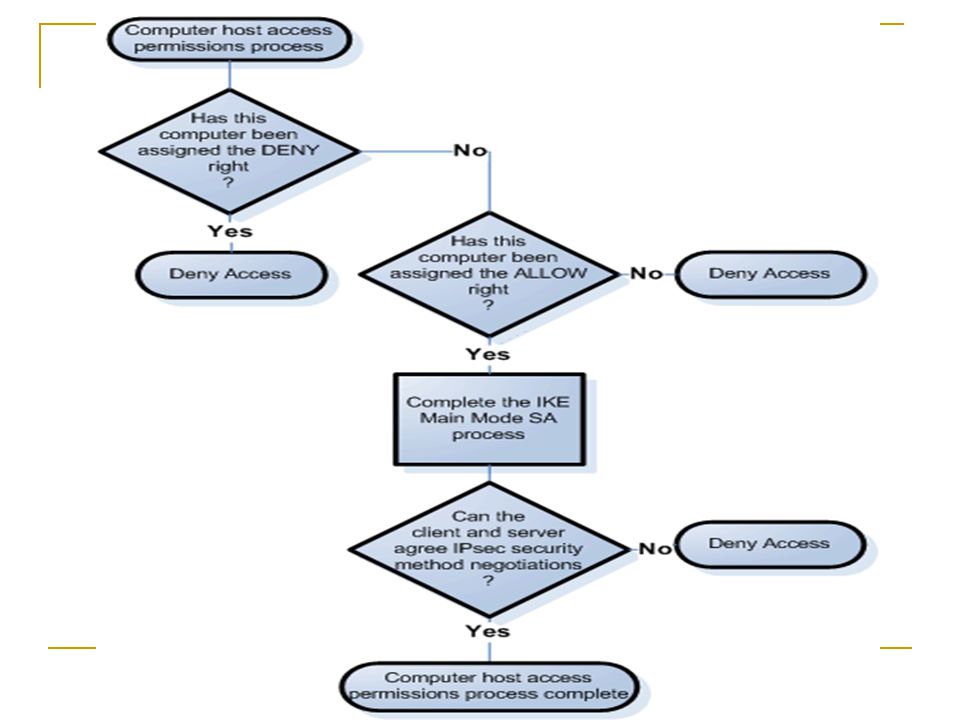

IKE main mode negotiation. After the server receives the initial IKE communication request from the client computer, the server authenticates the Kerberos ticket.

15. Step 4 contd…

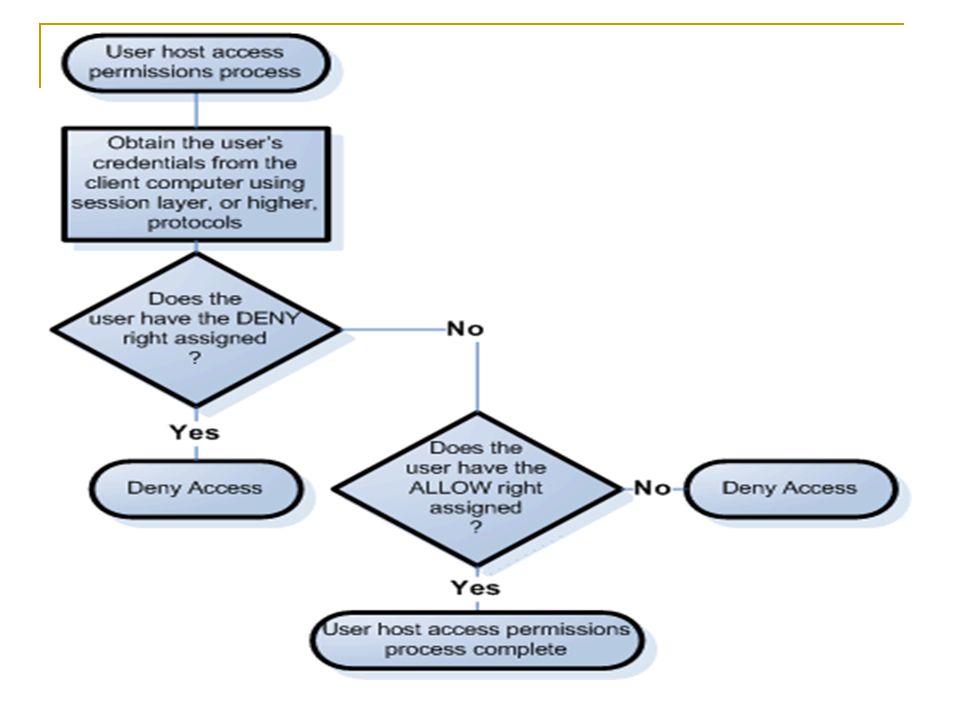

If the user account has the required user right assignment, the process completes, and the user logon token is created. After this process is complete, the logical isolation solution has finished conducting its security checks.
What remains now is the access rights of the file, the user is trying to access.

16. Step 5
Share and file access permissions checked. Finally, the standard Windows share and file access permissions are checked by the server to ensure that the user is a member of a group that has the required permissions to access the data that the user requested.

17. Grouping…
Till now we dealt with isolation achieved on a host-by-host basis
If an organization contains a lot of hosts , then doing a host-by-host might be too costly!
Solution:
Group hosts into a groups and give acess group-by-group
This is much cheaper.

18. Implimenting Isolation
Identify Foundational(basic) Isolation Groups.
Eg: Isolation Domain :
The hosts in this group are trusted and use IPsec policy to control the communications that are allowed to and from themselves.
Eg: Boundary Isolation Group
This group contains trusted hosts that will be allowed to communicate with untrusted systems. These hosts will be exposed to a higher level of risk because they are able to receive incoming communications directly from untrusted computers.

19. Why do we need Boundary Isolation Group
Since in almost all organizations, there will be a number of workstations, or servers, that are unable to communicate using IPsec although they are genuine hosts.

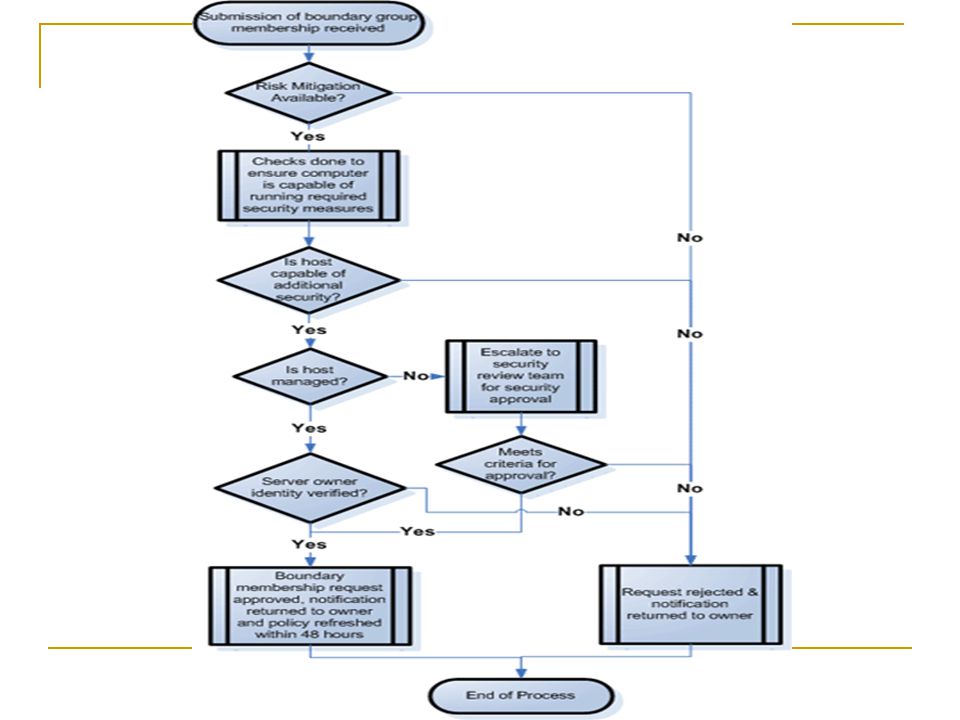

21. Exemptions Lists
Key infrastructure servers such as domain controllers, DNS servers, and Dynamic Host Configuration Protocol (DHCP) servers or others which are usually available to all systems on the internal network do not use IPSec but are widely used.
Allowing them only through Boundary Isolation Group might result in decreasing performance of the organization due to heavy requests.
Sol: Create special lists to identify such servers. And allow direct access to them through any isolation group

22. Additonal Isolation Groups
Could create more Isolation Groups apart from the foundational if we have different requirements for each group. Eg:
Encryption requirements
Limited host or user access
required at the network level
Outgoing or incoming network
traffic flow or protection
requirements that
from the isolation domain

23. Planning Traffic Mapping -foundationalID
From To
Bidirectional
IPsec
Fallback
Encrypt 1 Ex
Yes No 2 BO 3 UN 4 EX 5 6 7

24. Planning Traffic Mapping - additionalID
From To
Bidirectional
IPsec
Fallback
Encrypt 8 EN EX
Yes No 9 10 NF 11 BO 12 13 14

25. Network access groups
Consider group 1 is restricted access t group2. Only Exception is if a host in Group 1 is the Manager then he is not restricted to Group2. How do we state this explicit rule?
NAGs are used to explicitly allow or deny access to a system through the network
Names reflect function—
ANAG: allow network access group
DNAG: deny network access group
Can contain users, computers or groups
Defined in domain local groups

26. Active Directory Domain Controller
Example Scenarios
Active Directory Domain Controller
(exempted)
Domain Isolation
Optional outbound authentication
Server Isolation
Un-trusted
Required authentication X X
Authenticating
Host Firewalls
Unmanaged Devices

27. Domain Isolation User: any type Ping succeeds others fail
Domain controller
User: any type
Ping succeeds
others fail
Client: Untrusted or non-IPsec capable
Server:
domain isolation IPsec policy Active
(requires IPsec for all traffic except for ICMP)

28. others succeed over IPsec Client: Windows XP SP2 Trusted machine
Domain controller
User: domain member
Ping succeeds,
others succeed over IPsec
Client: Windows XP SP2
Trusted machine
Server:
domain isolation IPsec policy Active
(requires IPsec for all traffic except for ICMP)

29. Server Isolation User: domain member Ping succeeds
Domain controller
Authorization only for CLIENT1 in group policy
via “Access this computer from network” right
User: domain member
Ping succeeds
others fail because IKE fails
Client: Windows XP SP2 “CLIENT2”
Trusted machine
Server:
server isolation IPsec policy Active
(requires IPsec for all traffic except for ICMP)

30. Ping succeeds, other succeed over IPsec
Domain controller
Authorization only for CLIENT1 and this user in group policy
via “Access this computer from network” right
User: domain member
Ping succeeds, other succeed over IPsec
Client: Windows XP SP2 “CLIENT1”
Trusted machine
Server:
server isolation IPsec policy Active
(requires IPsec for all traffic except for ICMP)

31. Bussiness benefits of this approach
Additional security.
Tighter control of who can access specific information.
Lower cost.
An increase in the number of managed computers.
Improved levels of protection against malware attack
A mechanism to encrypt network data.

32. Conclusion
As organizations grow and business relationships change, and customers, vendors, and consultants need to connect to your network for valid business reasons, controlling physical access to a network can become impossible. By maintaining server and Domain isolation using IPSec and Group Policy one could provide flexibility and at the same time provide more security to the internal network.
