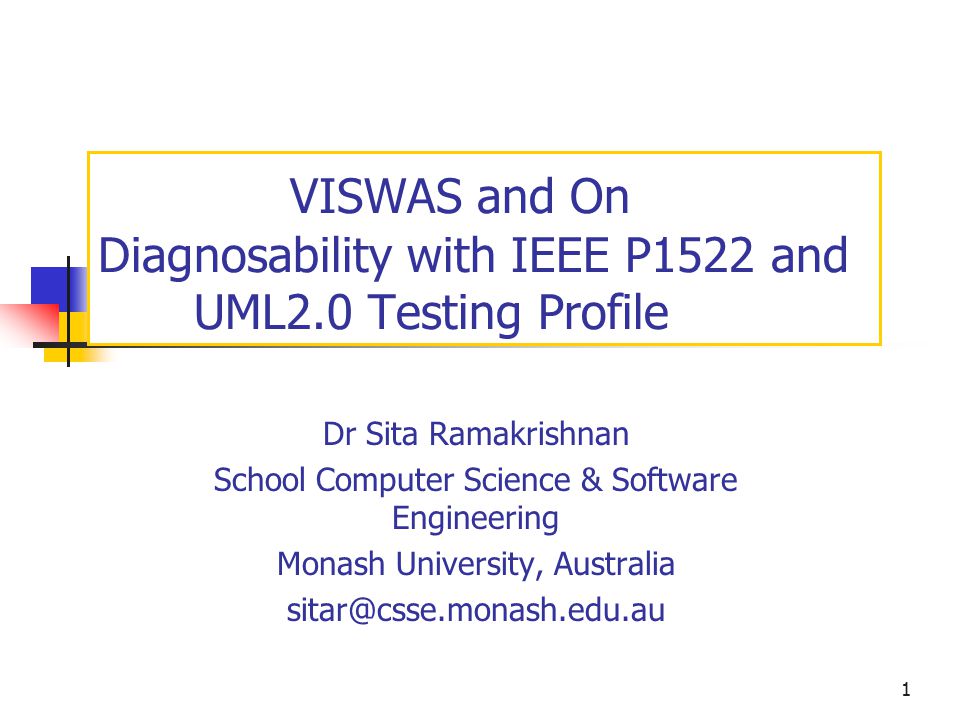

1. 1 VISWAS and On Diagnosability with IEEE P1522 and UML2.0 Testing Profile Dr Sita Ramakrishnan School Computer Science & Software Engineering Monash University, Australia sitar@csse.monash.edu.au

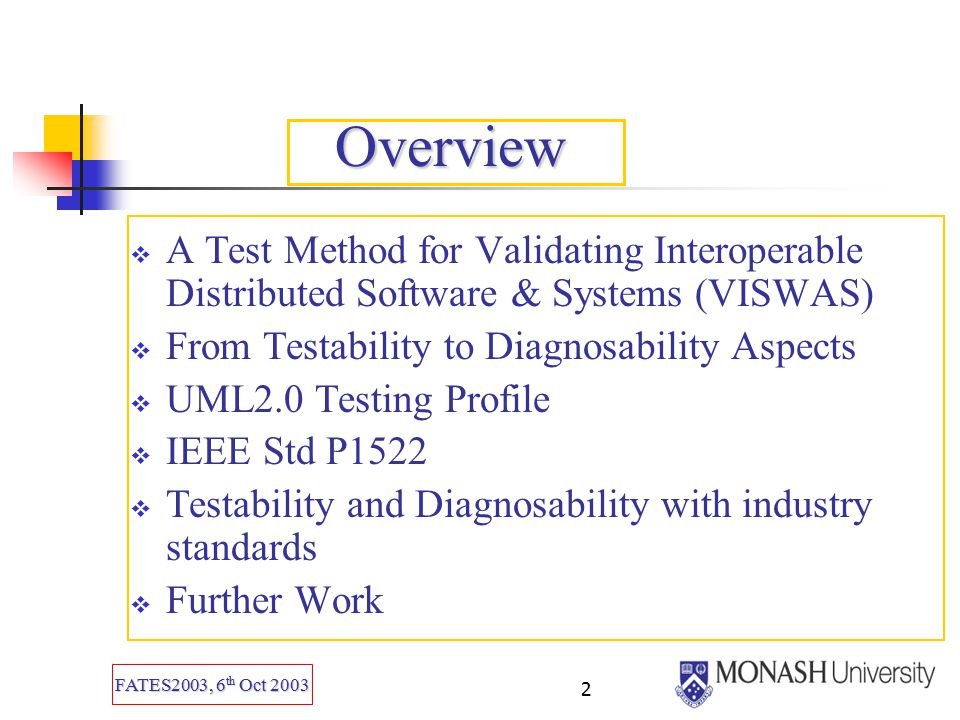

2. FATES2003, 6 th Oct 2003 2 Overview  A Test Method for Validating Interoperable Distributed Software & Systems (VISWAS)  From Testability to Diagnosability Aspects  UML2.0 Testing Profile  IEEE Std P1522  Testability and Diagnosability with industry standards  Further Work

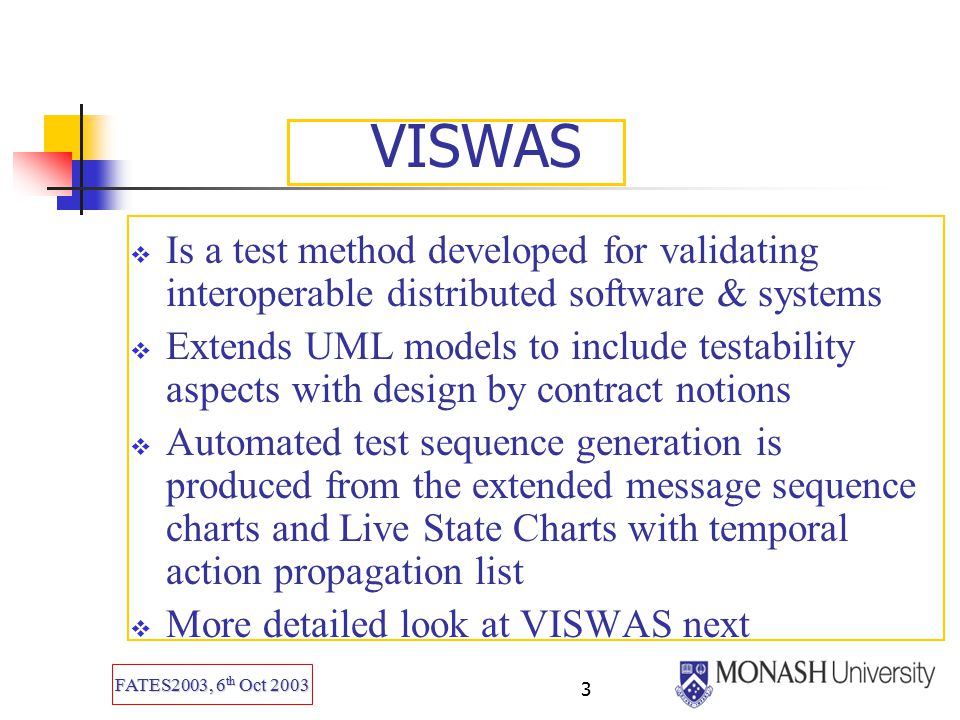

3. FATES2003, 6 th Oct 2003 3 VISWAS  Is a test method developed for validating interoperable distributed software & systems  Extends UML models to include testability aspects with design by contract notions  Automated test sequence generation is produced from the extended message sequence charts and Live State Charts with temporal action propagation list  More detailed look at VISWAS next

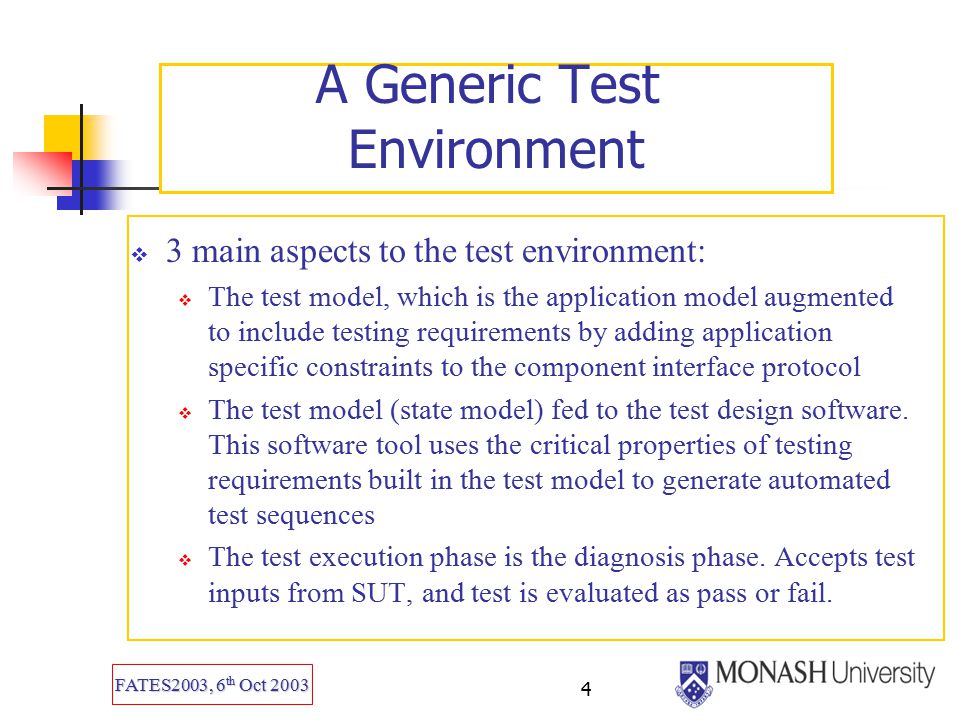

4. FATES2003, 6 th Oct 2003 4 A Generic Test Environment  3 main aspects to the test environment:  The test model, which is the application model augmented to include testing requirements by adding application specific constraints to the component interface protocol  The test model (state model) fed to the test design software. This software tool uses the critical properties of testing requirements built in the test model to generate automated test sequences  The test execution phase is the diagnosis phase. Accepts test inputs from SUT, and test is evaluated as pass or fail.

5. FATES2003, 6 th Oct 2003 5 A Generic Test Environment

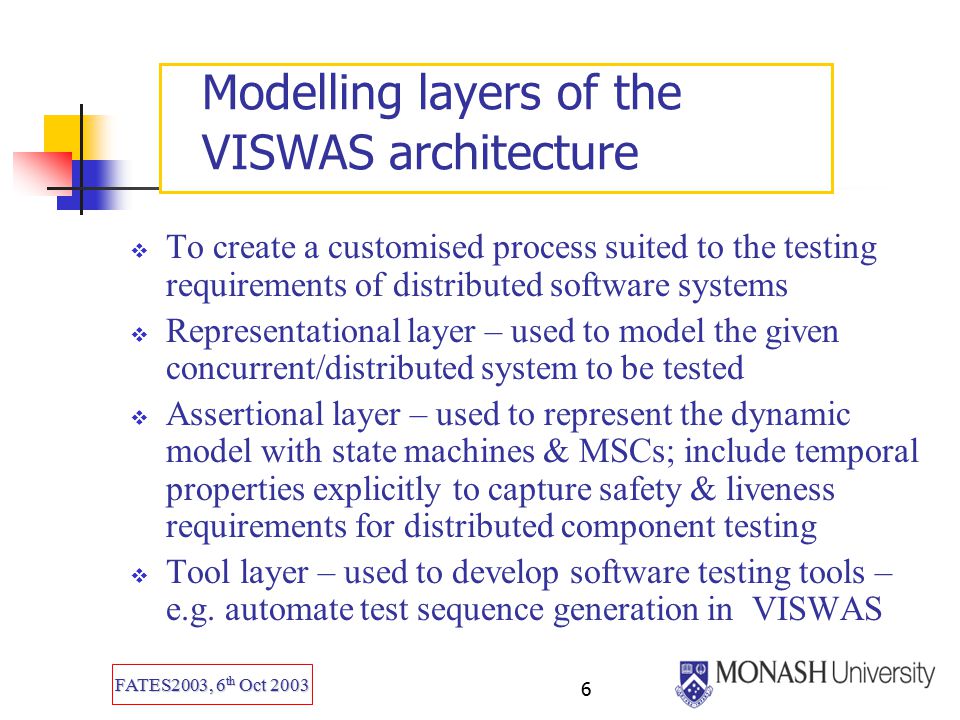

6. FATES2003, 6 th Oct 2003 6 Modelling layers of the VISWAS architecture  To create a customised process suited to the testing requirements of distributed software systems  Representational layer – used to model the given concurrent/distributed system to be tested  Assertional layer – used to represent the dynamic model with state machines & MSCs; include temporal properties explicitly to capture safety & liveness requirements for distributed component testing  Tool layer – used to develop software testing tools – e.g. automate test sequence generation in VISWAS

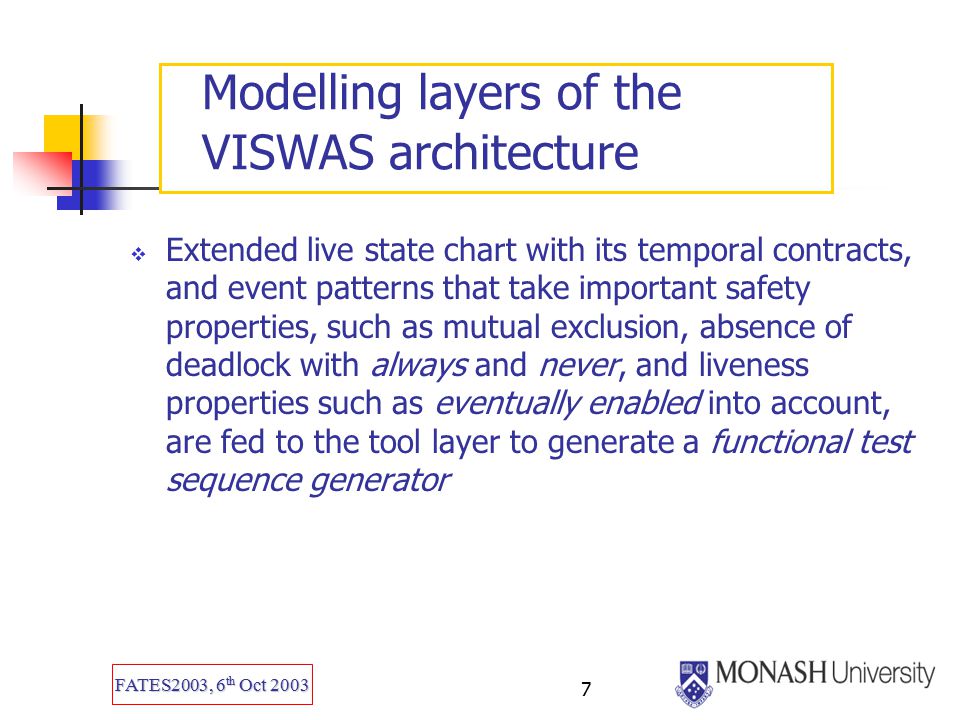

7. FATES2003, 6 th Oct 2003 7 Modelling layers of the VISWAS architecture  Extended live state chart with its temporal contracts, and event patterns that take important safety properties, such as mutual exclusion, absence of deadlock with always and never, and liveness properties such as eventually enabled into account, are fed to the tool layer to generate a functional test sequence generator

8. FATES2003, 6 th Oct 2003 8 Modelling layers in VISWAS test method

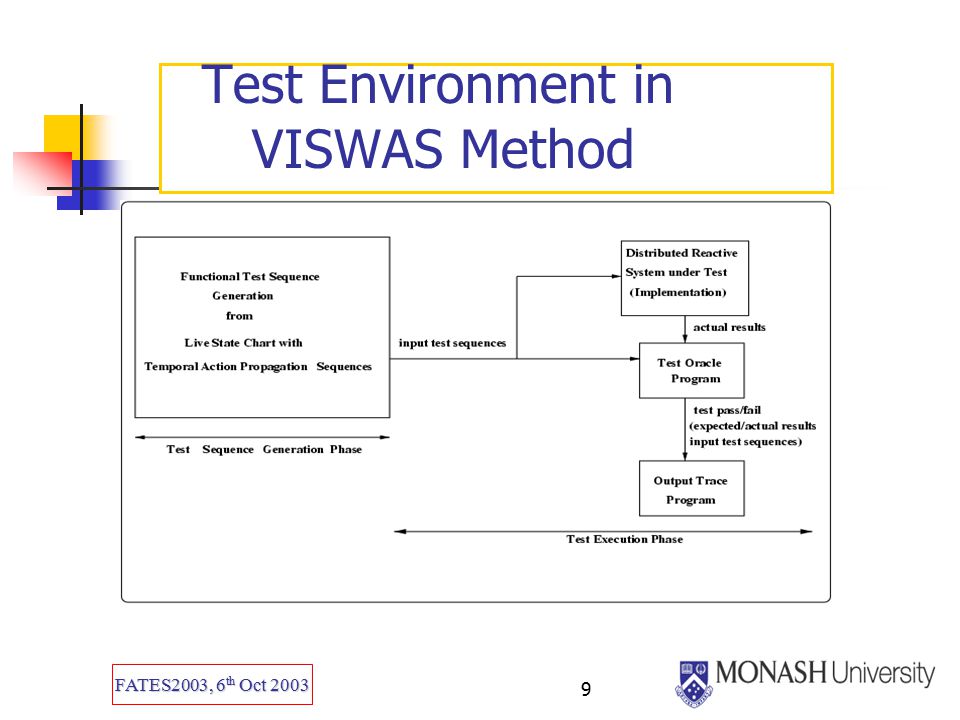

9. FATES2003, 6 th Oct 2003 9 Test Environment in VISWAS Method

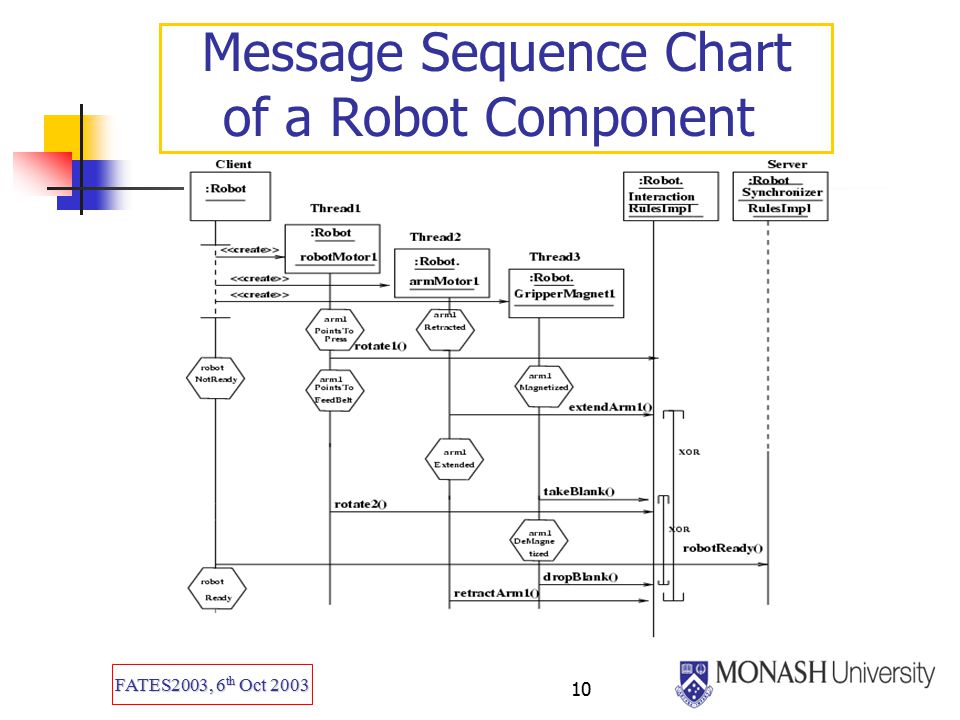

10. FATES2003, 6 th Oct 2003 10 Message Sequence Chart of a Robot Component

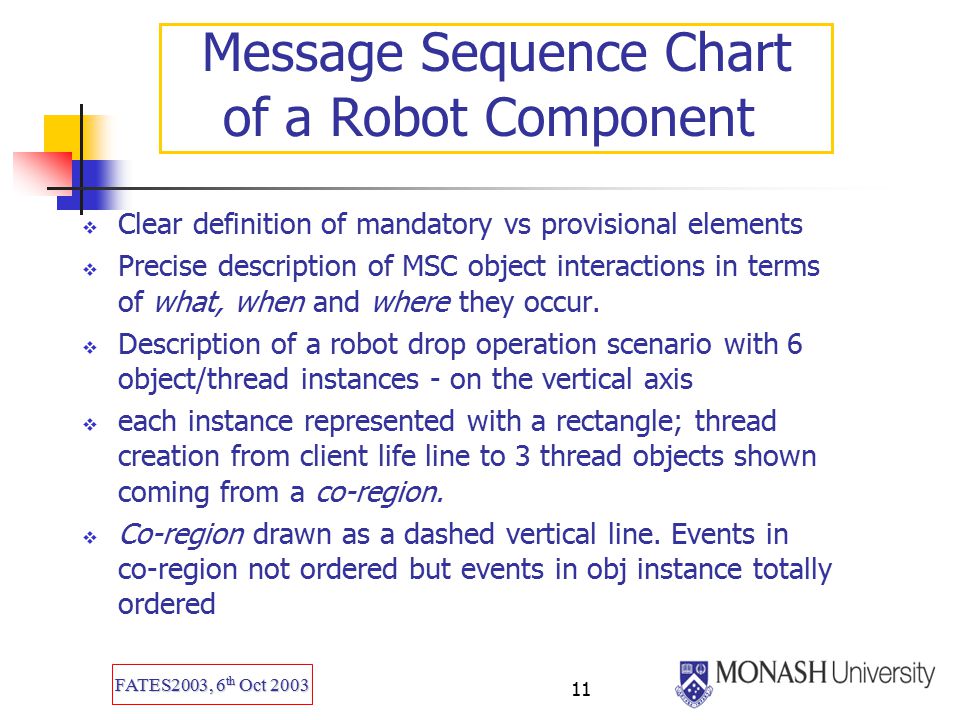

11. FATES2003, 6 th Oct 2003 11 Message Sequence Chart of a Robot Component  Clear definition of mandatory vs provisional elements  Precise description of MSC object interactions in terms of what, when and where they occur.  Description of a robot drop operation scenario with 6 object/thread instances - on the vertical axis  each instance represented with a rectangle; thread creation from client life line to 3 thread objects shown coming from a co-region.  Co-region drawn as a dashed vertical line. Events in co-region not ordered but events in obj instance totally ordered

12. FATES2003, 6 th Oct 2003 12 Message Sequence Chart of a Robot Component robotMotor1 arm1PointstoPress  A hexagon crossing over an instance represents the condition to be satisfied by the instance during execution. E.g. robotMotor1 thread must be in arm1PointstoPress state at the start of this scenario  shared condition represented by hexagons crossing over 2 or more objects  A horizontal arrow means communication via message passing between 2 instances  server object shown with a dashed line to show existentiality - it need not be alive until all the thread events of the robot component object, rotate1(), extendArm1(), takeBlank(), rotate2() have happened

13. FATES2003, 6 th Oct 2003 13 Message Sequence Chart of a Robot Component  Two extensions to MSC notation were introduced  a textual annotation - XOR to show mutual exclusion  a timeline shown as a solid line that stretches between the 2 mutually exclusive methods. Timeline has a cap at the top & bottom of the line. Cap introduced to ensure clarity in the depiction of the scope of mutually exclusive methods  Aim was to integrate MSCs and statecharts in the development and testing process

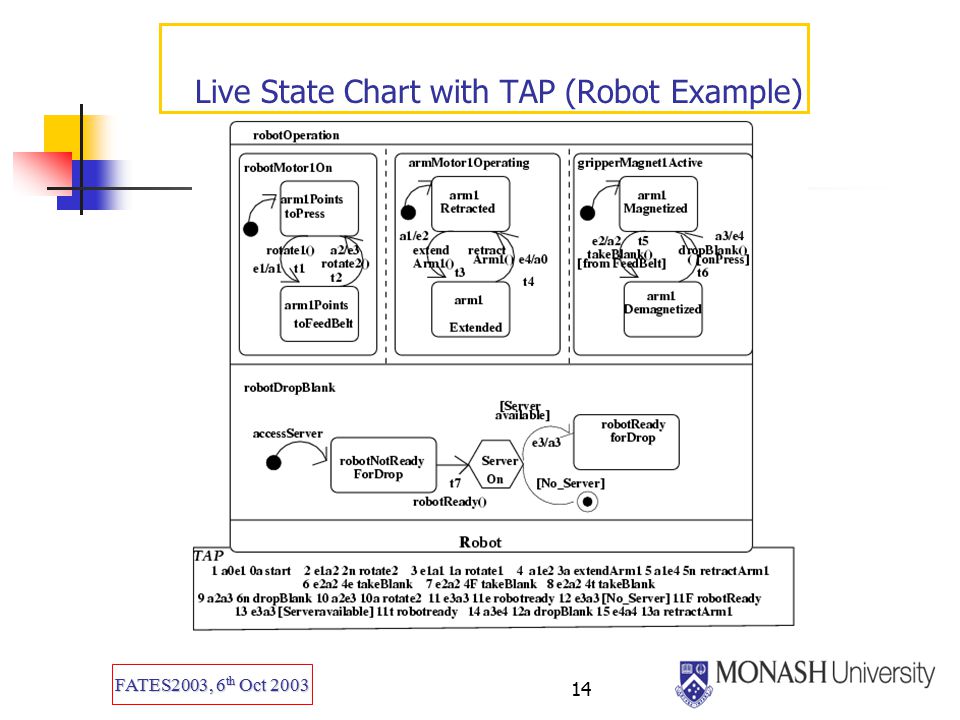

14. FATES2003, 6 th Oct 2003 14 Live State Chart with TAP (Robot Example)

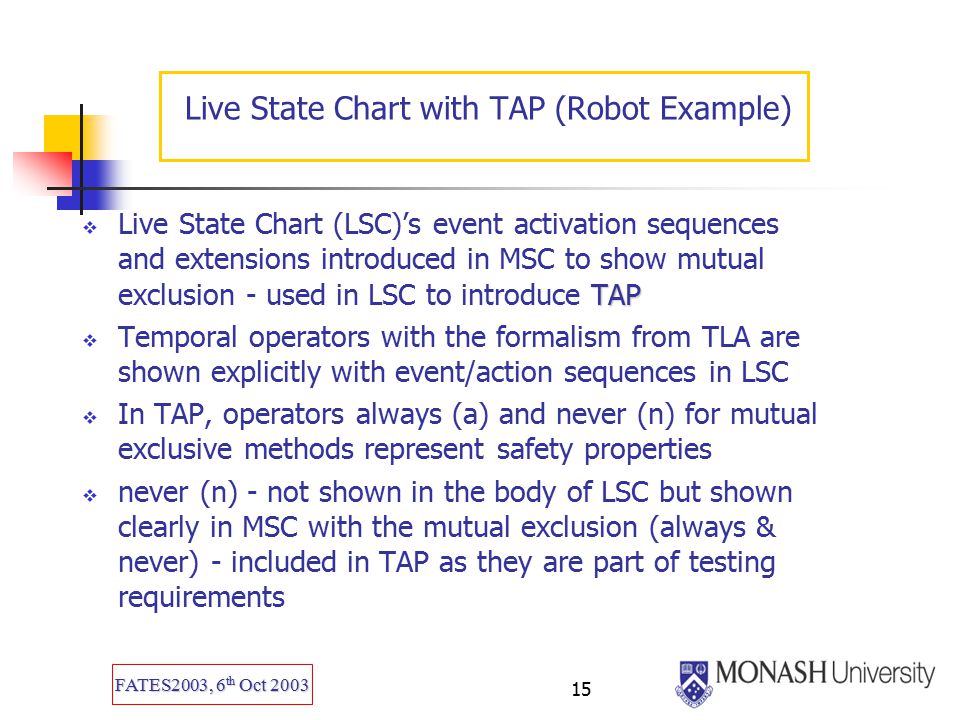

15. FATES2003, 6 th Oct 2003 15 Live State Chart with TAP (Robot Example) TAP  Live State Chart (LSC)’s event activation sequences and extensions introduced in MSC to show mutual exclusion - used in LSC to introduce TAP  Temporal operators with the formalism from TLA are shown explicitly with event/action sequences in LSC  In TAP, operators always (a) and never (n) for mutual exclusive methods represent safety properties  never (n) - not shown in the body of LSC but shown clearly in MSC with the mutual exclusion (always & never) - included in TAP as they are part of testing requirements

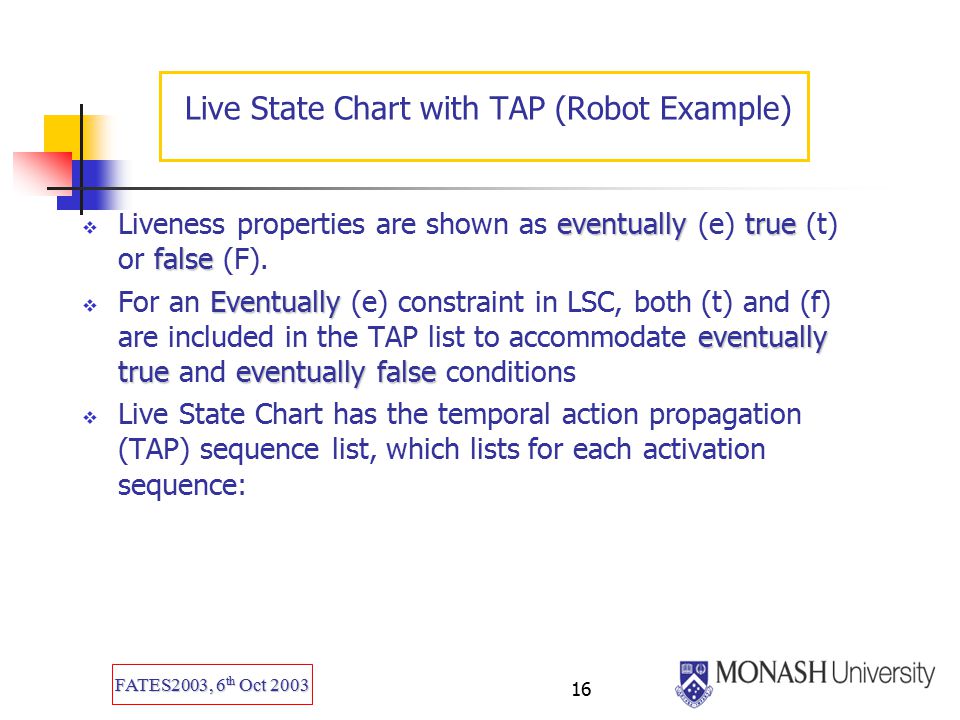

16. FATES2003, 6 th Oct 2003 16 Live State Chart with TAP (Robot Example) eventuallytrue false  Liveness properties are shown as eventually (e) true (t) or false (F). Eventually eventually trueeventually false  For an Eventually (e) constraint in LSC, both (t) and (f) are included in the TAP list to accommodate eventually true and eventually false conditions  Live State Chart has the temporal action propagation (TAP) sequence list, which lists for each activation sequence:

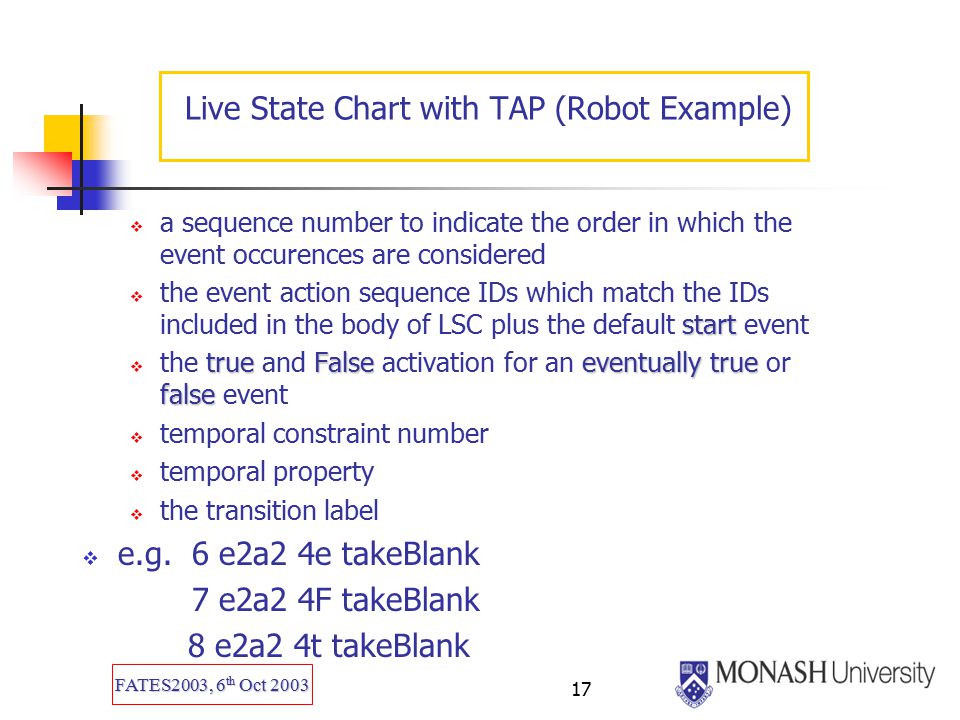

17. FATES2003, 6 th Oct 2003 17 Live State Chart with TAP (Robot Example)  a sequence number to indicate the order in which the event occurences are considered start  the event action sequence IDs which match the IDs included in the body of LSC plus the default start event trueFalseeventually true false  the true and False activation for an eventually true or false event  temporal constraint number  temporal property  the transition label  e.g. 6 e2a2 4e takeBlank 7 e2a2 4F takeBlank 8 e2a2 4t takeBlank

18. FATES2003, 6 th Oct 2003 18 Event Pairs

19. FATES2003, 6 th Oct 2003 19 Event Tree

20. FATES2003, 6 th Oct 2003 20 Test Sequence Generation Phase

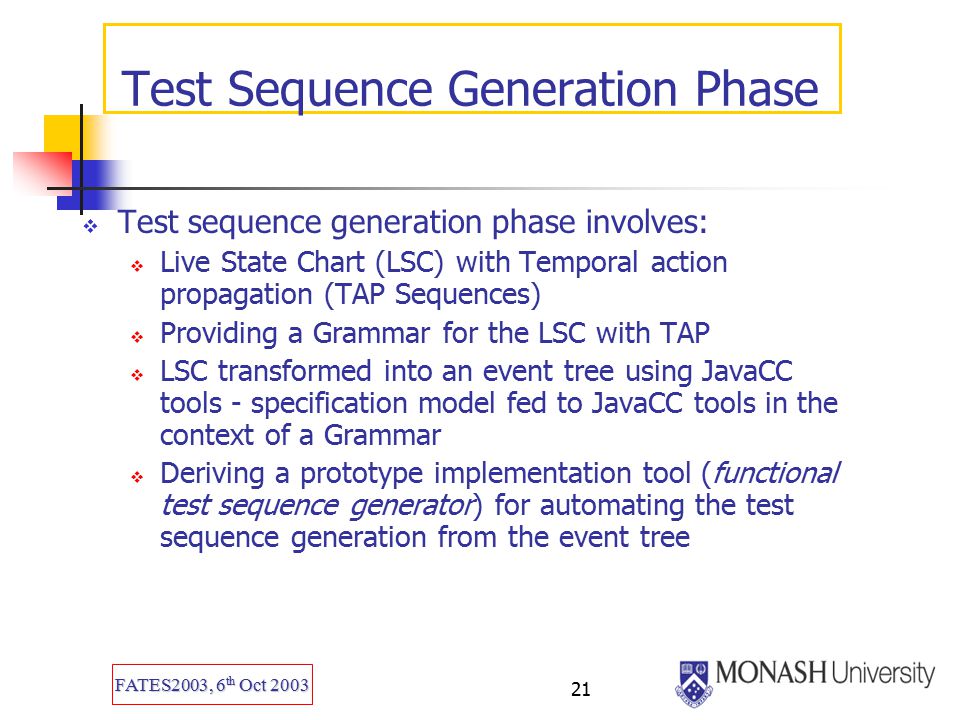

21. FATES2003, 6 th Oct 2003 21 Test Sequence Generation Phase  Test sequence generation phase involves:  Live State Chart (LSC) with Temporal action propagation (TAP Sequences)  Providing a Grammar for the LSC with TAP  LSC transformed into an event tree using JavaCC tools - specification model fed to JavaCC tools in the context of a Grammar  Deriving a prototype implementation tool (functional test sequence generator) for automating the test sequence generation from the event tree

22. FATES2003, 6 th Oct 2003 22 From Testability to Diagnosability aspects  Testability and diagnosability - related attributes – when building, measuring & predicting the correctness & robustness of software components  Testability viewed as software design quality attribute – Defined in IEEE std.610.12-1990 as “the degree to which a system or component facilitates the establishment of test criteria and the performance of tests to determine whether those criteria have been met”  Diagnosability is a wider notion than testability and encompasses finding information or explanation about the state of a system under test and includes faults & no faults

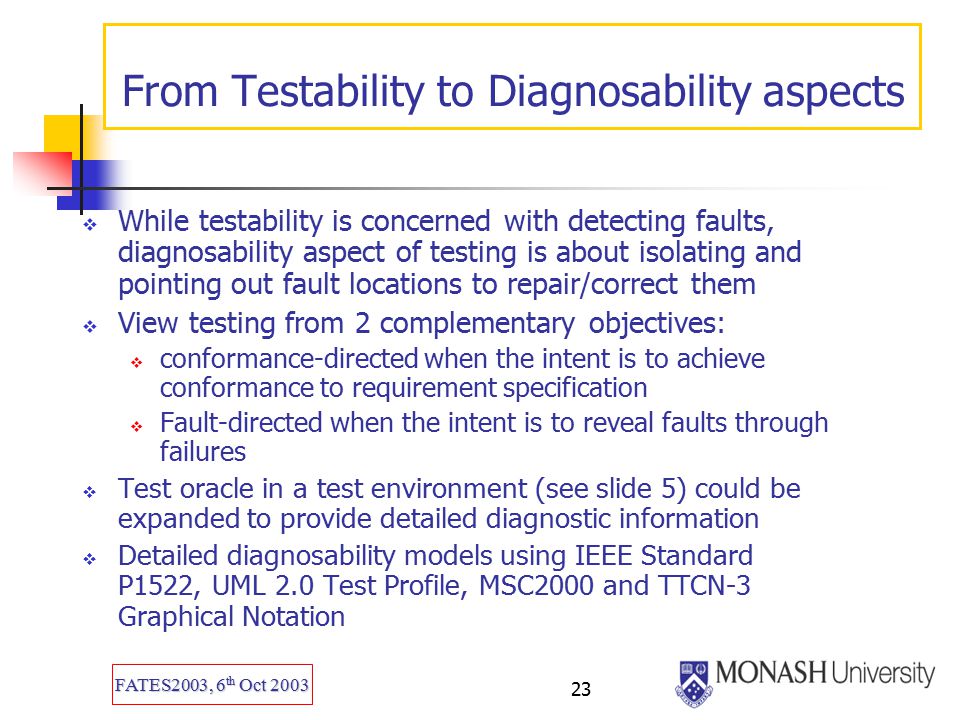

23. FATES2003, 6 th Oct 2003 23 From Testability to Diagnosability aspects  While testability is concerned with detecting faults, diagnosability aspect of testing is about isolating and pointing out fault locations to repair/correct them  View testing from 2 complementary objectives:  conformance-directed when the intent is to achieve conformance to requirement specification  Fault-directed when the intent is to reveal faults through failures  Test oracle in a test environment (see slide 5) could be expanded to provide detailed diagnostic information  Detailed diagnosability models using IEEE Standard P1522, UML 2.0 Test Profile, MSC2000 and TTCN-3 Graphical Notation

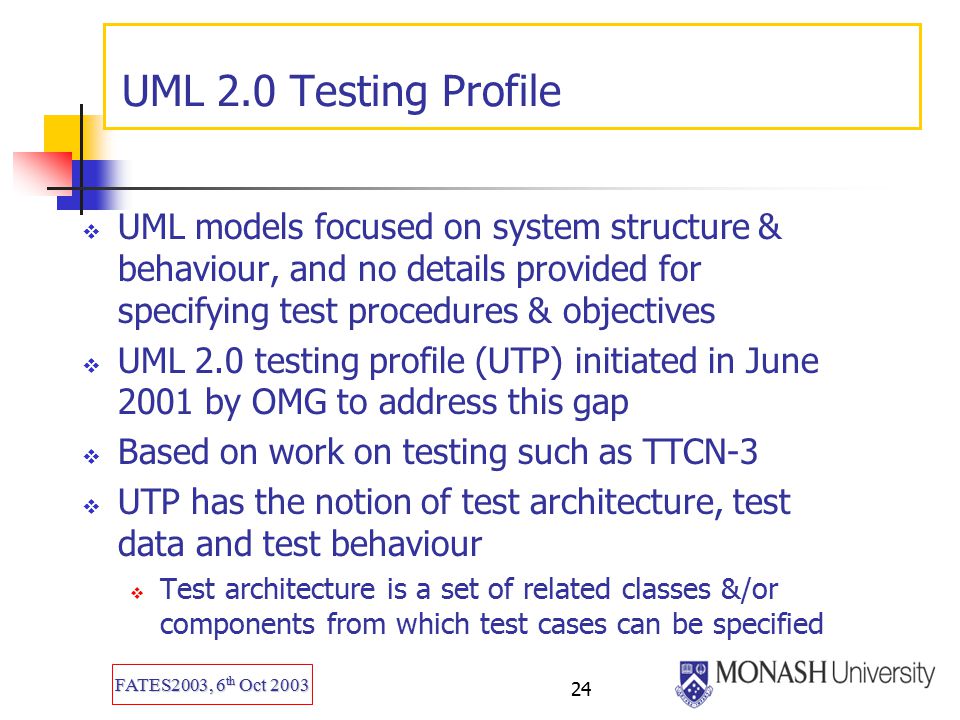

24. FATES2003, 6 th Oct 2003 24 UML 2.0 Testing Profile  UML models focused on system structure & behaviour, and no details provided for specifying test procedures & objectives  UML 2.0 testing profile (UTP) initiated in June 2001 by OMG to address this gap  Based on work on testing such as TTCN-3  UTP has the notion of test architecture, test data and test behaviour  Test architecture is a set of related classes &/or components from which test cases can be specified

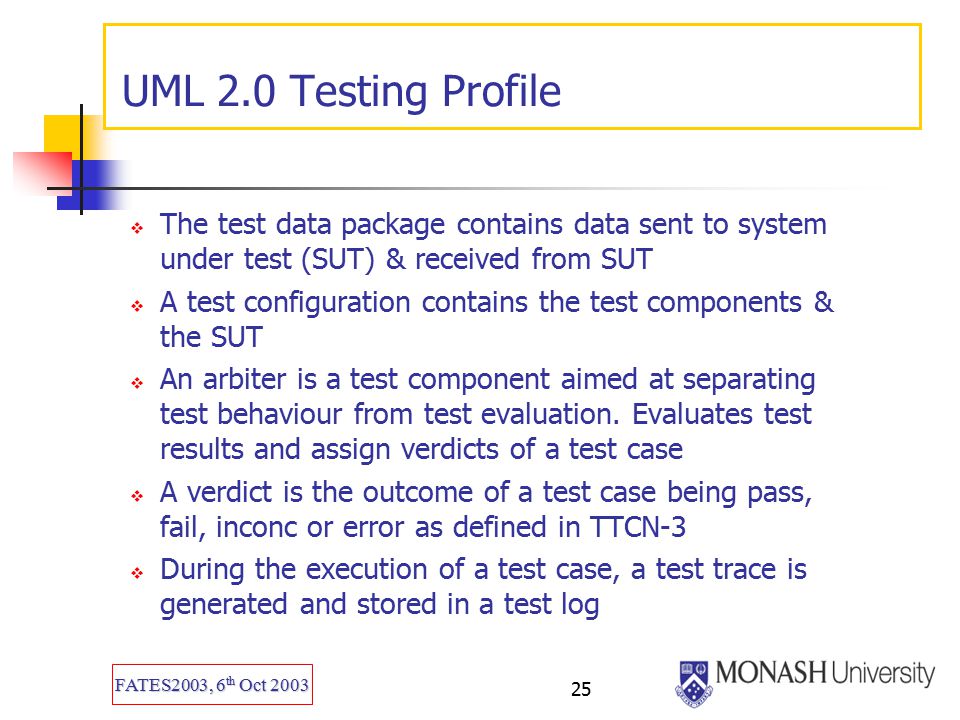

25. FATES2003, 6 th Oct 2003 25 UML 2.0 Testing Profile  The test data package contains data sent to system under test (SUT) & received from SUT  A test configuration contains the test components & the SUT  An arbiter is a test component aimed at separating test behaviour from test evaluation. Evaluates test results and assign verdicts of a test case  A verdict is the outcome of a test case being pass, fail, inconc or error as defined in TTCN-3  During the execution of a test case, a test trace is generated and stored in a test log

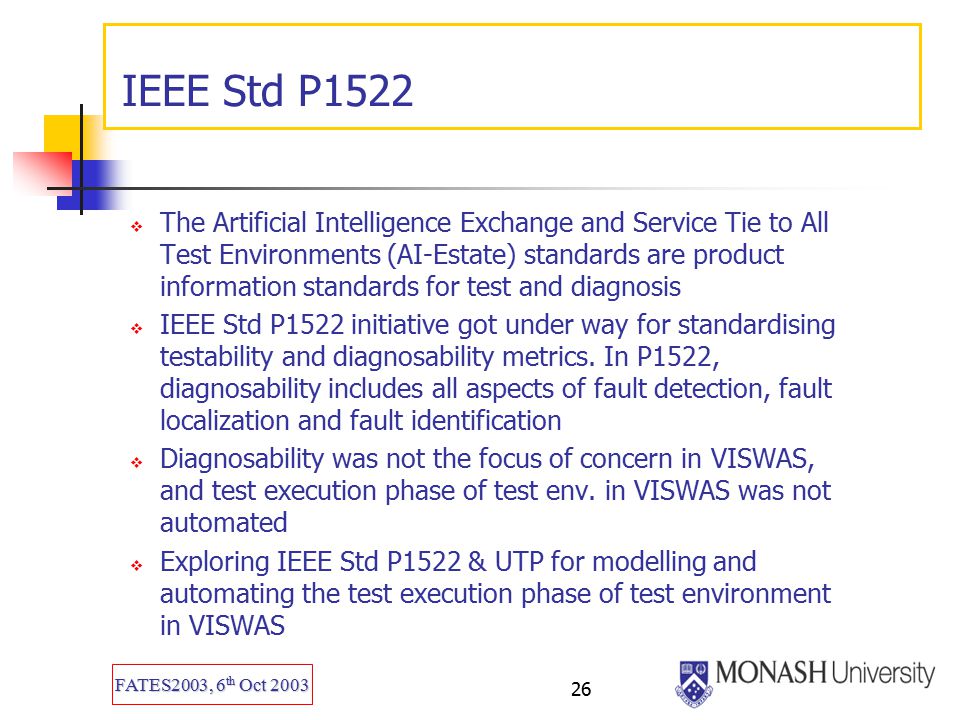

26. FATES2003, 6 th Oct 2003 26 IEEE Std P1522  The Artificial Intelligence Exchange and Service Tie to All Test Environments (AI-Estate) standards are product information standards for test and diagnosis  IEEE Std P1522 initiative got under way for standardising testability and diagnosability metrics. In P1522, diagnosability includes all aspects of fault detection, fault localization and fault identification  Diagnosability was not the focus of concern in VISWAS, and test execution phase of test env. in VISWAS was not automated  Exploring IEEE Std P1522 & UTP for modelling and automating the test execution phase of test environment in VISWAS

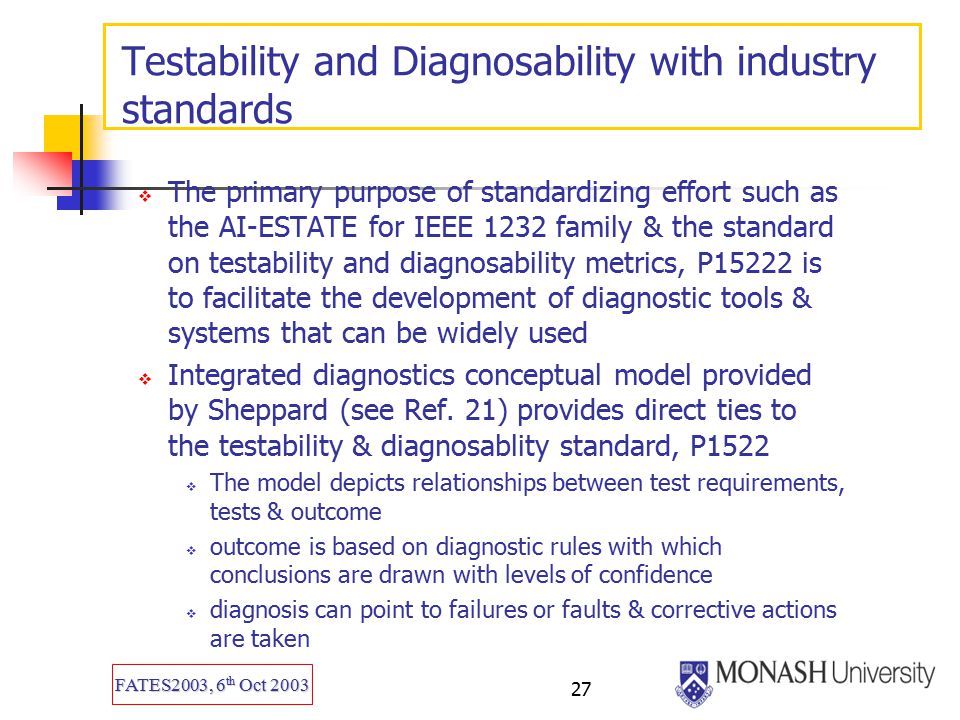

27. FATES2003, 6 th Oct 2003 27 Testability and Diagnosability with industry standards  The primary purpose of standardizing effort such as the AI-ESTATE for IEEE 1232 family & the standard on testability and diagnosability metrics, P15222 is to facilitate the development of diagnostic tools & systems that can be widely used  Integrated diagnostics conceptual model provided by Sheppard (see Ref. 21) provides direct ties to the testability & diagnosablity standard, P1522  The model depicts relationships between test requirements, tests & outcome  outcome is based on diagnostic rules with which conclusions are drawn with levels of confidence  diagnosis can point to failures or faults & corrective actions are taken

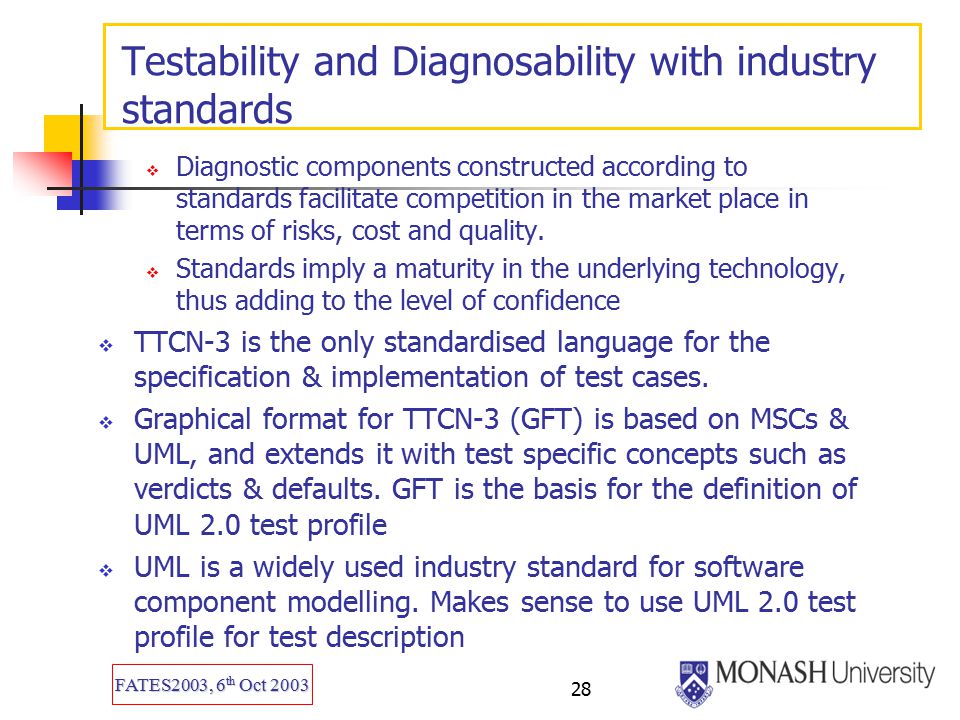

28. FATES2003, 6 th Oct 2003 28 Testability and Diagnosability with industry standards  Diagnostic components constructed according to standards facilitate competition in the market place in terms of risks, cost and quality.  Standards imply a maturity in the underlying technology, thus adding to the level of confidence  TTCN-3 is the only standardised language for the specification & implementation of test cases.  Graphical format for TTCN-3 (GFT) is based on MSCs & UML, and extends it with test specific concepts such as verdicts & defaults. GFT is the basis for the definition of UML 2.0 test profile  UML is a widely used industry standard for software component modelling. Makes sense to use UML 2.0 test profile for test description

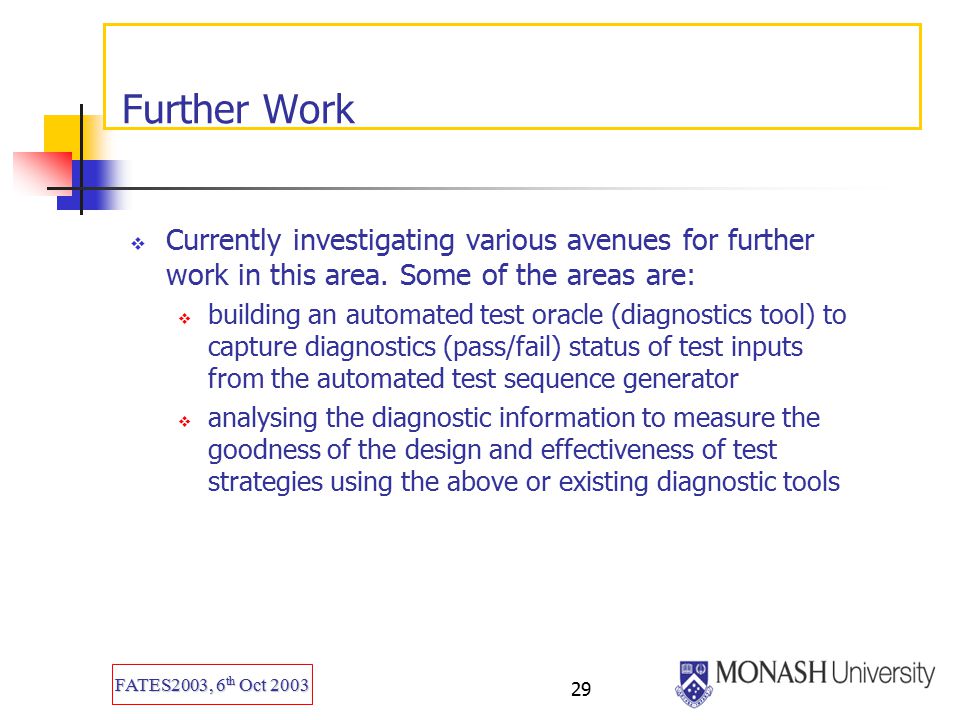

29. FATES2003, 6 th Oct 2003 29 Further Work  Currently investigating various avenues for further work in this area. Some of the areas are:  building an automated test oracle (diagnostics tool) to capture diagnostics (pass/fail) status of test inputs from the automated test sequence generator  analysing the diagnostic information to measure the goodness of the design and effectiveness of test strategies using the above or existing diagnostic tools
