1. Underwater Archaeology at Port Royal, Jamaica ATAMU/INA PROJECT

2. QUESTIONS TO BE CONSIDERED n n 1. How was the site found? n n 2. How was the site excavated? n n 3. What was found? n n 4. How were questions answered? n n ---- Keeping in mind that any excavation of an underwater site is going to be more complicated than expected, more expensive than expected, and the analysis will go on much longer than expected and require the assistance of a number of different specialists!

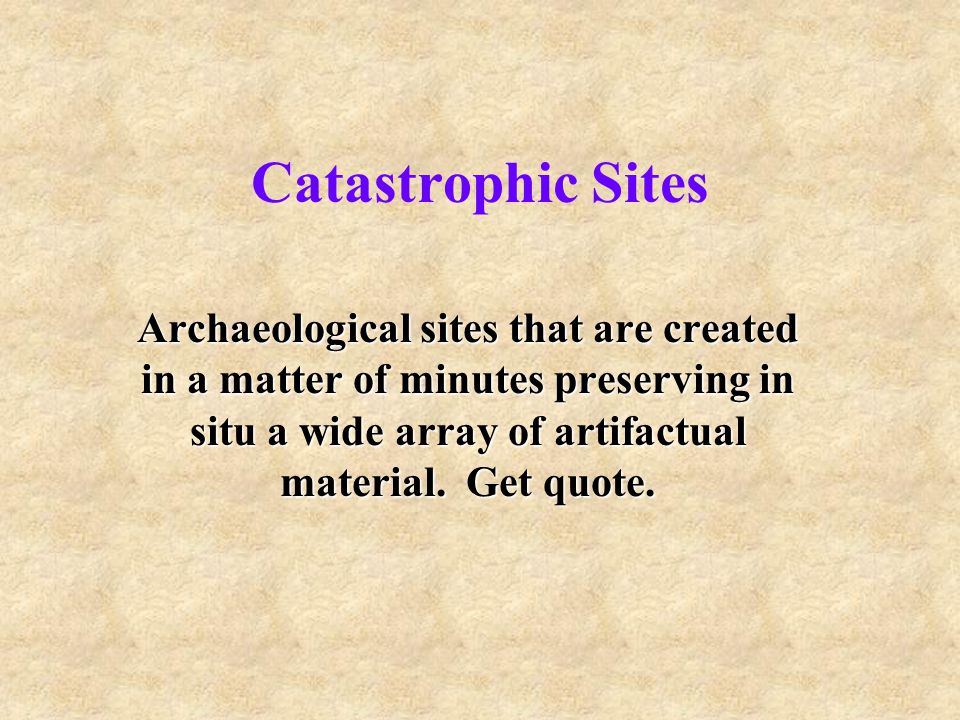

3. Catastrophic Sites Archaeological sites that are created in a matter of minutes preserving in situ a wide array of artifactual material. Get quote.

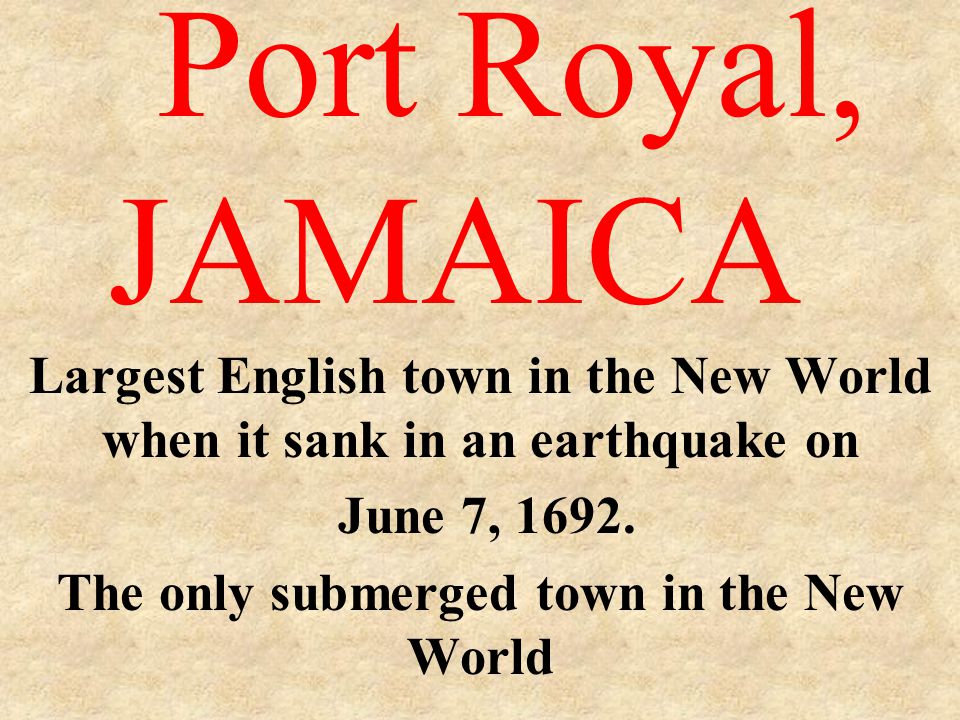

4. Port Royal, JAMAICA Largest English town in the New World when it sank in an earthquake on June 7, 1692. The only submerged town in the New World

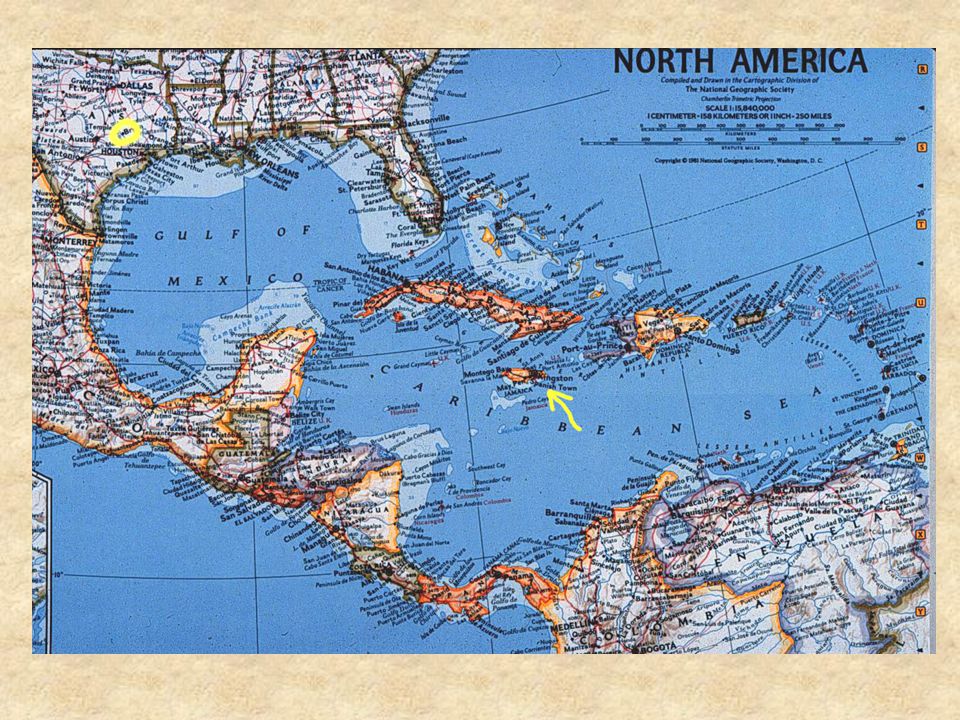

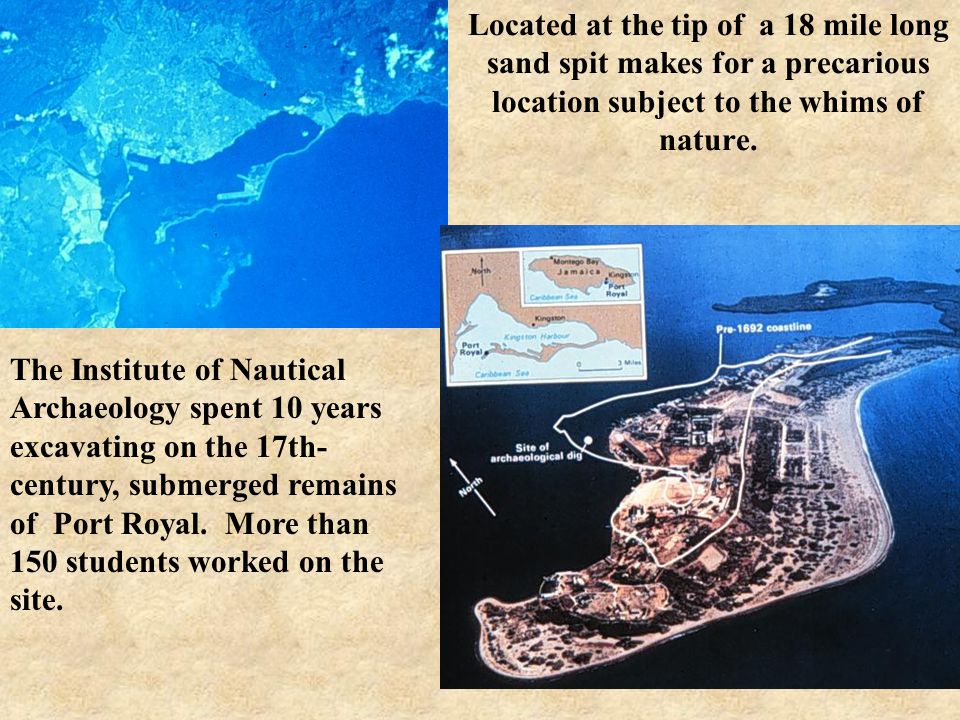

6. Located at the tip of a 18 mile long sand spit makes for a precarious location subject to the whims of nature. The Institute of Nautical Archaeology spent 10 years excavating on the 17th- century, submerged remains of Port Royal. More than 150 students worked on the site.

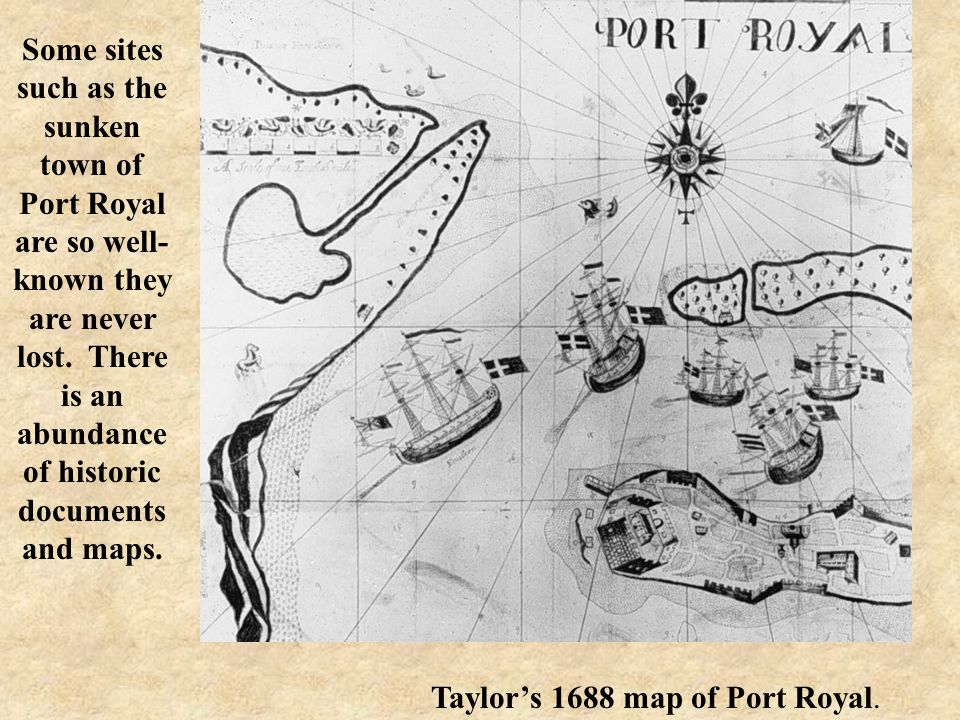

7. Some sites such as the sunken town of Port Royal are so well- known they are never lost. There is an abundance of historic documents and maps. Taylor’s 1688 map of Port Royal.

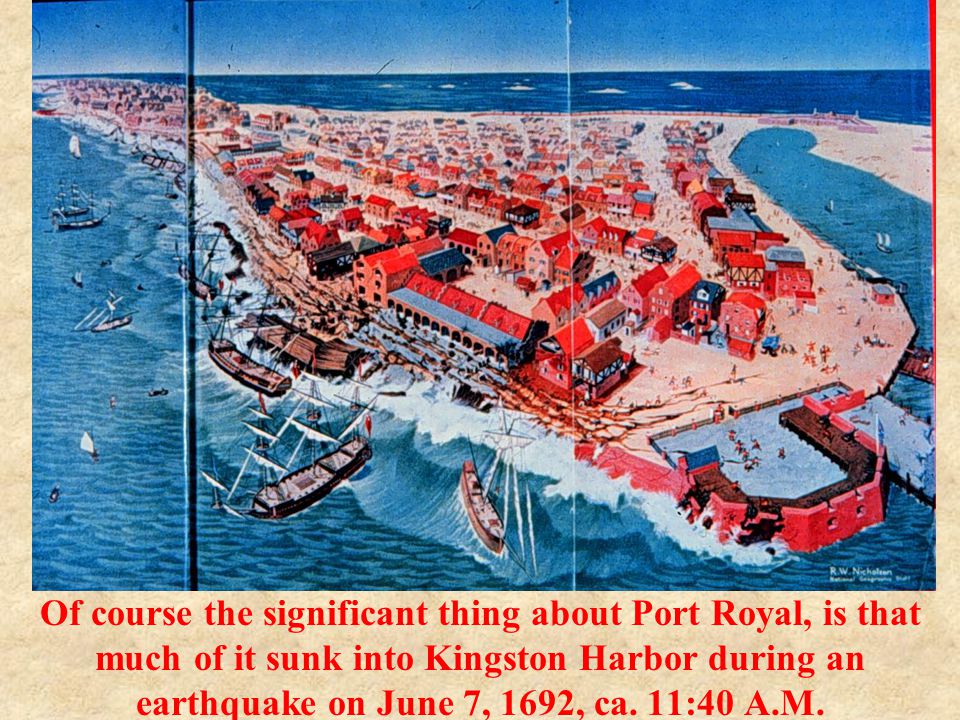

8. Of course the significant thing about Port Royal, is that much of it sunk into Kingston Harbor during an earthquake on June 7, 1692, ca. 11:40 A.M.

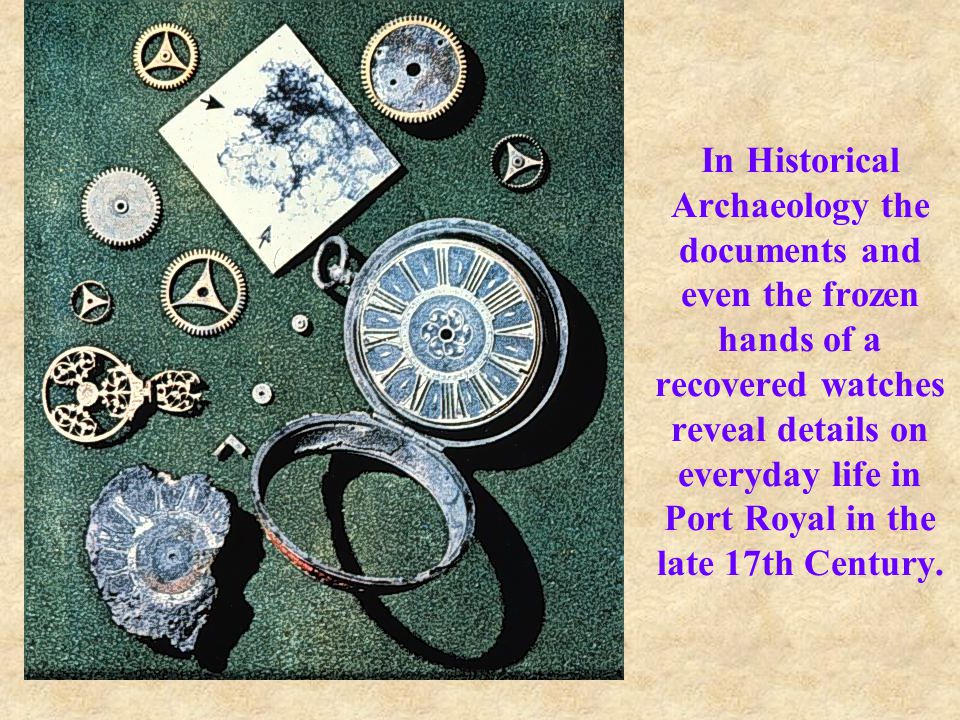

9. In Historical Archaeology the documents and even the frozen hands of a recovered watches reveal details on everyday life in Port Royal in the late 17th Century.

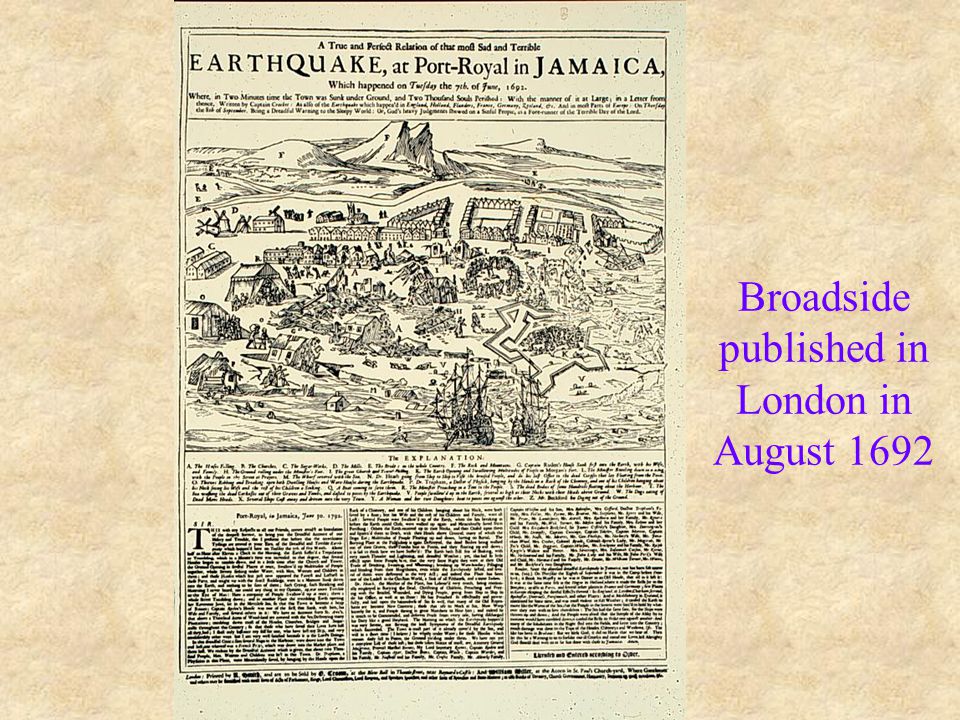

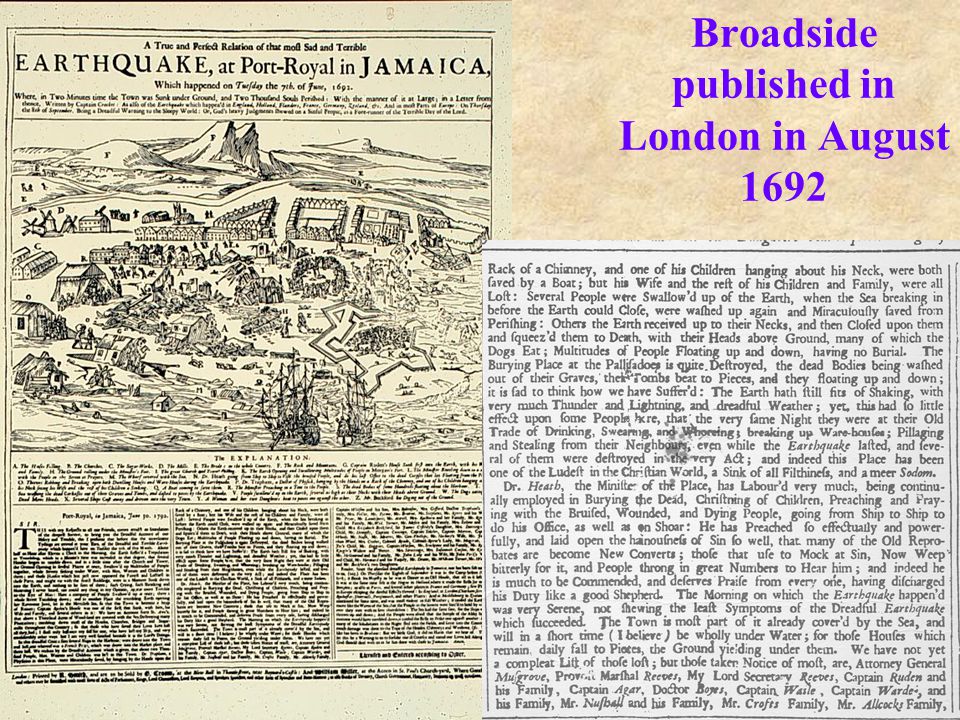

10. Broadside published in London in August 1692

11. Map of Port Royal, 1807

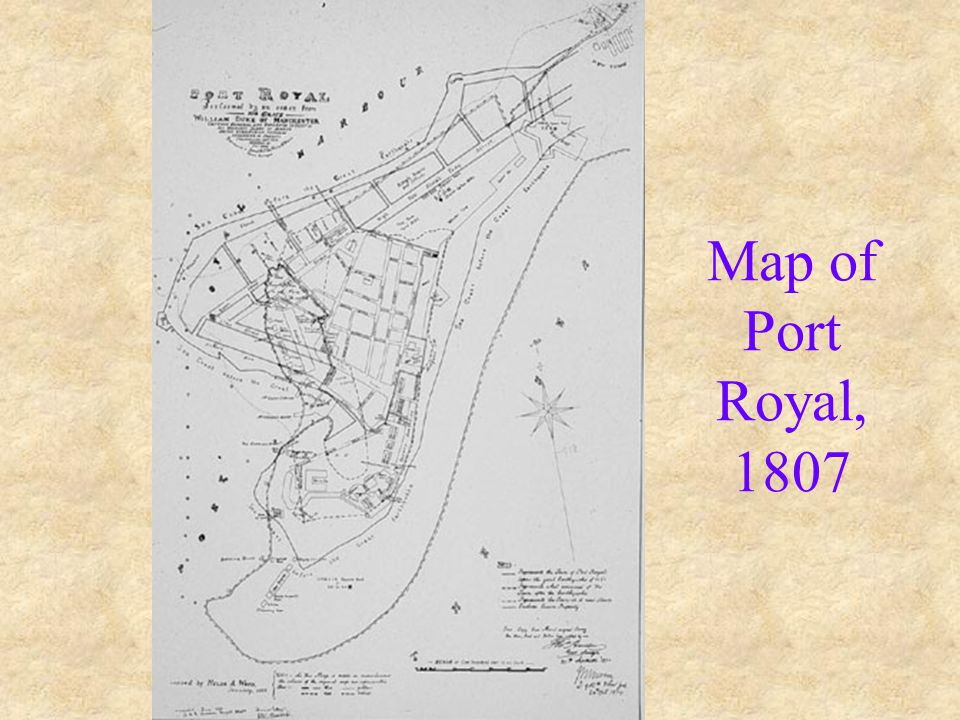

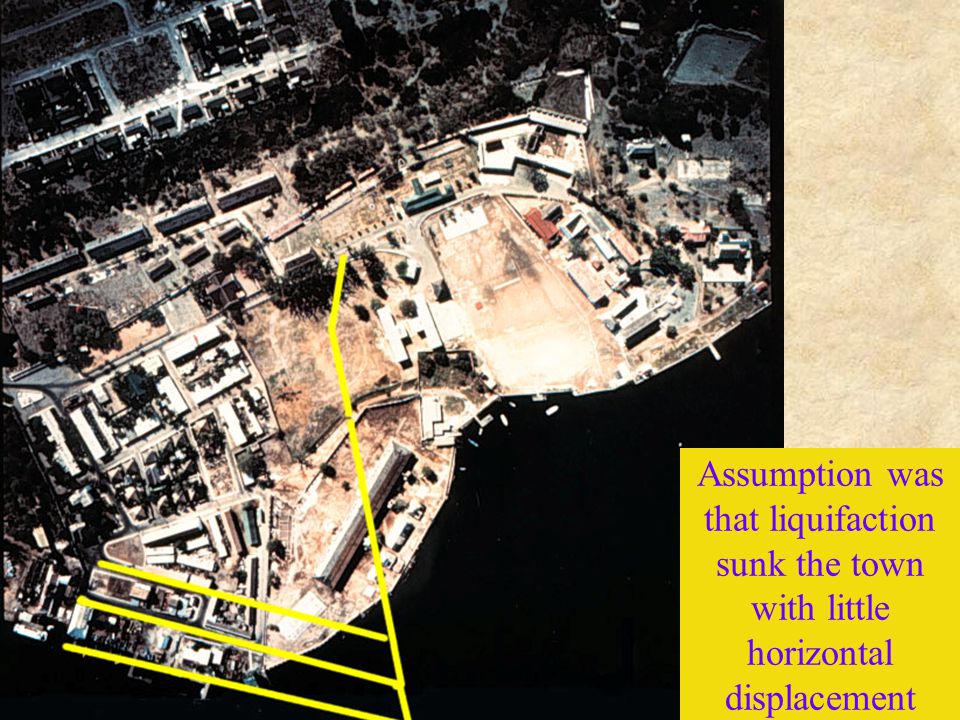

12. Assumption was that liquifaction sunk the town with little horizontal displacement

13. Land Support -- Living Quarters, Work Headquarters

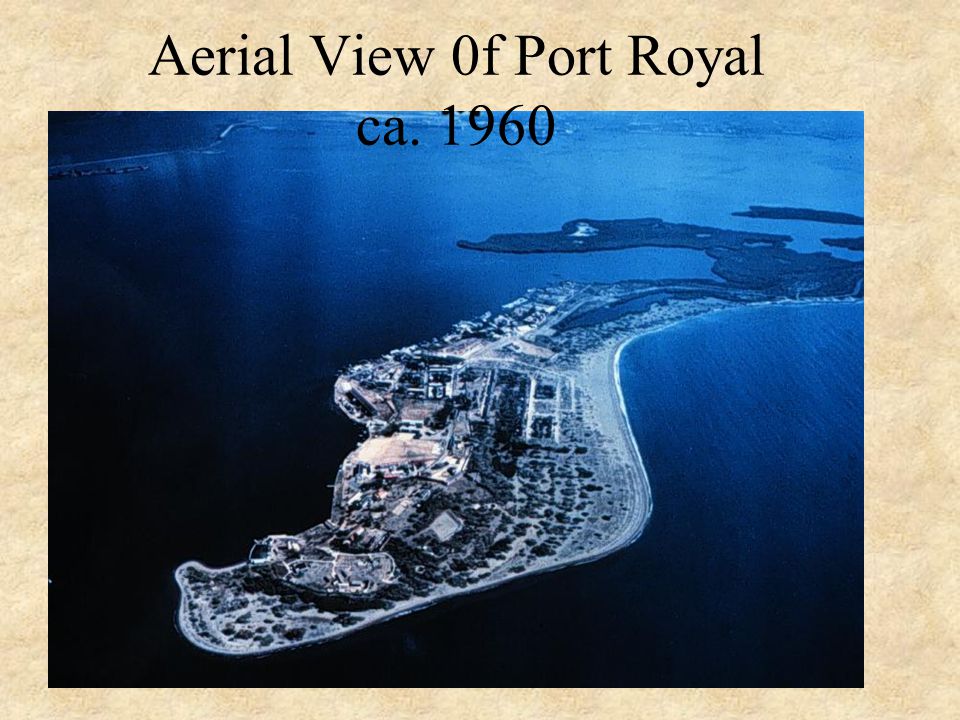

14. Aerial View 0f Port Royal ca. 1960

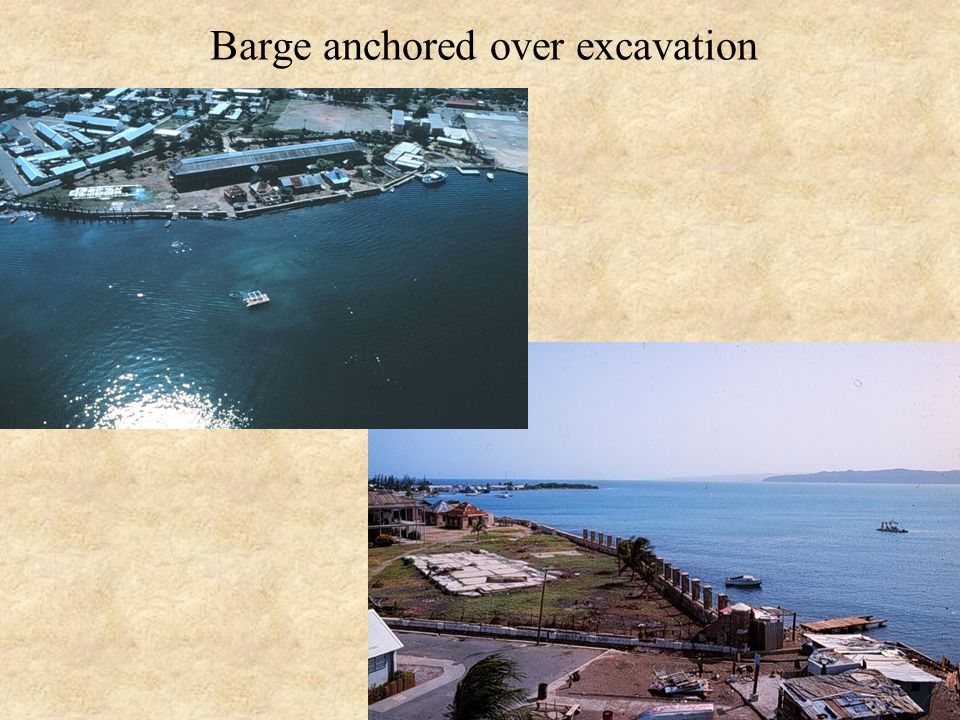

15. Barge anchored over excavation

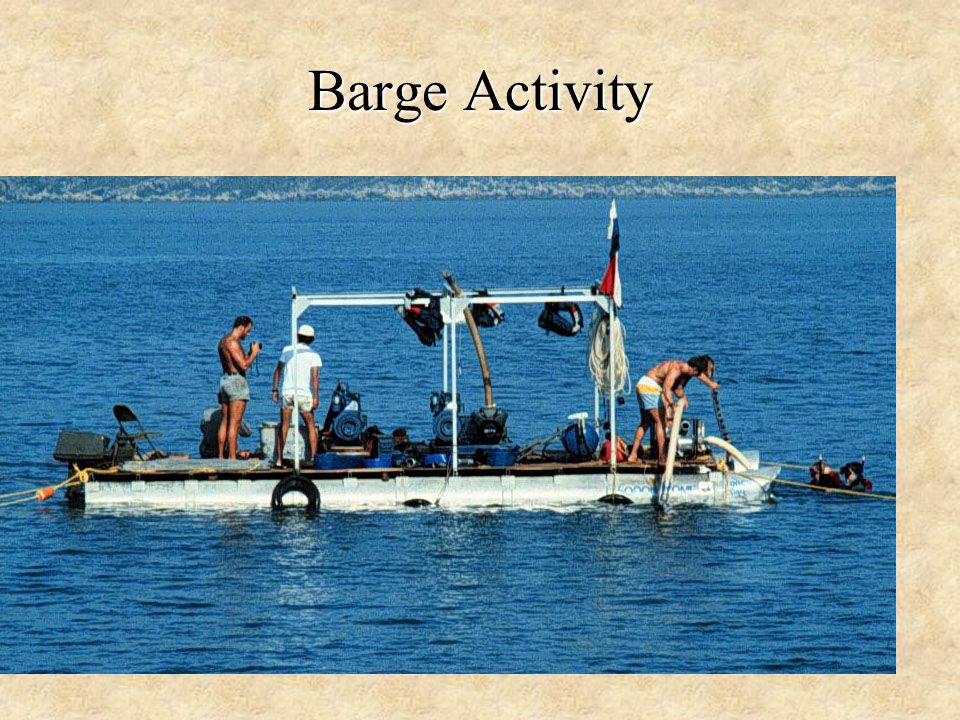

16. Barge Activity

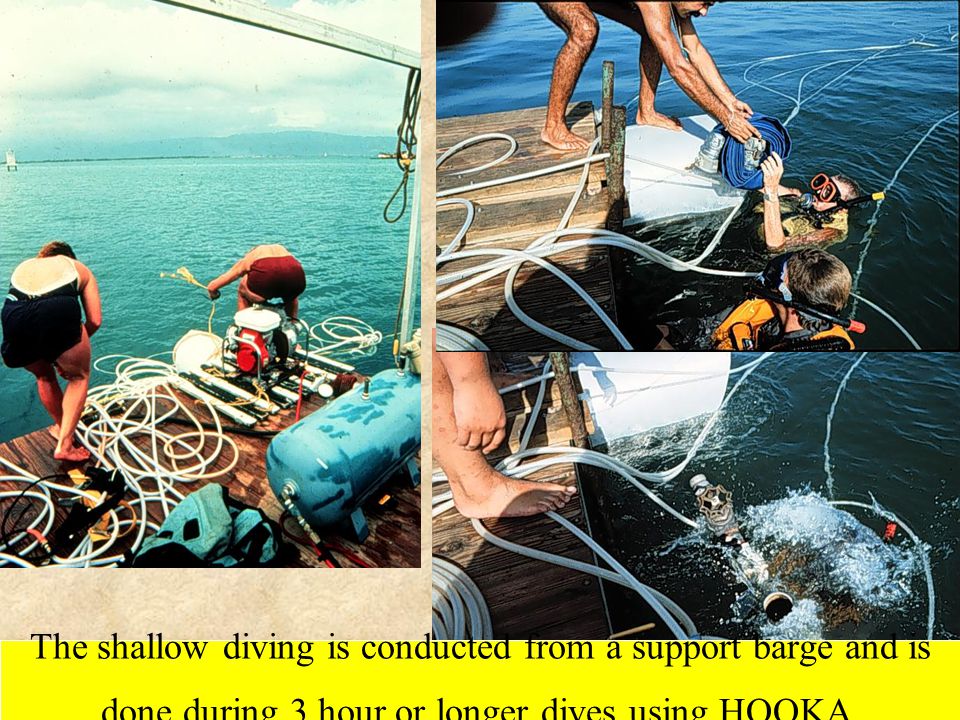

17. The shallow diving is conducted from a support barge and is done during 3 hour or longer dives using HOOKA.

18. Land view of dredges used to excavate.

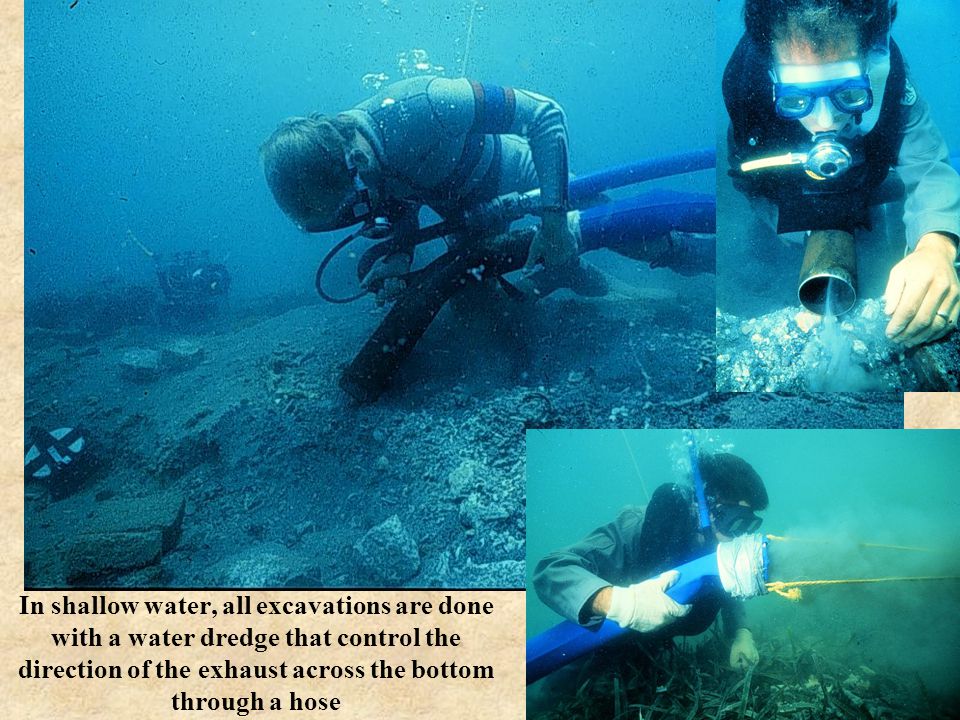

19. In shallow water, all excavations are done with a water dredge that control the direction of the exhaust across the bottom through a hose

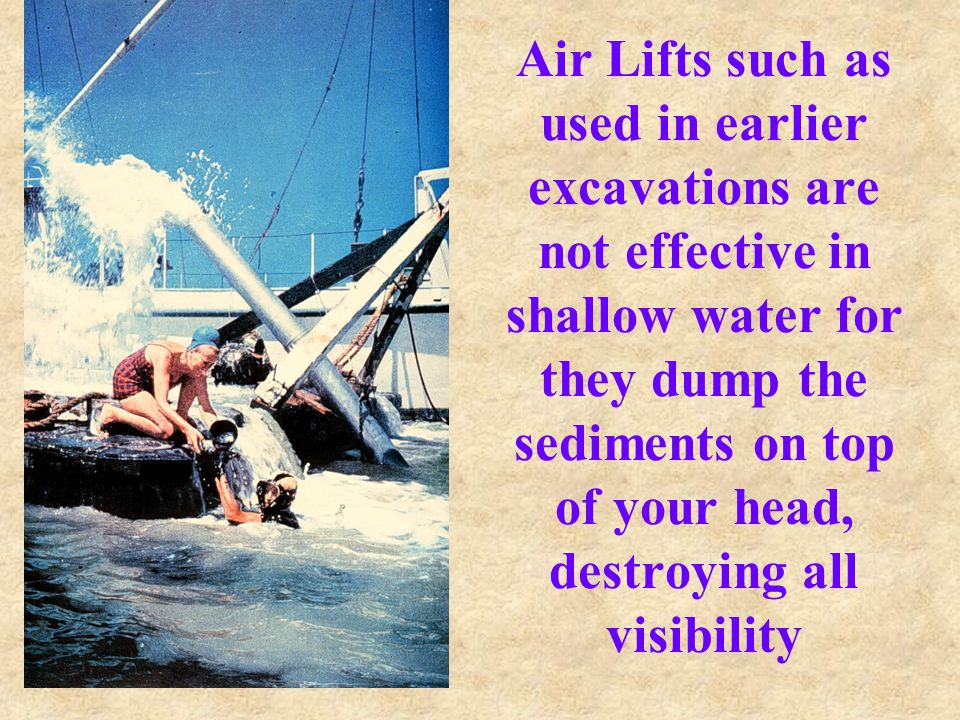

20. Air Lifts such as used in earlier excavations are not effective in shallow water for they dump the sediments on top of your head, destroying all visibility

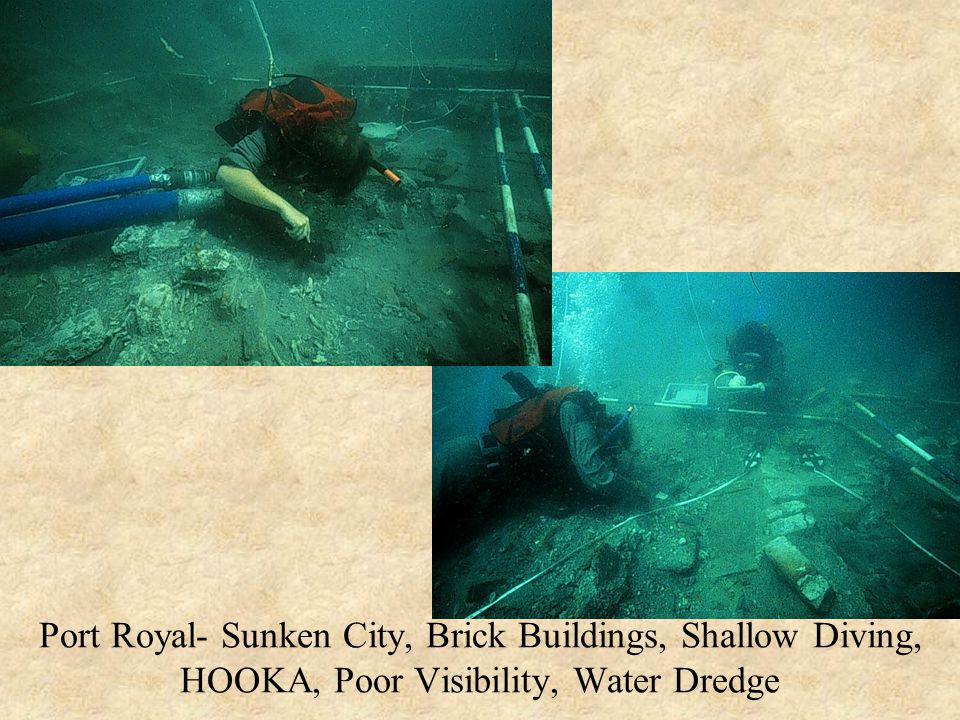

21. Port Royal- Sunken City, Brick Buildings, Shallow Diving, HOOKA, Poor Visibility, Water Dredge

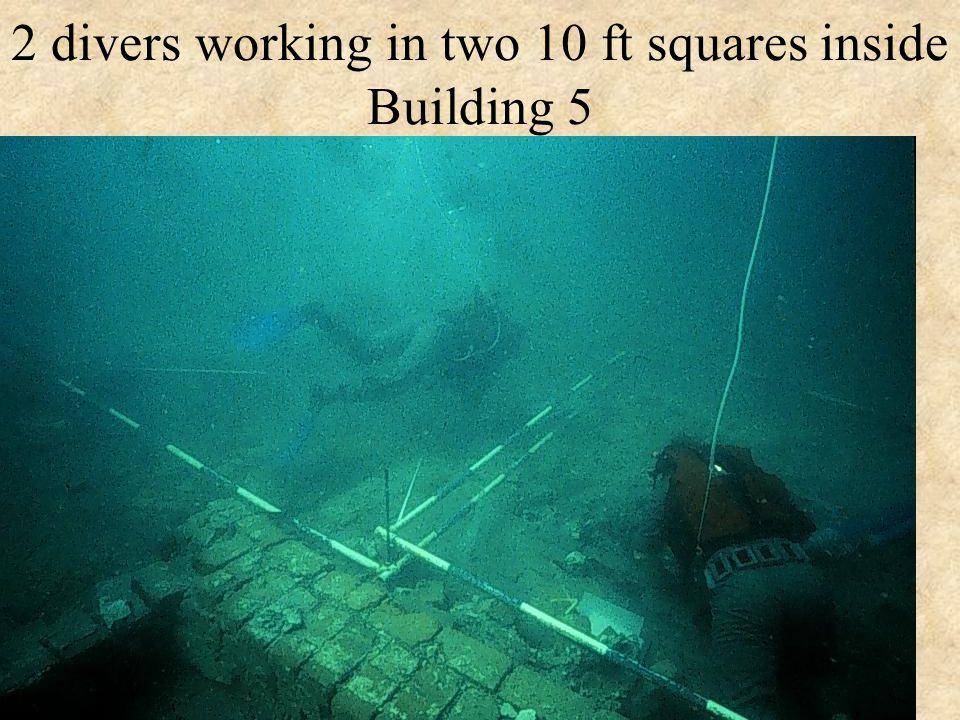

22. 2 divers working in two 10 ft squares inside Building 5

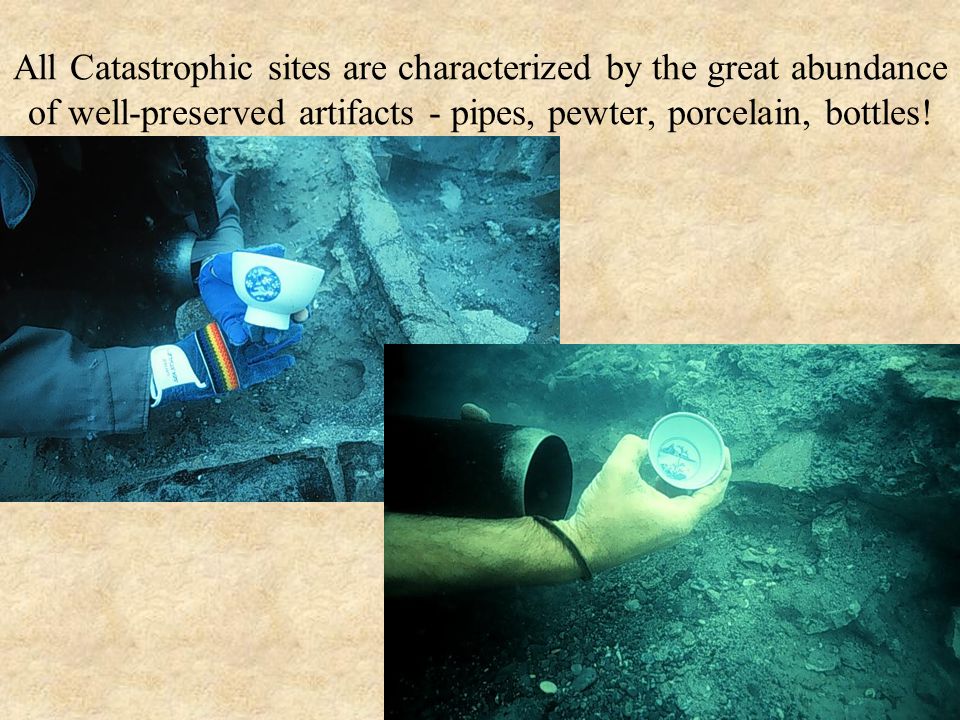

23. All Catastrophic sites are characterized by the great abundance of well-preserved artifacts - pipes, pewter, porcelain, bottles!

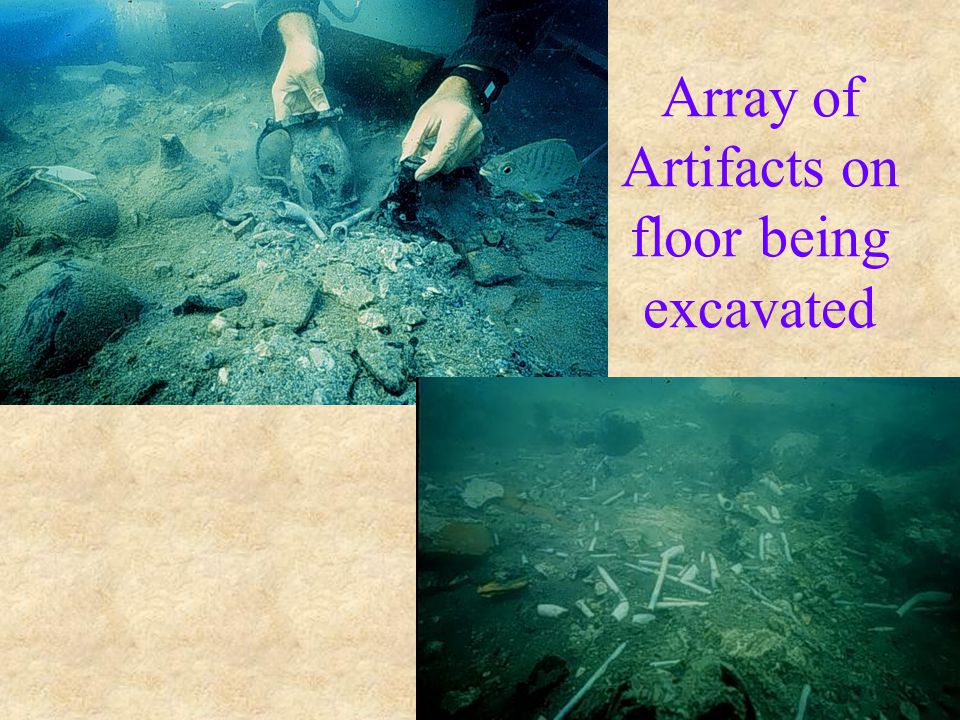

24. Array of Artifacts on floor being excavated

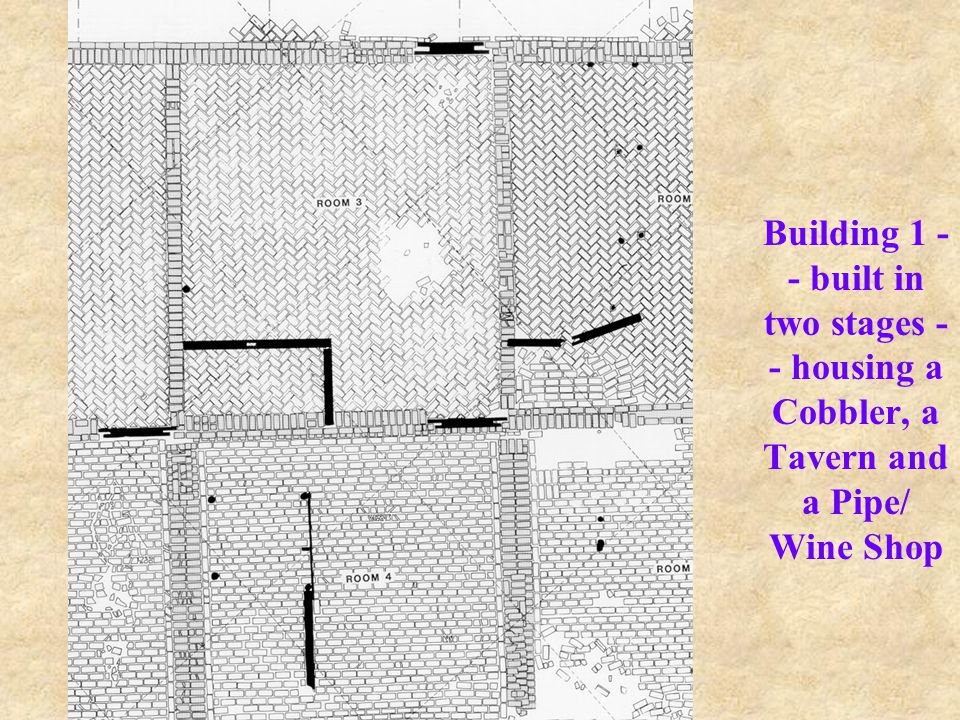

25. Building 1 - - built in two stages - - housing a Cobbler, a Tavern and a Pipe/ Wine Shop

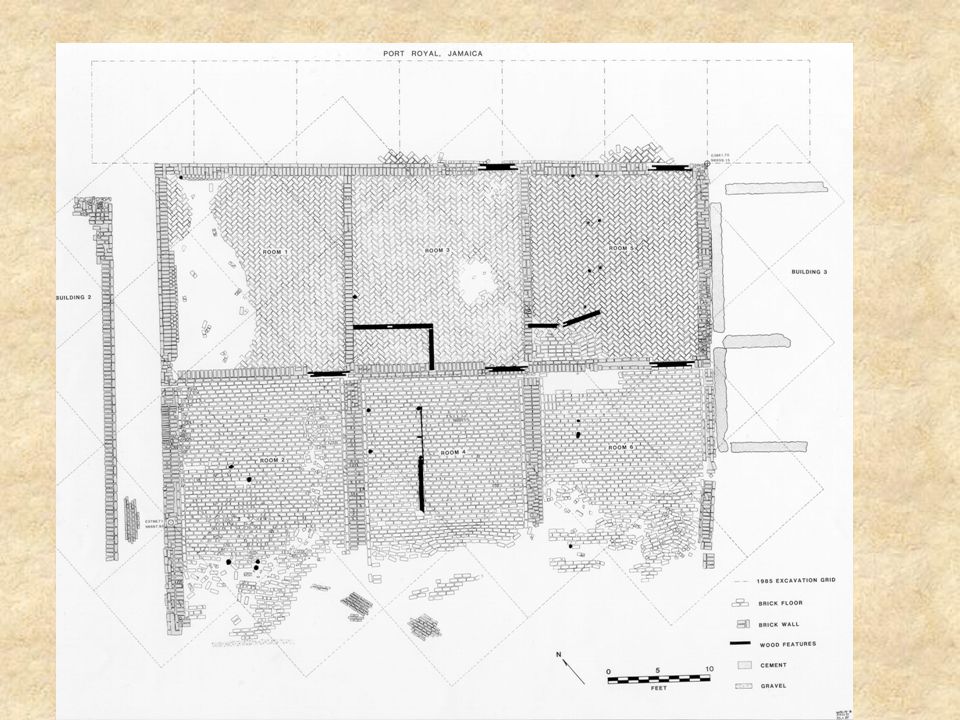

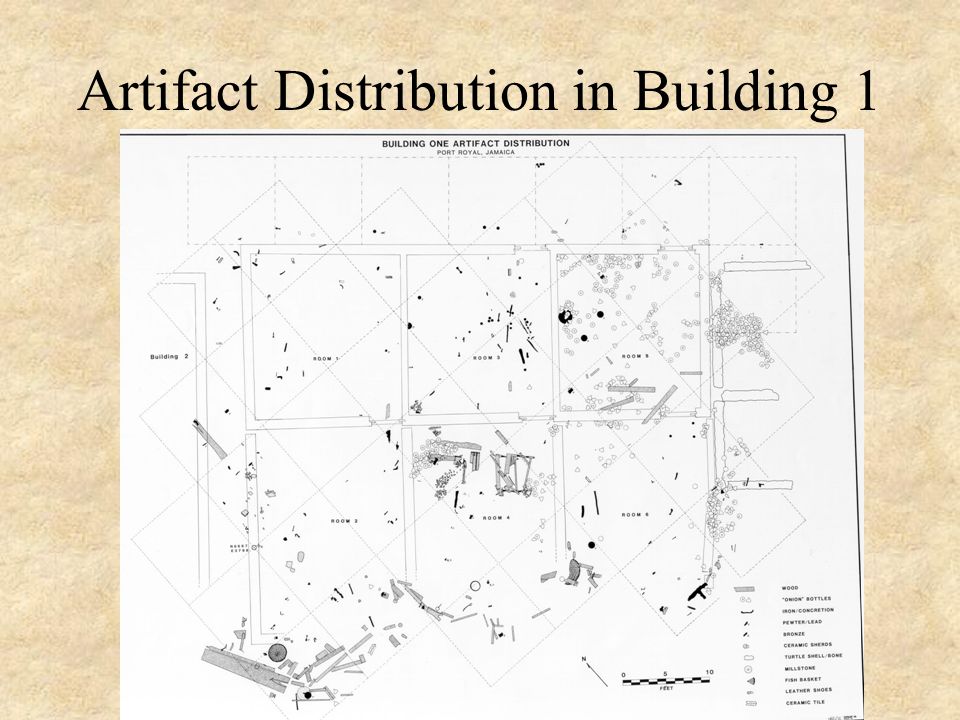

27. Artifact Distribution in Building 1

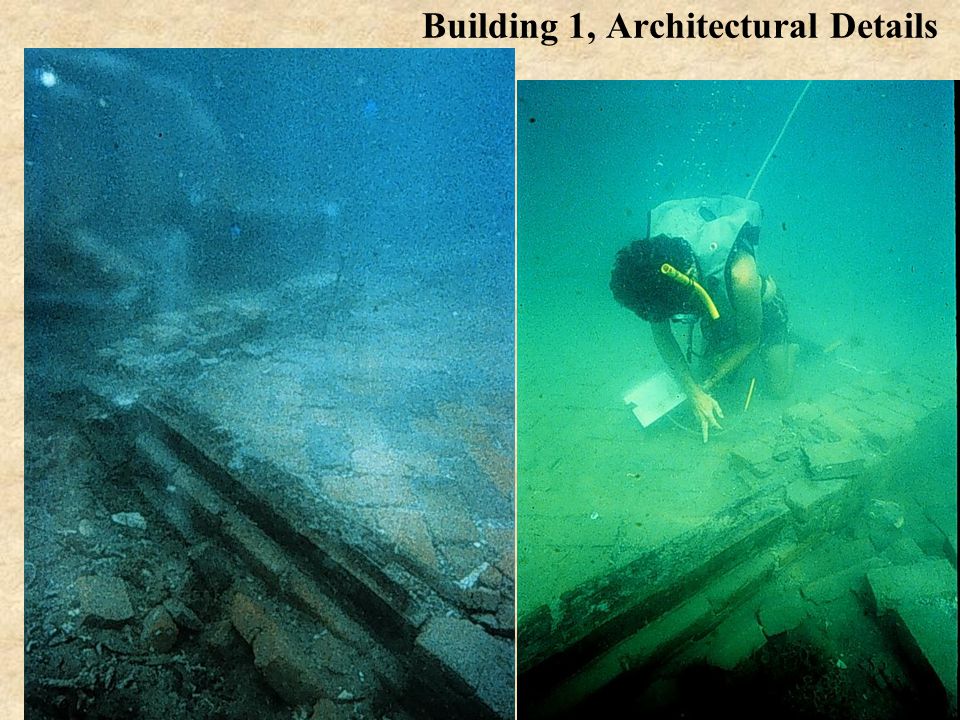

28. Building 1, Architectural Details

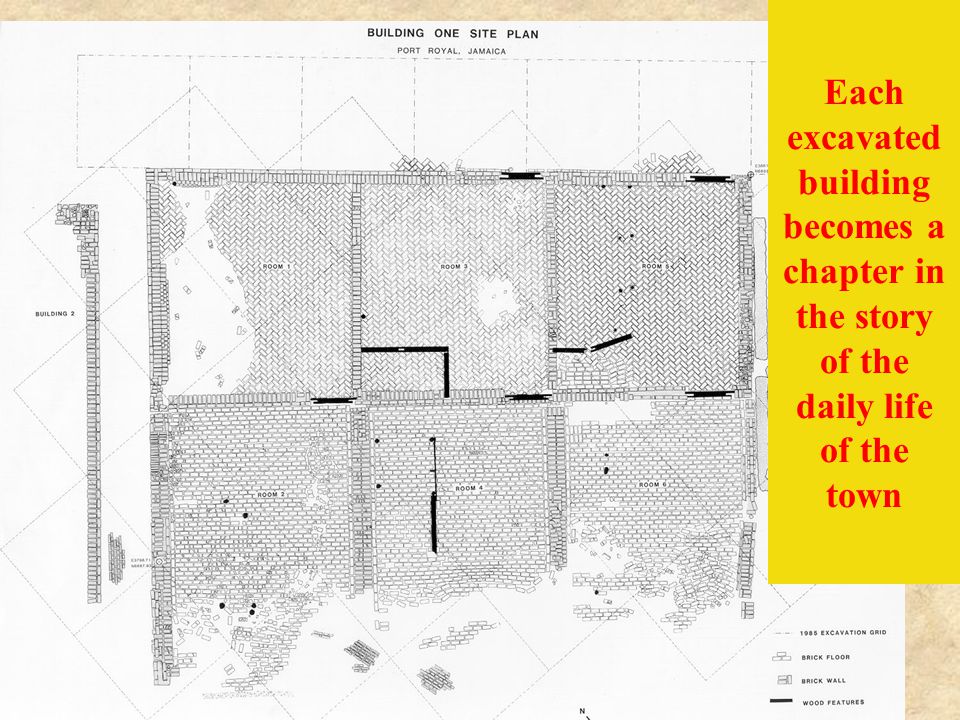

29. Each excavated building becomes a chapter in the story of the daily life of the town

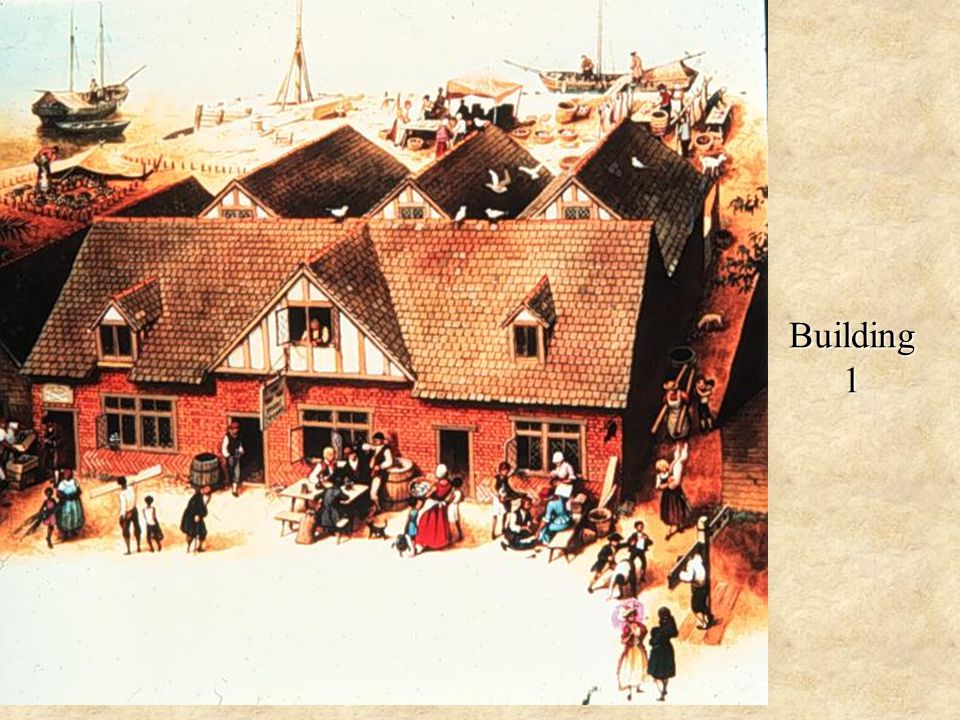

30. Building 1

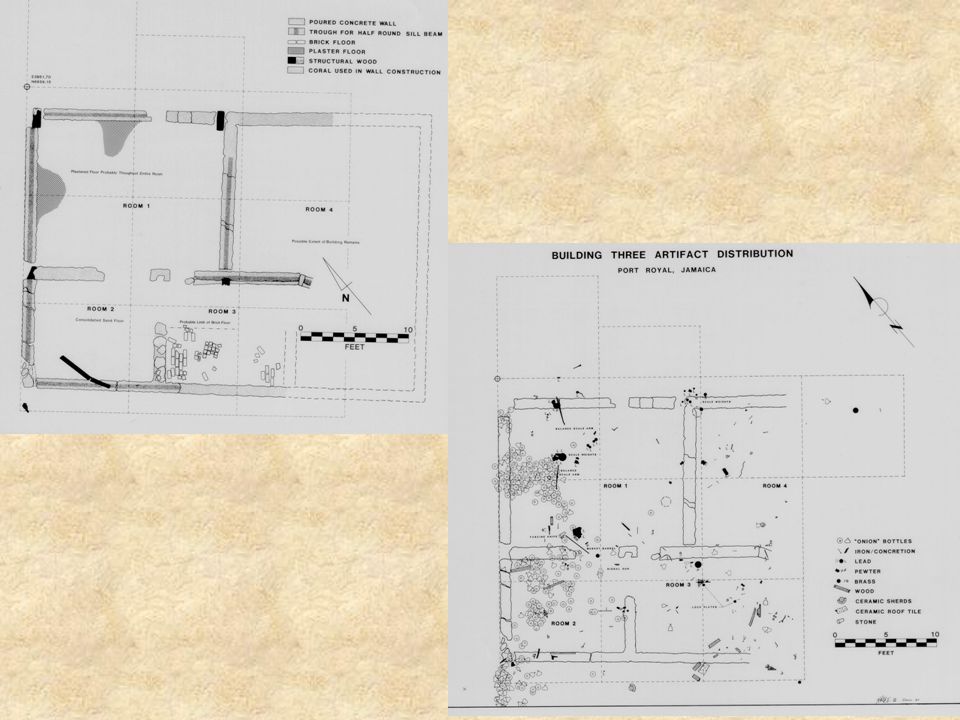

32. Following are sequential stages in the excavation of Room 1in Building 5

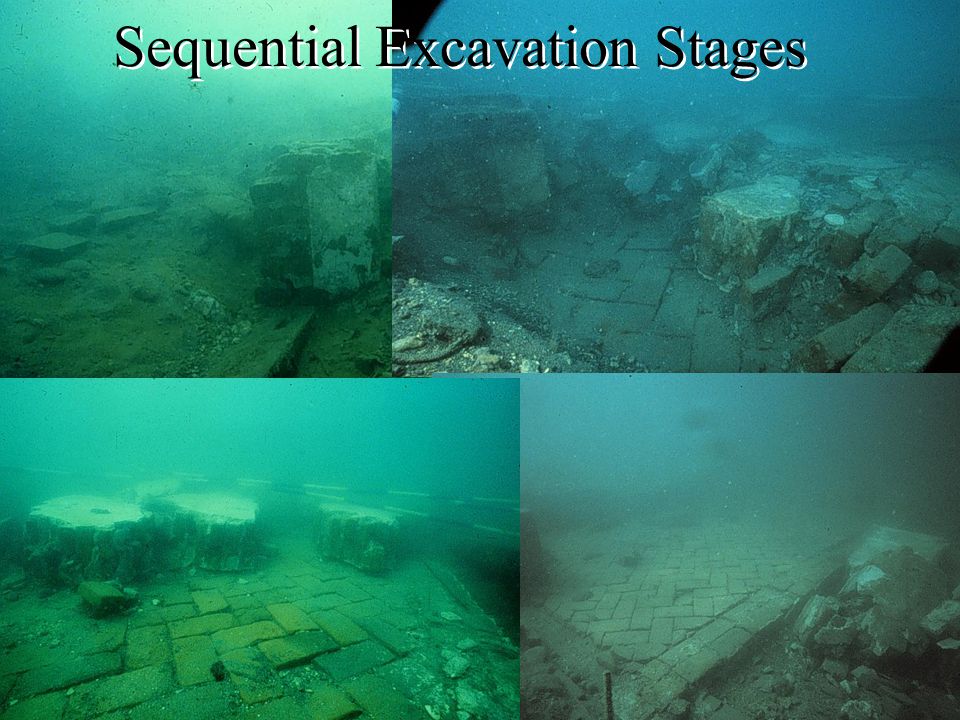

33. Sequential Excavation Stages

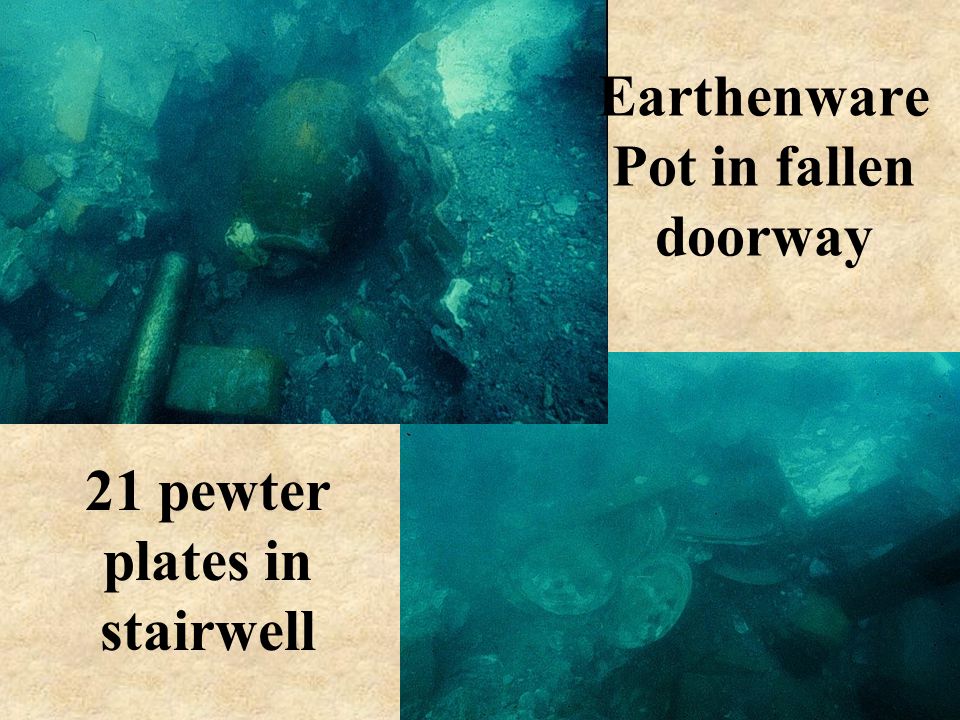

34. 21 pewter plates in stairwell Earthenware Pot in fallen doorway

35. Cistern, Privy and Walls

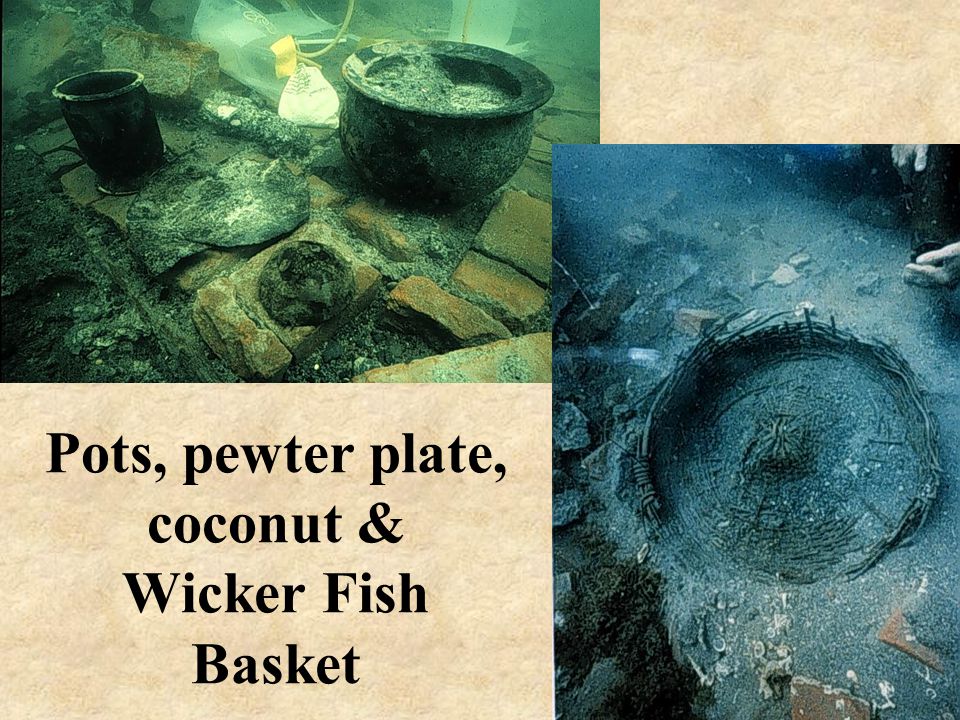

36. Pots, pewter plate, coconut & Wicker Fish Basket

37. Mapping in Poor Visibility Errors always creep in and accumulate, but modern science has provided instrumentations that allow us to overcome some of the difficulties.

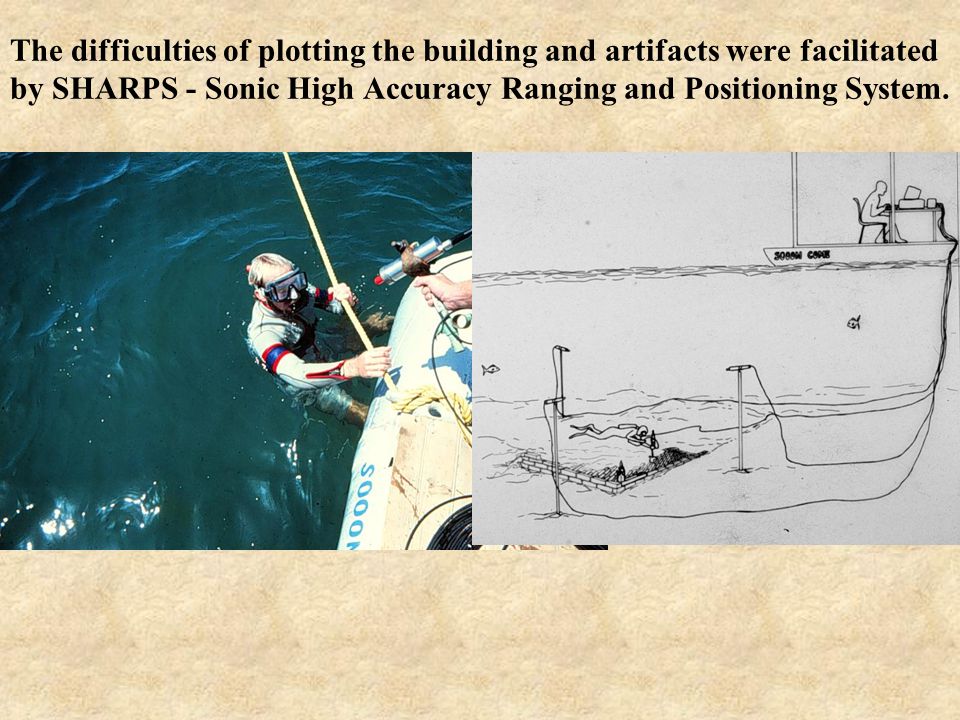

38. The difficulties of plotting the building and artifacts were facilitated by SHARPS - Sonic High Accuracy Ranging and Positioning System.

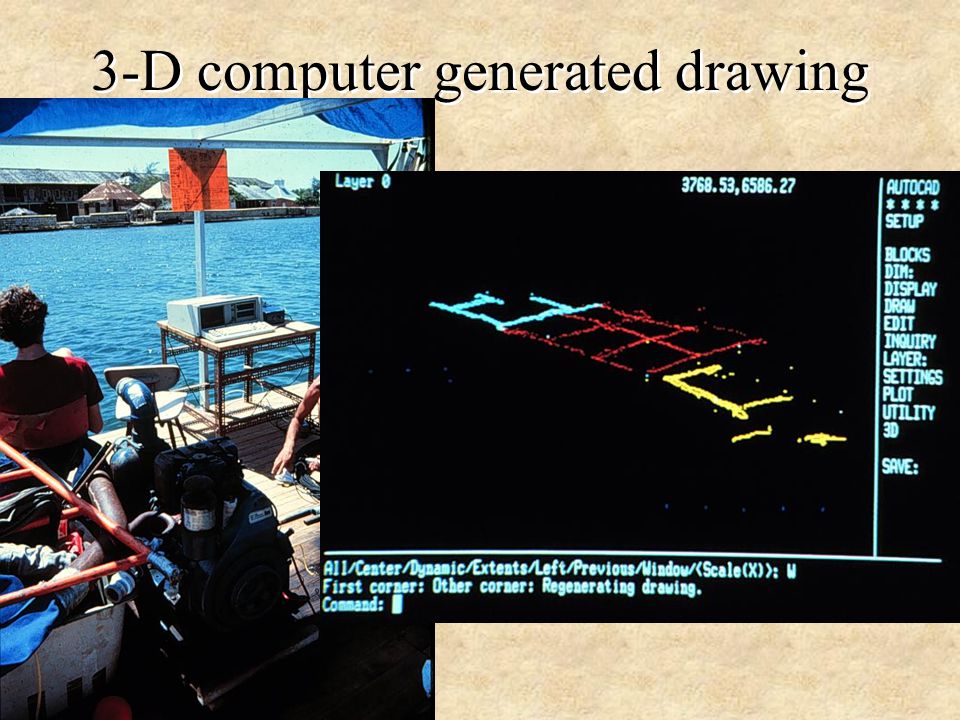

39. 3-D computer generated drawing

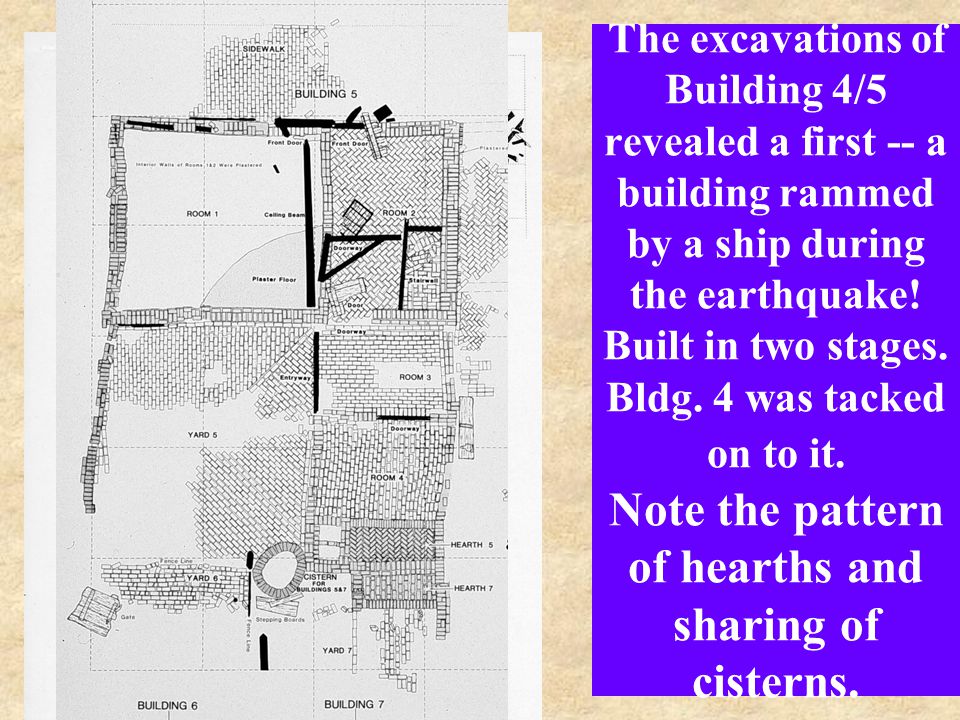

40. The excavations of Building 4/5 revealed a first -- a building rammed by a ship during the earthquake! Built in two stages. Bldg. 4 was tacked on to it. Note the pattern of hearths and sharing of cisterns.

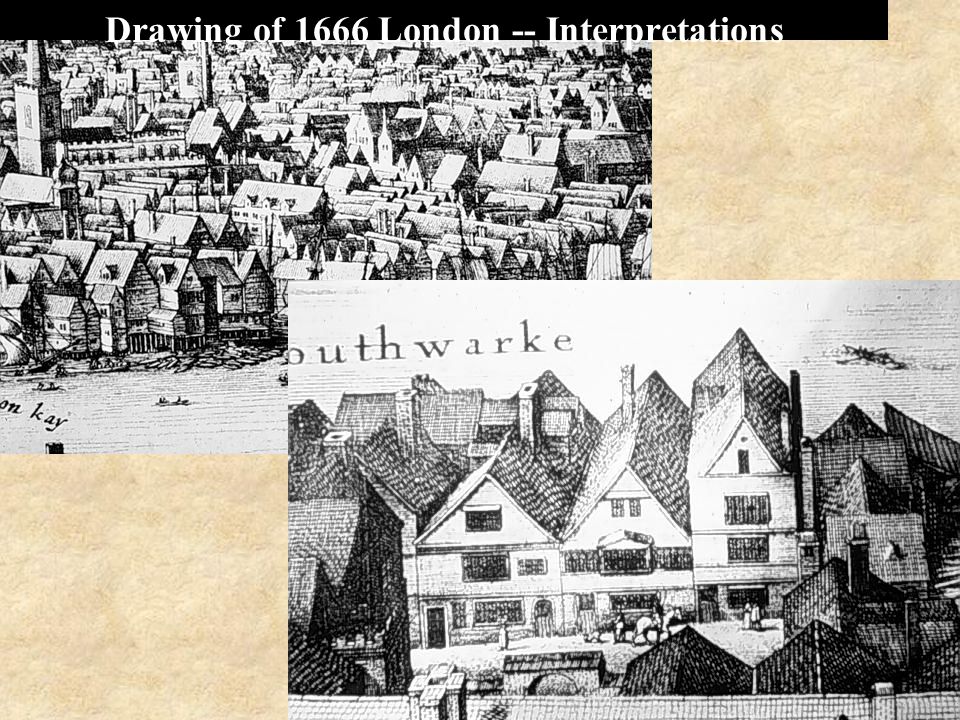

41. Drawing of 1666 London -- Interpretations

42. Hogarth Lithograph

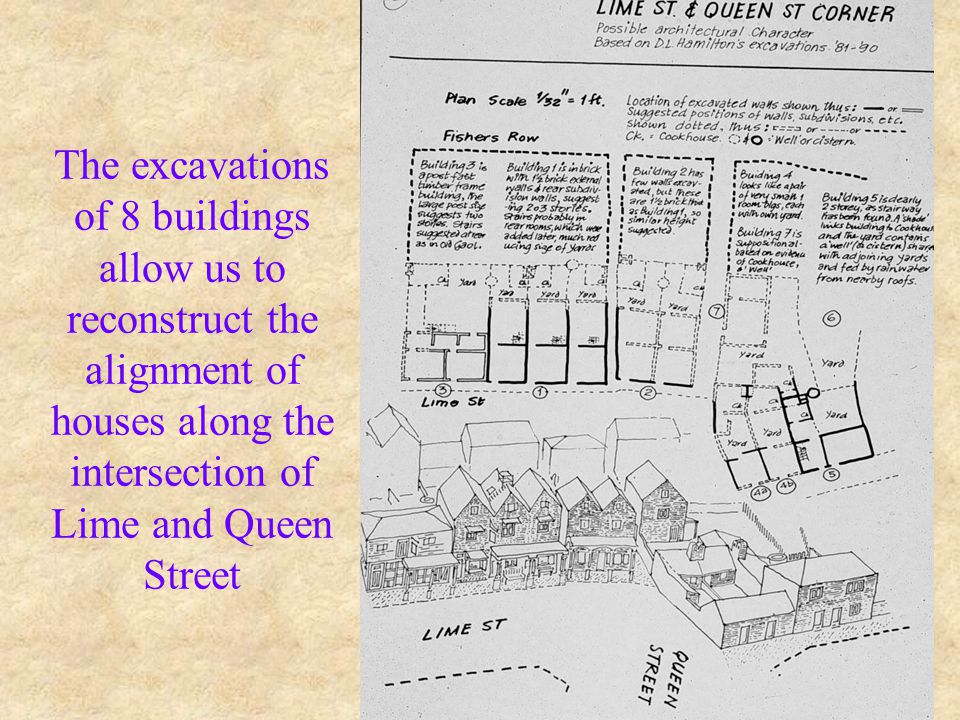

43. The excavations of 8 buildings allow us to reconstruct the alignment of houses along the intersection of Lime and Queen Street

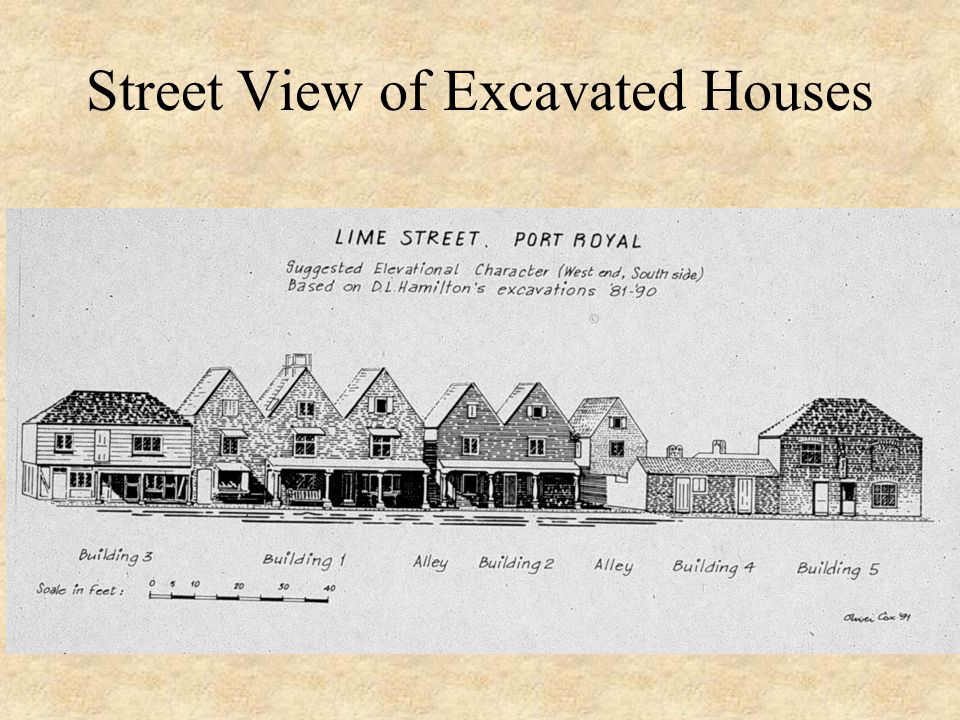

44. Street View of Excavated Houses

45. Land Excavations at Port Royal New Street Excavations Lime Street Excavations St. Paul’s Church

46. New Street Excavations

47. Water Pipe Trench cut down housing block on landward end of Lime Street

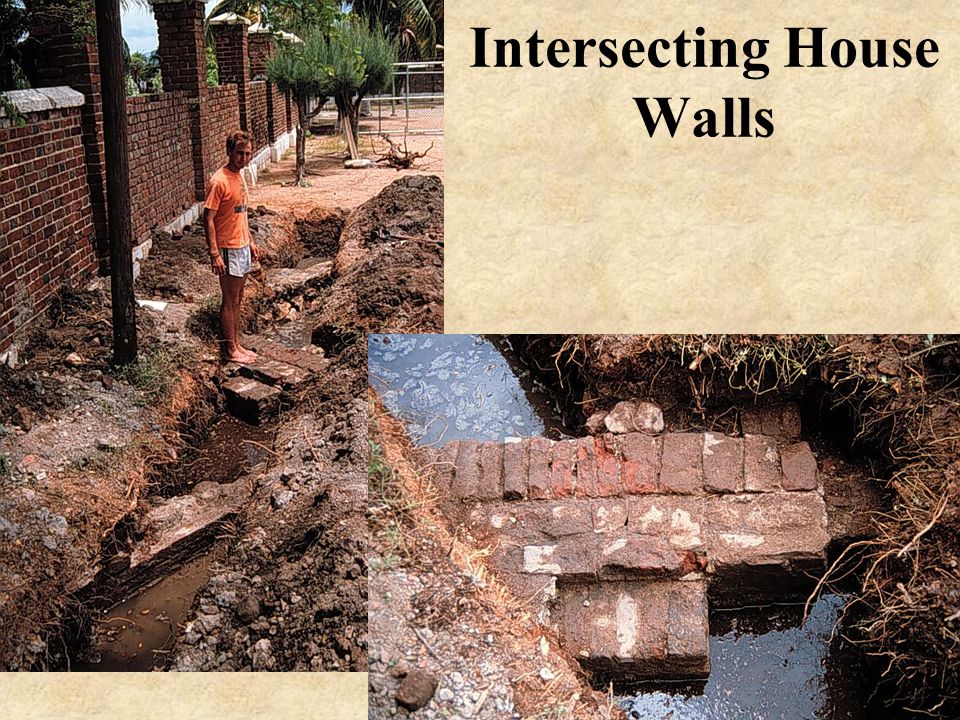

48. Intersecting House Walls

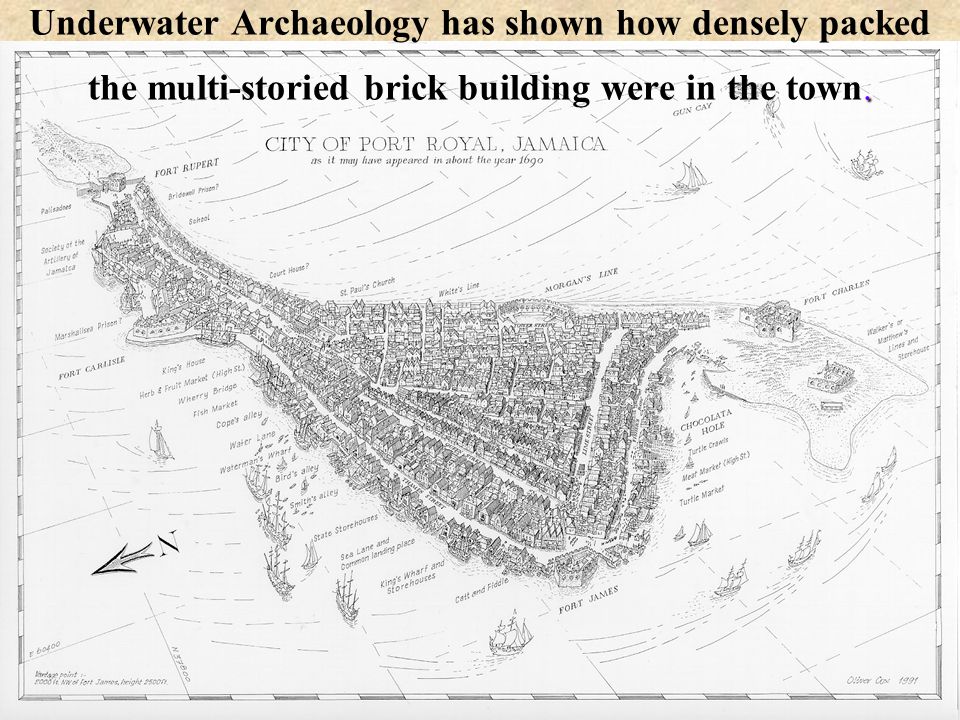

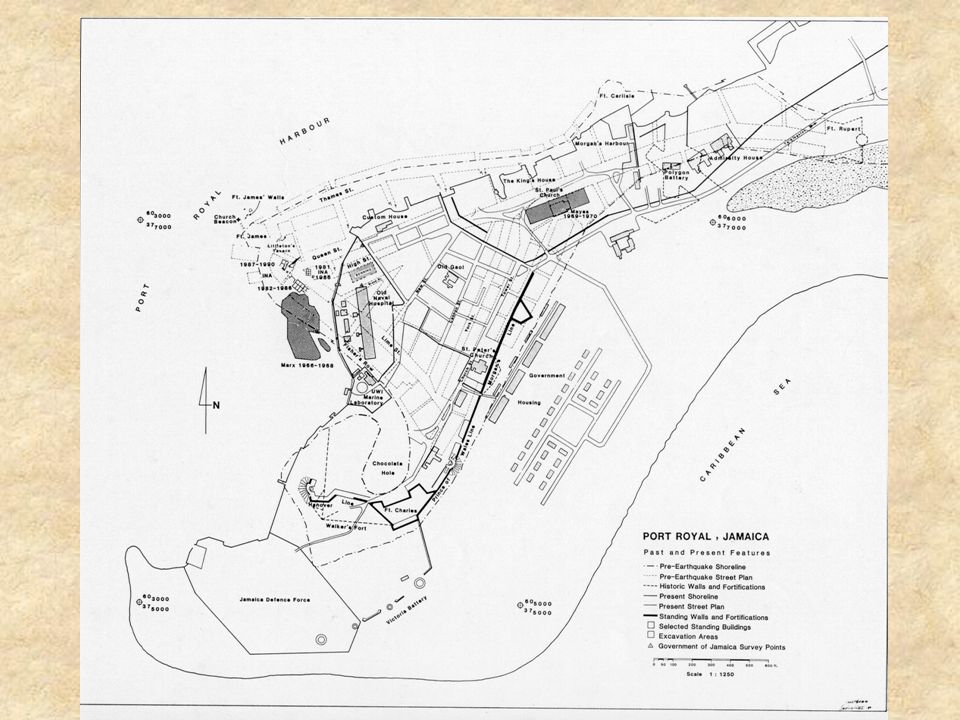

51. . Underwater Archaeology has shown how densely packed the multi-storied brick building were in the town.

52. . The area at the NW end of Line street at intersections of Queen and High Streets was excavated.

53. Artifact Analysis

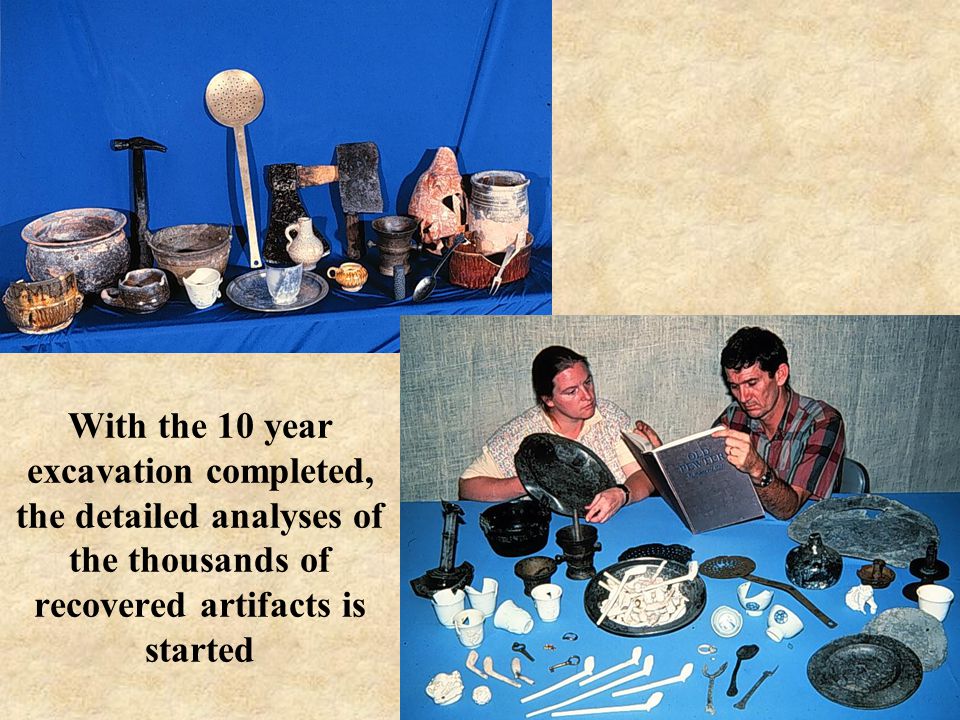

54. With the 10 year excavation completed, the detailed analyses of the thousands of recovered artifacts is started

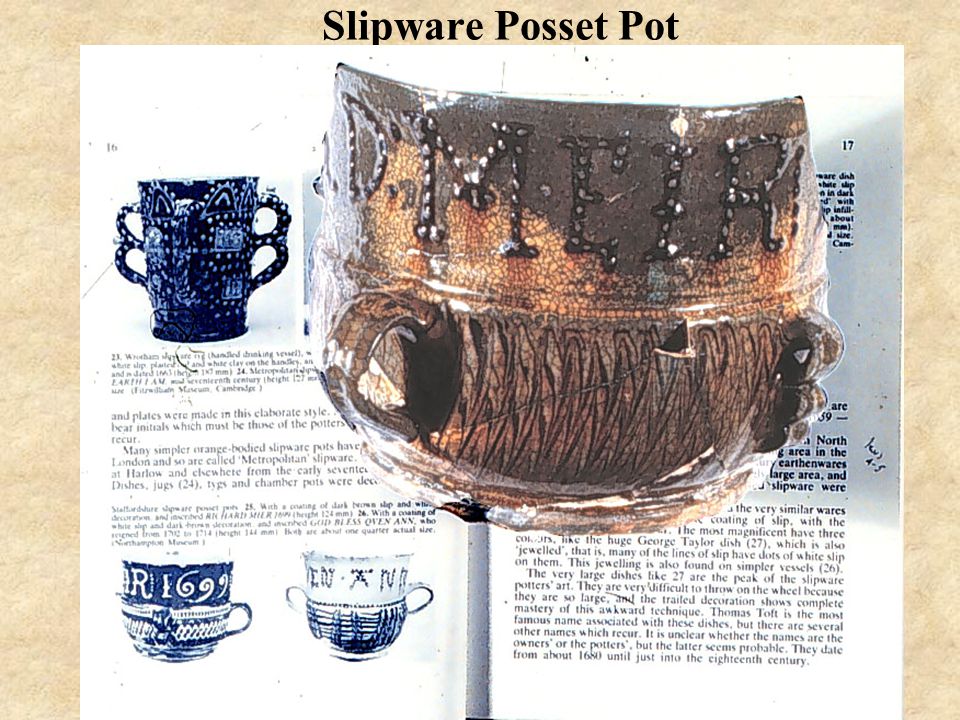

55. Slipware Posset Pot

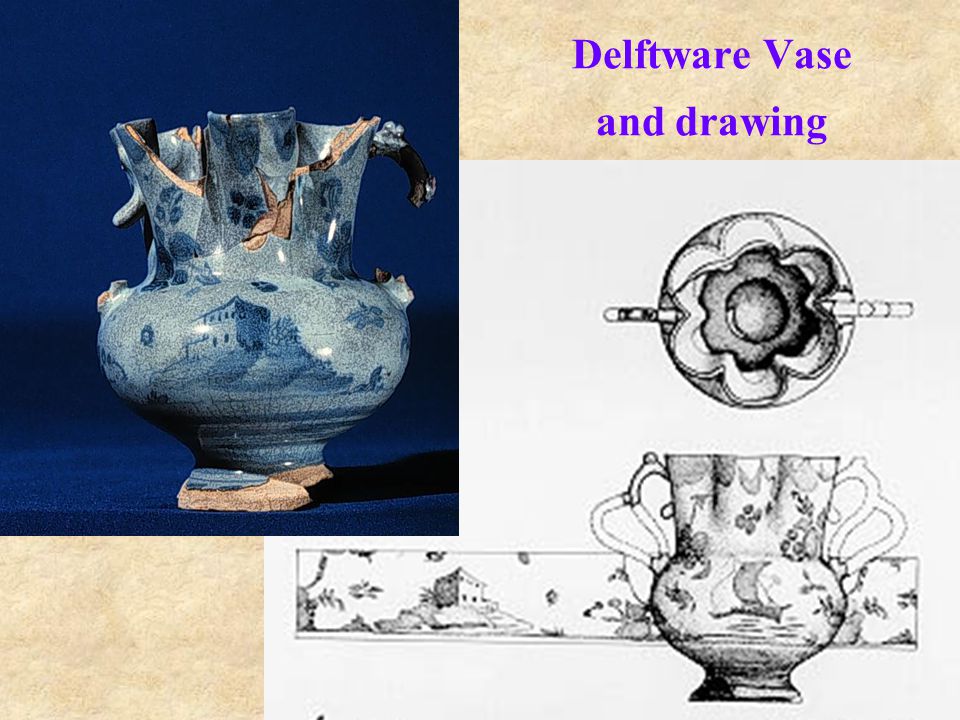

56. Delftware Vase and drawing

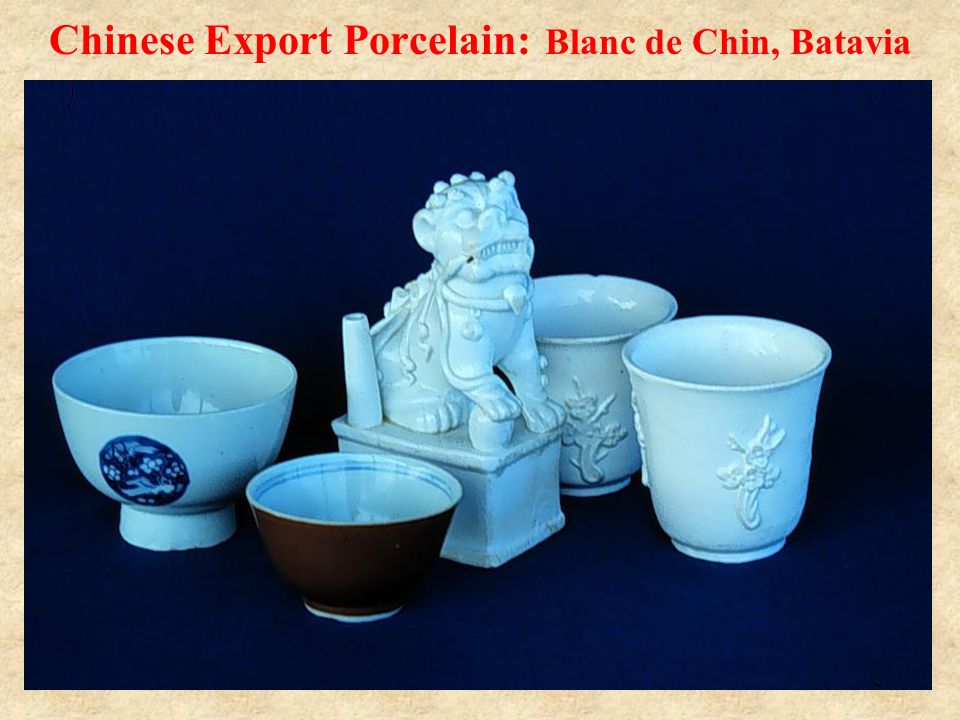

57. Chinese Export Porcelain: Blanc de Chin, Batavia

58. Lighting in a Port Royal House

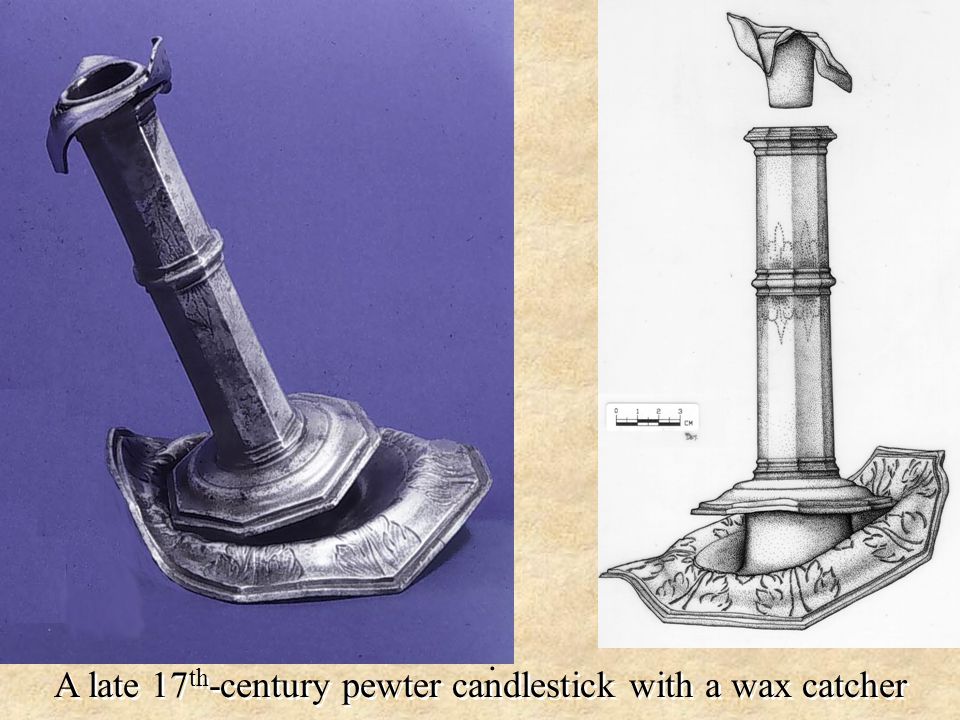

59. . A late 17 th -century pewter candlestick with a wax catcher

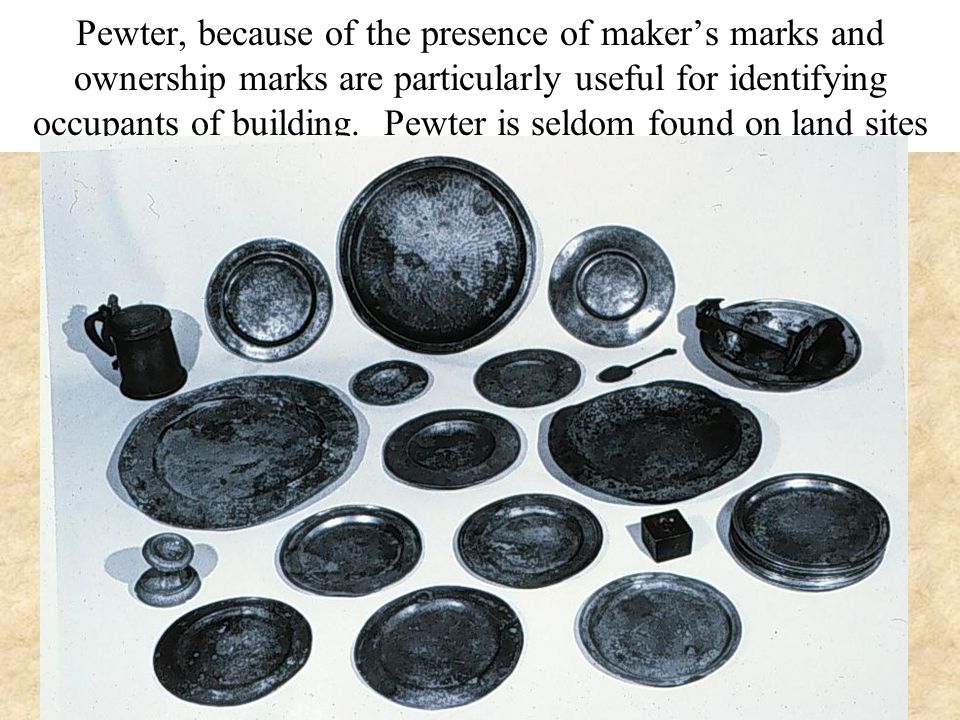

60. Pewter, because of the presence of maker’s marks and ownership marks are particularly useful for identifying occupants of building. Pewter is seldom found on land sites

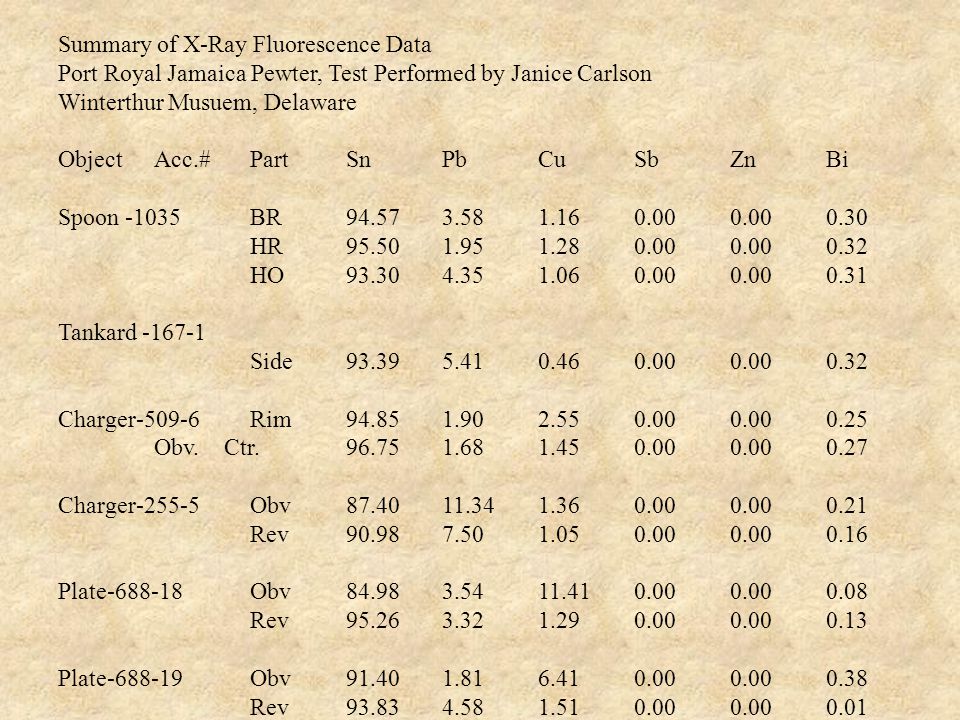

61. Summary of X-Ray Fluorescence Data Port Royal Jamaica Pewter, Test Performed by Janice Carlson Winterthur Musuem, Delaware ObjectAcc.#PartSnPbCuSbZnBi Spoon -1035BR94.573.581.160.000.000.30 HR95.501.951.280.000.000.32 HO93.304.351.060.000.000.31 Tankard -167-1 Side93.395.410.460.000.000.32 Charger-509-6Rim94.851.902.550.000.000.25 Obv. Ctr.96.751.681.450.000.000.27 Charger-255-5Obv87.4011.341.360.000.000.21 Rev90.987.501.050.000.000.16 Plate-688-18Obv84.983.5411.410.000.000.08 Rev95.263.321.290.000.000.13 Plate-688-19Obv91.401.816.410.000.000.38 Rev93.834.581.510.000.000.01

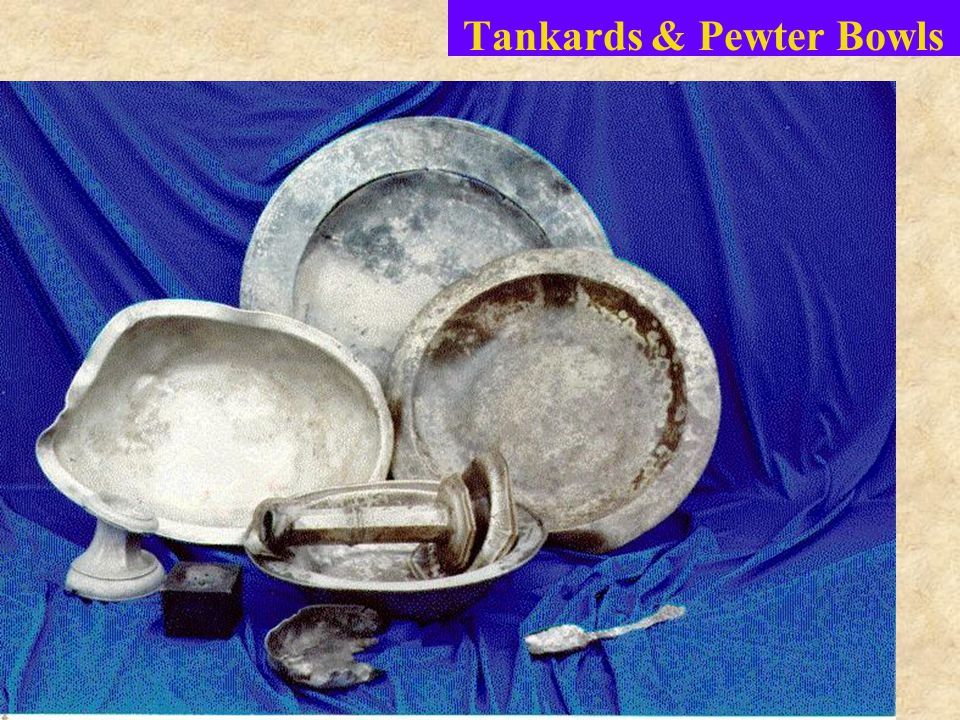

62. Tankards & Pewter Bowls

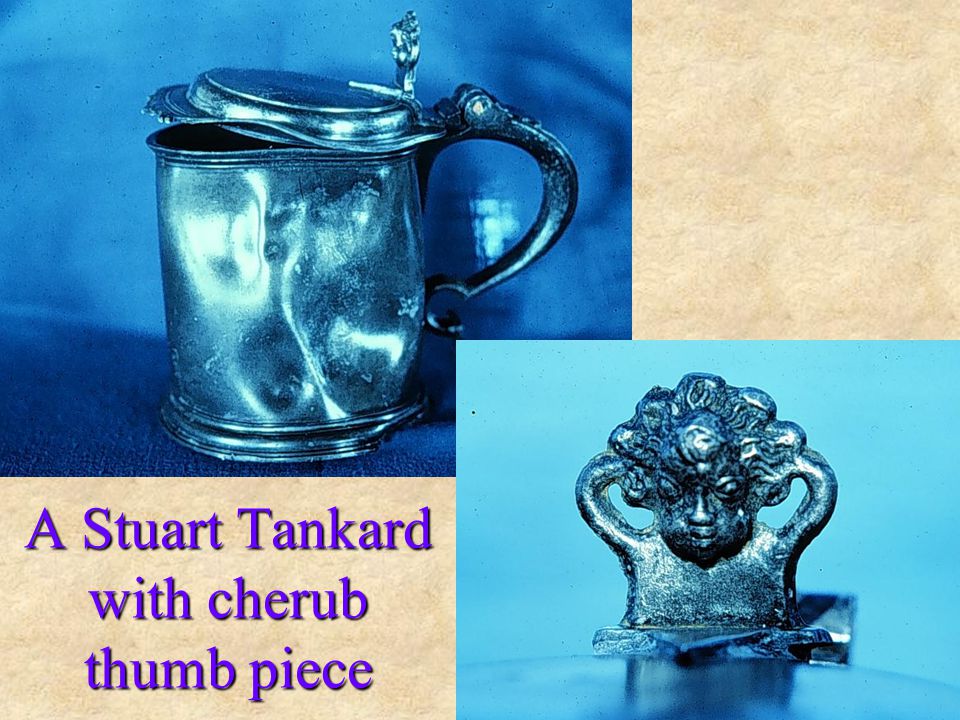

63. A Stuart Tankard with cherub thumb piece

64. Historic Documents Wills, Inventories, Land Patents, Deed Records, Guild Records, Shipping Records, Law Suits, Northern Colonies Records --- Begin to put everything into context!

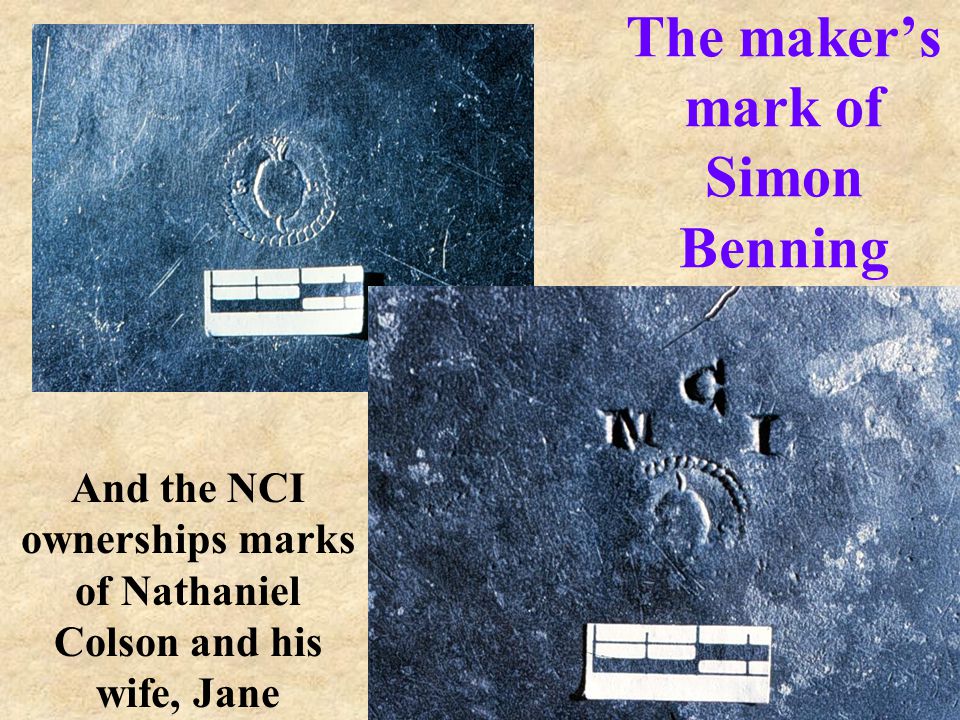

65. The maker’s mark of Simon Benning And the NCI ownerships marks of Nathaniel Colson and his wife, Jane

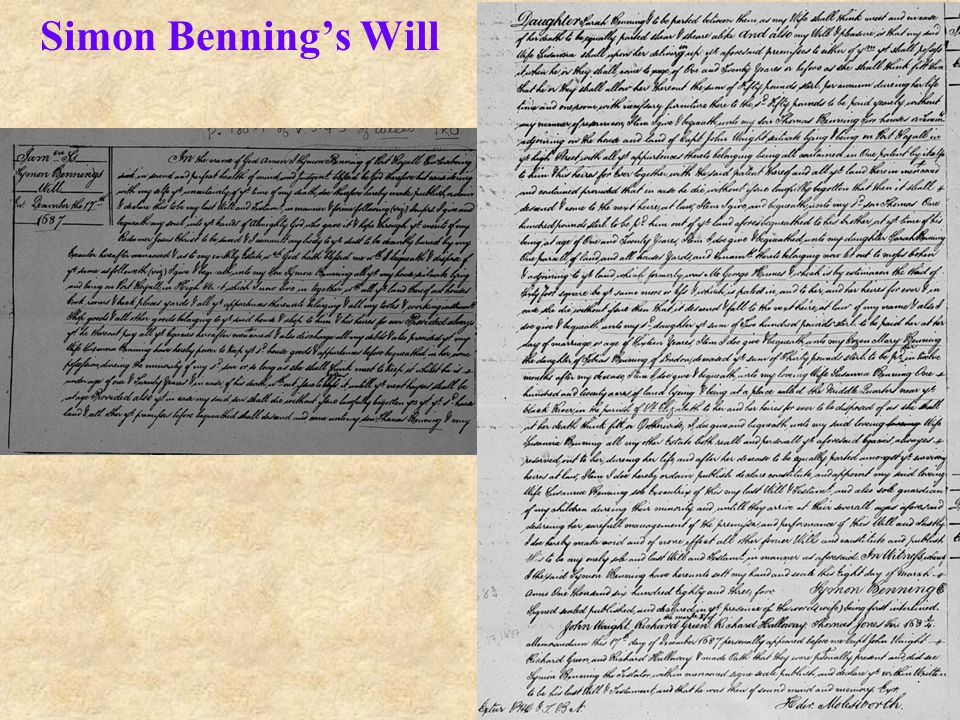

66. Simon Benning’s Will

67. Simon Benning’s Jamaica Inventory

68. Broadside published in London in August 1692

69. SUPRISES Skeletal Material Unexpected artifacts

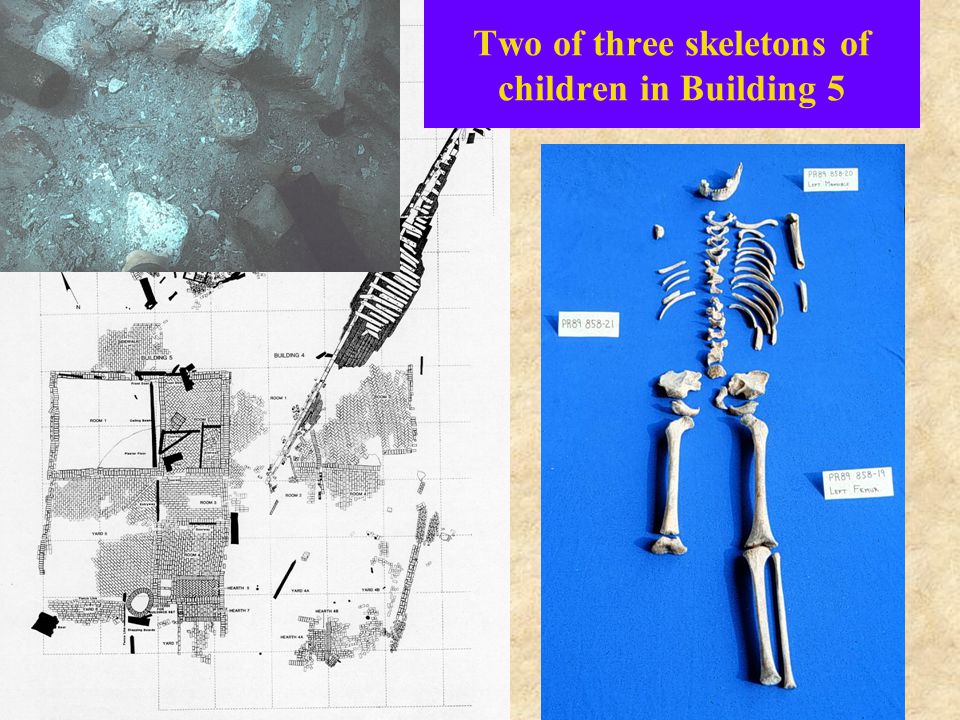

70. Two of three skeletons of children in Building 5

71. Burial Crypts in Church Yard

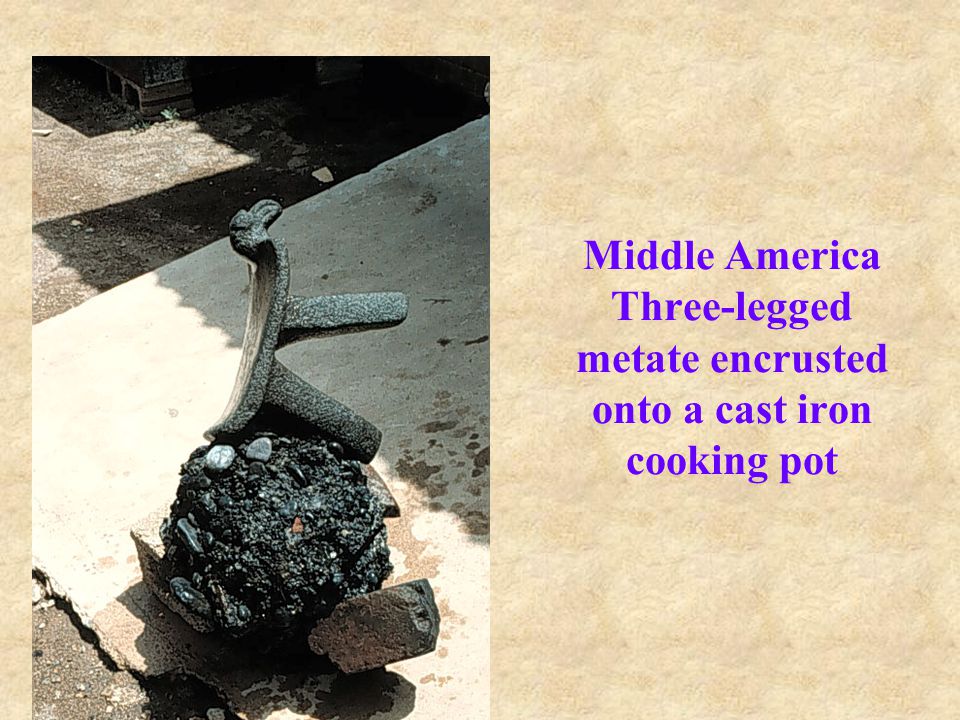

72. Middle America Three-legged metate encrusted onto a cast iron cooking pot

73. Three-legged metate with King Vulture head and mano made from the broken leg of a similar metate

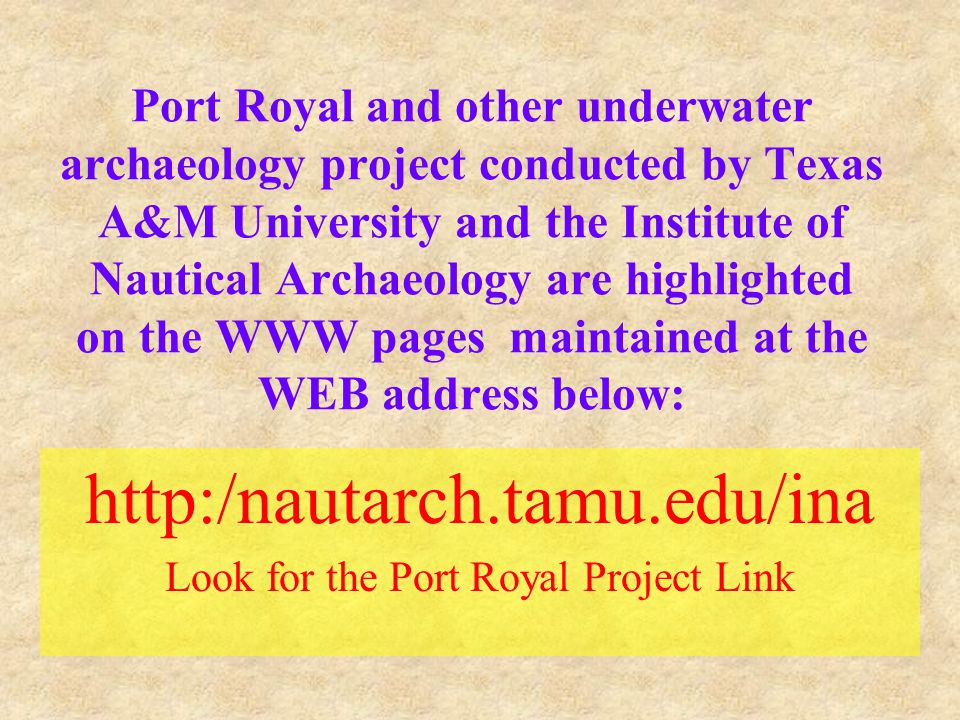

74. Port Royal and other underwater archaeology project conducted by Texas A&M University and the Institute of Nautical Archaeology are highlighted on the WWW pages maintained at the WEB address below: http:/nautarch.tamu.edu/ina Look for the Port Royal Project Link
