1 Central Nervous System examination

2 NEUROLOGICAL EXAM MENTAL STATUS CRANIAL NERVES MOTOR EXAM REFLEXES
STRENGTH GAIT CEREBELLAR REFLEXES SENSATION

3 Level of Consciousness
Awake and alert Agitated Lethargic Arousable with Voice Gentle stimulation Painful/vigorous stimulation Comatose

4 ORIENTATION PERSON PLACE TIME

5 LANGUAGE FLUENCY NAMING REPETITION READING WRITING COMPREHENSION
Aphasia

6 MEMORY IMMEDIATE REMOTE - Name 3 OBJECTS and ask to repeat
HISTORICAL EVENTS PERSONAL EVENTS

7 OTHER COGNITIVE FUNCTIONS
CALCULATION ABSTRACTION SIMILARITIES/DIFFERENCES JUDGEMENT PERSONALITY/BEHAVIOR

8 Sensory How and what part of the nervous system are we checking?
Light touch Pinprick Temperature Vibration Joint position sense Checking a level Romberg- correct positioning!

9 SENSORY EXAM VIBRATION JOINT POSITION SENSE PIN PRICK TEMPERATURE
128 hz tuning fork JOINT POSITION SENSE PIN PRICK TEMPERATURE Start distally and move proximally

10

11

12

13 3+: brisk, without clonus 4+: brisk, with clonus
Reflexes Grading system 0: absent 1+: hyporeflexia 2+: normal 3+: brisk, without clonus 4+: brisk, with clonus

14 BICEPS BRACHIORADIALIS TRICEPS KNEE ANKLE

15 Plantar reflex Planar reflex(S1)
Normal- On stroking the lateral border of the sole there is flexion of the big toe and other toes.

16 Extensor plantar response
Babiniski sign Dorsiflexion of the big toe and ankle joint and fanning of the other toes.

17 CRANIAL NERVE EXAM I - OLFACTORY II - OPTIC
DON’T USE A NOXIOUS STIMULUS COFFEE, LEMON EXTRACT II - OPTIC VISUAL ACUITY VISUAL FIELDS FUNDOSCOPIC EXAM

18 CRANIAL NERVE EXAM III/IV/VI OCULMOTOR, TROCHLEAR, ABDUCENS
PUPILLARY RESPONSE EYE MOVEMENTS 9 CARDINAL POSITIONS OBSERVE LIDS FOR PTOSIS V - TRIGEMINAL MOTOR - JAW STRENGTH SENS - ALL 3 DIVISIONS

19 CRANIAL NERVES VII - FACIAL VIII - VESTIBULAR
OBSERVE FOR FACIAL ASYMMETRY FOREHEAD WRINKLING, EYELID CLOSURE, WHISTLE/PUCKER VIII - VESTIBULAR ACUITY RINNE, WEBER

20 CRANIAL NERVES IX/X - GLOSSOPHARYNGEAL, VAGUS XI - SPINAL ACCESSORY
GAG XI - SPINAL ACCESSORY STERNOCLEIDOMASTOID M. TRAPEZIUS MUSCLE XII - HYPOGLOSSAL TONGUE STRENGTH RIGHT XII THRUSTS TONGUE TO LEFT

21 MUSCLE OBSERVATION ATROPHY FASCIULATIONS

22 ABNORMAL MOVEMENTS TREMOR CHOREA ATHETOSIS ABNORMAL POSTURES REST
WITH ARMS OUTSTRETCHED INTENTION CHOREA ATHETOSIS ABNORMAL POSTURES

23 CEREBELLAR FUNCTION RAPID ALTERNATING MOVEMENTS
FINGER TO FINGER TO NOSE TESTING HEEL TO SHIN GAIT TANDEM

24 Romberg Sign Stand with feet together - assure patient stable - have them close eyes Romberg is positive if they do worse with eyes closed Measures Cerebellar function Frequently poor balance with eyes open and closed Proprioception Frequently do worse with eyes closed Vestibular system

25 Strength: check agonist/antagonist pairs Abnormal movements
MOTOR Tone Muscle bulk Strength: check agonist/antagonist pairs Abnormal movements Motor

26

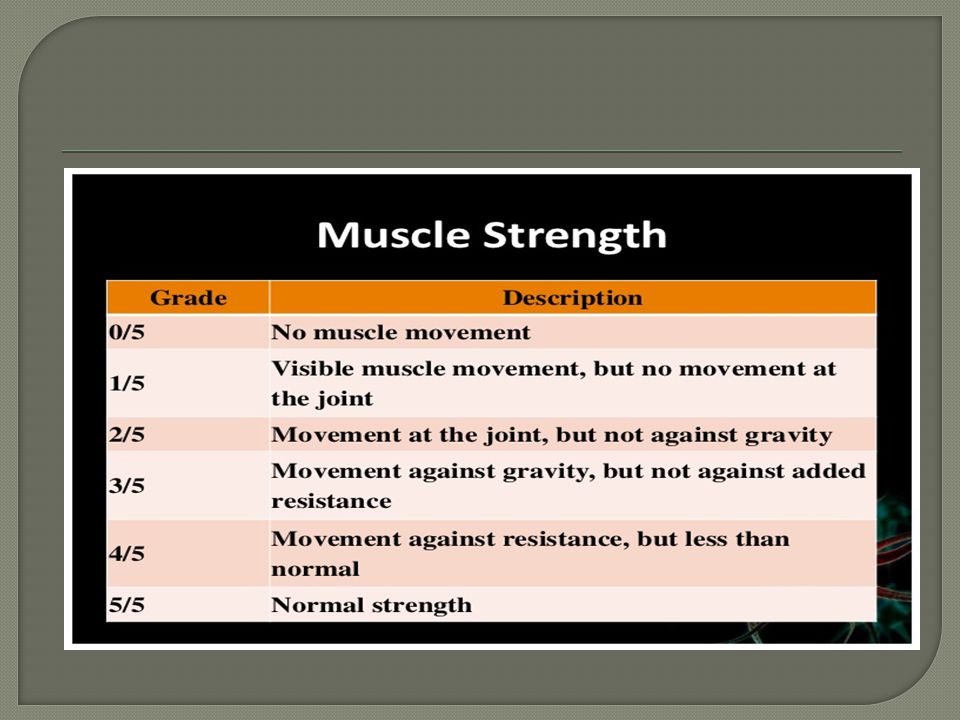

27 STRENGTH STRENGTH GRADED 0 - 5 0 - NO MOVEMENT 1 - FLICKER
2 - MOVEMENT WITH GRAVITY REMOVED 3 - MOVEMENT AGAINST GRAVITY 4 - MOVEMENT AGAINST RESISTANCE 5 - NORMAL STRENGTH

28 STRENGTH EXAM UPPER AND LOWER EXTREMITIES DISTAL AND PROXIMAL MUSCLES
GRIP STRENGTH IS A POOR SCREENING TOOL FOR STRENGTH SUBTLE WEAKNESS TOE WALK, HEEL WALK OUT OF CHAIR DEEP KNEE BEND

29 INCREASED, (Hypertonia) COGWHEEL rigidity CLASP KNIFE spasticity
TONE INCREASED, (Hypertonia) COGWHEEL rigidity CLASP KNIFE spasticity DECREASED, (Hypotonic)

30

31 1. Ask the subject if he/she has a subjective olfactory
problem. 􀂄 2. Check for rash, deformity of nose. 􀂄 3. One nostril is occluded while examining the other. Use pleasant odor substances like tea or rose water. Don’t use irritating substances

32 CN II: OpticNerve 􀂇 There are three main aspects to this nerve: visual
acuity, visual fields, and fundi opticus. 􀂄 1. Examine visual acuity: 􀂄 2. Examine visual fields: 􀂄 3. Look into the fundi:

33 CN III,IV and VI 􀂇 CN III Oculomotor: 􀂄 Eyelid and eyeball movement
􀂇 CN IV Trochlear: 􀂄 Innervates superior oblique 􀂄 Turns eye downward and laterally 􀂇 CN VI Abducens: 􀂄 Turns eye laterally 􀂇 Cranial Nerves III, IV and VI supply the muscles of eye movement and are tested as a unit.

34 1. Appearance of eyes: 􀂇 2. Eyeball movement: 􀂇 3. Look at pupils: 􀂇 4. Test pupillary light reaction: 􀂇 5. Pupillary reaction to convergence and accommodation reflex:

35 CN V: Trigeminal Functions: 􀂄 Chewing 􀂄 Face & mouth touch & pain
􀂇 1. Facial sensation: 1) Use sterile sharp item on forehead, cheek and jaw. 2) If abnormal, then test temperature [water-heated/cooled tuning fork], light touch [cotton].

36 2. Motor: Subject opens mouth, clenches teeth.
1) Palpate temporal, masseter muscles as they clench. 2) Subject opens mouth; assess the symmetry of the mouth.

37 3. Corneal reflex: Ask the patient looks up and straight. 1) Touch cotton wool to the sclera on the other side. 2) Look for blink in both eyes, ask if subject can sense it. 3) Repeat on the other side.

38 􀂇 4. Test jaw jerk: 1) Examiner places finger on tip of jaw. 2) Grip patellar hammer halfway up shaft and tap examiner’s finger lightly. 3) Usually nothing happens, or just a slight closure

39 CN VII: Facial Functions: controls most facial expressions,
secretion of tears & saliva, taste 􀂇 1. Muscles of facial expression: 􀂇 2. Check the sense of taste:

40

41 CN VIII: Vestibulocochlear
􀂇 Functions: hearing; equilibrium sensation 􀂇 Auditory acuity 􀂄 1. Rinne test: 􀂄 2. Weber test: 􀂇 Vestibular function:

42

43 CN IX Glossopharyngeal:
􀂄 taste 􀂄 senses carotid blood pressure 􀂇 CN X Vagus: 􀂄 senses aortic blood pressure 􀂄 slows heart rate 􀂄 stimulates digestive organs

44

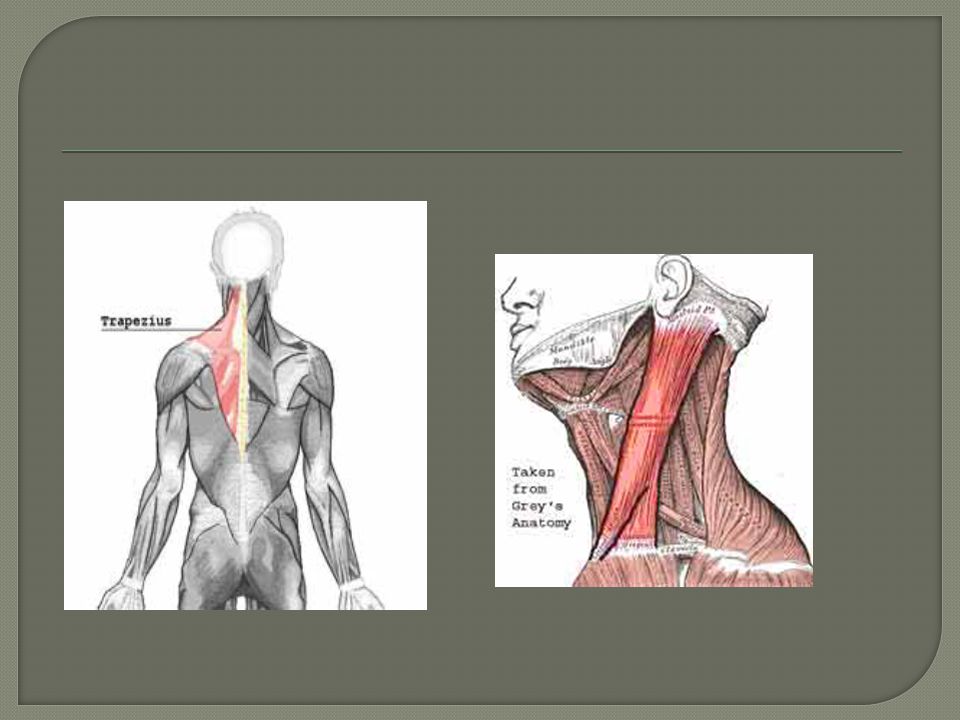

45 CN XI: Accessory 􀂇 1. Sternocleidomastoid
Press a hand against the patient's jaw and have the patient rotate the head against resistance. Pressing against the right jaw tests the left sternocleidomastoid and vice versa. 􀂇 2. Trapezius Have the patient shrug shoulders against resistance and assess weakness.

46 CN XII: Hypoglossal 1. Listen to articulation.
􀂇 2. Inspect tongue in mouth for wasting, fasciculations. 􀂇 3. Protrude tongue: deviates to affected side.

47 INVOLUNTARY MOVEMENTS
TREMORS They are regular rhythmic movements. STATIC TREMOR 1.parkinsonism 2.senile POSTRUAL TREMORS Anxiety Familial Hyperthyroidsm

48 Some useful tests for detection of deficiencies in motor
function of the palate, pharynx, and larynx are described below. Sensory function needs to be checked if one suspects cranial neuropathy or a brain stem lesion. 1. Palatal Elevation 2. Gag reflex (afferent IX, efferent X) 3. Sensory function 4. Voice Quality 5. Taste test see CN VII

49 INTENTION TREMORS Cerebellar Severe parkinsonism HYSTERICAL TREMORS

50 CHOREA Quick jerky irregular brief movements. Causes Infections
Hereditary Endocrine Collagen disorders Liver disease like Wilson disease Myoclonus Muscular contractions

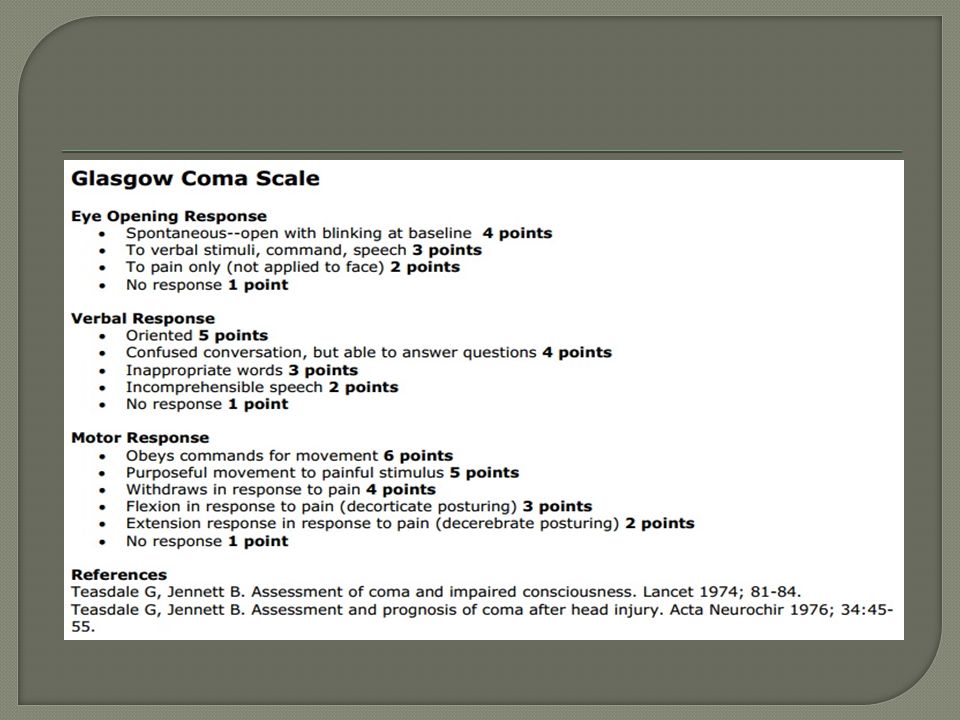

51 Evaluation of severity of Coma
Grading of level of coma Grade -0 Fully conscious Grade1-Drowsy,but responds to verbal commands Grade 2-Unconscious but responds to minimal pain Grade3-unconscious but responds to deep pain Grade4- Unconscious with no response to pain

52

53

54 The sum of these values is calculated.
The minimum GCS is 3 (deep coma) The maximum is 15 GCS good prognosis GCS 5-10 intermediate GCS 3-4 poor prognosis

55 CEREBELLAR FUNCTION RAPID ALTERNATING MOVEMENTS
FINGER TO FINGER TO NOSE TESTING HEEL TO SHIN GAIT TANDEM

56 Romberg Sign Stand with feet together - assure patient stable - have them close eyes Romberg is positive if they do worse with eyes closed Measures Cerebellar function Frequently poor balance with eyes open and closed Proprioception Frequently do worse with eyes closed Vestibular system

57 MENENGITIS Meningeal signs Neck stiffness- Causes Meningitis
Subarchonoid hemorrhage Cervical spondylosis

58 Kernig’s sign With the hip flexed the knee is extended. Normally it can be done upto 135 degree. In meningitis it is restricted due to spasm of the hamstrings.

59 Brudzinski’s sign Neck sign Leg sign
