1
INC 112 Basic Circuit Analysis Week 5 Thevenin’s Theorem

2
Special Techniques Superposition Theorem Thevenin’s Theorem Norton’s Theorem Source Transformation

3

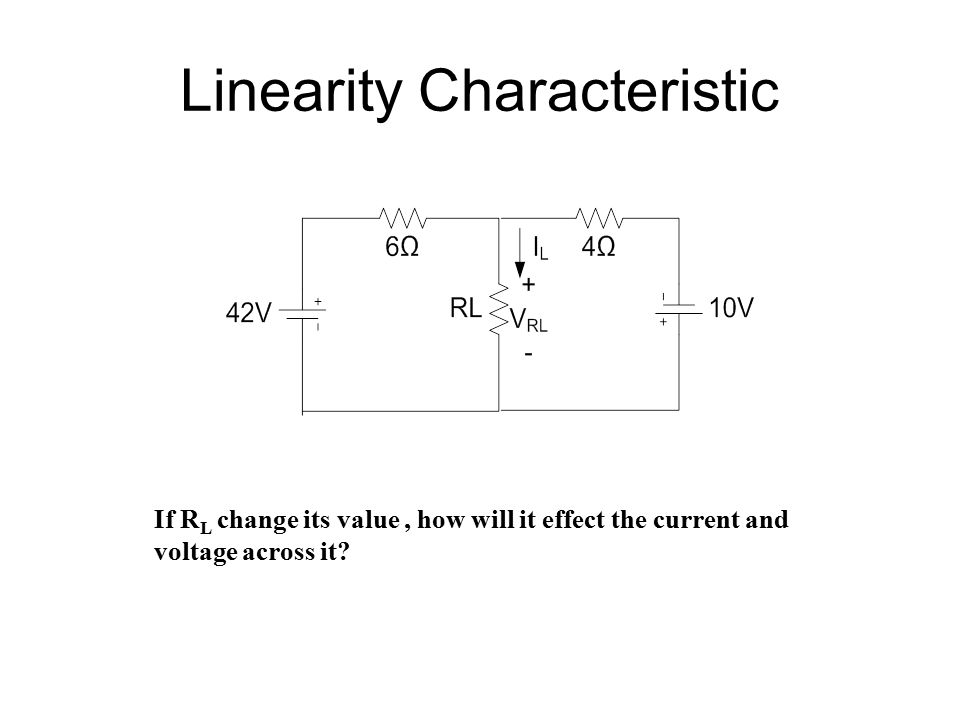

Linearity Characteristic If R L change its value, how will it effect the current and voltage across it?

4
I V V OC I SC For any circuit constructed from only linear components Not just RL, all resistors have this property. Voc = Voltage open-circuit Isc = Current short-circuit

5

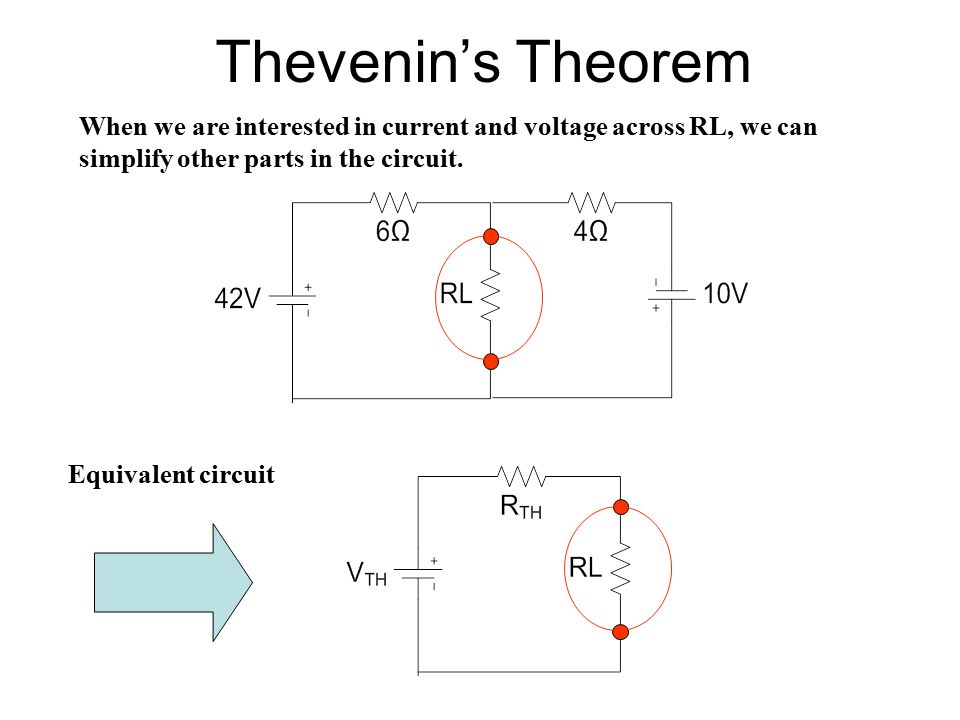

Thevenin’s Theorem When we are interested in current and voltage across RL, we can simplify other parts in the circuit. Equivalent circuit

6
I V V OC I SC Voc = Voltage open-circuit Isc = Current short-circuit R = R equivalent Slope = 1/R

7

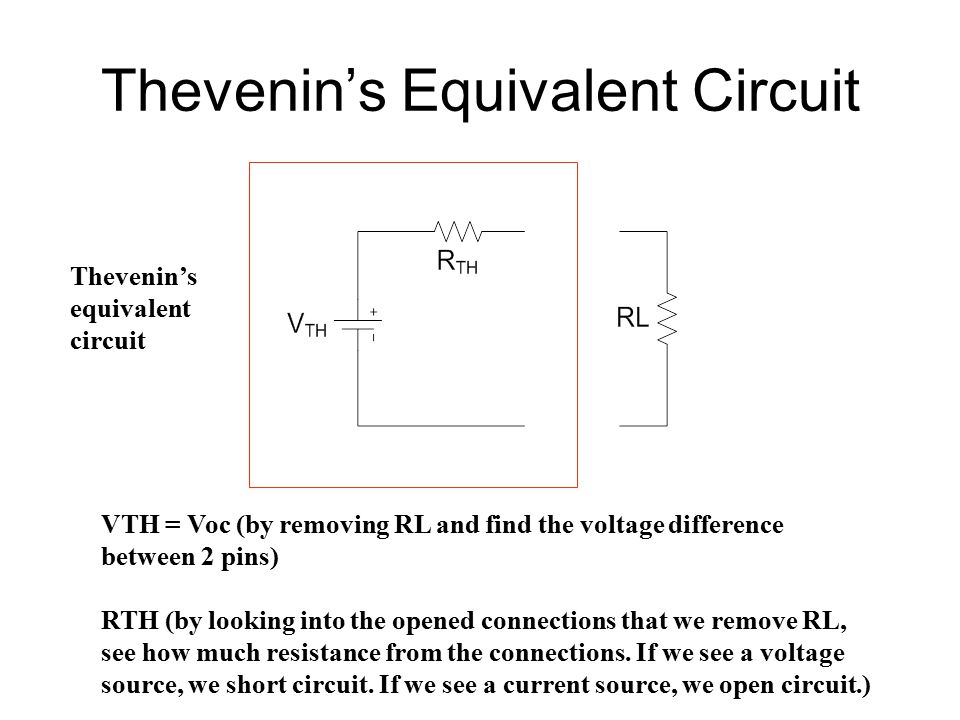

Thevenin’s Equivalent Circuit Thevenin’s equivalent circuit VTH = Voc (by removing RL and find the voltage difference between 2 pins) RTH (by looking into the opened connections that we remove RL, see how much resistance from the connections. If we see a voltage source, we short circuit. If we see a current source, we open circuit.)

8
Why do we need equivalent circuit? To analyze a circuit with several values of RL For circuit simplification (source transformation) To find RL that gives maximum power (maximum power transfer theorem)

9

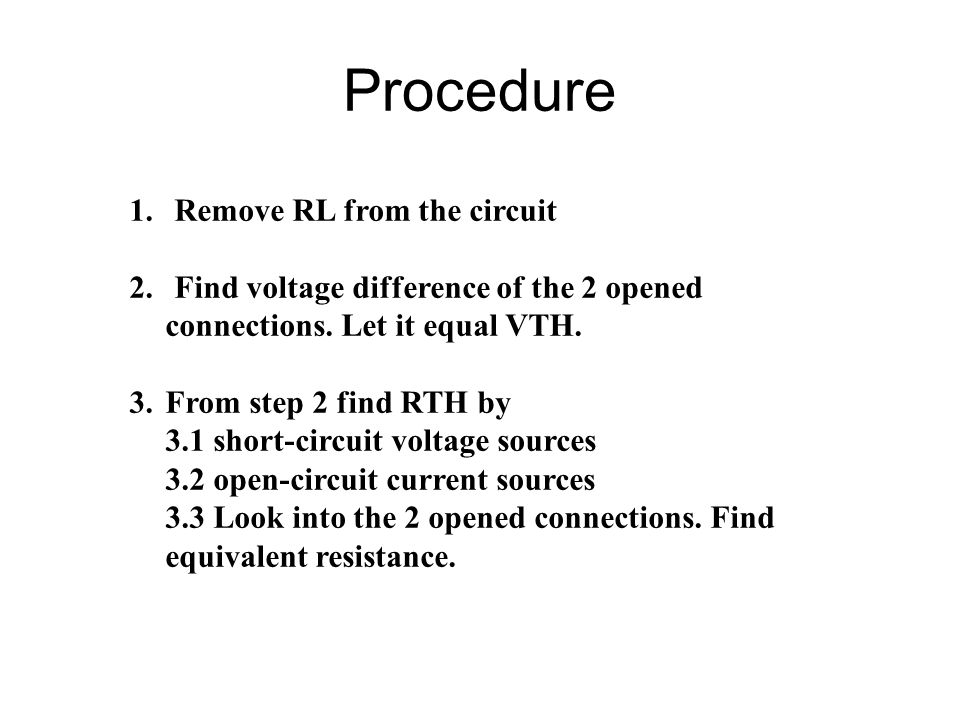

Procedure 1. Remove RL from the circuit 2. Find voltage difference of the 2 opened connections. Let it equal VTH. 3.From step 2 find RTH by 3.1 short-circuit voltage sources 3.2 open-circuit current sources 3.3 Look into the 2 opened connections. Find equivalent resistance.

10
Example Find Thevenin’s equivalent circuit and find the current that passes through RL when RL = 1Ω

11

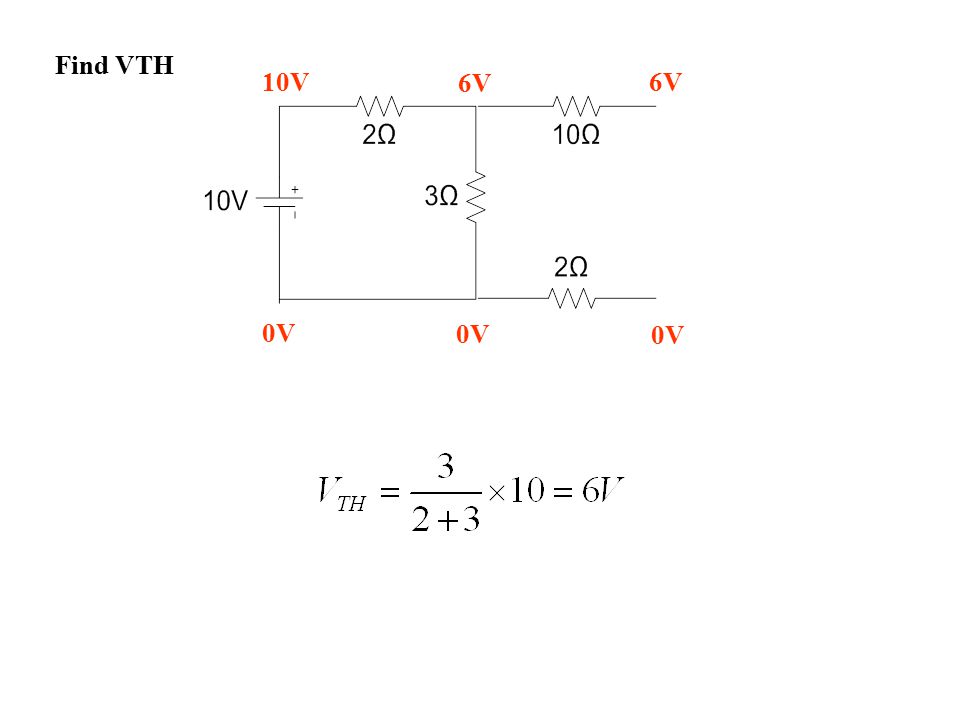

0V 10V 0V 6V Find VTH

12

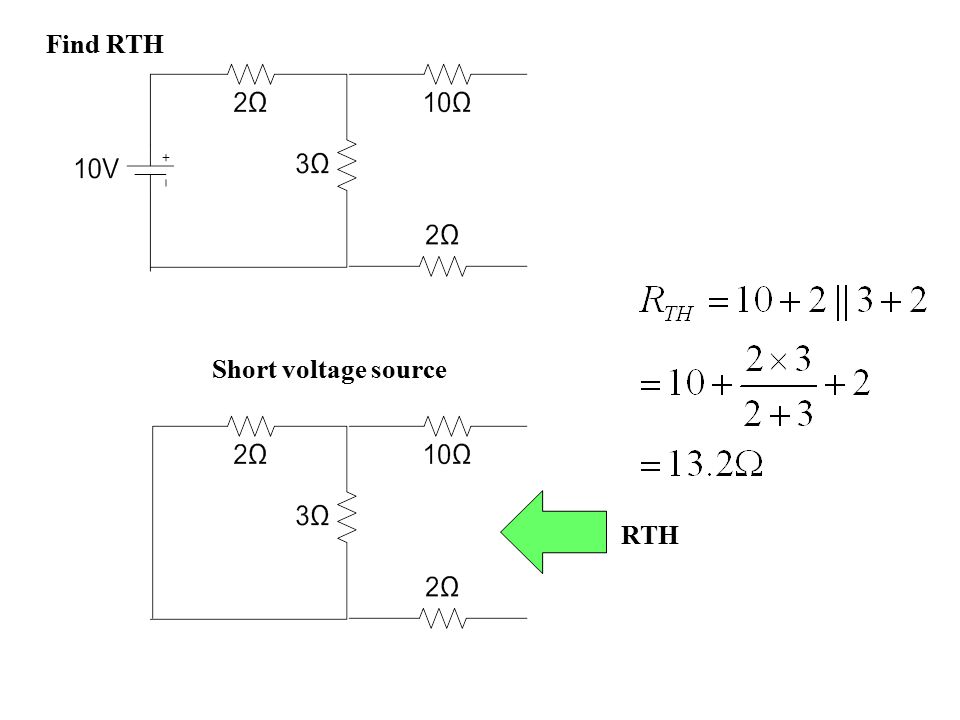

Short voltage source RTH Find RTH

13

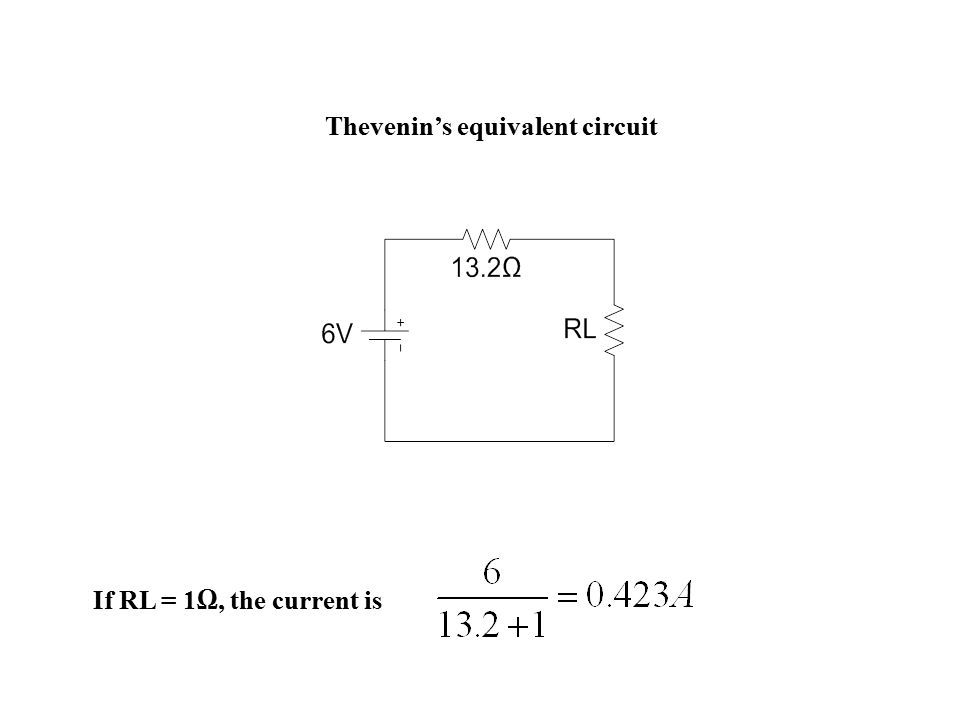

Thevenin’s equivalent circuit If RL = 1Ω, the current is

14
Example Find Thevenin’s equivalent circuit

15
Find VTH 0V 5V 0V 3V

16

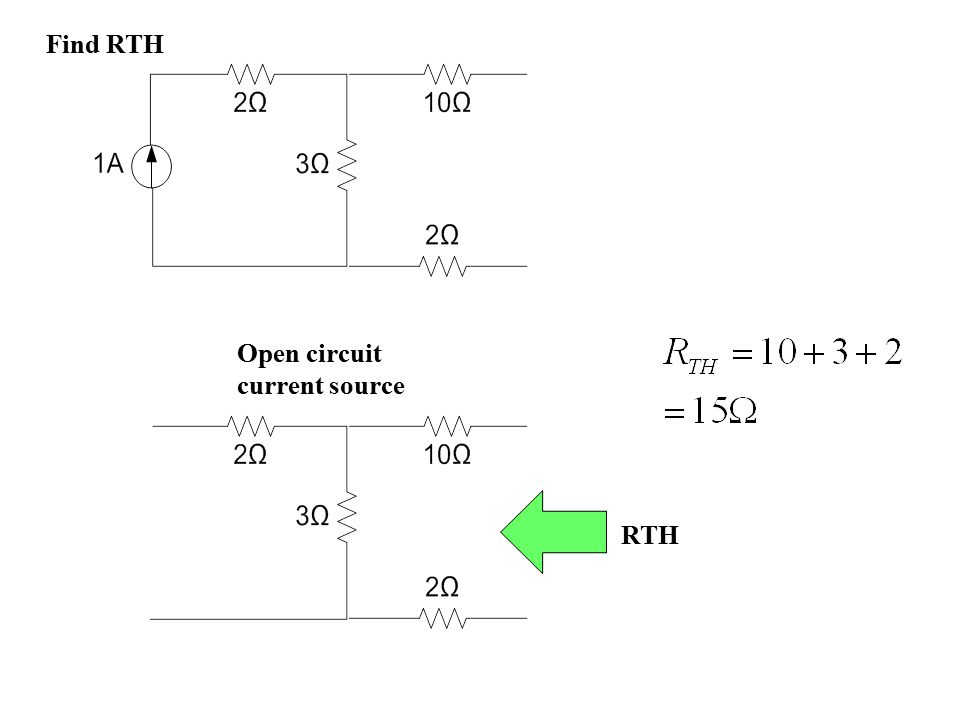

Open circuit current source RTH Find RTH

17

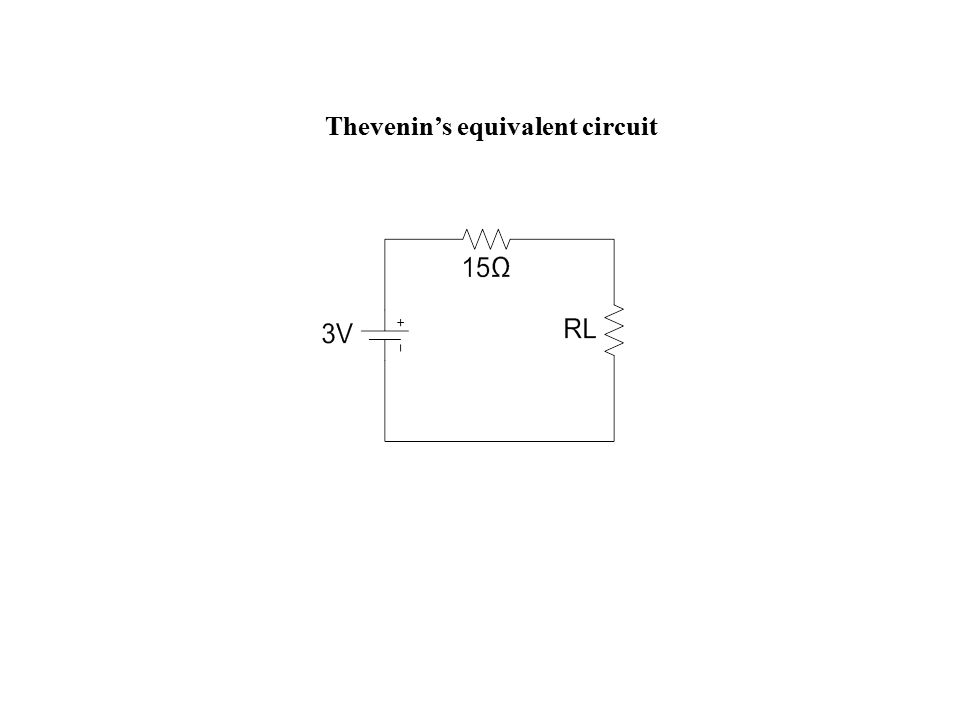

Thevenin’s equivalent circuit

18
Example: Bridge circuit Find Thevenin’s equivalent circuit

19
Find VTH 0V 10V 8V 2V VTH = 8-2 = 6V

20

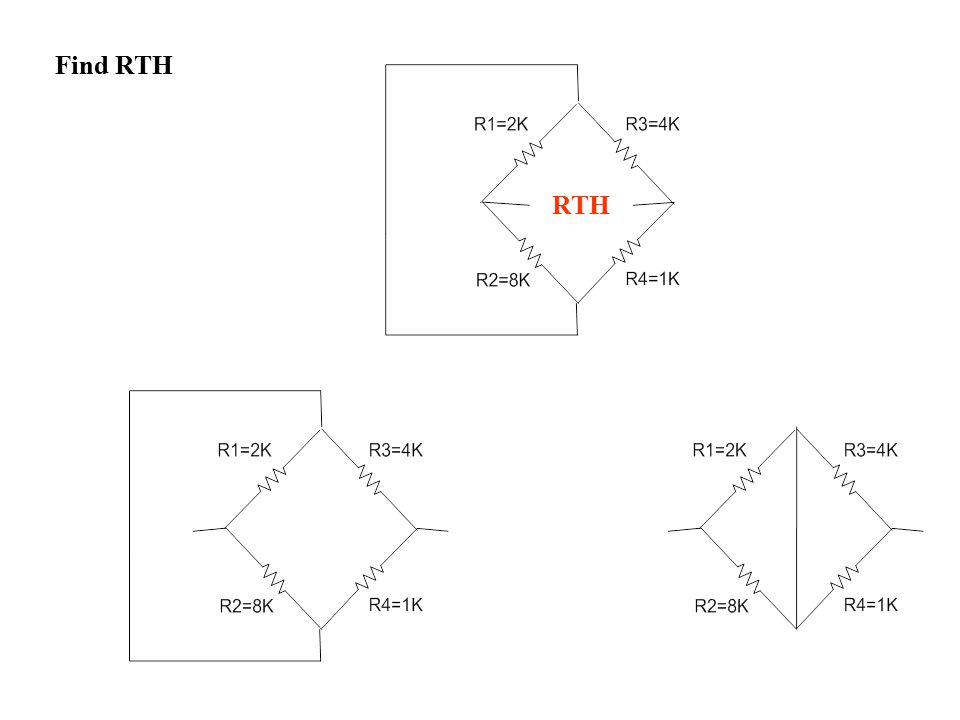

Find RTH RTH

22

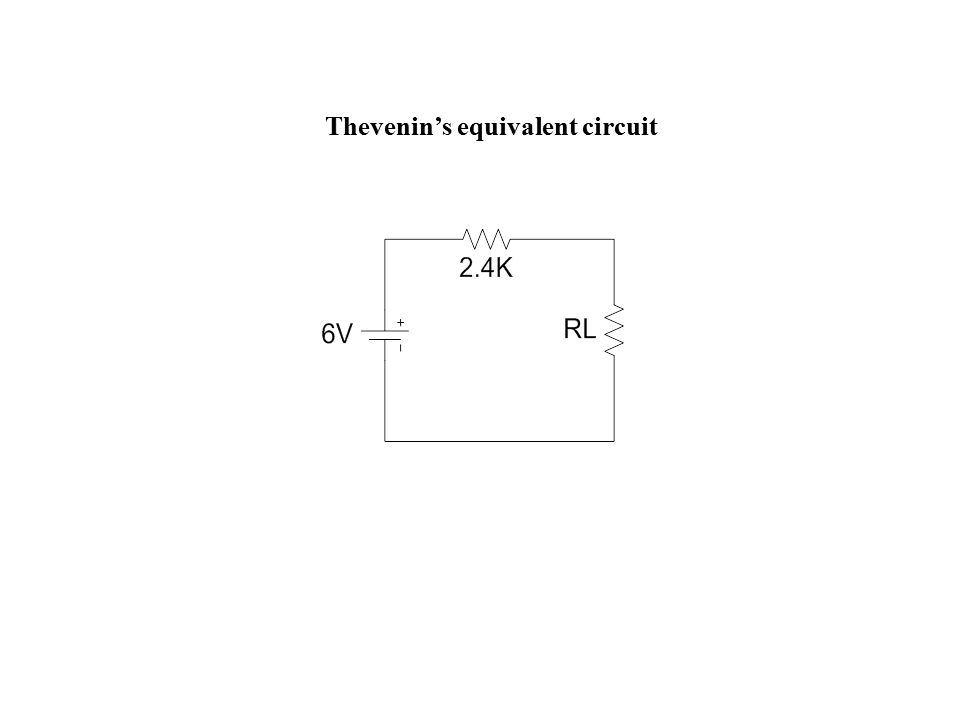

Thevenin’s equivalent circuit

23

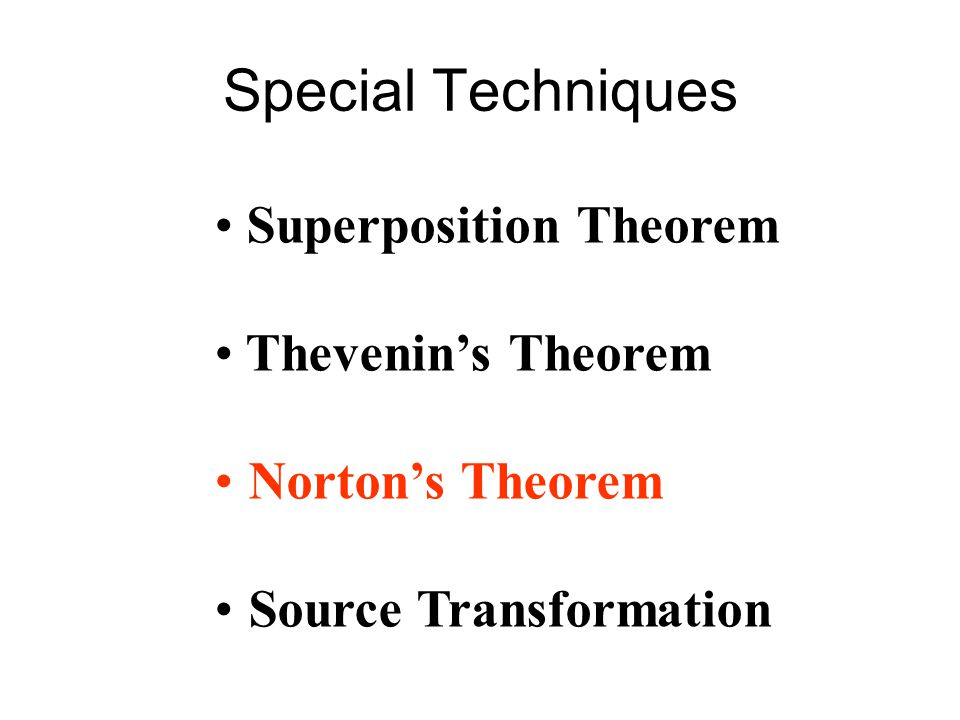

Special Techniques Superposition Theorem Thevenin’s Theorem Norton’s Theorem Source Transformation

24

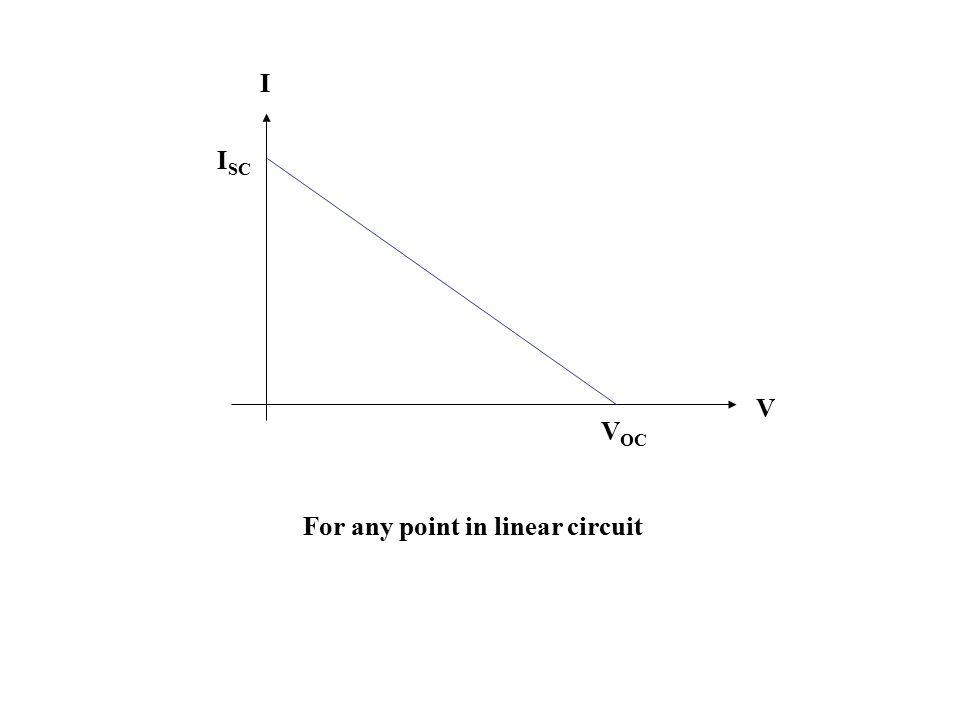

I V V OC I SC For any point in linear circuit

25

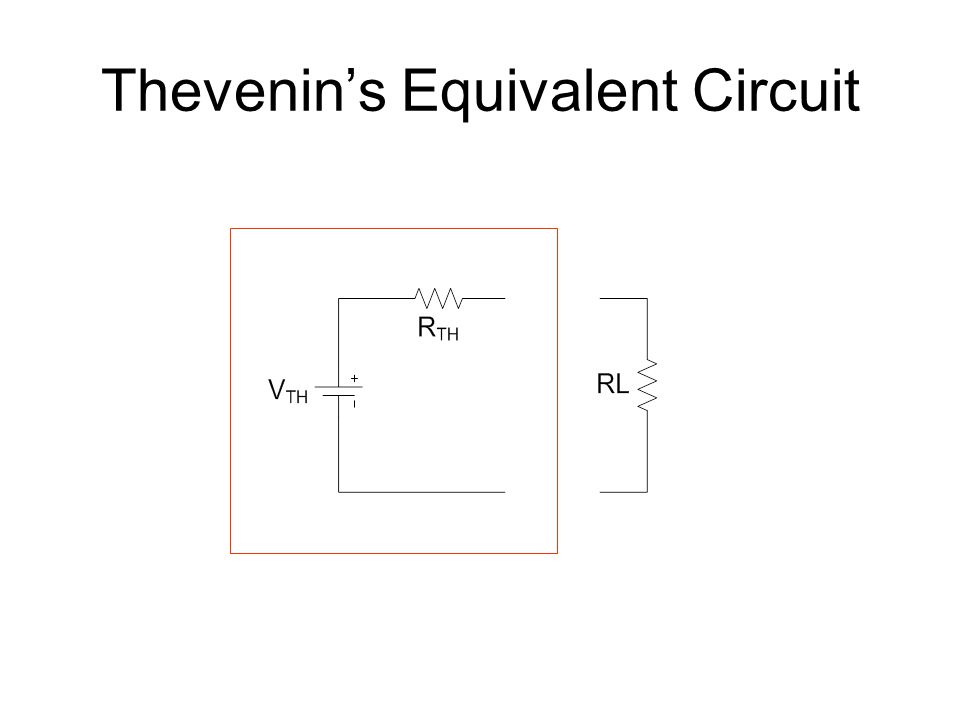

Thevenin’s Equivalent Circuit

26
Norton’s Equivalent Circuit In= Isc from replacing RL with an electric wire (resistance = 0) and find the current Rn = RTH (by looking into the opened connections that we remove RL, see how much resistance from the connections. If we see a voltage source, we short circuit. If we see a current source, we open circuit.)

27
Example Find Norton’s equivalent circuit and find the current that passes through RL when RL = 1Ω

28

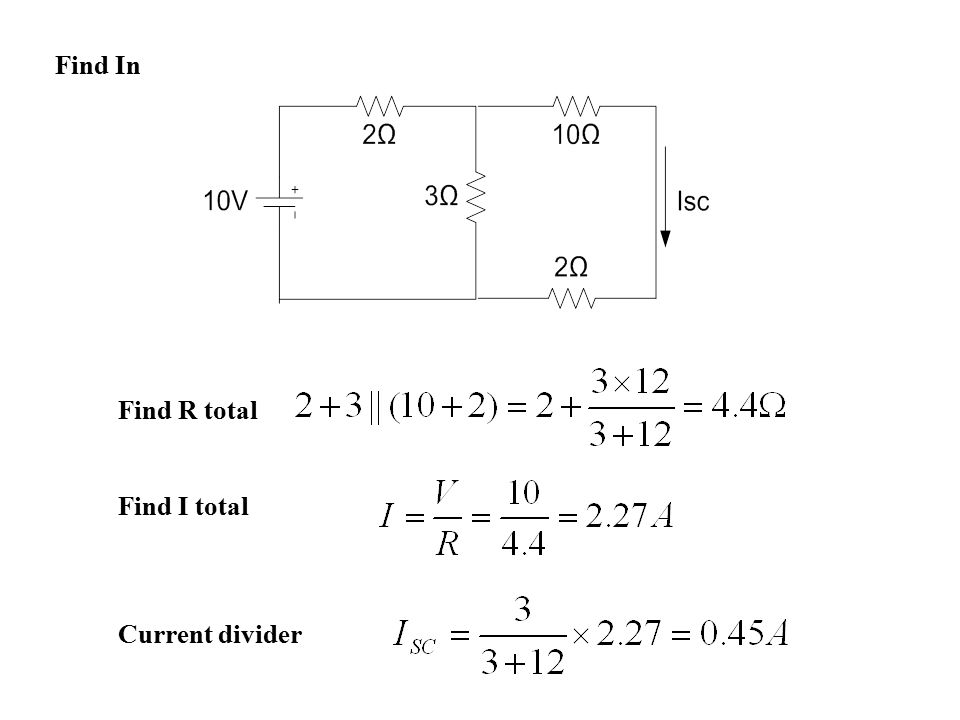

Find In Find R total Find I total Current divider

29
Short voltage source RTH Find Rn

30
Norton’s equivalent circuit If RL = 1Ω, the current is

31
Relationship Between Thevenin’s and Norton’s Circuit I V V OC I SC Slope = - 1/Rth

32
Norton’s equivalent circuit Thevenin’s equivalent circuit Same R value

33
Example Find Norton’s equivalent circuit

34

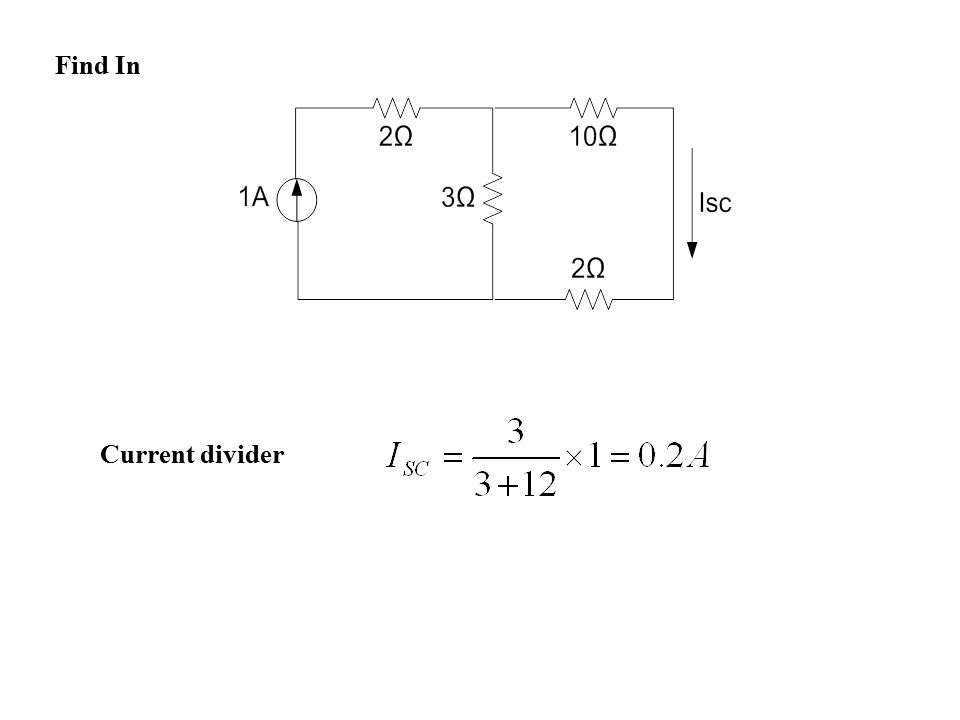

Find In Current divider

35
Open circuit current source RTH Find RTH

36
Norton’s equivalent circuit

37

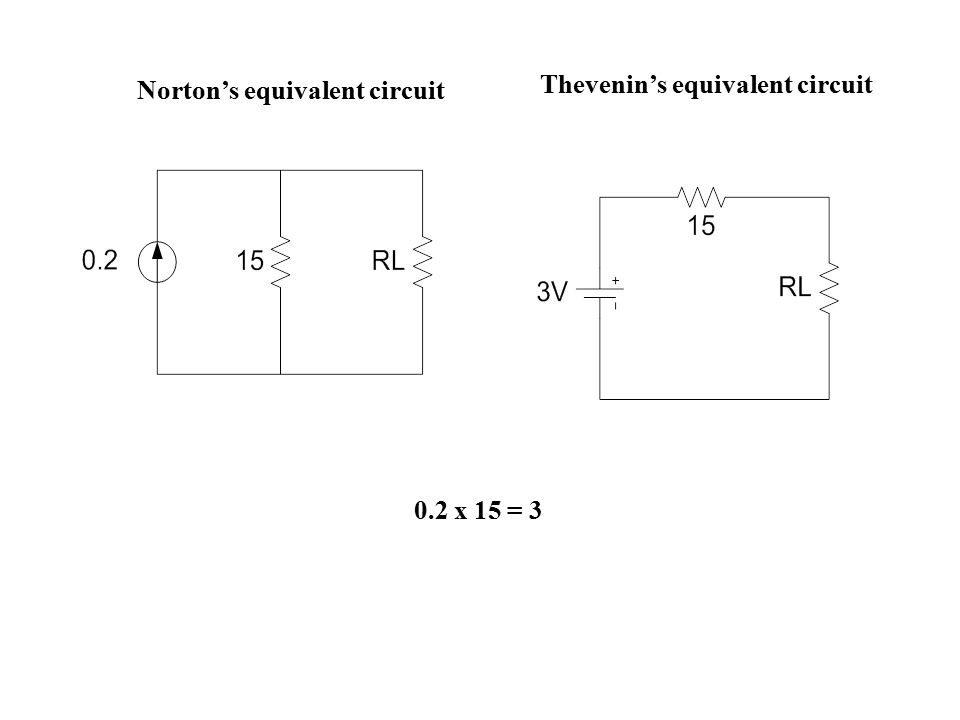

Thevenin’s equivalent circuit Norton’s equivalent circuit 0.2 x 15 = 3

38
Equivalent Circuits with Dependent Sources We cannot find Rth in circuits with dependent sources using the total resistance method. But we can use

39
Example Find Thevenin and Norton’s equivalent circuit

40

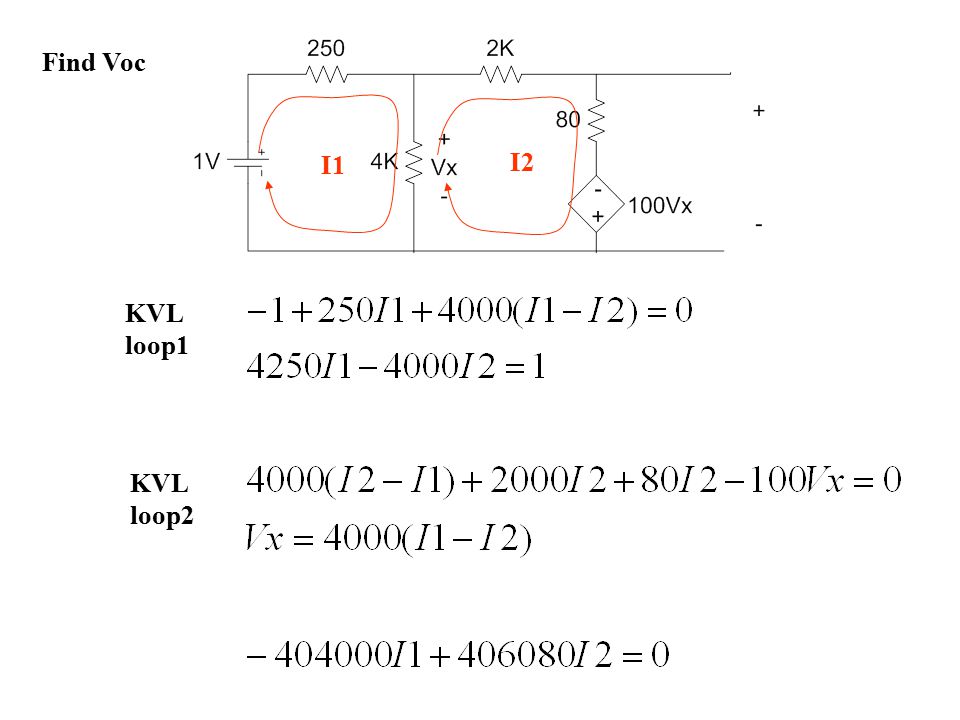

Find Voc I1 I2 KVL loop1 KVL loop2

41
I1 I2 Solve equations I1 = 3.697mAI2 = 3.678mA

42

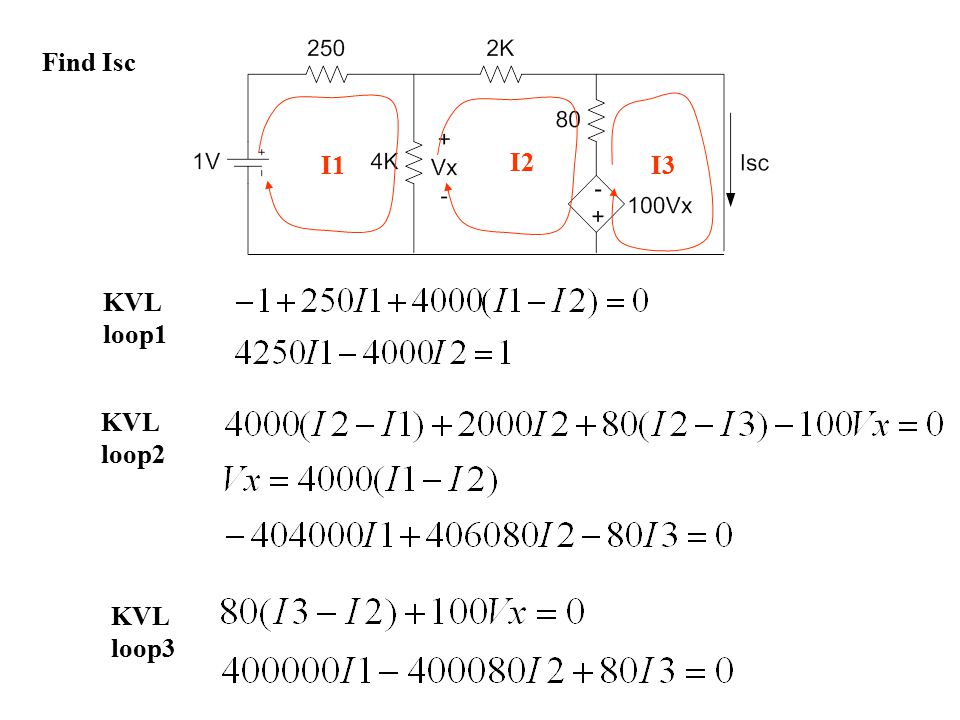

Find Isc I1 I2 I3 KVL loop1 KVL loop2 KVL loop3

43

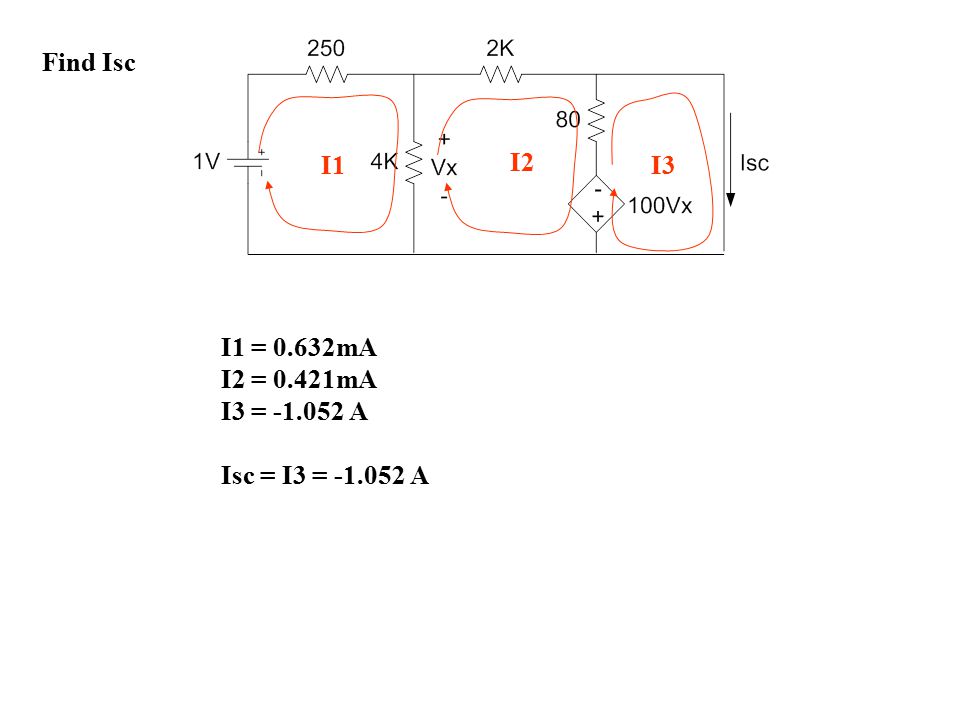

Find Isc I1 I2 I3 I1 = 0.632mA I2 = 0.421mA I3 = -1.052 A Isc = I3 = -1.052 A

44
Thevenin’s equivalent circuit Norton’s equivalent circuit
