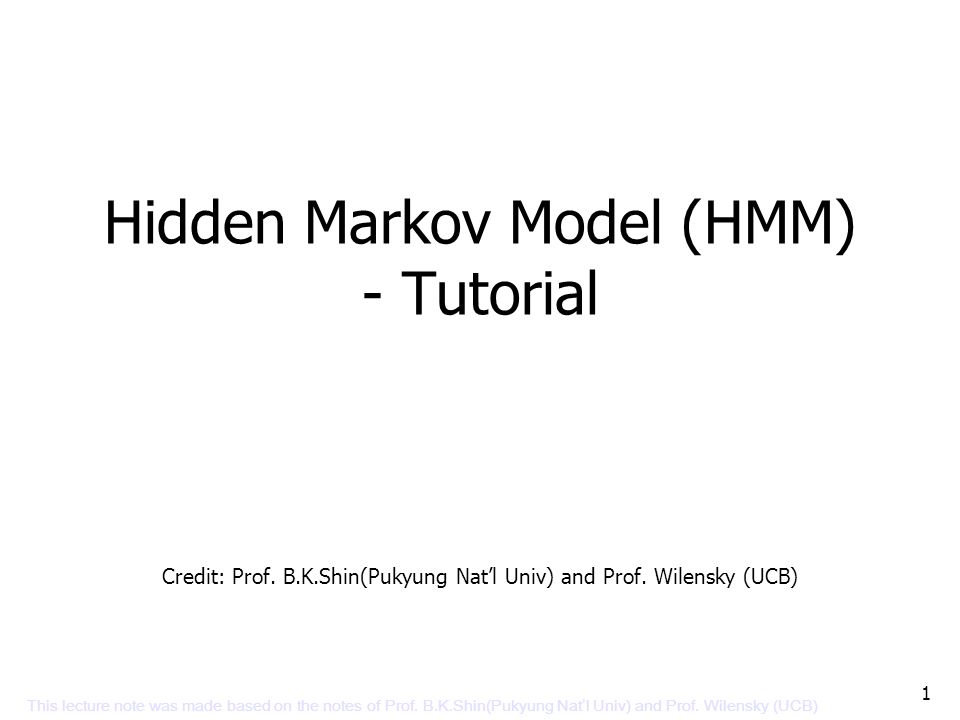

1. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 1 Hidden Markov Model (HMM) - Tutorial Credit: Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB)

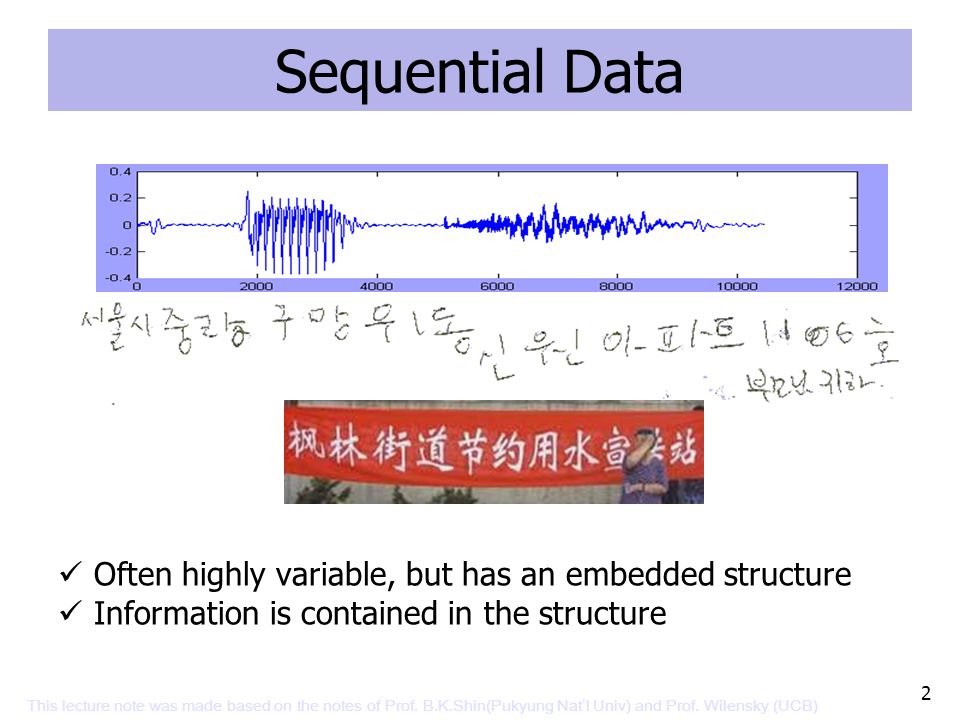

2. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 2 Sequential Data Often highly variable, but has an embedded structure Information is contained in the structure

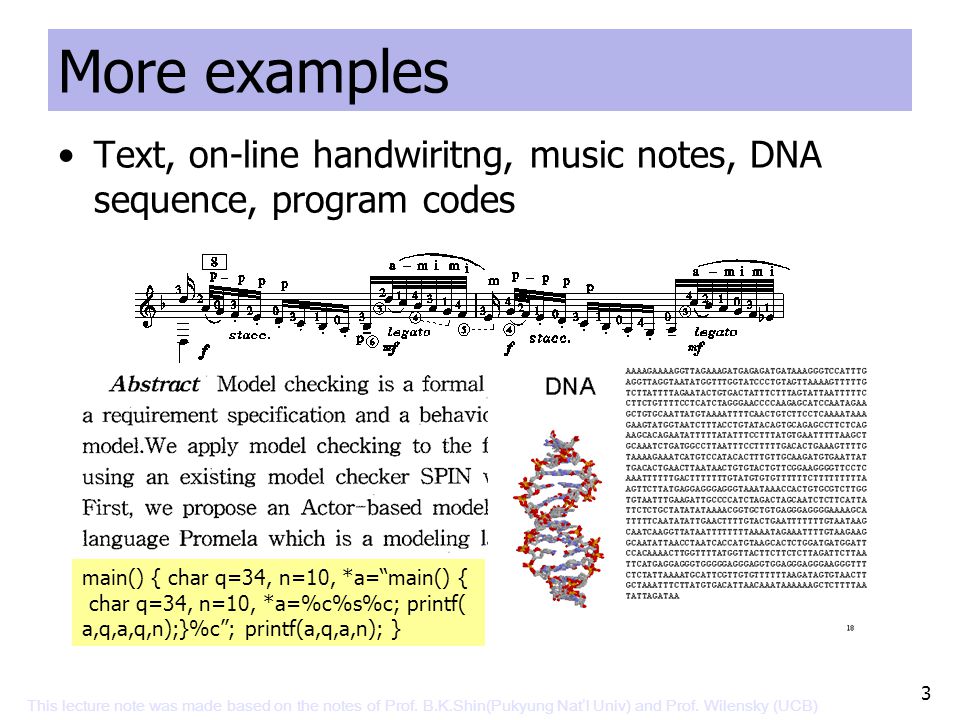

3. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 3 More examples Text, on-line handwiritng, music notes, DNA sequence, program codes main() { char q=34, n=10, *a=“main() { char q=34, n=10, *a=%c%s%c; printf( a,q,a,q,n);}%c”; printf(a,q,a,n); }

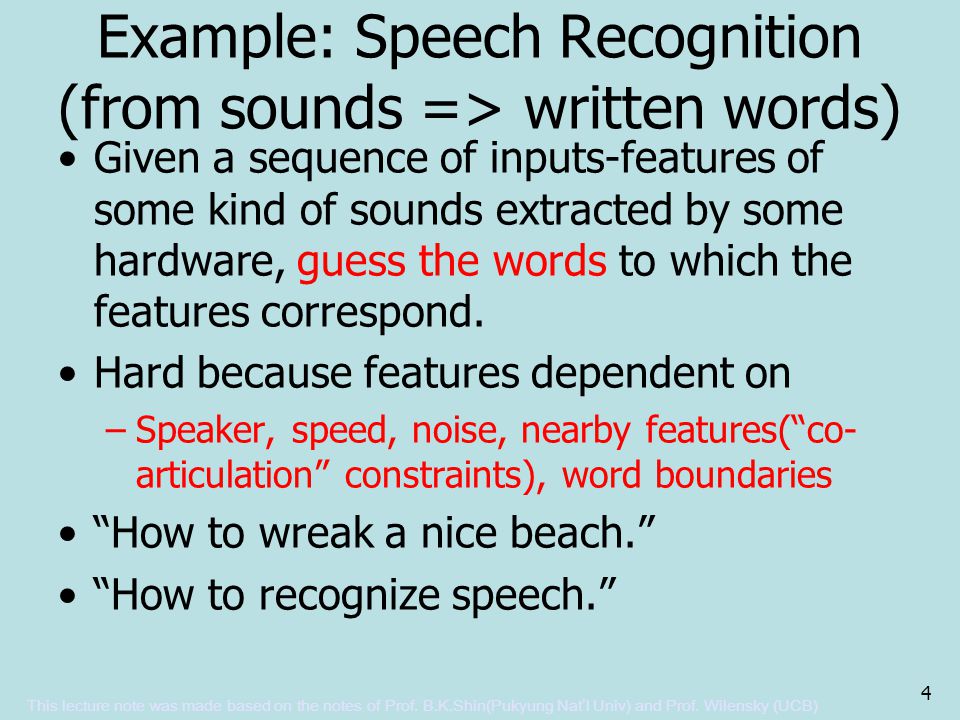

4. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 4 Example: Speech Recognition (from sounds => written words) Given a sequence of inputs-features of some kind of sounds extracted by some hardware, guess the words to which the features correspond. Hard because features dependent on –Speaker, speed, noise, nearby features(“co- articulation” constraints), word boundaries “How to wreak a nice beach.” “How to recognize speech.”

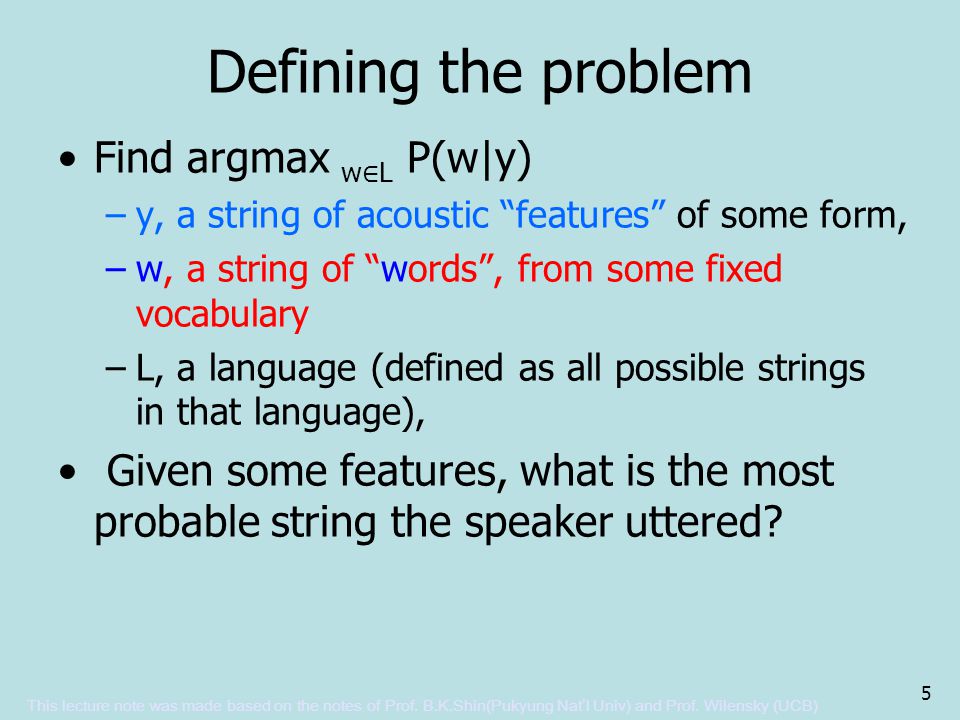

5. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 5 Defining the problem Find argmax w ∈ L P(w|y) –y, a string of acoustic “features” of some form, –w, a string of “words”, from some fixed vocabulary –L, a language (defined as all possible strings in that language), Given some features, what is the most probable string the speaker uttered?

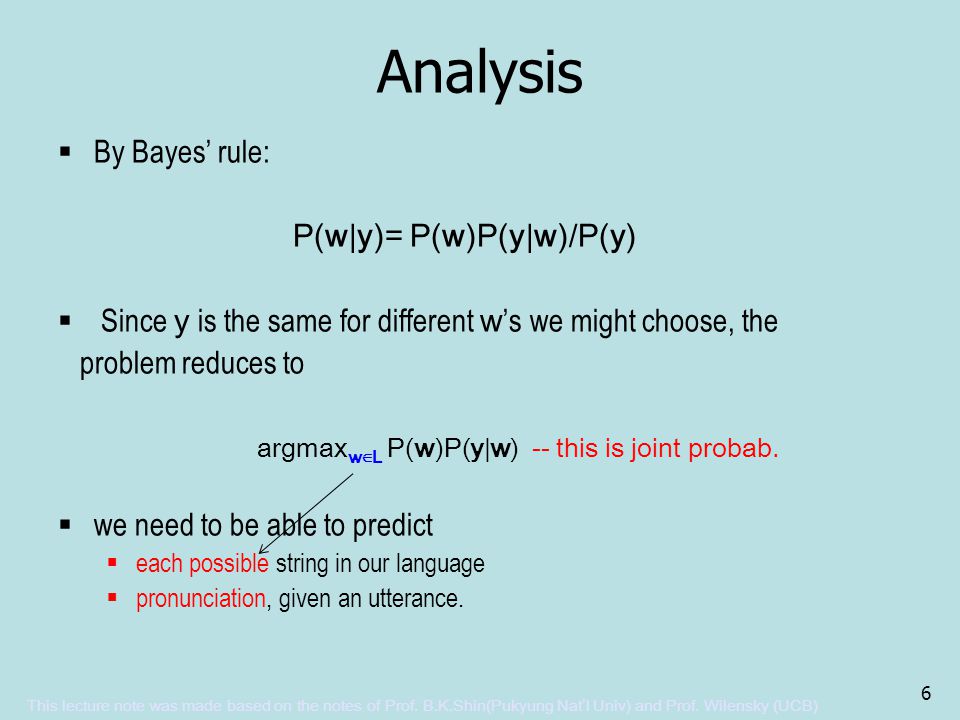

6. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 6 Analysis  By Bayes’ rule: P(w|y)= P(w)P(y|w)/P(y)  Since y is the same for different w ’s we might choose, the problem reduces to argmax w ∈ L P(w)P(y|w) -- this is joint probab.  we need to be able to predict  each possible string in our language  pronunciation, given an utterance.

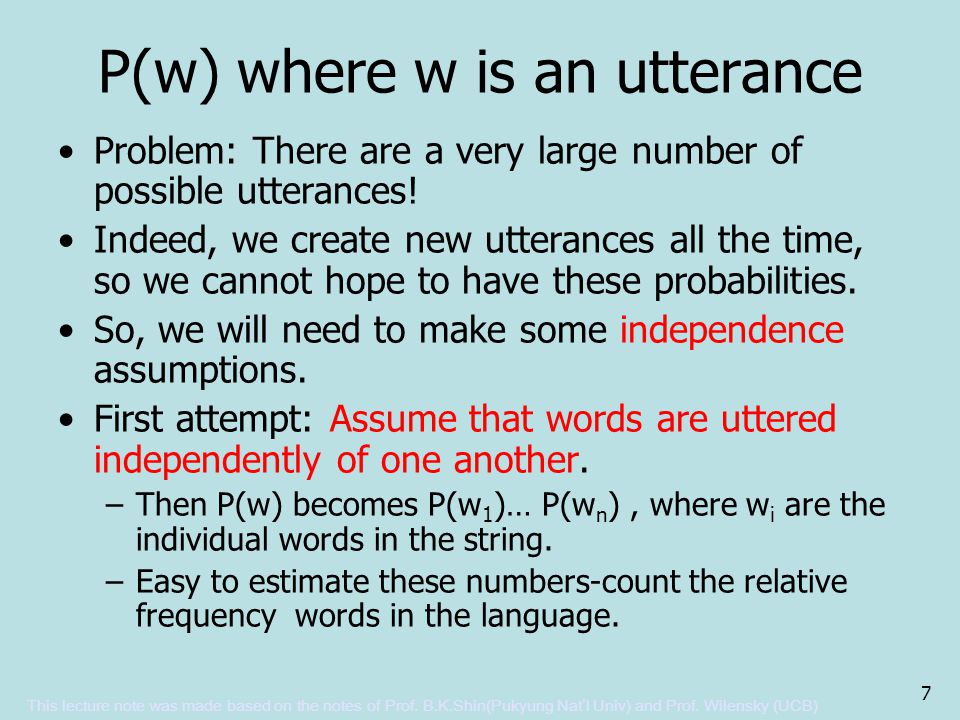

7. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 7 P(w) where w is an utterance Problem: There are a very large number of possible utterances! Indeed, we create new utterances all the time, so we cannot hope to have these probabilities. So, we will need to make some independence assumptions. First attempt: Assume that words are uttered independently of one another. –Then P(w) becomes P(w 1 )… P(w n ), where w i are the individual words in the string. –Easy to estimate these numbers-count the relative frequency words in the language.

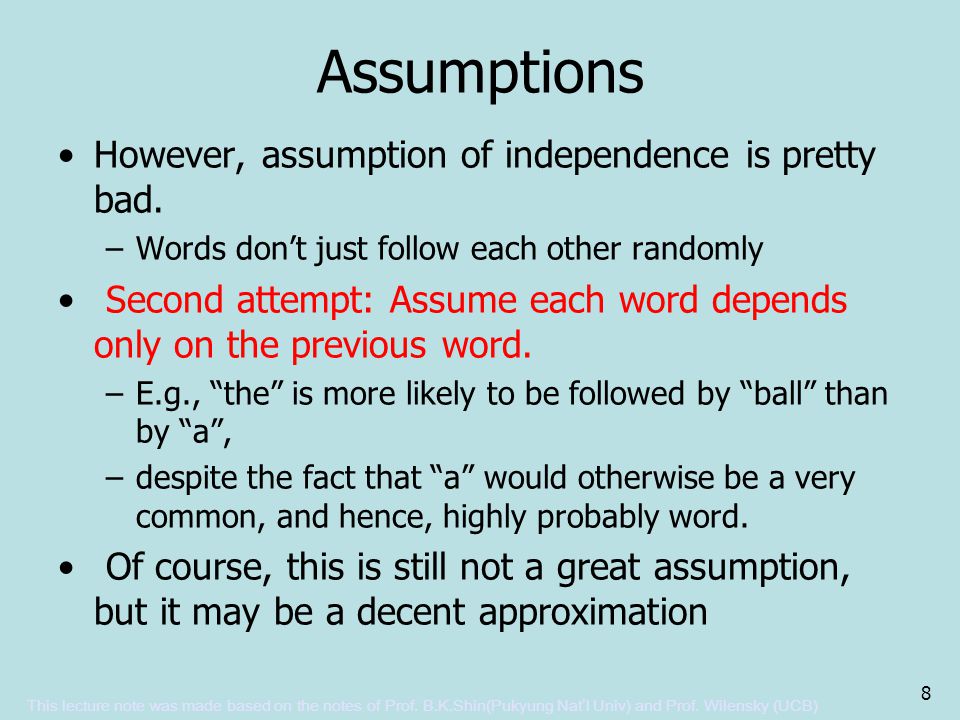

8. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 8 Assumptions However, assumption of independence is pretty bad. –Words don’t just follow each other randomly Second attempt: Assume each word depends only on the previous word. –E.g., “the” is more likely to be followed by “ball” than by “a”, –despite the fact that “a” would otherwise be a very common, and hence, highly probably word. Of course, this is still not a great assumption, but it may be a decent approximation

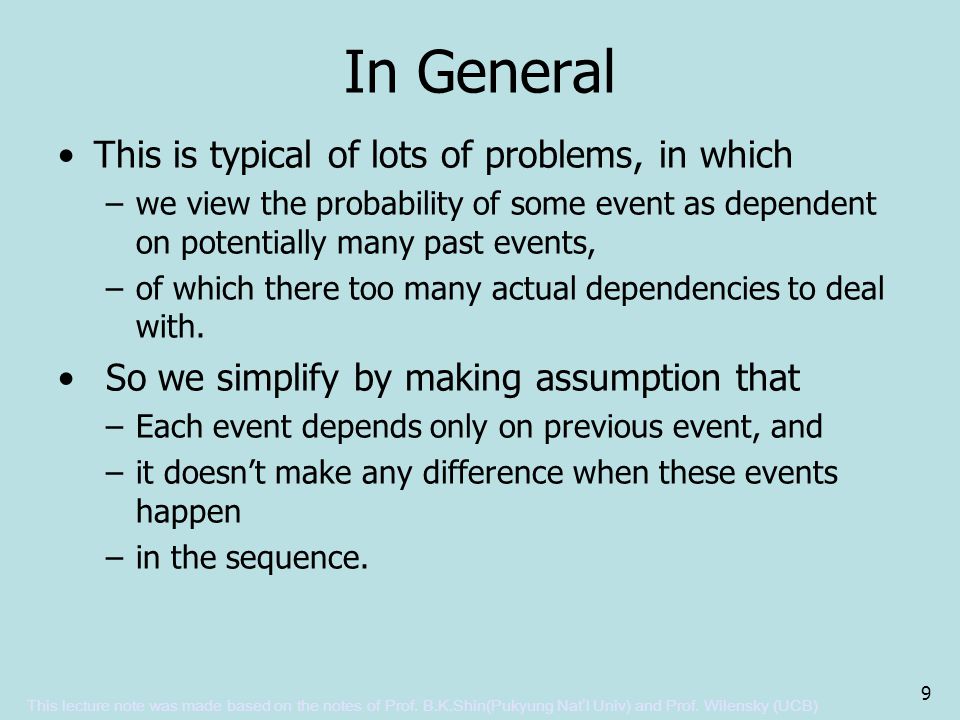

9. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 9 In General This is typical of lots of problems, in which –we view the probability of some event as dependent on potentially many past events, –of which there too many actual dependencies to deal with. So we simplify by making assumption that –Each event depends only on previous event, and –it doesn’t make any difference when these events happen –in the sequence.

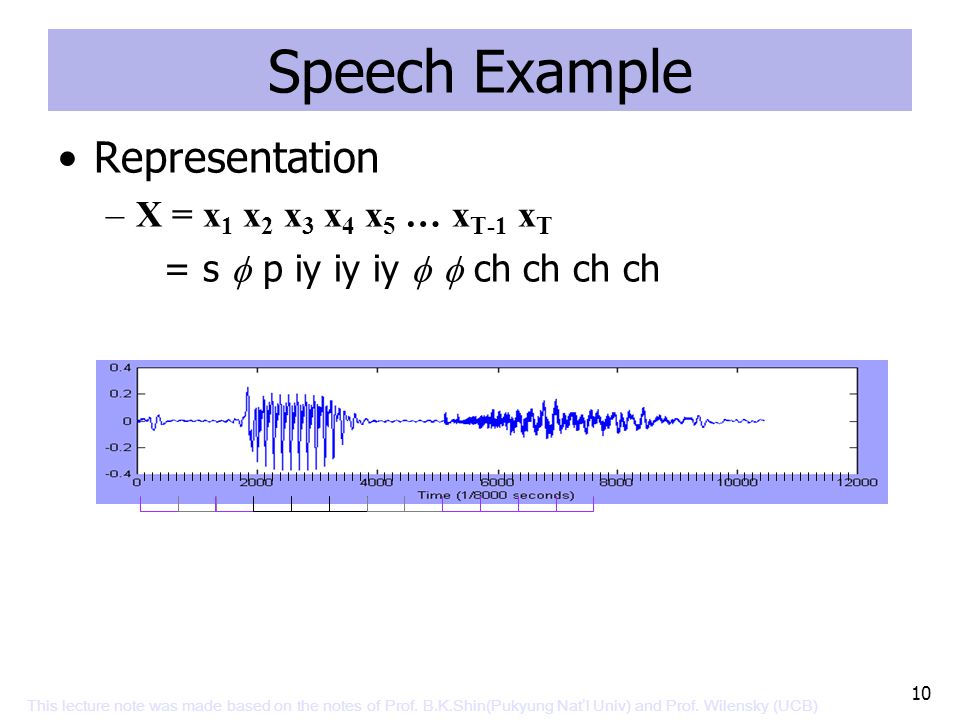

10. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 10 Speech Example Representation –X = x 1 x 2 x 3 x 4 x 5 … x T-1 x T = s  p iy iy iy   ch ch ch ch

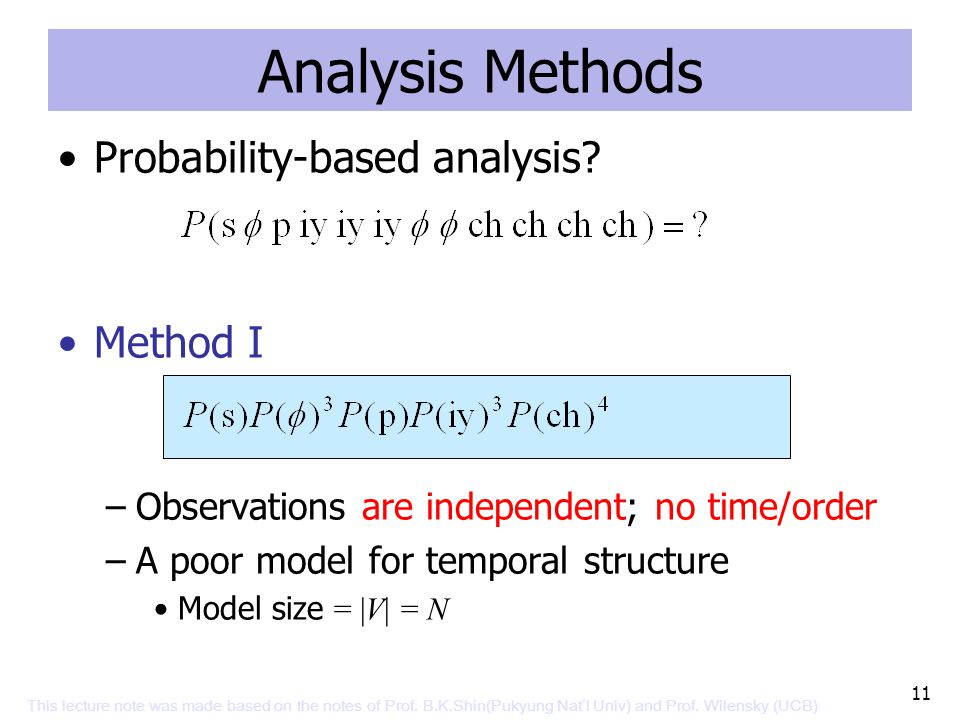

11. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 11 Analysis Methods Probability-based analysis? Method I –Observations are independent; no time/order –A poor model for temporal structure Model size = |V| = N

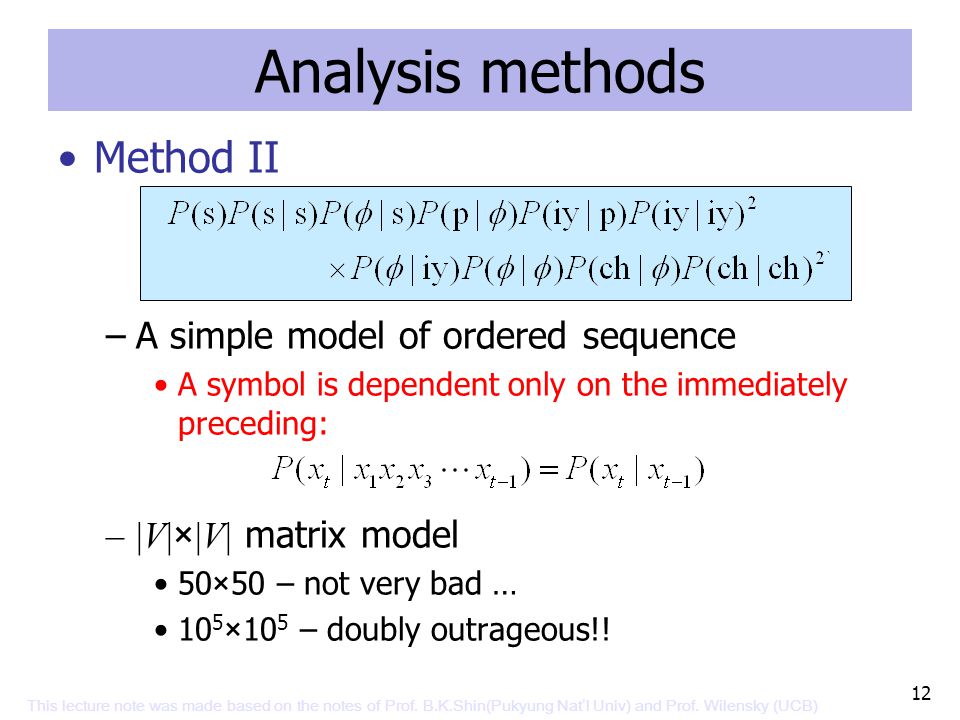

12. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 12 Analysis methods Method II –A simple model of ordered sequence A symbol is dependent only on the immediately preceding: –|V|×|V| matrix model 50×50 – not very bad … 10 5 ×10 5 – doubly outrageous!!

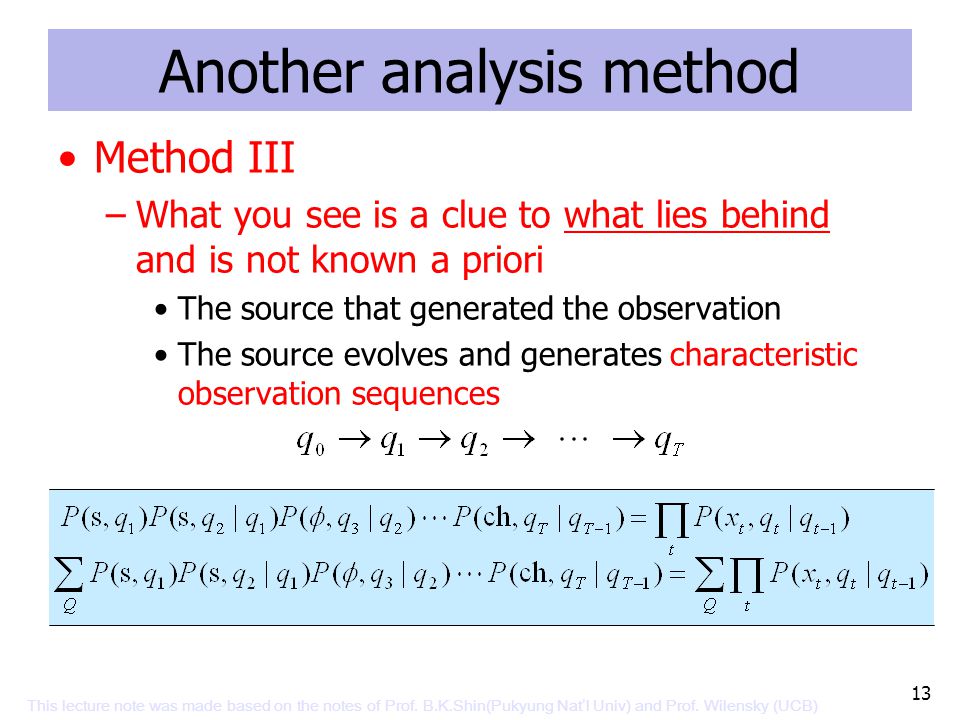

13. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 13 Another analysis method Method III –What you see is a clue to what lies behind and is not known a priori The source that generated the observation The source evolves and generates characteristic observation sequences

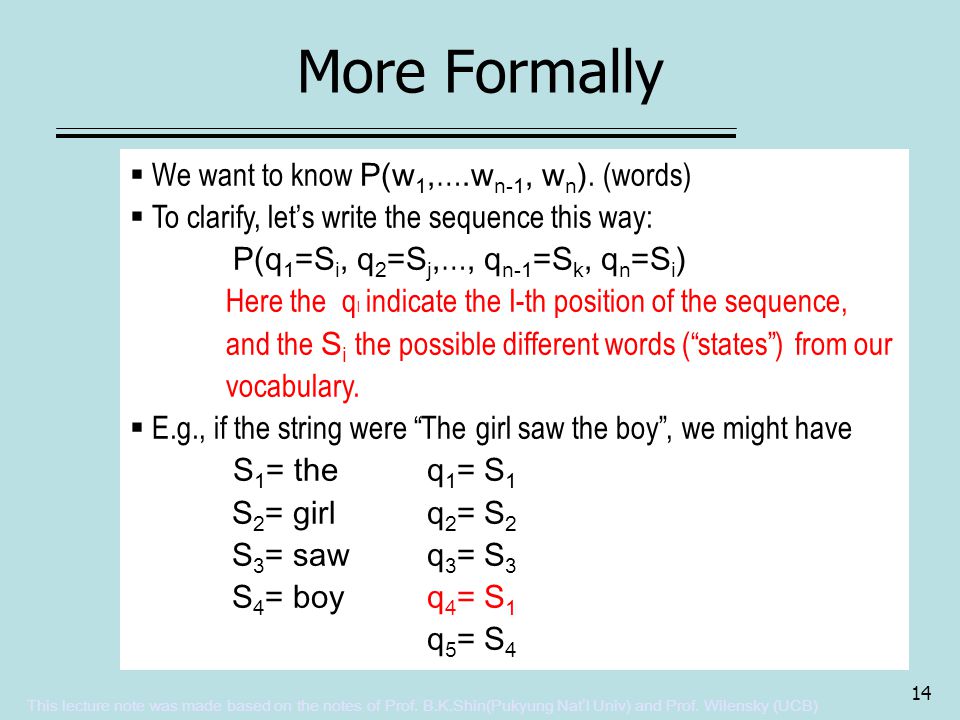

14. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 14  We want to know P(w 1, ….w n-1, w n ). (words)  To clarify, let’s write the sequence this way: P(q 1 =S i, q 2 =S j, …, q n-1 =S k, q n =S i ) Here the q l indicate the I-th position of the sequence, and the S i the possible different words (“states”) from our vocabulary.  E.g., if the string were “The girl saw the boy”, we might have S 1 = the q 1 = S 1 S 2 = girl q 2 = S 2 S 3 = saw q 3 = S 3 S 4 = boy q 4 = S 1 S 1 = the q 5 = S 4 More Formally

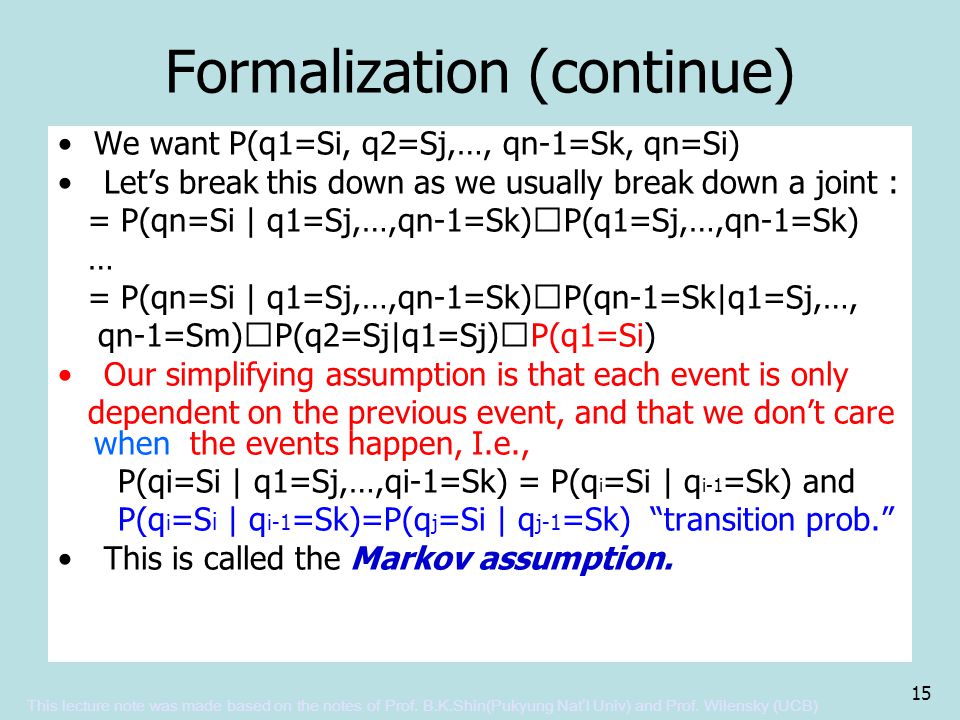

15. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 15 Formalization (continue) We want P(q1=Si, q2=Sj,…, qn-1=Sk, qn=Si) Let’s break this down as we usually break down a joint : = P(qn=Si | q1=Sj,…,qn-1=Sk) ⅹ P(q1=Sj,…,qn-1=Sk) … = P(qn=Si | q1=Sj,…,qn-1=Sk) ⅹ P(qn-1=Sk|q1=Sj,…, qn-1=Sm) ⅹ P(q2=Sj|q1=Sj) ⅹ P(q1=Si) Our simplifying assumption is that each event is only dependent on the previous event, and that we don’t care when the events happen, I.e., P(qi=Si | q1=Sj,…,qi-1=Sk) = P(q i =Si | q i-1 =Sk) and P(q i =S i | q i-1 =Sk)=P(q j =Si | q j-1 =Sk) “transition prob.” This is called the Markov assumption.

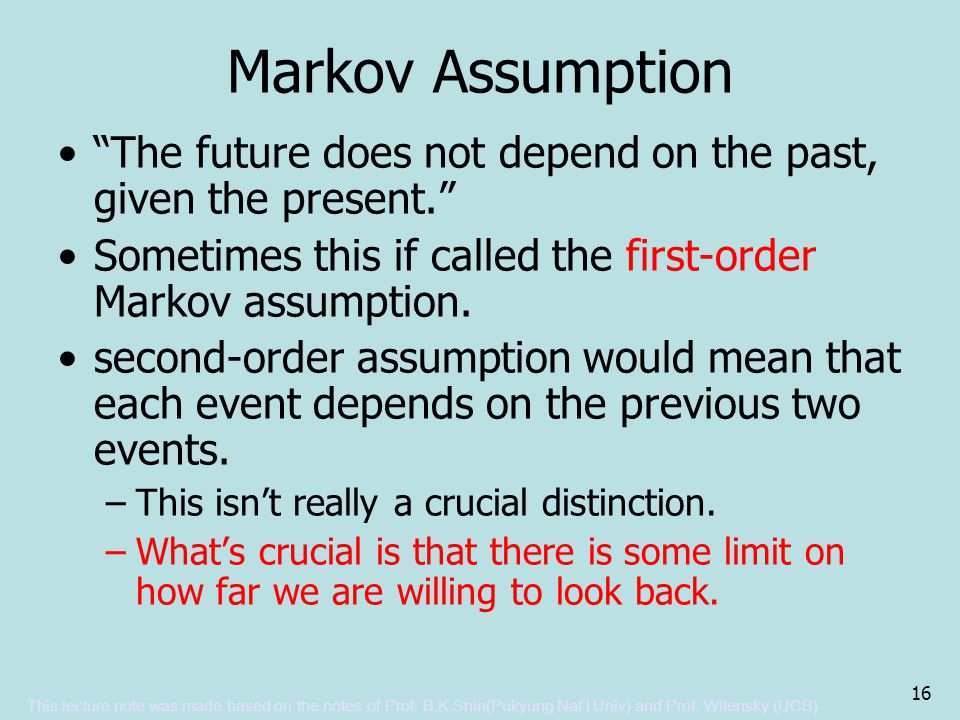

16. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 16 Markov Assumption “The future does not depend on the past, given the present.” Sometimes this if called the first-order Markov assumption. second-order assumption would mean that each event depends on the previous two events. –This isn’t really a crucial distinction. –What’s crucial is that there is some limit on how far we are willing to look back.

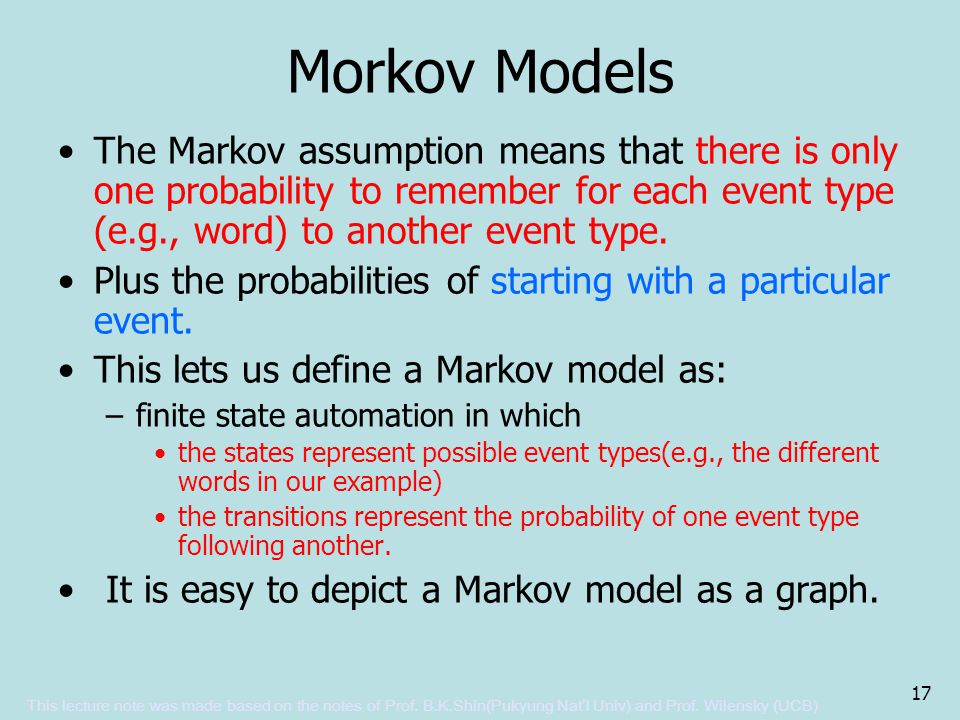

17. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 17 Morkov Models The Markov assumption means that there is only one probability to remember for each event type (e.g., word) to another event type. Plus the probabilities of starting with a particular event. This lets us define a Markov model as: –finite state automation in which the states represent possible event types(e.g., the different words in our example) the transitions represent the probability of one event type following another. It is easy to depict a Markov model as a graph.

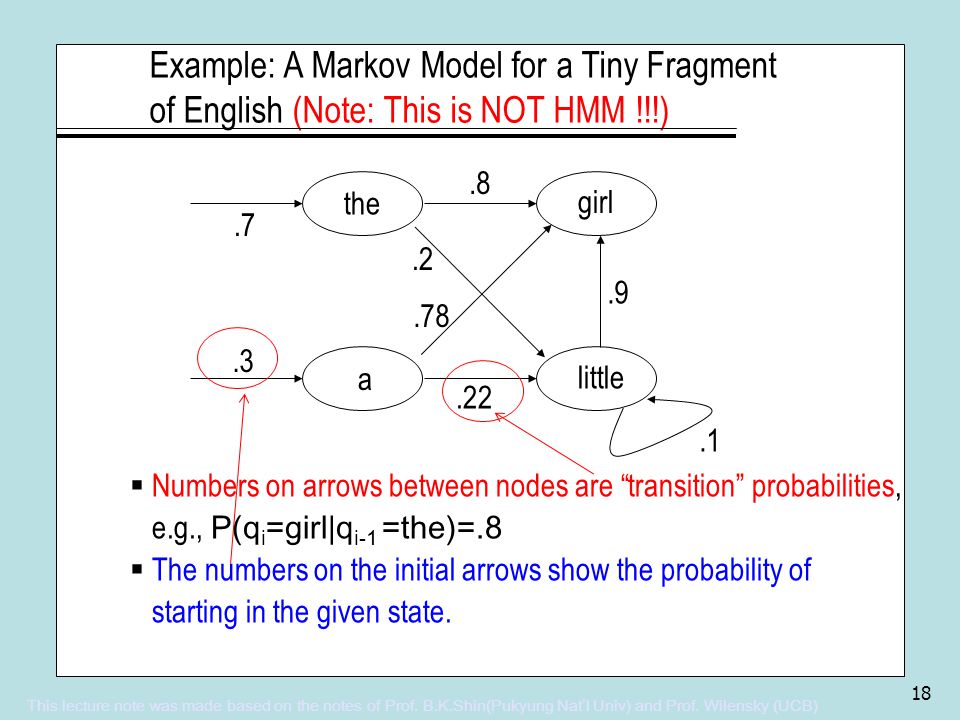

18. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 18 Example: A Markov Model for a Tiny Fragment of English (Note: This is NOT HMM !!!)  Numbers on arrows between nodes are “transition” probabilities, e.g., P(q i =girl|q i-1 =the)=.8  The numbers on the initial arrows show the probability of starting in the given state. the a girl little.7.8.9.22.3.78.2.1

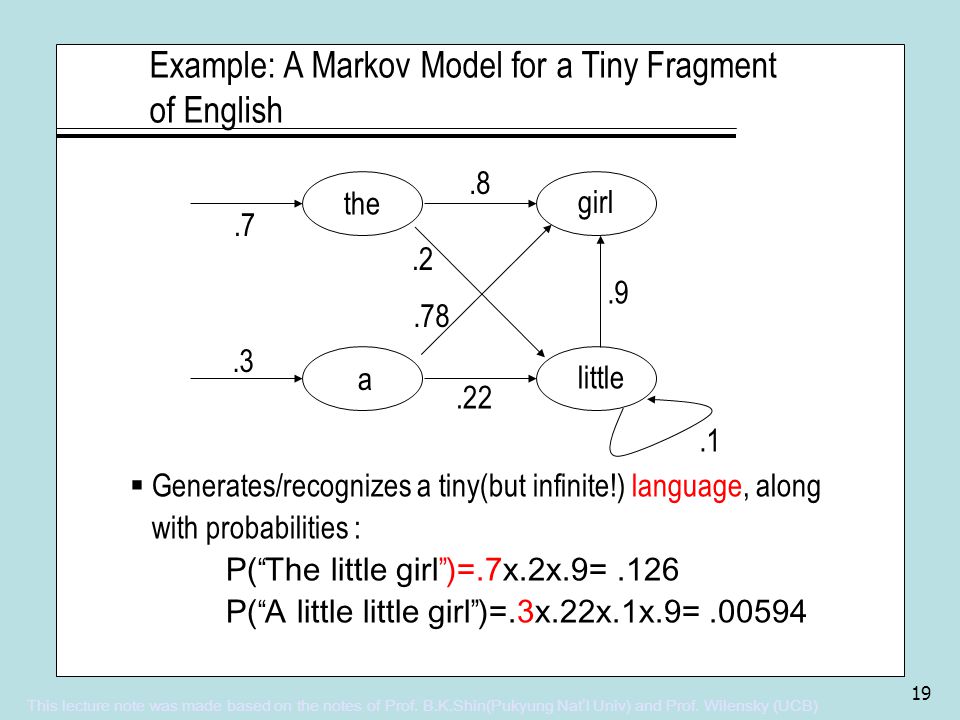

19. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 19 Example: A Markov Model for a Tiny Fragment of English  Generates/recognizes a tiny(but infinite!) language, along with probabilities : P( “ The little girl ” )=.7 ⅹ.2 ⅹ.9=.126 P( “ A little little girl ” )=.3 ⅹ.22 ⅹ.1 ⅹ.9=.00594 the a girl little.7.8.9.22.3.78.2.1

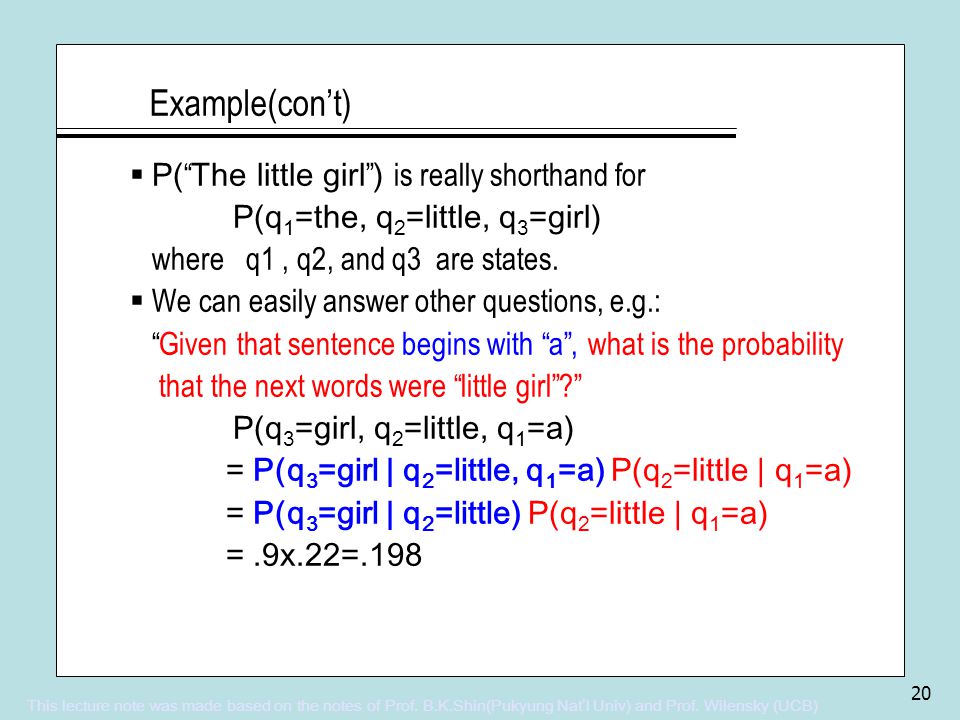

20. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 20 Example(con’t)  P( “ The little girl ” ) is really shorthand for P(q 1 =the, q 2 =little, q 3 =girl) where q1, q2, and q3 are states.  We can easily answer other questions, e.g.: “Given that sentence begins with “a”, what is the probability that the next words were “little girl”?” P(q 3 =girl, q 2 =little, q 1 =a) = P(q 3 =girl | q 2 =little, q 1 =a) P(q 2 =little | q 1 =a) = P(q 3 =girl | q 2 =little) P(q 2 =little | q 1 =a) =.9 ⅹ.22=.198

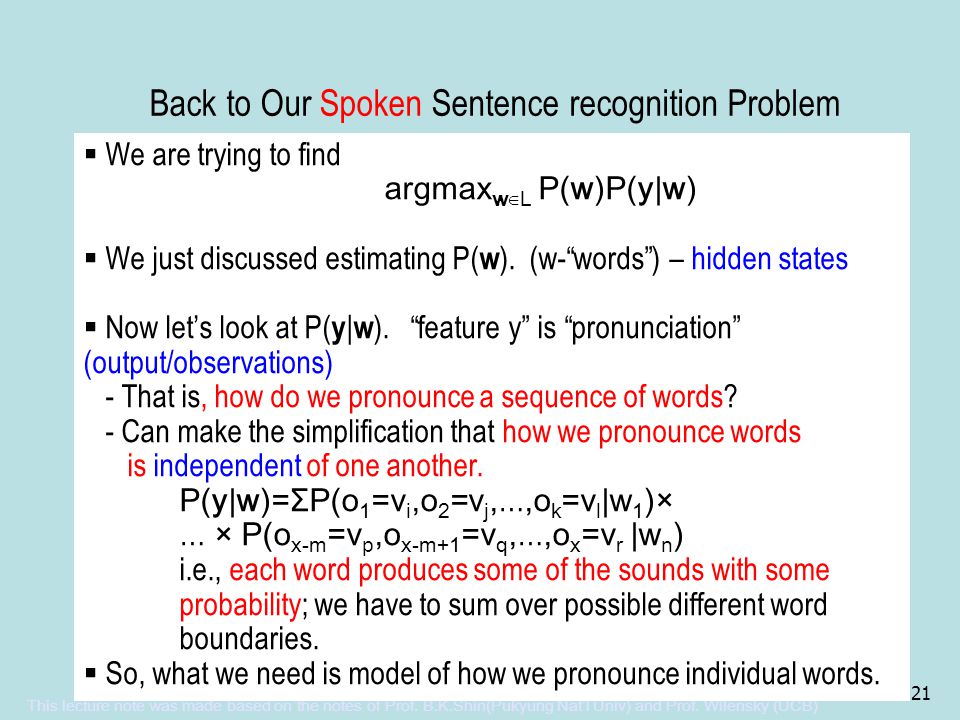

21. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 21 Back to Our Spoken Sentence recognition Problem  We are trying to find argmax w ∈ L P(w)P(y|w)  We just discussed estimating P( w ). (w-“words”) – hidden states  Now let’s look at P( y | w ). “feature y” is “pronunciation” (output/observations) - That is, how do we pronounce a sequence of words? - Can make the simplification that how we pronounce words is independent of one another. P(y|w)=ΣP(o 1 =v i,o 2 =v j, …,o k =v l |w 1 )× … × P(o x-m =v p,o x-m+1 =v q, …,o x =v r |w n ) i.e., each word produces some of the sounds with some probability; we have to sum over possible different word boundaries.  So, what we need is model of how we pronounce individual words.

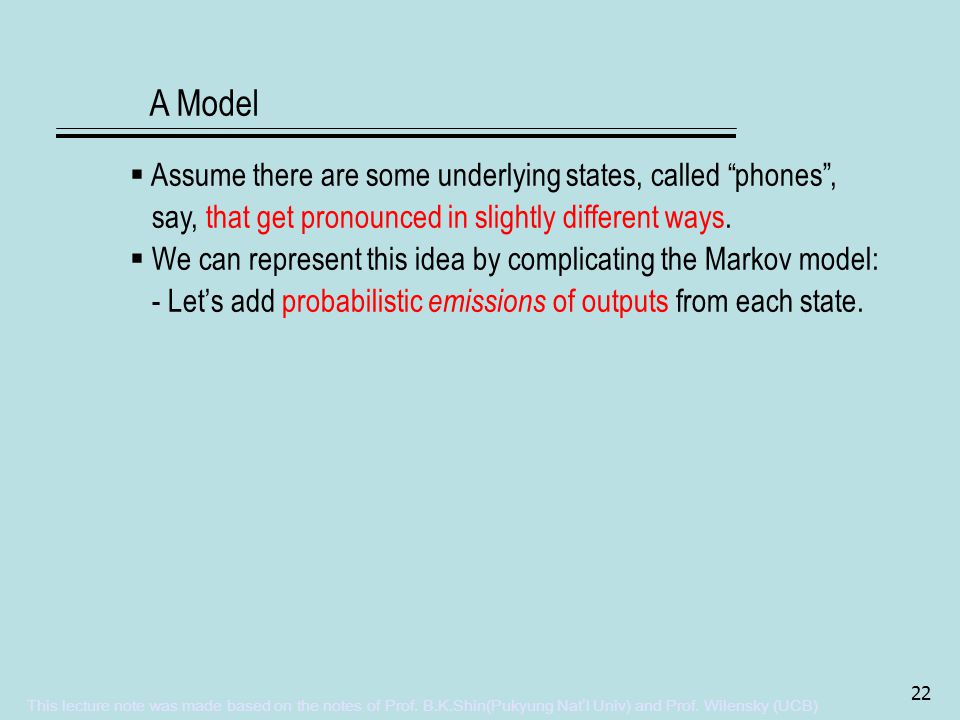

22. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 22 A Model  Assume there are some underlying states, called “phones”, say, that get pronounced in slightly different ways.  We can represent this idea by complicating the Markov model: - Let’s add probabilistic emissions of outputs from each state.

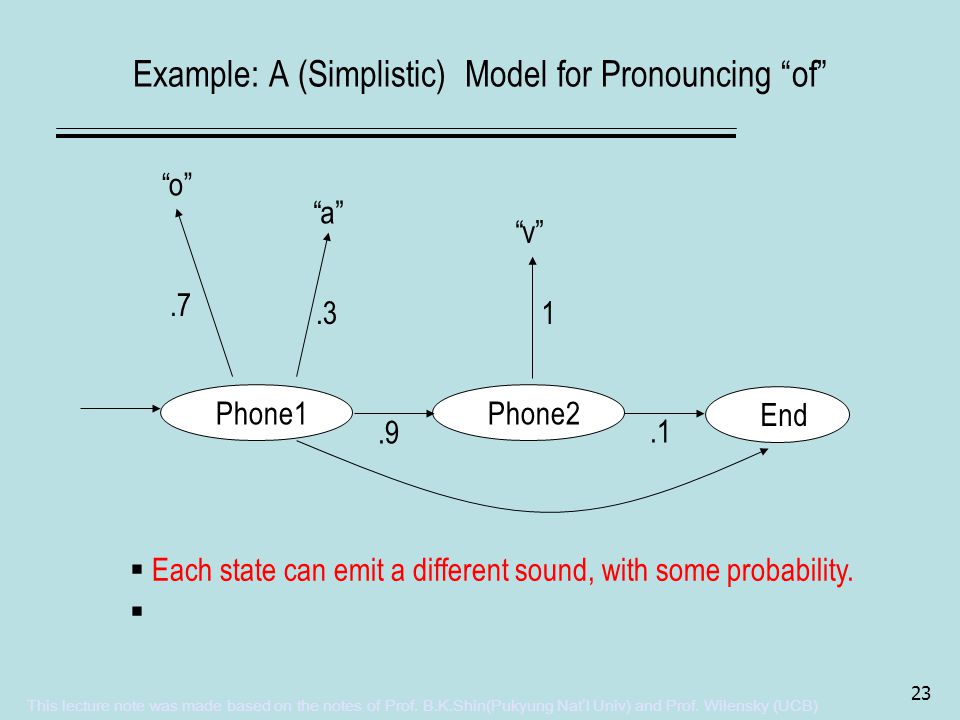

23. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 23  Each state can emit a different sound, with some probability.  Phone1Phone2End.9.1.7.31 “o” “a” “v” Example: A (Simplistic) Model for Pronouncing “of”

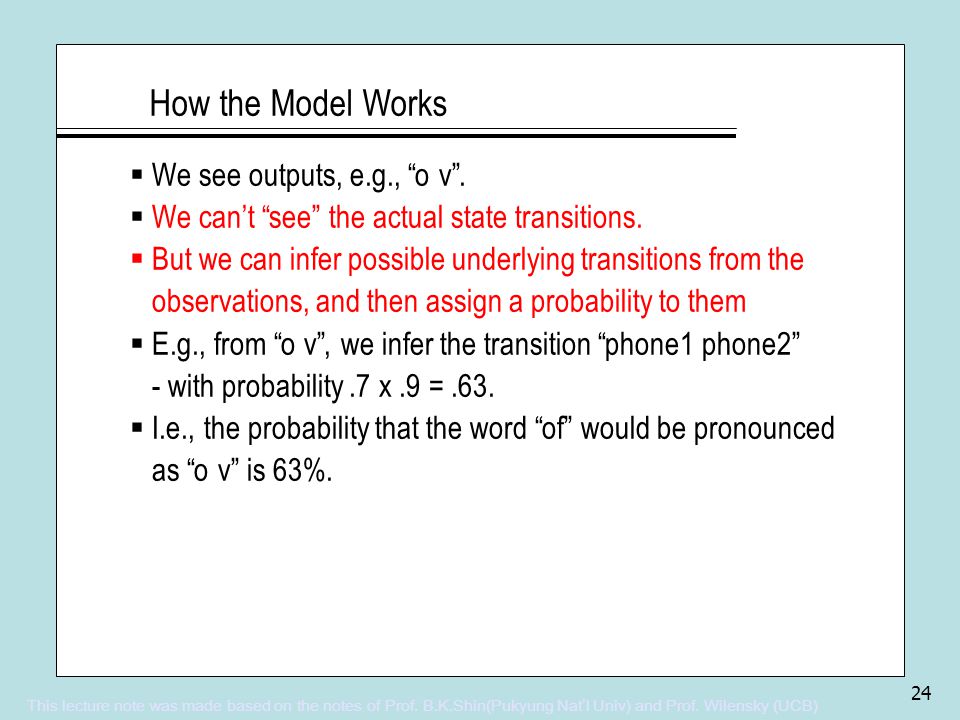

24. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 24 How the Model Works  We see outputs, e.g., “o v”.  We can’t “see” the actual state transitions.  But we can infer possible underlying transitions from the observations, and then assign a probability to them  E.g., from “o v”, we infer the transition “phone1 phone2” - with probability.7 x.9 =.63.  I.e., the probability that the word “of” would be pronounced as “o v” is 63%.

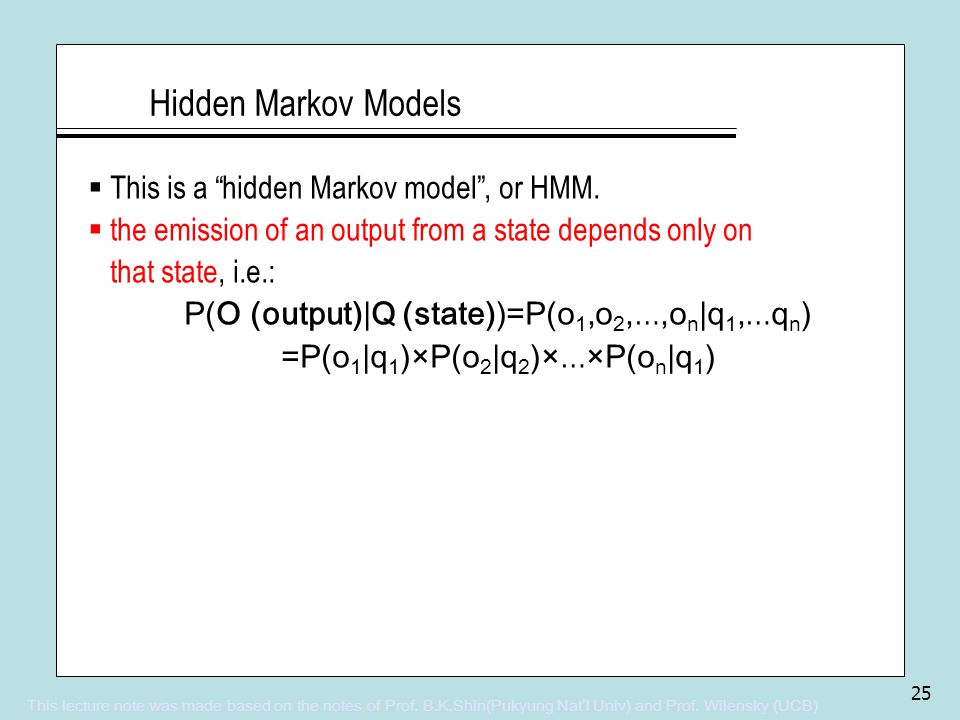

25. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 25 Hidden Markov Models  This is a “hidden Markov model”, or HMM.  the emission of an output from a state depends only on that state, i.e.: P(O (output)|Q (state))=P(o 1,o 2, …,o n |q 1, … q n ) =P(o 1 |q 1 )×P(o 2 |q 2 )× … ×P(o n |q 1 )

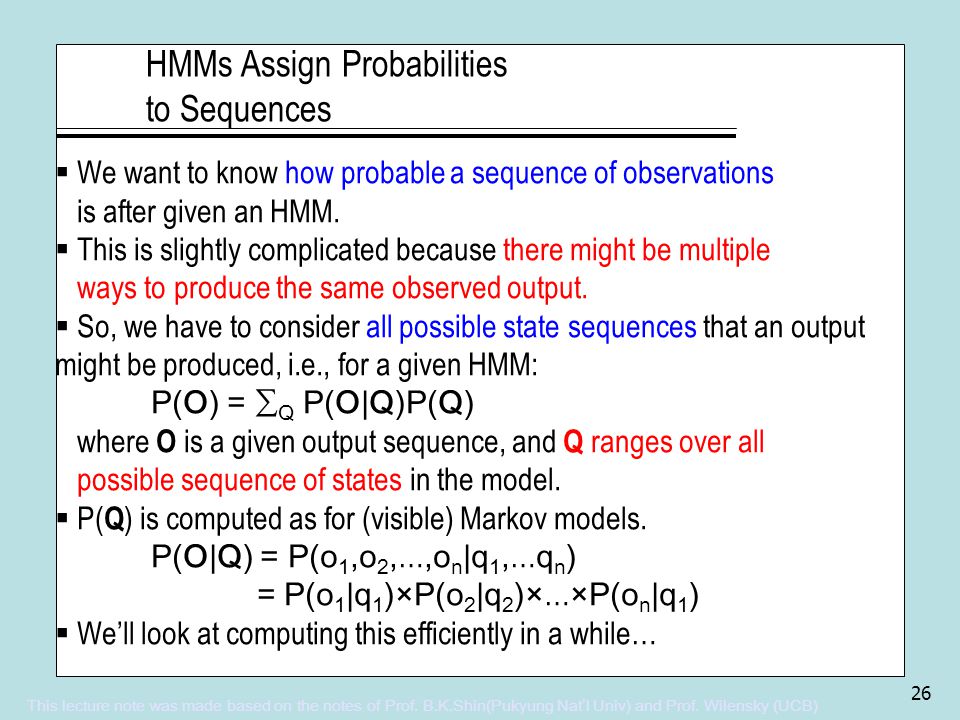

26. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 26 HMMs Assign Probabilities to Sequences  We want to know how probable a sequence of observations is after given an HMM.  This is slightly complicated because there might be multiple ways to produce the same observed output.  So, we have to consider all possible state sequences that an output might be produced, i.e., for a given HMM: P(O) = ∑ Q P(O|Q)P(Q) where O is a given output sequence, and Q ranges over all possible sequence of states in the model.  P( Q ) is computed as for (visible) Markov models. P(O|Q) = P(o 1,o 2, …,o n |q 1, … q n ) = P(o 1 |q 1 )×P(o 2 |q 2 )× … ×P(o n |q 1 )  We’ll look at computing this efficiently in a while…

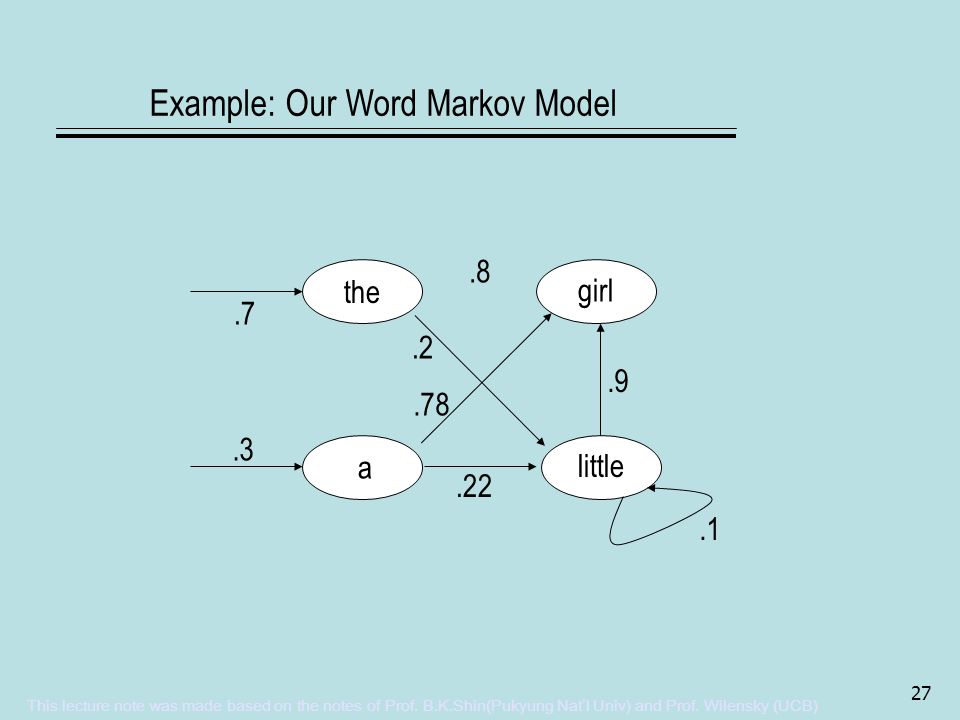

27. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 27 Example: Our Word Markov Model the a girl little.7.8.9.22.3.78.2.1

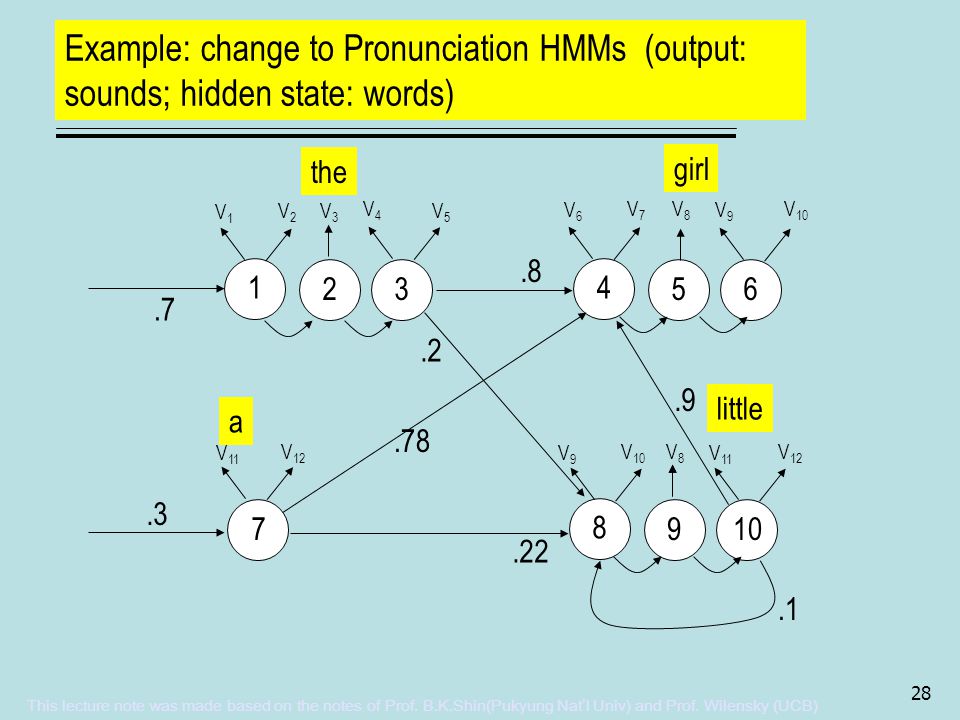

28. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 28 Example: change to Pronunciation HMMs (output: sounds; hidden state: words) 12345689107 V1V1 V2V2 V3V3 V4V4 V5V5 V6V6 V7V7 V8V8 V9V9 V 10 V 11 V 12 V9V9 V 10 V8V8 V 11 V 12.8.7.2.78.3.22.1 a.9 little girl the

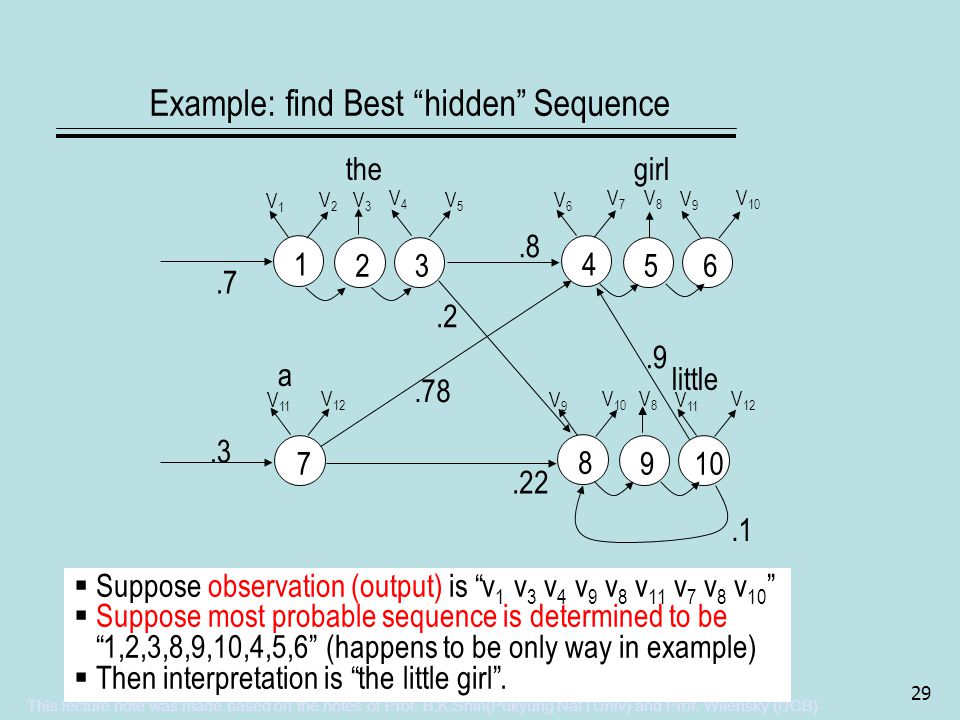

29. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 29 Example: find Best “hidden” Sequence girl 1 23 4 56 8 9107 V1V1 V2V2 V3V3 V4V4 V5V5 V6V6 V7V7 V8V8 V9V9 V 10 V 11 V 12 V9V9 V 10 V8V8 V 11 V 12.8.7.2.78.3.22.1 a.9 little the  Suppose observation (output) is “v 1 v 3 v 4 v 9 v 8 v 11 v 7 v 8 v 10 ”  Suppose most probable sequence is determined to be “1,2,3,8,9,10,4,5,6” (happens to be only way in example)  Then interpretation is “the little girl”.

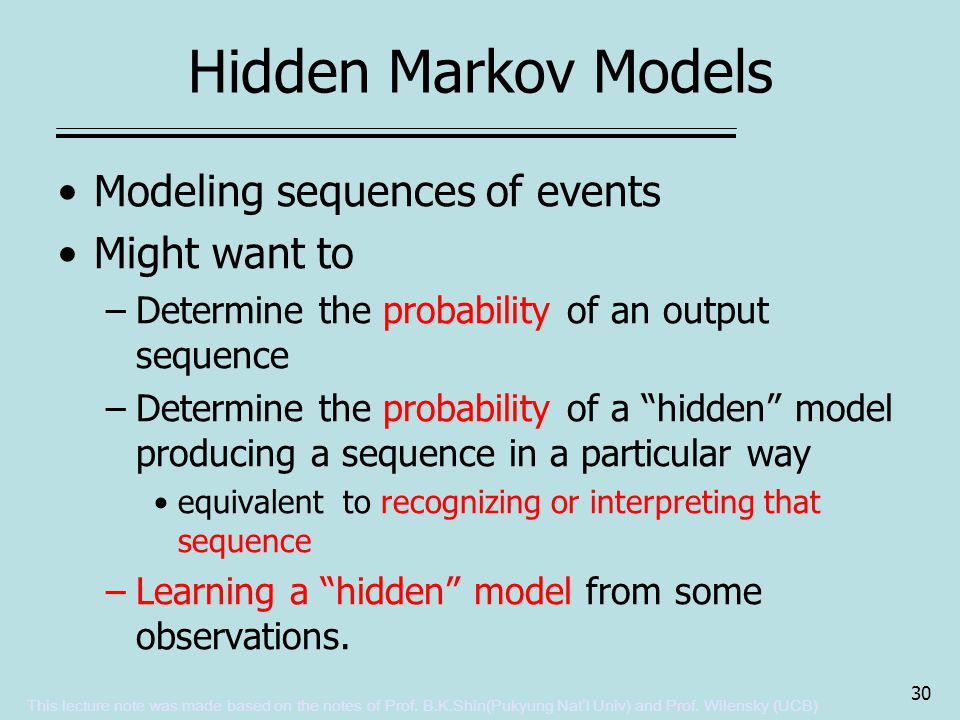

30. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 30 Hidden Markov Models Modeling sequences of events Might want to –Determine the probability of an output sequence –Determine the probability of a “hidden” model producing a sequence in a particular way equivalent to recognizing or interpreting that sequence –Learning a “hidden” model from some observations.

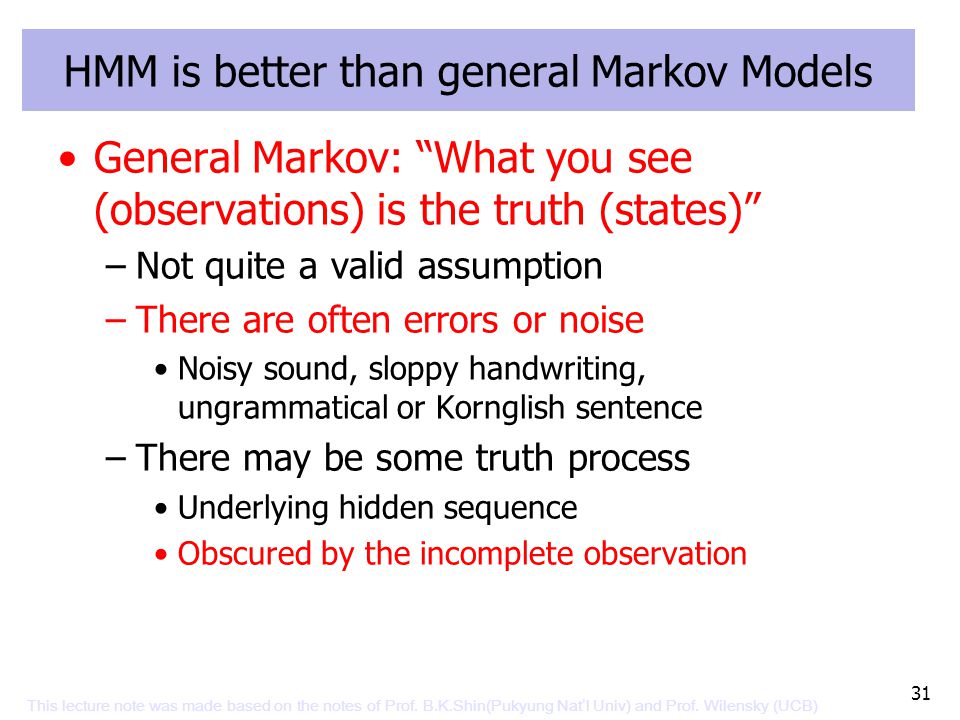

31. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 31 HMM is better than general Markov Models General Markov: “What you see (observations) is the truth (states)” –Not quite a valid assumption –There are often errors or noise Noisy sound, sloppy handwriting, ungrammatical or Kornglish sentence –There may be some truth process Underlying hidden sequence Obscured by the incomplete observation

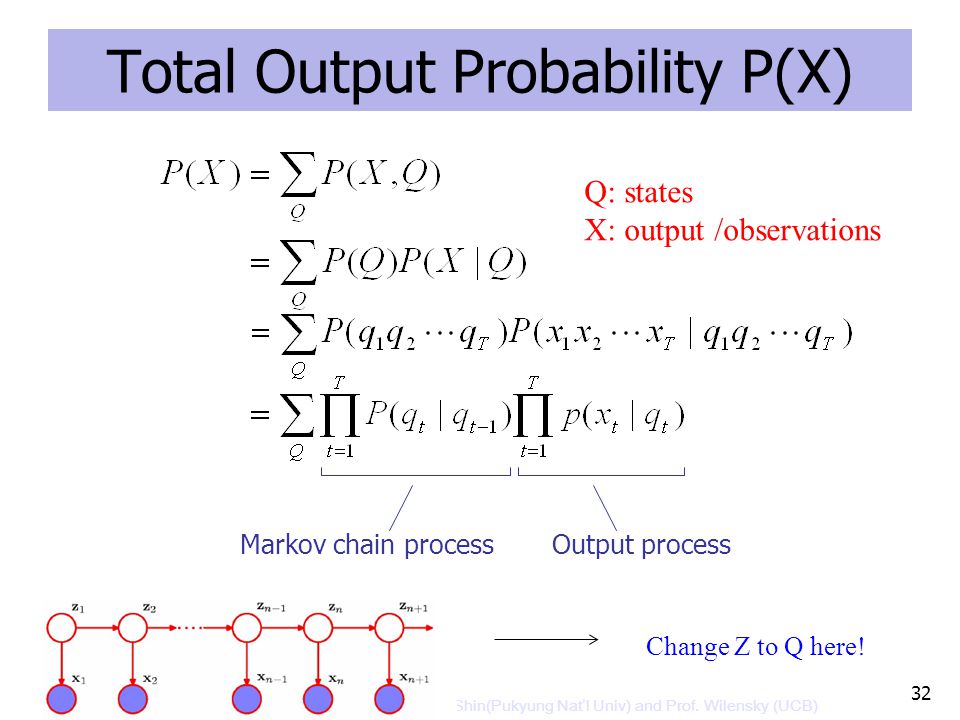

32. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 32 Total Output Probability P(X) Markov chain processOutput process Q: states X: output /observations Change Z to Q here!

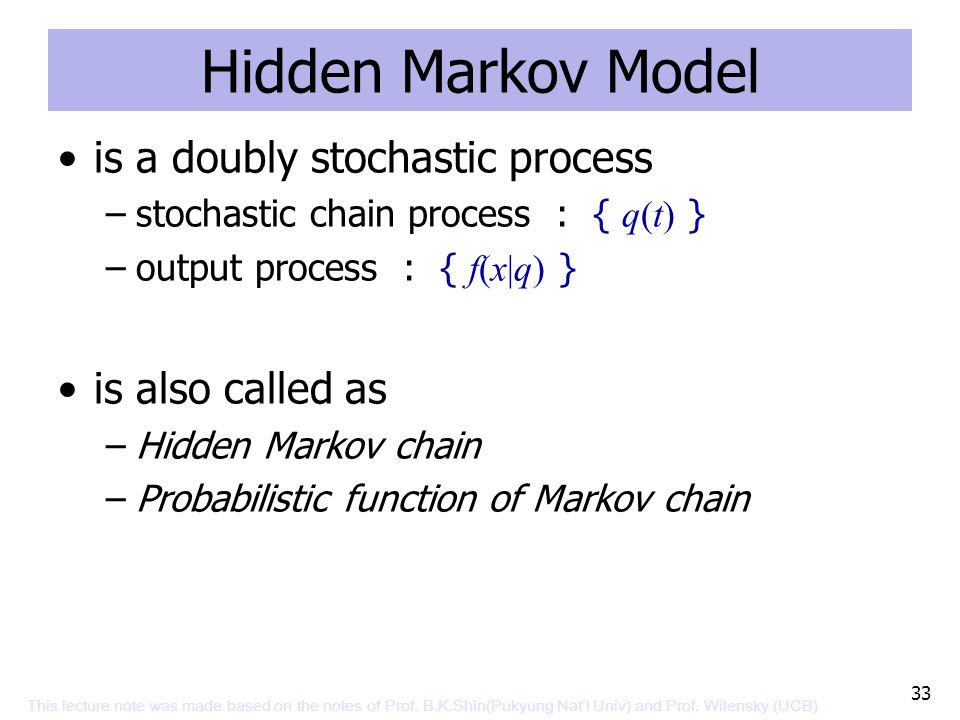

33. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 33 Hidden Markov Model is a doubly stochastic process –stochastic chain process : { q(t) } –output process : { f(x|q) } is also called as –Hidden Markov chain –Probabilistic function of Markov chain

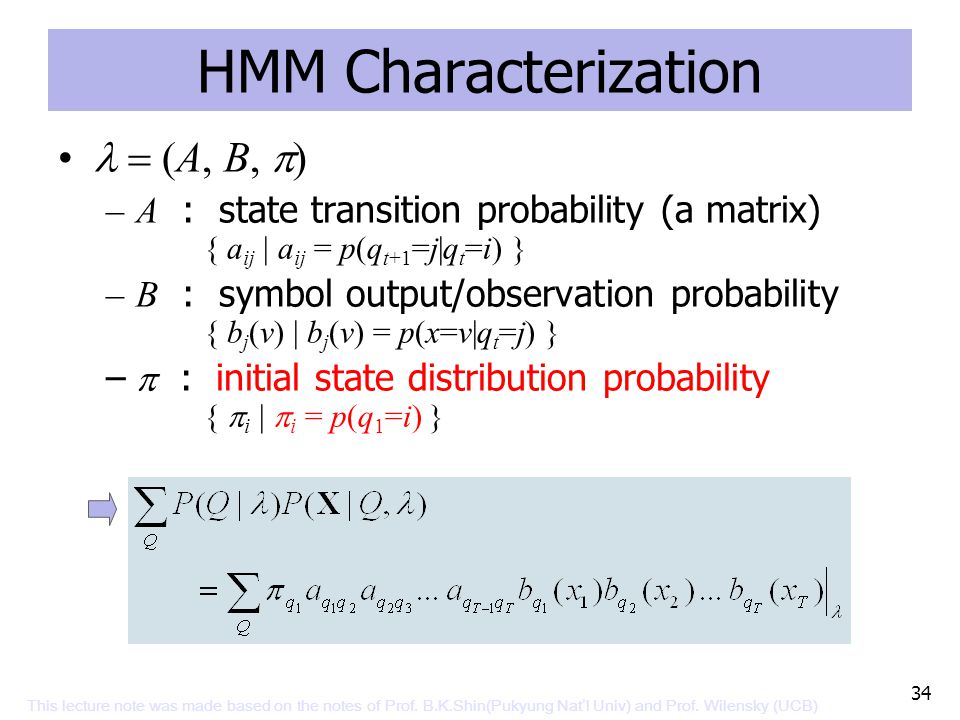

34. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 34 HMM Characterization  (A, B,  ) –A : state transition probability (a matrix) { a ij | a ij = p(q t+1 =j|q t =i) } –B : symbol output/observation probability { b j (v) | b j (v) = p(x=v|q t =j) } –  : initial state distribution probability {  i |  i = p(q 1 =i) }

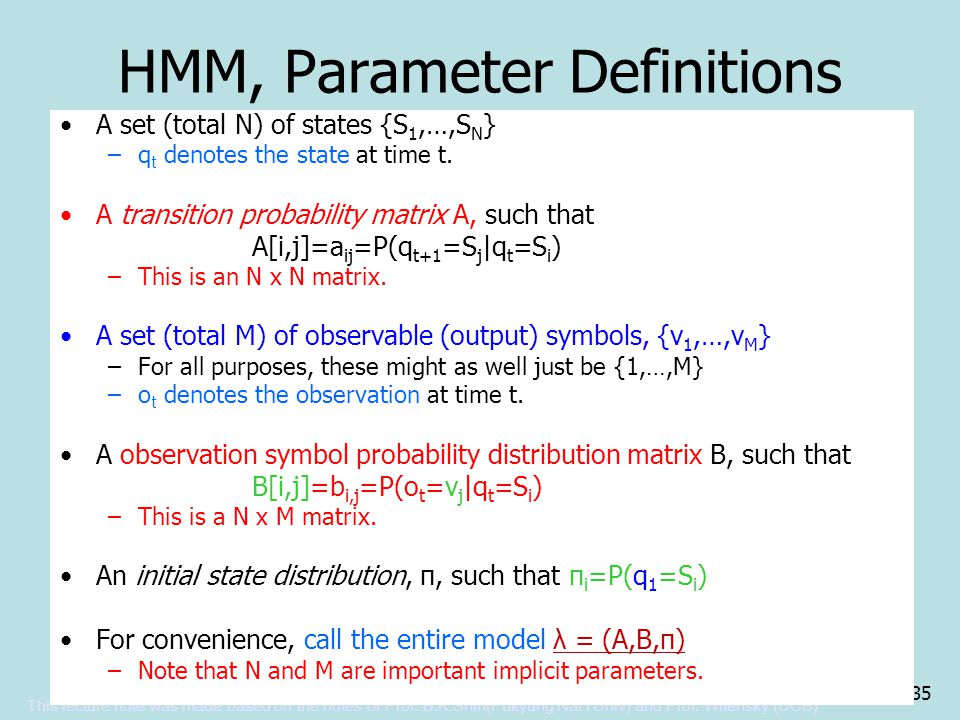

35. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 35 HMM, Parameter Definitions A set (total N) of states {S 1,…,S N } –q t denotes the state at time t. A transition probability matrix A, such that A[i,j]=a ij =P(q t+1 =S j |q t =S i ) –This is an N x N matrix. A set (total M) of observable (output) symbols, {v 1,…,v M } –For all purposes, these might as well just be {1,…,M} –o t denotes the observation at time t. A observation symbol probability distribution matrix B, such that B[i,j]=b i,j =P(o t =v j |q t =S i ) –This is a N x M matrix. An initial state distribution, π, such that π i =P(q 1 =S i ) For convenience, call the entire model λ = (A,B,π) –Note that N and M are important implicit parameters.

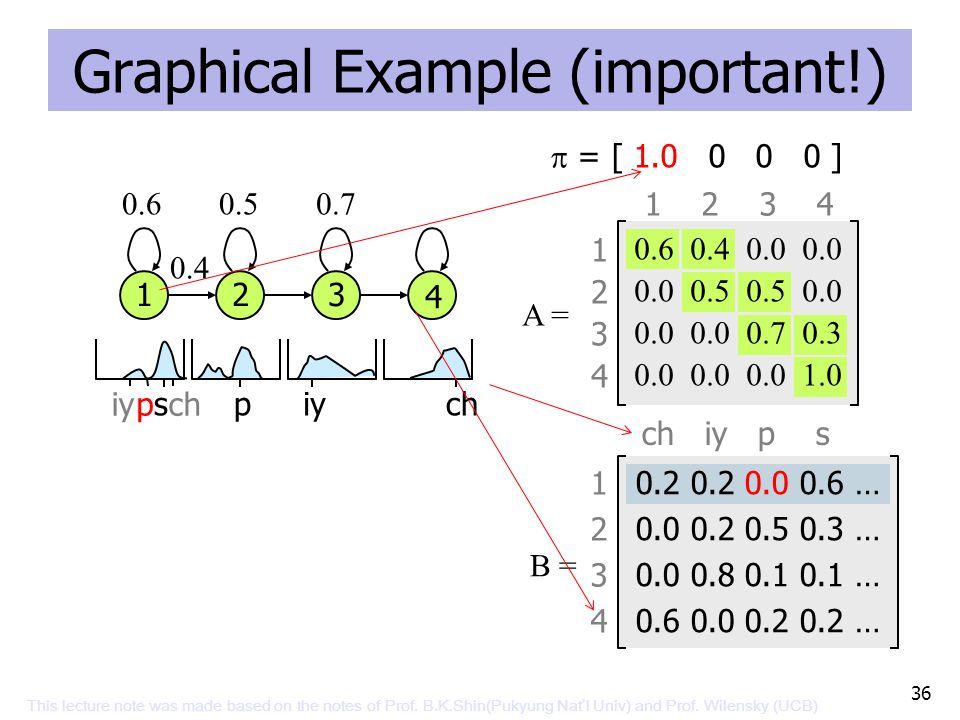

36. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 36 Graphical Example (important!) B = 0.2 0.2 0.0 0.6 … 0.0 0.2 0.5 0.3 … 0.0 0.8 0.1 0.1 … 0.6 0.0 0.2 0.2 … 12341234 ch iy p s 0.6 0.4 0.0 0.0 0.0 0.5 0.5 0.0 0.0 0.0 0.7 0.3 0.0 0.0 0.0 1.0 A = 12341234 1 2 3 4  = [ 1.0 0 0 0 ] 0.6 0.4 123 4 0.50.7 spiych iypch

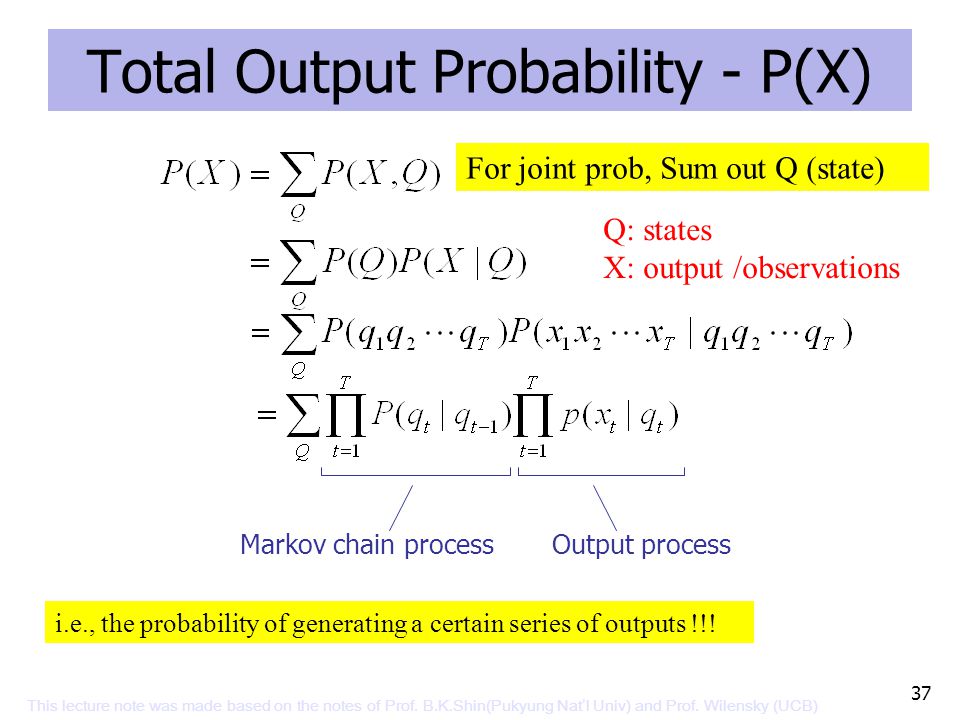

37. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 37 Total Output Probability - P(X) Markov chain processOutput process Q: states X: output /observations For joint prob, Sum out Q (state) i.e., the probability of generating a certain series of outputs !!!

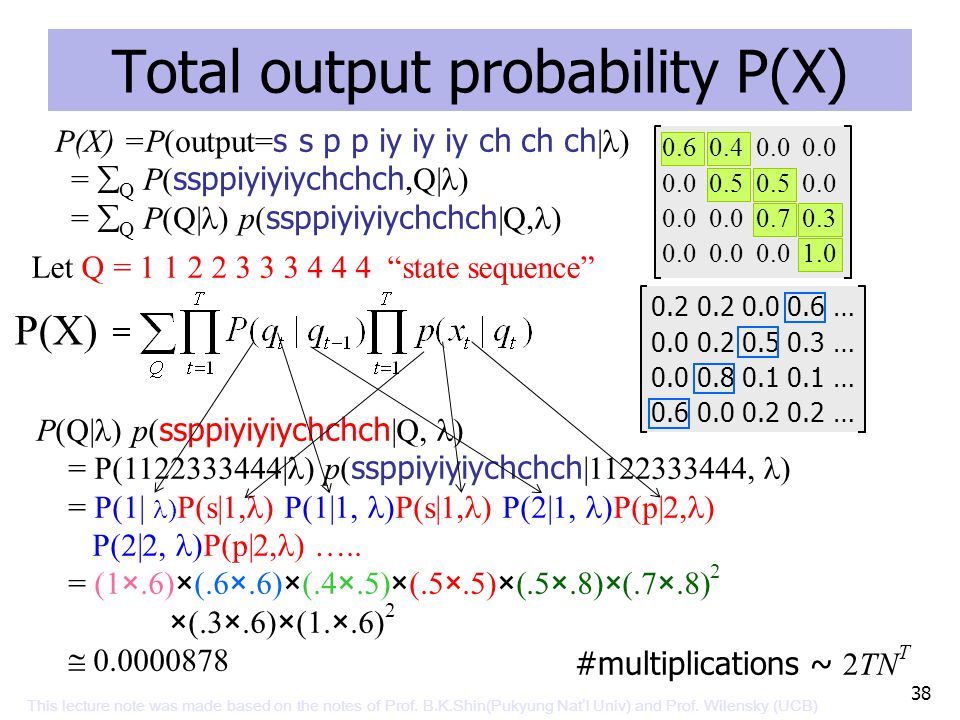

38. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 38 Total output probability P(X) P(X) =P(output= s s p p iy iy iy ch ch ch | ) =  Q P( ssppiyiyiychchch,Q| ) =  Q P(Q| ) p( ssppiyiyiychchch |Q, ) P(Q| ) p( ssppiyiyiychchch |Q, ) = P(1122333444| ) p( ssppiyiyiychchch |1122333444, ) = P(1| ) P(s|1, ) P(1|1, )P(s|1, ) P(2|1, )P(p|2, ) P(2|2, )P(p|2, ) ….. = (1×.6)×(.6×.6)×(.4×.5)×(.5×.5)×(.5×.8)×(.7×.8) 2 ×(.3×.6)×(1.×.6) 2  0.0000878 0.6 0.4 0.0 0.0 0.0 0.5 0.5 0.0 0.0 0.0 0.7 0.3 0.0 0.0 0.0 1.0 #multiplications ~ 2TN T 0.2 0.2 0.0 0.6 … 0.0 0.2 0.5 0.3 … 0.0 0.8 0.1 0.1 … 0.6 0.0 0.2 0.2 … P(X) Let Q = 1 1 2 2 3 3 3 4 4 4 “state sequence”

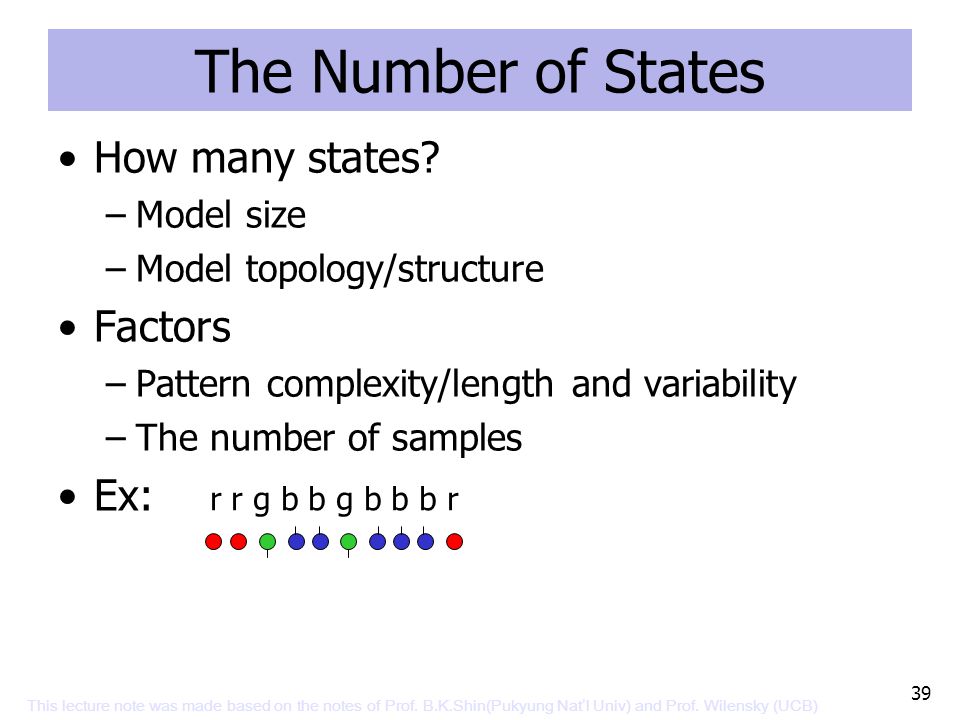

39. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 39 The Number of States How many states? –Model size –Model topology/structure Factors –Pattern complexity/length and variability –The number of samples Ex: r r g b b g b b b r

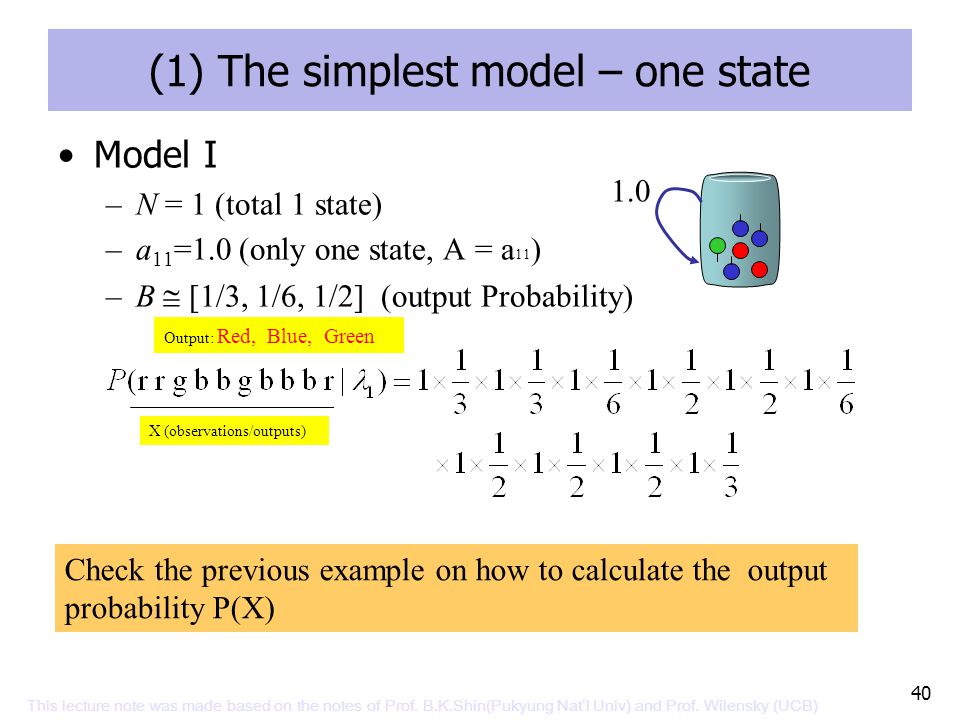

40. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 40 (1) The simplest model – one state Model I –N = 1 (total 1 state) –a 11 =1.0 (only one state, A = a 11 ) –B  [1/3, 1/6, 1/2] (output Probability) 1.0 X (observations/outputs) Output: Red, Blue, Green Check the previous example on how to calculate the output probability P(X)

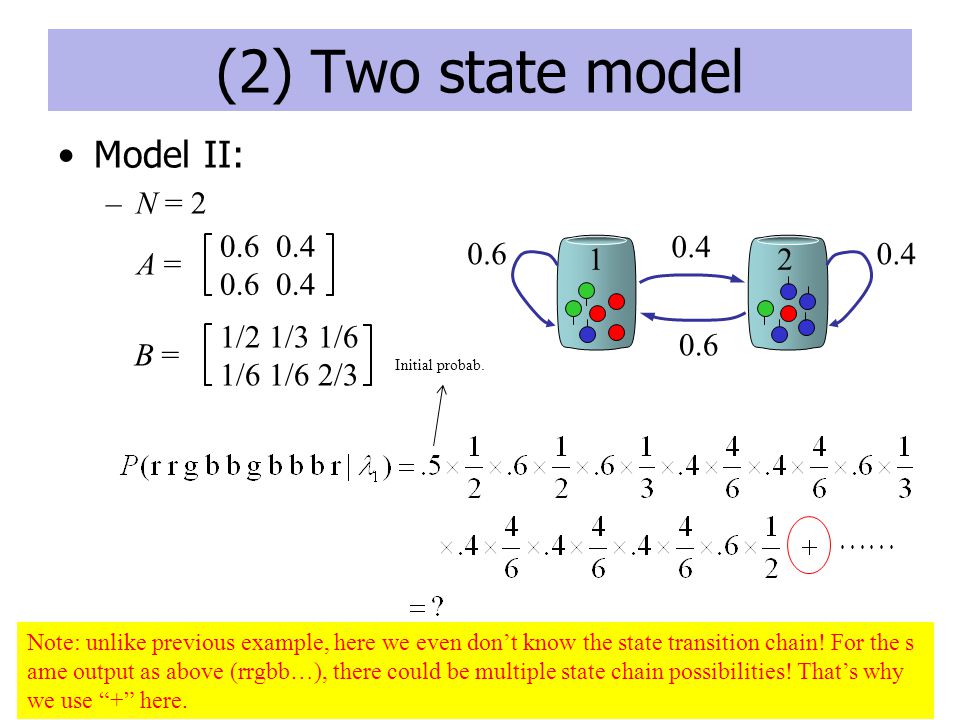

41. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 41 (2) Two state model Model II: –N = 2 0.6 0.4 1/2 1/3 1/6 1/6 1/6 2/3 A = B = 0.60.4 12 0.6 0.4 Note: unlike previous example, here we even don’t know the state transition chain! For the s ame output as above (rrgbb…), there could be multiple state chain possibilities! That’s why we use “+” here. Initial probab.

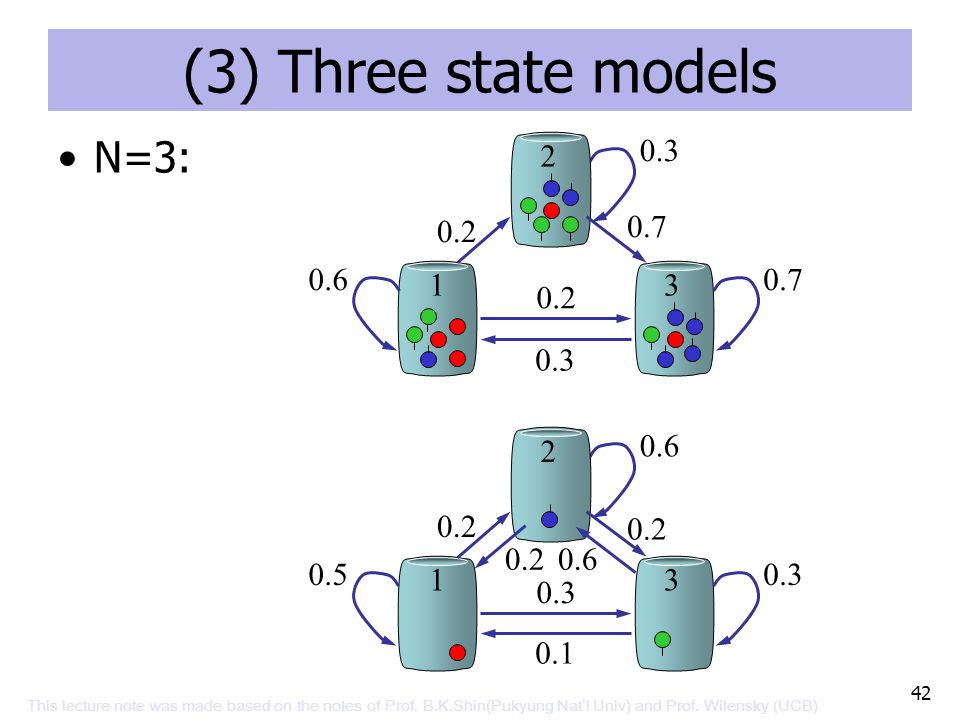

42. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 42 (3) Three state models N=3: 0.6 0.50.3 13 0.1 0.3 0.6 2 0.2 0.6 0.7 13 0.3 0.2 0.7 0.3 2

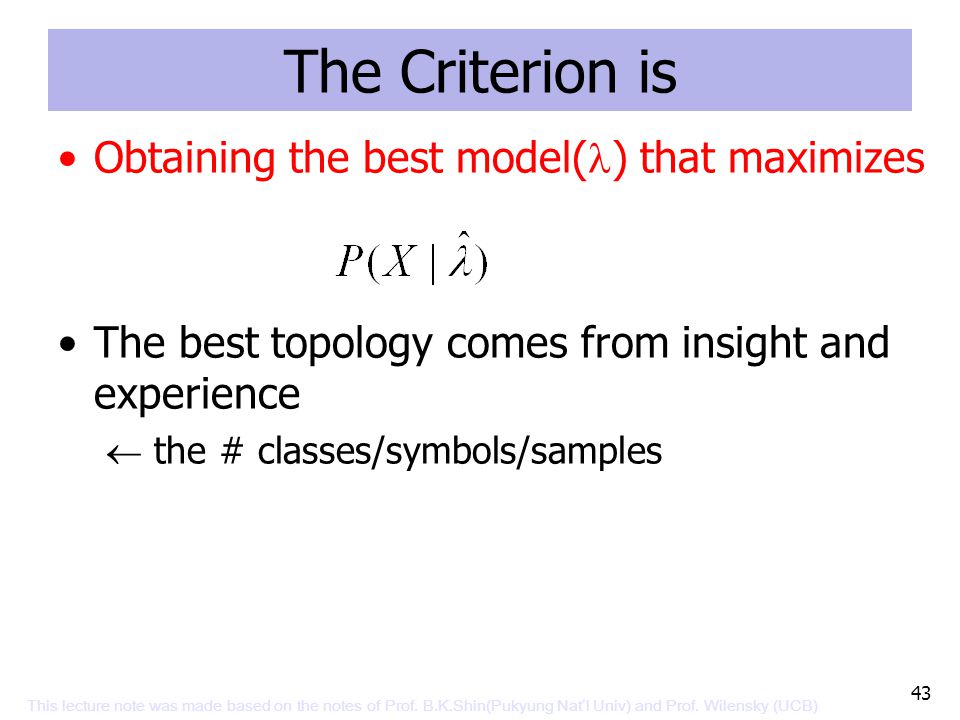

43. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 43 The Criterion is Obtaining the best model( ) that maximizes The best topology comes from insight and experience  the # classes/symbols/samples

44. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 44 A trained HMM (all parameters are known).5.4.1.0.6.4.0.0.0.6.2.2.2.5.3.0.3.7 1 0 0 123123 123123 1 2 3 R G B  = A = B =.6.2.5.3.0.3.7 RGBRGB.5.6.4.1 1 2 3 Note: This is NOT standard HMM model, This is more like a FSM (with output probability)!!!

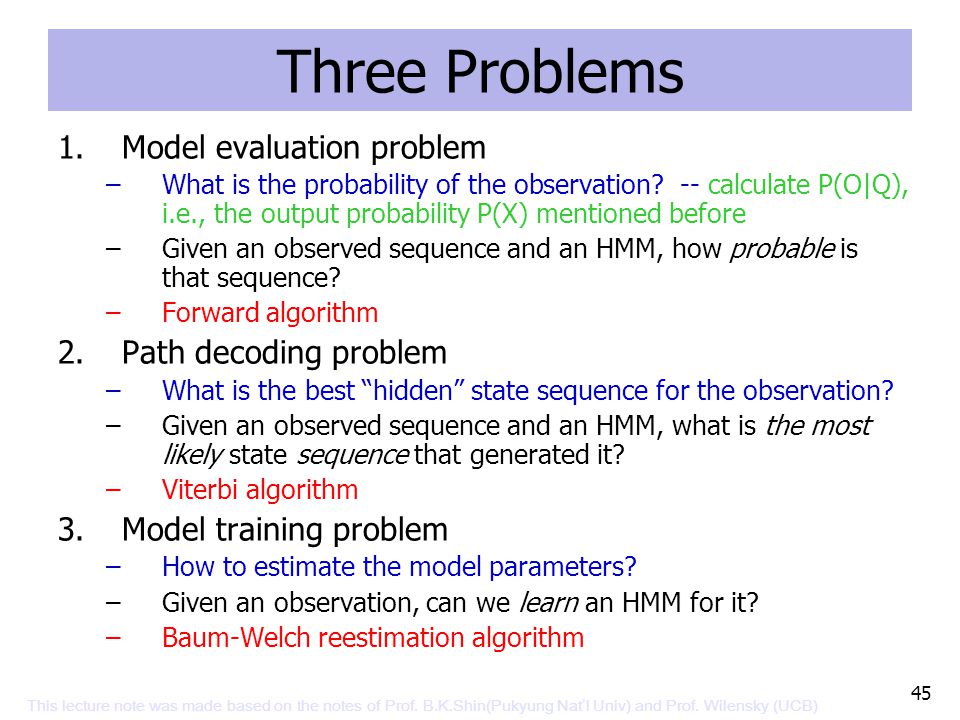

45. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 45 Three Problems 1.Model evaluation problem –What is the probability of the observation? -- calculate P(O|Q), i.e., the output probability P(X) mentioned before –Given an observed sequence and an HMM, how probable is that sequence? –Forward algorithm 2.Path decoding problem –What is the best “hidden” state sequence for the observation? –Given an observed sequence and an HMM, what is the most likely state sequence that generated it? –Viterbi algorithm 3.Model training problem –How to estimate the model parameters? –Given an observation, can we learn an HMM for it? –Baum-Welch reestimation algorithm

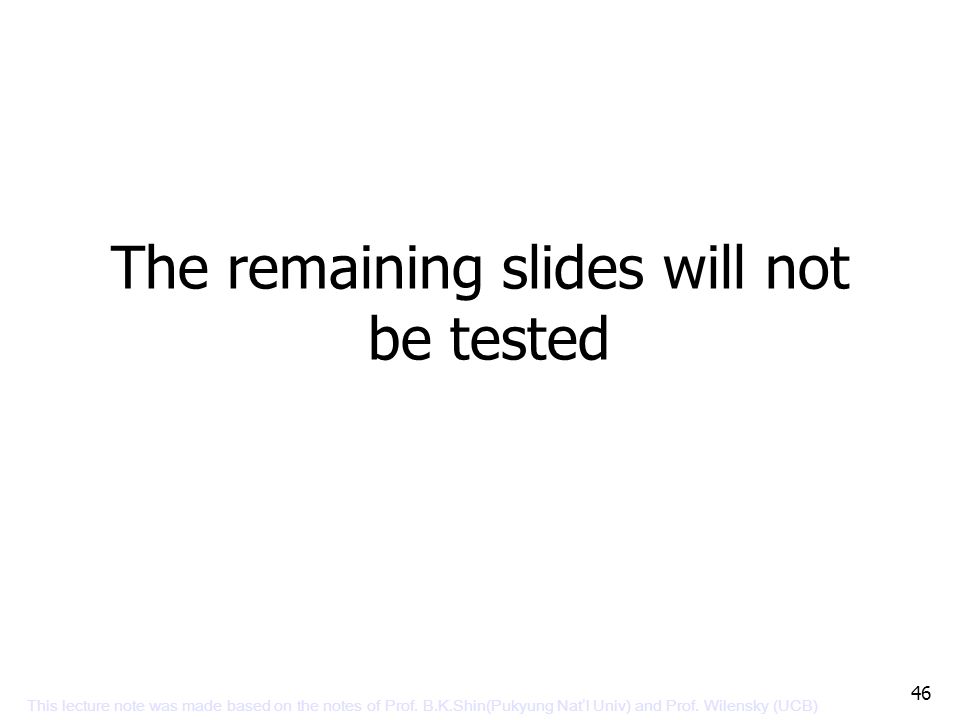

46. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) The remaining slides will not be tested 46

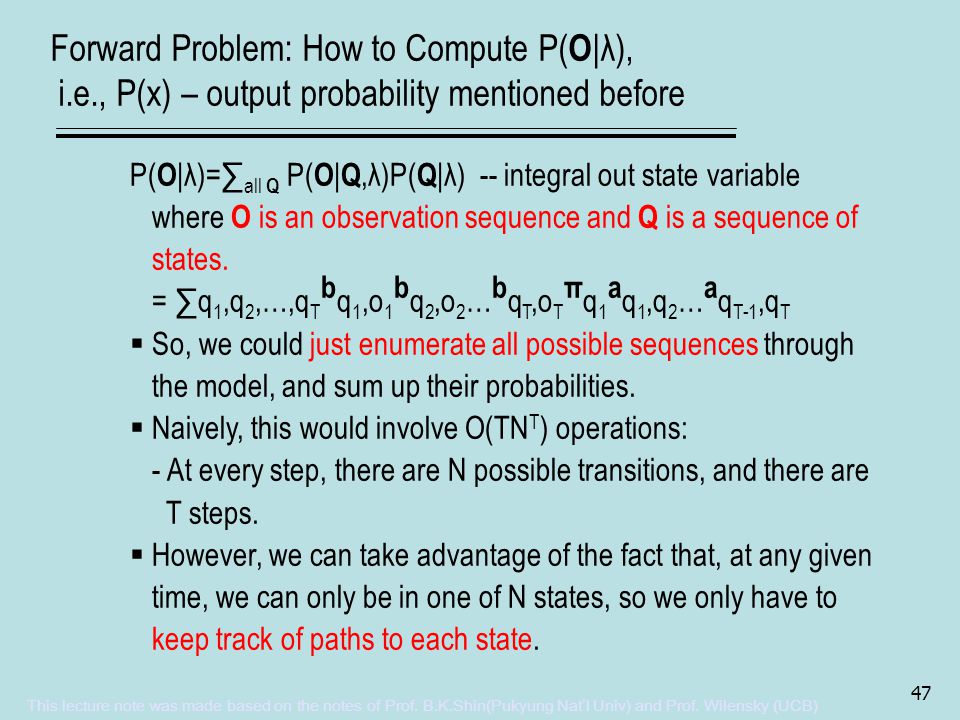

47. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 47 Forward Problem: How to Compute P( O |λ), i.e., P(x) – output probability mentioned before P( O |λ)=∑ all Q P( O | Q,λ)P( Q |λ) -- integral out state variable where O is an observation sequence and Q is a sequence of states. = ∑q 1,q 2,…,q T b q 1,o 1 b q 2,o 2 … b q T,o T π q 1 a q 1,q 2 … a q T-1,q T  So, we could just enumerate all possible sequences through the model, and sum up their probabilities.  Naively, this would involve O(TN T ) operations: - At every step, there are N possible transitions, and there are T steps.  However, we can take advantage of the fact that, at any given time, we can only be in one of N states, so we only have to keep track of paths to each state.

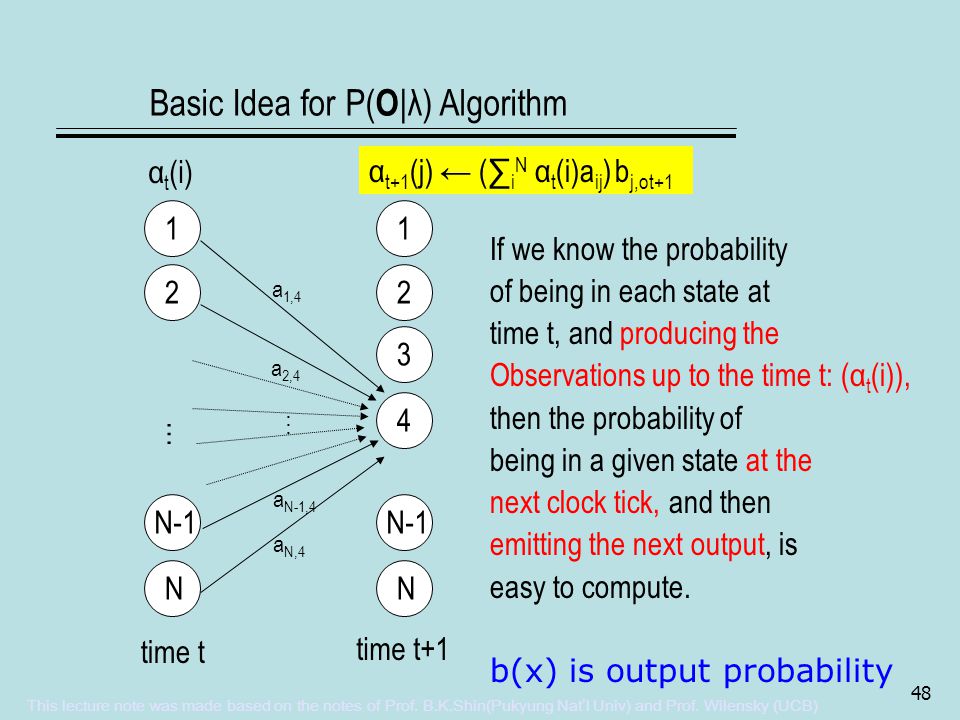

48. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 48 Basic Idea for P( O |λ) Algorithm If we know the probability of being in each state at time t, and producing the Observations up to the time t: (α t (i)), then the probability of being in a given state at the next clock tick, and then emitting the next output, is easy to compute. b(x) is output probability 1234N-1N12 N time t+1 time t α t+1 (j) ← (∑ i N α t (i)a ij ) b j,ot+1 α t (i) … a 1,4 a 2,4 a N-1,4 a N,4 …

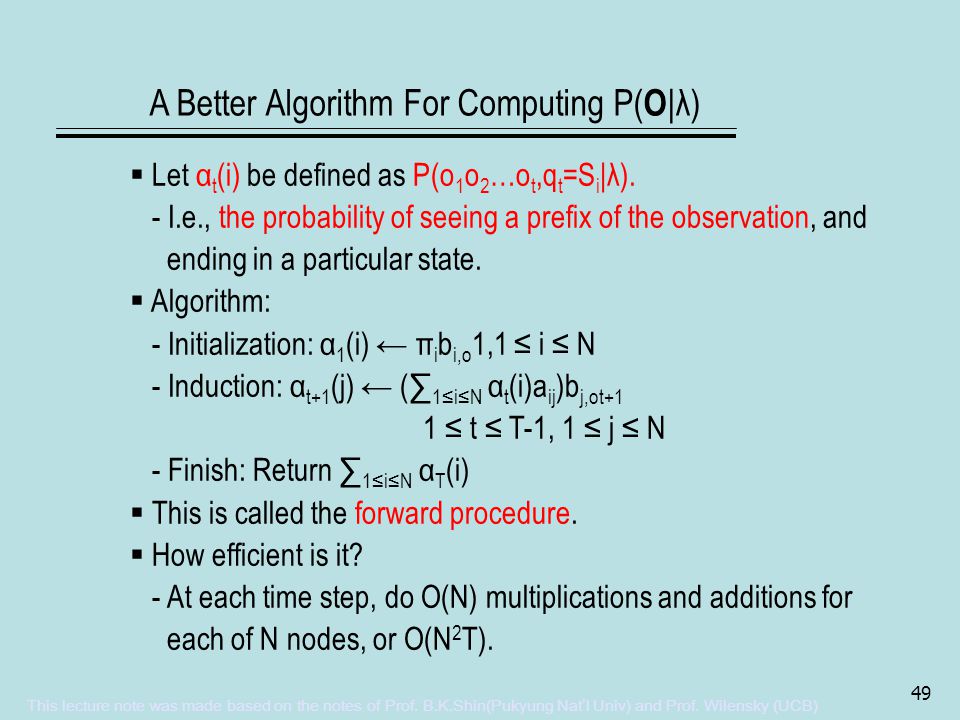

49. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 49 A Better Algorithm For Computing P( O |λ)  Let α t (i) be defined as P(o 1 o 2 …o t,q t =S i |λ). - I.e., the probability of seeing a prefix of the observation, and ending in a particular state.  Algorithm: - Initialization: α 1 (i) ← π i b i,o 1,1 ≤ i ≤ N - Induction: α t+1 (j) ← (∑ 1≤i≤N α t (i)a ij )b j,ot+1 1 ≤ t ≤ T-1, 1 ≤ j ≤ N - Finish: Return ∑ 1≤i≤N α T (i)  This is called the forward procedure.  How efficient is it? - At each time step, do O(N) multiplications and additions for each of N nodes, or O(N 2 T).

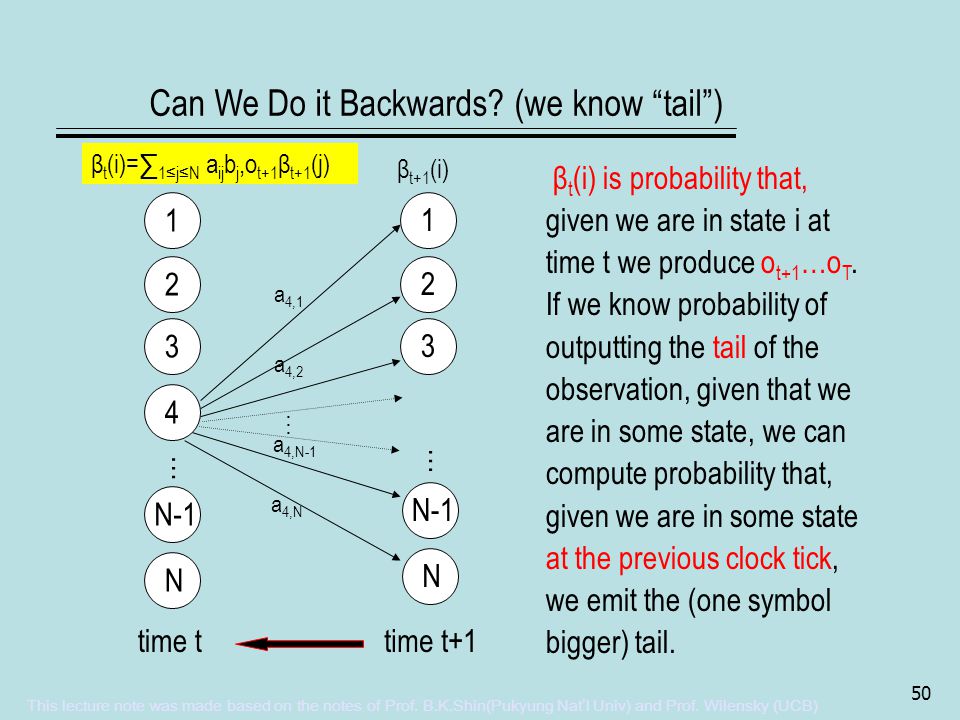

50. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 50 Can We Do it Backwards? (we know “tail”) β t (i) is probability that, given we are in state i at time t we produce o t+1 …o T. If we know probability of outputting the tail of the observation, given that we are in some state, we can compute probability that, given we are in some state at the previous clock tick, we emit the (one symbol bigger) tail. time t+1time t … 1234N-1N123 N … β t (i)=∑ 1≤j≤N a ij b j,o t+1 β t+1 (j) β t+1 (i) a 4,1 a 4,2 a 4,N-1 a 4,N …

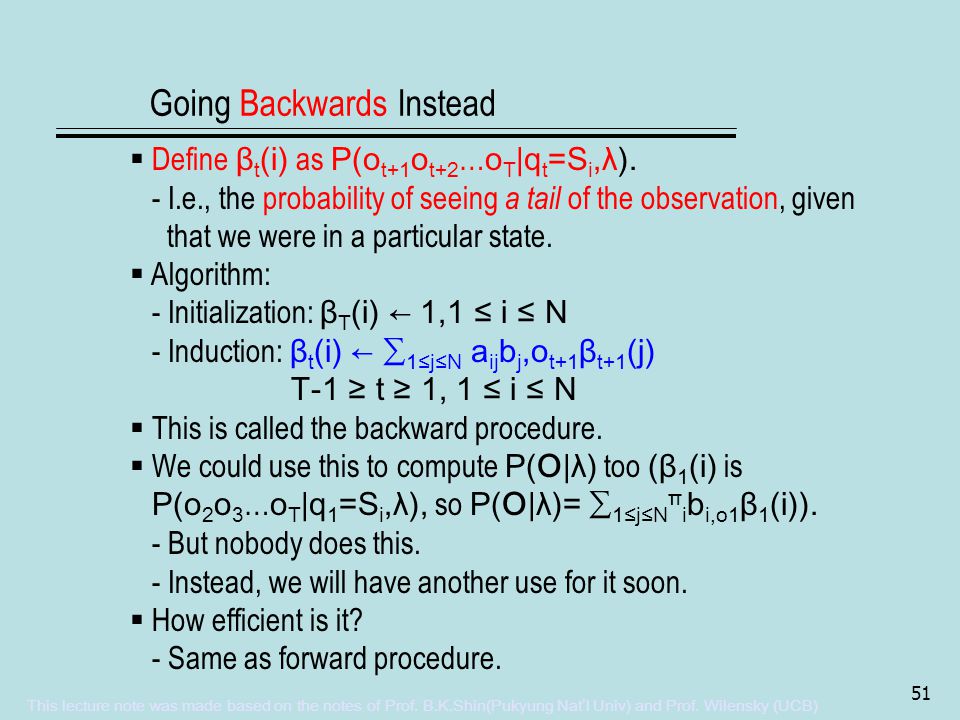

51. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 51 Going Backwards Instead  Define β t (i) as P(o t+1 o t+2 … o T |q t =S i,λ). - I.e., the probability of seeing a tail of the observation, given that we were in a particular state.  Algorithm: - Initialization: β T (i) ← 1,1 ≤ i ≤ N - Induction: β t (i) ← ∑ 1≤j≤N a ij b j,o t+1 β t+1 (j) T-1 ≥ t ≥ 1, 1 ≤ i ≤ N  This is called the backward procedure.  We could use this to compute P(O|λ) too (β 1 (i) is P(o 2 o 3 … o T |q 1 =S i,λ), so P(O|λ)= ∑ 1≤j≤N π i b i,o1 β 1 (i)). - But nobody does this. - Instead, we will have another use for it soon.  How efficient is it? - Same as forward procedure.

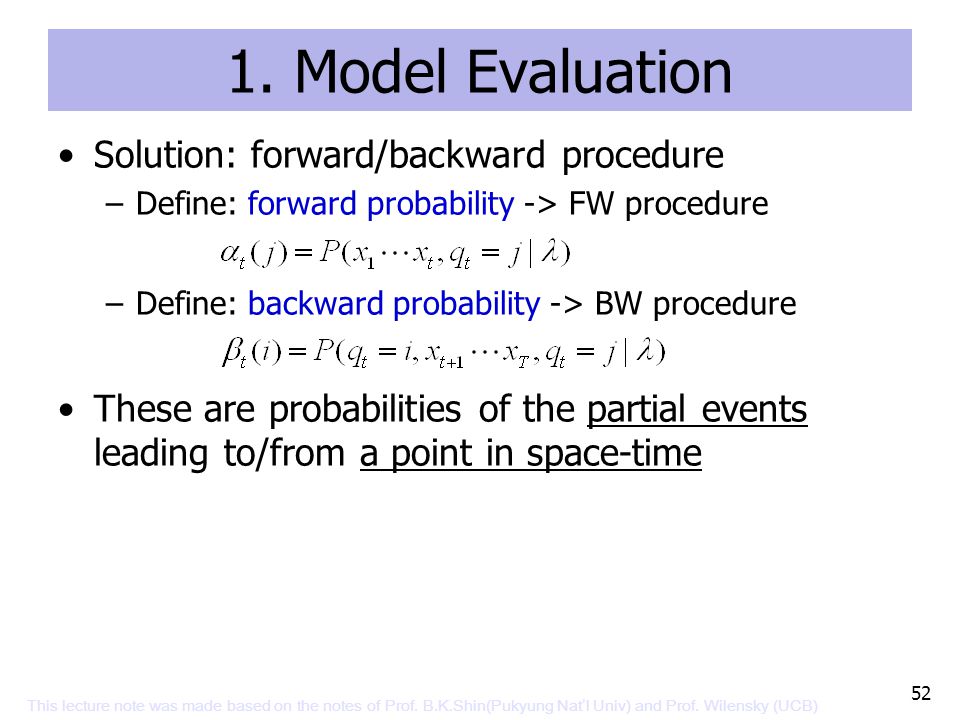

52. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 52 1. Model Evaluation Solution: forward/backward procedure –Define: forward probability -> FW procedure –Define: backward probability -> BW procedure These are probabilities of the partial events leading to/from a point in space-time

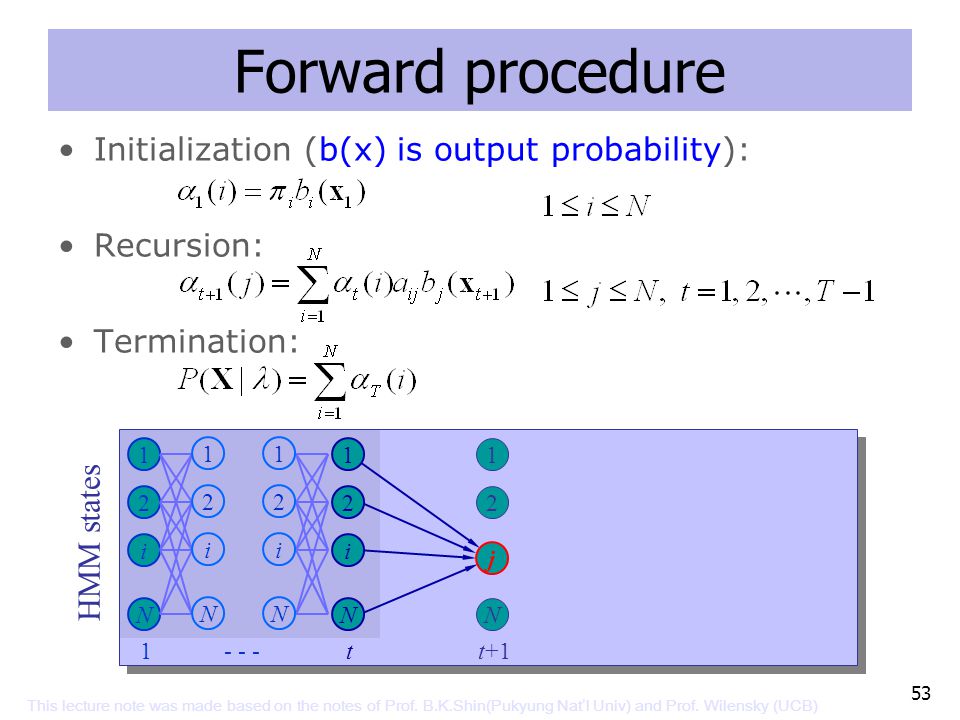

53. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 53 Forward procedure Initialization (b(x) is output probability): Recursion: Termination: 1 2 N j tt+11 - - - 1 2 N ii N 1 2 HMM states 1 2 N i 1 2 N i

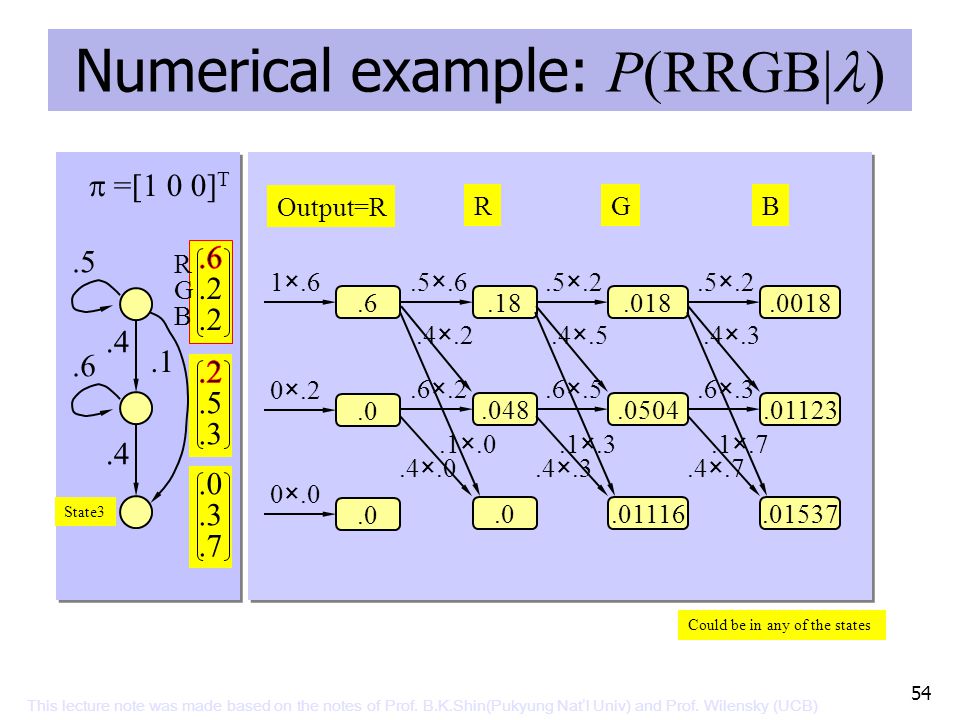

54. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 54 Numerical example: P(RRGB| ) Output=R RGB 1×.6.6 0×.2.0 0×.0.0.3.7 RGBRGB.5.6.4.1  =[1 0 0] T.5×.6.18.6×.2.048.0.4×.2.1×.0.4×.0.5×.2.018.6×.5.0504.01116.4×.5.1×.3.4×.3.5×.2.0018.6×.3.01123.01537.4×.3.1×.7.4×.7 Could be in any of the states State3

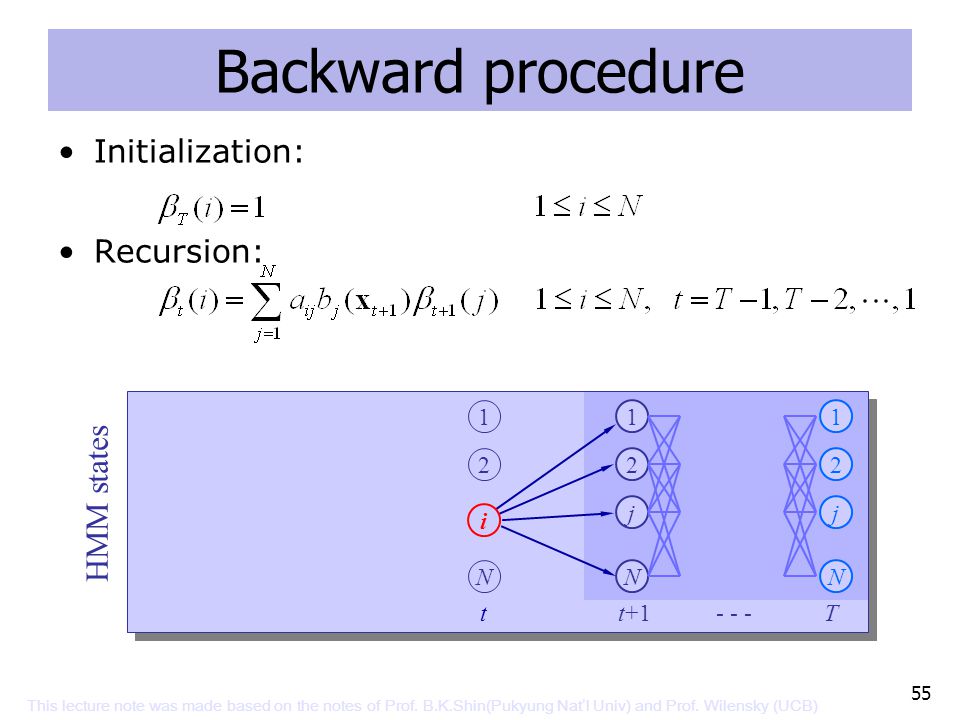

55. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 55 Backward procedure Initialization: Recursion: 1 2 N i tt+1 - - - T 1 2 N jj N 1 2 HMM states

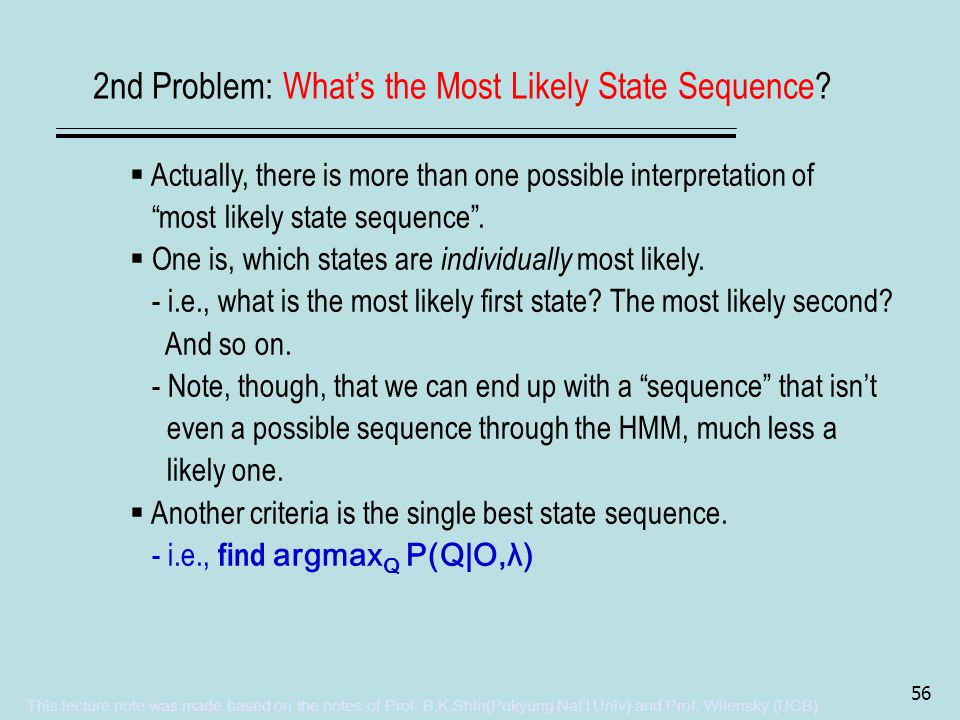

56. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 56 2nd Problem: What’s the Most Likely State Sequence?  Actually, there is more than one possible interpretation of “most likely state sequence”.  One is, which states are individually most likely. - i.e., what is the most likely first state? The most likely second? And so on. - Note, though, that we can end up with a “sequence” that isn’t even a possible sequence through the HMM, much less a likely one.  Another criteria is the single best state sequence. - i.e., find argmax Q P(Q|O,λ)

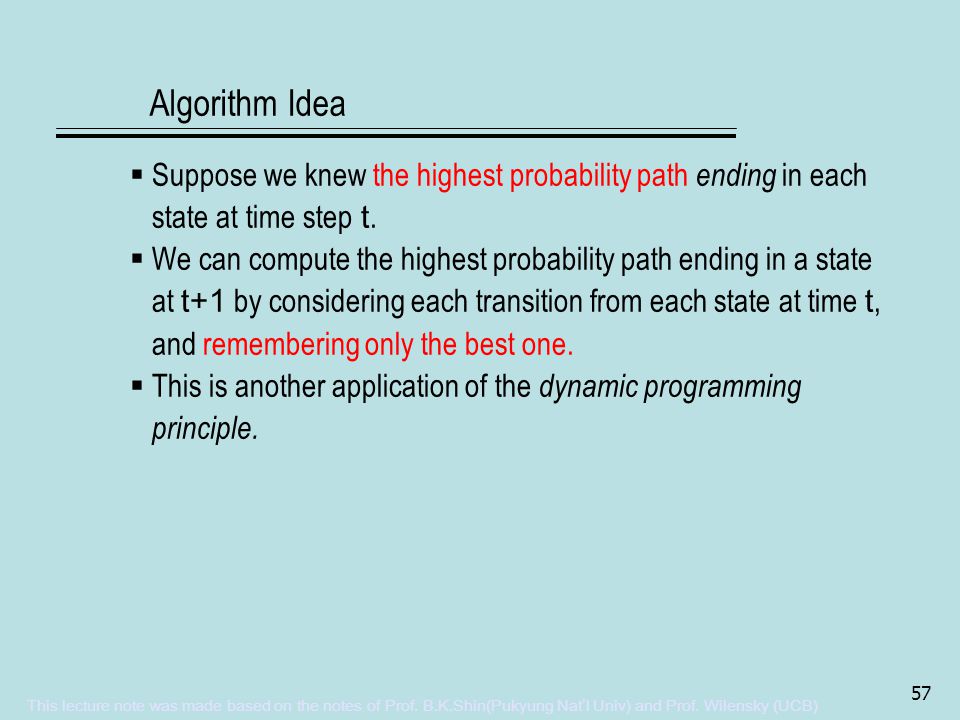

57. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 57 Algorithm Idea  Suppose we knew the highest probability path ending in each state at time step t.  We can compute the highest probability path ending in a state at t+1 by considering each transition from each state at time t, and remembering only the best one.  This is another application of the dynamic programming principle.

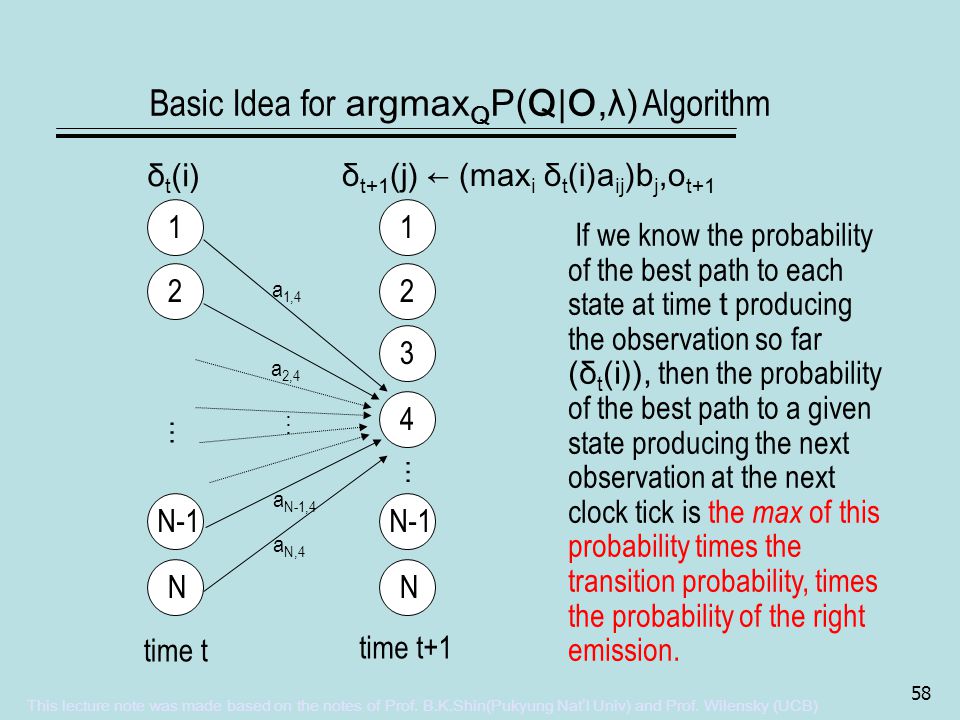

58. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 58 Basic Idea for argmax Q P(Q|O,λ) Algorithm If we know the probability of the best path to each state at time t producing the observation so far (δ t (i)), then the probability of the best path to a given state producing the next observation at the next clock tick is the max of this probability times the transition probability, times the probability of the right emission. 1234N-1N12 N time t+1 time t … … δ t (i) δ t+1 (j) ← (max i δ t (i)a ij )b j,o t+1 a 1,4 a 2,4 a N-1,4 a N,4 …

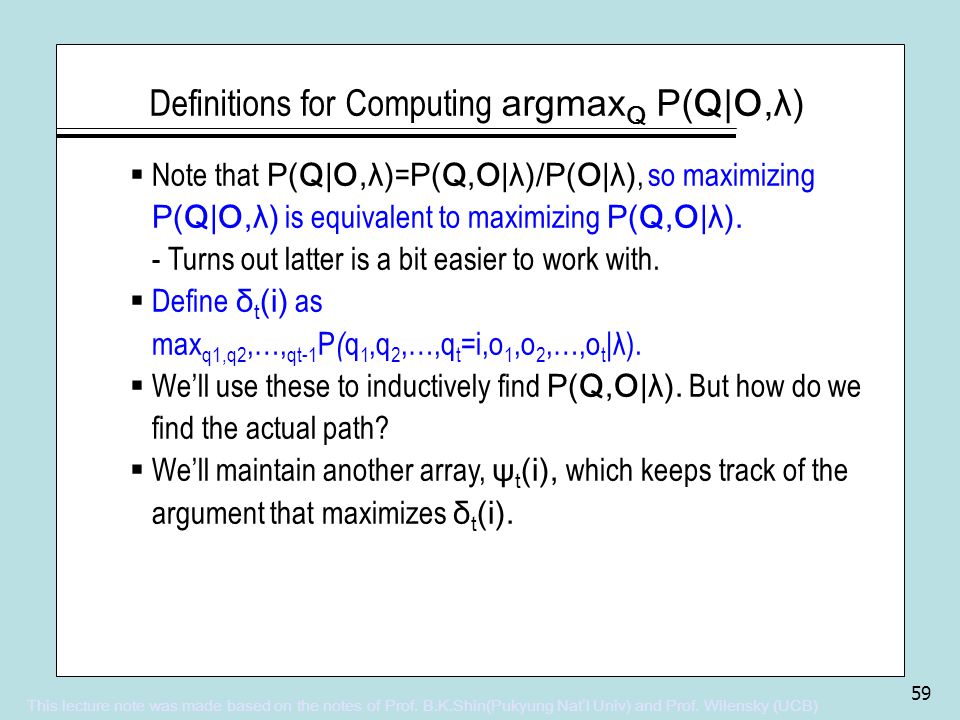

59. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 59 Definitions for Computing argmax Q P(Q|O,λ)  Note that P(Q|O,λ) = P(Q,O|λ)/P(O|λ), so maximizing P(Q|O,λ) is equivalent to maximizing P(Q,O|λ). - Turns out latter is a bit easier to work with.  Define δ t (i) as max q1,q2,…, qt-1 P ( q 1,q 2,…,q t =i,o 1,o 2,…,o t |λ).  We’ll use these to inductively find P(Q,O|λ). But how do we find the actual path?  We’ll maintain another array, ψ t (i), which keeps track of the argument that maximizes δ t (i).

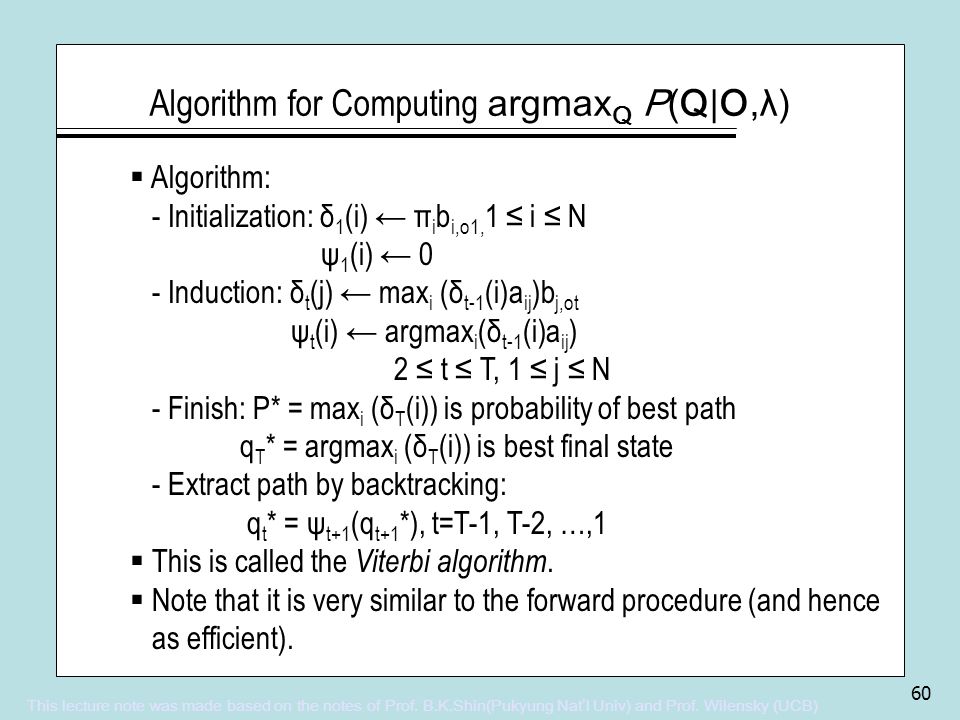

60. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 60 Algorithm for Computing argmax Q P(Q|O,λ)  Algorithm: - Initialization: δ 1 (i) ← π i b i,o1, 1 ≤ i ≤ N ψ 1 (i) ← 0 - Induction: δ t (j) ← max i (δ t-1 (i)a ij )b j,ot ψ t (i) ← argmax i (δ t-1 (i)a ij ) 2 ≤ t ≤ T, 1 ≤ j ≤ N - Finish: P* = max i (δ T (i)) is probability of best path q T * = argmax i (δ T (i)) is best final state - Extract path by backtracking: q t * = ψ t+1 (q t+1 *), t=T-1, T-2, …,1  This is called the Viterbi algorithm.  Note that it is very similar to the forward procedure (and hence as efficient).

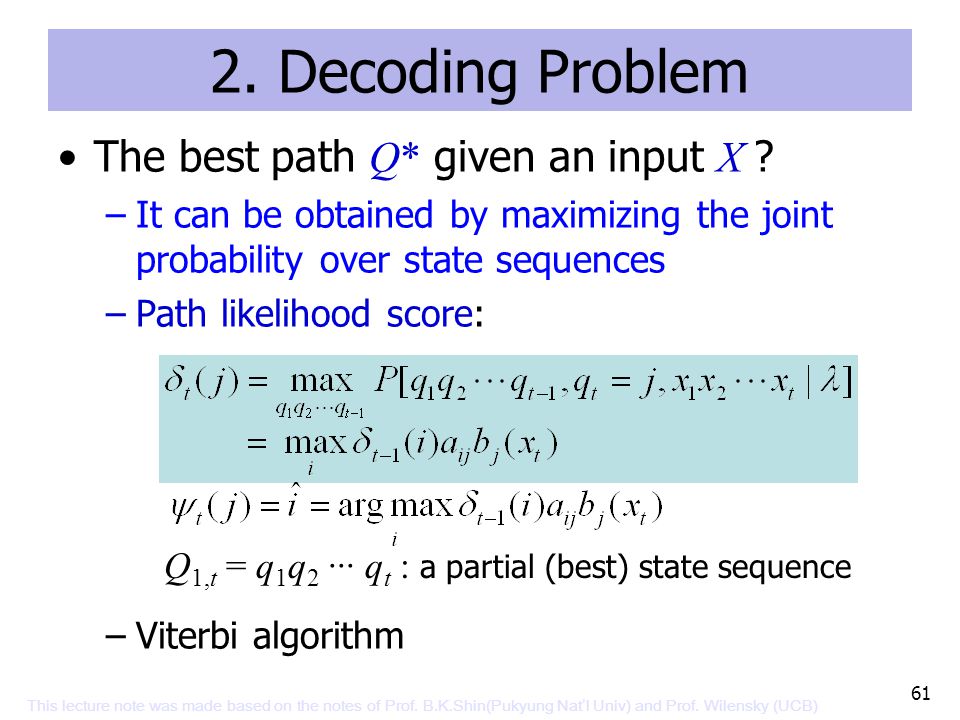

61. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 61 2. Decoding Problem The best path Q* given an input X ? –It can be obtained by maximizing the joint probability over state sequences –Path likelihood score: –Viterbi algorithm Q 1,t = q 1 q 2 ··· q t : a partial (best) state sequence

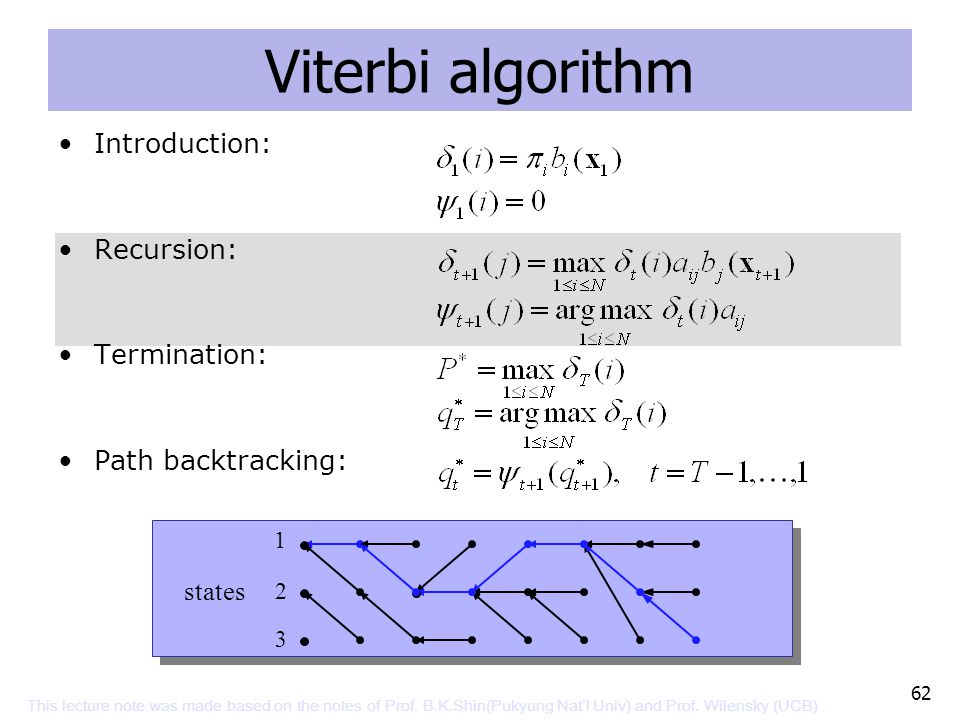

62. This lecture note was made based on the notes of Prof. B.K.Shin(Pukyung Nat’l Univ) and Prof. Wilensky (UCB) 62 Viterbi algorithm Introduction: Recursion: Termination: Path backtracking: 1 2 3 states
