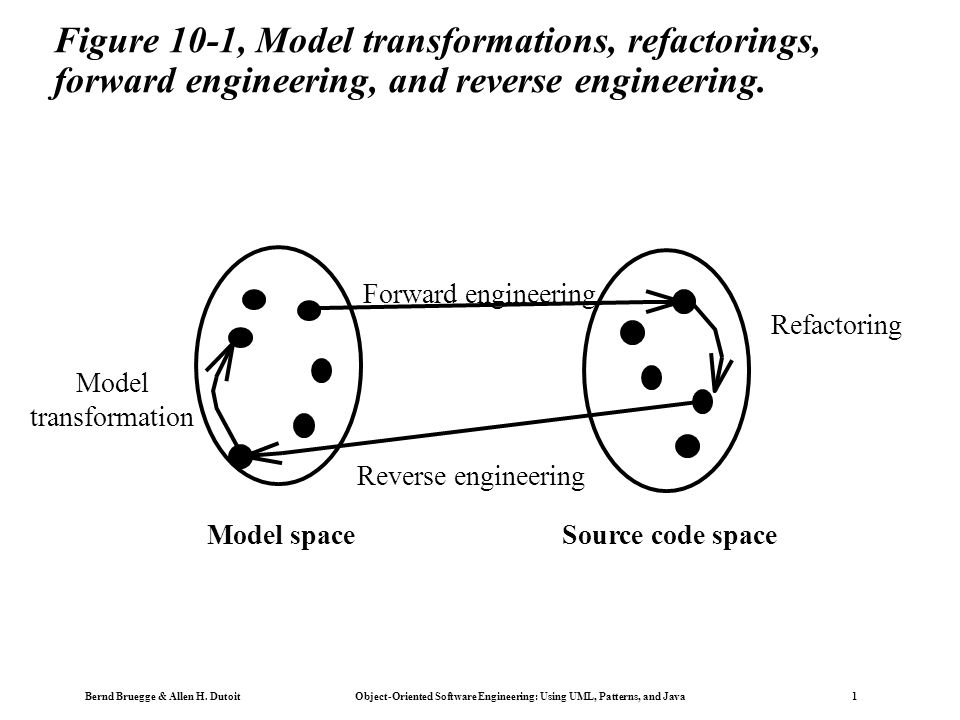

1. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 1 Figure 10-1, Model transformations, refactorings, forward engineering, and reverse engineering. Source code spaceModel space Model transformation Refactoring Forward engineering Reverse engineering

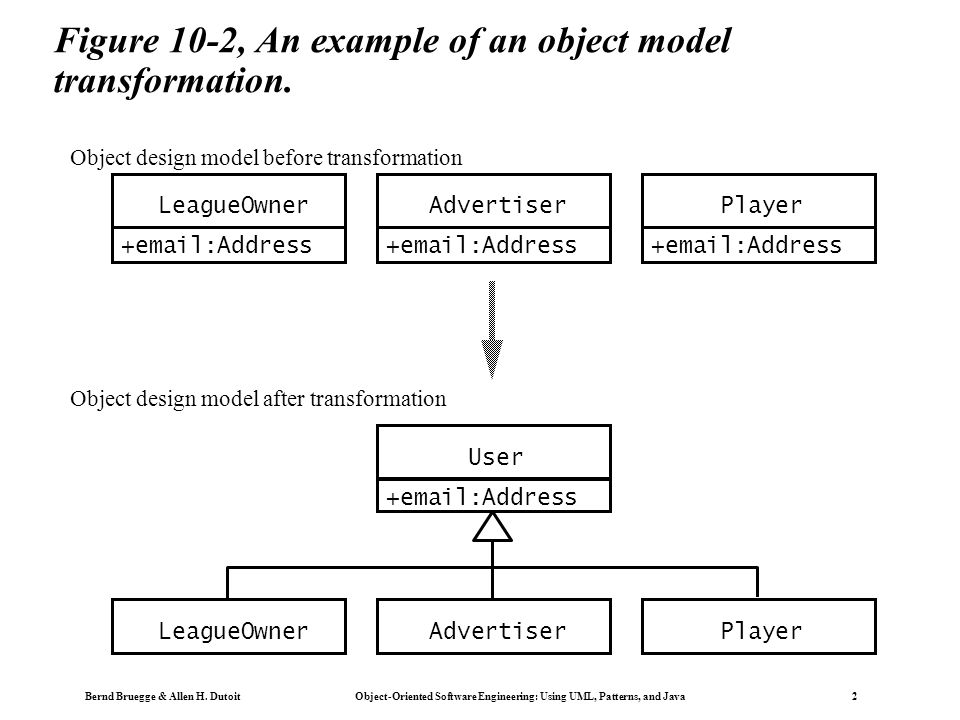

2. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 2 Figure 10-2, An example of an object model transformation. Player Object design model before transformation Object design model after transformation AdvertiserLeagueOwner User +email:Address Advertiser +email:Address Player +email:Address LeagueOwner +email:Address

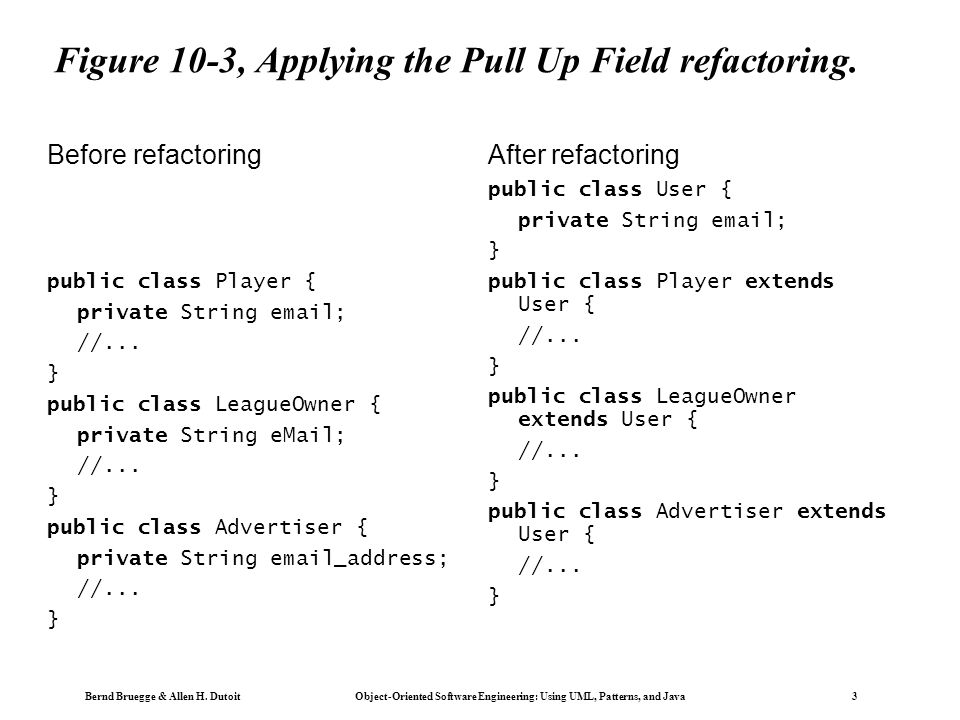

3. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 3 Figure 10-3, Applying the Pull Up Field refactoring. Before refactoring public class Player { private String email; //... } public class LeagueOwner { private String eMail; //... } public class Advertiser { private String email_address; //... } After refactoring public class User { private String email; } public class Player extends User { //... } public class LeagueOwner extends User { //... } public class Advertiser extends User { //... }

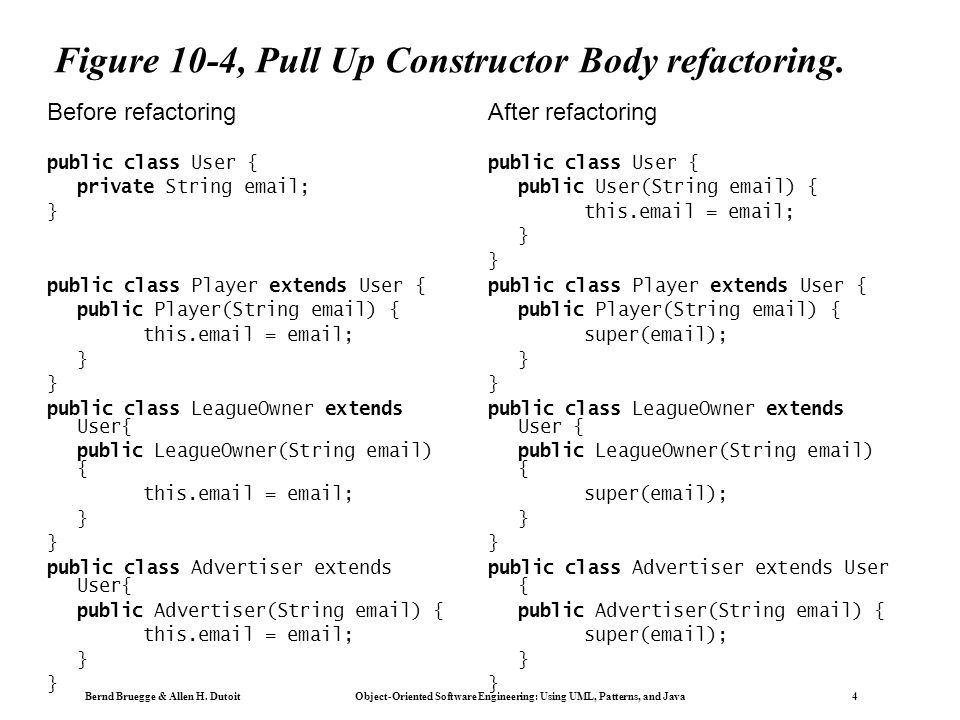

4. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 4 Figure 10-4, Pull Up Constructor Body refactoring. Before refactoring public class User { private String email; } public class Player extends User { public Player(String email) { this.email = email; } public class LeagueOwner extends User{ public LeagueOwner(String email) { this.email = email; } public class Advertiser extends User{ public Advertiser(String email) { this.email = email; } After refactoring public class User { public User(String email) { this.email = email; } public class Player extends User { public Player(String email) { super(email); } public class LeagueOwner extends User { public LeagueOwner(String email) { super(email); } public class Advertiser extends User { public Advertiser(String email) { super(email); }

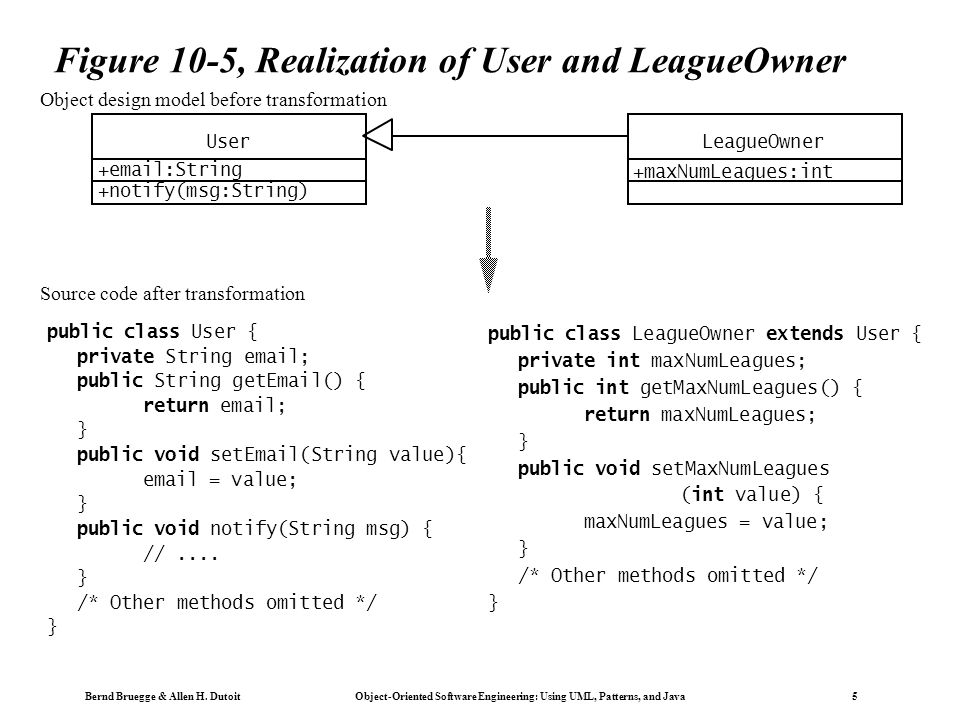

5. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 5 Figure 10-5, Realization of User and LeagueOwner public class User { private String email; public String getEmail() { return email; } public void setEmail(String value){ email = value; } public void notify(String msg) { //.... } /* Other methods omitted */ } public class LeagueOwner extends User { private int maxNumLeagues; public int getMaxNumLeagues() { return maxNumLeagues; } public void setMaxNumLeagues (int value) { maxNumLeagues = value; } /* Other methods omitted */ } UserLeagueOwner +maxNumLeagues:int Object design model before transformation Source code after transformation +email:String +notify(msg:String)

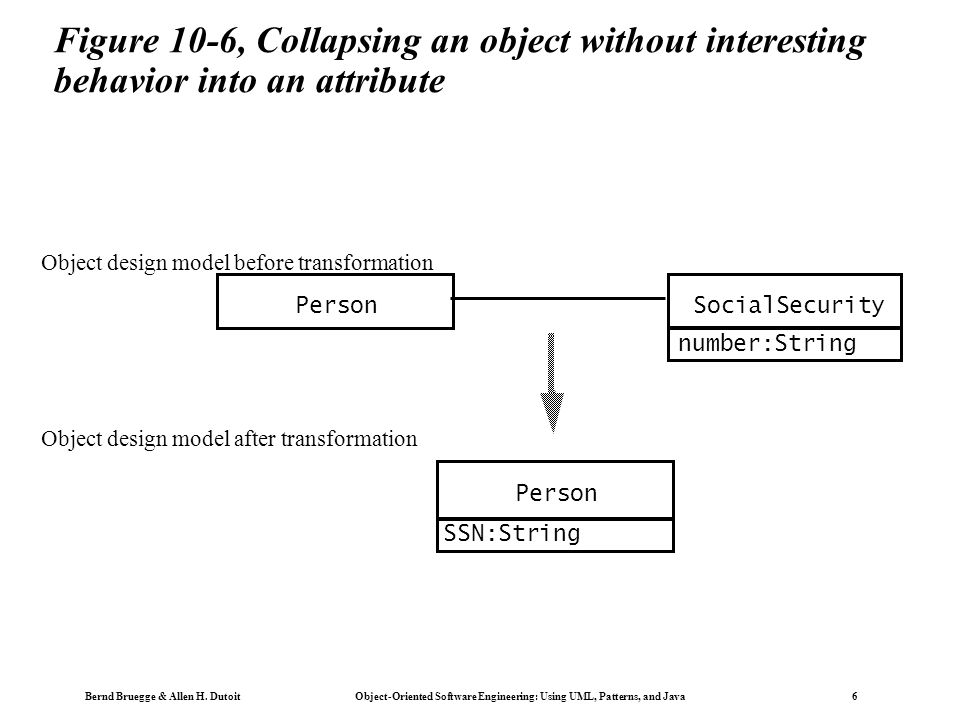

6. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 6 Figure 10-6, Collapsing an object without interesting behavior into an attribute PersonSocialSecurity number:String Person SSN:String Object design model before transformation Object design model after transformation

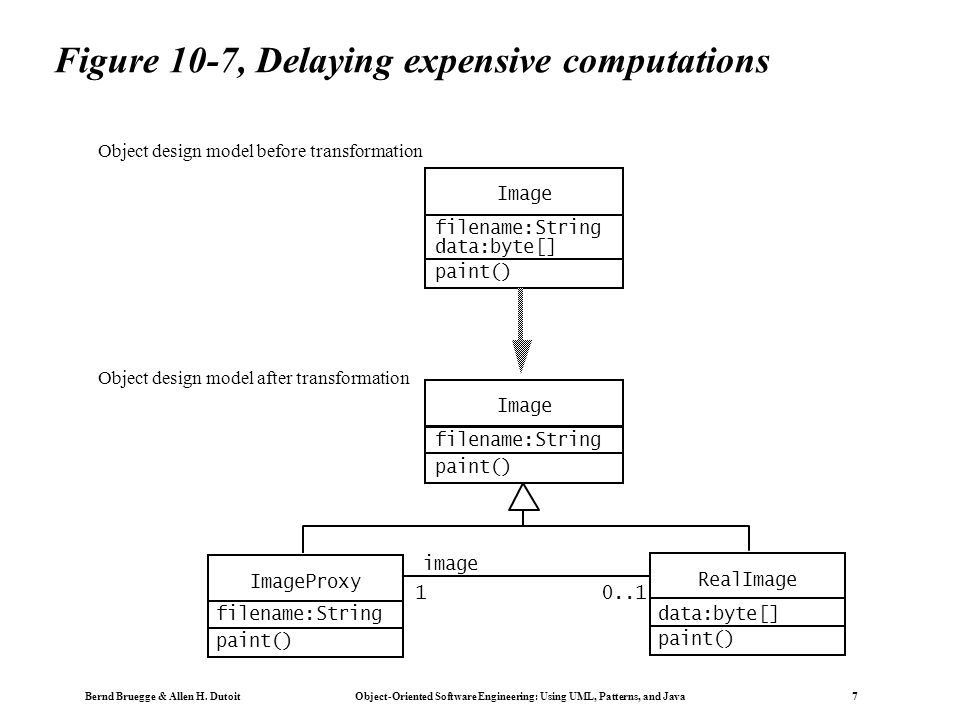

7. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 7 Figure 10-7, Delaying expensive computations Image filename:String paint() Image filename:String RealImage data:byte[] ImageProxy filename:String image 10..1 Object design model before transformation Object design model after transformation paint()

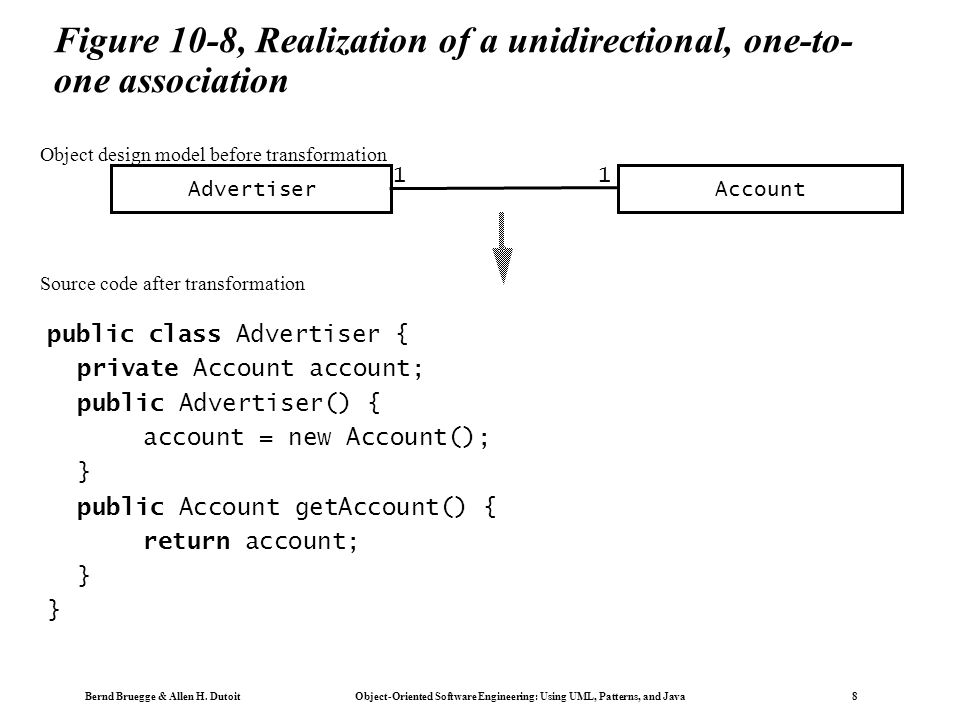

8. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 8 Figure 10-8, Realization of a unidirectional, one-to- one association public class Advertiser { private Account account; public Advertiser() { account = new Account(); } public Account getAccount() { return account; } AccountAdvertiser 11 Object design model before transformation Source code after transformation

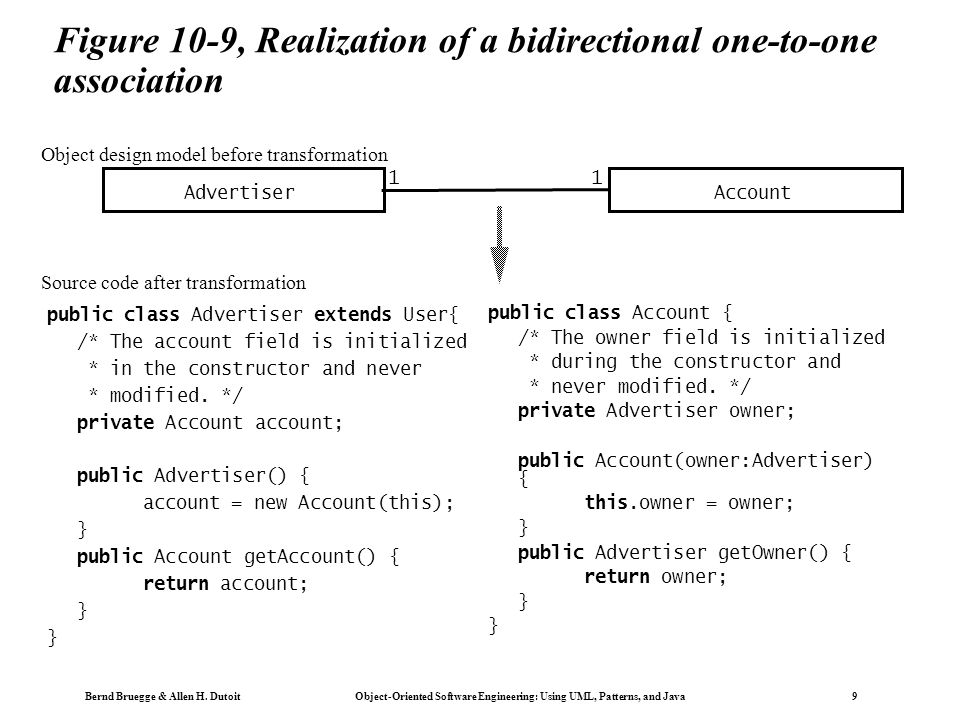

9. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 9 Figure 10-9, Realization of a bidirectional one-to-one association public class Advertiser extends User{ /* The account field is initialized * in the constructor and never * modified. */ private Account account; public Advertiser() { account = new Account(this); } public Account getAccount() { return account; } AccountAdvertiser 11 Object design model before transformation Source code after transformation public class Account { /* The owner field is initialized * during the constructor and * never modified. */ private Advertiser owner; public Account(owner:Advertiser) { this.owner = owner; } public Advertiser getOwner() { return owner; }

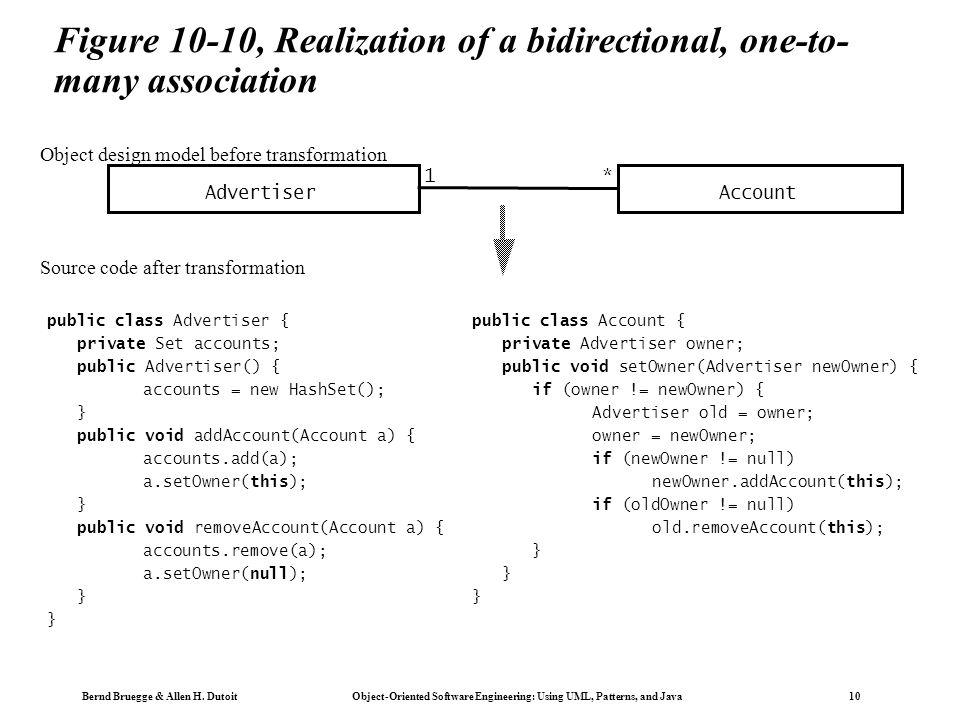

10. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 10 Figure 10-10, Realization of a bidirectional, one-to- many association public class Advertiser { private Set accounts; public Advertiser() { accounts = new HashSet(); } public void addAccount(Account a) { accounts.add(a); a.setOwner(this); } public void removeAccount(Account a) { accounts.remove(a); a.setOwner(null); } public class Account { private Advertiser owner; public void setOwner(Advertiser newOwner) { if (owner != newOwner) { Advertiser old = owner; owner = newOwner; if (newOwner != null) newOwner.addAccount(this); if (oldOwner != null) old.removeAccount(this); } AdvertiserAccount 1* Object design model before transformation Source code after transformation

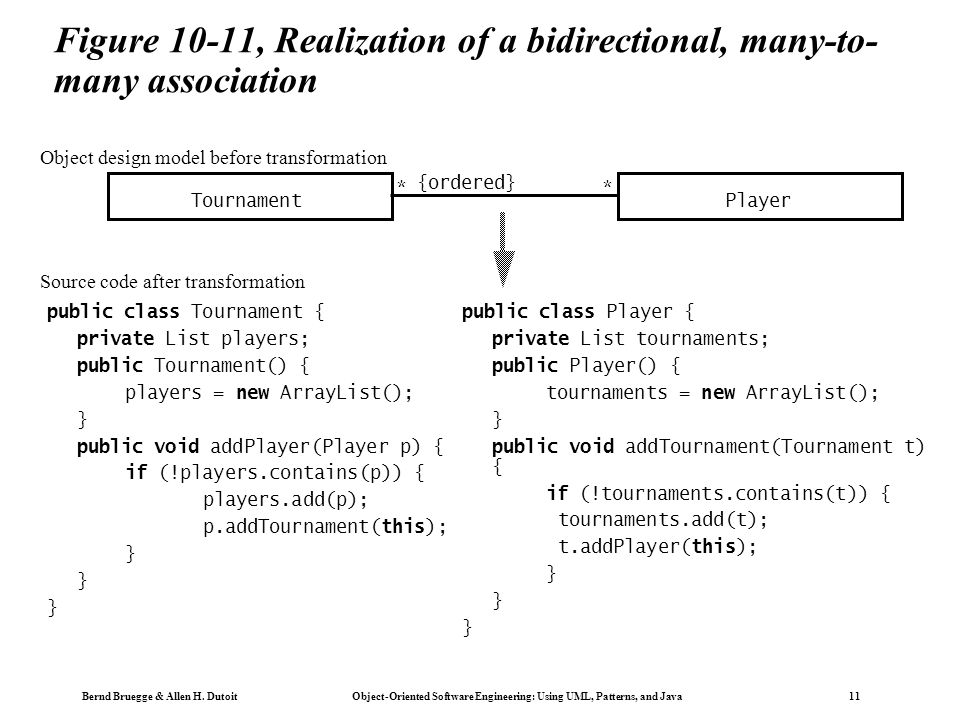

11. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 11 Figure 10-11, Realization of a bidirectional, many-to- many association public class Tournament { private List players; public Tournament() { players = new ArrayList(); } public void addPlayer(Player p) { if (!players.contains(p)) { players.add(p); p.addTournament(this); } public class Player { private List tournaments; public Player() { tournaments = new ArrayList(); } public void addTournament(Tournament t) { if (!tournaments.contains(t)) { tournaments.add(t); t.addPlayer(this); } TournamentPlayer ** Object design model before transformation Source code after transformation {ordered}

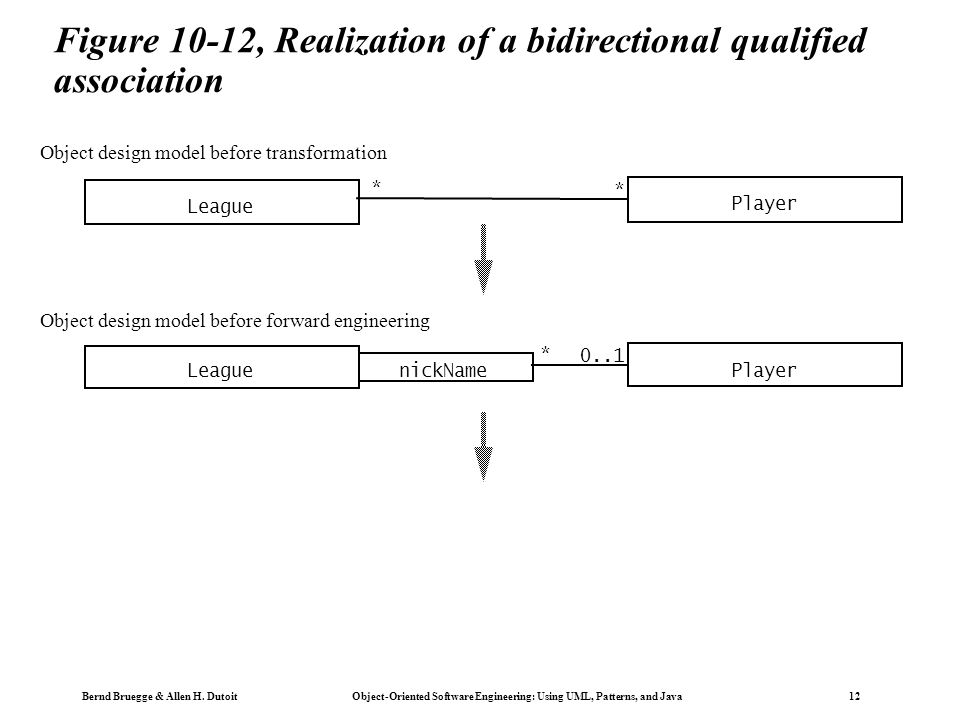

12. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 12 Figure 10-12, Realization of a bidirectional qualified association PlayernickName 0..1 * Object design model before forward engineering League Player * * Object design model before transformation League

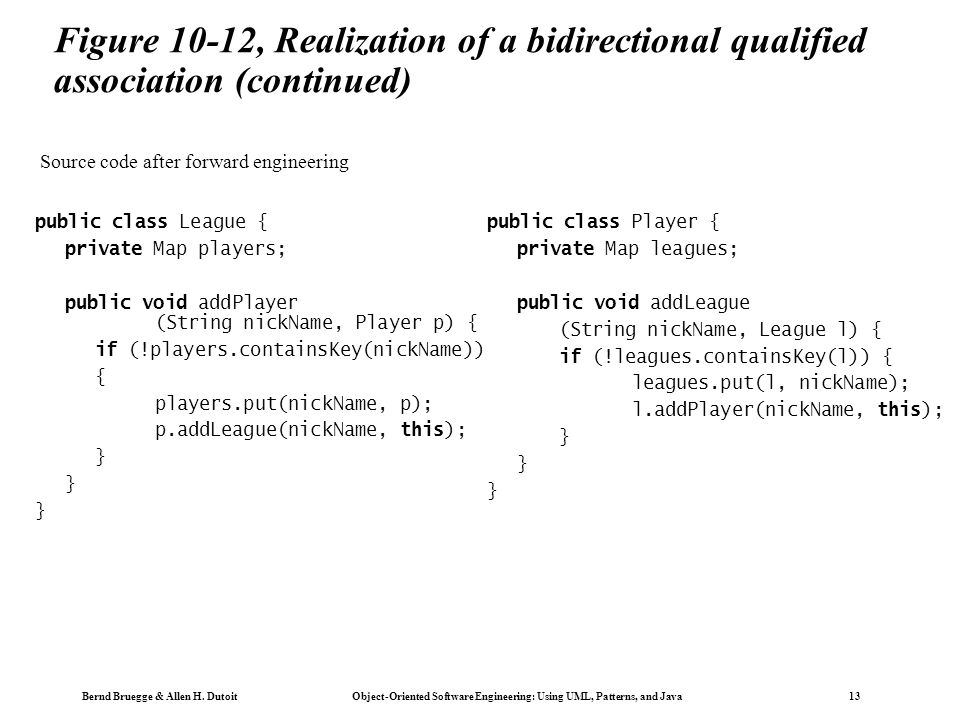

13. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 13 Figure 10-12, Realization of a bidirectional qualified association (continued) public class League { private Map players; public void addPlayer (String nickName, Player p) { if (!players.containsKey(nickName)) { players.put(nickName, p); p.addLeague(nickName, this); } public class Player { private Map leagues; public void addLeague (String nickName, League l) { if (!leagues.containsKey(l)) { leagues.put(l, nickName); l.addPlayer(nickName, this); } Source code after forward engineering

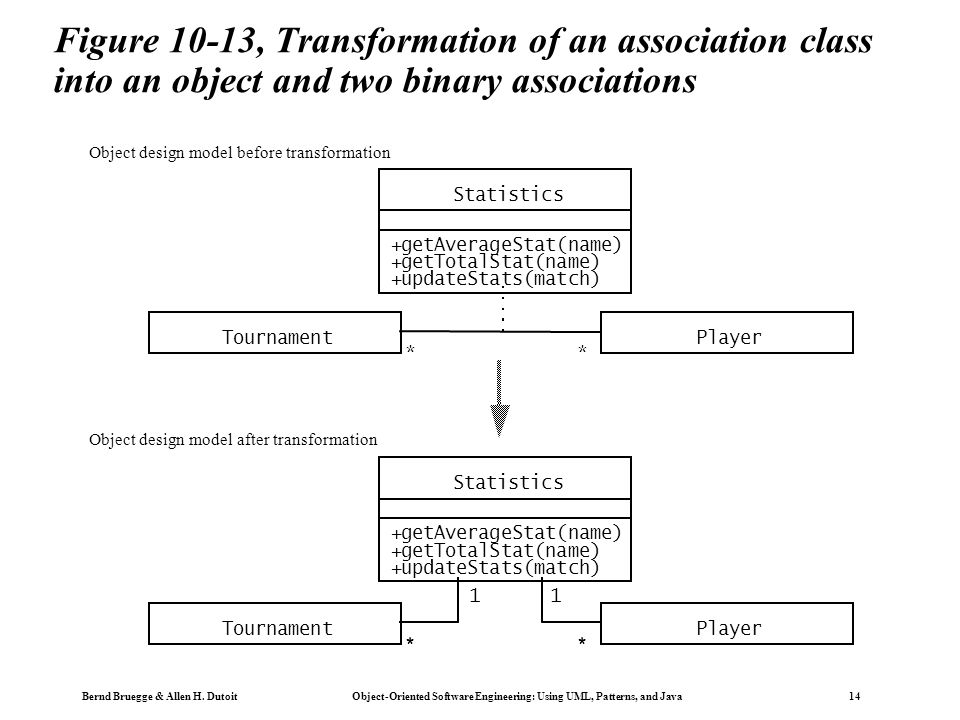

14. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 14 Figure 10-13, Transformation of an association class into an object and two binary associations TournamentPlayer ** TournamentPlayer ** Object design model before transformation Object design model after transformation Statistics 11 +getAverageStat(name) +getTotalStat(name) +updateStats(match) Statistics +getAverageStat(name) +getTotalStat(name) +updateStats(match)

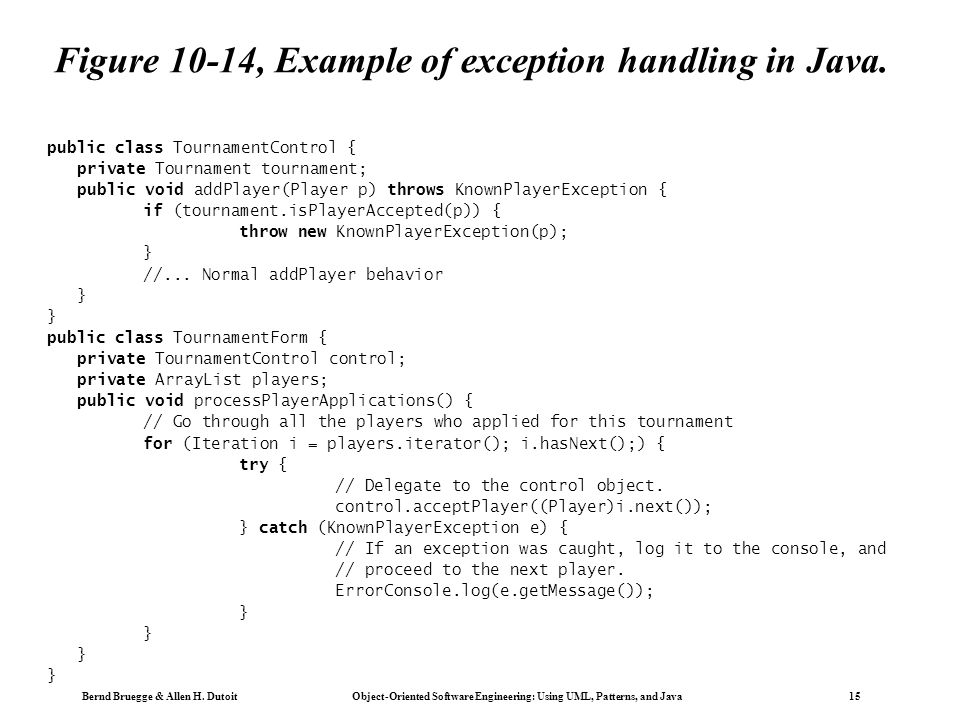

15. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 15 Figure 10-14, Example of exception handling in Java. public class TournamentControl { private Tournament tournament; public void addPlayer(Player p) throws KnownPlayerException { if (tournament.isPlayerAccepted(p)) { throw new KnownPlayerException(p); } //... Normal addPlayer behavior } public class TournamentForm { private TournamentControl control; private ArrayList players; public void processPlayerApplications() { // Go through all the players who applied for this tournament for (Iteration i = players.iterator(); i.hasNext();) { try { // Delegate to the control object. control.acceptPlayer((Player)i.next()); } catch (KnownPlayerException e) { // If an exception was caught, log it to the console, and // proceed to the next player. ErrorConsole.log(e.getMessage()); }

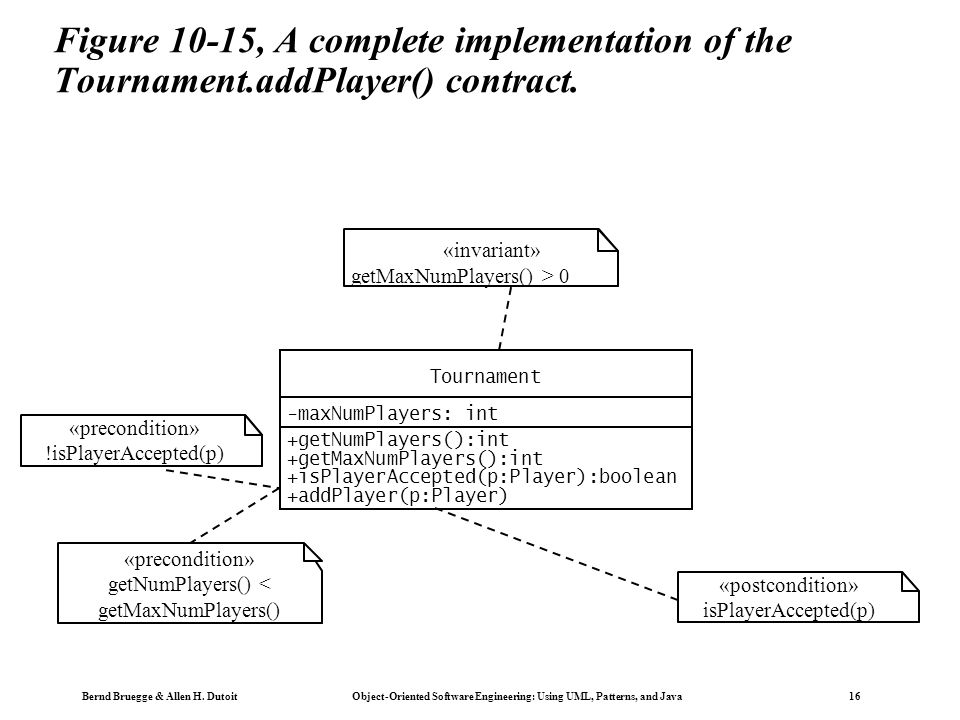

16. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 16 Figure 10-15, A complete implementation of the Tournament.addPlayer() contract. Tournament +isPlayerAccepted(p:Player):boolean +addPlayer(p:Player) +getMaxNumPlayers():int -maxNumPlayers: int «precondition» !isPlayerAccepted(p) «invariant» getMaxNumPlayers() > 0 «precondition» getNumPlayers() < getMaxNumPlayers() +getNumPlayers():int «postcondition» isPlayerAccepted(p)

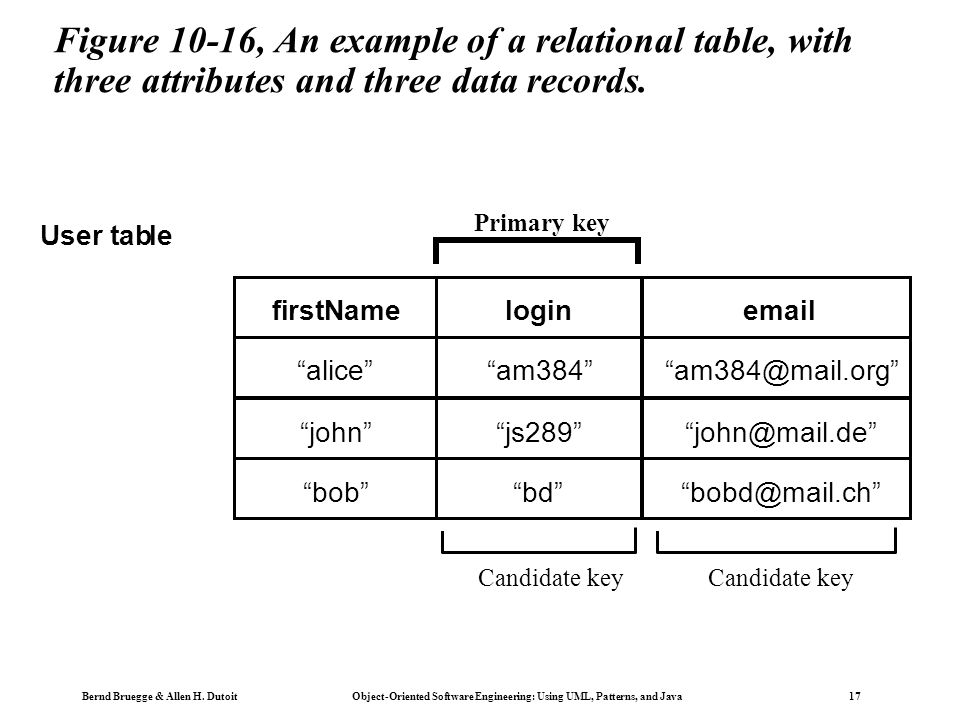

17. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 17 Figure 10-16, An example of a relational table, with three attributes and three data records. loginemail “am384”“am384@mail.org” “js289”“john@mail.de” User table firstName “alice” “john” “bd”“bobd@mail.ch”“bob” Candidate key Primary key

18. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 18 Figure 10-17, An example of a foreign key. The owner attribute in the League table refers to the primary key of the User table in Figure 10-16. login “am384” League table name “tictactoeNovice” “tictactoeExpert” “js289”“chessNovice” Foreign key referencing User table

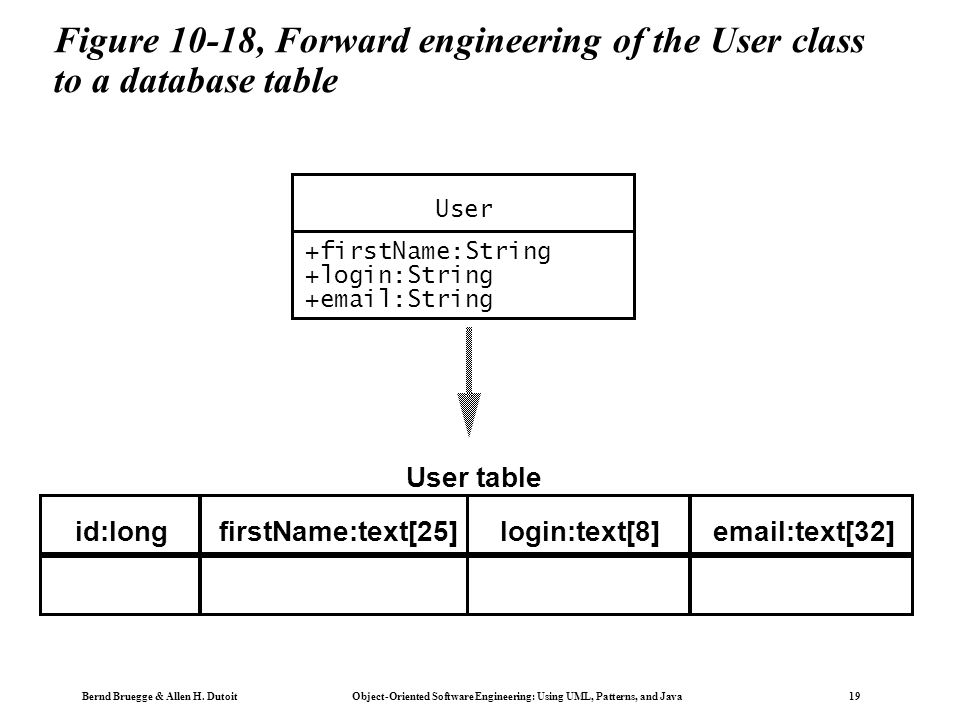

19. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 19 Figure 10-18, Forward engineering of the User class to a database table User +firstName:String +login:String +email:String id:longfirstName:text[25]login:text[8]email:text[32] User table

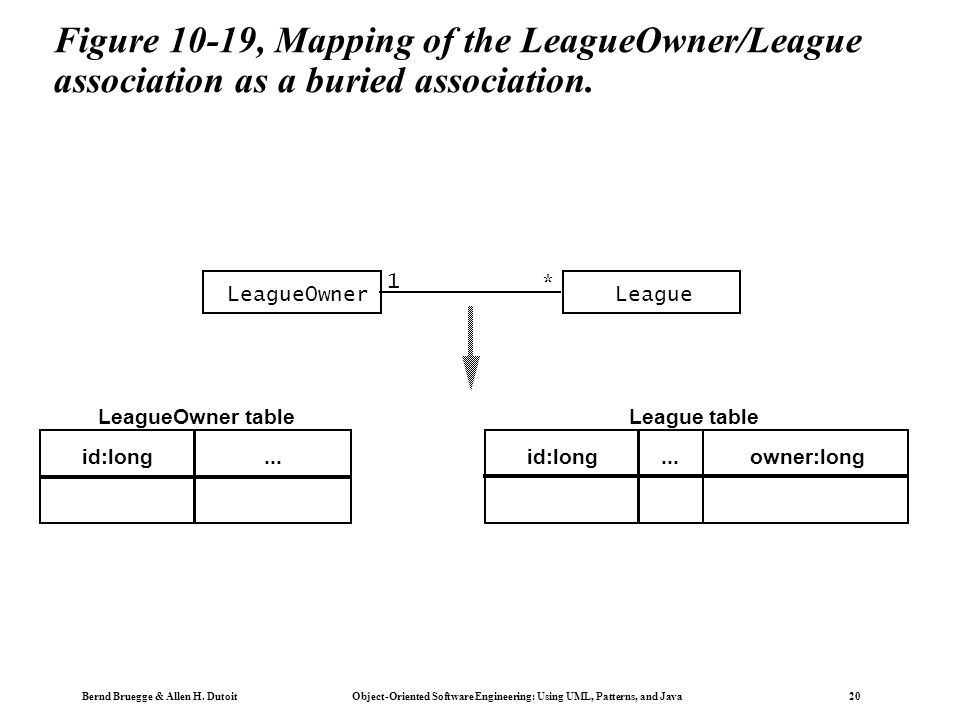

20. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 20 Figure 10-19, Mapping of the LeagueOwner/League association as a buried association. id:longowner:long LeagueLeagueOwner LeagueOwner tableLeague table... id:long * 1

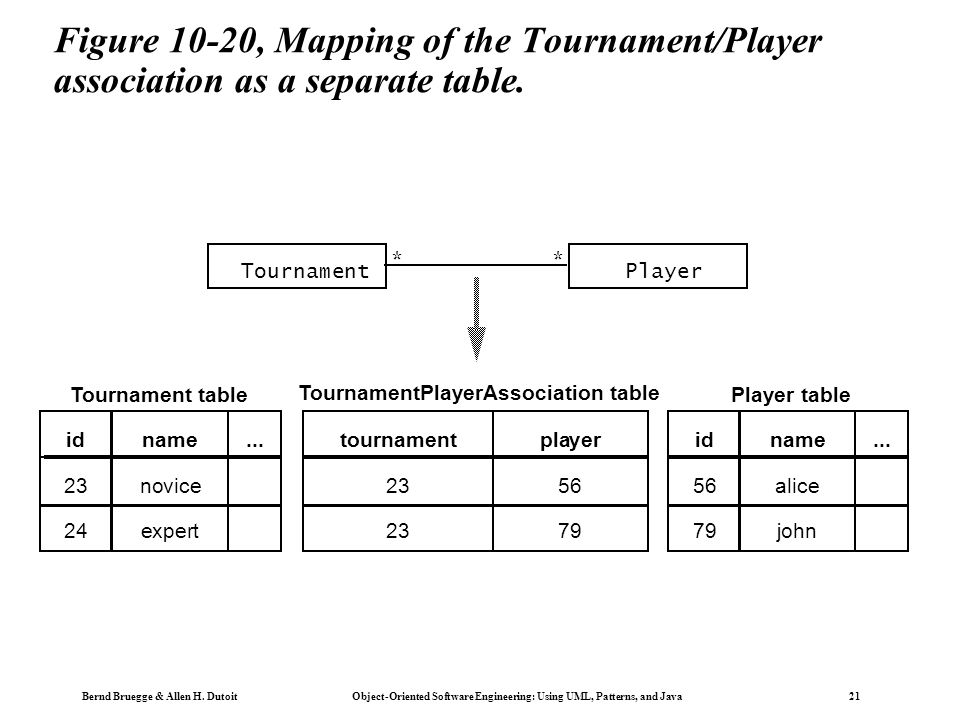

21. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 21 Figure 10-20, Mapping of the Tournament/Player association as a separate table. id PlayerTournament Tournament tablePlayer table ** tournamentplayer TournamentPlayerAssociation table 23 name... novice 24expert id 56 name... alice 79john 56 2379

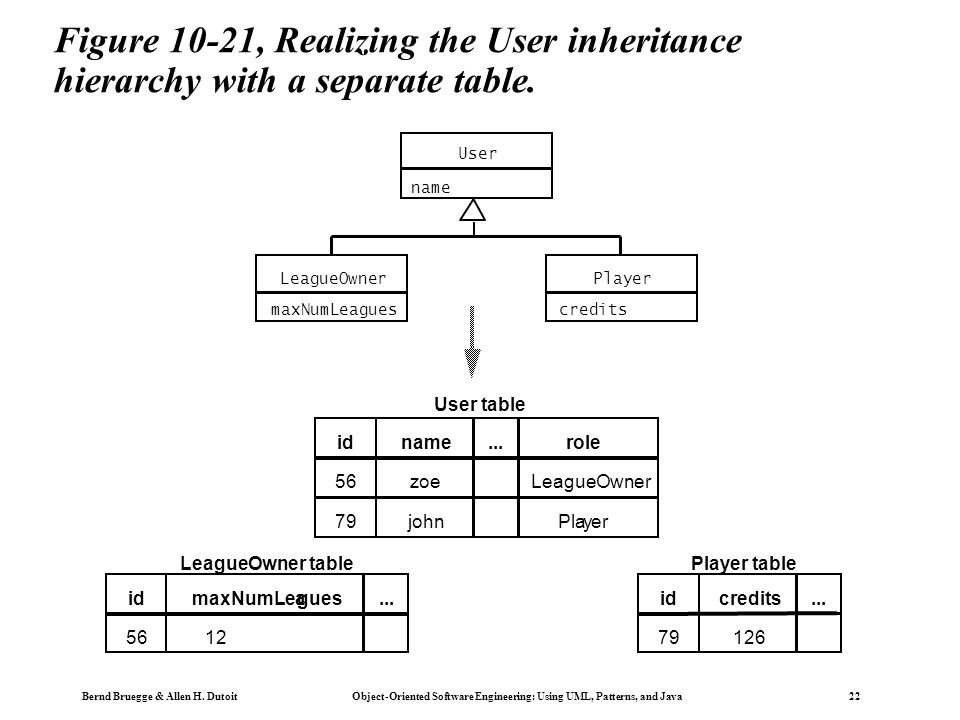

22. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 22 Figure 10-21, Realizing the User inheritance hierarchy with a separate table. id Player User LeagueOwner tablePlayer table User table 56 maxNumLeagues... 12 id 79 credits... 126 LeagueOwner id 56 name... zoe 79john role LeagueOwner Player maxNumLeaguescredits name

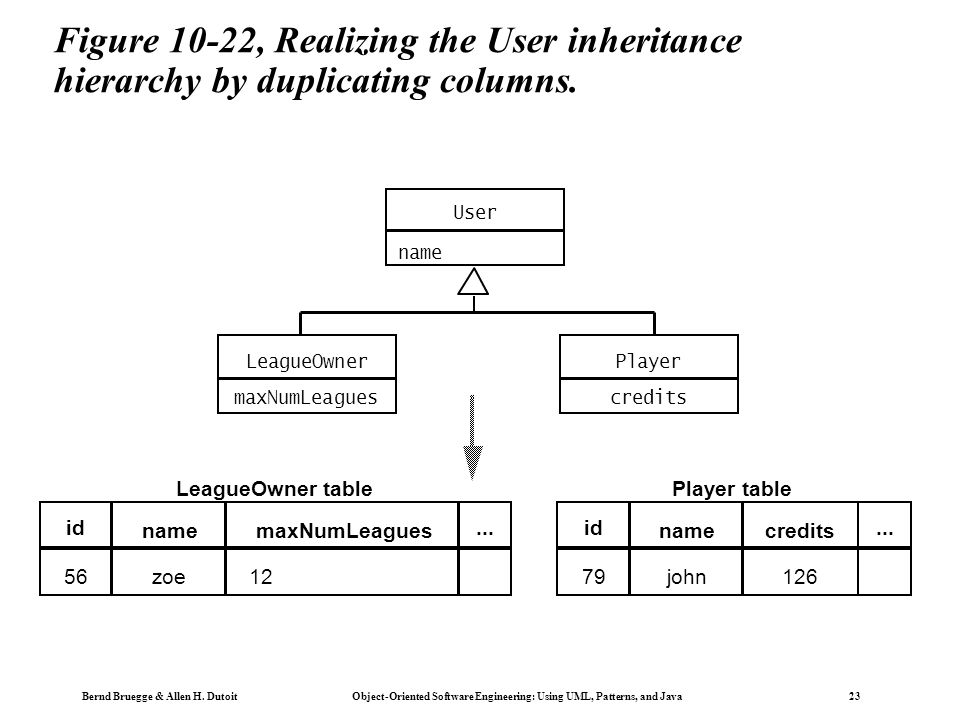

23. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 23 Figure 10-22, Realizing the User inheritance hierarchy by duplicating columns. id Player User LeagueOwner tablePlayer table 56 maxNumLeagues... 12 id 79 credits... 126 LeagueOwner maxNumLeaguescredits name zoe name john

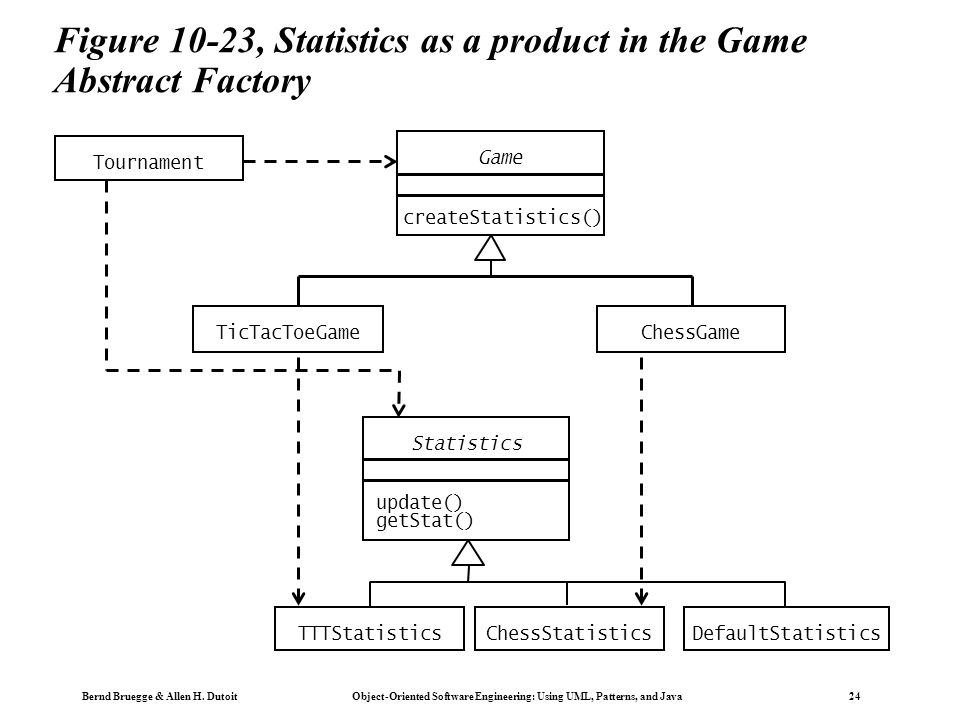

24. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 24 Figure 10-23, Statistics as a product in the Game Abstract Factory Game createStatistics() ChessGameTicTacToeGame TTTStatisticsChessStatistics Tournament Statistics update() getStat() DefaultStatistics

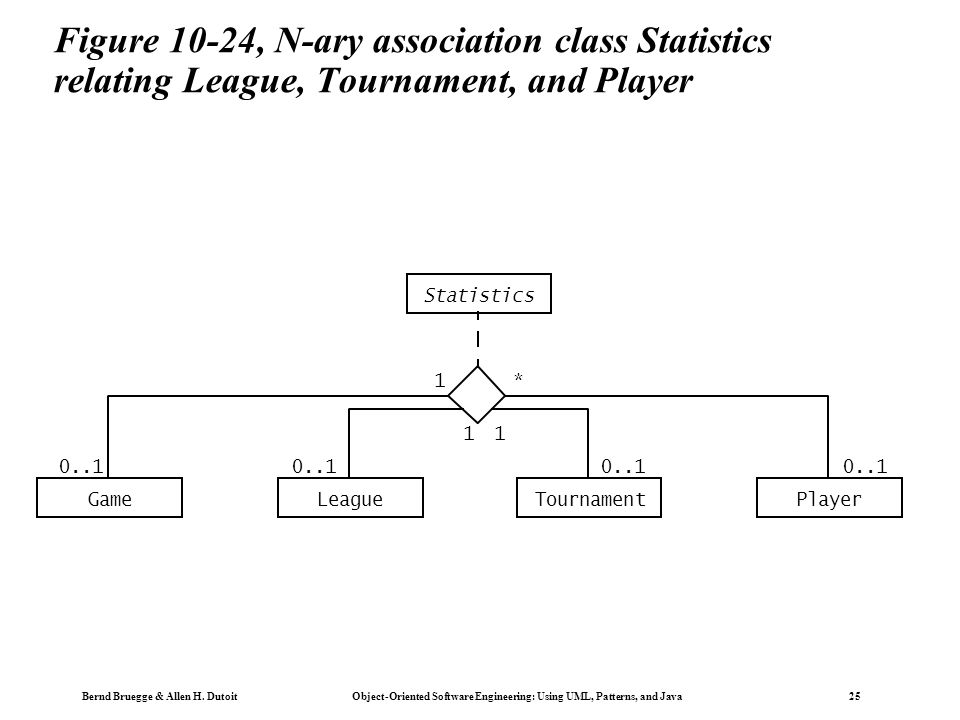

25. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 25 Figure 10-24, N-ary association class Statistics relating League, Tournament, and Player Tournament 0..1 1* 1 LeagueGamePlayer Statistics 0..1 1

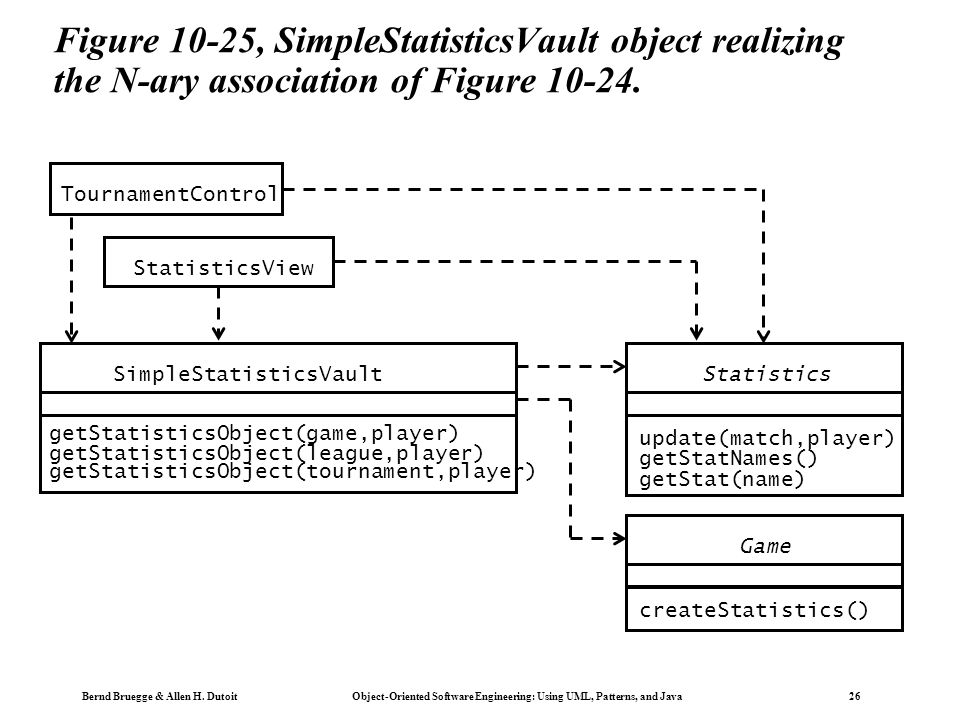

26. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 26 Figure 10-25, SimpleStatisticsVault object realizing the N-ary association of Figure 10-24. TournamentControl Statistics update(match,player) getStatNames() SimpleStatisticsVault getStatisticsObject(game,player) getStatisticsObject(league,player) getStatisticsObject(tournament,player) StatisticsView Game createStatistics() getStat(name)

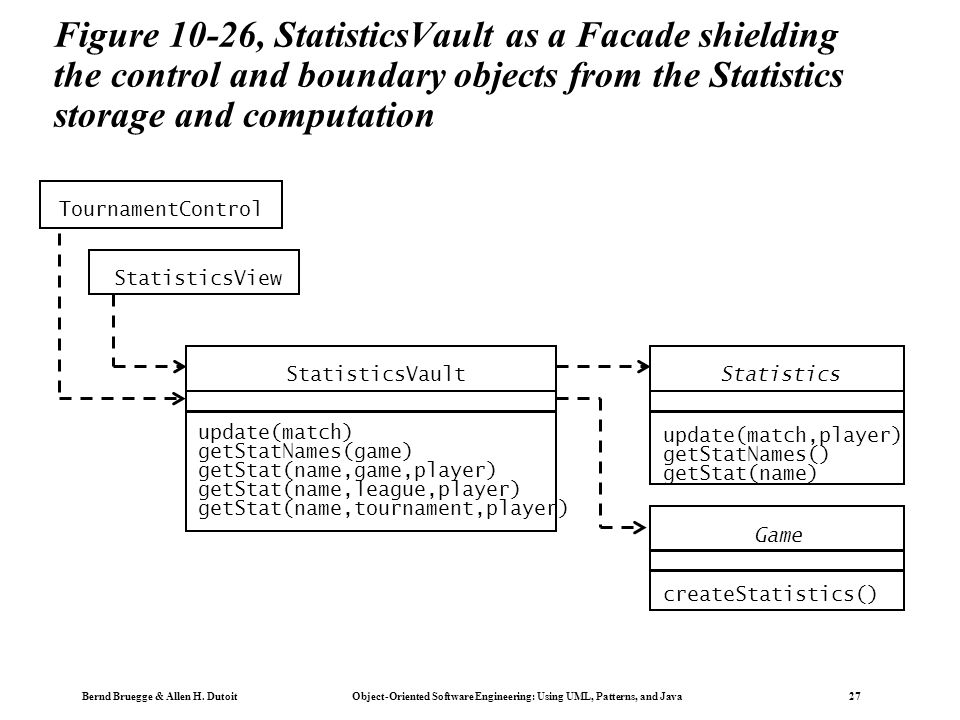

27. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 27 Figure 10-26, StatisticsVault as a Facade shielding the control and boundary objects from the Statistics storage and computation TournamentControl Statistics update(match,player) getStatNames() StatisticsVault update(match) getStatNames(game) getStat(name,game,player) getStat(name,league,player) getStat(name,tournament,player) StatisticsView Game createStatistics() getStat(name)

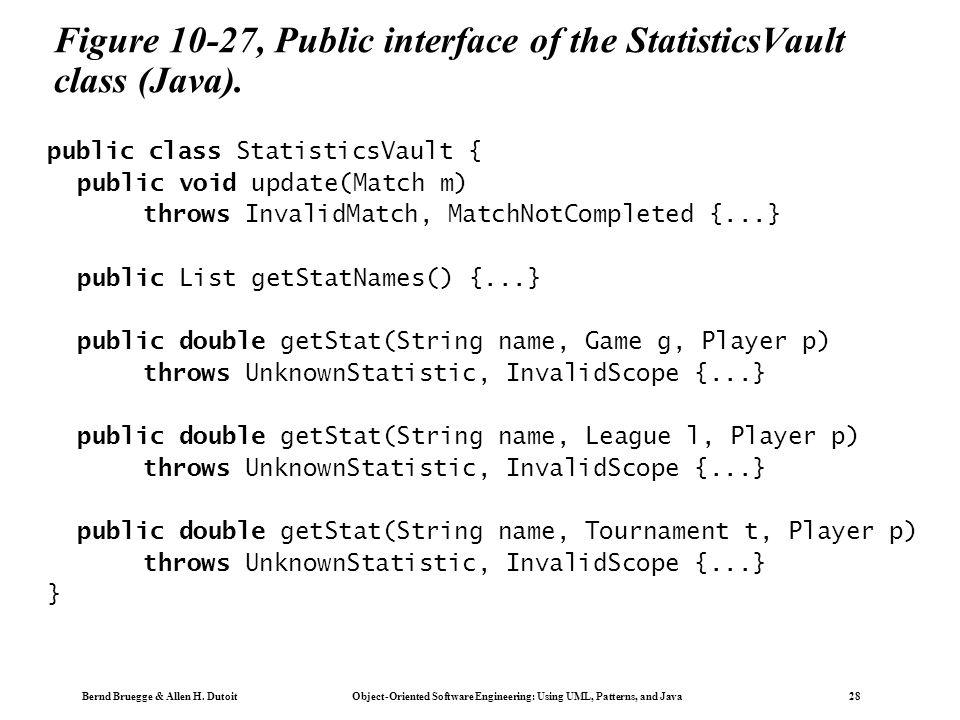

28. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 28 Figure 10-27, Public interface of the StatisticsVault class (Java). public class StatisticsVault { public void update(Match m) throws InvalidMatch, MatchNotCompleted {...} public List getStatNames() {...} public double getStat(String name, Game g, Player p) throws UnknownStatistic, InvalidScope {...} public double getStat(String name, League l, Player p) throws UnknownStatistic, InvalidScope {...} public double getStat(String name, Tournament t, Player p) throws UnknownStatistic, InvalidScope {...} }

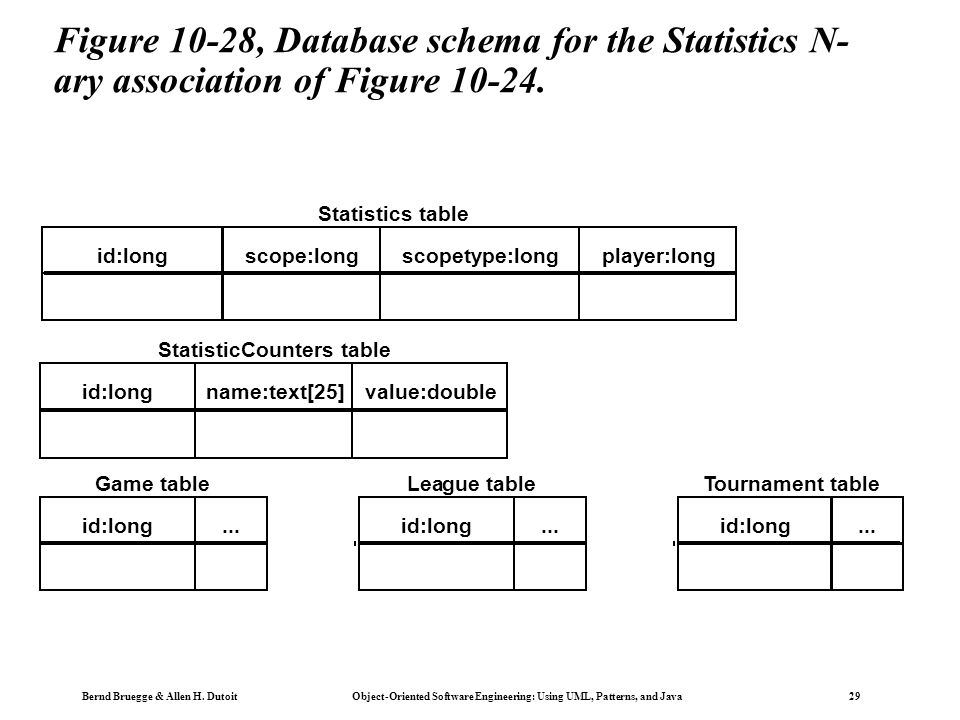

29. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 29 Figure 10-28, Database schema for the Statistics N- ary association of Figure 10-24. scope:long Statistics table player:longscopetype:longid:long StatisticCounters table name:text[25]value:double id:long League table...id:long Game table...id:long Tournament table...

30. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 30 Figure 10-29, Associations among Messages, Folders, Mailboxes, and Views in a hypothetical email client MailboxFolderMessage View 1* * * 1*

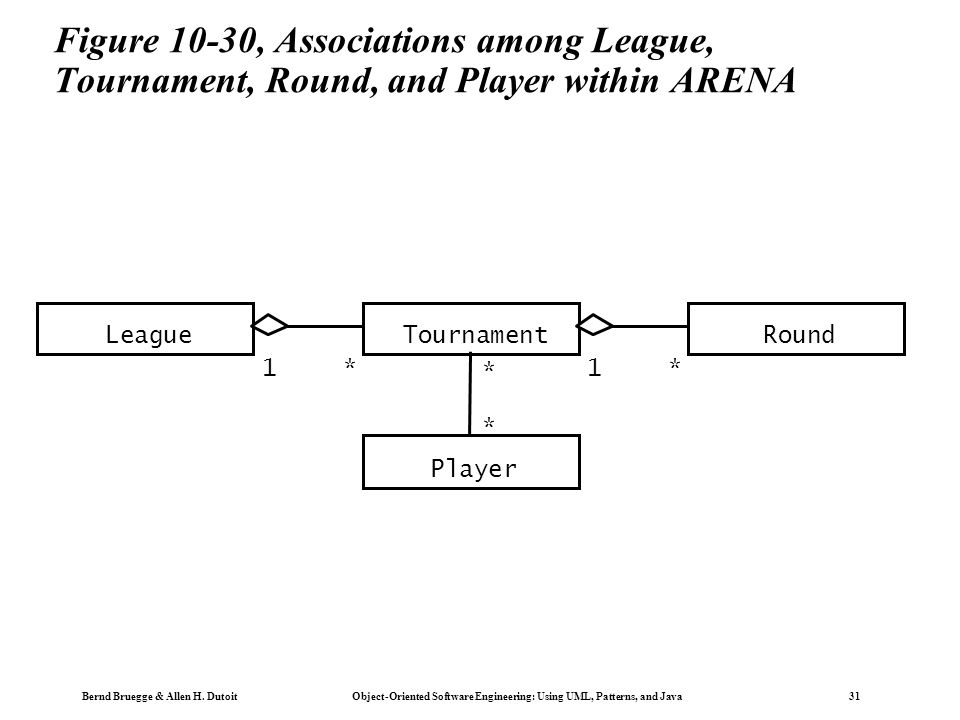

31. Bernd Bruegge & Allen H. Dutoit Object-Oriented Software Engineering: Using UML, Patterns, and Java 31 Figure 10-30, Associations among League, Tournament, Round, and Player within ARENA LeagueTournamentRound Player 1* * * 1*
