1. CCPNmr Analysis – from spectrum to structure and more Victoria A. Higman Leibniz-Institut für Molekulare Pharmakologie, Berlin and School of Chemistry, University of Bristol

2. CCPN Collaborative Computing Project for NMR  Development of a unified approach to NMR software Data Model Format Converter CCPNmr Analysis – Assignment Software EXTEND-NMR – interface for numerous different NMR software packages

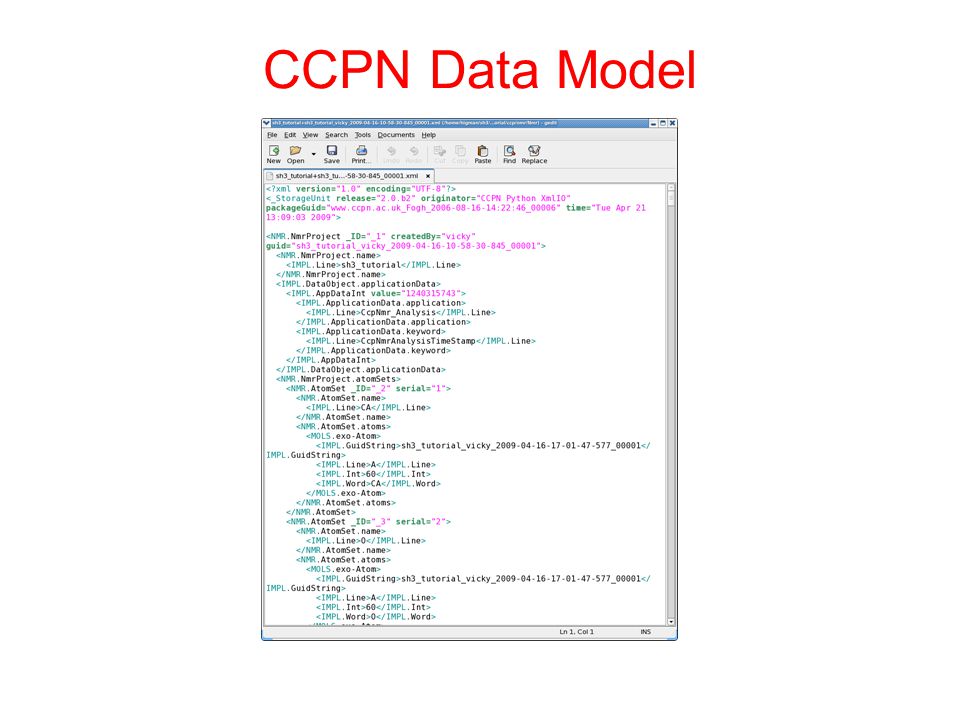

3. CCPN Data Model

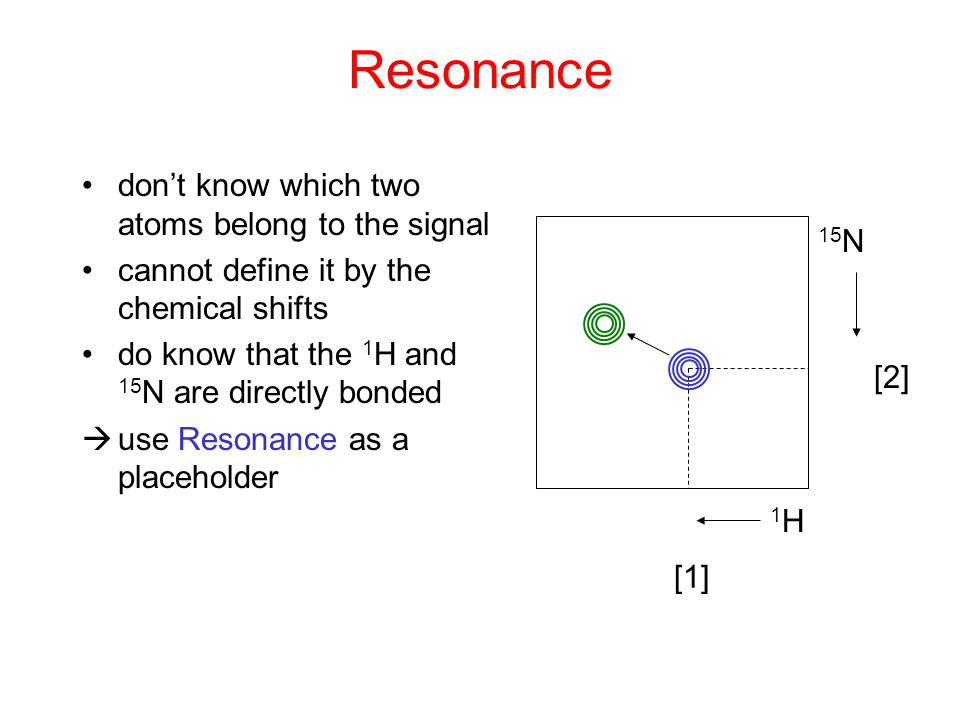

4. don’t know which two atoms belong to the signal cannot define it by the chemical shifts do know that the 1 H and 15 N are directly bonded  use Resonance as a placeholder 1H1H 15 N Resonance [1] [2]

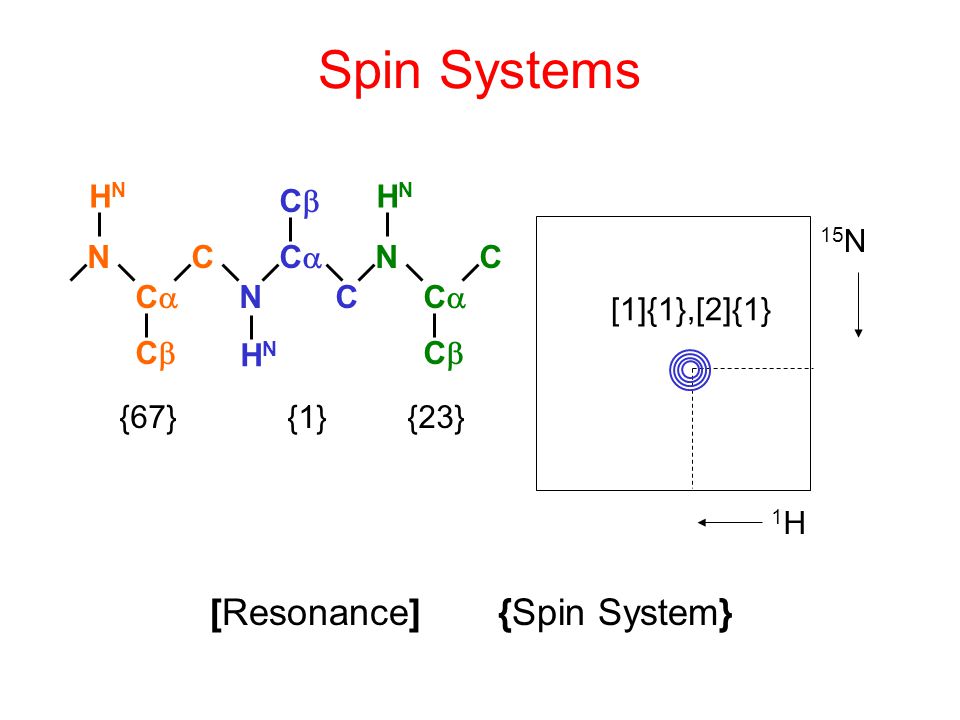

5. Spin Systems {1}{23}{67} [1]{1},[2]{1} [Resonance]{Spin System} CC CC NC CC NC CC NC CC CC HNHN HNHN HNHN 1H1H 15 N

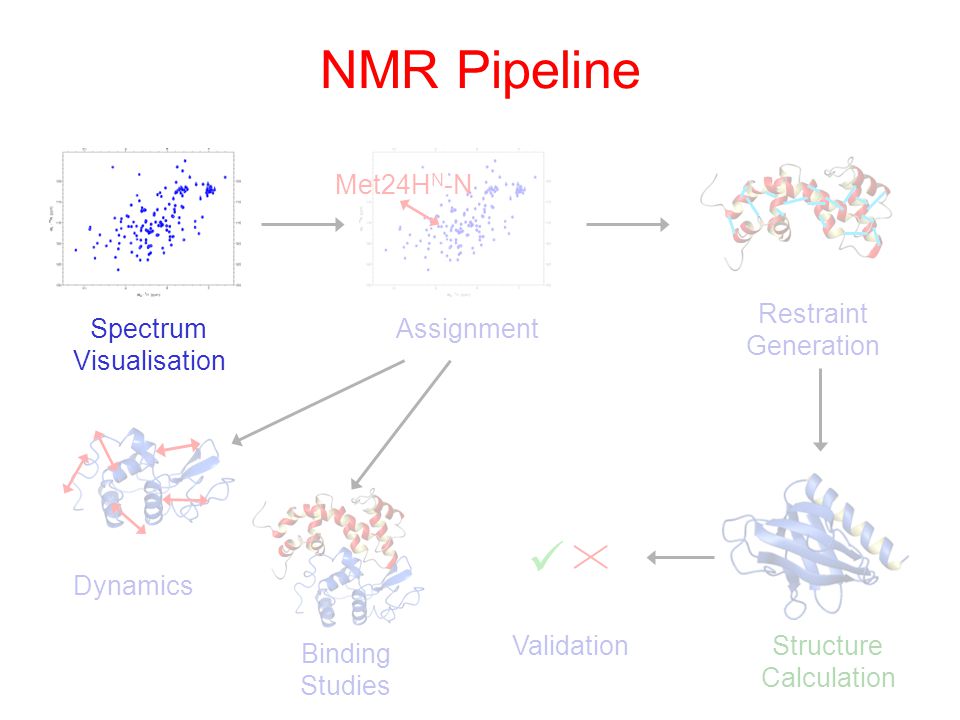

6. NMR Pipeline Spectrum Visualisation Assignment Met24H N -N Restraint Generation Structure Calculation Binding Studies Dynamics Validation

7. NMR Pipeline Spectrum Visualisation Assignment Met24H N -N Restraint Generation Structure Calculation Binding Studies Dynamics Validation

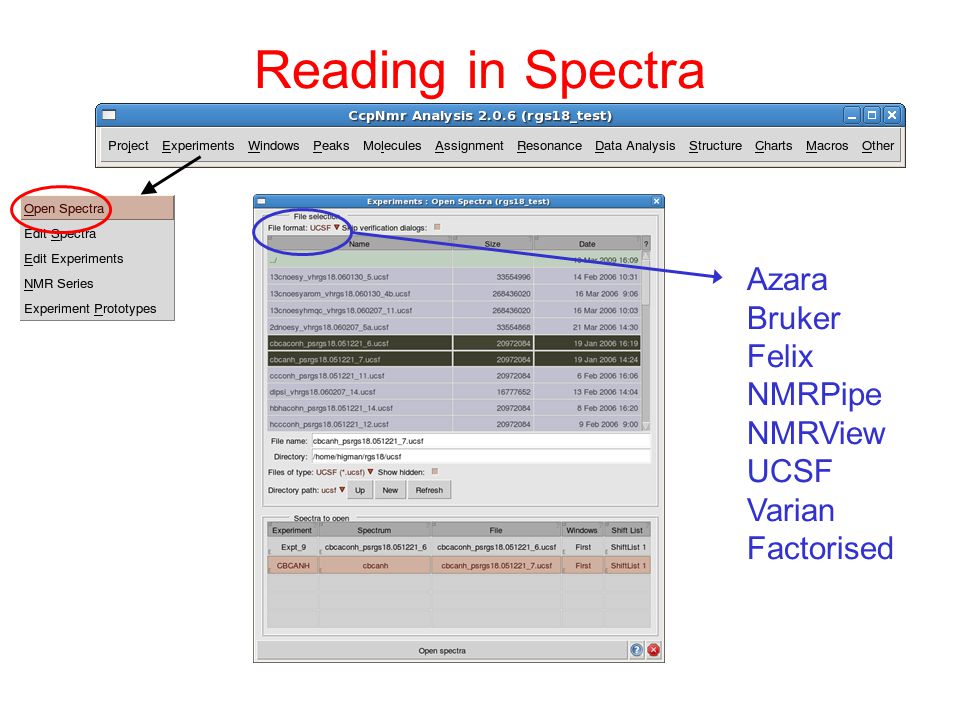

8. Reading in Spectra Azara Bruker Felix NMRPipe NMRView UCSF Varian Factorised

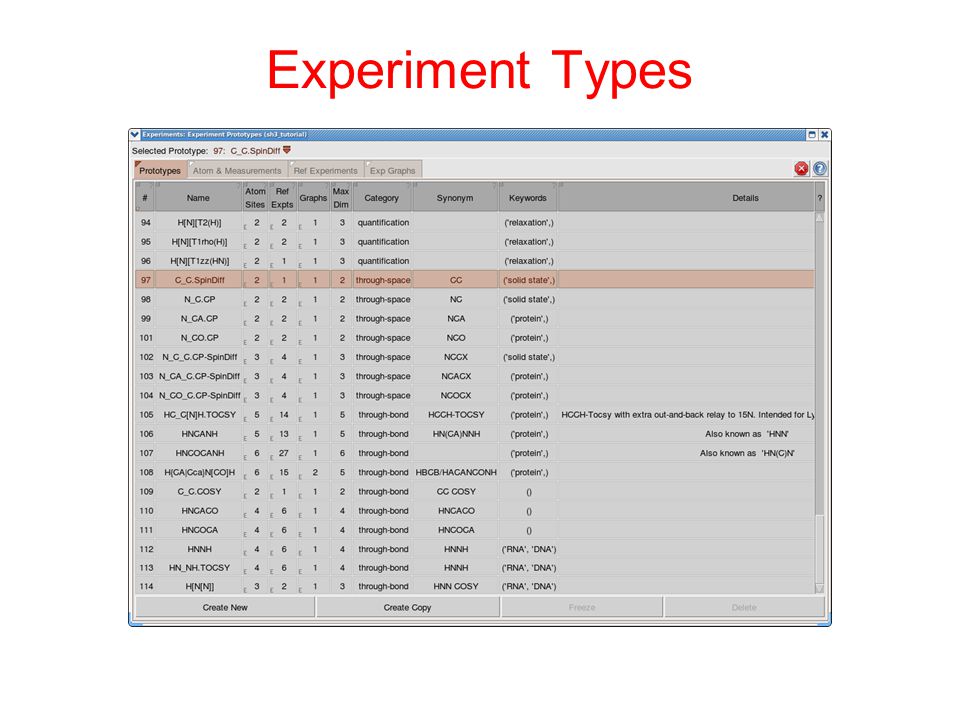

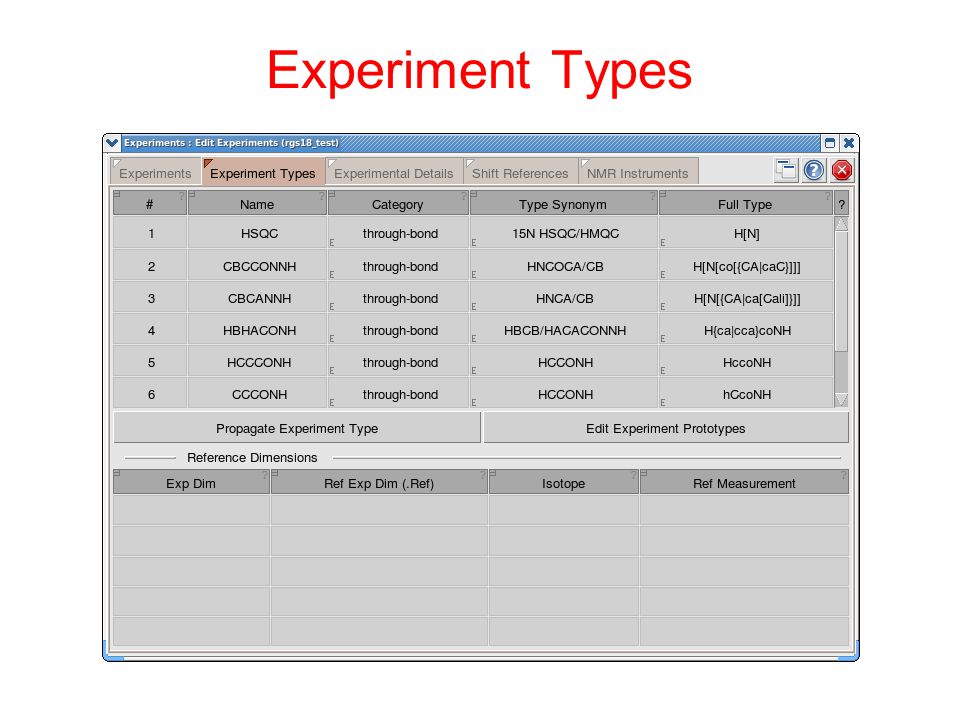

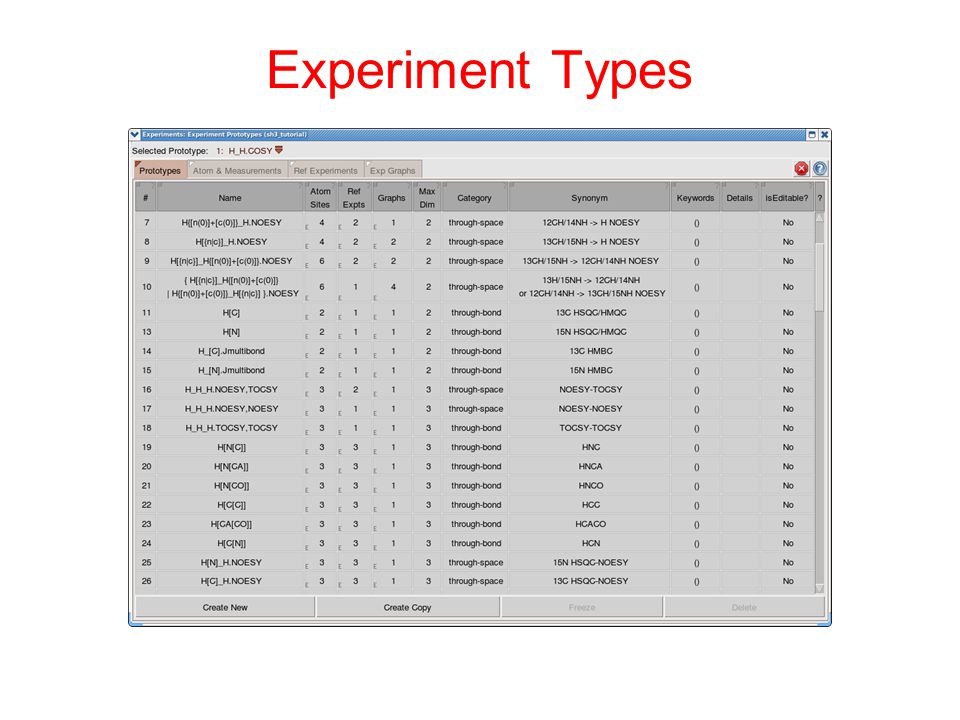

9. Experiment Types

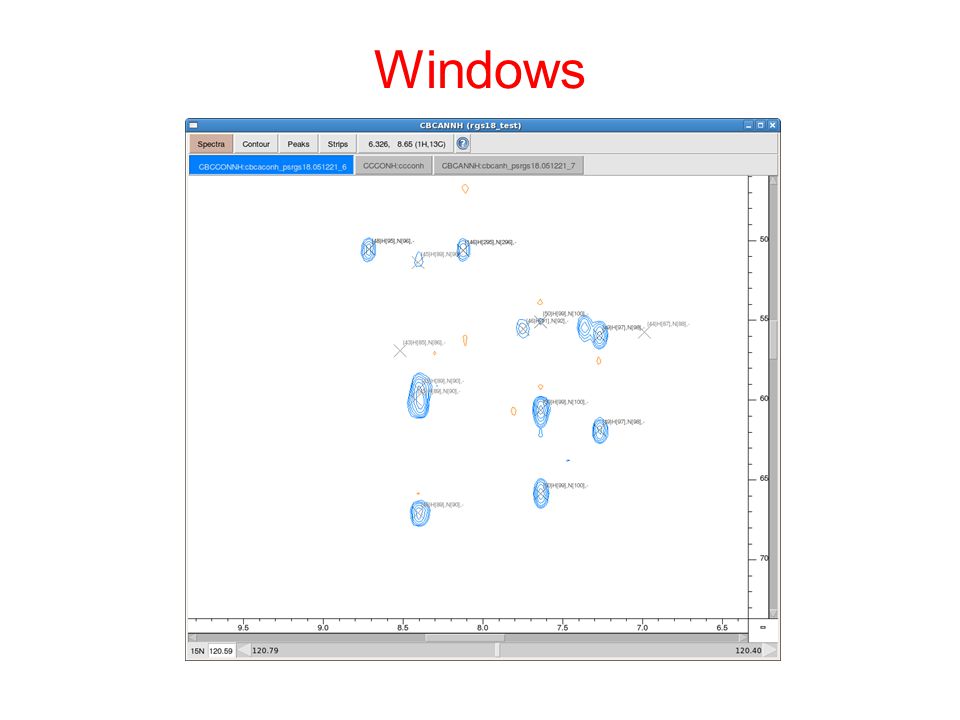

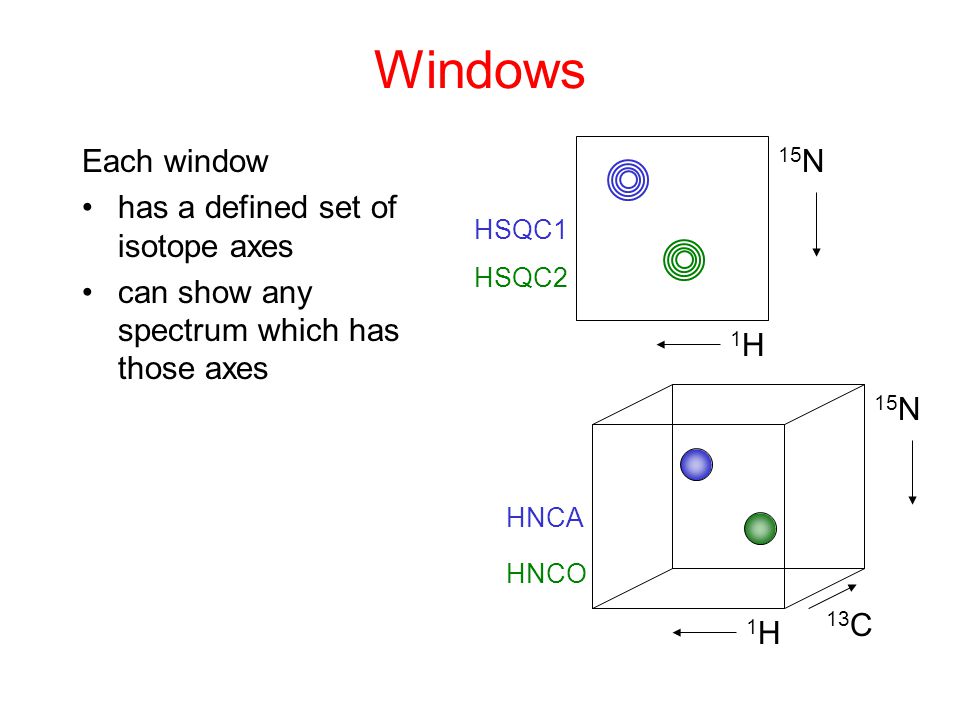

12. Windows Each window has a defined set of isotope axes can show any spectrum which has those axes 1H1H 15 N 1H1H 13 C HSQC1 HSQC2 HNCO HNCA

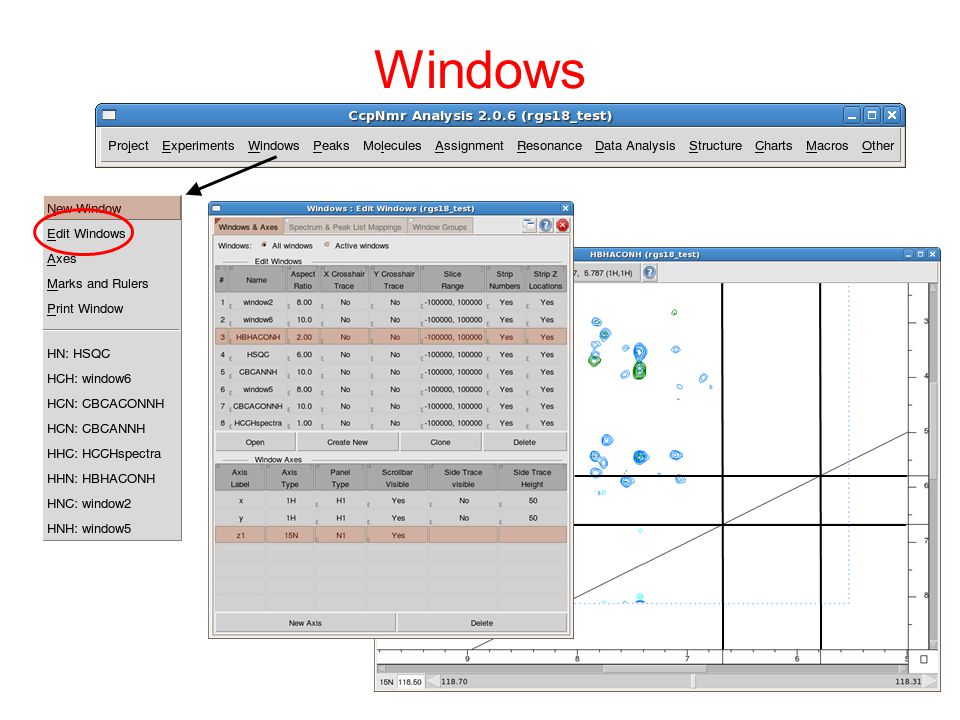

13. Windows

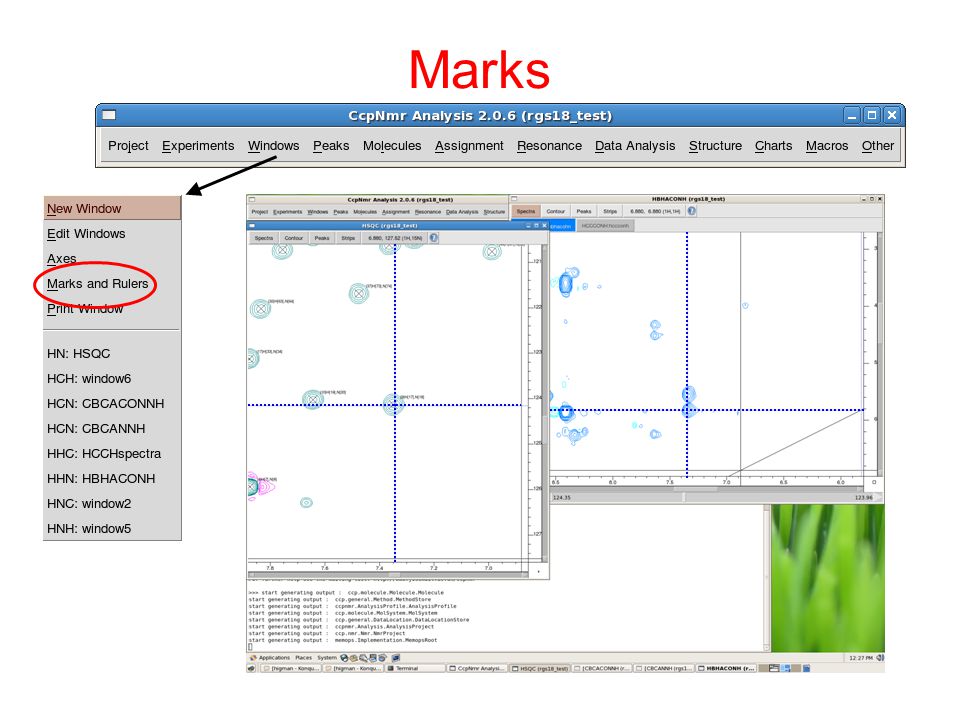

17. Marks

18. Rulers

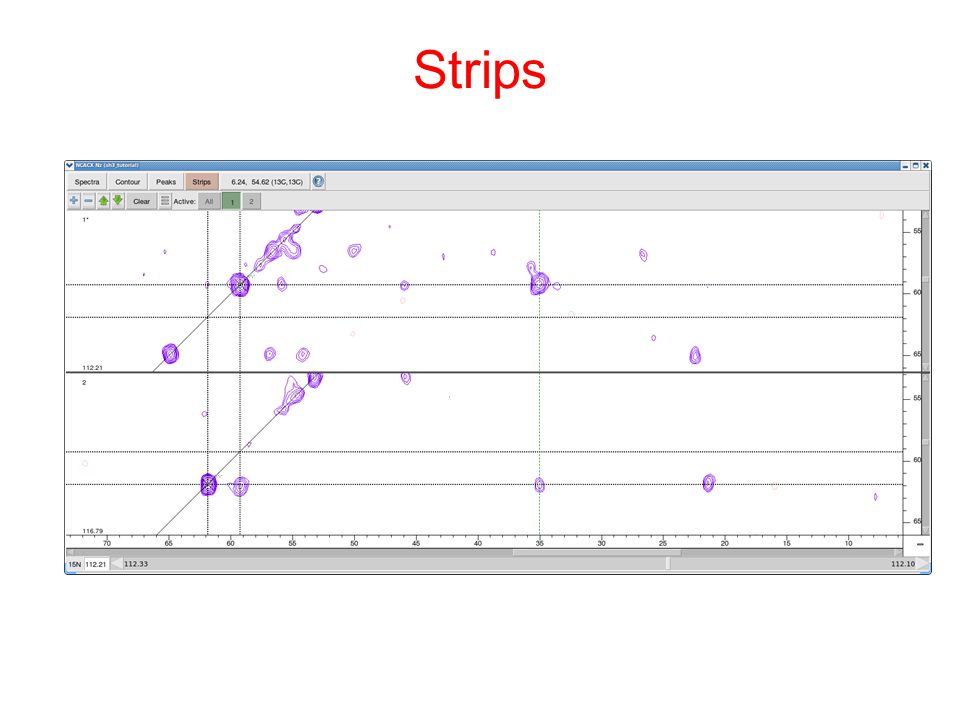

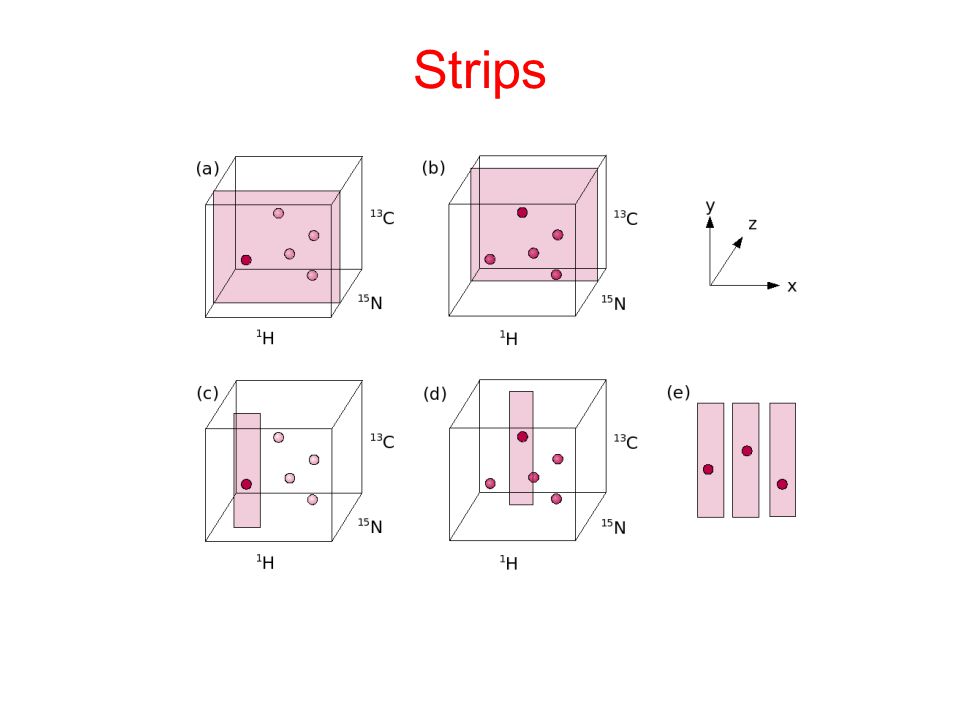

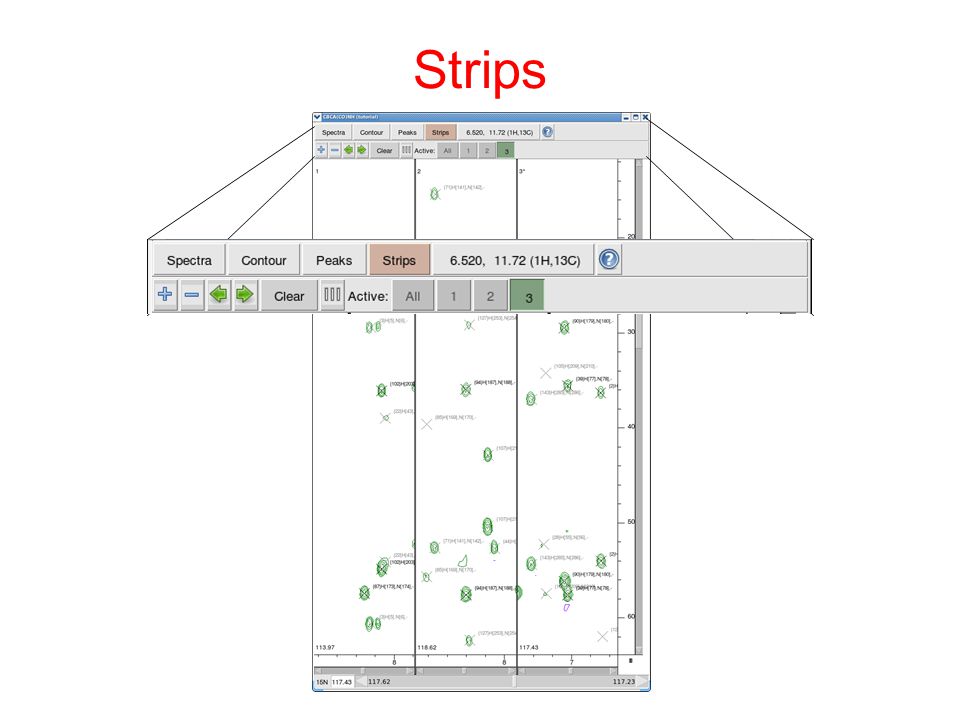

19. Strips

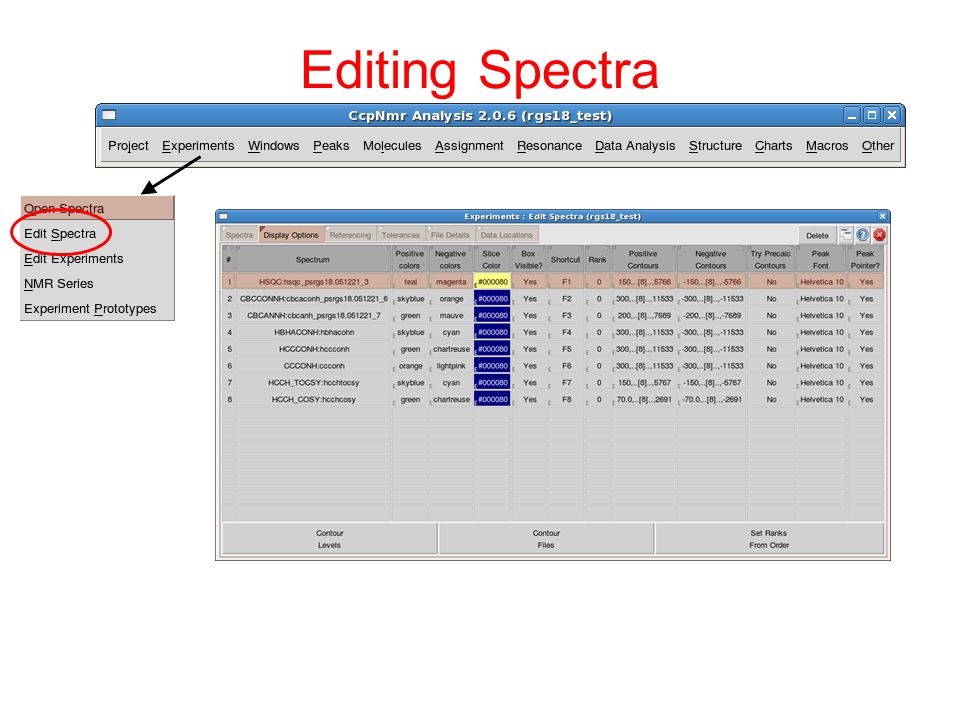

22. Editing Spectra

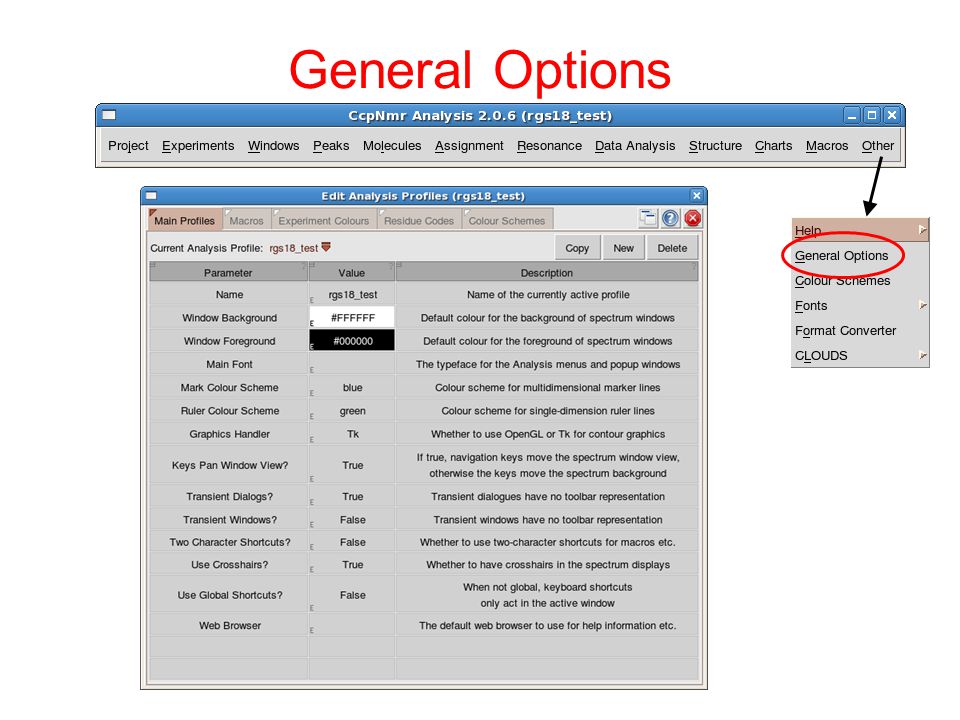

23. General Options

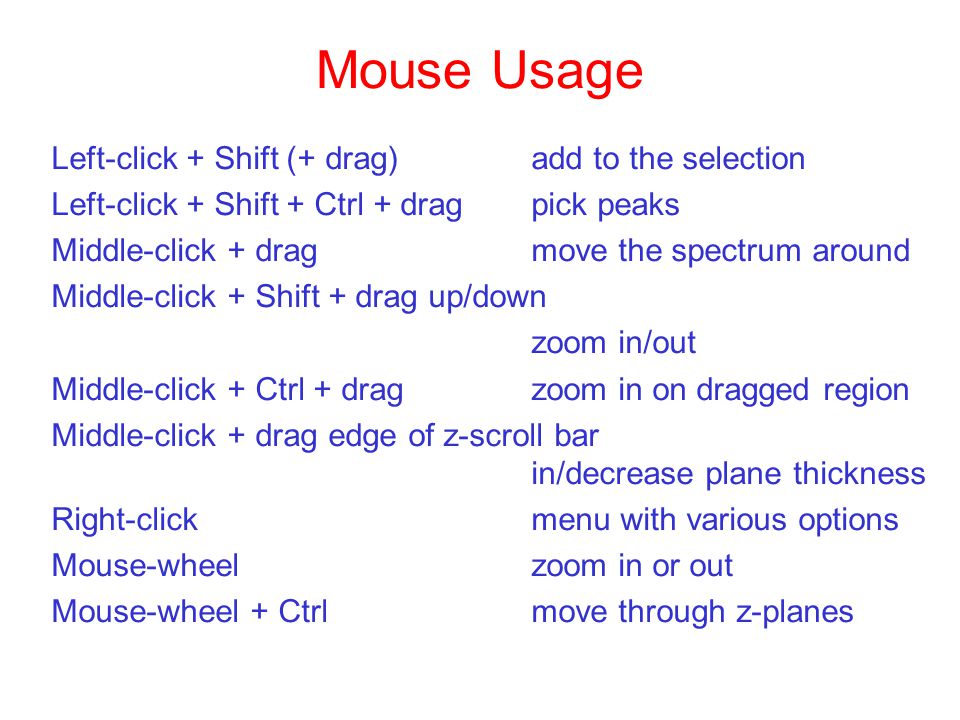

24. Mouse Usage Left-click + Shift (+ drag)add to the selection Left-click + Shift + Ctrl + dragpick peaks Middle-click + dragmove the spectrum around Middle-click + Shift + drag up/down zoom in/out Middle-click + Ctrl + dragzoom in on dragged region Middle-click + drag edge of z-scroll bar in/decrease plane thickness Right-clickmenu with various options Mouse-wheelzoom in or out Mouse-wheel + Ctrlmove through z-planes

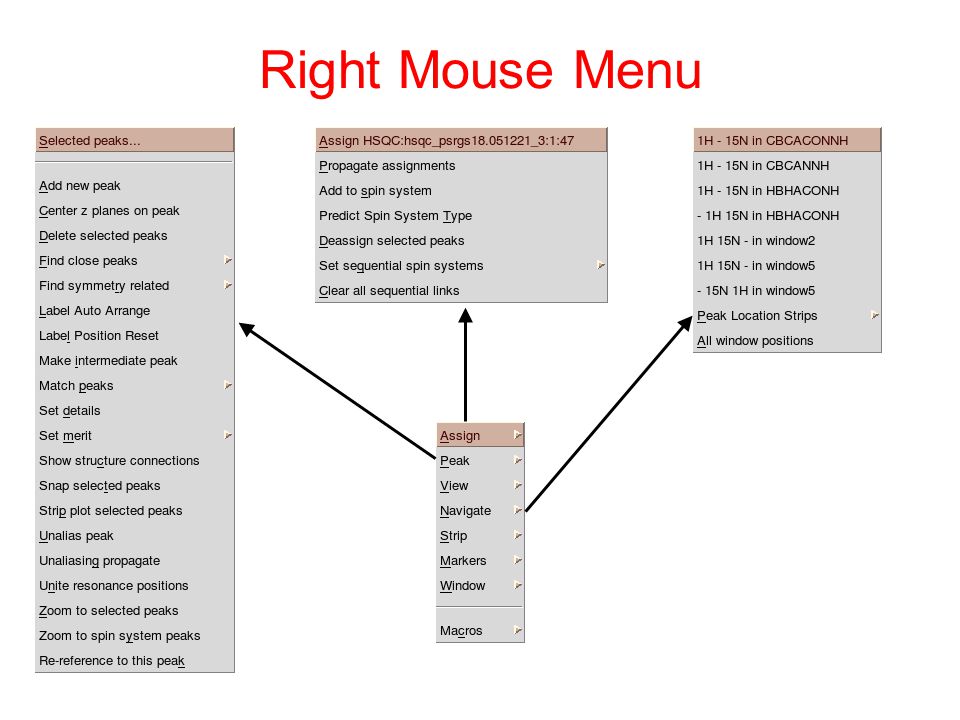

25. Right Mouse Menu

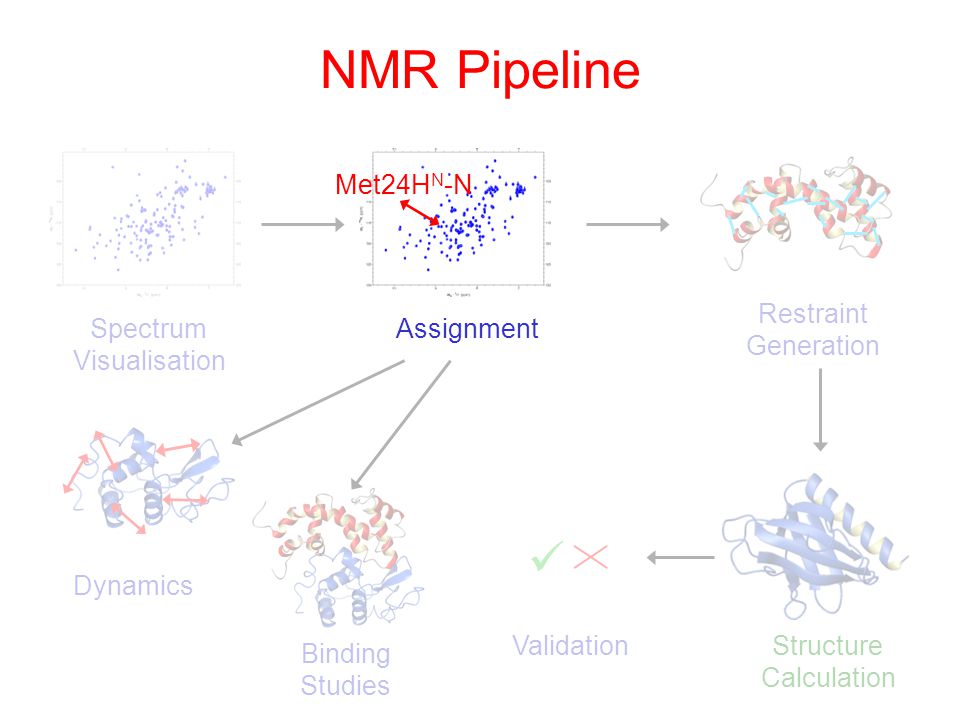

26. NMR Pipeline Spectrum Visualisation Assignment Met24H N -N Restraint Generation Structure Calculation Binding Studies Dynamics Validation

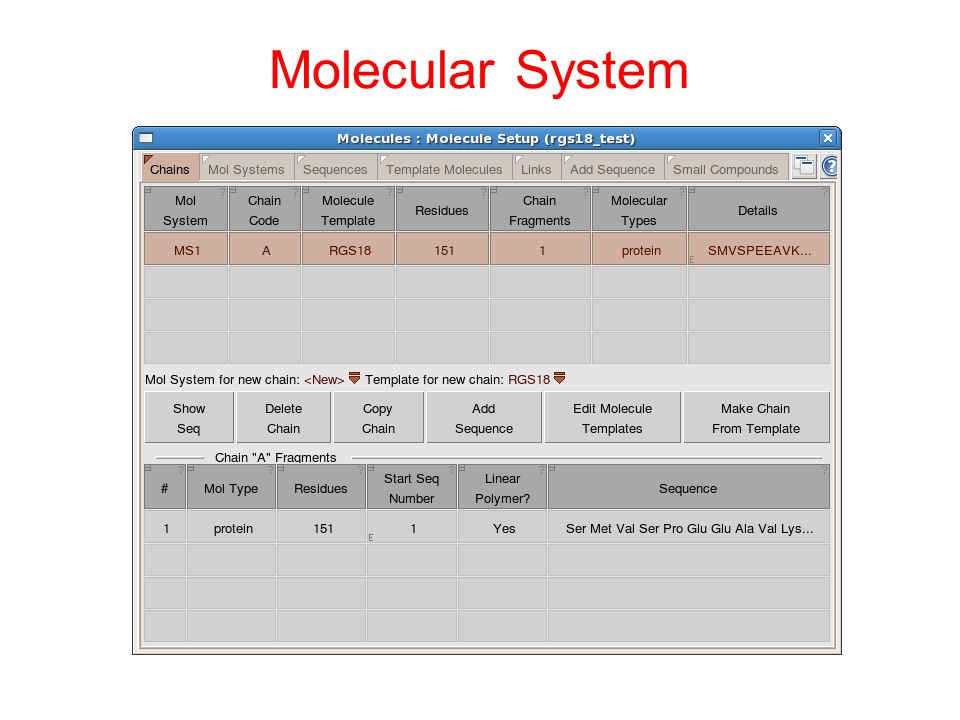

27. Molecular System

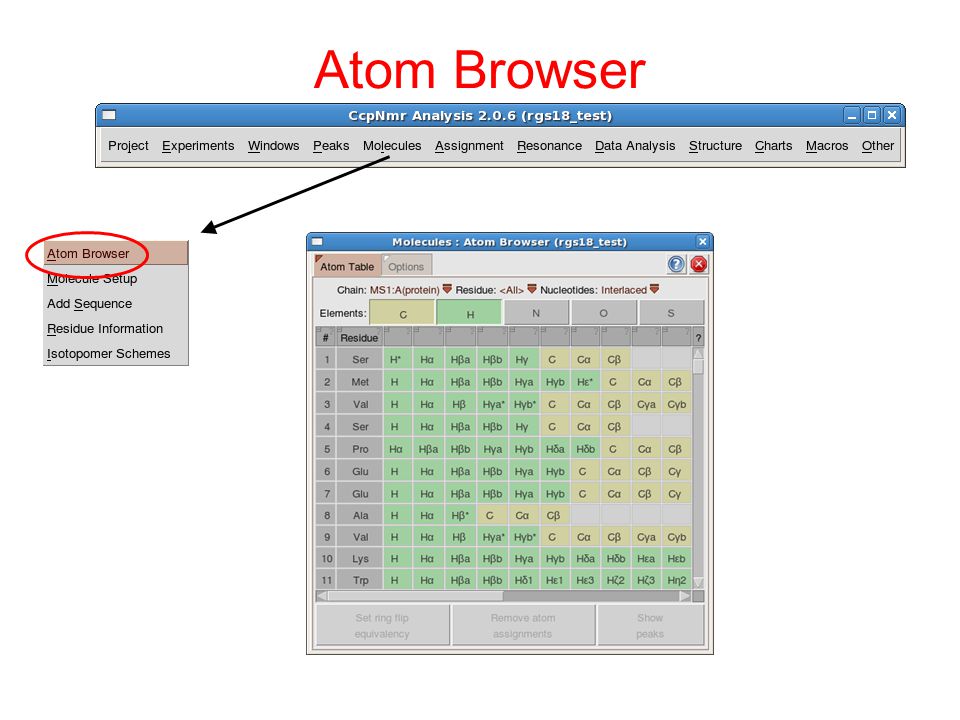

28. Atom Browser

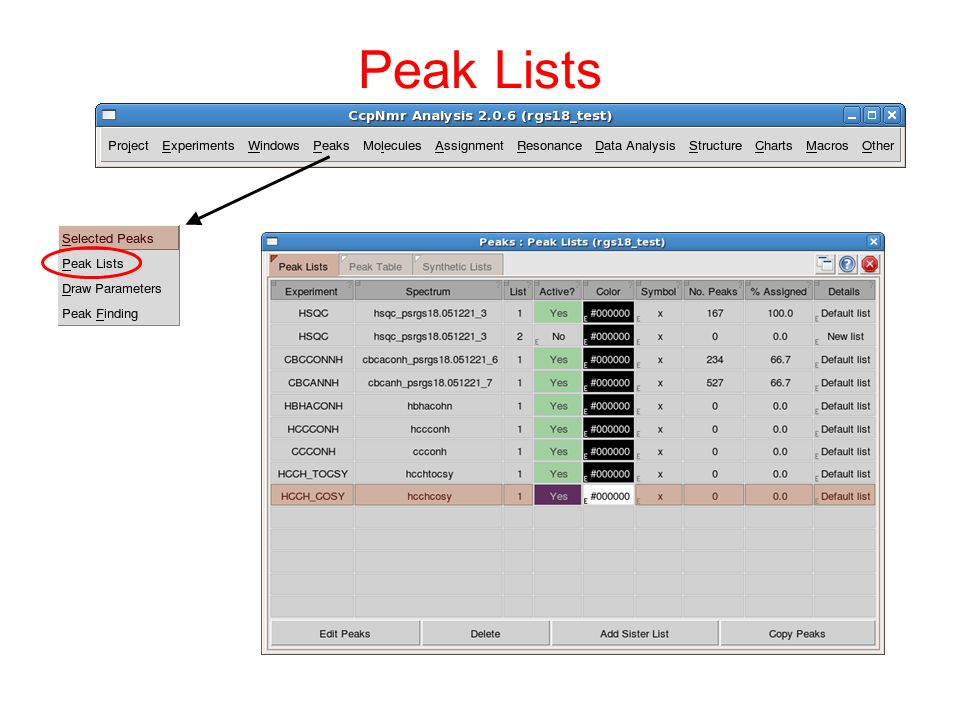

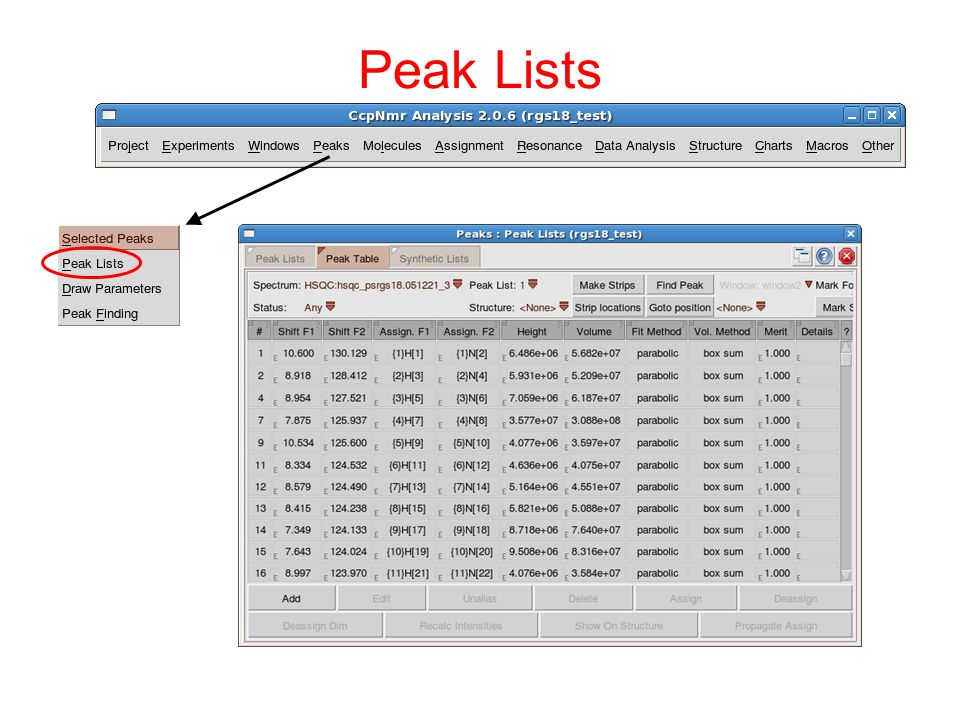

29. Peak Lists

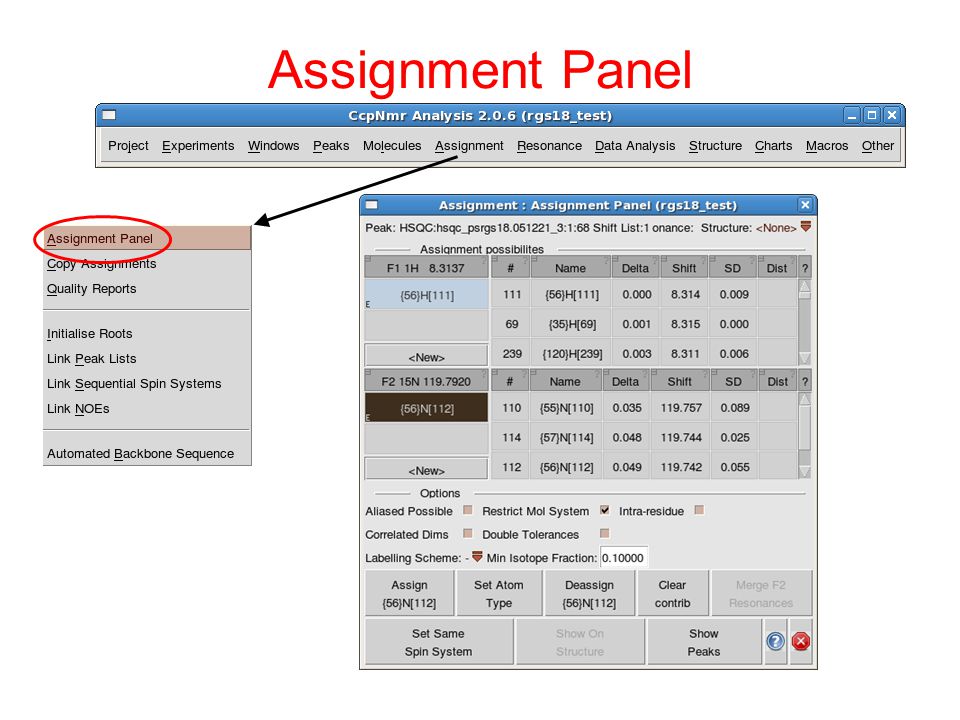

31. Assignment Panel

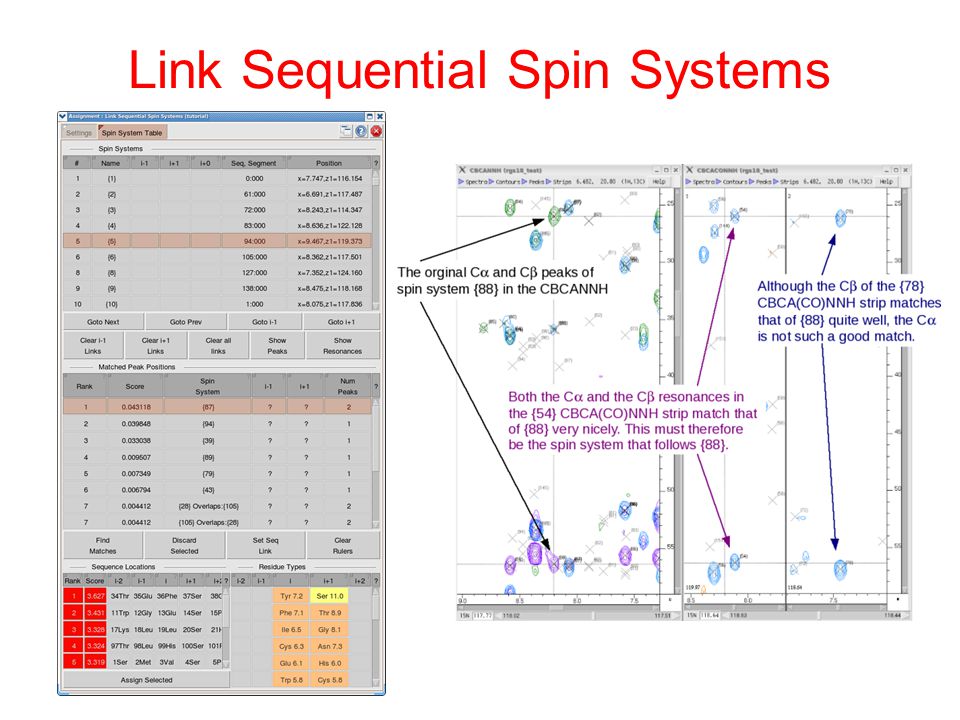

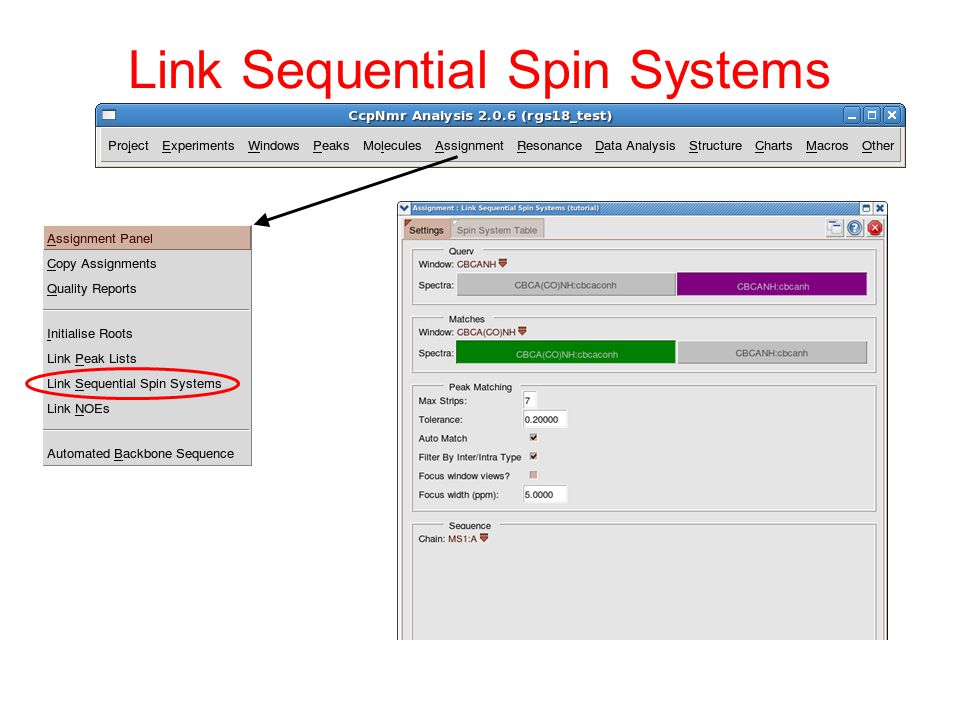

32. Link Sequential Spin Systems

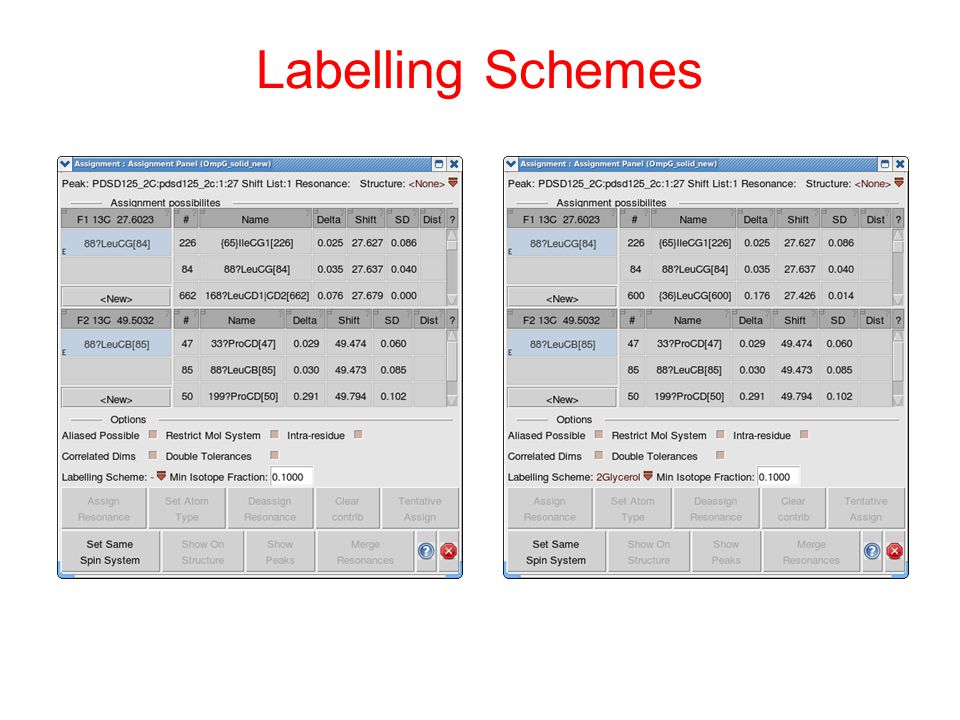

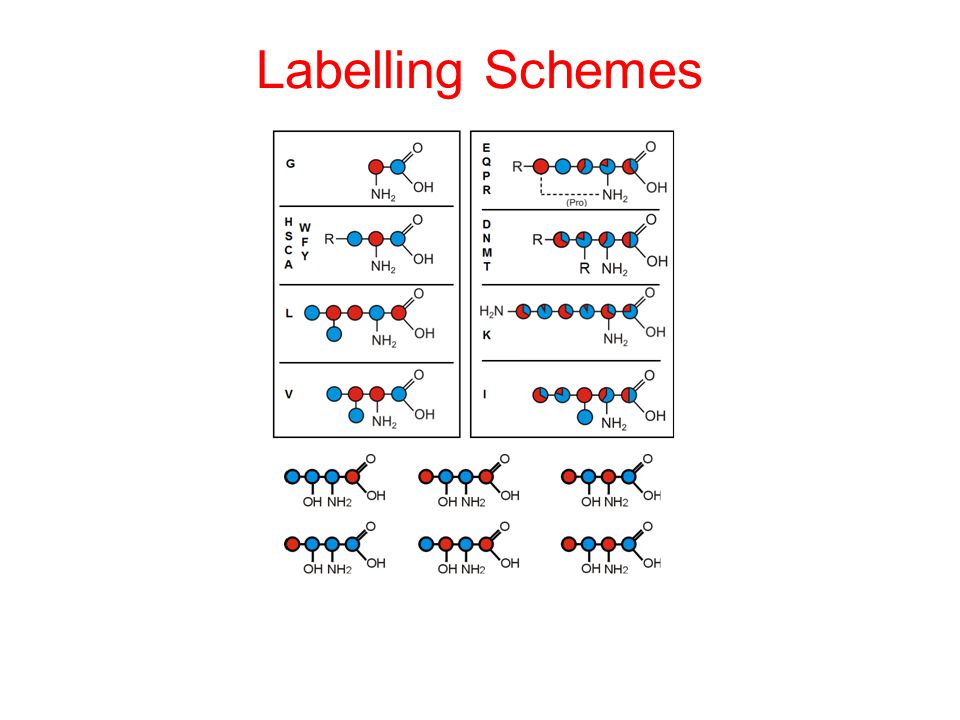

34. Labelling Schemes

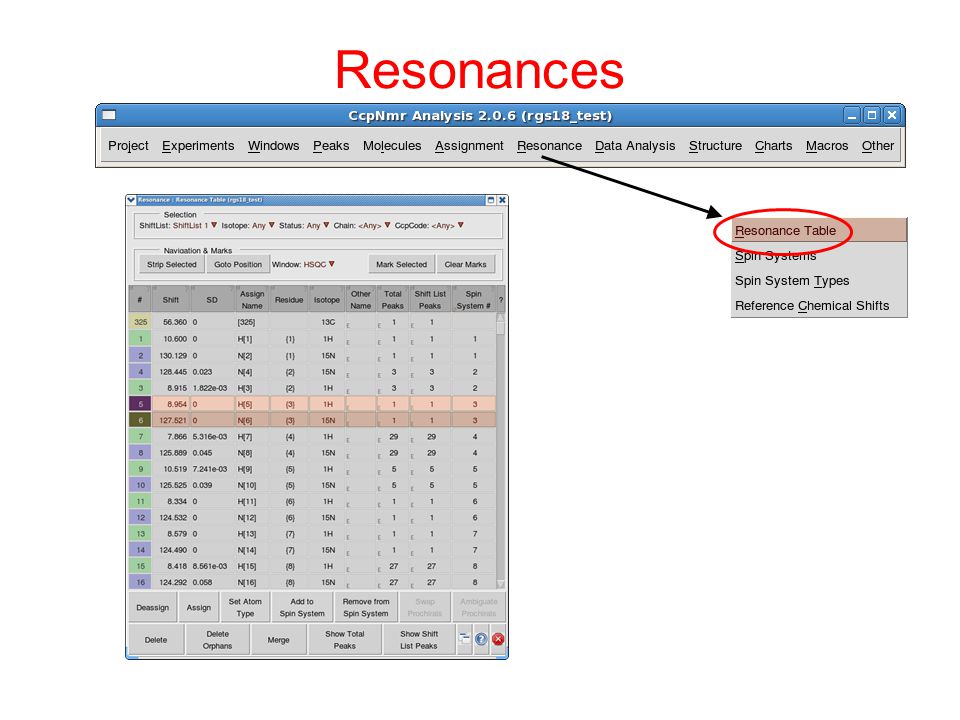

40. Resonances

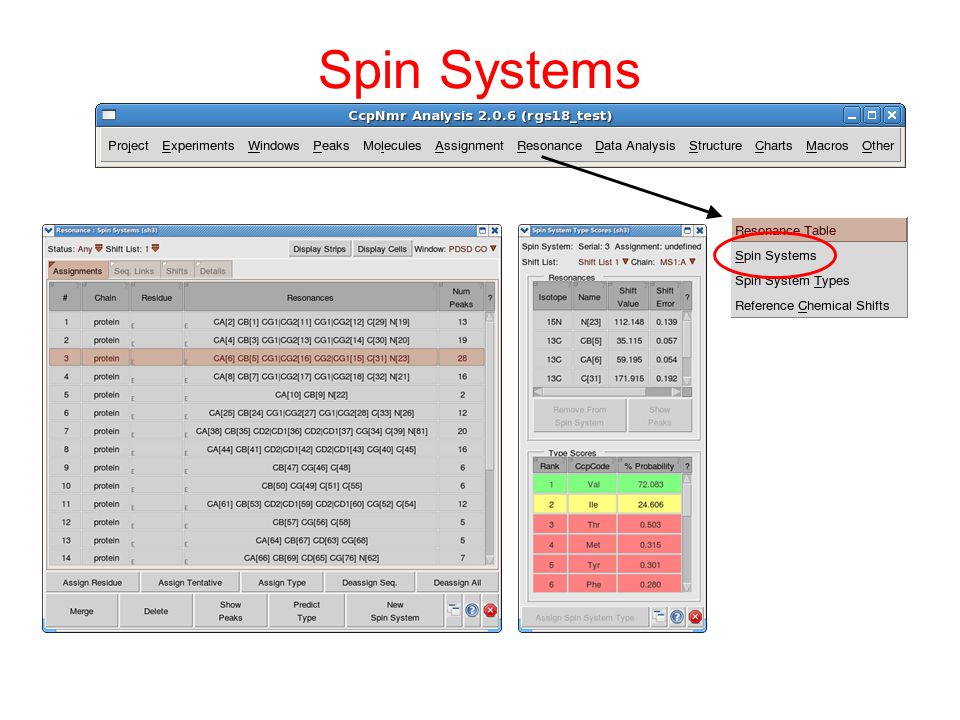

41. Spin Systems

42. Tentative Assignments

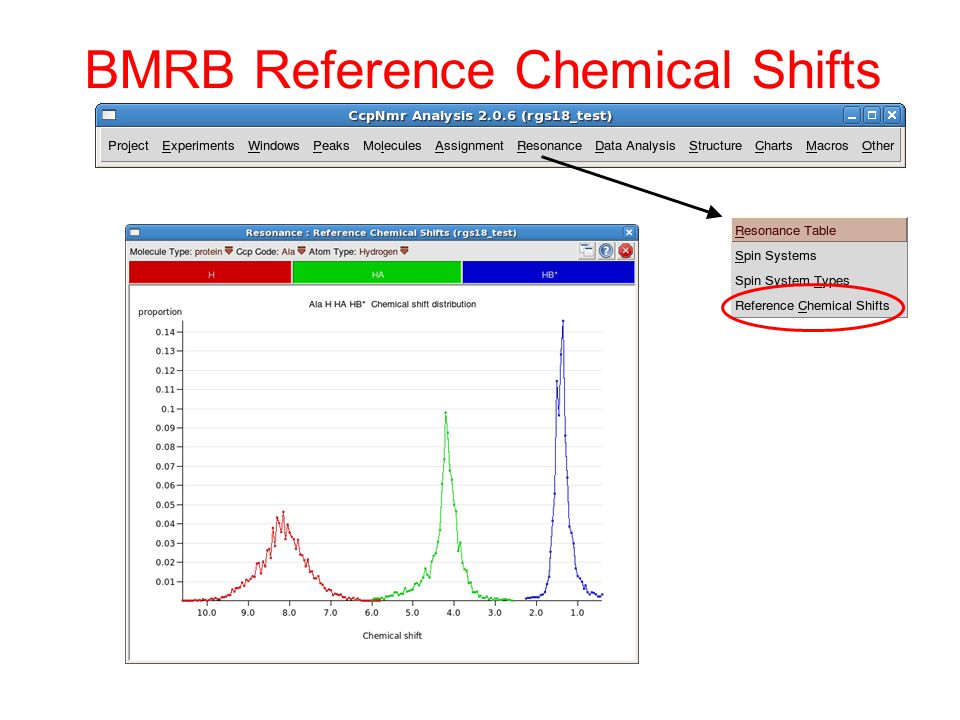

43. BMRB Reference Chemical Shifts

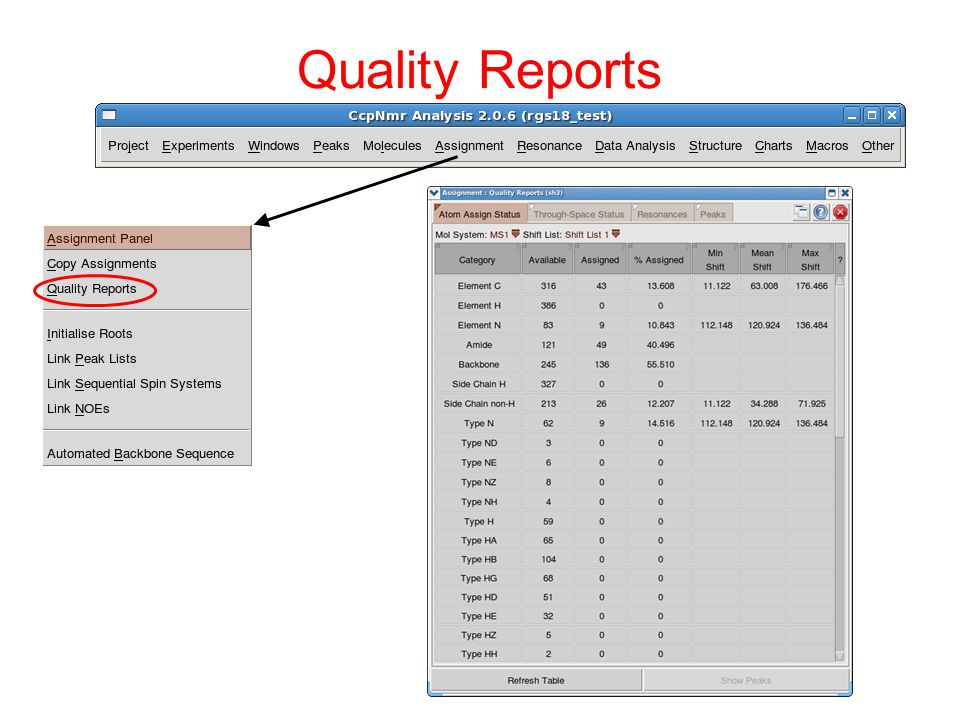

44. Quality Reports

46. Assignment Graph

47. NMR Pipeline Spectrum Visualisation Assignment Met24H N -N Restraint Generation Structure Calculation Binding Studies Dynamics Validation

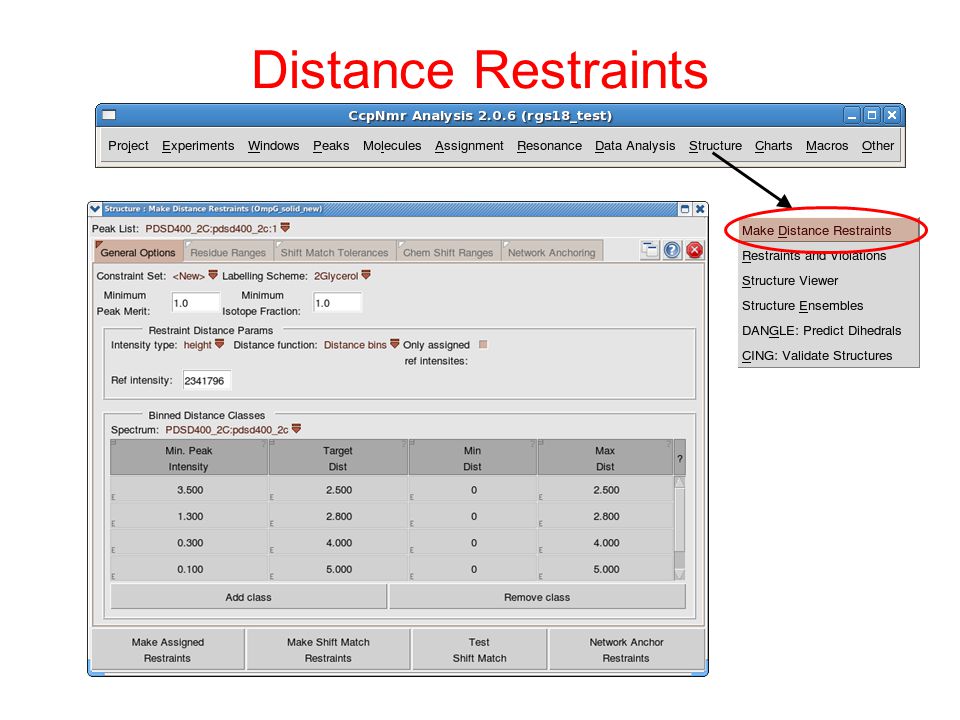

48. Distance Restraints

49. Restraint Lists

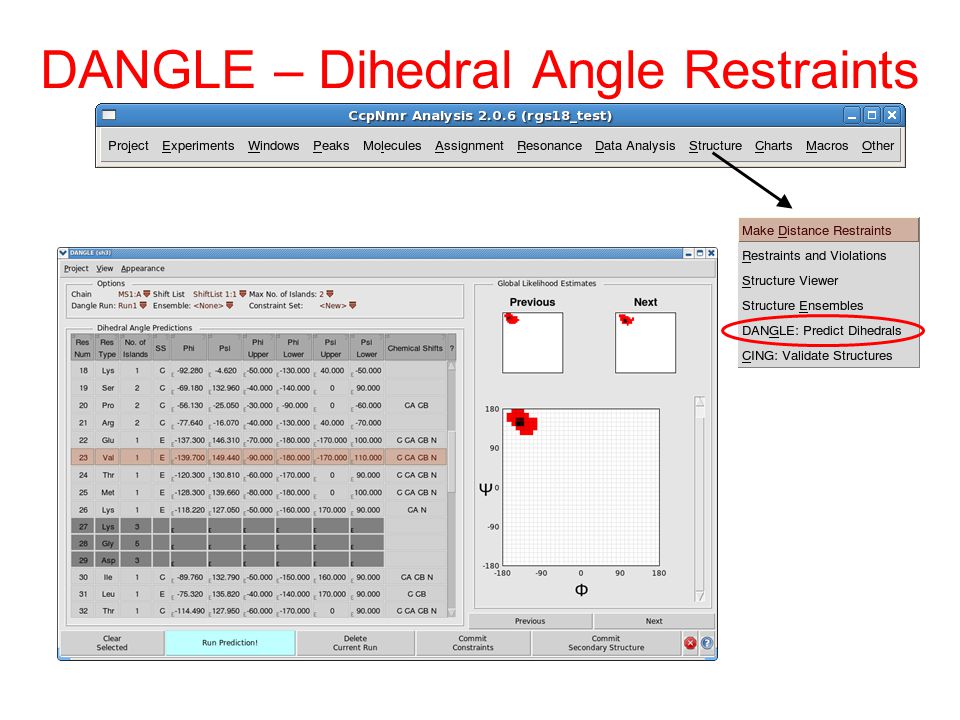

50. DANGLE – Dihedral Angle Restraints

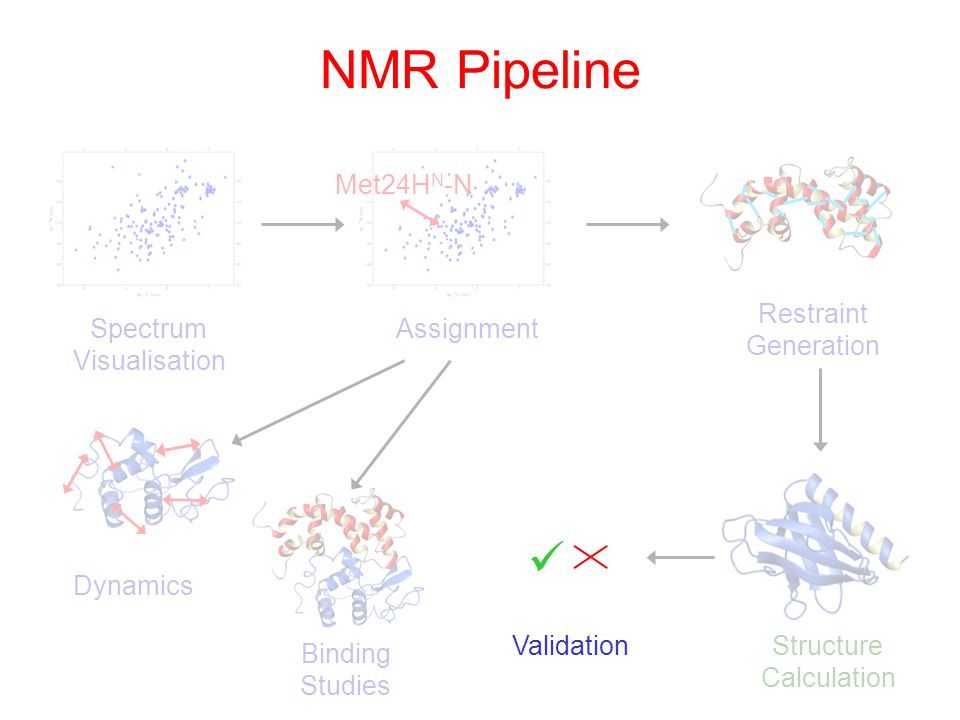

51. NMR Pipeline Spectrum Visualisation Assignment Met24H N -N Restraint Generation Structure Calculation Binding Studies Dynamics Validation

52. Format Converter

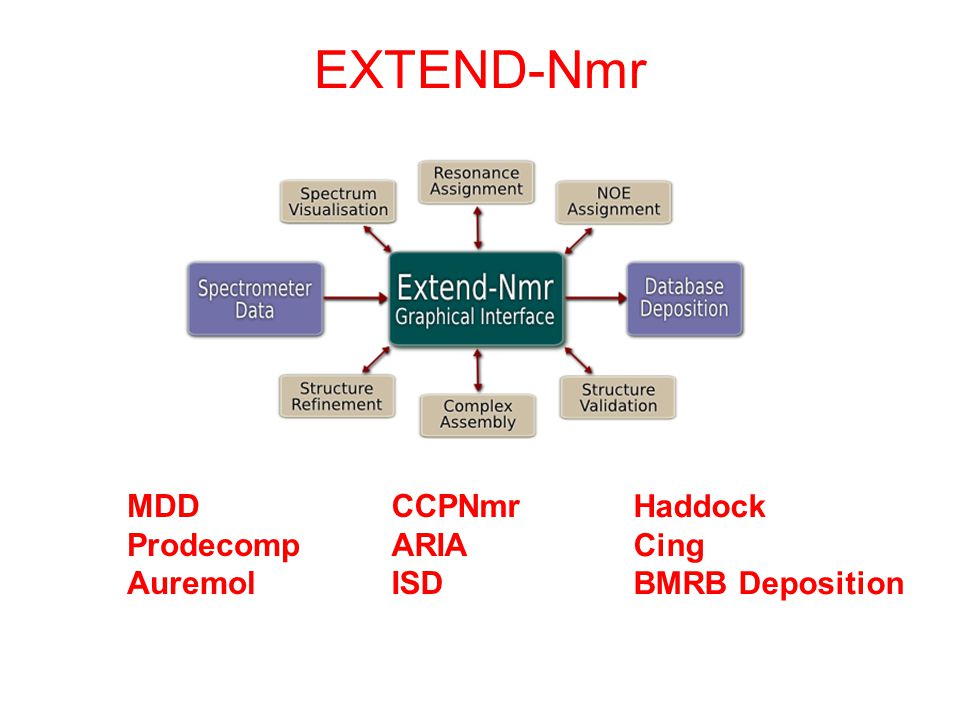

53. EXTEND-Nmr MDD Prodecomp Auremol CCPNmr ARIA ISD Haddock Cing BMRB Deposition

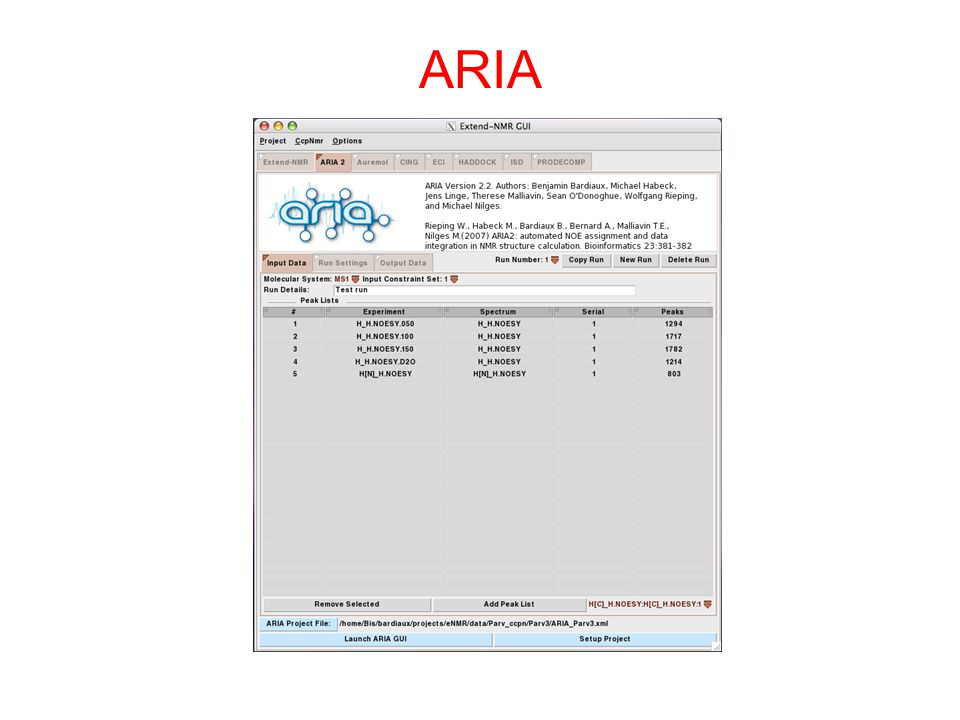

54. ARIA

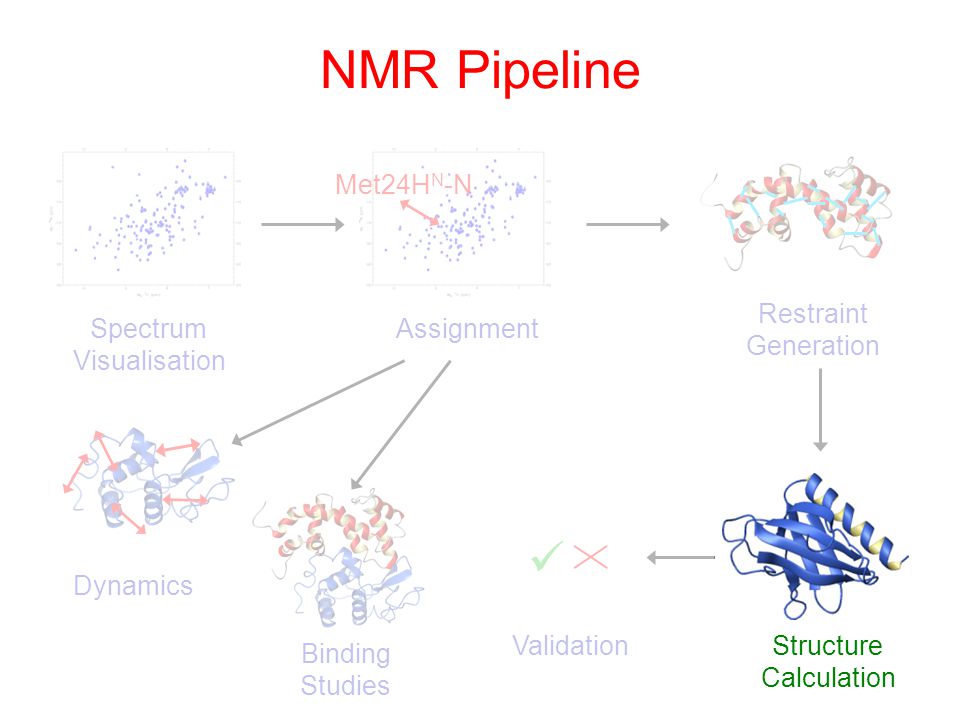

55. NMR Pipeline Spectrum Visualisation Assignment Met24H N -N Restraint Generation Structure Calculation Binding Studies Dynamics Validation

56. Structure Ensembles

57. Ramachandran Plot

58. Violations

59. Structure Viewer

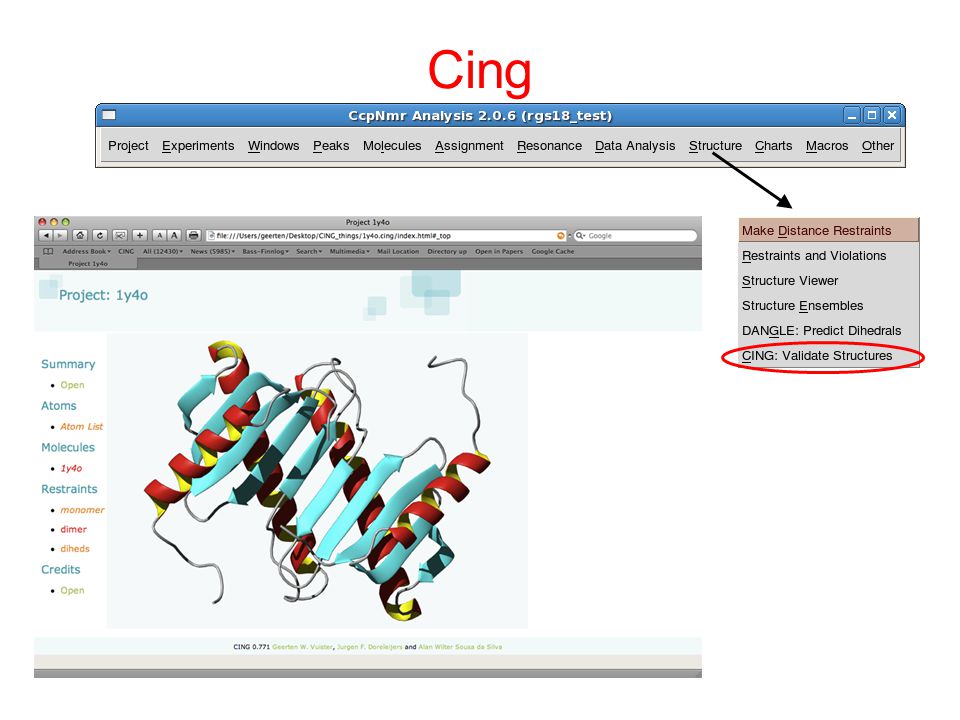

60. Cing

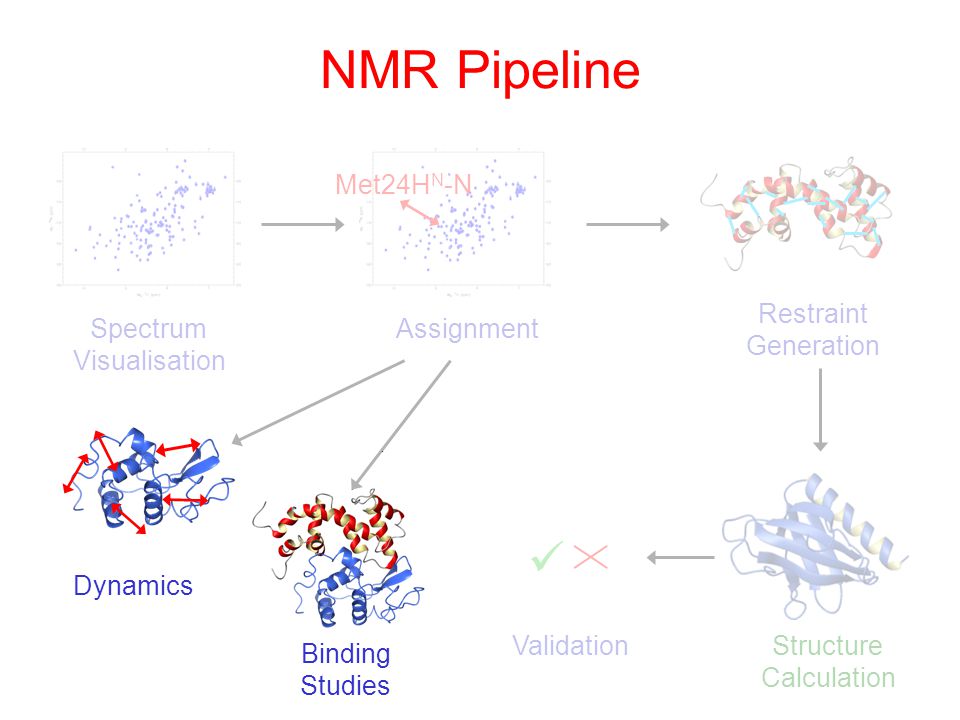

61. NMR Pipeline Spectrum Visualisation Assignment Met24H N -N Restraint Generation Structure Calculation Binding Studies Dynamics Validation

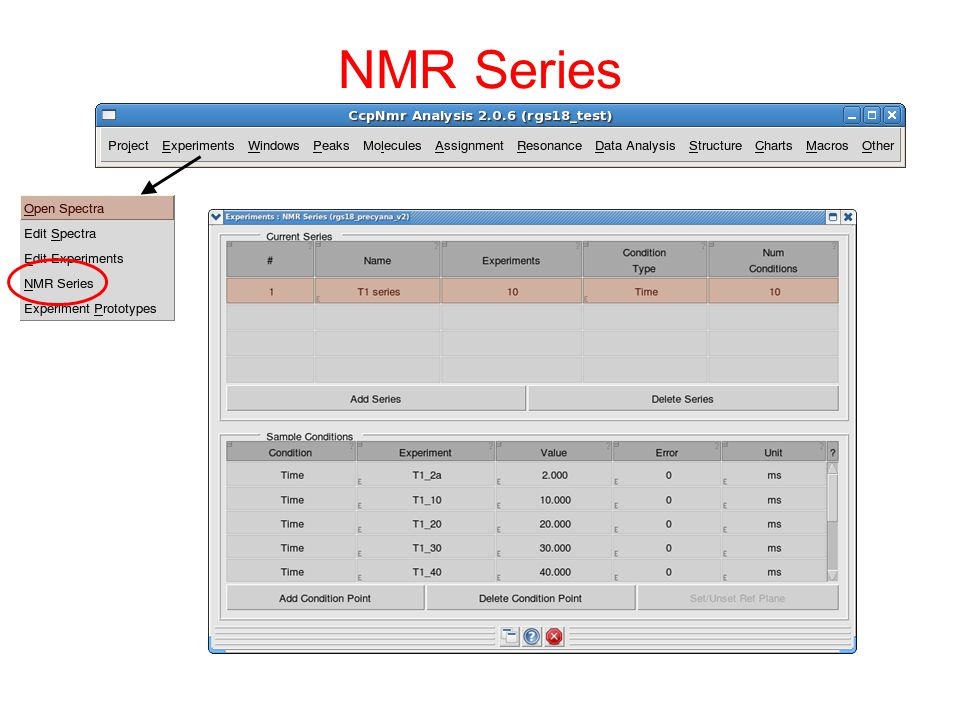

62. NMR Series

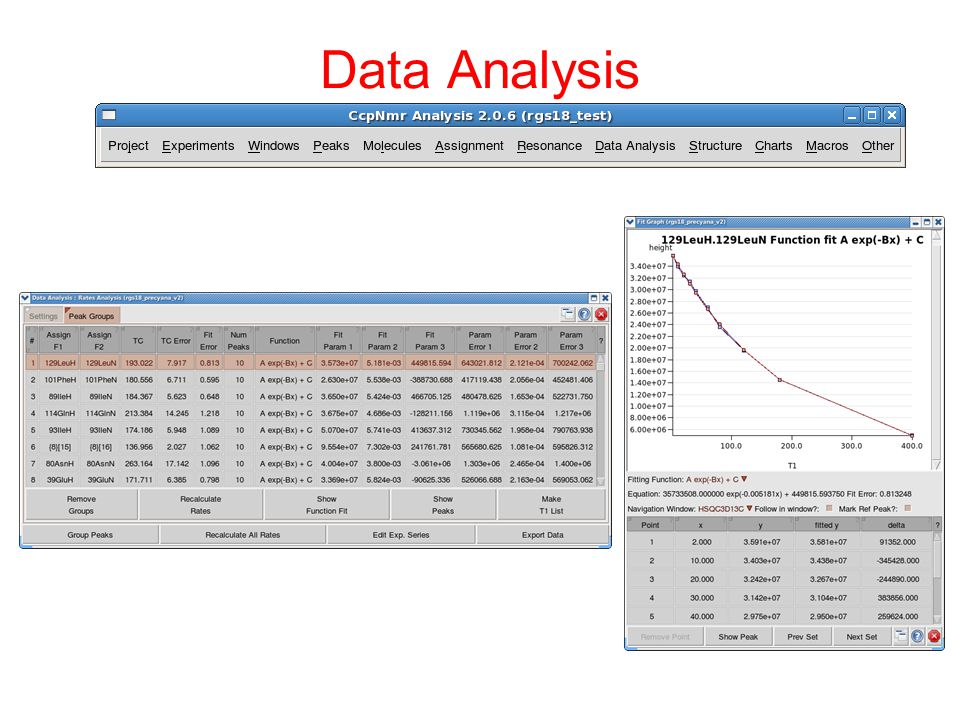

63. Data Analysis

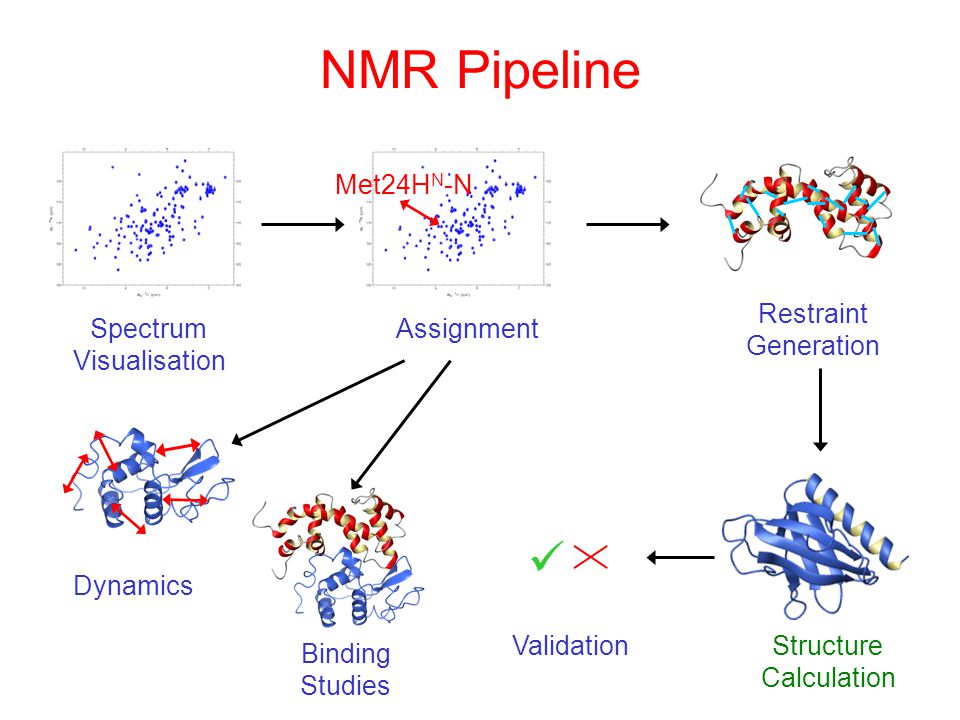

66. NMR Pipeline Spectrum Visualisation Assignment Met24H N -N Restraint Generation Structure Calculation Binding Studies Dynamics Validation

67. Thank you! Cambridge Tim Stevens Wayne Boucher Rasmus Fogh Wim Vranken Ernest Laue Berlin Frank Eisenmenger Barth-Jan van Rossum Hartmut Oschkinat Paris Benjamin Bardiaux Michele Fossi Thérèse Malliavin Michael Nilges www.ccpn.ac.uk www.protein-nmr.org.uk
