2. Faith Allington Program Manager Microsoft Corporation Session Code: WSV304

3. Agenda Web Farm Building Blocks: Tools for Web Farms Creating a Simple Web Farm: Using Shared Config Demo: Create a Simple Farm with Shared Config Extending the Web Farm: Synchronizing Sites, Certs and Content Demo: Synchronize with the Web Deployment Tool Scaling the Web Farm: Adding Capacity to the Farm Demo: Scale the Farm with ARR

4. Server Farm Vision Make it simple to deploy, manage, and elastically scale web applications across a farm of servers

5. Web Farm Building Blocks Shared Configuration Simple redirection to a UNC share Supported by all IIS tools and API’s Web Deployment Tool Synchronizes web servers efficiently Replicates IIS, content, SSL certs, GAC and more! Application Request Router (ARR) Elastically scale your capacity Intelligently route traffic in your farm

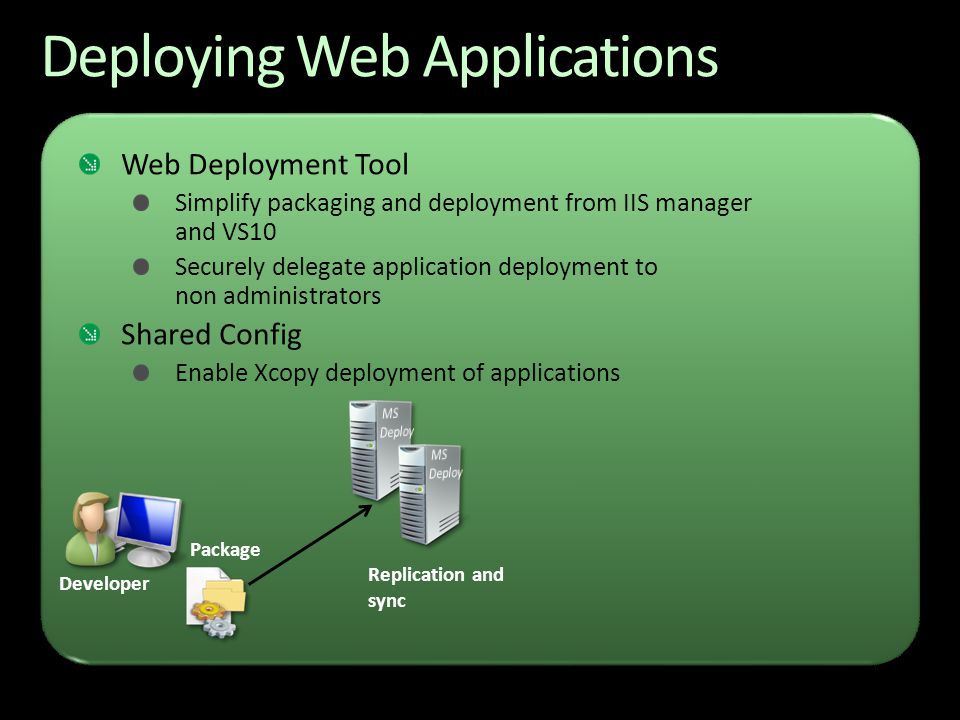

6. Deploying Web Applications Web Deployment Tool Simplify packaging and deployment from IIS manager and VS10 Securely delegate application deployment to non administrators Shared Config Enable Xcopy deployment of applications Developer Package Replication and sync

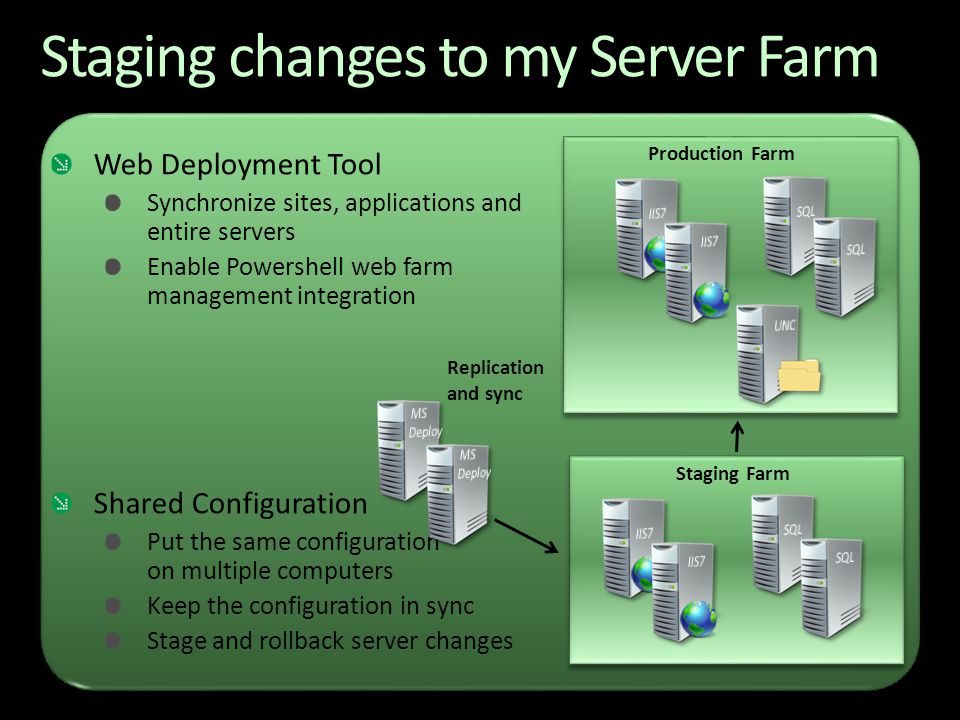

7. Staging changes to my Server Farm Web Deployment Tool Synchronize sites, applications and entire servers Enable Powershell web farm management integration Shared Configuration Put the same configuration on multiple computers Keep the configuration in sync Stage and rollback server changes Production Farm Staging Farm Replication and sync

8. Scaling Out my Server Farm ARR Enable scale out web applications with high availability Enables traditional 3-tier deployment with “locked-down” security on routing tier Dynamically load balance web requests based on HTTP headers and server variables Intelligent host name routing to achieve elastic scalability Lean, appliance-like profile with IIS7+ARR+Server Core Internet Production Farm Load balancing

9. Creating a Simple Web Farm I need to share configuration between all my servers I need to centrally manage my configuration with no synchronization I need changes to just take effect with no server or app resets

10. Enable Shared Configuration Faith Allington Program Manager Microsoft Corporation

11. Summary: Shared Config Shared Config is great for… Simple redirection of configuration to UNC location Quickly moving sites, applications, or servers Keeping the configuration in sync Staging and rolling back server changes

12. Extending my Web Farm I need to be able to sync more than just configuration, i.e. certificates I need to be able to deploy applications across all servers in my farm I need to only send incremental changes across my network

13. Sync an IIS7 Web Farm Faith Allington Program Manager Microsoft Corporation

14. Summary: Web Deployment Tool Create and deploy application packages Include content, config, certificates and more Synchronize and deploy between servers Automate build and deployment tasks

15. Scaling out your Server Farm I need to easily scale out a web site or application with high availability I need to easily match capacity to demand and maximize resource utilization

16. Scale out using ARR Faith Allington Program Manager Microsoft Corporation

17. Summary: ARR Proxy based HTTP request routing module Application layer routing decisions (layer 7) High availability and scalability for servers Supports SSL-offloading Does not support SSL tunneling Higher throughput by working with other IIS7 modules Can be run on Server Core for a lightweight appliance server

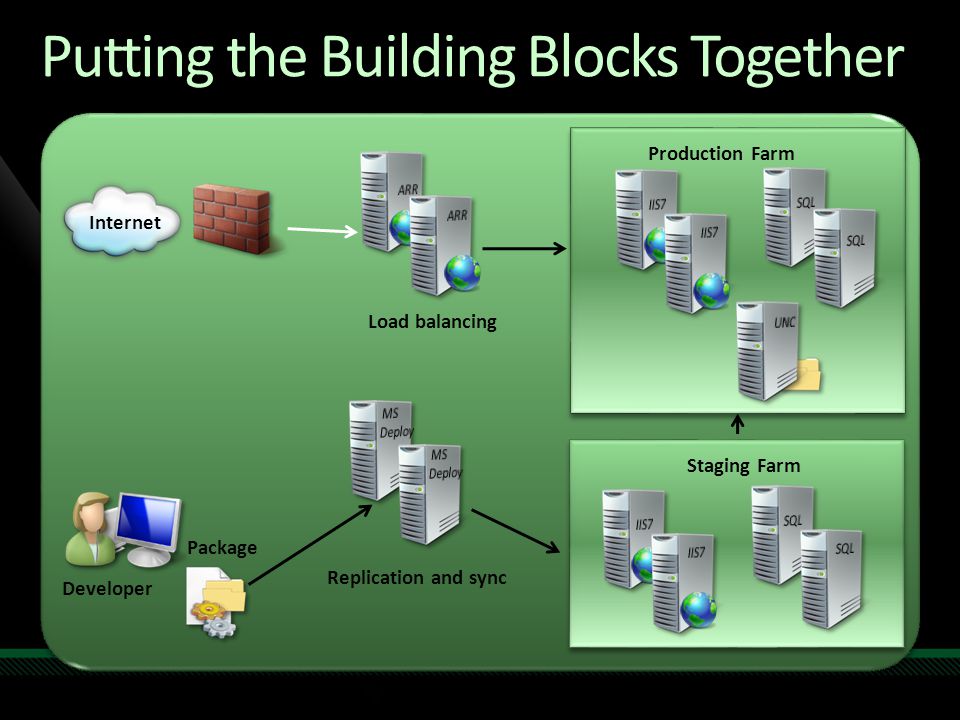

18. Putting the Building Blocks Together Developer Internet Production Farm Staging Farm Package Load balancing Replication and sync

19. Summary Shared Config offers a low touch scenario for simple farms The Web Deployment Tool is a great tool to help you manage your farm Sync servers Bring new servers online ARR enables you to create highly available farms that can scale elastically
