1

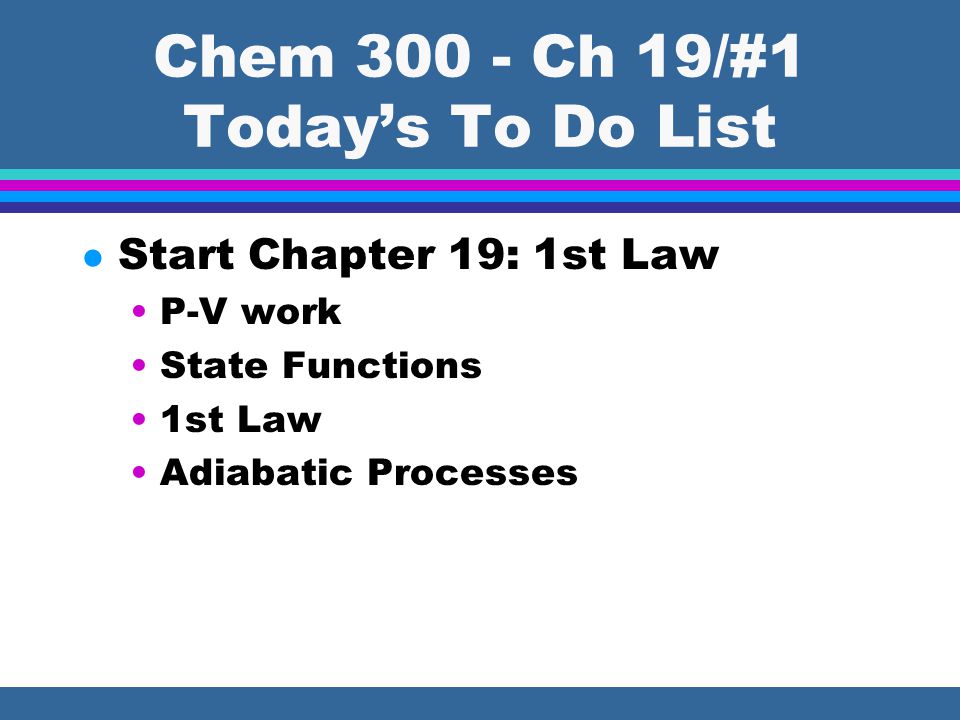

Chem 300 - Ch 19/#1 Today’s To Do List l Start Chapter 19: 1st Law P-V work State Functions 1st Law Adiabatic Processes

2

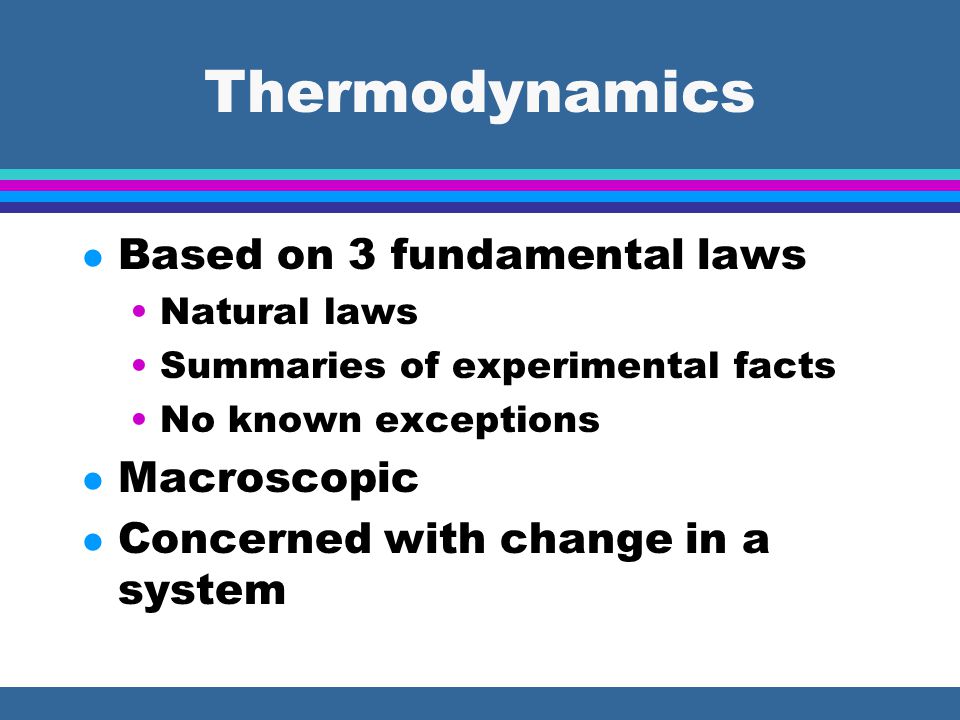

Thermodynamics l Based on 3 fundamental laws Natural laws Summaries of experimental facts No known exceptions l Macroscopic l Concerned with change in a system

3
System & Surroundings l System Part of world we are looking at l Surroundings Rest of the universe

4

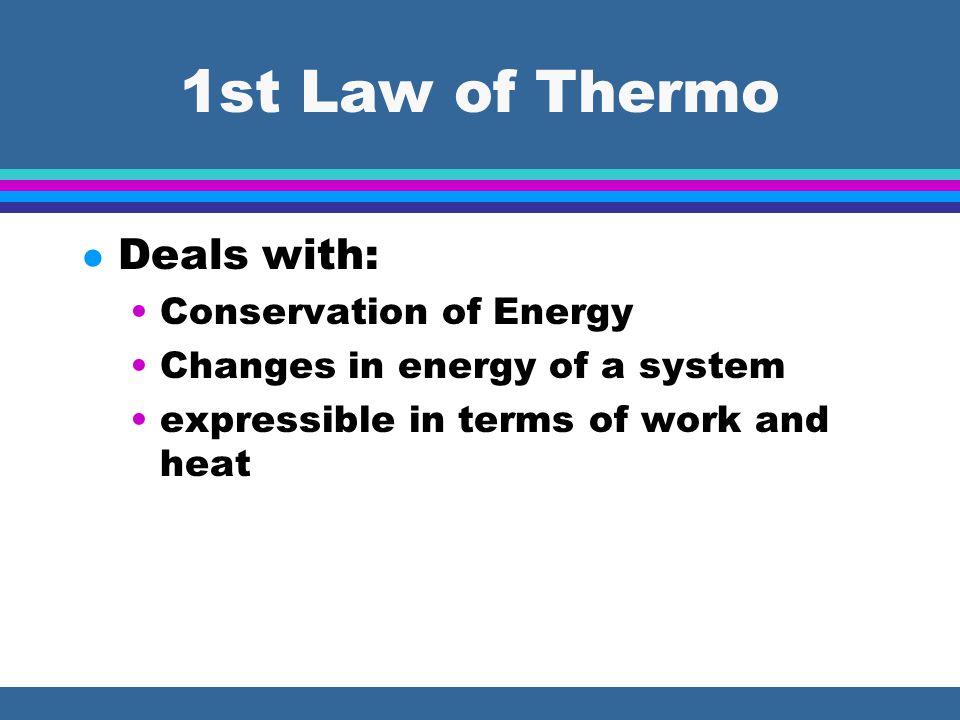

1st Law of Thermo l Deals with: Conservation of Energy Changes in energy of a system expressible in terms of work and heat

5

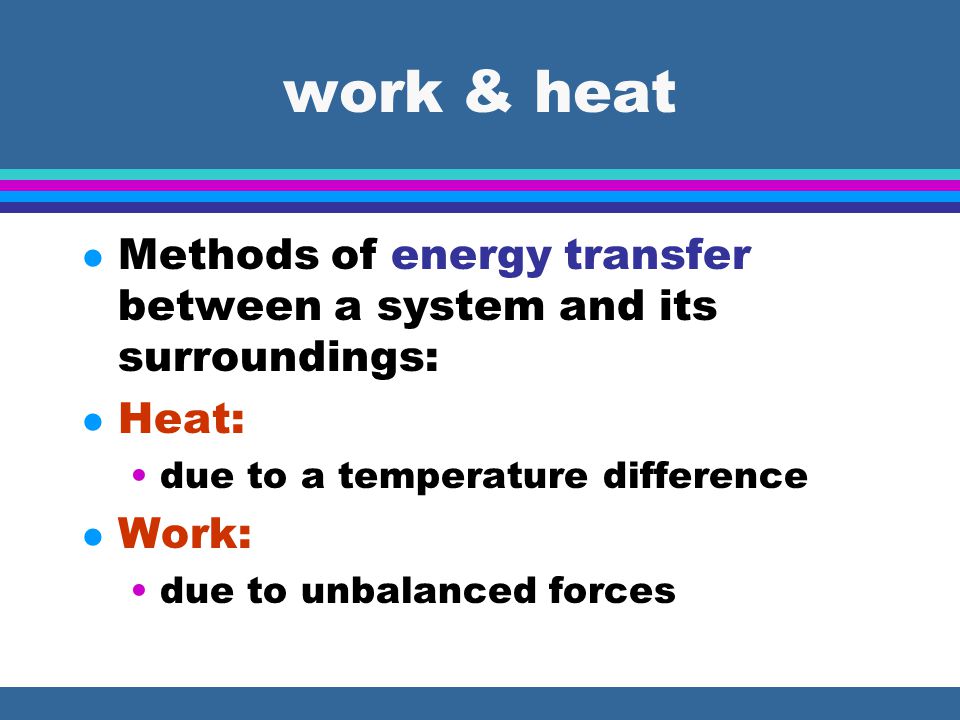

work & heat l Methods of energy transfer between a system and its surroundings: l Heat: due to a temperature difference l Work: due to unbalanced forces

6

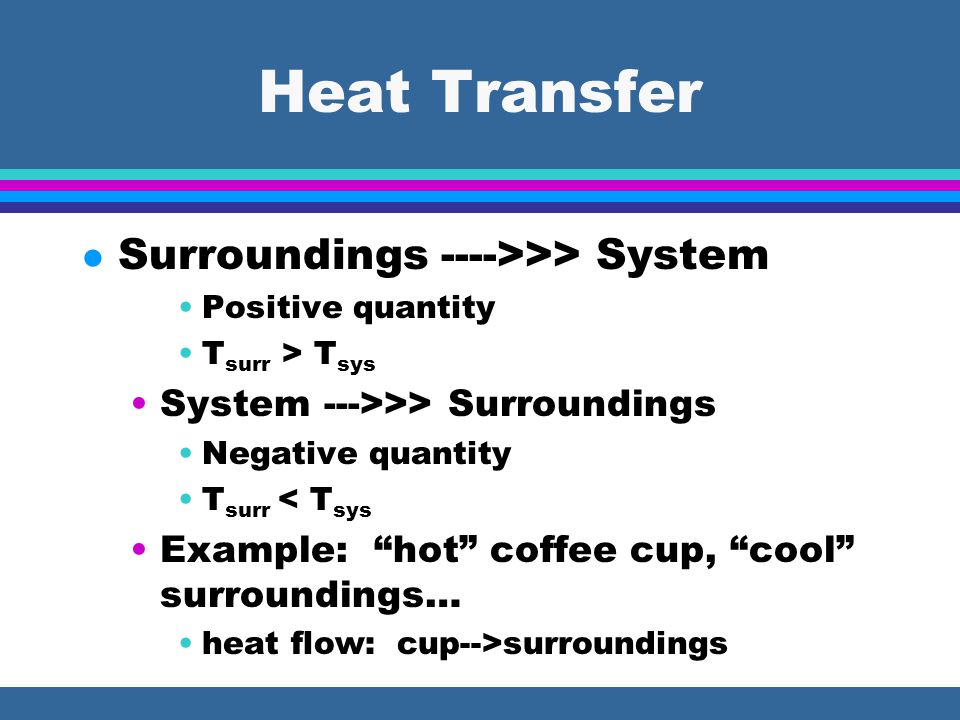

Heat Transfer l Surroundings ---->>> System Positive quantity T surr > T sys System --->>> Surroundings Negative quantity T surr < T sys Example: “hot” coffee cup, “cool” surroundings… heat flow: cup-->surroundings

7
Work is a Process: (a) by the system, (b) on the system

8
PV Work l Consider a gas in a container (system) l apply an external force (in surroundings) to compress the gas l work (w) = force x displacement l pressure (P) = force/area

9
PV work w = - P ext dV l at constant P ext w = - P ext (V final - V init ) If compression, V final 0 If expansion, V final > V init & w < 0

10
Work l depends upon the path l PV work depends upon value of P ext

11
PV work: isothermal const-P compression at 2 different P’s

12
Reversible work: minimum amount for compression

13
Ideal Gas & PV Work In general w = - P ext dV l for any reversible process P = f(V) in order to integrate l for IG P = RT/V m w = - P ext dV = - (RT/V)dV l If T = const (isothermal)

14
Isothermal Reversible PV work for an IG w = -RT dV/V = - RT ln(V fin /V init ) l Value of w depends on the path between V init & V fin

15
2-Stage compression at constant-P

16
Energy l A property of the system l A state function Path independent

17
1st Law l U = q + w U is state function (path independent) q & w not state functions (they are path functions) A system contains an amount of energy (U) but no work or heat. For a process where q is transferred & w is done, the energy change for the system is U = q + w

18
3 paths to the same end-point

19
Adiabatic Process l Adiabatic process: q = 0 No heat transfer l Example: styrofoam cup

20
Energy & Ideal Gas l For IG, U only depends on T U = f (T) (prove this later) Specifically: dU = C v dT C = heat capacity l U = C v (T f - T i ) l For isothermal process, U for IG is constant

21

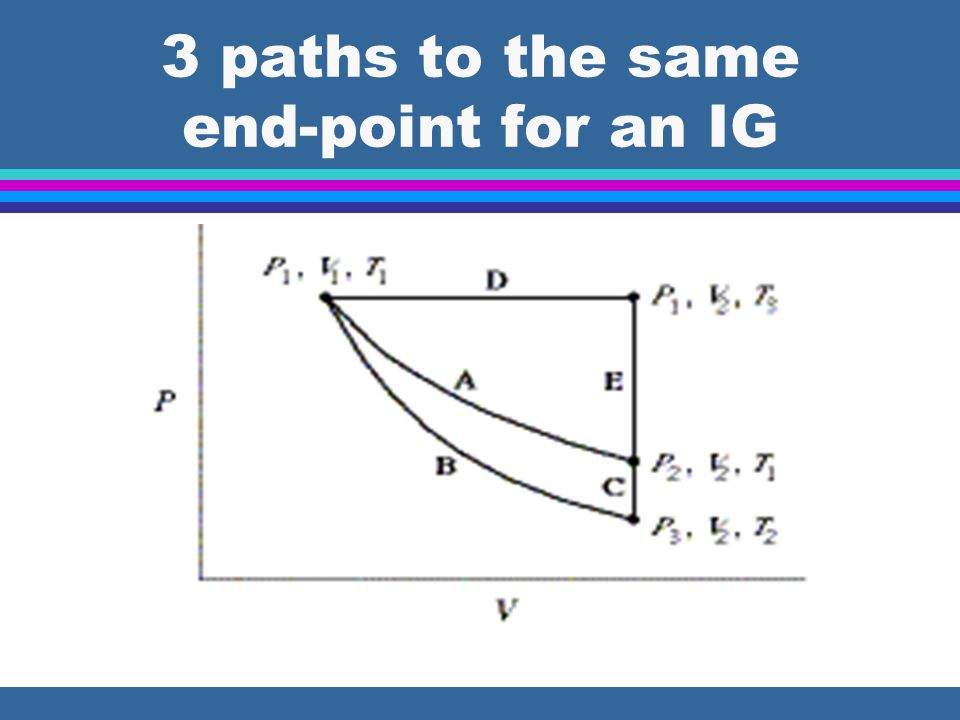

3 paths to the same end-point for an IG

22
Next Time l Adiabatic Processes & T l Enthalpy l More on Heat Capacity l Heats of Transition
