1. Dynamic Pharming Attacks and Locked Same-Origin Policies For Web Browsers Chris Karlof, J.D. Tygar, David Wagner, Umesh Shankar

2. Overview Motivation Background Information – Attacks and Vulnerabilities Details Accomplishments Conclusion/Summary

3. Phishing

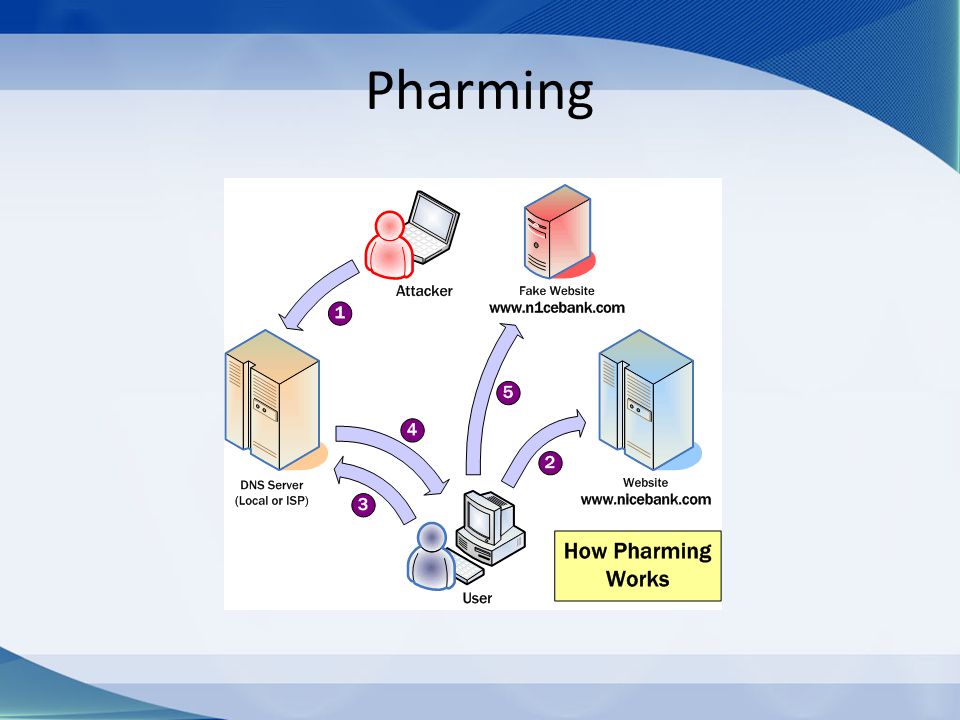

4. Pharming

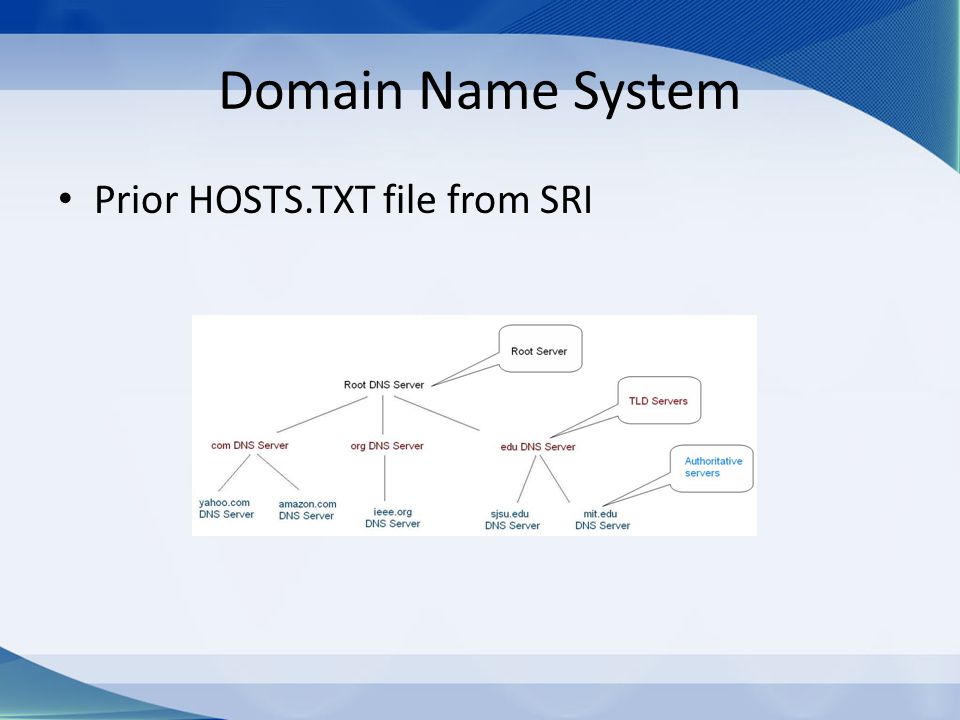

5. Domain Name System Prior HOSTS.TXT file from SRI

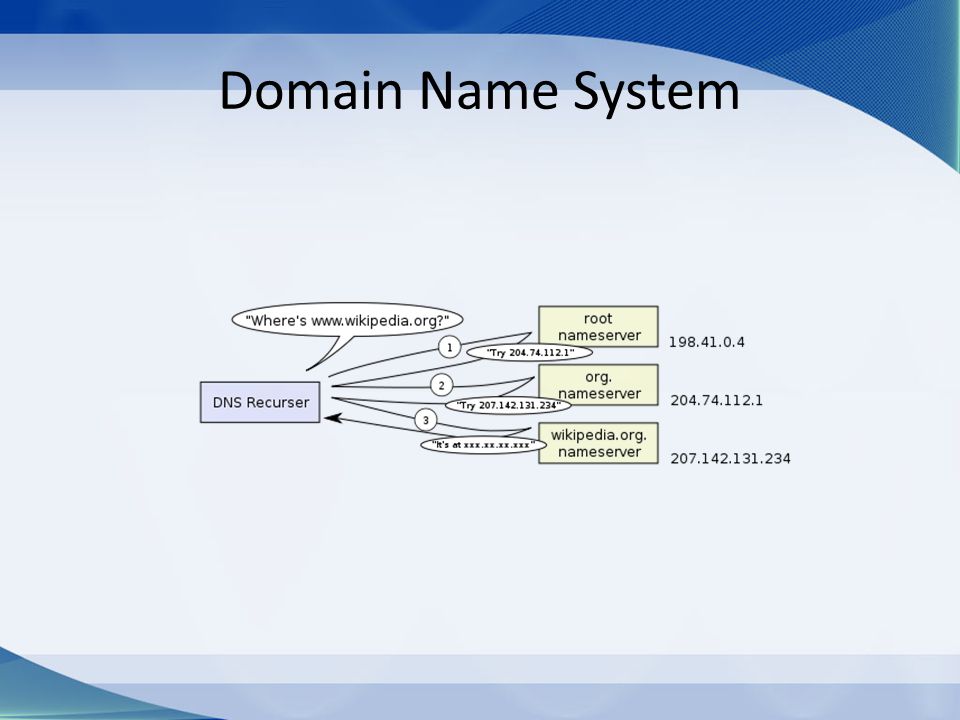

6. Domain Name System

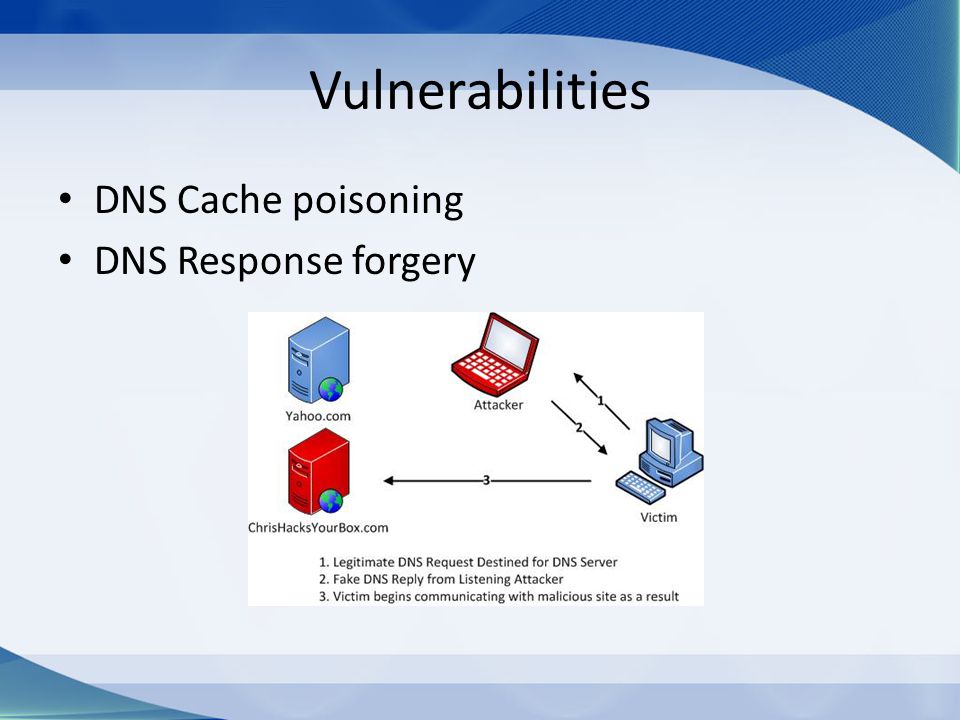

7. Vulnerabilities DNS Cache poisoning DNS Response forgery

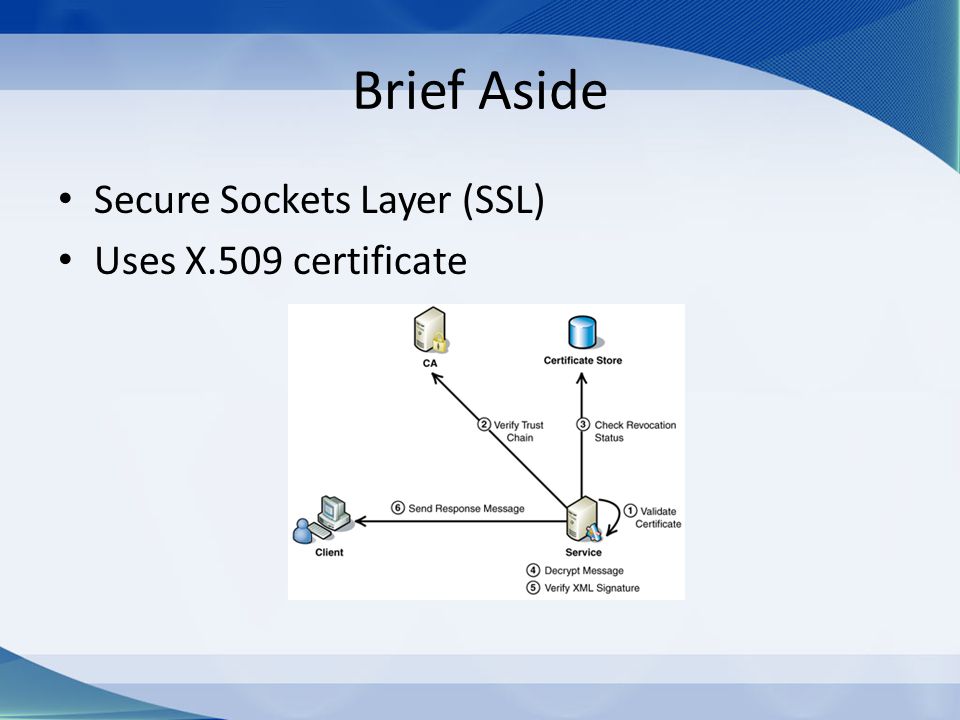

8. Brief Aside Secure Sockets Layer (SSL) Uses X.509 certificate

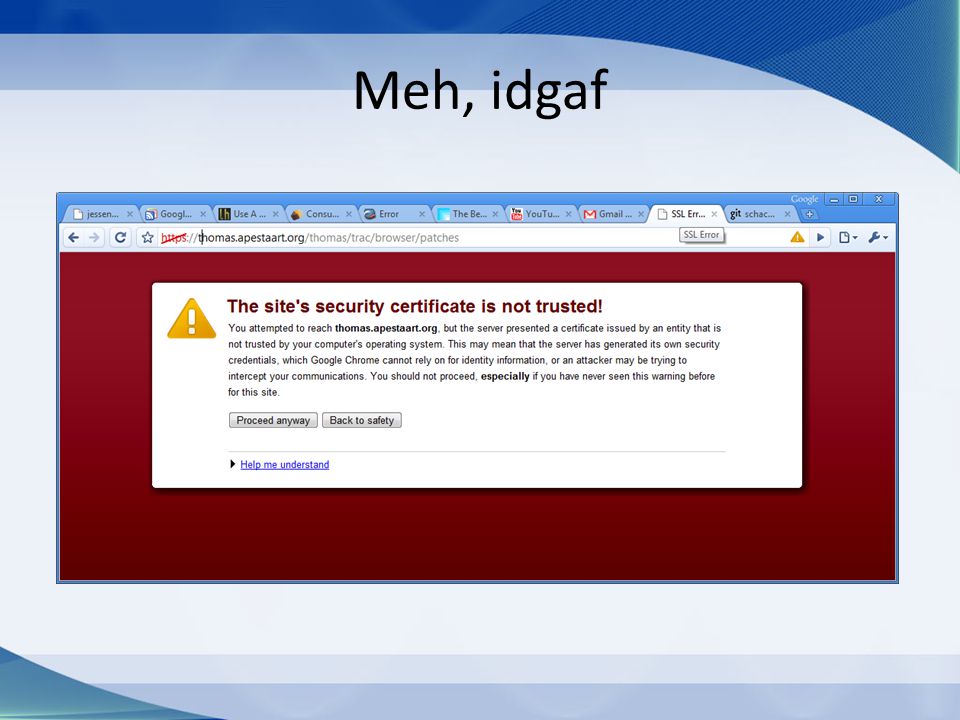

9. Meh, idgaf

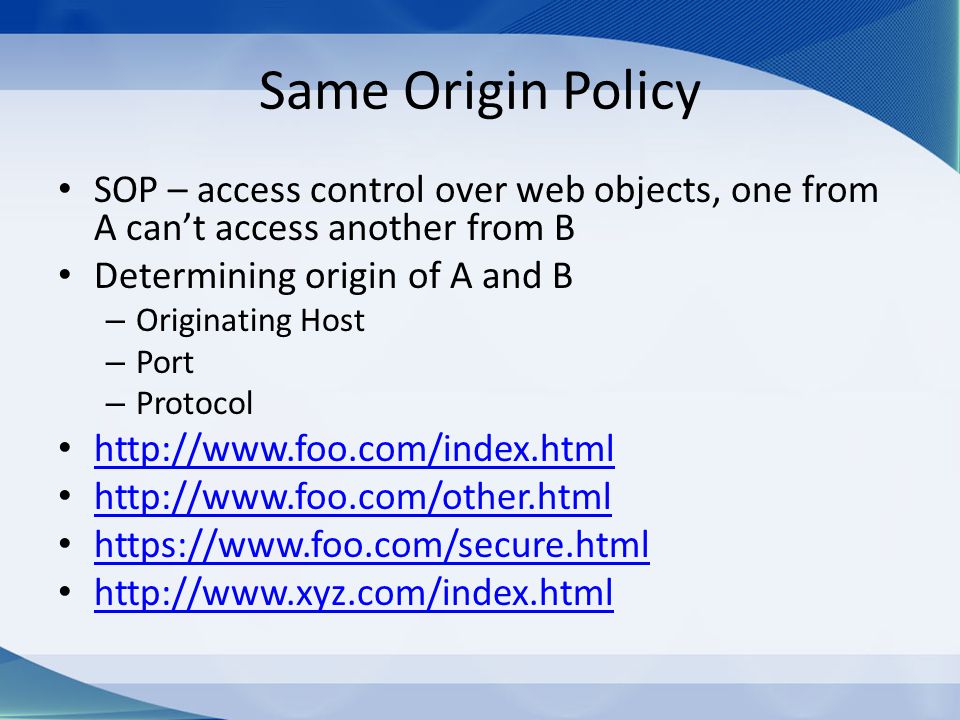

10. Same Origin Policy SOP – access control over web objects, one from A can’t access another from B Determining origin of A and B – Originating Host – Port – Protocol http://www.foo.com/index.html http://www.foo.com/other.html https://www.foo.com/secure.html http://www.xyz.com/index.html

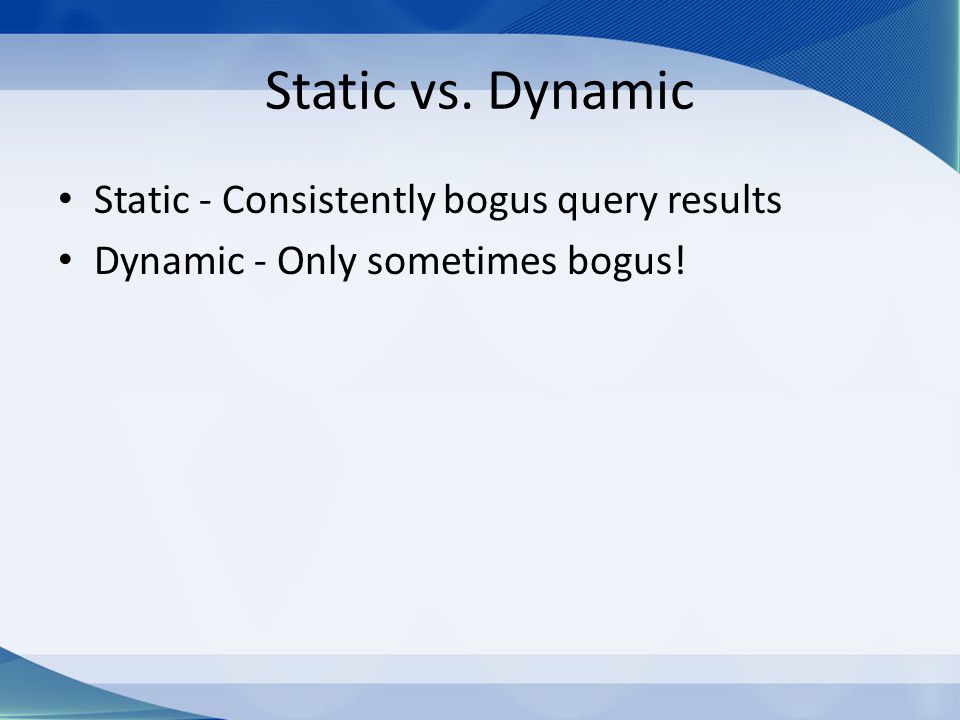

11. Static vs. Dynamic Static - Consistently bogus query results Dynamic - Only sometimes bogus!

12. Dynamic Pharming Suppose A controls DNS queries for www.vanguard.com www.vanguard.com Suppose users authenticate to www.vanguard.com using client side SSLwww.vanguard.com Suppose user’s machine is initialized with certificates and vanguard knows pkeys 1) A initializes DNS entry to A’s IP address 6.6.6.6, sets TTL = 0 2)V visits https://www.vanguard.com/index.html to authenticatehttps://www.vanguard.com/index.html 3)Browser attempts SSL connection, requires A to present X.509 certificate

13. Meh, idgaf

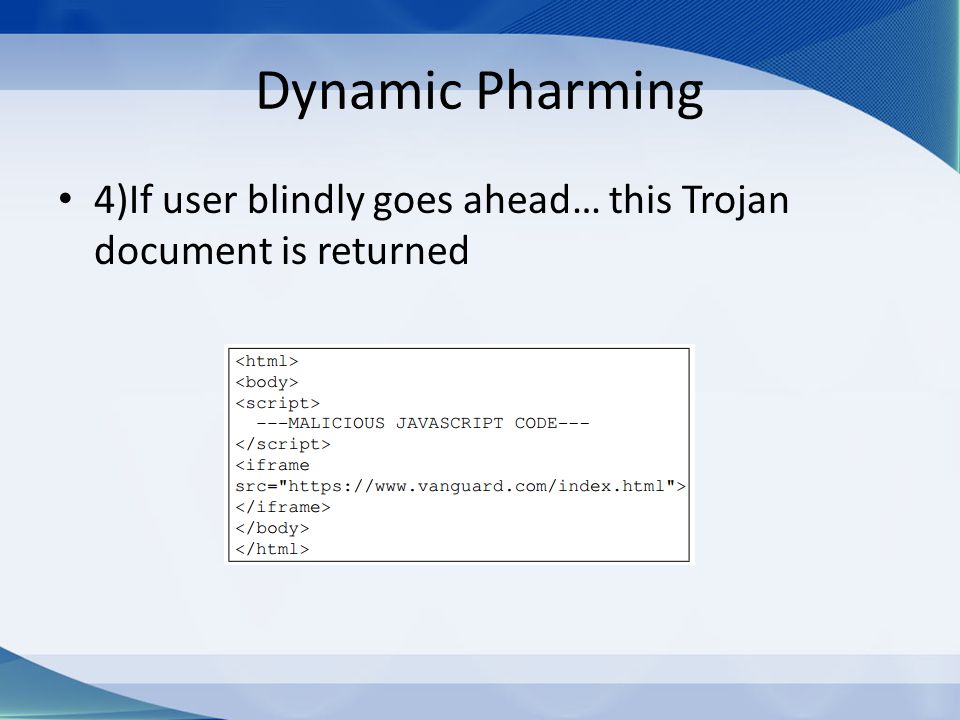

14. Dynamic Pharming 4)If user blindly goes ahead… this Trojan document is returned

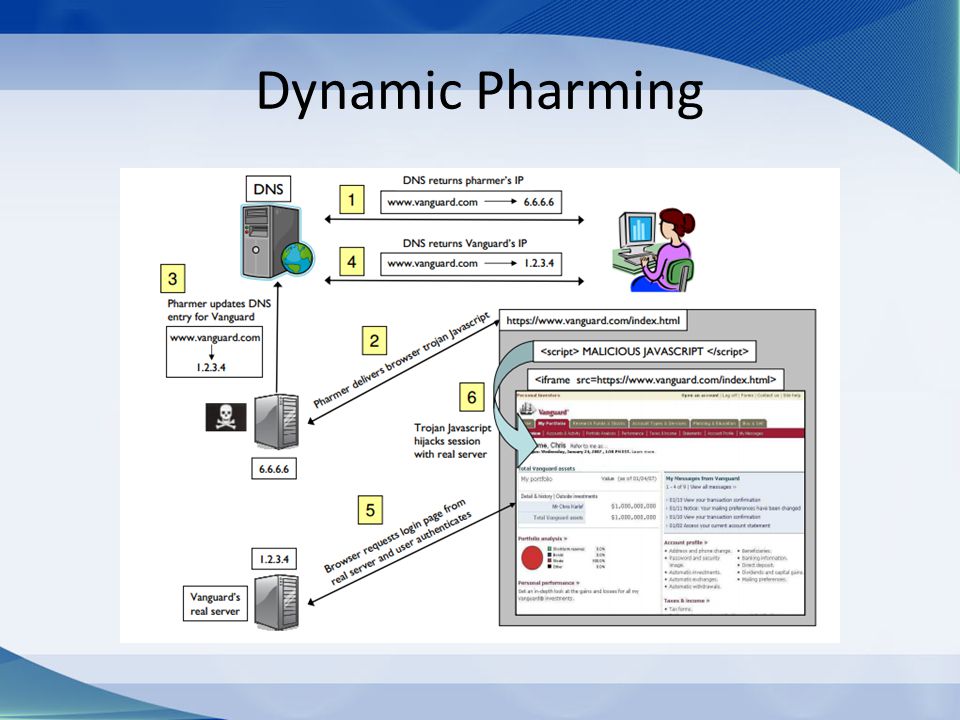

15. Dynamic Pharming

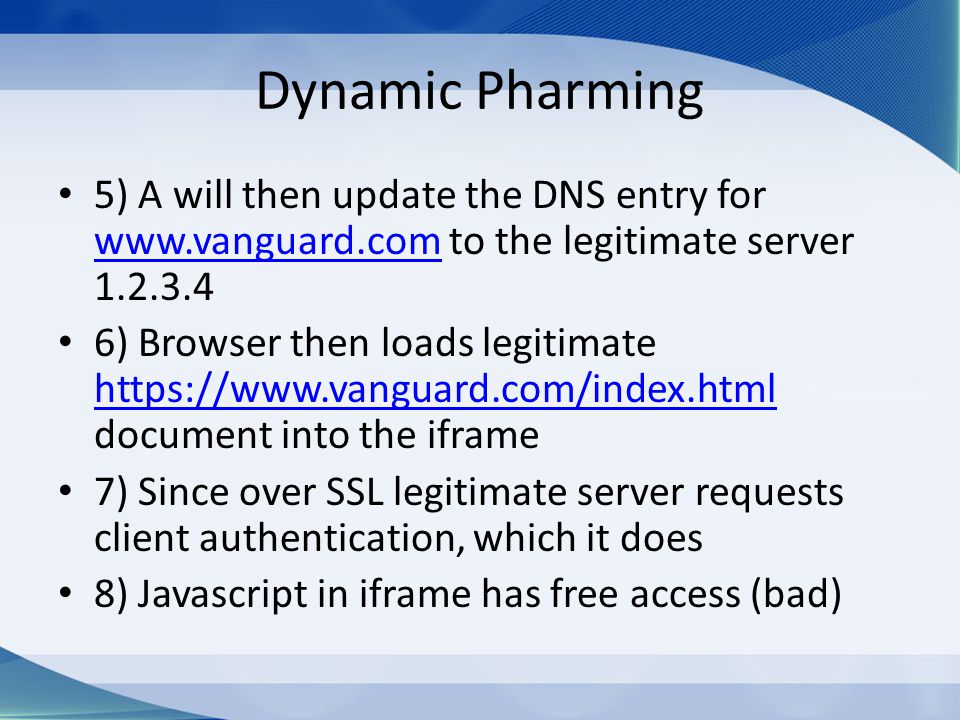

16. 5) A will then update the DNS entry for www.vanguard.com to the legitimate server 1.2.3.4 www.vanguard.com 6) Browser then loads legitimate https://www.vanguard.com/index.html document into the iframe https://www.vanguard.com/index.html 7) Since over SSL legitimate server requests client authentication, which it does 8) Javascript in iframe has free access (bad)

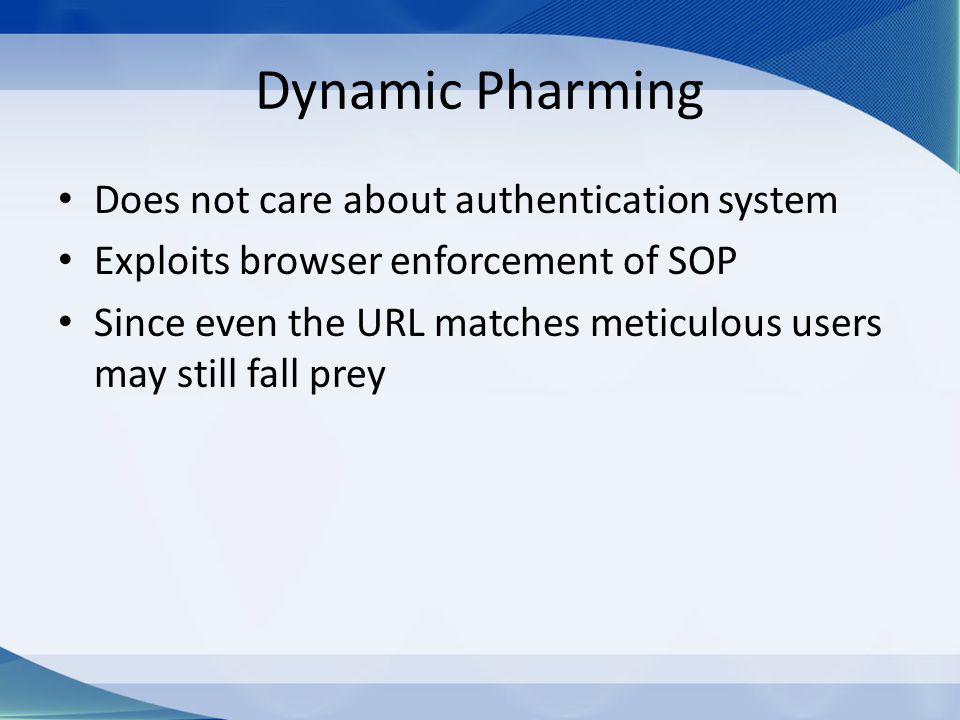

17. Dynamic Pharming Does not care about authentication system Exploits browser enforcement of SOP Since even the URL matches meticulous users may still fall prey

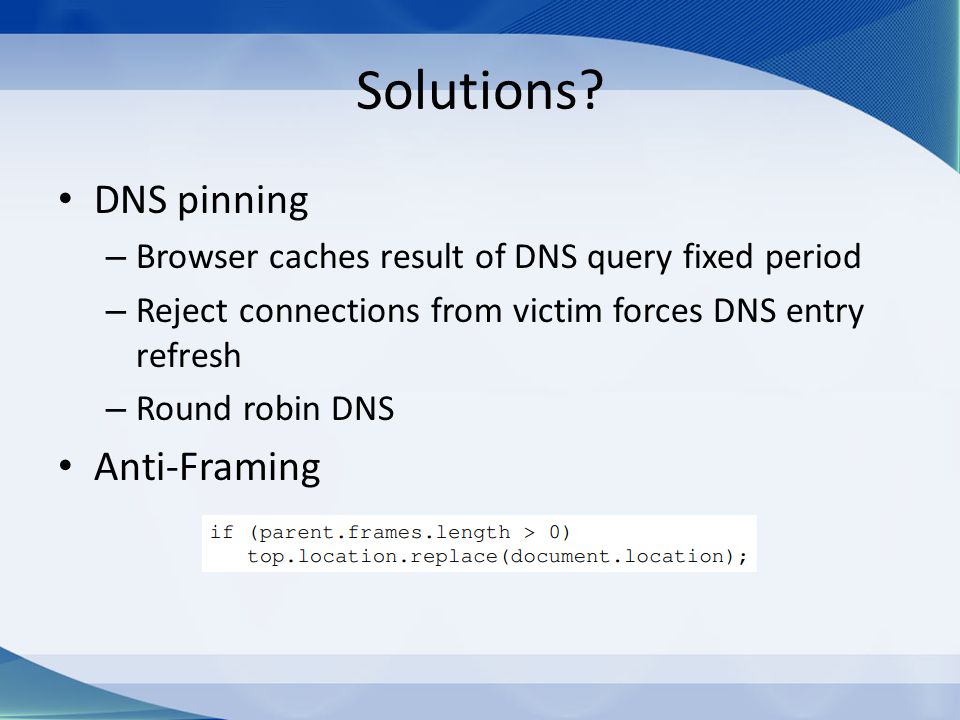

18. Solutions? DNS pinning – Browser caches result of DNS query fixed period – Reject connections from victim forces DNS entry refresh – Round robin DNS Anti-Framing

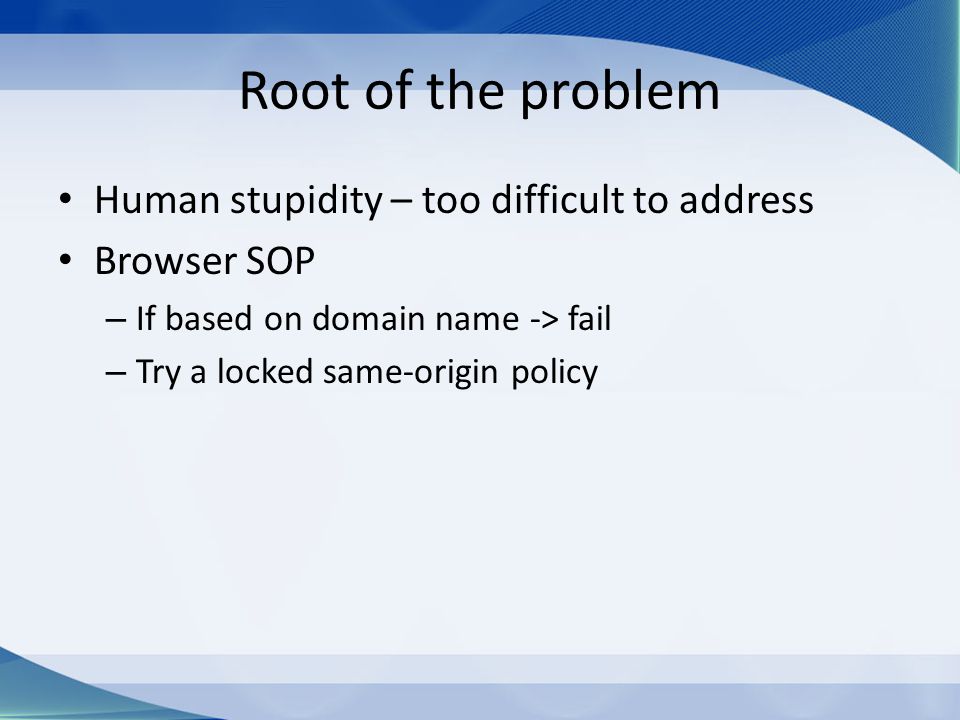

19. Root of the problem Human stupidity – too difficult to address Browser SOP – If based on domain name -> fail – Try a locked same-origin policy

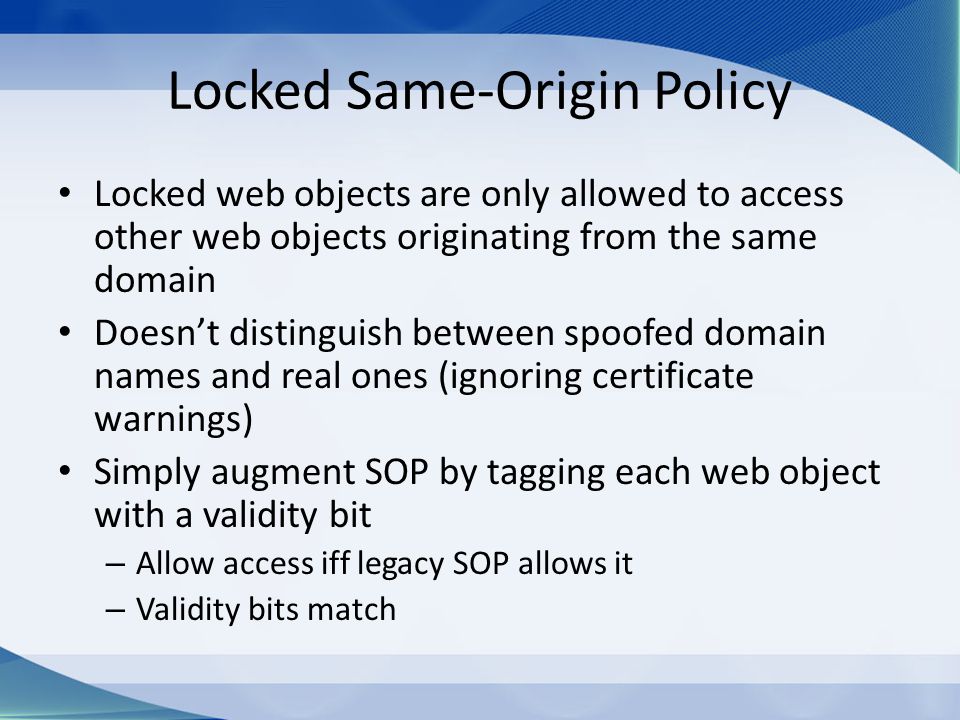

20. Locked Same-Origin Policy Locked web objects are only allowed to access other web objects originating from the same domain Doesn’t distinguish between spoofed domain names and real ones (ignoring certificate warnings) Simply augment SOP by tagging each web object with a validity bit – Allow access iff legacy SOP allows it – Validity bits match

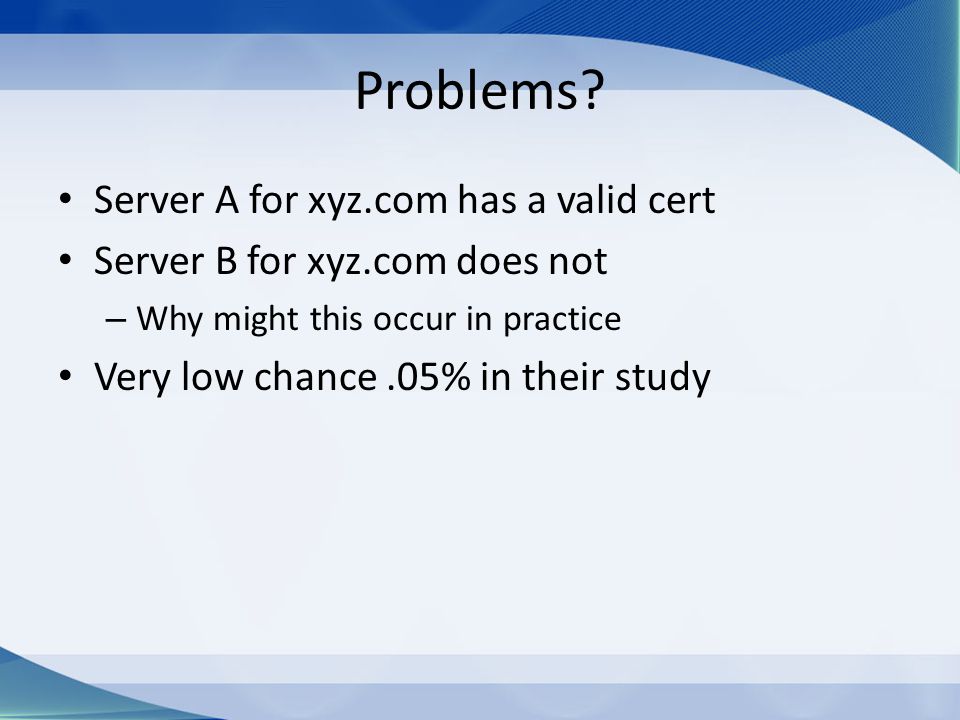

21. Problems? Server A for xyz.com has a valid cert Server B for xyz.com does not – Why might this occur in practice Very low chance.05% in their study

22. Conclusions Due to DNS vulnerabilities pharming is a real concern The legacy SOP not currently equipped to adequately protect against pharming Locked same origin policy can “break the web” but rarely, and using the validity bit offers protection – Still susceptible however, how?
