1. Neisseria gonorrhoeae Nealia House

2. Gonorrhea Topic Overview Topic Overview Biology of Neisseria gonorrhoeae Biology of Neisseria gonorrhoeae –Survival Within Host Screening Screening Treatment Treatment Control/Surveillance Control/Surveillance http://www2.chemie.uni- erlangen.de/education/medchem/harnsteine/urs_infektion.html

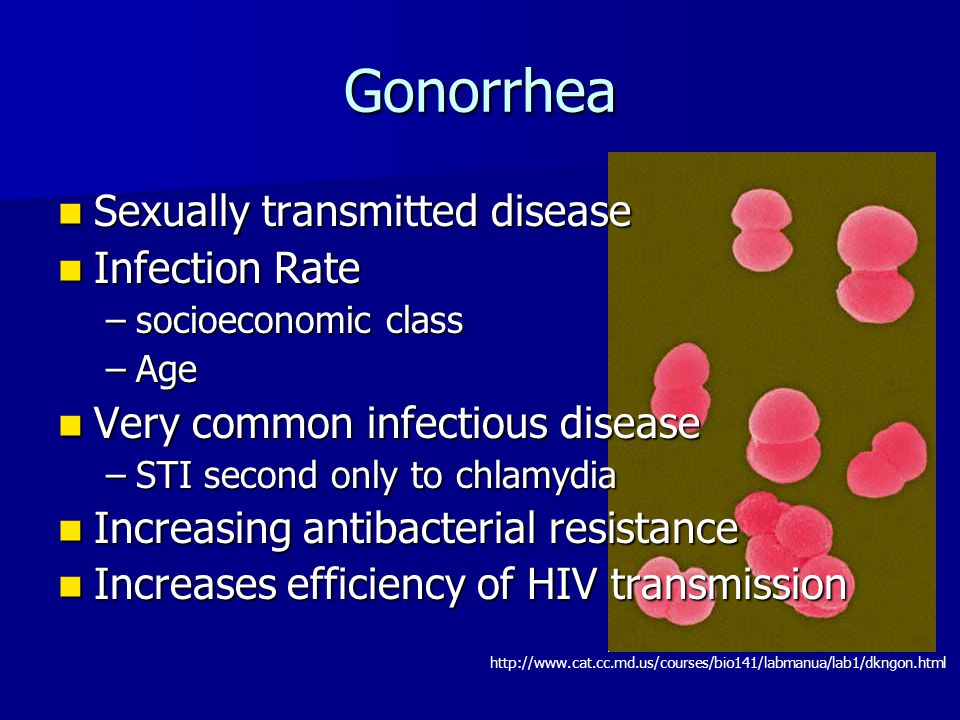

3. Gonorrhea Sexually transmitted disease Sexually transmitted disease Infection Rate Infection Rate –socioeconomic class –Age Very common infectious disease Very common infectious disease –STI second only to chlamydia Increasing antibacterial resistance Increasing antibacterial resistance Increases efficiency of HIV transmission Increases efficiency of HIV transmission http://www.cat.cc.md.us/courses/bio141/labmanua/lab1/dkngon.html

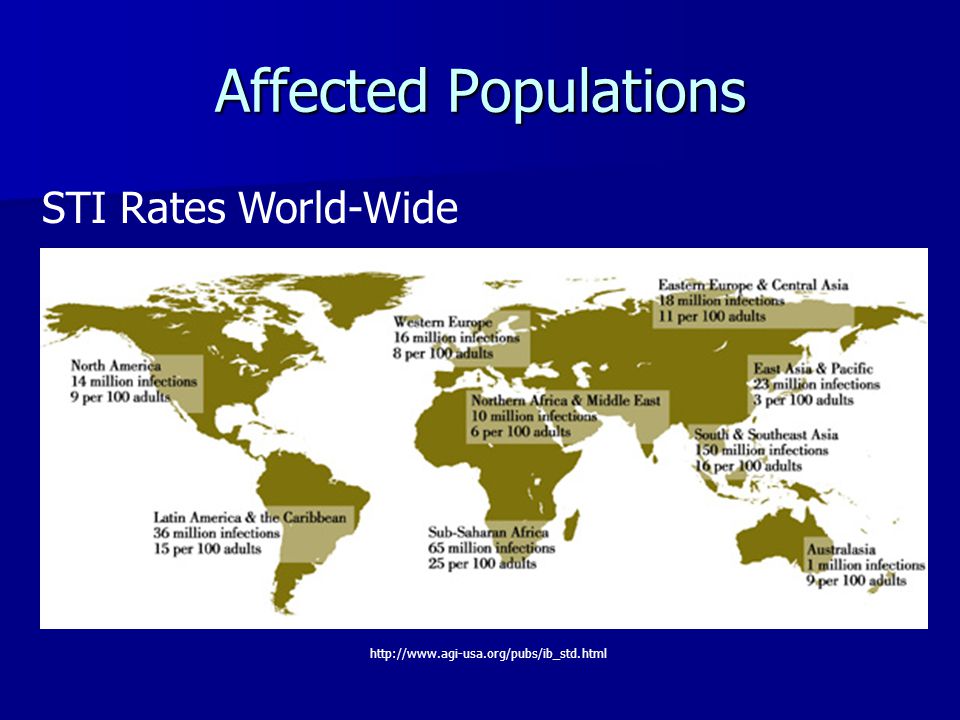

4. Affected Populations http://www.agi-usa.org/pubs/ib_std.html STI Rates World-Wide

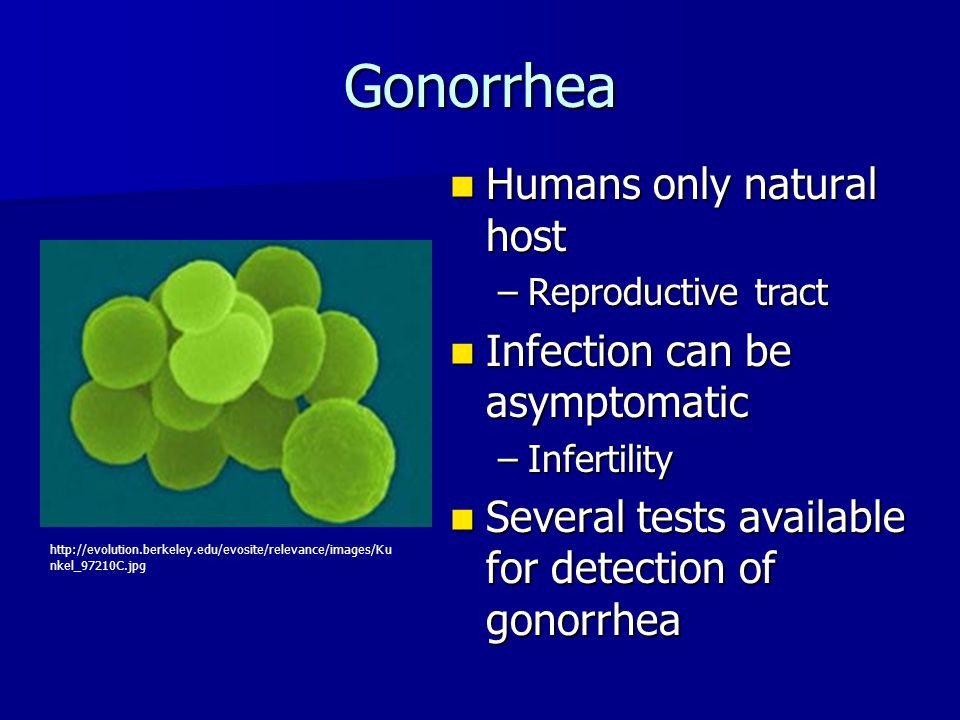

5. Gonorrhea Humans only natural host Humans only natural host –Reproductive tract Infection can be asymptomatic Infection can be asymptomatic –Infertility Several tests available for detection of gonorrhea Several tests available for detection of gonorrhea http://evolution.berkeley.edu/evosite/relevance/images/Ku nkel_97210C.jpg

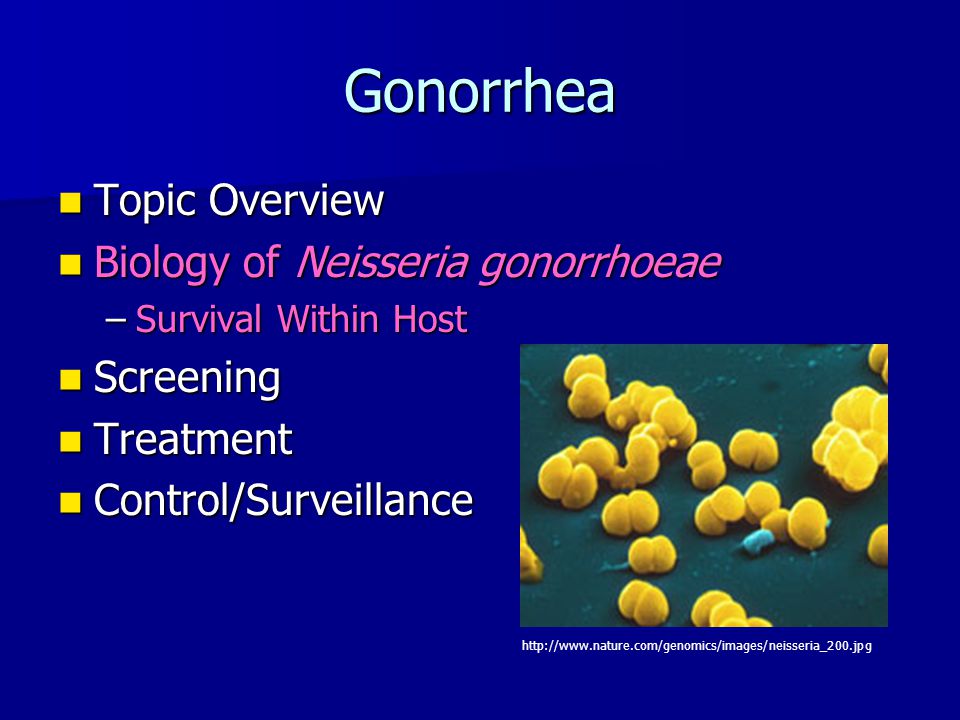

6. Gonorrhea Topic Overview Topic Overview Biology of Neisseria gonorrhoeae Biology of Neisseria gonorrhoeae –Survival Within Host Screening Screening Treatment Treatment Control/Surveillance Control/Surveillance http://www.nature.com/genomics/images/neisseria_200.jpg

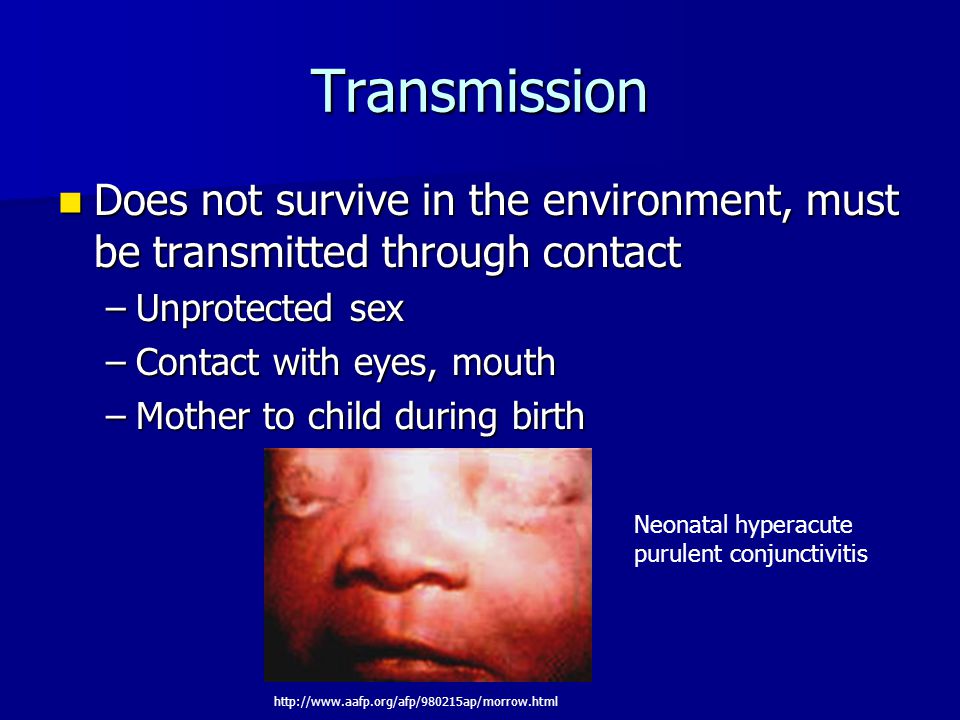

7. Transmission Does not survive in the environment, must be transmitted through contact Does not survive in the environment, must be transmitted through contact –Unprotected sex –Contact with eyes, mouth –Mother to child during birth Neonatal hyperacute purulent conjunctivitis http://www.aafp.org/afp/980215ap/morrow.html

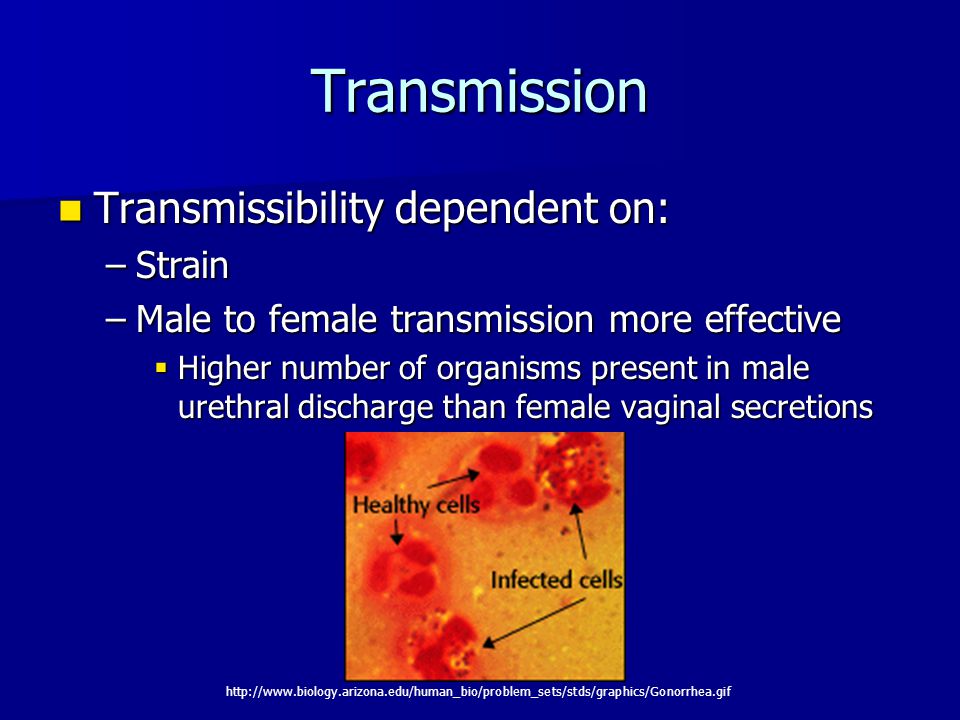

8. Transmission Transmissibility dependent on: Transmissibility dependent on: –Strain –Male to female transmission more effective  Higher number of organisms present in male urethral discharge than female vaginal secretions http://www.biology.arizona.edu/human_bio/problem_sets/stds/graphics/Gonorrhea.gif

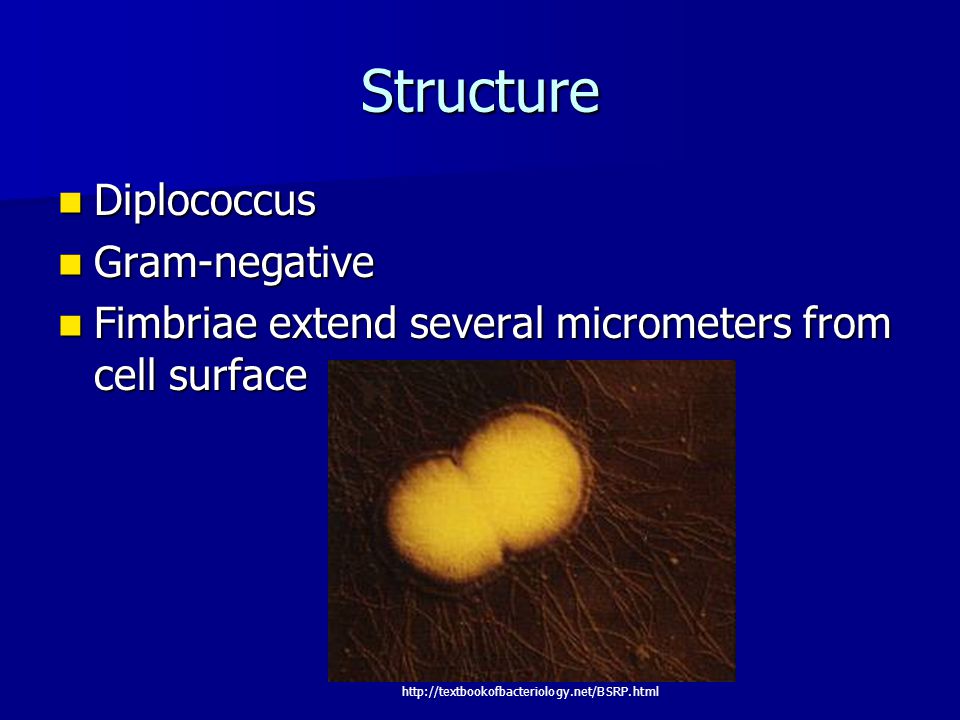

9. Structure Diplococcus Diplococcus Gram-negative Gram-negative Fimbriae extend several micrometers from cell surface Fimbriae extend several micrometers from cell surface http://textbookofbacteriology.net/BSRP.html

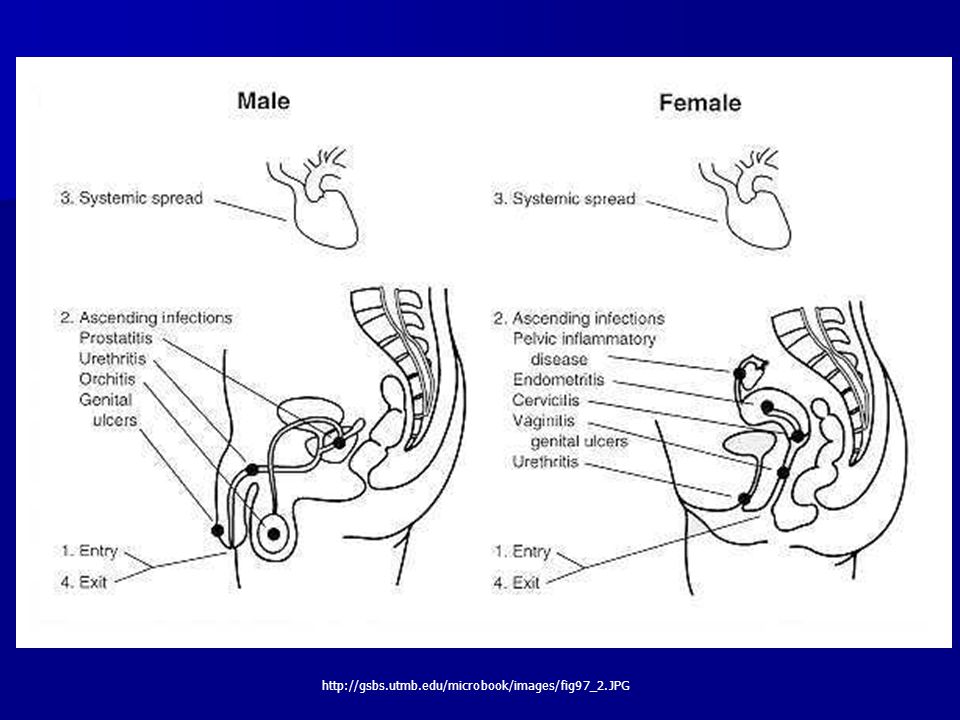

10. http://gsbs.utmb.edu/microbook/images/fig97_2.JPG

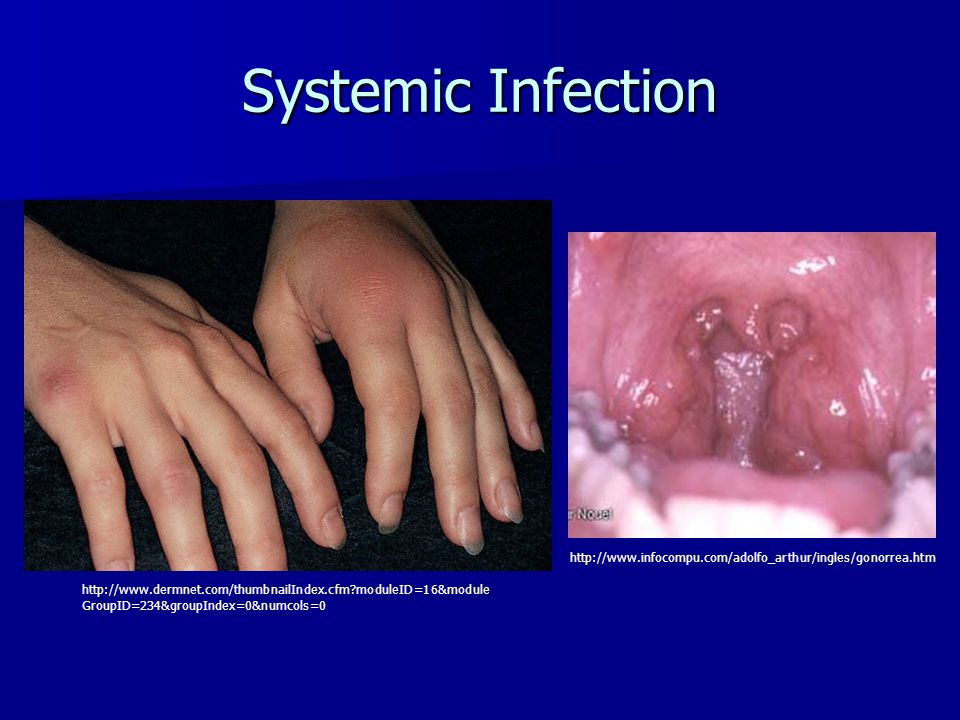

11. http://www.infocompu.com/adolfo_arthur/ingles/gonorrea.htm http://www.dermnet.com/thumbnailIndex.cfm?moduleID=16&module GroupID=234&groupIndex=0&numcols=0 Systemic Infection

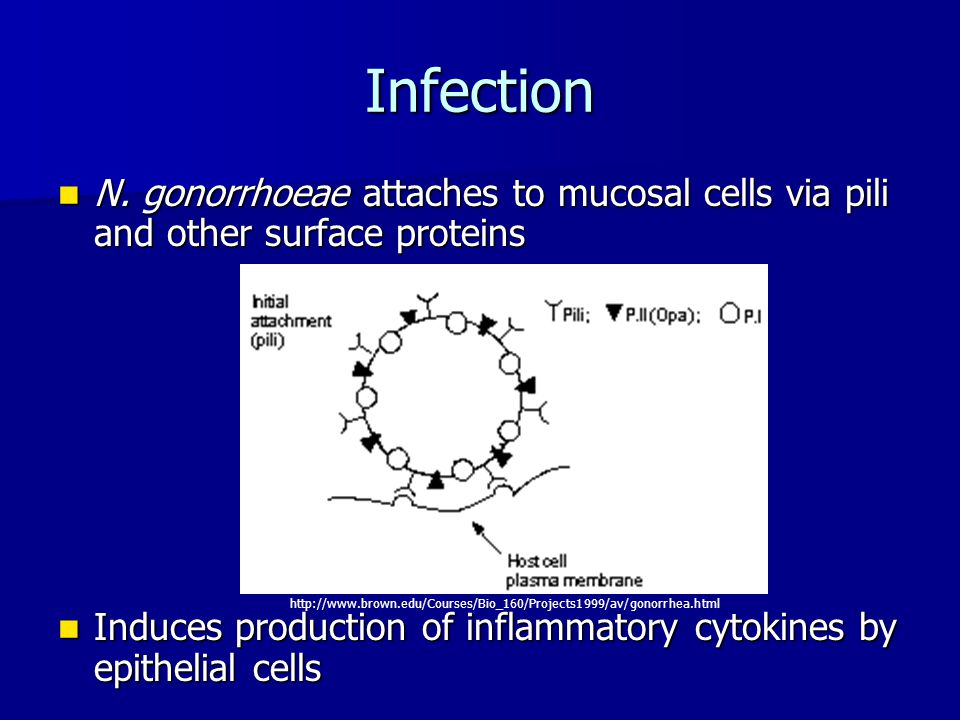

12. Infection N. gonorrhoeae attaches to mucosal cells via pili and other surface proteins N. gonorrhoeae attaches to mucosal cells via pili and other surface proteins Induces production of inflammatory cytokines by epithelial cells Induces production of inflammatory cytokines by epithelial cells http://www.brown.edu/Courses/Bio_160/Projects1999/av/gonorrhea.html

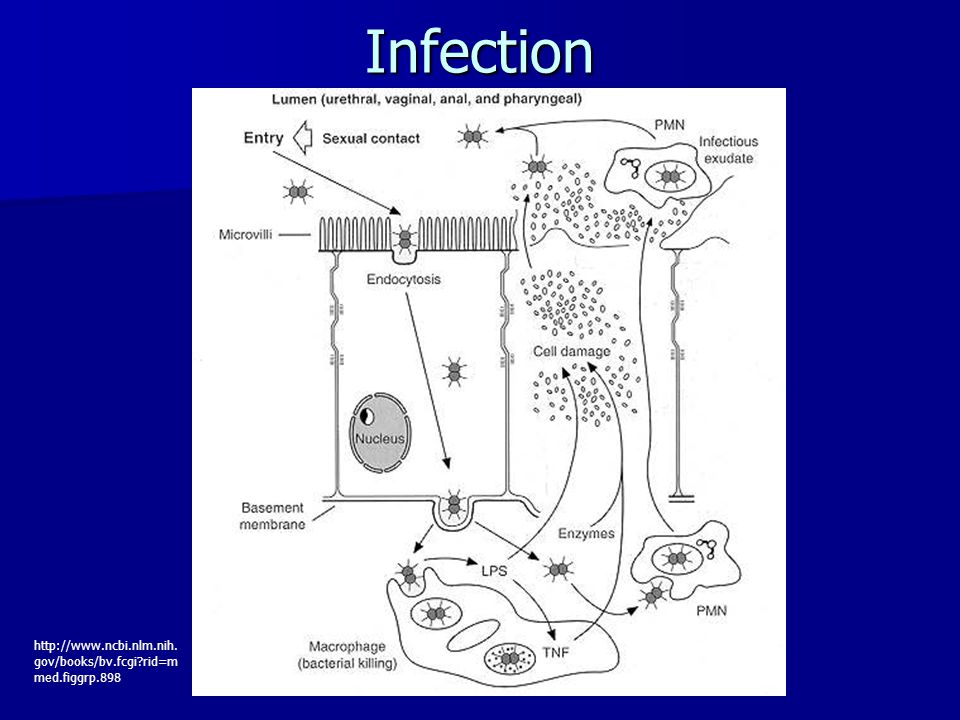

13. Infection http://www.ncbi.nlm.nih. gov/books/bv.fcgi?rid=m med.figgrp.898

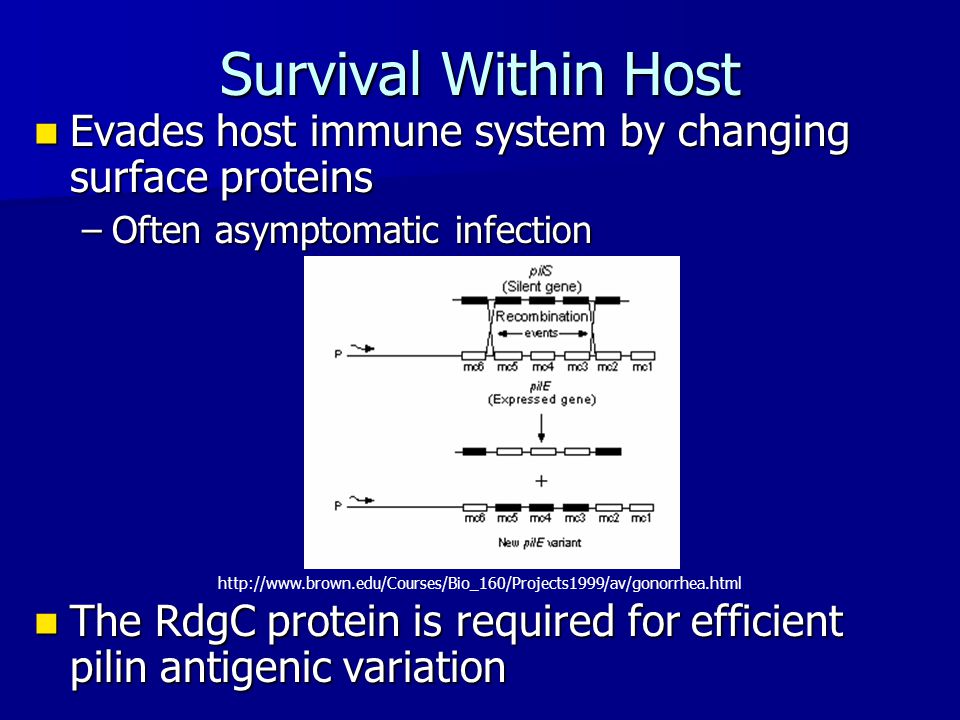

14. Survival Within Host Evades host immune system by changing surface proteins Evades host immune system by changing surface proteins –Often asymptomatic infection The RdgC protein is required for efficient pilin antigenic variation The RdgC protein is required for efficient pilin antigenic variation http://www.brown.edu/Courses/Bio_160/Projects1999/av/gonorrhea.html

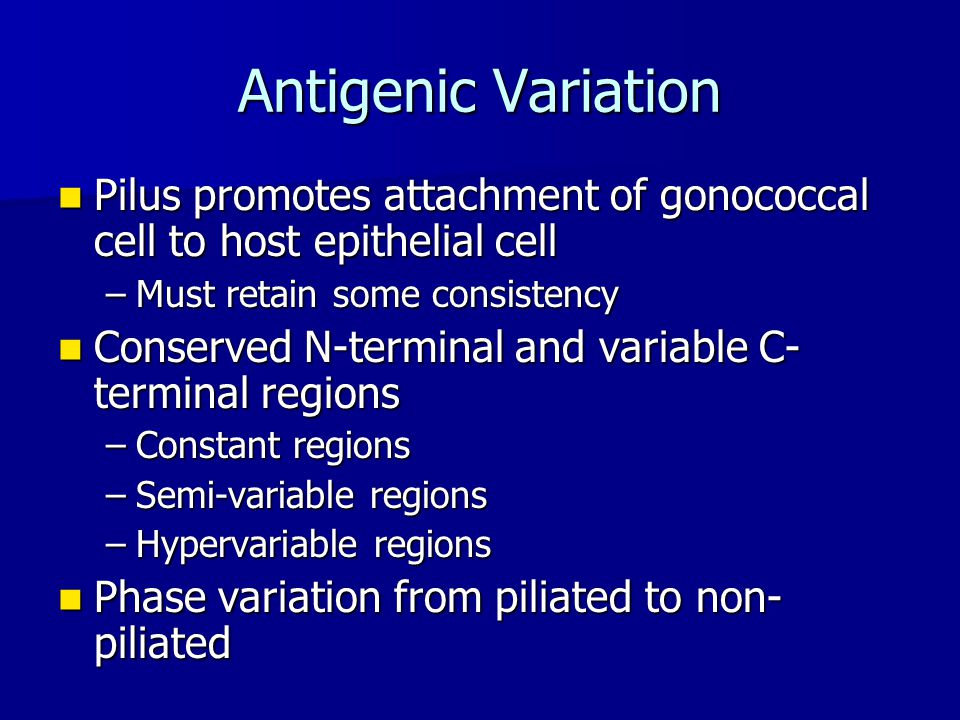

15. Antigenic Variation Pilus promotes attachment of gonococcal cell to host epithelial cell Pilus promotes attachment of gonococcal cell to host epithelial cell –Must retain some consistency Conserved N-terminal and variable C- terminal regions Conserved N-terminal and variable C- terminal regions –Constant regions –Semi-variable regions –Hypervariable regions Phase variation from piliated to non- piliated Phase variation from piliated to non- piliated

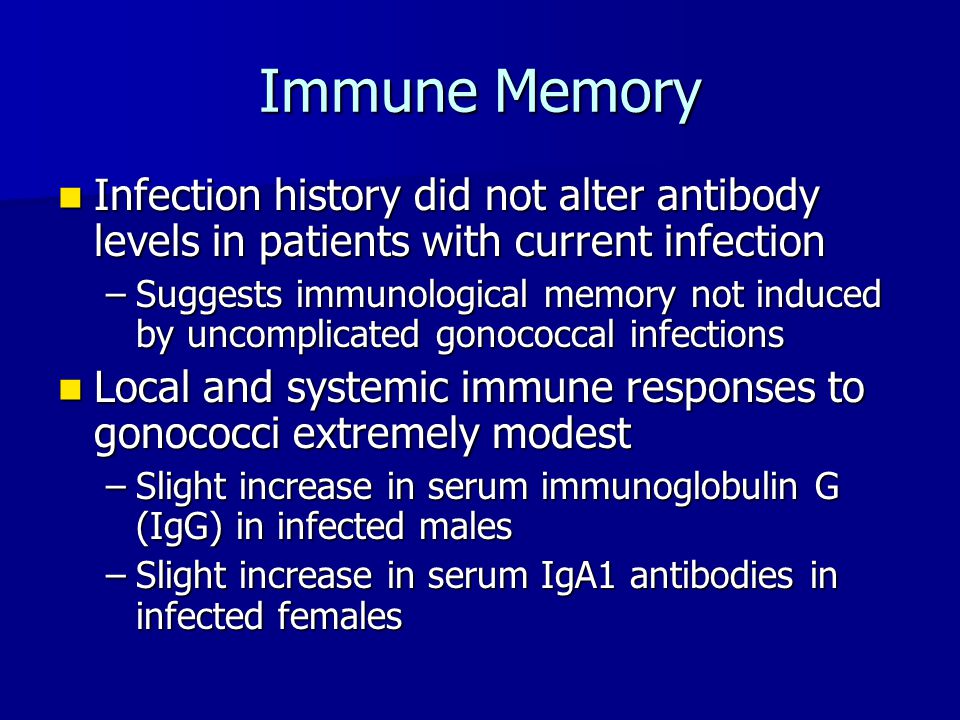

16. Immune Memory Infection history did not alter antibody levels in patients with current infection Infection history did not alter antibody levels in patients with current infection –Suggests immunological memory not induced by uncomplicated gonococcal infections Local and systemic immune responses to gonococci extremely modest Local and systemic immune responses to gonococci extremely modest –Slight increase in serum immunoglobulin G (IgG) in infected males –Slight increase in serum IgA1 antibodies in infected females

17. Survival Within Host Pili, outer membrane proteins, lipopolysaccharides Pili, outer membrane proteins, lipopolysaccharides –Binding to epithelial surfaces –Passage through epithelium –Interaction with phagocytes Variations in outer membrane protein (P1, Por) Variations in outer membrane protein (P1, Por) Requires Requires –Carbon dioxide –Sulfur in form of cysteine –Iron http://www.med.monash.edu.au/assets/images/mic robiology/gono.jpg

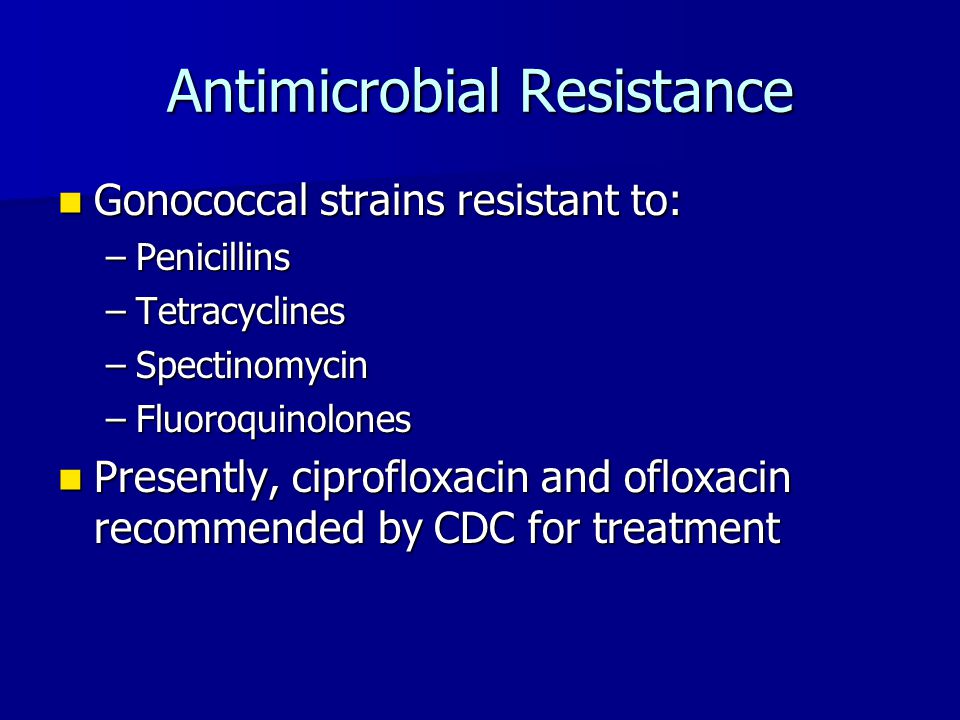

18. Antimicrobial Resistance Gonococcal strains resistant to: Gonococcal strains resistant to: –Penicillins –Tetracyclines –Spectinomycin –Fluoroquinolones Presently, ciprofloxacin and ofloxacin recommended by CDC for treatment Presently, ciprofloxacin and ofloxacin recommended by CDC for treatment

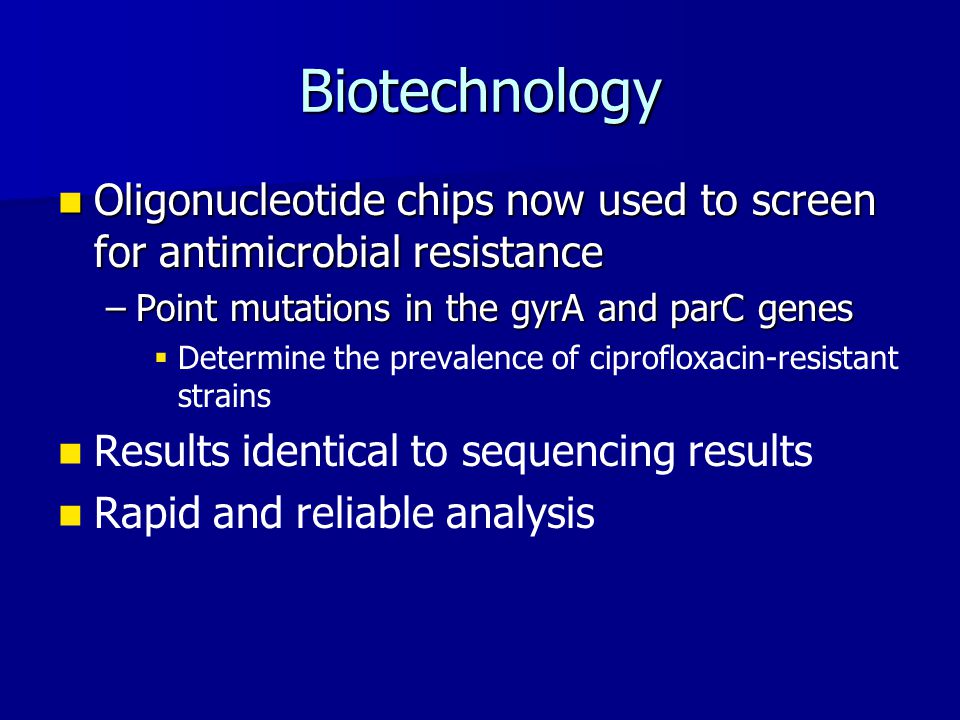

19. Biotechnology Oligonucleotide chips now used to screen for antimicrobial resistance Oligonucleotide chips now used to screen for antimicrobial resistance –Point mutations in the gyrA and parC genes   Determine the prevalence of ciprofloxacin-resistant strains Results identical to sequencing results Rapid and reliable analysis

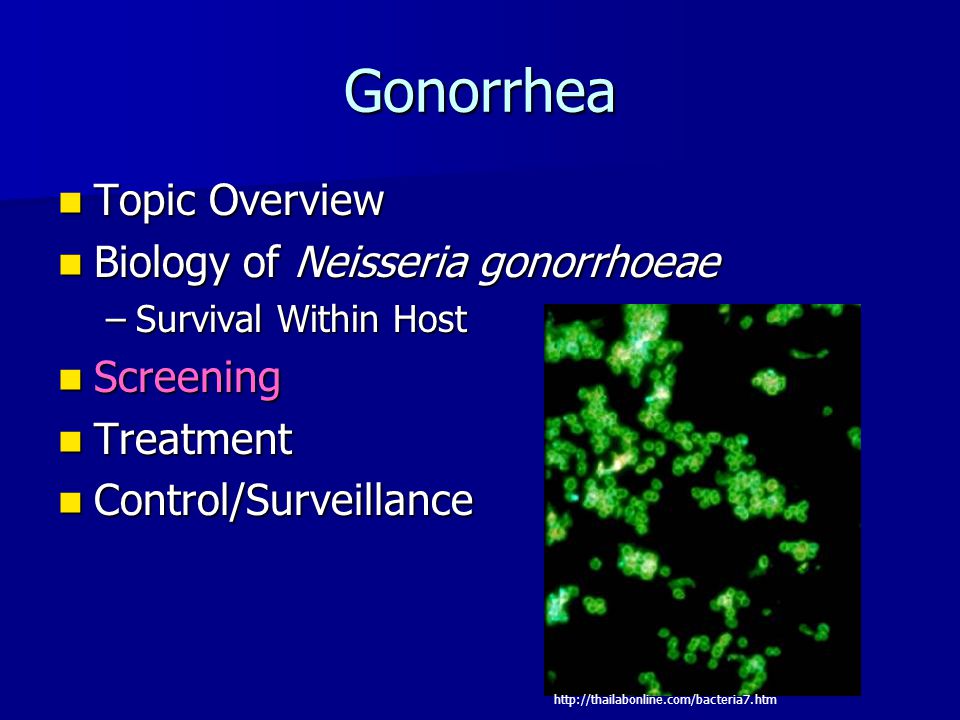

20. Gonorrhea Topic Overview Topic Overview Biology of Neisseria gonorrhoeae Biology of Neisseria gonorrhoeae –Survival Within Host Screening Screening Treatment Treatment Control/Surveillance Control/Surveillance http://thailabonline.com/bacteria7.htm

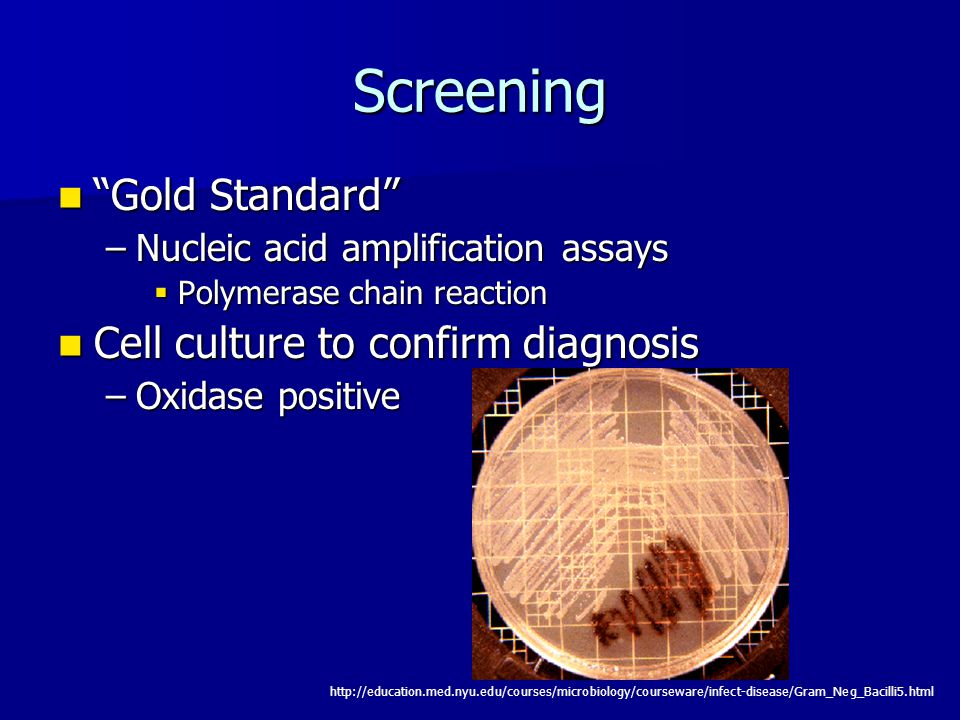

21. Screening “Gold Standard” “Gold Standard” –Nucleic acid amplification assays  Polymerase chain reaction Cell culture to confirm diagnosis Cell culture to confirm diagnosis –Oxidase positive http://education.med.nyu.edu/courses/microbiology/courseware/infect-disease/Gram_Neg_Bacilli5.html

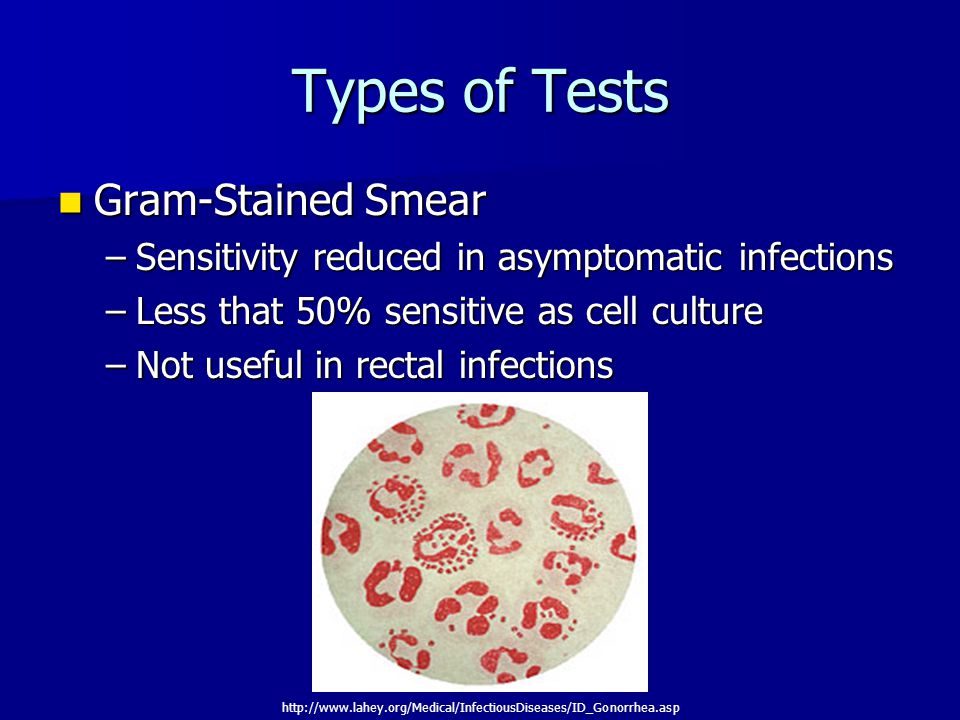

22. Types of Tests Gram-Stained Smear Gram-Stained Smear –Sensitivity reduced in asymptomatic infections –Less that 50% sensitive as cell culture –Not useful in rectal infections http://www.lahey.org/Medical/InfectiousDiseases/ID_Gonorrhea.asp

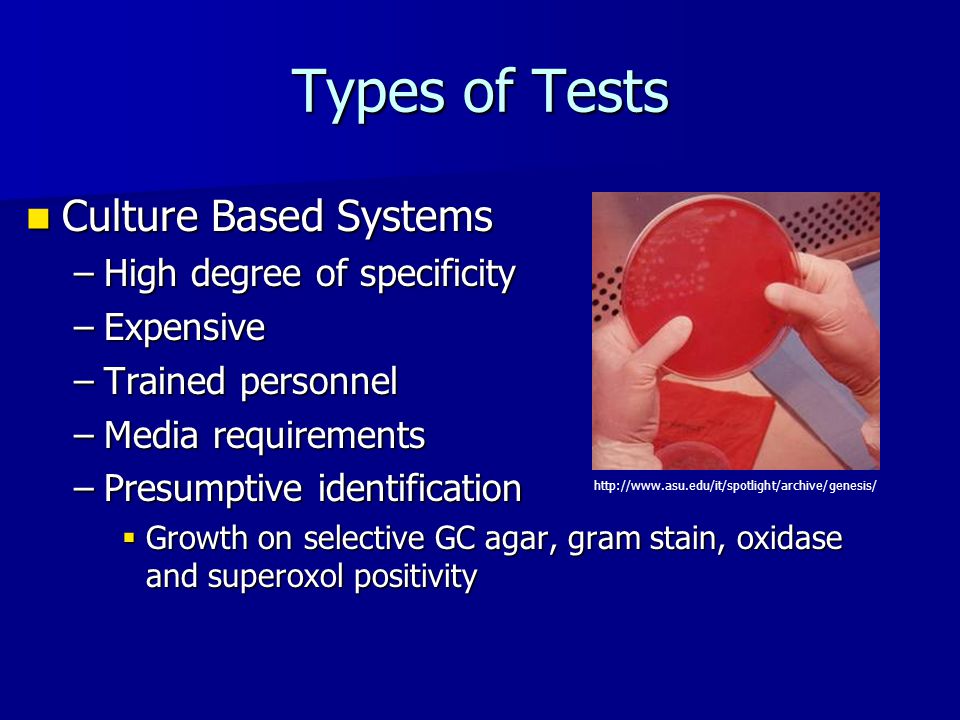

23. Types of Tests Culture Based Systems Culture Based Systems –High degree of specificity –Expensive –Trained personnel –Media requirements –Presumptive identification  Growth on selective GC agar, gram stain, oxidase and superoxol positivity http://www.asu.edu/it/spotlight/archive/genesis/

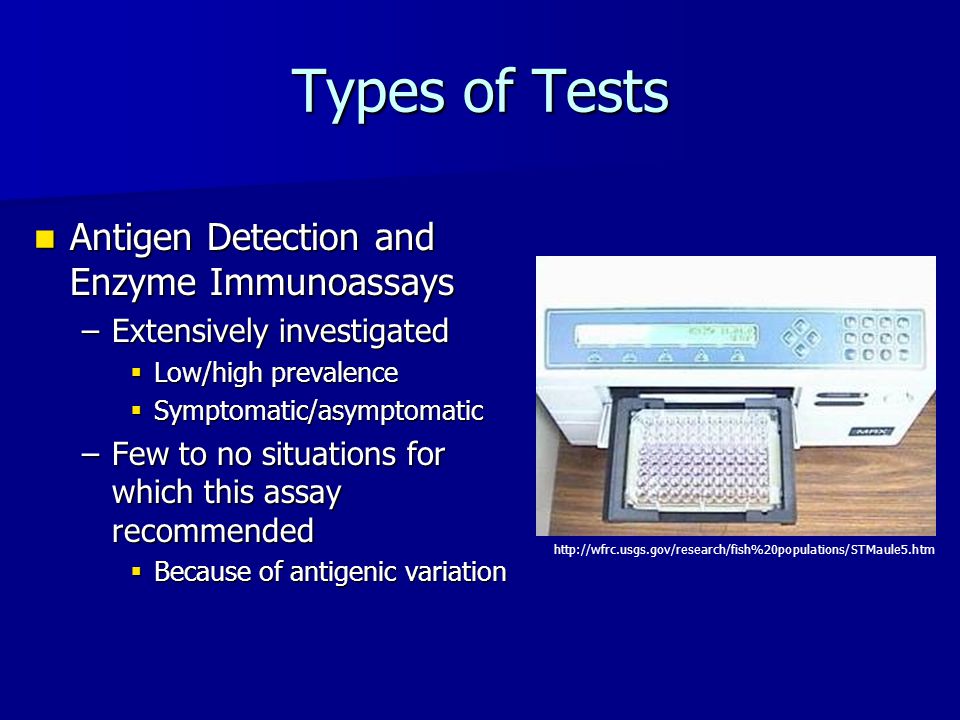

24. Types of Tests Antigen Detection and Enzyme Immunoassays Antigen Detection and Enzyme Immunoassays –Extensively investigated  Low/high prevalence  Symptomatic/asymptomatic –Few to no situations for which this assay recommended  Because of antigenic variation http://wfrc.usgs.gov/research/fish%20populations/STMaule5.htm

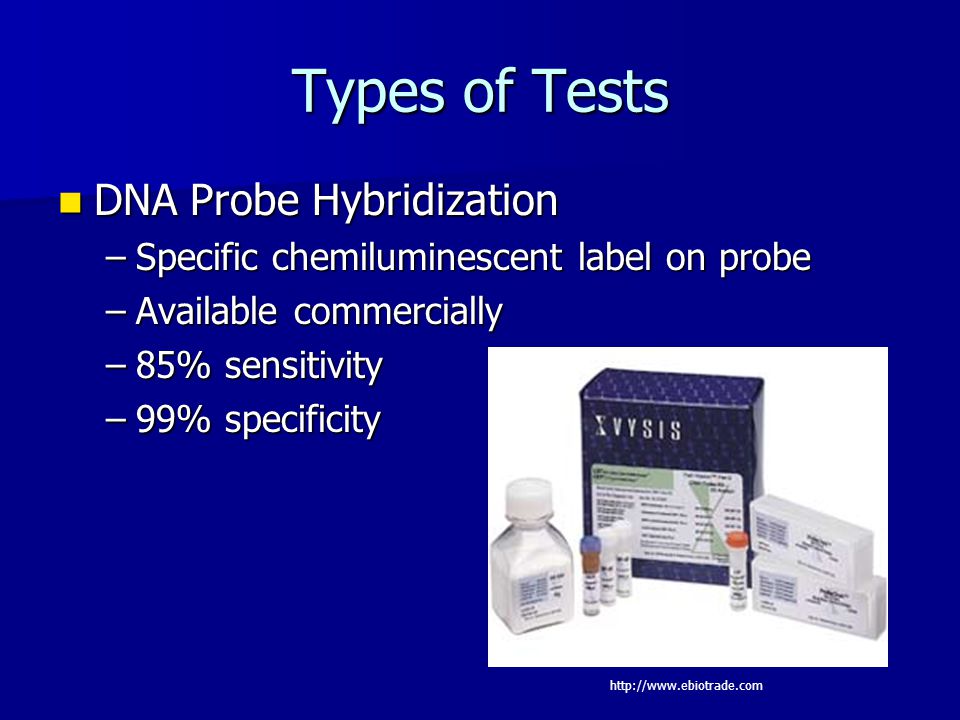

25. Types of Tests DNA Probe Hybridization DNA Probe Hybridization –Specific chemiluminescent label on probe –Available commercially –85% sensitivity –99% specificity http://www.ebiotrade.com

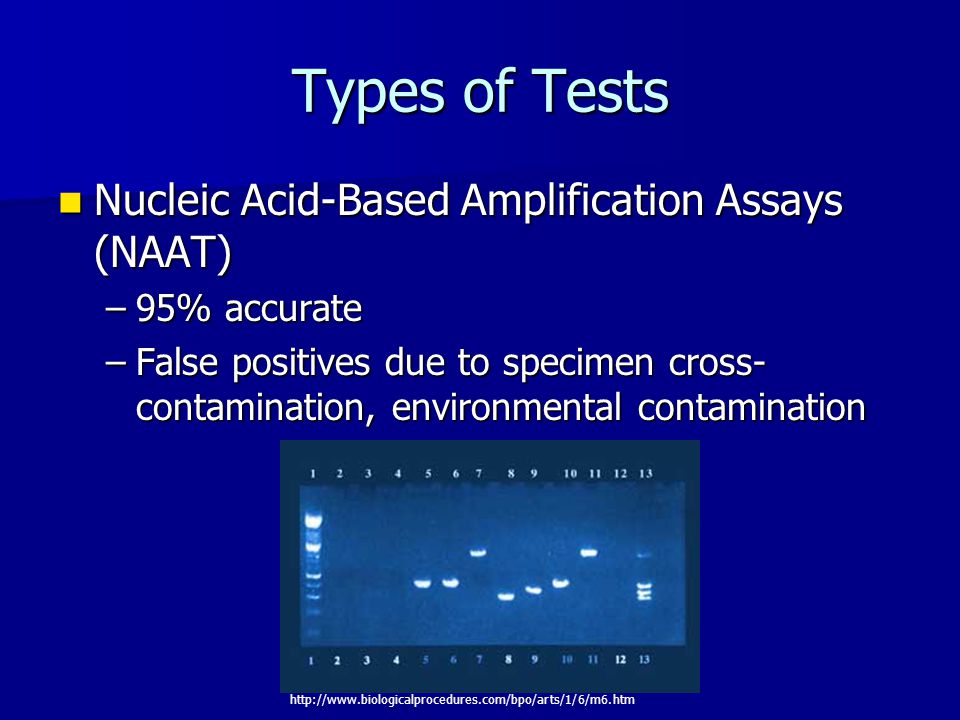

26. Types of Tests Nucleic Acid-Based Amplification Assays (NAAT) Nucleic Acid-Based Amplification Assays (NAAT) –95% accurate –False positives due to specimen cross- contamination, environmental contamination http://www.biologicalprocedures.com/bpo/arts/1/6/m6.htm

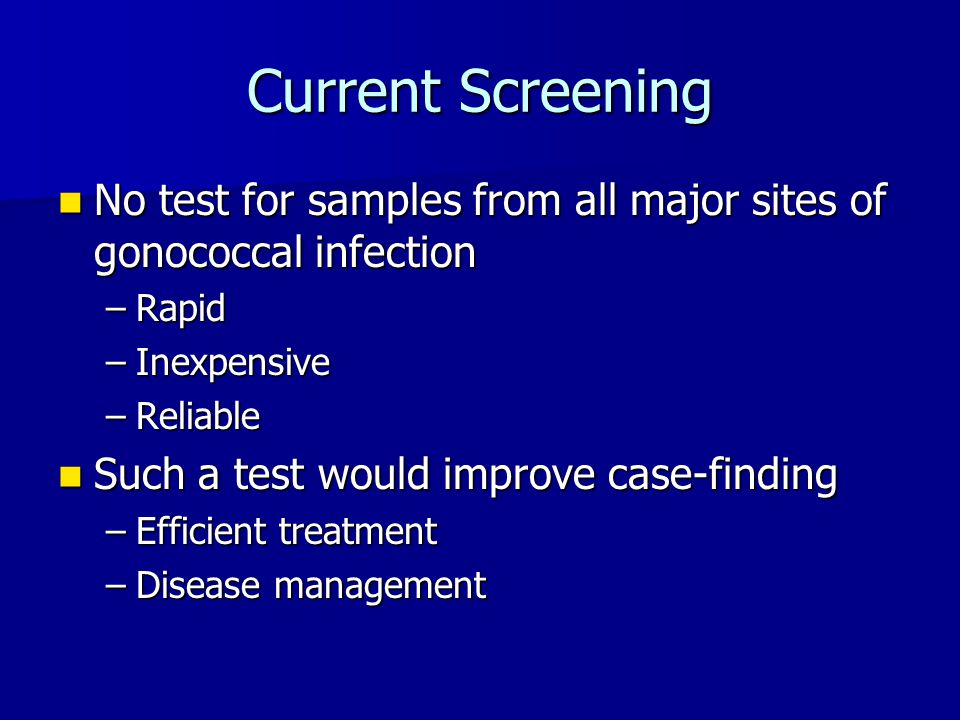

27. Current Screening No test for samples from all major sites of gonococcal infection No test for samples from all major sites of gonococcal infection –Rapid –Inexpensive –Reliable Such a test would improve case-finding Such a test would improve case-finding –Efficient treatment –Disease management

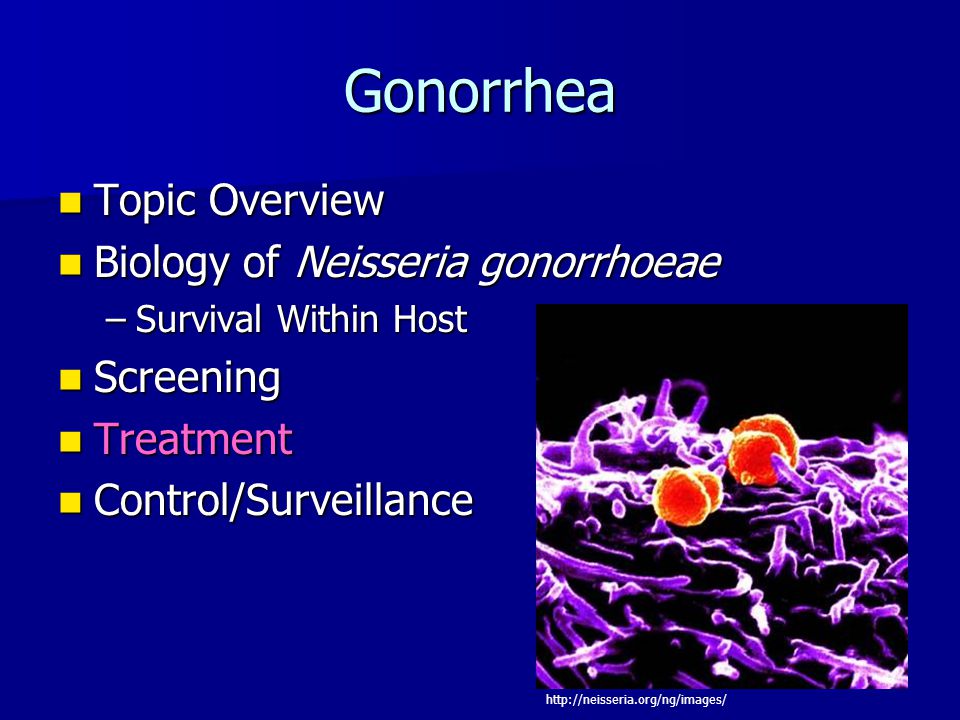

28. Gonorrhea Topic Overview Topic Overview Biology of Neisseria gonorrhoeae Biology of Neisseria gonorrhoeae –Survival Within Host Screening Screening Treatment Treatment Control/Surveillance Control/Surveillance http://neisseria.org/ng/images/

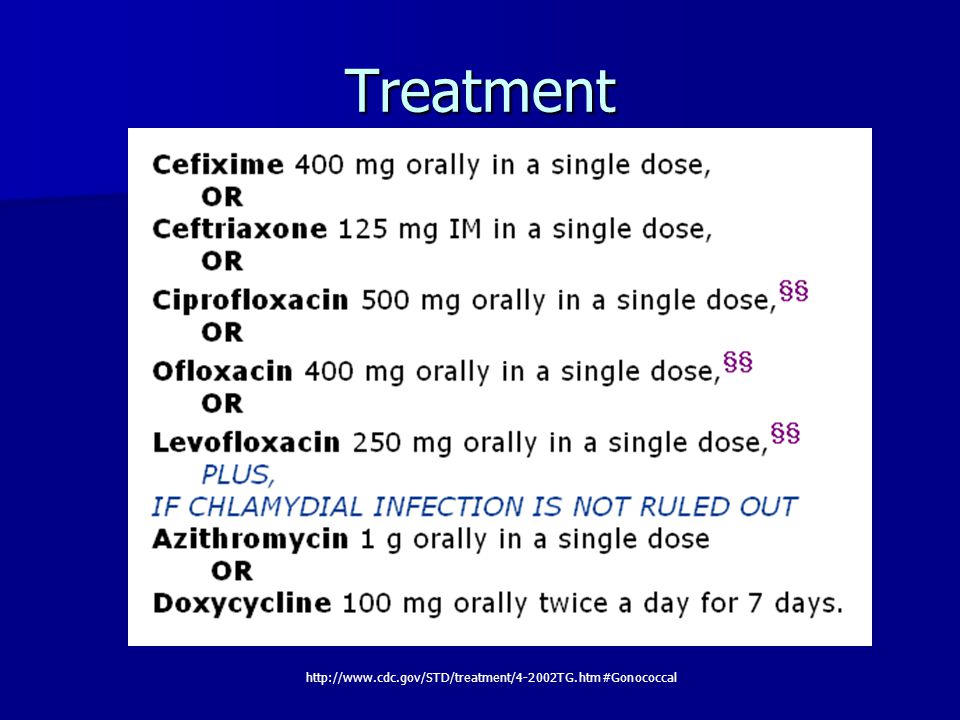

29. Treatment http://www.cdc.gov/STD/treatment/4-2002TG.htm#Gonococcal

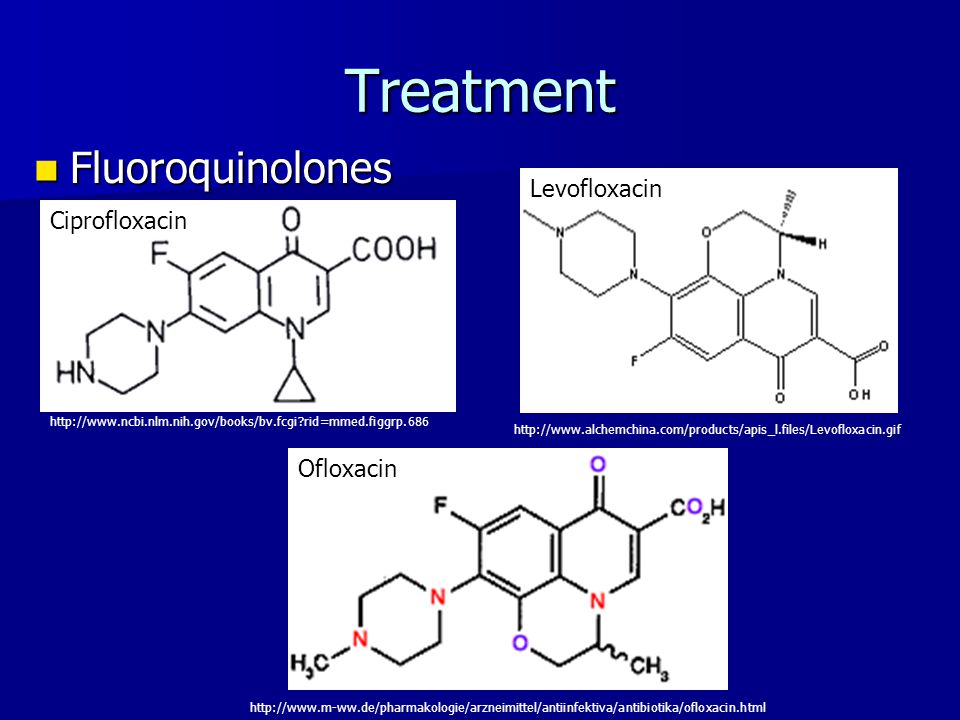

30. Treatment Fluoroquinolones Fluoroquinolones http://www.ncbi.nlm.nih.gov/books/bv.fcgi?rid=mmed.figgrp.686 http://www.m-ww.de/pharmakologie/arzneimittel/antiinfektiva/antibiotika/ofloxacin.html Ofloxacin Ciprofloxacin Levofloxacin http://www.alchemchina.com/products/apis_l.files/Levofloxacin.gif

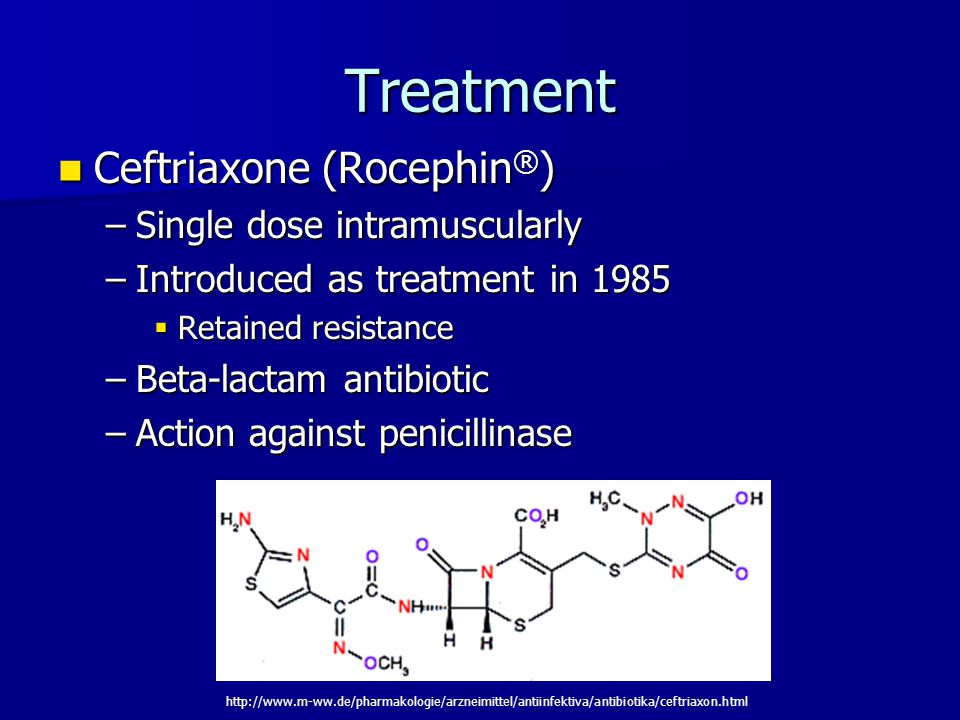

31. Treatment Ceftriaxone (Rocephin ® ) Ceftriaxone (Rocephin ® ) –Single dose intramuscularly –Introduced as treatment in 1985  Retained resistance –Beta-lactam antibiotic –Action against penicillinase http://www.m-ww.de/pharmakologie/arzneimittel/antiinfektiva/antibiotika/ceftriaxon.html

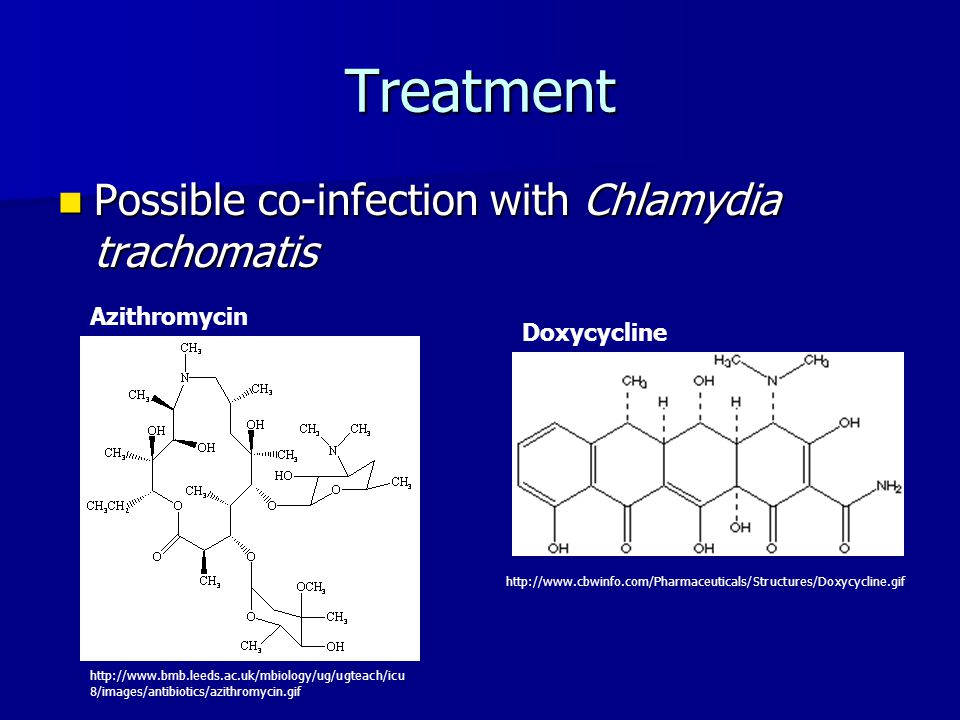

32. Treatment Possible co-infection with Chlamydia trachomatis Possible co-infection with Chlamydia trachomatis Azithromycin Doxycycline http://www.bmb.leeds.ac.uk/mbiology/ug/ugteach/icu 8/images/antibiotics/azithromycin.gif http://www.cbwinfo.com/Pharmaceuticals/Structures/Doxycycline.gif

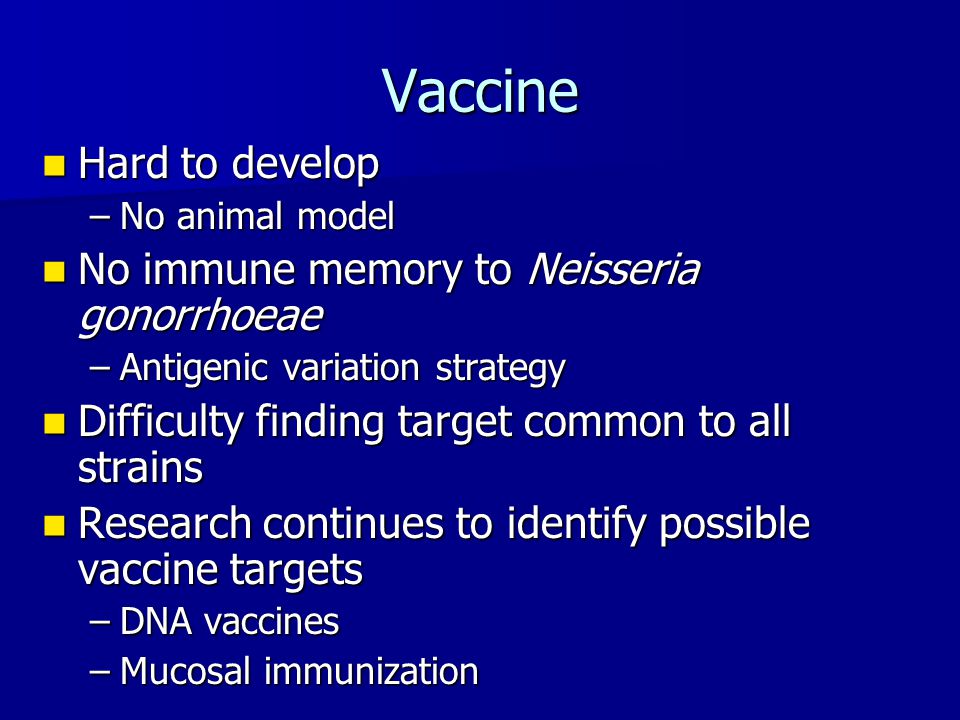

33. Vaccine Hard to develop Hard to develop –No animal model No immune memory to Neisseria gonorrhoeae No immune memory to Neisseria gonorrhoeae –Antigenic variation strategy Difficulty finding target common to all strains Difficulty finding target common to all strains Research continues to identify possible vaccine targets Research continues to identify possible vaccine targets –DNA vaccines –Mucosal immunization

34. Gonorrhea Topic Overview Topic Overview Biology of Neisseria gonorrhoeae Biology of Neisseria gonorrhoeae –Survival Within Host Screening Screening Treatment Treatment Control/Surveillance Control/Surveillance http://www.mediscan.co.uk/cfm/img_coll.cfm?action=sear ch&imageID=020864&collectionID=21&name=Electron%2 0Micrographs&log=nk#

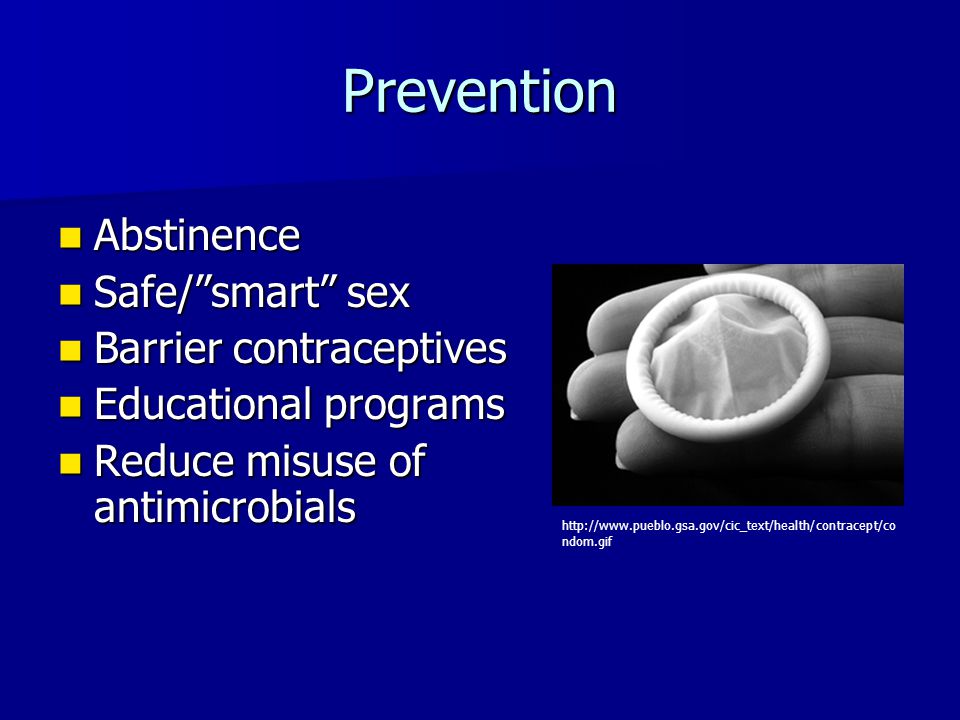

35. Prevention Abstinence Abstinence Safe/”smart” sex Safe/”smart” sex Barrier contraceptives Barrier contraceptives Educational programs Educational programs Reduce misuse of antimicrobials Reduce misuse of antimicrobials http://www.pueblo.gsa.gov/cic_text/health/contracept/co ndom.gif

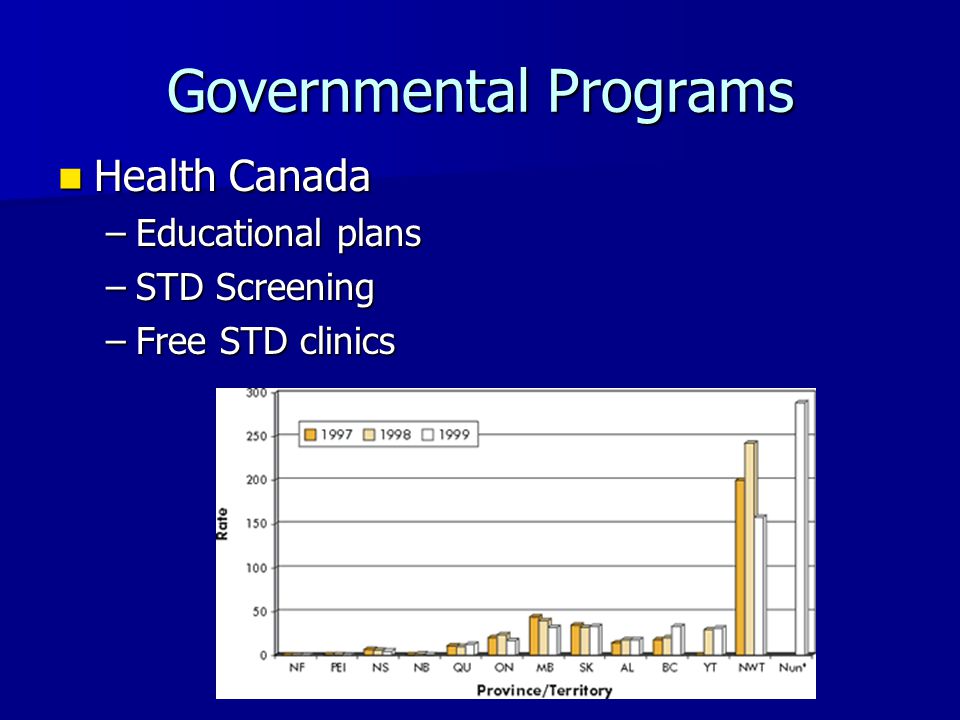

36. Governmental Programs Health Canada Health Canada –Educational plans –STD Screening –Free STD clinics

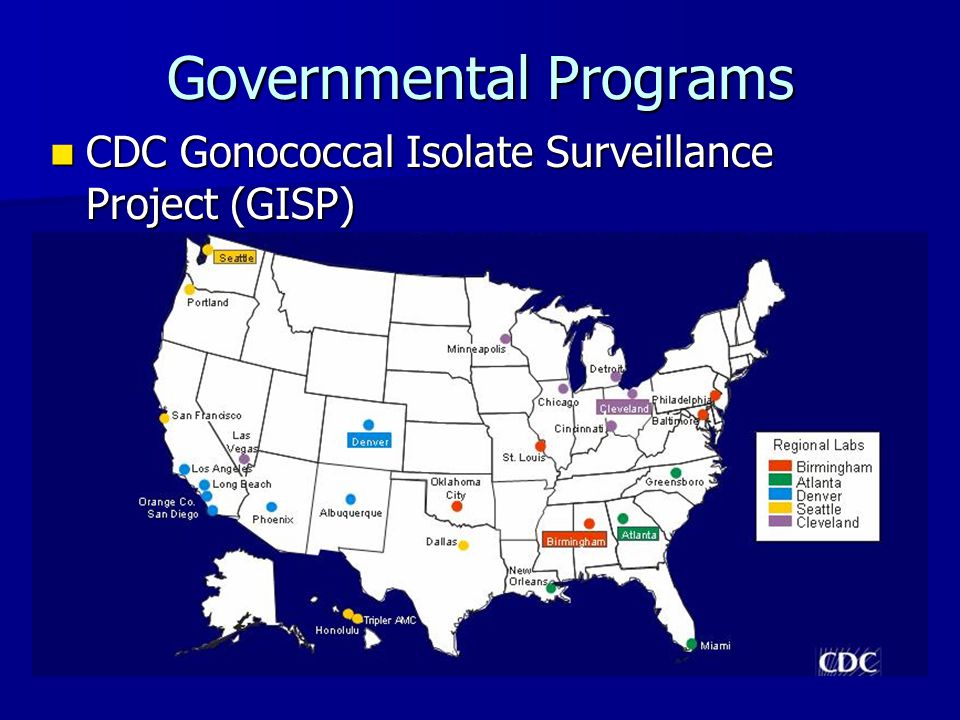

37. Governmental Programs CDC Gonococcal Isolate Surveillance Project (GISP) CDC Gonococcal Isolate Surveillance Project (GISP)

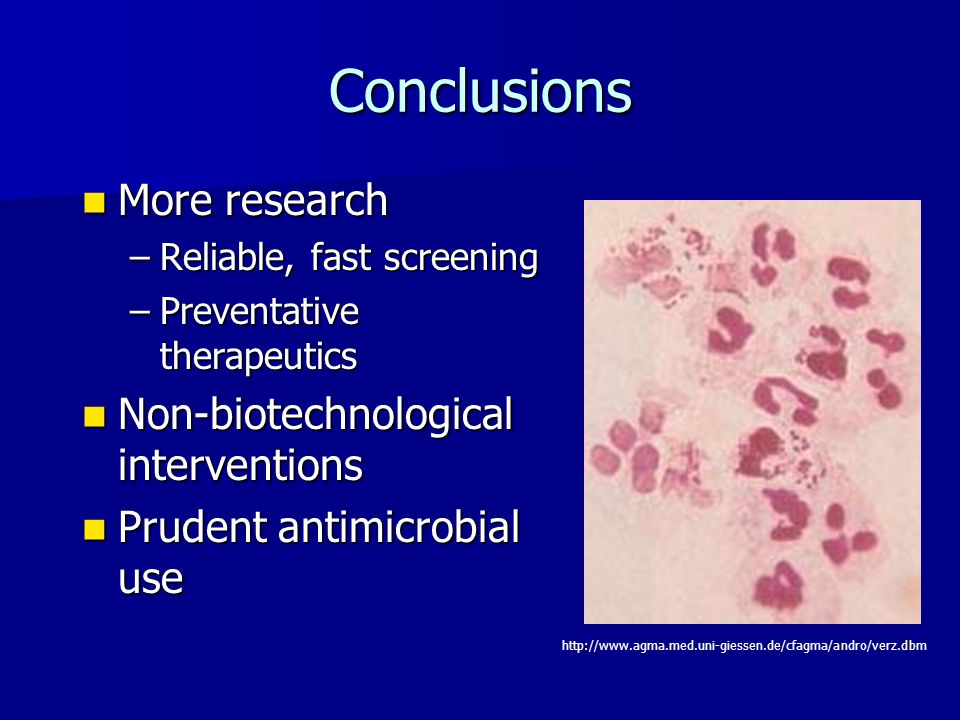

38. Conclusions More research More research –Reliable, fast screening –Preventative therapeutics Non-biotechnological interventions Non-biotechnological interventions Prudent antimicrobial use Prudent antimicrobial use http://www.agma.med.uni-giessen.de/cfagma/andro/verz.dbm

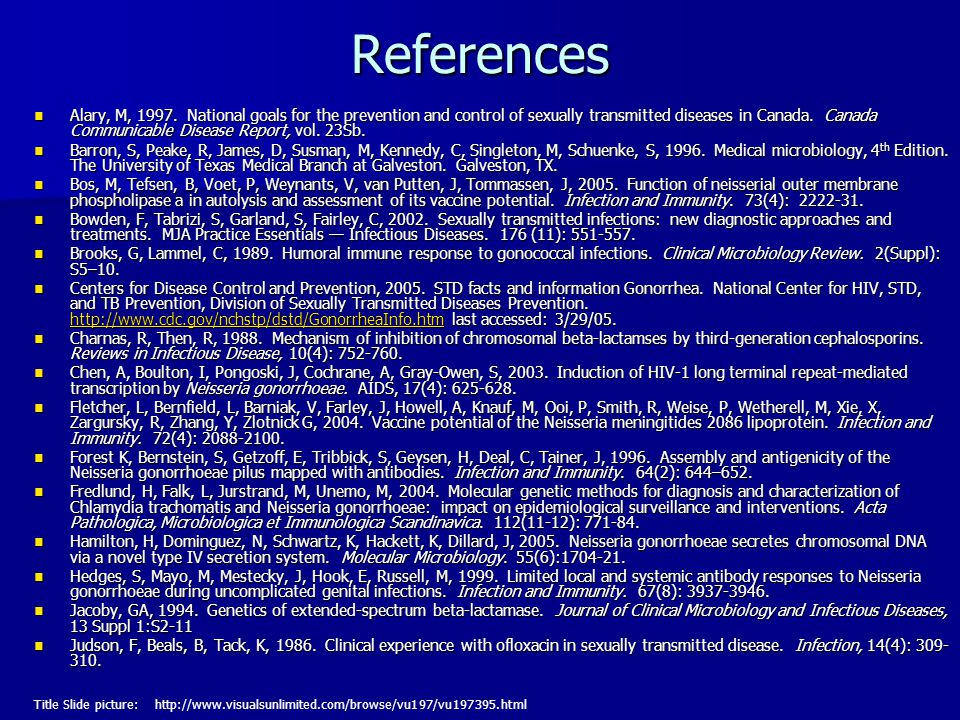

39. References Alary, M, 1997. National goals for the prevention and control of sexually transmitted diseases in Canada. Canada Communicable Disease Report, vol. 23Sb. Alary, M, 1997. National goals for the prevention and control of sexually transmitted diseases in Canada. Canada Communicable Disease Report, vol. 23Sb. Barron, S, Peake, R, James, D, Susman, M, Kennedy, C, Singleton, M, Schuenke, S, 1996. Medical microbiology, 4 th Edition. The University of Texas Medical Branch at Galveston. Galveston, TX. Barron, S, Peake, R, James, D, Susman, M, Kennedy, C, Singleton, M, Schuenke, S, 1996. Medical microbiology, 4 th Edition. The University of Texas Medical Branch at Galveston. Galveston, TX. Bos, M, Tefsen, B, Voet, P, Weynants, V, van Putten, J, Tommassen, J, 2005. Function of neisserial outer membrane phospholipase a in autolysis and assessment of its vaccine potential. Infection and Immunity. 73(4): 2222-31. Bos, M, Tefsen, B, Voet, P, Weynants, V, van Putten, J, Tommassen, J, 2005. Function of neisserial outer membrane phospholipase a in autolysis and assessment of its vaccine potential. Infection and Immunity. 73(4): 2222-31. Bowden, F, Tabrizi, S, Garland, S, Fairley, C, 2002. Sexually transmitted infections: new diagnostic approaches and treatments. MJA Practice Essentials — Infectious Diseases. 176 (11): 551-557. Bowden, F, Tabrizi, S, Garland, S, Fairley, C, 2002. Sexually transmitted infections: new diagnostic approaches and treatments. MJA Practice Essentials — Infectious Diseases. 176 (11): 551-557. Brooks, G, Lammel, C, 1989. Humoral immune response to gonococcal infections. Clinical Microbiology Review. 2(Suppl): S5–10. Brooks, G, Lammel, C, 1989. Humoral immune response to gonococcal infections. Clinical Microbiology Review. 2(Suppl): S5–10. Centers for Disease Control and Prevention, 2005. STD facts and information Gonorrhea. National Center for HIV, STD, and TB Prevention, Division of Sexually Transmitted Diseases Prevention. http://www.cdc.gov/nchstp/dstd/GonorrheaInfo.htm last accessed: 3/29/05. Centers for Disease Control and Prevention, 2005. STD facts and information Gonorrhea. National Center for HIV, STD, and TB Prevention, Division of Sexually Transmitted Diseases Prevention. http://www.cdc.gov/nchstp/dstd/GonorrheaInfo.htm last accessed: 3/29/05. http://www.cdc.gov/nchstp/dstd/GonorrheaInfo.htm Charnas, R, Then, R, 1988. Mechanism of inhibition of chromosomal beta-lactamses by third-generation cephalosporins. Reviews in Infectious Disease, 10(4): 752-760. Charnas, R, Then, R, 1988. Mechanism of inhibition of chromosomal beta-lactamses by third-generation cephalosporins. Reviews in Infectious Disease, 10(4): 752-760. Chen, A, Boulton, I, Pongoski, J, Cochrane, A, Gray-Owen, S, 2003. Induction of HIV-1 long terminal repeat-mediated transcription by Neisseria gonorrhoeae. AIDS, 17(4): 625-628. Chen, A, Boulton, I, Pongoski, J, Cochrane, A, Gray-Owen, S, 2003. Induction of HIV-1 long terminal repeat-mediated transcription by Neisseria gonorrhoeae. AIDS, 17(4): 625-628. Fletcher, L, Bernfield, L, Barniak, V, Farley, J, Howell, A, Knauf, M, Ooi, P, Smith, R, Weise, P, Wetherell, M, Xie, X, Zargursky, R, Zhang, Y, Zlotnick G, 2004. Vaccine potential of the Neisseria meningitides 2086 lipoprotein. Infection and Immunity. 72(4): 2088-2100. Fletcher, L, Bernfield, L, Barniak, V, Farley, J, Howell, A, Knauf, M, Ooi, P, Smith, R, Weise, P, Wetherell, M, Xie, X, Zargursky, R, Zhang, Y, Zlotnick G, 2004. Vaccine potential of the Neisseria meningitides 2086 lipoprotein. Infection and Immunity. 72(4): 2088-2100. Forest K, Bernstein, S, Getzoff, E, Tribbick, S, Geysen, H, Deal, C, Tainer, J, 1996. Assembly and antigenicity of the Neisseria gonorrhoeae pilus mapped with antibodies. Infection and Immunity. 64(2): 644–652. Forest K, Bernstein, S, Getzoff, E, Tribbick, S, Geysen, H, Deal, C, Tainer, J, 1996. Assembly and antigenicity of the Neisseria gonorrhoeae pilus mapped with antibodies. Infection and Immunity. 64(2): 644–652. Fredlund, H, Falk, L, Jurstrand, M, Unemo, M, 2004. Molecular genetic methods for diagnosis and characterization of Chlamydia trachomatis and Neisseria gonorrhoeae: impact on epidemiological surveillance and interventions. Acta Pathologica, Microbiologica et Immunologica Scandinavica. 112(11-12): 771-84. Fredlund, H, Falk, L, Jurstrand, M, Unemo, M, 2004. Molecular genetic methods for diagnosis and characterization of Chlamydia trachomatis and Neisseria gonorrhoeae: impact on epidemiological surveillance and interventions. Acta Pathologica, Microbiologica et Immunologica Scandinavica. 112(11-12): 771-84. Hamilton, H, Dominguez, N, Schwartz, K, Hackett, K, Dillard, J, 2005. Neisseria gonorrhoeae secretes chromosomal DNA via a novel type IV secretion system. Molecular Microbiology. 55(6):1704-21. Hamilton, H, Dominguez, N, Schwartz, K, Hackett, K, Dillard, J, 2005. Neisseria gonorrhoeae secretes chromosomal DNA via a novel type IV secretion system. Molecular Microbiology. 55(6):1704-21. Hedges, S, Mayo, M, Mestecky, J, Hook, E, Russell, M, 1999. Limited local and systemic antibody responses to Neisseria gonorrhoeae during uncomplicated genital infections. Infection and Immunity. 67(8): 3937-3946. Hedges, S, Mayo, M, Mestecky, J, Hook, E, Russell, M, 1999. Limited local and systemic antibody responses to Neisseria gonorrhoeae during uncomplicated genital infections. Infection and Immunity. 67(8): 3937-3946. Jacoby, GA, 1994. Genetics of extended-spectrum beta-lactamase. Journal of Clinical Microbiology and Infectious Diseases, 13 Suppl 1:S2-11 Jacoby, GA, 1994. Genetics of extended-spectrum beta-lactamase. Journal of Clinical Microbiology and Infectious Diseases, 13 Suppl 1:S2-11 Judson, F, Beals, B, Tack, K, 1986. Clinical experience with ofloxacin in sexually transmitted disease. Infection, 14(4): 309- 310. Judson, F, Beals, B, Tack, K, 1986. Clinical experience with ofloxacin in sexually transmitted disease. Infection, 14(4): 309- 310. Title Slide picture: http://www.visualsunlimited.com/browse/vu197/vu197395.html

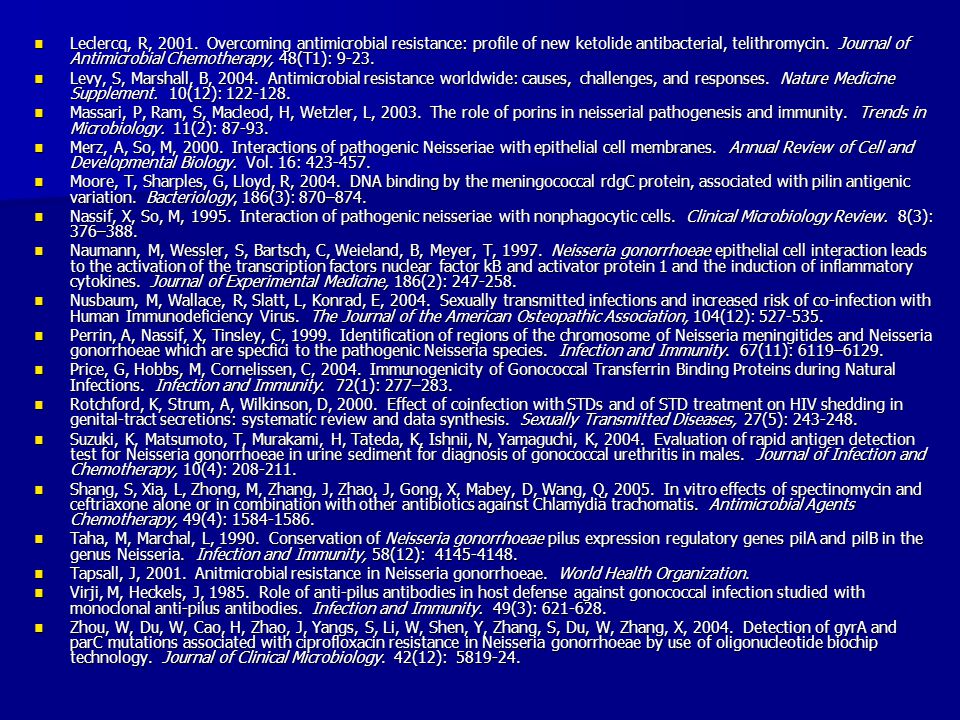

40. Leclercq, R, 2001. Overcoming antimicrobial resistance: profile of new ketolide antibacterial, telithromycin. Journal of Antimicrobial Chemotherapy, 48(T1): 9-23. Leclercq, R, 2001. Overcoming antimicrobial resistance: profile of new ketolide antibacterial, telithromycin. Journal of Antimicrobial Chemotherapy, 48(T1): 9-23. Levy, S, Marshall, B, 2004. Antimicrobial resistance worldwide: causes, challenges, and responses. Nature Medicine Supplement. 10(12): 122-128. Levy, S, Marshall, B, 2004. Antimicrobial resistance worldwide: causes, challenges, and responses. Nature Medicine Supplement. 10(12): 122-128. Massari, P, Ram, S, Macleod, H, Wetzler, L, 2003. The role of porins in neisserial pathogenesis and immunity. Trends in Microbiology. 11(2): 87-93. Massari, P, Ram, S, Macleod, H, Wetzler, L, 2003. The role of porins in neisserial pathogenesis and immunity. Trends in Microbiology. 11(2): 87-93. Merz, A, So, M, 2000. Interactions of pathogenic Neisseriae with epithelial cell membranes. Annual Review of Cell and Developmental Biology. Vol. 16: 423-457. Merz, A, So, M, 2000. Interactions of pathogenic Neisseriae with epithelial cell membranes. Annual Review of Cell and Developmental Biology. Vol. 16: 423-457. Moore, T, Sharples, G, Lloyd, R, 2004. DNA binding by the meningococcal rdgC protein, associated with pilin antigenic variation. Bacteriology, 186(3): 870–874. Moore, T, Sharples, G, Lloyd, R, 2004. DNA binding by the meningococcal rdgC protein, associated with pilin antigenic variation. Bacteriology, 186(3): 870–874. Nassif, X, So, M, 1995. Interaction of pathogenic neisseriae with nonphagocytic cells. Clinical Microbiology Review. 8(3): 376–388. Nassif, X, So, M, 1995. Interaction of pathogenic neisseriae with nonphagocytic cells. Clinical Microbiology Review. 8(3): 376–388. Naumann, M, Wessler, S, Bartsch, C, Weieland, B, Meyer, T, 1997. Neisseria gonorrhoeae epithelial cell interaction leads to the activation of the transcription factors nuclear factor kB and activator protein 1 and the induction of inflammatory cytokines. Journal of Experimental Medicine, 186(2): 247-258. Naumann, M, Wessler, S, Bartsch, C, Weieland, B, Meyer, T, 1997. Neisseria gonorrhoeae epithelial cell interaction leads to the activation of the transcription factors nuclear factor kB and activator protein 1 and the induction of inflammatory cytokines. Journal of Experimental Medicine, 186(2): 247-258. Nusbaum, M, Wallace, R, Slatt, L, Konrad, E, 2004. Sexually transmitted infections and increased risk of co-infection with Human Immunodeficiency Virus. The Journal of the American Osteopathic Association, 104(12): 527-535. Nusbaum, M, Wallace, R, Slatt, L, Konrad, E, 2004. Sexually transmitted infections and increased risk of co-infection with Human Immunodeficiency Virus. The Journal of the American Osteopathic Association, 104(12): 527-535. Perrin, A, Nassif, X, Tinsley, C, 1999. Identification of regions of the chromosome of Neisseria meningitides and Neisseria gonorrhoeae which are specfici to the pathogenic Neisseria species. Infection and Immunity. 67(11): 6119–6129. Perrin, A, Nassif, X, Tinsley, C, 1999. Identification of regions of the chromosome of Neisseria meningitides and Neisseria gonorrhoeae which are specfici to the pathogenic Neisseria species. Infection and Immunity. 67(11): 6119–6129. Price, G, Hobbs, M, Cornelissen, C, 2004. Immunogenicity of Gonococcal Transferrin Binding Proteins during Natural Infections. Infection and Immunity. 72(1): 277–283. Price, G, Hobbs, M, Cornelissen, C, 2004. Immunogenicity of Gonococcal Transferrin Binding Proteins during Natural Infections. Infection and Immunity. 72(1): 277–283. Rotchford, K, Strum, A, Wilkinson, D, 2000. Effect of coinfection with STDs and of STD treatment on HIV shedding in genital-tract secretions: systematic review and data synthesis. Sexually Transmitted Diseases, 27(5): 243-248. Rotchford, K, Strum, A, Wilkinson, D, 2000. Effect of coinfection with STDs and of STD treatment on HIV shedding in genital-tract secretions: systematic review and data synthesis. Sexually Transmitted Diseases, 27(5): 243-248. Suzuki, K, Matsumoto, T, Murakami, H, Tateda, K, Ishnii, N, Yamaguchi, K, 2004. Evaluation of rapid antigen detection test for Neisseria gonorrhoeae in urine sediment for diagnosis of gonococcal urethritis in males. Journal of Infection and Chemotherapy, 10(4): 208-211. Suzuki, K, Matsumoto, T, Murakami, H, Tateda, K, Ishnii, N, Yamaguchi, K, 2004. Evaluation of rapid antigen detection test for Neisseria gonorrhoeae in urine sediment for diagnosis of gonococcal urethritis in males. Journal of Infection and Chemotherapy, 10(4): 208-211. Shang, S, Xia, L, Zhong, M, Zhang, J, Zhao, J, Gong, X, Mabey, D, Wang, Q, 2005. In vitro effects of spectinomycin and ceftriaxone alone or in combination with other antibiotics against Chlamydia trachomatis. Antimicrobial Agents Chemotherapy, 49(4): 1584-1586. Shang, S, Xia, L, Zhong, M, Zhang, J, Zhao, J, Gong, X, Mabey, D, Wang, Q, 2005. In vitro effects of spectinomycin and ceftriaxone alone or in combination with other antibiotics against Chlamydia trachomatis. Antimicrobial Agents Chemotherapy, 49(4): 1584-1586. Taha, M, Marchal, L, 1990. Conservation of Neisseria gonorrhoeae pilus expression regulatory genes pilA and pilB in the genus Neisseria. Infection and Immunity, 58(12): 4145-4148. Taha, M, Marchal, L, 1990. Conservation of Neisseria gonorrhoeae pilus expression regulatory genes pilA and pilB in the genus Neisseria. Infection and Immunity, 58(12): 4145-4148. Tapsall, J, 2001. Anitmicrobial resistance in Neisseria gonorrhoeae. World Health Organization. Tapsall, J, 2001. Anitmicrobial resistance in Neisseria gonorrhoeae. World Health Organization. Virji, M, Heckels, J, 1985. Role of anti-pilus antibodies in host defense against gonococcal infection studied with monoclonal anti-pilus antibodies. Infection and Immunity. 49(3): 621-628. Virji, M, Heckels, J, 1985. Role of anti-pilus antibodies in host defense against gonococcal infection studied with monoclonal anti-pilus antibodies. Infection and Immunity. 49(3): 621-628. Zhou, W, Du, W, Cao, H, Zhao, J, Yangs, S, Li, W, Shen, Y, Zhang, S, Du, W, Zhang, X, 2004. Detection of gyrA and parC mutations associated with ciprofloxacin resistance in Neisseria gonorrhoeae by use of oligonucleotide biochip technology. Journal of Clinical Microbiology. 42(12): 5819-24. Zhou, W, Du, W, Cao, H, Zhao, J, Yangs, S, Li, W, Shen, Y, Zhang, S, Du, W, Zhang, X, 2004. Detection of gyrA and parC mutations associated with ciprofloxacin resistance in Neisseria gonorrhoeae by use of oligonucleotide biochip technology. Journal of Clinical Microbiology. 42(12): 5819-24.
