Overview of AspectJ Aspect Oriented Software Development Seminar Technion presented by Oren Mishali.

Similar presentations


Presentation on theme: "Overview of AspectJ Aspect Oriented Software Development Seminar Technion presented by Oren Mishali."— Presentation transcript:

1 Overview of AspectJ Aspect Oriented Software Development Seminar Technion presented by Oren Mishali

2 Aspect Oriented Programming A reminder …  During the life cycle of a software system, we are encountered with crosscutting concerns that span multiple modules.  e.g. tracing, caching …  Attempt to implement them in a traditional way (OOP) leads to scattering & tangling.  AOP suggests the separation of each concern into unit of modularization – aspect.

3 Our simple banking system  While developing, we want to trace each public method call.  Solution without AspectJ:  Look for public mehod calls and insert printing before the call. Account - balance:float +deposit(float) +withdraw(float) Client Clerk * * >

4 AspectJ solution aspect PublicTracing { pointcut publicCalls() : call ( public *.* (..) ); before() : publicCalls() { System.out.println( “ Calling public method ” ); } PublicTracing.java  ajc *.java  java BankingSystem Calling public method … … … … … … …… … … … … … …

5 AspectJ  General-purpose, aspect oriented extension to java.  Every valid java program is also a valid AspectJ program.  With AspectJ:  You implement the core concerns using java.  You use the extensions provided to implement the aspects.  You weave them together with ajc (no need for javac).  May 25, 2004 - AspectJ 1.2 released.

6 Dynamic crosscuting  AspectJ enables us to define events in the program flow and then add an advice at those events.  This capability is called dynamic crosscutting  Keywords: join point, pointcut, advice.  Is it possible to add an advice before the execution of a while block ?  Or before the execution of a method?

7 Join points  Join point is an event in the execution of a program.  With well defined start point and end point. e.g. execution of a for block, method call, static initialization of a class, execution of a catch block …  Exposed join points are subset of all possible join points that AspectJ exposes to us.  In practice it means that we can only add advice at exposed join points.  So what are they?

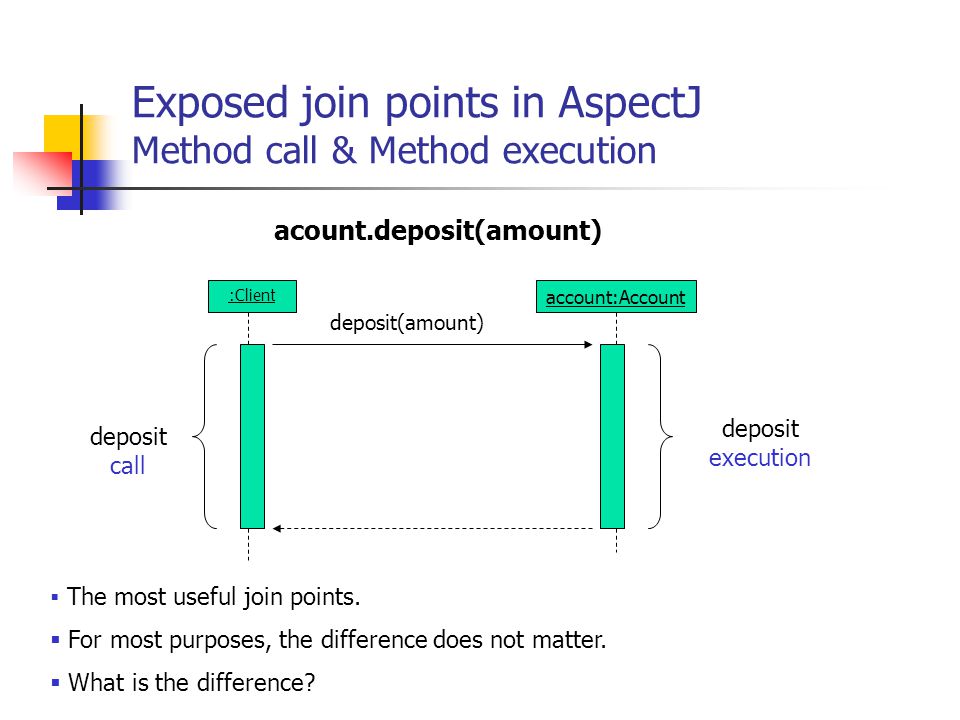

8 Exposed join points in AspectJ Method call & Method execution acount.deposit(amount) :Client account:Account deposit execution deposit call  The most useful join points.  For most purposes, the difference does not matter.  What is the difference? deposit(amount)

9 Exposed join points in AspectJ All the rest …  Constructor call & execution  Field read & write access ( Except for local or const )  Execution of a catch block  Static initialization of a class  Object initialization & pre-initialization  Execution of an advice ( Advise an advice ? ) Is it possible to add an advice before the execution of a while block ?

10 Pointcuts  Join point is a concept.  Pointcut is a syntactic construct that define a set of join points.  Suppose we want to trace each execution of a catch block that handles exception of type AccountException: before() : handler(AccountException) { System.out.println( “ Before execution of catch block ” ); }  Or: pointcut accountExceptionHandler() : handler(AccountException); before() : accountExceptionHandler() { System.out.println( “ Before execution of catch block ” ); } Anonymous pointcut Named pointcut

11 Pointcuts (cont.)  In same manner, a pointcut syntax exists for each kind of a join point.  E.g. call( pattern ), execution( pattern ), set( pattern ) …  Use *, +,.. wildcards to define a common pattern.  Use operators to create complex pointcuts:  ! p - each join point that is not defined by pointcut p.  p1 || p2 – each join point that is defined by either p1 or p2.  p1 && p2 – each join point that is defined by both p1 and p2.  E.g. set(private float Account.balance) && get(private float Account.balance) set(private float Account.balance) || get(private float Account.balance)

12 More primitive pointcuts …  Some join points have arguments:  Method and constructor join points.  Execution of a catch block ( handled exception ).  Field write access ( new value to be set ).  Suppose we want to trace each join point that has one argument of type String.  We can do that using args( pattern ) primitive pointcut: before() : args( String ) { System.out.println( “ Before one String parameter ” ); }

13 More primitive pointcuts …  Suppose we want to trace each call to Account.deposit(float) made by a Clerk object but not by a Client object.  call( public void Account.deposit(float) ) ?  this( Type ) pointcut defines all join points where this-object is subtype of Type including Type itself. before() : call( public void Account.deposit(float) ) && this ( Clerk ) { System.out.println( “ Clerk object calls Account.deposit() ” ); }  target( Type ) is similar but based on the target object. call( * Account+.*(..) ) == target( Account ) ?

14 Passing context from join point to advice  Advice often needs some information about the advised join point. (context)  E.g. advice on a method call join point wants to print the caller object (this), the called object (target), or the method arguments.  A pointcut may exposes arguments/this-object/target- object from a join point. pointcut withdrawOperations(Client client, Account account, float amount) : call( public void Acount.withdraw( float ) ) && this( client ) && target( account ) && args( amount ) ;

15 Advice before() advice  Logic - permit withdraw only if Acount.balance >= amount. before( Client client, Account account, float amount ) throws AccountException : withdrawOperations( client, account, amount ) { if ( account.balance() < amount ) { client.send( “ Please contact you bank office ” ); account.block(true); throw new AccountException(); } }

16 Advice around() advice  Logic – if amount > Account.balance, withdraw balance. void around( Client client, Account account, float amount ) throws AccountException: withdrawOperations( client, account, amount) { if ( amount < account.balance() ) proceed( client, account, amount); else proceed( client, account, account.balance() ); }  around() advice executes instead of the join point.  You must specify a return value.

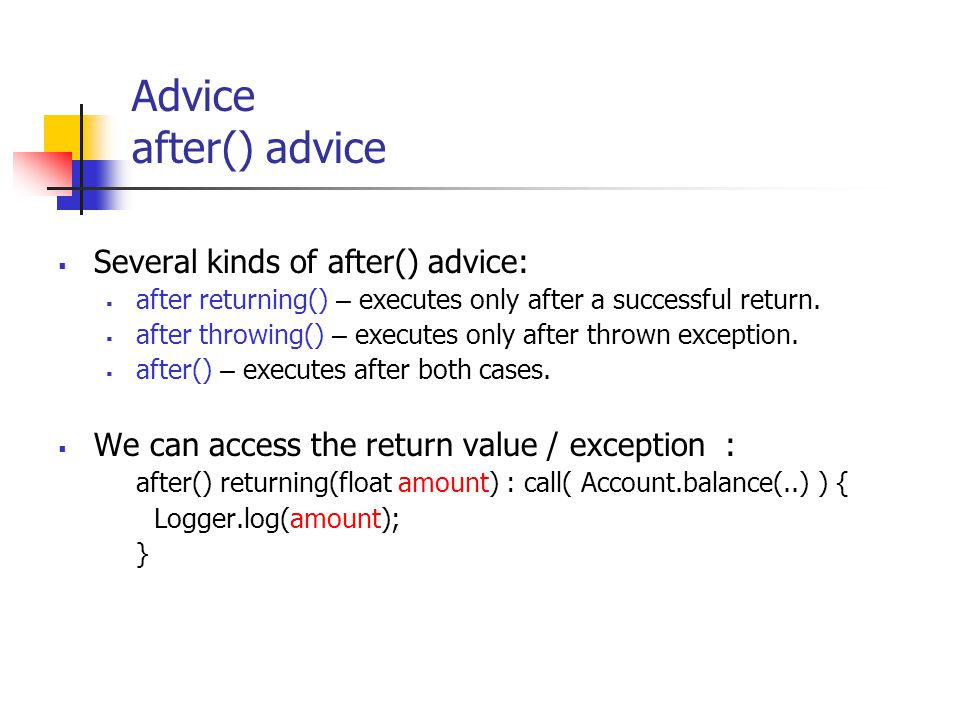

17 Advice after() advice  Several kinds of after() advice:  after returning() – executes only after a successful return.  after throwing() – executes only after thrown exception.  after() – executes after both cases.  We can access the return value / exception : after() returning(float amount) : call( Account.balance(..) ) { Logger.log(amount); }

18 Aspect  Is the basic unit of modularization for crosscutting concern in AspectJ.  Can includes advice, pointcuts, introductions and compile-time declarations.  An aspect is like a class:  Can include data members and methods.  Can have access specifier.  Can be declared as abstract.  Can be embedded inside classes and interfaces.  An aspect is not a class:  Cannot be directly instantiated with new.  Instantiation is done by the system. Singleton by default.  Cannot inherit from concrete aspects.  Can have a privileged access specifier.  Gives it access to the private member of the class it is crosscutting.

19 Static crosscutting  Is modifying the static structure of the program or its compile-time behavior.  Member introduction.  Adding classes fields or methods.  Type-hierarchy modification.  Adding classes interfaces or a super class.  Compile-time errors and warnings.  Based on certain usage pattern.

20 Static crosscutting Member introduction  Suppose we want to allow deposit only if it is higher than last deposit.  We need lastDeposit field. Where? aspect DepositAspect { private float Account.lastDeposit = 0; // private to the aspect, not to Account. void around( Account account, float amount ) : execution ( void Account.deposit(float) ) && args( amount ) &&this(account) { if ( amount > account.lastDeposit ) { proceed( account, amount ); account.lastDeposit = amount; } } }

21 More on AspectJ: cflow() and cflowbelow() pointcuts :Client:Account:Database withdraw(amount) confirm(amount) Account.withdraw( amount )  The program fails in the marked area.  should we trace using execution(Database.confirm(float)) ?  cflow( pointcut ) Defines all join points that occur in the flow of the join points defined by pointcut including the pointcut join points.  cflowbelow( pointcut ) Defines all join points that occur in the flow of the join points defined by pointcut excluding the pointcut join points.

22 More on AspectJ: clflow() & cflowbelow() pointcuts :Client:Account:Database withdraw(amount) confirm(amount) Account.withdraw( amount )  The program fails in the marked area.  should we trace using execution(Database.confirm(float)) ?  cflow( pointcut ) Defines all join points that occur in the flow of the join points defined by pointcut including the pointcut join points.  cflowbelow( pointcut ) Defines all join points that occur in the flow of the join points defined by pointcut excluding the pointcut join points.  cflow( call(Account.withdraw(float)) && this(Client) )

23 More on AspectJ: clflow() & cflowbelow() pointcuts :Client:Account:Database withdraw(amount) confirm(amount) Account.withdraw( amount )  The program fails in the marked area.  should we trace using execution(Database.confirm(float)) ?  cflow( pointcut ) Defines all join points that occur in the flow of the join points defined by pointcut including the pointcut join points.  cflowbelow( pointcut ) Defines all join points that occur in the flow of the join points defined by pointcut excluding the pointcut join points.  cflow( call(Account.withdraw(float)) && this(Client) ) && execution( Database.confirm(float) )

24 More on AspectJ: clflow() & cflowbelow() pointcuts :Client:Account:Database withdraw(amount) confirm(amount) Account.withdraw( amount )  cflowbelow( call(Account.withdraw(float)) && this(Client) )  The program fails in the marked area.  should we trace using execution(Database.confirm(float)) ?  cflow( pointcut ) Defines all join points that occur in the flow of the join points defined by pointcut including the pointcut join points.  cflowbelow( pointcut ) Defines all join points that occur in the flow of the join points defined by pointcut excluding the pointcut join points.  cflow( call(Account.withdraw(float)) && this(Client) ) && execution( Database.confirm(float) )

25 More on AspectJ clflow() & cflowbelow() pointcuts :Client:Account:Database withdraw(amount) confirm(amount) Account.withdraw( amount )  The program fails in the marked area.  should we trace using execution(Database.confirm(float)) ?  cflow( pointcut ) Defines all join points that occur in the flow of the join points defined by pointcut including the pointcut join points.  cflowbelow( pointcut ) Defines all join points that occur in the flow of the join points defined by pointcut excluding the pointcut join points.  cflowbelow( call(Account.withdraw(float)) && this(Client) ) && execution(Database.confirm(float))  cflow( call(Account.withdraw(float)) && this(Client) ) && execution( Database.confirm(float) )

26 More on AspectJ thisJoinPoint Special reference variable that contains static and dynamic information of a join point. May be used by an advice. Usage involves run-time creation overhead. Use thisJoinPointStaticPart when only static information is necessary. When possible, prefer usage of args() this() and target() to collect dynamic information.

27 More on AspectJ Advice precedence Often, several advices may advise the same join point in the same place. What is the order of execution? Precedence of such advices in a single aspect is according to their lexical appearance. declare precedence construct should be used when order of execution is important among different aspects. declare precedence : FirstAspect, SecondAspect; specifies that advices of FirstAspect take higher precedence.

28 The end …
