1. 5/21/2015Disinfection1 Disinfection: Microbiology and Chemistry J(Hans) van Leeuwen

2. Disinfection2 Introduction Need for disinfection Alternative disinfectants Disinfection kinetics Disinfectant chemistry

3. Disinfection3 Topics of Discussion Diseases borne by water Comparison of disinfectants The Ct concept

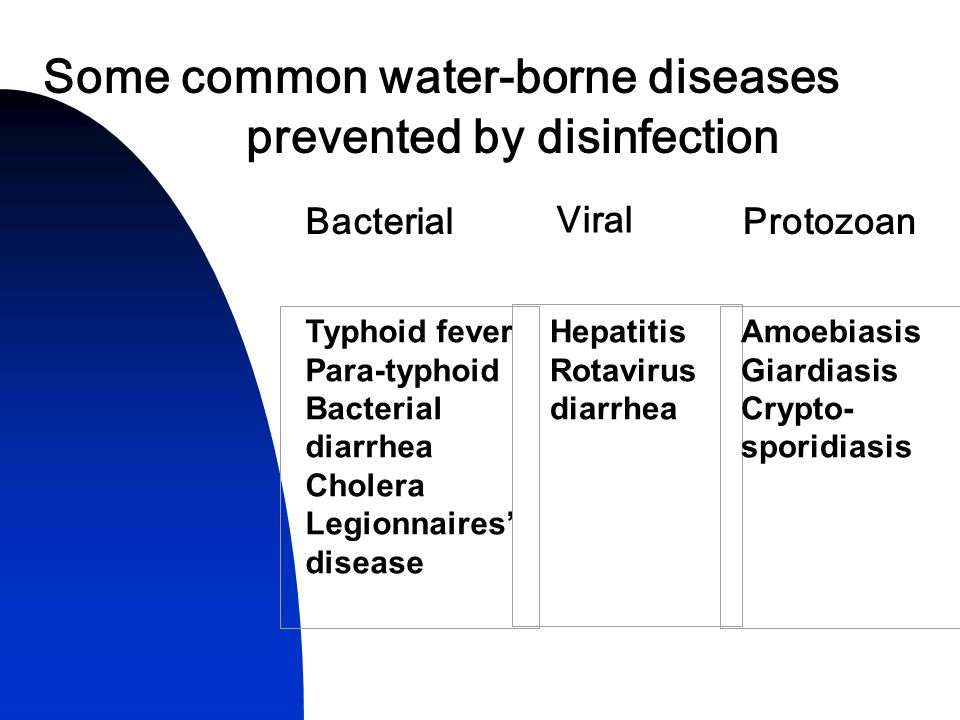

4. Disinfection4 Some common water-borne diseases prevented by disinfection Bacterial Viral Protozoan Typhoid fever Para-typhoid Bacterial diarrhea Cholera Legionnaires’ disease Hepatitis Rotavirus diarrhea Amoebiasis Giardiasis Crypto- sporidiasis

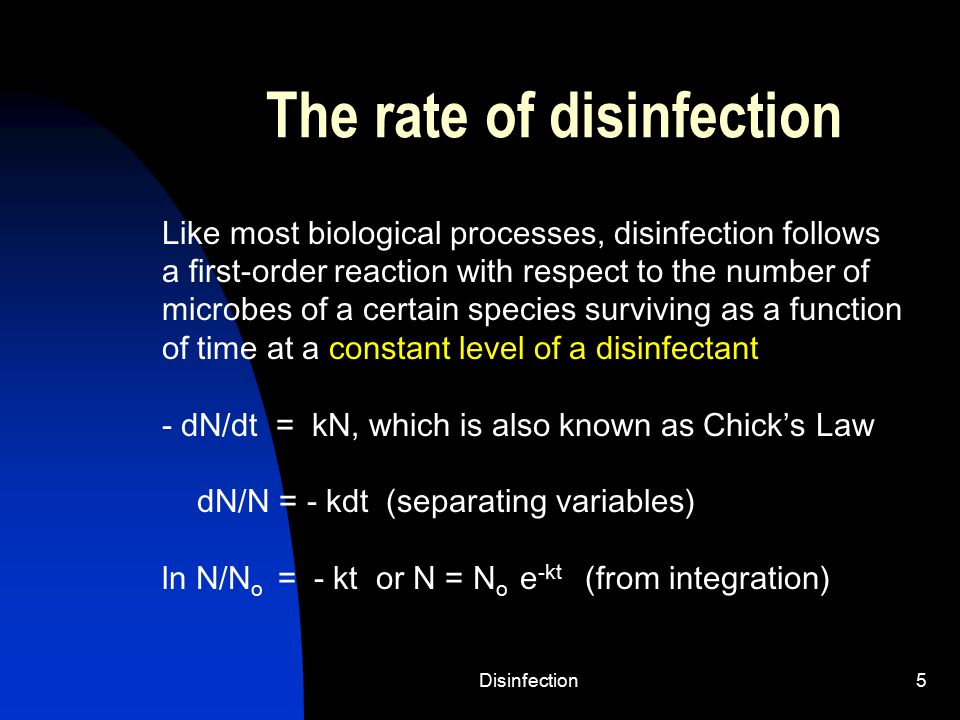

5. The rate of disinfection Disinfection5 Like most biological processes, disinfection follows a first-order reaction with respect to the number of microbes of a certain species surviving as a function of time at a constant level of a disinfectant - dN/dt = kN, which is also known as Chick’s Law dN/N = - kdt (separating variables) ln N/N o = - kt or N = N o e -kt (from integration)

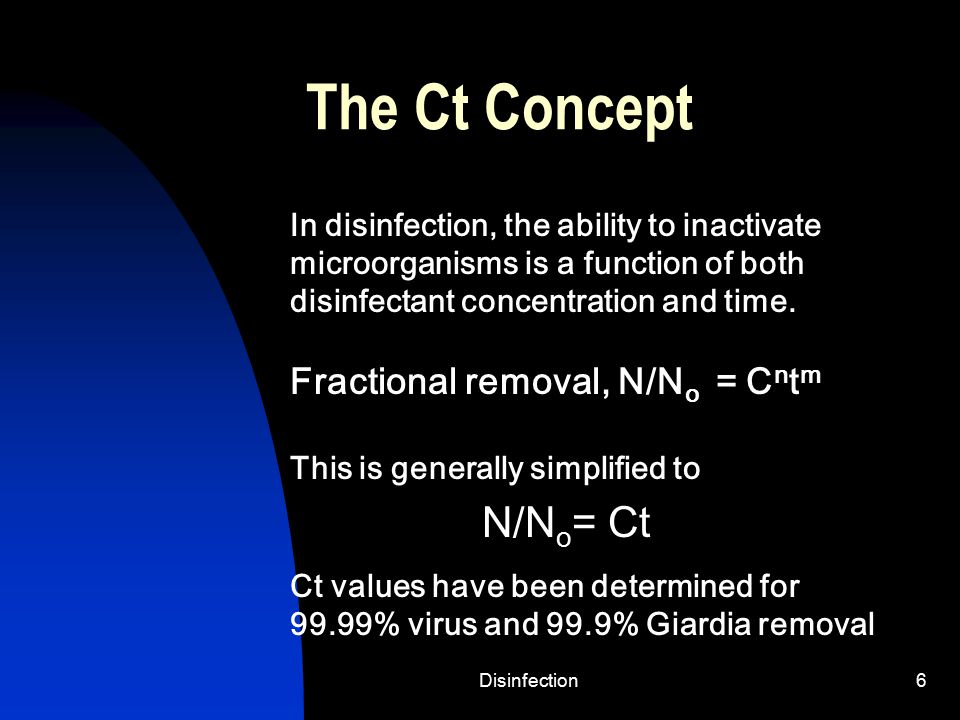

6. Disinfection6 The Ct Concept In disinfection, the ability to inactivate microorganisms is a function of both disinfectant concentration and time. Fractional removal, N/N o = C n t m This is generally simplified to N/N o = Ct Ct values have been determined for 99.99% virus and 99.9% Giardia removal

7. Disinfection7

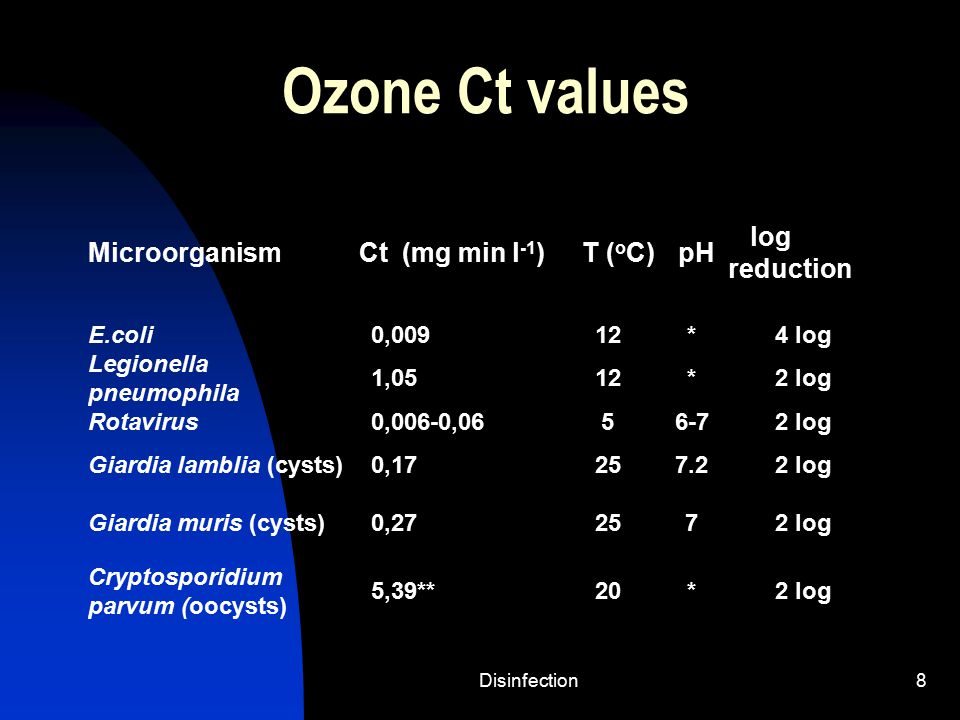

8. Ozone Ct values Disinfection8 Microorganism Ct (mg min l -1 ) T ( o C) pH log reduction E.coli 0,00912*4 log Legionella pneumophila 1,0512*2 log Rotavirus 0,006-0,0656-72 log Giardia lamblia (cysts) 0,17257.22 log Giardia muris (cysts) 0,272572 log Cryptosporidium parvum (oocysts) 5,39**20*2 log

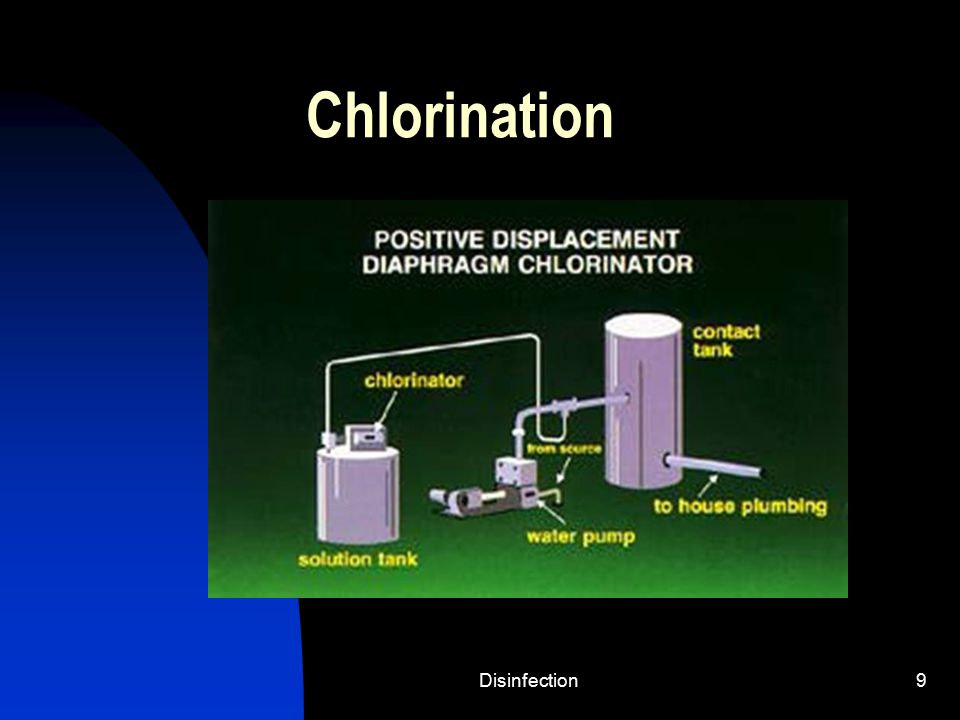

9. Disinfection9 Chlorination

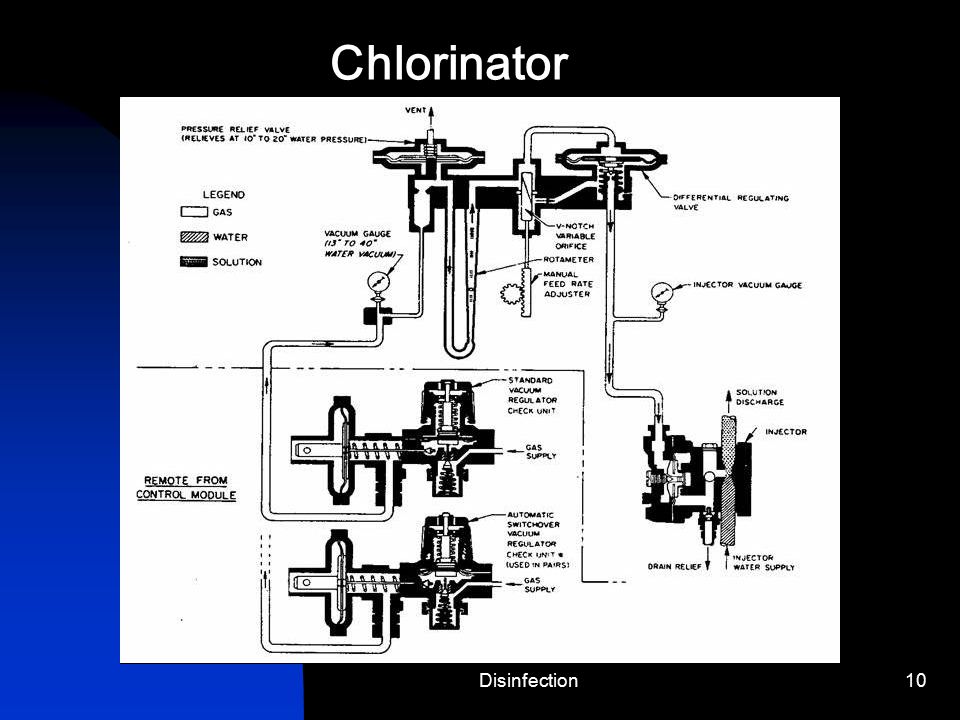

10. Disinfection10 Chlorinator

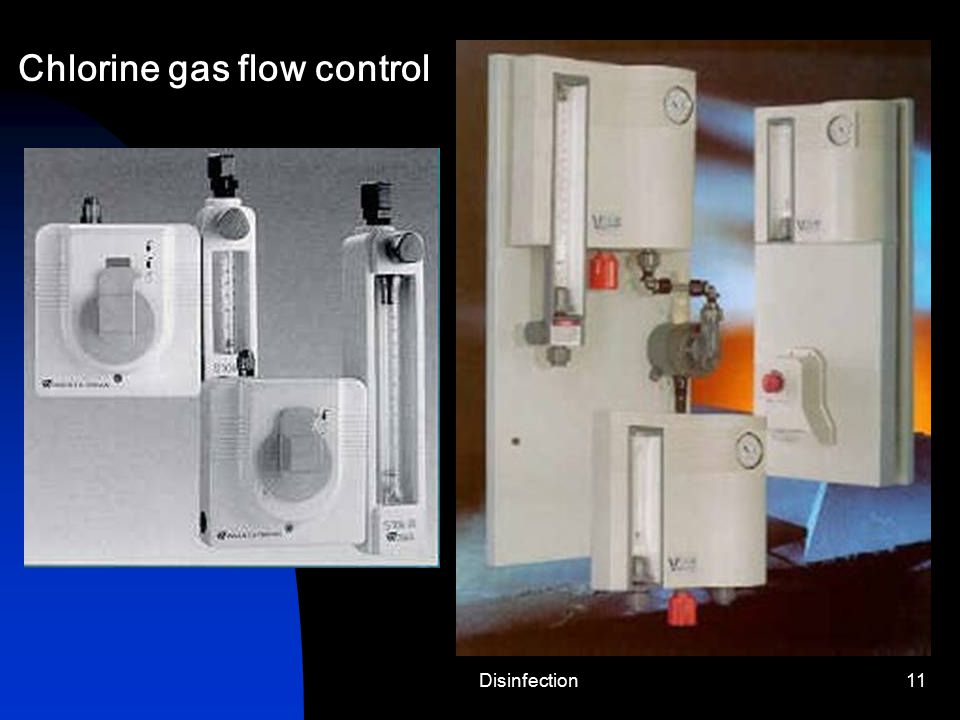

11. Disinfection11 Chlorine gas flow control

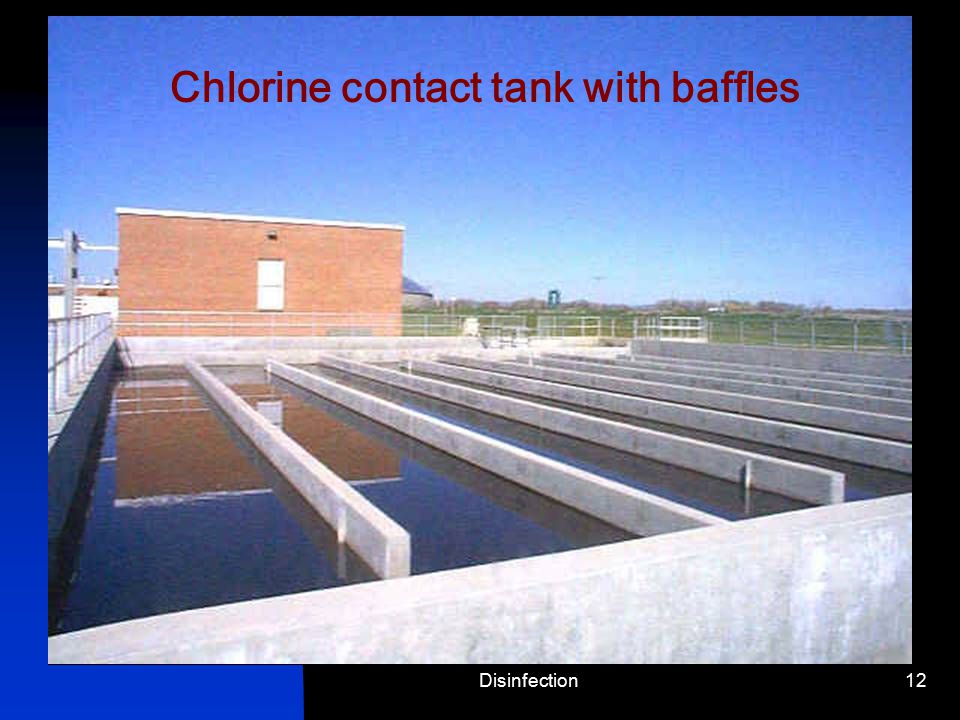

12. Disinfection12 Chlorine contact tank with baffles

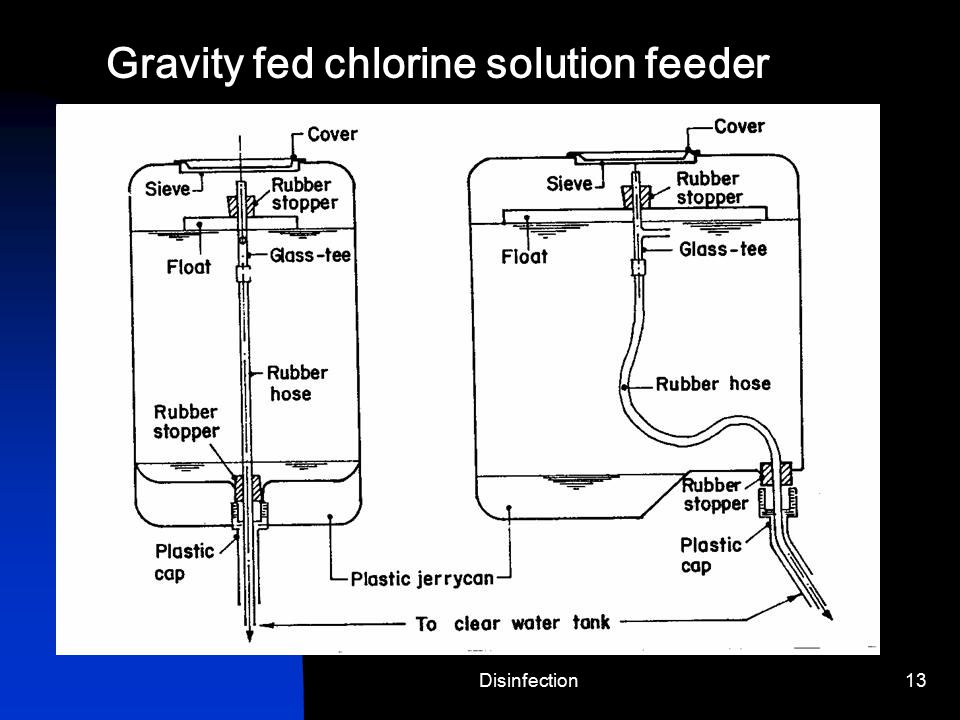

13. Disinfection13 Gravity fed chlorine solution feeder

14. Disinfection14 Gravity fed chlorine solution feeder

15. Disinfection15

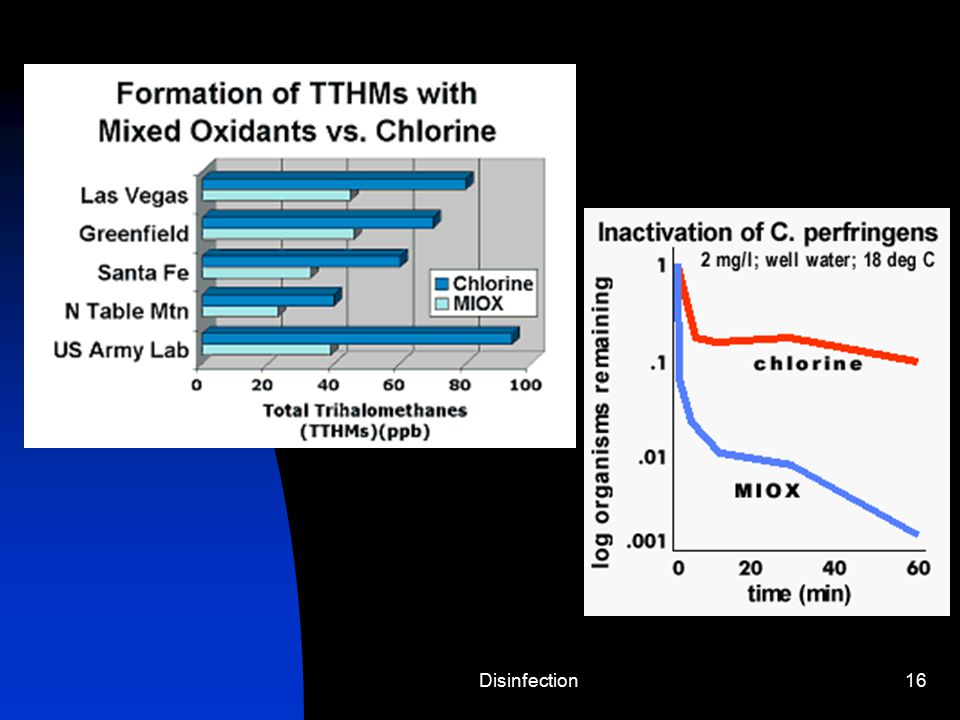

16. Disinfection16

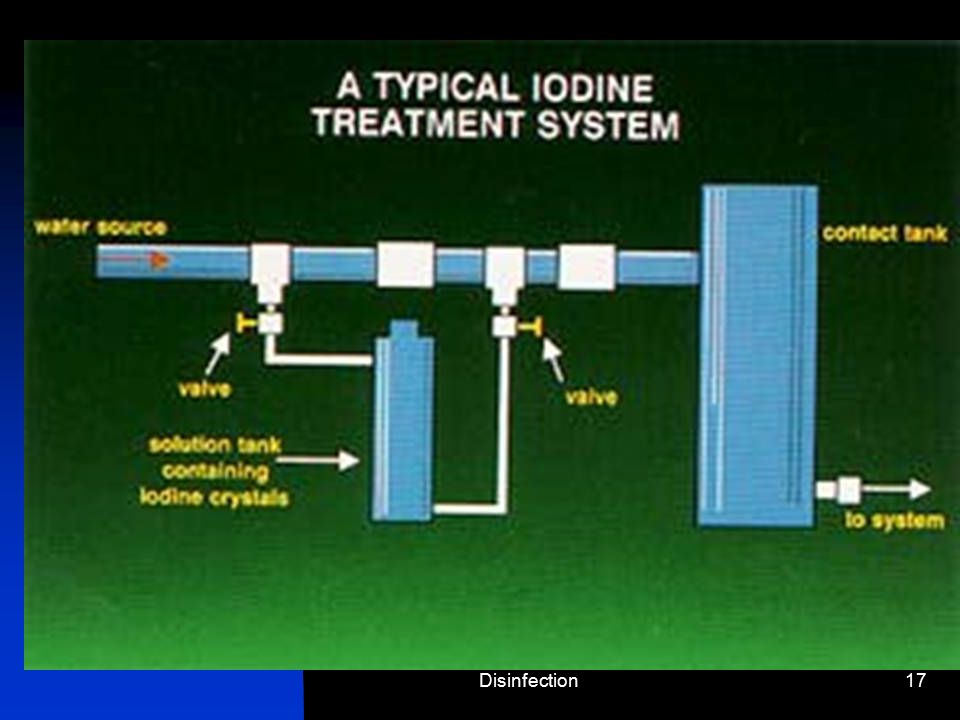

17. Disinfection17

18. Disinfection18 Ultraviolet Irradiation

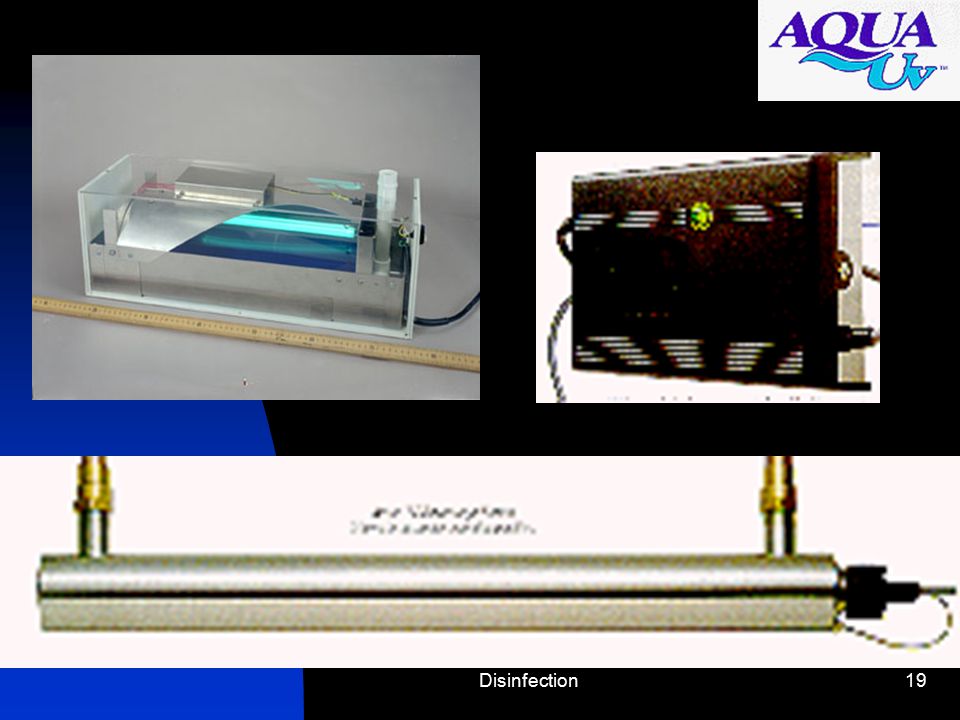

19. Disinfection19

20. Disinfection20

21. Disinfection21 Simple Solar Disinfection

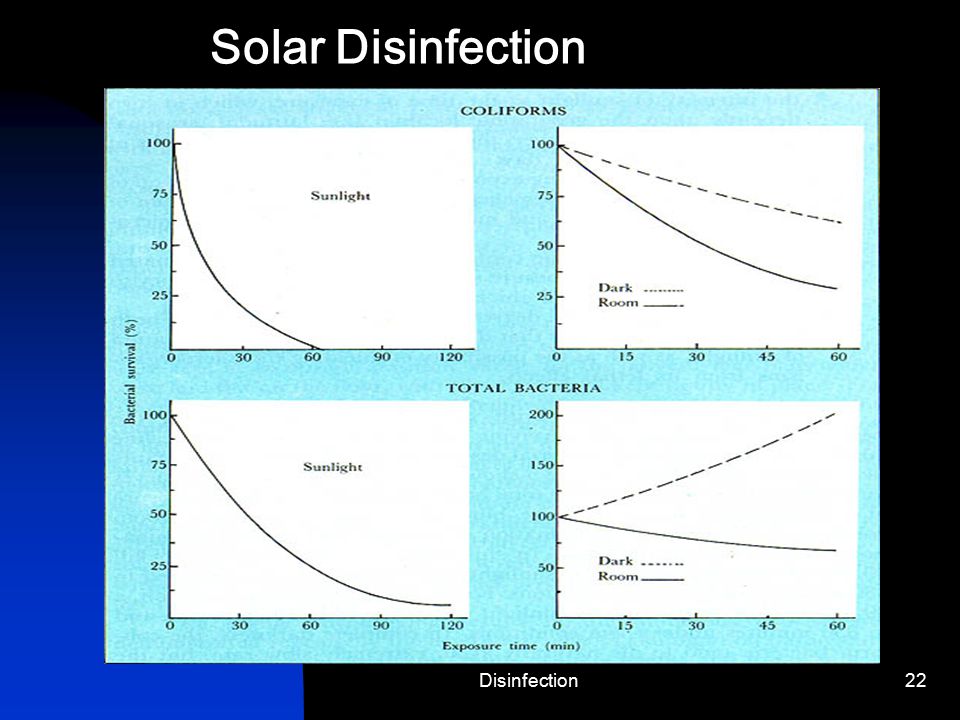

22. Disinfection22 Solar Disinfection

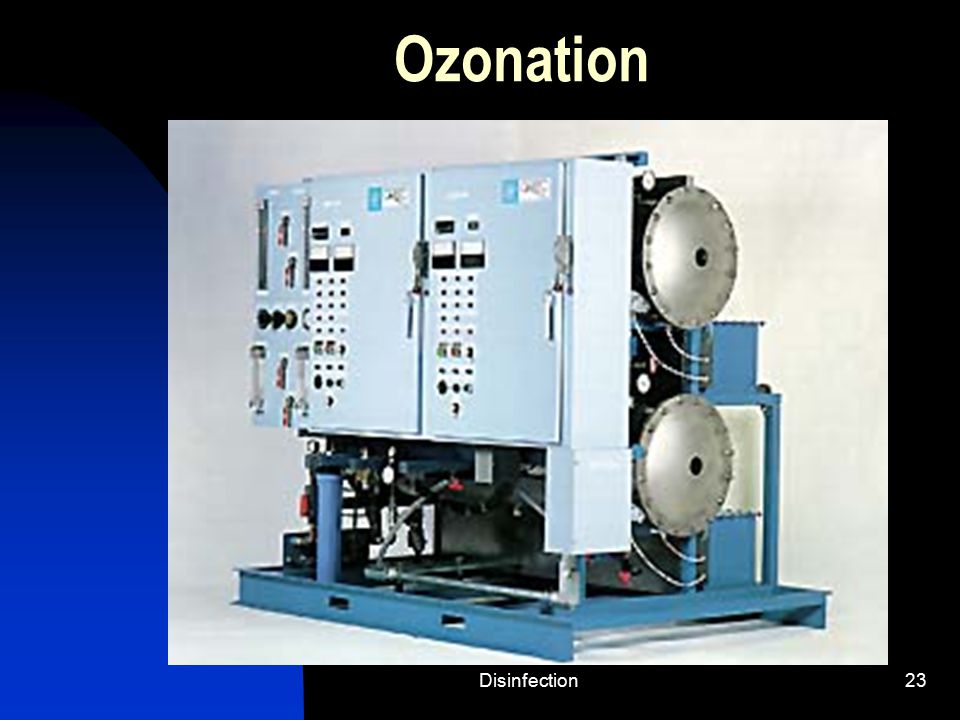

23. Disinfection23 Ozonation

24. Disinfection24

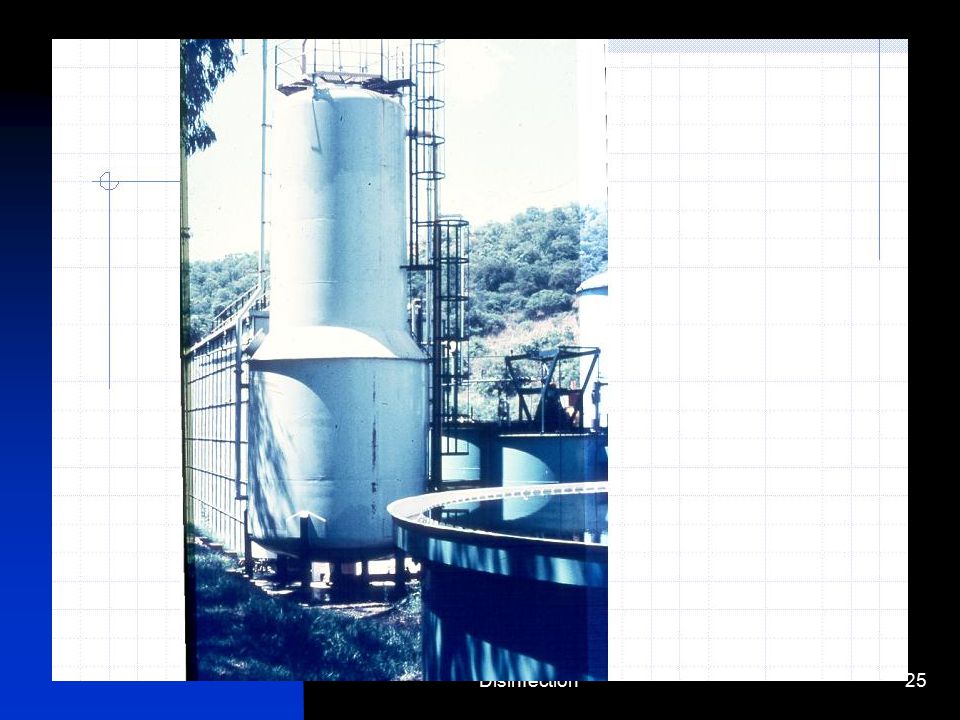

25. Disinfection25

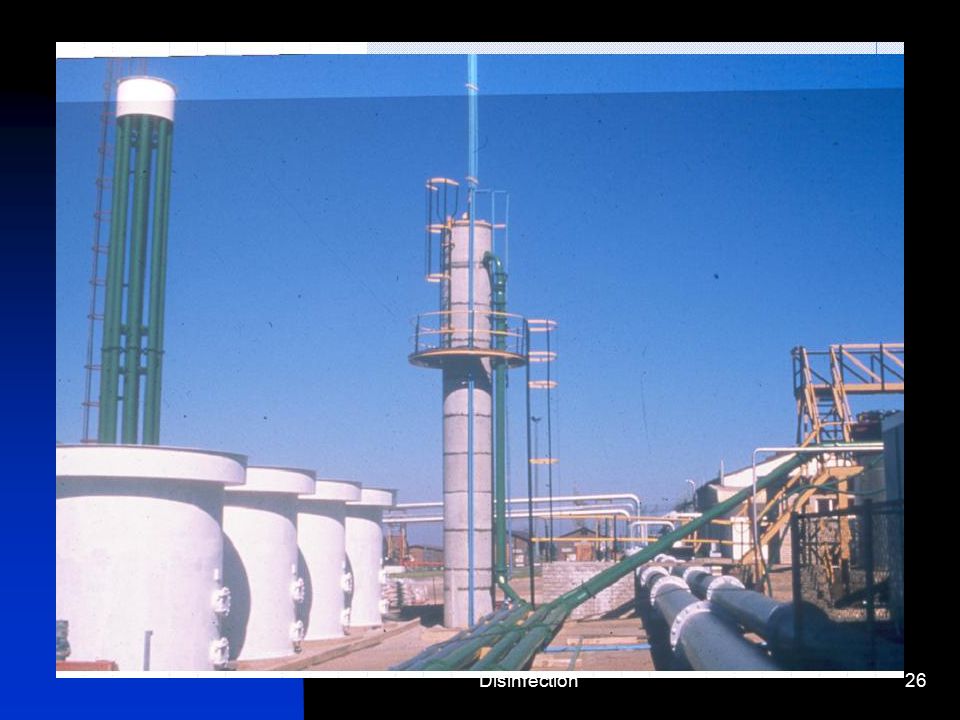

26. Disinfection26

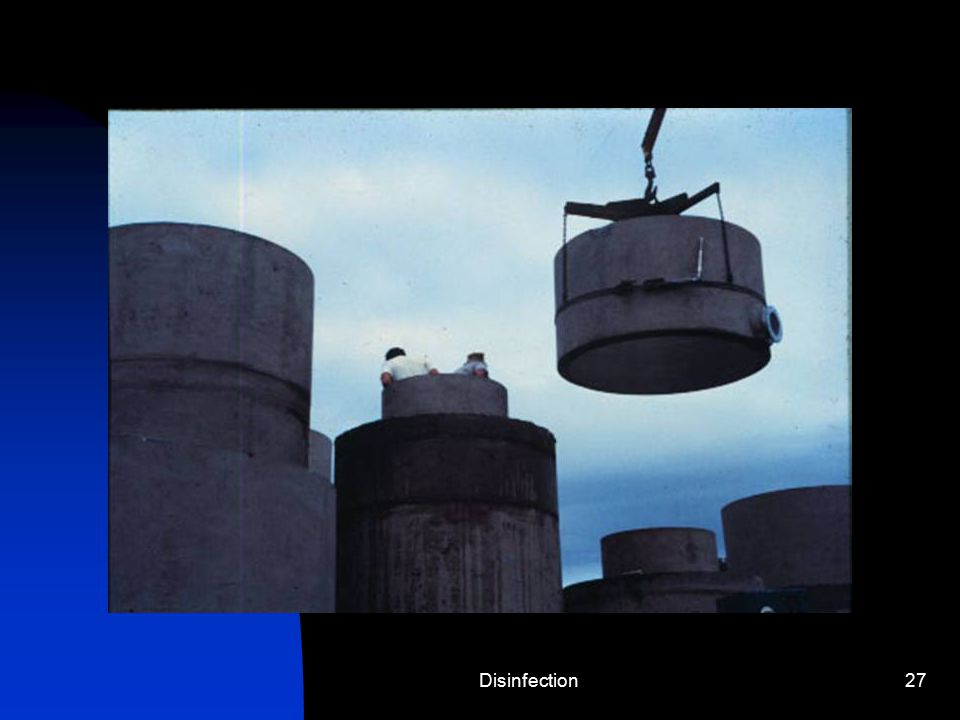

27. Disinfection27

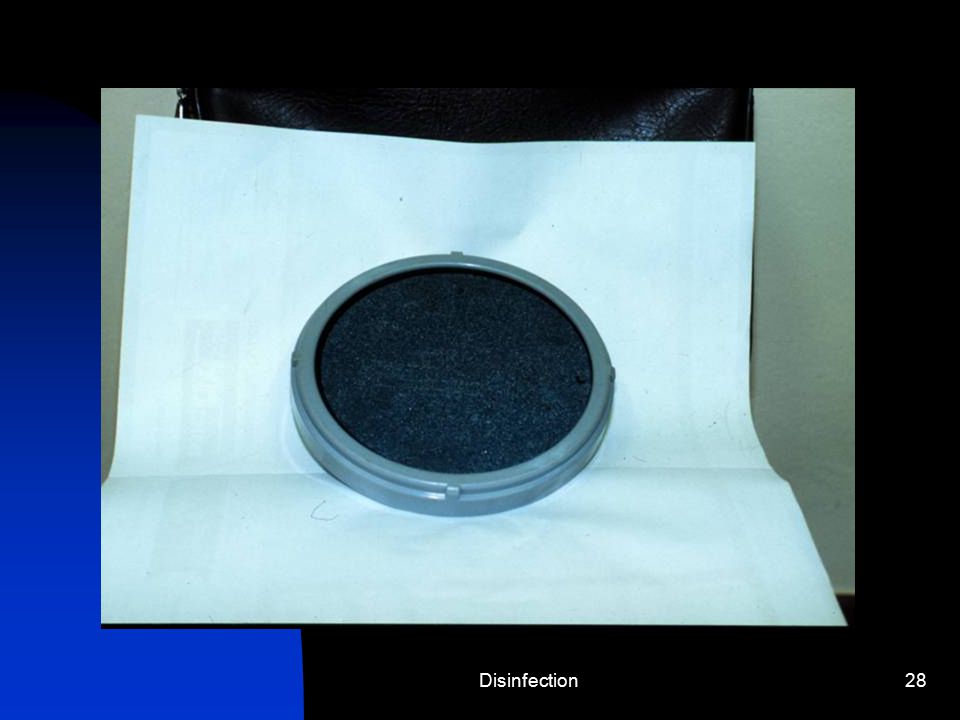

28. Disinfection28

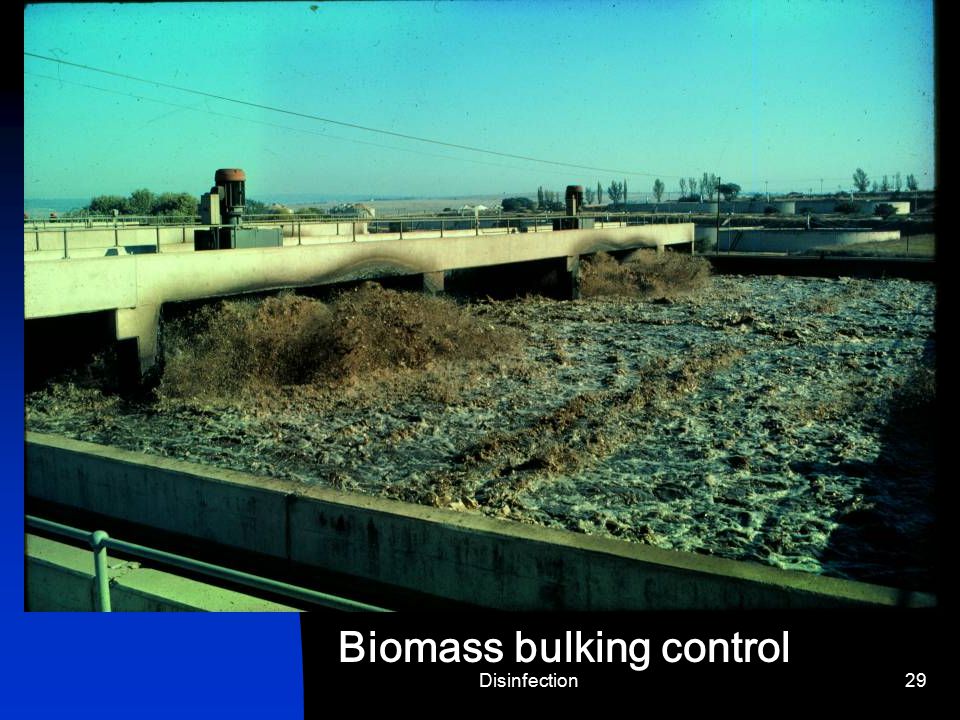

29. Disinfection29 Biomass bulking control

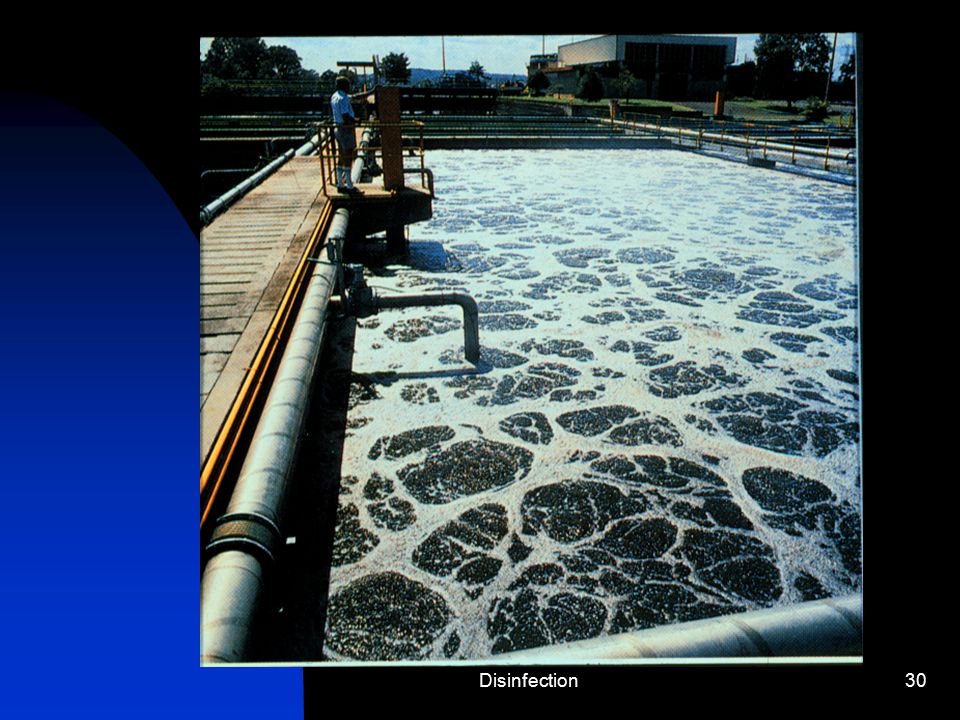

30. Disinfection30

31. Disinfection31

32. Disinfection32

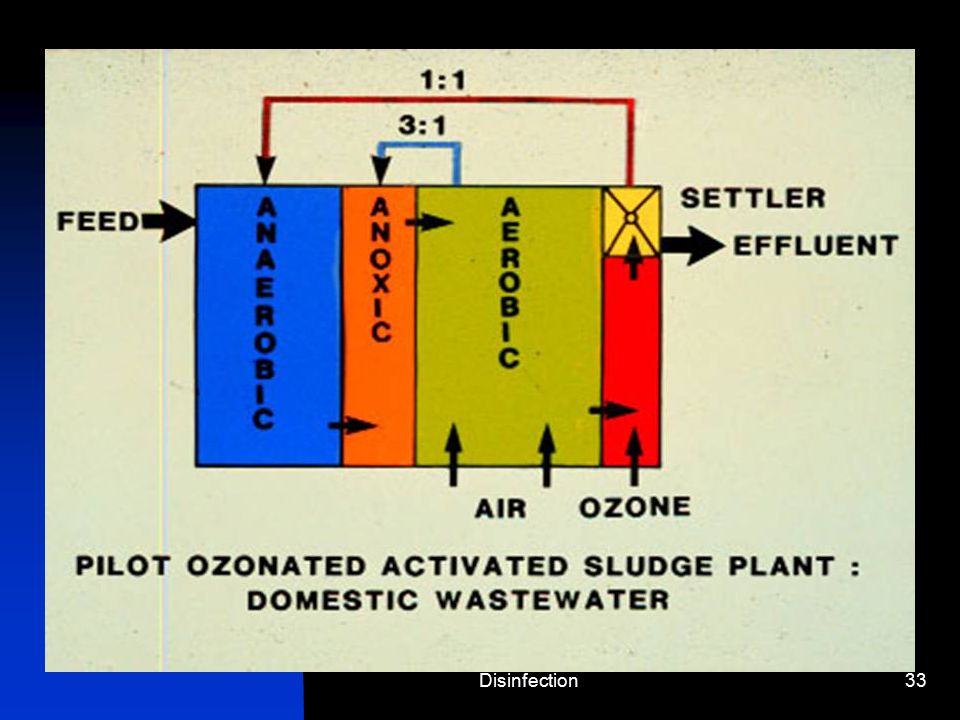

33. Disinfection33

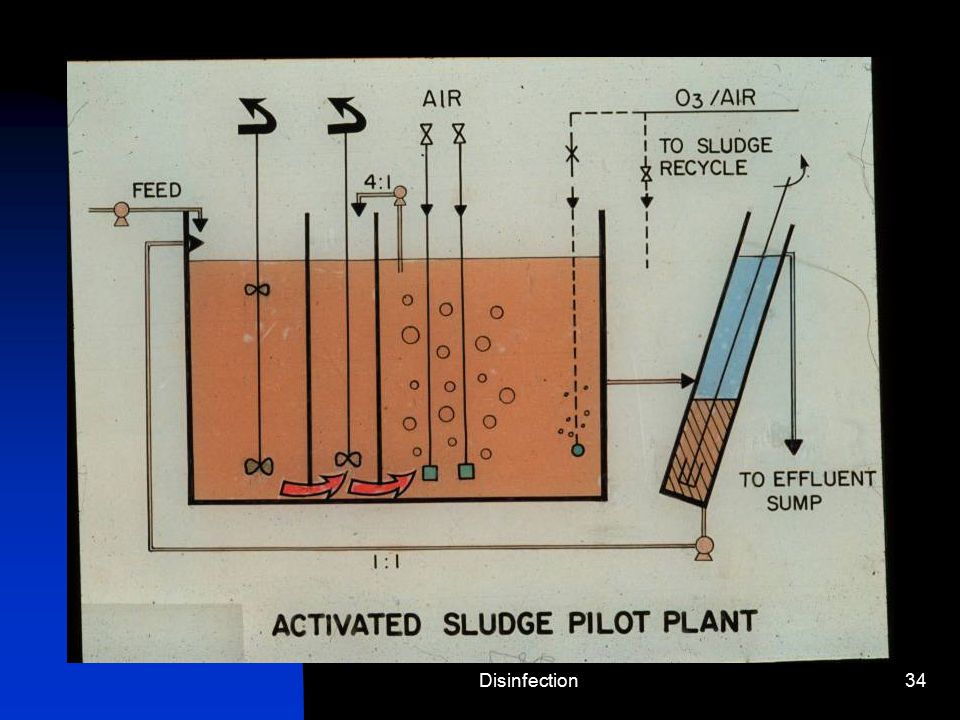

34. Disinfection34

35. Disinfection35 Effect of ozonation on sludge settling

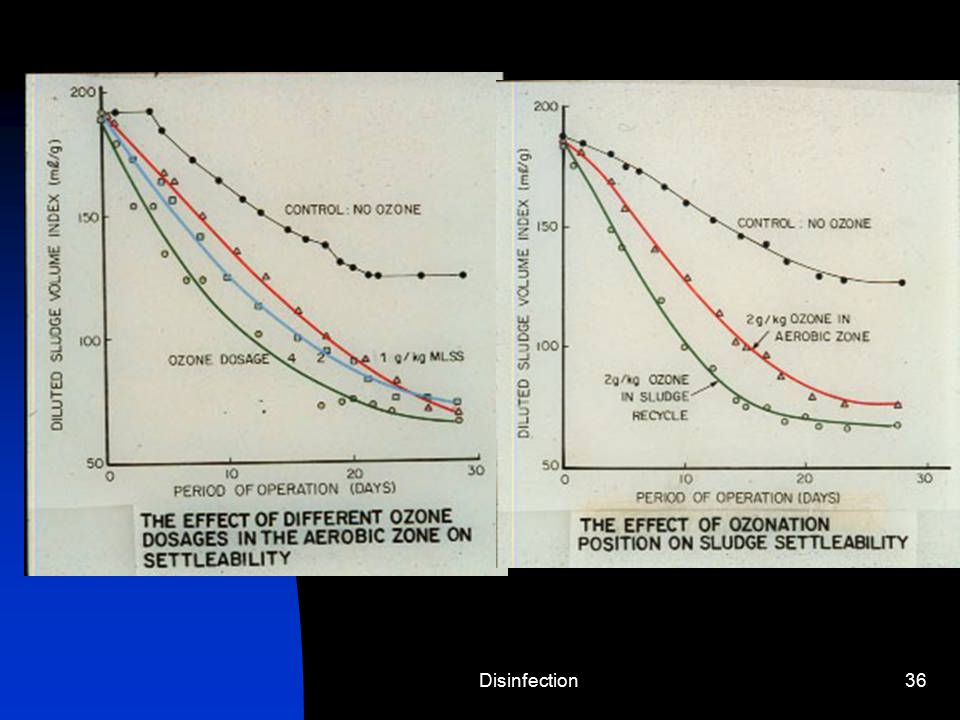

36. Disinfection36

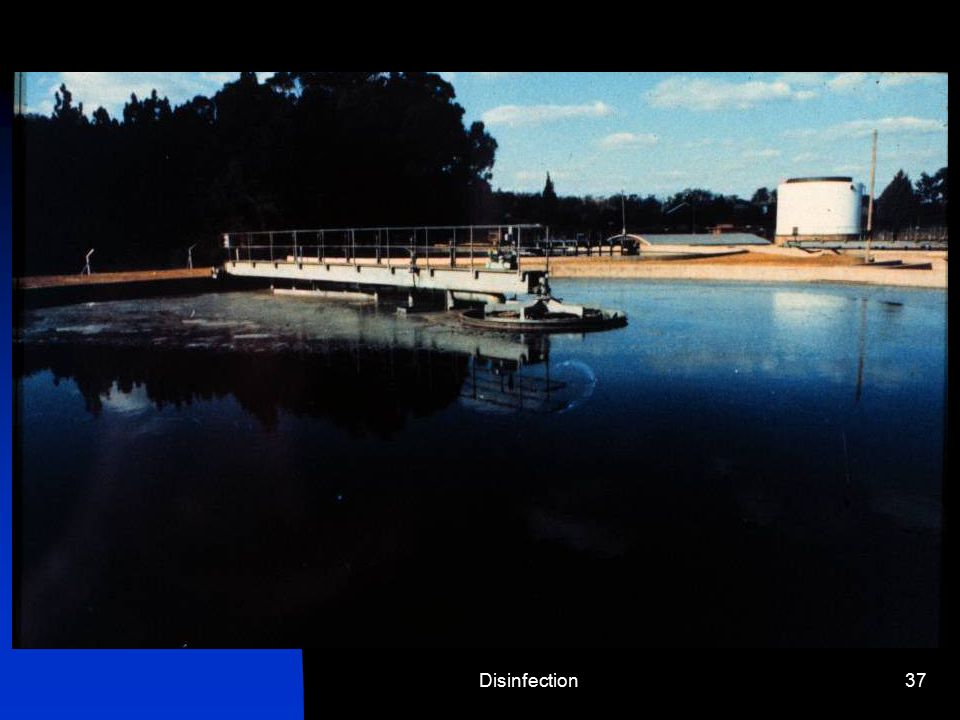

37. Disinfection37

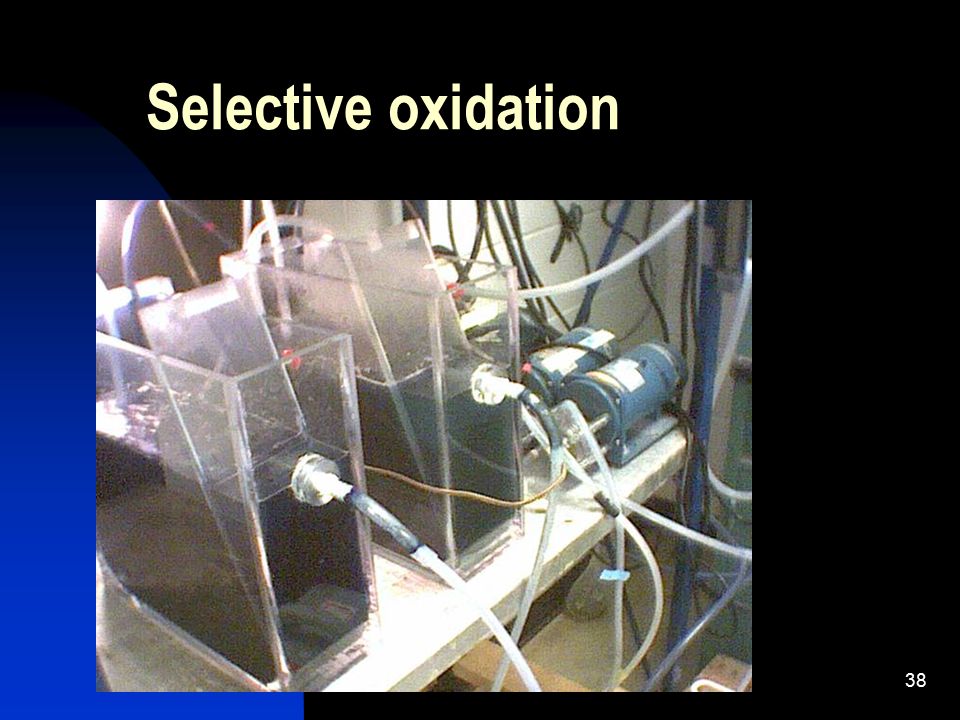

38. Disinfection38 Selective oxidation

39. MeBl oxidation Disinfection39

40. Effect on protozoa Disinfection40

41. Disinfection41 Ships’ Ballast Water Disinfection NUTECH O3, NOAA, NETSCO, UNCW, UWS, ISU, et al.

42. Disinfection42 Alien Invaders in our Coastal Waters - weirder and risky

43. Disinfection43

44. Disinfection44 Zebra Mussel Distribution

45. Disinfection45 San Francisco Bay: 212 exotic species and 140 more suspected

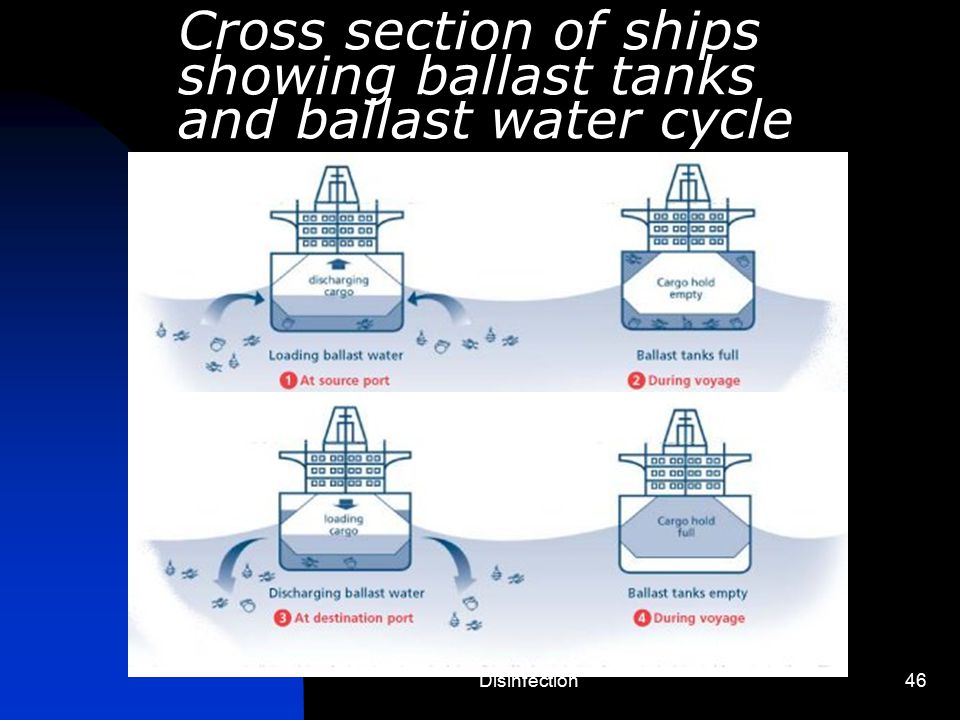

46. Disinfection46 Cross section of ships showing ballast tanks and ballast water cycle

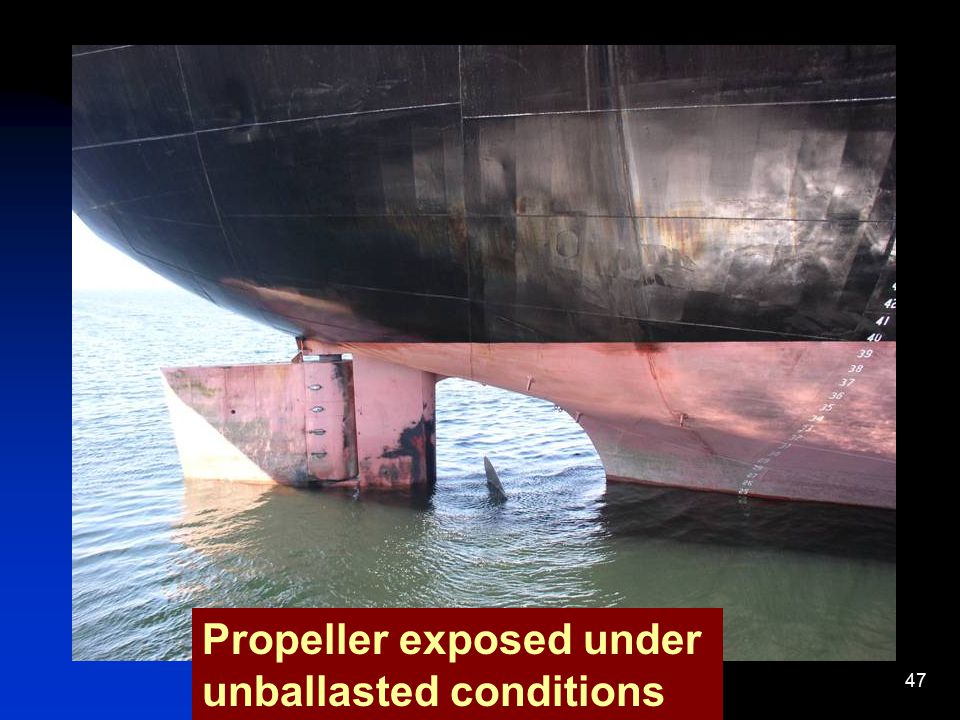

47. Disinfection47 Propeller exposed under unballasted conditions

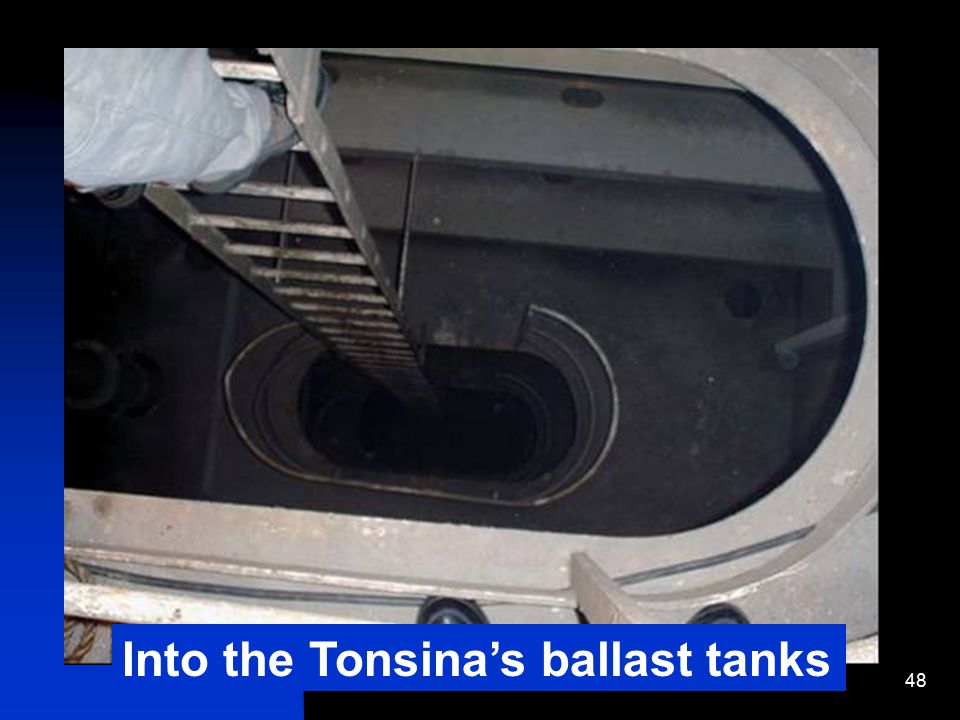

48. Disinfection48 Into the Tonsina’s ballast tanks

49. Disinfection49 View of ballast tanks from below

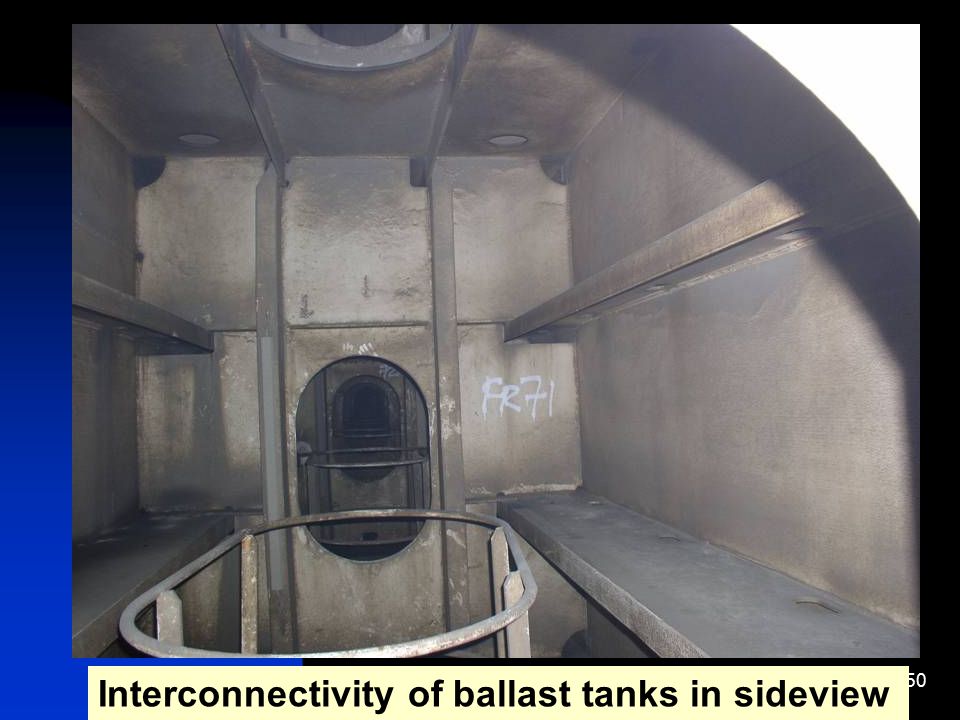

50. Disinfection50 Interconnectivity of ballast tanks in sideview

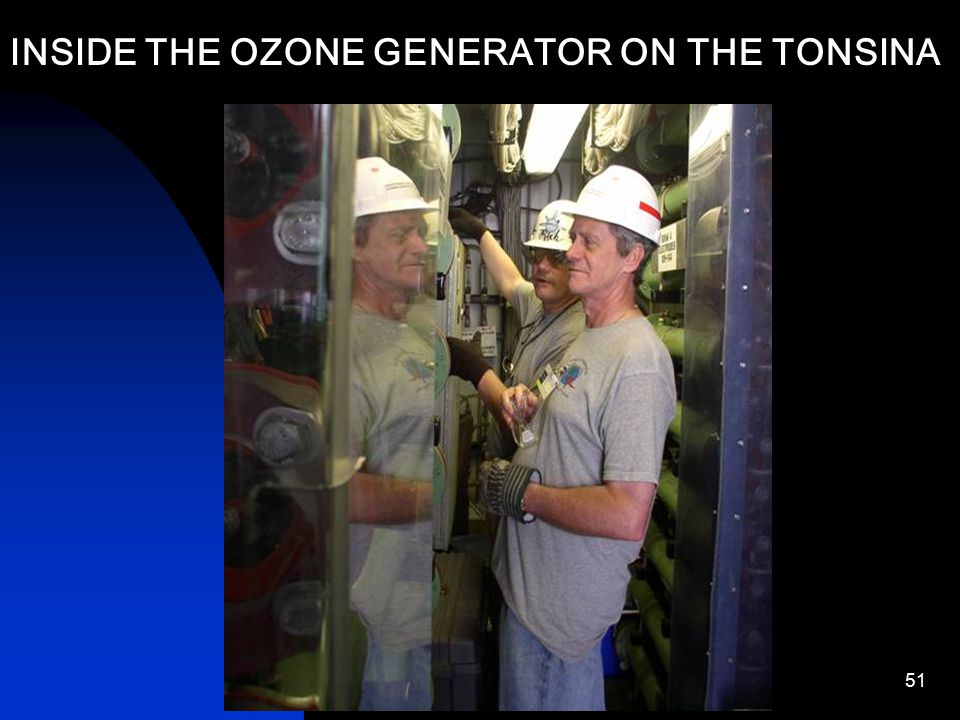

51. Disinfection51 INSIDE THE OZONE GENERATOR ON THE TONSINA

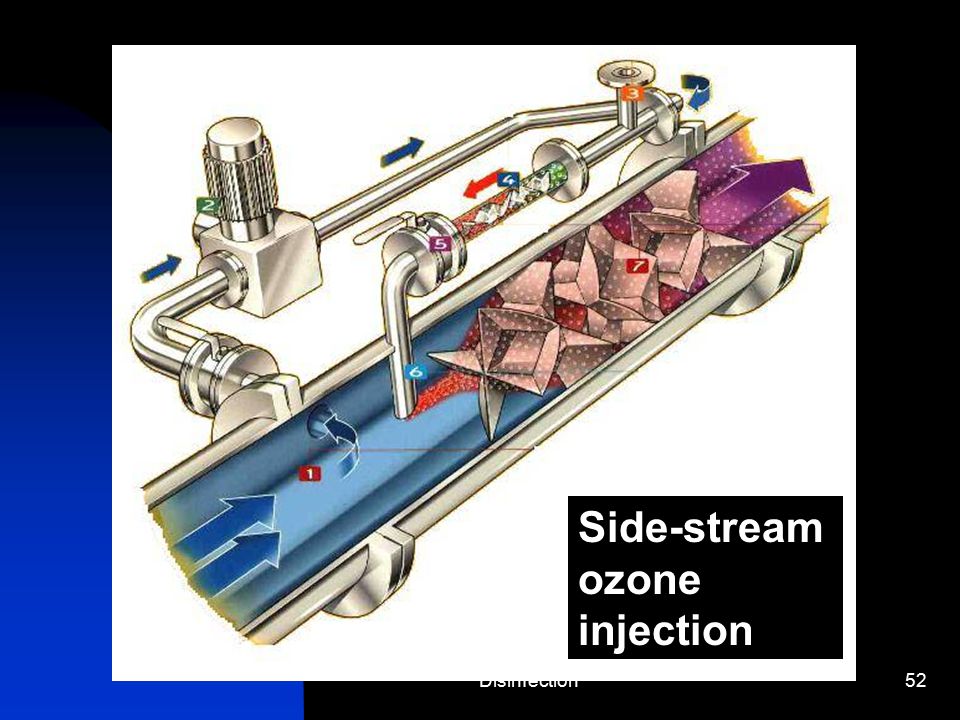

52. Disinfection52 Side-stream ozone injection

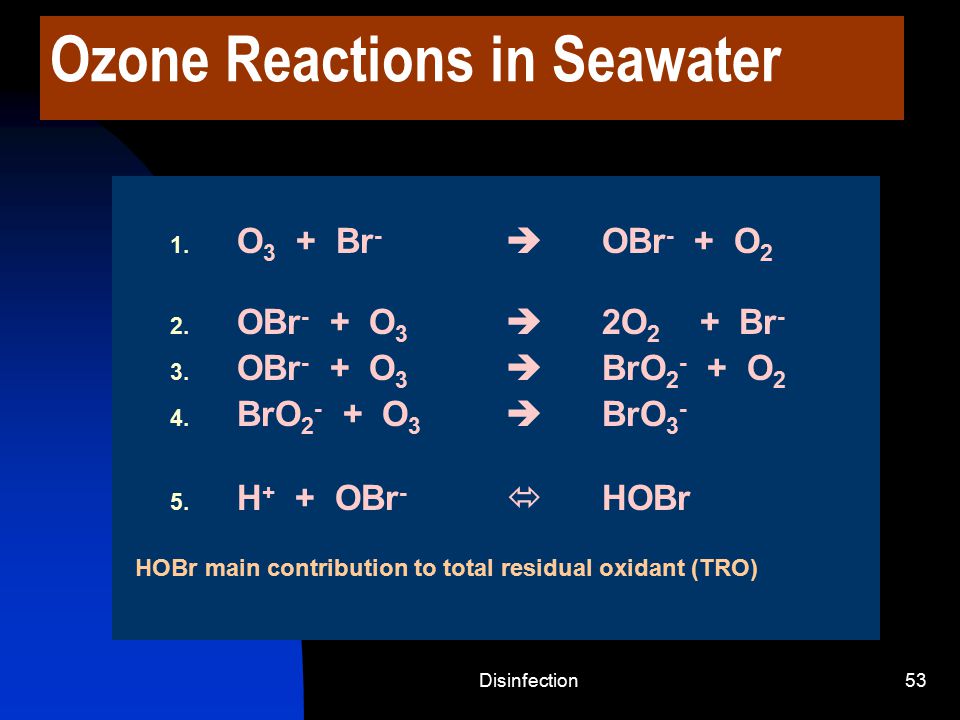

53. Disinfection53 Ozone Reactions in Seawater 1. O 3 + Br -  OBr - + O 2 2. OBr - + O 3  2O 2 + Br - 3. OBr - + O 3  BrO 2 - + O 2 4. BrO 2 - + O 3  BrO 3 - 5. H + + OBr -  HOBr HOBr main contribution to total residual oxidant (TRO)

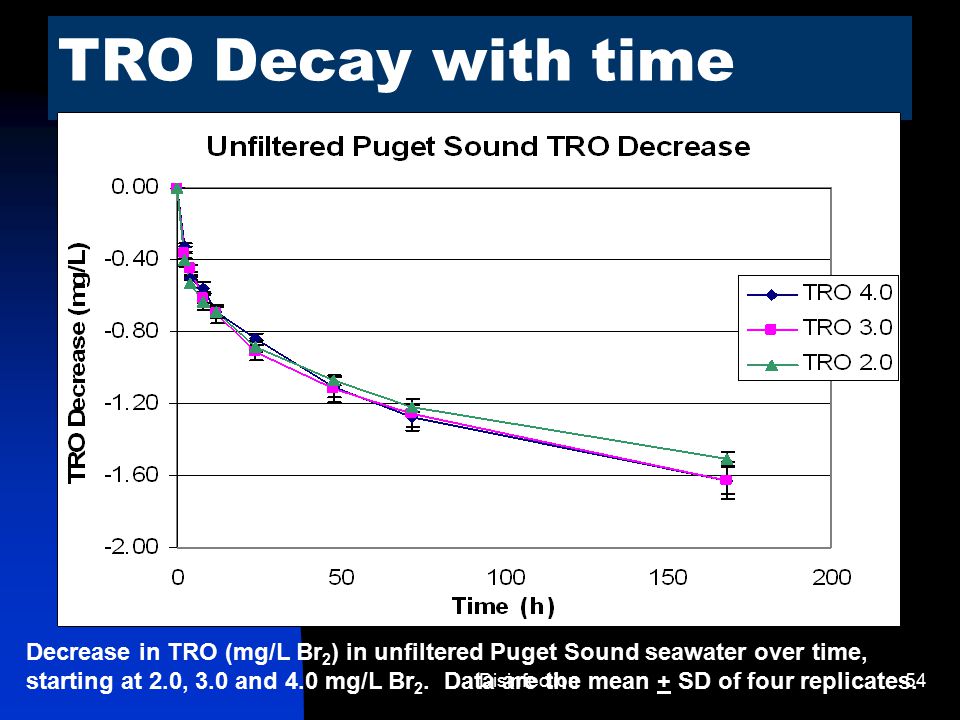

54. Disinfection54 TRO Decay with time Decrease in TRO (mg/L Br 2 ) in unfiltered Puget Sound seawater over time, starting at 2.0, 3.0 and 4.0 mg/L Br 2. Data are the mean + SD of four replicates.

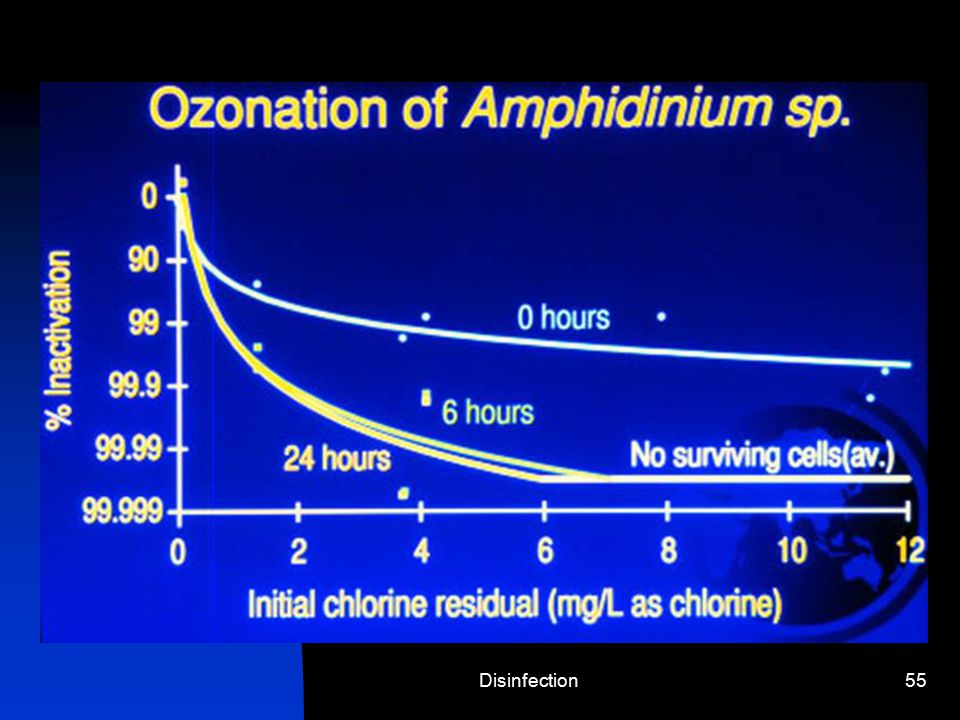

55. Disinfection55

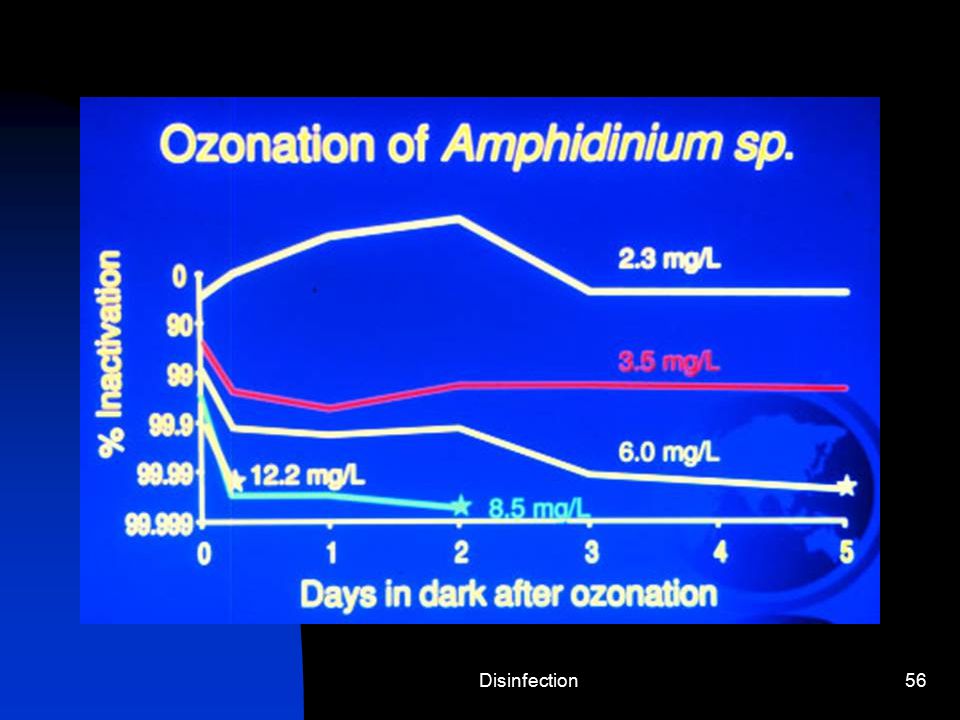

56. Disinfection56

57. Disinfection57

58. Disinfection58

59. Disinfection59

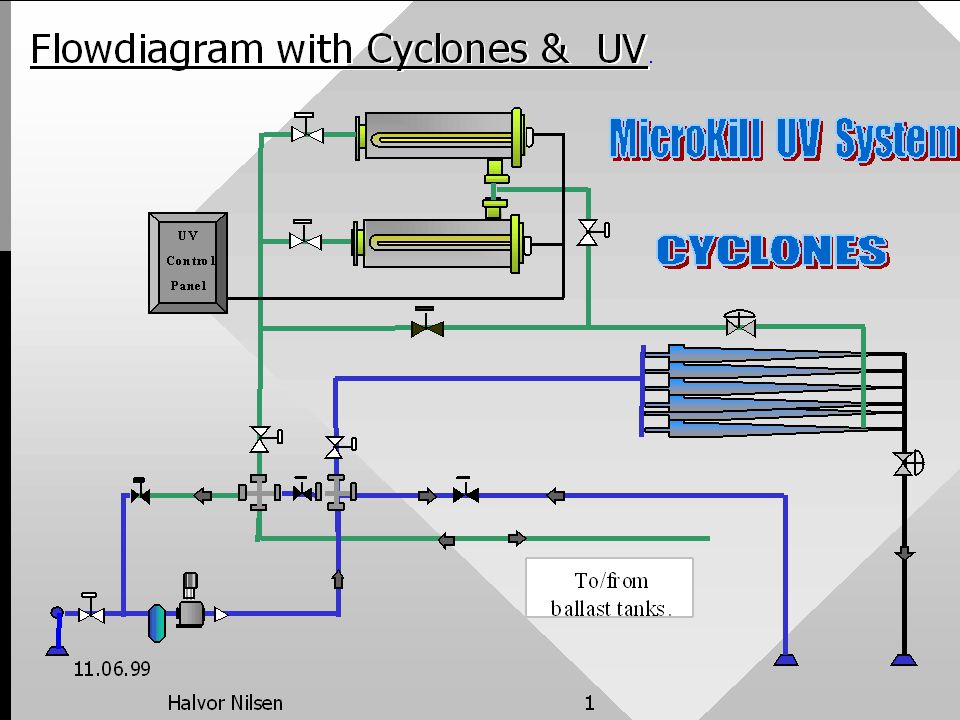

60. Disinfection60

61. Disinfection61
