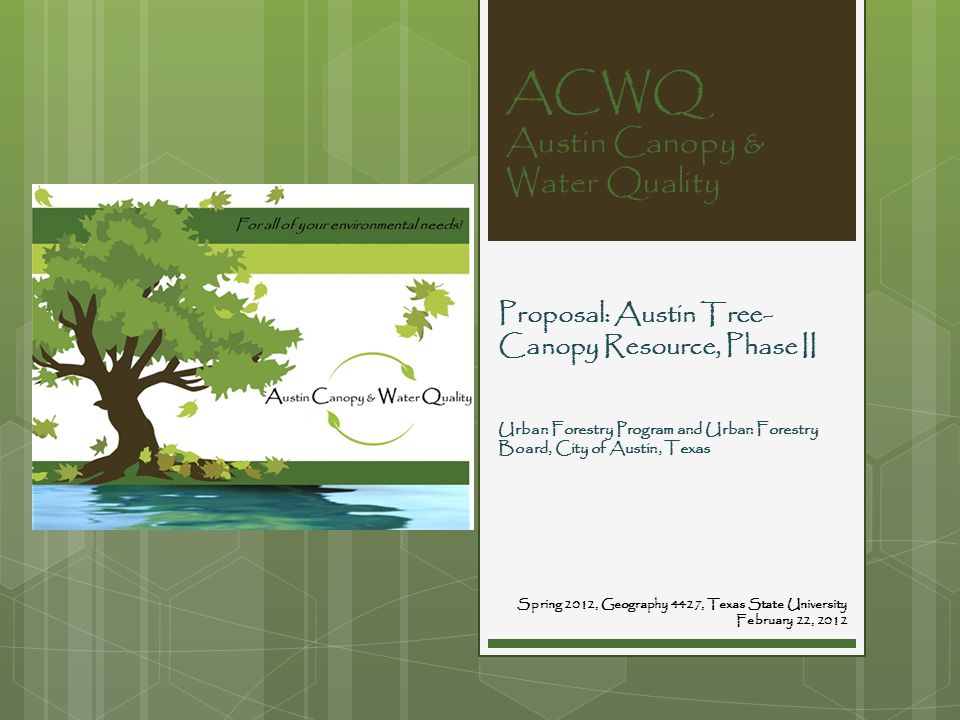

1. ACWQ Austin Canopy & Water Quality Proposal: Austin Tree- Canopy Resource, Phase II Spring 2012, Geography 4427, Texas State University February 22, 2012 Urban Forestry Program and Urban Forestry Board, City of Austin, Texas

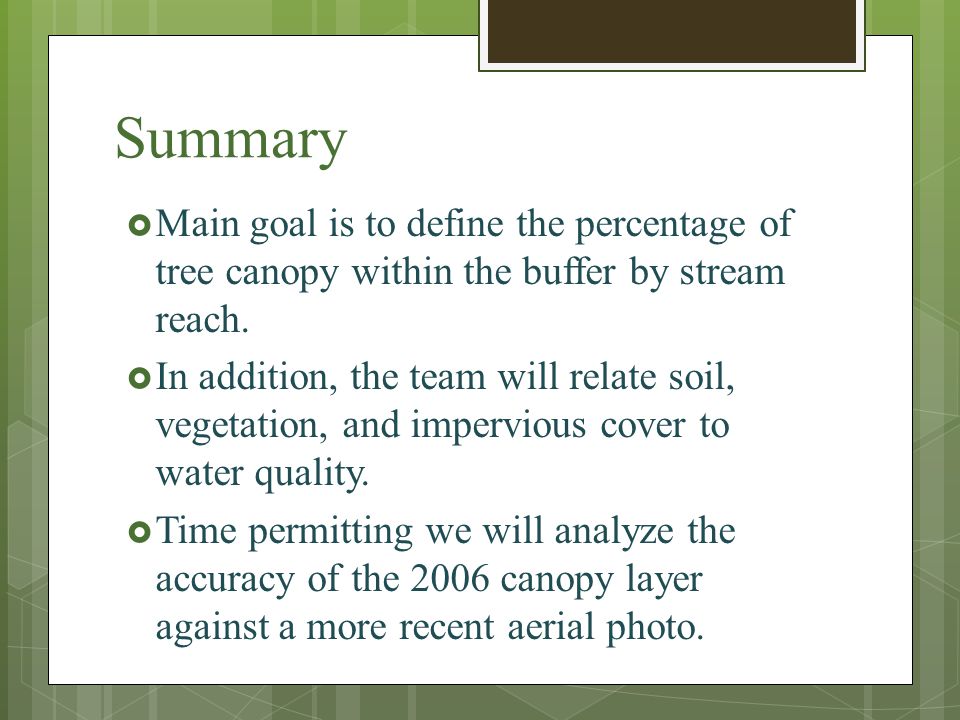

2. Summary  Main goal is to define the percentage of tree canopy within the buffer by stream reach.  In addition, the team will relate soil, vegetation, and impervious cover to water quality.  Time permitting we will analyze the accuracy of the 2006 canopy layer against a more recent aerial photo.

3. Purpose  Establish the relationship between the tree canopy and the water quality of streams within the buffer area.  If this goal is met, the Urban Forestry Program will be able to generate more funding for there program.

4. Scope  Includes stream reaches that were defined by the Urban Forestry Program.  Reaches are found but not limited to Travis County, Williamson, County and Hays County.  Maximum buffer areas of 400ft from reach center lines.

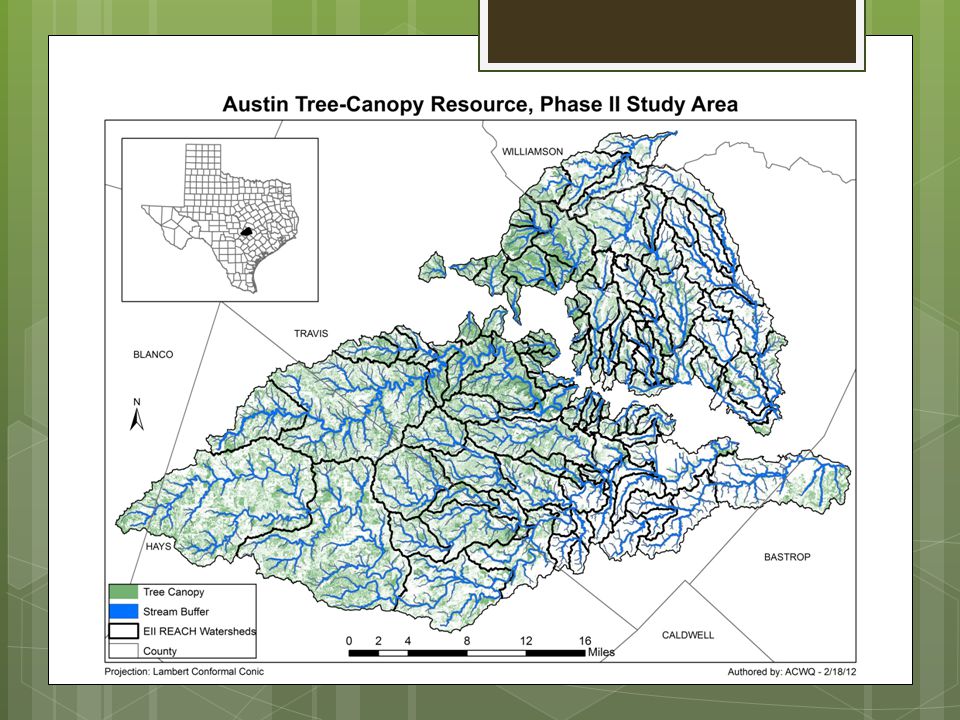

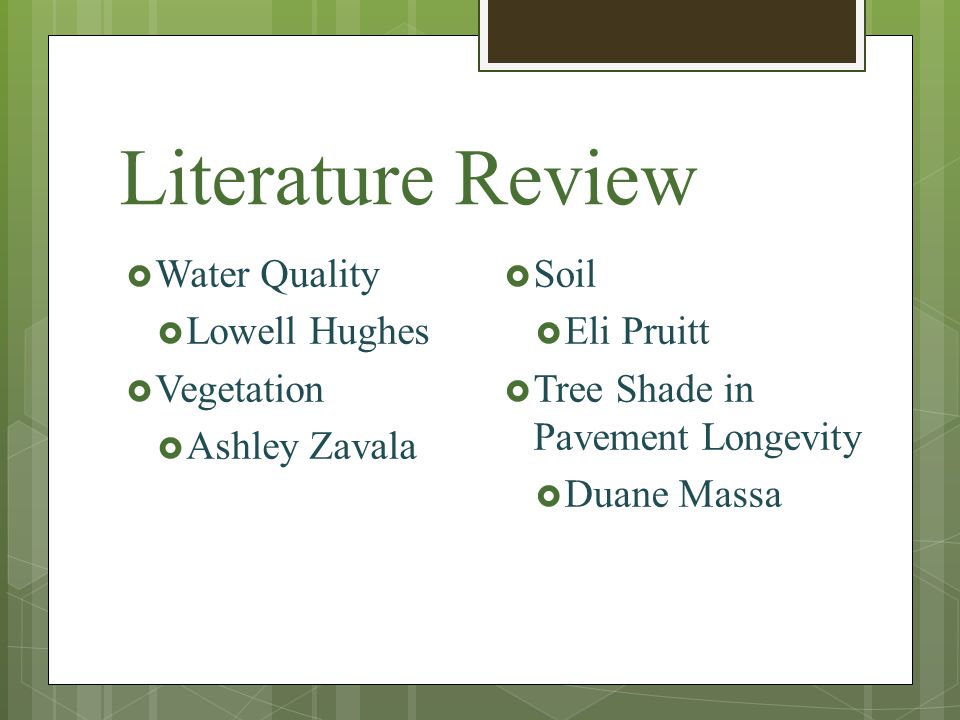

6. Literature Review  Water Quality  Lowell Hughes  Vegetation  Ashley Zavala  Soil  Eli Pruitt  Tree Shade in Pavement Longevity  Duane Massa

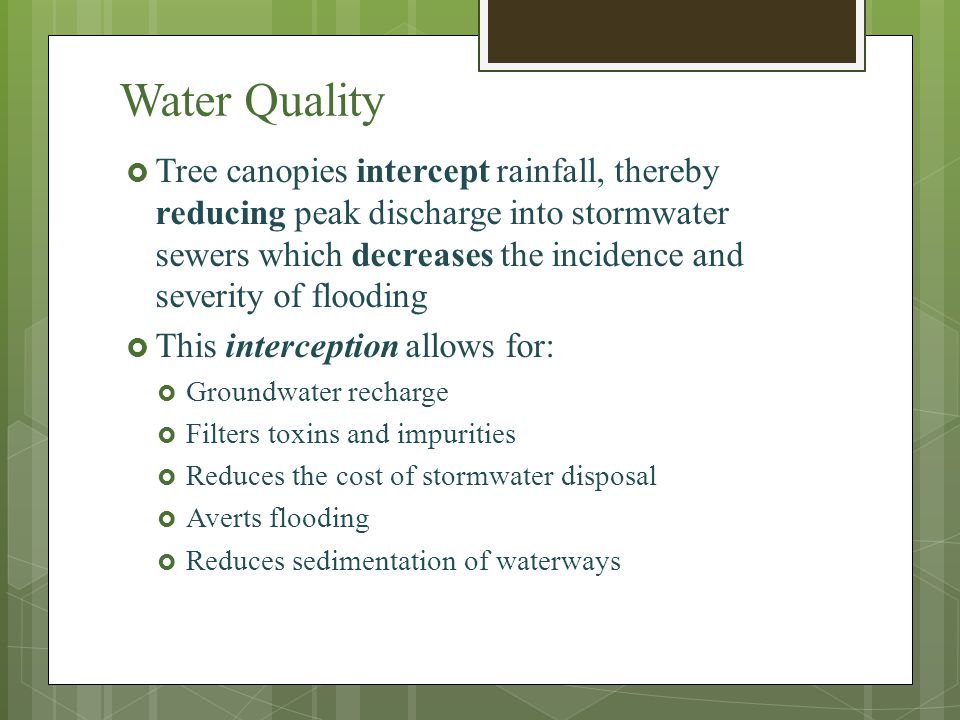

7. Water Quality  Tree canopies intercept rainfall, thereby reducing peak discharge into stormwater sewers which decreases the incidence and severity of flooding  This interception allows for:  Groundwater recharge  Filters toxins and impurities  Reduces the cost of stormwater disposal  Averts flooding  Reduces sedimentation of waterways

8. Water Quality continued  Trees capture rain on their leaves and branches, the water is then put back into the water cycle via evapotranspiration  Trees absorb water pollutants and other water filtrates into the soil for a gradual release into streams, rather than running off the land, extending water availability into dry months

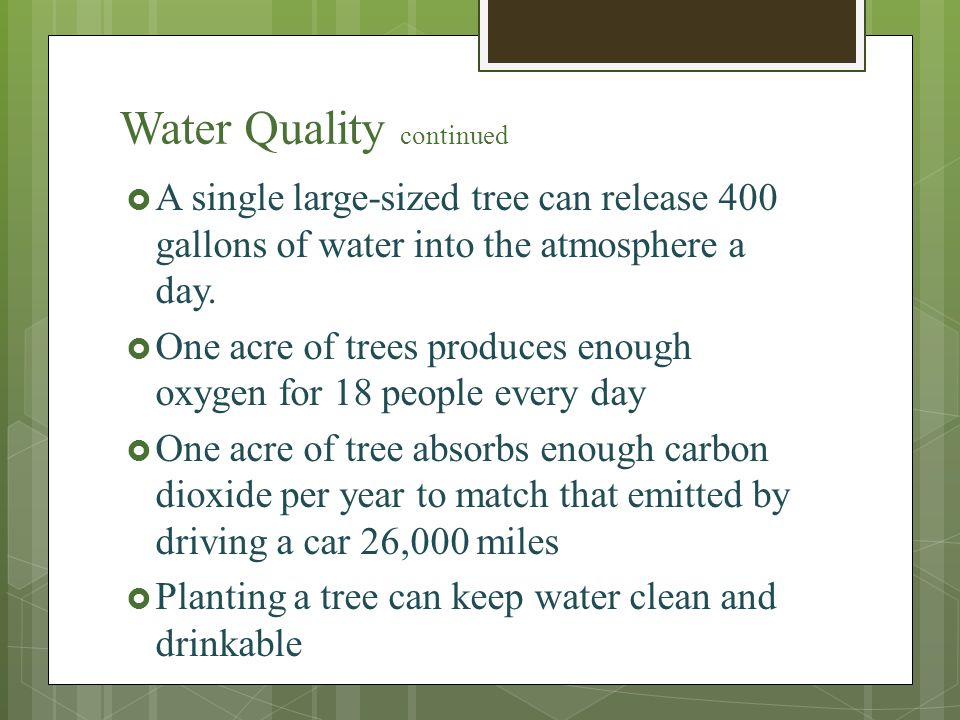

9. Water Quality continued  A single large-sized tree can release 400 gallons of water into the atmosphere a day.  One acre of trees produces enough oxygen for 18 people every day  One acre of tree absorbs enough carbon dioxide per year to match that emitted by driving a car 26,000 miles  Planting a tree can keep water clean and drinkable

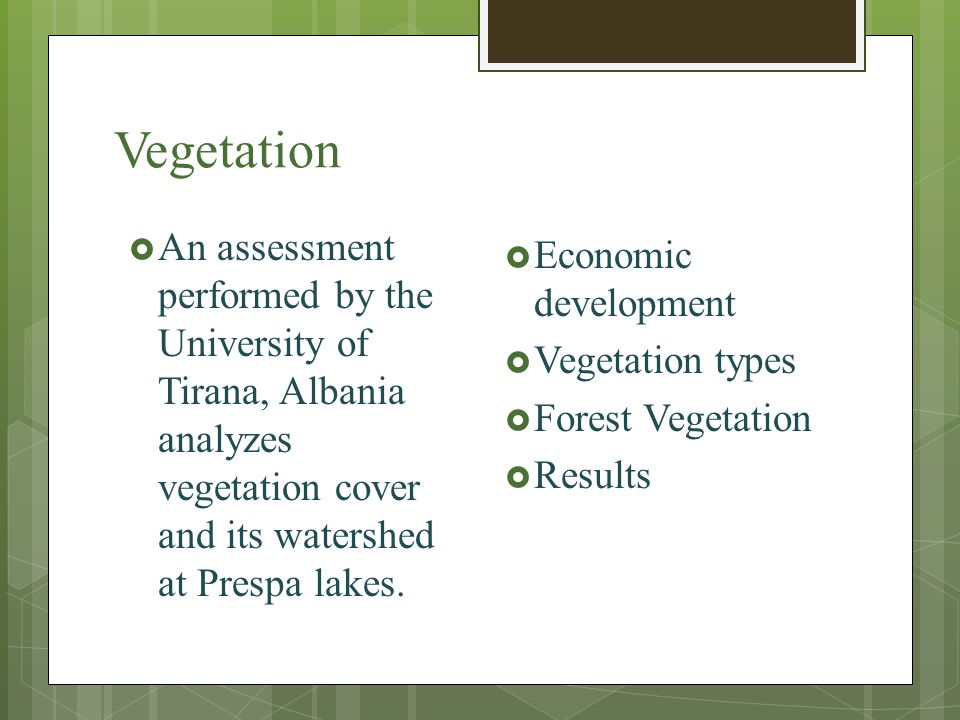

10. Vegetation  An assessment performed by the University of Tirana, Albania analyzes vegetation cover and its watershed at Prespa lakes.  Economic development  Vegetation types  Forest Vegetation  Results

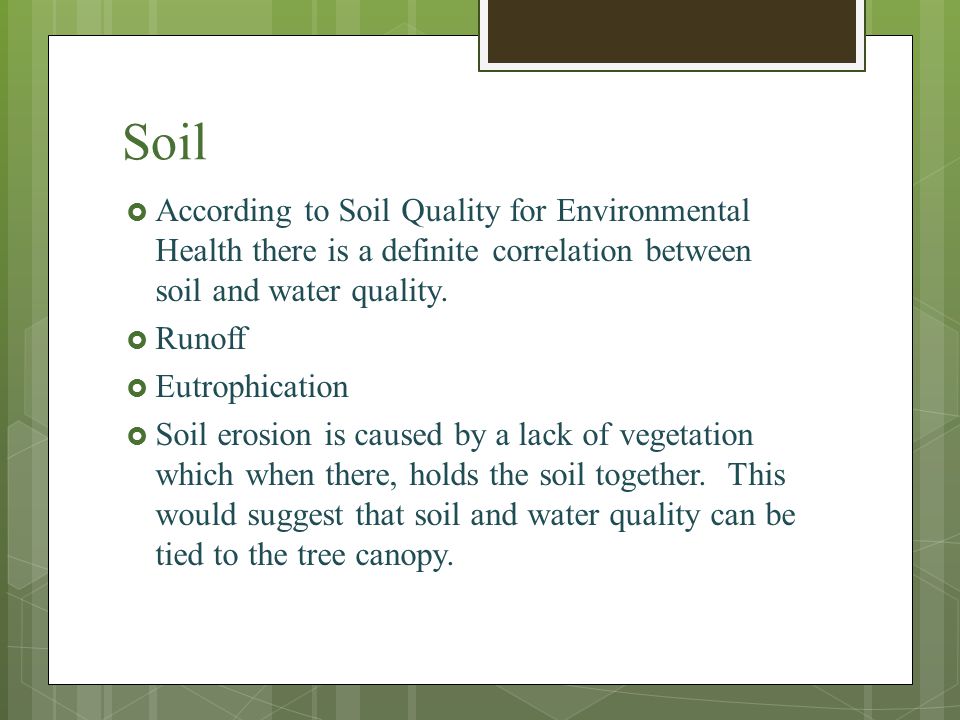

11. Soil  According to Soil Quality for Environmental Health there is a definite correlation between soil and water quality.  Runoff  Eutrophication  Soil erosion is caused by a lack of vegetation which when there, holds the soil together. This would suggest that soil and water quality can be tied to the tree canopy.

12. Benefits of Tree Shade in Pavement Longevity  Asphalt roads are built with aggregate filler, asphalt cement, and a binder.  The binder eventually evaporates due to heat.  Small cracks form which over time grow and allow water in creating potholes.  Over a 30 year period, a 125ft x 35ft segment of road cost $4791.00 to maintain.  Small stature trees along the road reduce cost to $4142.00 and large stature tree reduce cost to $2900.00 to maintain.  For small stature trees it is a 17% reduction in maintenance cost and large stature trees is a 58% reduction over a 30 year period.

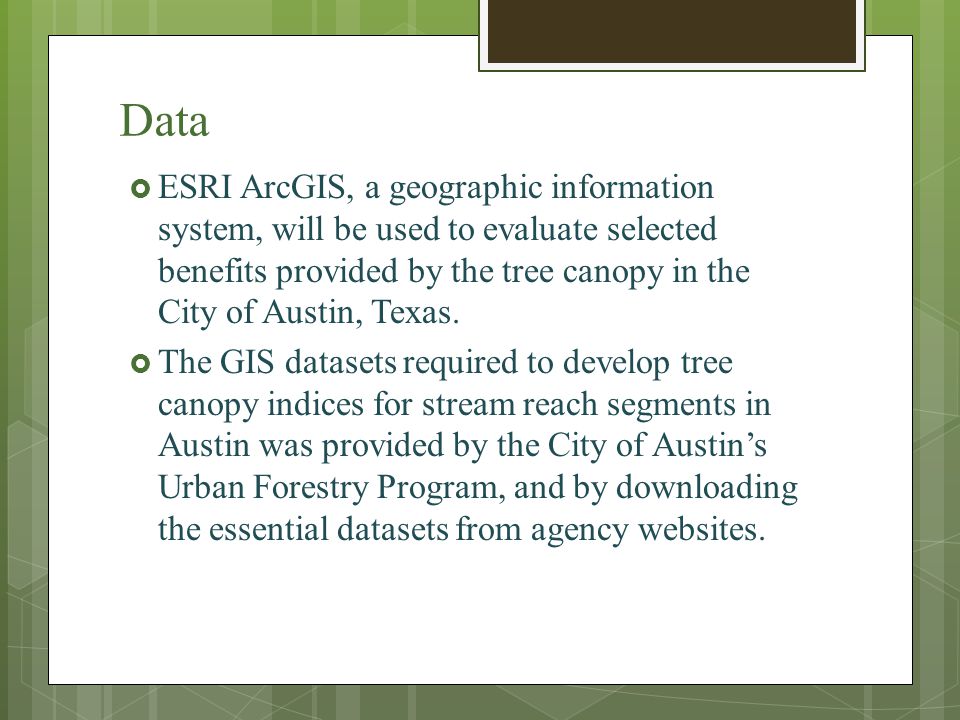

13. Data  ESRI ArcGIS, a geographic information system, will be used to evaluate selected benefits provided by the tree canopy in the City of Austin, Texas.  The GIS datasets required to develop tree canopy indices for stream reach segments in Austin was provided by the City of Austin’s Urban Forestry Program, and by downloading the essential datasets from agency websites.

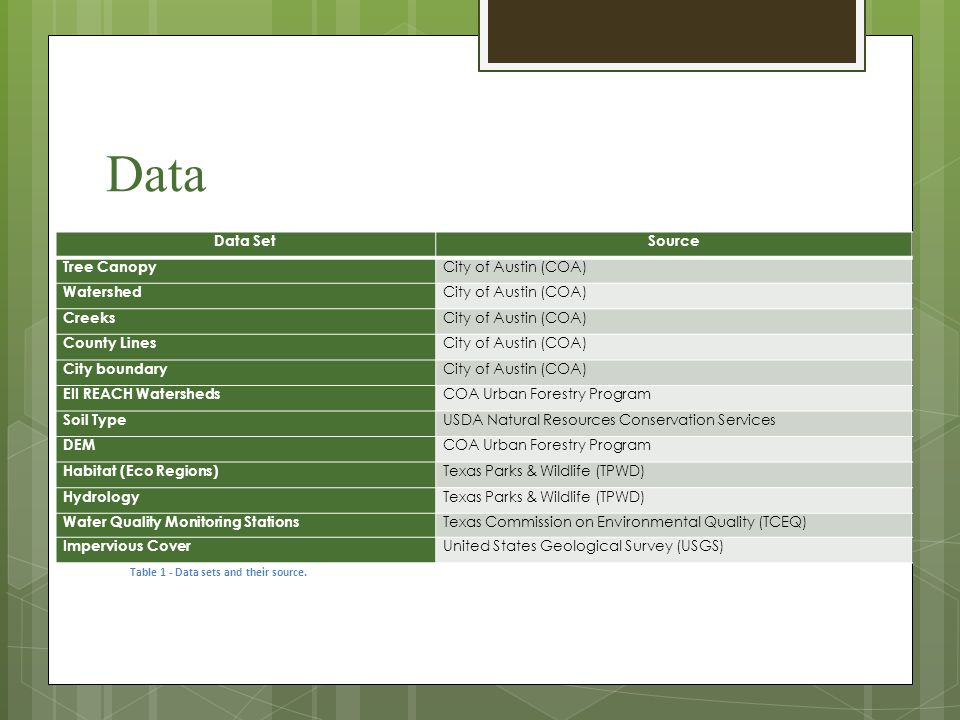

14. Data SetSource Tree Canopy City of Austin (COA) Watershed City of Austin (COA) Creeks City of Austin (COA) County Lines City of Austin (COA) City boundary City of Austin (COA) EII REACH Watersheds COA Urban Forestry Program Soil Type USDA Natural Resources Conservation Services DEM COA Urban Forestry Program Habitat (Eco Regions) Texas Parks & Wildlife (TPWD) Hydrology Texas Parks & Wildlife (TPWD) Water Quality Monitoring Stations Texas Commission on Environmental Quality (TCEQ) Impervious Cover United States Geological Survey (USGS) Table 1 - Data sets and their source. Data

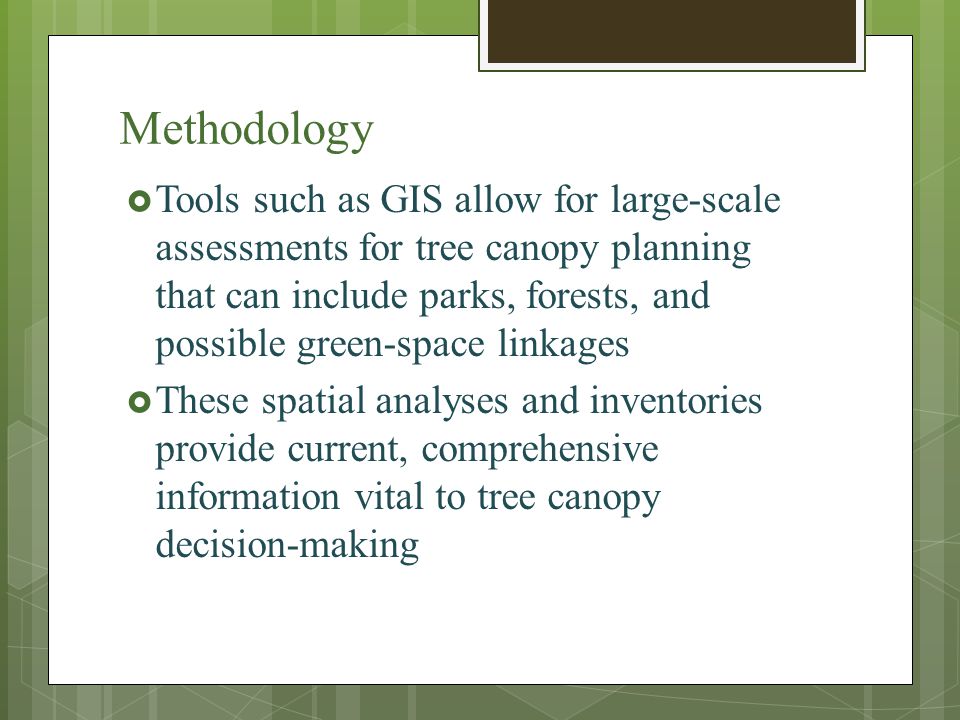

15. Methodology  Tools such as GIS allow for large-scale assessments for tree canopy planning that can include parks, forests, and possible green-space linkages  These spatial analyses and inventories provide current, comprehensive information vital to tree canopy decision-making

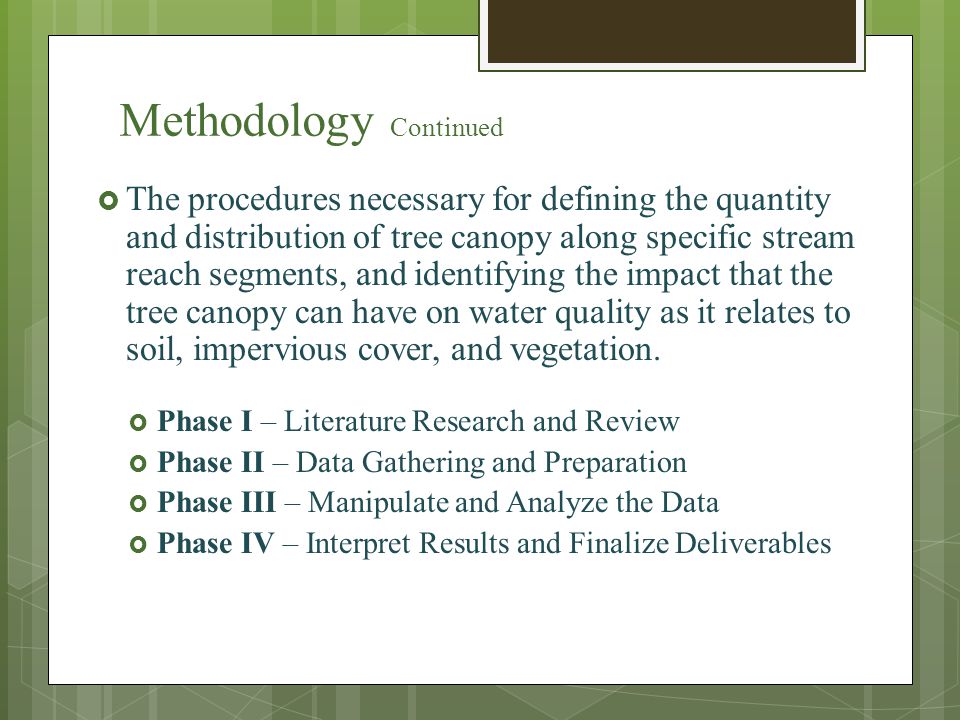

16. Methodology Continued  The procedures necessary for defining the quantity and distribution of tree canopy along specific stream reach segments, and identifying the impact that the tree canopy can have on water quality as it relates to soil, impervious cover, and vegetation.  Phase I – Literature Research and Review  Phase II – Data Gathering and Preparation  Phase III – Manipulate and Analyze the Data  Phase IV – Interpret Results and Finalize Deliverables

17. Methodology Continued Phase I: Literature Research and Review  Tree canopy analysis initially involves research and analysis of literature that is relevant and potentially beneficial in assisting in the development and interpretation of the geospatial data

18. Methodology Continued Phase II: Data Gathering and Preparation  Data will be collected using a variety of methods; primary datasets will be provided by The City of Austin’s Urban Forestry Program, and downloaded from various state and federal agencies

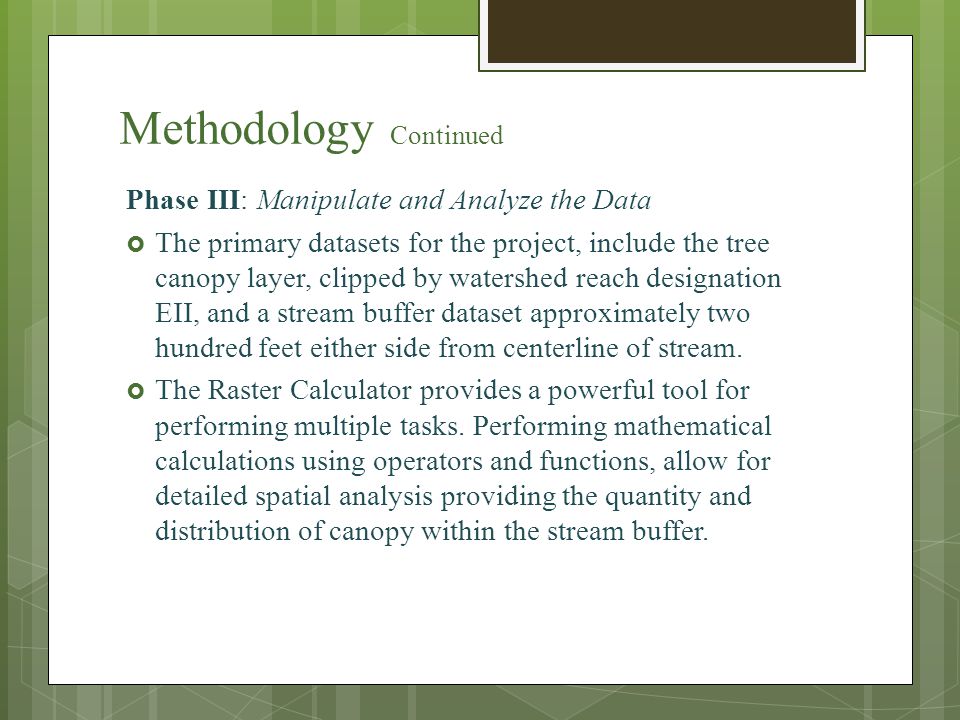

19. Methodology Continued Phase III: Manipulate and Analyze the Data  The primary datasets for the project, include the tree canopy layer, clipped by watershed reach designation EII, and a stream buffer dataset approximately two hundred feet either side from centerline of stream.  The Raster Calculator provides a powerful tool for performing multiple tasks. Performing mathematical calculations using operators and functions, allow for detailed spatial analysis providing the quantity and distribution of canopy within the stream buffer.

20. Methodology Continued Phase IV: Interpret Results and Finalize Deliverables  Upon completion of this project the ACWQ will have defined the quantity and distribution of tree canopy along specific stream reach segments throughout the greater Austin area  Analyses will show the amount of area occupied by other urban surfaces that impede or facilitate planting, such as buildings, pavement, water, grass, and bare soils  The tree canopy data will indicate the potential for new tree plantings in sparse areas along the specific stream reach segments

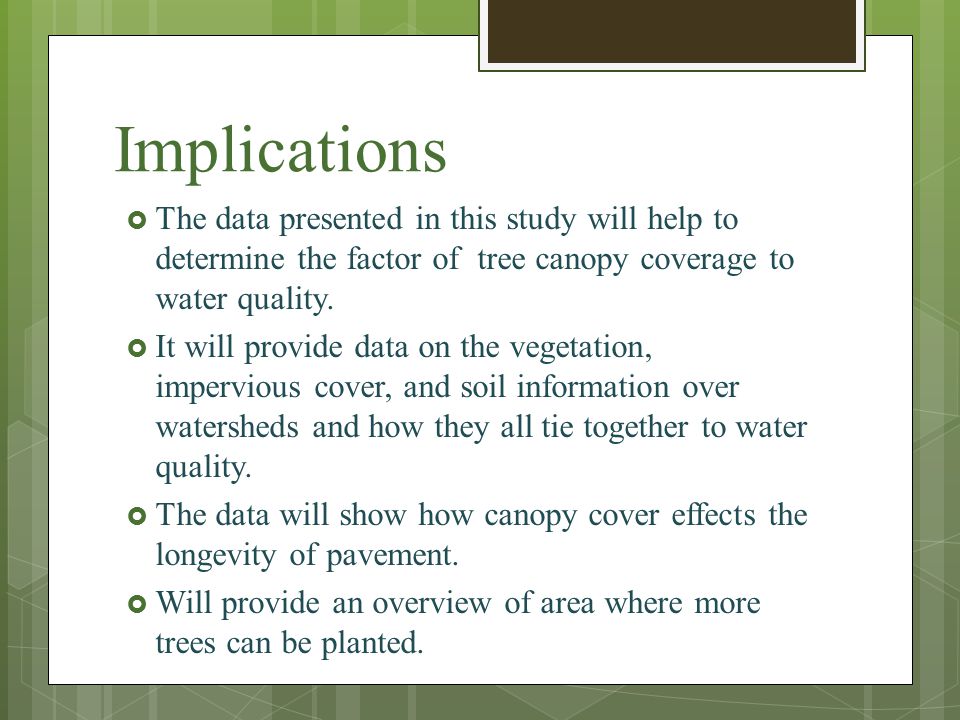

21. Implications  The data presented in this study will help to determine the factor of tree canopy coverage to water quality.  It will provide data on the vegetation, impervious cover, and soil information over watersheds and how they all tie together to water quality.  The data will show how canopy cover effects the longevity of pavement.  Will provide an overview of area where more trees can be planted.

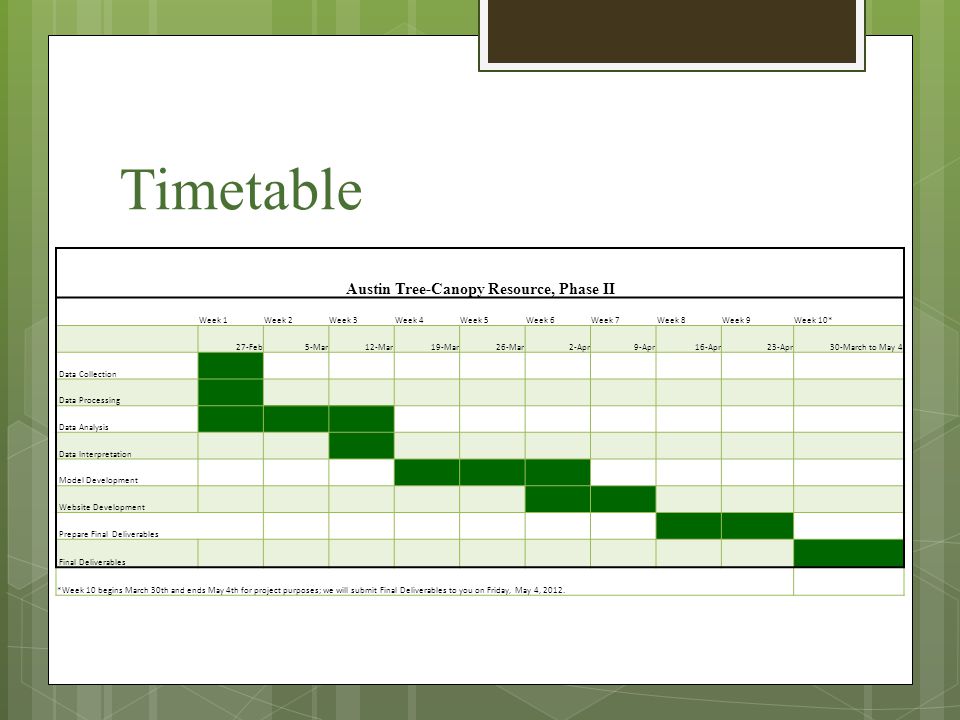

22. Timetable Austin Tree-Canopy Resource, Phase II Week 1Week 2Week 3Week 4Week 5Week 6Week 7Week 8Week 9Week 10* 27-Feb5-Mar12-Mar19-Mar26-Mar2-Apr9-Apr16-Apr23-Apr30-March to May 4 Data Collection Data Processing Data Analysis Data Interpretation Model Development Website Development Prepare Final Deliverables Final Deliverables *Week 10 begins March 30th and ends May 4th for project purposes; we will submit Final Deliverables to you on Friday, May 4, 2012.

23. Budget Hours Per WeekConsultantsProject LengthTotal HoursHourly RateTotal Cost Data Collection1041 week10$20.00$800.00 Data Analysis *10 / 54 / 210 week300$20.00$6,000.00 System Management5110 week50$40.00$2,000.00 Web Design5110 week50$20.00$1,000.00 Software CostLicensing Fees$7,700.00 Equipment Cost Supplies($150.00 per work station * 4 workstations)$600.00 Maintenance($200.00 per work station * 4 workstations)$800.00 Depreciation ** $2,222.00 Travel Cost(30 miles * 4 consultant * 4 trips)$240.00 Total Cost $21,362.00 * Hours per week is divided by two consultants working 10 hours a week and 2 consultants working 5 hours a week **Depreciation $8000 total for 4 workstations/36 month equipment life. Will be used for 3 months

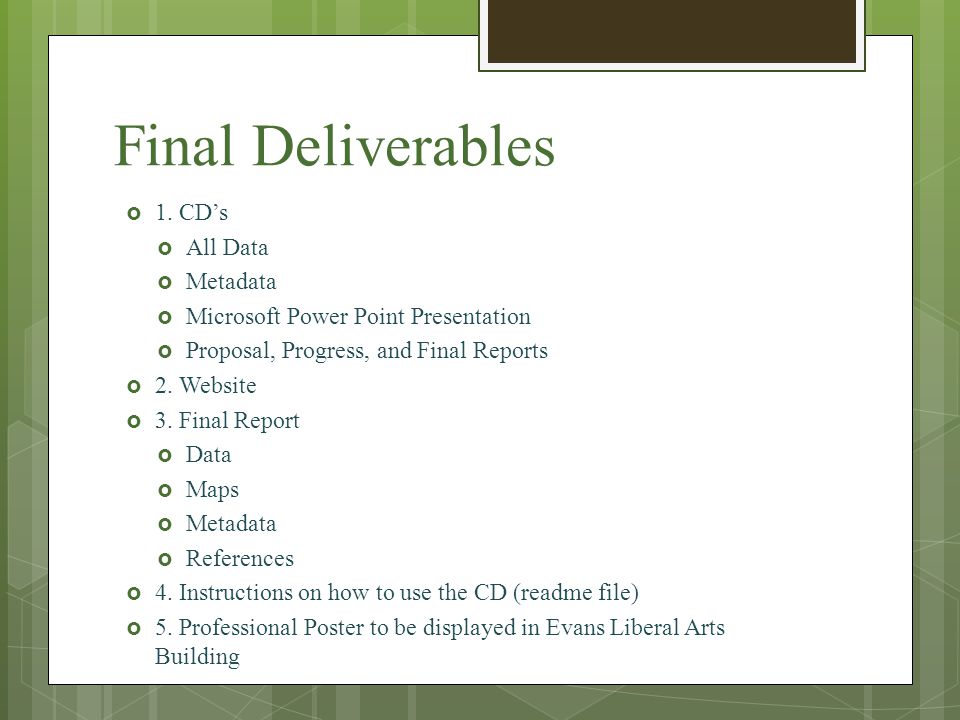

24. Final Deliverables  1. CD’s  All Data  Metadata  Microsoft Power Point Presentation  Proposal, Progress, and Final Reports  2. Website  3. Final Report  Data  Maps  Metadata  References  4. Instructions on how to use the CD (readme file)  5. Professional Poster to be displayed in Evans Liberal Arts Building

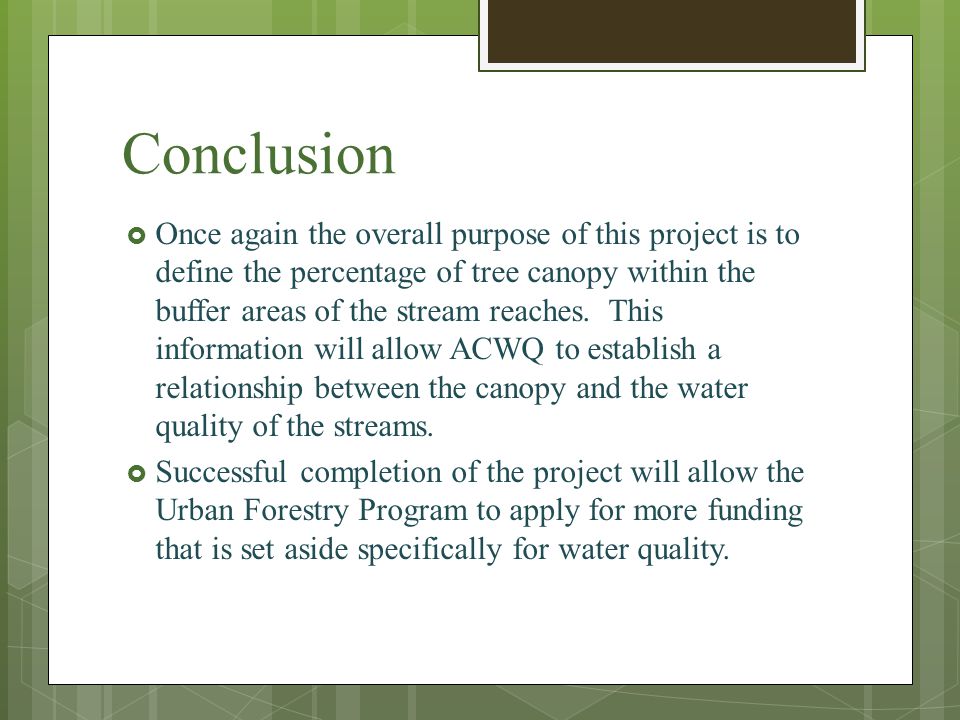

25. Conclusion  Once again the overall purpose of this project is to define the percentage of tree canopy within the buffer areas of the stream reaches. This information will allow ACWQ to establish a relationship between the canopy and the water quality of the streams.  Successful completion of the project will allow the Urban Forestry Program to apply for more funding that is set aside specifically for water quality.

26. Questions?
