1. Electronic ID Card and Identification Service Development in Georgia Mikheil Kapanadze

2. What is Georgian eID Card?

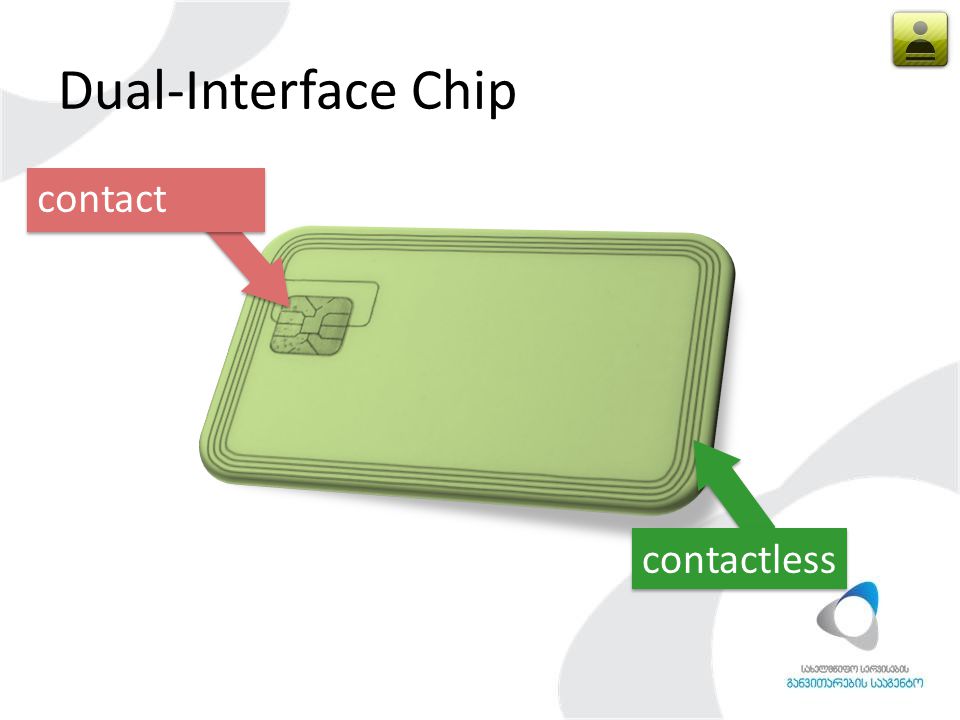

3. Dual-Interface Chip contact contactless

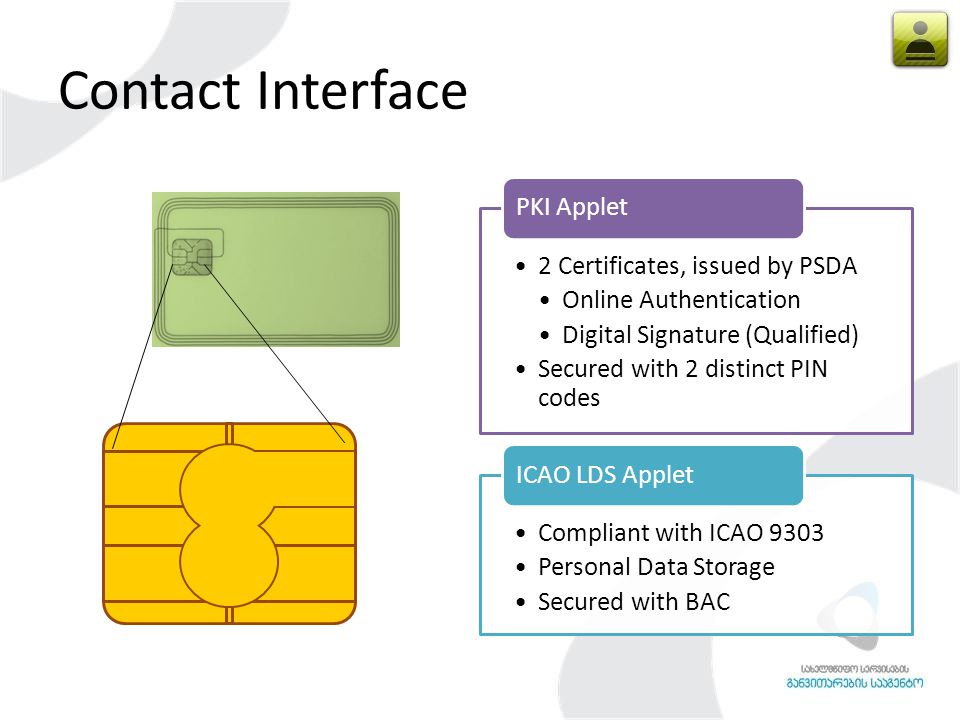

4. Contact Interface 2 Certificates, issued by PSDA Online Authentication Digital Signature (Qualified) Secured with 2 distinct PIN codes PKI Applet Compliant with ICAO 9303 Personal Data Storage Secured with BAC ICAO LDS Applet

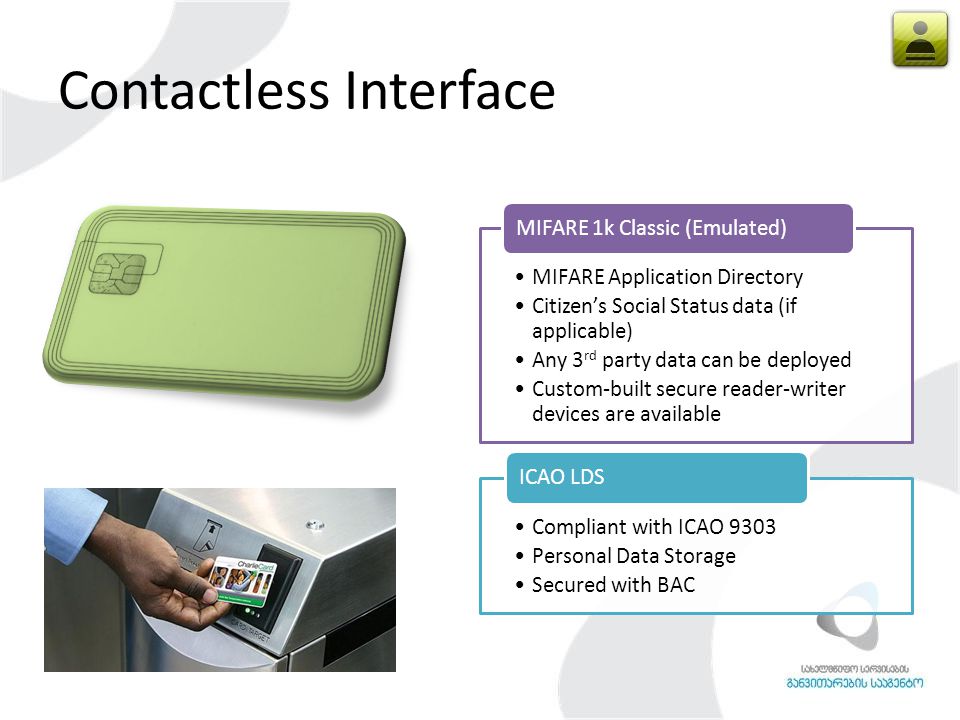

5. Contactless Interface MIFARE Application Directory Citizen’s Social Status data (if applicable) Any 3 rd party data can be deployed Custom-built secure reader-writer devices are available MIFARE 1k Classic (Emulated) Compliant with ICAO 9303 Personal Data Storage Secured with BAC ICAO LDS

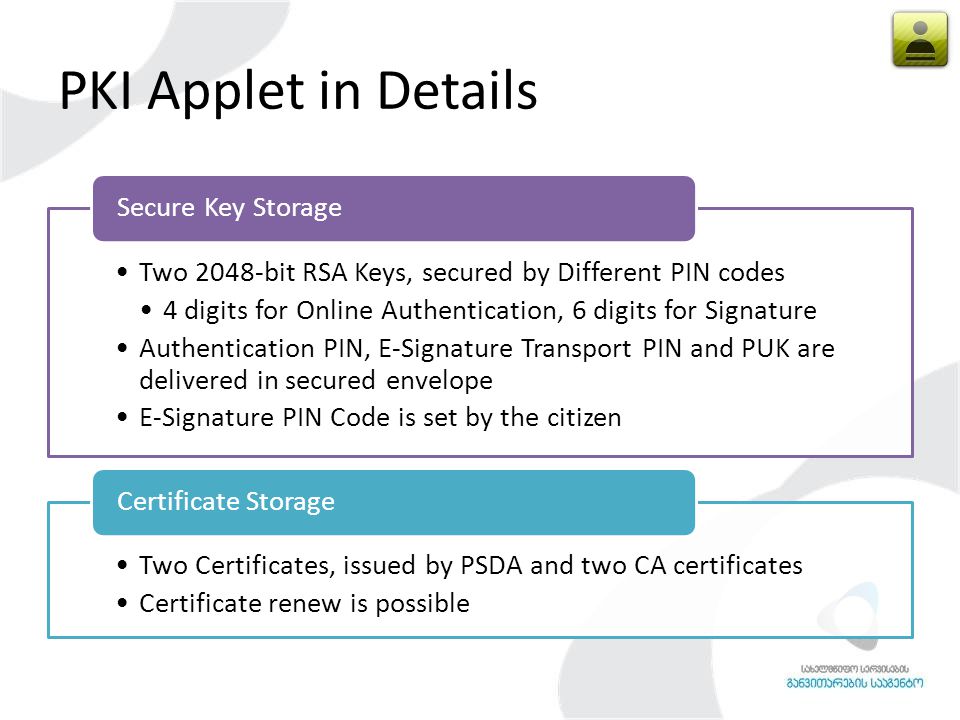

6. PKI Applet in Details Two 2048-bit RSA Keys, secured by Different PIN codes 4 digits for Online Authentication, 6 digits for Signature Authentication PIN, E-Signature Transport PIN and PUK are delivered in secured envelope E-Signature PIN Code is set by the citizen Secure Key Storage Two Certificates, issued by PSDA and two CA certificates Certificate renew is possible Certificate Storage

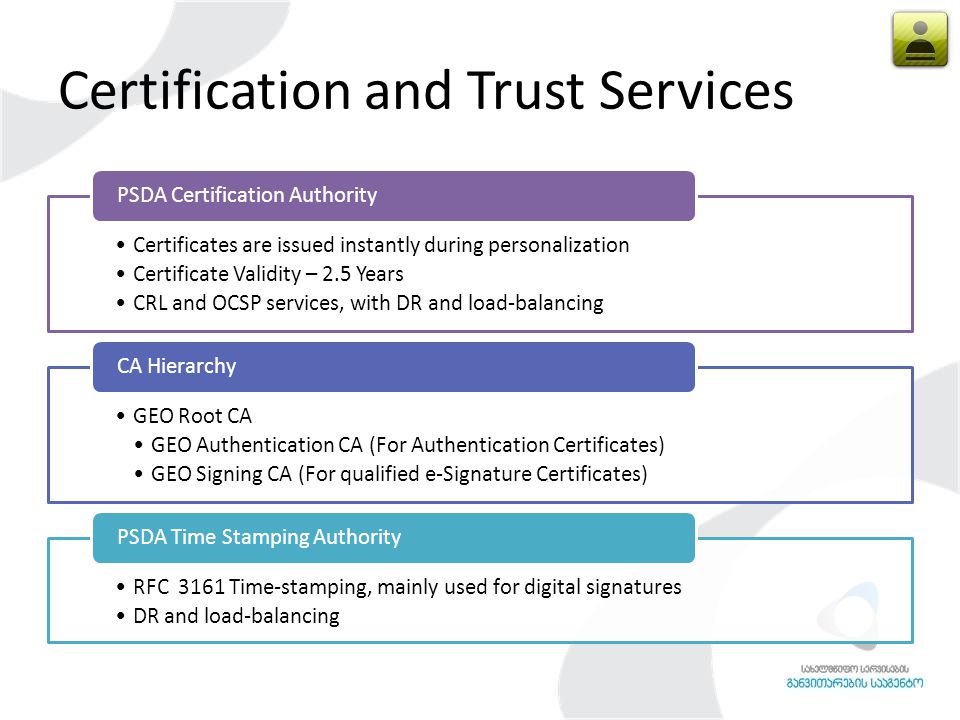

7. Certification and Trust Services Certificates are issued instantly during personalization Certificate Validity – 2.5 Years CRL and OCSP services, with DR and load-balancing PSDA Certification Authority GEO Root CA GEO Authentication CA (For Authentication Certificates) GEO Signing CA (For qualified e-Signature Certificates) CA Hierarchy RFC 3161 Time-stamping, mainly used for digital signatures DR and load-balancing PSDA Time Stamping Authority

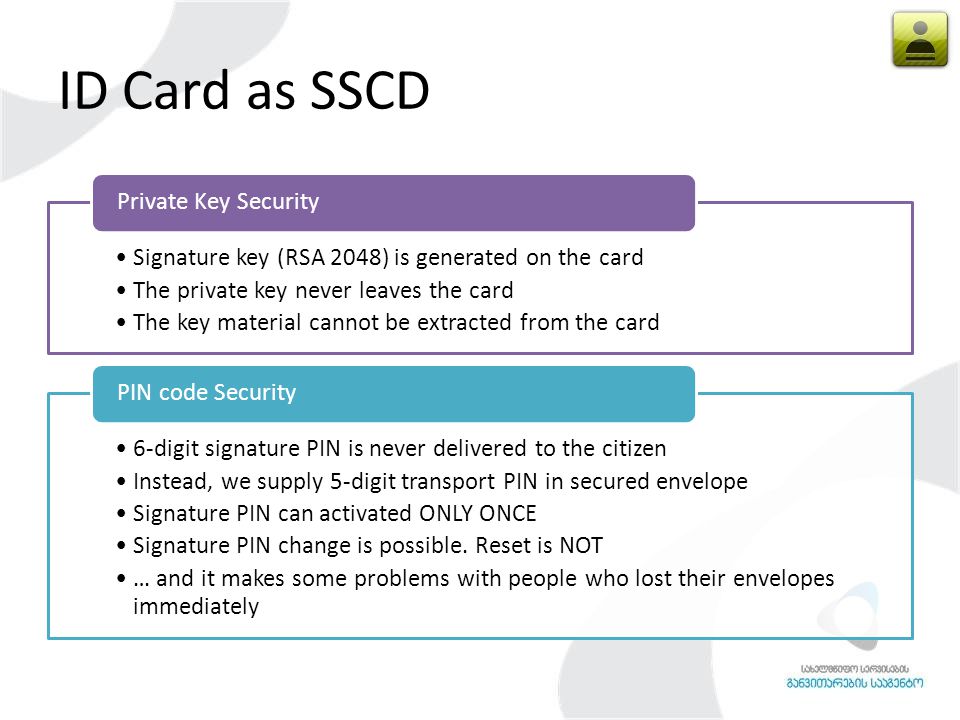

8. ID Card as SSCD Signature key (RSA 2048) is generated on the card The private key never leaves the card The key material cannot be extracted from the card Private Key Security 6-digit signature PIN is never delivered to the citizen Instead, we supply 5-digit transport PIN in secured envelope Signature PIN can activated ONLY ONCE Signature PIN change is possible. Reset is NOT … and it makes some problems with people who lost their envelopes immediately PIN code Security

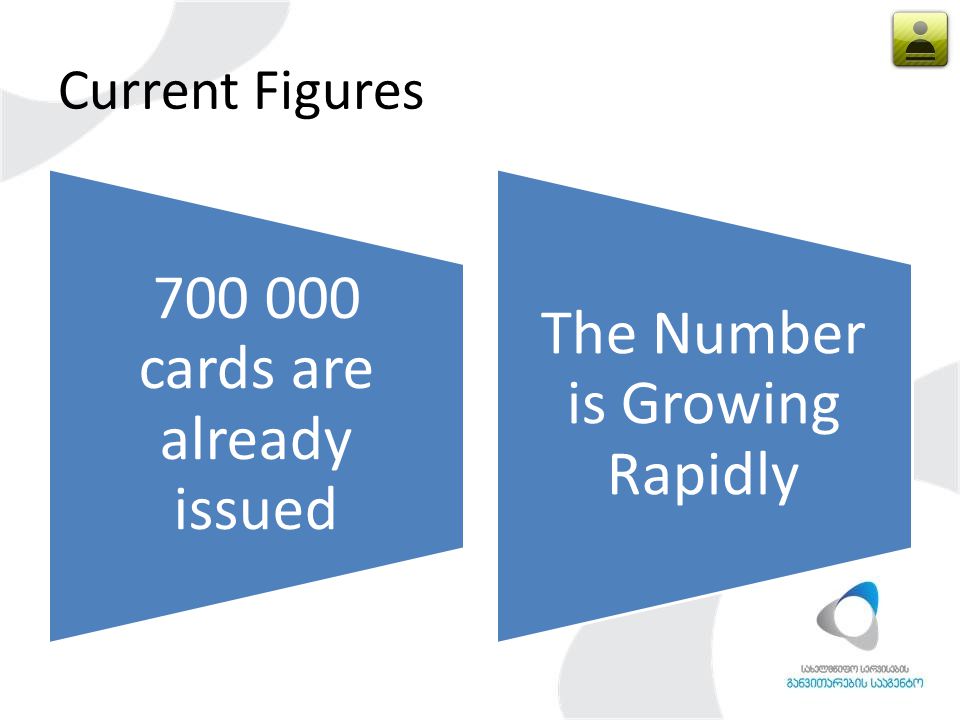

9. Current Figures 700 000 cards are already issued The Number is Growing Rapidly

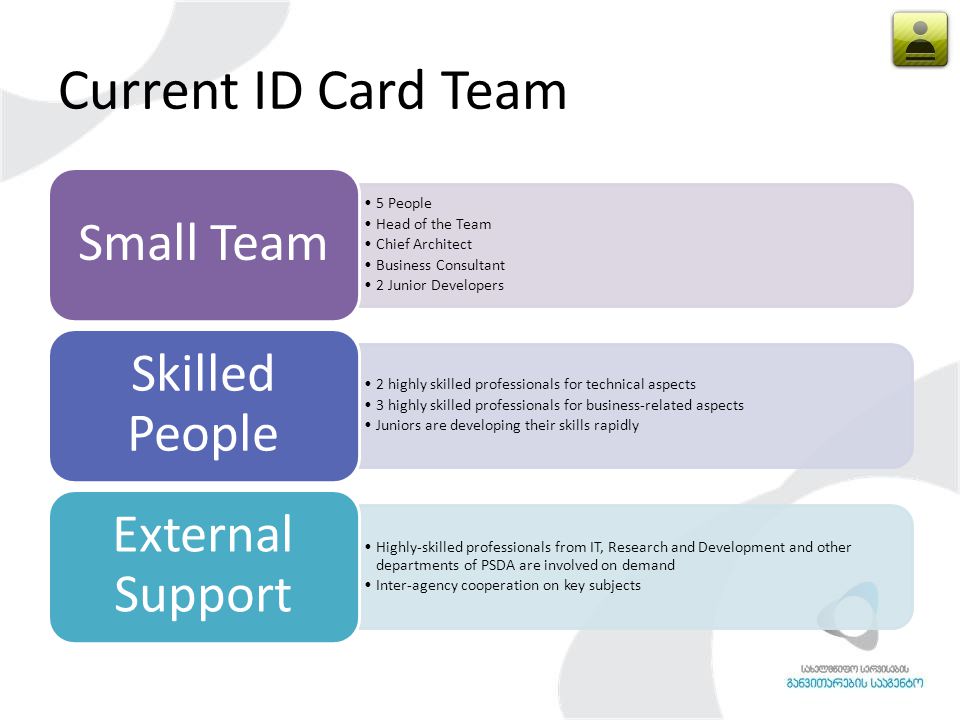

10. Current ID Card Team 5 People Head of the Team Chief Architect Business Consultant 2 Junior Developers Small Team 2 highly skilled professionals for technical aspects 3 highly skilled professionals for business-related aspects Juniors are developing their skills rapidly Skilled People Highly-skilled professionals from IT, Research and Development and other departments of PSDA are involved on demand Inter-agency cooperation on key subjects External Support

11. Current Projects Digital Signature Portal Free Web-based signing with ID card, with possible commercial extensions Document sharing with multiple signers Signature Verification (ongoing) Identity Verification Service Based on OpenID 2.0, AX 1.0 and PAPE Free service with possible commercial extensions Digital Signature for Legal Entities (Ongoing) Signing as company’s authorized representative Signing as a notary representative Electronic Apostille

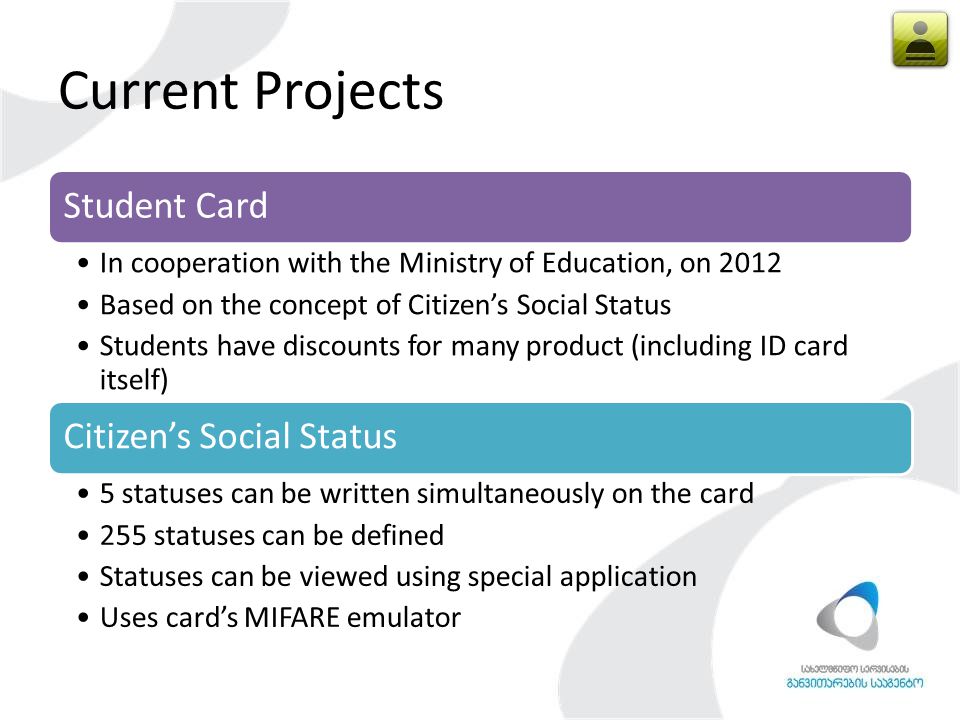

12. Current Projects Student Card In cooperation with the Ministry of Education, on 2012 Based on the concept of Citizen’s Social Status Students have discounts for many product (including ID card itself) Citizen’s Social Status 5 statuses can be written simultaneously on the card 255 statuses can be defined Statuses can be viewed using special application Uses card’s MIFARE emulator

13. DIGITAL SIGNATURE SERVICES

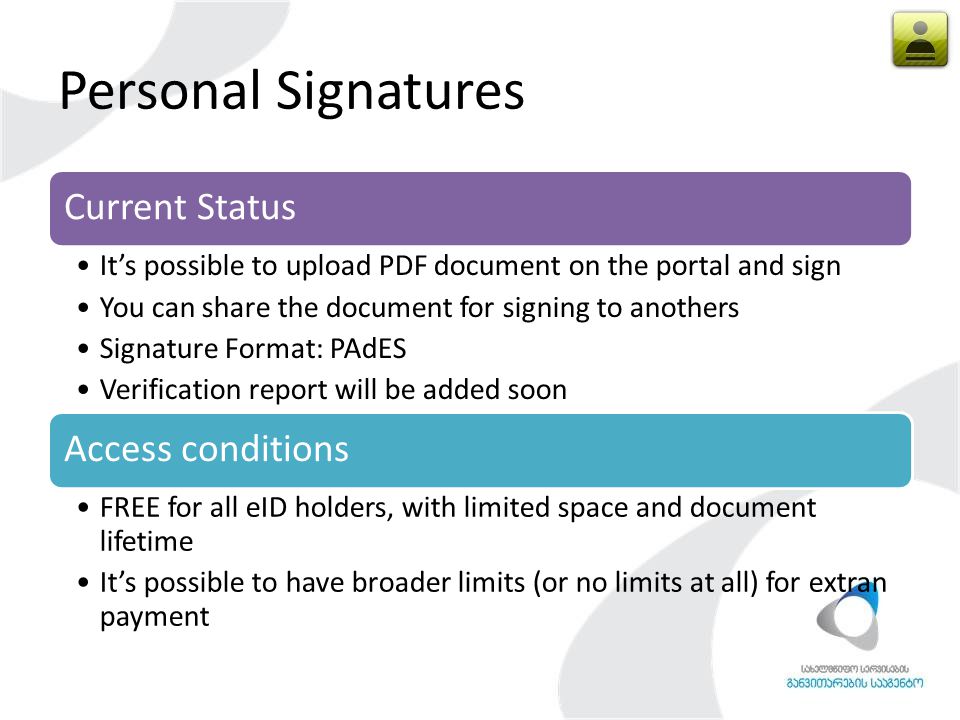

14. Personal Signatures Current Status It’s possible to upload PDF document on the portal and sign You can share the document for signing to anothers Signature Format: PAdES Verification report will be added soon Access conditions FREE for all eID holders, with limited space and document lifetime It’s possible to have broader limits (or no limits at all) for extran payment

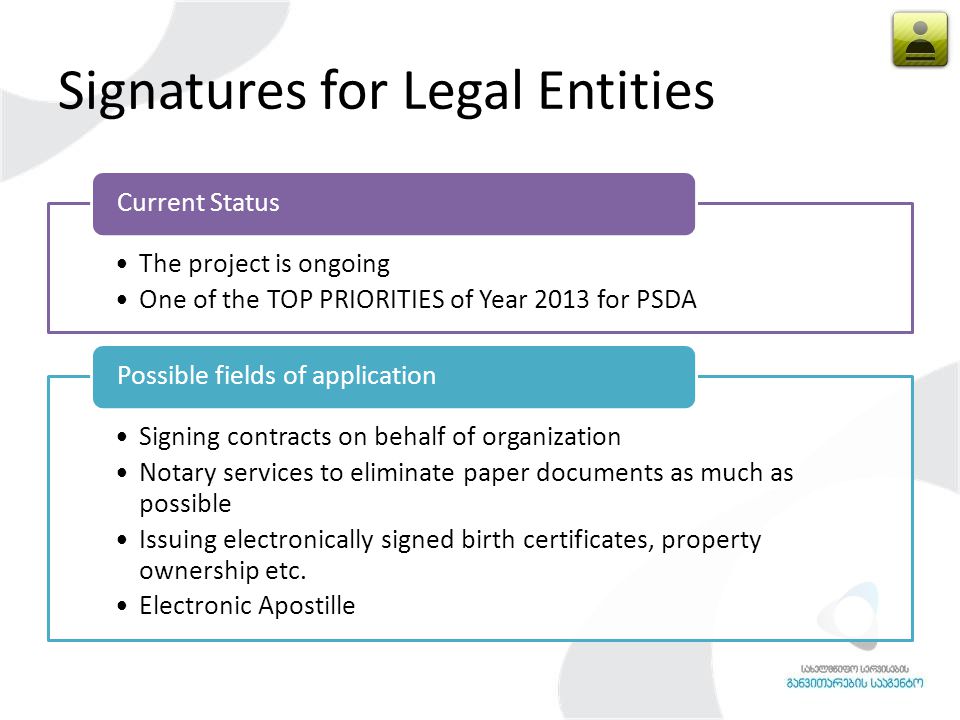

15. Signatures for Legal Entities The project is ongoing One of the TOP PRIORITIES of Year 2013 for PSDA Current Status Signing contracts on behalf of organization Notary services to eliminate paper documents as much as possible Issuing electronically signed birth certificates, property ownership etc. Electronic Apostille Possible fields of application

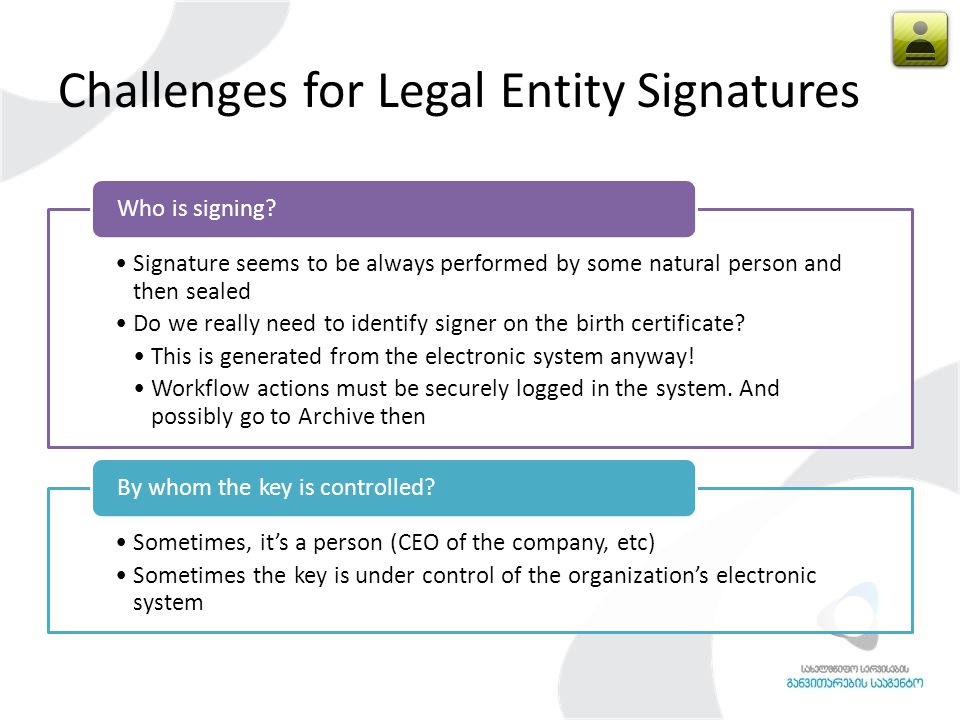

16. Challenges for Legal Entity Signatures Signature seems to be always performed by some natural person and then sealed Do we really need to identify signer on the birth certificate? This is generated from the electronic system anyway! Workflow actions must be securely logged in the system. And possibly go to Archive then Who is signing? Sometimes, it’s a person (CEO of the company, etc) Sometimes the key is under control of the organization’s electronic system By whom the key is controlled?

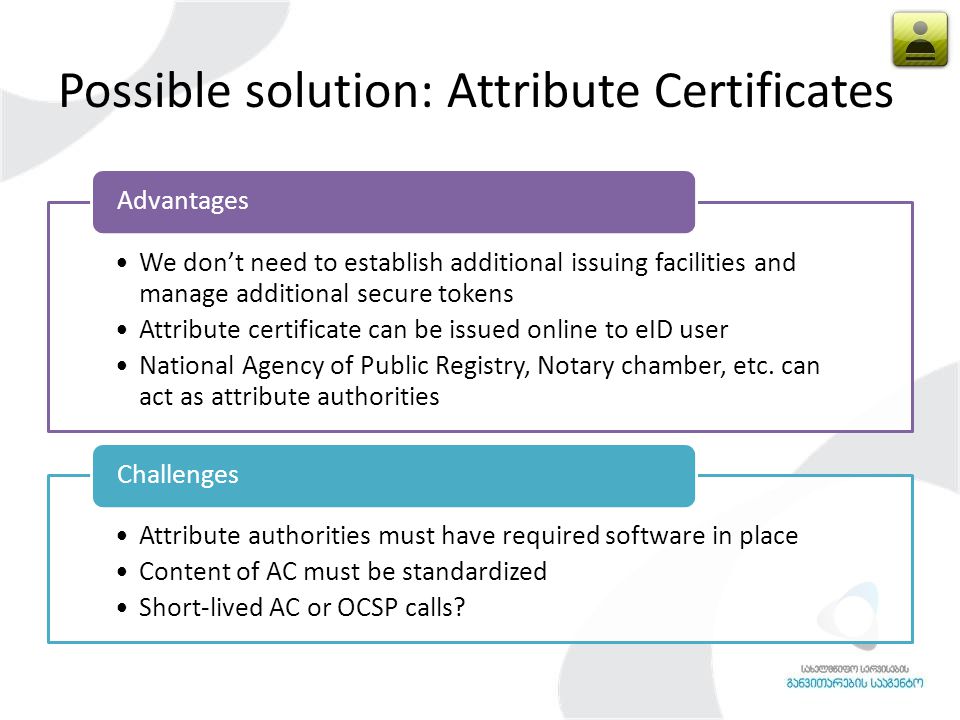

17. Possible solution: Attribute Certificates We don’t need to establish additional issuing facilities and manage additional secure tokens Attribute certificate can be issued online to eID user National Agency of Public Registry, Notary chamber, etc. can act as attribute authorities Advantages Attribute authorities must have required software in place Content of AC must be standardized Short-lived AC or OCSP calls? Challenges

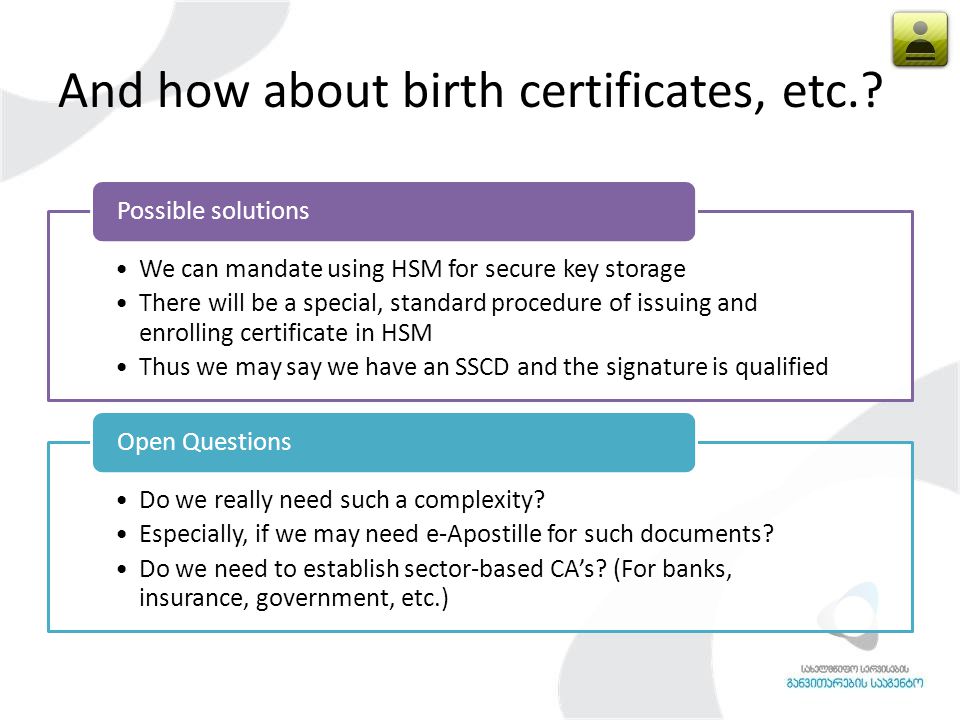

18. And how about birth certificates, etc.? We can mandate using HSM for secure key storage There will be a special, standard procedure of issuing and enrolling certificate in HSM Thus we may say we have an SSCD and the signature is qualified Possible solutions Do we really need such a complexity? Especially, if we may need e-Apostille for such documents? Do we need to establish sector-based CA’s? (For banks, insurance, government, etc.) Open Questions

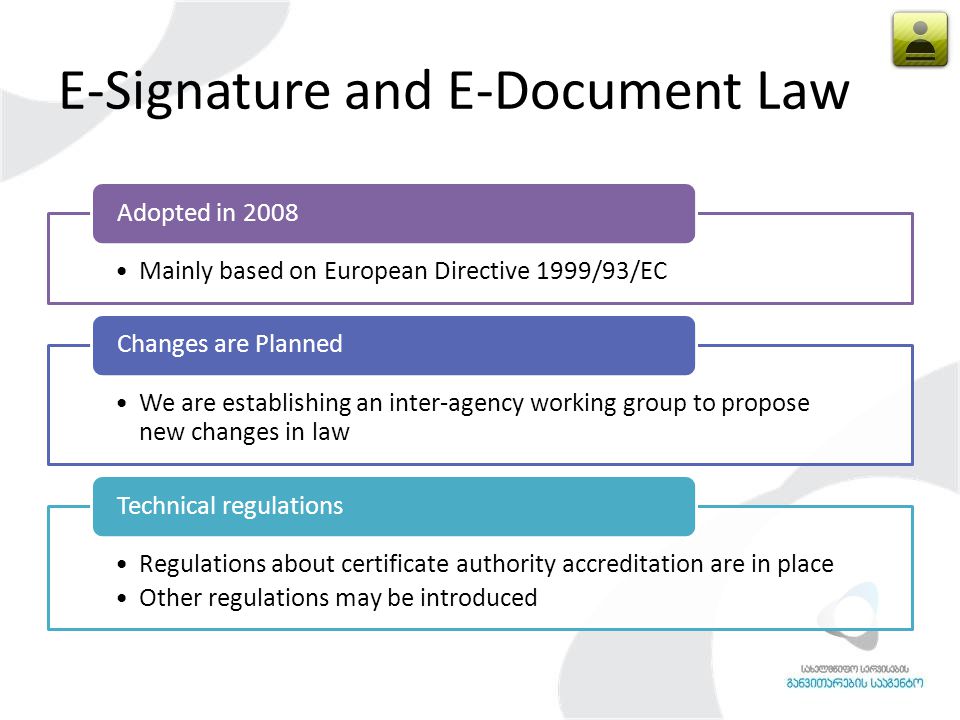

19. E-Signature and E-Document Law Mainly based on European Directive 1999/93/EC Adopted in 2008 We are establishing an inter-agency working group to propose new changes in law Changes are Planned Regulations about certificate authority accreditation are in place Other regulations may be introduced Technical regulations

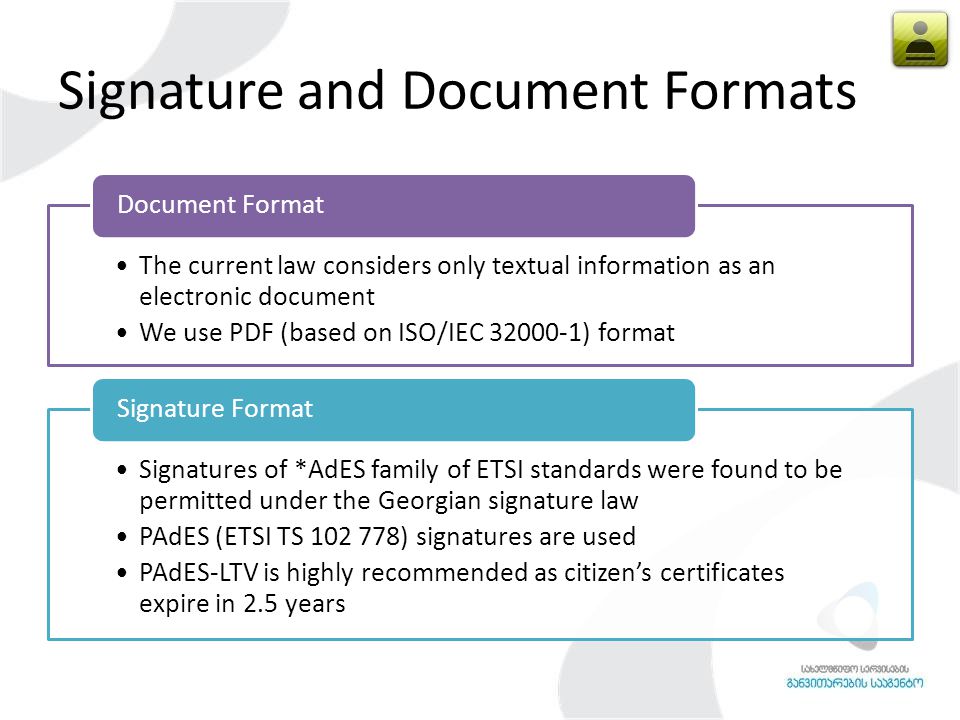

20. Signature and Document Formats The current law considers only textual information as an electronic document We use PDF (based on ISO/IEC 32000-1) format Document Format Signatures of *AdES family of ETSI standards were found to be permitted under the Georgian signature law PAdES (ETSI TS 102 778) signatures are used PAdES-LTV is highly recommended as citizen’s certificates expire in 2.5 years Signature Format

21. Next Plans for Signatures Minimize scanned documents and save time If your diploma is electronic, there is no need to look for a scanner to upload it in online job application system Promote digitally-born documents Do all graduates need paper-based university diploma? Make E-Signatures usable in everyday life By further simplification of eID usage, other signature schemas, etc.

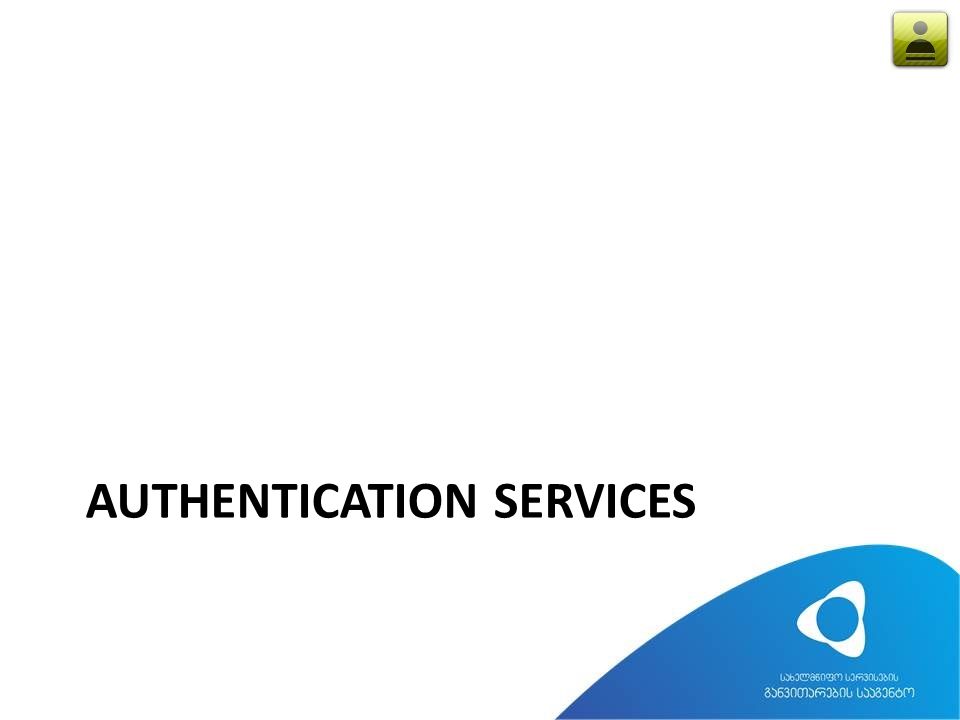

22. AUTHENTICATION SERVICES

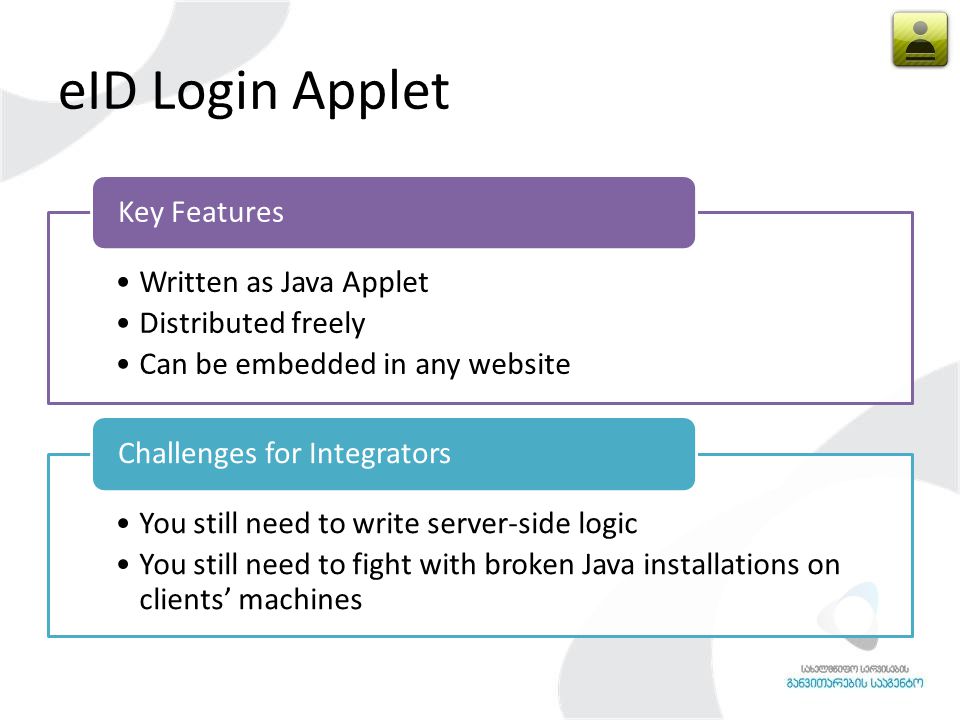

23. eID Login Applet Written as Java Applet Distributed freely Can be embedded in any website Key Features You still need to write server-side logic You still need to fight with broken Java installations on clients’ machines Challenges for Integrators

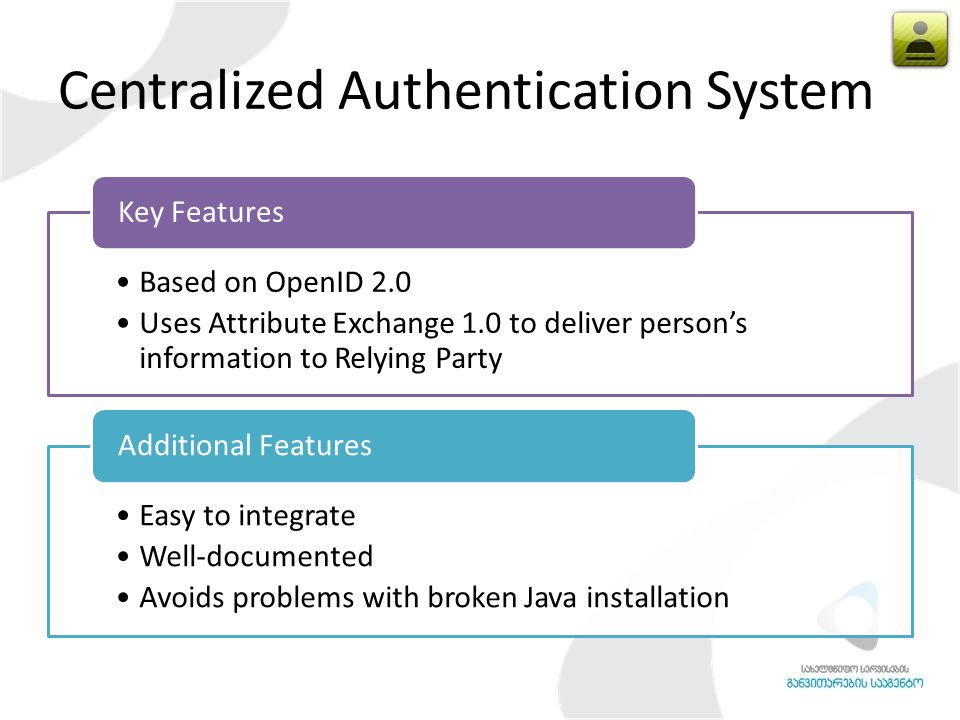

24. Centralized Authentication System Based on OpenID 2.0 Uses Attribute Exchange 1.0 to deliver person’s information to Relying Party Key Features Easy to integrate Well-documented Avoids problems with broken Java installation Additional Features

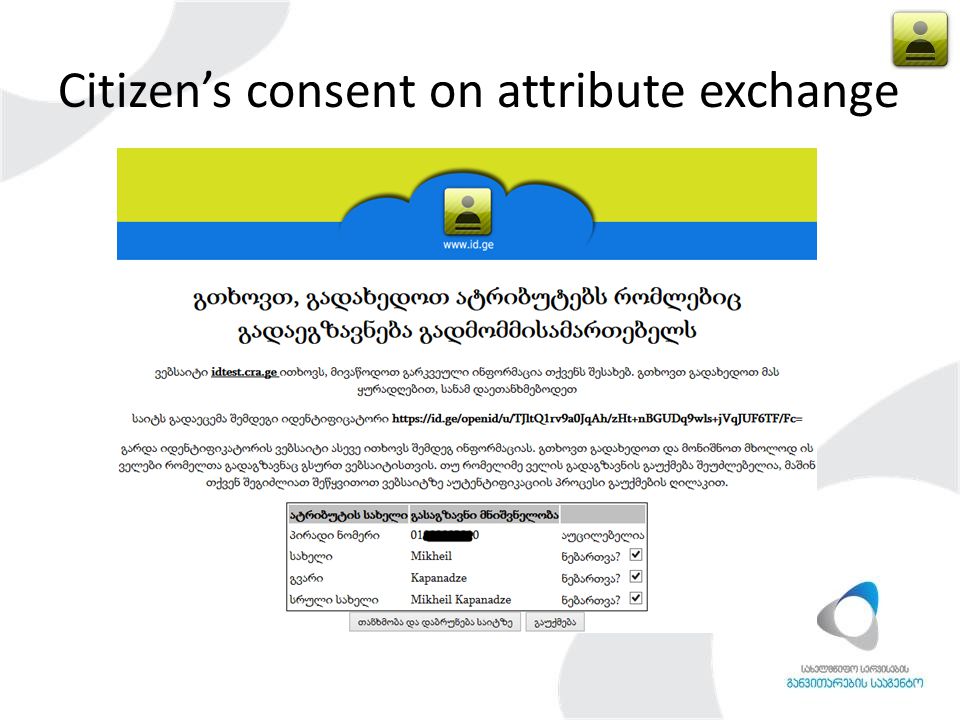

25. Citizen’s consent on attribute exchange

26. Integration with Civil Registry WS SOAP web service which gives personal data Right now sharing with 3 rd parties is possible only after written consent of the data subject It’s a commercial service What is Civil Registry WS? Implement web-based consent using digital signature Thus, it’s possible to cover additional segment of clients Integration Possibilities

27. ACTIVITY IN OTHER FIELDS

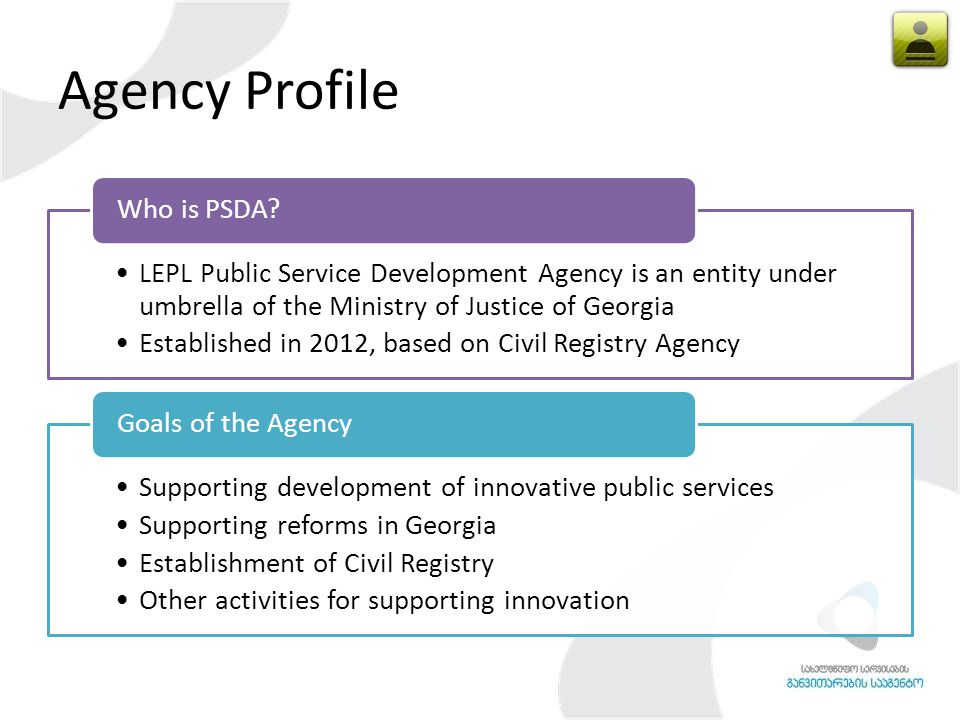

28. Agency Profile LEPL Public Service Development Agency is an entity under umbrella of the Ministry of Justice of Georgia Established in 2012, based on Civil Registry Agency Who is PSDA? Supporting development of innovative public services Supporting reforms in Georgia Establishment of Civil Registry Other activities for supporting innovation Goals of the Agency

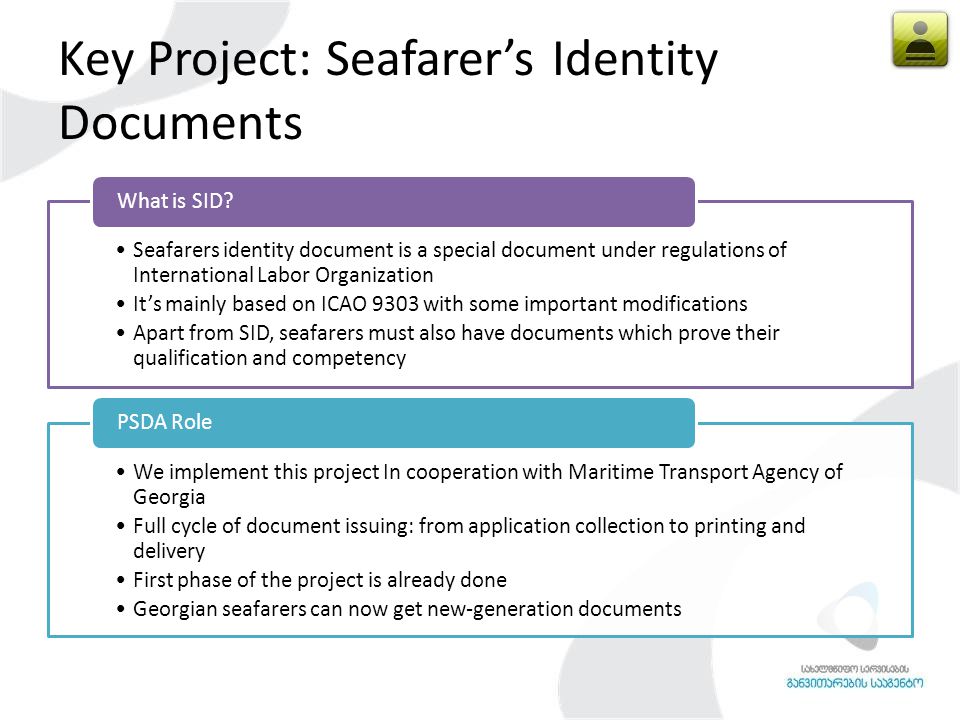

29. Key Project: Seafarer’s Identity Documents Seafarers identity document is a special document under regulations of International Labor Organization It’s mainly based on ICAO 9303 with some important modifications Apart from SID, seafarers must also have documents which prove their qualification and competency What is SID? We implement this project In cooperation with Maritime Transport Agency of Georgia Full cycle of document issuing: from application collection to printing and delivery First phase of the project is already done Georgian seafarers can now get new-generation documents PSDA Role

30. QUESTIONS?

31. Thank You! Mikheil Kapanadze Head of Identification Service Development Unit Public Service Development Agency Ministry of Justice of Georgia mkapanadze@sda.gov.ge
