1 Geometry Control – Modifying and Relimiting; Using Axes and Transformation Ideas Chapter 2: 2.4 & 2.5 R. Lindeke IE 1225

2 Starts in 2.4 – Playing in Complex Geometries Trimming under control Closing and Complementing Using the Tool Bars & your Mouse

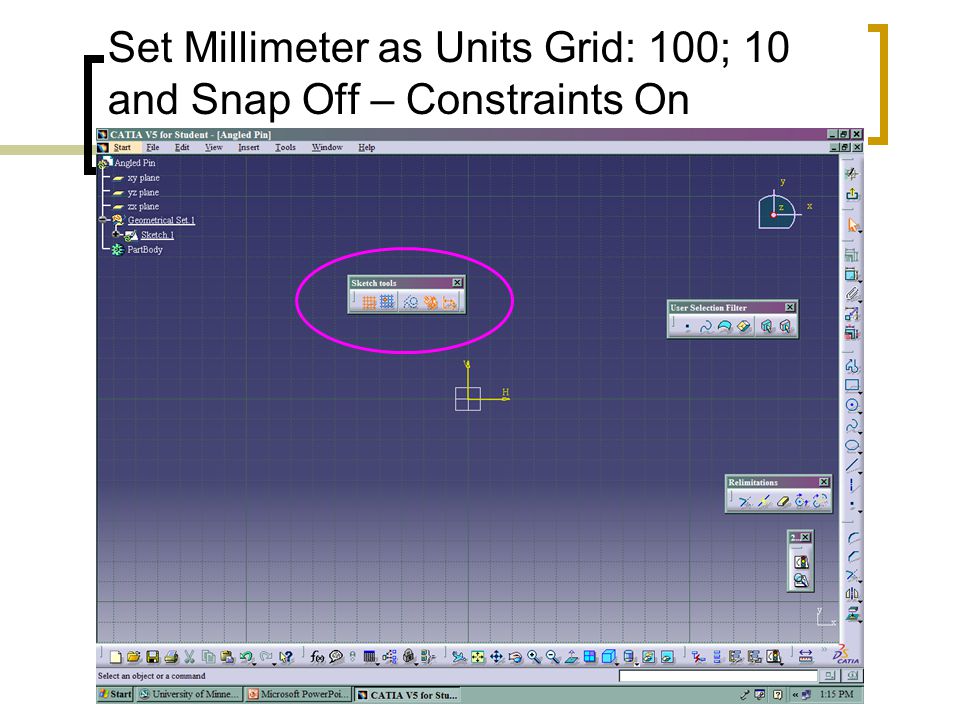

3 Set Millimeter as Units Grid: 100; 10 and Snap Off – Constraints On

4 Constrain for size and then position: (25 x 50 to XY zero) Set Length of the Top line and Left side Line – NOT offset!!!

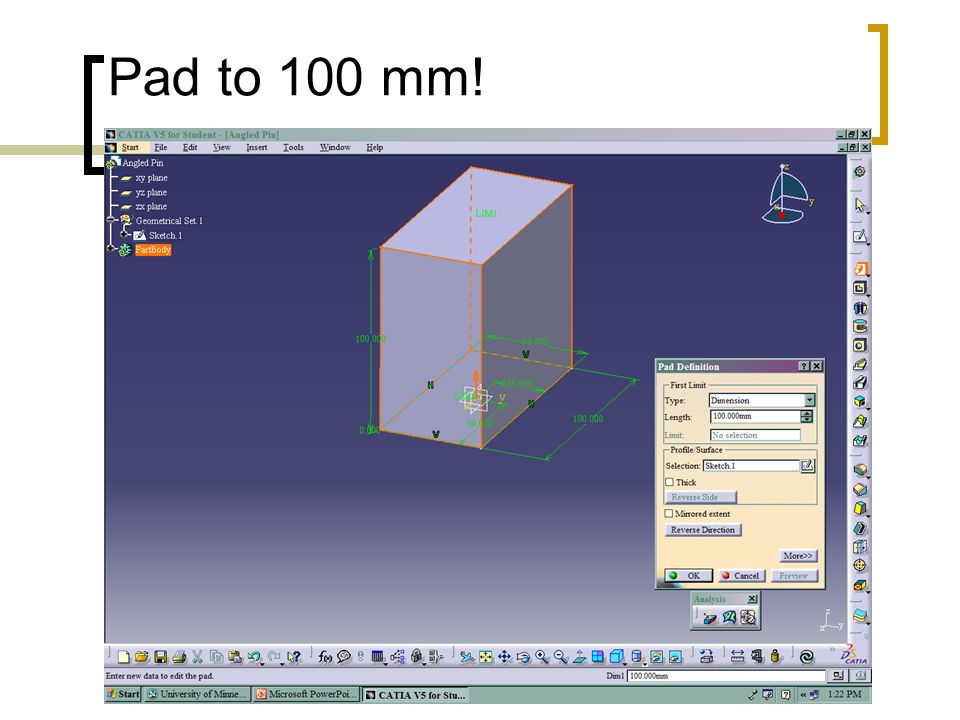

5 Pad to 100 mm!

6 Edit the Sketch: 1 st Remove Bottom Line horizontal Const. 2 nd Remove Right Side Vertical Const. Finally, Remove Locational Constraints (object is red! ---underconstrained) Select the Lower right point and drag it with your mouse – to the “V-shape” This will automatically redefine your pad!

7 Enter Sketcher on Right Face

8 Draw and Constrain 2x30 mm dia. Circles Then: Draw 2 bi-tangent lines between them and Trim the circles between (these operations are not shown)

9 The 2 intersecting lines were double “Broke” Trim and Break in this tool bar!

10 Further Modifications: Sketch on the last Pad “3D project” the edges of the arcs – then Isolate them from the part After isolation:  Close the Top one  Complement the lower – and connect the ends with a line These sketches will form a 3 rd pad away from the face!

11 Make Sure the Bottom Arc and Line Close the lower edge & Pad to 10mm:

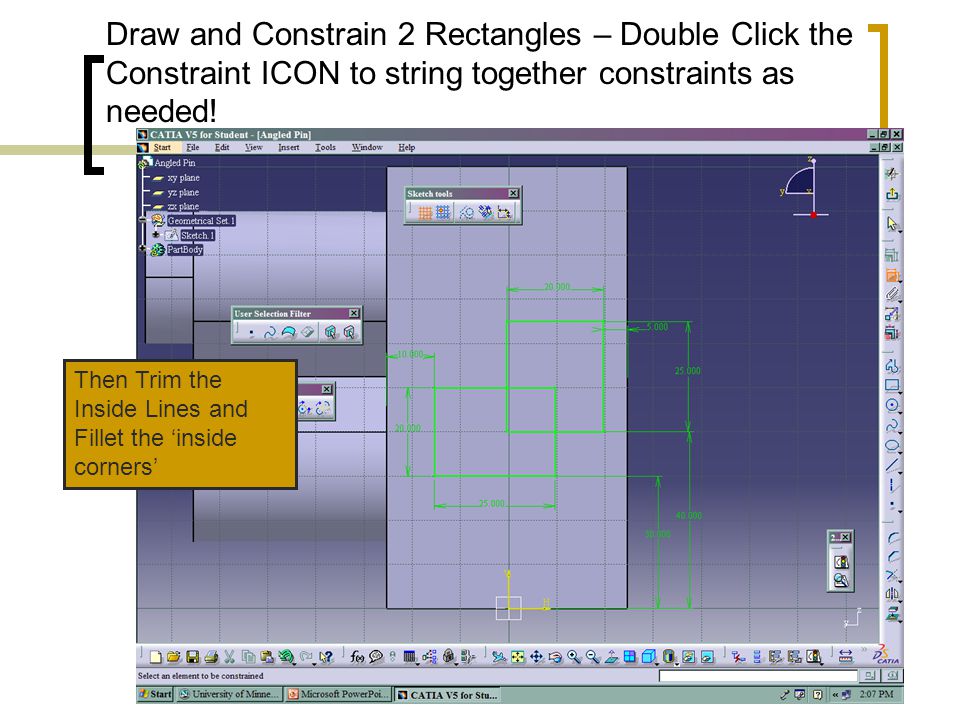

12 Draw and Constrain 2 Rectangles – Double Click the Constraint ICON to string together constraints as needed! Then Trim the Inside Lines and Fillet the ‘inside corners’

13 1 st Corner: Pick corner point, then Tab to Radius and type 8 (then tab again)! 2 nd Corner: Select both lines then tab to radius, type 5 and tab!

14 Apply Chamfers to outside corners – will be easy if rectangles dimensions were limited not lengths!

15 Finally POCKET this ‘Rectangles’ Sketch “Up to Last”

16 Lets spend a few minutes with Axes, Shaft, Mirror and their Kind – Tutorial 2.5 We are going to model a Wagon Wheel – the easy way! We can develop simple geometries and revolve (or SHAFT) them about axes Symmetrical shapes can be copied in many patterns – so why make them more than once!

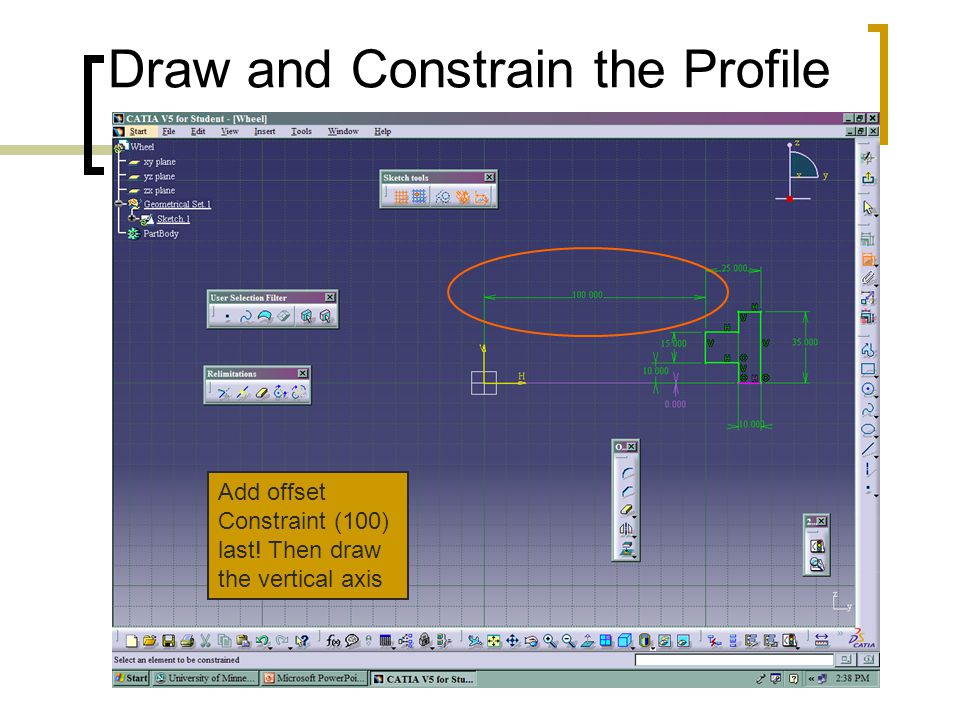

17 Draw and Constrain the Profile Add offset Constraint (100) last! Then draw the vertical axis

18 Might be quicker to Fillet the corners before shafting the sketch

19 Choose Shaft and Fill in as below:

20 Sketch on YZ plane – draw Axis and draw and Constrain Profile for Hub Visualization Menu was hidden – I pulled it up from the bottom and clicked ‘Cut Part by Sketch Plane’

21 Get Reference Elements Tools – we will be defining a new plane relative to original XY plane!

22 Adding Working (Additional Sketch) Planes is the true power of 3D Cad design!

23 We made it – lets use it – enter sketcher on this plane (see location in Part Tree) Once in Sketcher Find and Drag out the “Transformation” toolbar

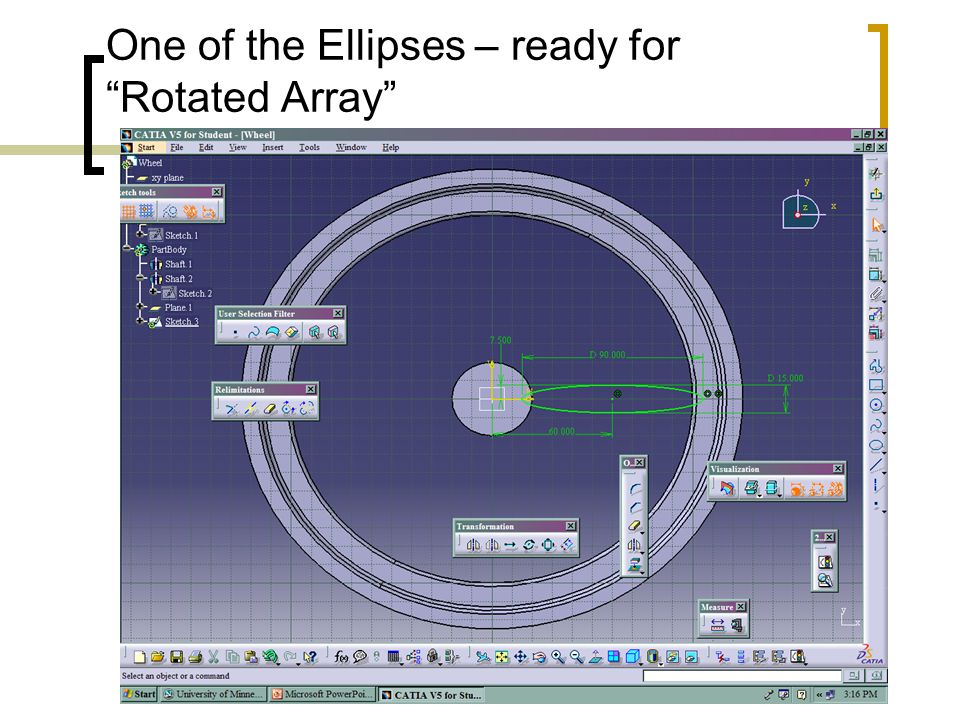

24 One of the Ellipses – ready for “Rotated Array”

25 Follow the Instruction in the message line ! Object – Center or Axis (here the center point) - Angle

26 Pad the Spokes to 11 mm – then Fillet all the edges of the spokes (all 16 of them!)

27 Pick and Roll ‘til all “side faces” are Highlighted – all 16 of them too!

28 Now for finishing the Hub Details – Using Symmetry and Mirror

29 I selected all 3 sides of the Constrained Triangle – Then Mirror Icon – then the Axis!

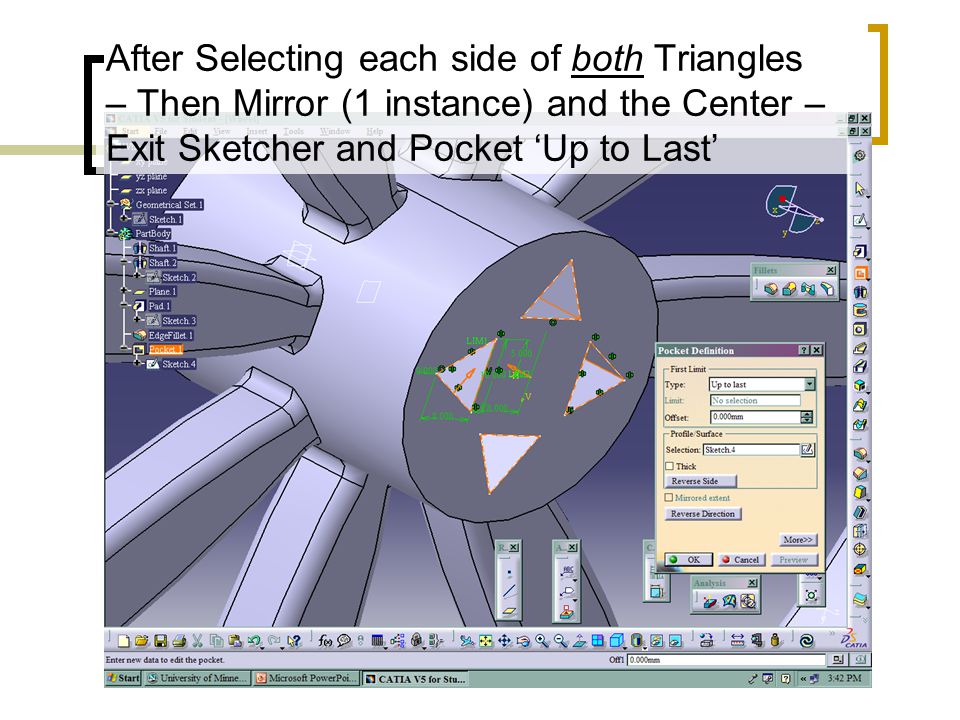

30 After Selecting each side of both Triangles – Then Mirror (1 instance) and the Center – Exit Sketcher and Pocket ‘Up to Last’

31 Finished Product – done easily with Transformations and “Shafting Power”
