Andreas Schadschneider Institute for Theoretical Physics University of Cologne www.thp.uni-koeln.de/~aswww.thp.uni-koeln.de/ant-traffic Cellular Automata Modelling of Traffic in Human and Biological Systems
2
Introduction Modelling of transport problems: space, time, states can be discrete or continuous various model classes
3

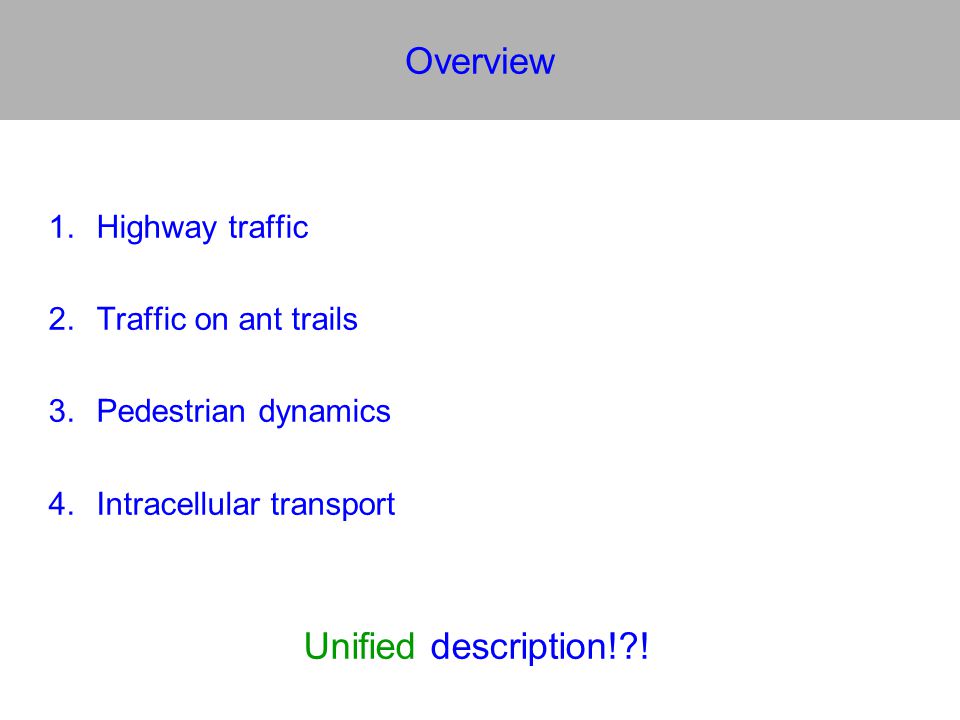

Overview 1.Highway traffic 2.Traffic on ant trails 3.Pedestrian dynamics 4.Intracellular transport Unified description!?!
4

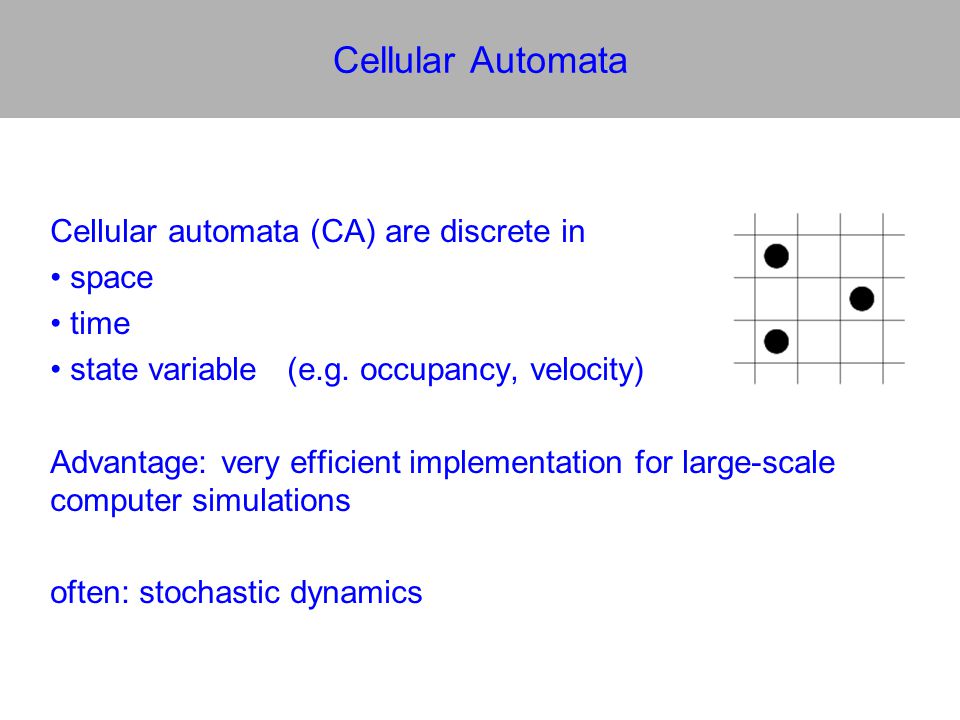

Cellular Automata Cellular automata (CA) are discrete in space time state variable (e.g. occupancy, velocity) Advantage: very efficient implementation for large-scale computer simulations often: stochastic dynamics
5
Asymmetric Simple Exclusion Process
6

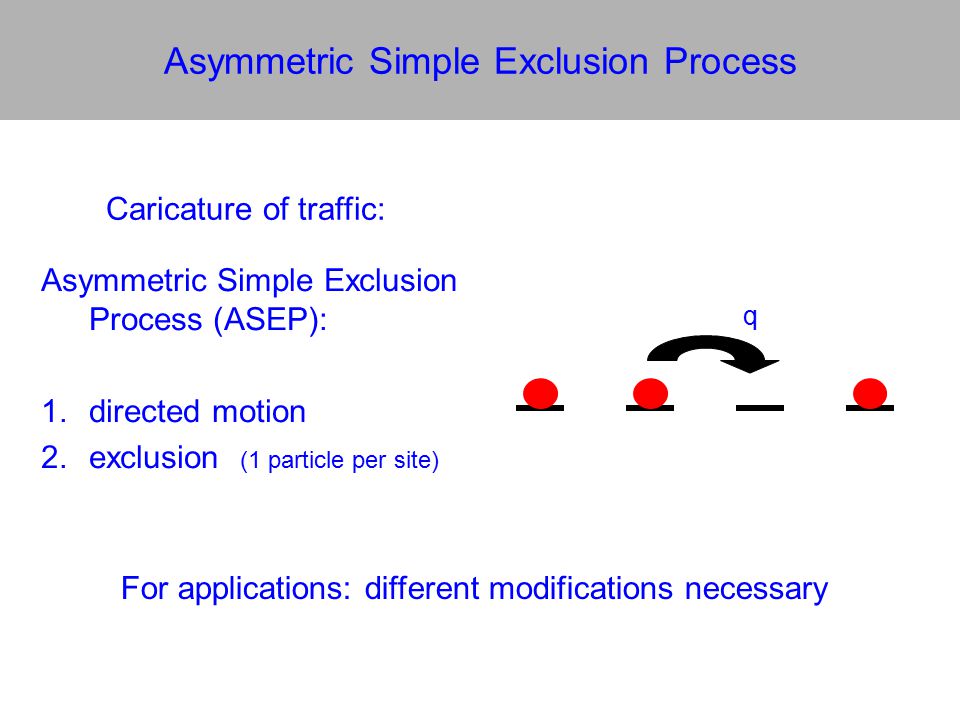

Asymmetric Simple Exclusion Process (ASEP): 1.directed motion 2.exclusion (1 particle per site) q q Caricature of traffic: For applications: different modifications necessary
7
Influence of Boundary Conditions open boundaries: Applications: Protein synthesis Surface growth Boundary induced phase transitions exactly solvable!
8

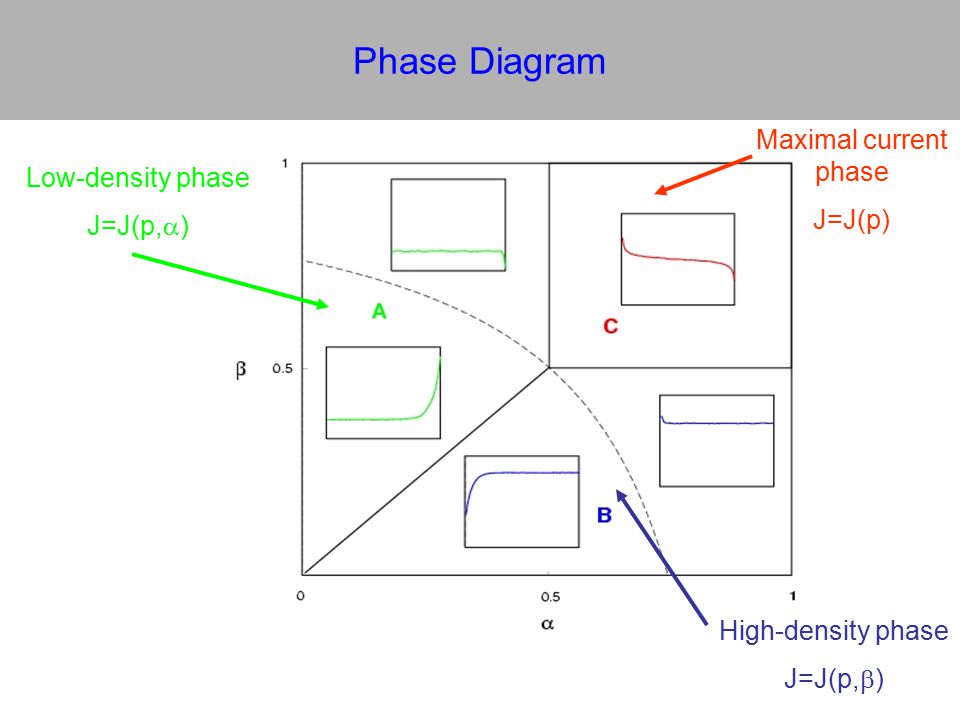

Phase Diagram Low-density phase J=J(p, ) High-density phase J=J(p, ) Maximal current phase J=J(p)
9
Highway Traffic
10

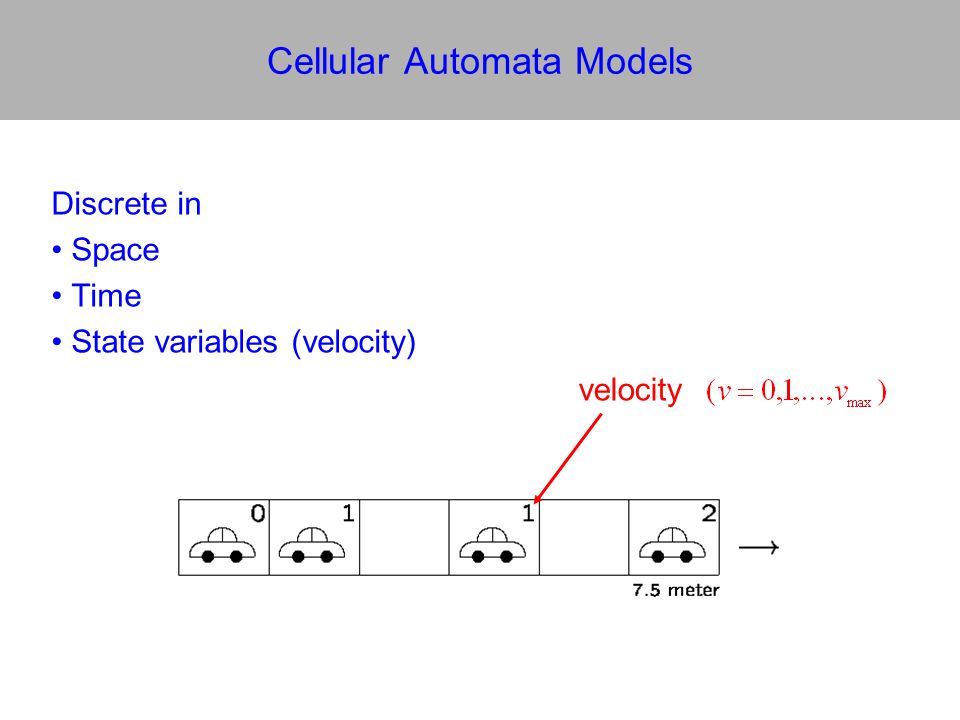

Cellular Automata Models Discrete in Space Time State variables (velocity) velocity
11
Update Rules Rules (Nagel-Schreckenberg 1992) 1)Acceleration: v j ! min (v j + 1, v max ) 2)Braking: v j ! min ( v j, d j ) 3)Randomization: v j ! v j – 1 (with probability p) 4)Motion: x j ! x j + v j (d j = # empty cells in front of car j)
12

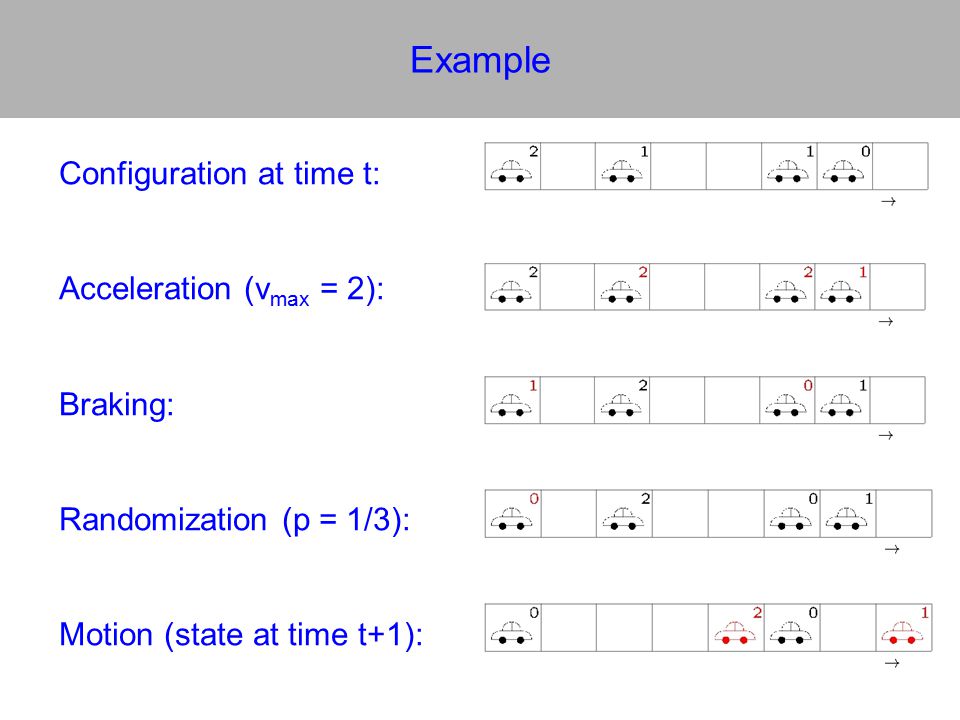

Example Configuration at time t: Acceleration (v max = 2): Braking: Randomization (p = 1/3): Motion (state at time t+1):
13
Interpretation of the Rules 1)Acceleration: Drivers want to move as fast as possible (or allowed) 2)Braking: no accidents 3)Randomization: a) overreactions at braking b) delayed acceleration c) psychological effects (fluctuations in driving) d) road conditions 4) Driving: Motion of cars
14
Simulation of NaSch Model Reproduces structure of traffic on highways - Fundamental diagram - Spontaneous jam formation Minimal model: all 4 rules are needed Order of rules important Simple as traffic model, but rather complex as stochastic model
15
Fundamental Diagram Relation: current (flow) $ density
16

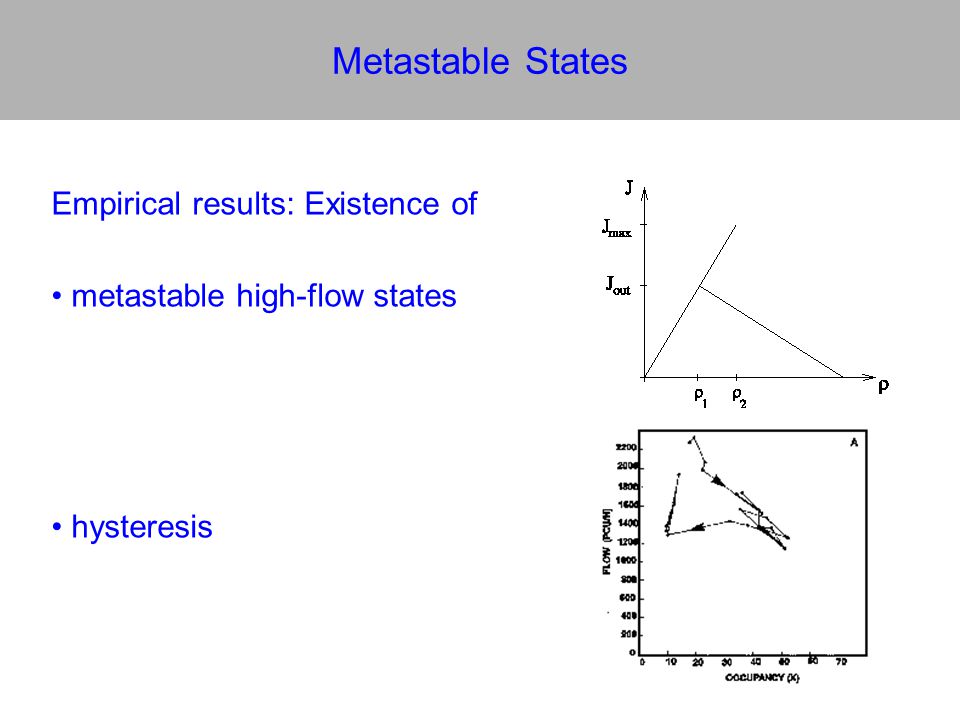

Metastable States Empirical results: Existence of metastable high-flow states hysteresis
17

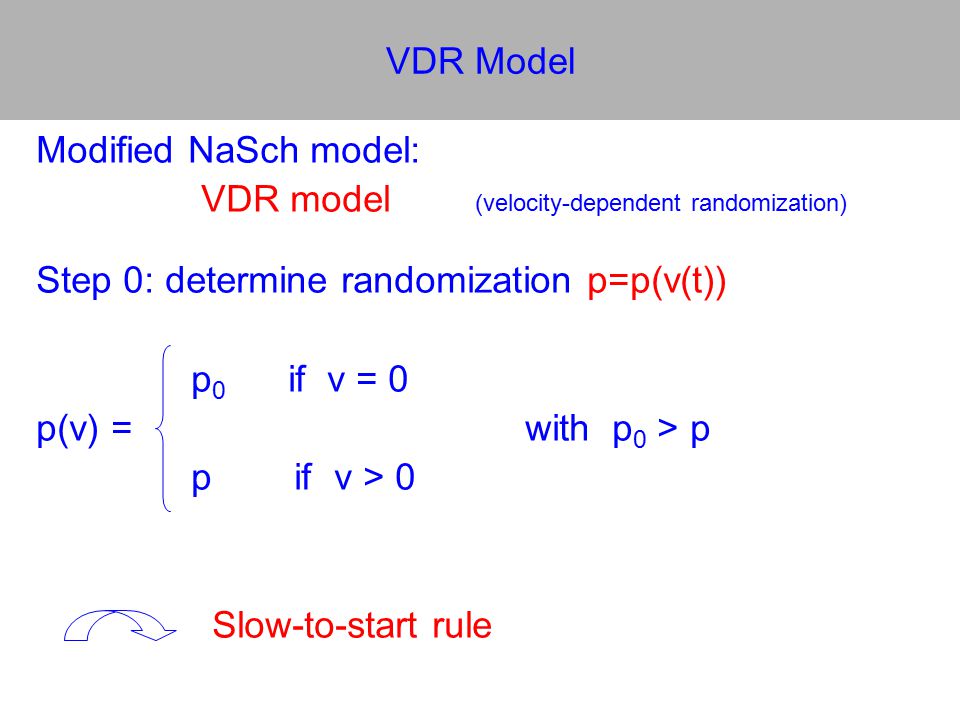

VDR Model Modified NaSch model: VDR model (velocity-dependent randomization) Step 0: determine randomization p=p(v(t)) p 0 if v = 0 p(v) = with p 0 > p p if v > 0 Slow-to-start rule
18
NaSch model VDR-model: phase separation Jam stabilized by J out < J max VDR model Simulation of VDR Model
19
Dynamics on Ant Trails
20
Ant trails ants build “road” networks: trail system
21
Chemotaxis Ants can communicate on a chemical basis: chemotaxis Ants create a chemical trace of pheromones trace can be “smelled” by other ants follow trace to food source etc.
22

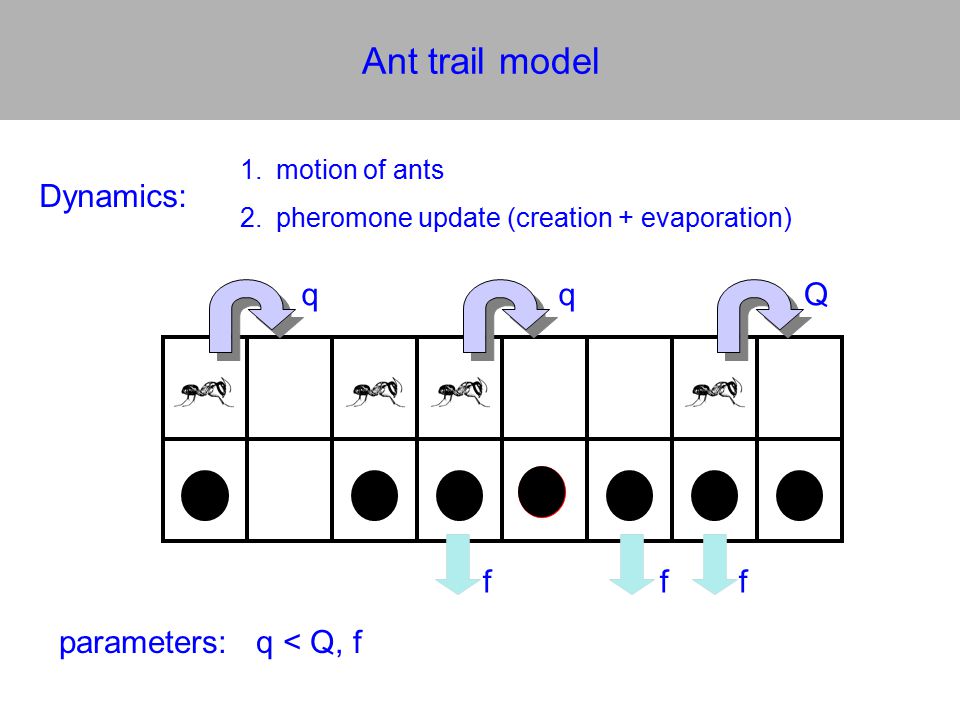

q q Q 1.motion of ants 2.pheromone update (creation + evaporation) Dynamics: f f f parameters: q < Q, f Ant trail model qqQ
23

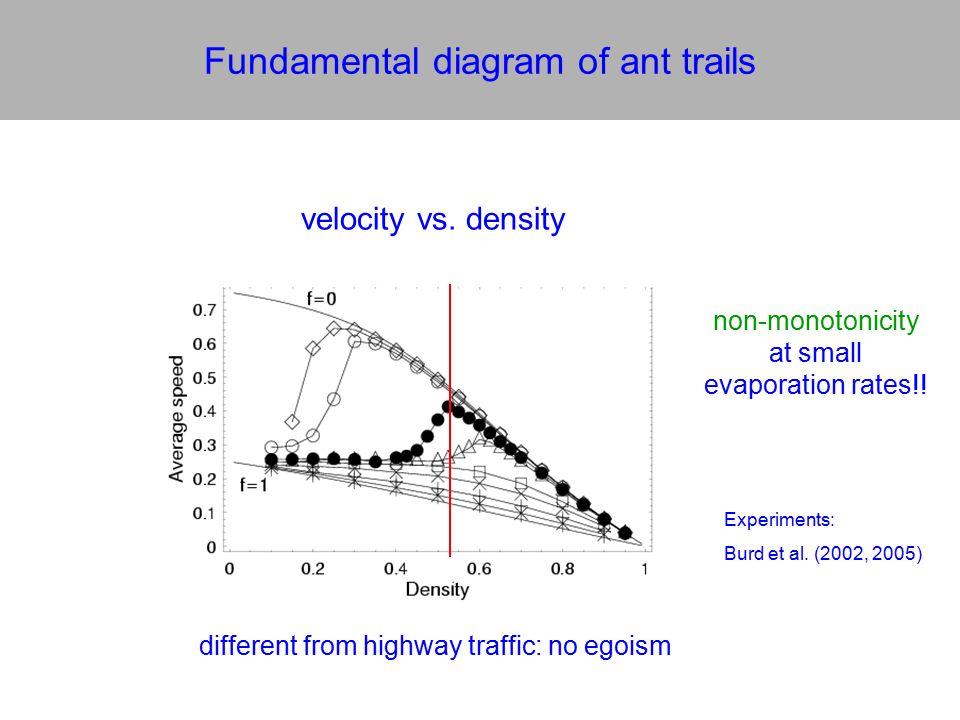

Fundamental diagram of ant trails different from highway traffic: no egoism velocity vs. density Experiments: Burd et al. (2002, 2005) non-monotonicity at small evaporation rates!!
24

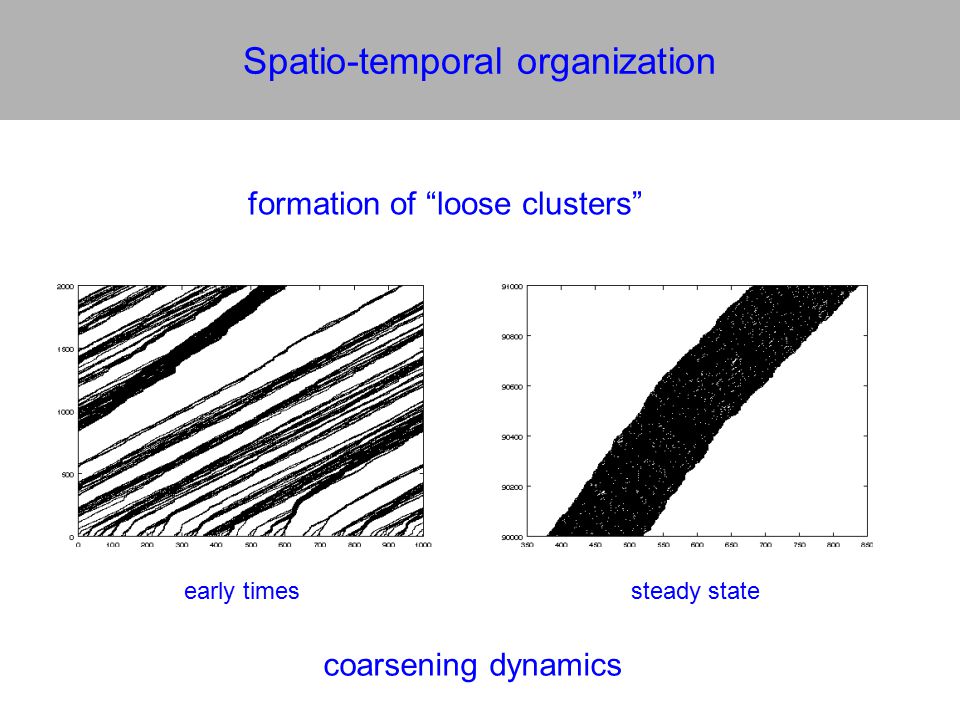

Spatio-temporal organization formation of “loose clusters” early timessteady state coarsening dynamics
25
Pedestrian Dynamics
26
Collective Effects jamming/clogging at exits lane formation flow oscillations at bottlenecks structures in intersecting flows ( D. Helbing)
27
Pedestrian Dynamics More complex than highway traffic motion is 2-dimensional counterflow interaction “longer-ranged” (not only nearest neighbours)
28
Pedestrian model Modifications of ant trail model necessary since motion 2-dimensional: diffusion of pheromones strength of trace idea: Virtual chemotaxis chemical trace: long-ranged interactions are translated into local interactions with ‘‘memory“
29

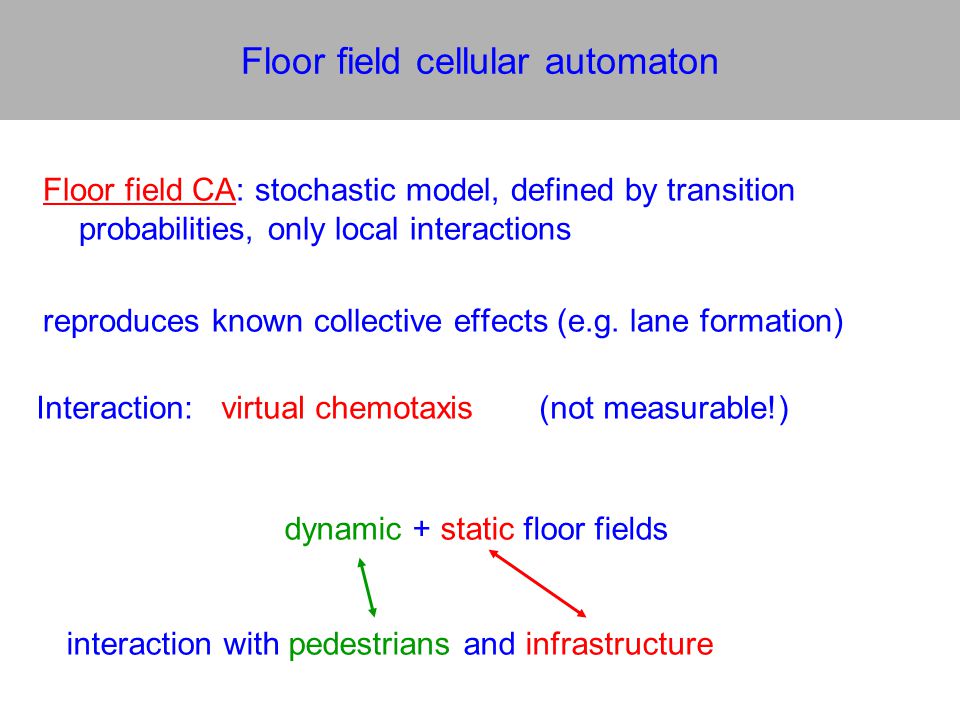

Floor field cellular automaton Floor field CA: stochastic model, defined by transition probabilities, only local interactions reproduces known collective effects (e.g. lane formation) Interaction: virtual chemotaxis (not measurable!) dynamic + static floor fields interaction with pedestrians and infrastructure
30
Transition Probabilities Stochastic motion, defined by transition probabilities 3 contributions: Desired direction of motion Reaction to motion of other pedestrians Reaction to geometry (walls, exits etc.) Unified description of these 3 components
31
Transition Probabilities Total transition probability p ij in direction (i,j): p ij = N¢ M ij exp(k D D ij ) exp(k S S ij )(1-n ij ) M ij = matrix of preferences (preferred direction) D ij = dynamic floor field (interaction between pedestrians) S ij = static floor field (interaction with geometry) k D, k S = coupling strength N = normalization ( p ij = 1)
32

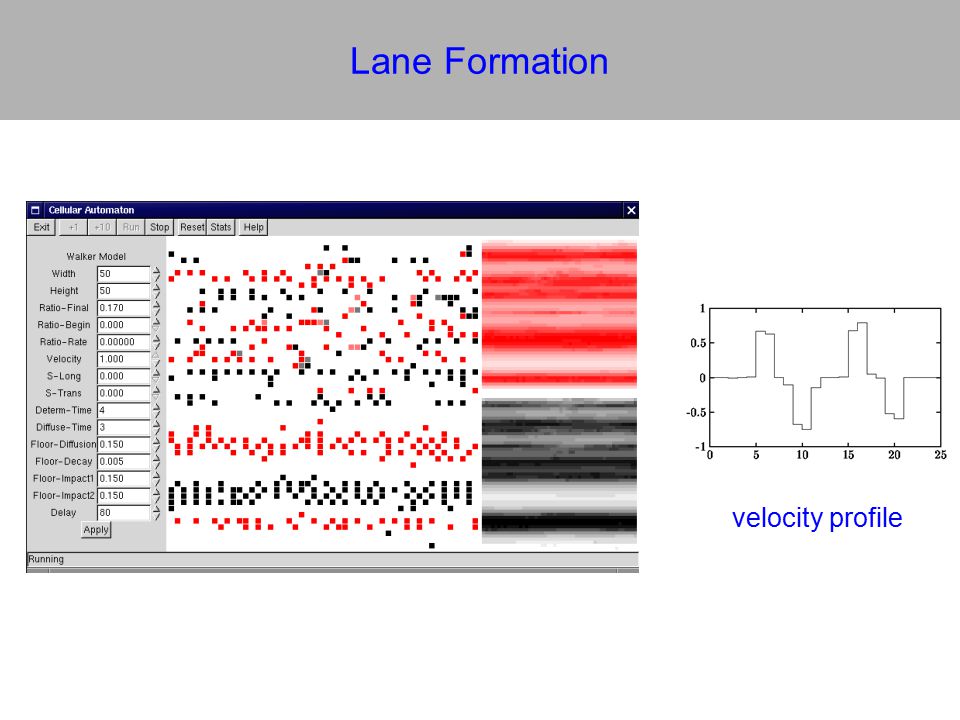

Lane Formation velocity profile
33
Intracellular Transport
34
Intracellular Transport Transport in cells: microtubule = highway molecular motor (proteins) = trucks ATP = fuel
35
Several motors running on same track simultaneously Size of the cargo >> Size of the motor Collective spatio-temporal organization ? Fuel: ATP ATP ADP + PKinesin Dynein Kinesin and Dynein: Cytoskeletal motors
36
Practical importance in bio-medical research DiseaseMotor/TrackSymptom Charcot-Marie tooth disease KIF1B kinesinNeurological disease; sensory loss Retinitis pigmentosaKIF3A kinesinBlindness Usher’s syndromeMyosin VIIHearing loss Griscelli diseaseMyosin VPigmentation defect Primary ciliary diskenesia/ Kartageners’ syndrome DyneinSinus and Lung disease, male infertility Goldstein, Aridor, Hannan, Hirokawa, Takemura,…………….
37

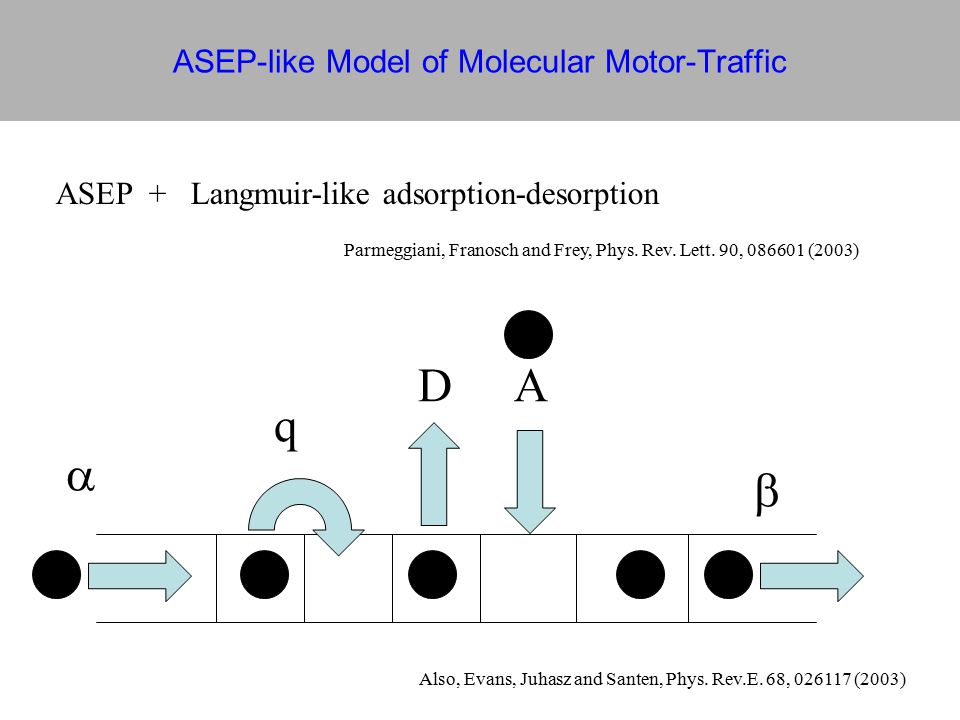

ASEP-like Model of Molecular Motor-Traffic q DA Parmeggiani, Franosch and Frey, Phys. Rev. Lett. 90, 086601 (2003) ASEP + Langmuir-like adsorption-desorption Also, Evans, Juhasz and Santen, Phys. Rev.E. 68, 026117 (2003)
38
position of domain wall can be measured as a function of controllable parameters. Nishinari, Okada, Schadschneider, Chowdhury, Phys. Rev. Lett. (2005) KIF1A (Red) MT (Green) 10 pM 100 pM 1000pM 2 mM of ATP 2 m Spatial organization of KIF1A motors: experiment
39
Summary Various very different transport and traffic problems can be described by similar models Variants of the Asymmetric Simple Exclusion Process Highway traffic: larger velocities Ant trails: state-dependent hopping rates Pedestrian dynamics: 2d motion, virtual chemotaxis Intracellular transport: adsorption + desorption
40
Collaborators Cologne: Ludger Santen Alireza Namazi Alexander John Philip Greulich Duisburg: Michael Schreckenberg Robert Barlovic Wolfgang Knospe Hubert Klüpfel Thanx to: Rest of the World: Debashish Chowdhury (Kanpur) Ambarish Kunwar (Kanpur) Katsuhiro Nishinari (Tokyo) T. Okada (Tokyo) + many others
