1. 13. Introduction to Parallel Programming Fabrizio Perin Prof. O. Nierstrasz

2. © Oscar Nierstrasz 2 Sources  Section 4.4 of Concurrent Programming in Java (Doug Lea, Prentice Hall PTR, November 1999) —Covers parallel decomposition in greater detail.  Section 6-7-8 of Java concurrency in practice (Brian Goetz, et al., Addison Wesley Professional May 09, 2006)  Doug Lea's concurrency-interest website: —Download the fork-join framework as part of the jsr166y package —read the paper on its design. —http://gee.cs.oswego.edu/dl/concurrency-interest/index.htmlhttp://gee.cs.oswego.edu/dl/concurrency-interest/index.html Parallelism

3. © Oscar Nierstrasz 3 Roadmap  Concurrent programming and parallelism  Why we should practice parallel programming? (Amdahl's laws about speedup)  Steps to create parallel programs  Java library for concurrent and parallel programming  Examples (find the max)  Example (merge sort parallel) Parallelism

4. © Oscar Nierstrasz 4 Roadmap  Concurrent programming and parallelism  Why we should practice parallel programming? (Amdahl's laws about speedup)  Steps to create parallel programs  Java library for concurrent and parallel programming  Examples (find the max)  Example (merge sort parallel) Parallelism

5. Concurrent programming and parallelism  Concurrent computing is a form of computing in which programs are designed as collections of interacting computational processes that may be executed in parallel.  Parallel computing is a form of computation in which many calculations are carried out simultaneously. © Oscar Nierstrasz Parallelism 5 Wikipedia

6. © Oscar Nierstrasz 6 Roadmap  Concurrent programming and parallelism  Why we should practice parallel programming? (Amdahl's laws about speedup)  Steps to create parallel programs  Java library for concurrent and parallel programming  Examples (find the max)  Example (merge sort parallel) Parallelism

7. Why we should practice parallel programming? © Oscar Nierstrasz 7 Parallelism Because I want to keep my super cool multi-core computer busy!

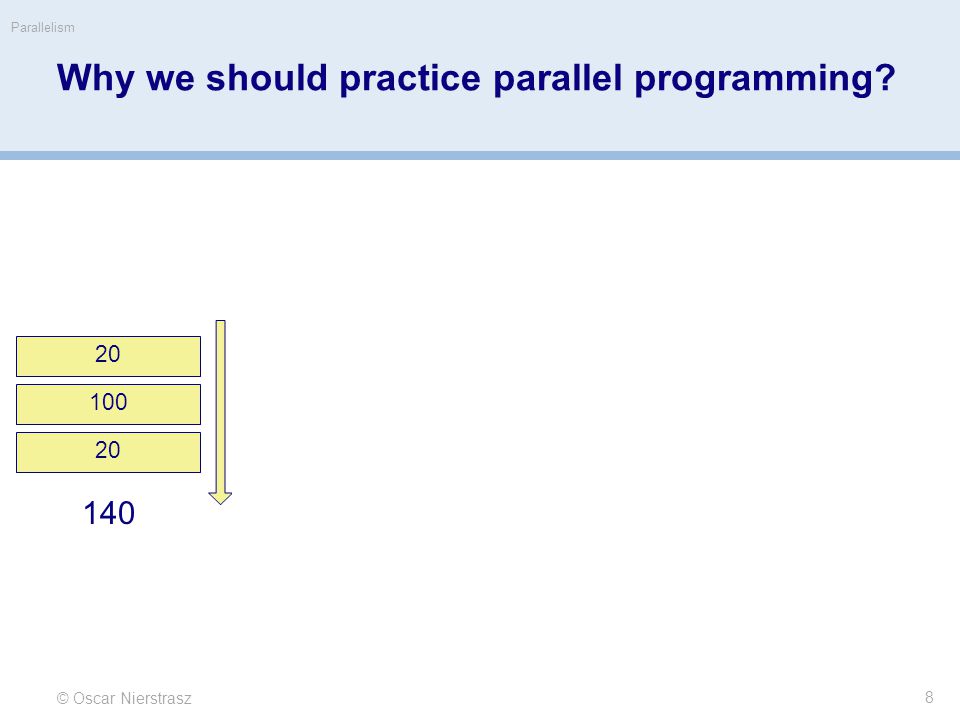

8. © Oscar Nierstrasz 8 Parallelism Speedup = old running time / new running time Speedup = 140/ 65 = 2.15 (parallel version is 2.15 times faster) 25 20 25 20 100 20 14065 Why we should practice parallel programming?

9. © Oscar Nierstrasz 9 Parallelism Speedup = old running time / new running time Speedup = 140/ 65 = 2.15 (parallel version is 2.15 times faster) 25 20 25 20 100 20 14065

10. Why we should practice parallel programming? © Oscar Nierstrasz 10 Parallelism Speedup = old running time / new running time Speedup = 140/ 65 = 2.15 (parallel version is 2.15 times faster) 25 20 25 20 100 20 14065

11. Why we should practice parallel programming? © Oscar Nierstrasz 11 Parallelism 25 20 25 20 100 20 14065 Amdahl’s law

12. Why we should practice parallel programming? © Oscar Nierstrasz 12 Parallelism Amdahl’s law 25 20 25 20 100 20 14065

13. Why we should practice parallel programming? © Oscar Nierstrasz 13 Parallelism Amdahl’s law 25 20 25 20 100 20 14065 The maximum speedup of a program using multiple processors in parallel computing is limited by the time needed for the sequential fraction of the program.

14. Why we should practice parallel programming? © Oscar Nierstrasz 14 Parallelism Think about the problem!!!

15. Why we should practice parallel programming?  Don’t try to force a non-parallel problem to be parallel  Identify which are the program chunks that can provide the best ratio speedup/effort © Oscar Nierstrasz Parallelism 15

16. Why we should practice parallel programming? © Oscar Nierstrasz 16 Parallelism B 100A 50 B 100 A 50 e.g. B x2 A 10 B 50  Don’t try to force a non-parallel problem to be parallel  Identify which are the program chunks that can provide the best ratio speedup/effort A x5

17. © Oscar Nierstrasz 17 Roadmap  Concurrent programming and parallelism  Why we should practice parallel programming? (Amdahl's laws about speedup)  Steps to create parallel programs  Java library for concurrent and parallel programming  Examples (find the max)  Example (merge sort parallel) Parallelism

18. Common steps to create parallel programs © Rodric Rabbah, IBM 18 Parallelism

19. Kinds of parallelism (Problem decomposition) © Rodric Rabbah, IBM 19 Parallelism

20. Kind of parallelisms (Problem decomposition) © Rodric Rabbah, IBM 20 Parallelism  Data parallelism: The same task run on different data in parallel  Can divide parts of the data between different tasks and perform the tasks in parallel  No dependencies among the tasks that cause their results to be ordered or merged

21. Kind of parallelisms (Problem decomposition) © Rodric Rabbah, IBM 21 Parallelism  Task parallelism: Different tasks running on the same data  Several functions on the same data (e.g. average, max, min etc..)  Tasks are independent so they can run in parallel

22. Kind of parallelisms (Problem decomposition) © Rodric Rabbah, IBM 22 Parallelism  Hybrid data/task parallelism: A parallel pipeline of tasks, each of which might be data parallel  Each task can run in parallel  E.g. Unix pipes

23. © Oscar Nierstrasz 23 Roadmap  Concurrent programming and parallelism  Why we should practice parallel programming? (Amdahl's laws about speedup)  Steps to create parallel programs  Java library for concurrent and parallel programming  Examples (find the max)  Example (merge sort parallel) Parallelism

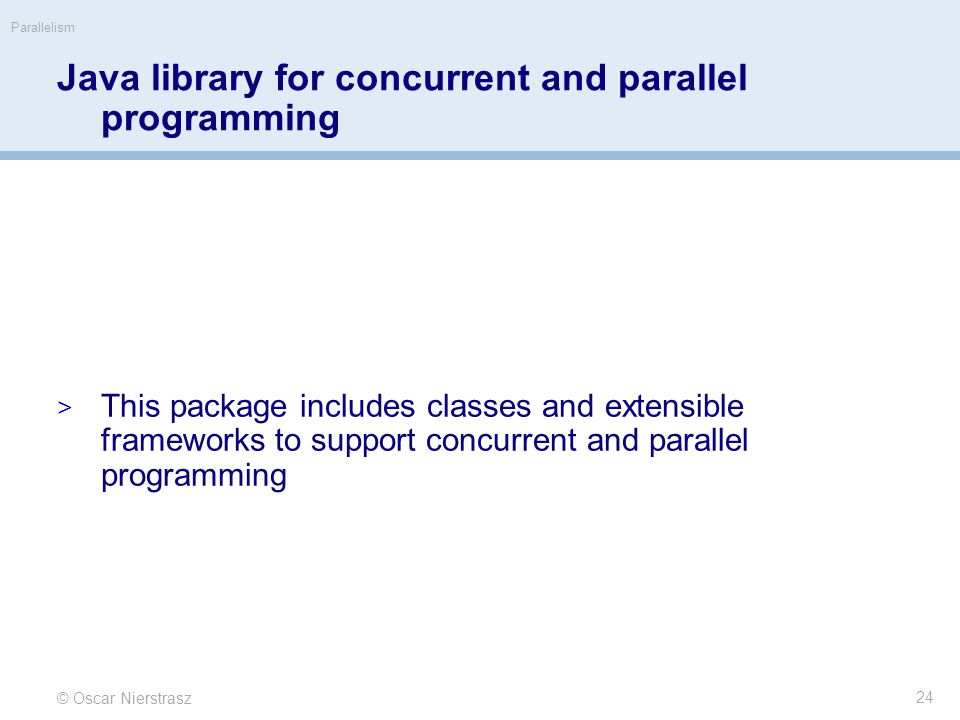

24. 24 Java library for concurrent and parallel programming  This package includes classes and extensible frameworks to support concurrent and parallel programming Parallelism © Oscar Nierstrasz

25. 25 Executor  Executor is an interface used to define custom thread- like systems.  Executor contains methods to execute tasks and manage with them.  Tasks may execute in a newly created thread, an existing task-execution thread, or the thread calling execute(), and may execute sequentially or concurrently. Parallelism public interface Executor { Void execute(Runnable command); }

26. © Oscar Nierstrasz 26 Web server without Executor Parallelism class ThreadPerTaskWebServer{ public static void main(String[] args) throws IOException{ ServerSocket socket = new ServerSocket(80); while(true){ final Socket connection = socket.accept(); Runnable task = new Runnable() { public void run(){ handleRequest(connection); } }; new Thread(task).start(); }

27. © Oscar Nierstrasz 27 Web server with Executor Parallelism class TaskExecutionWebServer{ private static final int NTHREADS = 100; private static final Executor exec = Executor.newFixedThreadPool(NTHREADS); public static void main(String[] args) throws IOException{ ServerSocket socket = new ServerSocket(80); while(true){ final Socket connection = socket.accept(); Runnable task = new Runnable() { public void run(){ handleRequest(connection); } }; exec.execute(task); }

28. © Oscar Nierstrasz 28 Thread Pool  A thread pool manages a set of worker threads.  The threads into the pool have a simple life cycle:  Request the next task from the queue of tasks  Execute  And wait for another task  Advantages from using a thread pool:  Reduce the costs of thread creation and teardown  Increases responsiveness  By properly tuning the pool you always have the correct number of threads (you don’t run out of memory and all your CPUs are busy) Parallelism

29. © Oscar Nierstrasz 29 Thread Pool  newFixedThreadPool: A fixed-size thread pool. A new thread is created for each task to execute up to the maximum pool size. Attempts to keep the pool size constant (threads that die for any reason are replaced by new threads).  newCachedThreadPool: More flexible pool that removes idle threads when the size of the pool exceeds the demand for processing, and adds new threads when demand increases, but places no bounds on the size of the pool. Parallelism

30. © Oscar Nierstrasz 30 Thread Pool  newSingleThreadExecutor: A single-threaded executor creates a single worker thread to process tasks, replacing it if it dies unexpectedly. Tasks are guaranteed to be processed sequentially according to the order imposed by the task queue (FIFO, LIFO, priority order).  newScheduledThreadPool: A fixed-size thread pool that supports delayed and periodic task execution, similar to Timer. Parallelism

31. © Oscar Nierstrasz 31 Roadmap  Concurrent programming and parallelism  Why we should practice parallel programming? (Amdahl's laws about speedup)  Steps to create parallel programs  Java library for concurrent and parallel programming  Examples (find the max)  Example (merge sort parallel) Parallelism

32. © Oscar Nierstrasz 32 Select Max in parallel … public class SelectMaxProblem { … public int solveSequentially(){ int max = Integer.MIN_VALUE; for (int i = start; i<end; i++){ int n = numbers[i]; if(n > max) max = n; } return max; } … Parallelism

33. © Oscar Nierstrasz 33 Select Max in parallel … import jsr166y.ForkJoinTask; import jsr166y.RecursiveAction; public class MaxWithFJ extends RecursiveAction { … @Override protected void compute() { if(problem.getSize() < threshold){ result = problem.solveSequentially(); System.out.println(Thread.currentThread()+ " is solving sequentially on: ” + problem.getSize()); }else{ int midpoint = problem.getSize()/2; MaxWithFJ left = new MaxWithFJ(problem.subproblem(0, midpoint), threshold); MaxWithFJ right = new MaxWithFJ(problem.subproblem(midpoint+1, problem.getSize()), threshold); invokeAll(left, right); System.out.println("solving in parallel on: " + ForkJoinTask.getPool()); result = Math.max(left.getResult(), right.getResult()); } … Parallelism

34. © Oscar Nierstrasz 34 Select Max in parallel public class MaxWithFJTests { private final SelectMaxProblem problem; private final int threshold; private final int nThreads; private final int[] number = new int[500000]; public MaxWithFJTests(){ …} @Test public void parallelTest(){ MaxWithFJ mfj = new MaxWithFJ(problem, threshold); ForkJoinPool fjPool = new ForkJoinPool(nThreads); fjPool.invoke(mfj); int result = mfj.getResult(); … assertEquals(result, max);}} Parallelism

35. © Oscar Nierstrasz 35 Roadmap  Concurrent programming and parallelism  Why we should practice parallel programming? (Amdahl's laws about speedup)  Steps to create parallel programs  Java library for concurrent and parallel programming  Examples (find the max)  Example (merge sort parallel) Parallelism

36. Merge sort  Divide et Impera algorithm:  Divide: split your problem into sub-problems that are smaller parts of the original problem  Impera: solve the sub-problems recursively. (If the sub- problem is small enough than it is solve in a straightforward manner).  Combine: the solutions to the sub-problems into the solution for the original problem. © Oscar Nierstrasz Parallelism 36

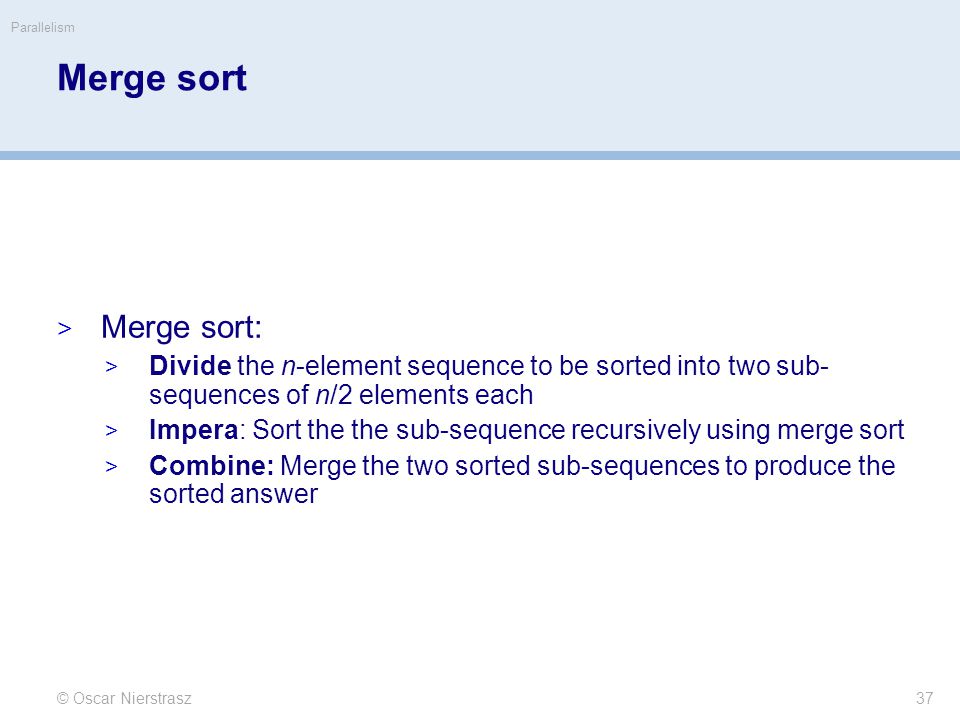

37. Merge sort  Merge sort:  Divide the n-element sequence to be sorted into two sub- sequences of n/2 elements each  Impera: Sort the the sub-sequence recursively using merge sort  Combine: Merge the two sorted sub-sequences to produce the sorted answer © Oscar Nierstrasz Parallelism 37

38. © Oscar Nierstrasz 38 Merge sort in parallel... public class MergeSort extends RecursiveAction {... private void merge(MergeSort left, MergeSort right) { int i=0, leftPos=0, rightPos=0, leftSize = left.size(), rightSize = right.size(); while (leftPos < leftSize && rightPos < rightSize) result[i++] = (left.result[leftPos] <= right.result[rightPos]) ? left.result[leftPos++] : right.result[rightPos++]; while (leftPos < leftSize) result[i++] = left.result[leftPos++]; while (rightPos < rightSize) result[i++] = right.result[rightPos++]; }... Parallelism

39. © Oscar Nierstrasz 39 Merge sort in parallel... public class MergeSort extends RecursiveAction {... public int size() {return endPos-startPos;} protected void compute() { if (size() < SEQUENTIAL_THRESHOLD) { System.arraycopy(numbers, startPos, result, 0, size()); Arrays.sort(result, 0, size()); } else { int midpoint = size() / 2; MergeSort left = new MergeSort(numbers, startPos, startPos+midpoint); MergeSort right = new MergeSort(numbers, startPos+midpoint, endPos); invokeAll(left, right); merge(left, right); } public int[] getResult() {return result;} } Parallelism

40. © Oscar Nierstrasz 40 Merge sort in parallel package mergeSortParallel; import java.util.Arrays; import jsr166y.RecursiveAction; public class MergeSort extends RecursiveAction { private static final int SEQUENTIAL_THRESHOLD = 50000; … private void merge(MergeSort left, MergeSort right) { int i=0, leftPos=0, rightPos=0, leftSize = left.size(), rightSize = right.size(); while (leftPos < leftSize && rightPos < rightSize) result[i++] = (left.result[leftPos] <= right.result[rightPos]) ? left.result[leftPos++] : right.result[rightPos++]; while (leftPos < leftSize) result[i++] = left.result[leftPos++]; while (rightPos < rightSize) result[i++] = right.result[rightPos++]; } public int size() {return endPos-startPos;} protected void compute() { if (size() < SEQUENTIAL_THRESHOLD) { System.arraycopy(numbers, startPos, result, 0, size()); Arrays.sort(result, 0, size()); } else { int midpoint = size() / 2; MergeSort left = new MergeSort(numbers, startPos, startPos+midpoint); MergeSort right = new MergeSort(numbers, startPos+midpoint, endPos); invokeAll(left, right); merge(left, right); } public int[] getResult() {return result;} } Parallelism

41. © Oscar Nierstrasz 41 WordCount example Parallelism  Where was the problem?

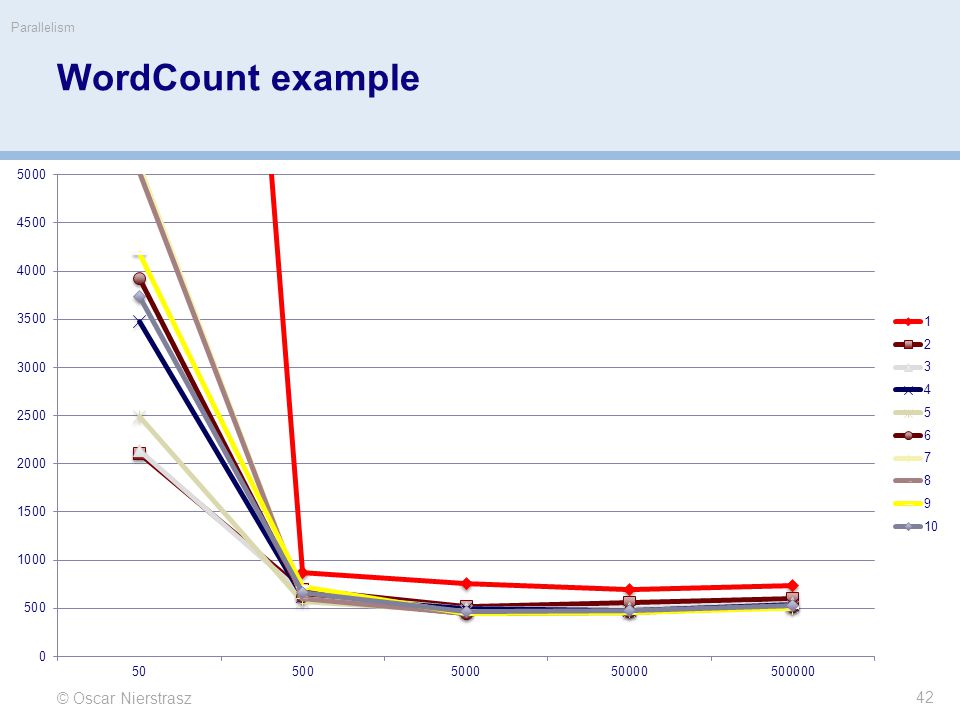

42. © Oscar Nierstrasz 42 WordCount example Parallelism

43. © Oscar Nierstrasz 43 WordCount example Parallelism

44. © Oscar Nierstrasz 44 WordCount example Parallelism

45. © Oscar Nierstrasz 45 WordCount Example [ wordcount ]> java WordCount bigdict.txt Total words = 241104Total time = 225 ms [ wordcount ]> java WordCount bigdict.txt Total words = 241104Total time = 226 ms [ wordcount ]> java WordCountParallel bigdict.txt 8 50000 Total words = 241104Total time = 148 ms [ wordcount ]> java WordCountParallel bigdict.txt 8 50000 Total words = 241104Total time = 148 ms [ wordcount ]> java WordCountParallelAtomicInt bigdict.txt 8 50000 Total words = 241104Total time = 133 ms [ wordcount ]> java WordCountParallelAtomicInt bigdict.txt 8 50000 Total words = 241104Total time = 132 ms Parallelism

46. © Oscar Nierstrasz Architectural Styles for Concurrency 46 What you should know!  What is the difference between Concurrent Computing and Parallel Computing?  Why you execute code in parallel?  Which kind of problem decomposition you can apply?  Which are the main functionality of the java.util.concurrent package of Java?
