1. Indira Paryavaran Bhawan
PRESENTATION To
CPWD Senior Officers on
Indira Paryavaran Bhawan

2. INDIRA PARYAVARAN BHAWAN
New delhi
G+7 Storeyed+3Basements
Plinth area:32,000 sq.m
Solar PV System KWp Capacity

3. PROJECT TEAM User organisation MoEF Execution Agency CPWD
Architectural and
Structural Planning CPWD
Consultants
Green Building M/s DPAP
MEP Services M/s Spectral Services
Interior Design M/s Kothari
Construction agencies
1.Main Composite Contract M/s Swadeshi Civil Infra structure
2. Solar Power M/s Swadeshi Civil Infra structure
3.Automated Parking M/s Simplex Projects

4. Indira Paryavaran Bhawan
Area details
Plot area sqm
Plinth Area sqm
Project Completion Cost Rs 195 Cr
(Tentative)

5. BUILDING UTILITY DETAILS
Basements
1. Fully automated Robotic parking for 330 cars
2. All bulk MEP Services i/c
a)AC plant room 500 TR
b) Electrical Substation and Transformers
c)Fire fighting pump house
d) Sewage treatment plant (30KL/day)
e) DG set 500KVA and UPS

6. BUILDING UTILITY DETAILS
Superstructure
1. Office space for 600 employees i/c 3 Ministers
2. Auditorium 125 seating capacity
3. Committee rooms and conference rooms(7 Nos)
4. Roof garden ,Gymnasium and Yoga room for recreation
5. Cafeteria, Kitchen and executive dining hall

7. Additional Scope beyond conventional
Roof Top Solar Power plant KW Capacity
6000 sqm
Fully Automated Robotic
Car Parking cars

8. UNIQUE FEATURES FIRST “NET – ZERO ENERGY” Multistoreyed Building
in GOVERNMENT SECTOR
targeted for both ratings
of Green building
“NET – ZERO ENERGY”
Multistoreyed Building
with 100% ON-SITE Power Generation
5STAR GRIHA
LEED India PLATINUM
LARGEST Roof top
Solar Power system
in any multistoreyed Building (930KWp)

9. Overall Environmental Protection
ACHIEVEMENTS
a)40% Savings in ENERGY
b)ZERO Electricity Billing
a)55% Savings in Water
b)Zero Net Disharge
Overall Environmental Protection

10. GREEN BUILDING
5STAR
GRIHA
Certification

11. Services Included (All inclusive)
COMPOSITE CONTRACT
Services Included (All inclusive)
1.Main structure and finishing works
2.Central Air Conditioning
3.Sub station
4.Lifts
5.Fire Fighting & Fire Alarm
6.IBMS
7.DG Sets
8.UPS
9.CCTV system
10.Internal EI

12. CHRONOLOGY OF EVENTS Foundation stone laying 19.11.2009
 Sanction of PE(A/A& ES)
 Conceptual Approval by DUAC
Total Planning time < 1 Y 2M
 Start of the Project
Completion of the Project
 Completion Certificate by NDMC
Total Construction time Y 11M

13. STATUTORY APPROVALS Sl No Approval Concept stage Completion Stage 1
Forest (Tree cutting ) 2
Environmental Impact Assessment 3
Delhi Fire Services 4
AAI 5
Land Use Change 6
DUAC 7
ASI 8
NDMC
(expected)
Completion of Project :
Ready for Occupation:

14. STATUTORY APPROVALS Sl No Approval Concept stage Completion Stage 9
Electric Load Sanction
Oct 2013 10
Energisation of HT panels
Nov2013 11
Substation by CEA 12
Labour safety (Delhi Govt)
Nov 2013 13
Electric Power Supply 14
Water Supply & Sewerage Connection
Completion of Project :
Ready for Occupation:

15. ASPECTS OF SUSTAINABILITY
1.SITE PLANNING
2.ENERGY MANAGEMENT
3.MATERIAL MANAGEMENT
4.WATER &WASTE MANAGEMENT
5.HEALTH & WELL BEING

16. SITE PLANNING

17. ARCHITECTURAL PLANNING AND LANDSCAPING
Effective Ventilation by orientating the building E-W and by optimum integration with nature by separating out different blocks with connecting corridors and a huge central court yard. E W N

18. ARCHITECTURAL PLANNING AND LANDSCAPING
The Building Envelope has been designed
i) to receive 75% of natural daylight to reduce energy consumption.
ii) Access Friendly to differently-abled persons.
Out of total 79 trees
existing on the site ,
only 19 were cut, and
11 transplanted

19. ARCHITECTURAL PLANNING AND LANDSCAPING
More than 50% area outside
the building is soft
with plantation and grassing.
circulation roads and pathways
soft with grass paver blocks
to enable ground water recharge

20. ENERGY
MANAGEMENT

21. E&M Services REGULAR 1.Central Air Conditioning(HVAC) 2.Lifts
3.Fire Fighting & Fire Alarm
4.IBMS
5.DG Sets
6.UPS
7.CCTV system
8.Audio Visual System
9.Internal EI
SPECIAL
1.Fully Automated robotic Parking for 330 cars

22. ENERGY SCENARIO 22.0 lakh KWh 13.6 lakh KWh 40% (approx) 14.3 lakh KWh
(Average Annual)
Power Requirement (Base Case)
lakh KWh
Power Requirement(Design Case)
lakh KWh
Percentage savings
40% (approx)
Targeted Solar Power Generation
lakh KWh
Net Power generation
lakh KWh
(Surplus)

23. Energy Efficiency ECBC 2007 ACTUAL Lighting Power Density (LPD)
11.8 W/sqm
5 W/sqm
HVAC load
20 sqm/Tr
40 sqm/Tr
Total
100W/sqm
40 W/sqm

24. CENTRAL PUBLIC WORKS DEPARTMENT
Operational energy
savings
1)Proper orientation
Optimized building envelope
2)Insulated walls and roof
3)Glass tranmitting light but not heat
Optimized day lighting
1)Energy efficient
LED Lights
2)SENSORS
CENTRAL PUBLIC WORKS DEPARTMENT

25. CENTRAL PUBLIC WORKS DEPARTMENT
Operational energy
savings
Optimized ENERGY systems i/c HVAC
1)Chilled beam system of air conditioning with <50% conventional energy consumption
2)GEOTHERMAL HEAT EXCHANGE SYSTEM
3)Regenrative lifts
4)Energy efficient equipment
CENTRAL PUBLIC WORKS DEPARTMENT

26. chilled beam work at site
In the IPB project Chilled Beams are being installed in second floor to sixth floor.
Chilled Beam Water in Temperature is 16° C and water out temperature is 20° C.
Room temperature maintained is 26 ±1 ° C.
Chilled Beams with Drain pan are used to drain out water droplets due to condensation during monsoon.
160 TR of air conditioning load of the Building is met through Chilled Beam system.

27. Chilled beams induction units overview
Primary air ventilation
from Dedicated Outdoor
Air Source
Chilled Water
Hot Water
Total room mixing
is achieved through
Convection currents
within the space

28. A chilled beam installed at site
Chilled Water Return Pipe (½” dia.)
Chilled Beam
Chilled Water Supply Pipe (½” dia.)
Drain Pipe (¾” dia.)
Flexible Duct (6 Inch dia.)
Supply Air
Induced Air

29. A geothermal heat exchange work at site
There are 180 vertical bores at the Depth of 80 meter all along the Building Premises. Minimum 3 meter distance is maintained between any two bores.
Each bore is lowered with HDPE pipe U-loop (32mm outer Dia.) and grouted with Bentonite Slurry.
Each U-Loop is connected to MS Header Pipe(100mm Dia.)which finally joins the Condenser Water Line in Plant Room.
Condenser hot water is sent at 100°F (37.8° C) & back at 900 F (32.2° C).
One U-Loop has 0.9 TR Heat Rejection capacity, so all together 160 TR of Heat rejection is obtained without using a cooling tower.

30. GEO THERMAL HEAT EXCHANGE Vertical closed loops

31. NET ZERO ENERGY
With
SOLAR POWER

32. NET ZERO ENErgy A major chAllenge
Renewable Energy to be Generated : 14 lakh KWh
Per Year
Area required for locating Solar panels :
Area available over terraces :
Creation of this additional space(6000 minus 2200 m2)
in a multistoreyed building with restricted plot & roof areas
where no structure including surface parking is provided around
the building, was a big Constraint
6000 m2
2200 m2

33. ACTUAL SOLAR POWER GENERATION
(as on )
Power Evacuation to grid started on
Power generation achieved KWh(per day)
Total generation so far lakh KWh

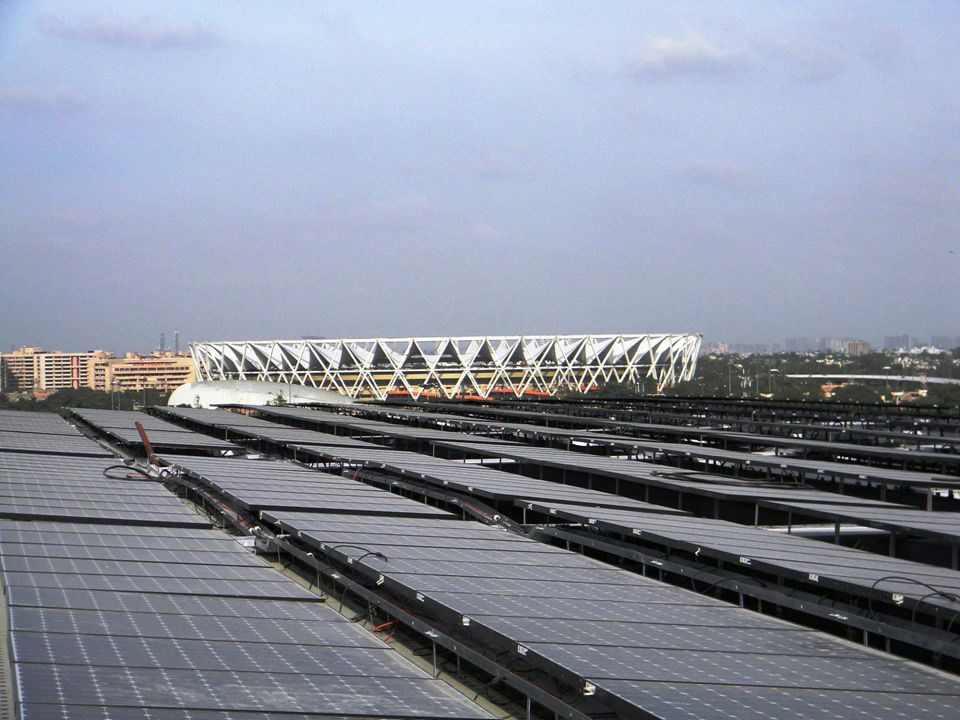

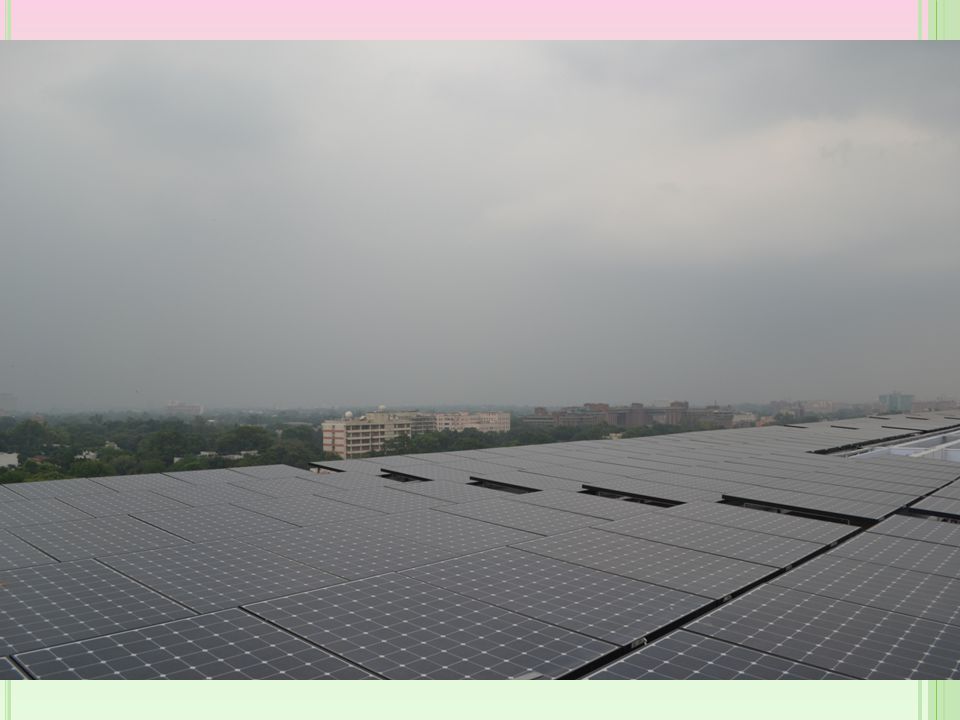

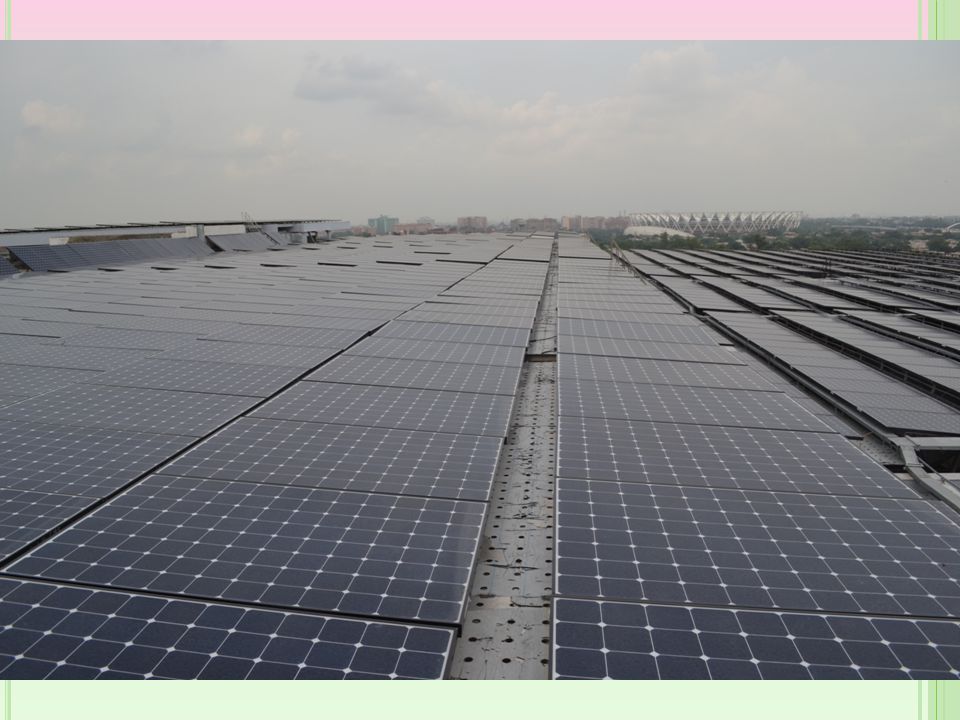

34. Highest efficiency (20%) Solar PV panels
Grid Interactive System
SOLAR PV SYSTEM KWp CAPACITY
TOTAL AREA M2
TOTAL AREA OF PANELS M2
ANNUAL ENERGY Generation lakh units

38. MATERIAL
MANAGEMENT

39. UTILISATION OF FLY ASH
Flyash (Reuse) :
Cement used is PPC (Portland Pozzolona Cement)(29% Fly Ash)
In all RCC, PCC, Plaster, Masonry Work.
FALG Bricks and AAC blocks used instead of clay bricks.

40. AAC BLOCKS
INDIRA PARYAVARAN BHAWAN,NEW DELHI

41. FLYASH LIME GYPSUM BRICKS
FALG BRICKS
FLYASH LIME GYPSUM BRICKS
FLYASH
40%

42. LOW ENERGY MATERIALS Granite (Lakha Red) Dholpur Stone
REGIONALLY AVAILABLE
Use of material available within a radius of 800 km .
Dholpur stone, Kota stone, North Indian Granites, AAC Blocks, FaLG bricks etc.
Granite
(Lakha Red)
Dholpur Stone

43. Calcium Silicate Tiles
LOW ENERGY MATERIALS
RECYCLED / RECYCLABLE
Use of material available having Recycled content
FaLG Bricks, Terrazo Tiles, Vitrified Tiles, Calcium Silicate Tiles, crazy marble etc.
Calcium Silicate Tiles
Terrazo Tiles
Crazy Marble

44. LOW ENERGY MATERIALS RAPIDLY RENEWABLE BAMBOO – JUTE COMPOSITE DOORS
Polymer Thermosetting Resin (Phenol Formal Dehyde)
BAMBOO MAT
Woven sheet using Bam0.boo slivers 0.6 to 0.8mm thick & 5mm wide
JUTE / COIR MAT
Jute / Coir Thread woven into coarse cloth
Satisfies all the quality parameters that a normal flush door does

45. Use of Eco friendly Materials
Fly Ash Brick
Aerated Autoclaved Cement (AAC) Block
Portland Puzzolona Cement
Terrazzo tile flooring with salvaged stone pieces
Grass Paver Blocks Pavements
Local Stone with Marble Strips
Calcium Silicate Tiles
Bamboo Jute Composite for Frames & Doors
Low Volatile Organic Compound Paints

46. WATER
MANAGEMENT

47. 55% Reduction in overall use of water
CONSERVATION OF WATER
55% Reduction in overall use of water
Low discharge water fixtures
Low demand plants in landscaping
Use of Geothermal Cooling
Recycling of waste water for ZERO Discharge
Rain water harvesting
Recharge wells, supply to NDMC Tankers

48. Water Supply to TANKERS

49. Automatic car parking system
Introduction
All the three(3) basements will be used for Automatic Car Parking system. Total Capacity : 330 nos. of cars. The following type of system is adopted in this project:- 1. Shuttle Dolly System( 2nd & 3rd Basement). 2. Puzzle Parking System(1st Basement).

50. Salient feature
The followings are the stringent targets of the project:- 1. Maximum waiting time : 180 sec(i.e. 3minutes) 2. Total evacuation time : 40 minutes. (Emergency)

51. LIFT ENTRY LOBBY

52. LIFT WELL

53. SHUTTLE BAY

54. SHUTTLE BAY

55. Thank You
