The single sentence definition of biotechnology:
“the application of science and technology to living organisms, as well as parts, products and models thereof, to alter living or non-living materials for the production of knowledge, goods and services.” OECD list-based definition of biotechnology techniques: DNA/RNA: Genomics, pharmacogenomics, gene probes, genetic engineering, DNA/RNA sequencing/synthesis/amplification, gene expression profiling, and use of antisense technology. Proteins and other molecules: Sequencing/synthesis/engineering of proteins and peptides (including large molecule hormones); improved delivery methods for large molecule drugs; proteomics, protein isolation and purification, signaling, identification of cell receptors. Cell and tissue culture and engineering: Cell/tissue culture, tissue engineering (including tissue scaffolds and biomedical engineering), cellular fusion, vaccine/immune stimulants, embryo manipulation. Process biotechnology techniques: Fermentation using bioreactors, bioprocessing, bioleaching, biopulping, biobleaching, biodesulphurisation, bioremediation, biofiltration and phytoremediation. Gene and RNA vectors: Gene therapy, viral vectors. Bioinformatics: Construction of databases on genomes, protein sequences; modelling complex biological processes, including systems biology. Nanobiotechnology: Applies the tools and processes of nano/microfabrication to build devices for studying biosystems and applications in drug delivery, diagnostics etc. Source: OECD (2005), A Framework for Biotechnology Statistics, OECD, Paris. See also this link:
2
Biotechnology is mostly about cells or parts of them, but entire organisms may also in some cases be seen as parts of biotechnology. In either case it is typical that one looks at cells or organisms from a chemical point of view, trying to explain observations in molecular terms. This often leads into an enormous complexity, which has resulted in a focus on multidiciplinarity (biology, chemistry, bioinformatics, physics, mathematics) Biotecnology originates from classical biology, which mainly has been a descriptive field, but now there is room for everyone!
3
Tree of life Bacteria Archaea Eukarya PROKARYOTES EUKARYOTES Animals
Entamoebae Slime molds Green nonsulfur bacteria Euryarchaeota Fungi Mitochondrion Methanosarcina Methano- bacterium Extreme halophiles Plants Gram- positive bacteria Crenarchaeota Proteobacteria Thermoproteus Methano- coccus Ciliates Chloroplast Pyrodictium Thermoplasma Cyanobacteria Thermococcus Flavobacteria Flagellates Marine Crenarchaeota Pyrolobus Methanopyrus Trichomonads Thermotoga Thermodesulfobacterium Microsporidia Aquifex Diplomonads (Giardia) Universal ancestor
4
Cytoplasm Nucleoid Ribosomes Plasmid Cytoplasmic membrane Cell wall Prokaryote Endoplasmic reticulum Cytoplasmic membrane Ribosomes Golgi Nucleus Nucleolus Mitochondrion Nuclear membrane Chloroplast Cytoplasm Eukaryote
5
The structures of animal and
plant cells, which both are eukaryotic organisms
6
A short outline of eukaryotic organelle functions:
Cell wall: A stiff structure outside of the cytoplasmic membrane in plant cells (and bacteria). Ensures a specific form of the cell and also contributes to stiffness of tissues (like wood). Centriole: An organelle involved in separation of chromosome copies in mitosis and other ”motor” activities. Contains microtubules (fibrous motor protein complexes), also found elsewhere in cells. Chloroplast: An organelle that contains DNA and is responsible for photosynthesis in plant cells. Chromatin: Complex of DNA and portiens (such as histones) in the nucleus. Chromosome: A particularly condensed form of the DNA (and associated proteins). Endoplasmatic reticulum (ER): Network of interconnected membranestructures in the cytoplasm. Rough ER is associated with ribiosomes and functions in synthesis of secretory and membrane proteins. Smooth ER: lacks ribosomes and is involved in lipid biosynthesis. Flagellum: Protein complex that can be used for cell movement. Golgi complex/Golgi apparatus: Stacks of mebraneous structures that function in processing and sorting of lipids and proteins to be sent to specific cellular compartments or for secretion. Lysosome: A membrane, bounded ”bag” with an internal low pH and which can ingest and digest particles entering the cell. Microfilament: Protein fibers acting as motors, for example in muscle contraction. Mitochondrion: Organelle surrounded by a membrane similar to in bacteria. Contains a small DNA-molecule and is the site of oxidative phosphorylation, leading to ATP formation. Nucleolus: Structure in the nucleus responsible for rRNA synthesis and ribosome subunit assembly. Nucleus: A membrane-bounded organelle containing the chromosomes Peroxisome: Involved in degradation of fatty acids and amino acids. Plasma membrane. The membrane that represents the outer boundary of the cell. Plasmodesmata: Channles for transport out of or between cells in plants. Ribosome: A particle consisting of over 50 different proteins and rRNA and that represents the machinery for translation. Tonoplast: The mebrane that surrounds the vacuole. Vacuole: A ”bag”/vesicle inside the cytoplasm involved in intracellular secretion, storage and digestion.
7
A cut through an onion: Organisms are collections of cells that
cooperate. It is therefore critical to understand how a single cell functions.
8
The structures of bacteria are much simpler than those of
eukaryotes. Bacteria lack organelles, and there are also many other fundamental differences in the entire cellular machinery, molecularly and functionally. Thus, from a molecular point of view humans are much more similar to bananas than bananas are to bacteria. The mitochondria in eukaryotes are probably ”old” bacteria. All organisms (except some viruses, which are normally not called organisms) still share in common that their hereditary material is DNA.
9
Cytoplasmic membrane DNA (nucleoid) Cell wall
The typical appearance of bacteria as seen in a transmission electron microsocpe (a) or in a scanning electron microscope (c) DNA (nucleoid) Cell wall Cytoplasmic membrane
10
Two main types of bacteria: G+ and G- Gram–positive Gram–negative
Peptidoglycan Peptidoglycan Cytoplasm Cytoplasm Cytoplasmic membrane Membrane Periplasm Outer membrane (Iipopolysaccharide and protein) Outer membrane Cytoplasmic membrane Peptidoglycan Cytoplasmic membrane Peptidoglycan
11
Archae are neither bacteria nor eukaryotes, but belong to the prokaryotes, see tree of life
12
Archae can form numerous “bisarre” structures
13
propagate themselves. Unlike all cells, viruses may have RNA as their
Viruses can attack all types of organisms, from bacteria to plants, animals and humans. Any given virus typically attacks only one or a few closely related species. All viruses share in common that they depend on a cell to propagate themselves. Unlike all cells, viruses may have RNA as their hereditary material FIGURE 1.24 Examples of Different Viruses Viruses come in a variety of shapes and sizes that determine whether the entire virus or only its genome enters the host cells. 13 Biotechnology by Clark and Pazdernik Copyright © 2012 by Academic Press. All rights reserved.
14
Viruses may contain many different forms of their herediatry material (DNA or
RNA), and it can consist of a single chromosome or several, and the DNA or RNA may be single or double-stranded. In cells the hereditary material is always double-stranded DNA. Nonenveloped Enveloped Nonenveloped Enveloped all ssRNA partially dsDNA ssDNA Parvovirus Hepadnavirus Rhabdovirus dsDNA ssRNA Picornavirus Togavirus Papovavirus dsDNA Orthomyxovirus dsDNA Poxvirus Adenovirus dsRNA Bunyavirus Coronavirus Reovirus dsDNA dsDNA Herpesvirus Paramyxovirus Iridovirus Arenavirus Retrovirus DNA viruses RNA viruses
15
T4-virus, is a bacteriophage,
which means it attacks bacteria Influenza-virus
16
Tail fibers Tail pins Outer membrane Tail Peptidoglycan lysozyme
Infection of a bacterium with bacteriophage T4 Tail fibers Tail pins Outer membrane Tail lysozyme Peptidoglycan Cytoplasmic membrane Cytoplasm T4 genome
17
Living organisms are built from cells, and from a scientific point of view they may be compared to machines (cars?) Car Cell Can make copies of themselves? Need energy to function? The energy originates from the same sources? Need energy to maintain themselves? Functions according to the laws of nature? Wears out over time, even if energy supply is good? Can repair itself?
18

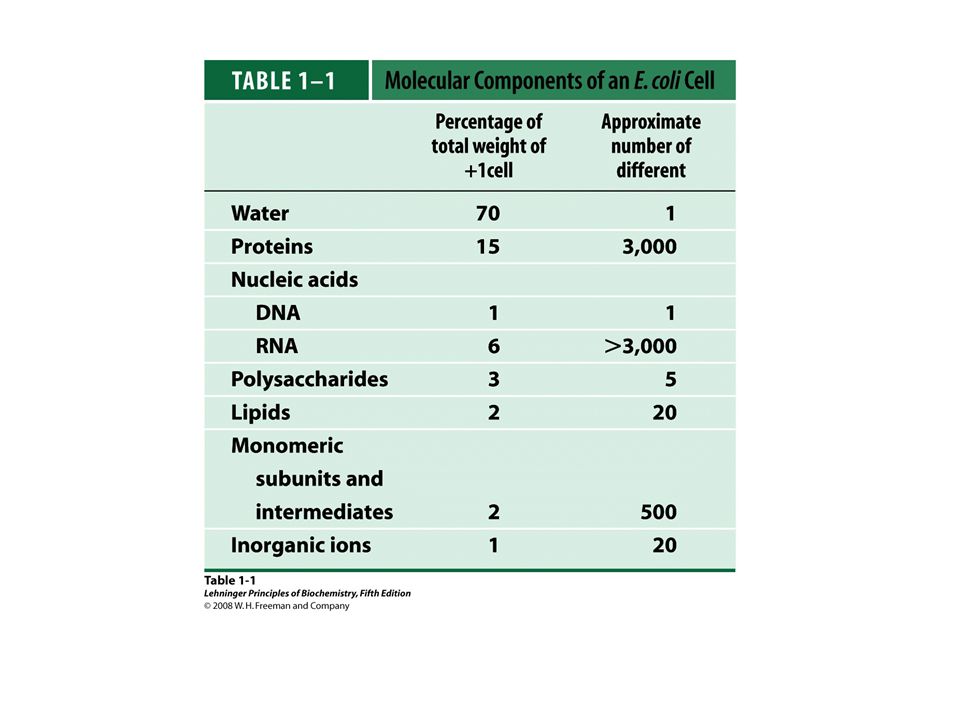

The chemical components of cells:
Macromolecules: Nucleic acids (DNA and RNA) Proteins Lipids Polysaccharides Lipopolysaccharides (a combination of lipid and polysaccharide) ”Small” molecules (including metabolites) and elements Water Carbohydrates (also building blocks of polysaccharides) Amino acids (also building blocks of proteins) Purins/pyrimidines (also parts DNA and RNA) Nukleosides and nukleotides (also parts of DNA and RNA, contain purins and pyrimidins) Other organic metabolites Phosphate Sulfate Ammonium Metals/ions
