2. 3.3 Constructing Perpendicular to a Line Objectives: I CAN discover methods of constructing a perpendicular to a line from a point not on the line and from a point on the line. I CAN determine a method of find the shortest path from a point to a line 1 Serra - Discovering Geometry Chapter 3: Using Tools of Geometry

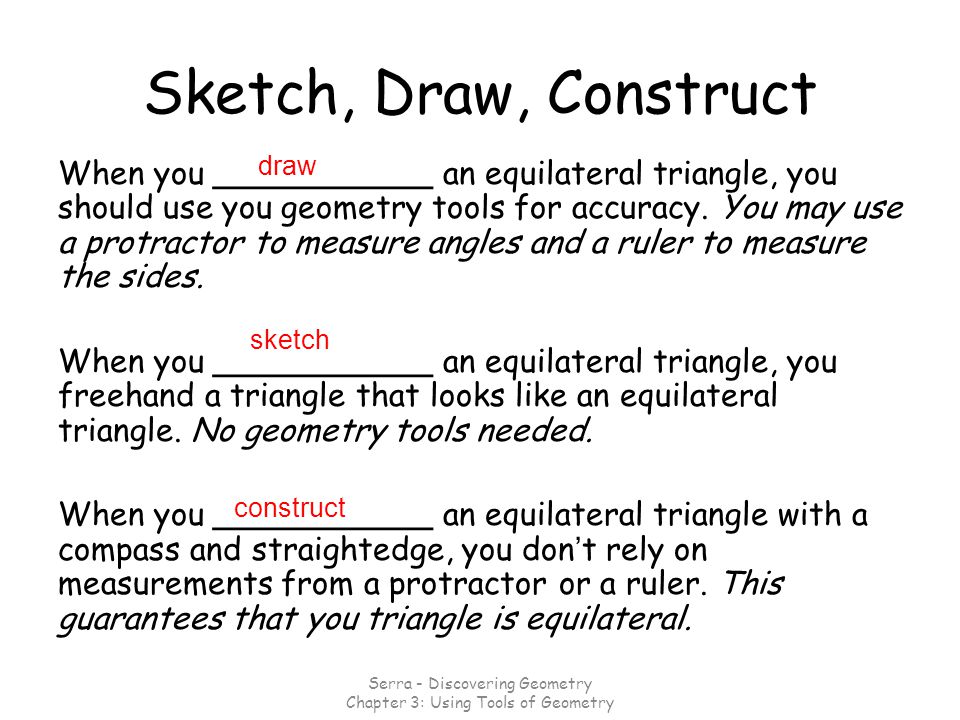

3. Sketch, Draw, Construct When you ___________ an equilateral triangle, you should use you geometry tools for accuracy. You may use a protractor to measure angles and a ruler to measure the sides. When you ___________ an equilateral triangle, you freehand a triangle that looks like an equilateral triangle. No geometry tools needed. When you ___________ an equilateral triangle with a compass and straightedge, you don’t rely on measurements from a protractor or a ruler. This guarantees that you triangle is equilateral. draw sketch construct Serra - Discovering Geometry Chapter 3: Using Tools of Geometry

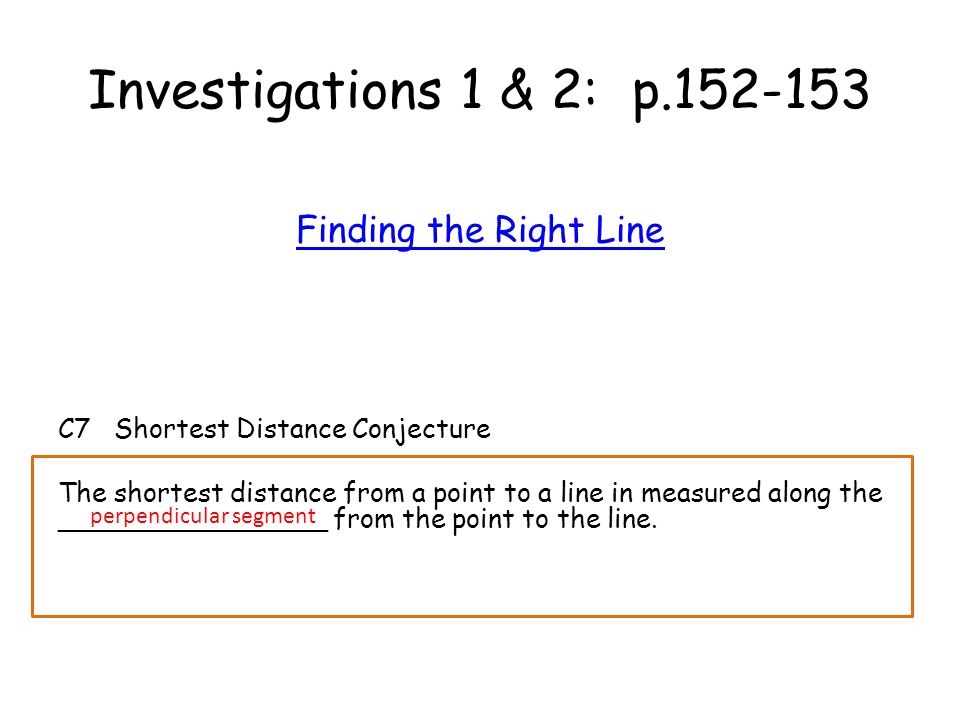

4. Investigations 1 & 2: p.152-153 Finding the Right Line C7 Shortest Distance Conjecture The shortest distance from a point to a line in measured along the ________________ from the point to the line. perpendicular segment

5. Building/Dropping A Perpendicular

7. Altitudes A C B Circumcenter.

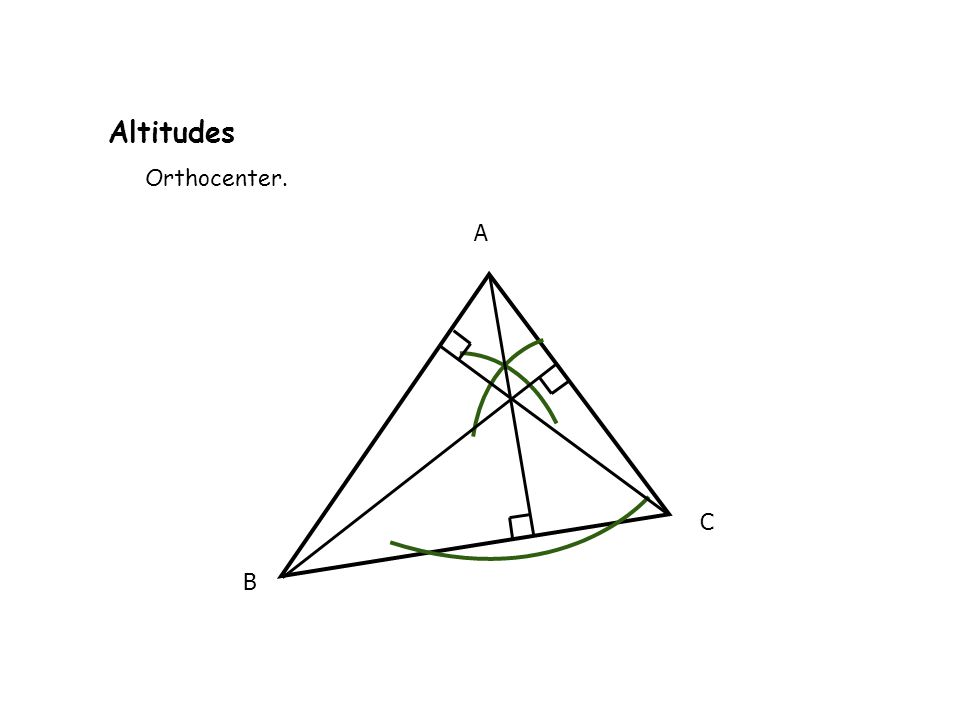

8. Altitudes A C B Orthocenter.

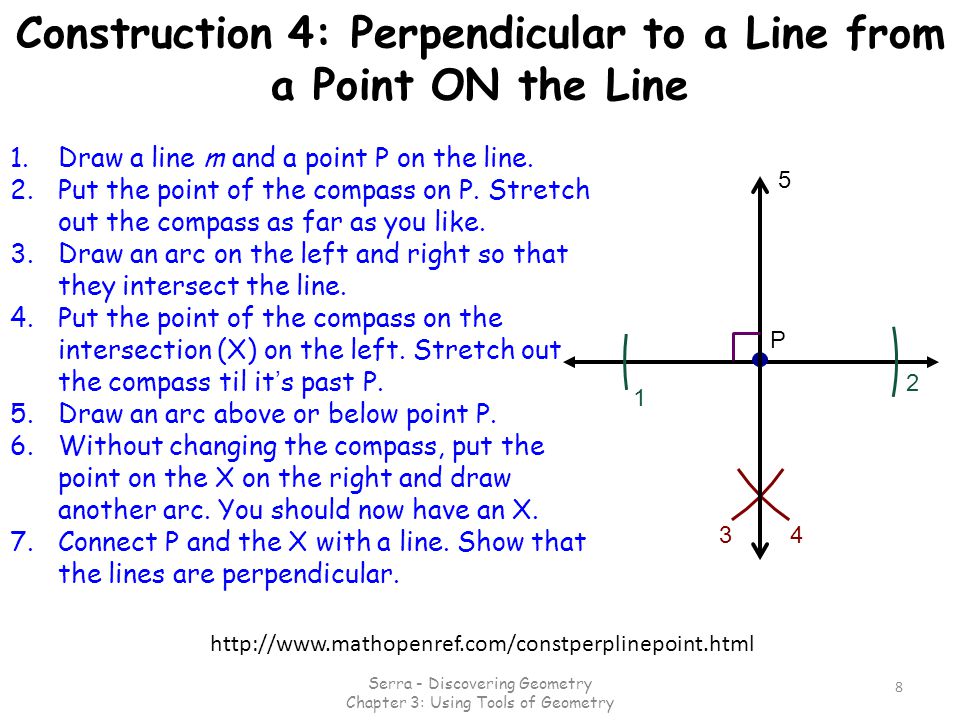

9. 8 1.Draw a line m and a point P on the line. 2.Put the point of the compass on P. Stretch out the compass as far as you like. 3.Draw an arc on the left and right so that they intersect the line. 4.Put the point of the compass on the intersection (X) on the left. Stretch out the compass til it’s past P. 5.Draw an arc above or below point P. 6.Without changing the compass, put the point on the X on the right and draw another arc. You should now have an X. 7.Connect P and the X with a line. Show that the lines are perpendicular. Serra - Discovering Geometry Chapter 3: Using Tools of Geometry Construction 4: Perpendicular to a Line from a Point ON the Line P 1 2 34 5 http://www.mathopenref.com/constperplinepoint.html

10. 9 1.Draw a line m and a point P not on the line. 2.Put the point of the compass on P. Stretch out the compass until it passes the line. 3.Draw an arc on the left and right so that they intersect the line. 4.Put the point of the compass on the intersection (X) on the left. Stretch out the compass til it’s more than half the distance between the X’s. 5.Draw an arc on the side opposite point P. 6.Without changing the compass, put the point on the X on the right and draw an arc on the side opposite point P. You should now have an X. 7.Connect P and the X with a line. Show that the lines are perpendicular. Serra - Discovering Geometry Chapter 3: Using Tools of Geometry Construction 5: Perpendicular to a Line from a Point OUTSIDE the Line P 12 34 5 http://www.mathopenref.com/constperpextpoint.html

11. Draw a large obtuse triangle on a half sheet of paper. Construct the altitude from each vertex.
