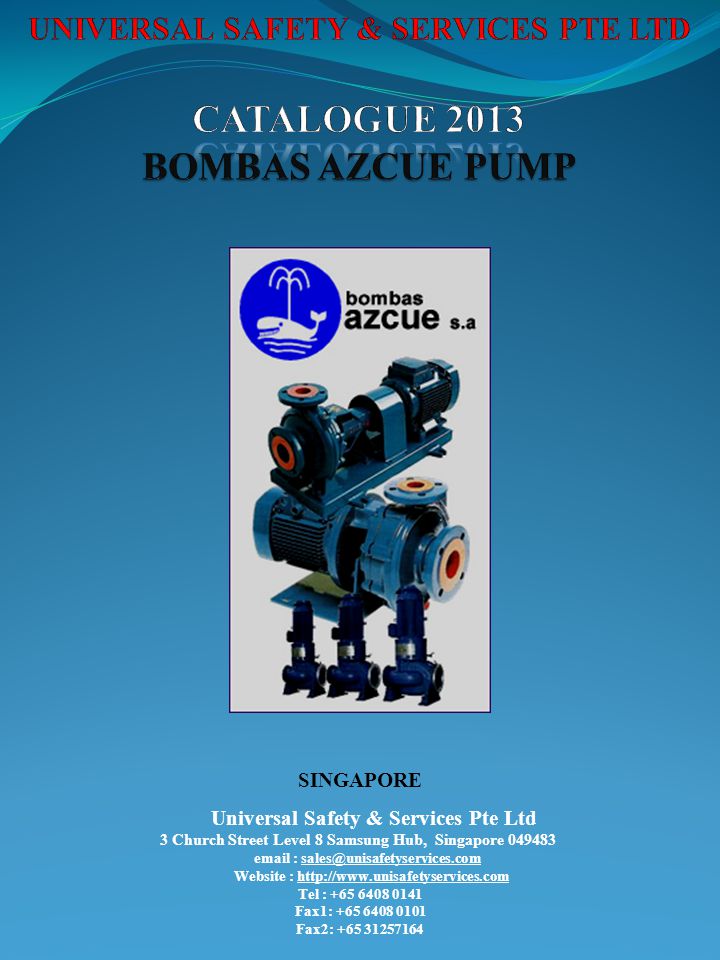

1 SINGAPORE Universal Safety & Services Pte Ltd 3 Church Street Level 8 Samsung Hub, Singapore 049483 email : sales@unisafetyservices.com Website : http://www.unisafetyservices.com Tel : +65 6408 0141 Fax1: +65 6408 0101 Fax2: +65 31257164

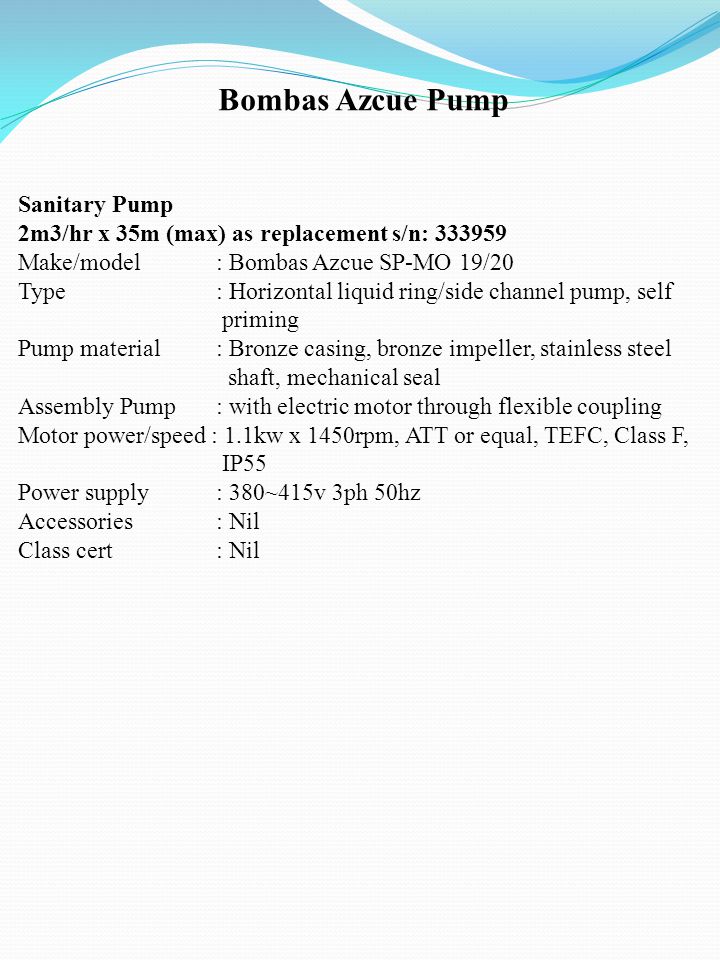

2 Bombas Azcue Pump Sanitary Pump 2m3/hr x 35m (max) as replacement s/n: 333959 Make/model : Bombas Azcue SP-MO 19/20 Type : Horizontal liquid ring/side channel pump, self priming Pump material : Bronze casing, bronze impeller, stainless steel shaft, mechanical seal Assembly Pump : with electric motor through flexible coupling Motor power/speed : 1.1kw x 1450rpm, ATT or equal, TEFC, Class F, IP55 Power supply : 380~415v 3ph 50hz Accessories : Nil Class cert : Nil

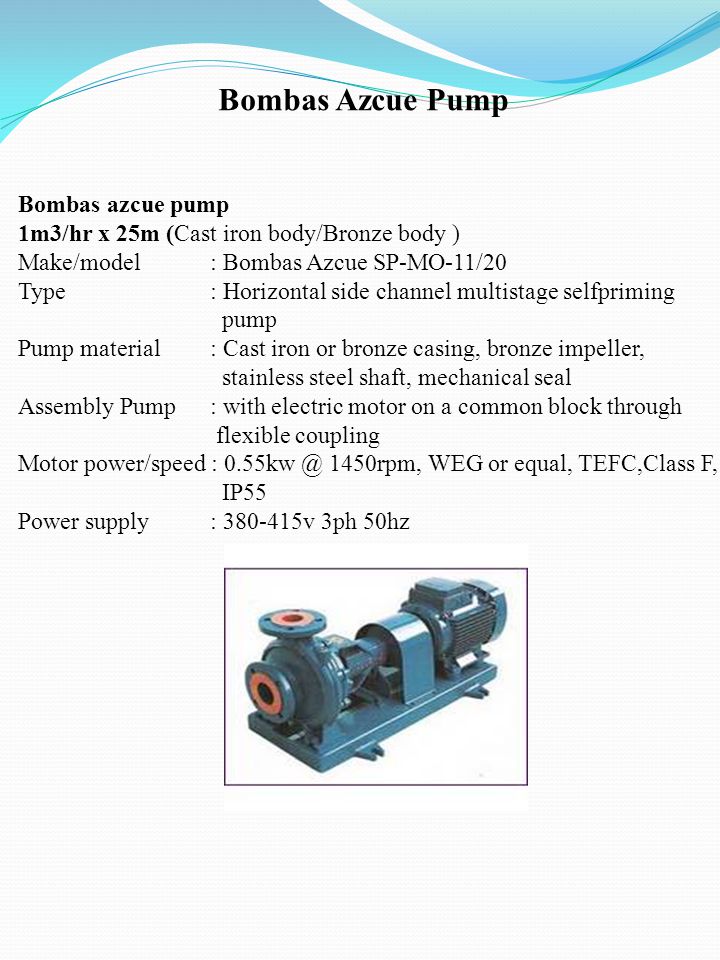

3 Bombas Azcue Pump Bombas azcue pump 1m3/hr x 25m (Cast iron body/Bronze body ) Make/model : Bombas Azcue SP-MO-11/20 Type : Horizontal side channel multistage selfpriming pump Pump material : Cast iron or bronze casing, bronze impeller, stainless steel shaft, mechanical seal Assembly Pump : with electric motor on a common block through flexible coupling Motor power/speed : 0.55kw @ 1450rpm, WEG or equal, TEFC,Class F, IP55 Power supply : 380-415v 3ph 50hz

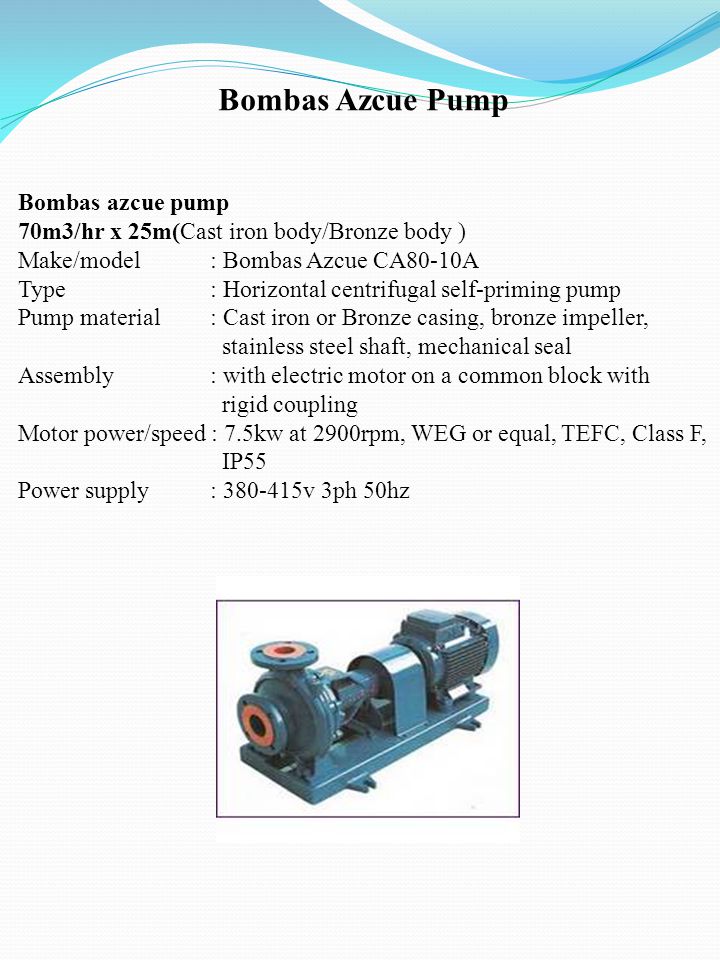

4 Bombas azcue pump 70m3/hr x 25m(Cast iron body/Bronze body ) Make/model : Bombas Azcue CA80-10A Type : Horizontal centrifugal self-priming pump Pump material : Cast iron or Bronze casing, bronze impeller, stainless steel shaft, mechanical seal Assembly : with electric motor on a common block with rigid coupling Motor power/speed : 7.5kw at 2900rpm, WEG or equal, TEFC, Class F, IP55 Power supply : 380-415v 3ph 50hz Bombas Azcue Pump

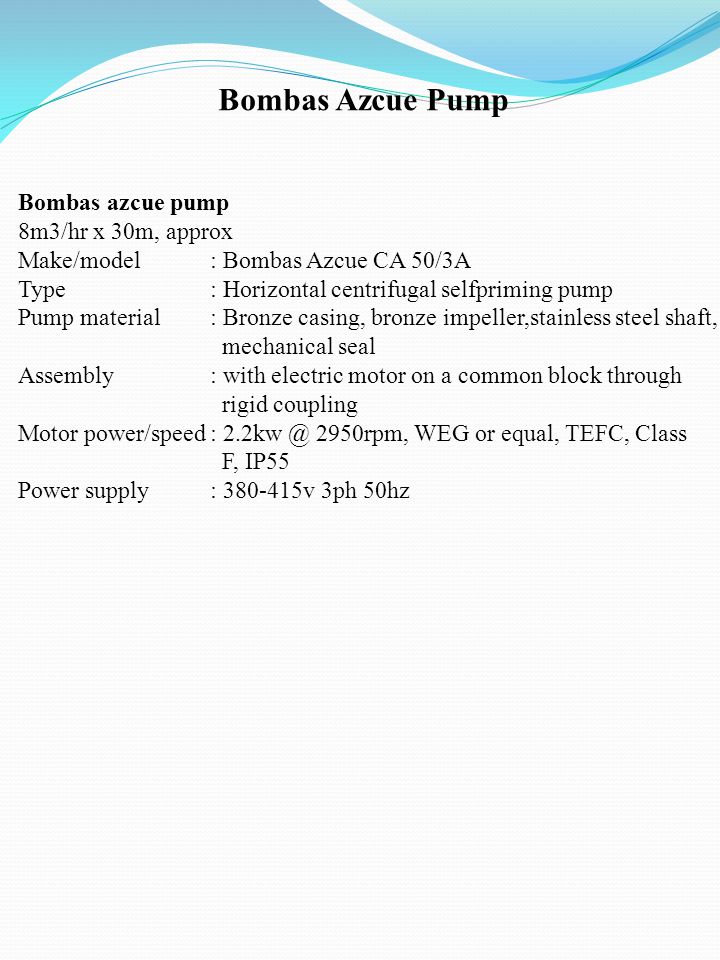

5 Bombas azcue pump 8m3/hr x 30m, approx Make/model: Bombas Azcue CA 50/3A Type: Horizontal centrifugal selfpriming pump Pump material: Bronze casing, bronze impeller,stainless steel shaft, mechanical seal Assembly: with electric motor on a common block through rigid coupling Motor power/speed: 2.2kw @ 2950rpm, WEG or equal, TEFC, Class F, IP55 Power supply : 380-415v 3ph 50hz

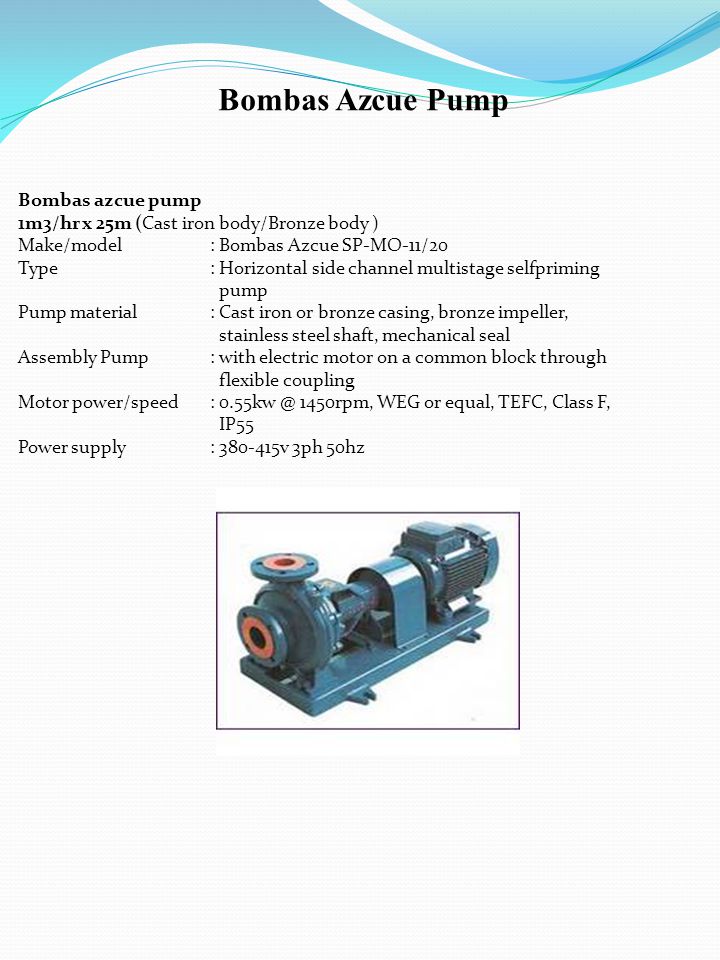

6 Bombas Azcue Pump Bombas azcue pump 1m3/hr x 25m (Cast iron body/Bronze body ) Make/model : Bombas Azcue SP-MO-11/20 Type : Horizontal side channel multistage selfpriming pump Pump material : Cast iron or bronze casing, bronze impeller, stainless steel shaft, mechanical seal Assembly Pump : with electric motor on a common block through flexible coupling Motor power/speed : 0.55kw @ 1450rpm, WEG or equal, TEFC, Class F, IP55 Power supply : 380-415v 3ph 50hz

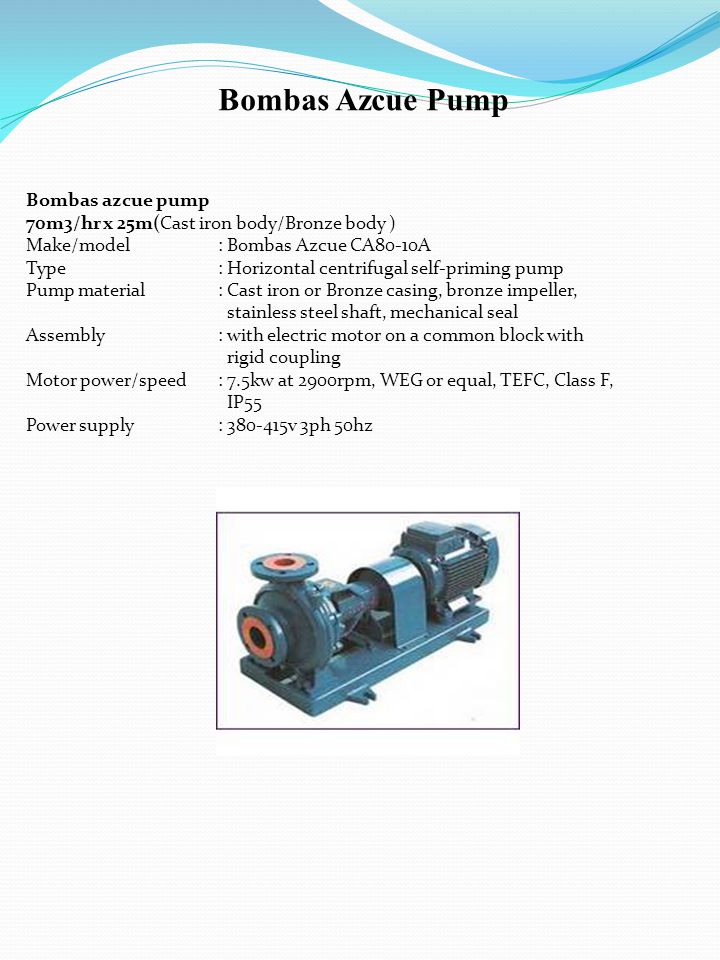

7 Bombas azcue pump 70m3/hr x 25m(Cast iron body/Bronze body ) Make/model : Bombas Azcue CA80-10A Type : Horizontal centrifugal self-priming pump Pump material : Cast iron or Bronze casing, bronze impeller, stainless steel shaft, mechanical seal Assembly : with electric motor on a common block with rigid coupling Motor power/speed : 7.5kw at 2900rpm, WEG or equal, TEFC, Class F, IP55 Power supply : 380-415v 3ph 50hz Bombas Azcue Pump
