1 Solid State University Understand the following components: Potentiometers Thermistors Capacitors Diodes Zener Diodes Transistors

2 Potentiometers Differentiate between potentiometers and rheostats A rheostat changes current flow in a series circuit A potentiometer is a voltage sensor in parallel

3 Rheostat Less resistance

4 Rheostat More resistance

5 Potentiometer

6 4 volt Potentiometer Very low current

7 2 volt Potentiometer Used as a sensor

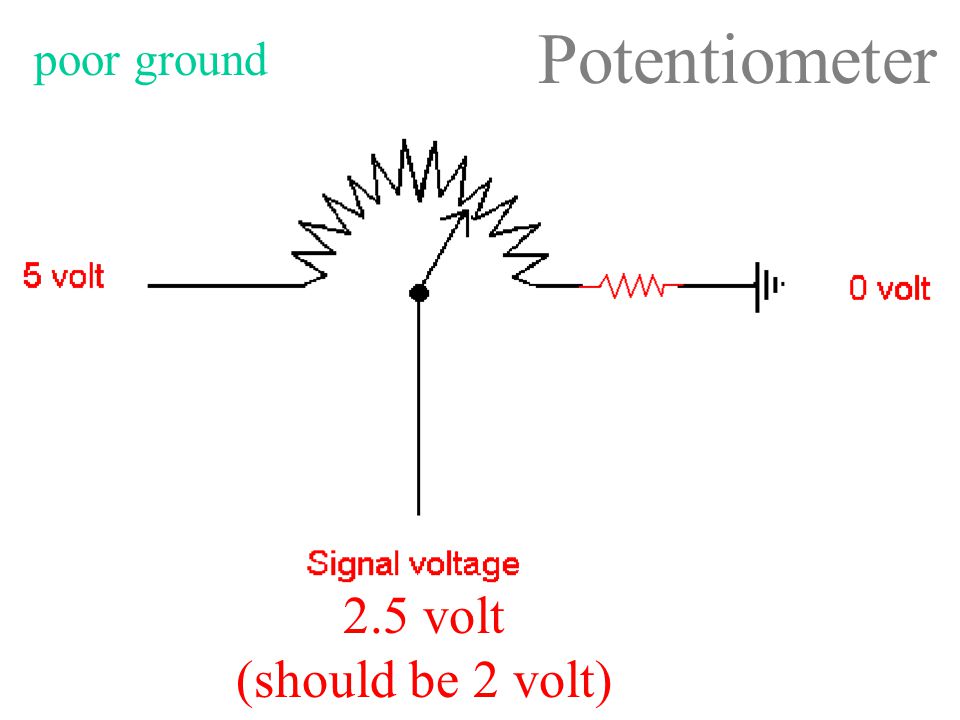

8 2.5 volt (should be 2 volt) Potentiometer poor ground

9 5 volt (should be 2 volt) Potentiometer open ground

10 Rheostats are wired in series with the load their purpose is to change amp flow Potentiometers sense motion check for: reference voltage good ground un-interrupted signal

11 5.03 V 5.02 V 4.51 V 0.01 V

12 4.52 V 0.52 V

13 0.0 V MIL lamp lit. TPS code What is wrong?

14 Thermistors Thermistors change resistance with temperature Negative Temperature Coefficient thermistors decrease in resistance when they heat Commonly used to sense changing temperatures

15 High Resistance when Cold!

16 Low Resistance when Hot!

17 4.52 V Hot or Cold? COLD!

18 1.53 V Hot or Cold? HOT!

19 1.45 V1.15 V Gauge reads colder than actual temperature

20 0.49 V0.02 V Gauge reads colder than actual temperature

21 0.47 V Gauge reads colder than actual temperature

22 Thermistors Thermistors are checked with an Ohmmeter or a Voltmeter A temperature probe or thermometer should be used when checking

23 Capacitors Capacitors store an electrical charge Capacitors provide an alternate path for electrons and act as a current “shock absorber” Capacitors are commonly used to suppress noise alternators coils motors

24

25 Capacitors Capacitors are rated in microfarads Capacitors are connected in parallel with a load they can be checked with an ohmmeter for short or open circuits

26 Find the Capacitor

27 EMI & RFI When coils turn off they self induce and create a voltage surge this surge can create electromagnetic interference and radio frequency interference capacitors absorb this surge to dampen interference

28 Semiconductors Conductors have 3 or fewer electrons in the valence ring of the atom copper has one aluminum has three Insulators have 5 or more electrons in the valence ring of the atom

29 Semiconductors Elements with four valence electrons are not good as insulators or conductors Silicon, when is a crystal form, shares valence electrons to make a good insulator Silicon can be “doped” to add electrons to the valence ring or remove electrons from the valence ring

30 Semiconductors Silicon doped with phosphorous (which has five electrons in the valence ring) will create an “N” type semiconductor Silicon doped with boron (which has three electrons in the valence ring) will create a “P” type semiconductor

31 Diodes Placing an “N” type semiconductor with a “P” type will create a diode. In a forward biased diode current will flow with a small amount of resistance Too much current will overheat and destroy the diode

32 Diodes Reverse biasing a diode will create very high resistance at the center of the diode and current will not flow Too much voltage will overcome the internal resistance and the diode will short out

33 12.6 V 0.0 V Arrow shows conventional theory (hole flow) Diodes wired like this will block current

34 Arrow shows conventional theory (hole flow) Diodes wired like this will allow current to flow with a slight voltage drop 12.6 V 12.0 V 0.1 V

35 Testing Diodes Diodes require.2 -.6 volts to forward bias Digital ohmmeters may not supply this voltage with ohm check use diode check feature when using DVOM

36 Testing Diodes Shorted diodes on alternators will allow A/C voltage that may confuse a control module Routine checks with oscilloscope are easy

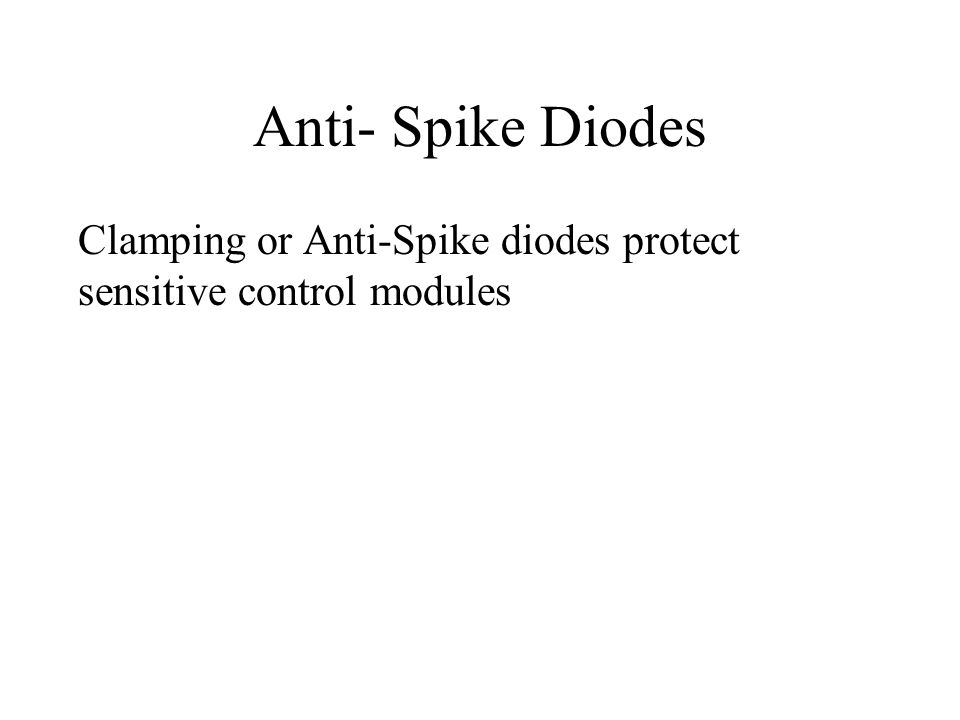

37 Anti- Spike Diodes Clamping or Anti-Spike diodes protect sensitive control modules

38

39

40

41

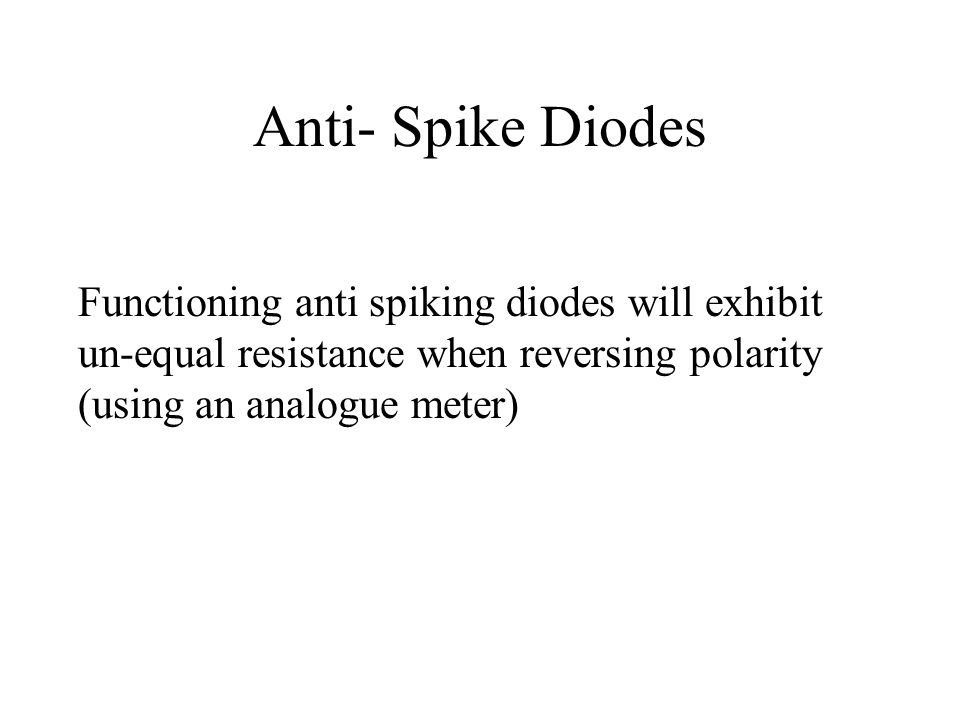

42 Anti- Spike Diodes Functioning anti spiking diodes will exhibit un-equal resistance when reversing polarity (using an analogue meter)

43

44

45 Failure in Anti- Spike Diodes An open, or shorted diode will damage computer control modules Open diodes allow spike voltages to harm electronic components Shorted diodes (and relay coil windings) will cause too much current to flow and burn out switching transistors in computers

46 Testing Anti- Spike Diodes Open diodes will show equal resistance with reversed polarity (using an analogue meter) Shorted diodes will show equal, and low resistance

47

48

49

50 Open Diode

51

52 Shorted Diode

53 Good Diode

54

55 Types of Diodes Positive diode Negative diode Zener Diode Light Emitting Diode (LED)

56

57

58

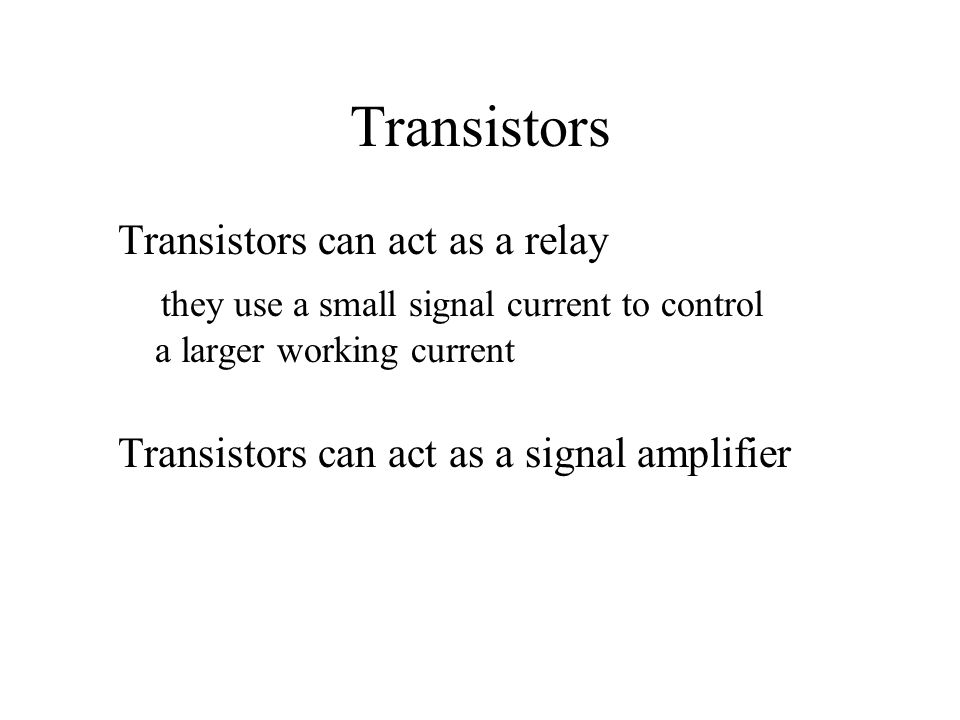

59 Transistors Transistors can act as a relay they use a small signal current to control a larger working current Transistors can act as a signal amplifier

60 PNP transistor Points In Permanently Will conduct current when the base sees a Negative polarity

61

62

63 NPN transistor Never Points In Base must be Positive to allow transistor to conduct current

64

65

66

67 Transistors Transistors are damaged by too much current Transistors are damaged by high voltage

68
