1 George M. McKelvy, Ph.D.1 Chapter 4 The Structure of the Atom

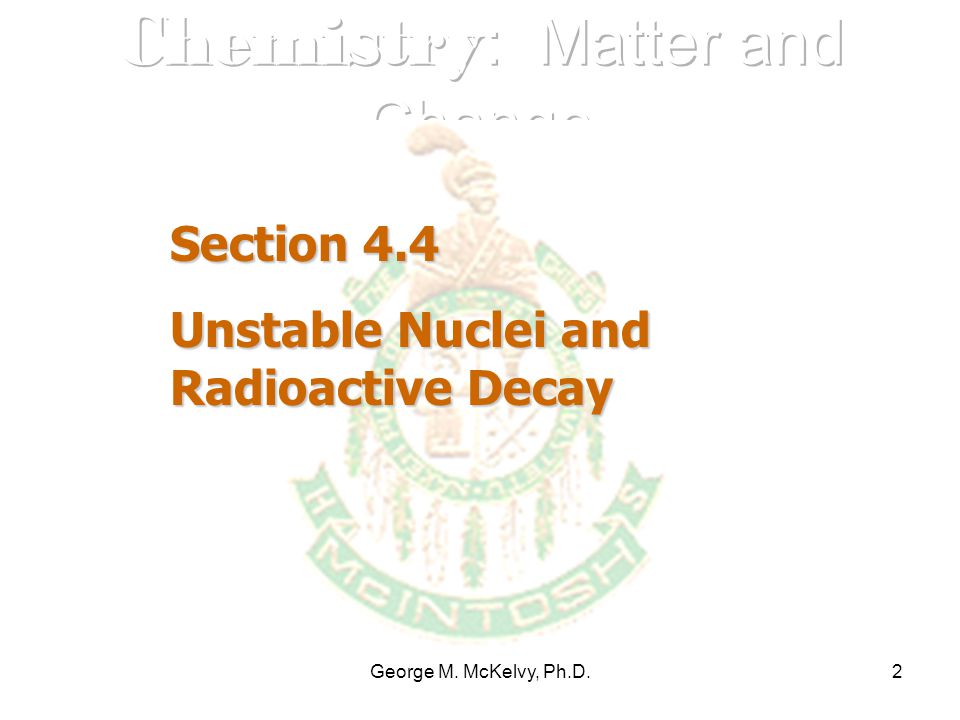

2 George M. McKelvy, Ph.D.2 Section 4.4 Unstable Nuclei and Radioactive Decay

3 George M. McKelvy, Ph.D.3 Objectives Explain the relationship between unstable nuclei and radioactive decay. Characterize alpha, beta, and gamma radiation in terms of mass and charge.

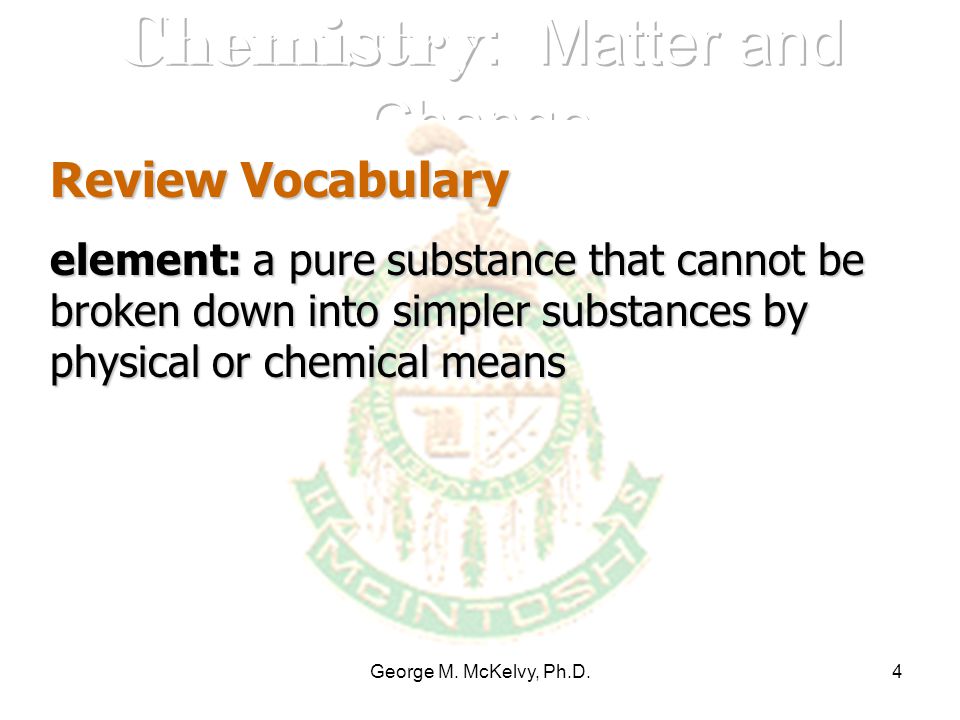

4 George M. McKelvy, Ph.D.4 Review Vocabulary element: a pure substance that cannot be broken down into simpler substances by physical or chemical means

5 George M. McKelvy, Ph.D.5 New Vocabulary radioactivityalpha particle radiationnuclear equation nuclear reactionbeta radiation radioactive decaybeta particle alpha radiationgamma rays

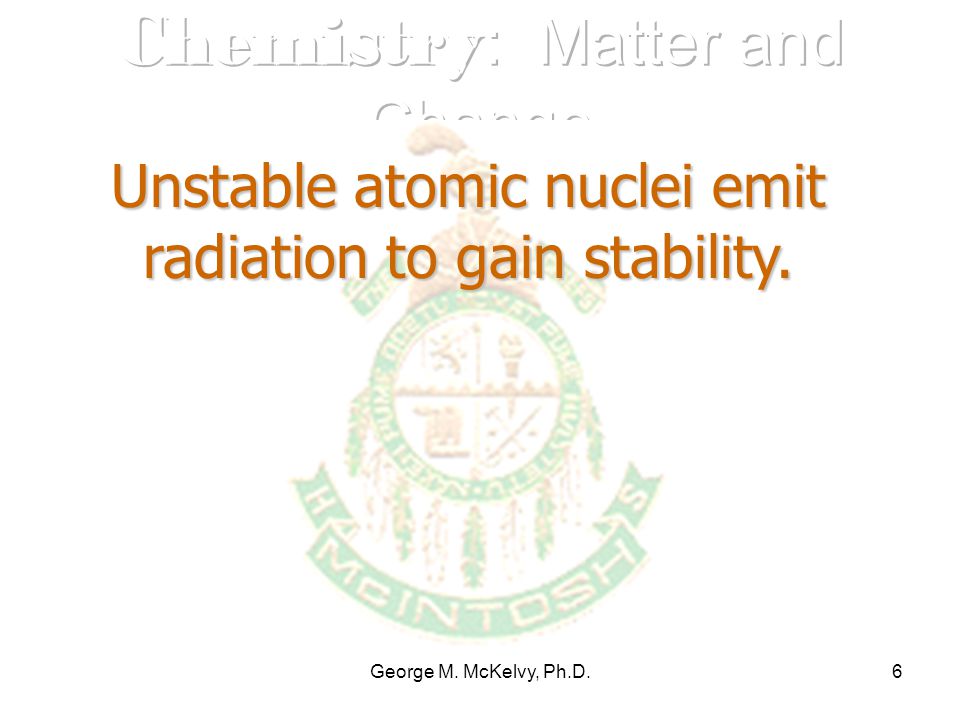

6 George M. McKelvy, Ph.D.6 Unstable atomic nuclei emit radiation to gain stability.

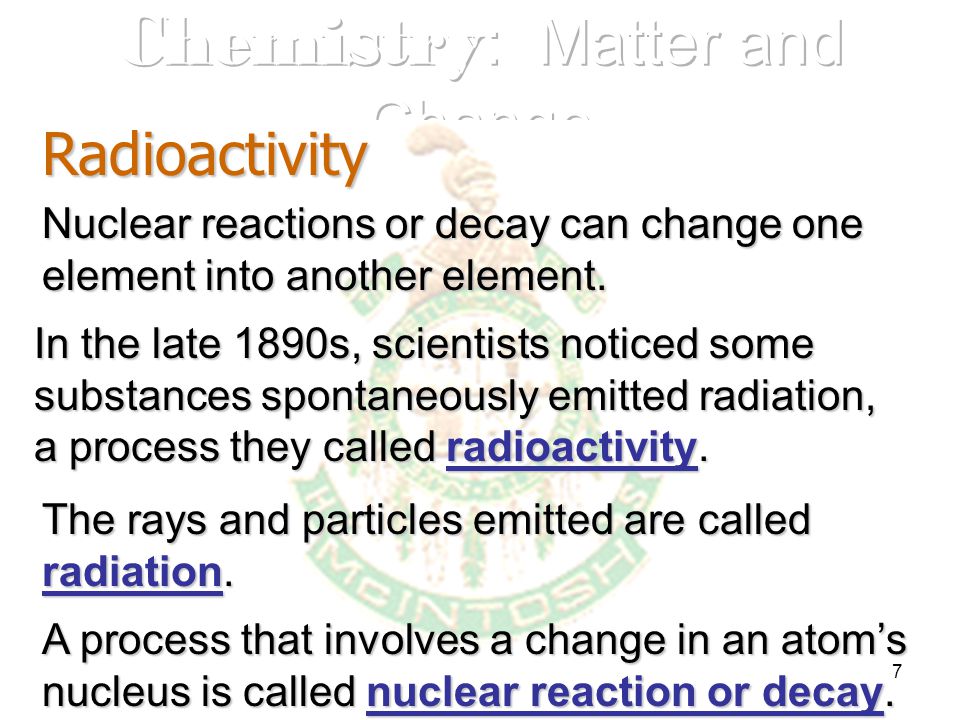

7 7 Radioactivity Nuclear reactions or decay can change one element into another element. In the late 1890s, scientists noticed some substances spontaneously emitted radiation, a process they called radioactivity. The rays and particles emitted are called radiation. A process that involves a change in an atom’s nucleus is called nuclear reaction or decay.

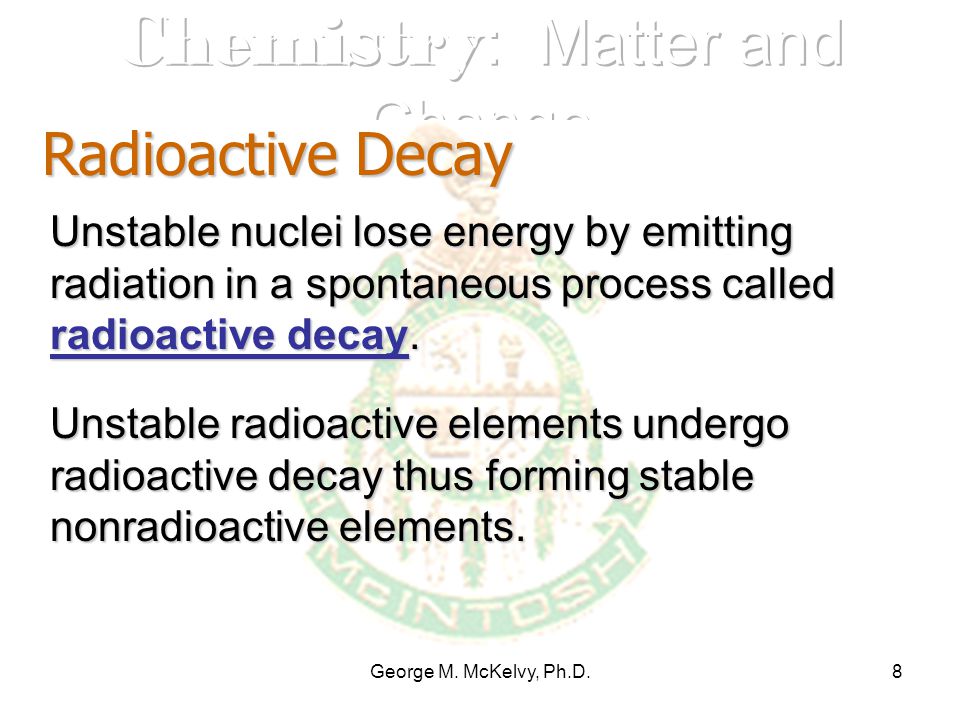

8 George M. McKelvy, Ph.D.8 Radioactive Decay Unstable nuclei lose energy by emitting radiation in a spontaneous process called radioactive decay. Unstable radioactive elements undergo radioactive decay thus forming stable nonradioactive elements.

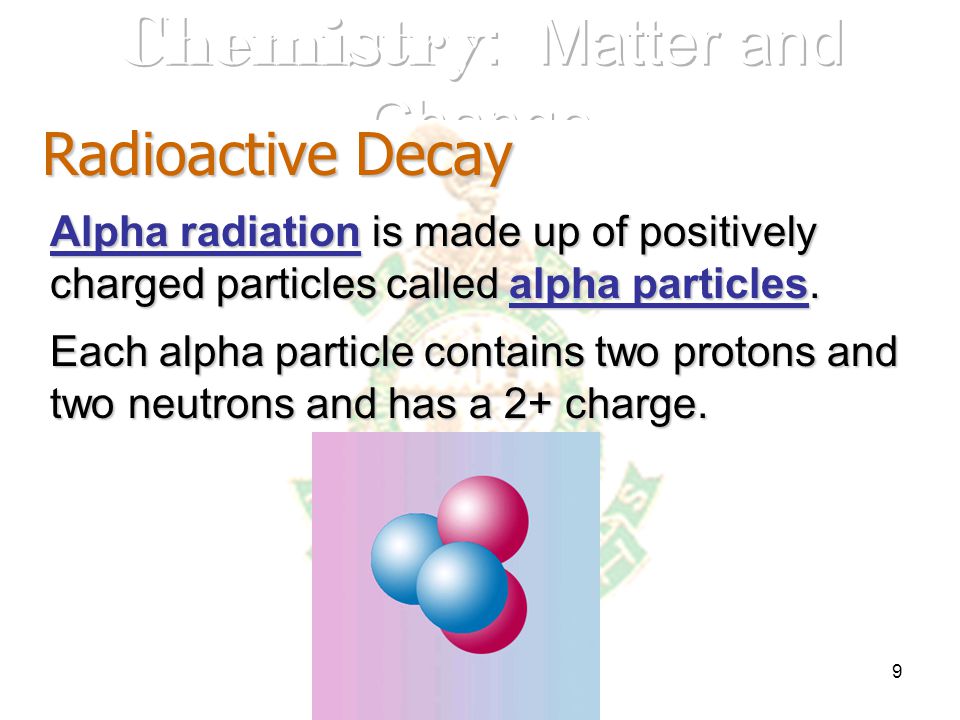

9 9 Radioactive Decay Alpha radiation is made up of positively charged particles called alpha particles. Each alpha particle contains two protons and two neutrons and has a 2+ charge.

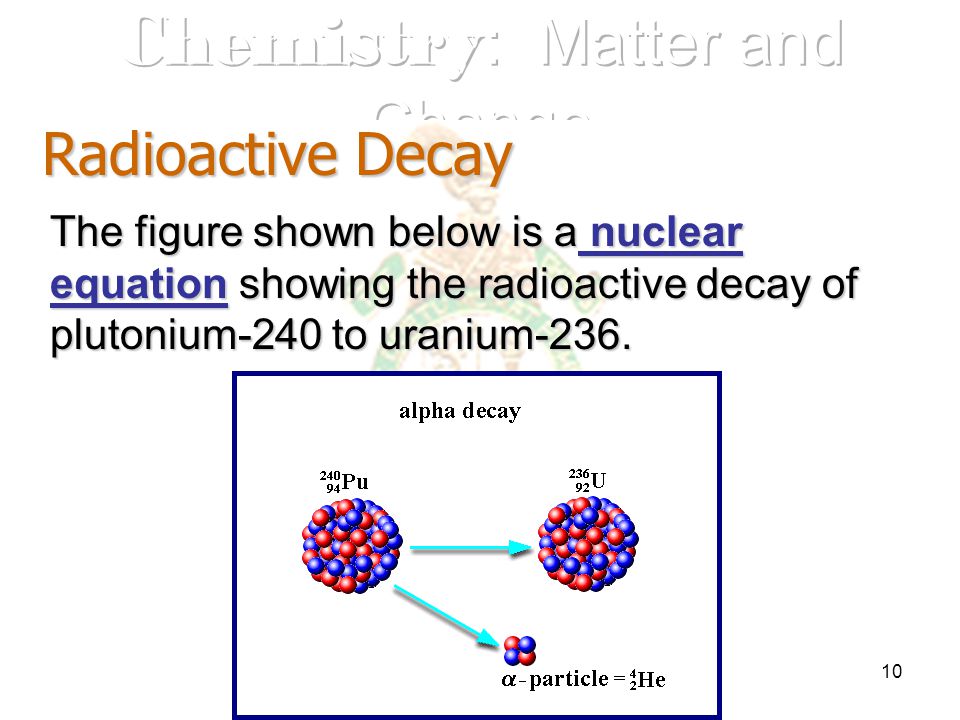

10 10 Radioactive Decay The figure shown below is a nuclear equation showing the radioactive decay of plutonium-240 to uranium-236.

11 11 Radioactive Decay plutonium-240 uranium-236 alpha particle + The mass is conserved in nuclear equations.

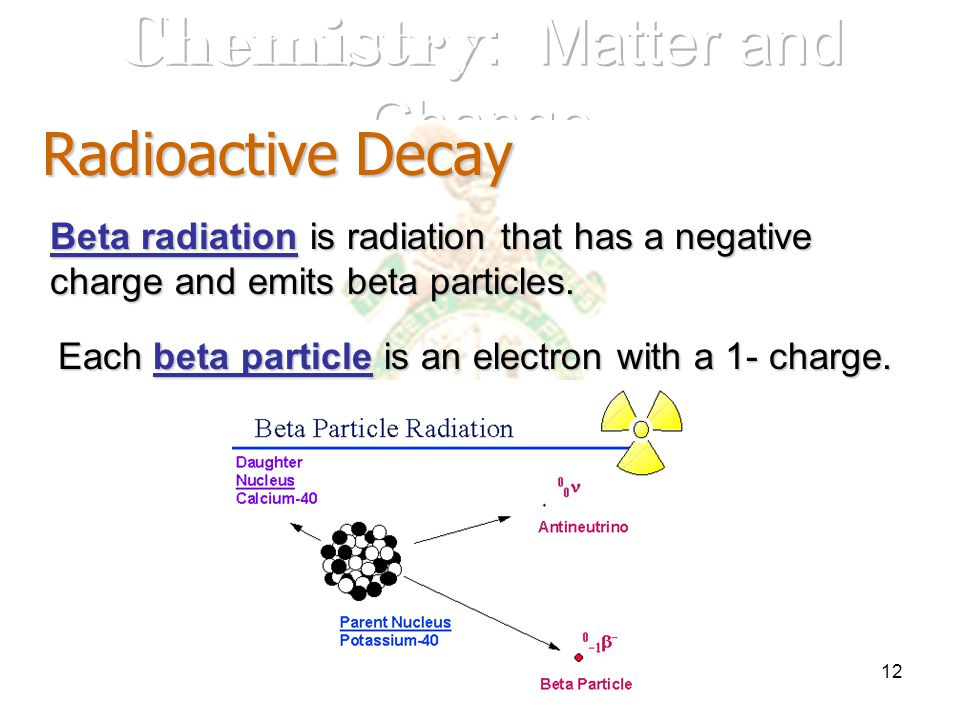

12 12 Radioactive Decay Beta radiation is radiation that has a negative charge and emits beta particles. Each beta particle is an electron with a 1- charge.

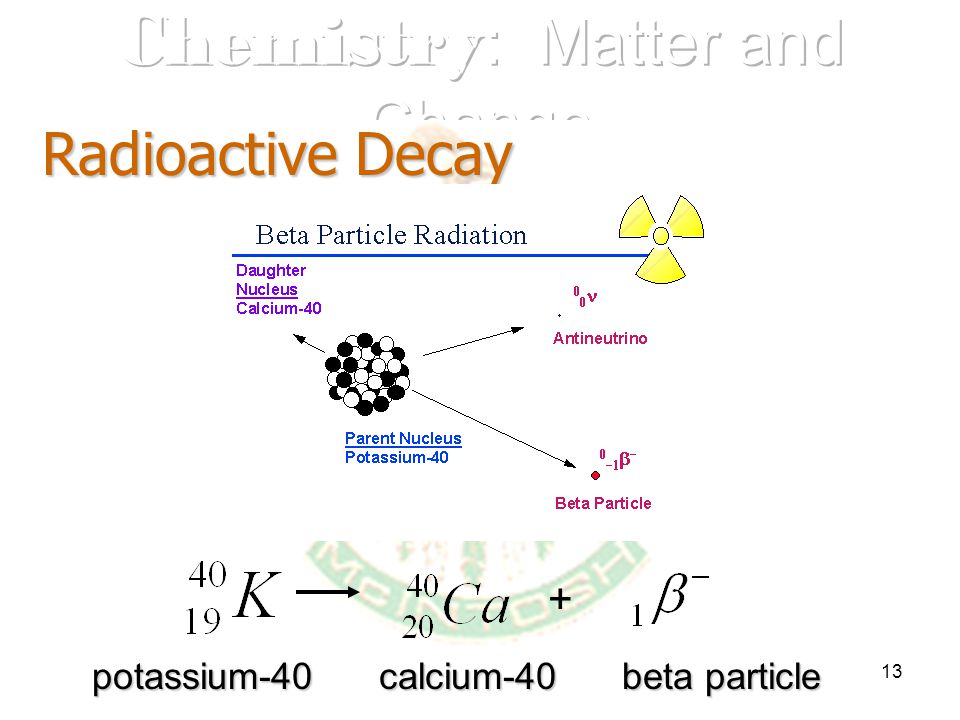

13 13 Radioactive Decay potassium-40 calcium-40 beta particle +

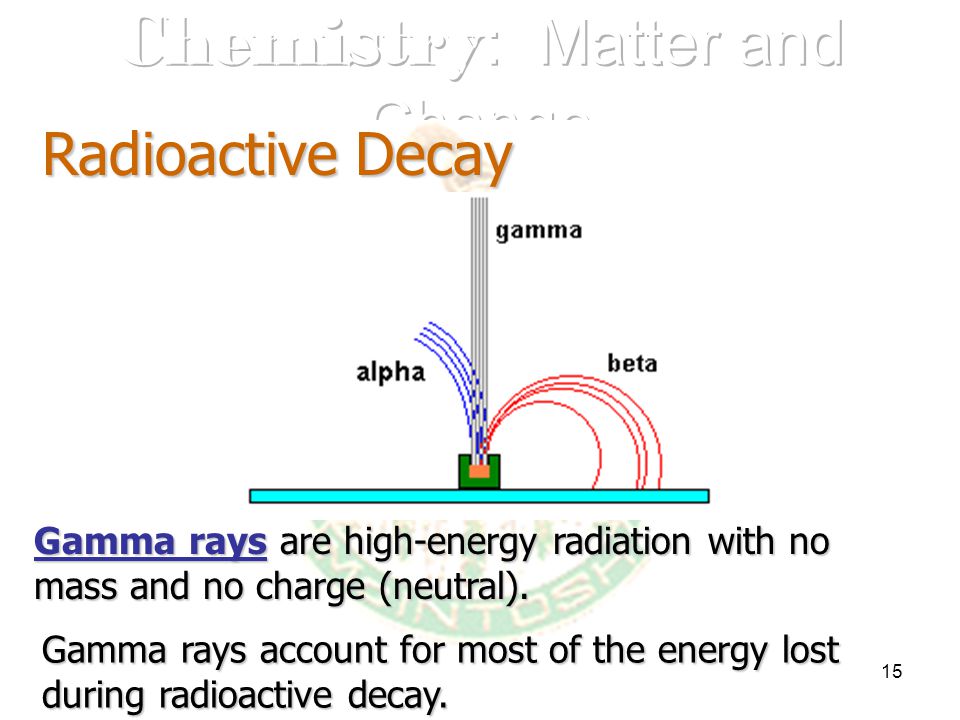

14 14 Radioactive Decay Alpha, beta, and gamma radiation can be determined by using a magnetic field. Alpha and beta have opposite charges and undergo deflection in opposite directions.

15 15 Radioactive Decay Gamma rays are high-energy radiation with no mass and no charge (neutral). Gamma rays account for most of the energy lost during radioactive decay.

16 16 Radioactive Decay Table 4.5 Characteristics of Radiation AlphaBetaGammaSymbol or  e - or  Mass (amu) 41/18400 Mass (kg) 6.65 x 10 -27 9.11 x 10 -31 0 Charge 2+1-0

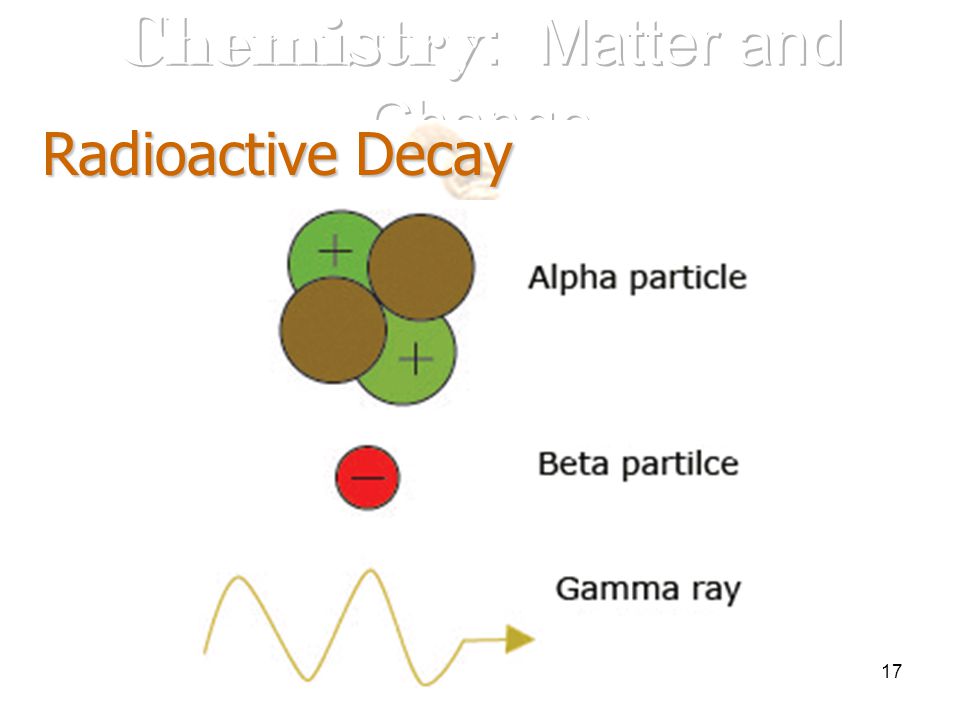

17 17 Radioactive Decay

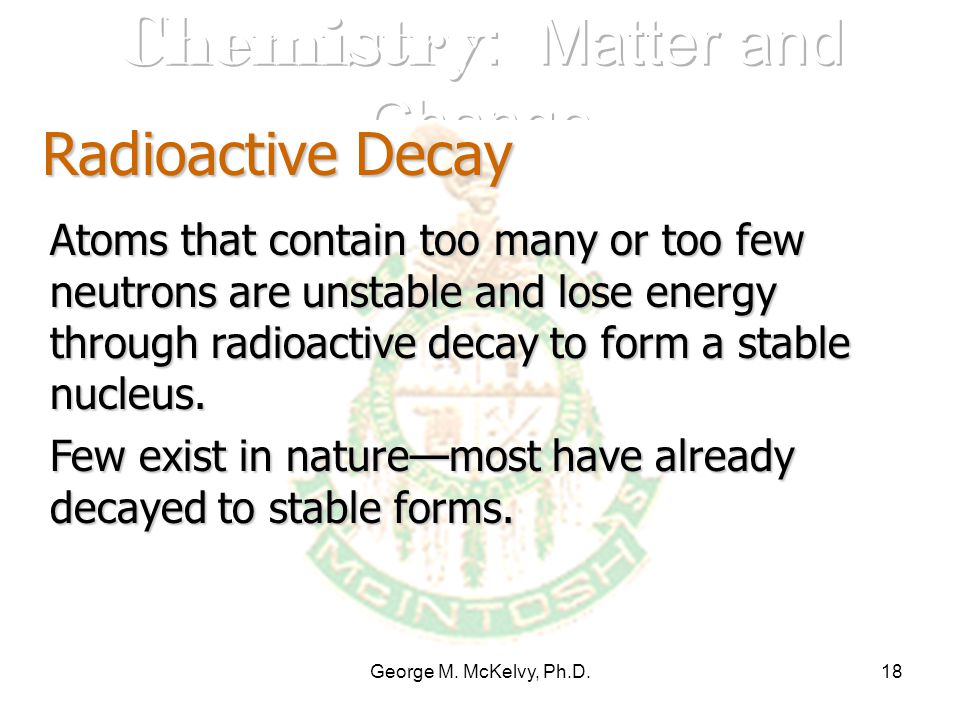

18 George M. McKelvy, Ph.D.18 Radioactive Decay Atoms that contain too many or too few neutrons are unstable and lose energy through radioactive decay to form a stable nucleus. Few exist in nature—most have already decayed to stable forms.

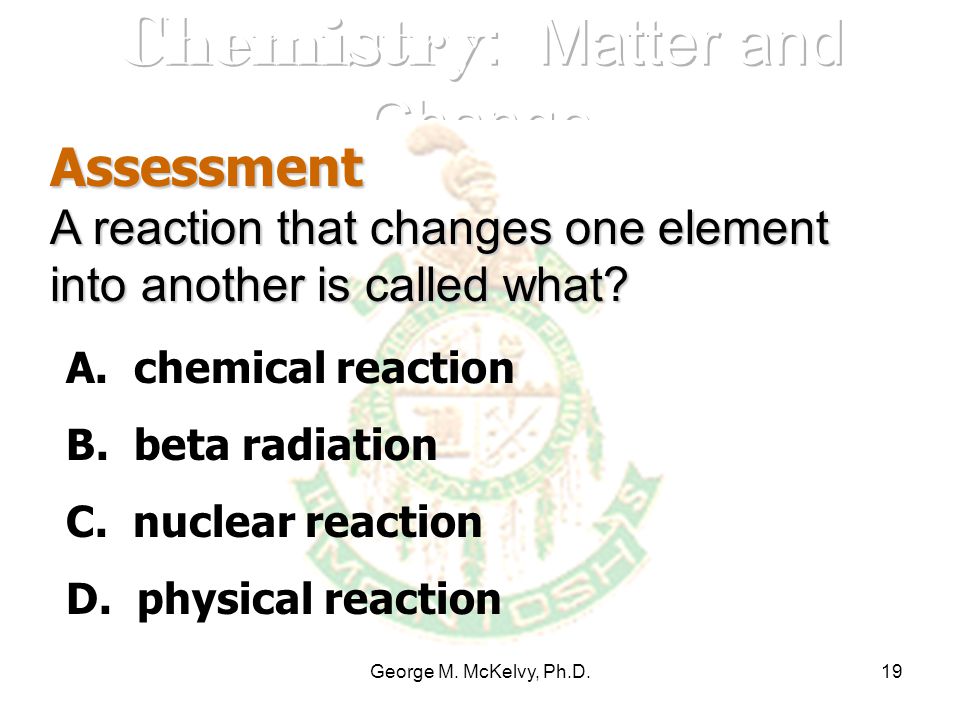

19 George M. McKelvy, Ph.D.19 Assessment A reaction that changes one element into another is called what? A. chemical reaction B. beta radiation C. nuclear reaction D. physical reaction

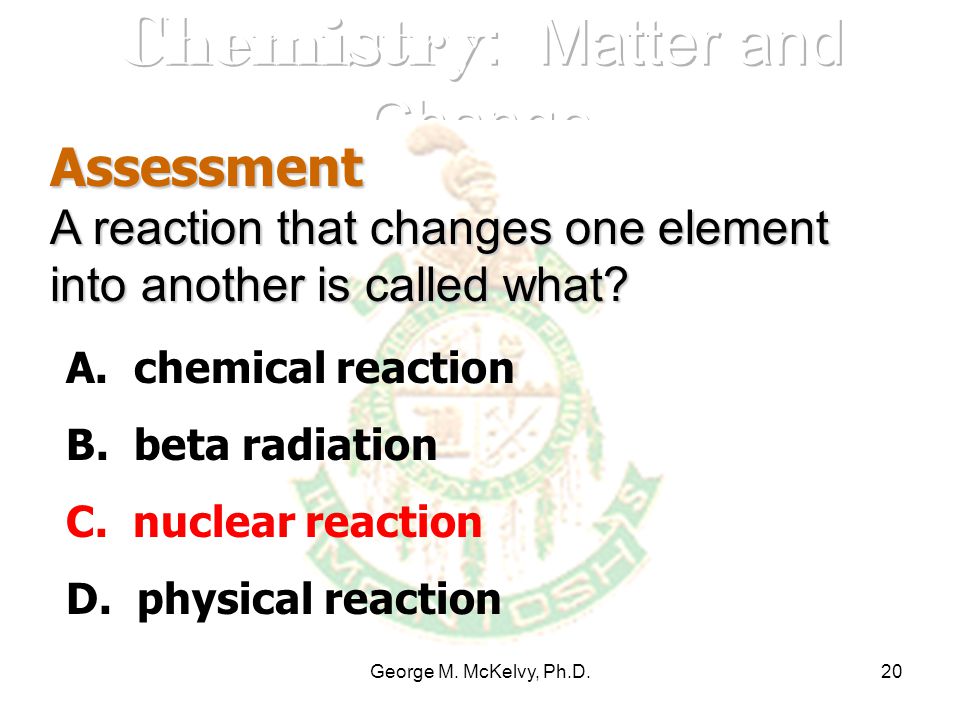

20 George M. McKelvy, Ph.D.20 Assessment A reaction that changes one element into another is called what? A. chemical reaction B. beta radiation C. nuclear reaction D. physical reaction

21 George M. McKelvy, Ph.D.21 Assessment Why are radioactive elements rare in nature? A. They do not occur on Earth. B. Most have already decayed to a stable form. C. They take a long time to form. D. They afre too hard to detect.

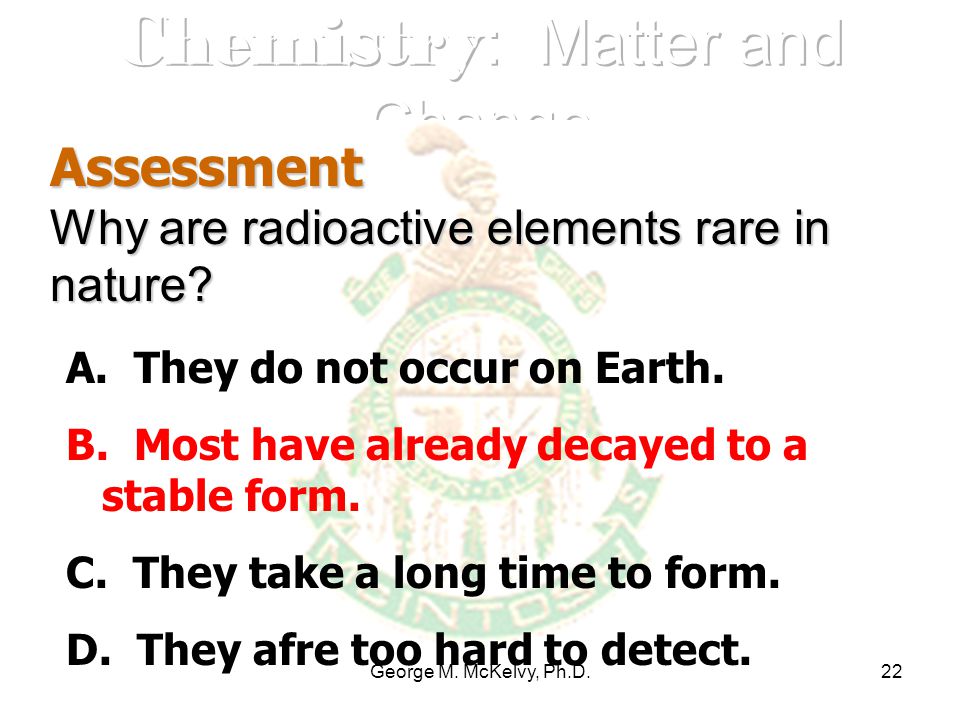

22 George M. McKelvy, Ph.D.22 Assessment Why are radioactive elements rare in nature? A. They do not occur on Earth. B. Most have already decayed to a stable form. C. They take a long time to form. D. They afre too hard to detect.

23 George M. McKelvy, Ph.D.23
