1. Privacy Preserving Data Publication Yufei Tao Department of Computer Science and Engineering Chinese University of Hong Kong

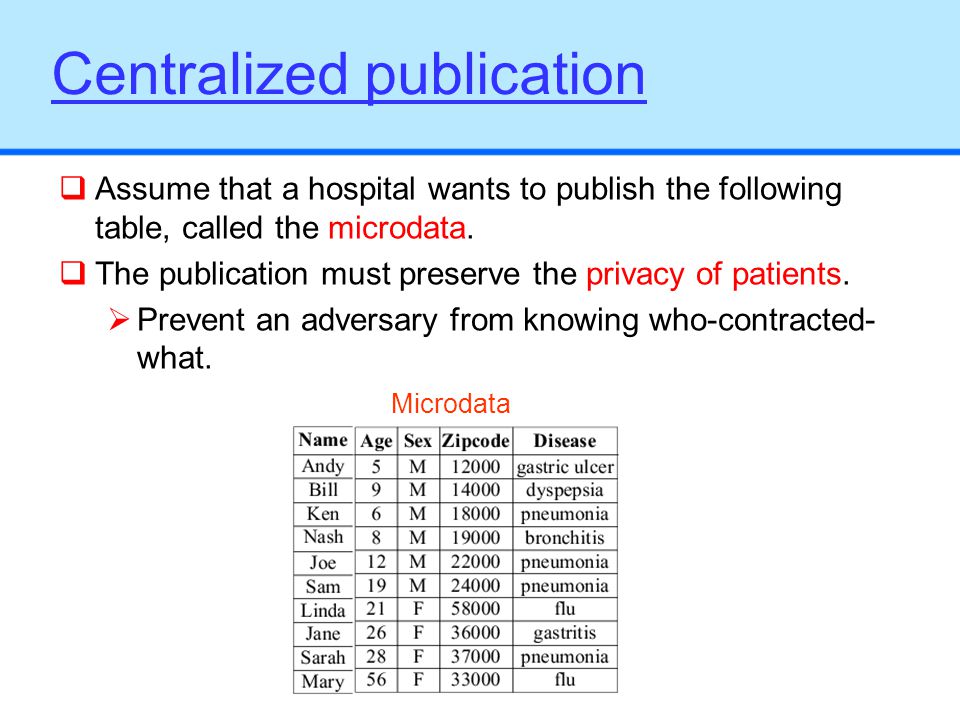

2. Centralized publication  Assume that a hospital wants to publish the following table, called the microdata.  The publication must preserve the privacy of patients.  Prevent an adversary from knowing who-contracted- what. Microdata

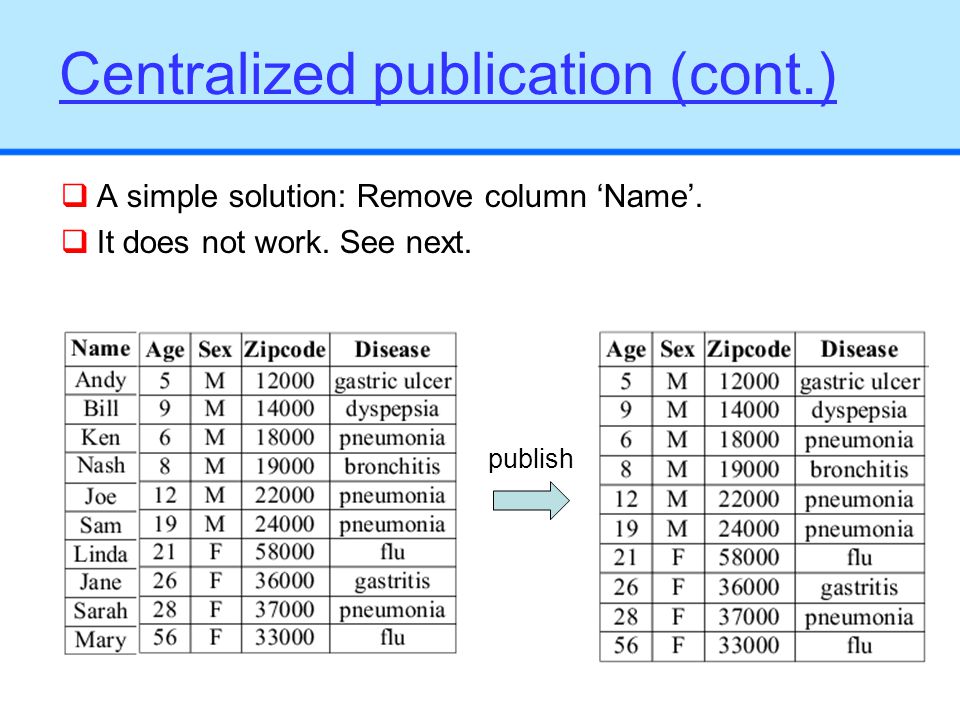

3. Centralized publication (cont.)  A simple solution: Remove column ‘Name’.  It does not work. See next. publish

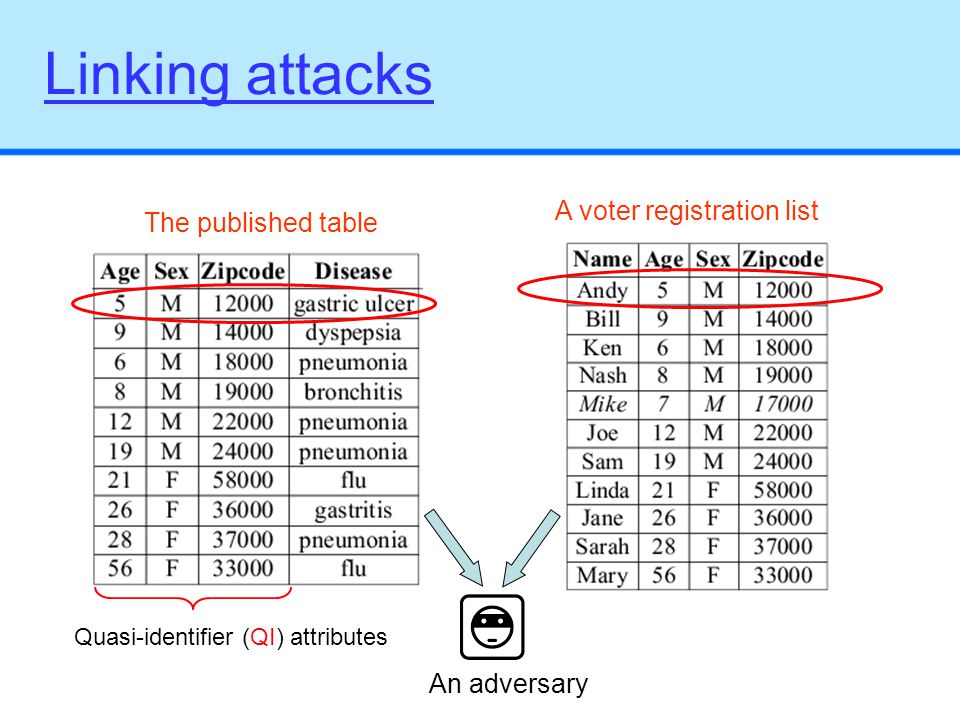

4. Linking attacks The published table A voter registration list Quasi-identifier (QI) attributes An adversary

5. These are real threats  Fact: 87% of Americans can be uniquely identified by {Zipcode, gender, date-of-birth}.  A famous experiment by Sweeney [International Journal on Uncertainty, Fuzziness and Knowledge-based Systems, 2002]  finds the medical record of an ex-governor of Massachusetts.

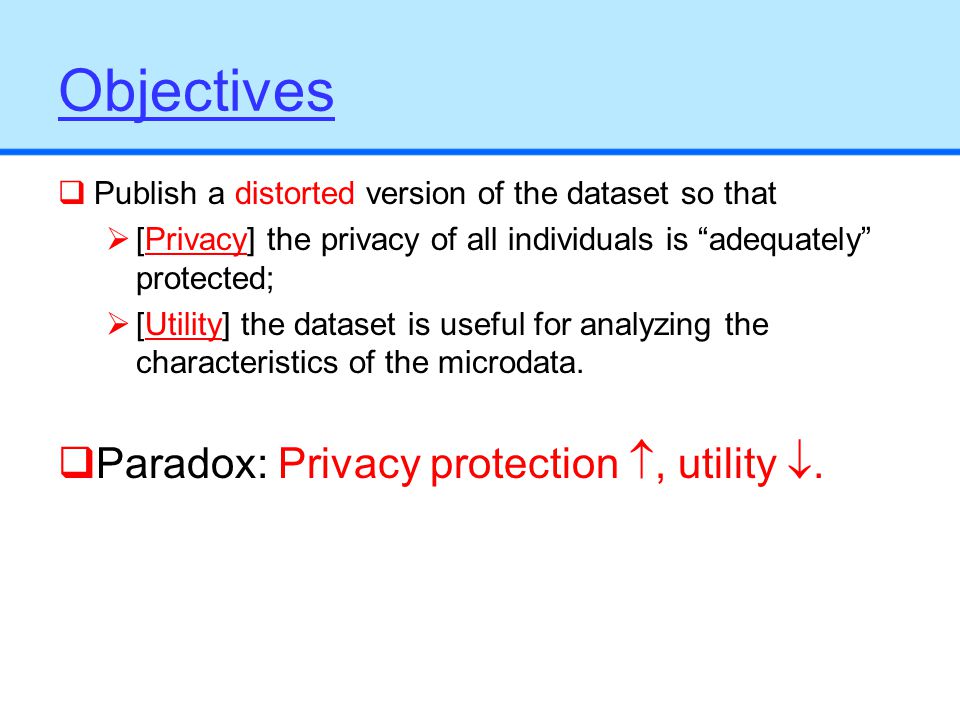

6. Objectives  Publish a distorted version of the dataset so that  [Privacy] the privacy of all individuals is “adequately” protected;  [Utility] the dataset is useful for analyzing the characteristics of the microdata.  Paradox: Privacy protection , utility .

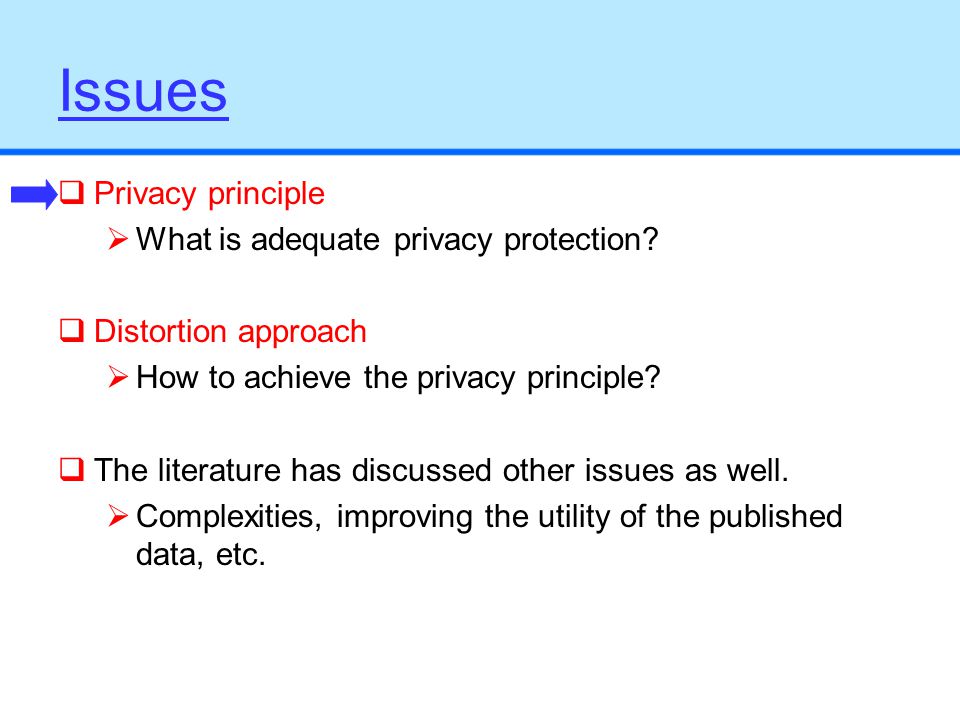

7. Issues  Privacy principle  What is adequate privacy protection?  Distortion approach  How to achieve the privacy principle?  The literature has discussed other issues as well.  Complexities, improving the utility of the published data, etc.

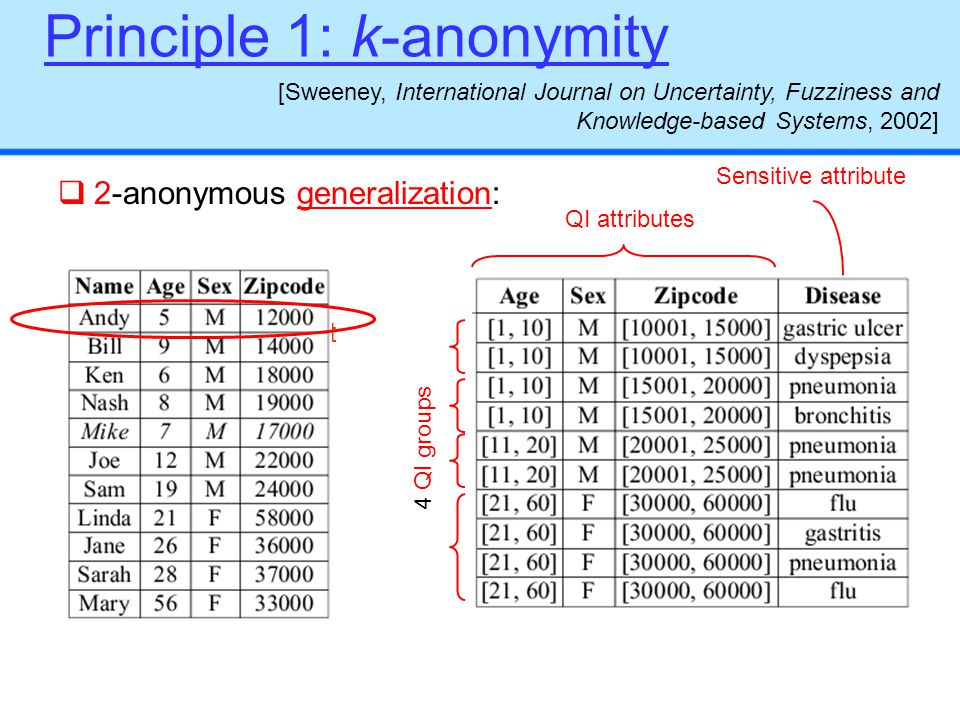

8. Principle 1: k-anonymity  2-anonymous generalization: QI attributes Sensitive attribute 4 QI groups A voter registration list [Sweeney, International Journal on Uncertainty, Fuzziness and Knowledge-based Systems, 2002]

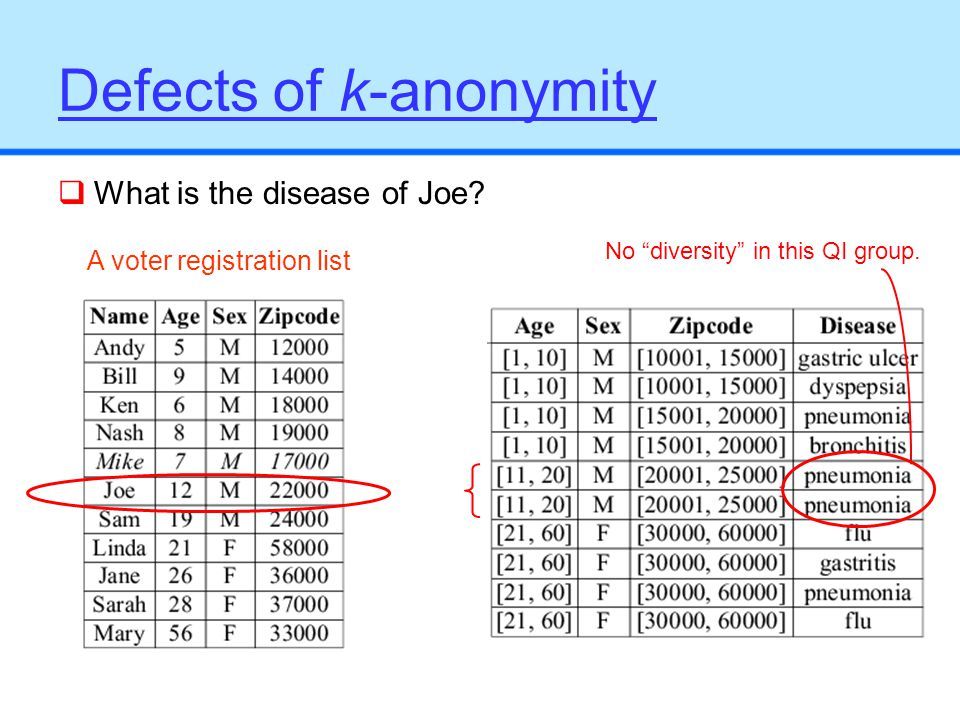

9. Defects of k-anonymity  What is the disease of Joe? No “diversity” in this QI group. A voter registration list

10. Principle 2: l-diversity  Each QI group should have at least l “well-represented” sensitive values.  Different ways to interpret “well-represented”. [Machanavajjhala et al., ICDE, 2006]

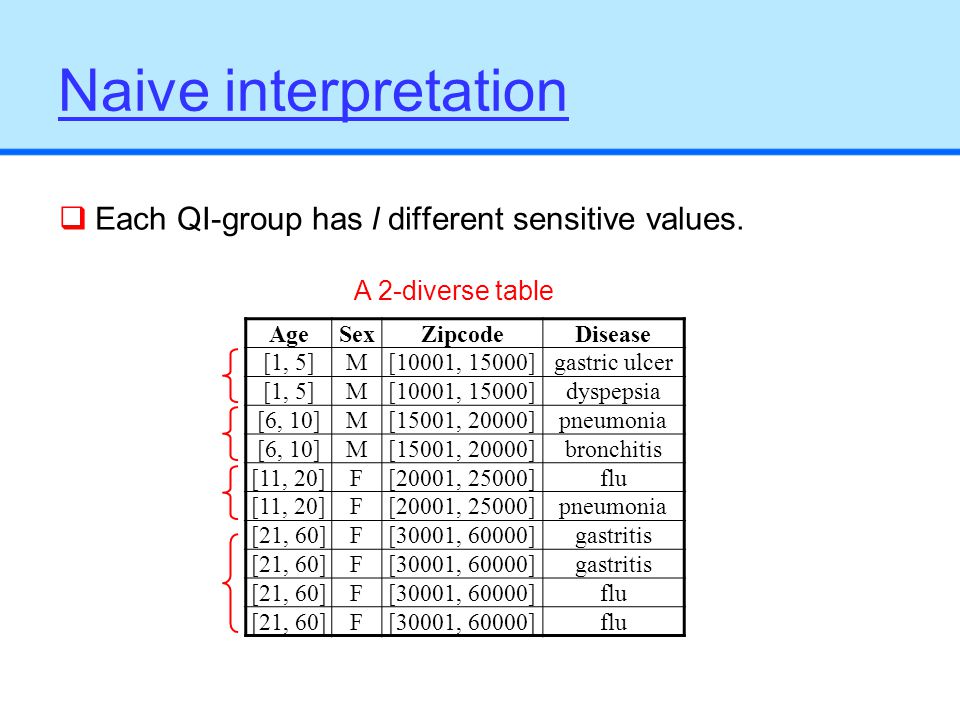

11. Naive interpretation  Each QI-group has l different sensitive values. A 2-diverse table AgeSexZipcodeDisease [1, 5]M[10001, 15000]gastric ulcer [1, 5]M[10001, 15000]dyspepsia [6, 10]M[15001, 20000]pneumonia [6, 10]M[15001, 20000]bronchitis [11, 20]F[20001, 25000]flu [11, 20]F[20001, 25000]pneumonia [21, 60]F[30001, 60000]gastritis [21, 60]F[30001, 60000]gastritis [21, 60]F[30001, 60000]flu [21, 60]F[30001, 60000]flu

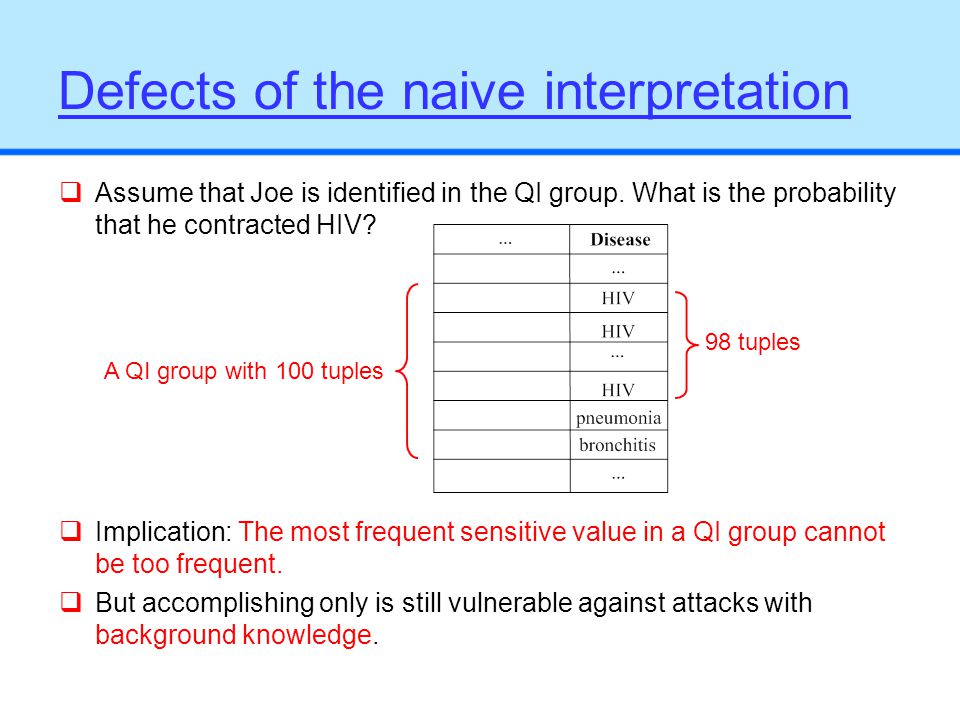

12. Defects of the naive interpretation  Assume that Joe is identified in the QI group. What is the probability that he contracted HIV?  Implication: The most frequent sensitive value in a QI group cannot be too frequent.  But accomplishing only is still vulnerable against attacks with background knowledge. A QI group with 100 tuples 98 tuples

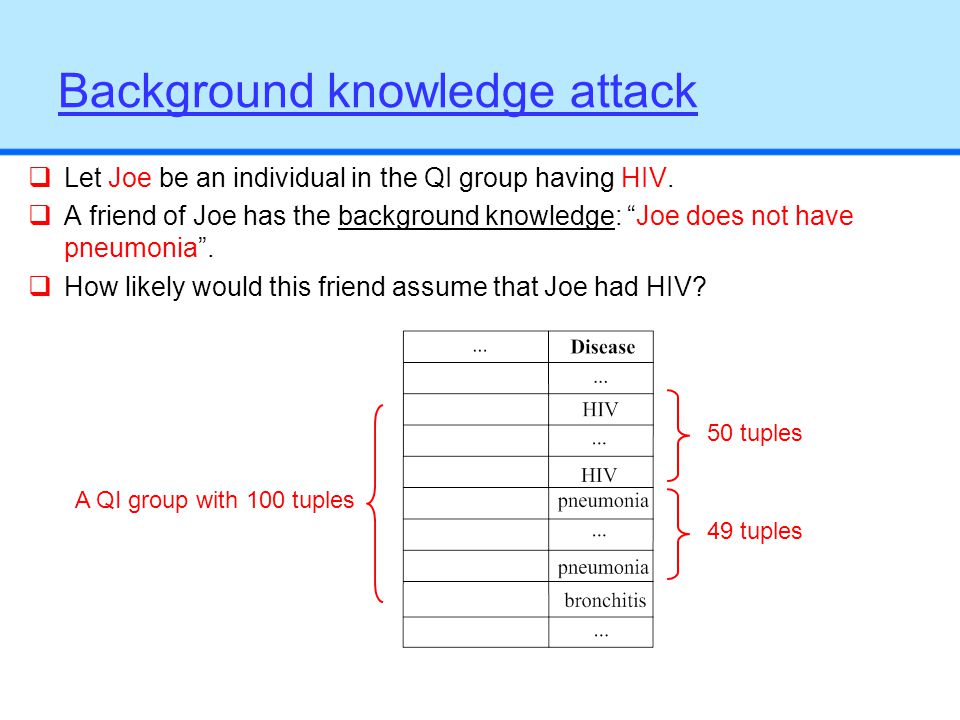

13. Background knowledge attack  Let Joe be an individual in the QI group having HIV.  A friend of Joe has the background knowledge: “Joe does not have pneumonia”.  How likely would this friend assume that Joe had HIV? A QI group with 100 tuples 50 tuples 49 tuples

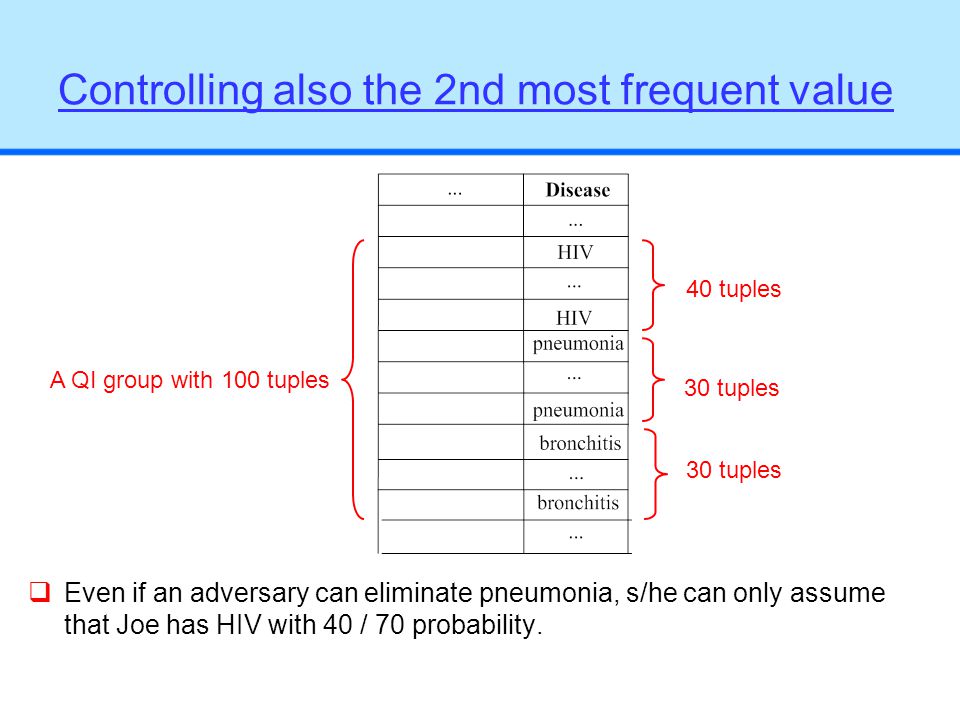

14. Controlling also the 2nd most frequent value  Even if an adversary can eliminate pneumonia, s/he can only assume that Joe has HIV with 40 / 70 probability. A QI group with 100 tuples 40 tuples 30 tuples

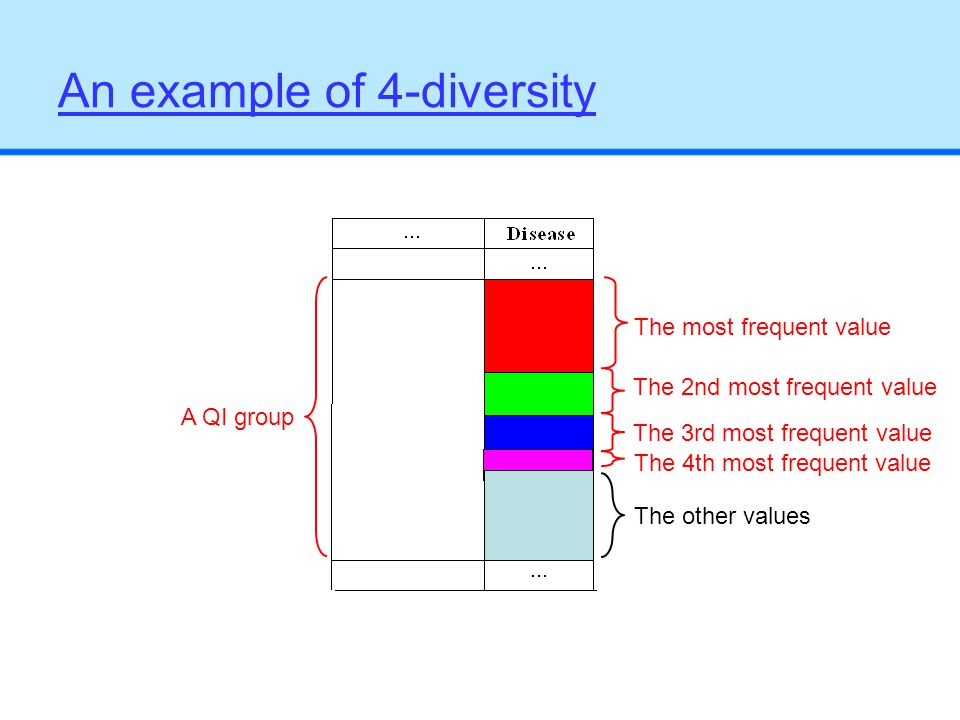

15. An example of 4-diversity A QI group The most frequent value The 2nd most frequent value The 3rd most frequent value The 4th most frequent value The other values

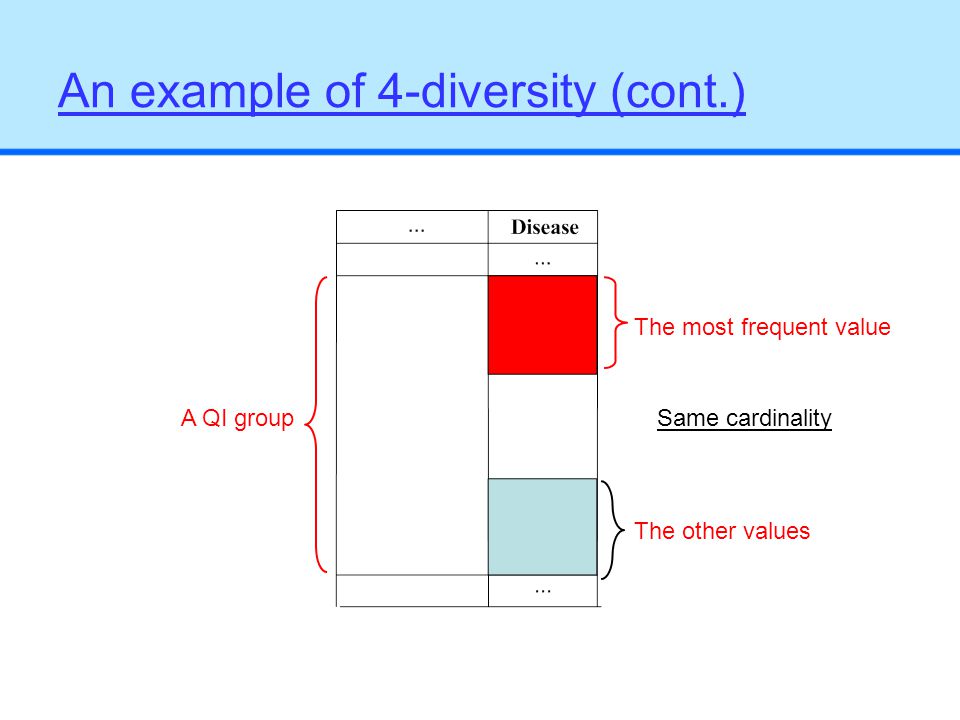

16. An example of 4-diversity (cont.) A QI group The most frequent value The other values Same cardinality

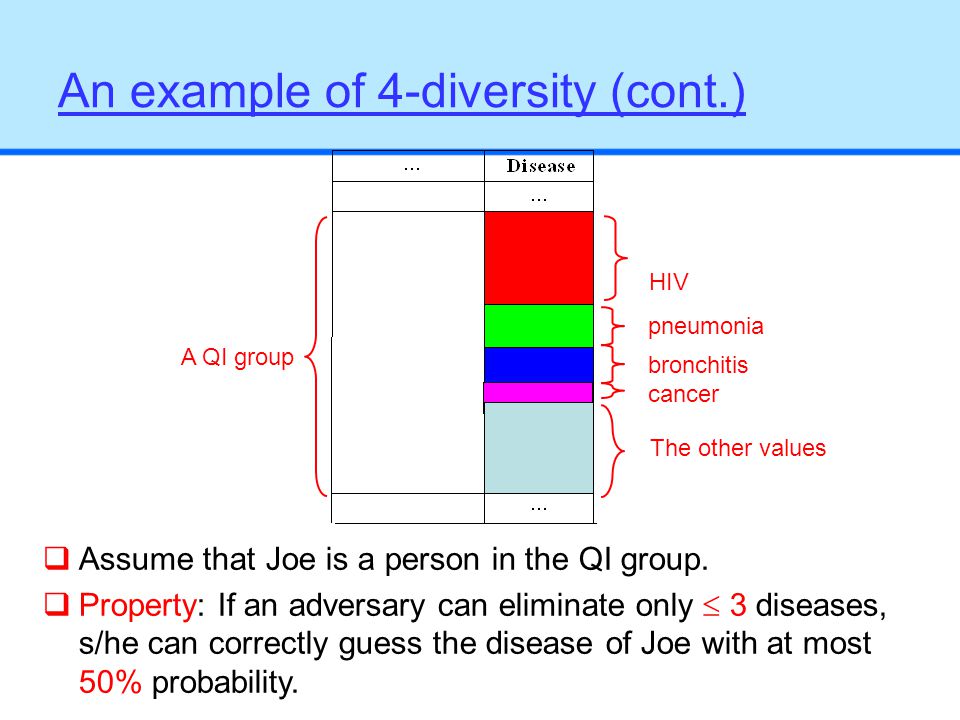

17.  Assume that Joe is a person in the QI group.  Property: If an adversary can eliminate only  3 diseases, s/he can correctly guess the disease of Joe with at most 50% probability. An example of 4-diversity (cont.) A QI group HIV pneumonia bronchitis cancer The other values

18. l-diversity  Consider a QI group.  m is the number of sensitive values in the group.  r 1 is the number of tuples having the most sensitive value.  r 2 is the number of tuples having the 2nd most sensitive value.  …  r m is the number of tuples having the m-th most sensitive value.  Then, r 1  c (r l + … + r m ), where c is a constant.  If an adversary can eliminate only l – 1 sensitive values, s/he can infer the disease of a person with probability at most 1 / (c + 1).  Called (c, l)-diversity precisely.

19. Defects of l-diversity  Andy does not want anyone to know that he had a stomach problem.  Sarah does not mind at all if others find out that she had flu. NameAgeSexZipcode Andy4M12000 Bill5M14000 Ken6M18000 Nash9M19000 Mike7M17000 Alice12F22000 Betty19F24000 Linda21F33000 Jane25F34000 Sarah28F37000 Mary56F58000 A 2-diverse tableA voter registration list AgeSexZipcodeDisease [1, 5]M[10001, 15000]gastric ulcer [1, 5]M[10001, 15000]dyspepsia [6, 10]M[15001, 20000]pneumonia [6, 10]M[15001, 20000]bronchitis [11, 20]F[20001, 25000]flu [11, 20]F[20001, 25000]pneumonia [21, 60]F[30001, 60000]gastritis [21, 60]F[30001, 60000]gastritis [21, 60]F[30001, 60000]flu [21, 60]F[30001, 60000]flu

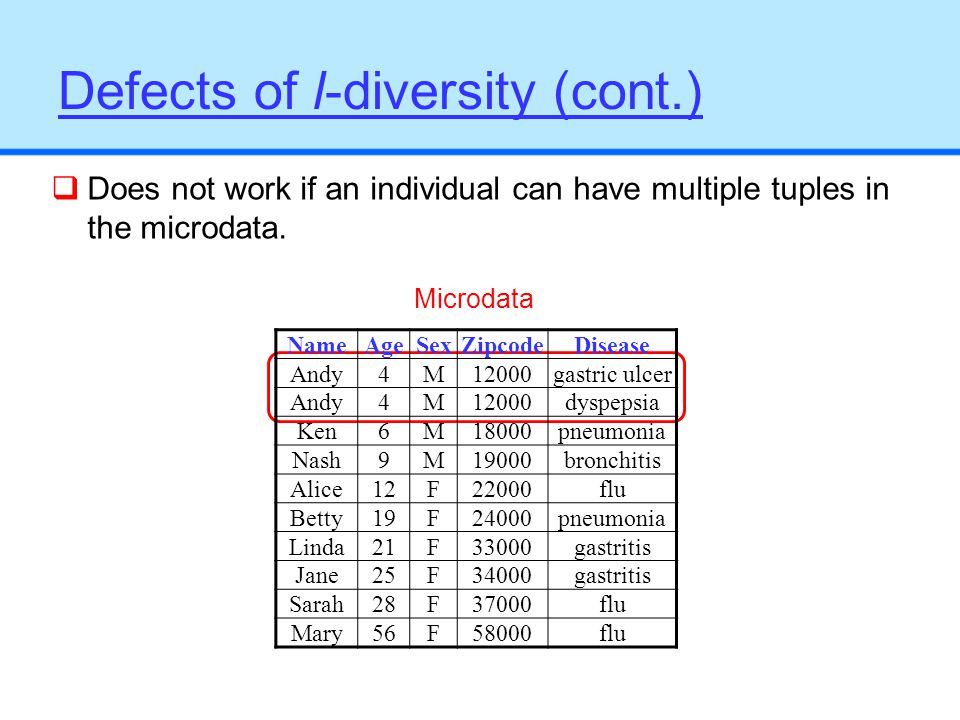

20.  Does not work if an individual can have multiple tuples in the microdata. Defects of l-diversity (cont.) Microdata NameAgeSexZipcodeDisease Andy4M12000gastric ulcer Andy4M12000dyspepsia Ken6M18000pneumonia Nash9M19000bronchitis Alice12F22000flu Betty19F24000pneumonia Linda21F33000gastritis Jane25F34000gastritis Sarah28F37000flu Mary56F58000flu

21. Defects of l-diversity (cont.) NameAgeSexZipcode Andy4M12000 Ken6M18000 Nash9M19000 Mike7M17000 Alice12F22000 Betty19F24000 Linda21F33000 Jane25F34000 Sarah28F37000 Mary56F58000 A 2-diverse tableA voter registration list AgeSexZipcodeDisease 4M12000gastric ulcer 4M12000dyspepsia [6, 10]M[15001, 20000]pneumonia [6, 10]M[15001, 20000]bronchitis [11, 20]F[20001, 25000]flu [11, 20]F[20001, 25000]pneumonia [21, 60]F[30001, 60000]gastritis [21, 60]F[30001, 60000]gastritis [21, 60]F[30001, 60000]flu [21, 60]F[30001, 60000]flu

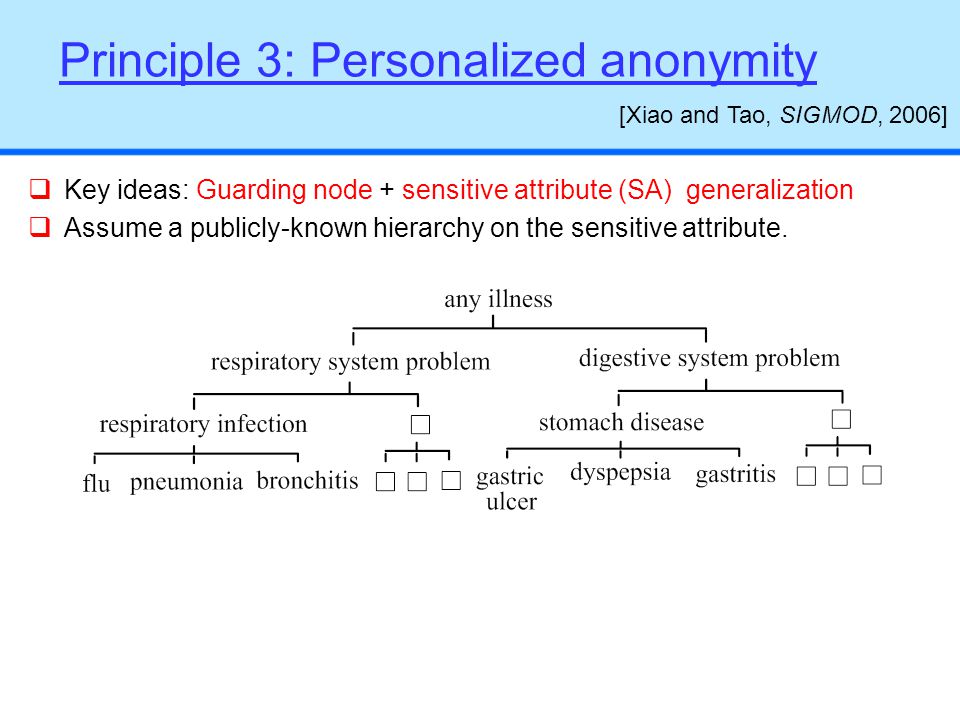

22. Principle 3: Personalized anonymity  Key ideas: Guarding node + sensitive attribute (SA) generalization  Assume a publicly-known hierarchy on the sensitive attribute. [Xiao and Tao, SIGMOD, 2006]

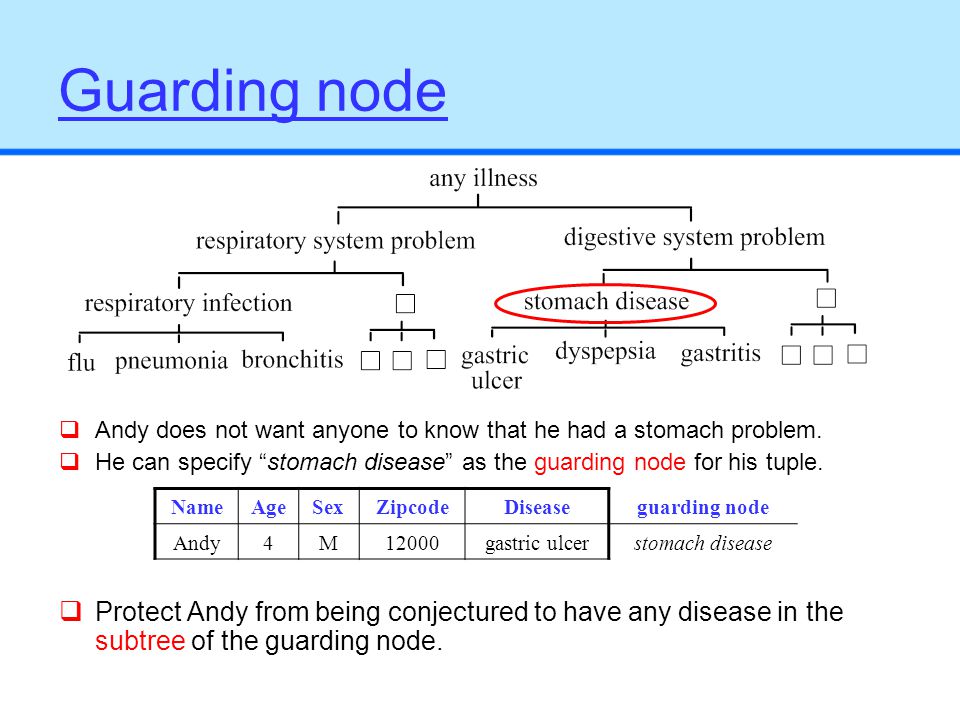

23. Guarding node  Andy does not want anyone to know that he had a stomach problem.  He can specify “stomach disease” as the guarding node for his tuple.  Protect Andy from being conjectured to have any disease in the subtree of the guarding node. NameAgeSexZipcodeDiseaseguarding node Andy4M12000gastric ulcerstomach disease

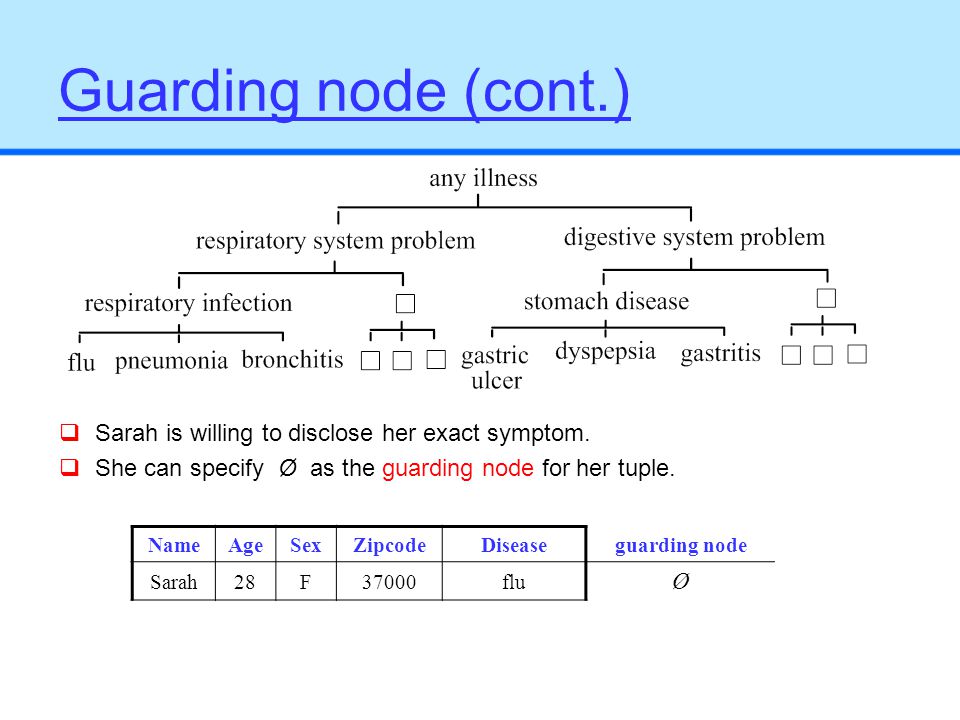

24. Guarding node (cont.)  Sarah is willing to disclose her exact symptom.  She can specify Ø as the guarding node for her tuple. NameAgeSexZipcodeDiseaseguarding node Sarah28F37000flu Ø

25. Guarding node (cont.)  Bill does not have any special preference.  He sets the guarding node of his tuple to be the same as his sensitive value. NameAgeSexZipcodeDiseaseguarding node Bill5M14000dyspepsia

26. A personalized approach NameAgeSexZipcodeDiseaseguarding node Andy4M12000gastric ulcerstomach disease Bill5M14000dyspepsia Ken6M18000pneumoniarespiratory infection Nash9M19000bronchitis Alice12F22000flu Betty19F24000pneumonia Linda21F33000gastritis Jane25F34000gastritis Ø Sarah28F37000flu Ø Mary56F58000flu

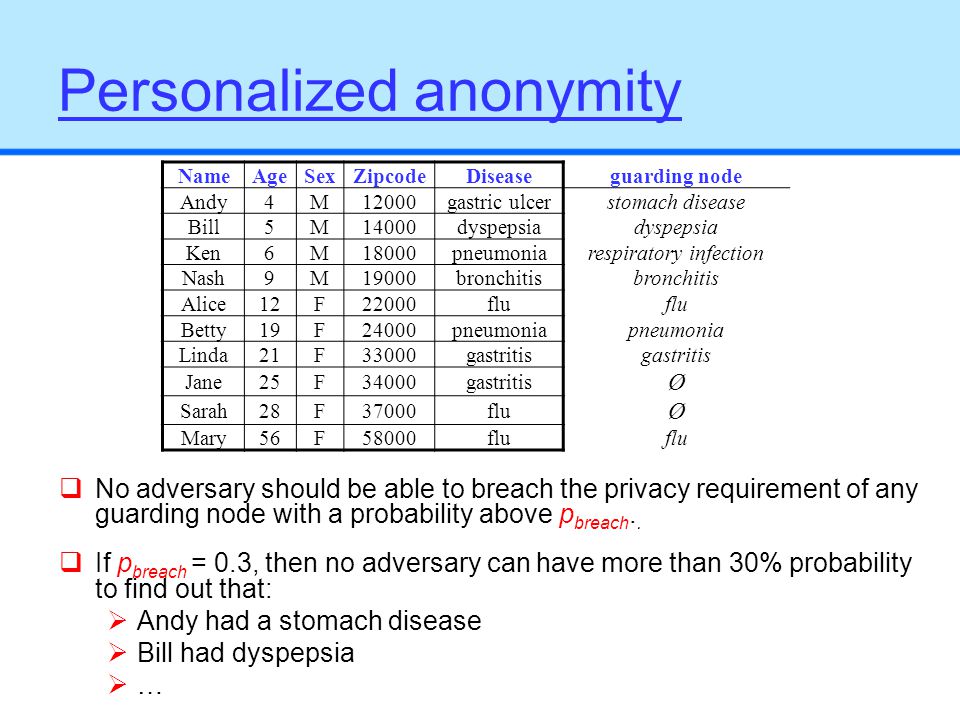

27. Personalized anonymity  No adversary should be able to breach the privacy requirement of any guarding node with a probability above p breach..  If p breach = 0.3, then no adversary can have more than 30% probability to find out that:  Andy had a stomach disease  Bill had dyspepsia …… NameAgeSexZipcodeDiseaseguarding node Andy4M12000gastric ulcerstomach disease Bill5M14000dyspepsia Ken6M18000pneumoniarespiratory infection Nash9M19000bronchitis Alice12F22000flu Betty19F24000pneumonia Linda21F33000gastritis Jane25F34000gastritis Ø Sarah28F37000flu Ø Mary56F58000flu

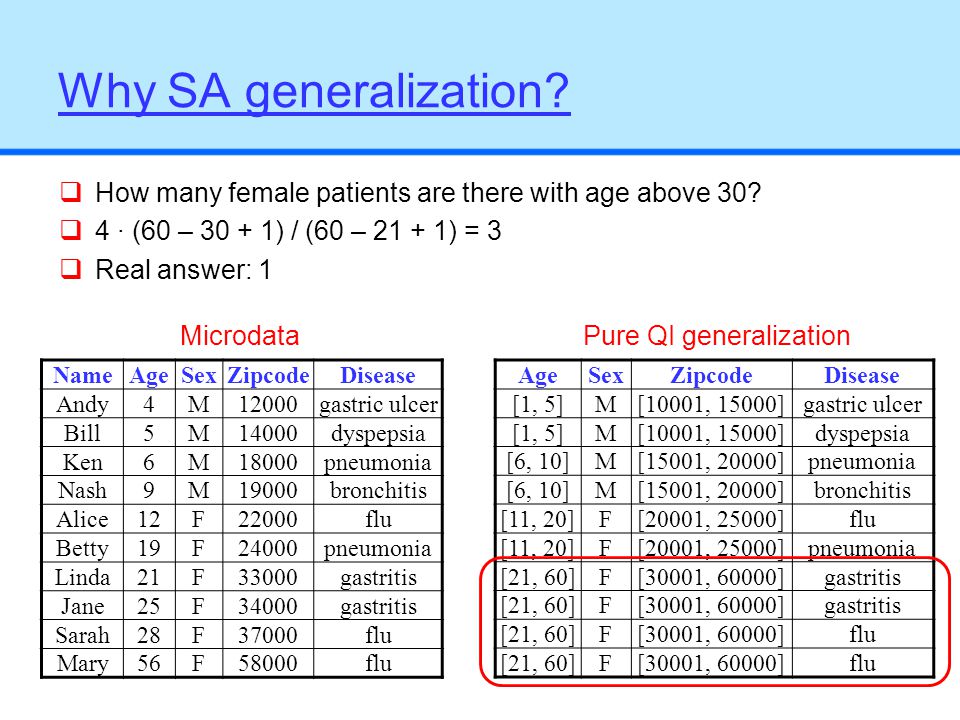

28. Why SA generalization?  How many female patients are there with age above 30?  4 ∙ (60 – 30 + 1) / (60 – 21 + 1) = 3  Real answer: 1 Pure QI generalization AgeSexZipcodeDisease [1, 5]M[10001, 15000]gastric ulcer [1, 5]M[10001, 15000]dyspepsia [6, 10]M[15001, 20000]pneumonia [6, 10]M[15001, 20000]bronchitis [11, 20]F[20001, 25000]flu [11, 20]F[20001, 25000]pneumonia [21, 60]F[30001, 60000]gastritis [21, 60]F[30001, 60000]gastritis [21, 60]F[30001, 60000]flu [21, 60]F[30001, 60000]flu NameAgeSexZipcodeDisease Andy4M12000gastric ulcer Bill5M14000dyspepsia Ken6M18000pneumonia Nash9M19000bronchitis Alice12F22000flu Betty19F24000pneumonia Linda21F33000gastritis Jane25F34000gastritis Sarah28F37000flu Mary56F58000flu Microdata

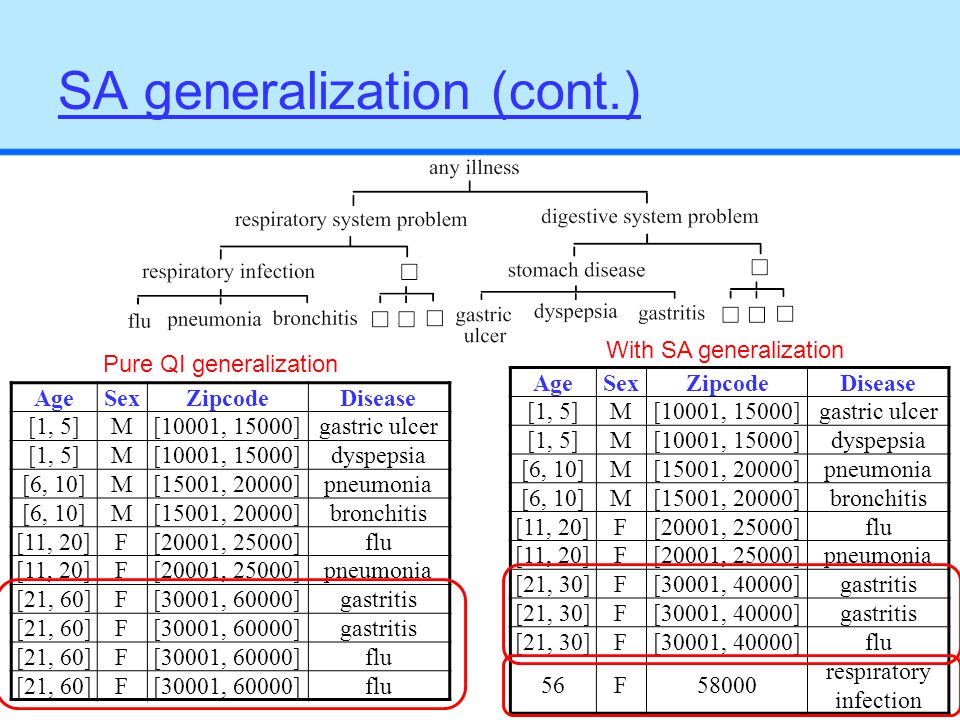

29. SA generalization (cont.) With SA generalization AgeSexZipcodeDisease [1, 5]M[10001, 15000]gastric ulcer [1, 5]M[10001, 15000]dyspepsia [6, 10]M[15001, 20000]pneumonia [6, 10]M[15001, 20000]bronchitis [11, 20]F[20001, 25000]flu [11, 20]F[20001, 25000]pneumonia [21, 30]F[30001, 40000]gastritis [21, 30]F[30001, 40000]gastritis [21, 30]F[30001, 40000]flu 56F58000 respiratory infection Pure QI generalization AgeSexZipcodeDisease [1, 5]M[10001, 15000]gastric ulcer [1, 5]M[10001, 15000]dyspepsia [6, 10]M[15001, 20000]pneumonia [6, 10]M[15001, 20000]bronchitis [11, 20]F[20001, 25000]flu [11, 20]F[20001, 25000]pneumonia [21, 60]F[30001, 60000]gastritis [21, 60]F[30001, 60000]gastritis [21, 60]F[30001, 60000]flu [21, 60]F[30001, 60000]flu

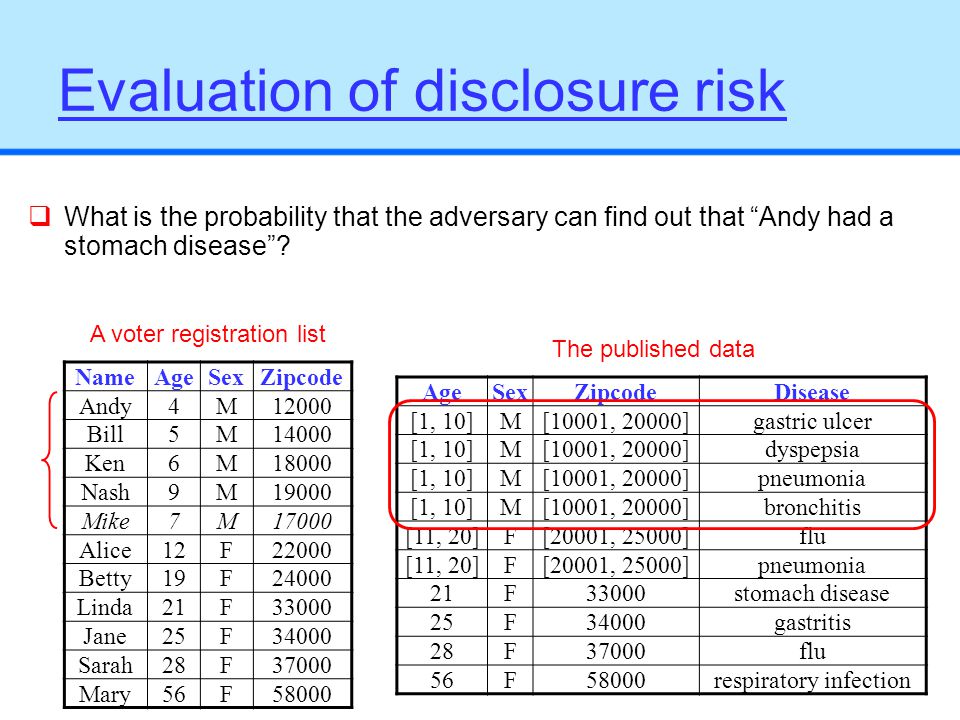

30. Evaluation of disclosure risk  What is the probability that the adversary can find out that “Andy had a stomach disease”? NameAgeSexZipcode Andy4M12000 Bill5M14000 Ken6M18000 Nash9M19000 Mike7M17000 Alice12F22000 Betty19F24000 Linda21F33000 Jane25F34000 Sarah28F37000 Mary56F58000 AgeSexZipcodeDisease [1, 10]M[10001, 20000]gastric ulcer [1, 10]M[10001, 20000]dyspepsia [1, 10]M[10001, 20000]pneumonia [1, 10]M[10001, 20000]bronchitis [11, 20]F[20001, 25000]flu [11, 20]F[20001, 25000]pneumonia 21F33000stomach disease 25F34000gastritis 28F37000flu 56F58000respiratory infection A voter registration list The published data

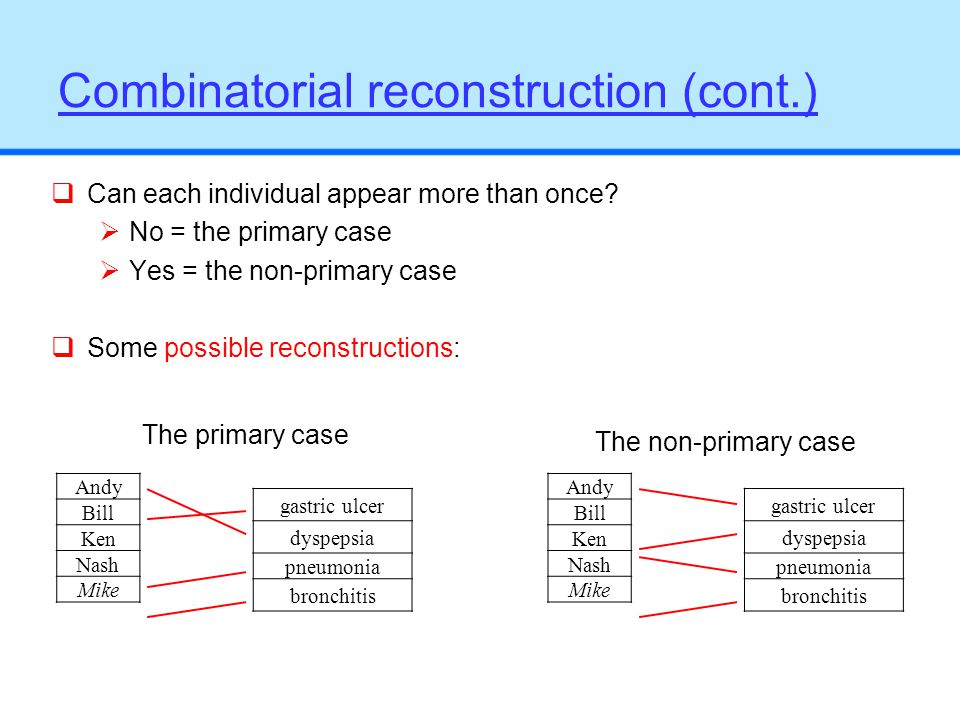

31. Combinatorial reconstruction (cont.)  Can each individual appear more than once?  No = the primary case  Yes = the non-primary case  Some possible reconstructions: Andy Bill Ken Nash Mike gastric ulcer dyspepsia pneumonia bronchitis The primary case Andy Bill Ken Nash Mike gastric ulcer dyspepsia pneumonia bronchitis The non-primary case

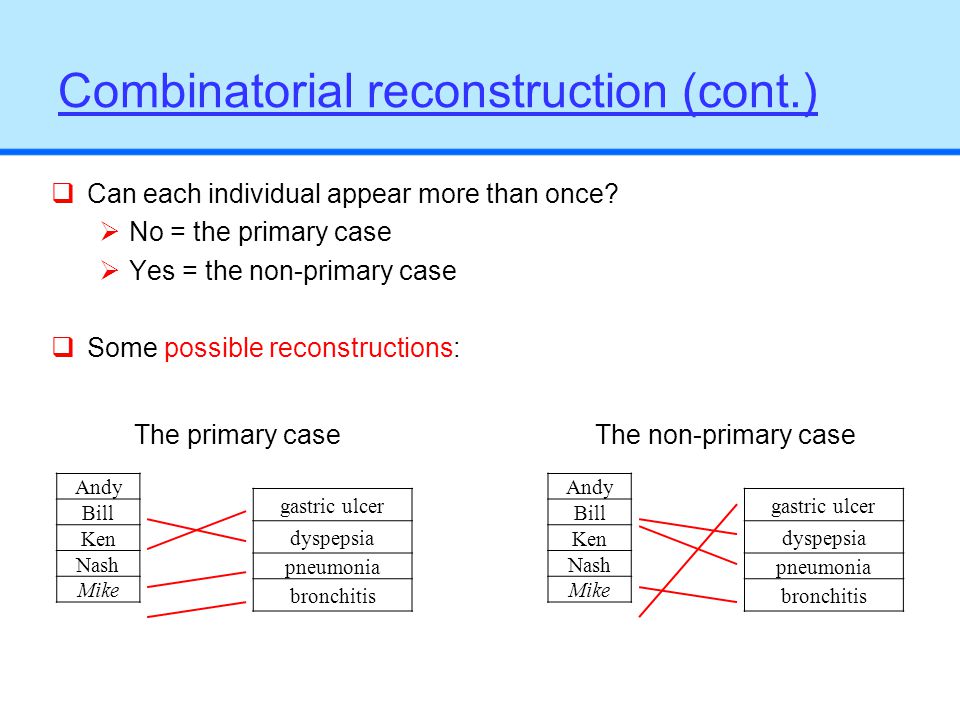

32. Combinatorial reconstruction (cont.)  Can each individual appear more than once?  No = the primary case  Yes = the non-primary case  Some possible reconstructions: Andy Bill Ken Nash Mike gastric ulcer dyspepsia pneumonia bronchitis The primary case Andy Bill Ken Nash Mike gastric ulcer dyspepsia pneumonia bronchitis The non-primary case

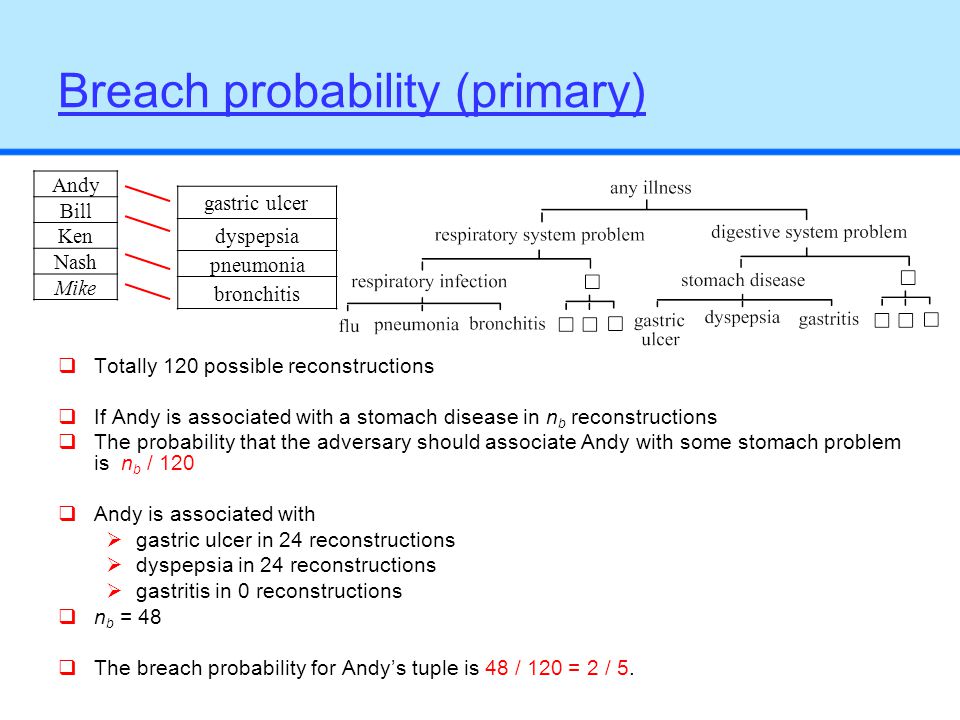

33. Breach probability (primary)  Totally 120 possible reconstructions  If Andy is associated with a stomach disease in n b reconstructions  The probability that the adversary should associate Andy with some stomach problem is n b / 120  Andy is associated with  gastric ulcer in 24 reconstructions  dyspepsia in 24 reconstructions  gastritis in 0 reconstructions  n b = 48  The breach probability for Andy’s tuple is 48 / 120 = 2 / 5. Andy Bill Ken Nash Mike gastric ulcer dyspepsia pneumonia bronchitis

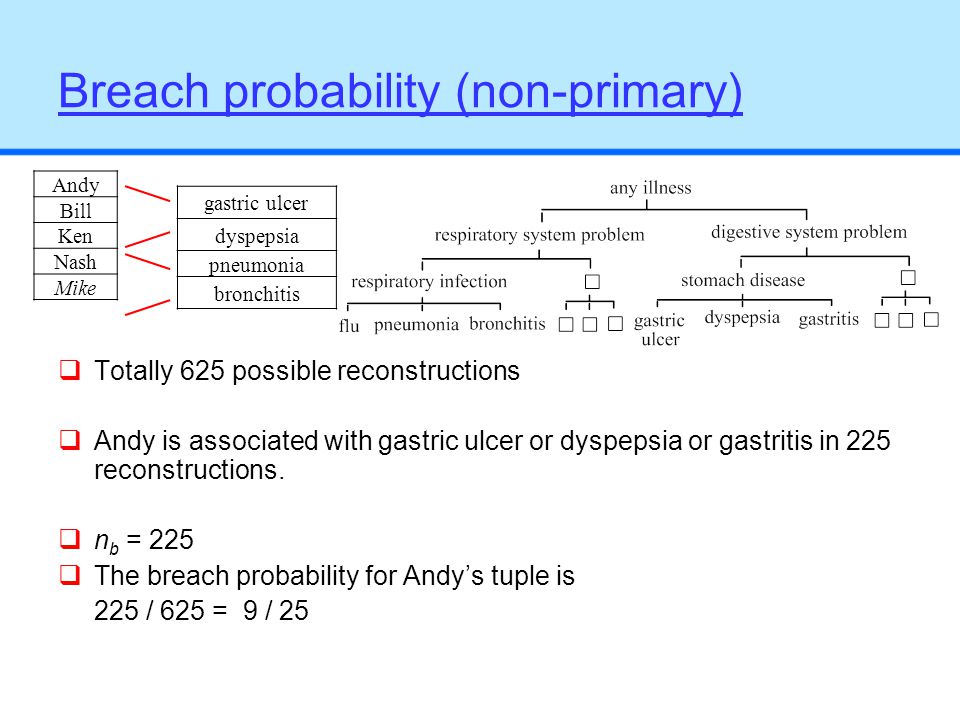

34. Breach probability (non-primary)  Totally 625 possible reconstructions  Andy is associated with gastric ulcer or dyspepsia or gastritis in 225 reconstructions.  n b = 225  The breach probability for Andy’s tuple is 225 / 625 = 9 / 25 Andy Bill Ken Nash Mike gastric ulcer dyspepsia pneumonia bronchitis

35. A defect of personalized anonymity  Does not guard against background knowledge.  Recall that l-diversity can achieve this purpose.  But it seems possible to adapt the personalized approach to tackle background knowledge.  Future work?

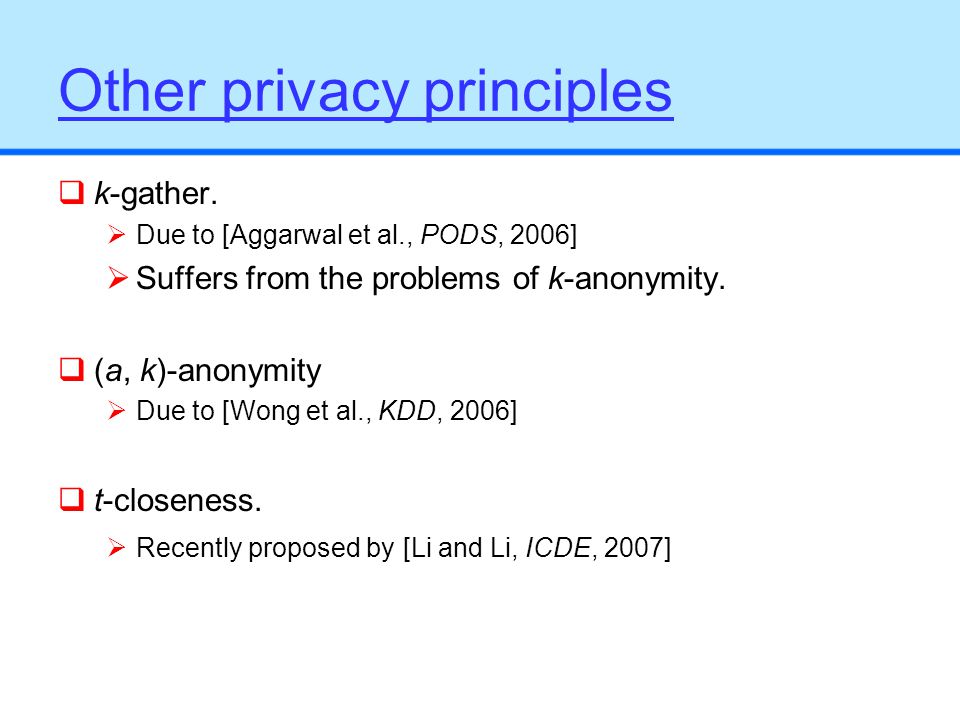

36. Other privacy principles  k-gather.  Due to [Aggarwal et al., PODS, 2006]  Suffers from the problems of k-anonymity.  (a, k)-anonymity  Due to [Wong et al., KDD, 2006]  t-closeness.  Recently proposed by [Li and Li, ICDE, 2007]

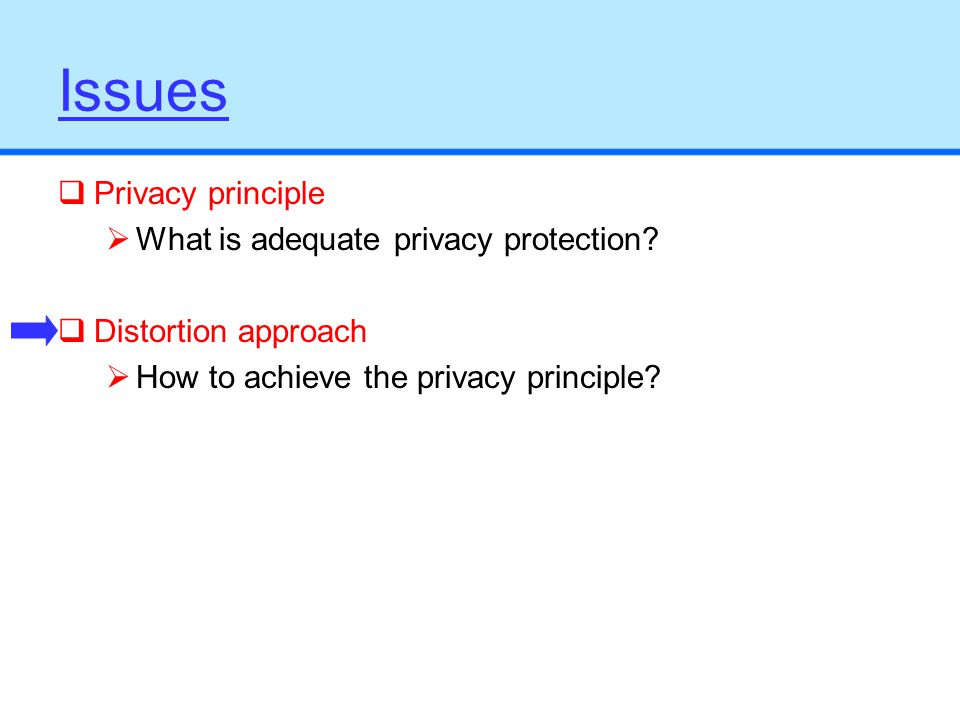

37. Issues  Privacy principle  What is adequate privacy protection?  Distortion approach  How to achieve the privacy principle?

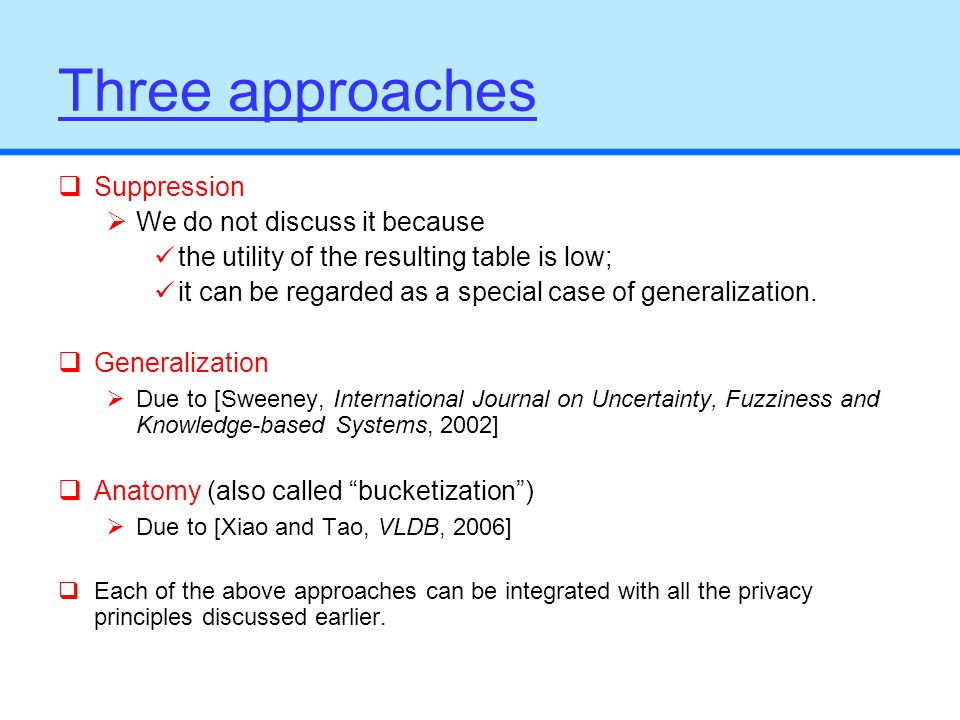

38. Three approaches  Suppression  We do not discuss it because the utility of the resulting table is low; it can be regarded as a special case of generalization.  Generalization  Due to [Sweeney, International Journal on Uncertainty, Fuzziness and Knowledge-based Systems, 2002]  Anatomy (also called “bucketization”)  Due to [Xiao and Tao, VLDB, 2006]  Each of the above approaches can be integrated with all the privacy principles discussed earlier.

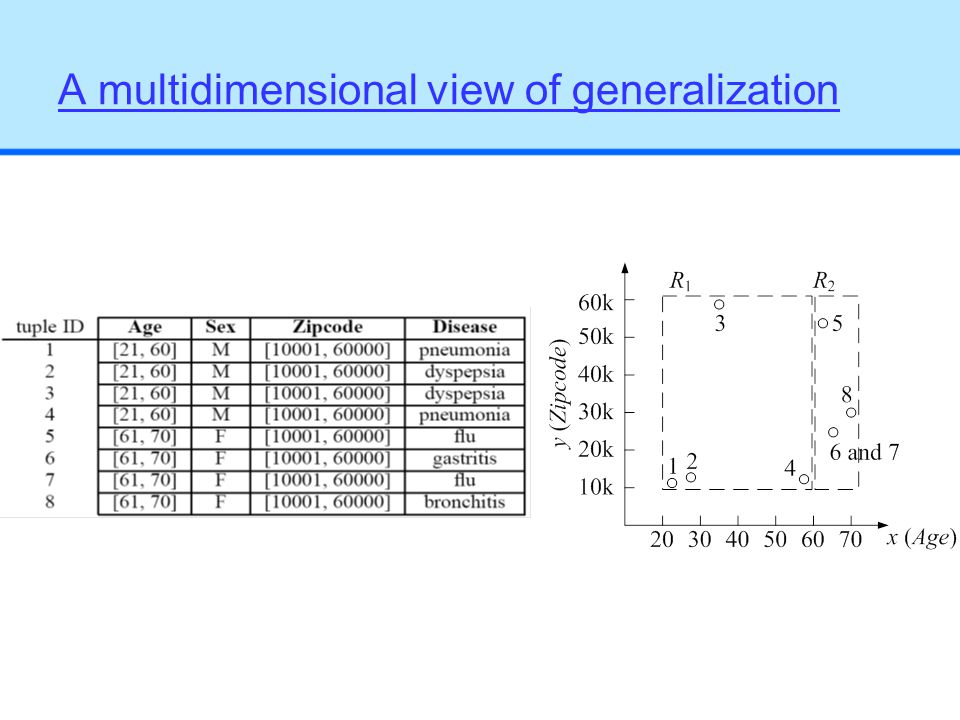

39. A multidimensional view of generalization

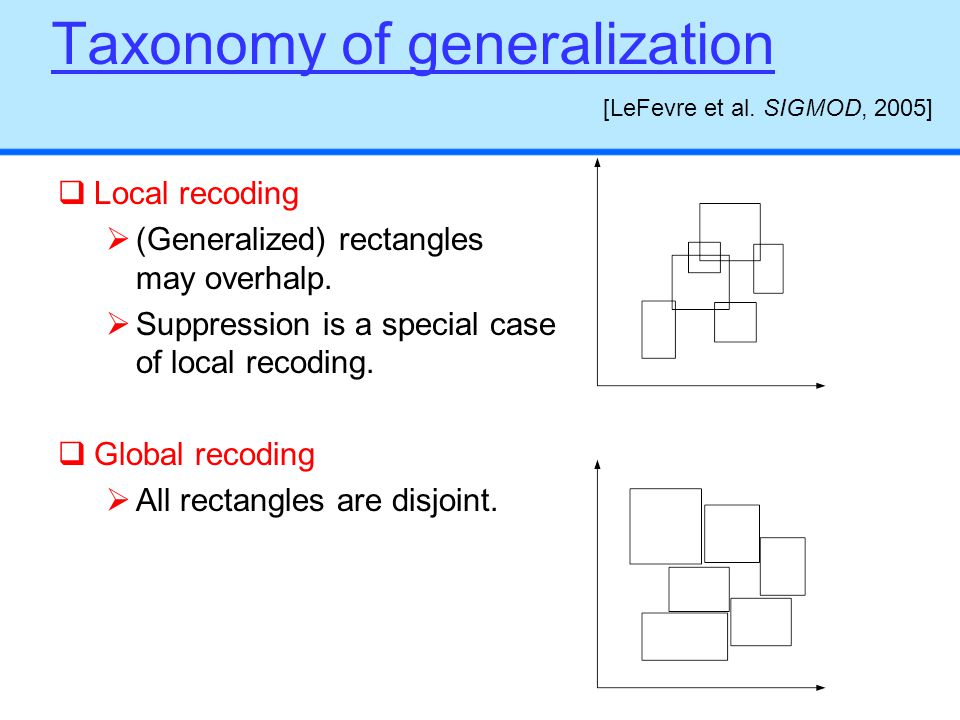

40. Taxonomy of generalization  Local recoding  (Generalized) rectangles may overhalp.  Suppression is a special case of local recoding.  Global recoding  All rectangles are disjoint. [LeFevre et al. SIGMOD, 2005]

41. Taxonomy of generalization (cont.)  Global recoding can be further divided.  Single-dimension recoding  Rectangles form a grid.  Multi-dimension recoding  The opposite of single- dimension recoding.

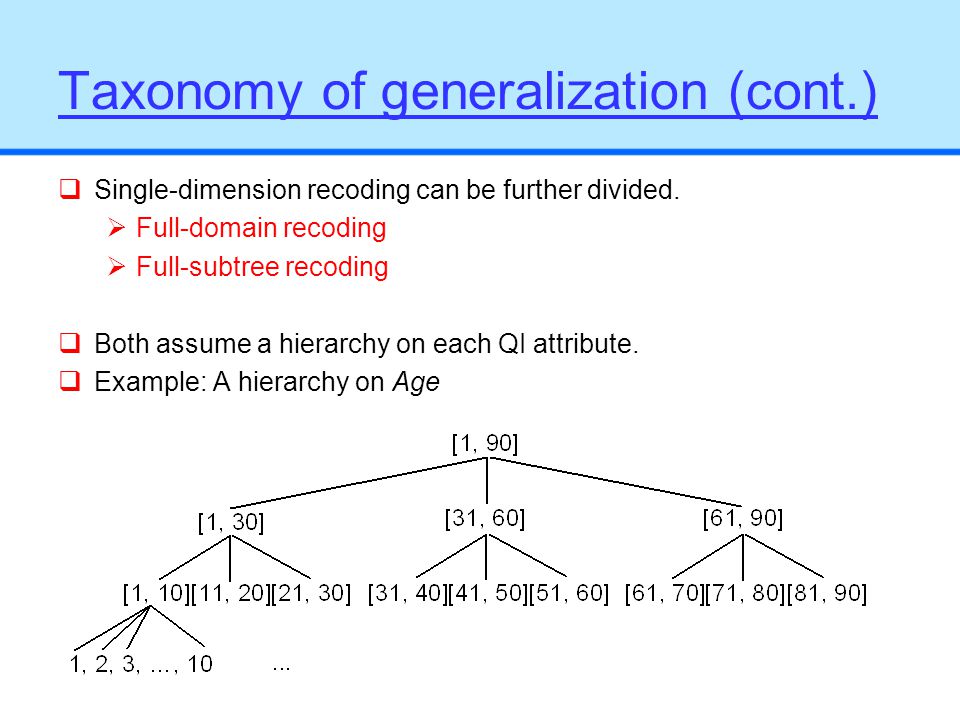

42. Taxonomy of generalization (cont.)  Single-dimension recoding can be further divided.  Full-domain recoding  Full-subtree recoding  Both assume a hierarchy on each QI attribute.  Example: A hierarchy on Age

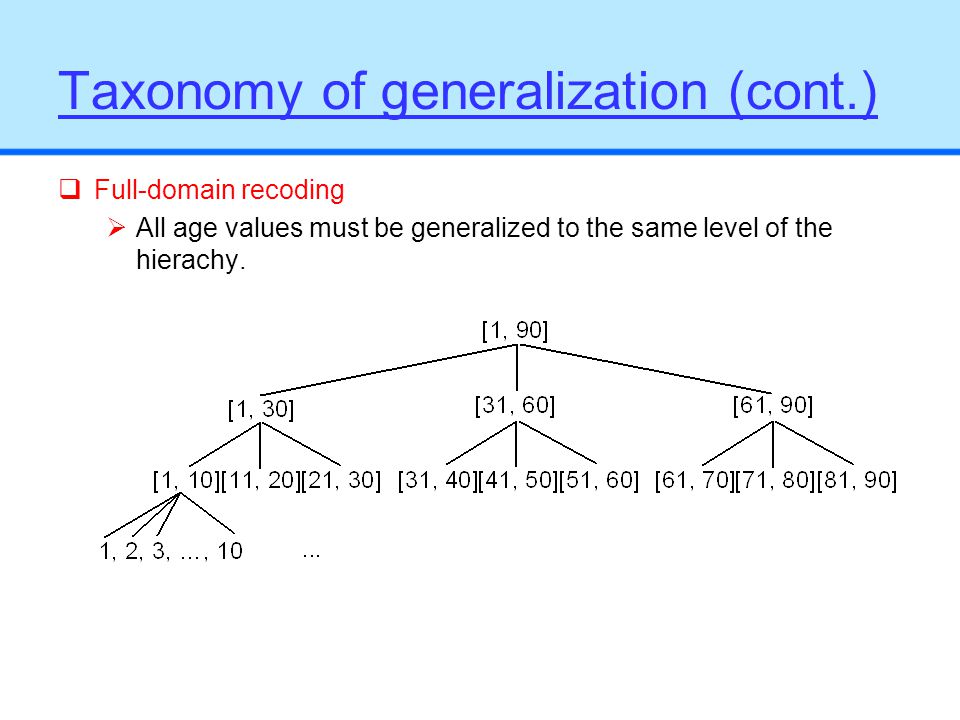

43. Taxonomy of generalization (cont.)  Full-domain recoding  All age values must be generalized to the same level of the hierachy.

44. Taxonomy of generalization (cont.)  Full-subtree recoding  The subtrees of all generalized values must be disjoint.  Permissible generalization: [1, 30], [31, 40], [41, 50], [51, 60], [61, 90].  Illegal generalization: [1, 10], [1, 30], [31, 60], [61, 90].

45. Why all these generalization types?  Reason 1: If a dataset is generalized in a more restricted manner, less preprocessing is required before it can be analyzed by a standard statistical tool (such as SAAS).

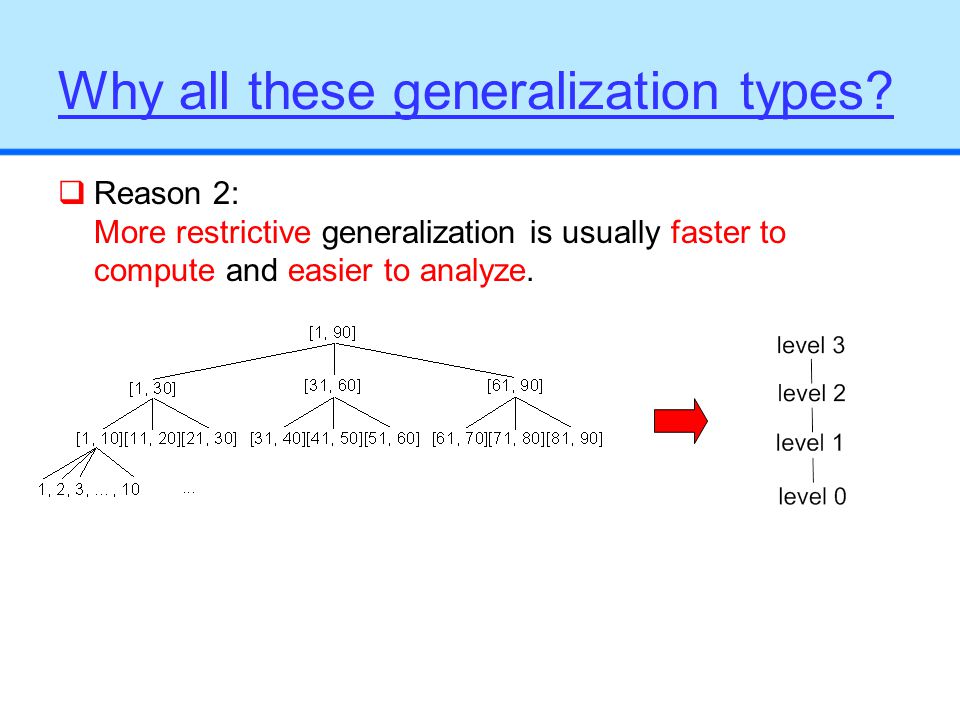

46. Why all these generalization types?  Reason 2: More restrictive generalization is usually faster to compute and easier to analyze.

47. Why all these generalization types?  Reason 3: Less restrictive generalization promises more accurate data analysis, provided that a sophisticated analytical method is used.

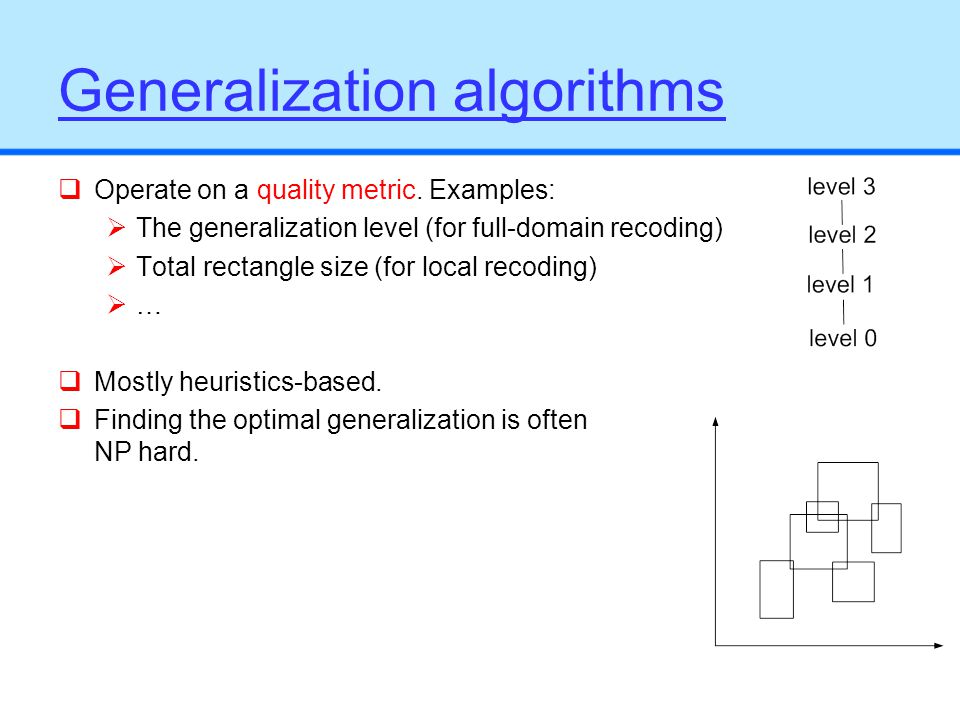

48. Generalization algorithms  Operate on a quality metric. Examples:  The generalization level (for full-domain recoding)  Total rectangle size (for local recoding) ……  Mostly heuristics-based.  Finding the optimal generalization is often NP hard.

49. Defect of generalization  Query A: SELECT COUNT(*) from Unknown-Microdata WHERE Disease = ‘pneumonia’ AND Age in [0, 30] AND Zipcode in [10001, 20000] AgeSexZipcodeDisease [21, 60]M[10001, 60000]pneumonia [21, 60]M[10001, 60000]dyspepsia [21, 60]M[10001, 60000]dyspepsia [21, 60]M[10001, 60000]pneumonia [61, 70]F[10001, 60000]flu [61, 70]F[10001, 60000]gastritis [61, 70]F[10001, 60000]flu [61, 70]F[10001, 60000]bronchitis  Estimated answer: 2p, where p is the probability that each of the two tuples satisfies the query conditions on the Age and Zipcode.

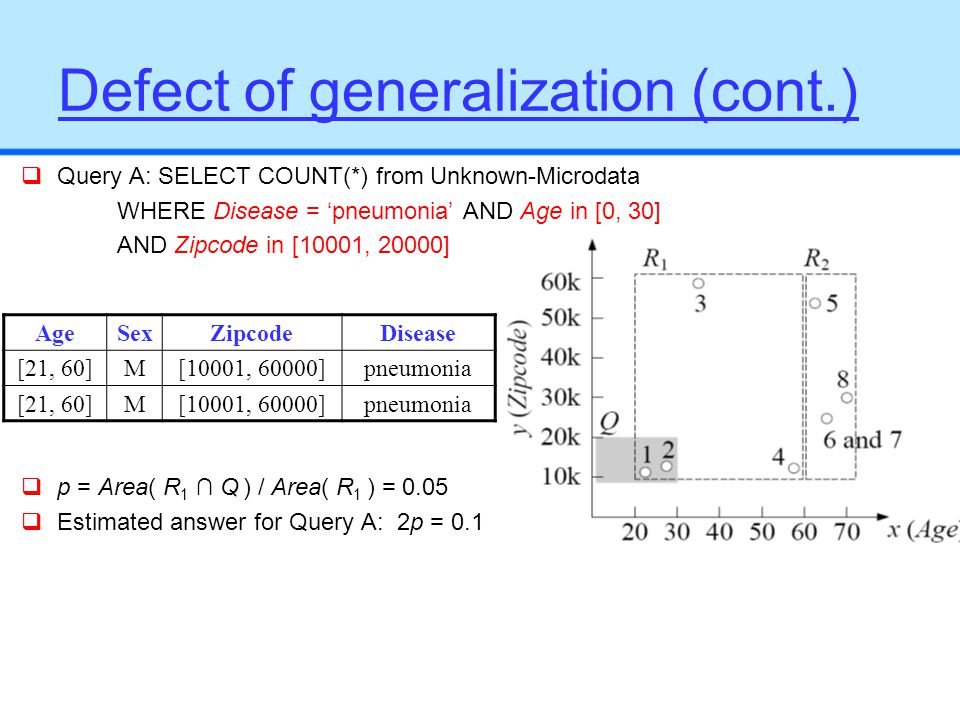

50. Defect of generalization (cont.)  Query A: SELECT COUNT(*) from Unknown-Microdata WHERE Disease = ‘pneumonia’ AND Age in [0, 30] AND Zipcode in [10001, 20000]  p = Area( R 1 ∩ Q ) / Area( R 1 ) = 0.05  Estimated answer for Query A: 2p = 0.1 AgeSexZipcodeDisease [21, 60]M[10001, 60000]pneumonia [21, 60]M[10001, 60000]pneumonia

51. Defect of generalization (cont.)  Query A:SELECT COUNT(*) from Unknown-Microdata WHERE Disease = ‘pneumonia’ AND Age in [0, 30] AND Zipcode in [10001, 20000]  Estimated answer = 0.1 NameAgeSexZipcodeDisease Bob23M11000pneumonia Ken27M13000dyspepsia Peter35M59000dyspepsia Sam59M12000pneumonia Jane61F54000flu Linda65F25000gastritis Alice65F25000flu Mandy70F30000bronchitis  The exact answer = 1

52. Defect of generalization (cont.)  Cause of inaccuracy: QI distribution inside each QI group is lost! AgeSexZipcodeDisease [21, 60]M[10001, 60000]pneumonia [21, 60]M[10001, 60000]pneumonia

53. Anatomy  Releases a quasi-identifier table (QIT) and a sensitive table (ST). Group-IDDiseaseCount 1dyspepsia2 1pneumonia2 2bronchitis1 2flu2 2gastritis1 AgeSexZipcodeGroup-ID 23M110001 27M130001 35M590001 59M120001 61F540002 65F250002 65F250002 70F300002 Quasi-identifier table (QIT) Sensitive table (ST) AgeSexZipcodeDisease 23M11000pneumonia 27M13000dyspepsia 35M59000dyspepsia 59M12000pneumonia 61F54000flu 65F25000gastritis 65F25000flu 70F30000bronchitis Microdata

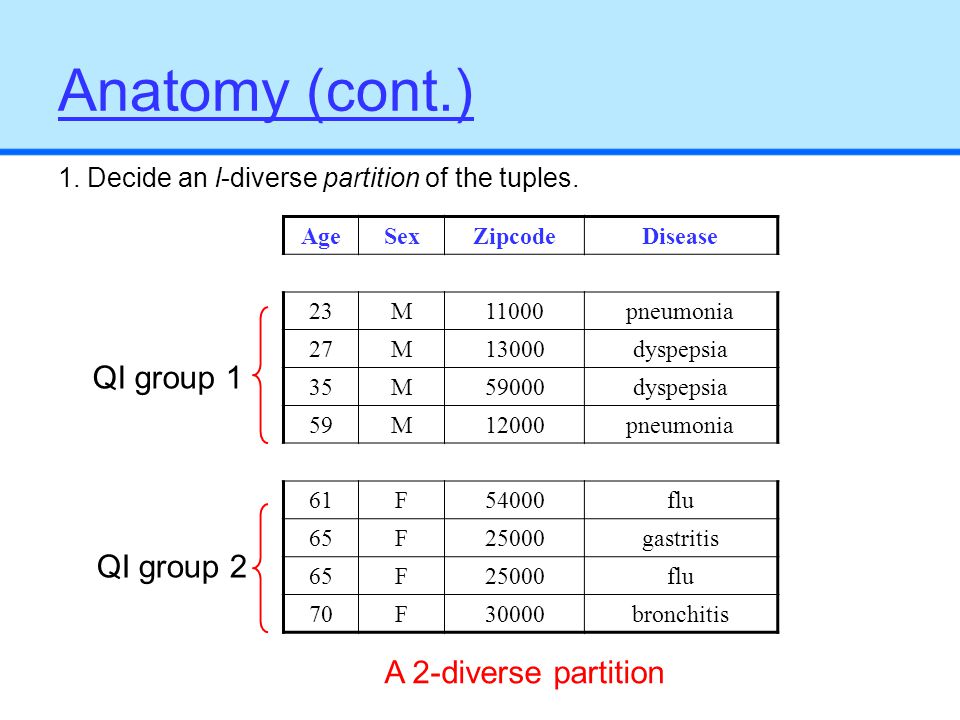

54. Anatomy (cont.) 1. Decide an l-diverse partition of the tuples. AgeSexZipcodeDisease 23M11000pneumonia 27M13000dyspepsia 35M59000dyspepsia 59M12000pneumonia 61F54000flu 65F25000gastritis 65F25000flu 70F30000bronchitis QI group 1 QI group 2 A 2-diverse partition

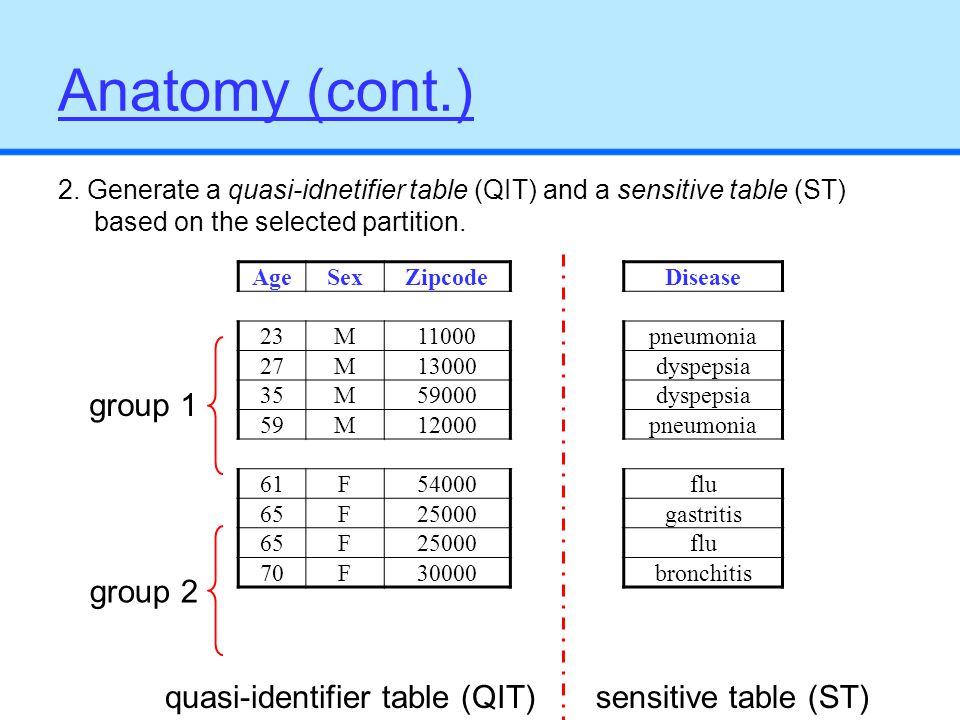

55. Anatomy (cont.) 2. Generate a quasi-idnetifier table (QIT) and a sensitive table (ST) based on the selected partition. Disease pneumonia dyspepsia pneumonia flu gastritis flu bronchitis AgeSexZipcode 23M11000 27M13000 35M59000 59M12000 61F54000 65F25000 65F25000 70F30000 group 1 group 2 quasi-identifier table (QIT)sensitive table (ST)

56. Anatomy (cont.) 2. Generate a quasi-idnetifier table (QIT) and a sensitive table (ST) based on the decided partition. Group-IDDisease 1pneumonia 1dyspepsia 1 1pneumonia 2flu 2gastritis 2flu 2bronchitis AgeSexZipcodeGroup-ID 23M110001 27M130001 35M590001 59M120001 61F540002 65F250002 65F250002 70F300002 quasi-identifier table (QIT)sensitive table (ST)

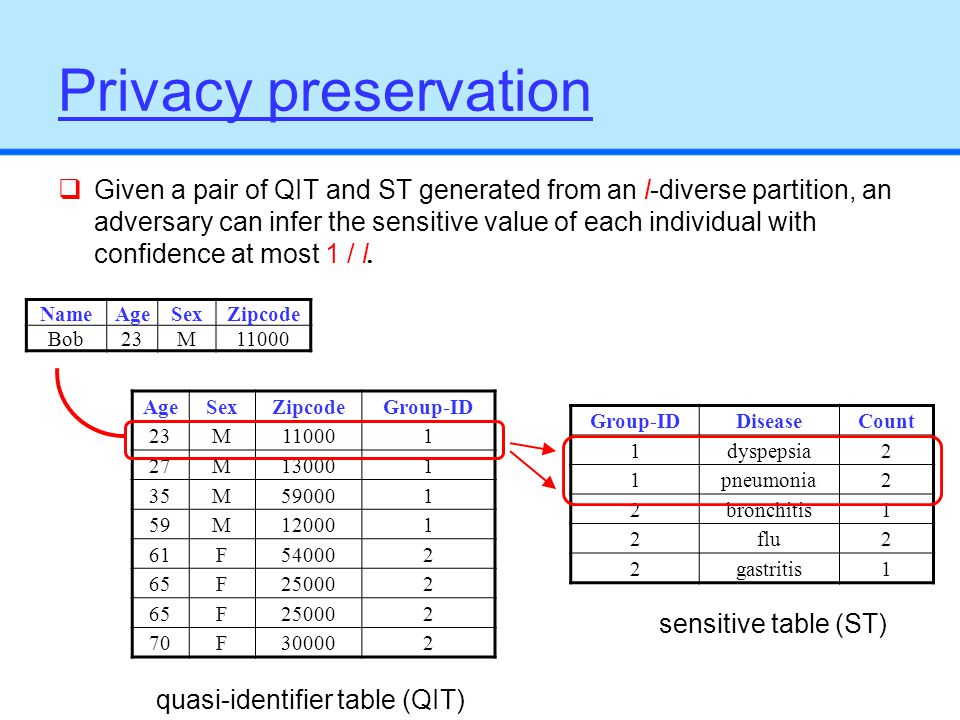

57. Privacy preservation  Given a pair of QIT and ST generated from an l-diverse partition, an adversary can infer the sensitive value of each individual with confidence at most 1 / l. Group-IDDiseaseCount 1dyspepsia2 1pneumonia2 2bronchitis1 2flu2 2gastritis1 AgeSexZipcodeGroup-ID 23M110001 27M130001 35M590001 59M120001 61F540002 65F250002 65F250002 70F300002 quasi-identifier table (QIT) sensitive table (ST) NameAgeSexZipcode Bob23M11000

58. Accuracy of data analysis  Query A: SELECT COUNT(*) from Unknown-Microdata WHERE Disease = ‘pneumonia’ AND Age in [0, 30] AND Zipcode in [10001, 20000] Group-IDDiseaseCount 1dyspepsia2 1pneumonia2 2bronchitis1 2flu2 2gastritis1 AgeSexZipcodeGroup-ID 23M110001 27M130001 35M590001 59M120001 61F540002 65F250002 65F250002 70F300002 Quasi-identifier table (QIT) Sensitive table (ST)

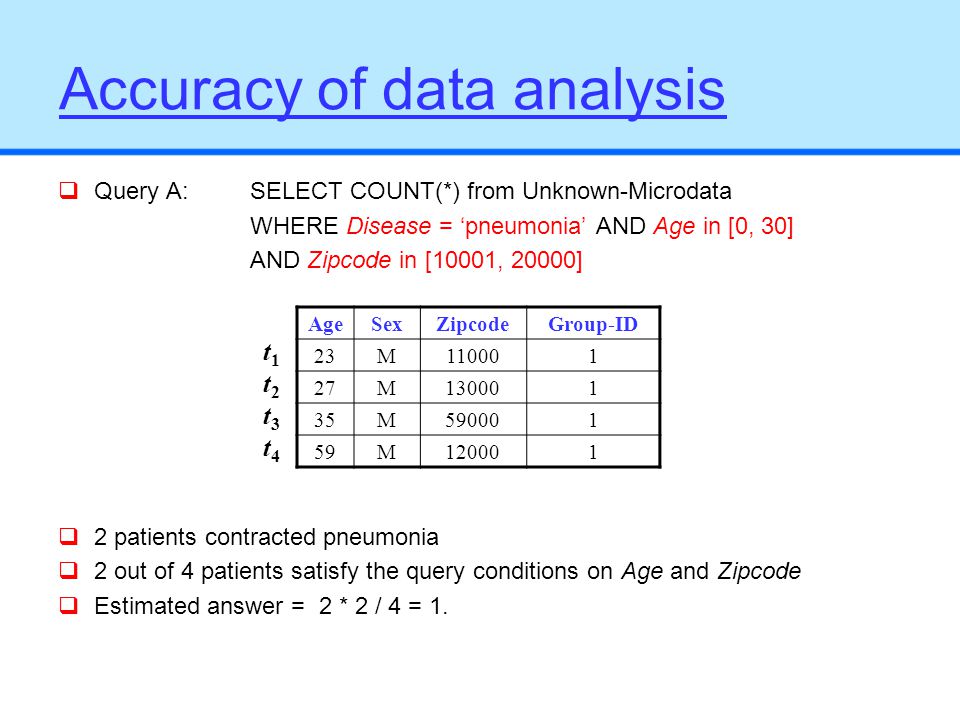

59. Accuracy of data analysis  Query A:SELECT COUNT(*) from Unknown-Microdata WHERE Disease = ‘pneumonia’ AND Age in [0, 30] AND Zipcode in [10001, 20000]  2 patients contracted pneumonia  2 out of 4 patients satisfy the query conditions on Age and Zipcode  Estimated answer = 2 * 2 / 4 = 1. AgeSexZipcodeGroup-ID 23M110001 27M130001 35M590001 59M120001 t1t2t3t4t1t2t3t4

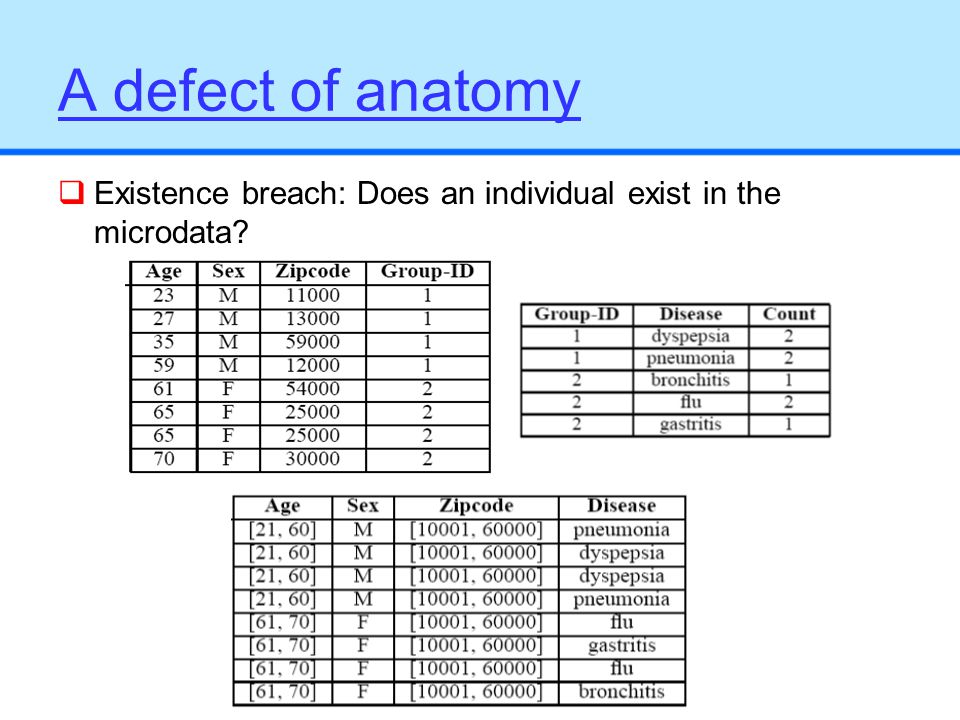

60. A defect of anatomy  Existence breach: Does an individual exist in the microdata?

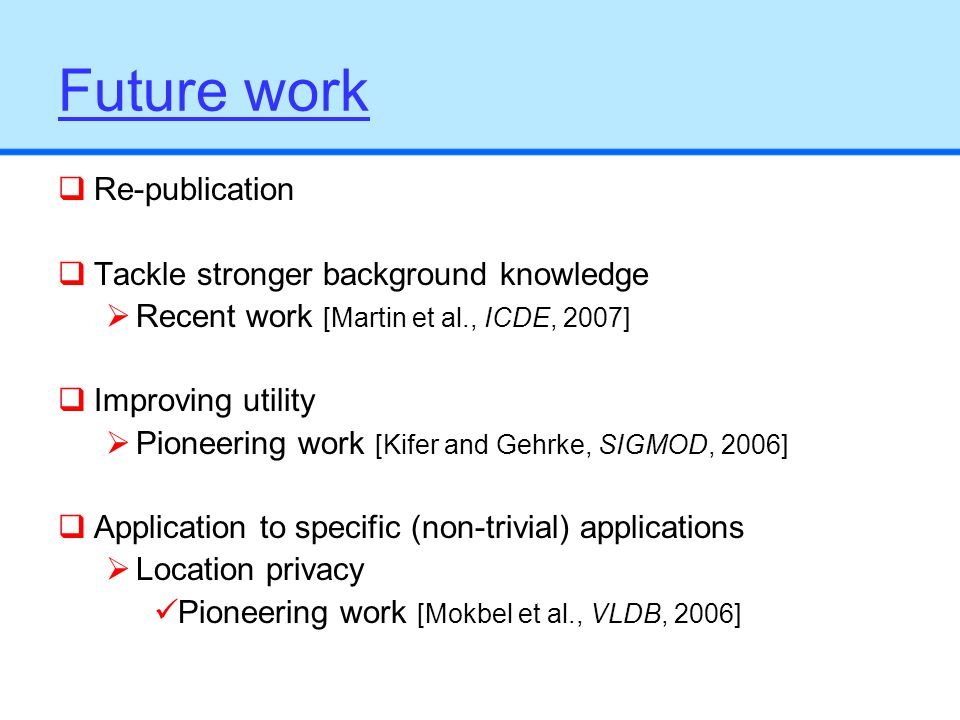

61. Future work  Re-publication  Tackle stronger background knowledge  Recent work [Martin et al., ICDE, 2007]  Improving utility  Pioneering work [Kifer and Gehrke, SIGMOD, 2006]  Application to specific (non-trivial) applications  Location privacy Pioneering work [Mokbel et al., VLDB, 2006]
