1 Engineering Classification of Soils

2

3 Two Systems of Classification 1. Pedological Classifications
Overview Two Systems of Classification 1. Pedological Classifications (soil weathering, texture, chemistry, profile thickness, etc.) 2. Engineering Classifications soil texture degree of plasticity (Atterberg Limits)

4 Soil Texture Wentworth Scale Remove Cobbles and Boulders from
Analysis (>75mm) “Gravel” 75-2 mm “Sand” mm “Silt and Clay” <0.075 mm

5 B. Overview of Mechanics
As water content increases, the shear strength decreases

6 It’s all about shear strength

7 C. Liquid Limit Soil is practically a liquid
Shows minimal shear strength Defined as the moisture content required to close a distance of 0.5 inch along the bottom of a groove after 25 blows of the liquid limit device. animation

8 C. Liquid Limit D. Plastic Limit
Water content at which the soil is a plastic Less water content than liquid limit Wide range of shear strengths at plastic limit Defined as the moisture content % at which the soil begins to crumble when rolled into 1/8” diameter threads animation

9 E. Plasticity Index (PI)
C. Liquid Limit D. Plastic Limit E. Plasticity Index (PI) Difference between Liquid Limit and Plastic Limit Important measure of plastic behavior

10 E. Plasticity Index (PI)
C. Liquid Limit In general…. PI Degree of Plasticity 0 Nonplastic 1-5 Slightly plastic 5-10 Low plasticity 10-20 Medium plasticity 20-40 High plasticity 40+ Very high plasticity (from Burmister, 1949) D. Plastic Limit E. Plasticity Index (PI) Difference between Liquid Limit and Plastic Limit Important measure of plastic behavior

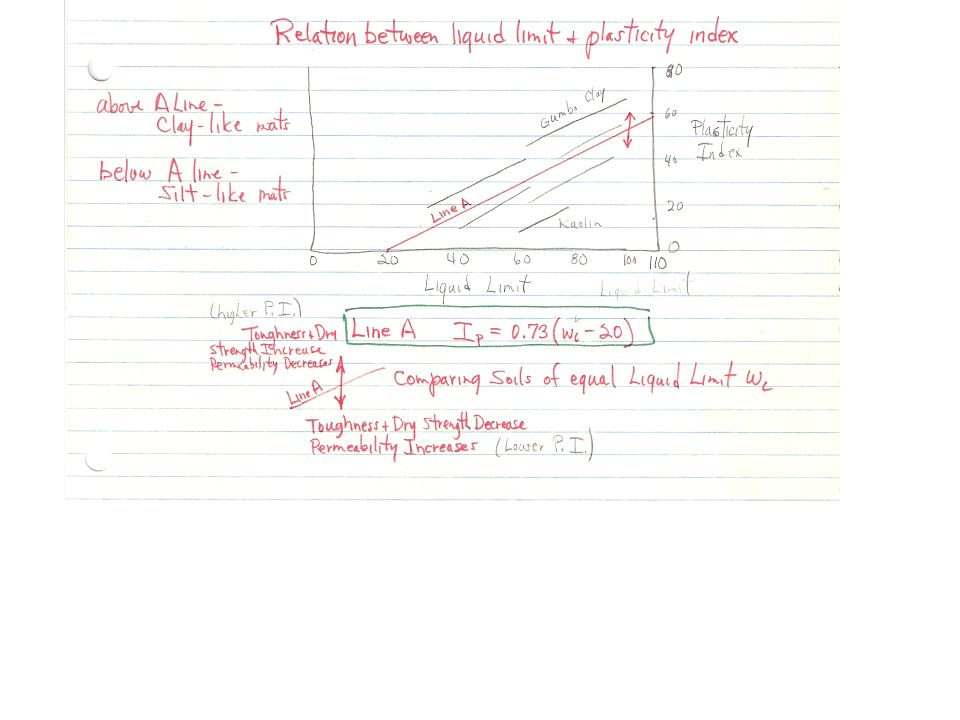

11

12 Procedure for AASHTO Classification (American Association of State Highway and Transportation Officials) Developed in 1929 as the Public Road Administration Classification System Modified by the Highway Research Board (1945)

13 Procedure for AASHTO Classification

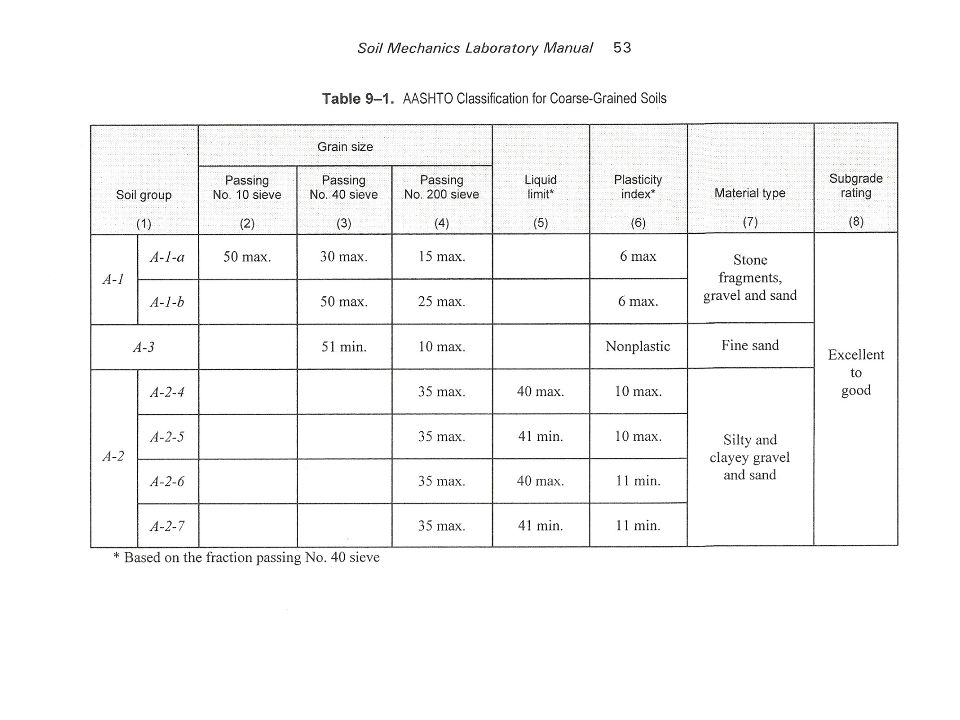

Determine the percentage of soil passing the #200 sieve Determine the subgroups For coarse-grained soils (gravel and sand), determine the percent passing the #10, 40, and 200 sieves, AND Determine the liquid limit and plasticity index THEN, determine soil group or subgroup from Table 9.1

14 For coarse-grained soils (gravel and sand), determine the percent passing the #10, 40, and 200 sieves. Cobble Gravel Very Coarse to Med Sand Fine/Very Fine Sand Silt/Clay 3 “ #10 #40 #200 #10 #200 #40

15

16 Procedure for AASHTO Classification

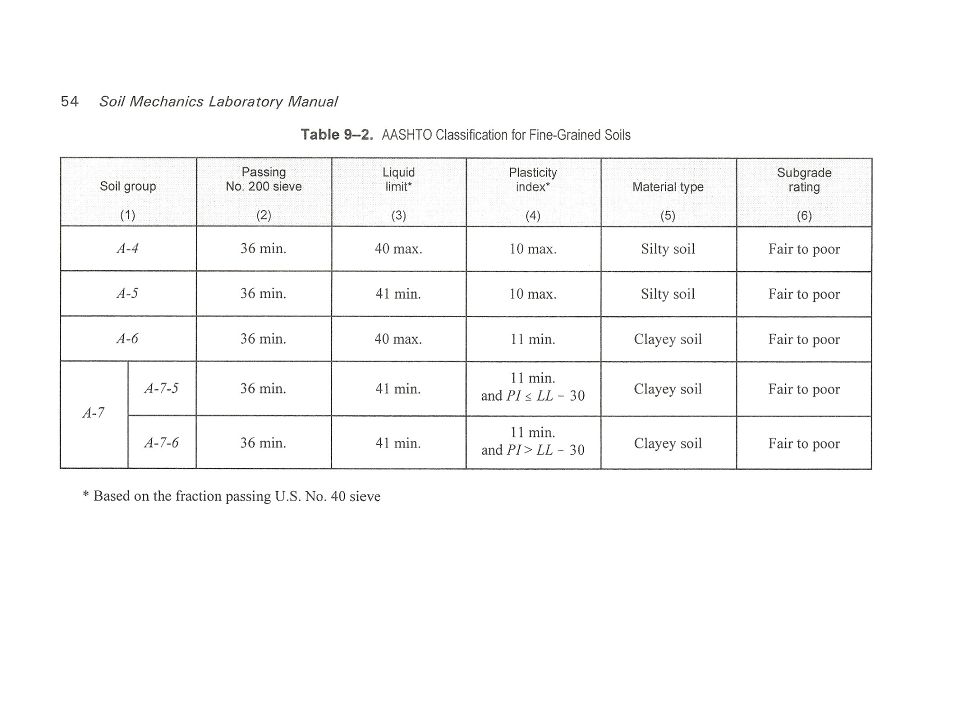

Determine the percentage of soil passing the #200 sieve Determine the subgroups For fine-grained soils (silt & clay), determine the liquid limit and plasticity index Determine soil group or subgroup from Table 9.2

17

18 AASHTO Classification for Soils

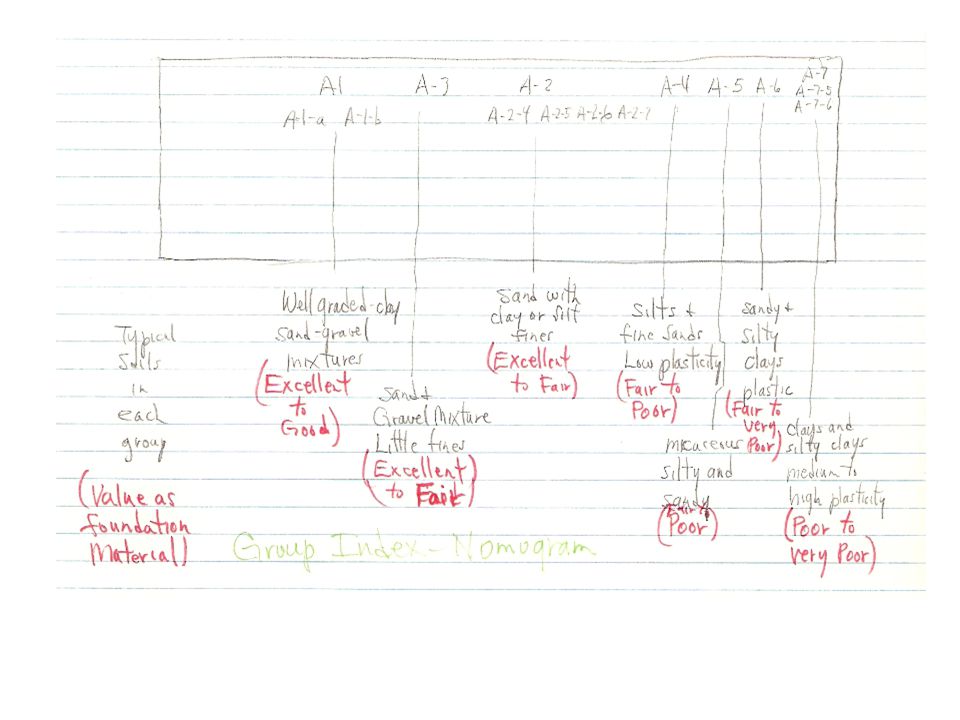

19 Determine the Group Index (usually reflects the relative strength of the material, where low values have the greatest shear strength)

20 Determine the group index

21 Determine the group index
fine {e.g.: A-7-5(9)}

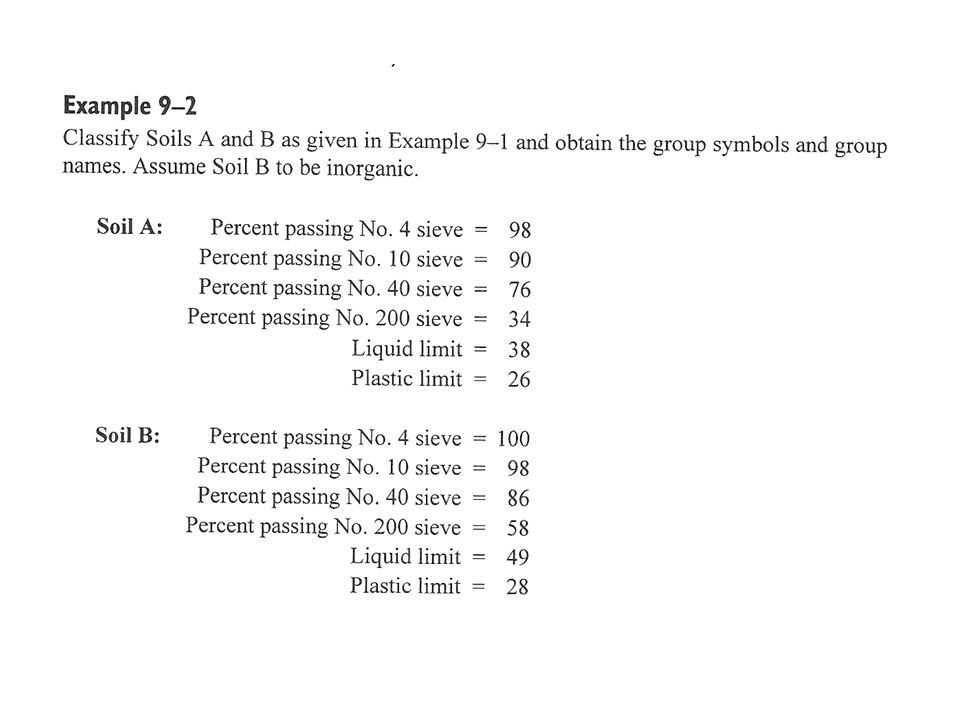

22 Example Problem

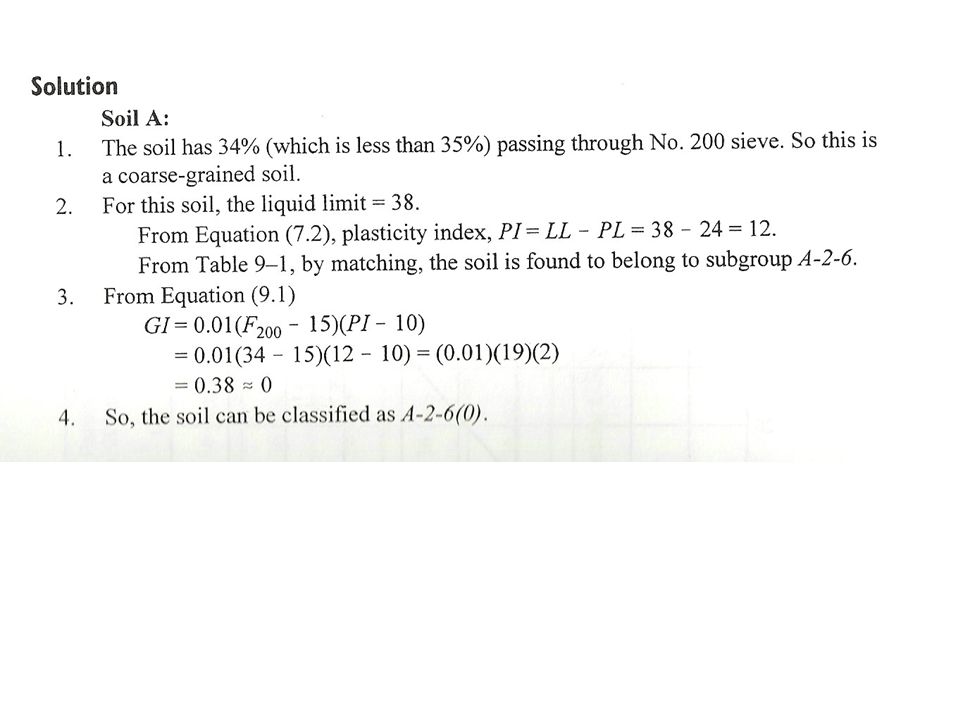

23

24 A-7-6(10)

25

26

27 II. Unified System Overview A. Arthur Casagrande (USAF) proposed for the construction of Airfields B. Basis -Over half of material retained on #200 sieve, use textural characteristics -Over half of material passes the #200 sieve, use plasticity-compressibility characteristics

28 II. Unified System B. The classification scheme

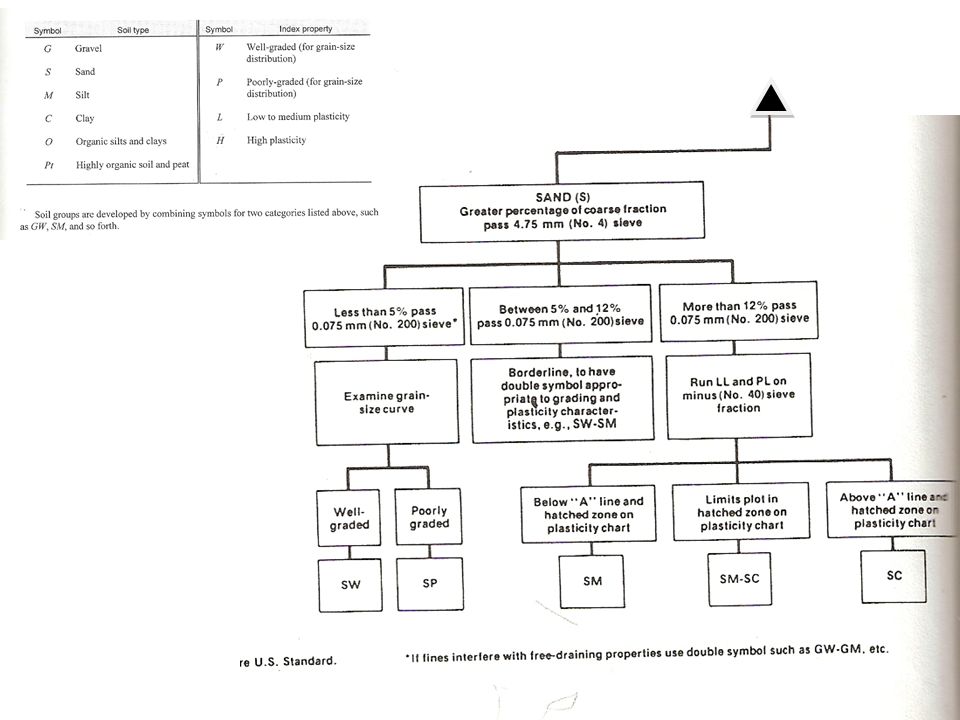

29 II. Unified System C. The procedure
Determine the percent passing through the #200 sieve (boundary between sand and silt/clay). If less than 50% passes, then it is a coarse grained soil (gravel and sand) If greater than 50% passes, then it is a fine grained soil (silt and clay)

30

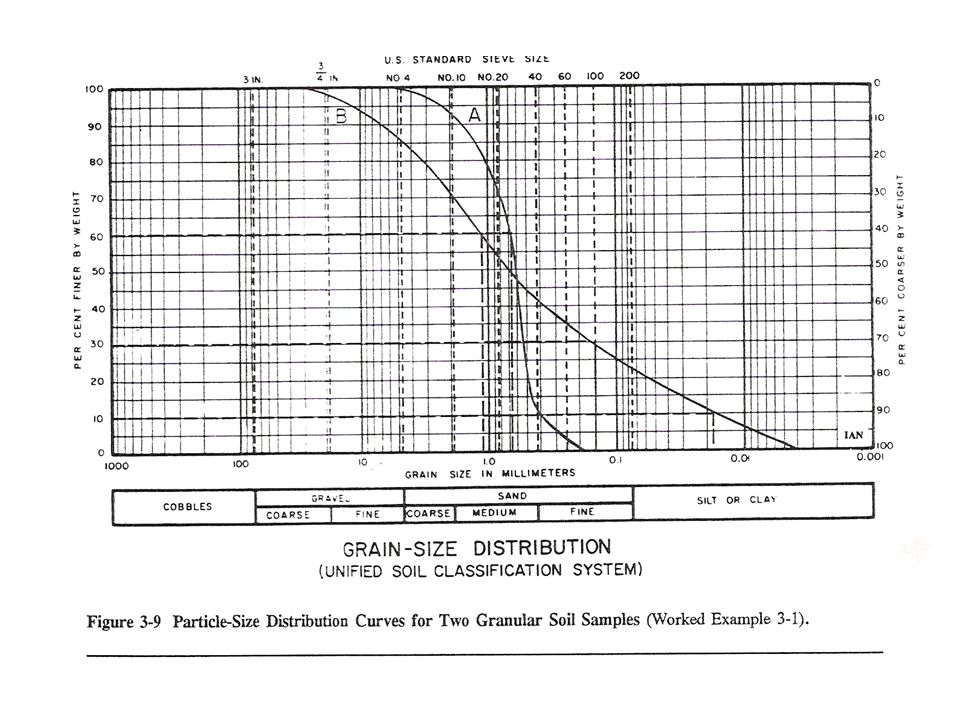

31 Uniformity Coefficient
= D60/D10, where we use the % finer by weight (% passing through) for the values

32

33

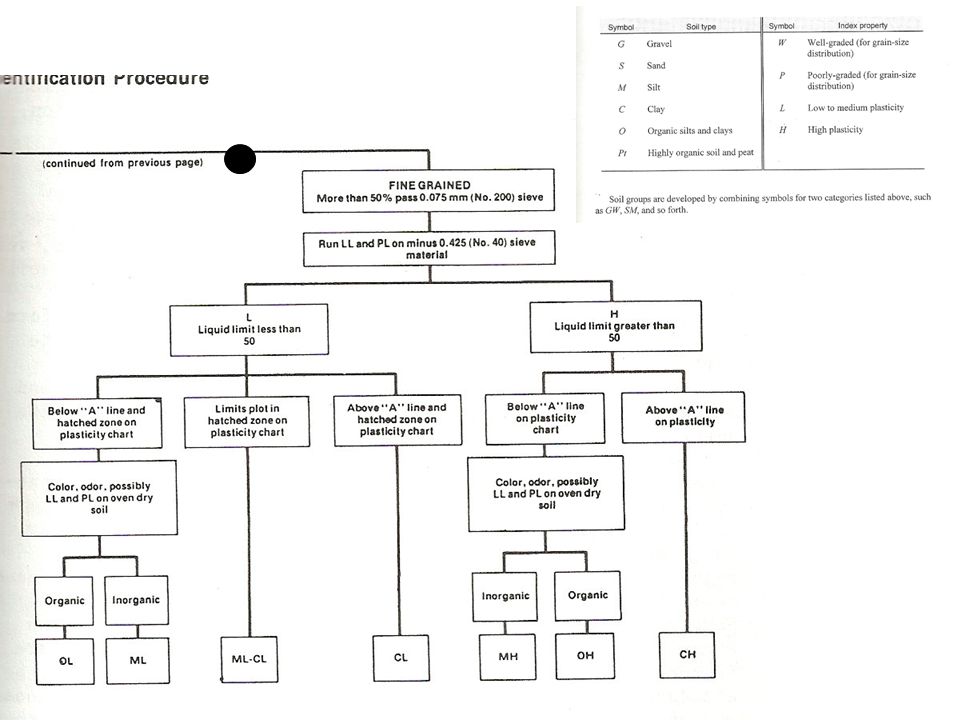

34 “clayey materials” “silty materials”

35

36

37

38

39 Classify the following soils by both the AASHTO and Unified Systems,
HOMEWORK: Classify the following soils by both the AASHTO and Unified Systems, and give the group index for the AASHTO system. Sieve Analysis -- % finer than Soil Sample #10 #40 #200 Liquid Lmt Plastic Lmt A 95 79 53 36 21 B 100 78 65 26 C 80 62 35 20 D 90 55 45 28 E 71 60 40

40 Alternate method for classifying soils using Unified Method…
Alternate method for classifying soils using Unified Method…..(bonus information!)

41 For fine grained soils:
Where R = ‘retained’ F = ‘falling through’

42 For fine grained soils:

43 For fine grained soils:

44 For coarse-grained soils:
See next slide

45 Uniformity Coefficient = D60/D10,
where we use the % finer by weight (% passing through) for the values

46

47 Fine grained soils

48 Fine grained soils

49 Gravelly soils

50 sandy soils
