1. CH4.1 CSE244 Type Checking Aggelos Kiayias Computer Science & Engineering Department The University of Connecticut 371 Fairfield Road, Unit 1155 Storrs, CT 06269-1155 aggelos@cse.uconn.edu http://www.cse.uconn.edu/~akiayias

2. CH4.2 CSE244 Static Checking  Some syntactic/semantic properties of the source language are not appropriate for incorporation into the grammar of the language.  They will be checked separately.  Static Checking/ Dynamic Checking.  Static checking examples:  Type checks.  Flow-of-control checks.  Uniqueness checks.  Name-related checks.

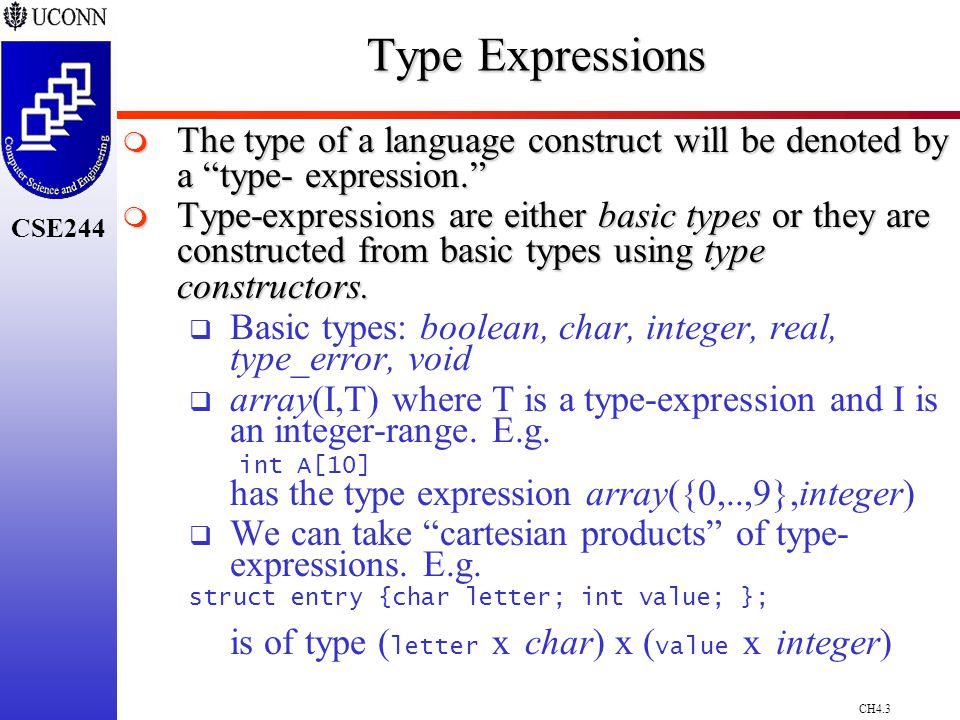

3. CH4.3 CSE244 Type Expressions  The type of a language construct will be denoted by a “type- expression.”  Type-expressions are either basic types or they are constructed from basic types using type constructors.  Basic types: boolean, char, integer, real, type_error, void  array(I,T) where T is a type-expression and I is an integer-range. E.g. int A[10] has the type expression array({0,..,9},integer)  We can take “cartesian products” of type- expressions. E.g. struct entry {char letter; int value; }; is of type ( letter x char) x ( value x integer)

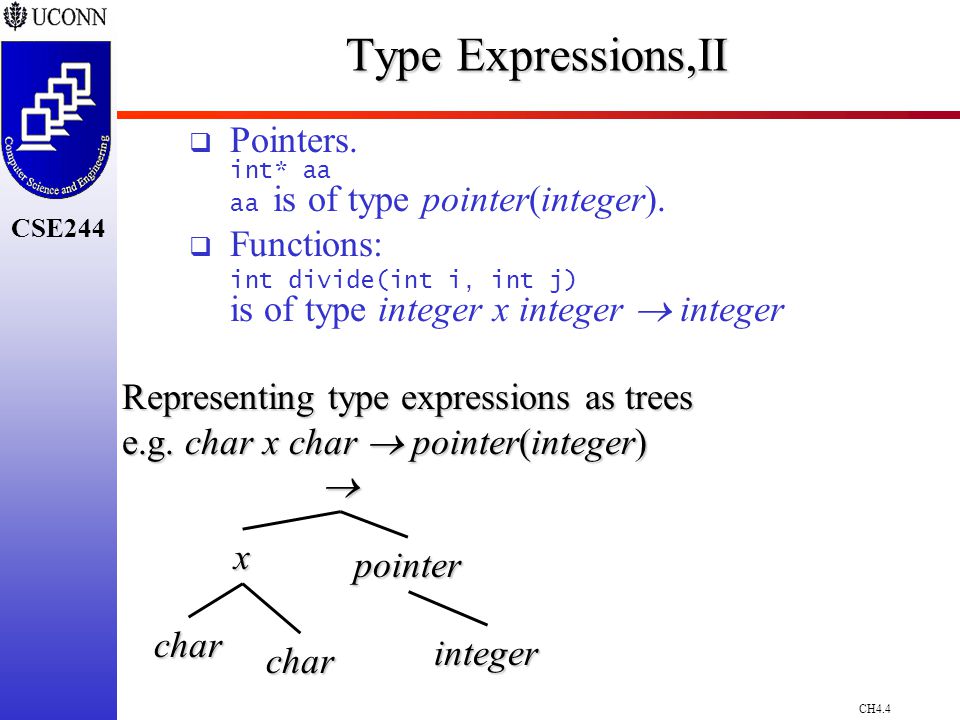

4. CH4.4 CSE244 Type Expressions,II  Pointers. int* aa aa is of type pointer(integer).  Functions: int divide(int i, int j) is of type integer x integer  integer Representing type expressions as trees e.g. char x char  pointer(integer) char char integer pointer x 

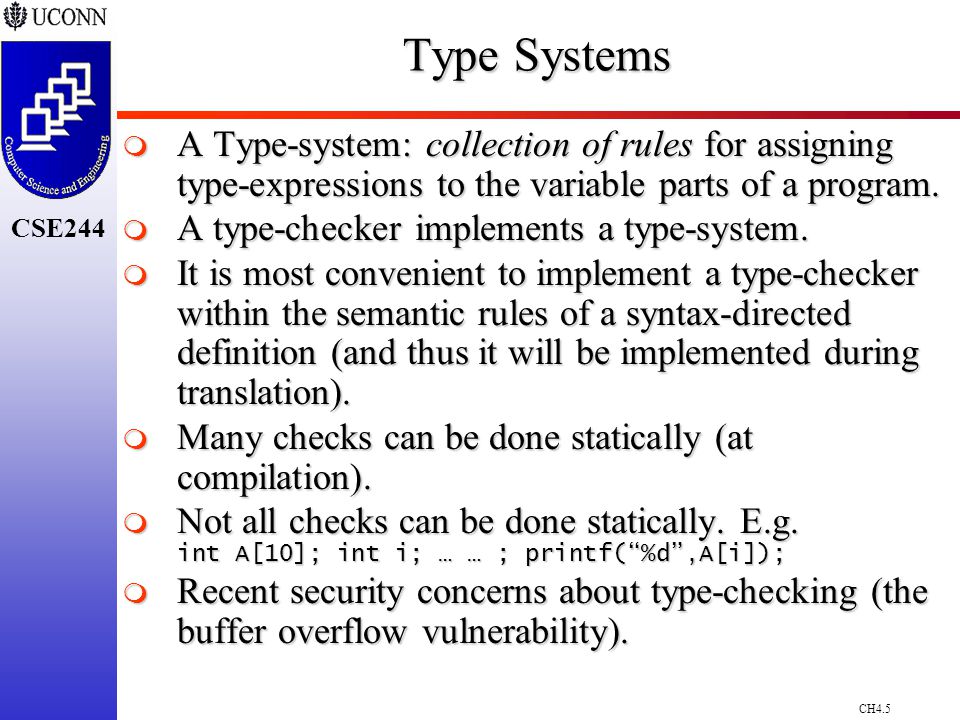

5. CH4.5 CSE244 Type Systems  A Type-system: collection of rules for assigning type-expressions to the variable parts of a program.  A type-checker implements a type-system.  It is most convenient to implement a type-checker within the semantic rules of a syntax-directed definition (and thus it will be implemented during translation).  Many checks can be done statically (at compilation).  Not all checks can be done statically. E.g. int A[10]; int i; … … ; printf(“%d”,A[i]);  Recent security concerns about type-checking (the buffer overflow vulnerability).

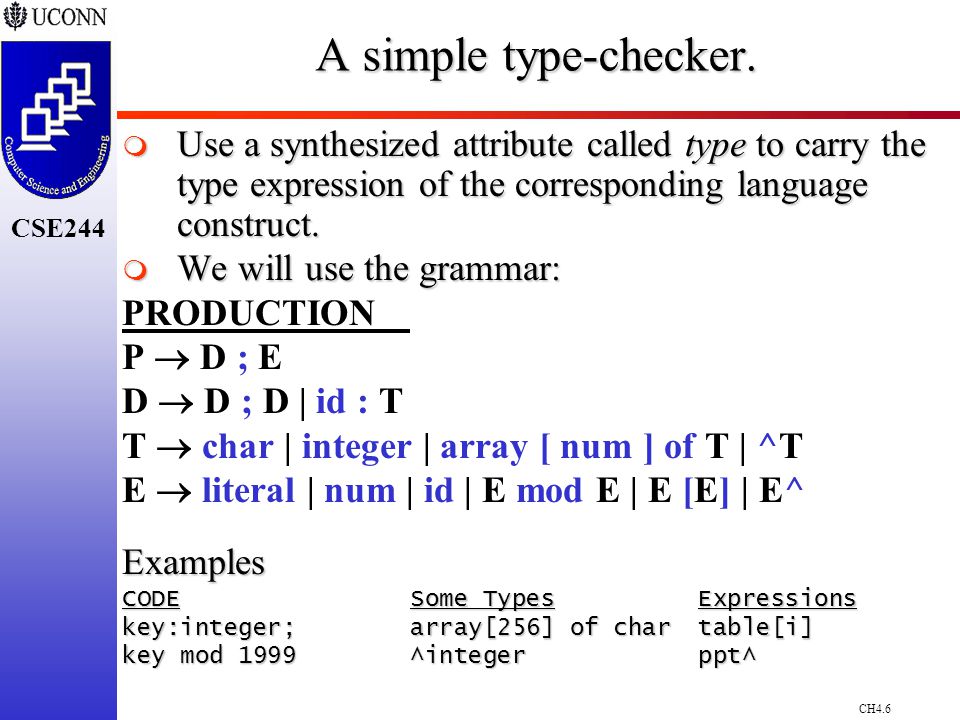

6. CH4.6 CSE244 A simple type-checker.  Use a synthesized attribute called type to carry the type expression of the corresponding language construct.  We will use the grammar: PRODUCTION P  D ; E D  D ; D | id : T T  char | integer | array [ num ] of T | ^T E  literal | num | id | E mod E | E [E] | E^Examples CODESome TypesExpressions key:integer;array[256] of chartable[i] key mod 1999^integerppt^

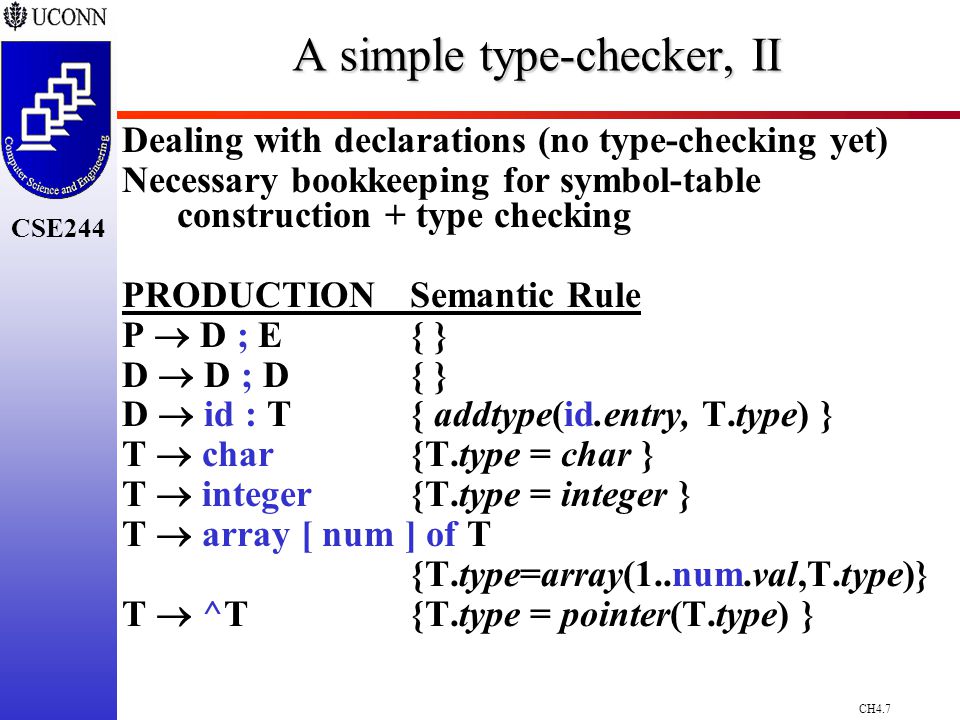

7. CH4.7 CSE244 A simple type-checker, II Dealing with declarations (no type-checking yet) Necessary bookkeeping for symbol-table construction + type checking PRODUCTIONSemantic Rule P  D ; E{ } D  D ; D{ } D  id : T{ addtype(id.entry, T.type) } T  char{T.type = char } T  integer {T.type = integer } T  array [ num ] of T {T.type=array(1..num.val,T.type)} T  ^T {T.type = pointer(T.type) }

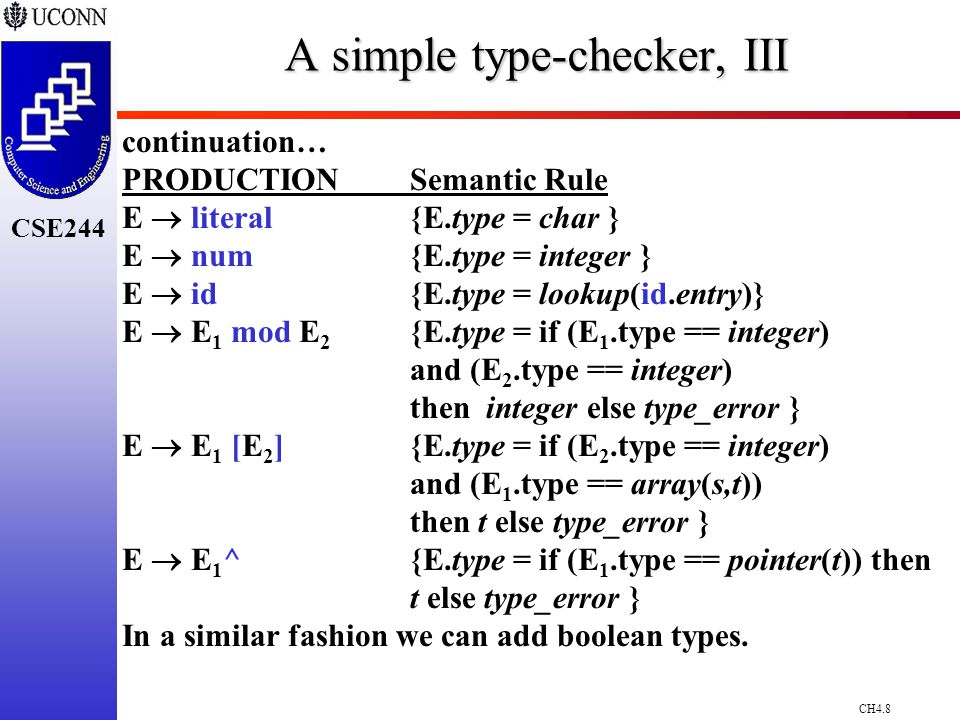

8. CH4.8 CSE244 A simple type-checker, III continuation… PRODUCTIONSemantic Rule E  literal {E.type = char } E  num{E.type = integer } E  id {E.type = lookup(id.entry)} E  E 1 mod E 2 {E.type = if (E 1.type == integer) and (E 2.type == integer) then integer else type_error } E  E 1 [E 2 ] {E.type = if (E 2.type == integer) and (E 1.type == array(s,t)) then t else type_error } E  E 1 ^{E.type = if (E 1.type == pointer(t)) then t else type_error } In a similar fashion we can add boolean types.

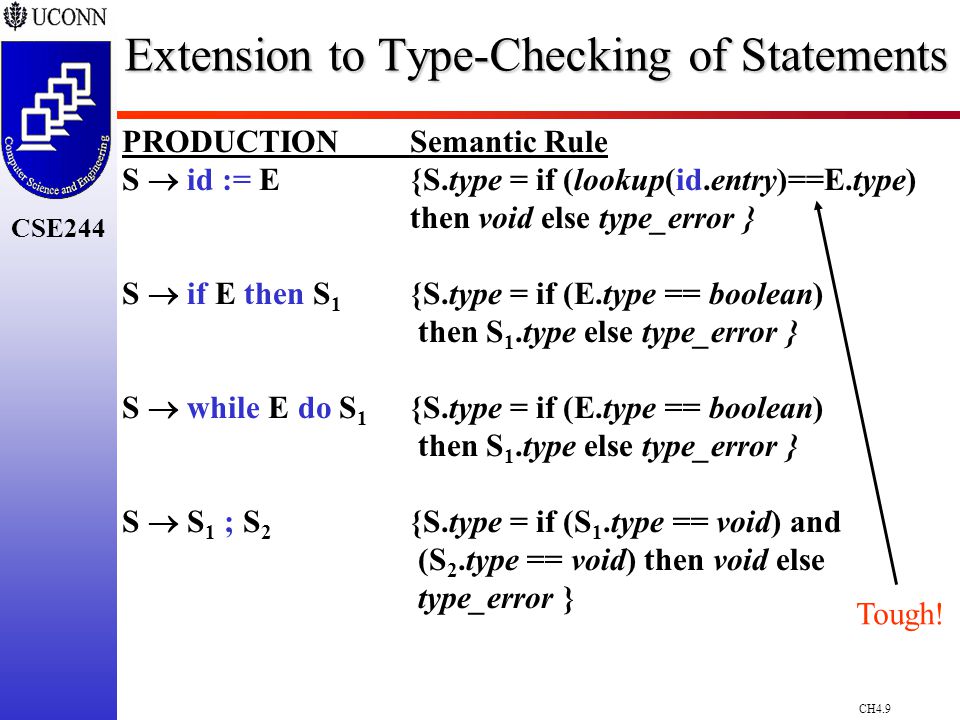

9. CH4.9 CSE244 Extension to Type-Checking of Statements PRODUCTIONSemantic Rule S  id := E{S.type = if (lookup(id.entry)==E.type) then void else type_error } S  if E then S 1 {S.type = if (E.type == boolean) then S 1.type else type_error } S  while E do S 1 {S.type = if (E.type == boolean) then S 1.type else type_error } S  S 1 ; S 2 {S.type = if (S 1.type == void) and (S 2.type == void) then void else type_error } Tough!

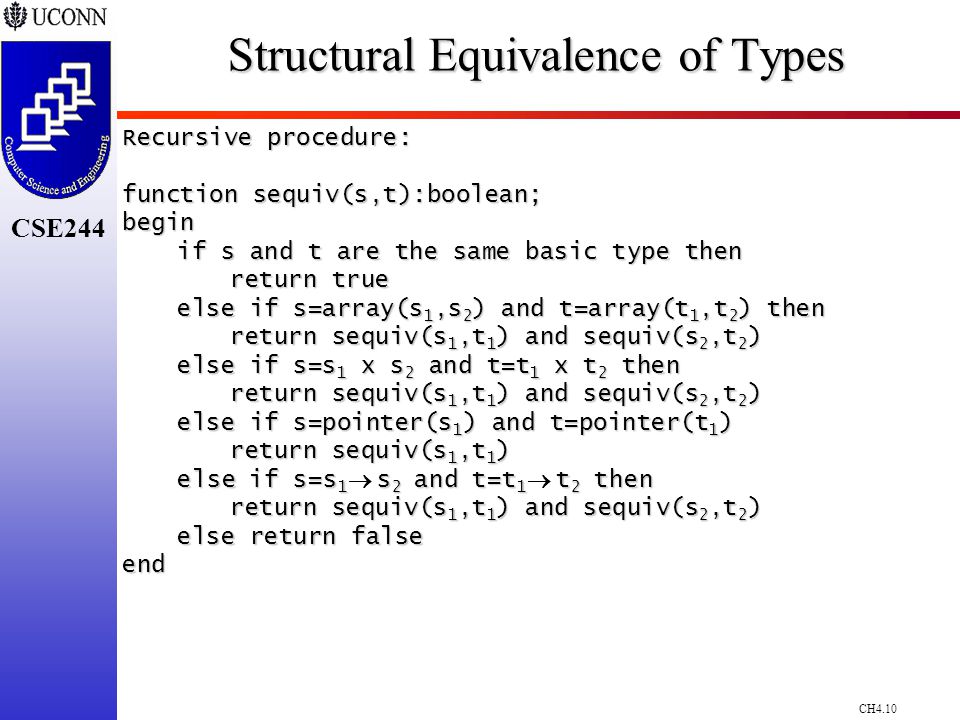

10. CH4.10 CSE244 Structural Equivalence of Types Recursive procedure: function sequiv(s,t):boolean; begin if s and t are the same basic type then return true else if s=array(s 1,s 2 ) and t=array(t 1,t 2 ) then return sequiv(s 1,t 1 ) and sequiv(s 2,t 2 ) else if s=s 1 x s 2 and t=t 1 x t 2 then return sequiv(s 1,t 1 ) and sequiv(s 2,t 2 ) else if s=pointer(s 1 ) and t=pointer(t 1 ) return sequiv(s 1,t 1 ) else if s=s 1 s 2 and t=t 1 t 2 then else if s=s 1  s 2 and t=t 1  t 2 then return sequiv(s 1,t 1 ) and sequiv(s 2,t 2 ) else return false end

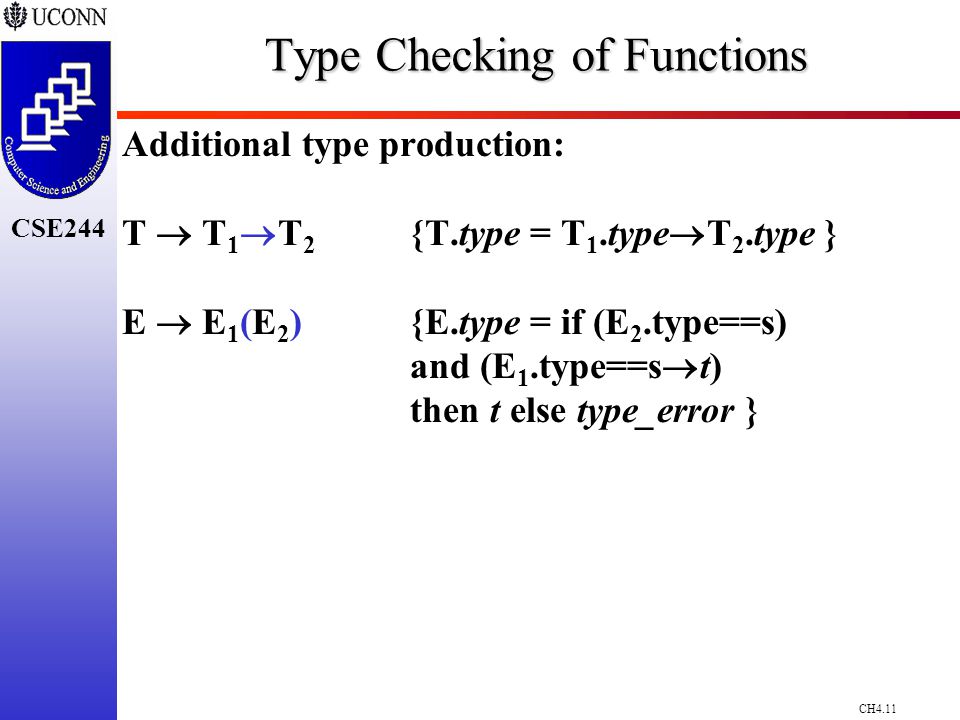

11. CH4.11 CSE244 Type Checking of Functions Additional type production: T  T 1  T 2 {T.type = T 1.type  T 2.type } E  E 1 (E 2 ) {E.type = if (E 2.type==s) and (E 1.type==s  t) then t else type_error }

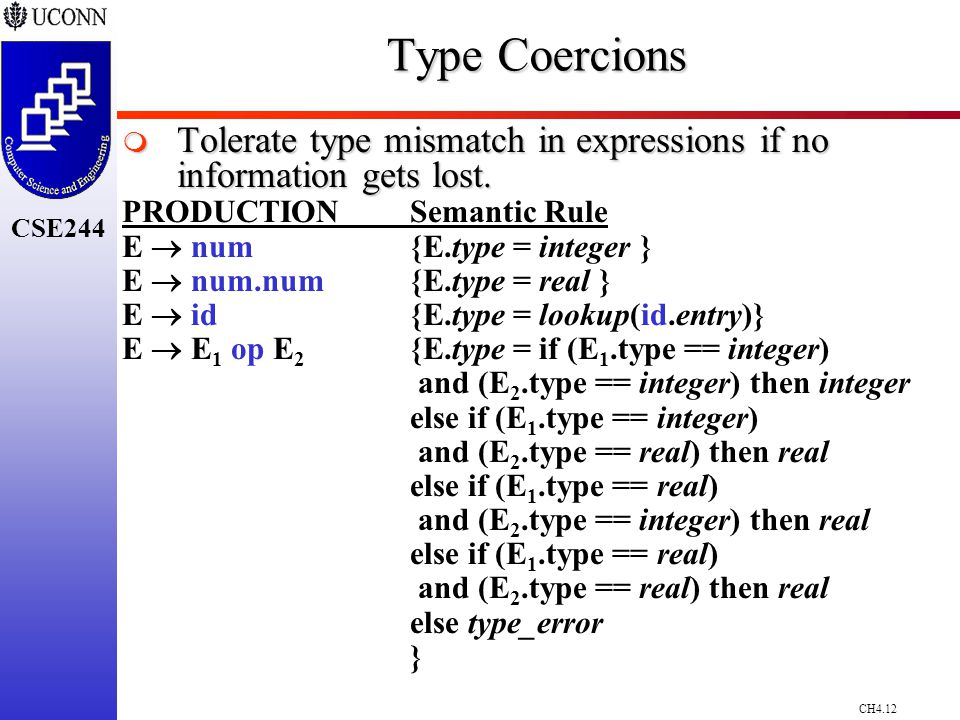

12. CH4.12 CSE244 Type Coercions  Tolerate type mismatch in expressions if no information gets lost. PRODUCTIONSemantic Rule E  num {E.type = integer } E  num.num{E.type = real } E  id {E.type = lookup(id.entry)} E  E 1 op E 2 {E.type = if (E 1.type == integer) and (E 2.type == integer) then integer else if (E 1.type == integer) and (E 2.type == real) then real else if (E 1.type == real) and (E 2.type == integer) then real else if (E 1.type == real) and (E 2.type == real) then real else type_error }

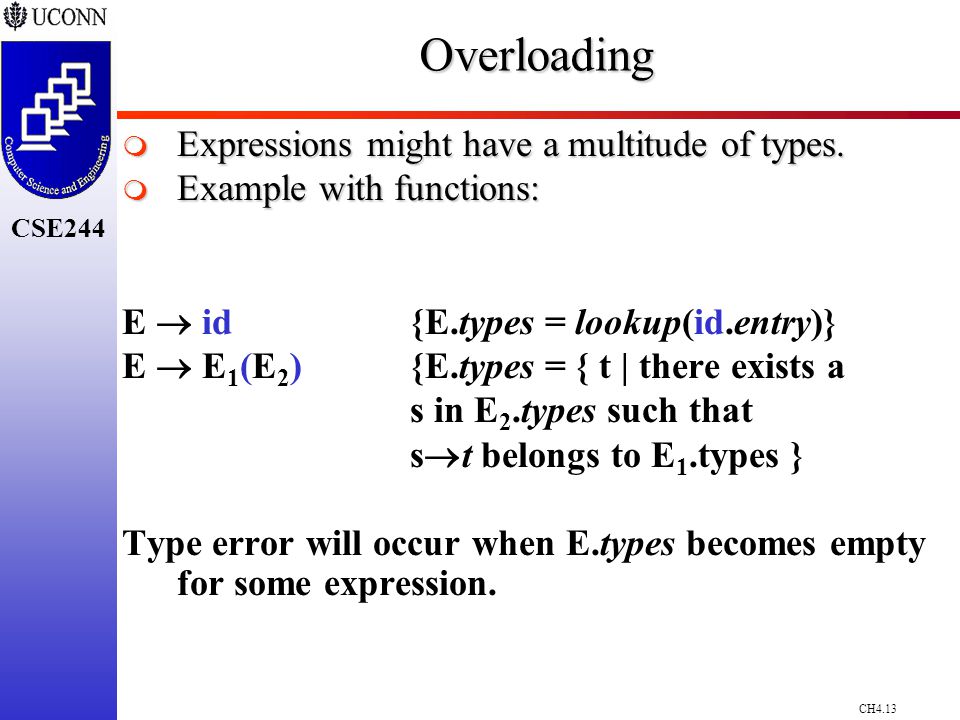

13. CH4.13 CSE244Overloading  Expressions might have a multitude of types.  Example with functions: E  id {E.types = lookup(id.entry)} E  E 1 (E 2 ) {E.types = { t | there exists a s in E 2.types such that s  t belongs to E 1.types } Type error will occur when E.types becomes empty for some expression.
