1 Basic Aerodynamics and Stability Presented by: Mr Jamie Presser

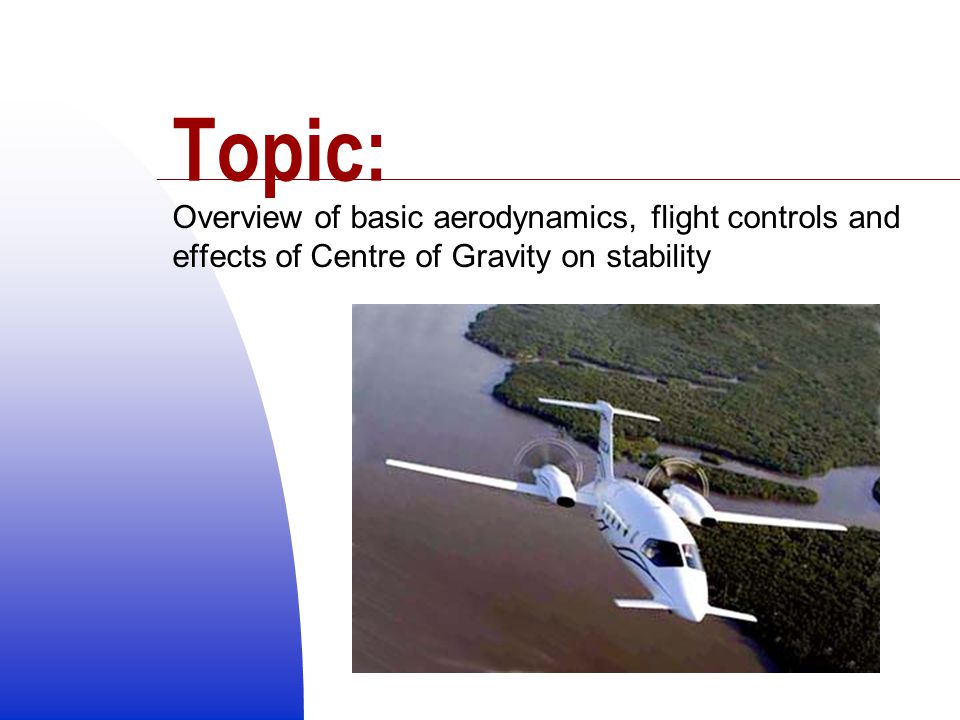

2 Topic: Overview of basic aerodynamics, flight controls and effects of Centre of Gravity on stability

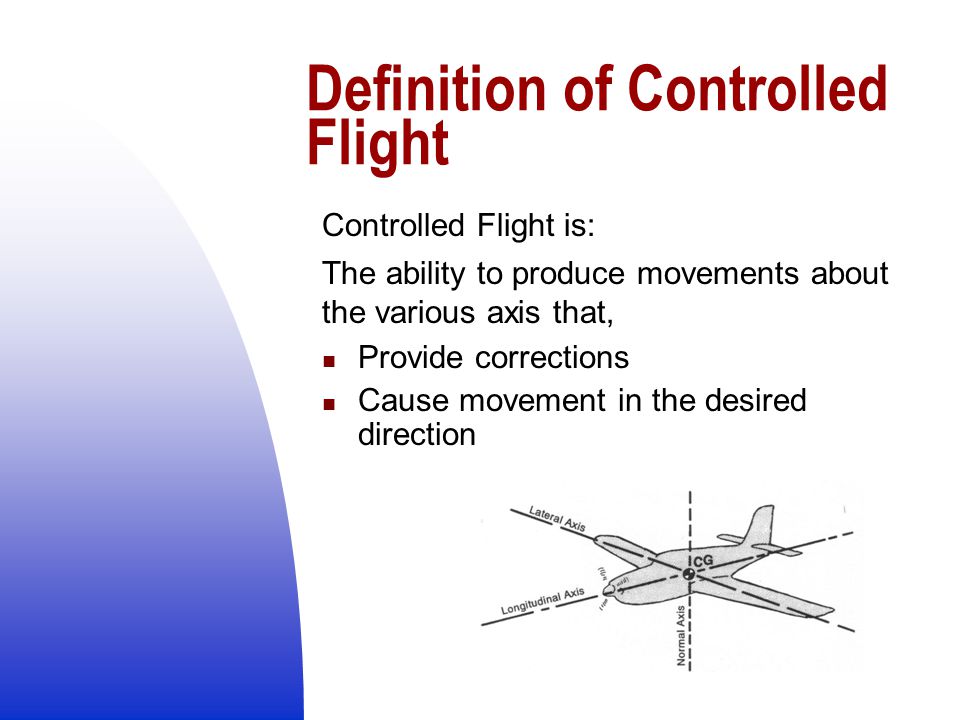

3 Definition of Controlled Flight Provide corrections Cause movement in the desired direction Controlled Flight is: The ability to produce movements about the various axis that,

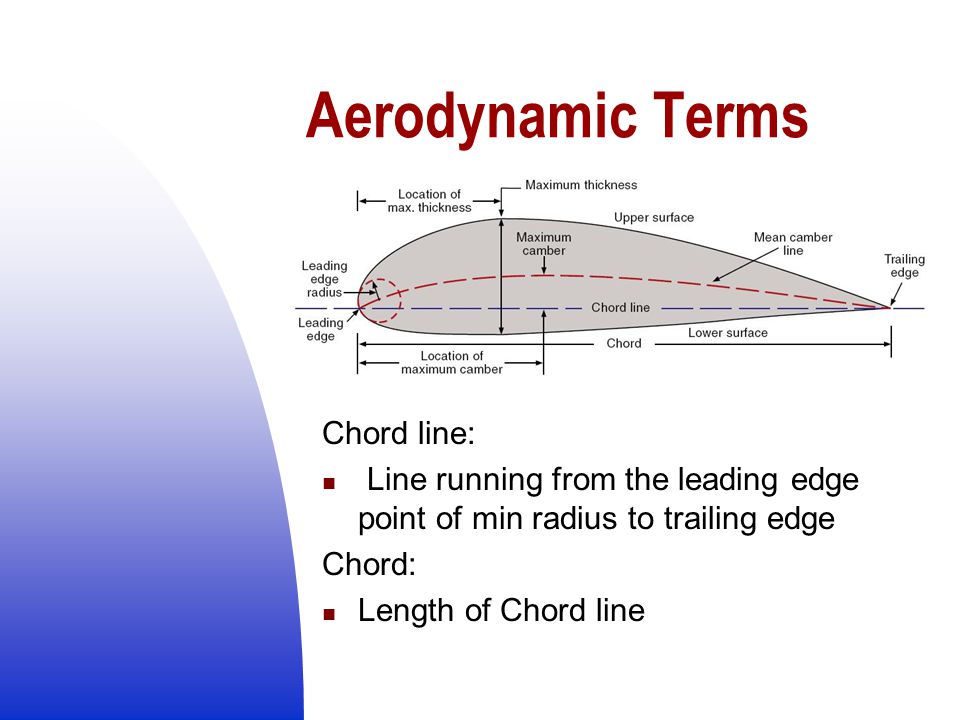

4 Aerodynamic Terms Chord line: Line running from the leading edge point of min radius to trailing edge Chord: Length of Chord line

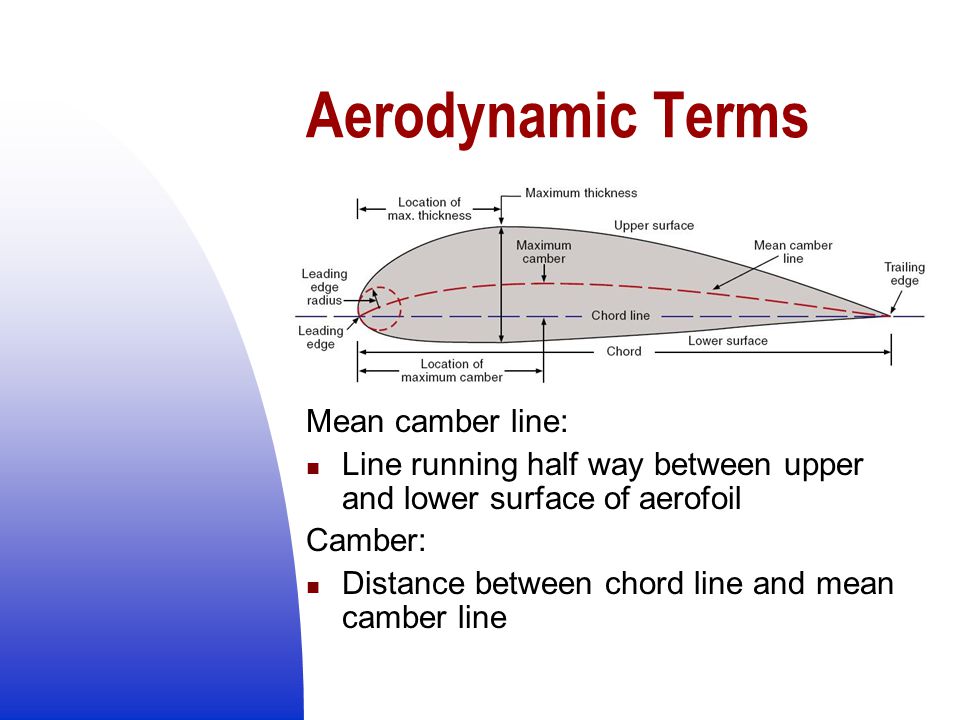

5 Aerodynamic Terms Mean camber line: Line running half way between upper and lower surface of aerofoil Camber: Distance between chord line and mean camber line

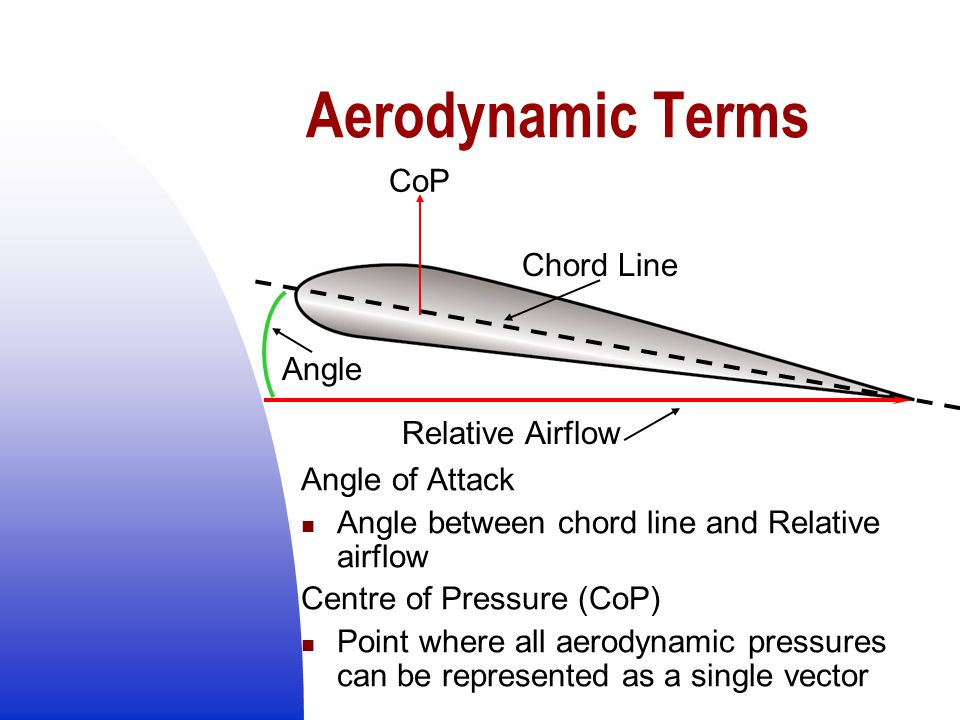

6 Aerodynamic Terms Angle of Attack Angle between chord line and Relative airflow Centre of Pressure (CoP) Point where all aerodynamic pressures can be represented as a single vector Angle Relative Airflow Chord Line CoP

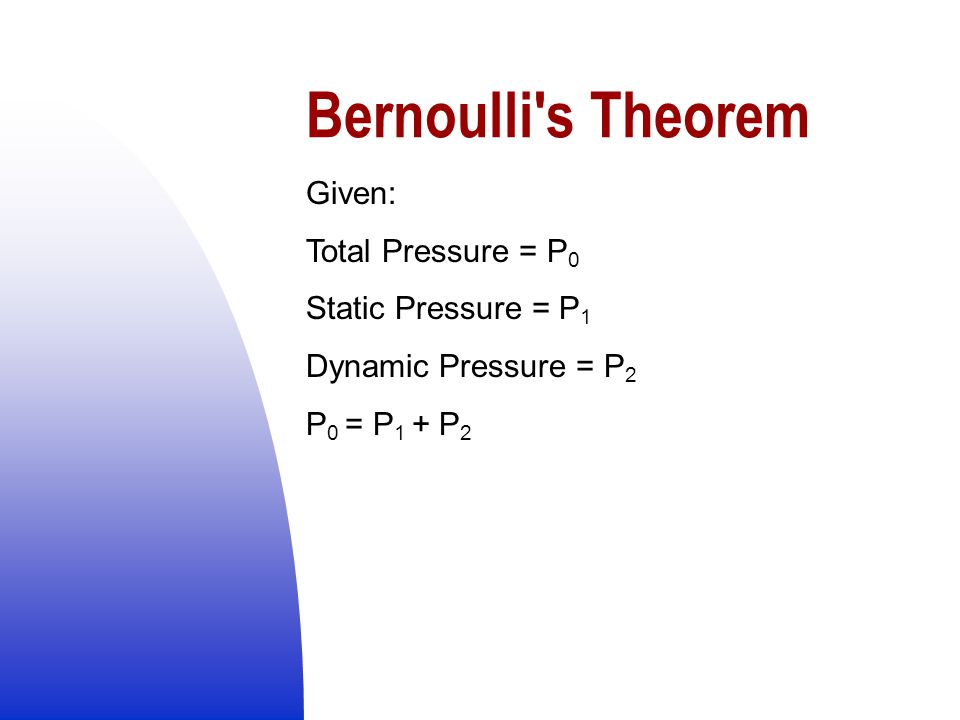

7 Bernoulli's Theorem Given: Total Pressure = P 0 Static Pressure = P 1 Dynamic Pressure = P 2 P 0 = P 1 + P 2

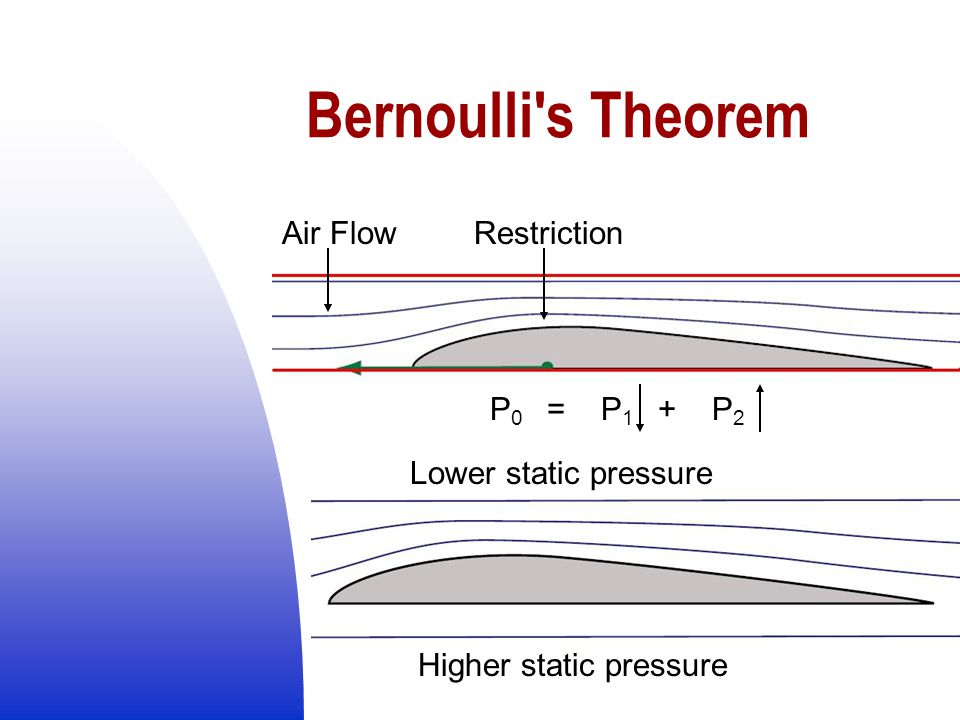

8 Bernoulli's Theorem Lower static pressure Higher static pressure RestrictionAir Flow P 0 = P 1 + P 2

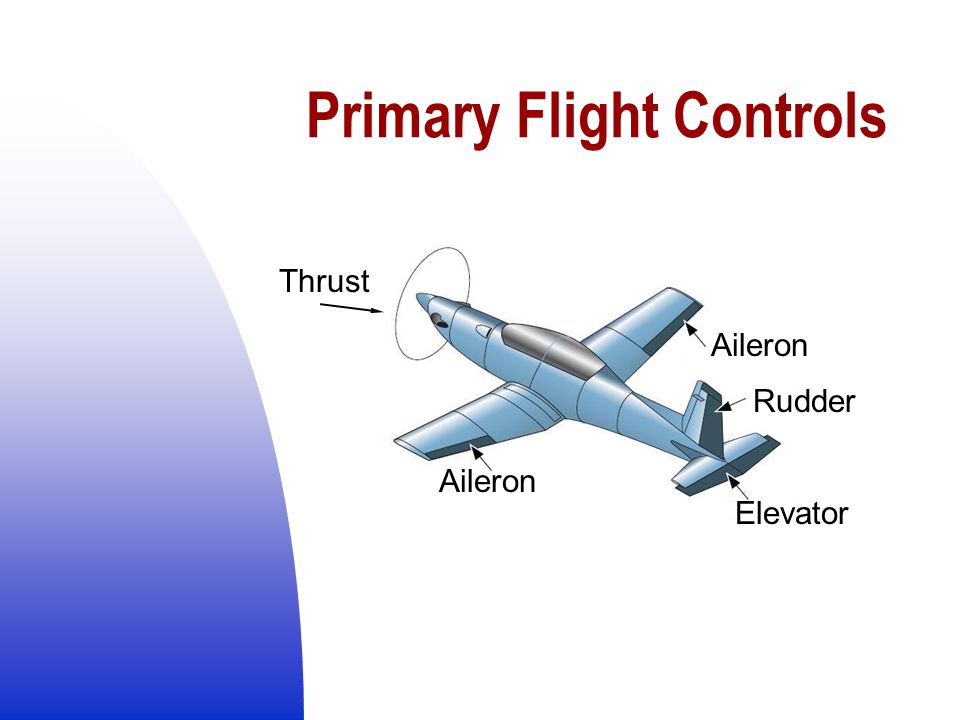

9 Primary Flight Controls Aileron Rudder Elevator Thrust

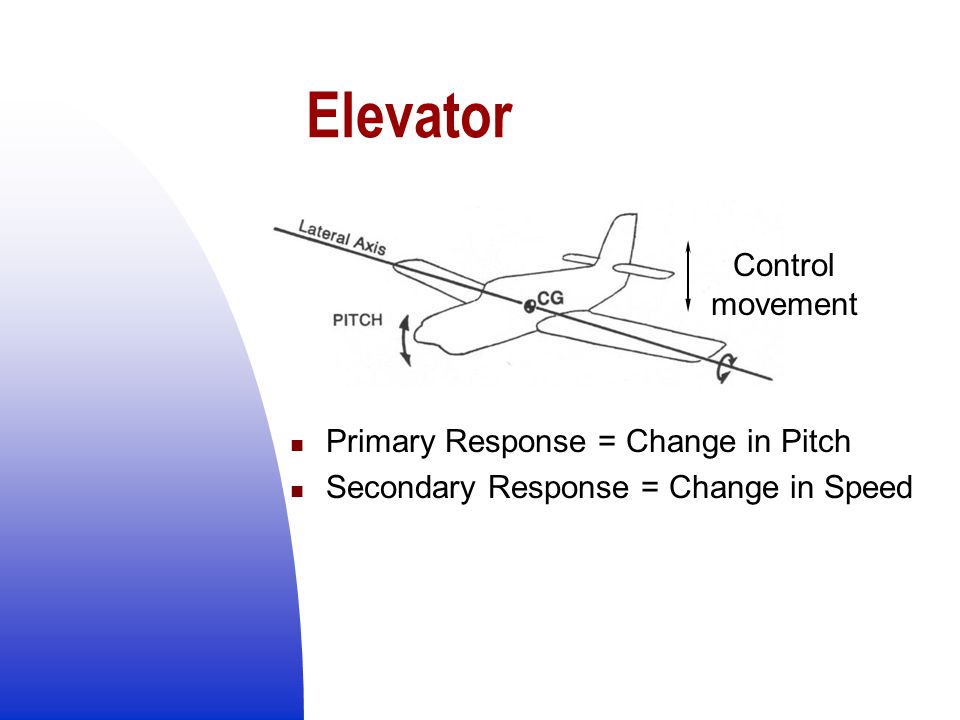

10 Elevator Primary Response = Change in Pitch Secondary Response = Change in Speed Control movement

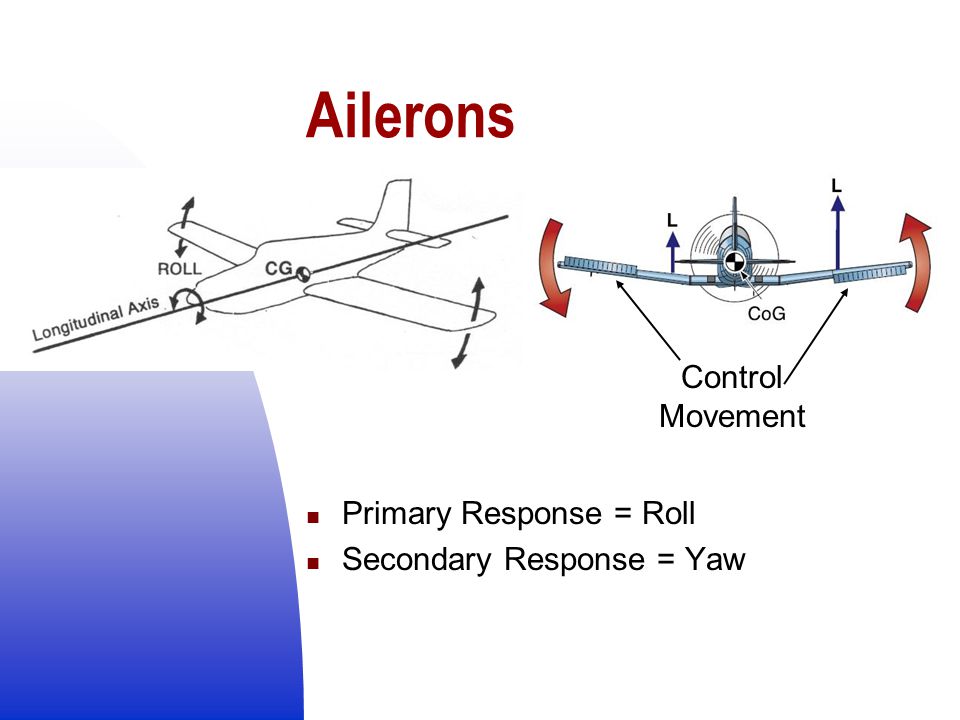

11 Ailerons Primary Response = Roll Secondary Response = Yaw Control Movement

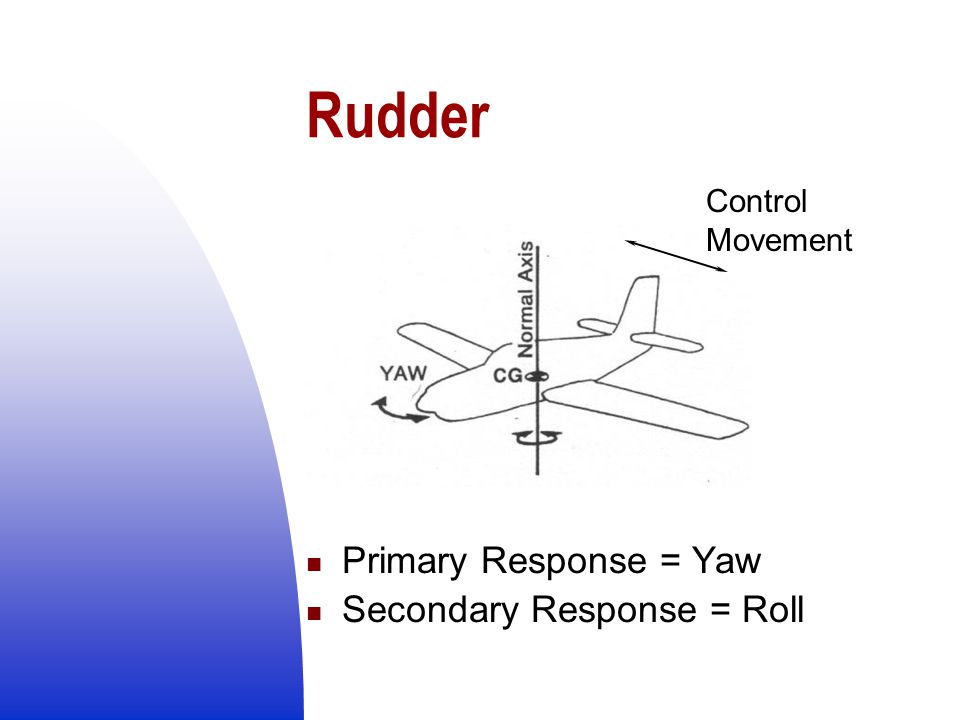

12 Rudder Primary Response = Yaw Secondary Response = Roll Control Movement

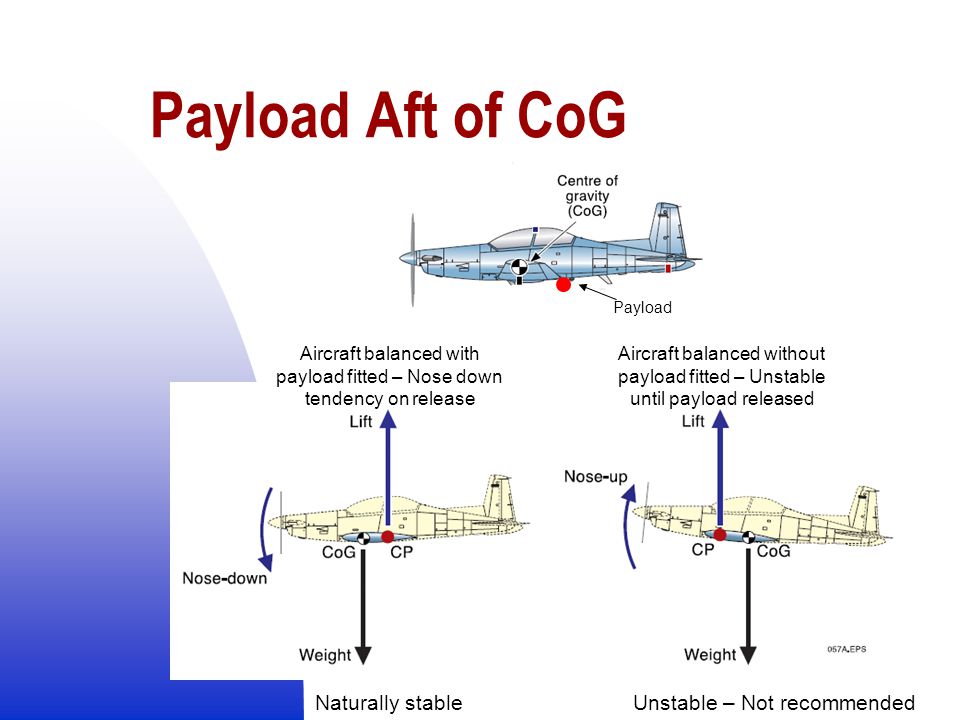

13 Payload Aft of CoG Payload Naturally stableUnstable – Not recommended Aircraft balanced with payload fitted – Nose down tendency on release Aircraft balanced without payload fitted – Unstable until payload released

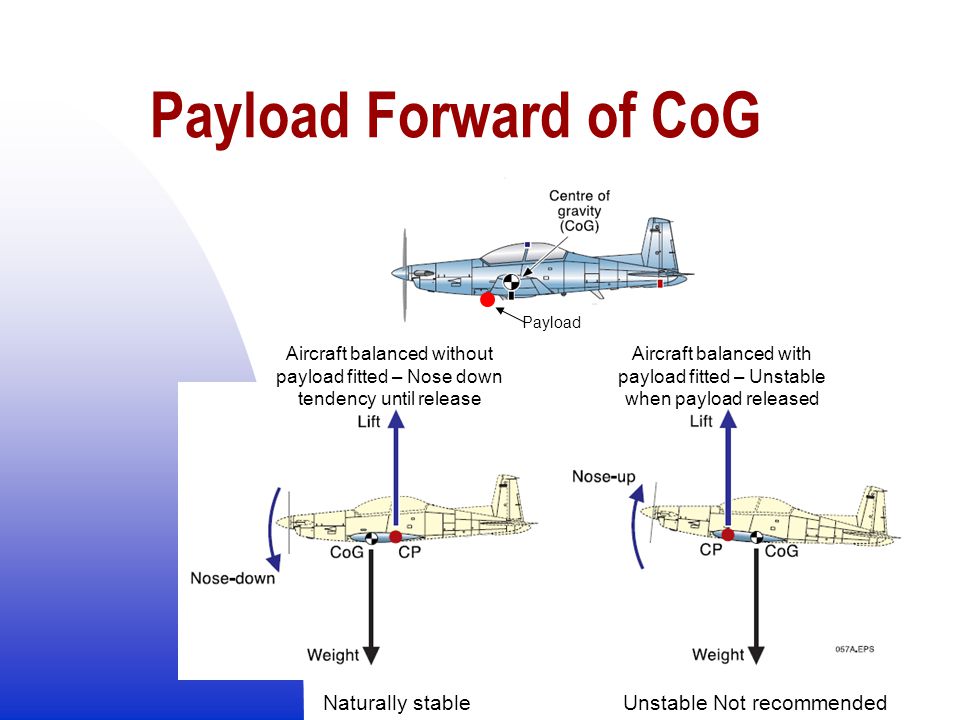

14 Naturally stableUnstable Not recommended Aircraft balanced without payload fitted – Nose down tendency until release Aircraft balanced with payload fitted – Unstable when payload released Payload Payload Forward of CoG

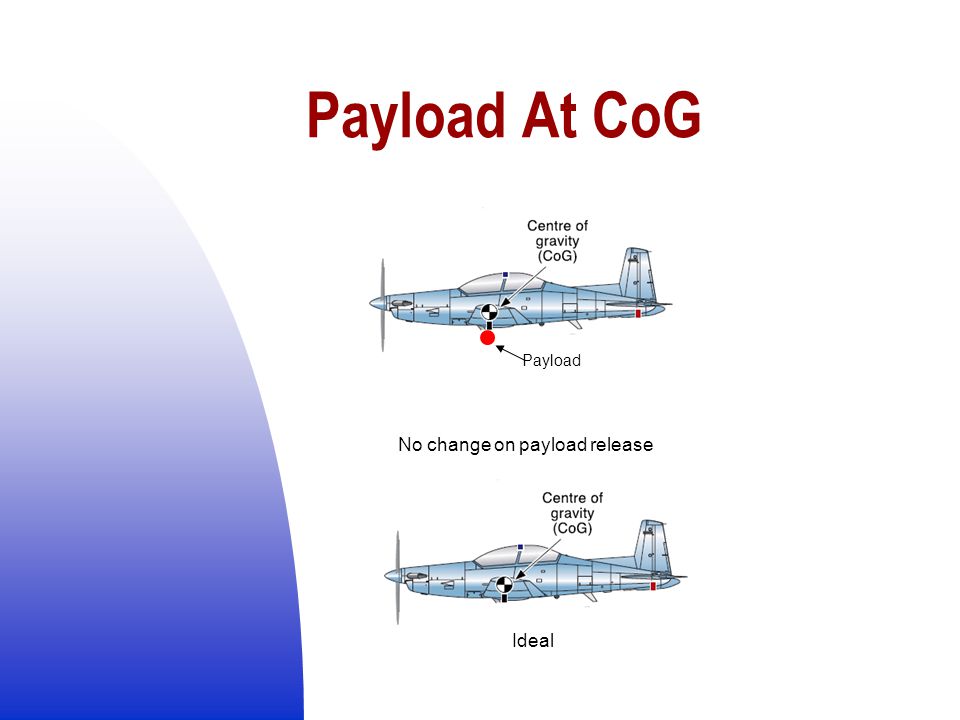

15 Payload Payload At CoG No change on payload release Ideal

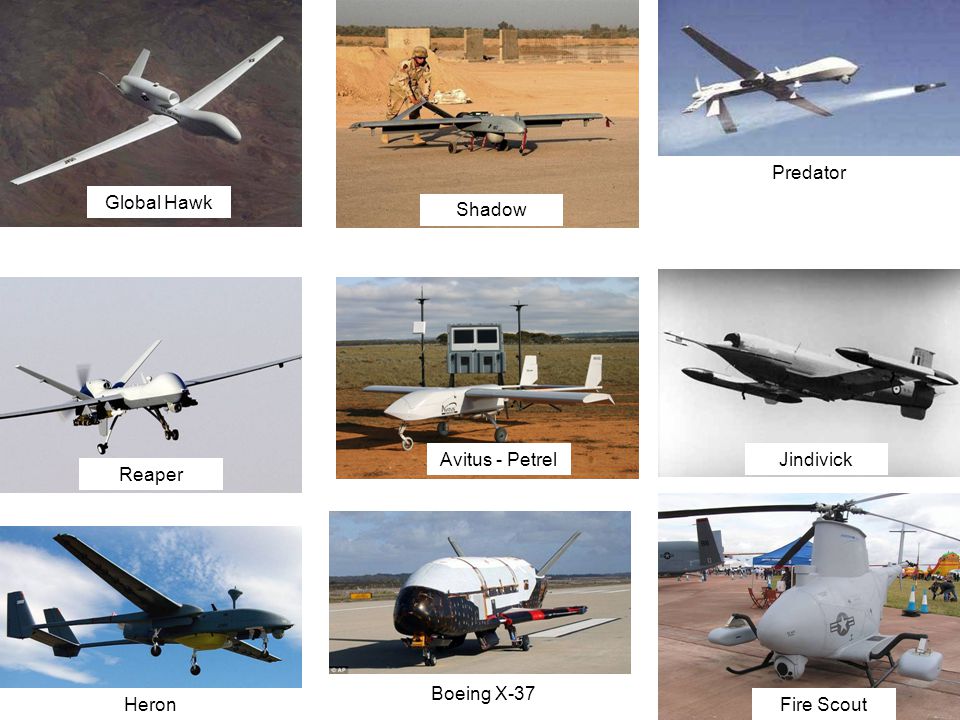

16 Global Hawk Shadow Reaper Predator Jindivick Heron Boeing X-37 Fire Scout Avitus - Petrel

17 Any Questions?
