1. ebXML Messaging Version 3.0 Parts 1, Part 2 and AS4

2. Overview Part 1: Core Specification AS4 Profile
OASIS Standard, October 2007
AS4 Profile
OASIS Committee Specification, April 2010
Part 2: Advanced Features
OASIS Committee Specification December, 2010

3. ebXML Messaging 2.0 & 3.0 Message Header with Business Metadata
Identifies Business Partners, Transaction Semantics, Context, Agreement, Properties, Payloads
Reliable Message Delivery
At-Least-Once, At-Most-Once, In-Order delivery
Security
Digital Signature and Payload Encryption
Support for Non-Repudiation of Origin & Receipt
Leverages SOAP, MIME envelopes
XML, EDI, multimedia payloads
Multiple payloads per message
Transport Protocol Mappings for HTTP and SMTP
Composition with other eBusiness Components
Functionality provided by ebMS, already in version 2.0 and in 3.0

4. ebXML Messaging Version 3.0 Part 1: Core Specification

5. ebXML Messaging 2.0 & 3.0 Message Header with Business Metadata
Identifies Business Partners, Transaction Semantics, Context, Agreement, Properties, Payloads
Reliable Message Delivery
At-Least-Once, At-Most-Once, In-Order delivery
Security
Digital Signature and Payload Encryption
Support for Non-Repudiation of Origin & Receipt
Leverages SOAP, MIME envelopes
XML, EDI, multimedia payloads
Multiple payloads per message
Transport Protocol Mappings for HTTP and SMTP
Composition with other eBusiness Components
Functionality provided by ebMS, already in version 2.0 and in 3.0

6. Further Web Services Convergence
New in ebMS 3.0 Core
Further Web Services Convergence
SOAP 1.1 or SOAP 1.2
SOAP with Attachments or MTOM
WS-Security 1.0 or 1.1
WS-Reliability 1.1 or WS- ReliableMessaging 1.1/1.2
Compatible with WS-I profiles
Meets new user requirements
SME endpoints, message partitioning
Motivation behind ebMS3:
ebMS 3.o Core was released 5 years beyond V2 release, which has seen much success, as described earlier. The technology base changed, and eBusiness practices are as well.
Lower-levels of Web Services protocol stack have been standardized; much of what ebMS 2 described (reliability & security) are now ready for adoption, and ebMS 3 is much simplified by deferring to these new standards to achieve the required functionality.
In addition, we have met new customer requirements to support small- to medium- size enterprises (SMEs); and for more flexibility in partitioning messages into separate, named channels.
Will describe each of these, starting with WS Convergence…

7. New ebMS 3.0 Concepts & Features
Processing Modes
Parameters for capturing, expressing, sharing configuration choices, message QoS.

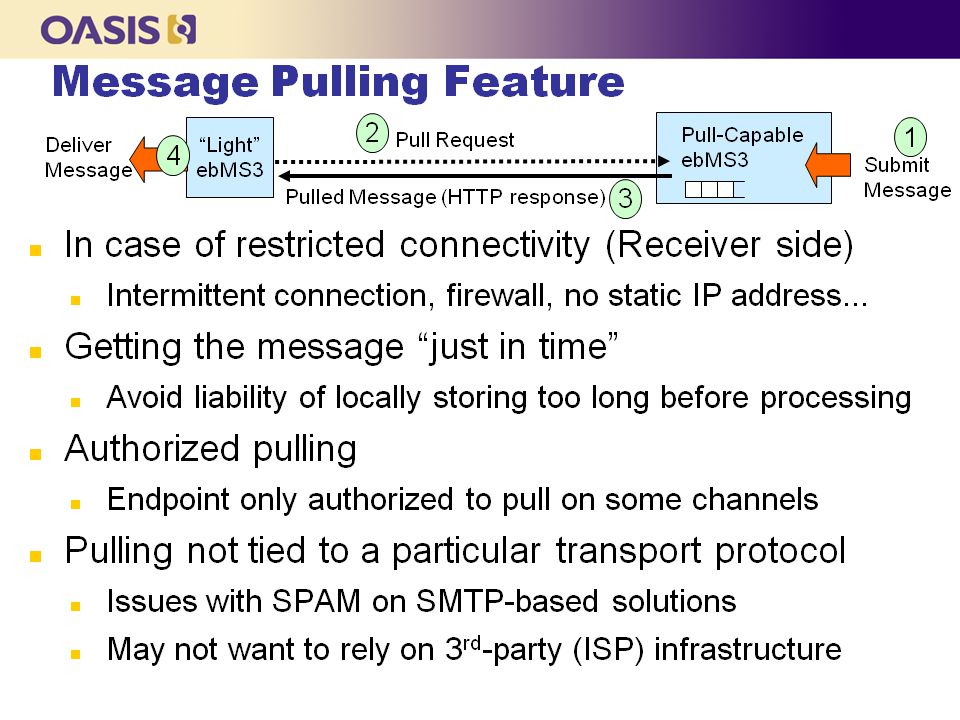

Message Pull Feature
Message Receiver is Polling the Message Sender
Consumer “receives” messages by pulling them from Sender
Benefit: Supports Small and Medium Size Enterprises
Occasionally connected, no fixed IP address, behind firewalls
Message Partition Channels
Messages assigned to channels
Supports priority handling
Processing Modes: Explain relationship w/ CPA.
Client-Only Partners  Message Pulling
Selective Transfer  Message Channels
(message pulling, channels, MECs, headers, message authorization,
non-repudiation support, compliance with SOAP/WS/WS-I).

9. AS4 Profile

10. AS4 Profile Message packaging governed by ebMS 3.0
Support for both document push and pull message exchange choreographies
Message security governed by WS-Security with added support for payload compression
Support for an AS2-like business-level Non-Repudiation Receipt (MDN)
Reception Awareness – “just enough” reliable messaging (similar to AS2 and ebMS 2.0)

11. AS4 compared to AS2 AS4 has comparable features to AS2 including:
Document push message exchange patterns
Support for Non-Repudiation Receipts
Support for “lightweight” reliable messaging
Support for common security aspects like digital signatures, encryption, and payload compression
AS4 additionally supports the following features not available in AS2:
Document pull message exchange pattern including support for secure access to MPCs
Native support for Web Services
Support for “lightweight” client implementations

12. ebMS3/AS4 Implementations
OASIS successful use statements (2007):
Axway, Fujitsu, NEC
Vendor implementations
Cisco, Data Applications Limited, ENEA, Flame Computing, Fujitsu, NEC
Other implementations have expressed interest in interoperability testing, but have not yet been publicly announced
Open Source: Holodeck

13. Industry Endorsement RosettaNet MMS
>>>>>
Japan Electronics and Information Technologies Association (JEITA)
HL7 Version 3 Standard: Transport Specification - ebXML
ebxml.htm
Aerospace industry in Europe
OASIS Energy Interoperability TC
open.org/committees/download.php/37925/energyinterop-1%200- spec-wd-12.pdf
Textile, clothing, footwear industry in Europe
eBIZ project

14. Testing and Certification
Drummond Group is planning for the following upcoming testing events:
A week-long “virtual” BAKEOFF ideally in early December 2010 to demonstrate AS4/ebMS3 interoperability
Followed by a live BAKEOFF event at a TBD conference or expo in early 2011
A full-matrix interoperability Certification Test in 1H2011
Perhaps some of these testing events will be sponsored or co-sponsored by OASIS

15. ebXML Messaging 3.0 Part 2: Advanced Features
OASIS ebXML Messaging TC

16. Multihop: ebMS Messaging Across Intermediaries

17. Intermediaries

18. Multi-hop: hub and spoke

19. Multi-hop: connected hubs

20. Multi-hop: hierarchical

21. Bundling, Splitting, Joining, Compression

22. Bundle, Split, Join, Compress
Decouple “logical” from “physical” message
Many small messages with same destination, submitted in a short interval, are more efficiently sent as a single ebMS SOAP message bundle
A (very) big message is more effectively sent as a series of smaller message fragments
Reduce data to send by using message compression
Applies to large messages and to bundles
Also covers (verbose) message headers

23. Application Scenarios
Bundling
High volume, non real-time transactions involving small payloads
Event reporting and data synchronization
Any legacy batch application
Splitting
Messages with large payloads, or with many payloads
Compression
Payloads and message headers

24. Features Specification concerns interoperability only
Configuration parameters constrain what (not) to bundle, size/timing parameters, policy ..
Allows for optimization and differentiation
No impact to users:
Can be handled within MSH, no change to submission/delivery
Simple features that compose with other ebMS3 functionality
Pull, push, reliable messaging, security …

25. Case Study GS1 Data Synchronization: Other case studies
A sample bundle containing 23 GDSN 2.7 messages; total 306K
ebMS3 eb3:UserMessage header overhead: 19K (6%)
Total after bz2 compression: 13K, i.e. 4%
Other case studies
eCom 2.6 order (11 docs, 83K), UBL 2.0 (13 docs, 11.8K), bz2/zlib compression: worst case 8%
Comparison with payload compression:
Best case 14%; worst case 25%
Use bundle, split and compress to “optimize” message sizes

26. Summary

27. ebMS 3.0 (and AS4) ebMS 3.0 Core Specification AS4 WS-* based
WS-I profiles compliant
Functional superset of ebMS 2.0
Important extensions for Small and Medium-Size businesses
AS4
Profile of Core Specification
Functional superset of AS2
Adds payload compression, Non-Repudiation of Receipt, Reception Awareness

28. Part 2: Advanced Features
Intermediaries
Enable SME-to-SME message exchange
Bundling
Support efficient high-volume message exchange
Split, join, compress
Support efficient transfer of very large messages (and message bundles)
Variants in MEP Execution
Better Pull and Sync replies
(industry-specific) niche protocols: e.g. eBICS, PeSIT

29. ebMS 3.0 Parts 1, 2 and AS4
B2B protocol with the broadest coverage of user deployment scenarios
Push, Pull and Synchronous exchanges
From light-weight clients to high-end B2B gateways
Point-to-point exchange and multi-hop exchanges
From occasional exchanges to very high volume exchanges
From small message exchanges to very large message exchanges
Web Services based functionality that:
Is not in any other WS-* specification
Only exists in (industry) niche B2B or MFT protocols
Is handled (redundantly) at the application layer

30. Q & A
……….

31. More Information ebMS Version 3.0 Part 1: Core Specification
msg/ebms/v3.0/core/os/
AS4 Profile
msg/ebms/v3.0/profiles/200707/
ebMS Version 3.0 Part 2: Advanced Features
open.org/committees/download.php/38969/ebMS3- Part2-CD01-PR01.zip

32. More Information TC public page Public Review Announcement
Public Review Announcement
msg/201008/msg00010.html
