1 Time of Concentration

2 Objectives Know how to calculate time of concentration Know how to calculate time of concentration Know why it’s important to be able to determine the time of concentration Know why it’s important to be able to determine the time of concentration

3 Definition Time required for runoff to travel from the hydraulically most distant point on a watershed to another point of interest within the watershed Time required for runoff to travel from the hydraulically most distant point on a watershed to another point of interest within the watershed

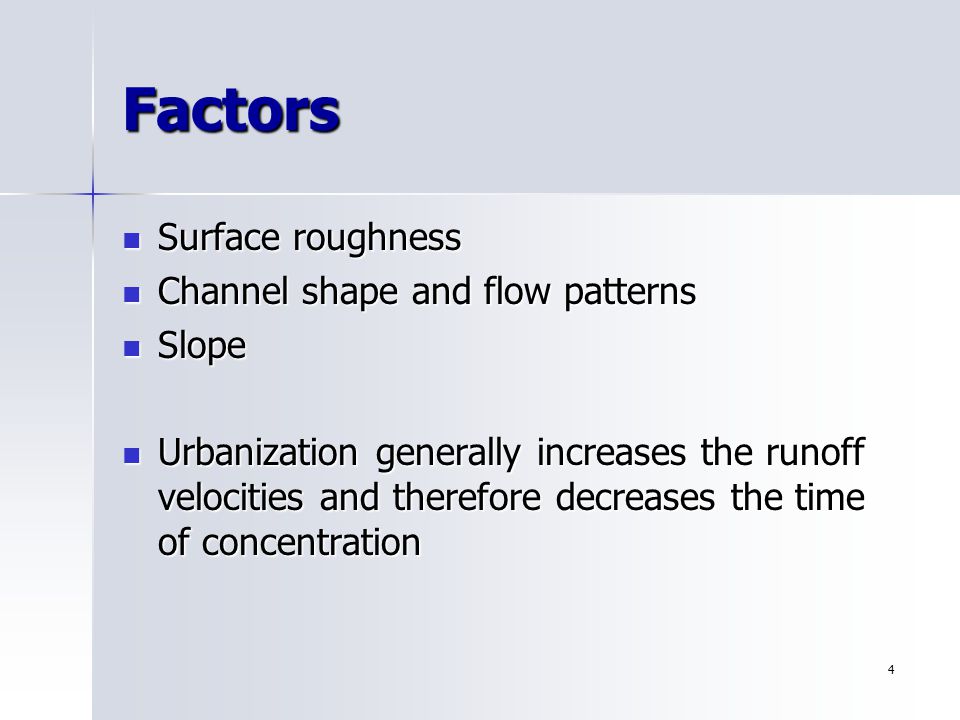

4 Factors Surface roughness Surface roughness Channel shape and flow patterns Channel shape and flow patterns Slope Slope Urbanization generally increases the runoff velocities and therefore decreases the time of concentration Urbanization generally increases the runoff velocities and therefore decreases the time of concentration

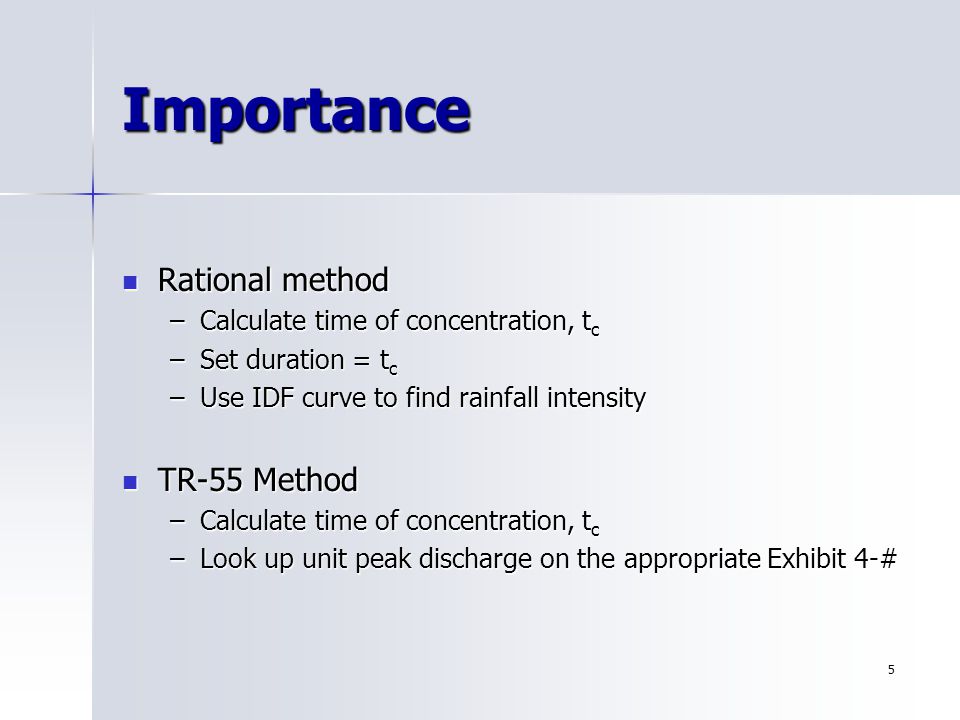

5 Importance Rational method Rational method –Calculate time of concentration, t c –Set duration = t c –Use IDF curve to find rainfall intensity TR-55 Method TR-55 Method –Calculate time of concentration, t c –Look up unit peak discharge on the appropriate Exhibit 4-#

6 Typical Values for Tc < 50 Acres Typical Values for Tc < 50 Acres 5 minutes to 30 minutes 5 minutes to 30 minutes

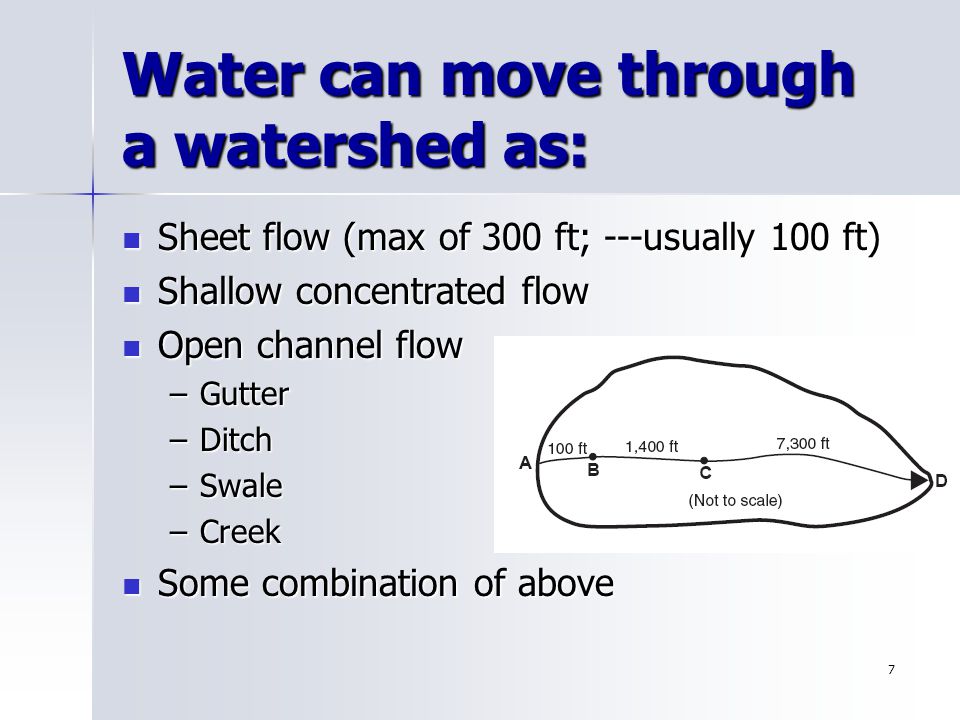

7 Water can move through a watershed as: Sheet flow (max of 300 ft; ---usually 100 ft) Sheet flow (max of 300 ft; ---usually 100 ft) Shallow concentrated flow Shallow concentrated flow Open channel flow Open channel flow –Gutter –Ditch –Swale –Creek Some combination of above Some combination of above

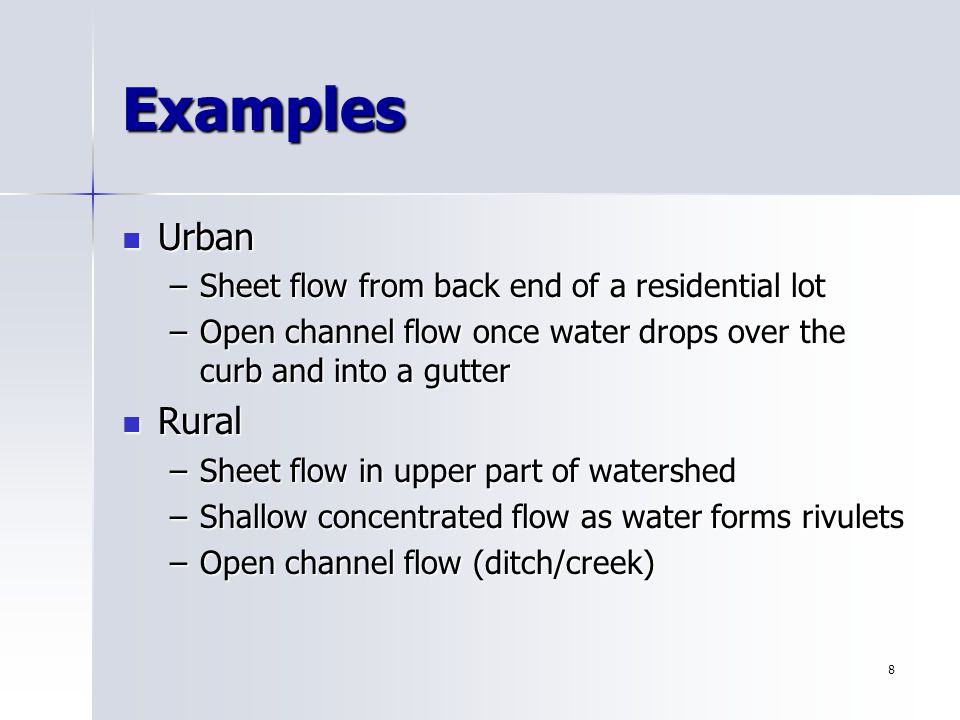

8 Examples Urban Urban –Sheet flow from back end of a residential lot –Open channel flow once water drops over the curb and into a gutter Rural Rural –Sheet flow in upper part of watershed –Shallow concentrated flow as water forms rivulets –Open channel flow (ditch/creek)

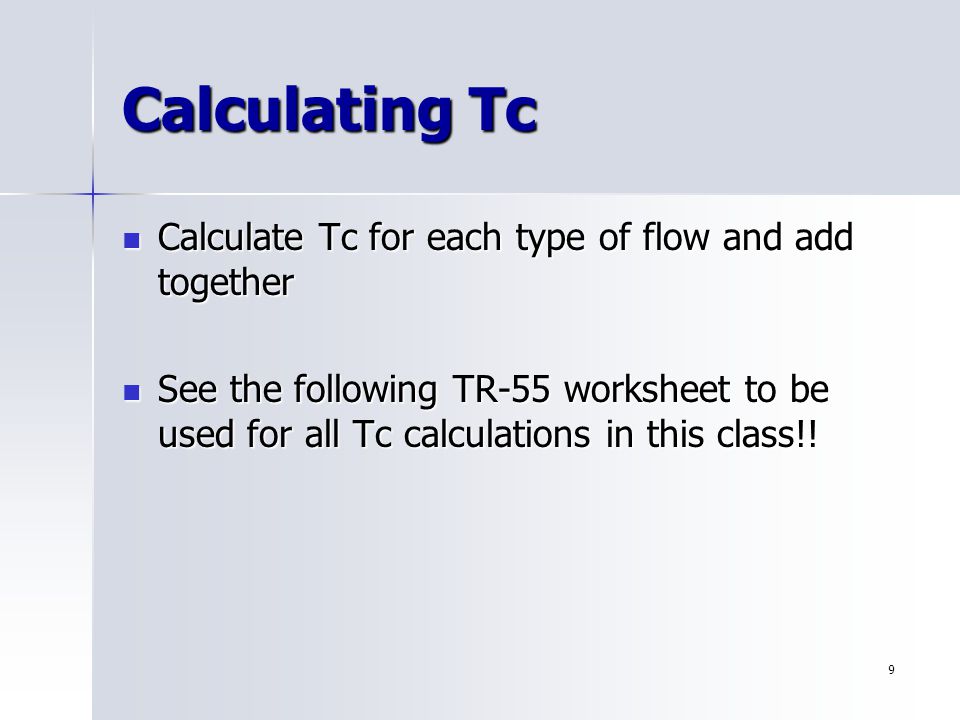

9 Calculating Tc Calculate Tc for each type of flow and add together Calculate Tc for each type of flow and add together See the following TR-55 worksheet to be used for all Tc calculations in this class!! See the following TR-55 worksheet to be used for all Tc calculations in this class!!

10

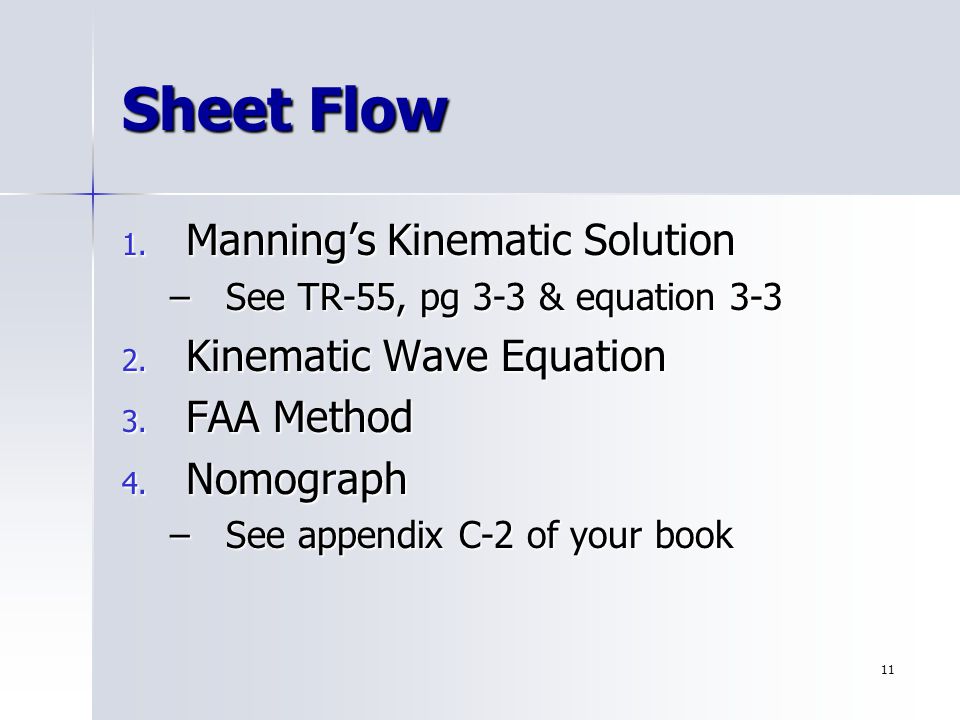

11 Sheet Flow 1. Manning’s Kinematic Solution –See TR-55, pg 3-3 & equation 3-3 2. Kinematic Wave Equation 3. FAA Method 4. Nomograph –See appendix C-2 of your book

12 Manning’s Kinematic Solution T t =[0.007(nL).8 ]/[P 2.5 S.4 ] T t =[0.007(nL).8 ]/[P 2.5 S.4 ] T t is travel time (hrs) T t is travel time (hrs) n-Manning’s coefficient for sheet flow (dimensionless - must use Table 3-1 in TR-55) n-Manning’s coefficient for sheet flow (dimensionless - must use Table 3-1 in TR-55) L is flow length (ft) L is flow length (ft) P 2 is 2-yr, 24-hr rainfall (in) P 2 is 2-yr, 24-hr rainfall (in) –TR-55 Appendix B, Figure B-3 or –Local IDF curve (change intensity to inches) S is slope (decimal format) S is slope (decimal format)

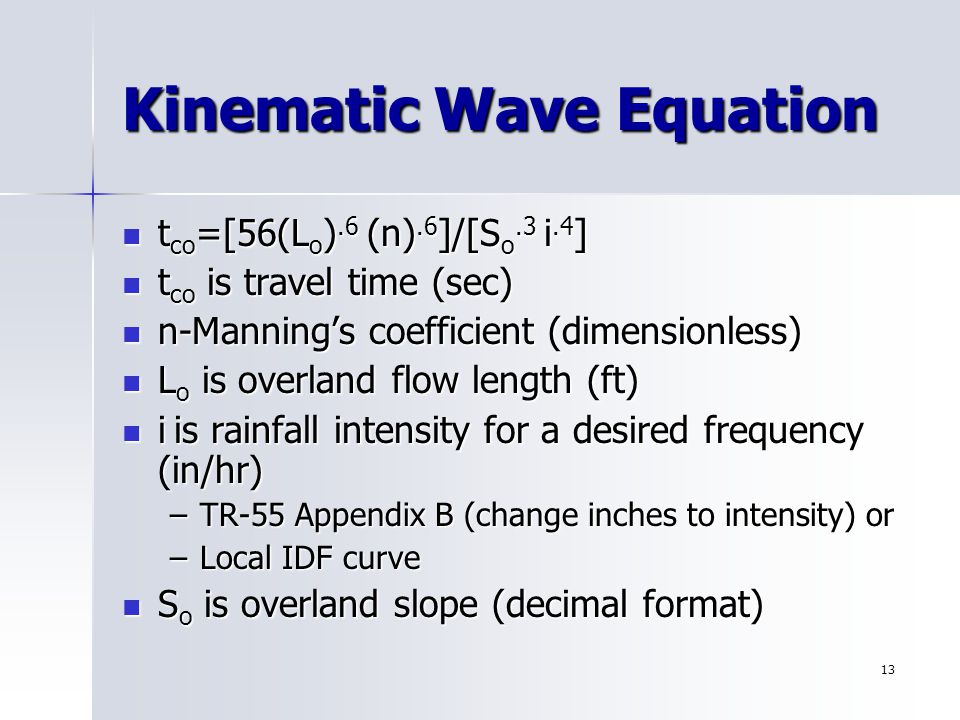

13 Kinematic Wave Equation t co =[56(L o ).6 (n).6 ]/[S o.3 i.4 ] t co =[56(L o ).6 (n).6 ]/[S o.3 i.4 ] t co is travel time (sec) t co is travel time (sec) n-Manning’s coefficient (dimensionless) n-Manning’s coefficient (dimensionless) L o is overland flow length (ft) L o is overland flow length (ft) i is rainfall intensity for a desired frequency (in/hr) i is rainfall intensity for a desired frequency (in/hr) –TR-55 Appendix B (change inches to intensity) or –Local IDF curve S o is overland slope (decimal format) S o is overland slope (decimal format)

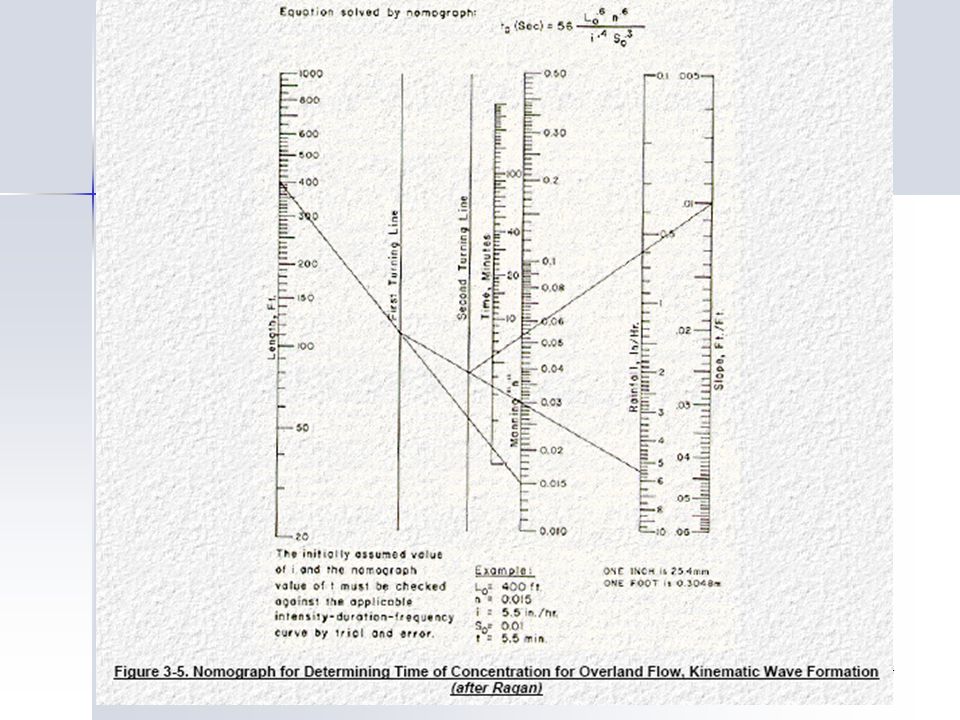

14

15 Kinematic Wave Equation Includes the rainfall intensity for a desired frequency Includes the rainfall intensity for a desired frequency Must use iterative approach Must use iterative approach 1.Assume a rainfall intensity 2.Calculate travel time 3.Set storm duration = travel time 4.Look up intensity from IDF curve and compare to assumed value 5.If intensity differs go back to step 1

16 FAA Equation t=[1.8(1.1-C)(L o ).5 ]/[S.333 ] t=[1.8(1.1-C)(L o ).5 ]/[S.333 ] t is travel time (min) t is travel time (min) C-rational coefficient (dimensionless) C-rational coefficient (dimensionless) –See Appendix C-1 of your book L o is overland flow length (ft) L o is overland flow length (ft) S o is overland slope (decimal format) S o is overland slope (decimal format)

17 Nomograph Your book – C-2 Your book – C-2 –Length –Ground character Paved Paved Bare soil Bare soil Poor, average or dense grass Poor, average or dense grass –Percent slope

18 Example Dense Grass (n=0.24, C=0.2) Dense Grass (n=0.24, C=0.2) Flow Length (200 ft) Flow Length (200 ft) Location (SUNYIT; 2-yr 24-hr duration) Location (SUNYIT; 2-yr 24-hr duration) Slope (3%) Slope (3%)

19 Example: Manning’s Kinematic Solution T t =[0.007(nL).8 ]/[P 2.5 S.4 ] T t =[0.007(nL).8 ]/[P 2.5 S.4 ] T t =[0.007(.24*200).8 ]/[2.5.5 *.03.4 ] T t =[0.007(.24*200).8 ]/[2.5.5 *.03.4 ] n=.24 n=.24 L=200 ft L=200 ft P 2 = 2.5 in (TR-55; Figure B-3) P 2 = 2.5 in (TR-55; Figure B-3) S =.03 S =.03 T t =0.398 hours = 24 minutes T t =0.398 hours = 24 minutes

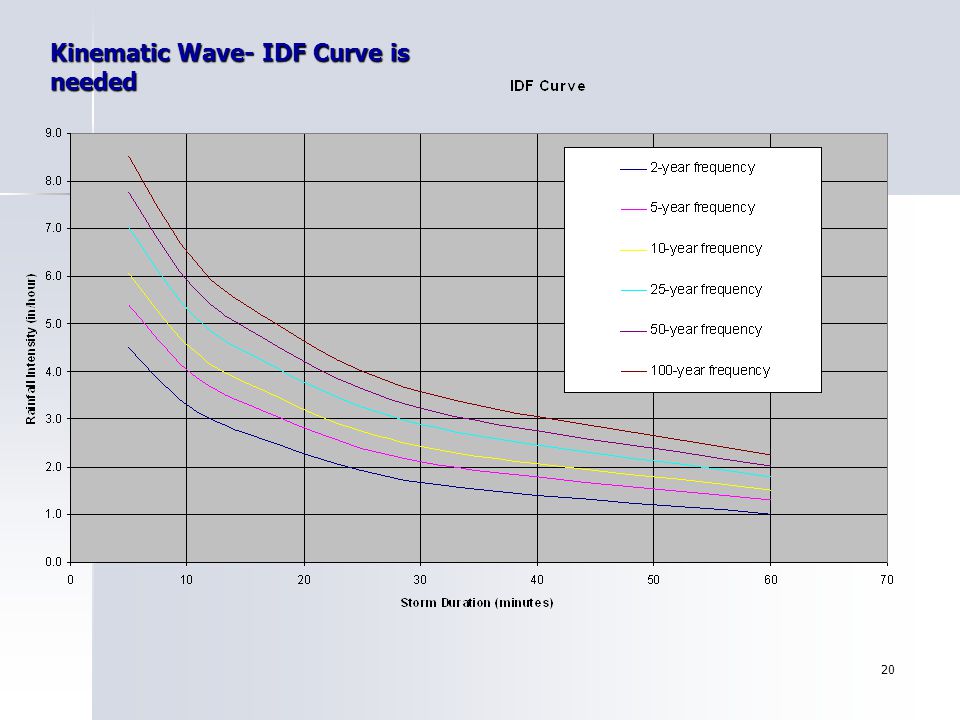

20 Kinematic Wave- IDF Curve is needed

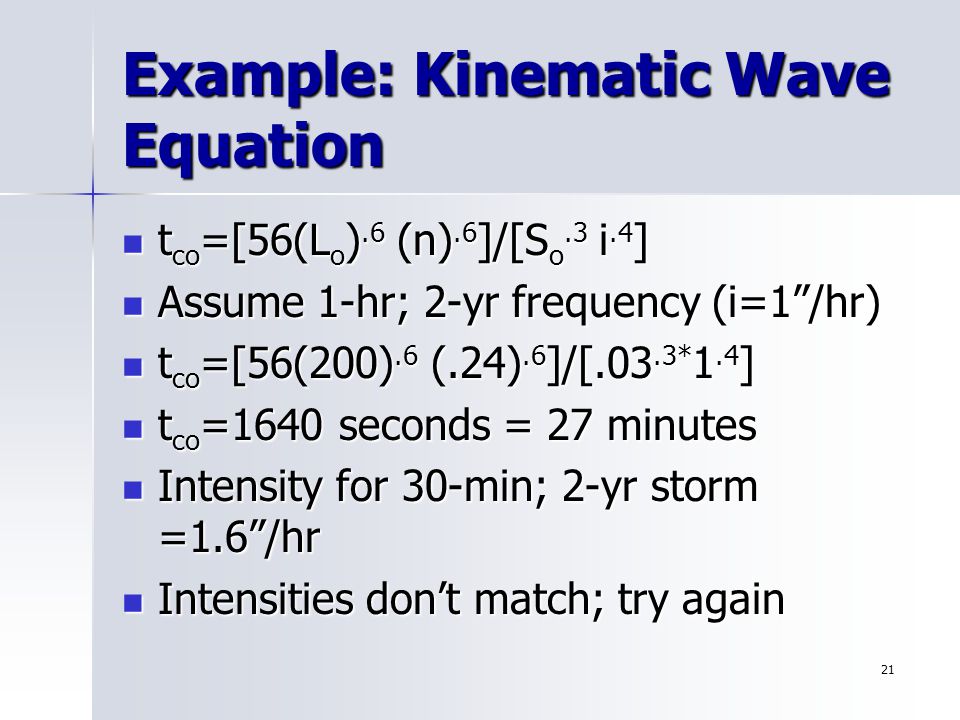

21 Example: Kinematic Wave Equation t co =[56(L o ).6 (n).6 ]/[S o.3 i.4 ] t co =[56(L o ).6 (n).6 ]/[S o.3 i.4 ] Assume 1-hr; 2-yr frequency (i=1”/hr) Assume 1-hr; 2-yr frequency (i=1”/hr) t co =[56(200).6 (.24).6 ]/[.03.3* 1.4 ] t co =[56(200).6 (.24).6 ]/[.03.3* 1.4 ] t co =1640 seconds = 27 minutes t co =1640 seconds = 27 minutes Intensity for 30-min; 2-yr storm =1.6”/hr Intensity for 30-min; 2-yr storm =1.6”/hr Intensities don’t match; try again Intensities don’t match; try again

22 Kinematic Wave-Trial/Error (Tc=9 minutes) Assumed I Time of Conc. Actual i 1 in/hr 28 minutes 1.6 in/hr 1.6172.4 2.4113.1 3.193.1

23 Example: FAA Equation t=[1.8(1.1-C)(L o ).5 ]/[S.333 ] t=[1.8(1.1-C)(L o ).5 ]/[S.333 ] t=[1.8(1.1-.2)(200).5 ]/[.03.333 ] t=[1.8(1.1-.2)(200).5 ]/[.03.333 ] C=.2 C=.2 L o =200 ft L o =200 ft S o =.03 S o =.03 t = 41 min t = 41 min

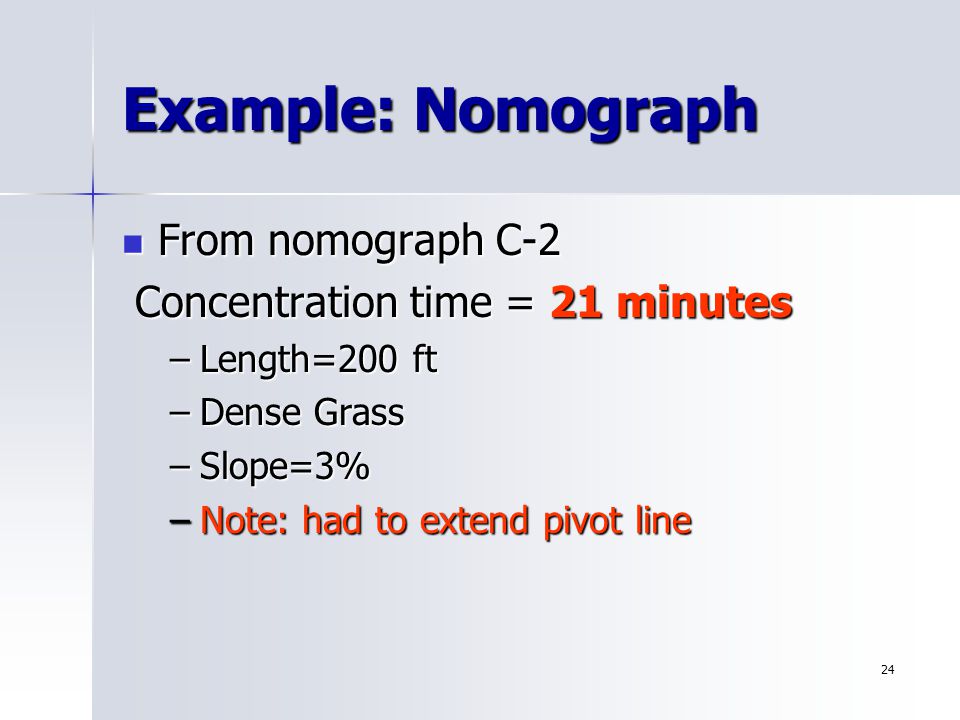

24 Example: Nomograph From nomograph C-2 From nomograph C-2 Concentration time = 21 minutes Concentration time = 21 minutes –Length=200 ft –Dense Grass –Slope=3% –Note: had to extend pivot line

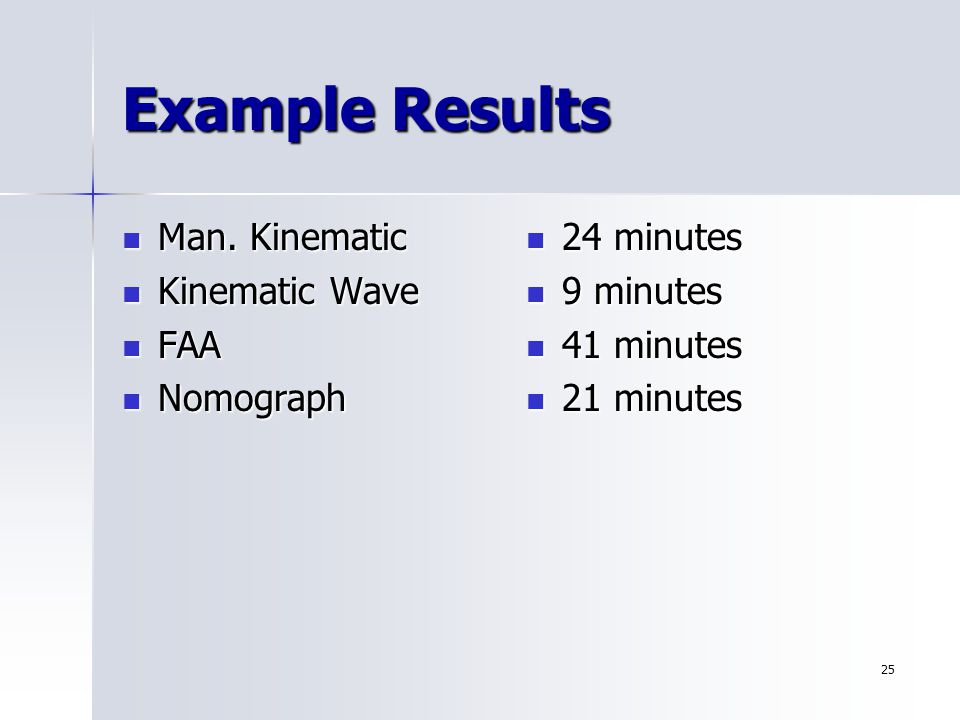

25 Example Results Man. Kinematic Man. Kinematic Kinematic Wave Kinematic Wave FAA FAA Nomograph Nomograph 24 minutes 24 minutes 9 minutes 9 minutes 41 minutes 41 minutes 21 minutes 21 minutes

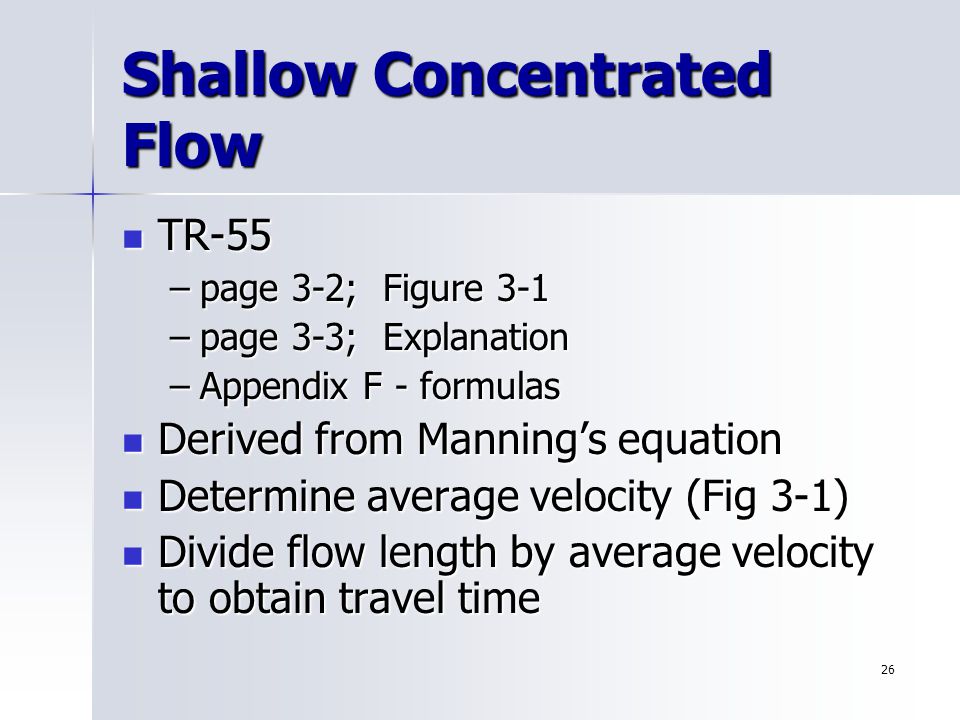

26 Shallow Concentrated Flow TR-55 TR-55 –page 3-2; Figure 3-1 –page 3-3; Explanation –Appendix F - formulas Derived from Manning’s equation Derived from Manning’s equation Determine average velocity (Fig 3-1) Determine average velocity (Fig 3-1) Divide flow length by average velocity to obtain travel time Divide flow length by average velocity to obtain travel time

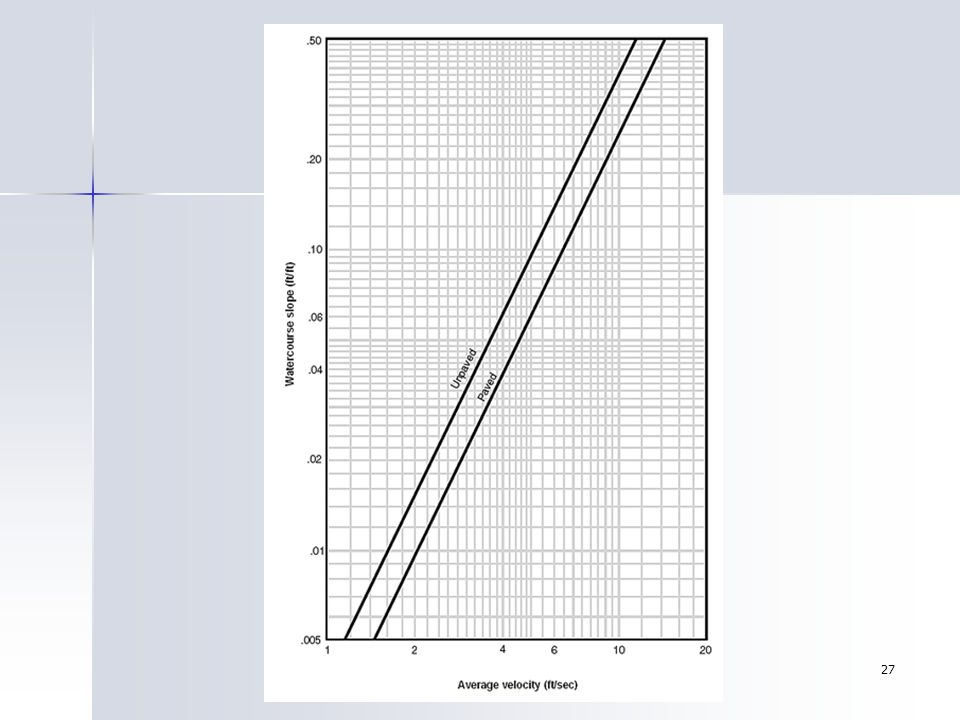

27

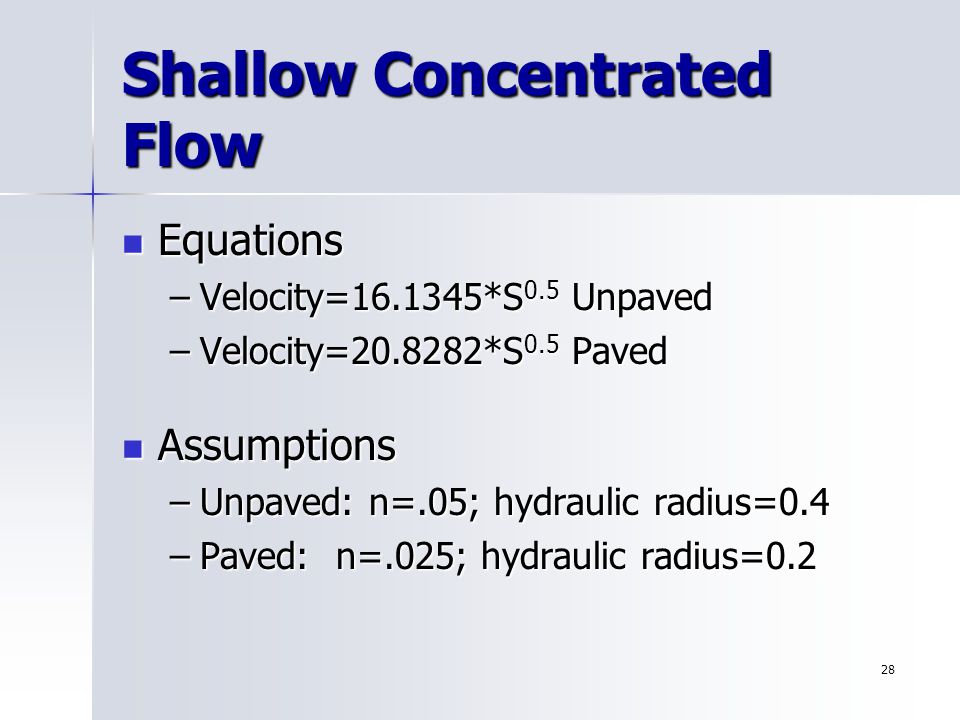

28 Shallow Concentrated Flow Equations Equations –Velocity=16.1345*S 0.5 Unpaved –Velocity=20.8282*S 0.5 Paved Assumptions Assumptions –Unpaved: n=.05; hydraulic radius=0.4 –Paved: n=.025; hydraulic radius=0.2

29 Open Channel Flow Manning’s Equation (TR-55, page 3-4) Manning’s Equation (TR-55, page 3-4) Calculate average velocity Calculate average velocity Divide flow length by average velocity to obtain travel time Divide flow length by average velocity to obtain travel time

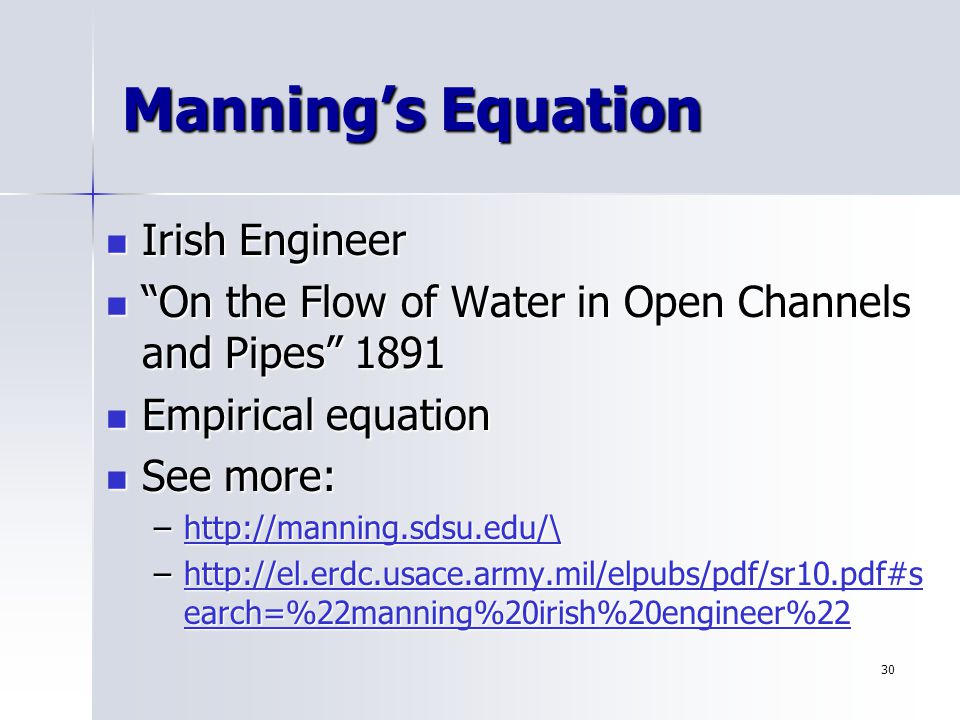

30 Manning’s Equation Irish Engineer Irish Engineer “On the Flow of Water in Open Channels and Pipes” 1891 “On the Flow of Water in Open Channels and Pipes” 1891 Empirical equation Empirical equation See more: See more: –http://manning.sdsu.edu/\ http://manning.sdsu.edu/\ –http://el.erdc.usace.army.mil/elpubs/pdf/sr10.pdf#s earch=%22manning%20irish%20engineer%22 http://el.erdc.usace.army.mil/elpubs/pdf/sr10.pdf#s earch=%22manning%20irish%20engineer%22http://el.erdc.usace.army.mil/elpubs/pdf/sr10.pdf#s earch=%22manning%20irish%20engineer%22

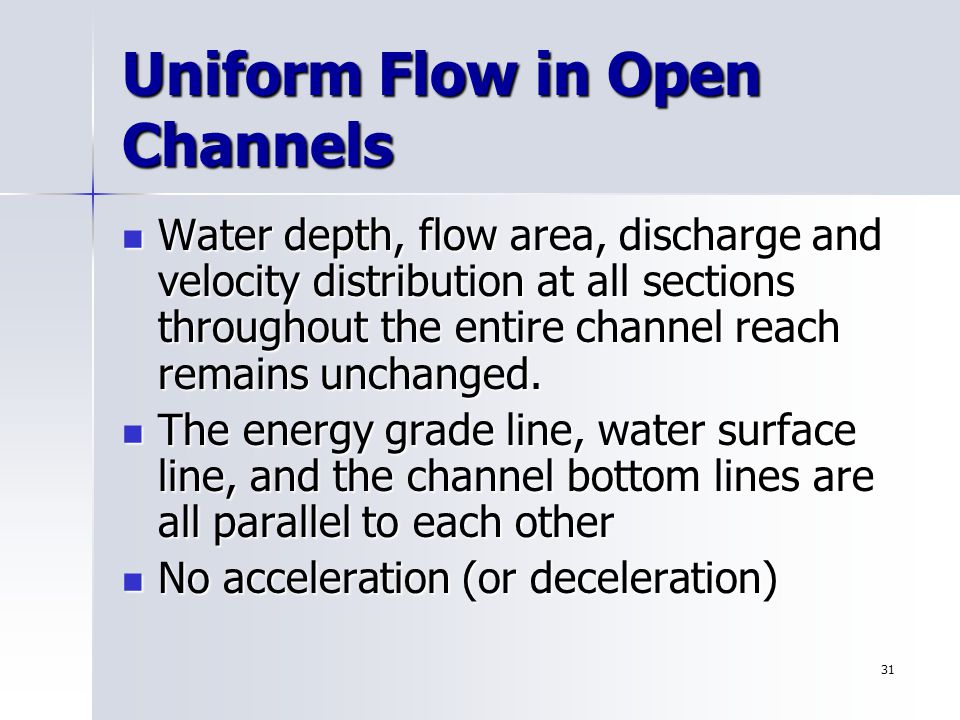

31 Uniform Flow in Open Channels Water depth, flow area, discharge and velocity distribution at all sections throughout the entire channel reach remains unchanged. Water depth, flow area, discharge and velocity distribution at all sections throughout the entire channel reach remains unchanged. The energy grade line, water surface line, and the channel bottom lines are all parallel to each other The energy grade line, water surface line, and the channel bottom lines are all parallel to each other No acceleration (or deceleration) No acceleration (or deceleration)

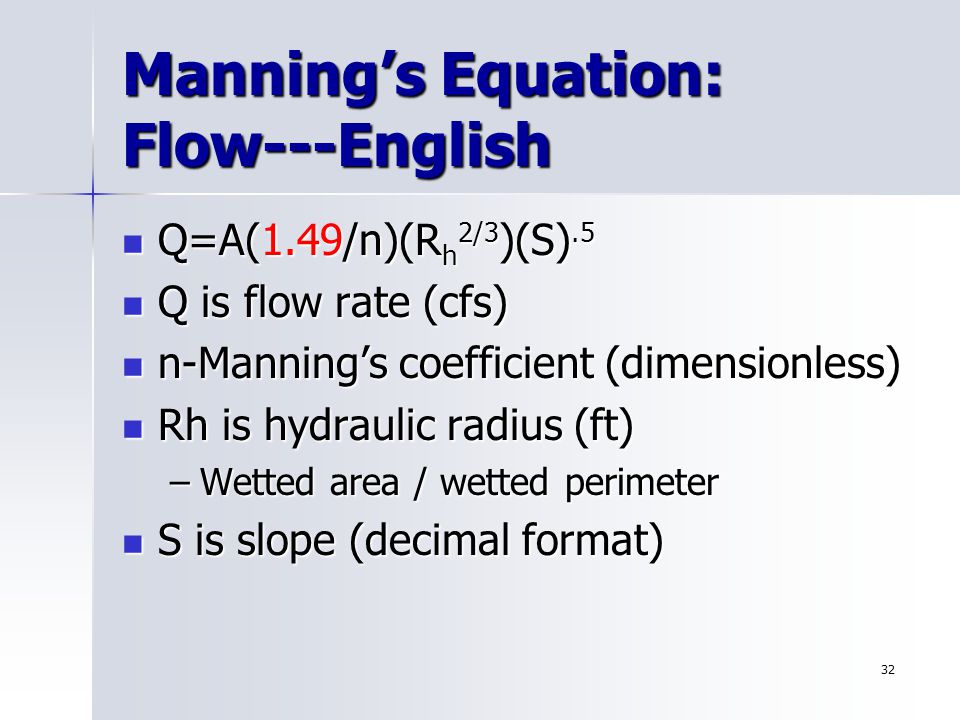

32 Manning’s Equation: Flow---English Q=A(1.49/n)(R h 2/3 )(S).5 Q=A(1.49/n)(R h 2/3 )(S).5 Q is flow rate (cfs) Q is flow rate (cfs) n-Manning’s coefficient (dimensionless) n-Manning’s coefficient (dimensionless) Rh is hydraulic radius (ft) Rh is hydraulic radius (ft) –Wetted area / wetted perimeter S is slope (decimal format) S is slope (decimal format)

33 Manning’s Equation: Flow---Metric Q=A(1/n)(R h 2/3 )(S).5 Q=A(1/n)(R h 2/3 )(S).5 Q is flow rate (cms) Q is flow rate (cms) n-Manning’s coefficient (dimensionless) n-Manning’s coefficient (dimensionless) R h is hydraulic radius (m) R h is hydraulic radius (m) –Wetted area / wetted perimeter S is slope (decimal format) S is slope (decimal format)

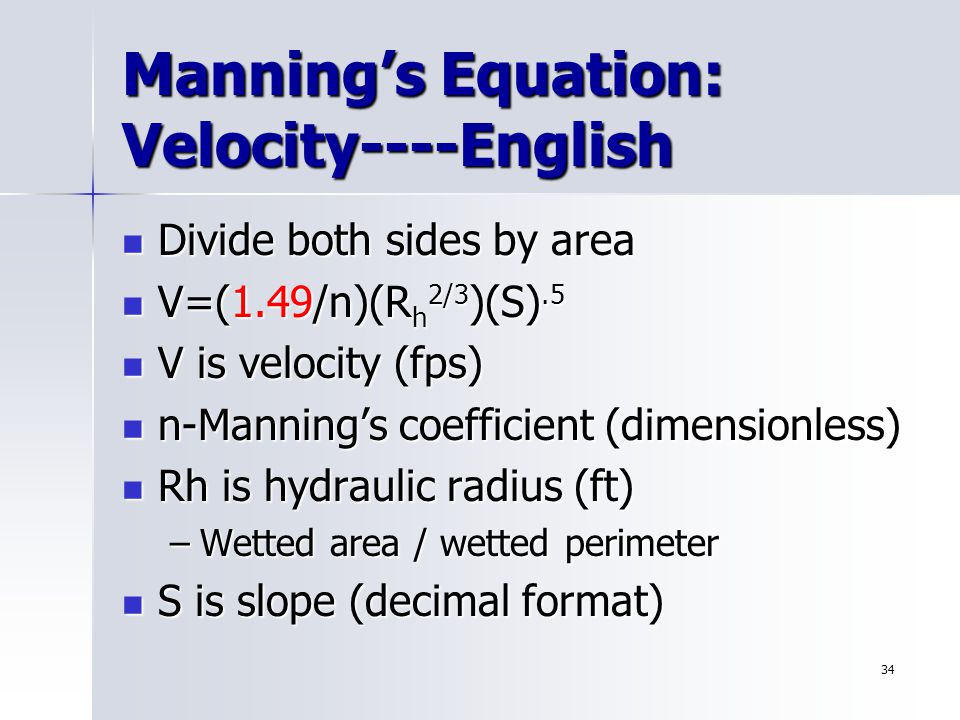

34 Manning’s Equation: Velocity----English Divide both sides by area Divide both sides by area V=(1.49/n)(R h 2/3 )(S).5 V=(1.49/n)(R h 2/3 )(S).5 V is velocity (fps) V is velocity (fps) n-Manning’s coefficient (dimensionless) n-Manning’s coefficient (dimensionless) Rh is hydraulic radius (ft) Rh is hydraulic radius (ft) –Wetted area / wetted perimeter S is slope (decimal format) S is slope (decimal format)

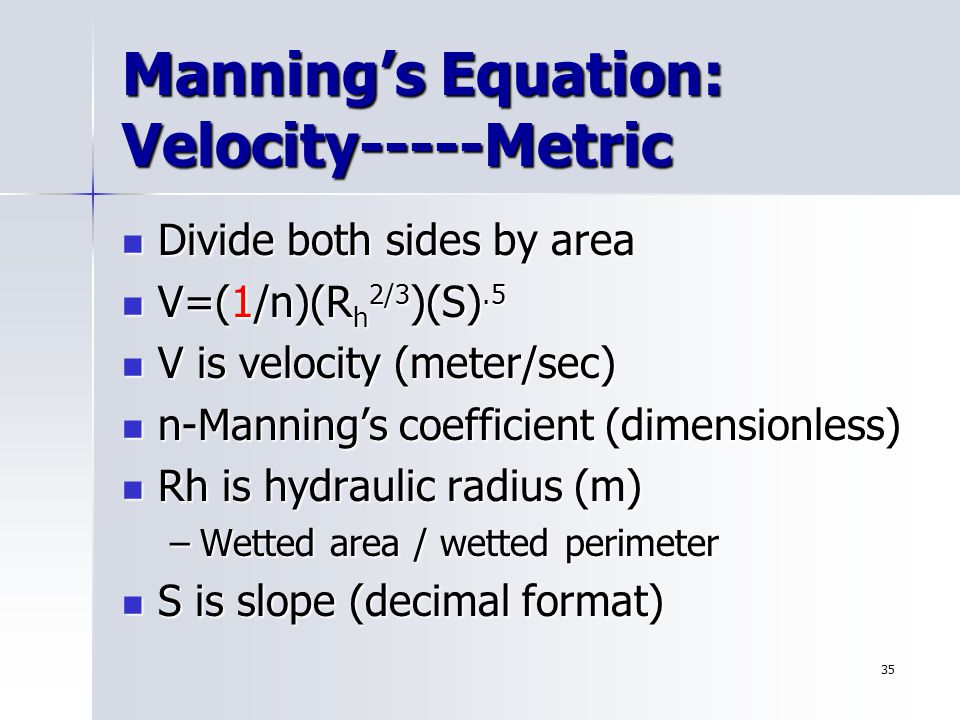

35 Manning’s Equation: Velocity-----Metric Divide both sides by area Divide both sides by area V=(1/n)(R h 2/3 )(S).5 V=(1/n)(R h 2/3 )(S).5 V is velocity (meter/sec) V is velocity (meter/sec) n-Manning’s coefficient (dimensionless) n-Manning’s coefficient (dimensionless) Rh is hydraulic radius (m) Rh is hydraulic radius (m) –Wetted area / wetted perimeter S is slope (decimal format) S is slope (decimal format)

36 Manning’s Coefficient Typical Values Appendix A-1 from your book Appendix A-1 from your book Other ref: Other ref: –http://www.fhwa.dot.gov/bridge/wsp2339.pdf http://www.fhwa.dot.gov/bridge/wsp2339.pdf –http://www.lmnoeng.com/manningn.htm http://www.lmnoeng.com/manningn.htm

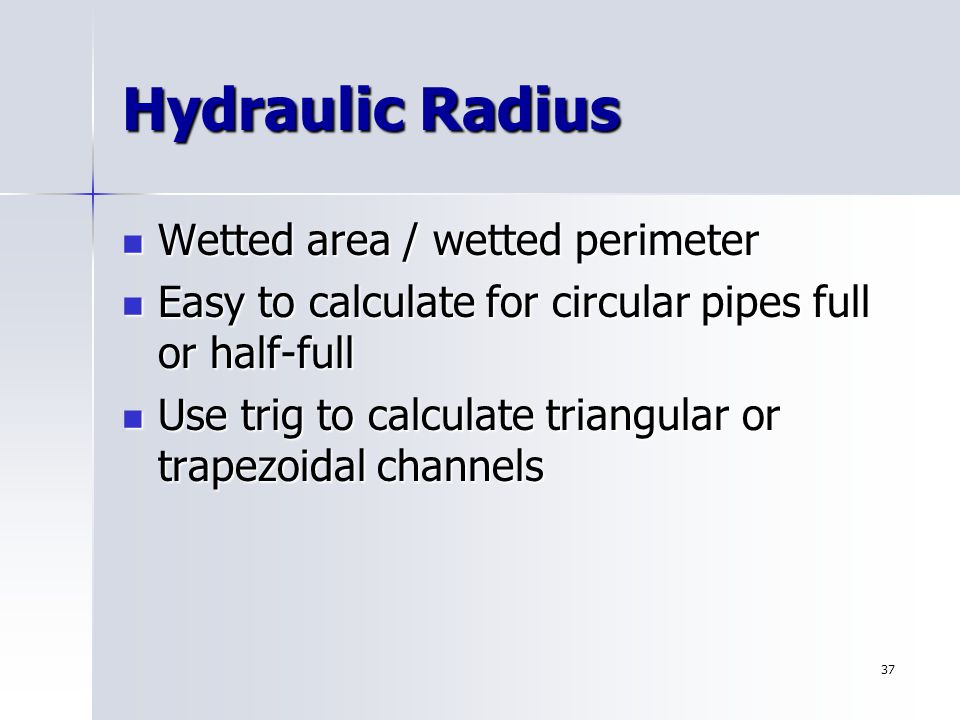

37 Hydraulic Radius Wetted area / wetted perimeter Wetted area / wetted perimeter Easy to calculate for circular pipes full or half-full Easy to calculate for circular pipes full or half-full Use trig to calculate triangular or trapezoidal channels Use trig to calculate triangular or trapezoidal channels

38

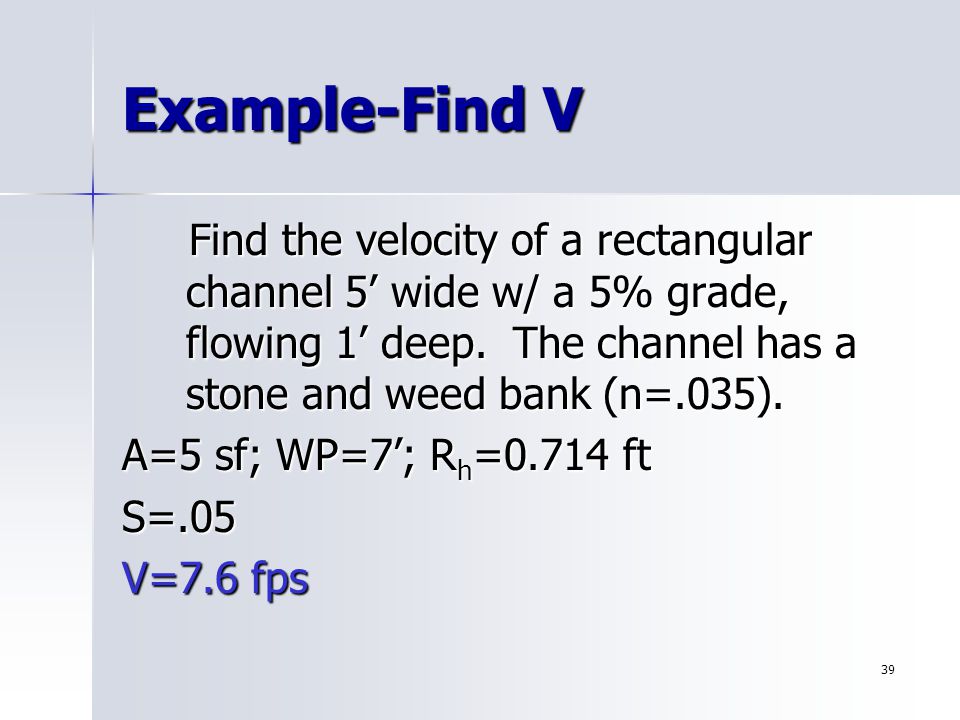

39 Example-Find V Find the velocity of a rectangular channel 5’ wide w/ a 5% grade, flowing 1’ deep. The channel has a stone and weed bank (n=.035). Find the velocity of a rectangular channel 5’ wide w/ a 5% grade, flowing 1’ deep. The channel has a stone and weed bank (n=.035). A=5 sf; WP=7’; R h =0.714 ft S=.05 V=7.6 fps

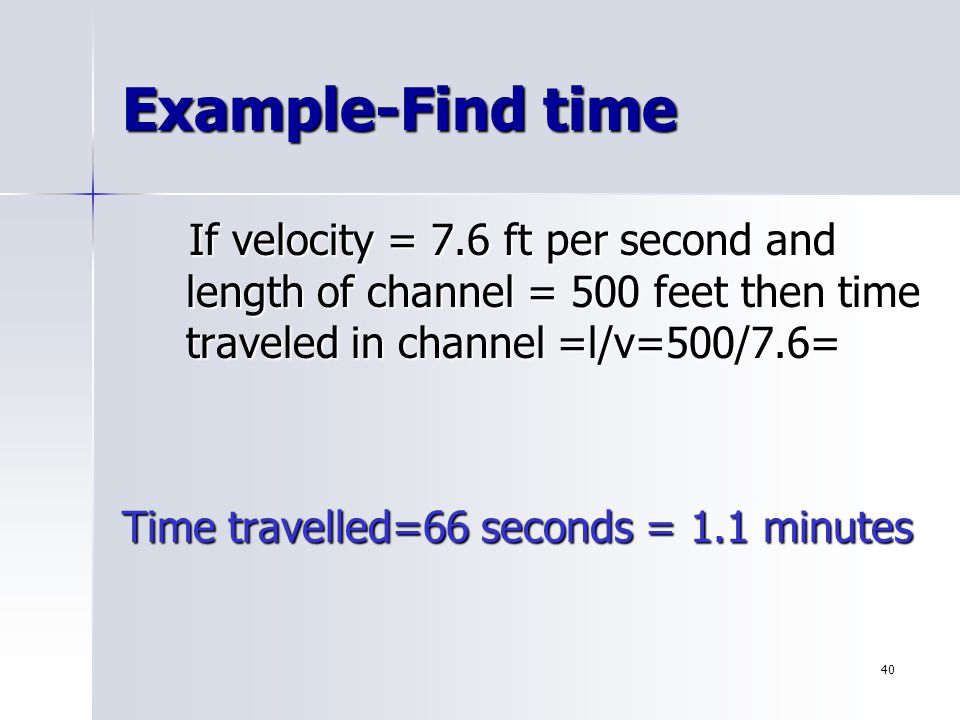

40 Example-Find time If velocity = 7.6 ft per second and length of channel = 500 feet then time traveled in channel =l/v=500/7.6= If velocity = 7.6 ft per second and length of channel = 500 feet then time traveled in channel =l/v=500/7.6= Time travelled=66 seconds = 1.1 minutes

Flowmaster Use flowmaster to solve previous example and to solve homework channel: Use flowmaster to solve previous example and to solve homework channel: 3’ Depth 3’ Depth 12’ top width and 6’ channel width 12’ top width and 6’ channel width Assume slope =3% Assume slope =3% Manning’s coefficient n=.032 Manning’s coefficient n=.032 41

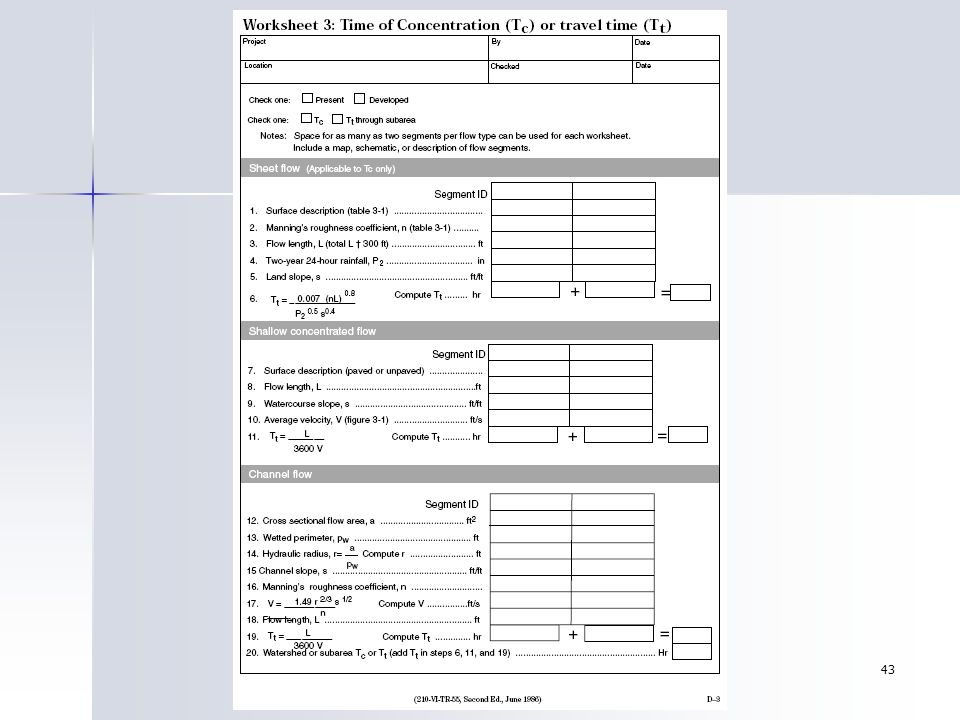

Time of Concentration Calculations For this class (homework, projects, etc.) use worksheet from the TR-55 Document For this class (homework, projects, etc.) use worksheet from the TR-55 DocumentTR-55 DocumentTR-55 Document Page D-3 (to print out blank form) Page D-3 (to print out blank form) Also show picture of lengths Also show picture of lengths 42

43

44 Next Lecture Rational Method for Determining Peak Flow Rational Method for Determining Peak Flow
