1 Lecture 7 Light and Telescopes II Advanced Telescopes

2 Announcements Details about the May Term Observational Astronomy course. Details about the May Term Observational Astronomy course. McM May Term runs May 14 to June 1 McM May Term runs May 14 to June 1 Class meets 5 days a week, 9 – 11:55 am Class meets 5 days a week, 9 – 11:55 am Prerequisite is college algebra (and this course) Prerequisite is college algebra (and this course) Travel costs will probably run about $600, depending on the number of students. Travel costs will probably run about $600, depending on the number of students. Observing trip to Arizona expected to be the middle week, subject to telescope scheduling. Observing trip to Arizona expected to be the middle week, subject to telescope scheduling. Side trips planned for The Grand Canyon and Beringar Crater (aka Meteor Crater). Side trips planned for The Grand Canyon and Beringar Crater (aka Meteor Crater).

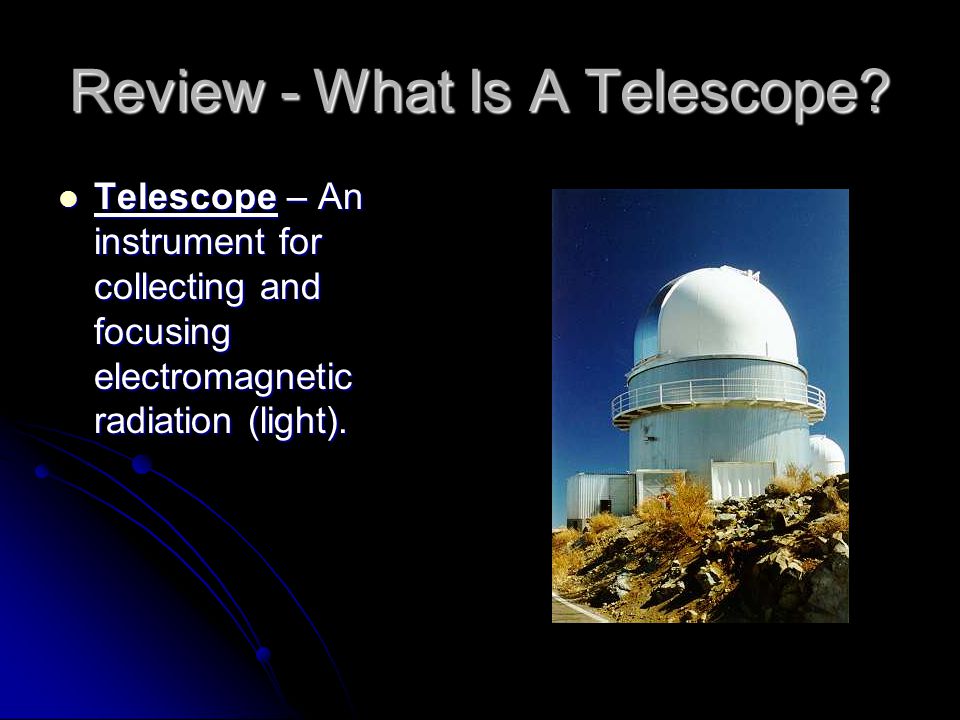

3 Review - What Is A Telescope? Telescope – An instrument for collecting and focusing electromagnetic radiation (light). Telescope – An instrument for collecting and focusing electromagnetic radiation (light).

4 Review - What Are Telescopes For? MYTH: The main function of a telescope is to magnify a distant object. MYTH: The main function of a telescope is to magnify a distant object. THIS MYTH IS FALSE! THIS MYTH IS FALSE! The main function of a telescope is to make the image of a distant object brighter and sharper! The main function of a telescope is to make the image of a distant object brighter and sharper!

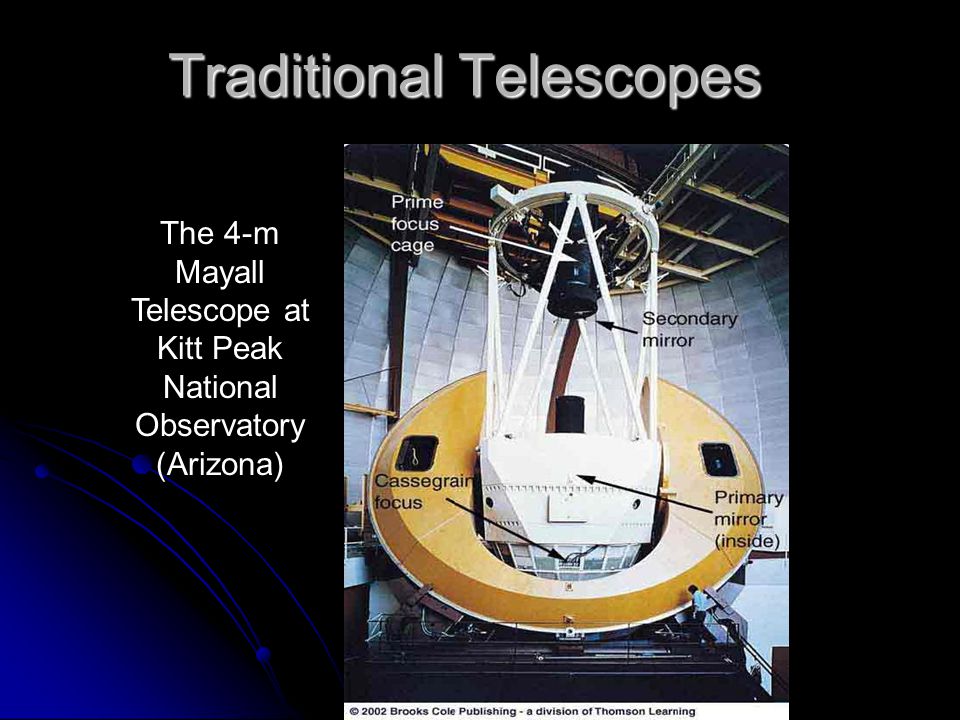

5 Traditional Telescopes The 4-m Mayall Telescope at Kitt Peak National Observatory (Arizona)

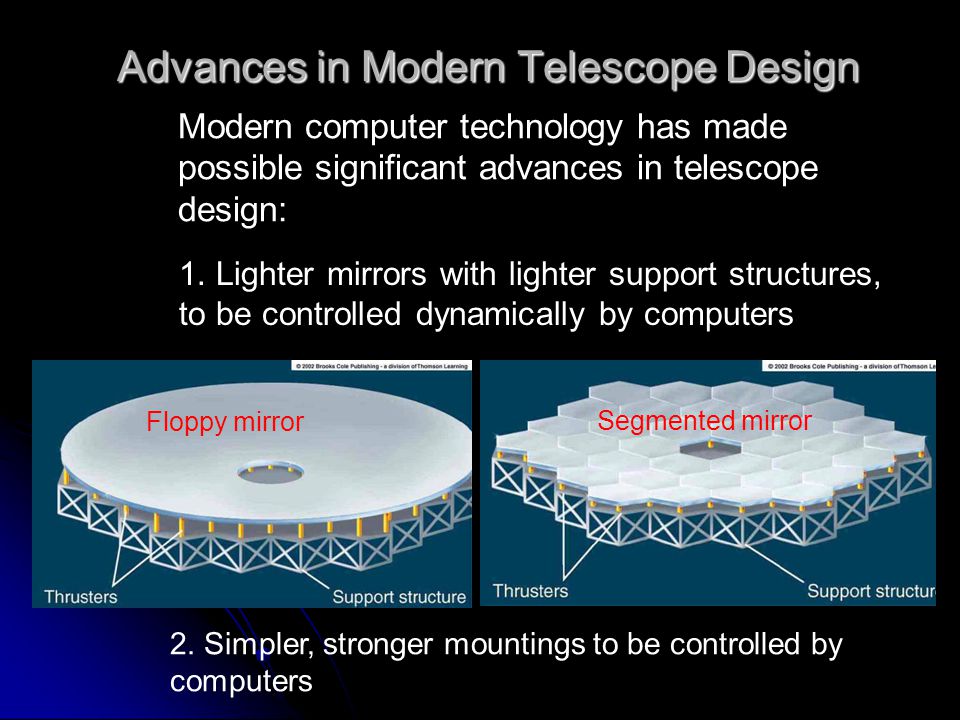

6 Advances in Modern Telescope Design 2. Simpler, stronger mountings to be controlled by computers 1. Lighter mirrors with lighter support structures, to be controlled dynamically by computers Floppy mirror Segmented mirror Modern computer technology has made possible significant advances in telescope design:

7 Segmented Mirror Telescope Mirror segments fit together like a puzzle. Mirror segments fit together like a puzzle. Computers align the mirror segments Computers align the mirror segments Keck I & II Telescopes are each 10 meters Keck I & II Telescopes are each 10 meters Hobby-Eberly Telescope at McDonald Observatory in Texas is a 9.2 meter segmented mirror design Hobby-Eberly Telescope at McDonald Observatory in Texas is a 9.2 meter segmented mirror design

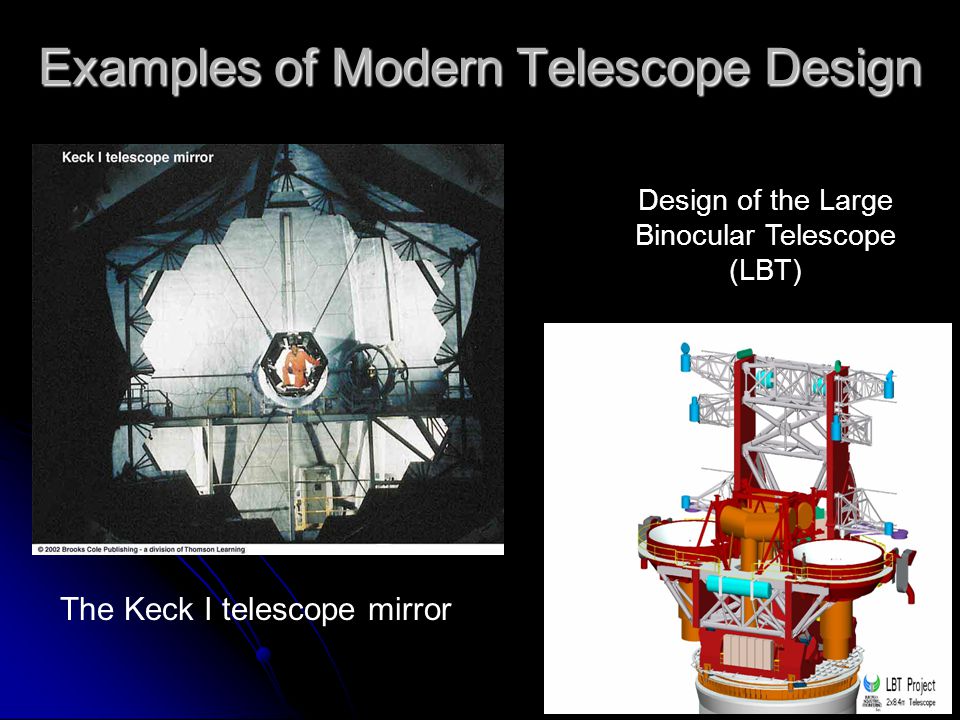

8 Examples of Modern Telescope Design Design of the Large Binocular Telescope (LBT) The Keck I telescope mirror

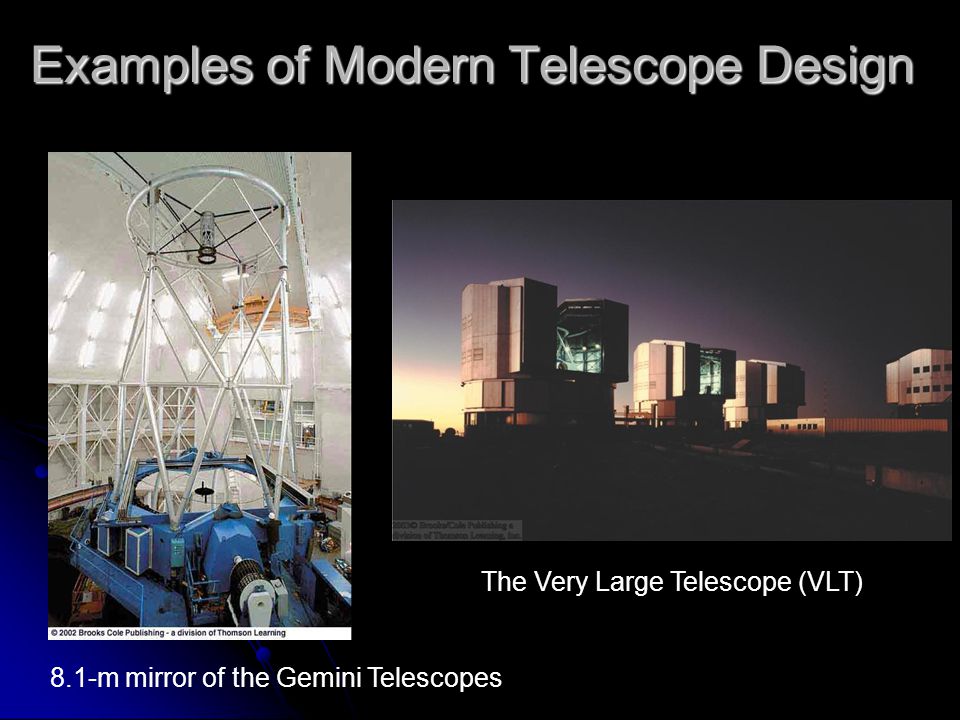

9 Examples of Modern Telescope Design 8.1-m mirror of the Gemini Telescopes The Very Large Telescope (VLT)

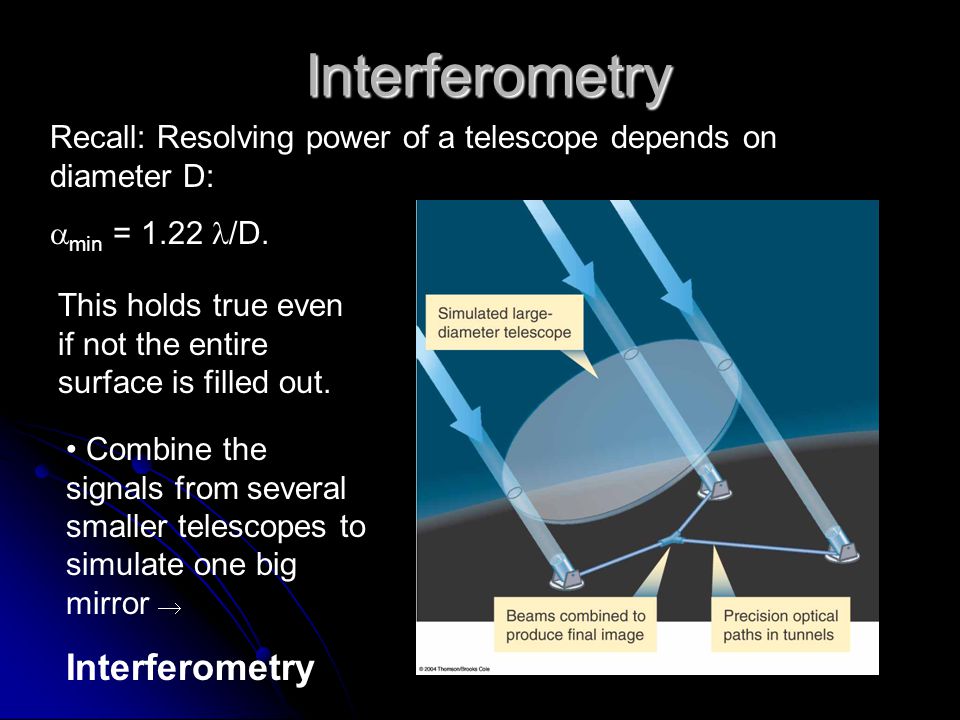

10 Interferometry Recall: Resolving power of a telescope depends on diameter D:  min = 1.22 /D. This holds true even if not the entire surface is filled out. Combine the signals from several smaller telescopes to simulate one big mirror  Interferometry

11 Keck Interferometer

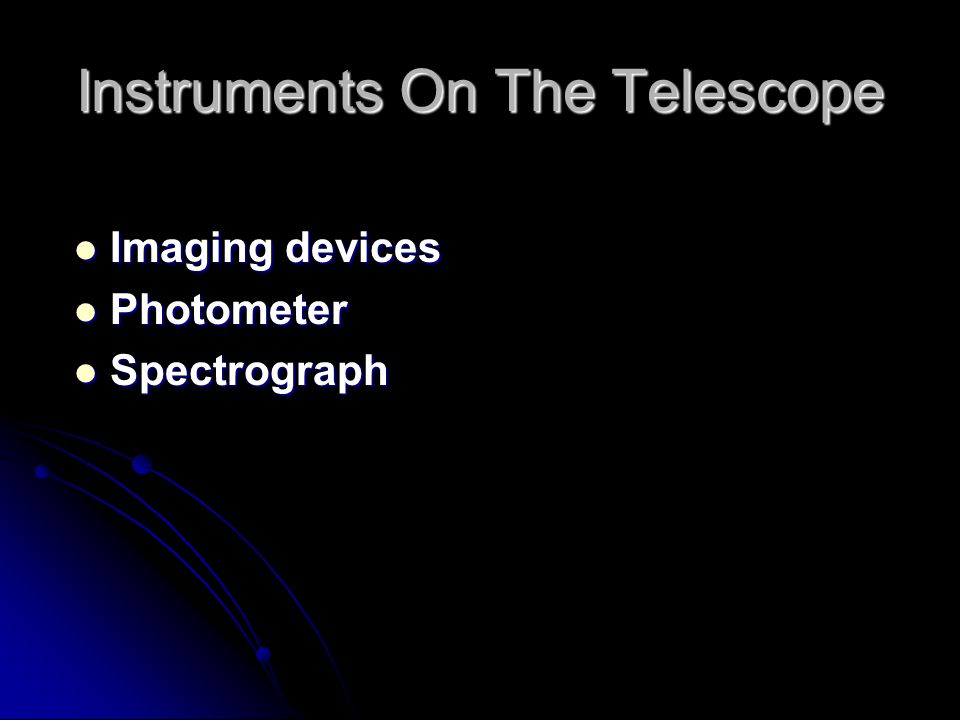

12 Imaging devices Imaging devices Photometer Photometer Spectrograph Spectrograph Instruments On The Telescope

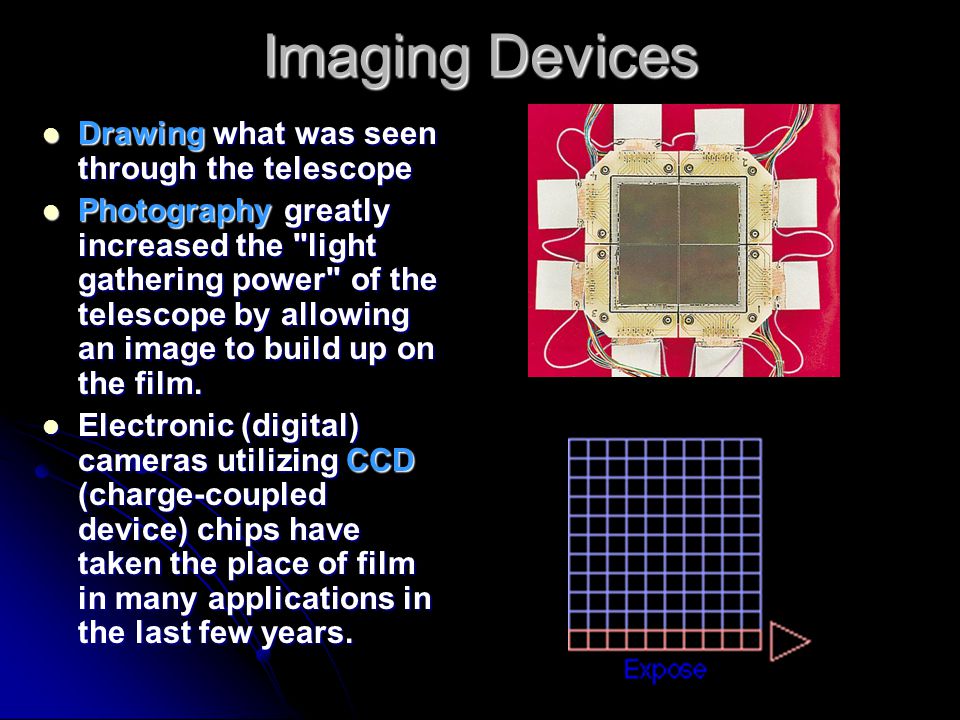

13 Imaging Devices Drawing what was seen through the telescope Drawing what was seen through the telescope Photography greatly increased the "light gathering power" of the telescope by allowing an image to build up on the film. Photography greatly increased the "light gathering power" of the telescope by allowing an image to build up on the film. Electronic (digital) cameras utilizing CCD (charge-coupled device) chips have taken the place of film in many applications in the last few years. Electronic (digital) cameras utilizing CCD (charge-coupled device) chips have taken the place of film in many applications in the last few years.

14 CCD Imaging More sensitive than photographic plates Data can be read directly into computer memory, allowing easy electronic manipulations Negative image to enhance contrasts False-color image to visualize brightness contours CCD = Charge-coupled device

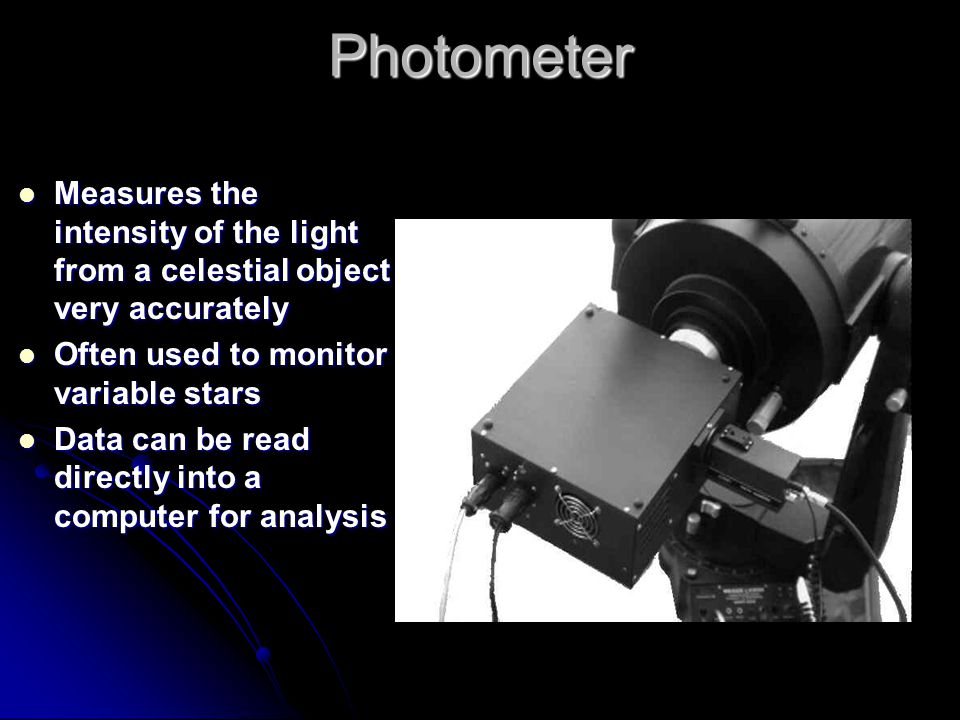

15 Photometer Measures the intensity of the light from a celestial object very accurately Measures the intensity of the light from a celestial object very accurately Often used to monitor variable stars Often used to monitor variable stars Data can be read directly into a computer for analysis Data can be read directly into a computer for analysis

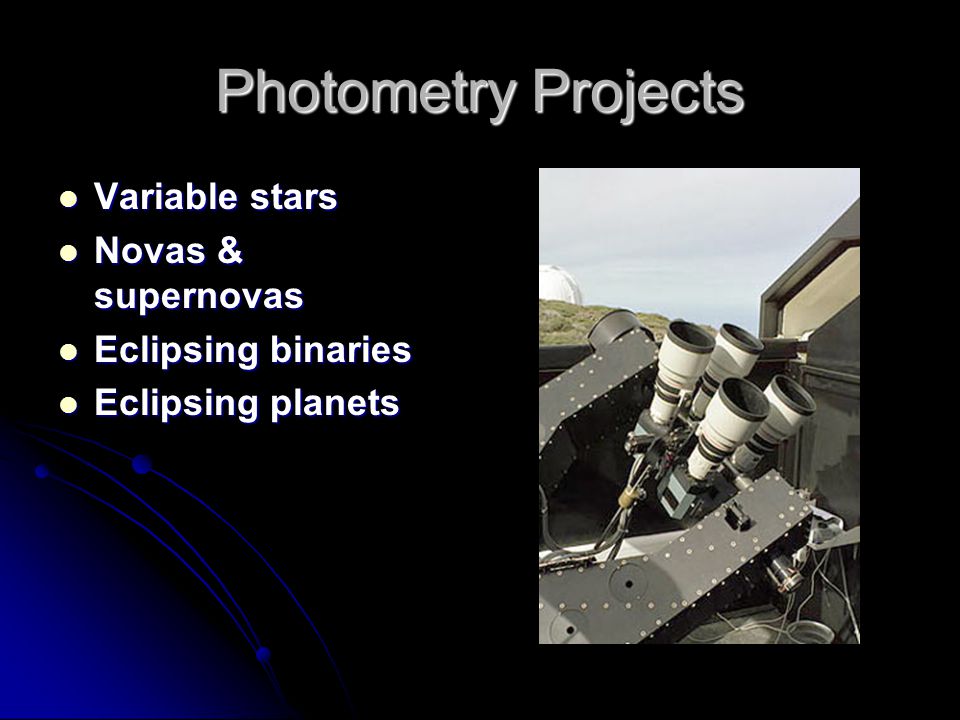

16 Photometry Projects Variable stars Variable stars Novas & supernovas Novas & supernovas Eclipsing binaries Eclipsing binaries Eclipsing planets Eclipsing planets

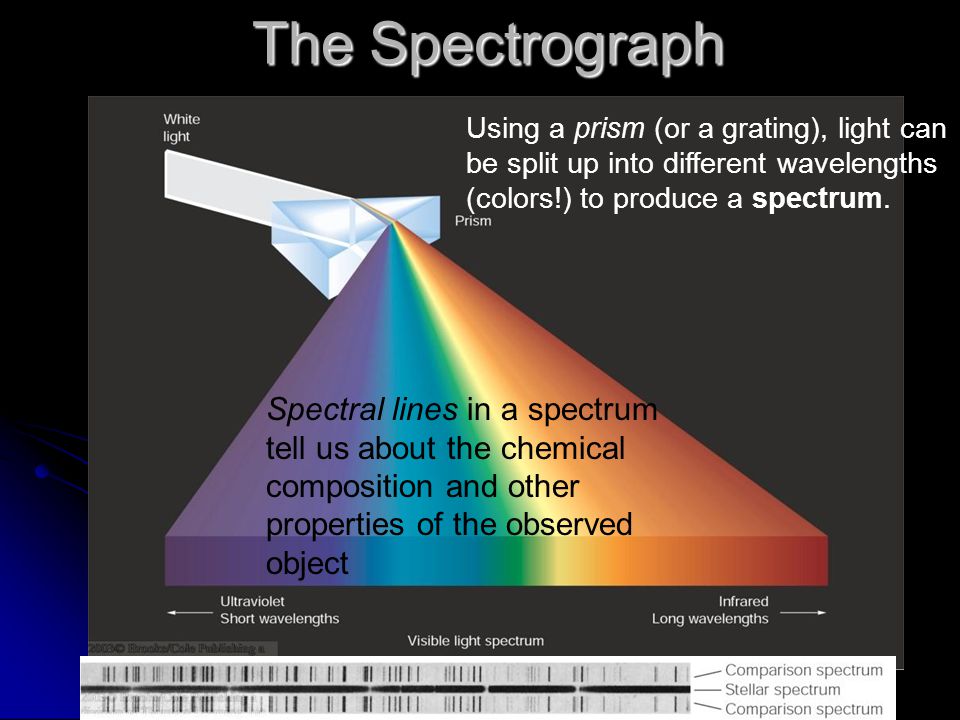

17 The Spectrograph Using a prism (or a grating), light can be split up into different wavelengths (colors!) to produce a spectrum. Spectral lines in a spectrum tell us about the chemical composition and other properties of the observed object

18 In which device do astronomers take advantage of chromatic aberration? A. The primary mirrors of reflecting telescopes. B. The primary lenses of refracting telescopes. C. The prism. D. The photometer. Daily Quiz 9 – Question 1

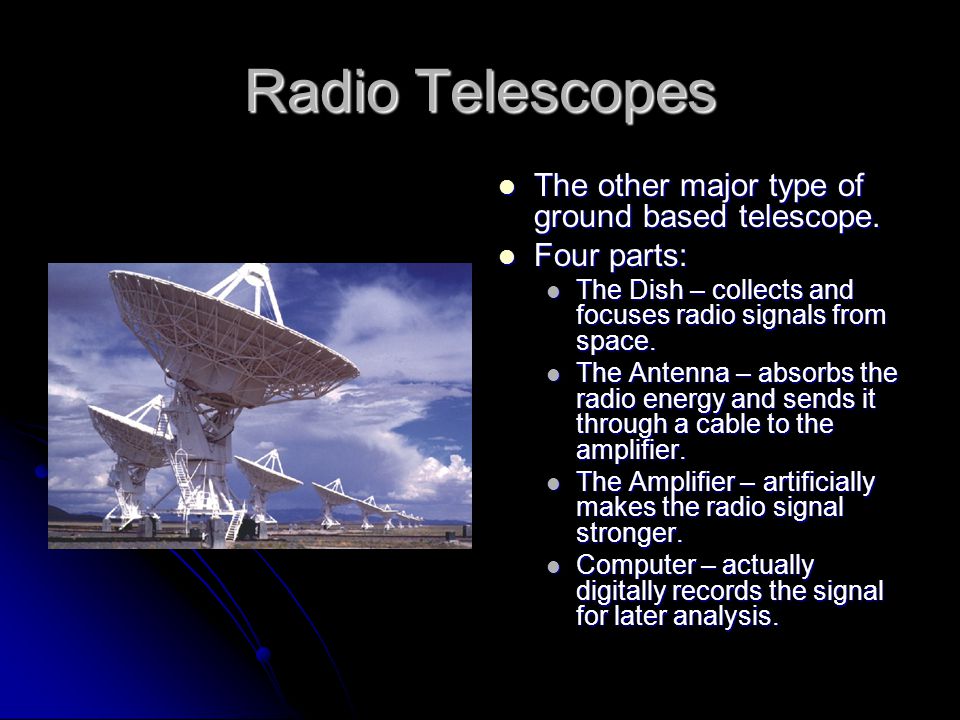

19 Radio Telescopes The other major type of ground based telescope. The other major type of ground based telescope. Four parts: Four parts: The Dish – collects and focuses radio signals from space. The Antenna – absorbs the radio energy and sends it through a cable to the amplifier. The Amplifier – artificially makes the radio signal stronger. Computer – actually digitally records the signal for later analysis.

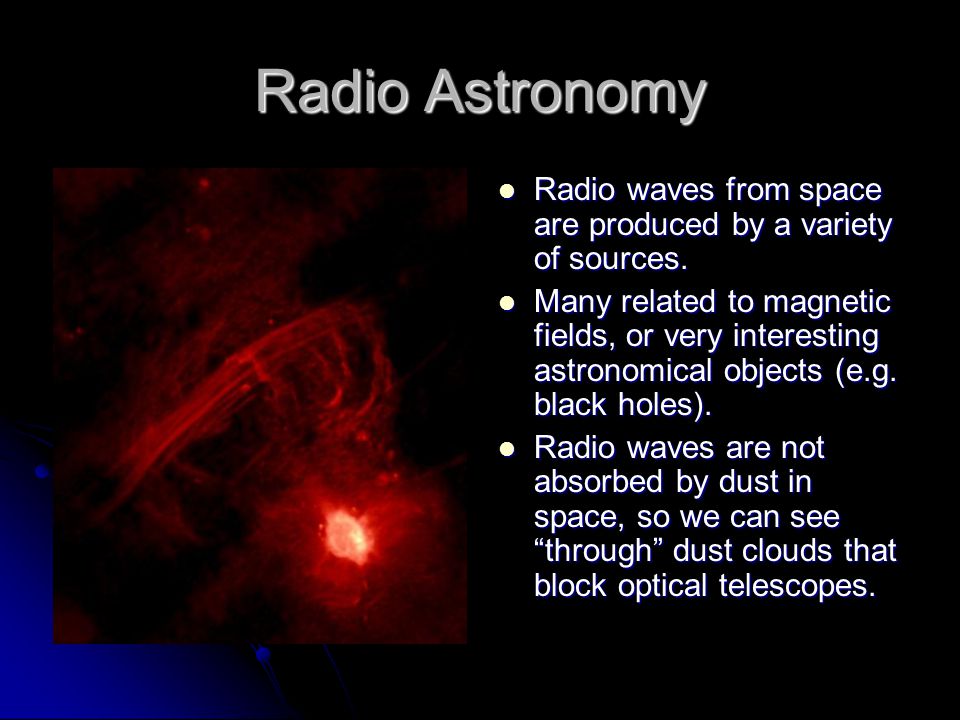

20 Radio Astronomy Radio waves from space are produced by a variety of sources. Radio waves from space are produced by a variety of sources. Many related to magnetic fields, or very interesting astronomical objects (e.g. black holes). Many related to magnetic fields, or very interesting astronomical objects (e.g. black holes). Radio waves are not absorbed by dust in space, so we can see “through” dust clouds that block optical telescopes. Radio waves are not absorbed by dust in space, so we can see “through” dust clouds that block optical telescopes.

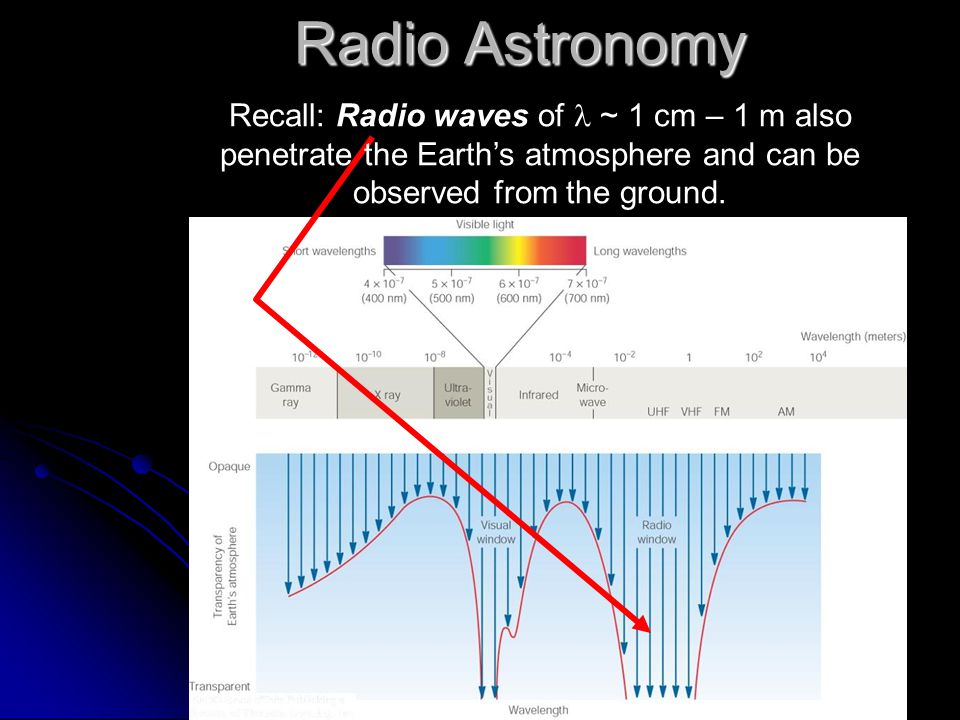

21 Radio Astronomy Recall: Radio waves of ~ 1 cm – 1 m also penetrate the Earth’s atmosphere and can be observed from the ground.

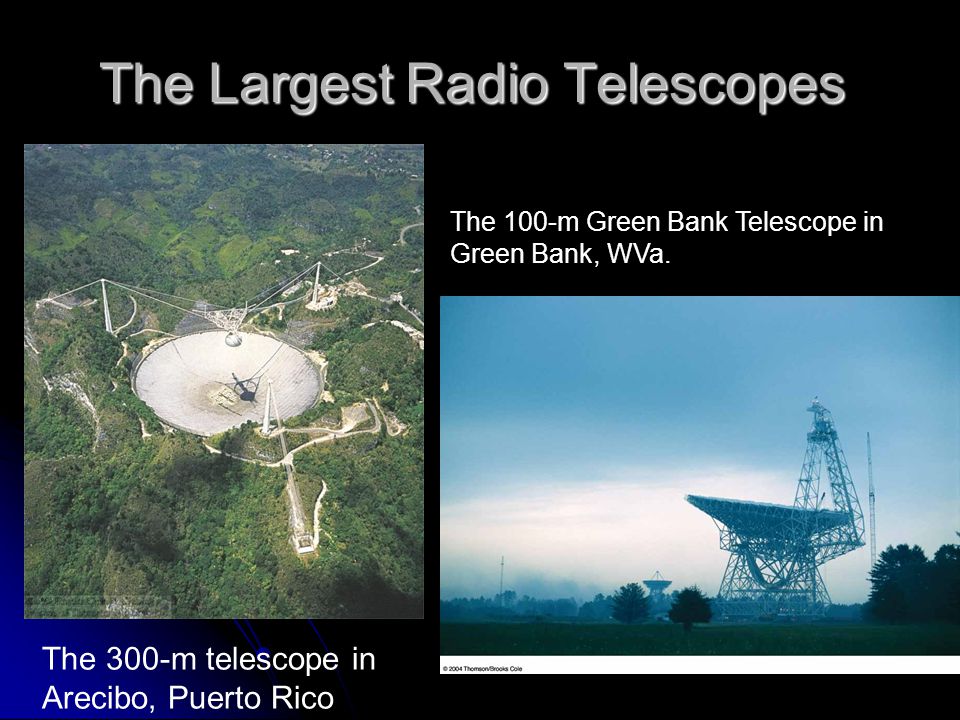

22 The Largest Radio Telescopes The 100-m Green Bank Telescope in Green Bank, WVa. The 300-m telescope in Arecibo, Puerto Rico

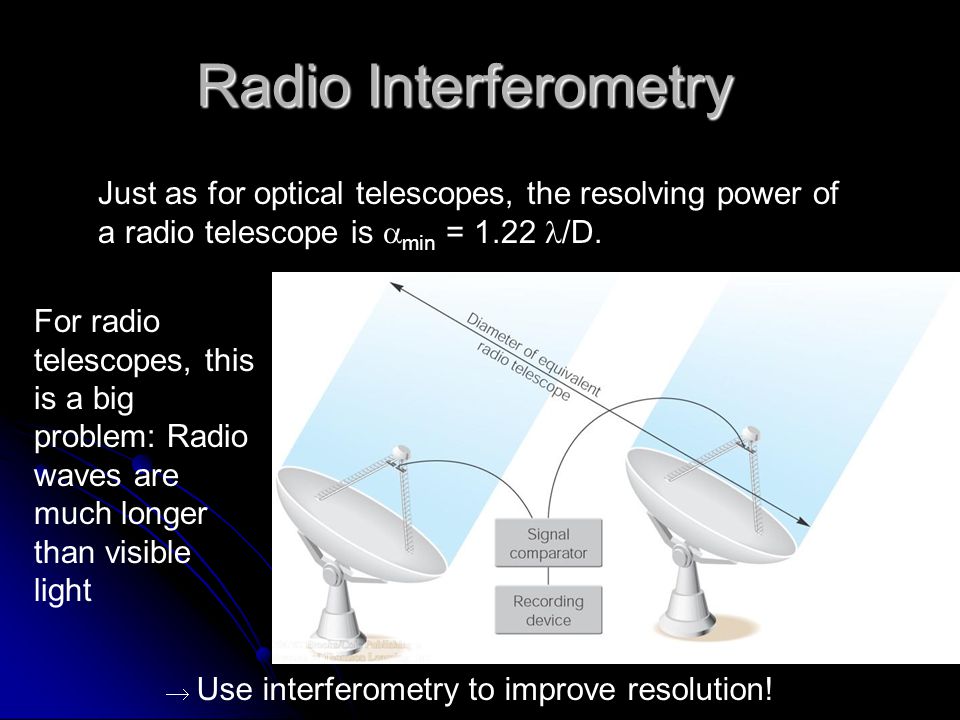

23 Just as for optical telescopes, the resolving power of a radio telescope is  min = 1.22 /D. For radio telescopes, this is a big problem: Radio waves are much longer than visible light  Use interferometry to improve resolution! Radio Interferometry

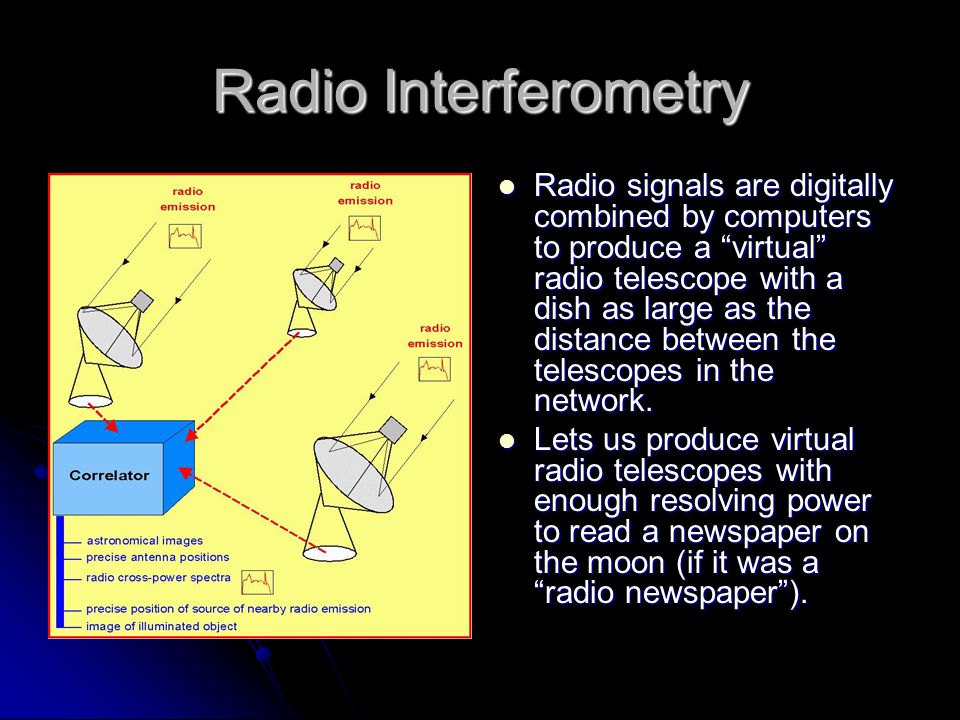

24 Radio signals are digitally combined by computers to produce a “virtual” radio telescope with a dish as large as the distance between the telescopes in the network. Radio signals are digitally combined by computers to produce a “virtual” radio telescope with a dish as large as the distance between the telescopes in the network. Lets us produce virtual radio telescopes with enough resolving power to read a newspaper on the moon (if it was a “radio newspaper”). Lets us produce virtual radio telescopes with enough resolving power to read a newspaper on the moon (if it was a “radio newspaper”).

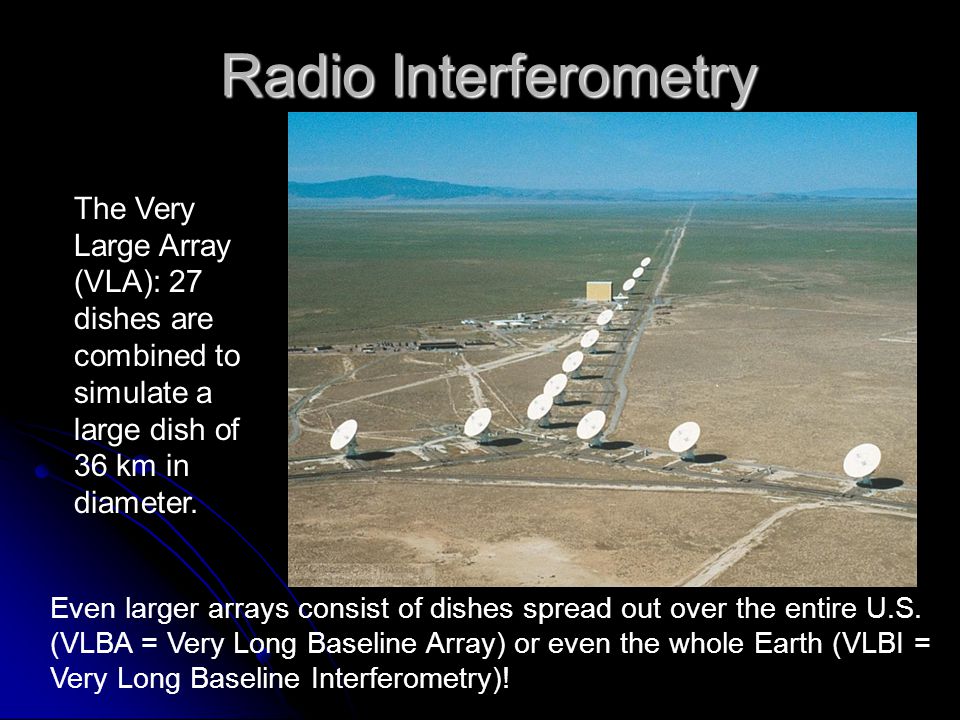

25 Radio Interferometry The Very Large Array (VLA): 27 dishes are combined to simulate a large dish of 36 km in diameter. Even larger arrays consist of dishes spread out over the entire U.S. (VLBA = Very Long Baseline Array) or even the whole Earth (VLBI = Very Long Baseline Interferometry)!

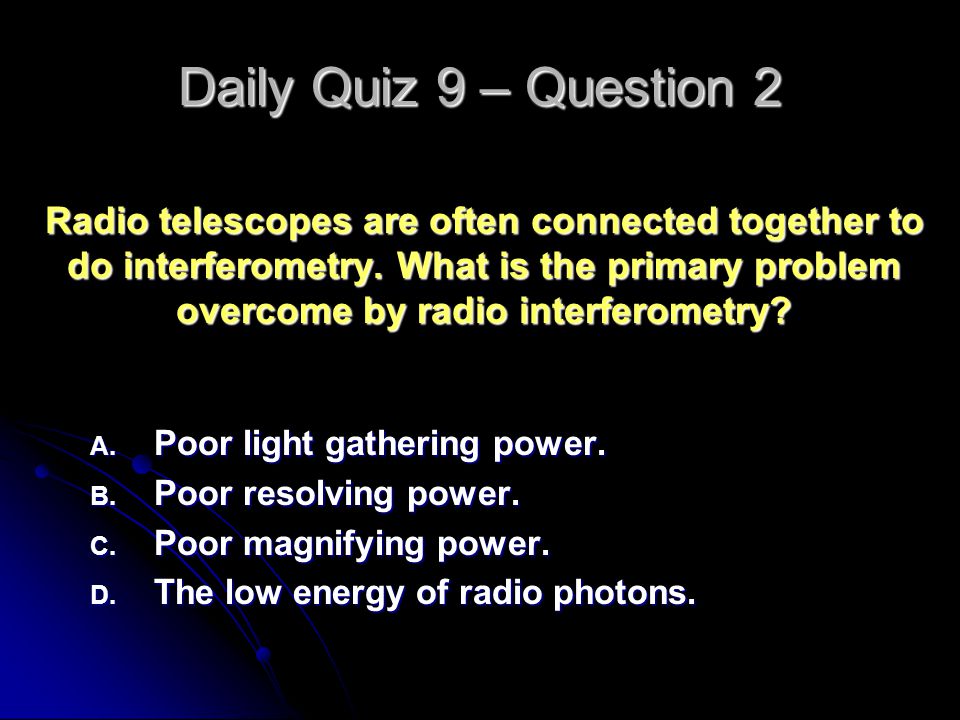

26 Radio telescopes are often connected together to do interferometry. What is the primary problem overcome by radio interferometry? A. Poor light gathering power. B. Poor resolving power. C. Poor magnifying power. D. The low energy of radio photons. Daily Quiz 9 – Question 2

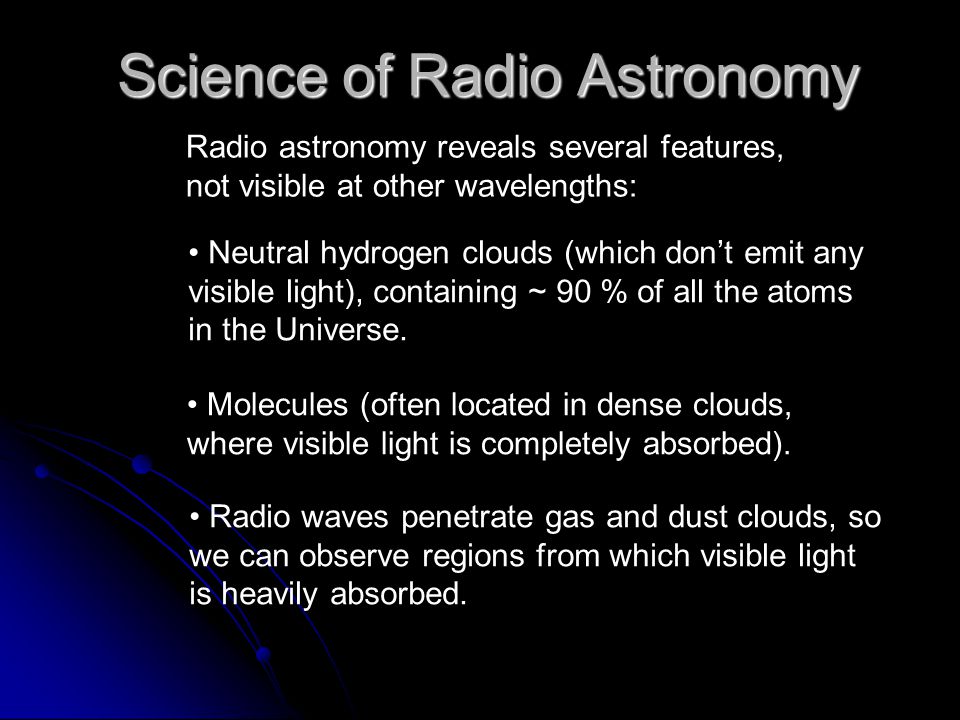

27 Science of Radio Astronomy Radio astronomy reveals several features, not visible at other wavelengths: Neutral hydrogen clouds (which don’t emit any visible light), containing ~ 90 % of all the atoms in the Universe. Molecules (often located in dense clouds, where visible light is completely absorbed). Radio waves penetrate gas and dust clouds, so we can observe regions from which visible light is heavily absorbed.

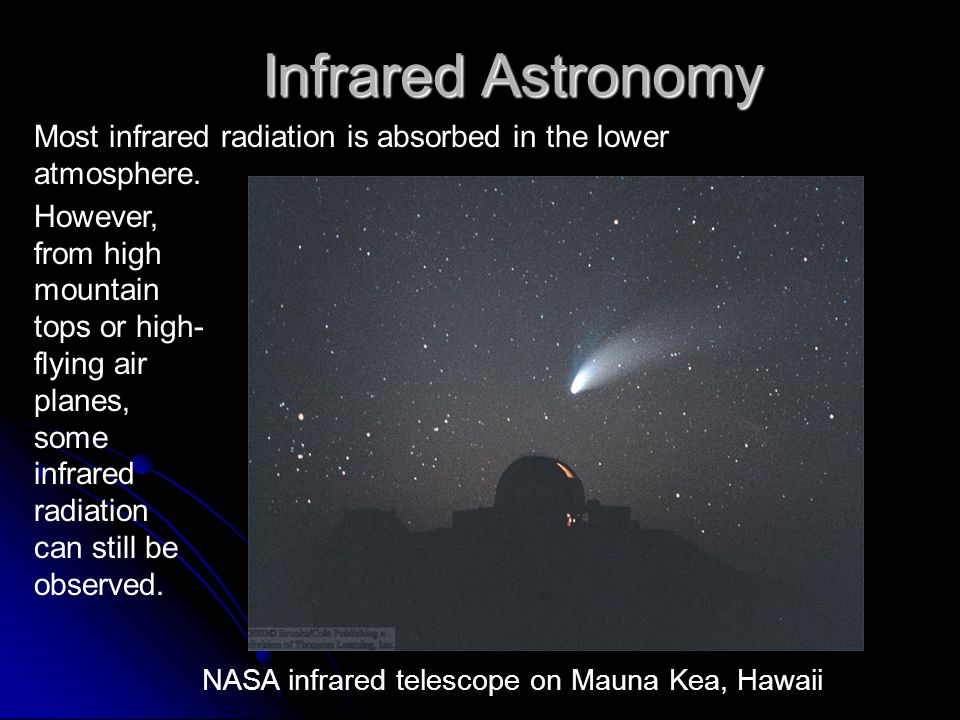

28 Infrared Astronomy However, from high mountain tops or high- flying air planes, some infrared radiation can still be observed. NASA infrared telescope on Mauna Kea, Hawaii Most infrared radiation is absorbed in the lower atmosphere.

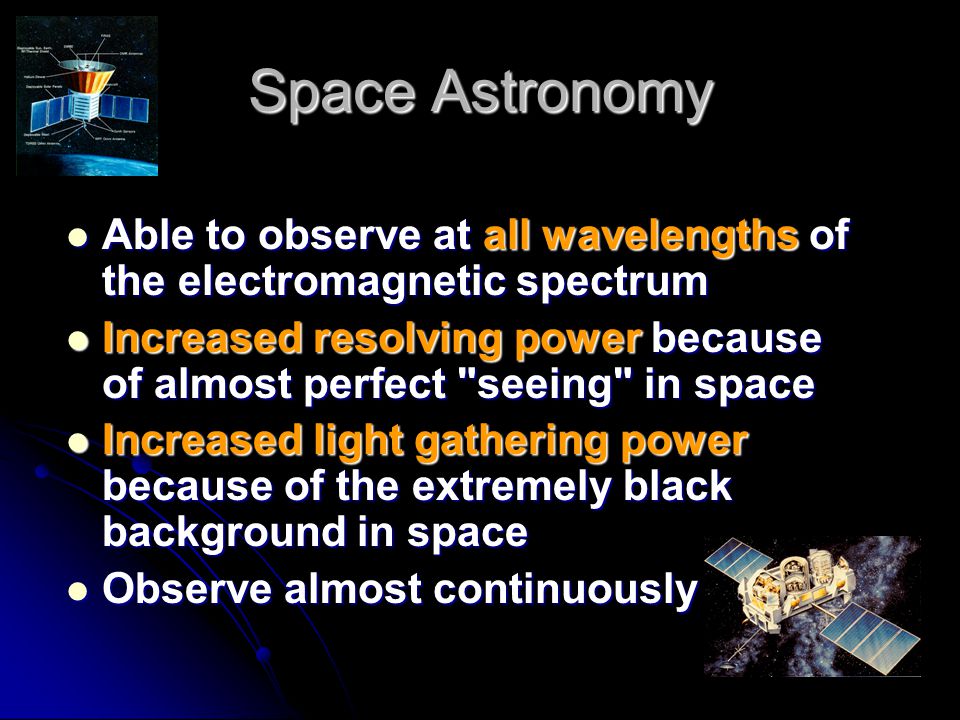

29 Space Astronomy Able to observe at all wavelengths of the electromagnetic spectrum Able to observe at all wavelengths of the electromagnetic spectrum Increased resolving power because of almost perfect "seeing" in space Increased resolving power because of almost perfect "seeing" in space Increased light gathering power because of the extremely black background in space Increased light gathering power because of the extremely black background in space Observe almost continuously Observe almost continuously

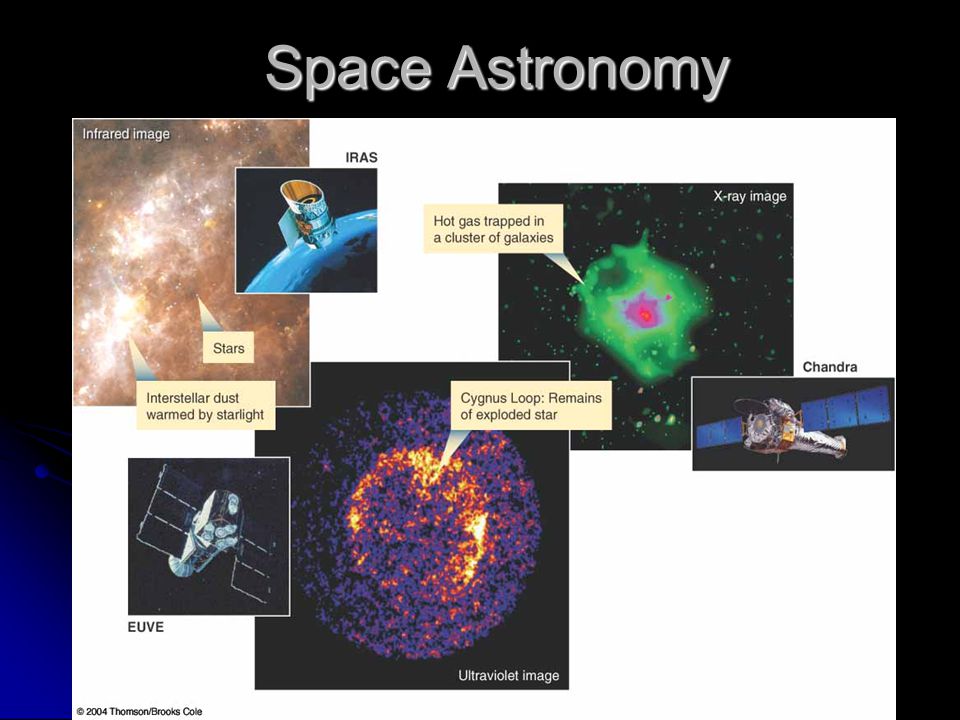

30 Space Astronomy

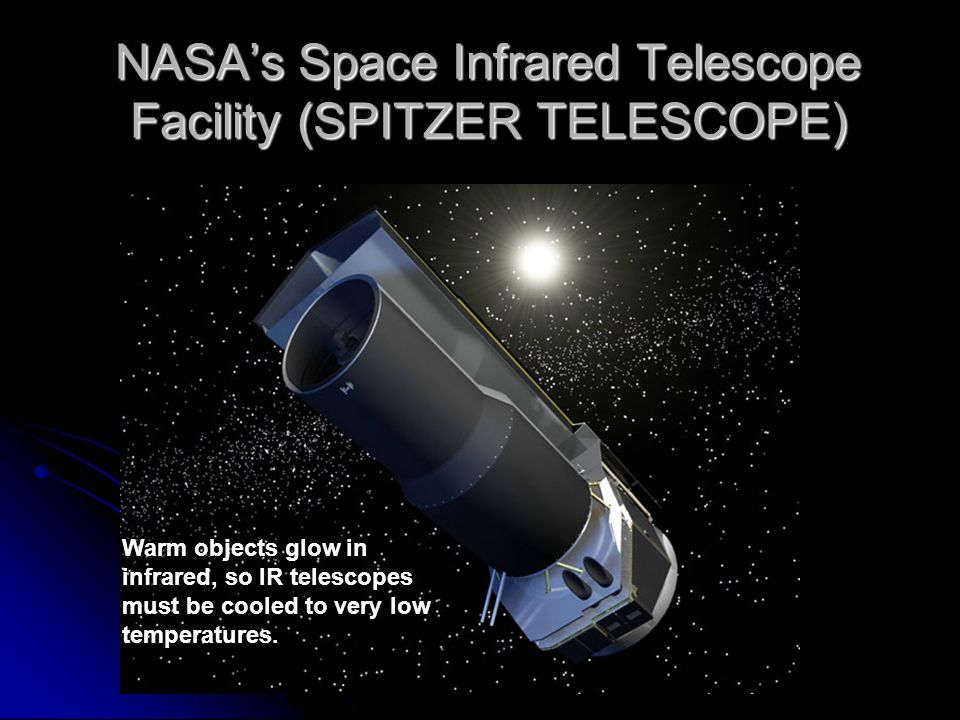

31 NASA’s Space Infrared Telescope Facility (SPITZER TELESCOPE) Warm objects glow in infrared, so IR telescopes must be cooled to very low temperatures.

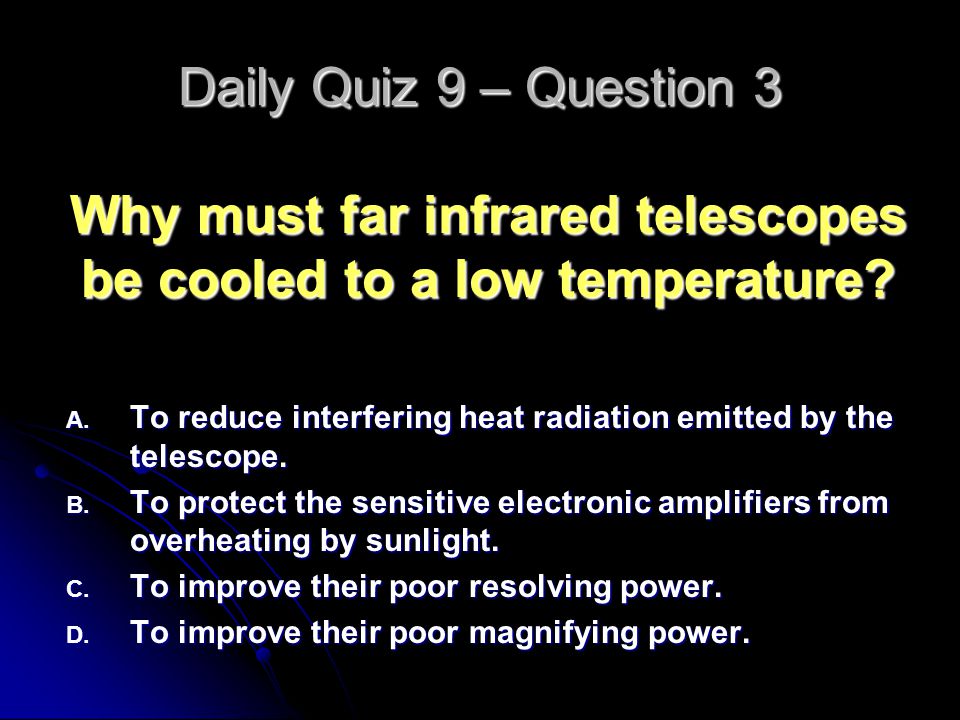

32 Why must far infrared telescopes be cooled to a low temperature? A. To reduce interfering heat radiation emitted by the telescope. B. To protect the sensitive electronic amplifiers from overheating by sunlight. C. To improve their poor resolving power. D. To improve their poor magnifying power. Daily Quiz 9 – Question 3

33

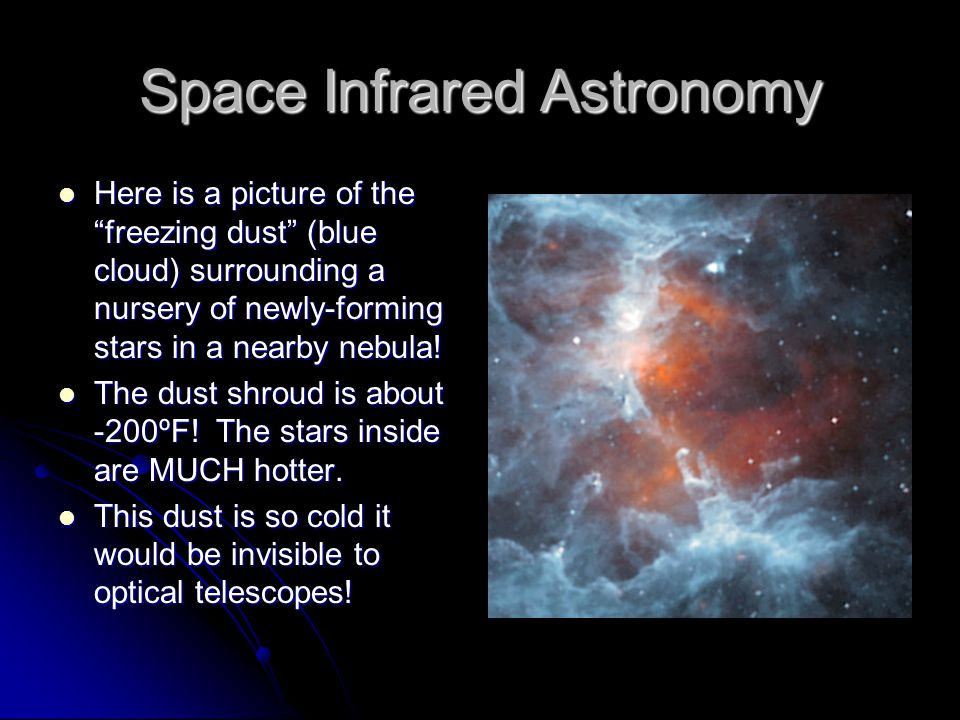

34 Space Infrared Astronomy Here is a picture of the “freezing dust” (blue cloud) surrounding a nursery of newly-forming stars in a nearby nebula! Here is a picture of the “freezing dust” (blue cloud) surrounding a nursery of newly-forming stars in a nearby nebula! The dust shroud is about -200ºF! The stars inside are MUCH hotter. The dust shroud is about -200ºF! The stars inside are MUCH hotter. This dust is so cold it would be invisible to optical telescopes! This dust is so cold it would be invisible to optical telescopes!

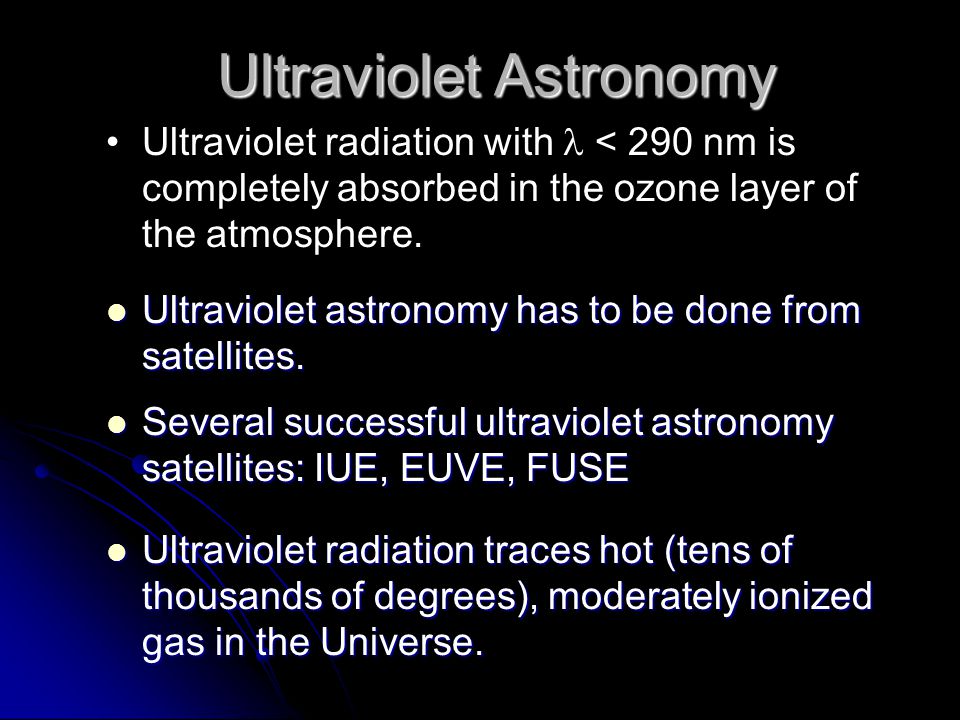

35 Ultraviolet Astronomy Ultraviolet radiation with < 290 nm is completely absorbed in the ozone layer of the atmosphere. Ultraviolet astronomy has to be done from satellites. Ultraviolet astronomy has to be done from satellites. Several successful ultraviolet astronomy satellites: IUE, EUVE, FUSE Several successful ultraviolet astronomy satellites: IUE, EUVE, FUSE Ultraviolet radiation traces hot (tens of thousands of degrees), moderately ionized gas in the Universe. Ultraviolet radiation traces hot (tens of thousands of degrees), moderately ionized gas in the Universe.

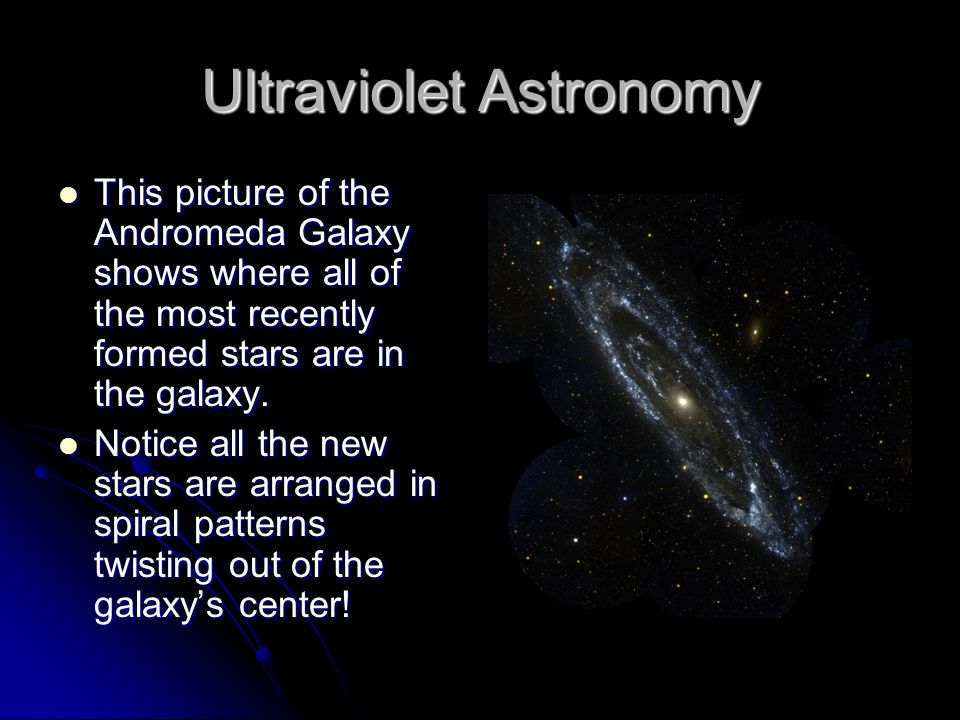

36 Ultraviolet Astronomy This picture of the Andromeda Galaxy shows where all of the most recently formed stars are in the galaxy. This picture of the Andromeda Galaxy shows where all of the most recently formed stars are in the galaxy. Notice all the new stars are arranged in spiral patterns twisting out of the galaxy’s center! Notice all the new stars are arranged in spiral patterns twisting out of the galaxy’s center!

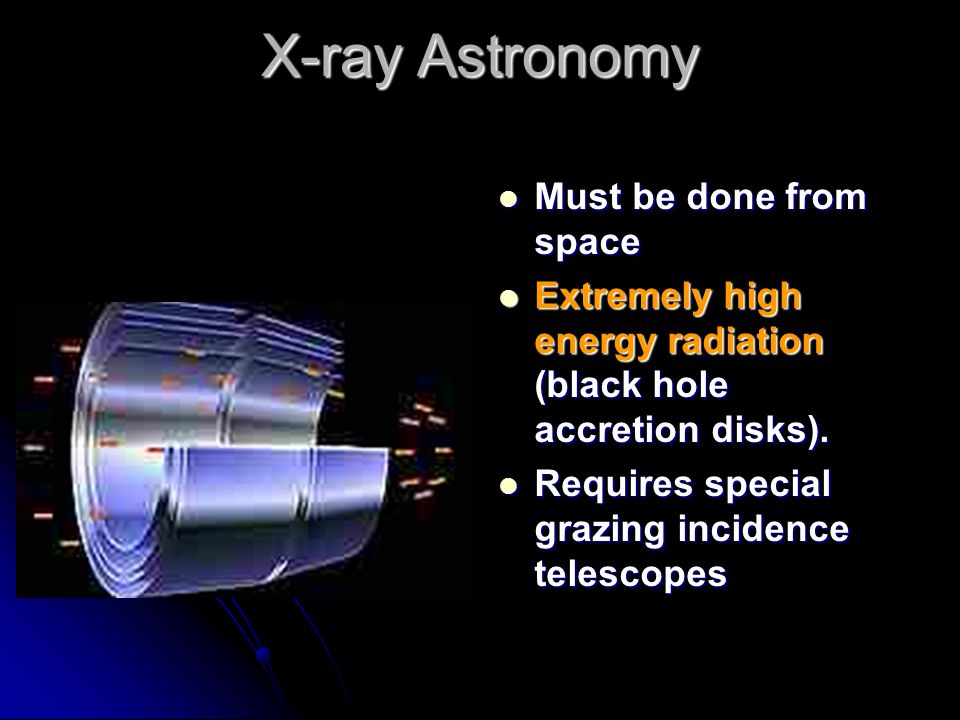

37 X-ray Astronomy Must be done from space Must be done from space Extremely high energy radiation (black hole accretion disks). Extremely high energy radiation (black hole accretion disks). Requires special grazing incidence telescopes Requires special grazing incidence telescopes

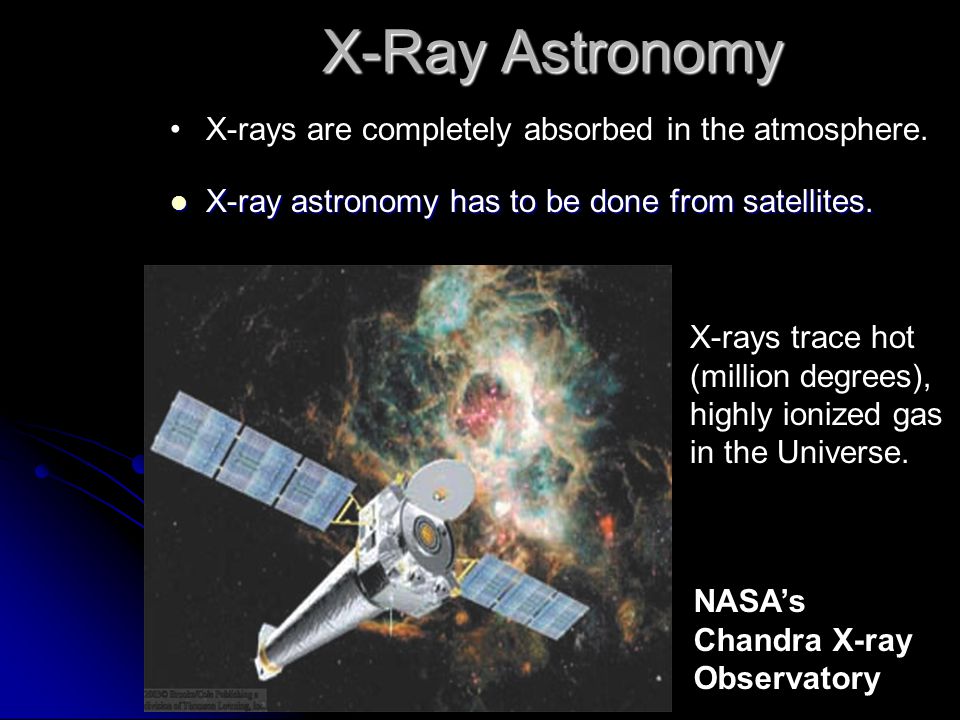

38 X-Ray Astronomy X-rays are completely absorbed in the atmosphere. X-ray astronomy has to be done from satellites. X-ray astronomy has to be done from satellites. NASA’s Chandra X-ray Observatory X-rays trace hot (million degrees), highly ionized gas in the Universe.

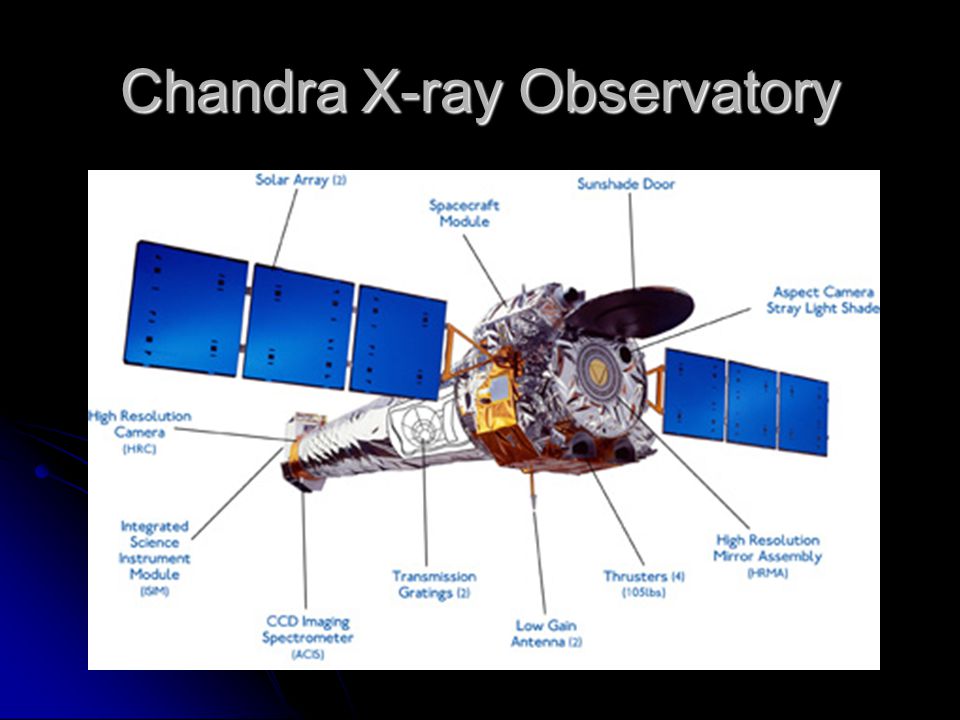

39 Chandra X-ray Observatory

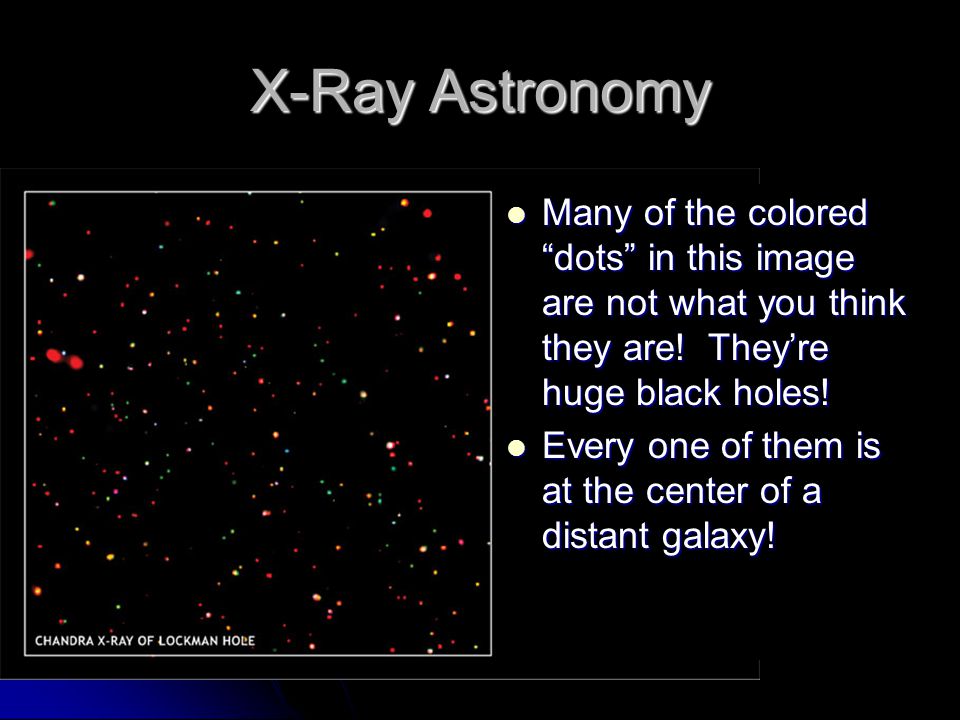

40 X-Ray Astronomy Many of the colored “dots” in this image are not what you think they are! They’re huge black holes! Many of the colored “dots” in this image are not what you think they are! They’re huge black holes! Every one of them is at the center of a distant galaxy! Every one of them is at the center of a distant galaxy!

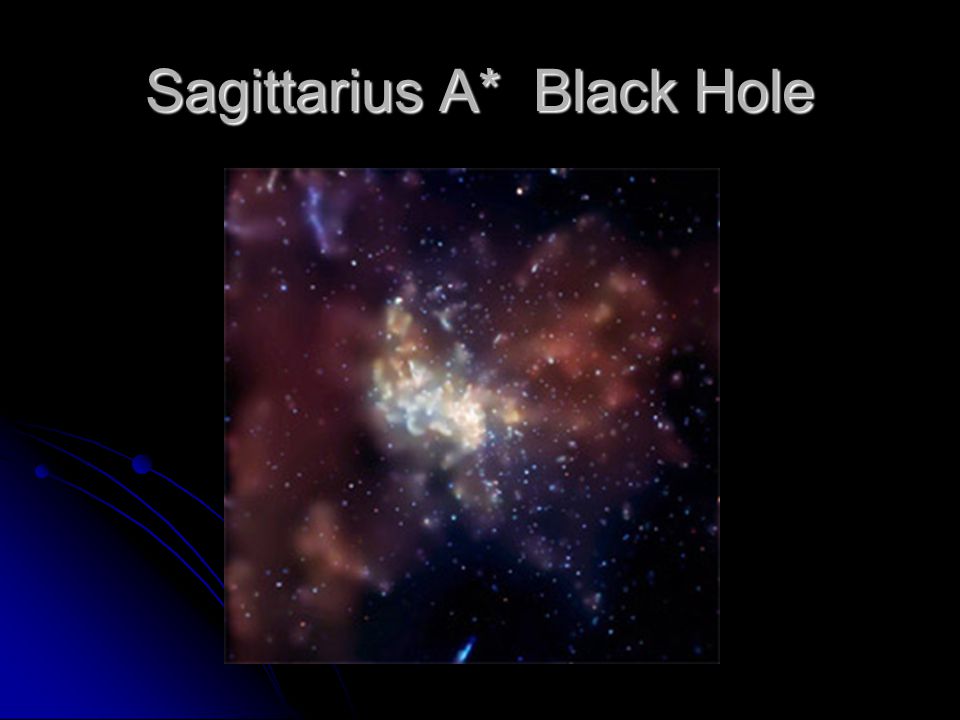

41 Sagittarius A* Black Hole

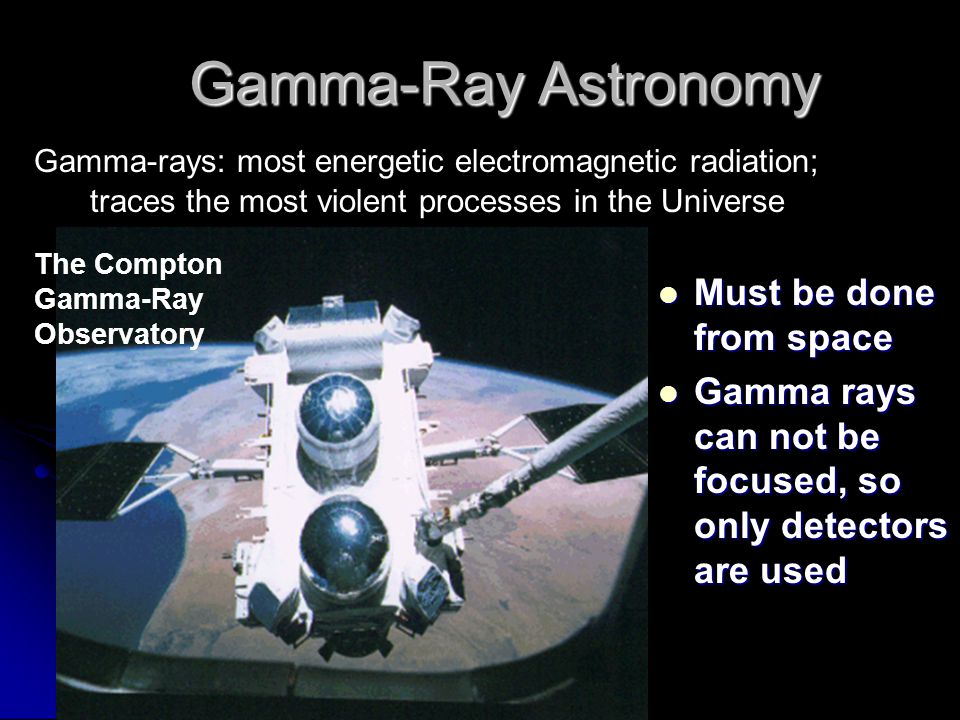

42 Gamma-Ray Astronomy Gamma-rays: most energetic electromagnetic radiation; traces the most violent processes in the Universe The Compton Gamma-Ray Observatory Must be done from space Must be done from space Gamma rays can not be focused, so only detectors are used Gamma rays can not be focused, so only detectors are used

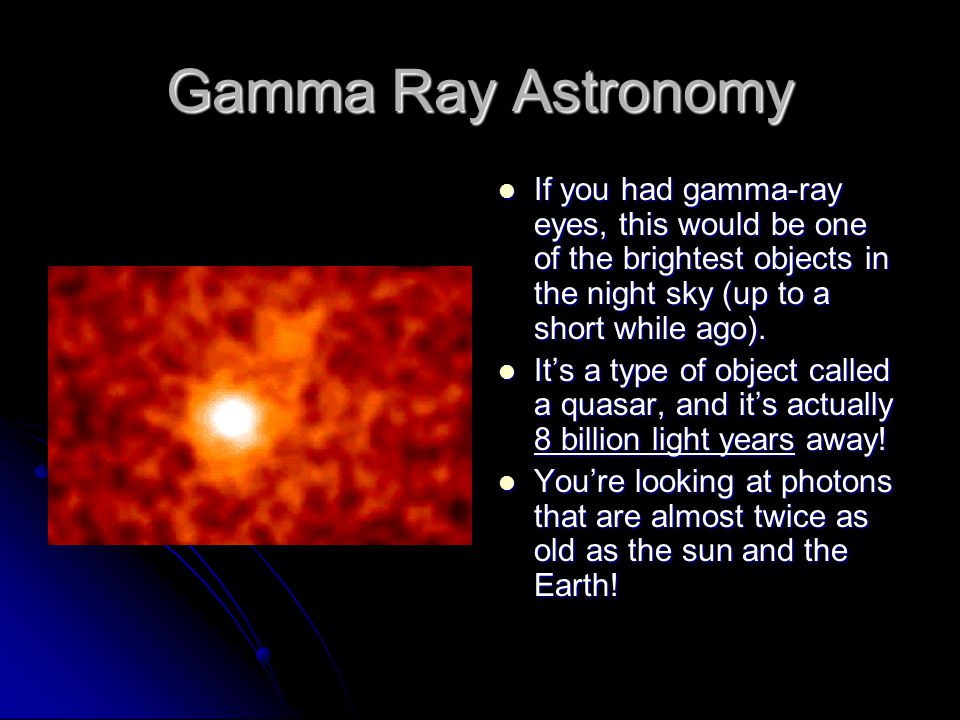

43 If you had gamma-ray eyes, this would be one of the brightest objects in the night sky (up to a short while ago). If you had gamma-ray eyes, this would be one of the brightest objects in the night sky (up to a short while ago). It’s a type of object called a quasar, and it’s actually 8 billion light years away! It’s a type of object called a quasar, and it’s actually 8 billion light years away! You’re looking at photons that are almost twice as old as the sun and the Earth! You’re looking at photons that are almost twice as old as the sun and the Earth! Gamma Ray Astronomy

44 Why are near infrared telescopes located on mountaintops and ultraviolet telescopes in Earth orbit? A. The primary infrared blocker, water vapor, is mostly in the lower atmosphere. B. The primary ultraviolet blocker, ozone, is located high in the atmosphere, far above mountaintops. C. Ultraviolet telescopes require the low temperature of space to operate. D. Both A and B. Daily Quiz 9 – Question 4

45 The Hubble Space Telescope Avoids turbulence in the Earth’s atmosphere Extends imaging and spectroscopy to (invisible) infrared and ultraviolet Launched in 1990; maintained and upgraded by several space shuttle service missions throughout the 1990s and early 2000’s

46 For Next Time Read Units 23 and 24 for Monday. Read Units 23 and 24 for Monday. Remember that the Homework is due Monday as well. Remember that the Homework is due Monday as well. Happy Valentine’s Day! Happy Valentine’s Day!
