1. RPI Campus Map Maze Peter Charde- Lansingburgh Tallis Warren- Columbia

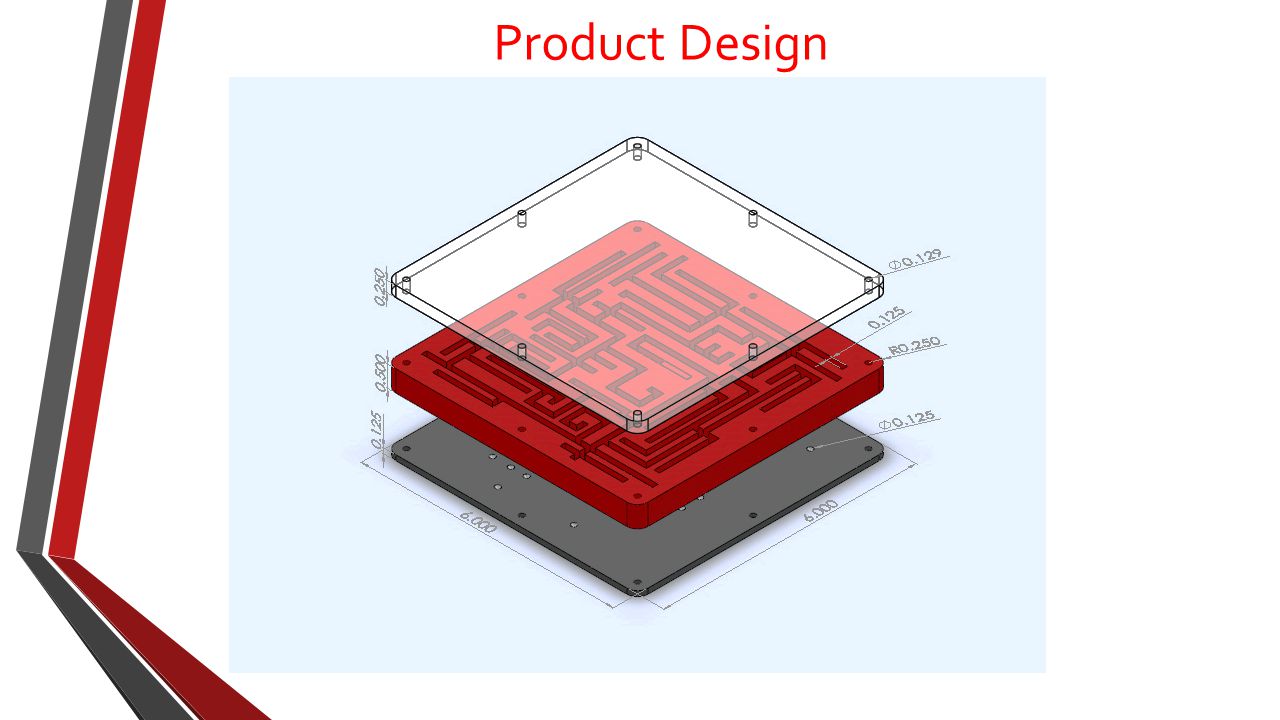

2. Product Design

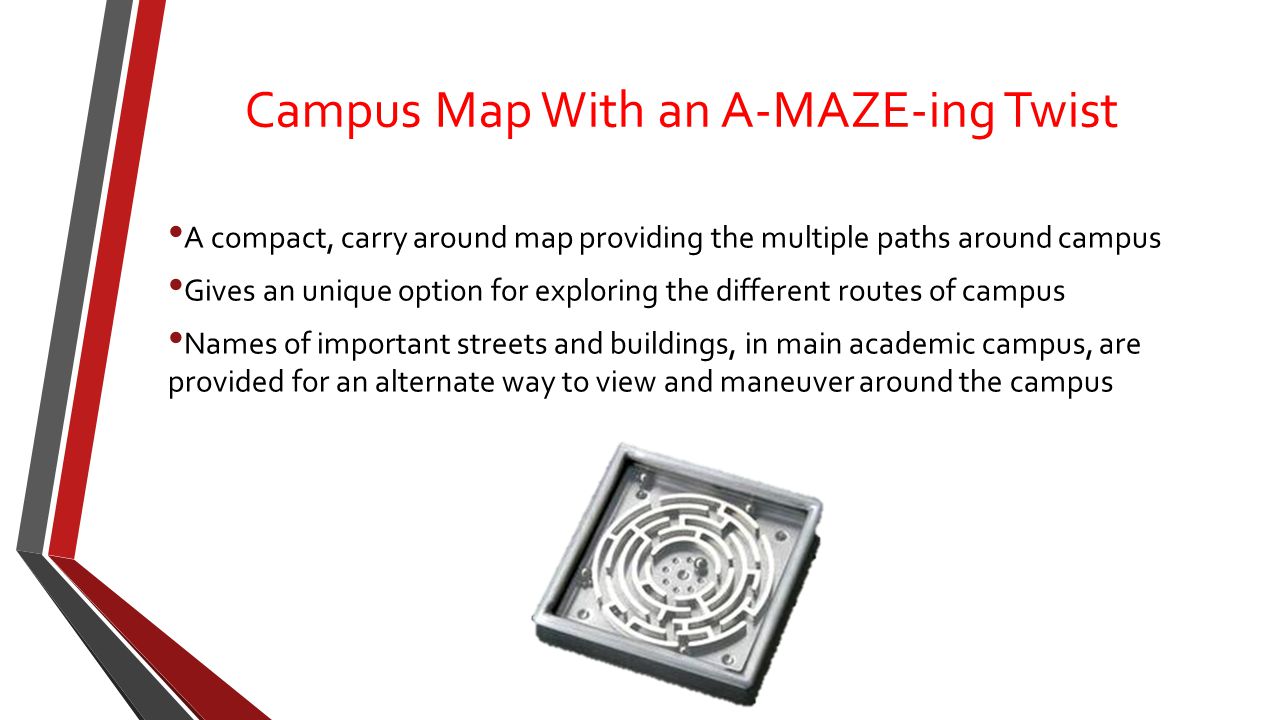

3. Campus Map With an A-MAZE-ing Twist A compact, carry around map providing the multiple paths around campus Gives an unique option for exploring the different routes of campus Names of important streets and buildings, in main academic campus, are provided for an alternate way to view and maneuver around the campus

4. Making of the Maze Equipment/Processes: Abrasive Water Jet Powder Coating CNC Machining Injection Molding Laser Engraver Ultrasonic Welding Robotic assembly Materials: Aluminum Acrylic Mold Polycarbonate Screws Marble (clear) LED Illuminated Momentary Dip Tact Switch Battery Powder coating

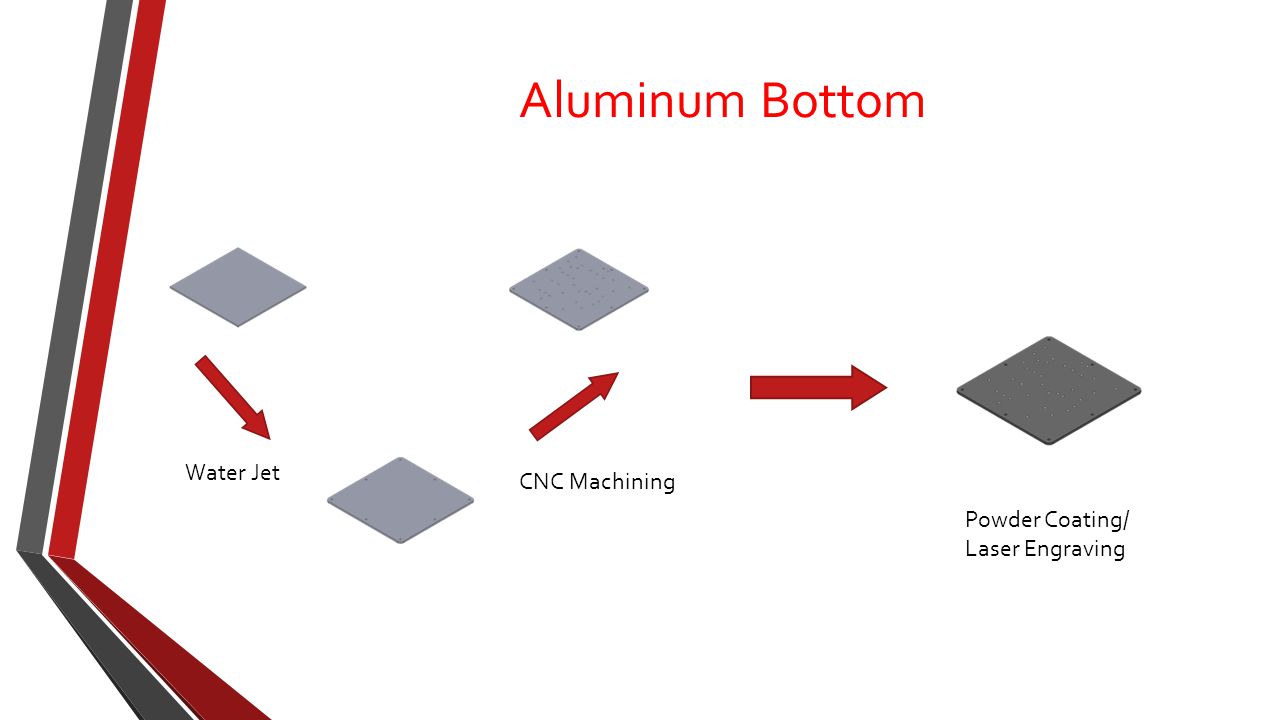

5. Aluminum Bottom Water Jet CNC Machining Powder Coating/ Laser Engraving

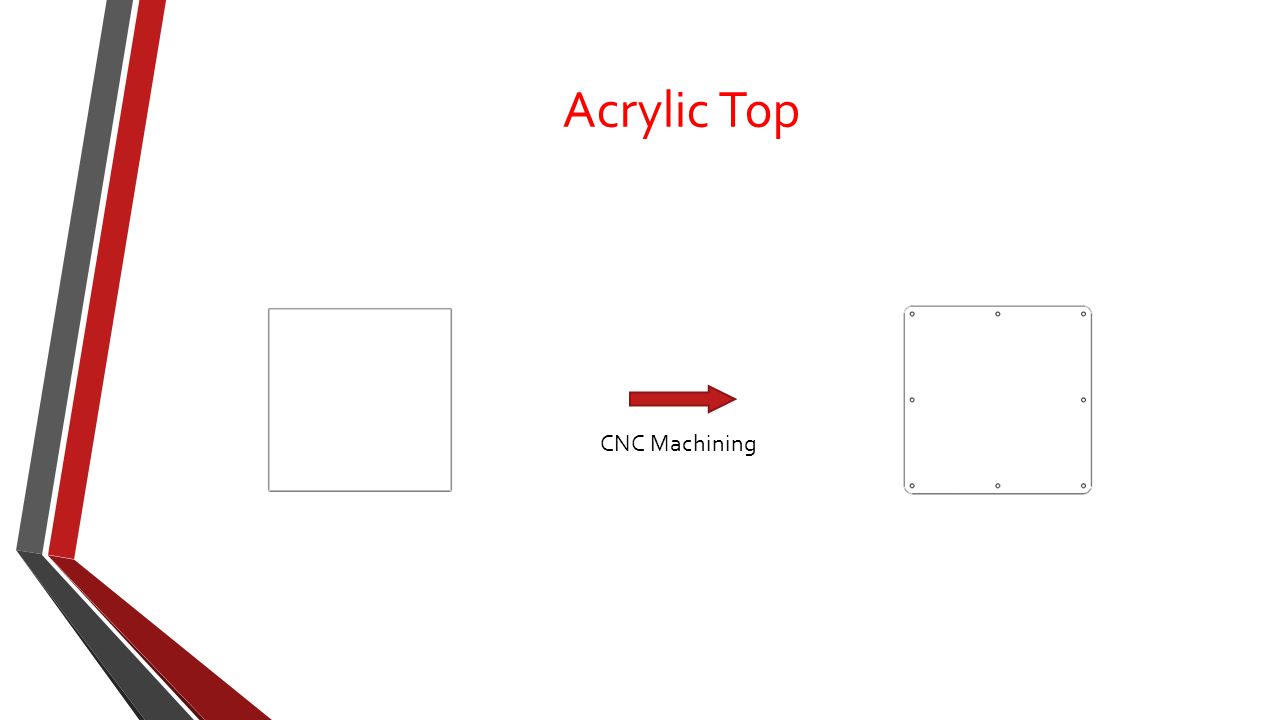

6. Acrylic Top CNC Machining

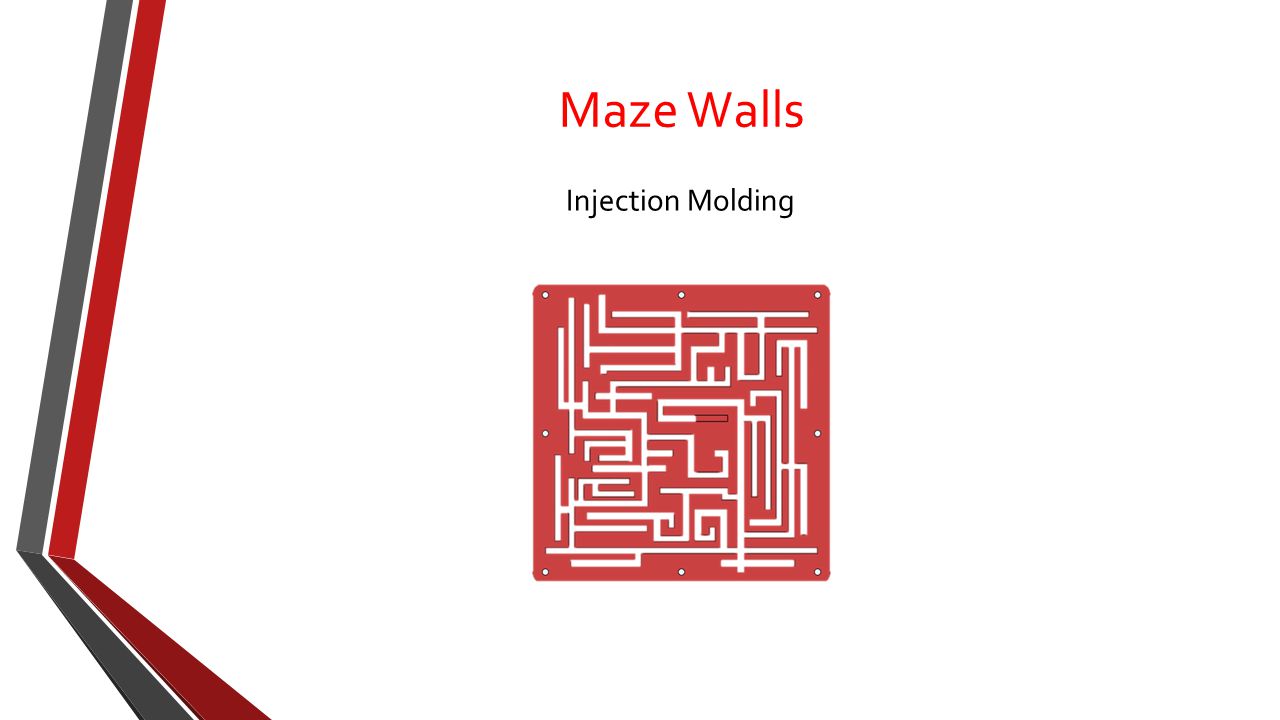

7. Maze Walls Injection Molding

8. Maze Assembly 8 Screws/Insert ComponentsUltrasonic Welding

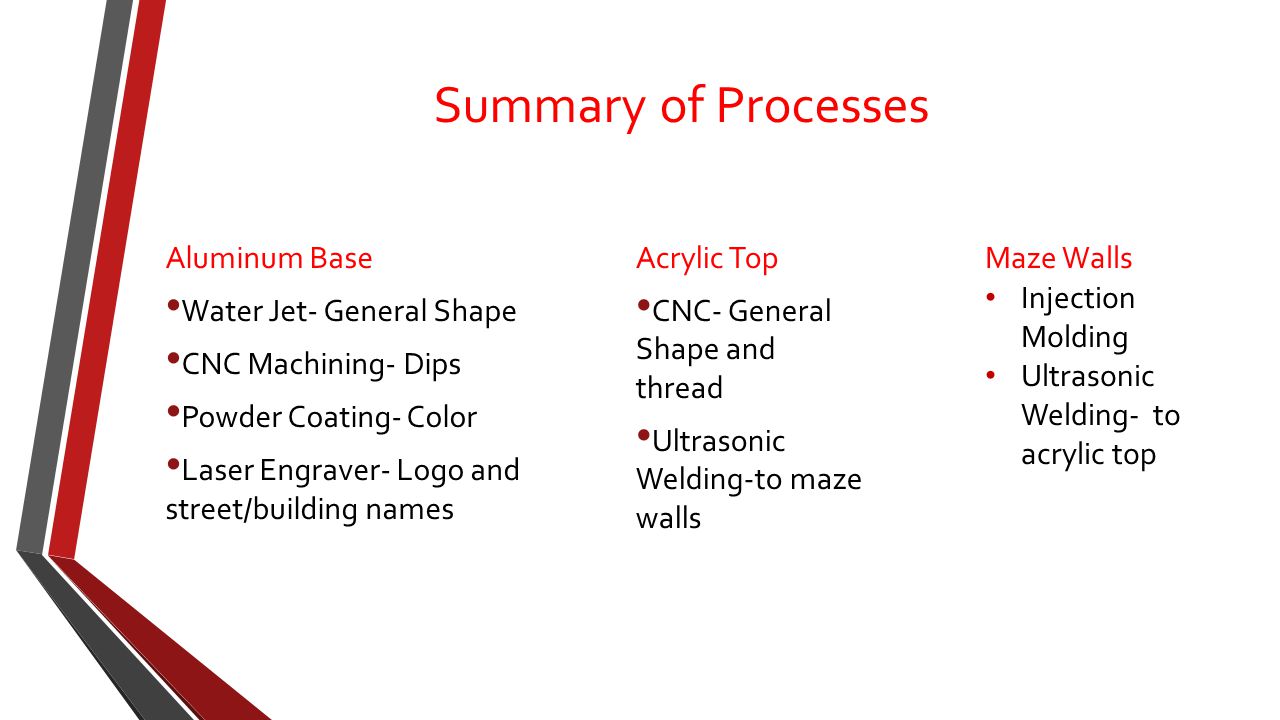

9. Summary of Processes Aluminum Base Water Jet- General Shape CNC Machining- Dips Powder Coating- Color Laser Engraver- Logo and street/building names Acrylic Top CNC- General Shape and thread Ultrasonic Welding-to maze walls Maze Walls Injection Molding Ultrasonic Welding- to acrylic top

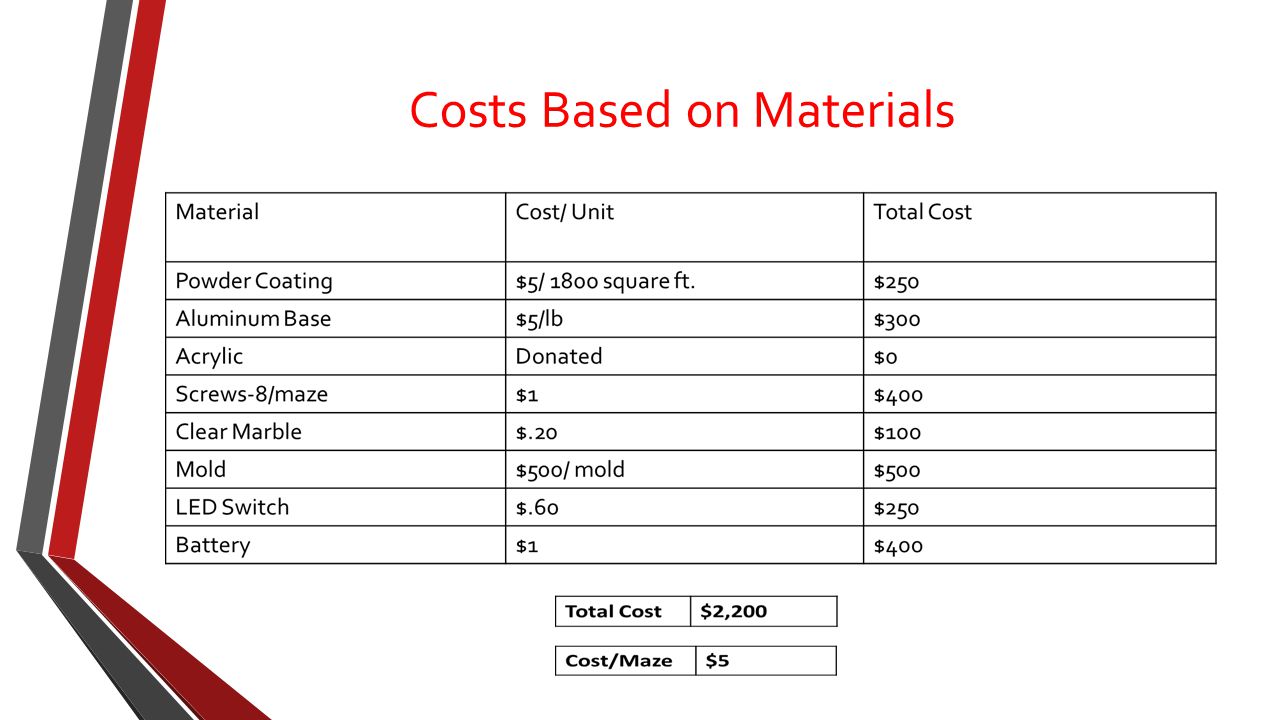

10. Costs Based on Materials

11. Any Questions?
