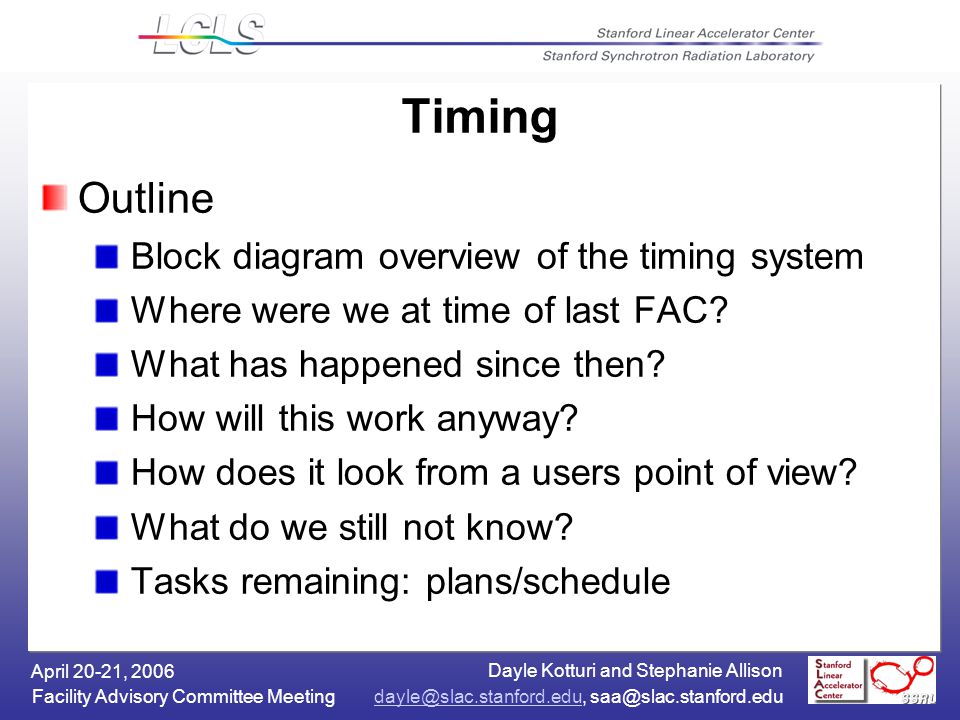

1. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 Timing Outline Block diagram overview of the timing system Where were we at time of last FAC? What has happened since then? How will this work anyway? How does it look from a users point of view? What do we still not know? Tasks remaining: plans/schedule

2. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 Timing System

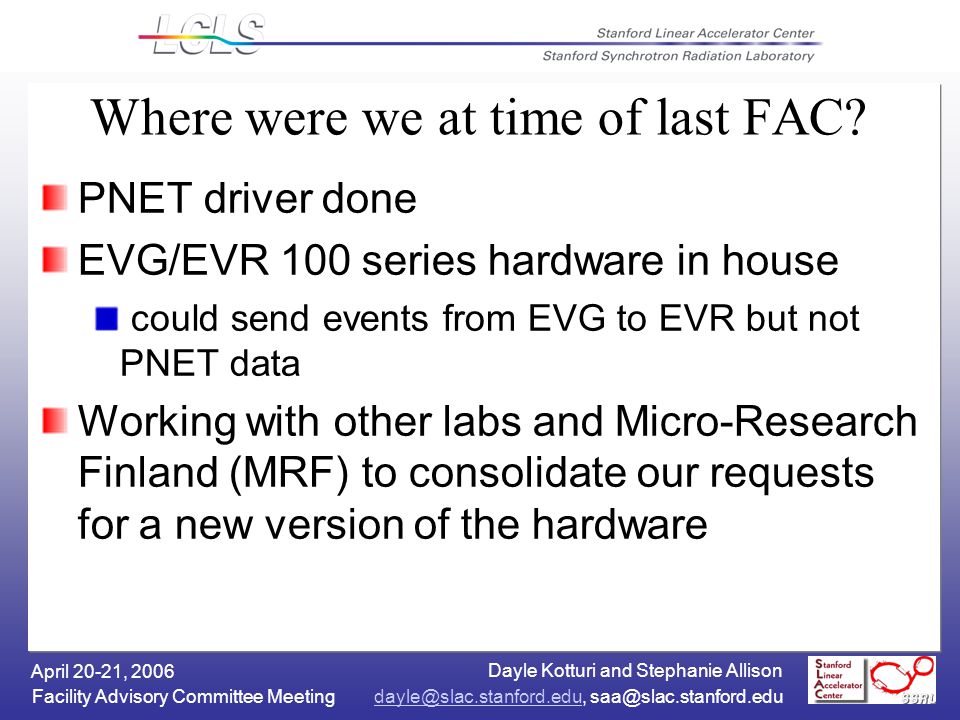

3. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 Where were we at time of last FAC? PNET driver done EVG/EVR 100 series hardware in house could send events from EVG to EVR but not PNET data Working with other labs and Micro-Research Finland (MRF) to consolidate our requests for a new version of the hardware

4. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 What has happened since then? Received the EVG/EVR 200 series VME hardware (which sends up to 2K data buffer) Adapted driver and device support to: send the PNET data buffer (measured 66 µs transfer) be OSI (running on mvme6100, RTEMS4.7) with help from Till Straumann, Eric Bjorklund, Timo Korhonen, Jukka Pietarinen and Bob Dalesio Wrote Timing Trigger System Engineering Manual Received the EVR 200 series PMC module Installed fiber optic network in Bldg 280 for testing

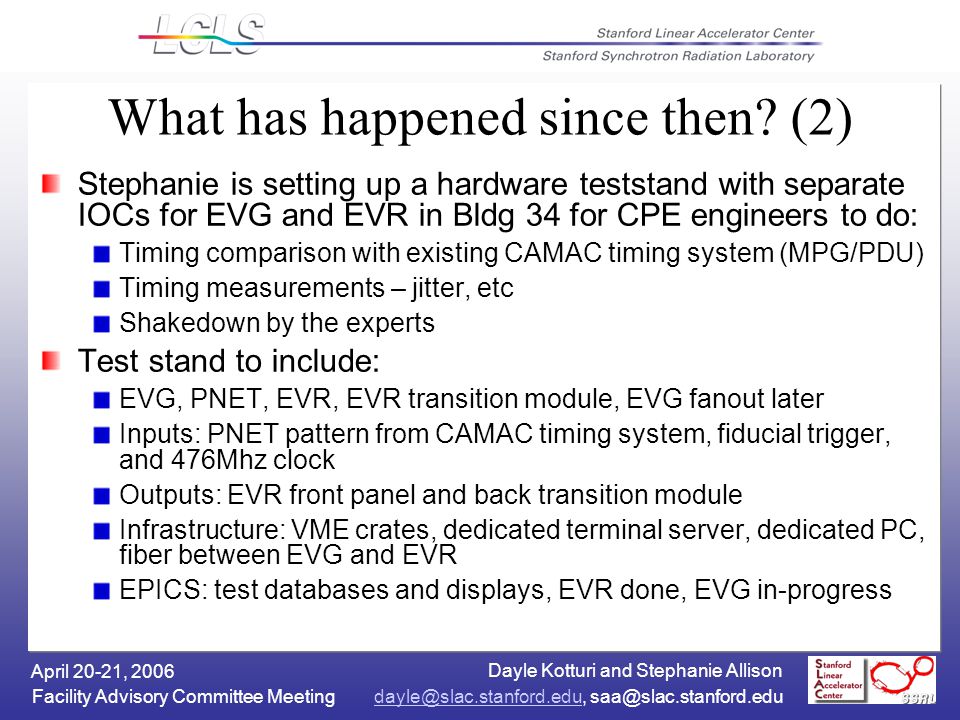

5. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 What has happened since then? (2) Stephanie is setting up a hardware teststand with separate IOCs for EVG and EVR in Bldg 34 for CPE engineers to do: Timing comparison with existing CAMAC timing system (MPG/PDU) Timing measurements – jitter, etc Shakedown by the experts Test stand to include: EVG, PNET, EVR, EVR transition module, EVG fanout later Inputs: PNET pattern from CAMAC timing system, fiducial trigger, and 476Mhz clock Outputs: EVR front panel and back transition module Infrastructure: VME crates, dedicated terminal server, dedicated PC, fiber between EVG and EVR EPICS: test databases and displays, EVR done, EVG in-progress

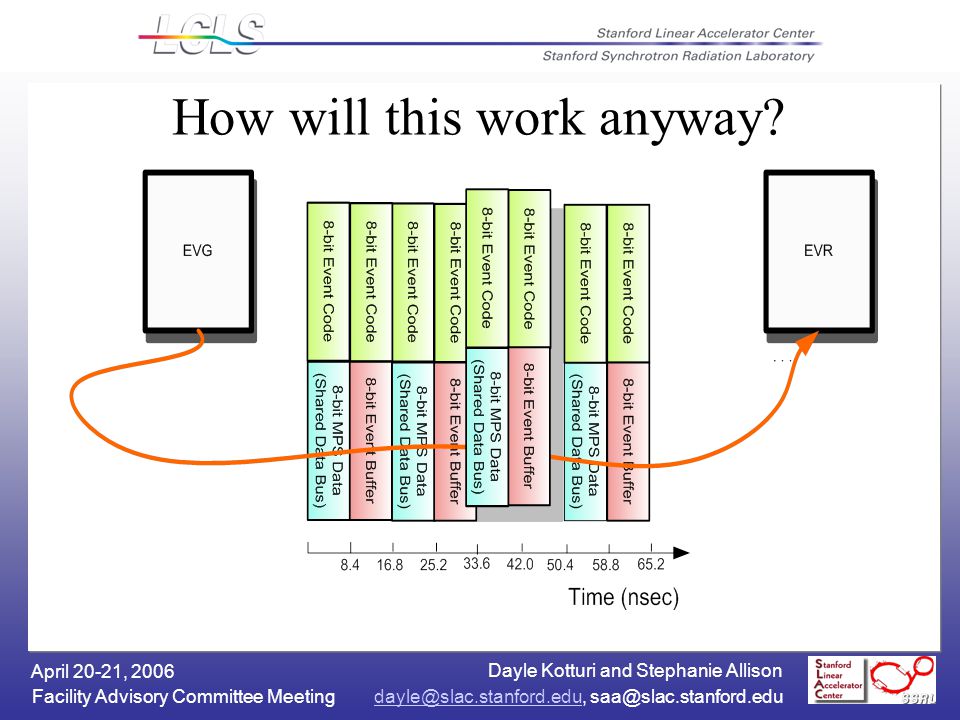

6. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 How will this work anyway?

7. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 EVG/EVR data sources by type

8. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 Timescale for event code transfer 360Hz fiducial Time after fiducial that event code is sent(millisec) LCLS timeslot shown RF event 0.51.0 BPM event 0.0 Laser event Beam On 2.5 2.0 1.5 1Hz event 10Hz event Event Code

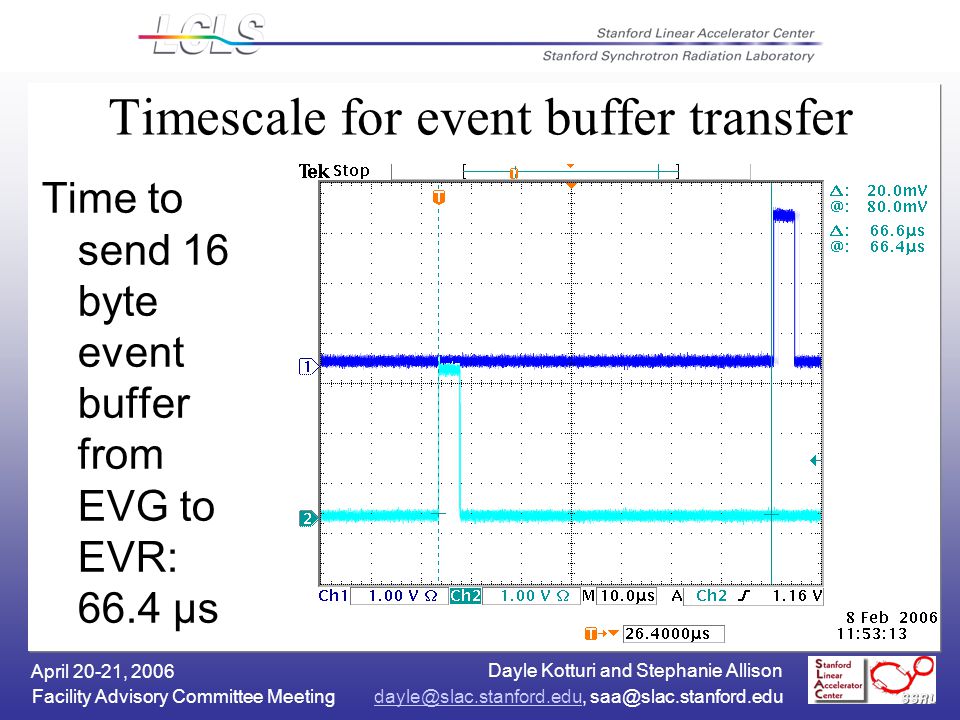

9. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 Timescale for event buffer transfer Time to send 16 byte event buffer from EVG to EVR: 66.4 µs

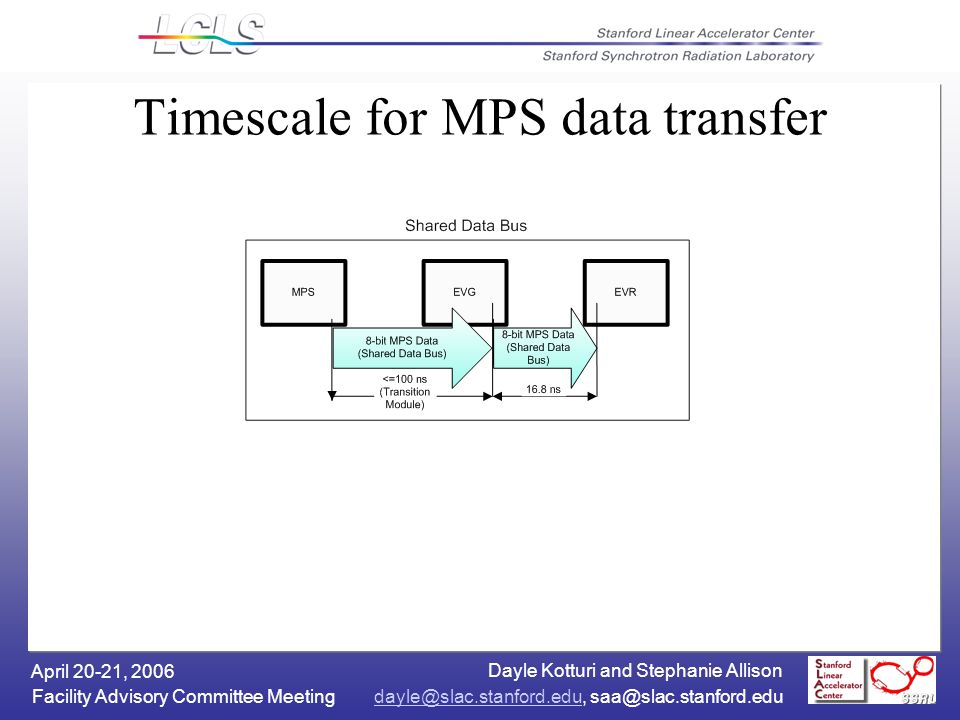

10. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 Timescale for MPS data transfer

11. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 How does it look to a user?

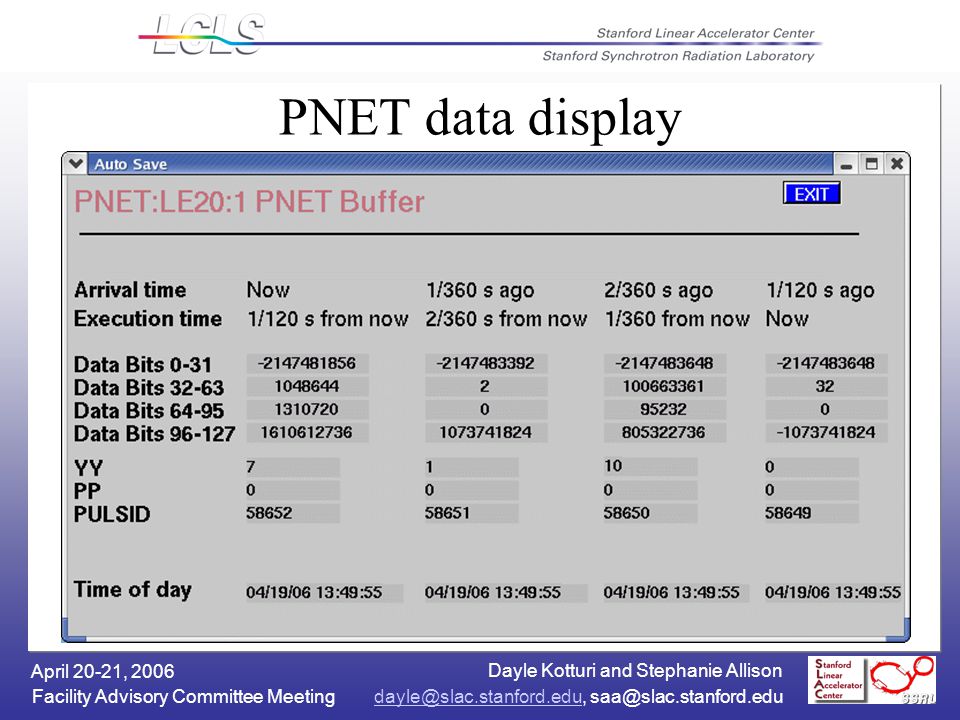

12. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 PNET data display

13. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 EVR diagnostics for h/w engineers

14. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 EVR event diagnostics for h/w engs

15. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 What do we still not know? Verify jitter Verify fiber optic performance (multi vs single mode) Licensing agreement with MRF

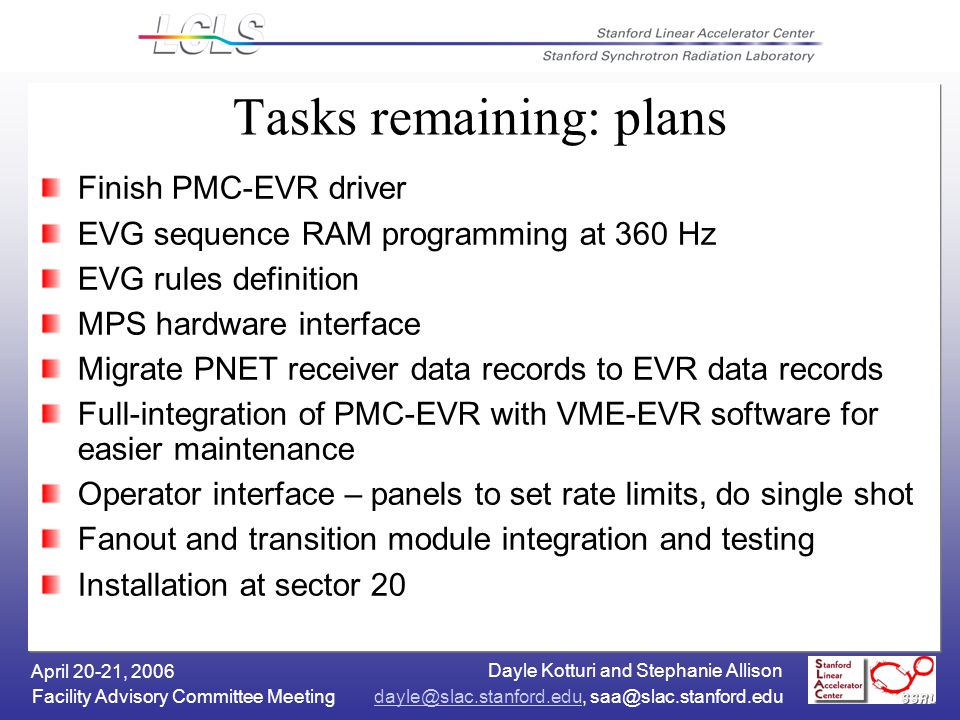

16. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 Tasks remaining: plans Finish PMC-EVR driver EVG sequence RAM programming at 360 Hz EVG rules definition MPS hardware interface Migrate PNET receiver data records to EVR data records Full-integration of PMC-EVR with VME-EVR software for easier maintenance Operator interface – panels to set rate limits, do single shot Fanout and transition module integration and testing Installation at sector 20

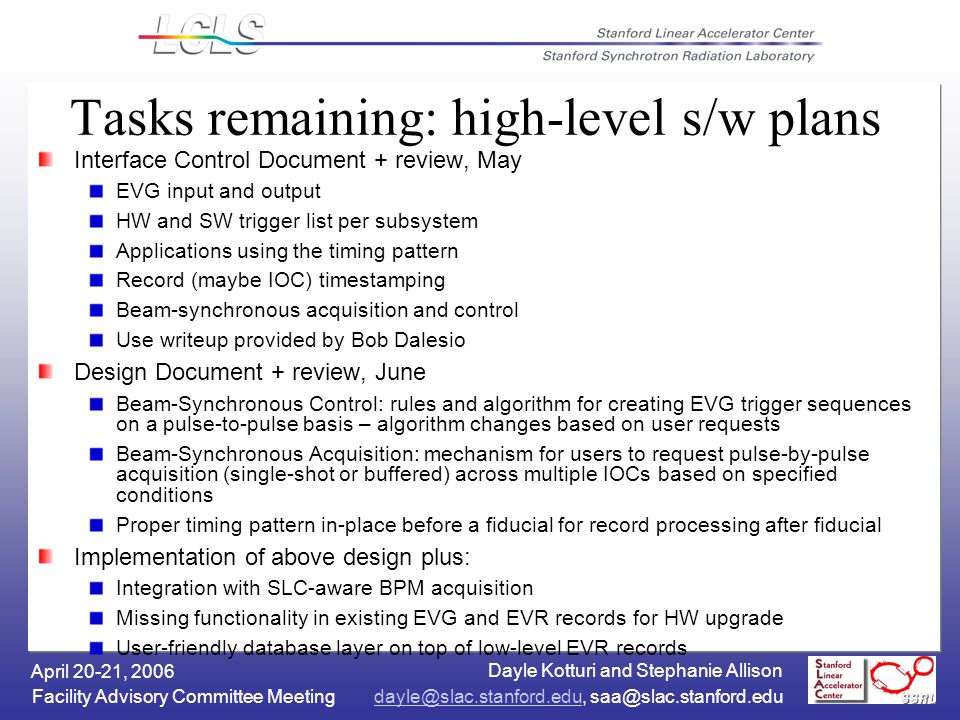

17. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 Interface Control Document + review, May EVG input and output HW and SW trigger list per subsystem Applications using the timing pattern Record (maybe IOC) timestamping Beam-synchronous acquisition and control Use writeup provided by Bob Dalesio Design Document + review, June Beam-Synchronous Control: rules and algorithm for creating EVG trigger sequences on a pulse-to-pulse basis – algorithm changes based on user requests Beam-Synchronous Acquisition: mechanism for users to request pulse-by-pulse acquisition (single-shot or buffered) across multiple IOCs based on specified conditions Proper timing pattern in-place before a fiducial for record processing after fiducial Implementation of above design plus: Integration with SLC-aware BPM acquisition Missing functionality in existing EVG and EVR records for HW upgrade User-friendly database layer on top of low-level EVR records Tasks remaining: high-level s/w plans

18. Dayle Kotturi and Stephanie Allison Facility Advisory Committee Meeting dayle@slac.stanford.edudayle@slac.stanford.edu, saa@slac.stanford.edu April 20-21, 2006 Tasks remaining: schedule We’re in the process of redoing/updating the work breakdown schedule. A draft is due by end of April and final version in May.
